Despite extensive uptake in Agile and more recently Lean approaches, many teams and organisations still struggle to achieve a required level of software quality. This presentation will highlight a number of the key real world mistakes being make by organisations and their development teams in relation to integrating test into the agile lifecycle and suggest ways to improve. This webinar explores issues relating to: - The perceived value of testing in agile teams and organisations - The meaning of cross-functional and how this impacts on testers and testing - Integrating test competency into an agile team – team and organisational issues. - How to cope without the traditional independent test manager/lead roles - Release and feature level thinking – planning for optimum integration of test - Avoiding the mini waterfall in Sprints/iterations where testing is squeezed at the end of the timebox - Stories, acceptance criteria and ‘Acceptance’ level TDD - What ‘done’ looks like from a test perspective

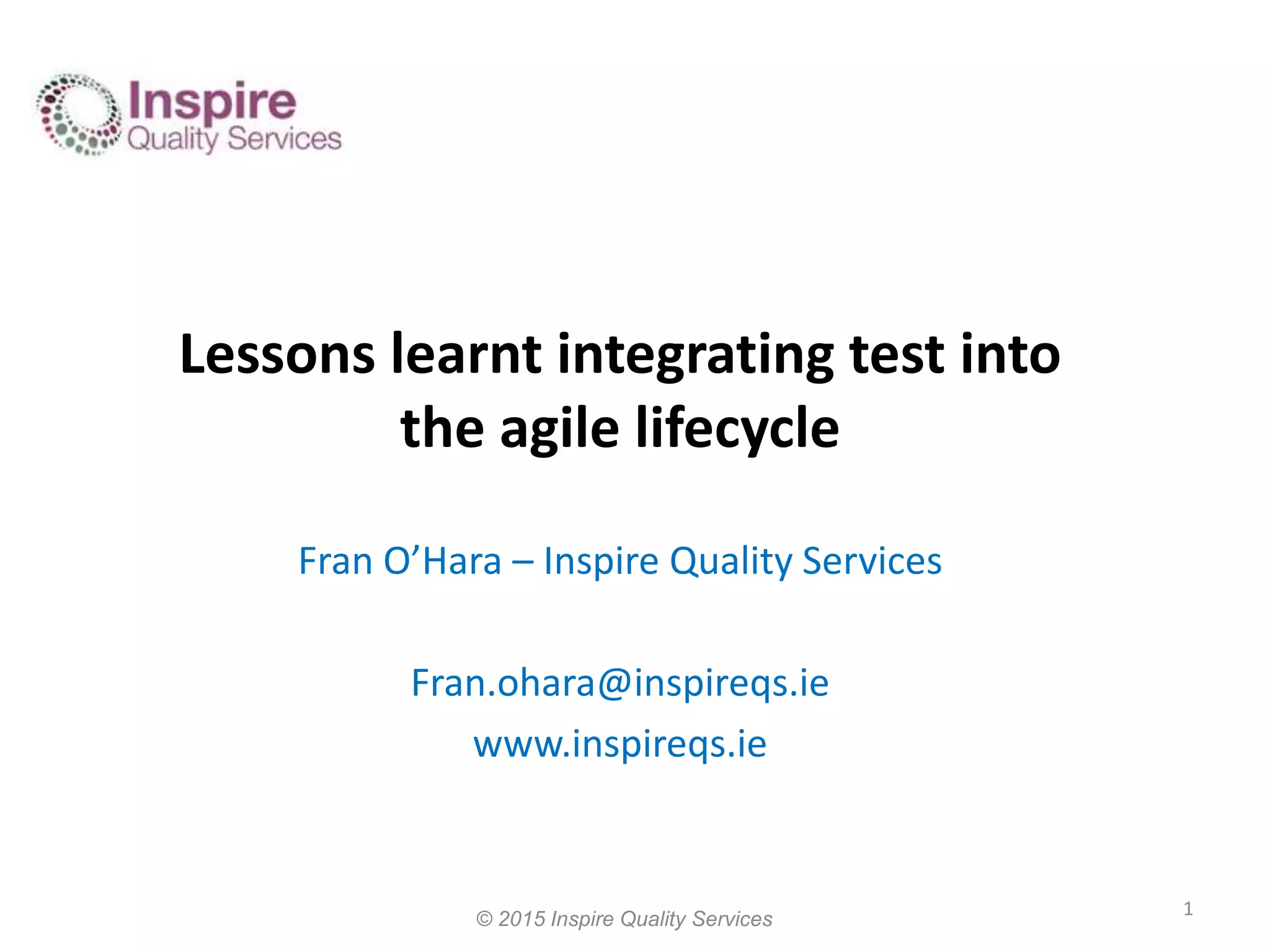

1. Lessons learnt integrating test into
the agile lifecycle
Fran O’Hara – Inspire Quality Services
Fran.ohara@inspireqs.ie
www.inspireqs.ie
© 2015 Inspire Quality Services
1

2. 2

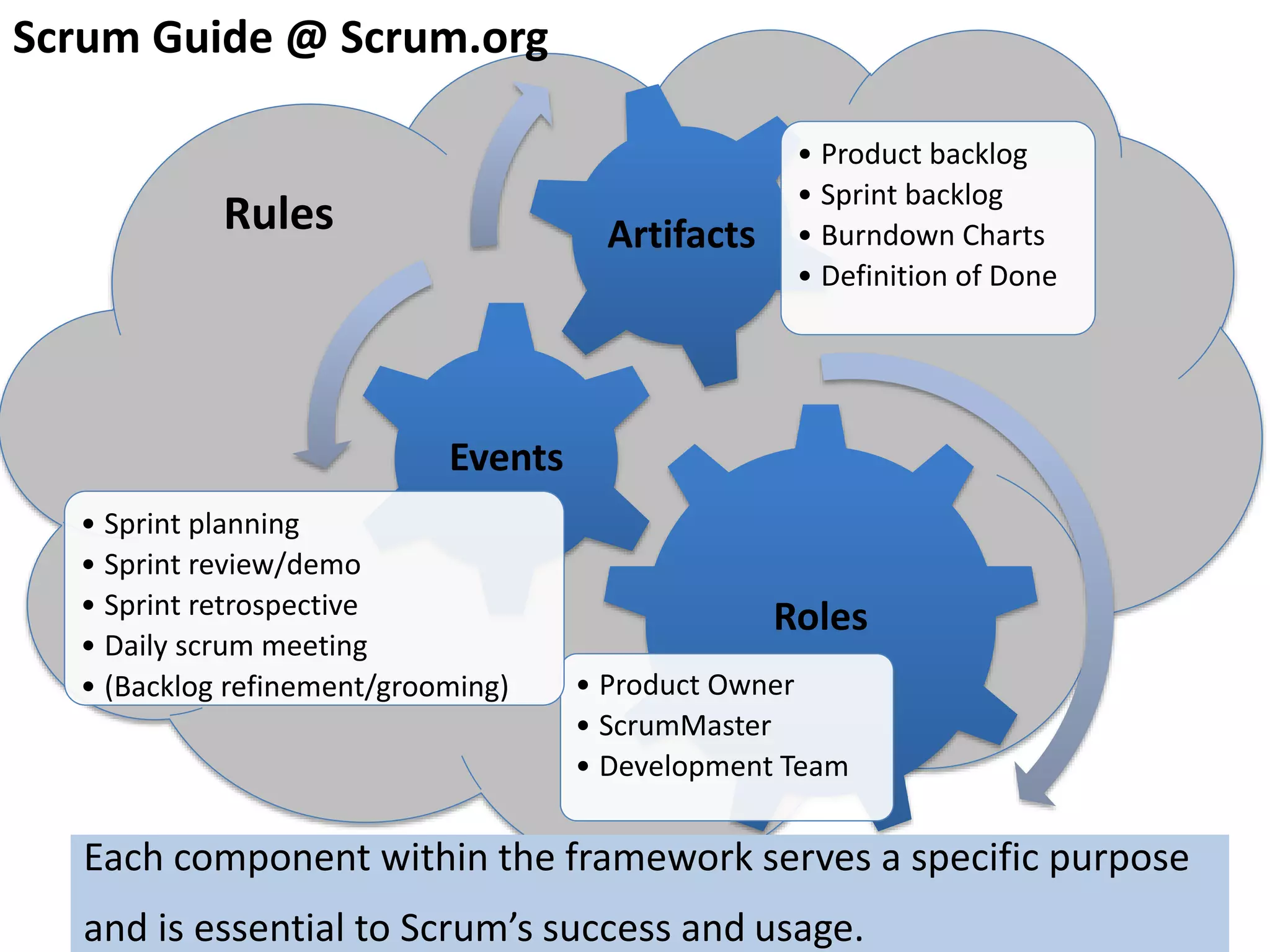

Roles
• Product Owner
• ScrumMaster
• Development Team
Events
• Sprint planning
• Sprint review/demo
• Sprint retrospective
• Daily scrum meeting
• (Backlog refinement/grooming)
Artifacts
• Product backlog
• Sprint backlog
• Burndown Charts
• Definition of Done
Rules
Each component within the framework serves a specific purpose
and is essential to Scrum’s success and usage.
Scrum Guide @ Scrum.org

3. 3

4. 4
Beware Scrum ‘Developer’!!!
DevelopmentAnalysis
Testing
Tester

5. 5
Test Managers?

6. From: Lisa Crispin, 2011
6

7. PO,TM,SM(All)
All
All
All
All,
CUAll
WEEK1
TM
WEEK2
PO: Product Owner – SM: ScrumMaster - TM: Development Team – CU: Customer
7
Each Event is Timeboxed. Times provided are maximum times from the Scrum Guide
at scrum.org based on a 1 month sprint. Each event is an opportunity to Inspect and Adapt

8. Quality & Test
8
• Quality is not equal to test. Quality is achieved by putting
development and testing into a blender and mixing them until
one is indistinguishable from the other.
• Testing must be an unavoidable aspect of development, and
the marriage of development and testing is where quality is
achieved.
from ‘How google tests software’, James Whittaker et. al.
© 2015 Inspire Quality Services

9. Is testing fully integrated?
Code Code
Code &
Bug Fix
Test
Sprint 1 Sprint 2
Code
Test
Sprint 1 Sprint 2
Code &
Bug Fix
Code
Test
Code &
Bug Fix
Code & Bug Fix
Test
Sprint 1 Sprint 2
Code & Bug Fix
Test
A
B
C
9

10. Achieving Scenario C
10
Prerequisites:
Test Driven at ‘Acceptance’ level
(story level)
Small stories
• ½ - 6 person days effort as a
guide
Prioritised and implemented in
sequence (e.g. 2-3 at a time)
• including test execution
.
.
.
.
Sprint Backlog
© 2015 Inspire Quality Services
No ‘verified’
column!

11. User Story Example – Hotel Reservation
Reservation Cancellation
As a user I want to cancel a reservation
so that I avoid being charged full rate
Confirmation:
• Verify a premium member
can cancel the same day
without a fee
• Verify a non-premium
member is charged 10% for
same day cancellation but
otherwise not charged
• Verify an email confirmation
is sent to user with
appropriate information
• Verify that the hotel is
notified within 10 minutes
of a cancellation
CONVERSATION:
• What if I am a premium
member – do I have
charges?
• When is a non-premium
member charged and
how much?
• How do these vary
depending on when
cancellation occurs?
• Do we need to send the
user confirmation by
email?
• When does the hotel
need to be notified?
• What if the user has
paid a deposit?
11

12. Release/feature planning level – a testing
perspective
Add value in release (re-)planning by:
• Supporting the Product Owner in writing User Stories/Epics and
making sure they are testable,
• Participating in the high level risk analysis of those User Stories/Epics,
• Ensuring Estimation includes testing perspective
• Planning the testing for the release/feature level. That is, to create a
test strategy/approach for it (resources, tools, test levels, static
testing, test environments, test automation targets), based on the
scope and risks identified for that release/feature
• Based on an evolving product backlog
• Playing a key role in defining the definition of done of the release, and
later on of the iteration/Sprint.
12
Adapted from ISTQB Agile Tester Extension Syllabus

13. 13
An acceptance test is a formal description of the behaviour of a software
product, generally expressed as an example or a usage scenario. ..
- in many cases the aim is that it should be possible to automate the execution
of such tests by a software tool, either ad-hoc to the development team or off
the shelf.
- Similarly to a unit test, an acceptance tests is generally understood to have a
binary result, pass or fail;
- For many Agile teams acceptance tests are the main form of functional
specification; sometimes the only formal expression of business
requirements. ..
Also known as
• The terms "functional test", "acceptance test" and "customer test" are used
more or less interchangeably.
• A more specific term "story test", referring to user stories is also used, as in
the phrase "story test driven development".
(Agile Alliance)
‘Acceptance’ Testing in Agile
© 2015 Inspire Quality Services

14. ‘Acceptance’ Testing – is it enough?
• May not be…context/risk/strategy issue…
– Expand to fuller ‘system’ tests
• Functional testing
• Non-functional testing – performance, usability, etc.
– May still need more user story interaction tests,
epic/feature level testing, workflows, end-to-end business
scenario focused User Acceptance Test, etc.
– System integration testing issues
– Etc.
• Strategy and scheduling issue
– Risk-driven, adaptive
14
© 2015 Inspire Quality Services

15. Maintaining Context
PRIORITY
GRANULARITY
15

16. Agile Testing Quadrants – Risk!
16

17. Is testing fully integrated?
Code & Bug Fix
Test
Sprint 1
17
Code & Bug Fix
Test
Sprint 2
Code & Bug Fix
Test
Sprint 3
Potentially
Releasable
……
Potentially
Releasable
Potentially
Releasable
Actual
release
(MMF)
• Initial Backlog
• Release and Test Planning
Functional: Unit, component integration, story acceptance, story
interaction, exploratory, etc.
+
Feature/system/system integration… and Non-functional:
……
© 2015 Inspire Quality Services

18. Definition of ‘Done’
18
An agreement between PO and the Team
• Evolving over time to increase quality & ‘doneness’
Used to guide the team in estimating and doing
‘Done’ may apply to a Product Backlog Item (PBI) and to an Increment
Used by the PO to increase predictability and accept Done PBIs
A single DoD may apply across an organisation, or a product
• Multiple teams on a product share the DoD
© 2015 Inspire Quality Services

19. DoD example
19
Story level
•Unit tests passed,
•unit tests achieving 80%
decision coverage,
•Integration tests passed
•acceptance tests passed
with traceability to story
acceptance criteria,
•code and unit tests
reviewed,
•static analysis has no
important warnings,
•coding standard compliant,
•published to Dev server
Sprint level
•Reviewed and accepted by
PO,
•E-2-E functional and feature
tests passed
•all regression tests passing,
•exploratory testing
completed,
•performance
profiling/benchmarking
complete,
•bugs committed in sprint
resolved,
•deployment/release docs
updated and reviewed,
•user manual updated
Release level
• Released to Stage
server,
• Deployment tests
passed,
• Deployment/release
docs delivered,
• large scale integration
performance/stress
testing passed
© 2015 Inspire Quality Services

20. Conclusions on lessons learnt
20
© 2015 Inspire Quality Services
• Prevention as well as detection
• Avoiding the mini-waterfall
• Activity versus artefact
• Test competence in the team
• Role of (test) management

21. Fran O’Hara
InspireQS
www.inspireqs.ie
fran.ohara@inspireqs.ie
21
© 2015 Inspire Quality Services

22. Technical Debt
Symptoms of technical debt
• Bugs found in production
• Incomprehensible, un-maintainable
code
• Insufficient or un-maintainable
automated tests
• Lack of CI
• Poor internal quality
• Etc.
22
