1. Atlassian Summit 2012
Lessons for Large Scale Lean and
Agile Product Management
Dave Thomas
www.davethomas.net
Bedarra Research Labs, YOW and GOTO
Conferences Queensland University of Technology
and Carleton University
©2011 Bedarra Research Labs. All rights reserved.

2. Agenda
Ten Point Plan for Transitioning to Agile
Embracing Change
People over Process
Sustainable Pace
Improving Backlogs Through Envisioning
Estimates in The Large
Coordinating Feature and Component Teams
©2011 Bedarra Research Labs. All rights reserved.

3. Top 10 List for a Large Transition
1. Do Lean Assessment to establish a baseline
2. Establish Realistic Expectations for Capacity, Predictability,
Quality and Productivity
3. Plan for Systemic Change over 12 -18+ months; Establish a
Change Management Plan – Governance, Careers,
Communications, Facilities, Transition Team ...
4. Streamline Portfolio Backlogs through Envisioning
5. Implement CI and Automated Measurement Infrastructure;
Invest in an inventory of automated tests
6. Implement Lean Organization with a strong Technical Ladder
7. Provide everyone appropriate Training/Mentoring and Tooling
8. Focus on Tangible Acceptance Criteria, Business Value and
Estimates
9. Align and resource Feature and Component Teams
10. Learn and adapt from experience, both yours and coaches
©2011 Bedarra Research Labs. All rights reserved.

4. Embrace Change
Change is easy if you are not doing it!
Change is hard if you want to, impossible if you don’t!
A Natural-Born ‘Leader’
Emerges... apparently self Change Model
It Works!
organization needed his
leadership Will be great
I’m not sure aha
©2011 Bedarra Research Labs. All rights reserved.
This sucks?

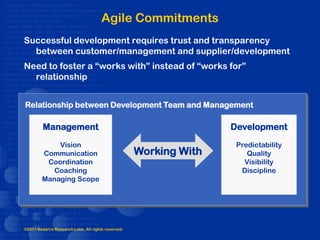

5. Agile Commitments
Successful development requires trust and transparency
between customer/management and supplier/development
Need to foster a “works with” instead of “works for”
relationship
Relationship between Development Team and Management
Management Development
Vision Predictability
Communication Working With Quality
Coordination Visibility
Coaching Discipline
Managing Scope
©2011 Bedarra Research Labs. All rights reserved.

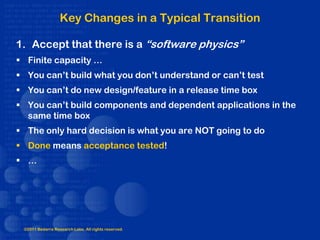

6. Key Changes in a Typical Transition
1. Accept that there is a “software physics”
 Finite capacity …
 You can’t build what you don’t understand or can’t test
 You can’t do new design/feature in a release time box
 You can’t build components and dependent applications in the
same time box
 The only hard decision is what you are NOT going to do
 Done means acceptance tested!
 …
©2011 Bedarra Research Labs. All rights reserved.

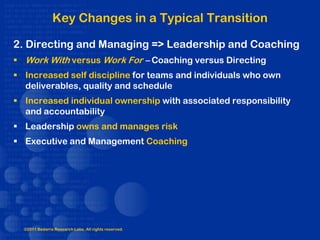

7. Key Changes in a Typical Transition
2. Directing and Managing => Leadership and Coaching
 Work With versus Work For – Coaching versus Directing
 Increased self discipline for teams and individuals who own
deliverables, quality and schedule
 Increased individual ownership with associated responsibility
and accountability
 Leadership owns and manages risk
 Executive and Management Coaching
©2011 Bedarra Research Labs. All rights reserved.

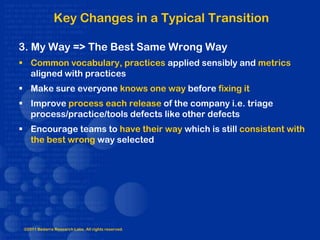

8. Key Changes in a Typical Transition
3. My Way => The Best Same Wrong Way
 Common vocabulary, practices applied sensibly and metrics
aligned with practices
 Make sure everyone knows one way before fixing it
 Improve process each release of the company i.e. triage
process/practice/tools defects like other defects
 Encourage teams to have their way which is still consistent with
the best wrong way selected
©2011 Bedarra Research Labs. All rights reserved.

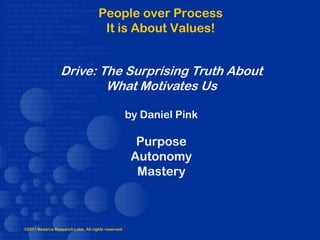

9. People over Process
It is About Values!
Drive: The Surprising Truth About
What Motivates Us
by Daniel Pink
Purpose
Autonomy
Mastery
©2011 Bedarra Research Labs. All rights reserved.

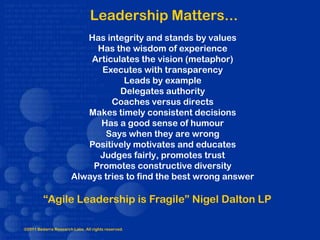

10. Leadership Matters...
Has integrity and stands by values
Has the wisdom of experience
Articulates the vision (metaphor)
Executes with transparency
Leads by example
Delegates authority
Coaches versus directs
Makes timely consistent decisions
Has a good sense of humour
Says when they are wrong
Positively motivates and educates
Judges fairly, promotes trust
Promotes constructive diversity
Always tries to find the best wrong answer
“Agile Leadership is Fragile” Nigel Dalton LP
©2011 Bedarra Research Labs. All rights reserved.

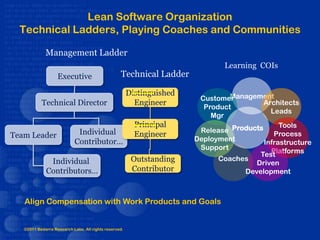

11. Lean Software Organization
Technical Ladders, Playing Coaches and Communities
Management Ladder
Learning COIs
Executive Technical Ladder
Distinguished Management
Customer
Technical Director Engineer Architects
Product
Leads
Mgr
Principal Tools
Individual Release Products Process
Team Leader Engineer
Contributor… Deployment Infrastructure
Support Platforms
Test
Individual Outstanding Coaches
Driven
Contributors… Contributor Development
Align Compensation with Work Products and Goals
©2011 Bedarra Research Labs. All rights reserved.

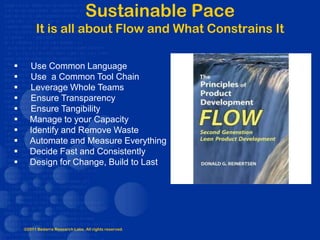

12. Sustainable Pace
It is all about Flow and What Constrains It
 Use Common Language
 Use a Common Tool Chain
 Leverage Whole Teams
 Ensure Transparency
 Ensure Tangibility
 Manage to your Capacity
 Identify and Remove Waste
 Automate and Measure Everything
 Decide Fast and Consistently
 Design for Change, Build to Last
©2011 Bedarra Research Labs. All rights reserved.

13. Visualize Flow – Put It On The Wall
You Can Only Improve what You Can Measure
Artifact
Status Reporting
Status of artifacts such as
personas, problems, use
scenarios, stories
Cumulative Flow
CI Environment
Reporting
Status of stories written, Query &
stories completed, tests Reporting
written, tests passed and
tests failed Unit and Story Tests
Subjective
Reporting
Qualitative data entered by
teams at retrospectives
Retrospective Reports
©2011 Bedarra Research Labs. All rights reserved.

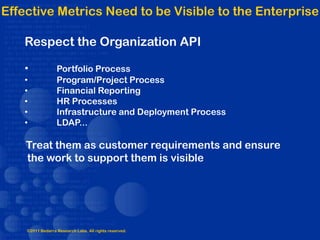

14. Effective Metrics Need to be Visible to the Enterprise
Respect the Organization API
• Portfolio Process
• Program/Project Process
• Financial Reporting
• HR Processes
• Infrastructure and Deployment Process
• LDAP...
Treat them as customer requirements and ensure
the work to support them is visible
©2011 Bedarra Research Labs. All rights reserved.

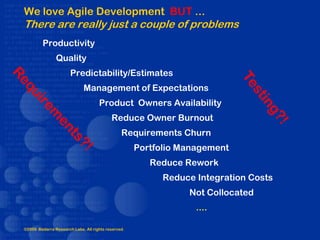

15. We love Agile Development BUT ...
There are really just a couple of problems
Productivity
Quality
Predictability/Estimates
Management of Expectations
Product Owners Availability
Reduce Owner Burnout
Requirements Churn
Portfolio Management
Reduce Rework
Reduce Integration Costs
Not Collocated
....
©2009 Bedarra Research Labs. All rights reserved.

16. It’s All in Backlogs! Evidence for Action
Lumpy Stories – sizes, estimates, clarity
Story Rework Due To Changing Requirements
Uncompleted Stories
Story Rework Due to Integration Problems
Missing Important Functionality
Done but not usable, poor performance
Done doesn’t mean acceptance tested?
More stories keep getting added to the backlog
Lack of business Value/Tangibility
Blocked on Another Team
Blocked waiting on Product Owner
All resources 100% + allocated
©2009 Bedarra Research Labs. All rights reserved.

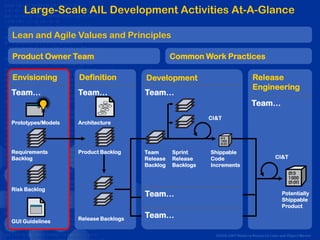

17. Large-Scale AIL Development Activities At-A-Glance
Lean and Agile Values and Principles
Product Owner Team Common Work Practices
Envisioning Definition Development Release
Engineering
Team… Team… Team…
Team…
CI&T
Prototypes/Models Architecture
Requirements Product Backlog Team Sprint Shippable
Backlog Release Release Code CI&T
Backlog Backlogs Increments
Risk Backlog
Team… Potentially
Shippable
Product
Release Backlogs
Team…
GUI Guidelines
©2006-2007 Bedarra Research Labs and Object Mentor

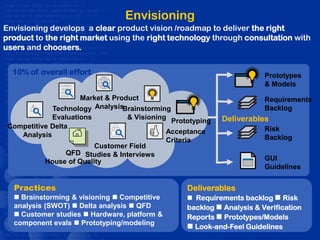

18. Envisioning
Envisioning develops a clear product vision /roadmap to deliver the right
product to the right market using the right technology through consultation with
users and choosers.
10% of overall effort Prototypes
& Models
Market & Product Requirements
Technology AnalysisBrainstorming Backlog
Evaluations & Visioning Deliverables
Prototyping
Competitive Delta Risk
Analysis Acceptance
Criteria Backlog
Customer Field
QFD Studies & Interviews
House of Quality GUI
Guidelines
Practices Deliverables
 Brainstorming & visioning  Competitive  Requirements backlog  Risk
analysis (SWOT)  Delta analysis  QFD backlog  Analysis & Verification
 Customer studies  Hardware, platform & Reports  Prototypes/Models
component evals  Prototyping/modeling
 Look-and-Feel Guidelines

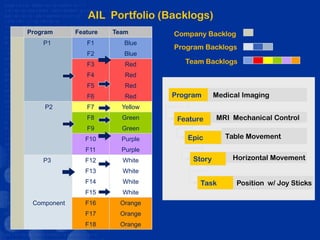

19. AIL Portfolio (Backlogs)
Program Feature Team Company Backlog
P1 F1 Blue
Program Backlogs
F2 Blue
F3 Red Team Backlogs
F4 Red
F5 Red
F6 Red Program Medical Imaging
P2 F7 Yellow
F8 Green Feature MRI Mechanical Control
F9 Green
F10 Purple Epic Table Movement
F11 Purple
P3 F12 White Story Horizontal Movement
F13 White
F14 White Task Position w/ Joy Sticks
F15 White
Component F16 Orange
F17 Orange
F18 Orange

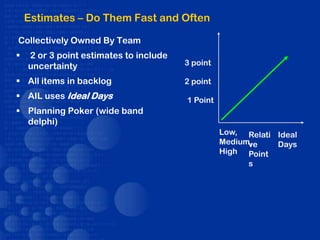

20. Estimates – Do Them Fast and Often
Collectively Owned By Team
 2 or 3 point estimates to include
uncertainty 3 point
 All items in backlog 2 point
 AIL uses Ideal Days 1 Point
 Planning Poker (wide band
delphi)
Low, Relati Ideal
Medium,
ve Days
High Point
s

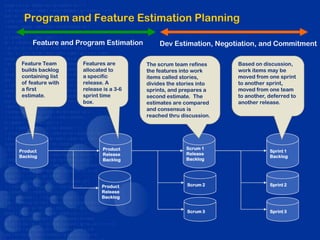

21. Program and Feature Estimation Planning
Feature and Program Estimation Dev Estimation, Negotiation, and Commitment
Feature Team Features are The scrum team refines Based on discussion,
builds backlog allocated to the features into work work items may be
containing list a specific items called stories, moved from one sprint
of feature with release. A divides the stories into to another sprint,
a first release is a 3-6 sprints, and prepares a moved from one team
estimate. sprint time second estimate. The to another, deferred to
box. estimates are compared another release.
and consensus is
reached thru discussion.
Product Scrum 1
Product Sprint 1
Release Release
Backlog Backlog
Backlog Backlog
Product Scrum 2 Sprint 2
Release
Backlog
Scrum 3 Sprint 3

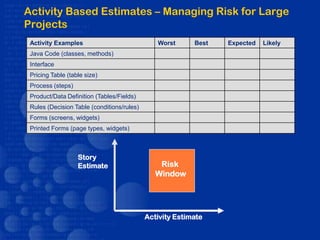

22. Activity Based Estimates – Managing Risk for Large
Projects
Activity Examples Worst Best Expected Likely
Java Code (classes, methods)
Interface
Pricing Table (table size)
Process (steps)
Product/Data Definition (Tables/Fields)
Rules (Decision Table (conditions/rules)
Forms (screens, widgets)
Printed Forms (page types, widgets)
Story
Estimate Risk
Window
Activity Estimate

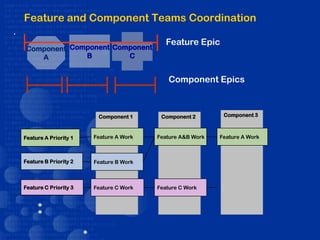

23. Feature and Component Teams Coordination
.
Feature Epic
Component Component Component
A B C
Component Epics
Component 1 Component 2 Component 3
Feature A Priority 1 Feature A Work Feature A&B Work Feature A Work
Feature B Priority 2 Feature B Work
Feature C Priority 3 Feature C Work Feature C Work

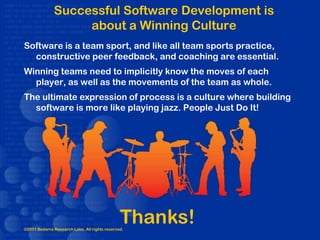

24. Successful Software Development is
about a Winning Culture
Software is a team sport, and like all team sports practice,
constructive peer feedback, and coaching are essential.
Winning teams need to implicitly know the moves of each
player, as well as the movements of the team as whole.
The ultimate expression of process is a culture where building
software is more like playing jazz. People Just Do It!
Thanks!
©2011 Bedarra Research Labs. All rights reserved.
