ICE 3015: CONTROL SYSTEM
COMPONENTS
Class 8: Synchros – Theory of Operation
Dr. S. Meenatchisundaram
Email: meenasundar@gmail.com
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:

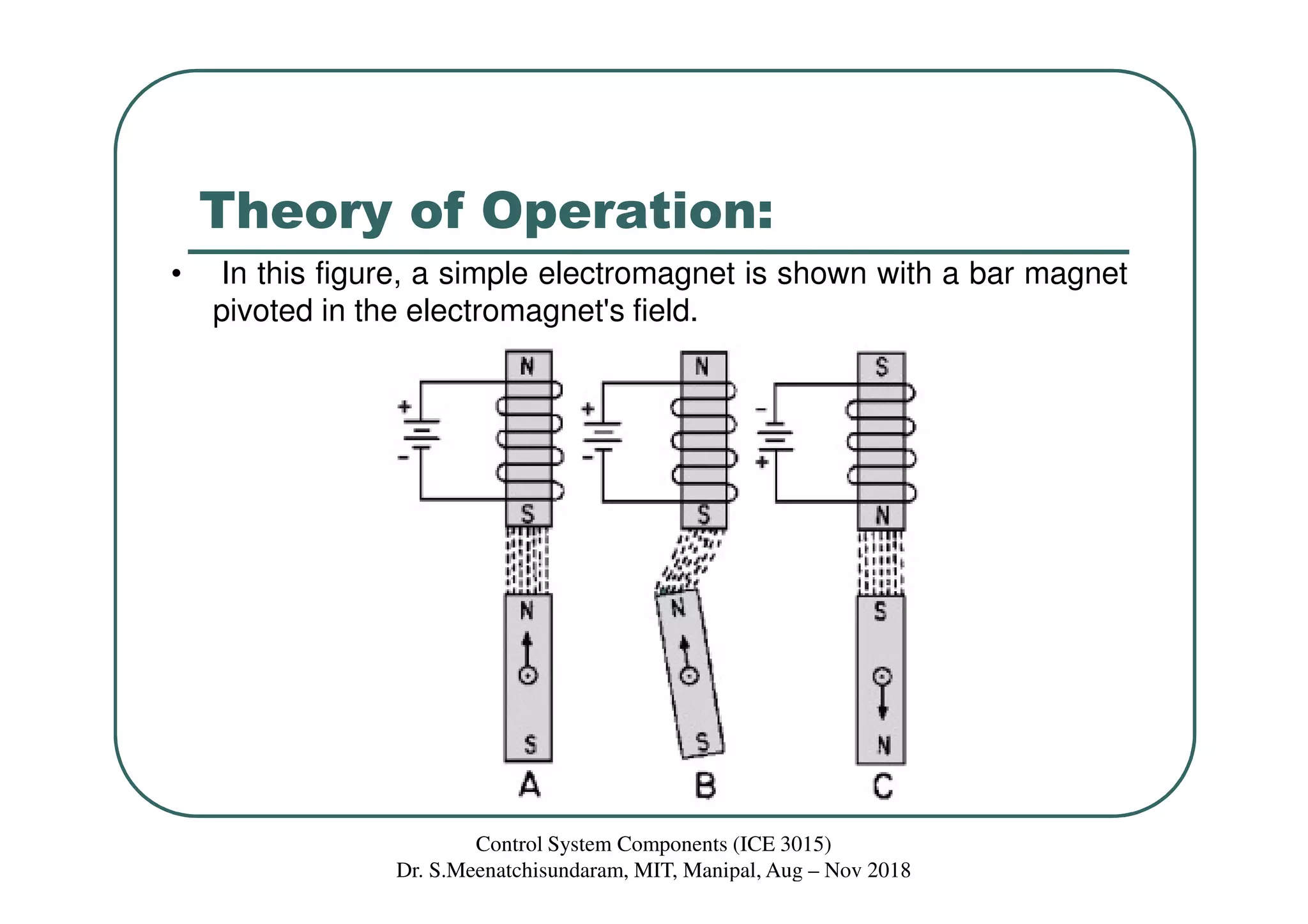

• In this figure, a simple electromagnet is shown with a bar magnet
pivoted in the electromagnet's field.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
• In view A, the bar is forced to assume the position shown, since
the basic law of magnetism states that like poles of magnets repel
and unlike poles attract.
• Also notice that when the bar is aligned with the field, the
magnetic lines of force are shortest.
• If the bar magnet is turned from this position and held as shown in
view B, the flux is distorted and the magnetic lines of force are
lengthened.
• In this condition, a force (torque) is exerted on the bar magnet.
When the bar magnet is released, it snaps back to its original
position.
• When the polarity of the electromagnet is reversed, as shown in
view C, the field reverses and the bar magnet is rotated 180º from
its original position.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
• Consider how the bar magnet reacts to three electromagnets
spaced 120º apart as illustrated in figure.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
• In this figure, stator coils S1 and S3, connected in parallel,
together have the same field strength as stator coil S2.
• The magnetic field is determined by current flow through the coils.
• The strongest magnetic field is set up by stator coil S2, since it
has twice the current and field strength as either S1 or S3 alone.
• A resultant magnetic field is developed by the combined effects of
the three stator fields.
• Coil S2 has the strongest field, and thus, the greatest effect on the
resultant field, causing the field to align in the direction shown by
the vector in view B of the figure.
• The iron-bar rotor aligns itself within the resultant field at the point
of greatest flux density.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
• By convention, this position is known as the zero-degree
position.
• The rotor can be turned from this position to any number of
positions by applying the proper combination of voltages to the
three coils, as illustrated in figure, view (A), view (B), view (C),
view (D), view (E), view (F).
• Notice in views A C, and E, that the rotor positions are achieved
by shifting the total current through different stator windings (S1,
S2, and S3).
• This causes the rotor to move toward the coil with the strongest
magnetic field.
• To obtain the rotor positions in views B, D, and F, it was
necessary only to reverse the battery connections.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
• This causes the direction of current flow to reverse and in turn
reverses the direction of the magnetic field.
• Since the rotor follows the magnetic field the rotor also changes
direction.
• By looking closely at these last three rotor positions, you will
notice that they are exactly opposite the first three positions we
discussed.
• This is caused by the change in the direction of current flow.
• You can now see that by varying the voltages to the three stator
coils, we can change the current in these coils and cause the rotor
to assume any position we desire.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
• In the above examples, dc voltages were applied to the coils.
• Since synchros operate on ac rather than dc, consider what
happens when ac is applied to the electromagnet in figure.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
• During one complete cycle of the alternating current, the polarity
reverses twice.
• Therefore, the number of times the polarity reverses each second
is twice the excitation frequency, or 120 times a second when a
60-Hz frequency is applied.
• Since the magnetic field of the electromagnet follows this
alternating current, the bar magnet is attracted in one direction
during one-half cycle (view A) and in the other direction during the
next half cycle (view B).
• Because of its inertia, the bar magnet cannot turn rapidly enough
to follow the changing magnetic field and may line up with either
end toward the coil (view C).
• This condition also causes weak rotor torque.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
• For these reasons, the iron-bar rotor is not practical for ac
applications. Therefore, it must be replaced by an electromagnetic
rotor as illustrated in figure.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Theory of Operation:
• In this figure, both stationary and rotating coils are connected to
the same 60-Hz source.
• During the positive alternation (view A), the polarities are as
shown and the top of the rotor is attracted to the bottom of the
stationary coil.
• During the negative alternation (view B), the polarities of both coils
reverse, thus keeping the rotor aligned in the same position.
• In summary, since both magnetic fields change direction at the
same time when following the 60-Hz ac supply voltage, the
electromagnetic rotor does not change position because it is
always aligned with the stationary magnetic field.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Synchro Torque Transmitter:
• The synchro transmitter converts the angular position of its rotor
(mechanical input) into an electrical output signal.
• When a 115-volt ac excitation voltage is applied to the rotor of a
synchro transmitter, such as the one shown in figure, the resultant
current produces an ac magnetic field around the rotor winding.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Synchro Torque Transmitter:
• The lines of force cut through the turns of the three stator windings
and, by transformer action, induce voltage into the stator coils.
• The effective voltage induced in any stator coil depends upon the
angular position of that coil's axis with respect to the rotor axis.
• When the maximum effective coil voltage is known, the effective
voltage induced into a stator coil at any angular displacement can
be determined.
• Figure in next slide illustrates a cross section of a synchro
transmitter and shows the effective voltage induced in one stator
coil as the rotor is turned to different positions.
• The turns ratios in synchros may vary widely, depending upon
design and application, but there is commonly a 2.2:1 stepdown
between the rotor and a single coil.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Synchro Torque Transmitter:
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Synchro Torque Transmitter:
• Thus, when 115 volts is applied to the rotor, the highest value of
effective voltage induced in any one stator coil is 52 volts.
• The maximum induced voltage occurs each time there is
maximum magnetic coupling between the rotor and the stator coil
(views A, C, and E).
• The effective voltage induced in the secondary winding is
approximately equal to the product of the effective voltage on the
primary, the secondary-to-primary turns ratio, and the magnetic
coupling between primary and secondary.
• Therefore, because the primary voltage and the turns ratio are
constant, it is commonly said that the secondary voltage varies
with the angle between the rotor and the stator.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
Synchro Torque Transmitter:
• When stator voltages are measured, reference is always made to
terminal-to-terminal voltages (voltage induced between two stator
terminals) instead of to a single coil's voltage.
• This is because the voltage induced in one stator winding cannot
be measured because the common connection between the stator
coils is not physically accessible.
• In summary, the synchro transmitter converts the angular position
of its rotor into electrical stator signals, which are sent through
interconnecting wires to other synchro devices.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
References:
• Navy Electricity and Electronics Training Series (NEETS)
Module 15—Principles of Synchros, Servos, and Gyros
http://www.rfcafe.com/references/electrical/NEETS-
Modules/NEETS-Module-15-1-1-1-10.htm
• M.D. Desai, “Control System Components”, Prentice Hall India
Learning Private Limited, 1st edition, 2008.
Control System Components (ICE 3015)
Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018

More Related Content

What's hot

DC compound motor ppt
DC compound motor pptDC compound motor ppt
DC compound motor pptSahib Ullah

potentiometer II.pptx
potentiometer II.pptxpotentiometer II.pptx
potentiometer II.pptxtadi1padma

Moving iron (MI) instruments
Moving iron (MI) instrumentsMoving iron (MI) instruments
Moving iron (MI) instrumentsChandan Singh

Electric drives
Electric drivesElectric drives
Electric drivesSamsu Deen

Transformer-History,Type And More Detail
Transformer-History,Type And More DetailTransformer-History,Type And More Detail
Transformer-History,Type And More DetailAdeel Rasheed

CONTROL OF ELECTRICAL MACHINES
CONTROL OF ELECTRICAL MACHINESCONTROL OF ELECTRICAL MACHINES
CONTROL OF ELECTRICAL MACHINESvenkatdon

INTRODUCTION TO LVDT,RVDT and Potentiometer
INTRODUCTION TO LVDT,RVDT and Potentiometer INTRODUCTION TO LVDT,RVDT and Potentiometer
INTRODUCTION TO LVDT,RVDT and Potentiometer SACHINNikam39

Braking methods of induction motor
Braking methods of induction motorBraking methods of induction motor
Braking methods of induction motorraviarmugam

Design of dc armature winding
Design of dc armature windingDesign of dc armature winding
Design of dc armature windingAbhishek Choksi

synchronos machines
synchronos machinessynchronos machines
synchronos machinesAjay Balar

Synchronous motor (working principle)
Synchronous motor (working principle)Synchronous motor (working principle)
Synchronous motor (working principle)Dr.Raja Masood Larik

Dc shunt motors; construction and working
Dc shunt motors; construction and workingDc shunt motors; construction and working
Dc shunt motors; construction and workingSourabh sharma

Hydraulic and pneumatic load cells
Hydraulic and pneumatic load cellsHydraulic and pneumatic load cells
Hydraulic and pneumatic load cellsmaqarrabellahi

Working principle of synchronous generator,Synchronous motor, Working princip...
Working principle of synchronous generator,Synchronous motor, Working princip...Working principle of synchronous generator,Synchronous motor, Working princip...
Working principle of synchronous generator,Synchronous motor, Working princip...Prasant Kumar


What's hot (20)

Armature windings
Armature windingsArmature windings
Armature windings

DC compound motor ppt
DC compound motor pptDC compound motor ppt
DC compound motor ppt

potentiometer II.pptx
potentiometer II.pptxpotentiometer II.pptx
potentiometer II.pptx

Moving iron (MI) instruments
Moving iron (MI) instrumentsMoving iron (MI) instruments
Moving iron (MI) instruments

Electric drives
Electric drivesElectric drives
Electric drives

Transformer-History,Type And More Detail
Transformer-History,Type And More DetailTransformer-History,Type And More Detail
Transformer-History,Type And More Detail

CONTROL OF ELECTRICAL MACHINES
CONTROL OF ELECTRICAL MACHINESCONTROL OF ELECTRICAL MACHINES
CONTROL OF ELECTRICAL MACHINES

INTRODUCTION TO LVDT,RVDT and Potentiometer
INTRODUCTION TO LVDT,RVDT and Potentiometer INTRODUCTION TO LVDT,RVDT and Potentiometer
INTRODUCTION TO LVDT,RVDT and Potentiometer

Braking methods of induction motor
Braking methods of induction motorBraking methods of induction motor
Braking methods of induction motor

Design of dc armature winding
Design of dc armature windingDesign of dc armature winding
Design of dc armature winding

dc Generator Ppt
dc Generator Pptdc Generator Ppt
dc Generator Ppt

synchronos machines
synchronos machinessynchronos machines
synchronos machines

Synchronous motor (working principle)
Synchronous motor (working principle)Synchronous motor (working principle)
Synchronous motor (working principle)

Dc machines (Generator & Motor)
Dc machines (Generator & Motor)Dc machines (Generator & Motor)
Dc machines (Generator & Motor)

Electrical dc machines
Electrical dc machinesElectrical dc machines
Electrical dc machines

Dc shunt motors; construction and working
Dc shunt motors; construction and workingDc shunt motors; construction and working
Dc shunt motors; construction and working

Hydraulic and pneumatic load cells
Hydraulic and pneumatic load cellsHydraulic and pneumatic load cells
Hydraulic and pneumatic load cells

Brushless dc (bldc) motors
Brushless dc (bldc) motorsBrushless dc (bldc) motors
Brushless dc (bldc) motors

Working principle of synchronous generator,Synchronous motor, Working princip...
Working principle of synchronous generator,Synchronous motor, Working princip...Working principle of synchronous generator,Synchronous motor, Working princip...
Working principle of synchronous generator,Synchronous motor, Working princip...

Lecture 12 stepper motors - types and working
Lecture 12   stepper motors - types and workingLecture 12   stepper motors - types and working
Lecture 12 stepper motors - types and working


Similar to Lecture 8 synchros - theory of operation

basic electrical and electronics engineering
basic electrical and electronics engineeringbasic electrical and electronics engineering
basic electrical and electronics engineeringmorin moli

H33 ac dc motors and generators
H33 ac dc motors and generatorsH33 ac dc motors and generators
H33 ac dc motors and generatorsphase3-120A

special electrical motor(switched reluctance motor)
special electrical motor(switched reluctance motor)special electrical motor(switched reluctance motor)
special electrical motor(switched reluctance motor)Srihari Datta

RGPV DIPLOMA EX305 UNIT II
RGPV DIPLOMA EX305 UNIT IIRGPV DIPLOMA EX305 UNIT II
RGPV DIPLOMA EX305 UNIT IIMani Deep Dutt

actuation systems -up.pptx
actuation systems -up.pptxactuation systems -up.pptx
actuation systems -up.pptxJklMahanth

Electric motors, generators and controls
Electric motors, generators and controlsElectric motors, generators and controls
Electric motors, generators and controlsCraig Kielb

The Switched Reluctance Electric Machine with Constructive Asymetry
The Switched Reluctance Electric Machine with Constructive AsymetryThe Switched Reluctance Electric Machine with Constructive Asymetry
The Switched Reluctance Electric Machine with Constructive AsymetryIAES-IJPEDS

SIMULATION OF DC SERIES MOTOR CHARACTERISTICS
SIMULATION OF DC SERIES MOTOR CHARACTERISTICS SIMULATION OF DC SERIES MOTOR CHARACTERISTICS
SIMULATION OF DC SERIES MOTOR CHARACTERISTICS sanjay kumar pediredla

EE488P_DCmotors_30329_00.pdf
EE488P_DCmotors_30329_00.pdfEE488P_DCmotors_30329_00.pdf
EE488P_DCmotors_30329_00.pdfjitender63

Major project
Major projectMajor project
Major projectMusi Raju

Ccccccccccccccccccc
CccccccccccccccccccCcccccccccccccccccc
CccccccccccccccccccMusi Raju

Voltmeter & Transformers: Types and Applications.
Voltmeter & Transformers: Types and  Applications.Voltmeter & Transformers: Types and  Applications.
Voltmeter & Transformers: Types and Applications.Diksha Prakash

L6 Electrical Actuation system
L6 Electrical Actuation systemL6 Electrical Actuation system
L6 Electrical Actuation systemtaruian

Dc motor
Dc motorDc motor
Dc motorKishan


Similar to Lecture 8 synchros - theory of operation (20)

Basic electrical and electronics engineering
 Basic electrical and electronics engineering Basic electrical and electronics engineering
Basic electrical and electronics engineering

basic electrical and electronics engineering
basic electrical and electronics engineeringbasic electrical and electronics engineering
basic electrical and electronics engineering

H33 ac dc motors and generators
H33 ac dc motors and generatorsH33 ac dc motors and generators
H33 ac dc motors and generators

special electrical motor(switched reluctance motor)
special electrical motor(switched reluctance motor)special electrical motor(switched reluctance motor)
special electrical motor(switched reluctance motor)

Lecture 6.pdf
Lecture 6.pdfLecture 6.pdf
Lecture 6.pdf

RGPV DIPLOMA EX305 UNIT II
RGPV DIPLOMA EX305 UNIT IIRGPV DIPLOMA EX305 UNIT II
RGPV DIPLOMA EX305 UNIT II

Electric motors
Electric motorsElectric motors
Electric motors

actuation systems -up.pptx
actuation systems -up.pptxactuation systems -up.pptx
actuation systems -up.pptx

Electric motors, generators and controls
Electric motors, generators and controlsElectric motors, generators and controls
Electric motors, generators and controls

Chapter4 dc motor
Chapter4 dc motor Chapter4 dc motor
Chapter4 dc motor

The Switched Reluctance Electric Machine with Constructive Asymetry
The Switched Reluctance Electric Machine with Constructive AsymetryThe Switched Reluctance Electric Machine with Constructive Asymetry
The Switched Reluctance Electric Machine with Constructive Asymetry

SIMULATION OF DC SERIES MOTOR CHARACTERISTICS
SIMULATION OF DC SERIES MOTOR CHARACTERISTICS SIMULATION OF DC SERIES MOTOR CHARACTERISTICS
SIMULATION OF DC SERIES MOTOR CHARACTERISTICS

EE488P_DCmotors_30329_00.pdf
EE488P_DCmotors_30329_00.pdfEE488P_DCmotors_30329_00.pdf
EE488P_DCmotors_30329_00.pdf

Electrical Technology by nanajee
Electrical Technology by nanajeeElectrical Technology by nanajee
Electrical Technology by nanajee

Lecture 6
Lecture 6Lecture 6
Lecture 6

Major project
Major projectMajor project
Major project

Ccccccccccccccccccc
CccccccccccccccccccCcccccccccccccccccc
Ccccccccccccccccccc

Voltmeter & Transformers: Types and Applications.
Voltmeter & Transformers: Types and  Applications.Voltmeter & Transformers: Types and  Applications.
Voltmeter & Transformers: Types and Applications.

L6 Electrical Actuation system
L6 Electrical Actuation systemL6 Electrical Actuation system
L6 Electrical Actuation system

Dc motor
Dc motorDc motor
Dc motor


More from Manipal Institute of Technology

Webinar on Demystifying Data Acquistion Systems: Access Data through Matlab, ...
Webinar on Demystifying Data Acquistion Systems: Access Data through Matlab, ...Webinar on Demystifying Data Acquistion Systems: Access Data through Matlab, ...
Webinar on Demystifying Data Acquistion Systems: Access Data through Matlab, ...Manipal Institute of Technology

Lecture 23, 24,25 valve types, valve positioners, cavitation & flashing
Lecture 23, 24,25   valve types, valve positioners, cavitation & flashingLecture 23, 24,25   valve types, valve positioners, cavitation & flashing
Lecture 23, 24,25 valve types, valve positioners, cavitation & flashingManipal Institute of Technology

Lecture 19 mathematical modeling of pneumatic and hydraulic systems
Lecture 19   mathematical modeling of pneumatic and hydraulic systemsLecture 19   mathematical modeling of pneumatic and hydraulic systems
Lecture 19 mathematical modeling of pneumatic and hydraulic systemsManipal Institute of Technology

Lecture 4 Characteristics, Specifications & Load Calculation
Lecture 4   Characteristics, Specifications & Load CalculationLecture 4   Characteristics, Specifications & Load Calculation
Lecture 4 Characteristics, Specifications & Load CalculationManipal Institute of Technology

Lecture 3 Construction, Classification & Theory of Servomotors
Lecture 3   Construction, Classification & Theory of ServomotorsLecture 3   Construction, Classification & Theory of Servomotors
Lecture 3 Construction, Classification & Theory of ServomotorsManipal Institute of Technology


More from Manipal Institute of Technology (20)

Webinar on Demystifying Data Acquistion Systems: Access Data through Matlab, ...
Webinar on Demystifying Data Acquistion Systems: Access Data through Matlab, ...Webinar on Demystifying Data Acquistion Systems: Access Data through Matlab, ...
Webinar on Demystifying Data Acquistion Systems: Access Data through Matlab, ...

Lecture 13 basics of stepper motor
Lecture 13   basics of stepper motorLecture 13   basics of stepper motor
Lecture 13 basics of stepper motor

Lecture 28 pneumatic control devices
Lecture 28   pneumatic control devicesLecture 28   pneumatic control devices
Lecture 28 pneumatic control devices

Lecture 27 valve shapes, selection guide
Lecture 27   valve shapes, selection guideLecture 27   valve shapes, selection guide
Lecture 27 valve shapes, selection guide

Lecture 26 control valves
Lecture 26   control valvesLecture 26   control valves
Lecture 26 control valves

Lecture 23, 24,25 valve types, valve positioners, cavitation & flashing
Lecture 23, 24,25   valve types, valve positioners, cavitation & flashingLecture 23, 24,25   valve types, valve positioners, cavitation & flashing
Lecture 23, 24,25 valve types, valve positioners, cavitation & flashing

Lecture 23 control valves
Lecture 23   control valvesLecture 23   control valves
Lecture 23 control valves

Lecture 22 flapper nozzle & ip converter
Lecture 22   flapper nozzle & ip converterLecture 22   flapper nozzle & ip converter
Lecture 22 flapper nozzle & ip converter

Lecture 20, 21 p & i diagram
Lecture 20, 21   p & i diagramLecture 20, 21   p & i diagram
Lecture 20, 21 p & i diagram

Lecture 19 mathematical modeling of pneumatic and hydraulic systems
Lecture 19   mathematical modeling of pneumatic and hydraulic systemsLecture 19   mathematical modeling of pneumatic and hydraulic systems
Lecture 19 mathematical modeling of pneumatic and hydraulic systems

Lecture 18 directional valves and symbols
Lecture 18   directional valves and symbolsLecture 18   directional valves and symbols
Lecture 18 directional valves and symbols

Lecture 17 actuation systems
Lecture 17   actuation systemsLecture 17   actuation systems
Lecture 17 actuation systems

Lecture 15 characteristics of stepper motors
Lecture 15   characteristics of stepper motorsLecture 15   characteristics of stepper motors
Lecture 15 characteristics of stepper motors

Lecture 14 stepper motor sequencer
Lecture 14   stepper motor sequencerLecture 14   stepper motor sequencer
Lecture 14 stepper motor sequencer

Lecture 13 basics of stepper motor
Lecture 13   basics of stepper motorLecture 13   basics of stepper motor
Lecture 13 basics of stepper motor

Lecture 5 Servomotor driver, control & Model
Lecture 5   Servomotor driver, control & ModelLecture 5   Servomotor driver, control & Model
Lecture 5 Servomotor driver, control & Model

Lecture 4 Characteristics, Specifications & Load Calculation
Lecture 4   Characteristics, Specifications & Load CalculationLecture 4   Characteristics, Specifications & Load Calculation
Lecture 4 Characteristics, Specifications & Load Calculation

Lecture 3 Construction, Classification & Theory of Servomotors
Lecture 3   Construction, Classification & Theory of ServomotorsLecture 3   Construction, Classification & Theory of Servomotors
Lecture 3 Construction, Classification & Theory of Servomotors

Lecture 1 Electrical Motos - a Revist
Lecture 1   Electrical Motos - a RevistLecture 1   Electrical Motos - a Revist
Lecture 1 Electrical Motos - a Revist

Lecture 10,11 Basics of FEM
Lecture 10,11   Basics of FEMLecture 10,11   Basics of FEM
Lecture 10,11 Basics of FEM


Recently uploaded

Processing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptxProcessing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptxpranjaldaimarysona

High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur EscortsHigh Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur EscortsCall Girls in Nagpur High Profile

Decoding Kotlin - Your guide to solving the mysterious in Kotlin.pptx
Decoding Kotlin - Your guide to solving the mysterious in Kotlin.pptxDecoding Kotlin - Your guide to solving the mysterious in Kotlin.pptx
Decoding Kotlin - Your guide to solving the mysterious in Kotlin.pptxJoão Esperancinha

Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝soniya singh

247267395-1-Symmetric-and-distributed-shared-memory-architectures-ppt (1).ppt
247267395-1-Symmetric-and-distributed-shared-memory-architectures-ppt (1).ppt247267395-1-Symmetric-and-distributed-shared-memory-architectures-ppt (1).ppt
247267395-1-Symmetric-and-distributed-shared-memory-architectures-ppt (1).pptssuser5c9d4b1

SPICE PARK APR2024 ( 6,793 SPICE Models )
SPICE PARK APR2024 ( 6,793 SPICE Models )SPICE PARK APR2024 ( 6,793 SPICE Models )
SPICE PARK APR2024 ( 6,793 SPICE Models )Tsuyoshi Horigome

Introduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptxIntroduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptxupamatechverse

(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...ranjana rawat

HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS
HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICSHARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS
HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICSRajkumarAkumalla

(RIA) Call Girls Bhosari ( 7001035870 ) HI-Fi Pune Escorts Service
(RIA) Call Girls Bhosari ( 7001035870 ) HI-Fi Pune Escorts Service(RIA) Call Girls Bhosari ( 7001035870 ) HI-Fi Pune Escorts Service
(RIA) Call Girls Bhosari ( 7001035870 ) HI-Fi Pune Escorts Serviceranjana rawat

VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130
VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130
VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130Suhani Kapoor

College Call Girls Nashik Nehal 7001305949 Independent Escort Service Nashik
College Call Girls Nashik Nehal 7001305949 Independent Escort Service NashikCollege Call Girls Nashik Nehal 7001305949 Independent Escort Service Nashik
College Call Girls Nashik Nehal 7001305949 Independent Escort Service NashikCall Girls in Nagpur High Profile

Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...Dr.Costas Sachpazis

Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...Christo Ananth

The Most Attractive Pune Call Girls Budhwar Peth 8250192130 Will You Miss Thi...
The Most Attractive Pune Call Girls Budhwar Peth 8250192130 Will You Miss Thi...The Most Attractive Pune Call Girls Budhwar Peth 8250192130 Will You Miss Thi...
The Most Attractive Pune Call Girls Budhwar Peth 8250192130 Will You Miss Thi...ranjana rawat

Software Development Life Cycle By Team Orange (Dept. of Pharmacy)
Software Development Life Cycle By  Team Orange (Dept. of Pharmacy)Software Development Life Cycle By  Team Orange (Dept. of Pharmacy)
Software Development Life Cycle By Team Orange (Dept. of Pharmacy)Suman Mia

Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur EscortsCall Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur EscortsCall Girls in Nagpur High Profile

Microscopic Analysis of Ceramic Materials.pptx
Microscopic Analysis of Ceramic Materials.pptxMicroscopic Analysis of Ceramic Materials.pptx
Microscopic Analysis of Ceramic Materials.pptxpurnimasatapathy1234

the ladakh protest in leh ladakh 2024 sonam wangchuk.pptx
the ladakh protest in leh ladakh 2024 sonam wangchuk.pptxthe ladakh protest in leh ladakh 2024 sonam wangchuk.pptx
the ladakh protest in leh ladakh 2024 sonam wangchuk.pptxhumanexperienceaaa


Recently uploaded (20)

Processing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptxProcessing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptx

High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur EscortsHigh Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur Escorts

Decoding Kotlin - Your guide to solving the mysterious in Kotlin.pptx
Decoding Kotlin - Your guide to solving the mysterious in Kotlin.pptxDecoding Kotlin - Your guide to solving the mysterious in Kotlin.pptx
Decoding Kotlin - Your guide to solving the mysterious in Kotlin.pptx

Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝
Model Call Girl in Narela Delhi reach out to us at 🔝8264348440🔝

★ CALL US 9953330565 ( HOT Young Call Girls In Badarpur delhi NCR
★ CALL US 9953330565 ( HOT Young Call Girls In Badarpur delhi NCR★ CALL US 9953330565 ( HOT Young Call Girls In Badarpur delhi NCR
★ CALL US 9953330565 ( HOT Young Call Girls In Badarpur delhi NCR

247267395-1-Symmetric-and-distributed-shared-memory-architectures-ppt (1).ppt
247267395-1-Symmetric-and-distributed-shared-memory-architectures-ppt (1).ppt247267395-1-Symmetric-and-distributed-shared-memory-architectures-ppt (1).ppt
247267395-1-Symmetric-and-distributed-shared-memory-architectures-ppt (1).ppt

SPICE PARK APR2024 ( 6,793 SPICE Models )
SPICE PARK APR2024 ( 6,793 SPICE Models )SPICE PARK APR2024 ( 6,793 SPICE Models )
SPICE PARK APR2024 ( 6,793 SPICE Models )

Introduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptxIntroduction to Multiple Access Protocol.pptx
Introduction to Multiple Access Protocol.pptx

(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(PRIYA) Rajgurunagar Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...

HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS
HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICSHARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS
HARDNESS, FRACTURE TOUGHNESS AND STRENGTH OF CERAMICS

(RIA) Call Girls Bhosari ( 7001035870 ) HI-Fi Pune Escorts Service
(RIA) Call Girls Bhosari ( 7001035870 ) HI-Fi Pune Escorts Service(RIA) Call Girls Bhosari ( 7001035870 ) HI-Fi Pune Escorts Service
(RIA) Call Girls Bhosari ( 7001035870 ) HI-Fi Pune Escorts Service

VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130
VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130
VIP Call Girls Service Kondapur Hyderabad Call +91-8250192130

College Call Girls Nashik Nehal 7001305949 Independent Escort Service Nashik
College Call Girls Nashik Nehal 7001305949 Independent Escort Service NashikCollege Call Girls Nashik Nehal 7001305949 Independent Escort Service Nashik
College Call Girls Nashik Nehal 7001305949 Independent Escort Service Nashik

Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...

Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...

The Most Attractive Pune Call Girls Budhwar Peth 8250192130 Will You Miss Thi...
The Most Attractive Pune Call Girls Budhwar Peth 8250192130 Will You Miss Thi...The Most Attractive Pune Call Girls Budhwar Peth 8250192130 Will You Miss Thi...
The Most Attractive Pune Call Girls Budhwar Peth 8250192130 Will You Miss Thi...

Software Development Life Cycle By Team Orange (Dept. of Pharmacy)
Software Development Life Cycle By  Team Orange (Dept. of Pharmacy)Software Development Life Cycle By  Team Orange (Dept. of Pharmacy)
Software Development Life Cycle By Team Orange (Dept. of Pharmacy)

Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur EscortsCall Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur Suman Call 7001035870 Meet With Nagpur Escorts

Microscopic Analysis of Ceramic Materials.pptx
Microscopic Analysis of Ceramic Materials.pptxMicroscopic Analysis of Ceramic Materials.pptx
Microscopic Analysis of Ceramic Materials.pptx

the ladakh protest in leh ladakh 2024 sonam wangchuk.pptx
the ladakh protest in leh ladakh 2024 sonam wangchuk.pptxthe ladakh protest in leh ladakh 2024 sonam wangchuk.pptx
the ladakh protest in leh ladakh 2024 sonam wangchuk.pptx


Lecture 8 synchros - theory of operation

  • 1. ICE 3015: CONTROL SYSTEM COMPONENTS Class 8: Synchros – Theory of Operation Dr. S. Meenatchisundaram Email: meenasundar@gmail.com Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 2. Theory of Operation: • In this figure, a simple electromagnet is shown with a bar magnet pivoted in the electromagnet's field. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 3. Theory of Operation: • In view A, the bar is forced to assume the position shown, since the basic law of magnetism states that like poles of magnets repel and unlike poles attract. • Also notice that when the bar is aligned with the field, the magnetic lines of force are shortest. • If the bar magnet is turned from this position and held as shown in view B, the flux is distorted and the magnetic lines of force are lengthened. • In this condition, a force (torque) is exerted on the bar magnet. When the bar magnet is released, it snaps back to its original position. • When the polarity of the electromagnet is reversed, as shown in view C, the field reverses and the bar magnet is rotated 180º from its original position. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 4. Theory of Operation: • Consider how the bar magnet reacts to three electromagnets spaced 120º apart as illustrated in figure. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 5. Theory of Operation: • In this figure, stator coils S1 and S3, connected in parallel, together have the same field strength as stator coil S2. • The magnetic field is determined by current flow through the coils. • The strongest magnetic field is set up by stator coil S2, since it has twice the current and field strength as either S1 or S3 alone. • A resultant magnetic field is developed by the combined effects of the three stator fields. • Coil S2 has the strongest field, and thus, the greatest effect on the resultant field, causing the field to align in the direction shown by the vector in view B of the figure. • The iron-bar rotor aligns itself within the resultant field at the point of greatest flux density. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 6. Theory of Operation: Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 7. Theory of Operation: • By convention, this position is known as the zero-degree position. • The rotor can be turned from this position to any number of positions by applying the proper combination of voltages to the three coils, as illustrated in figure, view (A), view (B), view (C), view (D), view (E), view (F). • Notice in views A C, and E, that the rotor positions are achieved by shifting the total current through different stator windings (S1, S2, and S3). • This causes the rotor to move toward the coil with the strongest magnetic field. • To obtain the rotor positions in views B, D, and F, it was necessary only to reverse the battery connections. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 8. Theory of Operation: • This causes the direction of current flow to reverse and in turn reverses the direction of the magnetic field. • Since the rotor follows the magnetic field the rotor also changes direction. • By looking closely at these last three rotor positions, you will notice that they are exactly opposite the first three positions we discussed. • This is caused by the change in the direction of current flow. • You can now see that by varying the voltages to the three stator coils, we can change the current in these coils and cause the rotor to assume any position we desire. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 9. Theory of Operation: • In the above examples, dc voltages were applied to the coils. • Since synchros operate on ac rather than dc, consider what happens when ac is applied to the electromagnet in figure. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 10. Theory of Operation: • During one complete cycle of the alternating current, the polarity reverses twice. • Therefore, the number of times the polarity reverses each second is twice the excitation frequency, or 120 times a second when a 60-Hz frequency is applied. • Since the magnetic field of the electromagnet follows this alternating current, the bar magnet is attracted in one direction during one-half cycle (view A) and in the other direction during the next half cycle (view B). • Because of its inertia, the bar magnet cannot turn rapidly enough to follow the changing magnetic field and may line up with either end toward the coil (view C). • This condition also causes weak rotor torque. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 11. Theory of Operation: • For these reasons, the iron-bar rotor is not practical for ac applications. Therefore, it must be replaced by an electromagnetic rotor as illustrated in figure. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 12. Theory of Operation: • In this figure, both stationary and rotating coils are connected to the same 60-Hz source. • During the positive alternation (view A), the polarities are as shown and the top of the rotor is attracted to the bottom of the stationary coil. • During the negative alternation (view B), the polarities of both coils reverse, thus keeping the rotor aligned in the same position. • In summary, since both magnetic fields change direction at the same time when following the 60-Hz ac supply voltage, the electromagnetic rotor does not change position because it is always aligned with the stationary magnetic field. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 13. Synchro Torque Transmitter: • The synchro transmitter converts the angular position of its rotor (mechanical input) into an electrical output signal. • When a 115-volt ac excitation voltage is applied to the rotor of a synchro transmitter, such as the one shown in figure, the resultant current produces an ac magnetic field around the rotor winding. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 14. Synchro Torque Transmitter: • The lines of force cut through the turns of the three stator windings and, by transformer action, induce voltage into the stator coils. • The effective voltage induced in any stator coil depends upon the angular position of that coil's axis with respect to the rotor axis. • When the maximum effective coil voltage is known, the effective voltage induced into a stator coil at any angular displacement can be determined. • Figure in next slide illustrates a cross section of a synchro transmitter and shows the effective voltage induced in one stator coil as the rotor is turned to different positions. • The turns ratios in synchros may vary widely, depending upon design and application, but there is commonly a 2.2:1 stepdown between the rotor and a single coil. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 15. Synchro Torque Transmitter: Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 16. Synchro Torque Transmitter: • Thus, when 115 volts is applied to the rotor, the highest value of effective voltage induced in any one stator coil is 52 volts. • The maximum induced voltage occurs each time there is maximum magnetic coupling between the rotor and the stator coil (views A, C, and E). • The effective voltage induced in the secondary winding is approximately equal to the product of the effective voltage on the primary, the secondary-to-primary turns ratio, and the magnetic coupling between primary and secondary. • Therefore, because the primary voltage and the turns ratio are constant, it is commonly said that the secondary voltage varies with the angle between the rotor and the stator. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 17. Synchro Torque Transmitter: • When stator voltages are measured, reference is always made to terminal-to-terminal voltages (voltage induced between two stator terminals) instead of to a single coil's voltage. • This is because the voltage induced in one stator winding cannot be measured because the common connection between the stator coils is not physically accessible. • In summary, the synchro transmitter converts the angular position of its rotor into electrical stator signals, which are sent through interconnecting wires to other synchro devices. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
  • 18. References: • Navy Electricity and Electronics Training Series (NEETS) Module 15—Principles of Synchros, Servos, and Gyros http://www.rfcafe.com/references/electrical/NEETS- Modules/NEETS-Module-15-1-1-1-10.htm • M.D. Desai, “Control System Components”, Prentice Hall India Learning Private Limited, 1st edition, 2008. Control System Components (ICE 3015) Dr. S.Meenatchisundaram, MIT, Manipal, Aug – Nov 2018
