Lect 1- software engineering

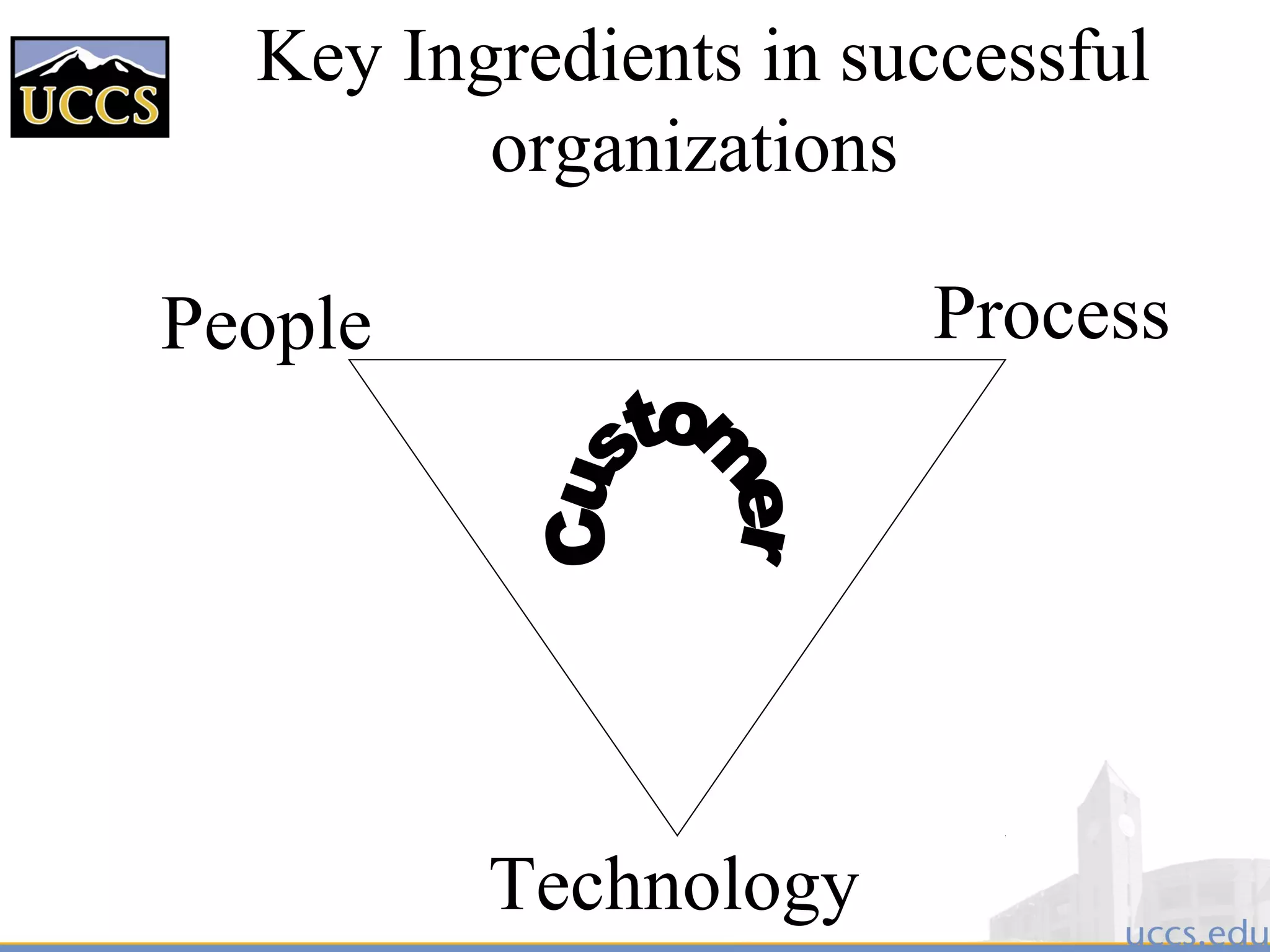

Key Ingredients in successful
organizations
People
Technology
Process

A better view
Process and Technology supporting people
Processes Technology
People
Pyramids are stable.
Wedges are not!

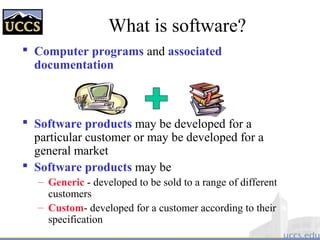

What is software?
 Computer programs and associated
documentation
 Software products may be developed for a
particular customer or may be developed for a
general market
 Software products may be
– Generic - developed to be sold to a range of different
customers
– Custom- developed for a customer according to their
specification

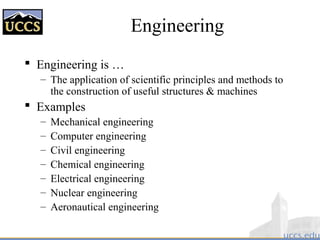

Engineering
 Engineering is …
– The application of scientific principles and methods to
the construction of useful structures & machines
 Examples
– Mechanical engineering
– Computer engineering
– Civil engineering
– Chemical engineering
– Electrical engineering
– Nuclear engineering
– Aeronautical engineering

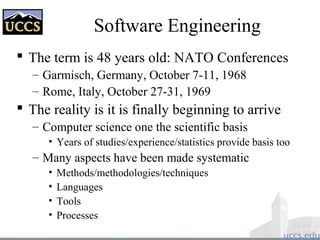

Software Engineering
 The term is 48 years old: NATO Conferences
– Garmisch, Germany, October 7-11, 1968
– Rome, Italy, October 27-31, 1969
 The reality is it is finally beginning to arrive
– Computer science one the scientific basis
• Years of studies/experience/statistics provide basis too
– Many aspects have been made systematic
• Methods/methodologies/techniques
• Languages
• Tools
• Processes

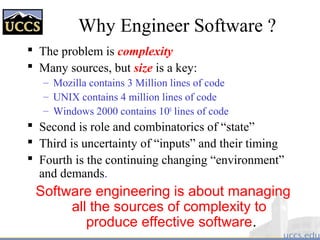

Why Engineer Software ?
 The problem is complexity
 Many sources, but size is a key:
– Mozilla contains 3 Million lines of code
– UNIX contains 4 million lines of code
– Windows 2000 contains 108
lines of code
 Second is role and combinatorics of “state”
 Third is uncertainty of “inputs” and their timing
 Fourth is the continuing changing “environment”
and demands.
Software engineering is about managing
all the sources of complexity to
produce effective software.

Software Engineering in a
Nutshell
 Development of software systems whose
size/complexity warrants team(s) of engineers
– multi-person construction of multi-version software
[Parnas 1987]
 Scope
– study of software process,
development/management principles, techniques,
tools and notations
 Goal
– production of quality software, delivered on time,
within budget, satisfying customers’ requirements
and users’ needs

What does a software
engineer do?
Software engineers should
– adopt a systematic and organised approach to all
aspects of software development.
– use appropriate tools and techniques depending on
• the problem to be solved,
• the development constraints and
• the resources available
– Understand and communicate processes for
improved software development within their
organization
– Be effective team members and/or leaders.
– Can be very technical or more managerial depending
on organizational need.

What is the difference between software
engineering and computer science?
Computer Science Software Engineering
is concerned with
Computer science theories are currently insufficient to
act as a complete underpinning for software
engineering, BUT it is a foundation for practical aspects
of software engineering
 theory
 fundamentals
 the practicalities of developing
 delivering useful software

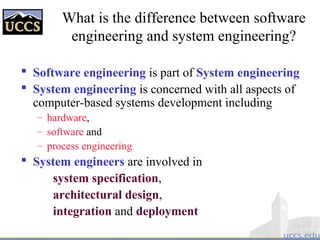

What is the difference between software
engineering and system engineering?
 Software engineering is part of System engineering
 System engineering is concerned with all aspects of
computer-based systems development including
– hardware,
– software and
– process engineering
 System engineers are involved in
system specification,
architectural design,
integration and deployment

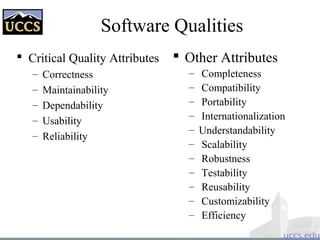

Software Qualities
 Critical Quality Attributes
– Correctness
– Maintainability
– Dependability
– Usability
– Reliability
 Other Attributes
– Completeness
– Compatibility
– Portability
– Internationalization
– Understandability
– Scalability
– Robustness
– Testability
– Reusability
– Customizability
– Efficiency

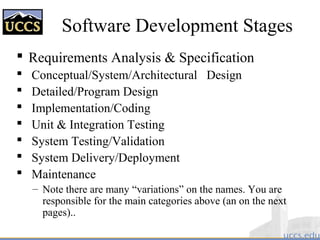

Software Development Stages
 Requirements Analysis & Specification
 Conceptual/System/Architectural Design
 Detailed/Program Design
 Implementation/Coding
 Unit & Integration Testing
 System Testing/Validation
 System Delivery/Deployment
 Maintenance
– Note there are many “variations” on the names. You are
responsible for the main categories above (an on the next
pages)..

16

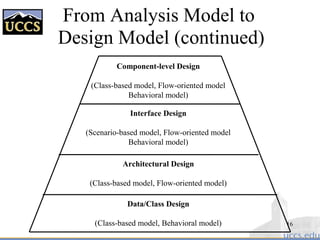

From Analysis Model to
Design Model (continued)
Data/Class Design
(Class-based model, Behavioral model)
Architectural Design
(Class-based model, Flow-oriented model)
Interface Design
(Scenario-based model, Flow-oriented model
Behavioral model)
Component-level Design
(Class-based model, Flow-oriented model
Behavioral model)

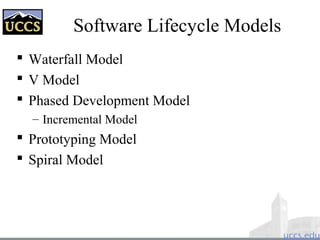

Software Lifecycle Models
 Waterfall Model
 V Model
 Phased Development Model
– Incremental Model
 Prototyping Model
 Spiral Model

Software Development Lifecycle

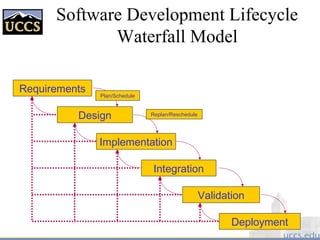

Waterfall Model
Requirements
Design
Implementation
Integration
Validation
Deployment
Plan/Schedule
Replan/Reschedule

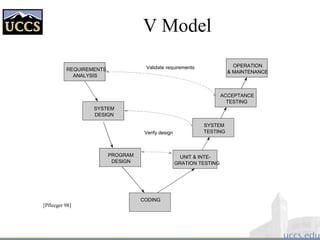

V Model
REQUIREMENTS
ANALYSIS
SYSTEM
DESIGN
PROGRAM
DESIGN
CODING
UNIT & INTE-
GRATION TESTING
SYSTEM
TESTING
ACCEPTANCE
TESTING
OPERATION
& MAINTENANCE
Verify design
Validate requirements
[Pfleeger 98]

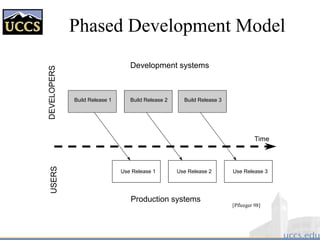

Phased Development Model
Development systems
Production systems
DEVELOPERSUSERS
Build Release 1
Use Release 1
Build Release 2
Use Release 2
Build Release 3
Use Release 3
Time
[Pfleeger 98]

Software Development Lifecycle

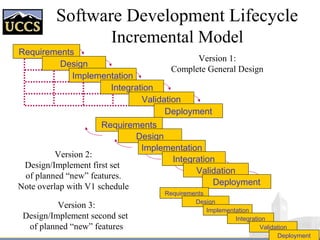

Incremental Model
Requirements
Design
Implementation
Integration
Validation
Deployment
Requirements
Design
Implementation
Integration
Validation
Deployment
Requirements
Design
Implementation
Integration
Validation
Deployment
Version 1:
Complete General Design
Version 2:
Design/Implement first set
of planned “new” features.
Note overlap with V1 schedule
Version 3:
Design/Implement second set
of planned “new” features

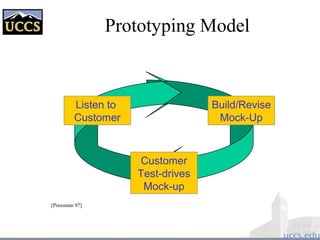

Prototyping Model
[Pressman 97]
Listen to
Customer
Customer
Test-drives
Mock-up
Build/Revise
Mock-Up

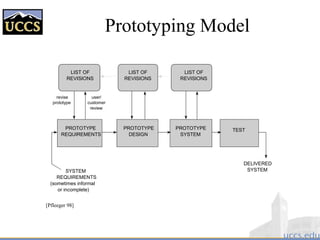

Prototyping Model
LIST OF
REVISIONS
LIST OF
REVISIONS
LIST OF
REVISIONS
PROTOTYPE
REQUIREMENTS
PROTOTYPE
DESIGN
PROTOTYPE
SYSTEM
TEST
DELIVERED
SYSTEMSYSTEM
REQUIREMENTS
(sometimes informal
or incomplete)
revise
prototype
user/
customer
review
[Pfleeger 98]

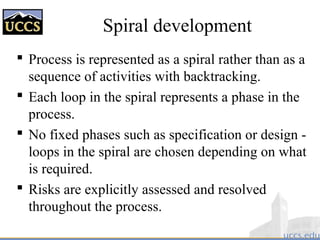

Spiral development
 Process is represented as a spiral rather than as a
sequence of activities with backtracking.
 Each loop in the spiral represents a phase in the
process.
 No fixed phases such as specification or design -
loops in the spiral are chosen depending on what
is required.
 Risks are explicitly assessed and resolved
throughout the process.

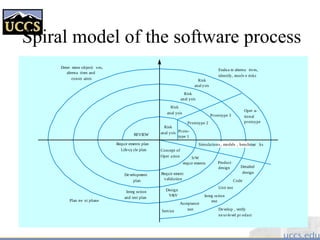

Spiral model of the software process
Risk
anal ysis
Risk
anal ysis
Risk
anal ysis
Risk
anal ysis Proto-
type 1
Prototype 2
Prototype 3
Oper a-
tional
protoype
Concept of
Oper ation
Simulations , models , benchmar ks
S/W
requir ements
Requir ement
validation
Design
V&V
Product
design Detailed
design
Code
Unit test
Integ ration
test
Acceptance
testService Develop , verify
next-level pr oduct
Evalua te alterna tives,
identify, resolv e risks
Deter mine objecti ves,
alterna tives and
constr aints
Plan ne xt phase
Integ ration
and test plan
Development
plan
Requir ements plan
Life-cy cle plan
REVIEW

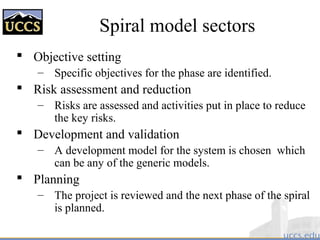

Spiral model sectors
 Objective setting
– Specific objectives for the phase are identified.
 Risk assessment and reduction
– Risks are assessed and activities put in place to reduce
the key risks.
 Development and validation
– A development model for the system is chosen which
can be any of the generic models.
 Planning
– The project is reviewed and the next phase of the spiral
is planned.

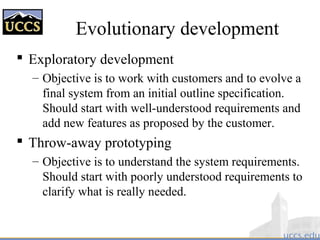

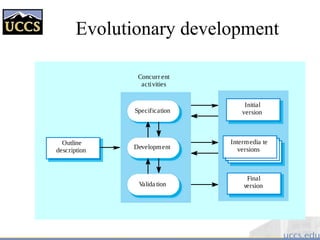

Evolutionary development
 Exploratory development
– Objective is to work with customers and to evolve a
final system from an initial outline specification.
Should start with well-understood requirements and
add new features as proposed by the customer.
 Throw-away prototyping
– Objective is to understand the system requirements.
Should start with poorly understood requirements to
clarify what is really needed.

Concurr ent
activities
Valida tion
Final
version
Development
Intermedia te
versions
Specification
Initial
version
Outline
description

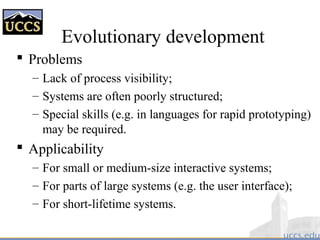

 Problems
– Lack of process visibility;
– Systems are often poorly structured;
– Special skills (e.g. in languages for rapid prototyping)
may be required.
 Applicability
– For small or medium-size interactive systems;
– For parts of large systems (e.g. the user interface);
– For short-lifetime systems.

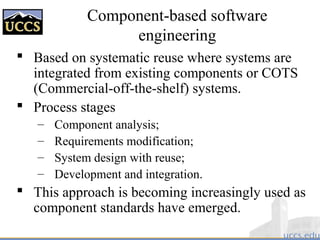

Component-based software
engineering
 Based on systematic reuse where systems are
integrated from existing components or COTS
(Commercial-off-the-shelf) systems.
 Process stages
– Component analysis;
– Requirements modification;
– System design with reuse;
– Development and integration.
 This approach is becoming increasingly used as
component standards have emerged.

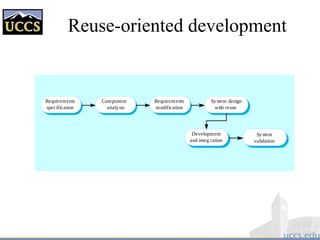

Reuse-oriented development
Requirements
specification
Component
analysis
Development
and integ ration
System design
with reuse
Requirements
modification
System
validation

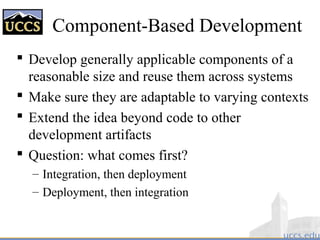

Component-Based Development
 Develop generally applicable components of a
reasonable size and reuse them across systems
 Make sure they are adaptable to varying contexts
 Extend the idea beyond code to other
development artifacts
 Question: what comes first?
– Integration, then deployment
– Deployment, then integration

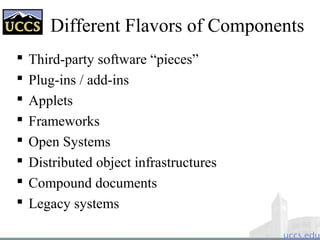

Different Flavors of Components
 Third-party software “pieces”
 Plug-ins / add-ins
 Applets
 Frameworks
 Open Systems
 Distributed object infrastructures
 Compound documents
 Legacy systems

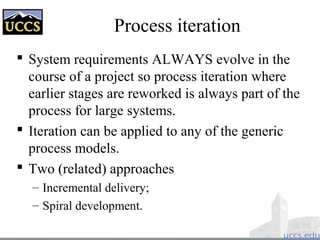

Process iteration
 System requirements ALWAYS evolve in the
course of a project so process iteration where
earlier stages are reworked is always part of the
process for large systems.
 Iteration can be applied to any of the generic
process models.
 Two (related) approaches
– Incremental delivery;
– Spiral development.

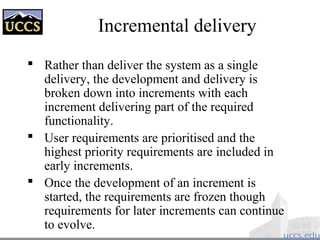

Incremental delivery
 Rather than deliver the system as a single
delivery, the development and delivery is
broken down into increments with each
increment delivering part of the required
functionality.
 User requirements are prioritised and the
highest priority requirements are included in
early increments.
 Once the development of an increment is
started, the requirements are frozen though
requirements for later increments can continue
to evolve.

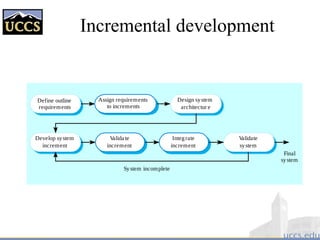

Incremental development
Valida te
increment
Develop system
increment
Design system
architectur e
Integrate
increment
Validate
system
Define outline
requirements
Assign requirements
to increments
System incomplete
Final
system

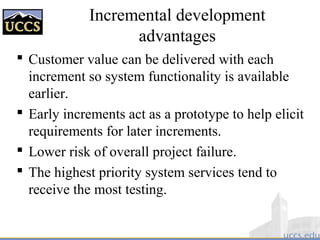

Incremental development
advantages
 Customer value can be delivered with each
increment so system functionality is available
earlier.
 Early increments act as a prototype to help elicit
requirements for later increments.
 Lower risk of overall project failure.
 The highest priority system services tend to
receive the most testing.

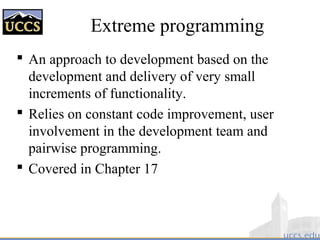

Extreme programming
 An approach to development based on the
development and delivery of very small
increments of functionality.
 Relies on constant code improvement, user
involvement in the development team and
pairwise programming.
 Covered in Chapter 17

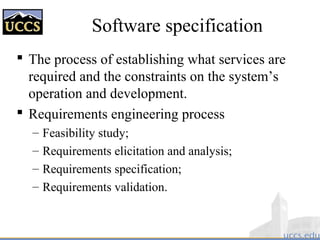

Software specification
 The process of establishing what services are
required and the constraints on the system’s
operation and development.
 Requirements engineering process
– Feasibility study;
– Requirements elicitation and analysis;
– Requirements specification;
– Requirements validation.

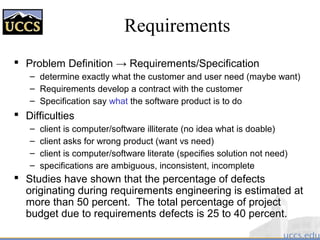

Requirements
 Problem Definition → Requirements/Specification
– determine exactly what the customer and user need (maybe want)
– Requirements develop a contract with the customer
– Specification say what the software product is to do
 Difficulties
– client is computer/software illiterate (no idea what is doable)
– client asks for wrong product (want vs need)
– client is computer/software literate (specifies solution not need)
– specifications are ambiguous, inconsistent, incomplete
 Studies have shown that the percentage of defects
originating during requirements engineering is estimated at
more than 50 percent. The total percentage of project
budget due to requirements defects is 25 to 40 percent.

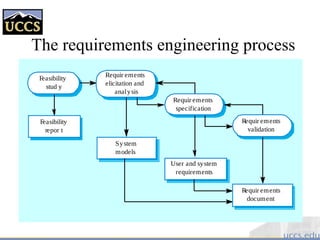

The requirements engineering process
Feasibility
stud y
Requir ements
elicitation and
analysis
Requir ements
specification
Requir ements
validation
Feasibility
repor t
System
models
User and system
requirements
Requir ements
document

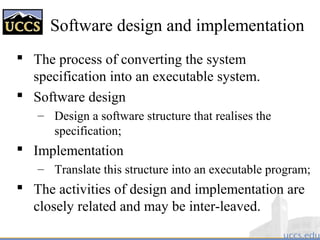

Software design and implementation
 The process of converting the system
specification into an executable system.
 Software design
– Design a software structure that realises the
specification;
 Implementation
– Translate this structure into an executable program;
 The activities of design and implementation are
closely related and may be inter-leaved.

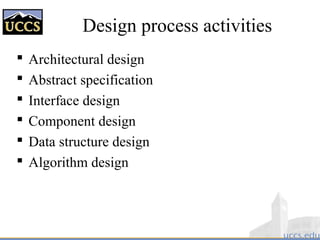

Design process activities
 Architectural design
 Abstract specification
 Interface design
 Component design
 Data structure design
 Algorithm design

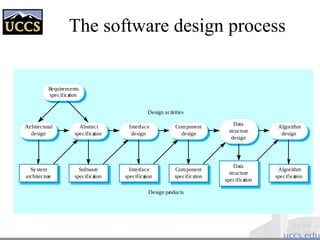

The software design process
Architectural
design
Abstract
specification
Interface
design
Component
design
Data
structure
design
Algorithm
design
System
architecture
Software
specification
Interface
specification
Component
specification
Data
structure
specification
Algorithm
specification
Requirements
specification
Design activities
Design products

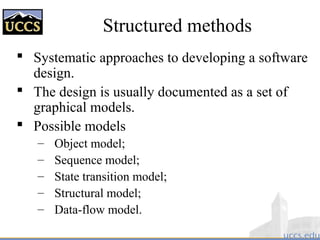

Structured methods
 Systematic approaches to developing a software
design.
 The design is usually documented as a set of
graphical models.
 Possible models
– Object model;
– Sequence model;
– State transition model;
– Structural model;
– Data-flow model.

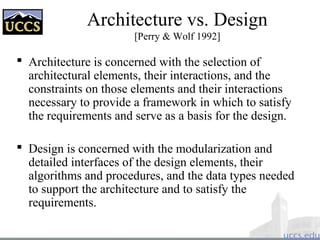

Architecture vs. Design
[Perry & Wolf 1992]
 Architecture is concerned with the selection of
architectural elements, their interactions, and the
constraints on those elements and their interactions
necessary to provide a framework in which to satisfy
the requirements and serve as a basis for the design.
 Design is concerned with the modularization and
detailed interfaces of the design elements, their
algorithms and procedures, and the data types needed
to support the architecture and to satisfy the
requirements.

Architecture/Design
 Requirements/Specification → Architecture/Design
– architecture: decompose software into
modules/objects/components with interfaces
– design: develop module/object/component specifications
(algorithms, data types) and communication details
– maintain a record of design decisions and traceability
– specifies how the software product is to do its tasks
 Difficulties
– miscommunication between module designers
– design may be inconsistent, incomplete, ambiguous
– “How” to achieve a requirement may be unknown

Planning/Scheduling
 Before undertaking cost of development, need to
estimate the costs/sizes of various steps
– Estimate Code size
– Estimate tools needed
– Estimate personnel
 Often Done after Architecture and before rest of
design, but revised again after full design.
 Develop schedule for aspects of project lifecycle
 If doing predictive/quantitative SE, build on past
experience, considering how to improve process.

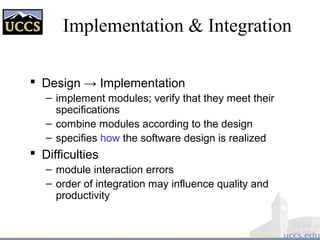

Implementation & Integration
 Design → Implementation
– implement modules; verify that they meet their
specifications
– combine modules according to the design
– specifies how the software design is realized
 Difficulties
– module interaction errors
– order of integration may influence quality and
productivity

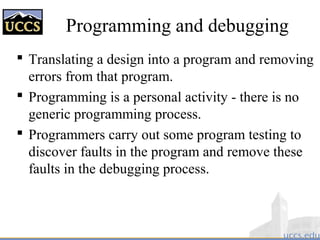

Programming and debugging
 Translating a design into a program and removing
errors from that program.
 Programming is a personal activity - there is no
generic programming process.
 Programmers carry out some program testing to
discover faults in the program and remove these
faults in the debugging process.

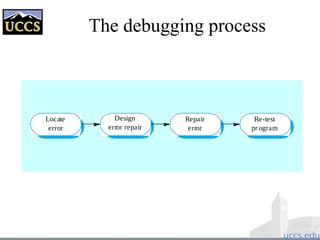

The debugging process
Locate
error
Design
error repair
Repair
error
Re-test
pr ogram

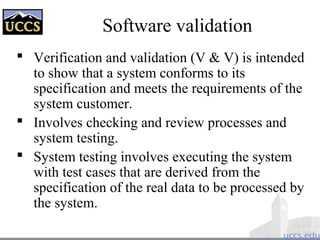

Software validation
 Verification and validation (V & V) is intended
to show that a system conforms to its
specification and meets the requirements of the
system customer.
 Involves checking and review processes and
system testing.
 System testing involves executing the system
with test cases that are derived from the
specification of the real data to be processed by
the system.

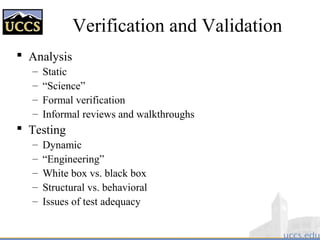

Verification and Validation
 Analysis
– Static
– “Science”
– Formal verification
– Informal reviews and walkthroughs
 Testing
– Dynamic
– “Engineering”
– White box vs. black box
– Structural vs. behavioral
– Issues of test adequacy

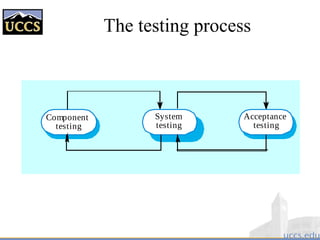

The testing process
Component
testing
System
testing
Acceptance
testing

Testing stages
 Component or unit testing
– Individual components are tested independently;
– Components may be functions or objects or coherent
groupings of these entities.
 System testing
– Testing of the system as a whole. Testing of
emergent properties is particularly important.
 Acceptance testing
– Testing with customer data to check that the system
meets the customer’s needs.

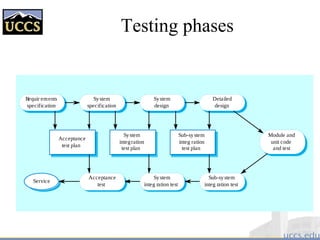

Testing phases
Requir ements
specification
System
specification
System
design
Detailed
design
Module and
unit code
and test
Sub-system
integ ration
test plan
System
integration
test plan
Acceptance
test plan
Service
Acceptance
test
System
integ ration test
Sub-system
integ ration test

Quality Assurance
 Done as part of each step
 Reduce costs by catching errors early.
 Help determine ambiguities/inconsistencies
 Help ensure quality product.
Requirements Specification Planning Design Implementation Integration Maintenance
1 2 3 4
10
30
200

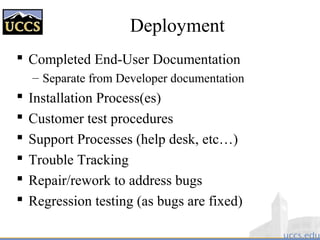

Deployment
 Completed End-User Documentation
– Separate from Developer documentation
 Installation Process(es)
 Customer test procedures
 Support Processes (help desk, etc…)
 Trouble Tracking
 Repair/rework to address bugs
 Regression testing (as bugs are fixed)

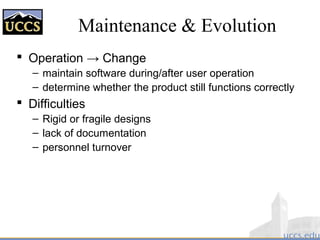

Maintenance & Evolution
 Operation → Change
– maintain software during/after user operation
– determine whether the product still functions correctly
 Difficulties
– Rigid or fragile designs
– lack of documentation
– personnel turnover

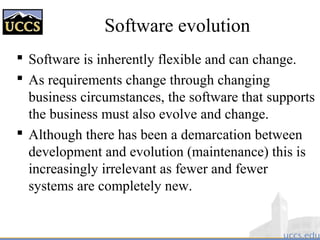

Software evolution
 Software is inherently flexible and can change.
 As requirements change through changing
business circumstances, the software that supports
the business must also evolve and change.
 Although there has been a demarcation between
development and evolution (maintenance) this is
increasingly irrelevant as fewer and fewer
systems are completely new.

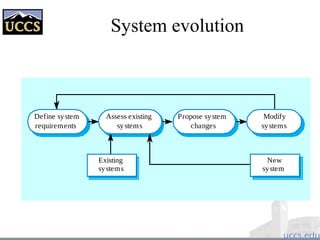

System evolution
Assess existing
systems
Define system
requirements
Propose system
changes
Modify
systems
New
system
Existing
systems

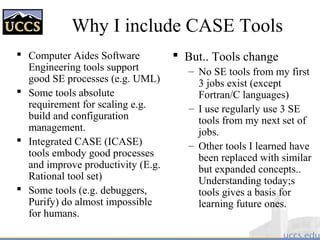

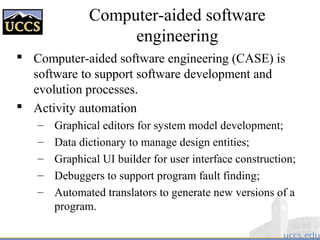

Why I include CASE Tools
 Computer Aides Software
Engineering tools support
good SE processes (e.g. UML)
 Some tools absolute
requirement for scaling e.g.
build and configuration
management.
 Integrated CASE (ICASE)
tools embody good processes
and improve productivity (E.g.
Rational tool set)
 Some tools (e.g. debuggers,
Purify) do almost impossible
for humans.
 But.. Tools change
– No SE tools from my first
3 jobs exist (except
Fortran/C languages)
– I use regularly use 3 SE
tools from my next set of
jobs.
– Other tools I learned have
been replaced with similar
but expanded concepts..
Understanding today;s
tools gives a basis for
learning future ones.

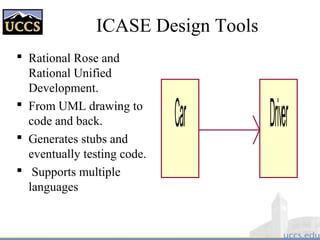

ICASE Design Tools
 Rational Rose and
Rational Unified
Development.
 From UML drawing to
code and back.
 Generates stubs and
eventually testing code.
 Supports multiple
languages
Car Driver

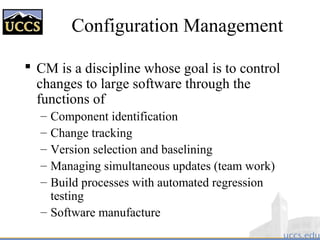

Configuration Management
 CM is a discipline whose goal is to control
changes to large software through the
functions of
– Component identification
– Change tracking
– Version selection and baselining
– Managing simultaneous updates (team work)
– Build processes with automated regression
testing
– Software manufacture

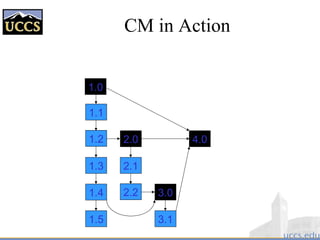

CM in Action
1.1
1.2
1.4
2.0
2.1
2.2
3.1
3.0
1.5
4.0
1.0
1.3

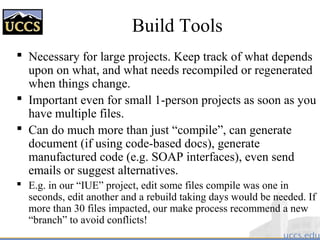

Build Tools
 Necessary for large projects. Keep track of what depends
upon on what, and what needs recompiled or regenerated
when things change.
 Important even for small 1-person projects as soon as you
have multiple files.
 Can do much more than just “compile”, can generate
document (if using code-based docs), generate
manufactured code (e.g. SOAP interfaces), even send
emails or suggest alternatives.
 E.g. in our “IUE” project, edit some files compile was one in
seconds, edit another and a rebuild taking days would be needed. If
more than 30 files impacted, our make process recommend a new
“branch” to avoid conflicts!

Debugging Tools
 How do you see what the code is really doing (not
what it seems it should do)?
 How to you see what happened to code during
compiler optimization?
 How do you find/track down the cause of
Segfault/GFP in code you’ve never seen before?
 How can you “test” various possibilities without
generating special code or recompiling.
 How do you track down a memory leak?

Tools, workbenches, environments
Single-method
workbenches
General-purpose
workbenches
Multi-method
workbenches
Langua ge-specific
workbenches
Programming Testing
Analysis and
design
Integrated
environments
Process-centr ed
environments
File
compar ators
CompilersEditors
EnvironmentsWor kbenchesTools
CASE
technolo gy

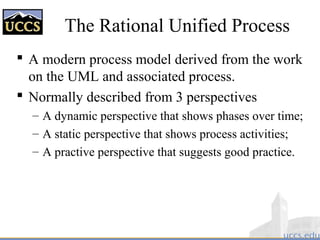

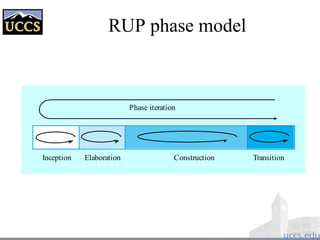

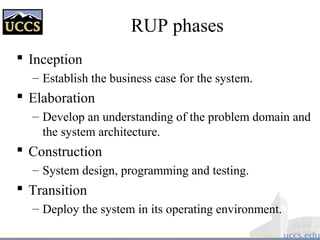

The Rational Unified Process
 A modern process model derived from the work
on the UML and associated process.
 Normally described from 3 perspectives
– A dynamic perspective that shows phases over time;
– A static perspective that shows process activities;
– A practive perspective that suggests good practice.

RUP phase model
Phase iteration
Inception Elaboration Construction Transition

RUP phases
 Inception
– Establish the business case for the system.
 Elaboration
– Develop an understanding of the problem domain and
the system architecture.
 Construction
– System design, programming and testing.
 Transition
– Deploy the system in its operating environment.

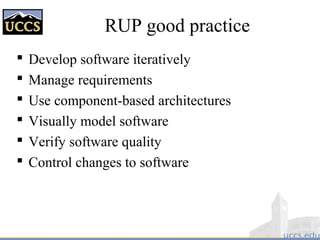

RUP good practice
 Develop software iteratively
 Manage requirements
 Use component-based architectures
 Visually model software
 Verify software quality
 Control changes to software

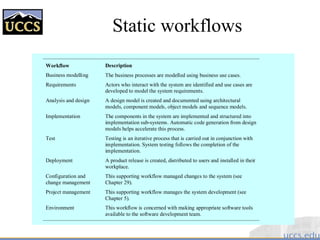

Static workflows
Workflow Description
Business modelling The business processes are modelled using business use cases.
Requirements Actors who interact with the system are identified and use cases are
developed to model the system requirements.
Analysis and design A design model is created and documented using architectural
models, component models, object models and sequence models.
Implementation The components in the system are implemented and structured into
implementation sub-systems. Automatic code generation from design
models helps accelerate this process.
Test Testing is an iterative process that is carried out in conjunction with
implementation. System testing follows the completion of the
implementation.
Deployment A product release is created, distributed to users and installed in their
workplace.
Configuration and
change management
This supporting workflow managed changes to the system (see
Chapter 29).
Project management This supporting workflow manages the system development (see
Chapter 5).
Environment This workflow is concerned with making appropriate software tools
available to the software development team.

Computer-aided software
engineering
 Computer-aided software engineering (CASE) is
software to support software development and
evolution processes.
 Activity automation
– Graphical editors for system model development;
– Data dictionary to manage design entities;
– Graphical UI builder for user interface construction;
– Debuggers to support program fault finding;
– Automated translators to generate new versions of a
program.

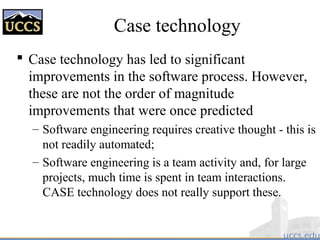

Case technology
 Case technology has led to significant
improvements in the software process. However,
these are not the order of magnitude
improvements that were once predicted
– Software engineering requires creative thought - this is
not readily automated;
– Software engineering is a team activity and, for large
projects, much time is spent in team interactions.
CASE technology does not really support these.

CASE classification
 Classification helps us understand the different types
of CASE tools and their support for process activities.
 Functional perspective
– Tools are classified according to their specific function.
 Process perspective
– Tools are classified according to process activities that
are supported.
 Integration perspective
– Tools are classified according to their organisation into
integrated units.

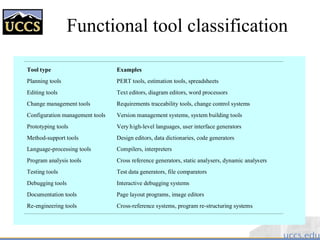

Functional tool classification
Tool type Examples
Planning tools PERT tools, estimation tools, spreadsheets
Editing tools Text editors, diagram editors, word processors
Change management tools Requirements traceability tools, change control systems
Configuration management tools Version management systems, system building tools
Prototyping tools Very high-level languages, user interface generators
Method-support tools Design editors, data dictionaries, code generators
Language-processing tools Compilers, interpreters
Program analysis tools Cross reference generators, static analysers, dynamic analysers
Testing tools Test data generators, file comparators
Debugging tools Interactive debugging systems
Documentation tools Page layout programs, image editors
Re-engineering tools Cross-reference systems, program re-structuring systems

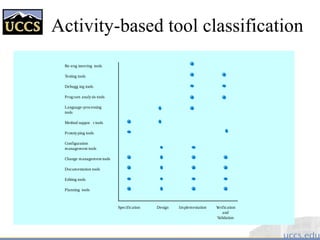

Activity-based tool classification
Specification Design Implementation Verification
and
Validation
Re-eng ineering tools
Testing tools
Debugg ing tools
Program analysis tools
Language-processing
tools
Method suppor t tools
Prototyping tools
Configuration
management tools
Change management tools
Documentation tools
Editing tools
Planning tools

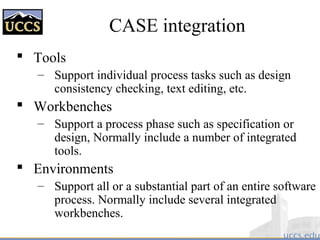

CASE integration
 Tools
– Support individual process tasks such as design
consistency checking, text editing, etc.
 Workbenches
– Support a process phase such as specification or
design, Normally include a number of integrated
tools.
 Environments
– Support all or a substantial part of an entire software
process. Normally include several integrated
workbenches.

Boult’s view of SE
 SE must balance risks in software development process:
– Risks of error in
• requirements
• specification,
• design,
• implementation,
• and integration
– Risks of exceeding available resources
– Risks of being late on delivery or missing the market
 Don’t let push for formality dominate your process.
 Don’t let push for expedience destroy your process.

Software Process Qualities
 Process is reliable if it consistently leads to high-
quality products
 Process is robust if it can accommodate
unanticipated changes in tools and
environments
 Process performance is productivity
 Process is evolvable if it can accommodate new
management and organizational techniques
 Process is reusable if it can be applied across
projects and organizations

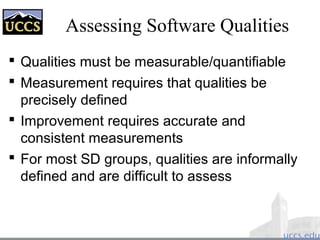

Assessing Software Qualities
 Qualities must be measurable/quantifiable
 Measurement requires that qualities be
precisely defined
 Improvement requires accurate and
consistent measurements
 For most SD groups, qualities are informally
defined and are difficult to assess

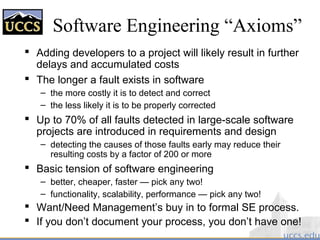

Software Engineering “Axioms”
 Adding developers to a project will likely result in further
delays and accumulated costs
 The longer a fault exists in software
– the more costly it is to detect and correct
– the less likely it is to be properly corrected
 Up to 70% of all faults detected in large-scale software
projects are introduced in requirements and design
– detecting the causes of those faults early may reduce their
resulting costs by a factor of 200 or more
 Basic tension of software engineering
– better, cheaper, faster — pick any two!
– functionality, scalability, performance — pick any two!
 Want/Need Management’s buy in to formal SE process.
 If you don’t document your process, you don’t have one!

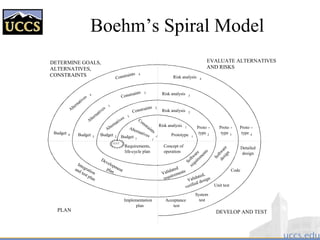

Boehm’s Spiral Model
PLAN DEVELOP AND TEST
DETERMINE GOALS,
ALTERNATIVES,
CONSTRAINTS
EVALUATE ALTERNATIVES
AND RISKS
Requirements,
life-cycle plan
Budget 1
Alternatives
1
Constraints
1
Risk analysis 1
Risk analysis 2
Risk analysis 3
Risk analysis 4
Constraints 2
Constraints 3
Constraints 4
Budget 2Budget 3
Budget 4
Alternatives 2
Alternatives 3
Alternatives 4
Prototype 1
Proto -
type 2
Proto -
type 3
Proto -
type 4
Concept of
operation
Software
requirem
ents
Validated
requirements
Developmentplan
Integration
and test plan
Software
design
Validated,
verified design
Detailed
design
Code
Unit test
System
testAcceptance
test
Implementation
plan
start

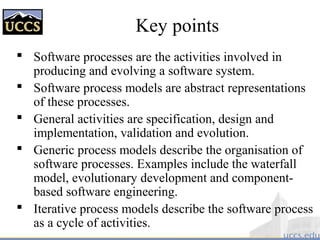

Key points
 Software processes are the activities involved in
producing and evolving a software system.
 Software process models are abstract representations
of these processes.
 General activities are specification, design and
implementation, validation and evolution.
 Generic process models describe the organisation of
software processes. Examples include the waterfall
model, evolutionary development and component-
based software engineering.
 Iterative process models describe the software process
as a cycle of activities.

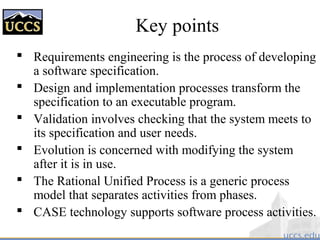

Key points
 Requirements engineering is the process of developing
a software specification.
 Design and implementation processes transform the
specification to an executable program.
 Validation involves checking that the system meets to
its specification and user needs.
 Evolution is concerned with modifying the system
after it is in use.
 The Rational Unified Process is a generic process
model that separates activities from phases.
 CASE technology supports software process activities.

Lect 1- software engineering

More Related Content

What's hot

Similar to Lect 1- software engineering

Recently uploaded

Lect 1- software engineering

Editor's Notes
