The various forces acts on the reciprocating parts of an engine.
The resultant of all the forces acting on the body of the engine due to inertia forces only is known as unbalanced force or shaking force.
Unit 5- balancing of reciprocating masses, Dynamics of machines of VTU Syllabus prepared by Hareesha N Gowda, Asst. Prof, Dayananda Sagar College of Engg, Blore. Please write to hareeshang@gmail.com for suggestions and criticisms.
The various forces acts on the reciprocating parts of an engine.
The resultant of all the forces acting on the body of the engine due to inertia forces only is known as unbalanced force or shaking force.
Unit 5- balancing of reciprocating masses, Dynamics of machines of VTU Syllabus prepared by Hareesha N Gowda, Asst. Prof, Dayananda Sagar College of Engg, Blore. Please write to hareeshang@gmail.com for suggestions and criticisms.
Inertia effect of crank and connecting rod
single cylinder engine
balancing in multi cylinder-inline engine
– primary & Secondary forces
V-type engine
Radial engine – Direct and reverse crank method
Static balance occurs when the center of gravity of an object is on the axis of rotation. This allows the object to remain stationary, with the axis horizontal, without the application of any braking force. Static balance does not tend to rotate due to the force of gravity.
Static Balance is when the weight of the wheel and tire assembly is distributed equally around the axis of the wheel rotation. If static Balance exists the wheel will not tend to rotate.
Dynamic balancing definition: “Dynamic balancing is a way of balancing machines by rotating parts quickly and measuring the imbalance using electronic equipment. The imbalance measured can then be corrected by adding or subtracting weight from the rotating parts until the vibration is reduced.”
Inertia effect of crank and connecting rod
single cylinder engine
balancing in multi cylinder-inline engine
– primary & Secondary forces
V-type engine
Radial engine – Direct and reverse crank method
Static balance occurs when the center of gravity of an object is on the axis of rotation. This allows the object to remain stationary, with the axis horizontal, without the application of any braking force. Static balance does not tend to rotate due to the force of gravity.
Static Balance is when the weight of the wheel and tire assembly is distributed equally around the axis of the wheel rotation. If static Balance exists the wheel will not tend to rotate.
Dynamic balancing definition: “Dynamic balancing is a way of balancing machines by rotating parts quickly and measuring the imbalance using electronic equipment. The imbalance measured can then be corrected by adding or subtracting weight from the rotating parts until the vibration is reduced.”
PDF SubmissionDigital Marketing Institute in NoidaPoojaSaini954651
https://www.safalta.com/online-digital-marketing/advance-digital-marketing-training-in-noidaTop Digital Marketing Institute in Noida: Boost Your Career Fast
[3:29 am, 30/05/2024] +91 83818 43552: Safalta Digital Marketing Institute in Noida also provides advanced classes for individuals seeking to develop their expertise and skills in this field. These classes, led by industry experts with vast experience, focus on specific aspects of digital marketing such as advanced SEO strategies, sophisticated content creation techniques, and data-driven analytics.
Expert Accessory Dwelling Unit (ADU) Drafting ServicesResDraft
Whether you’re looking to create a guest house, a rental unit, or a private retreat, our experienced team will design a space that complements your existing home and maximizes your investment. We provide personalized, comprehensive expert accessory dwelling unit (ADU)drafting solutions tailored to your needs, ensuring a seamless process from concept to completion.
White wonder, Work developed by Eva TschoppMansi Shah
White Wonder by Eva Tschopp
A tale about our culture around the use of fertilizers and pesticides visiting small farms around Ahmedabad in Matar and Shilaj.
Book Formatting: Quality Control Checks for DesignersConfidence Ago
This presentation was made to help designers who work in publishing houses or format books for printing ensure quality.
Quality control is vital to every industry. This is why every department in a company need create a method they use in ensuring quality. This, perhaps, will not only improve the quality of products and bring errors to the barest minimum, but take it to a near perfect finish.
It is beyond a moot point that a good book will somewhat be judged by its cover, but the content of the book remains king. No matter how beautiful the cover, if the quality of writing or presentation is off, that will be a reason for readers not to come back to the book or recommend it.
So, this presentation points designers to some important things that may be missed by an editor that they could eventually discover and call the attention of the editor.
Maximize Your Content with Beautiful Assets : Content & Asset for Landing Page pmgdscunsri
Figma is a cloud-based design tool widely used by designers for prototyping, UI/UX design, and real-time collaboration. With features such as precision pen tools, grid system, and reusable components, Figma makes it easy for teams to work together on design projects. Its flexibility and accessibility make Figma a top choice in the digital age.

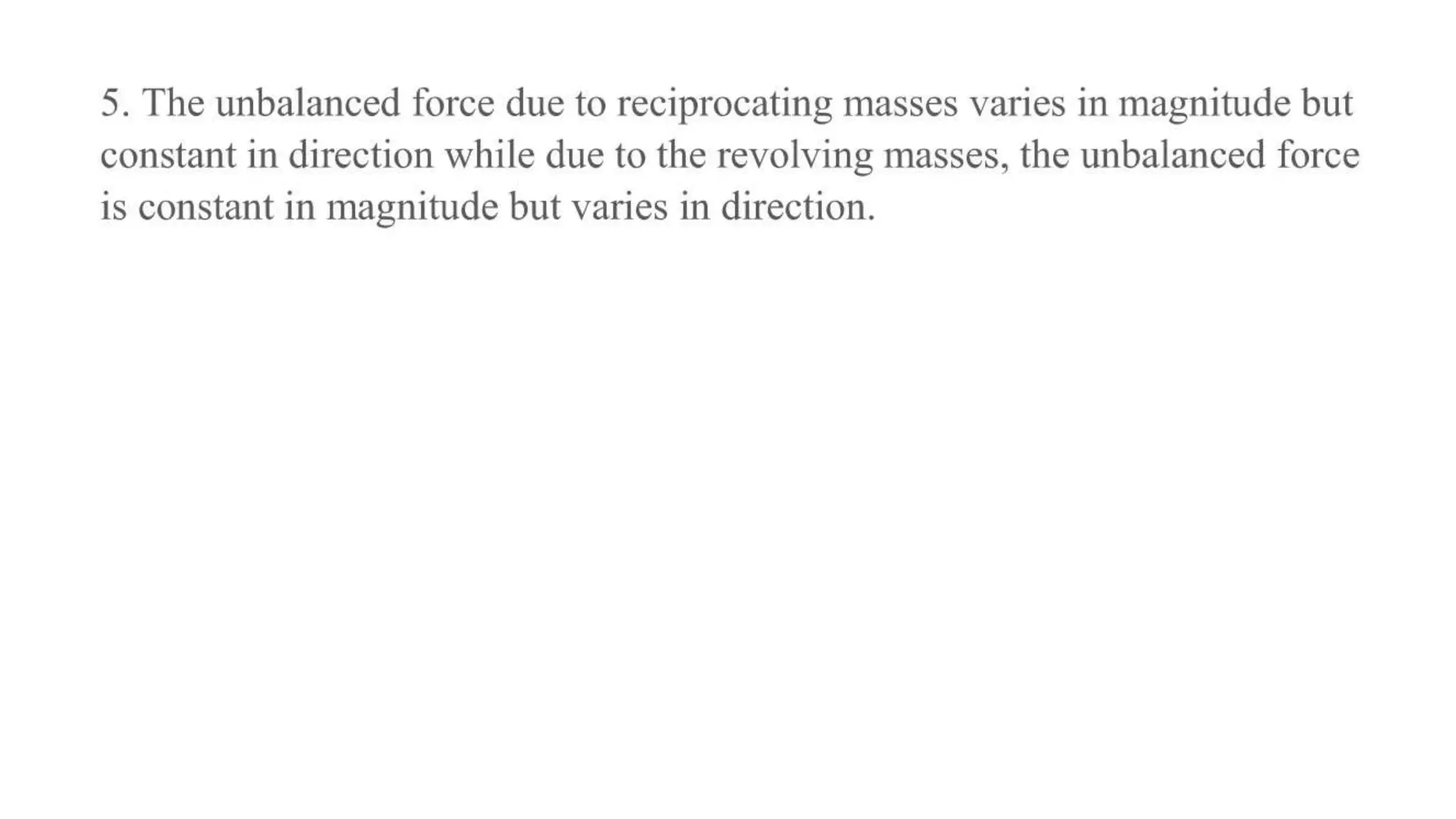

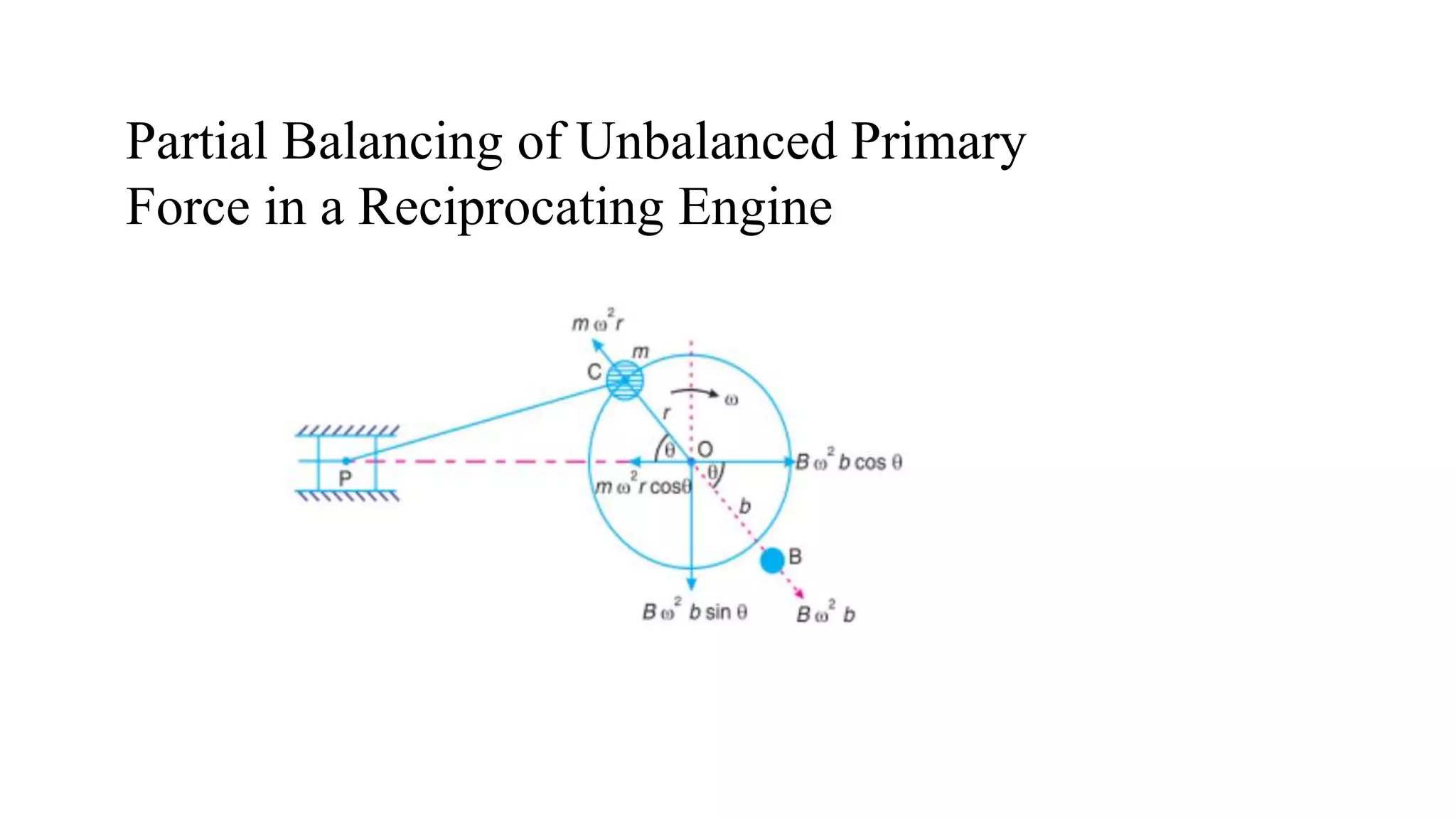

10. know that centrifugal force due to mass B,
horizontal component of this force acting in opposite direction of primary
force
The primary force is balanced

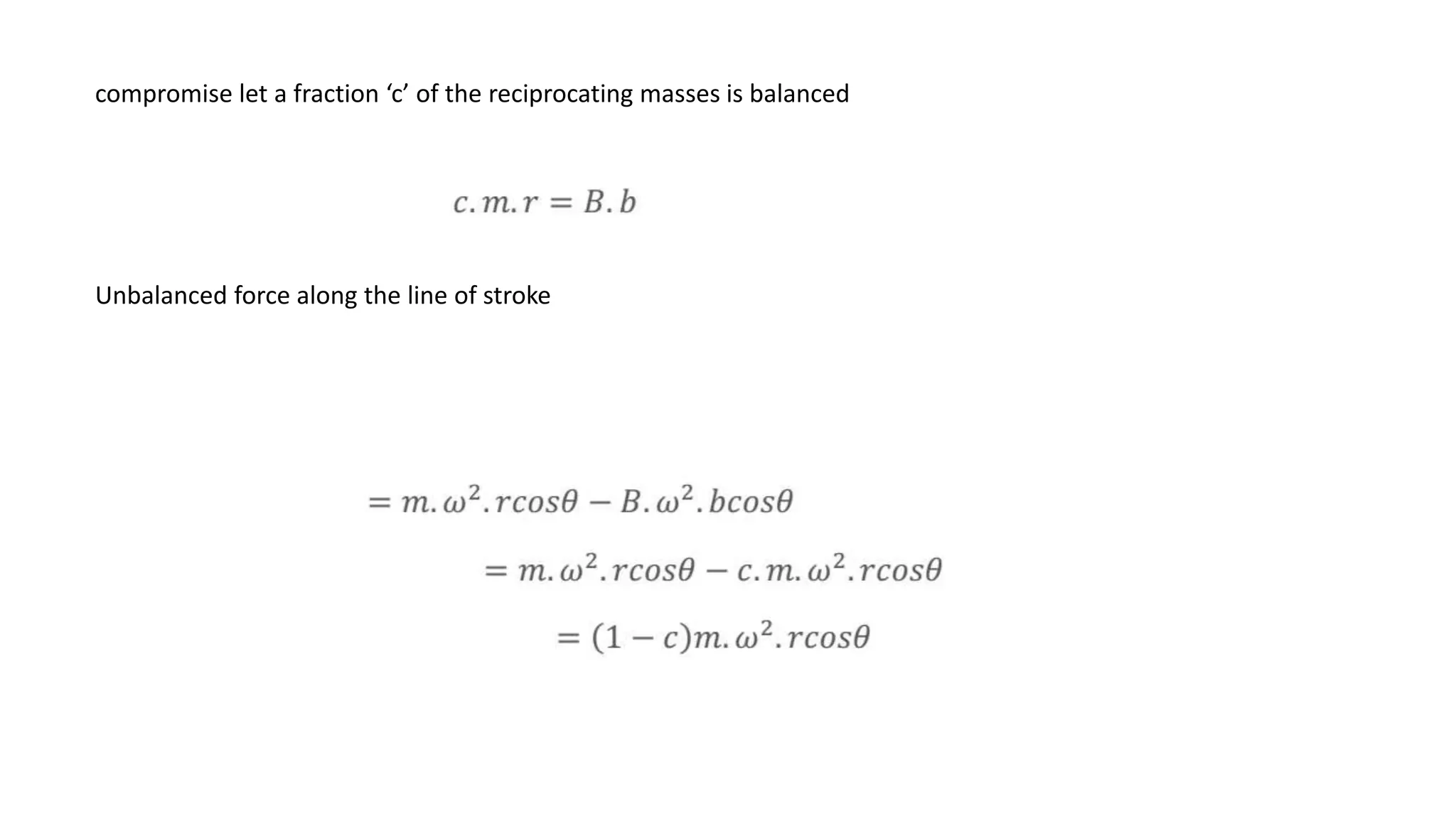

11. compromise let a fraction ‘c’ of the reciprocating masses is balanced
Unbalanced force along the line of stroke

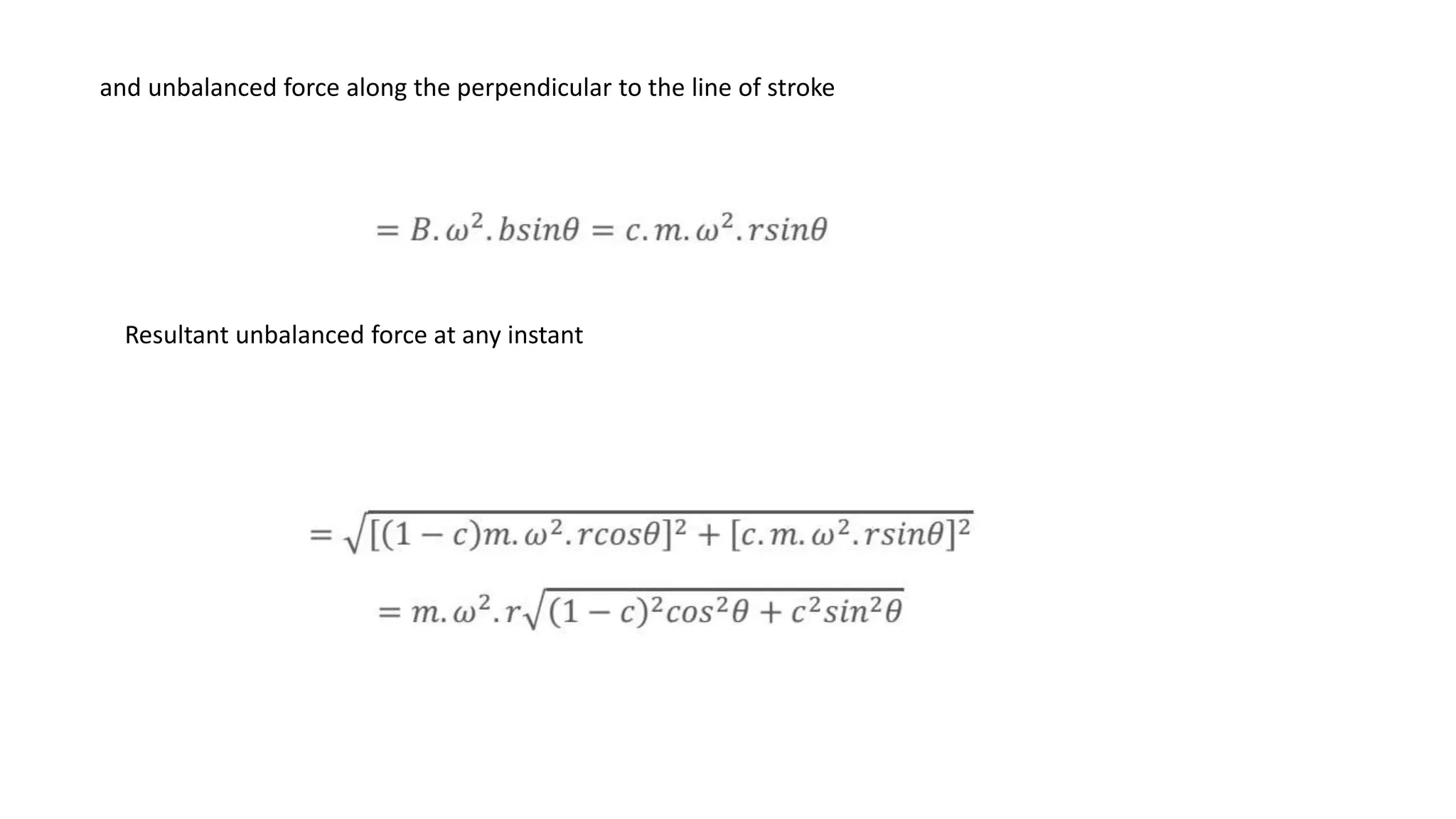

12. and unbalanced force along the perpendicular to the line of stroke
Resultant unbalanced force at any instant
13. If the balancing mass is required to balance the revolving masses as
well as reciprocating masses
Example 2.1. A single cylinder reciprocating engine has speed 240
r.p.m., stroke 300 mm, mass of reciprocating parts 50 kg, mass of
revolving parts at 150 mm radius 37 kg. If two-third of the reciprocating
parts and all the revolving parts are to be balanced, find: 1. the balance
mass required at a radius of 400 mm, and 2. the residual unbalanced
force when the crank has rotated 60° from top dead center.

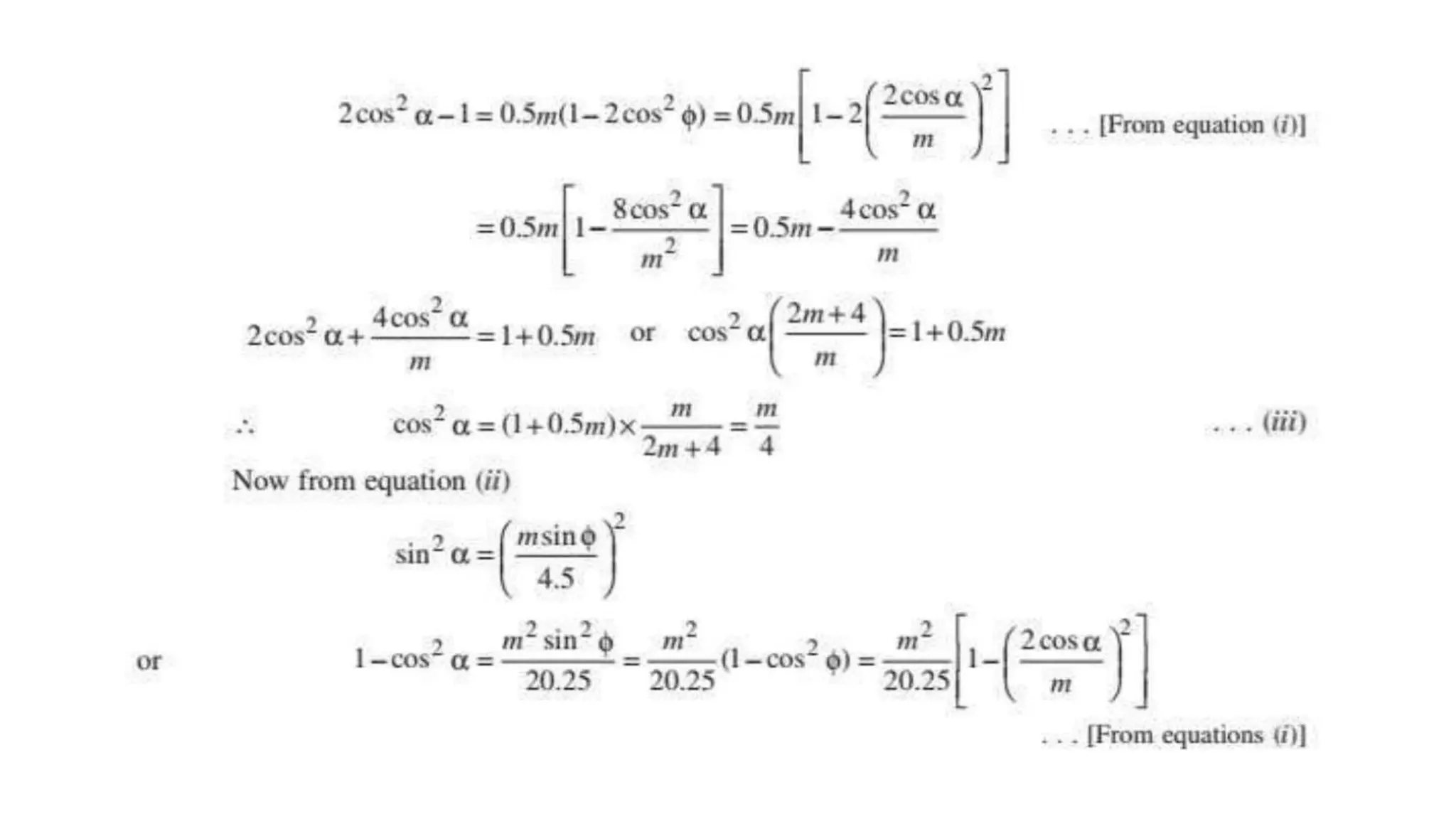

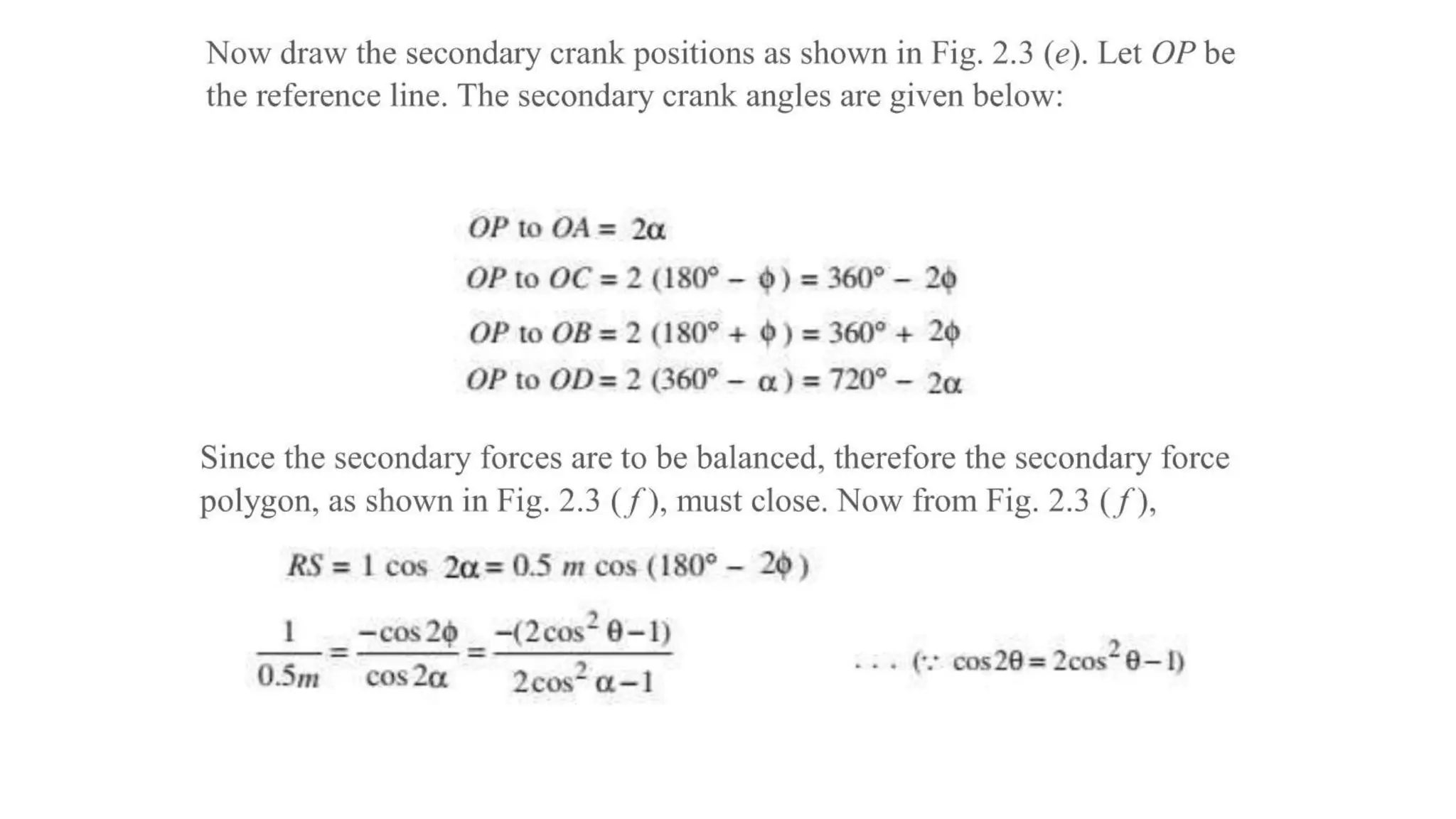

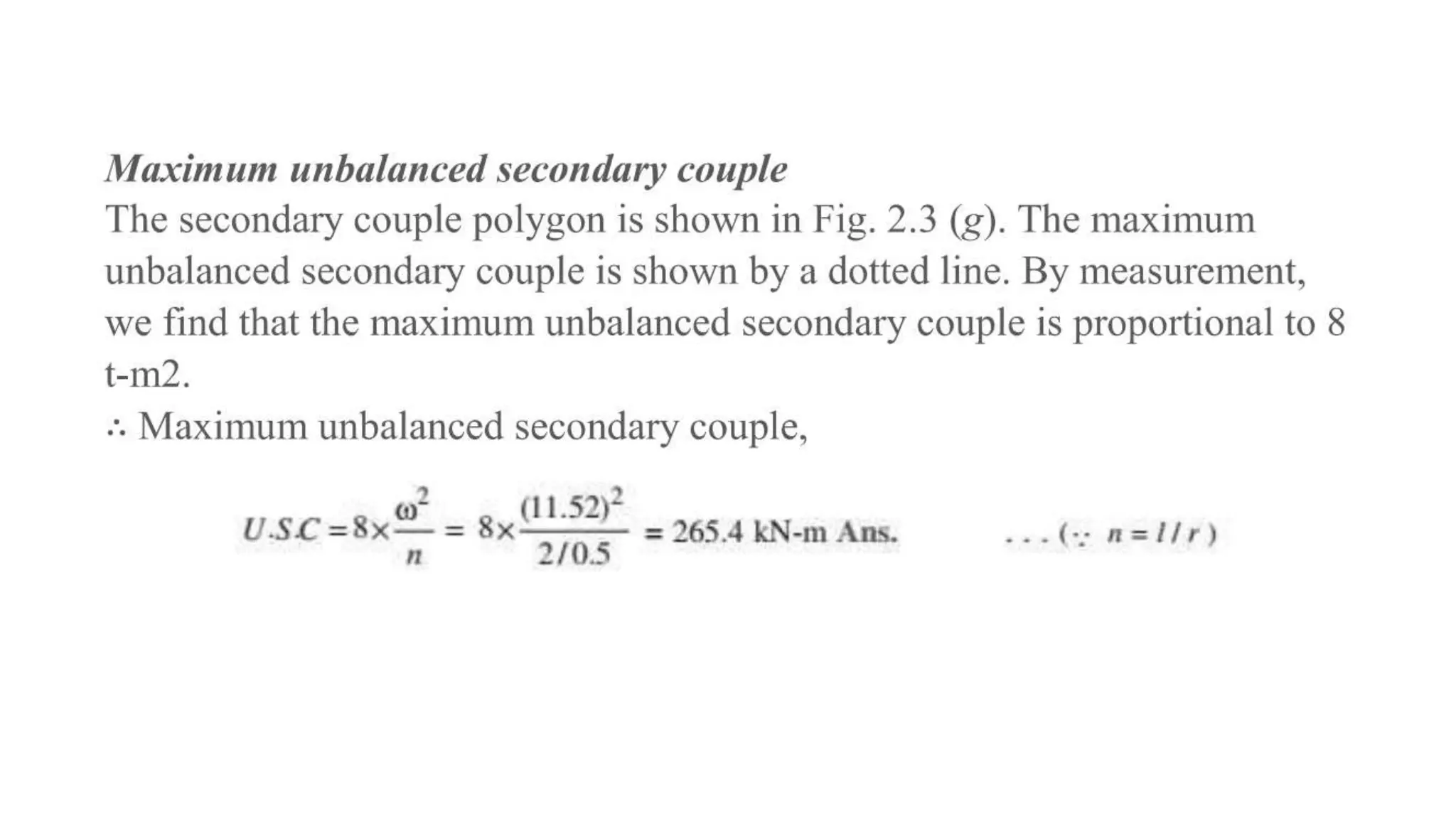

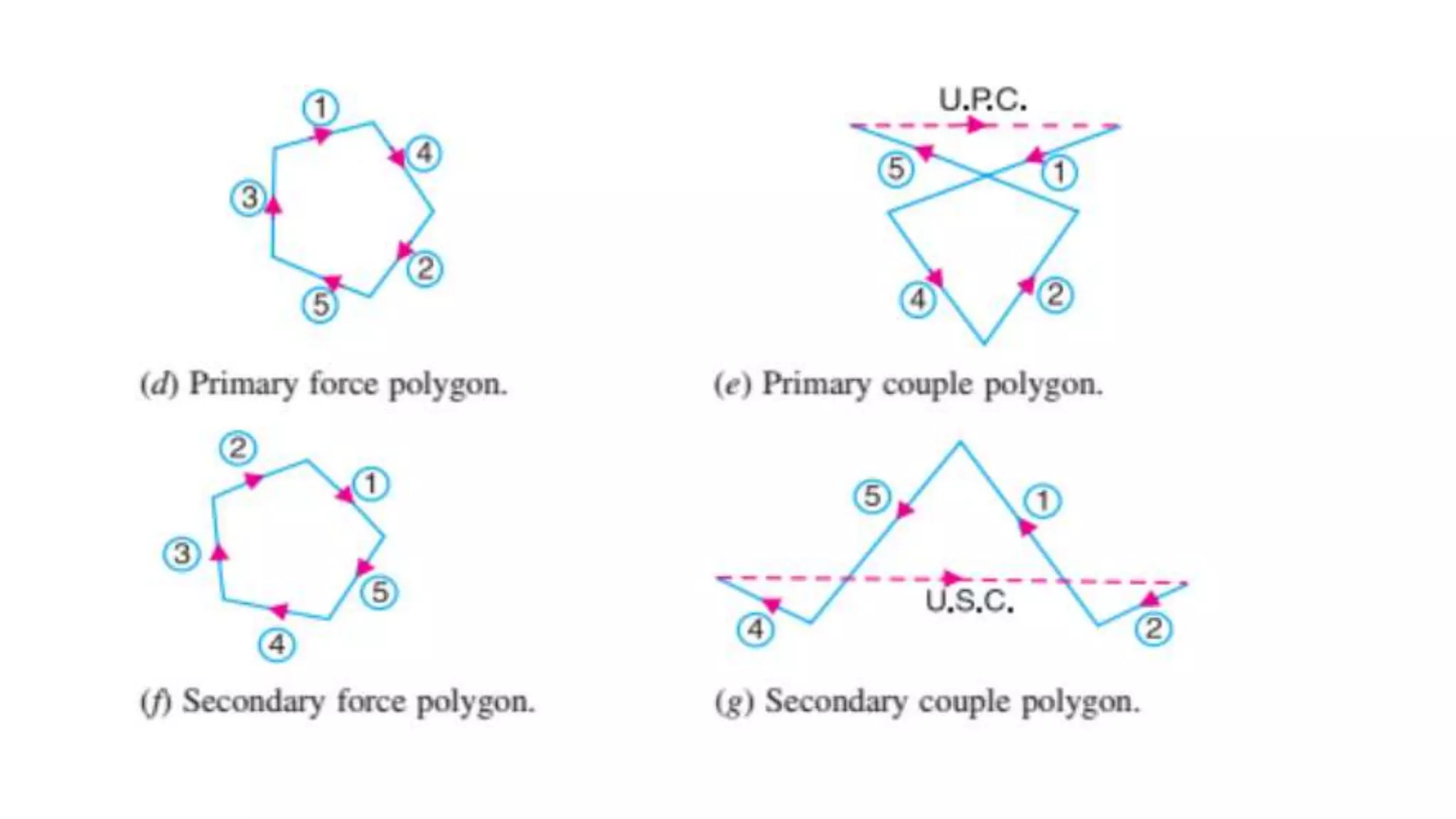

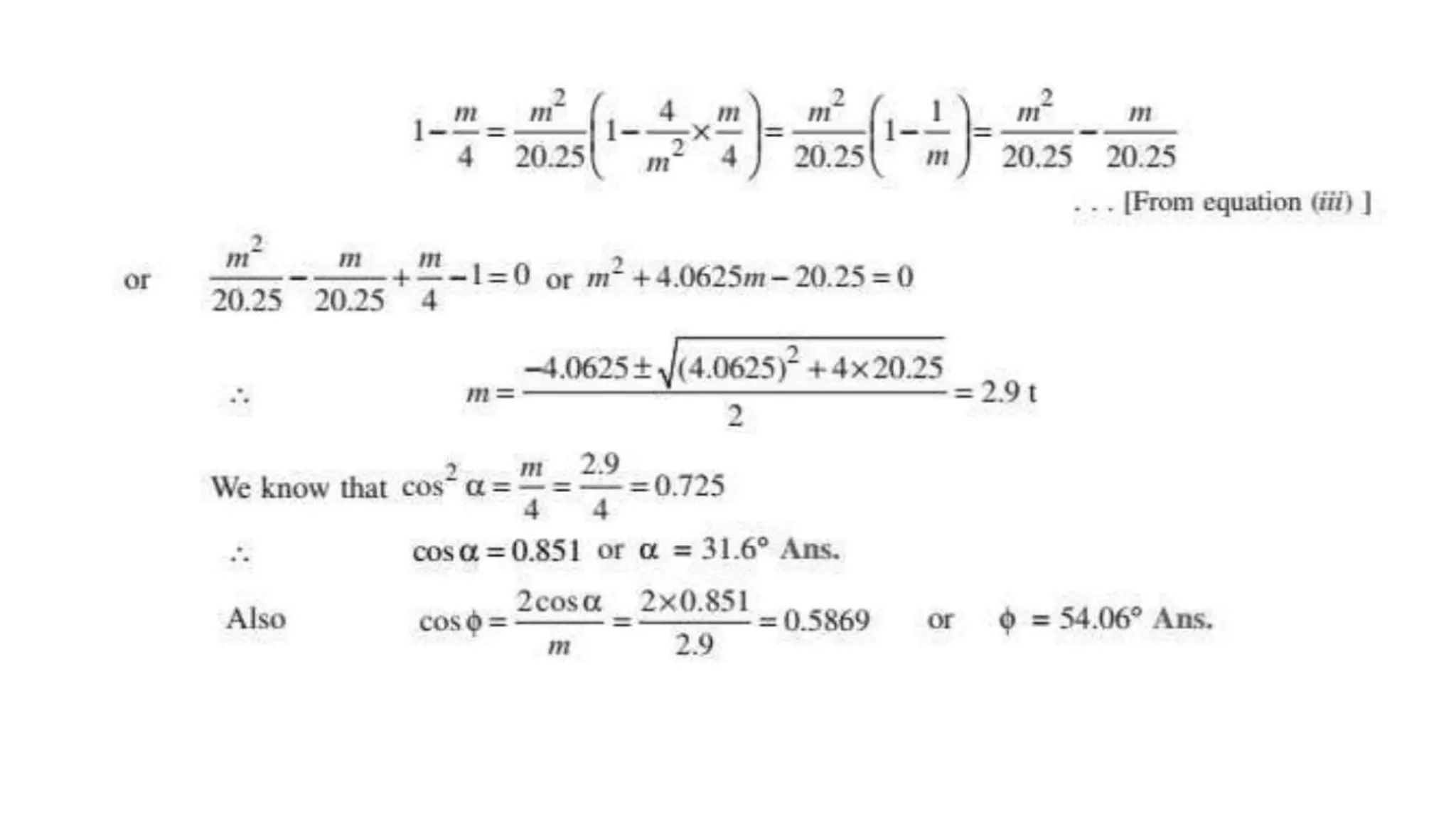

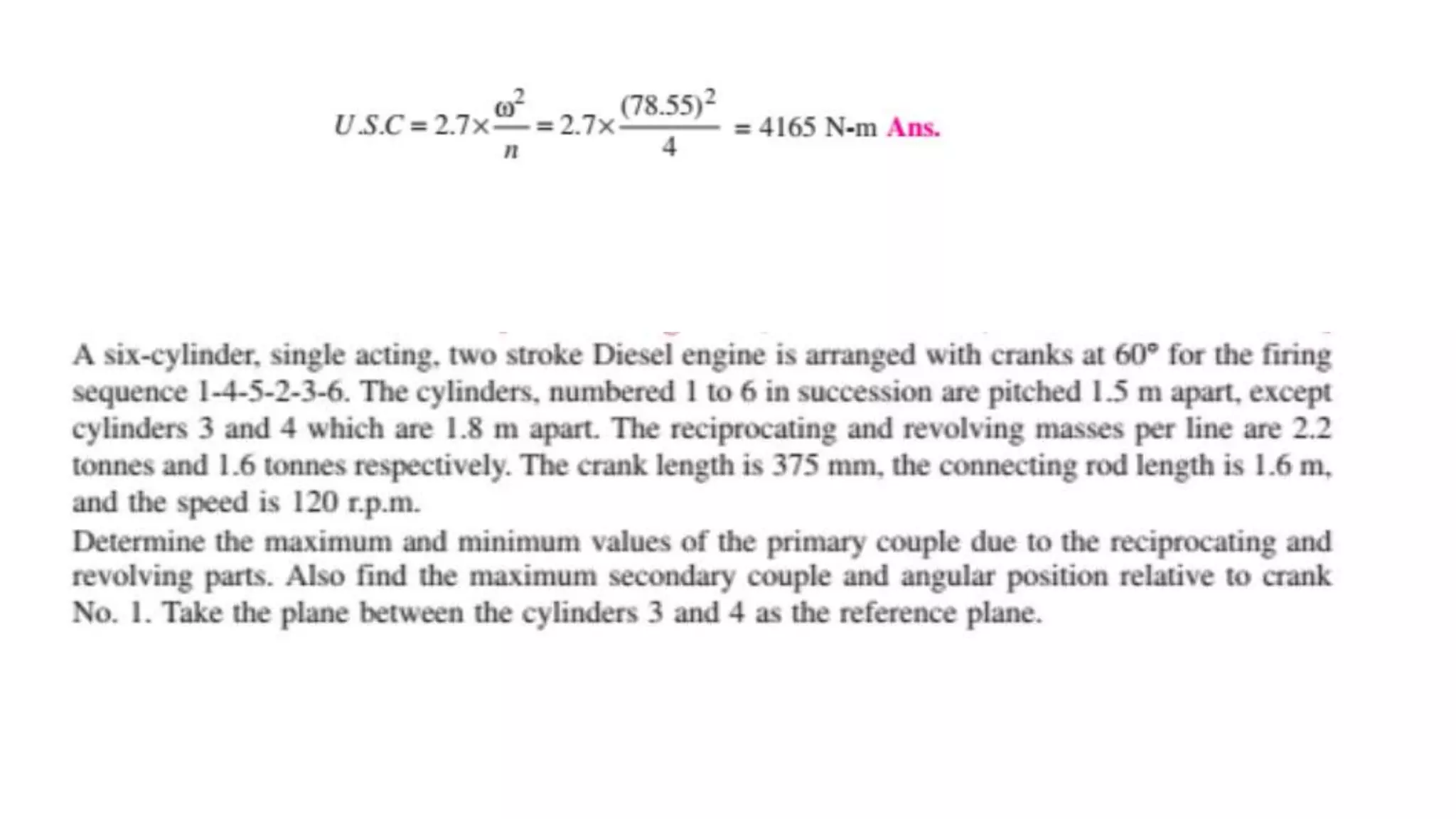

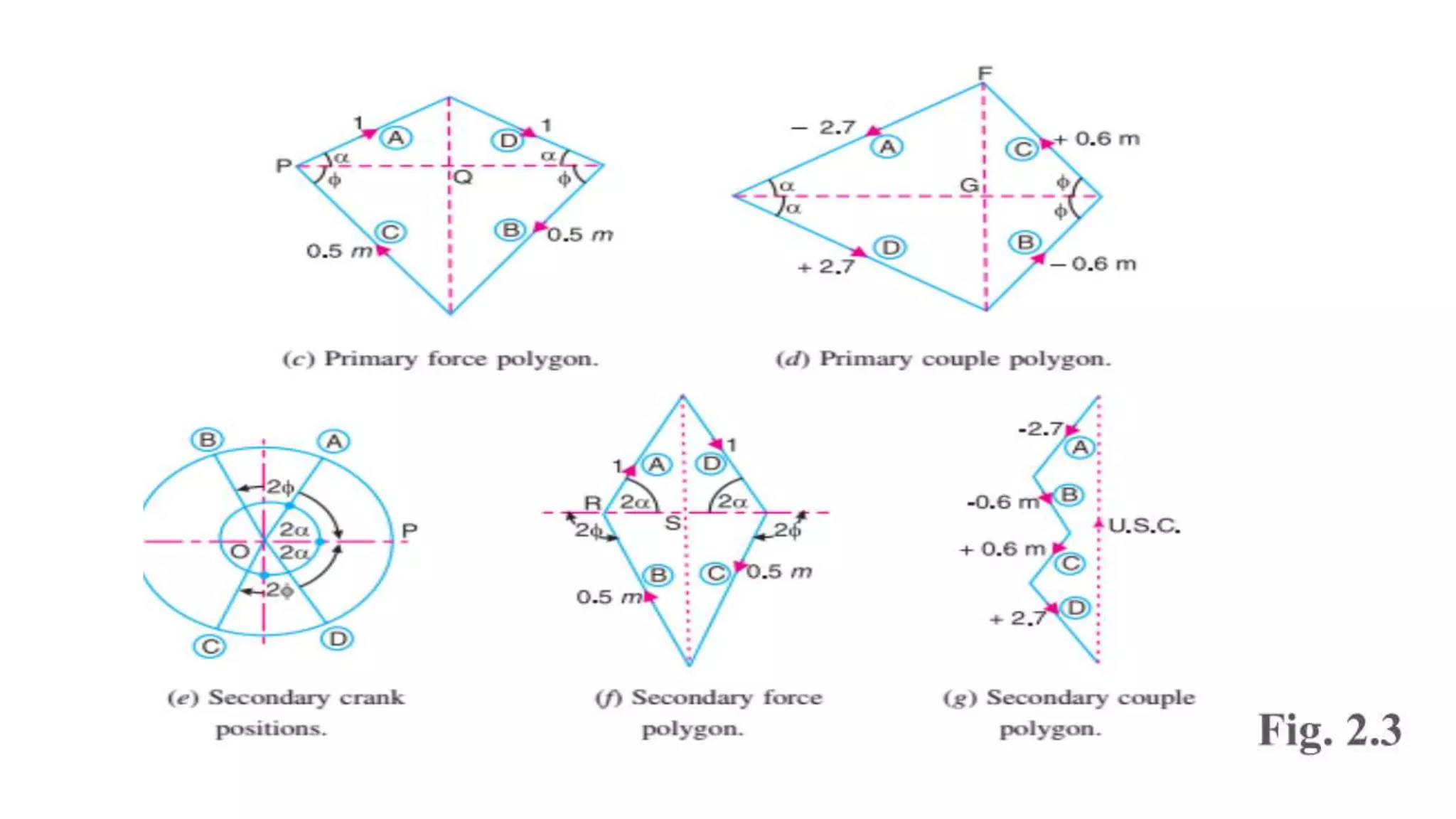

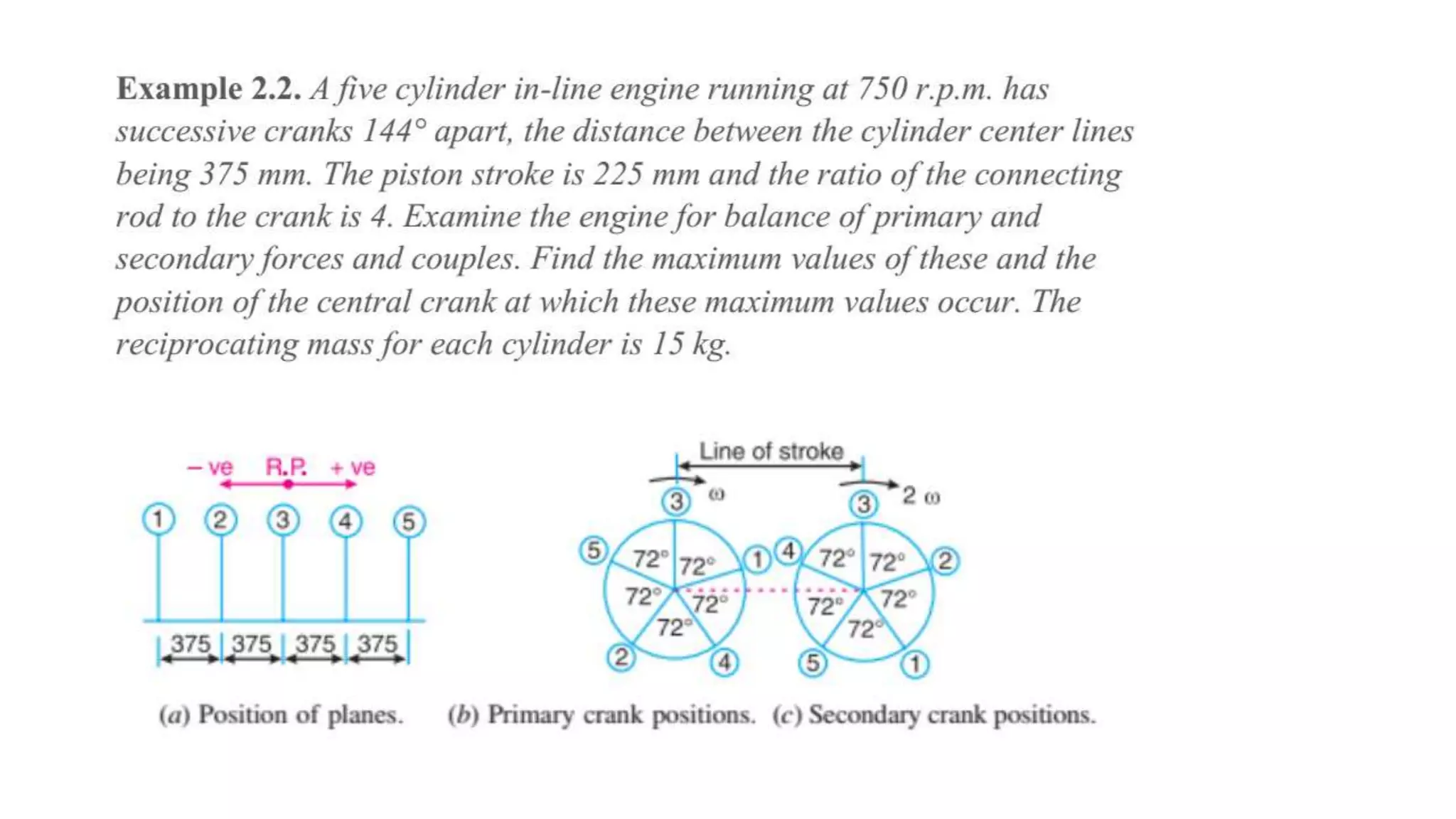

19. Example 2.2. A four cylinder engine has cranks arranged symmetrically
along the shaft as shown in Fig. 2.2. The distance between the outer cranks
A and D is 5.4 meters and that between the inner cranks B and C is 2.4
meters.
The mass of the reciprocating parts belonging to each of the outer
cylinders is 2 tones, and that belonging to each of the inner cylinders is m
tones. If the primary and secondary forces are to be balanced and also the
primary couples, determine the crank angle positions and the mass of the
reciprocating parts (m) corresponding to the inner cylinders.
