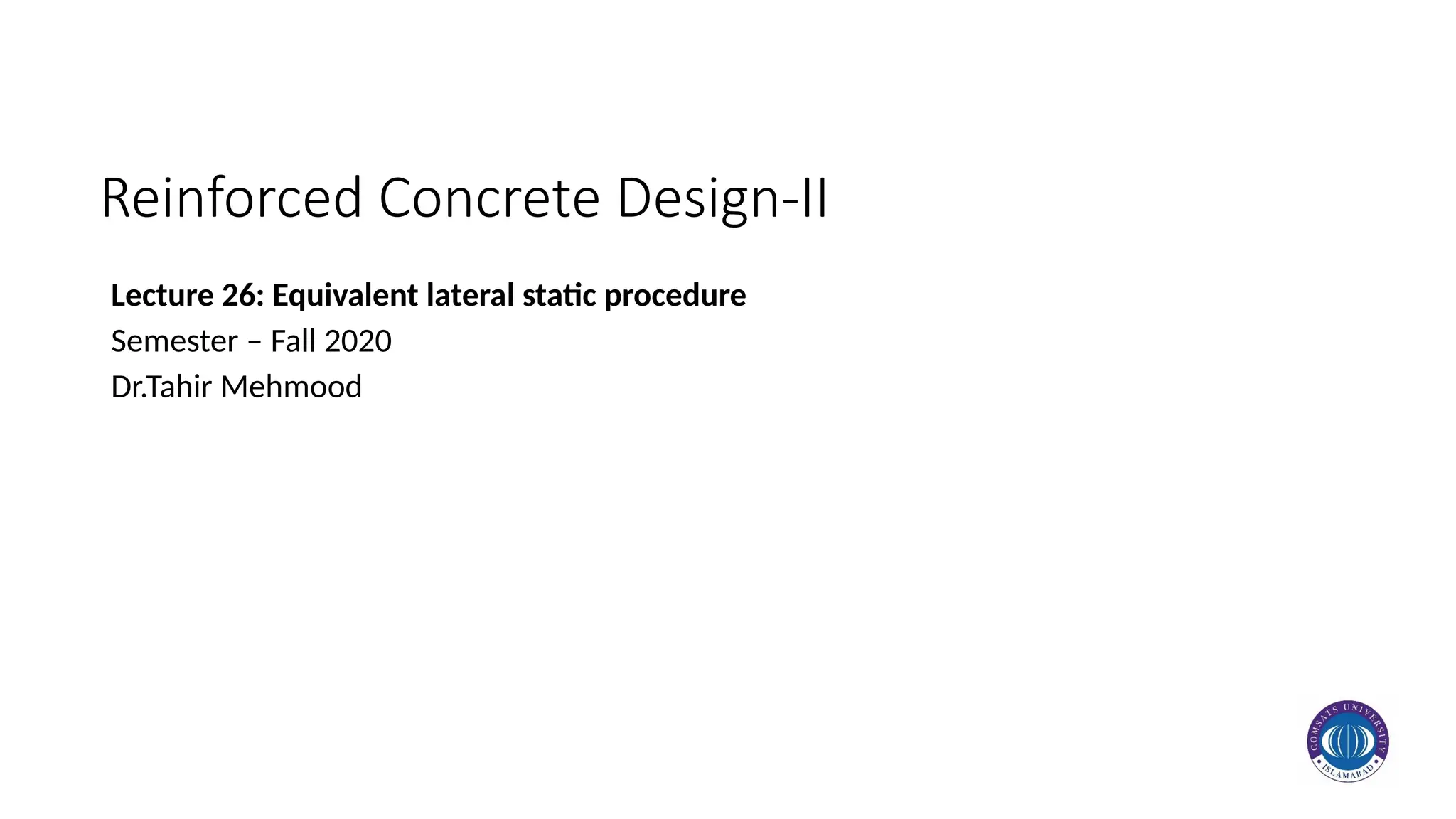

1. Reinforced Concrete Design-II
Lecture 26: Equivalent lateral static procedure
Semester – Fall 2020
Dr.Tahir Mehmood

2. 2
Case study Building
 Case study building compose of 4 stories
 Story height is 3.5 m
 Total height is 14 m
 All stories are to be designed as beam-slab
system

3. 3

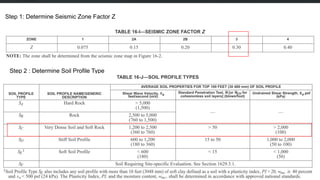

Step 1: Determine Seismic Zone Factor Z
Step 2 : Determine Soil Profile Type

4. 4

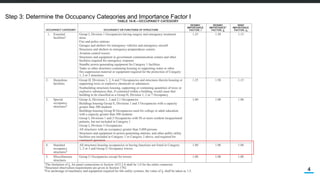

Step 3: Determine the Occupancy Categories and Importance Factor I

5. 5

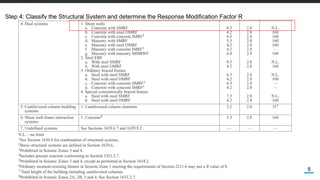

Step 4: Classify the Structural System and determine the Response Modification Factor R

6. 6

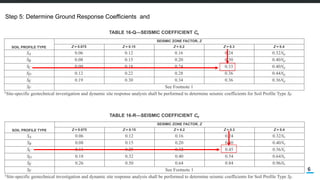

Step 5: Determine Ground Response Coefficients and

7. 7
Step 6a: Determine Fundamental period T
𝑇𝑎=0.0488 (143/ 4
) =0.353 Sec

8. 8

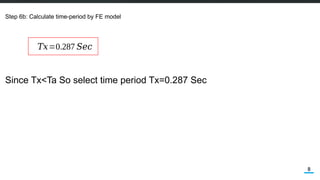

Step 6b: Calculate time-period by FE model
𝑇𝑥=0.287 𝑆𝑒𝑐
Since Tx<Ta So select time period Tx=0.287 Sec

9. 9

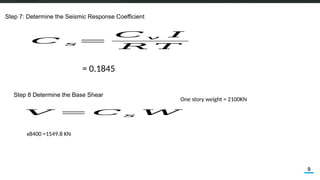

Step 7: Determine the Seismic Response Coefficient
= 0.1845
𝐶 𝑠=
𝐶 𝑣 𝐼
𝑅 𝑇
𝑉 = 𝐶 𝑠 𝑊
Step 8 Determine the Base Shear
x8400 =1549.8 KN
One story weight = 2100KN

10. 10

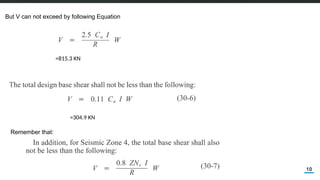

But V can not exceed by following Equation
=815.3 KN
=304.9 KN
Remember that:

11. 11
Step 8: Vertical Distribution of Base Shear into Lateral Forces
Ft = 0 Since Tx =0.287 ( Ft =0 for T<0.7 sec)
= (2100x14)+(2100x10.5)+(2100x7)+(2100x3.5) =73500 KNm
V= 815.3

12. 12
Floor Weight ),KN ,m Force (KN)
4th
2100 14 29400 0.4 326.12
3rd
2100 10.5 22050 0.3 244.59
2nd
2100 7 14700 0.2 163.06
1st
2100 3.5 7350 0.1 81.53
8400 73500 1 815.3

13. 13

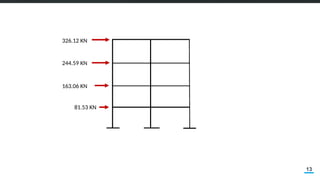

326.12 KN
244.59 KN
163.06 KN
81.53 KN
