Suresh Indu Lasers Pvt. Ltd. manufactures laser engraving, cutting, marking, welding, and CNC router systems. They produce CO2 laser engraving and cutting machines in various sizes for applications like signage, packaging, woodworking, and more. The document provides technical specifications for several of their laser machine models including laser power, working area, accuracy, speeds, file support, and materials that can be processed.

1. SURESH INDU LASERS PVT. LTD.
Mfg. of Laser Engraving, Cutting, Marking, Welding,
& CNC Router Systems.
TM
Laser cutting of operator panelsFoam CuttingPaper CuttingTextile

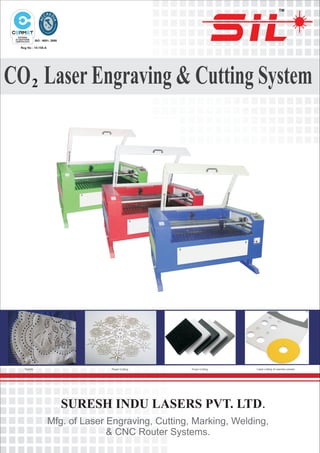

CO Laser Engraving & Cutting System2
Reg No - 14-158-A

2. Laser Engraving and Cutting Machine
For more information visit http://www.silasers.com
Model No-1225 / 1318
Gantry Type Structure.
Hiwin Linear Guide rail
Servo motor and drive system .
DSP Control offline work with 32mb
file space..
Fixed Optical path
Fixed Steel Strips (Optional Honey
Comb Available On Demand)
Red Beam pointer
,
High precision ball screw system,
Technical Specification
Laser Power
Processing Area
Working Table
Working Speed
Positioning Accuracy
Moving System
Cooling System
Power Supply
Format Supported
Standard Dust Collector
Laser Type
-
1225 1318
CO DC Glass Laser Tube
130 Watt (150 /180 Watt Laser Tube Optional)
1250 mm x 2500 mm / 1300 mm x 1800 mm
Fixed Knife Steel Blades
Adjustable
+ 0.1mm
Model No
Offline control Servo motor system
Constant temperature water chiller
AC 220 V+ 5% 50/60Hz
AI, BMP, PLT. DXF, DST etc.
4 Sets of Bottom Exhaust Fans 9EC
Optional
Co2 RF Metal laser tube (60w/100w/150w/200w), Also Belt Drive Sys-
tem with Stepper Motor & Drive System Available, Honey Comb,
Vacuum Aluminum Plate for LGP processing Industries, Auto Feeding
System for Textile Application and Conveyor Moving Table.
LARGE FORMAT
Controller ChillerAC Servo Motor Control Panel Ball Screw
Foam Cutting SampleAcrylic Engraving & Cutting
2
-

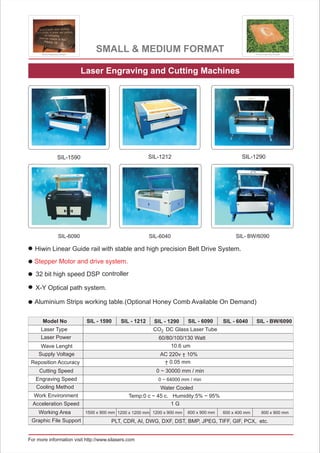

3. Hiwin Linear Guide rail with stable and high precision Belt Drive System.
X-Y Optical path system.
Stepper Motor and drive system.
Aluminium Strips working table.(Optional Honey Comb Available On Demand)
32 bit high speed DSP controller
For more information visit http://www.silasers.com
Model No SIL - 1590 SIL - 1212 SIL - 6090
Laser Type
Laser Power
Wave Lenght
Supply Voltage
Reposition Accuracy
Cutting Speed
Engraving Speed
Cooling Method
Work Environment
Acceleration Speed
Working Area
CO DC Glass Laser Tube
60/80/100/130 Watt
10.6 um
AC 220v + 10%-
+ 0.05 mm-
- 6040SIL
0 ~ 30000 mm / min
0 ~ 64000 mm / min
Water Cooled
Temp:0 c ~ 45 c. Humidity:5% ~ 95%
1 G
1500 x 900 mm 600 x 900 mm1200 x 1200 mm
Graphic File Support PLT, CDR, AI, DWG, DXF, DST, BMP, JPEG, TIFF, GIF, PCX, etc.
Laser Engraving and Cutting Machines
1200 x 900 mm
SIL - 1290
SMALL & MEDIUM FORMAT
600 x 400 mm
SIL- BW/6090
SIL-1212SIL-1590 SIL-1290
SIL-6090 SIL-6040
- BW/6090SIL
Stone Engraving Sample Stone Engraving Sample
600 x 900 mm
2

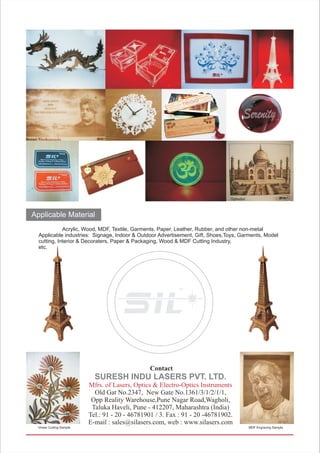

4. Applicable Material
Acrylic, Wood, MDF, Textile, Garments, Paper, Leather, Rubber, and other non-metal
Applicable industries: Signage, Indoor & Outdoor Advertisement, Gift, Shoes,Toys, Garments, Model
cutting, Interior & Decoraters, Paper & Packaging, Wood & MDF Cutting Industry,
etc.
Contact
Old Gat No.2347, New Gate No.1361/3/1/2/1/1,
Opp Reality Warehouse,Pune Nagar Road,Wagholi,
Taluka Haveli, Pune - 412207, Maharashtra (India)
Tel.: 91 - 20 - 46781901 / 3. Fax : 91 - 20 -46781902.
E-mail : sales@silasers.com, web : www.silasers.com
SURESH INDU LASERS PVT. LTD.
Mfrs. of Lasers, Optics & Electro-Optics Instruments
TM
Vineer Cutting Sample MDF Engraving Sample
