1. CONTAINER DAYS HAMBURG
2017-06-20
HENNING JACOBS
@try_except_
Kubernetes on AWS
@ZalandoTech

2. 2
ZALANDO
15 markets
6 fulfillment centers
20 million active customers
3.6 billion € net sales 2016
165 million visits per month
12,000 employees in Europe

3. 3
ZALANDO TECHNOLOGY
HOME-BREWED,
CUTTING-EDGE
& SCALABLE
technology solutions
>1,700
employees from
tech locations
+ HQs in Berlin6
77
nations
help our brand to
WIN ONLINE

4. 4
ZALANDO TECH’S
INFRASTRUCTURE

5. 5

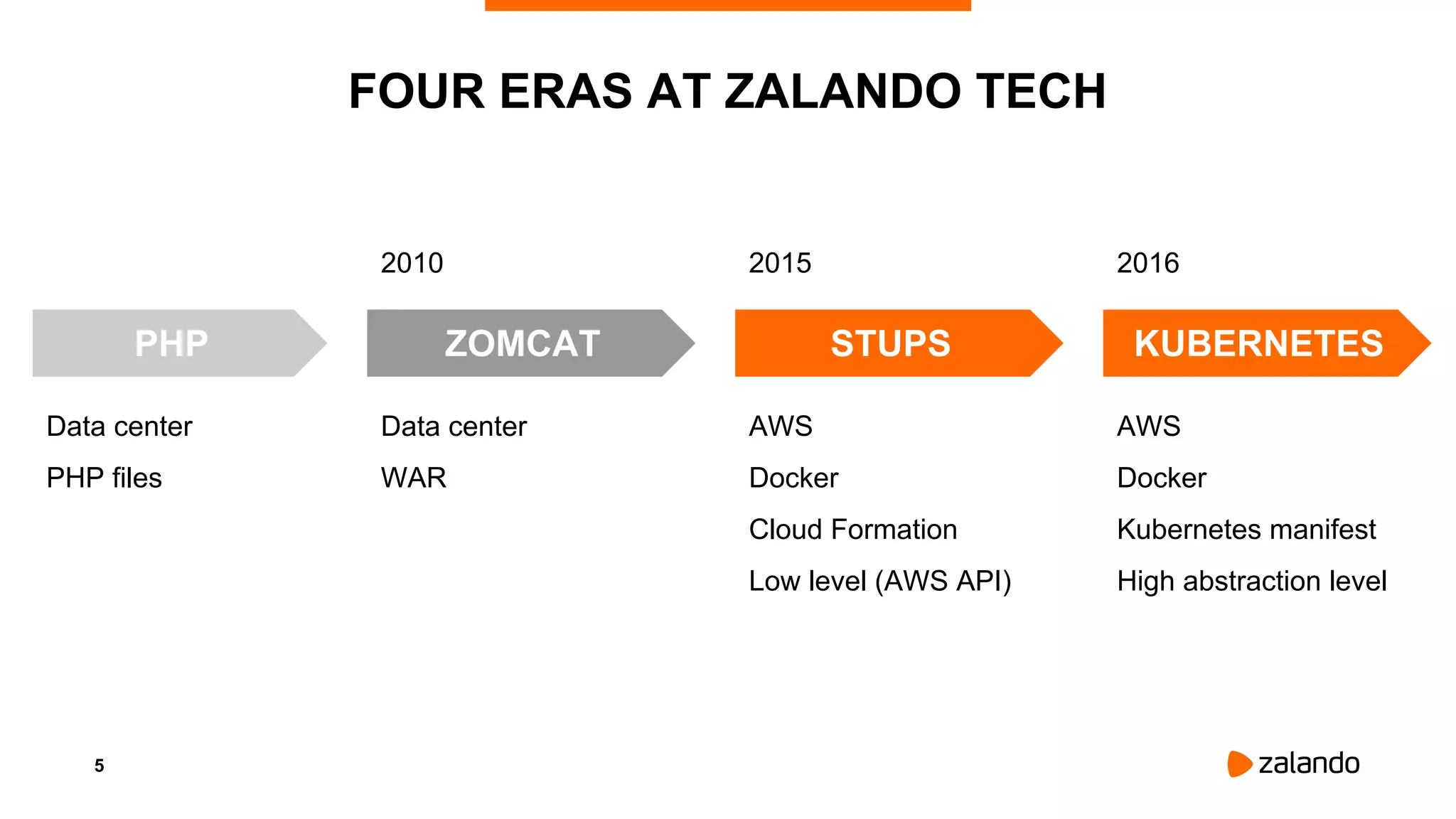

FOUR ERAS AT ZALANDO TECH
ZOMCATPHP STUPS KUBERNETES
2010 2015 2016
Data center
WAR
AWS
Docker
Cloud Formation
Low level (AWS API)
AWS
Docker
Kubernetes manifest
High abstraction level
Data center
PHP files

6. 6
LARGE SCALE?

8. 8
KUBERNETES:
ARCHITECTURE

9. 9
KUBERNETES ON AWS: CONTEXT
200 engineering teams
30 prod. clusters
AWS/STUPS
Dockerized apps
No manual operations
Reliability
Autoscaling
Seamless migration

10. 10

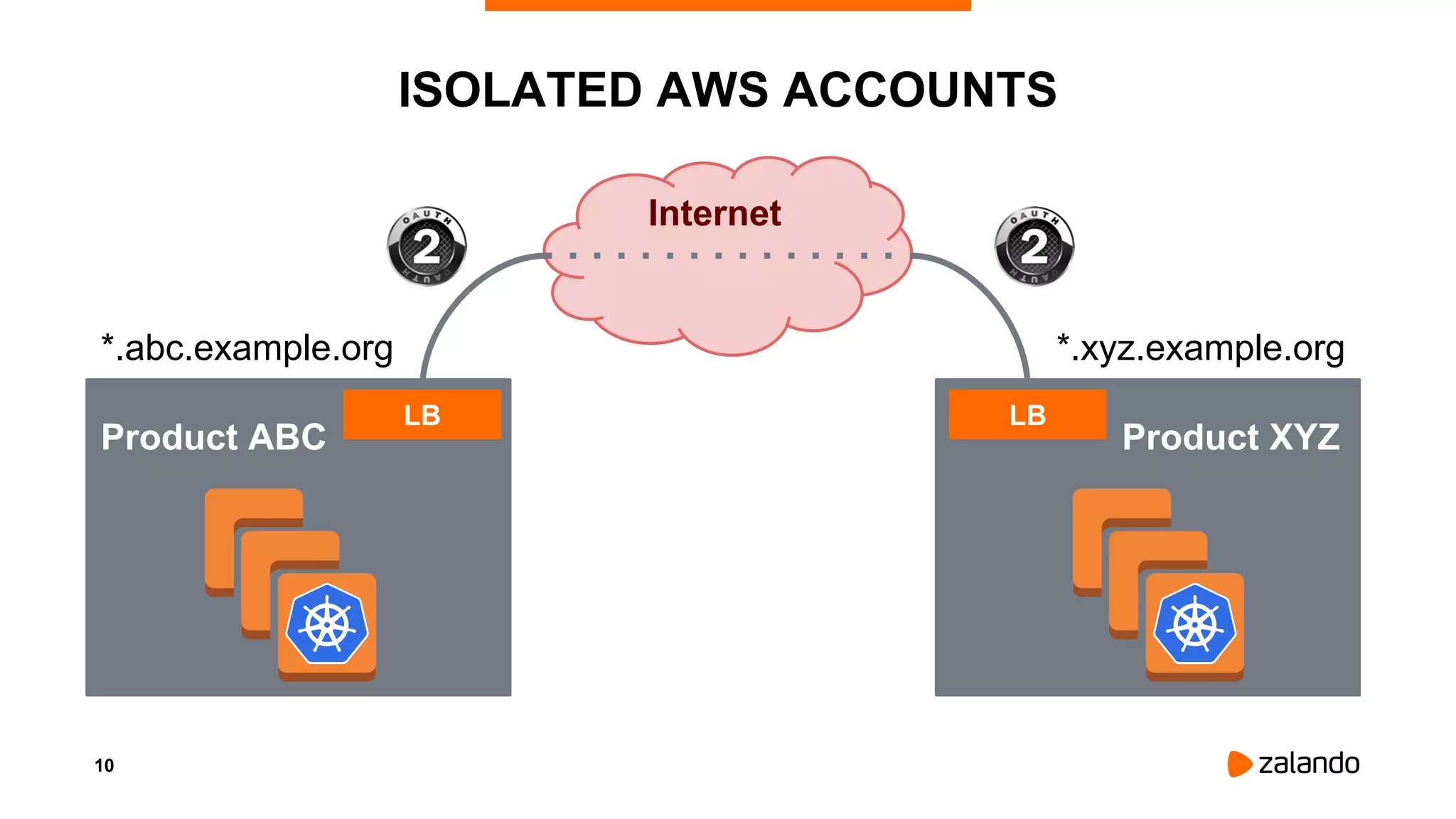

ISOLATED AWS ACCOUNTS
Internet
*.abc.example.org *.xyz.example.org
Product ABC Product XYZ
EC2
LBLB

11. 11
KUBERNETES ON AWS

12. 12
DEPLOYMENT

13. 13
DEPLOYMENT CONFIGURATION
.
├── apply
│ ├── credentials.yaml # K8s TPR
│ ├── ingress.yaml # K8s Ingress
│ ├── redis-deployment.yaml # K8s Deployment
│ ├── redis-service.yaml # K8s Service
│ └── service.yaml # K8s Service
├── deployment.yaml # K8s Deployment
└── pipeline.yaml # proprietary config

14. 14
INGRESS.YAML
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: "..."
spec:
rules:
# DNS name your application should be exposed on
- host: "myapp.foo.example.org"
http:
paths:
- backend:
serviceName: "myapp"
servicePort: 80

15. 15
JENKINS DEPLOY PIPELINE

16. 16
AWS INTEGRATION

17. 17
CLOUD FORMATION VIA CI/CD
.
├── apply
│ ├── cf-iam-role.yaml # AWS IAM Role
│ ├── cf-rds.yaml # AWS RDS Database
│ ├── kube-ingress.yaml # K8s Ingress
│ ├── kube-secret.yaml # K8s Secret
│ └── kube-service.yaml # K8s Service
├── deployment.yaml # K8s Deployment
└── pipeline.yaml # CI/CD config

18. 18
ASSIGNING AWS IAM ROLE TO POD
kind: Deployment
spec:
template:
metadata:
annotations:
# annotation for kube2iam
iam.amazonaws.com/role: "app-myapp-role"
spec:
containers:
- name: ...
...
https://github.com/jtblin/kube2iam
⇒ AWS SDKs just work as expected

19. 19
CLUSTER
AUTOSCALING

20. 20
CLUSTER AUTOSCALING
Control # of worker nodes in ASG:
• Satisfy all resource requests
• One spare node per AZ
• No manual config “tweaking”
• Scale down, but not too fast
⇒ we want to be “elastic”
https://github.com/hjacobs/kube-aws-autoscaler

21. 21
OAUTH / IAM
INTEGRATION

22. 22
SERVICE TO SERVICE AUTHNZ
Kubernetes Cluster
https://resource-server.example.org/protected
HTTP/1.1 401 Unauthorized
{
"message": "Authorization required"
}

23. 23

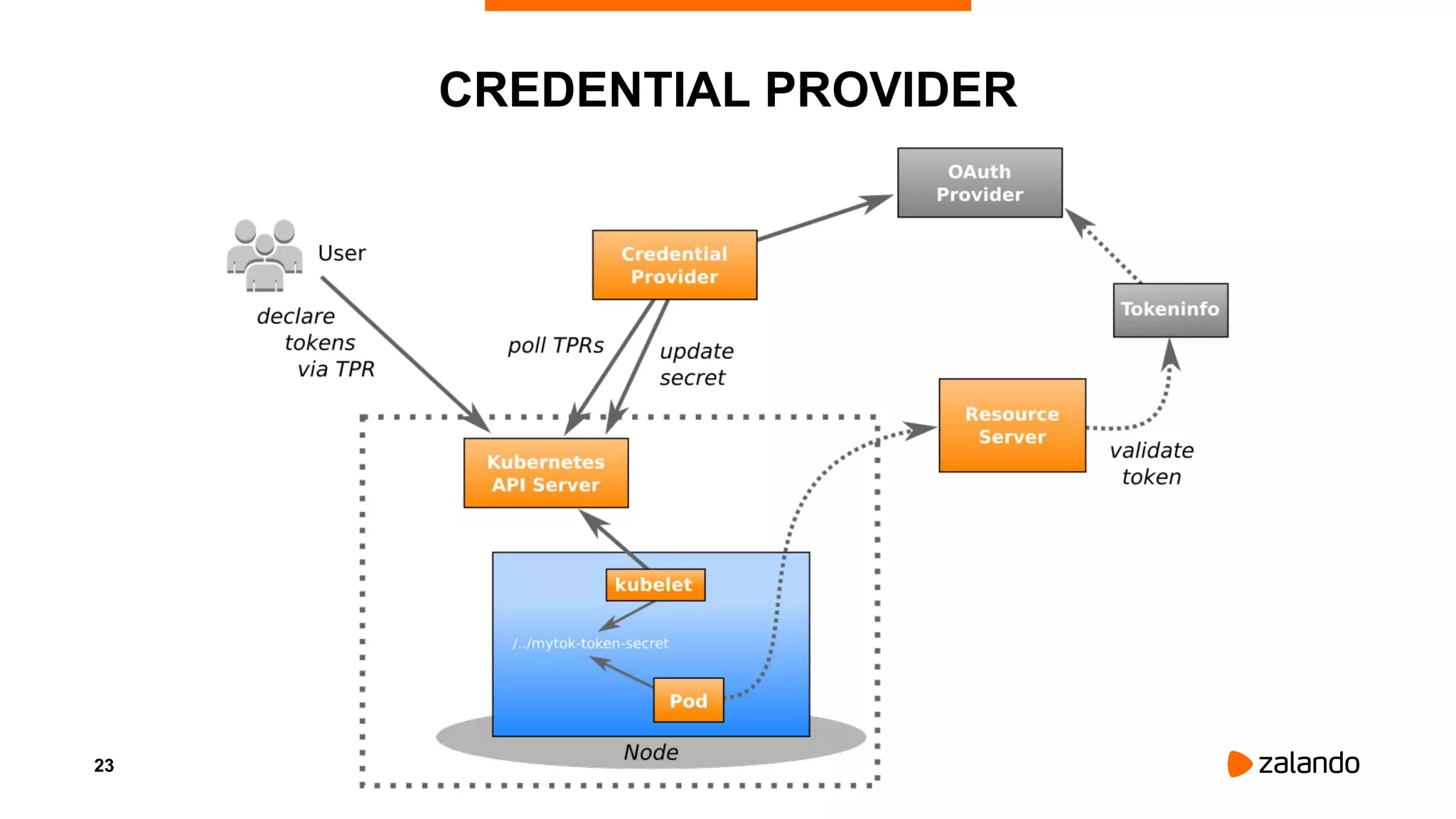

CREDENTIAL PROVIDER

24. 24
USING THE OAUTH CREDENTIALS
#!/bin/bash
secret=$(cat /creds/mytok-token-secret)
curl -H "Authorization: Bearer $secret"
https://resource-server.example.org/protected

25. 25
CHALLENGES

26. 26
1. Getting Started
2. Stability
3. Onboarding
4. User Experience
5. Operations
CHALLENGES

27. 27
CHALLENGE 1:
GETTING STARTED

28. 28

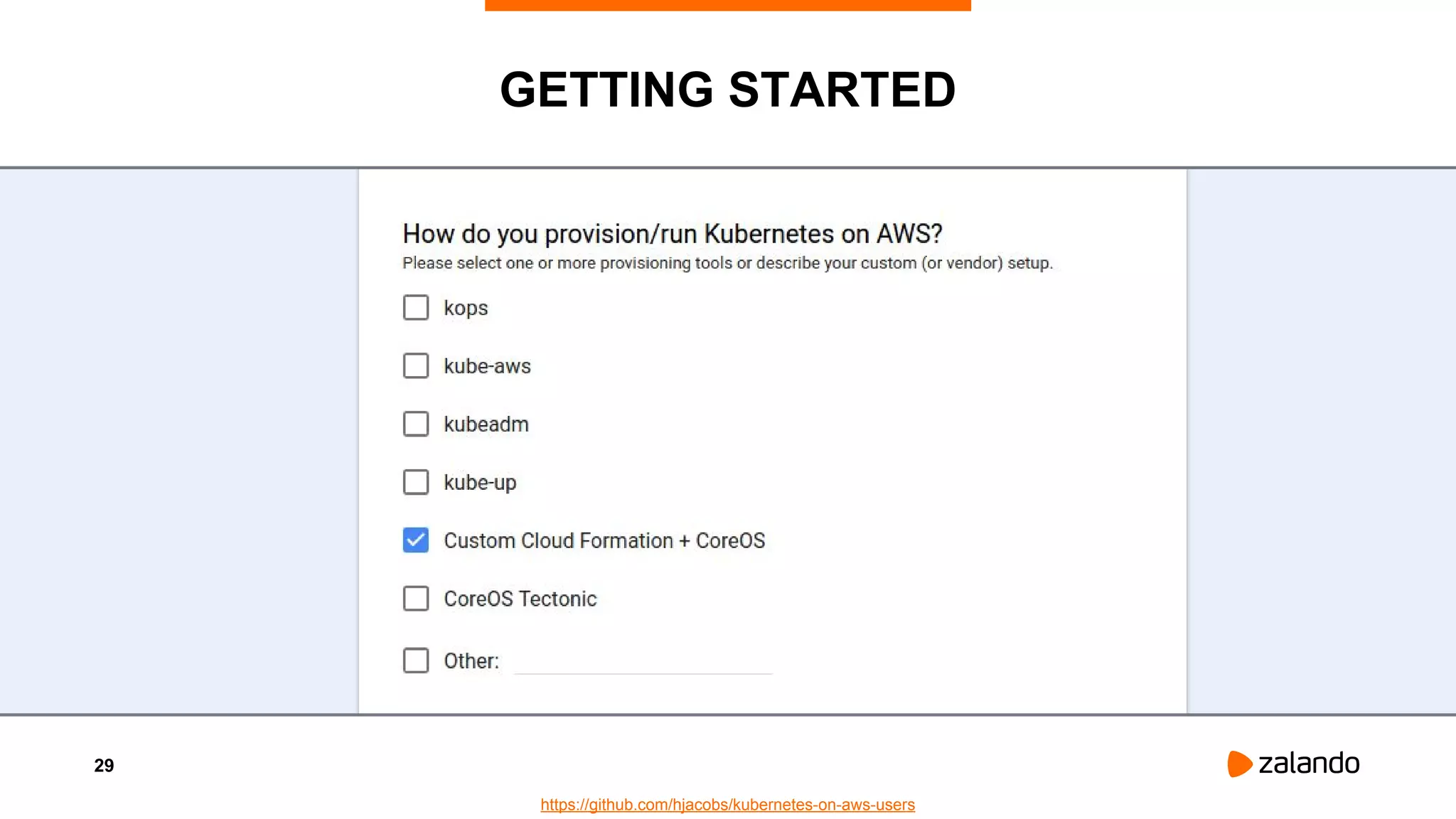

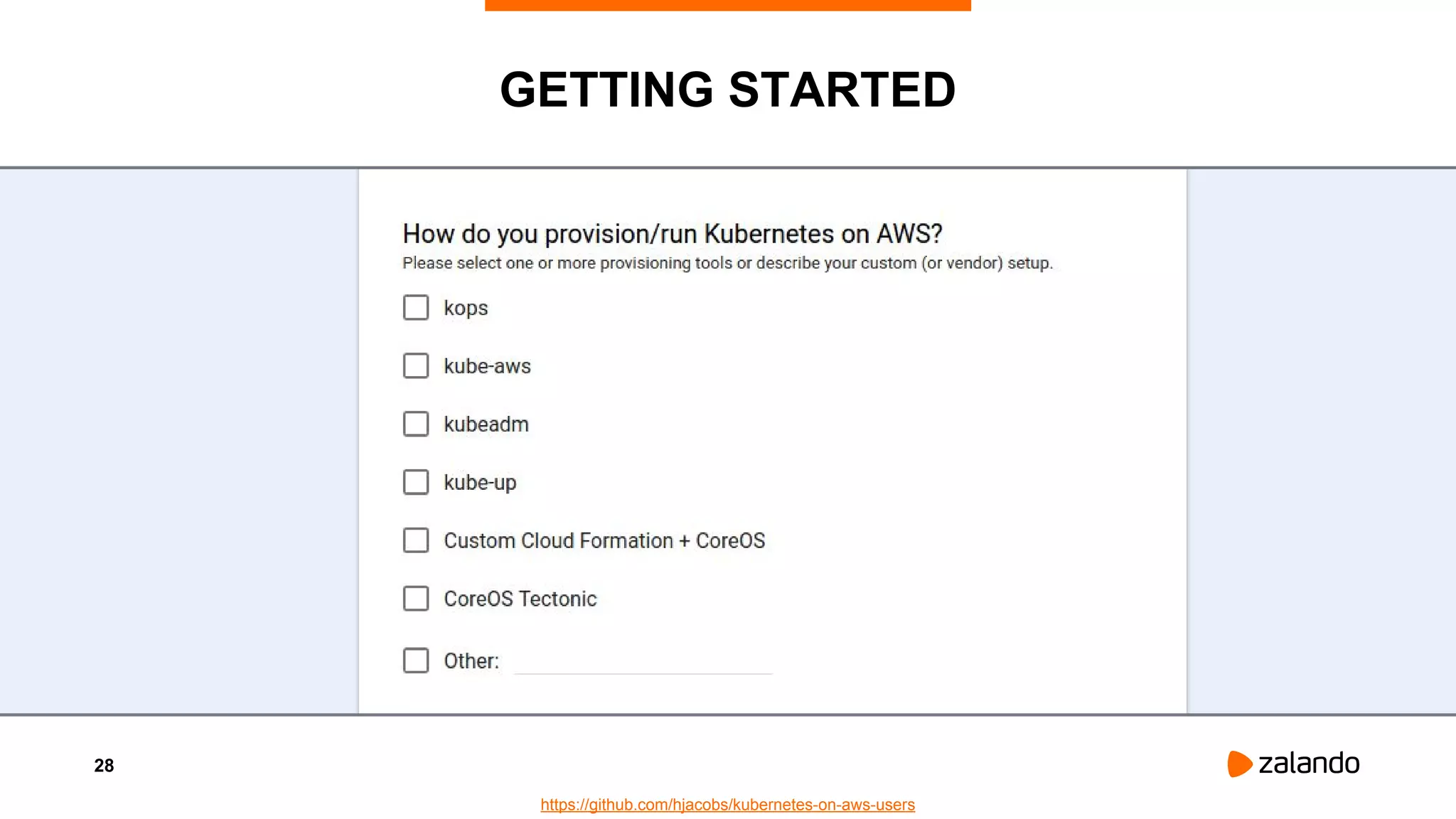

GETTING STARTED
https://github.com/hjacobs/kubernetes-on-aws-users

29. 29
GETTING STARTED
https://github.com/hjacobs/kubernetes-on-aws-users

30. 30

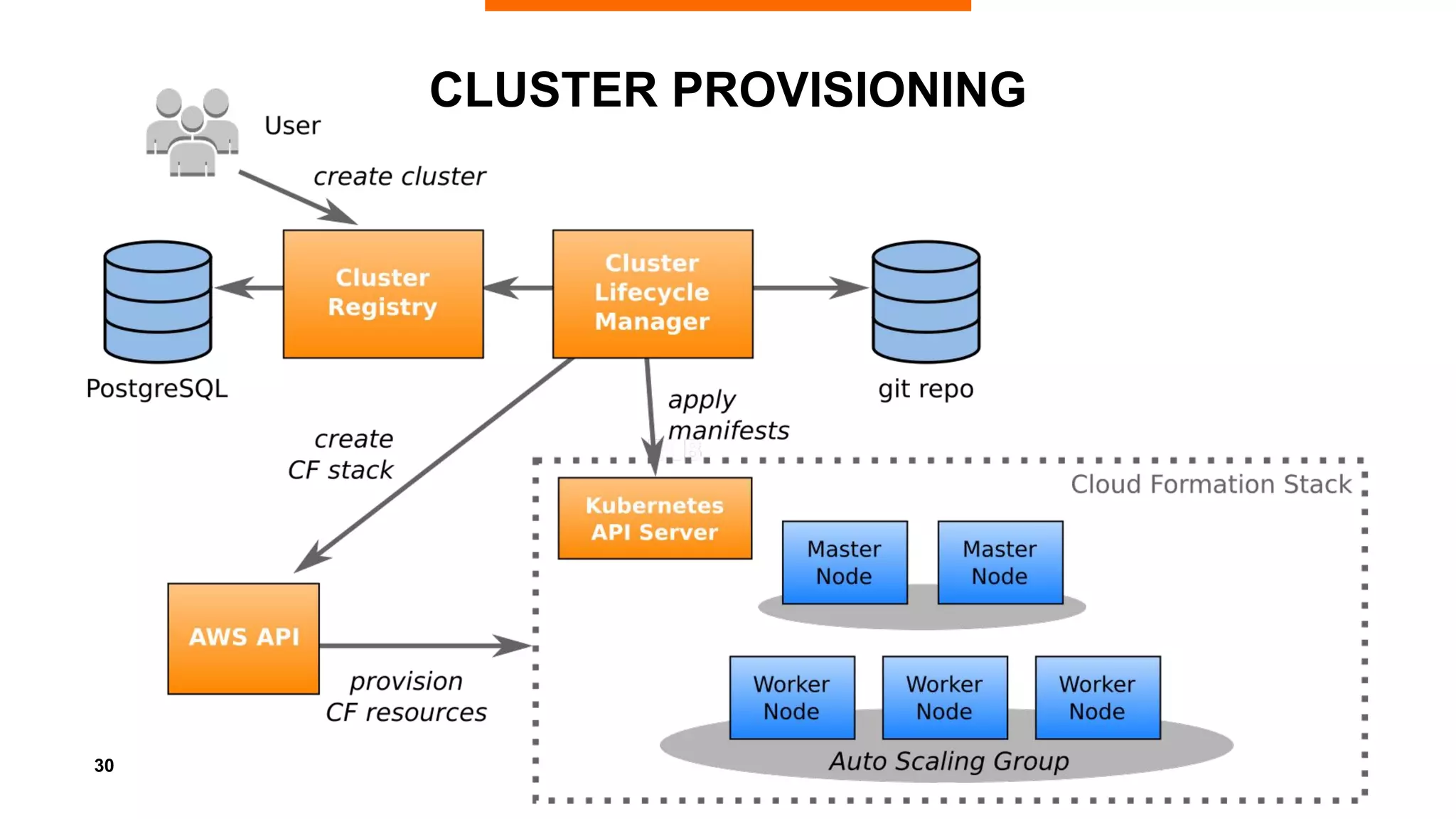

CLUSTER PROVISIONING

31. 31
CLUSTER PROVISIONING
• Two Cloud Formation stacks
• Master & worker ASGs + etcd
• Nodes w/ Container Linux
• K8s manifests applied separately
• kube-system Deployments
• DaemonSets

32. 32
GETTING STARTED
Goal: use Kubernetes API as primary interface for AWS
• Mate, External DNS
• Kubernetes Ingress Controller for AWS
• kube2iam
⇒ we wrote new components
to achieve our goal

33. 33

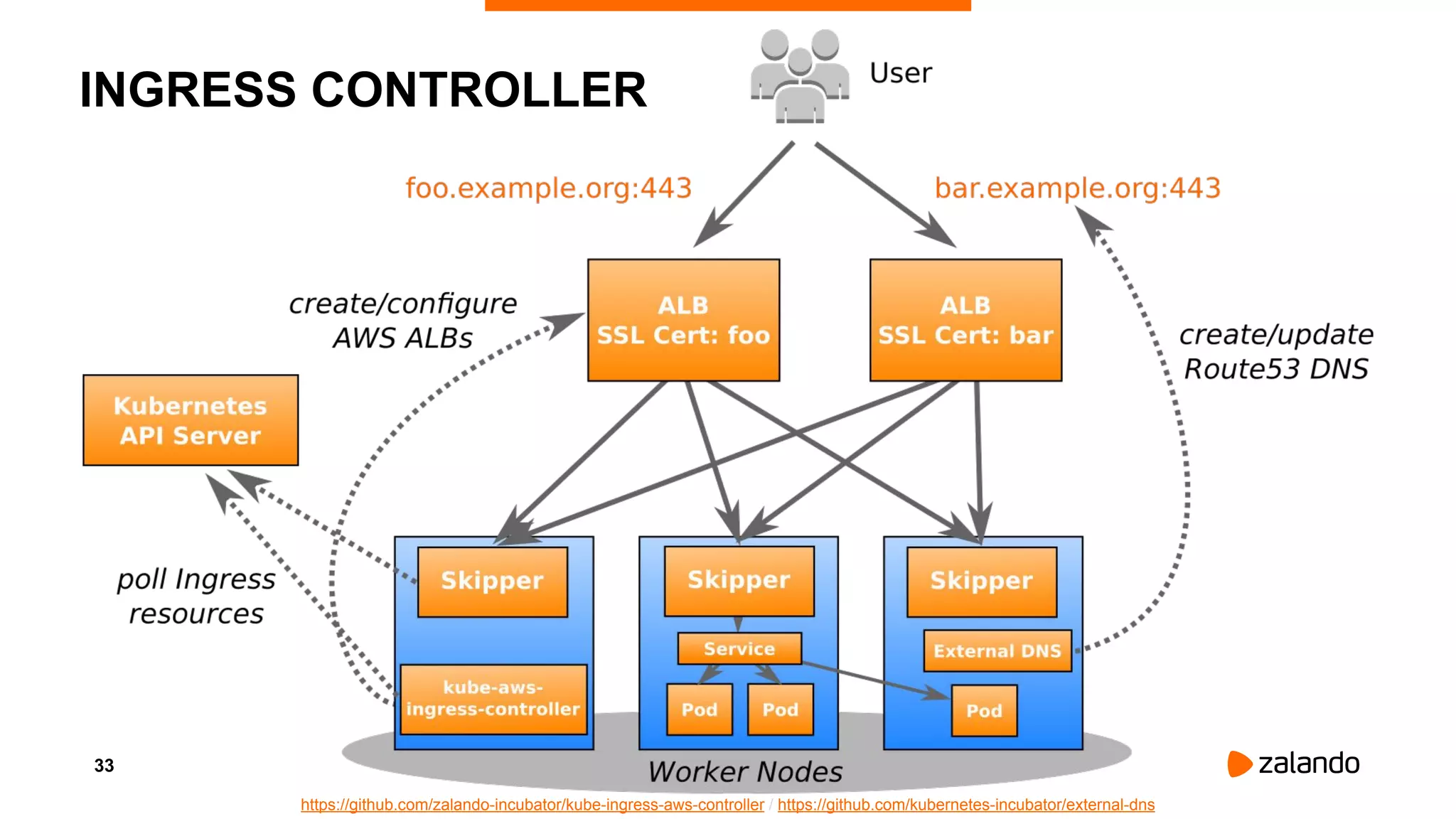

INGRESS CONTROLLER
https://github.com/zalando-incubator/kube-ingress-aws-controller / https://github.com/kubernetes-incubator/external-dns

34. 34
GETTING STARTED

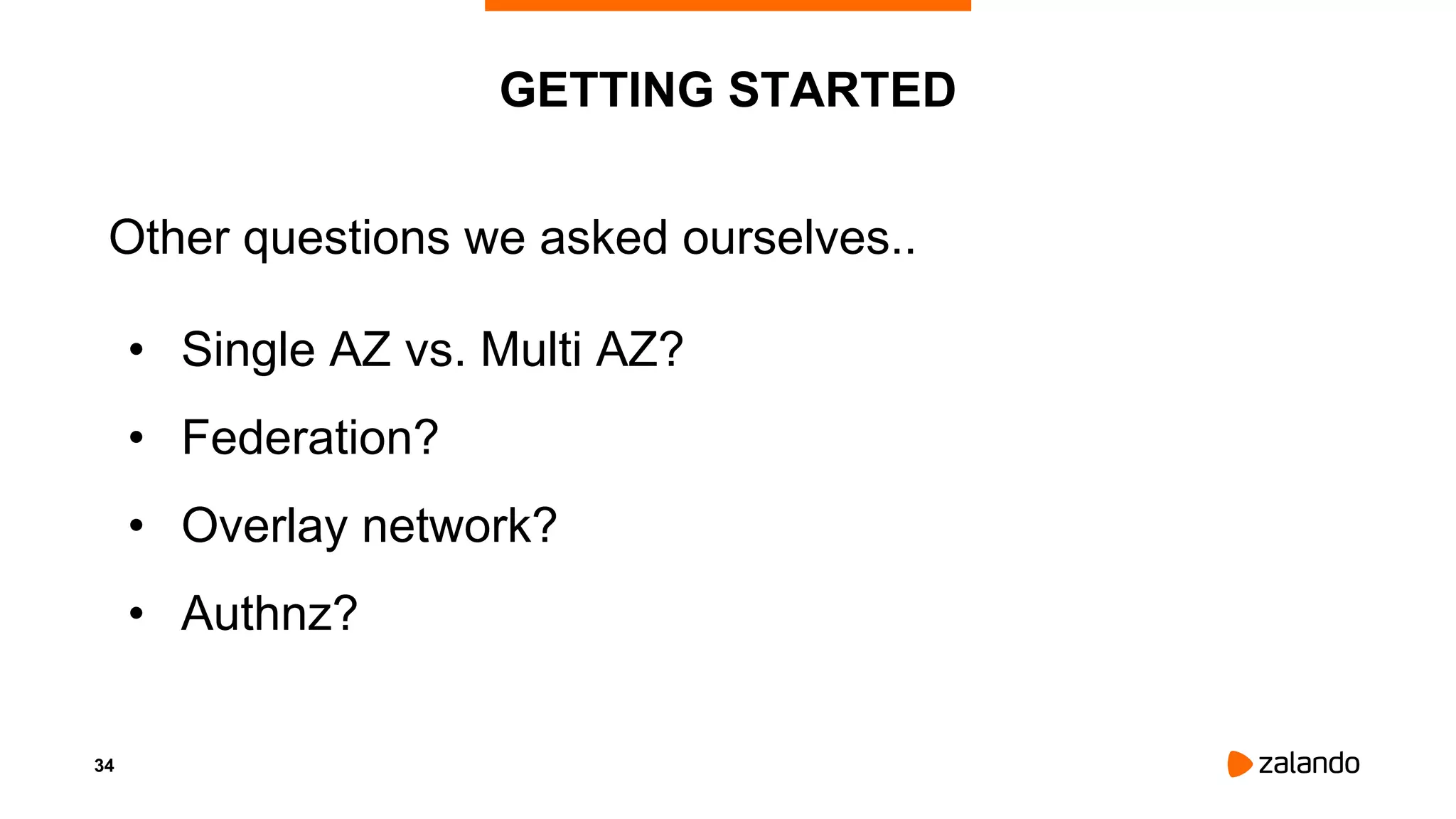

Other questions we asked ourselves..
• Single AZ vs. Multi AZ?
• Federation?
• Overlay network?
• Authnz?

35. 35
GETTING STARTED
Other questions we asked ourselves..
• Single AZ vs. Multi AZ? ⇒ Multi AZ
• Federation? ⇒ No, not ready yet
• Overlay network? ⇒ Flannel, “rock solid”
• Authnz? ⇒ OAuth, webhook

36. 36
CHALLENGE 2:
STABILITY

37. 37
STABILITY
• Cluster Updates
• Docker
• AWS Rate Limits

38. 38
CLUSTER
UPDATES

40. 40
STABILITY: AWS RATE LIMITS
• Ran into the same trap twice (Mate & Ingress Ctrl)
• Kubernetes core causes many calls (e.g. EBS)
• Monitoring (ZMON) needs to poll AWS
⇒ One of our biggest pain points with AWS
(and all workarounds are hard and/or ugly)

41. 41

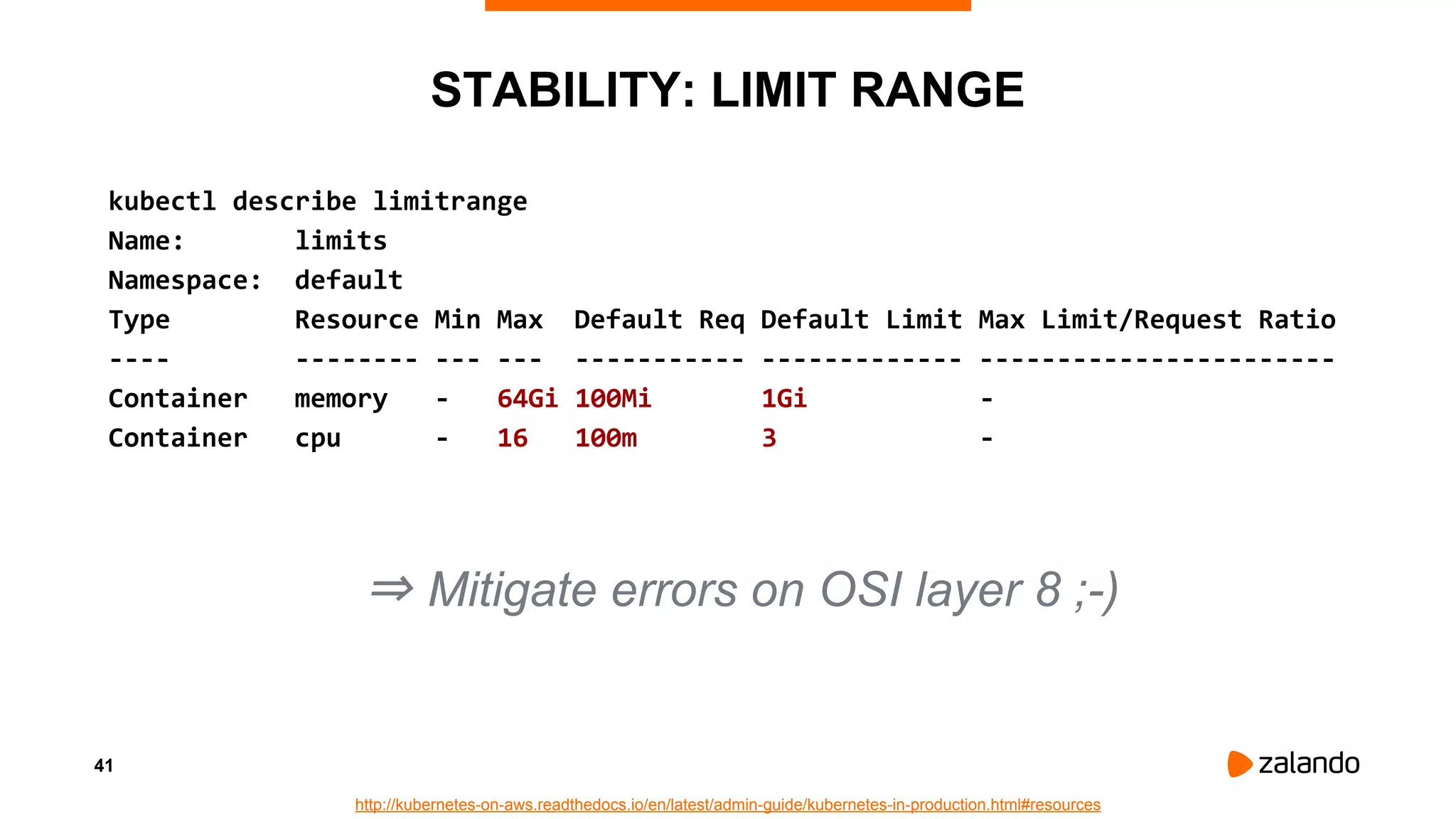

STABILITY: LIMIT RANGE
kubectl describe limitrange
Name: limits
Namespace: default
Type Resource Min Max Default Req Default Limit Max Limit/Request Ratio
---- -------- --- --- ----------- ------------- -----------------------
Container memory - 64Gi 100Mi 1Gi -
Container cpu - 16 100m 3 -
http://kubernetes-on-aws.readthedocs.io/en/latest/admin-guide/kubernetes-in-production.html#resources
⇒ Mitigate errors on OSI layer 8 ;-)

43. Recommended: The 5 Whys
https://en.wikipedia.org/wiki/5_Whys

44. 44
CHALLENGE 3:
ONBOARDING

45. 45
ONBOARDING
• Many new concepts to grasp vs. 200 teams
• Kubernetes Training (2h)
• Documentation
• Recorded Friday Demos
• Support Channels (chat, mail)

46. 46
CHALLENGE 4:
USER EXPERIENCE

47. 47
USER EXPERIENCE
• Jenkins deployment only covers “happy case”
• Juggling with YAMLs
• Weighted traffic switching missing

48. 48

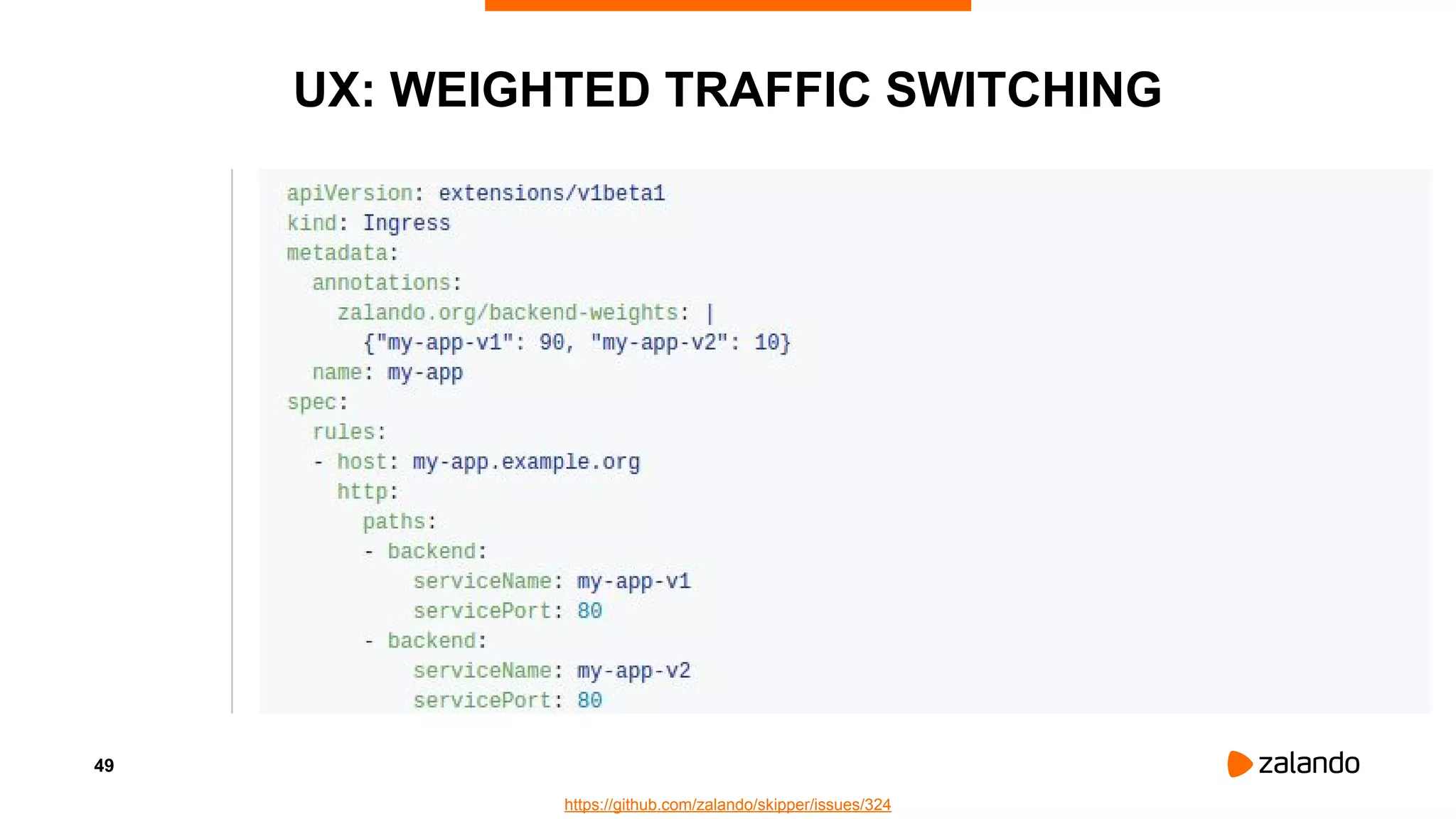

UX: WEIGHTED TRAFFIC SWITCHING
• STUPS uses weighted Route53 DNS records
• Allows canary, blue/green, slow ramp up
• Approach: add weights to Ingress backends
https://github.com/zalando/skipper/issues/324

49. 49
UX: WEIGHTED TRAFFIC SWITCHING
https://github.com/zalando/skipper/issues/324

50. 50
CHALLENGE 5:
OPERATIONS

51. 51
OPERATIONS
• Team Autonomy?
• Platform as a Service
• Convergence
• Emergency Operator Access
⇒ Hard challenges..

52. https://github.com/hjacobs/kube-ops-view

53. 53
LINKS
Running Kubernetes in Production on AWS
http://kubernetes-on-aws.readthedocs.io/en/latest/admin-guide/kubernetes-in-production.html
Kube AWS Ingress Controller
https://github.com/zalando-incubator/kube-ingress-aws-controller
External DNS
https://github.com/kubernetes-incubator/external-dns
PostgreSQL Operator
https://github.com/zalando-incubator/postgres-operator
Zalando Cluster Configuration
https://github.com/zalando-incubator/kubernetes-on-aws
List of Organizations using Kubernetes on AWS
https://github.com/hjacobs/kubernetes-on-aws-users

54. QUESTIONS?
HENNING JACOBS
TECH INFRASTRUCTURE
CLOUD ENGINEER
henning@zalando.de
@try_except_
Illustrations by @01k
