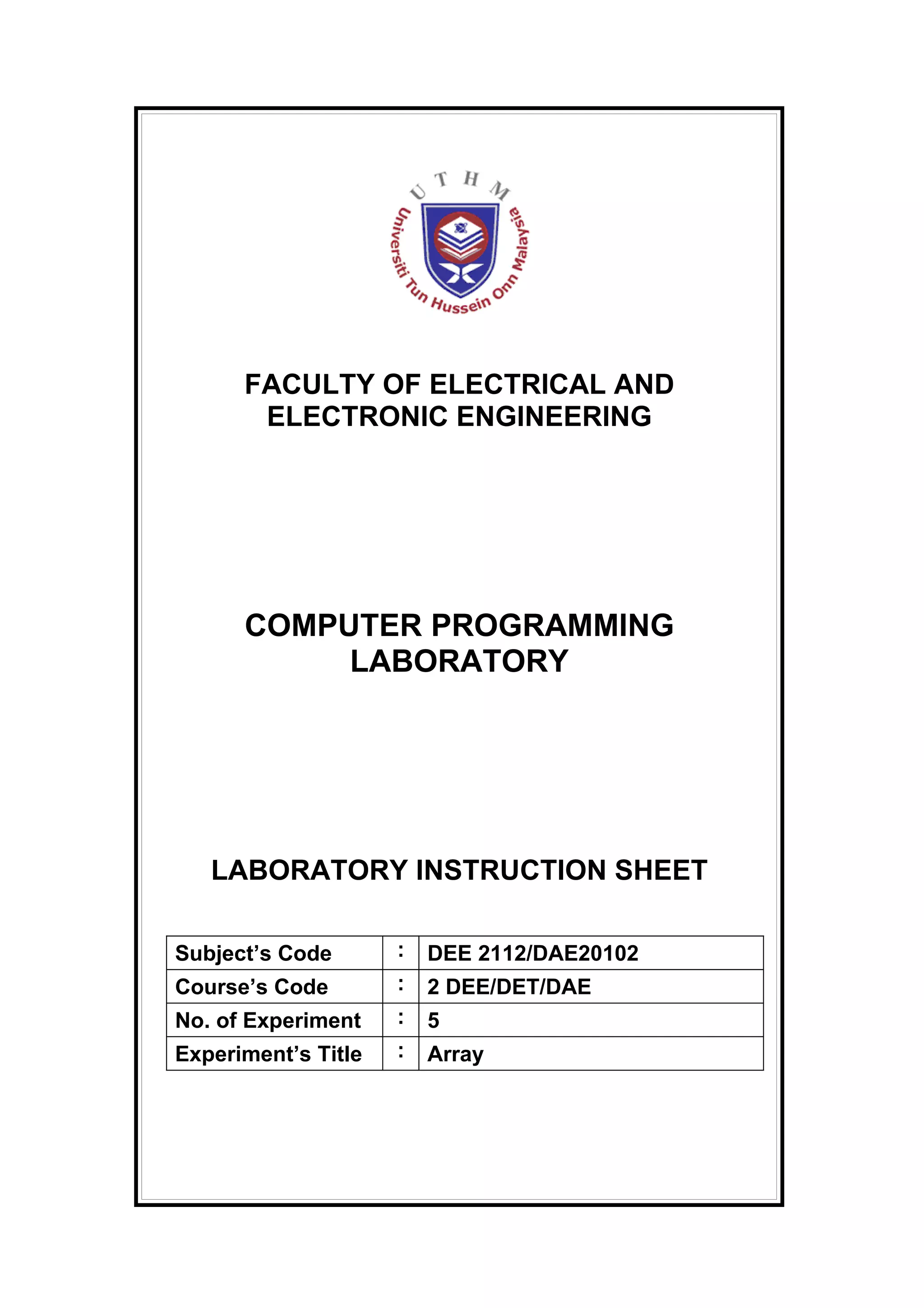

1. FACULTY OF ELECTRICAL AND
ELECTRONIC ENGINEERING
COMPUTER PROGRAMMING
LABORATORY
LABORATORY INSTRUCTION SHEET
Subject’s Code : DEE 2112/DAE20102
Course’s Code : 2 DEE/DET/DAE
No. of Experiment : 5
Experiment’s Title : Array

2. Faculty of Electrical and Electronic
Page 2
Engineering
Department of Computer Engineering Session 2010/2011
Experiment’s Title:
Semester I
#5 Array
AIM: Understand the implementation of arrays in C programming.
1.0 OBJECTIVES
After completing this unit, students should be able to :
• Understand how to initialize, read and modified an element of an array at
runtime.
• Implements arrays in C programming.
2.0 THEORY
Refer to Chapter Arrays.
3.0 EQUIPMENT LIST
Personal Computer with Microsoft Visual C++.
4.0 INSTRUCTION
(i) Short Report: Refer section 5.0
5.0 Short Report (Submit During Laboratory Session)
5.1 Submit your handwritten report before end of laboratory session. Late
submission after 10 minutes additional time will be penalized by deducting
10 marks.
5.2 The report must consists of the following details:
 Problem Statement 1: You need to provide;
o source code of modified program
o output of the modified program.
 Problem Statement 2: You need to provide;
o flowchart / pseudo code
o source code,
o testing, and
o verification
 Discussion, and conclusion

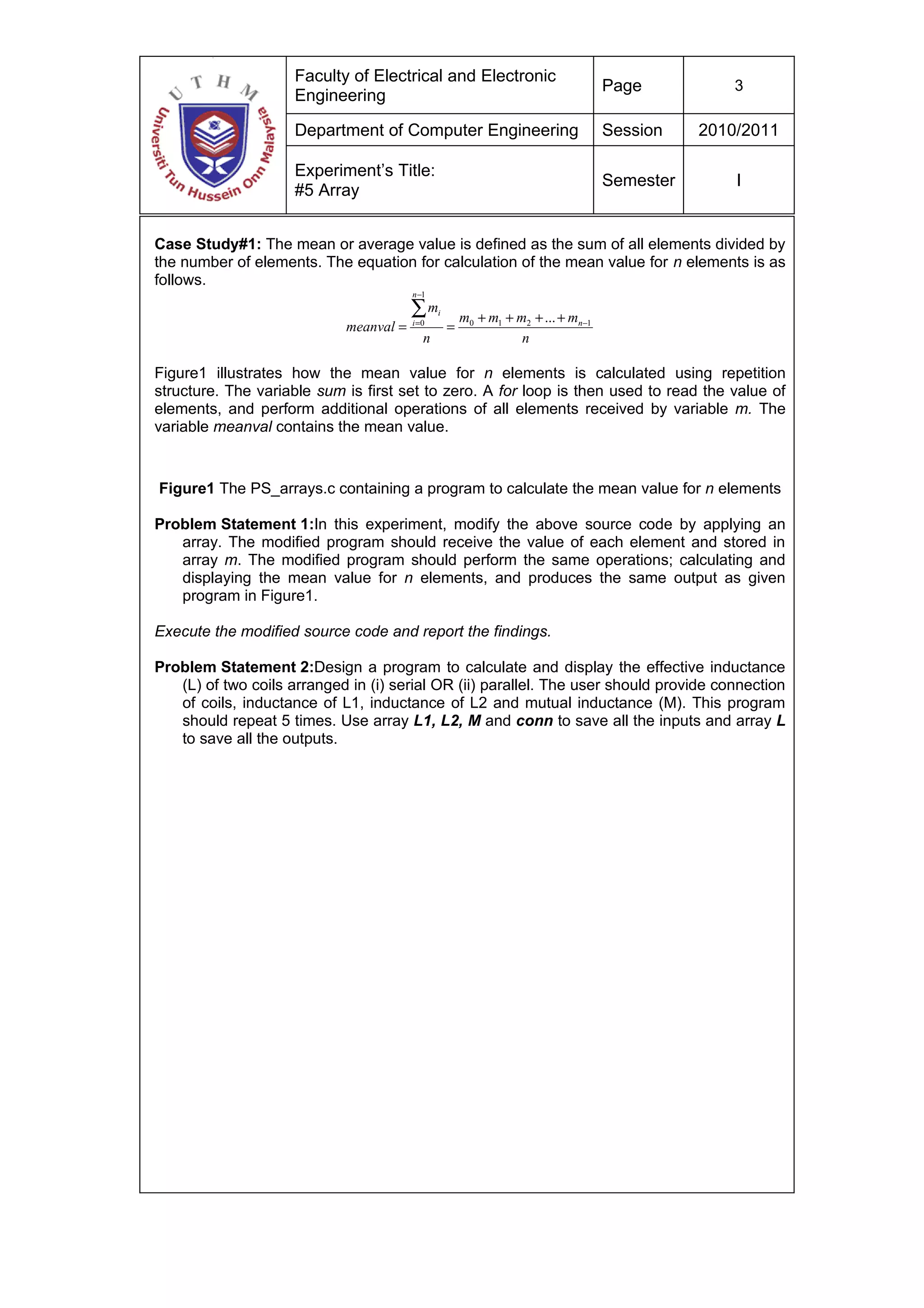

3. c
Faculty of Electrical and Electronic
Page 3
Engineering
Department of Computer Engineering Session 2010/2011
Experiment’s Title:
Semester I
#5 Array
Case Study#1: The mean or average value is defined as the sum of all elements divided by
the number of elements. The equation for calculation of the mean value for n elements is as
follows.
n −1
∑m i
m0 + m1 + m2 + ... + mn−1
meanval = i =0
=
n n
Figure1 illustrates how the mean value for n elements is calculated using repetition
structure. The variable sum is first set to zero. A for loop is then used to read the value of
elements, and perform additional operations of all elements received by variable m. The
variable meanval contains the mean value.
Figure1 The PS_arrays.c containing a program to calculate the mean value for n elements
Problem Statement 1:In this experiment, modify the above source code by applying an
array. The modified program should receive the value of each element and stored in
array m. The modified program should perform the same operations; calculating and
displaying the mean value for n elements, and produces the same output as given
program in Figure1.
Execute the modified source code and report the findings.
Problem Statement 2:Design a program to calculate and display the effective inductance
(L) of two coils arranged in (i) serial OR (ii) parallel. The user should provide connection
of coils, inductance of L1, inductance of L2 and mutual inductance (M). This program
should repeat 5 times. Use array L1, L2, M and conn to save all the inputs and array L
to save all the outputs.
