L11.ppt

The document describes the implementation of pipelining in a processor datapath. Pipeline registers are added between stages to store intermediate values that need to be passed between stages of instruction execution. Important values like the destination register must propagate through all stages. Control signals are also passed between stages as needed. An example execution shows the values in each pipeline stage as instructions progress through the pipeline over multiple cycles.

Embed presentation

Download to read offline
1 Single-cycle datapath, slightly rearranged MemToReg Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 4 Shift left 2 P C Add 1 0 PCSrc Sign extend ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1

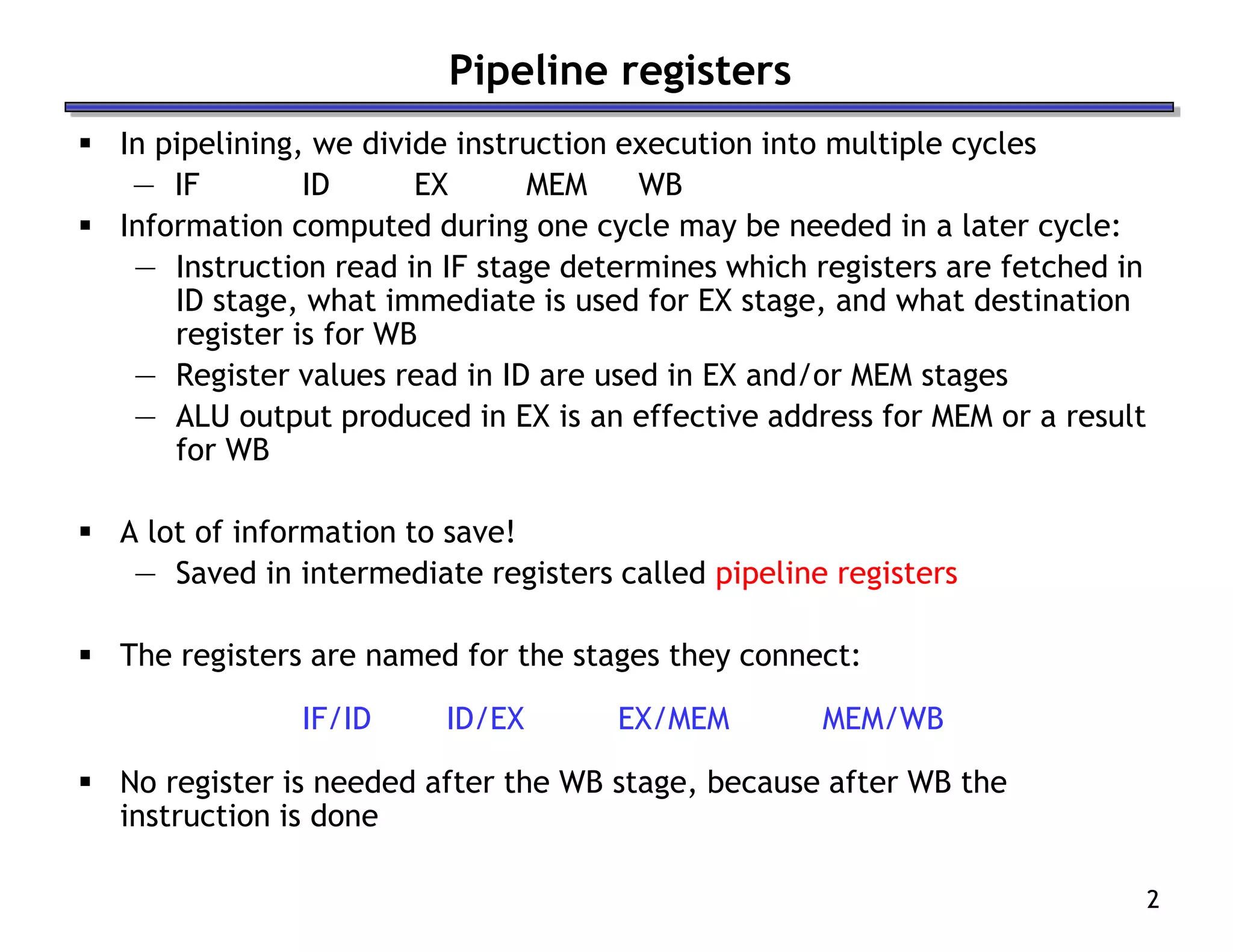

2 Pipeline registers  In pipelining, we divide instruction execution into multiple cycles — IF ID EX MEM WB  Information computed during one cycle may be needed in a later cycle: — Instruction read in IF stage determines which registers are fetched in ID stage, what immediate is used for EX stage, and what destination register is for WB — Register values read in ID are used in EX and/or MEM stages — ALU output produced in EX is an effective address for MEM or a result for WB  A lot of information to save! — Saved in intermediate registers called pipeline registers  The registers are named for the stages they connect: IF/ID ID/EX EX/MEM MEM/WB  No register is needed after the WB stage, because after WB the instruction is done

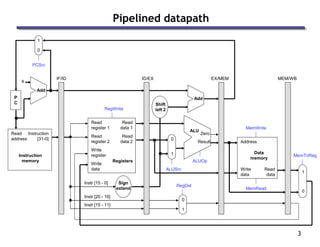

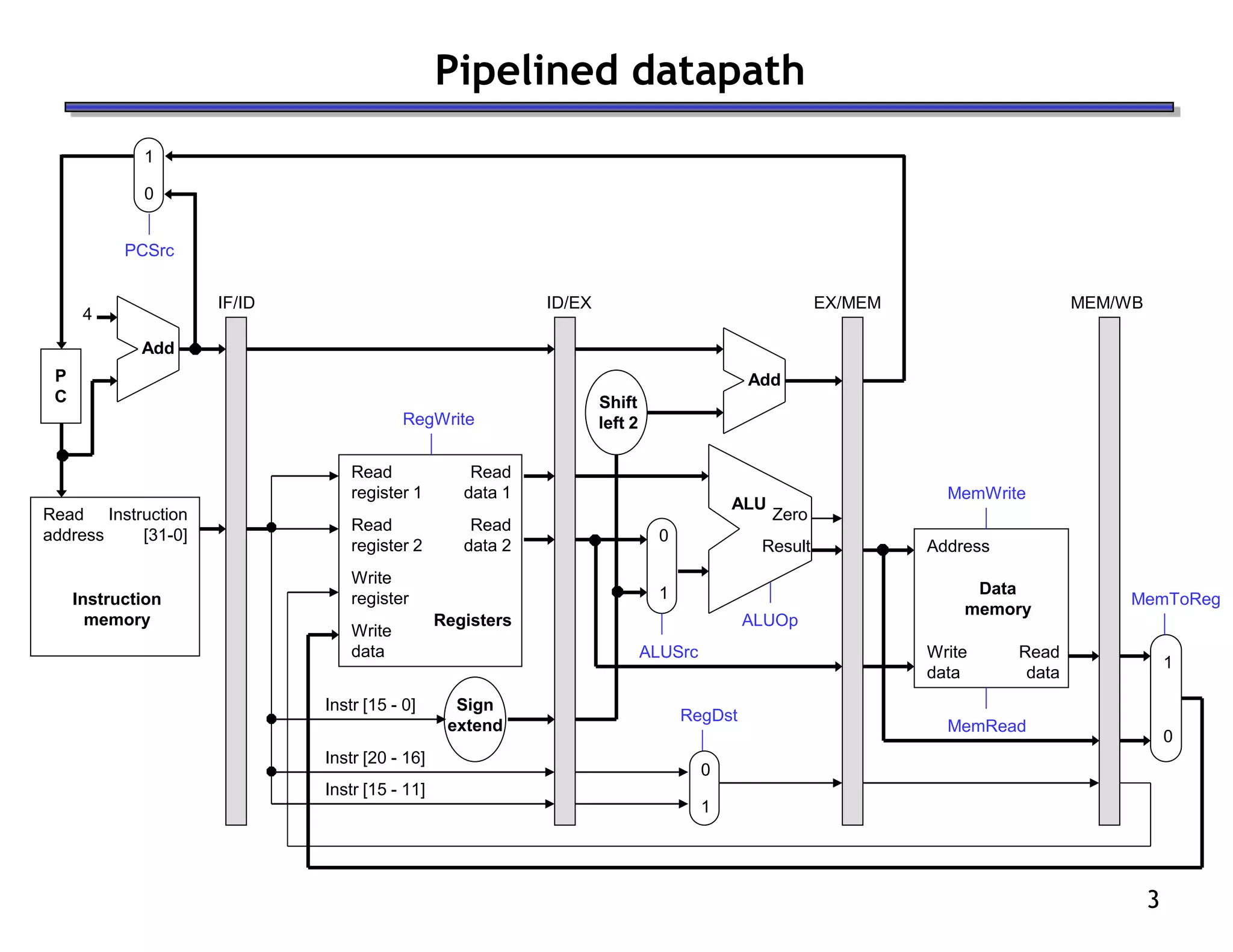

3 Pipelined datapath Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 MemToReg 4 Shift left 2 Add Sign extend ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB 1 0 PCSrc P C

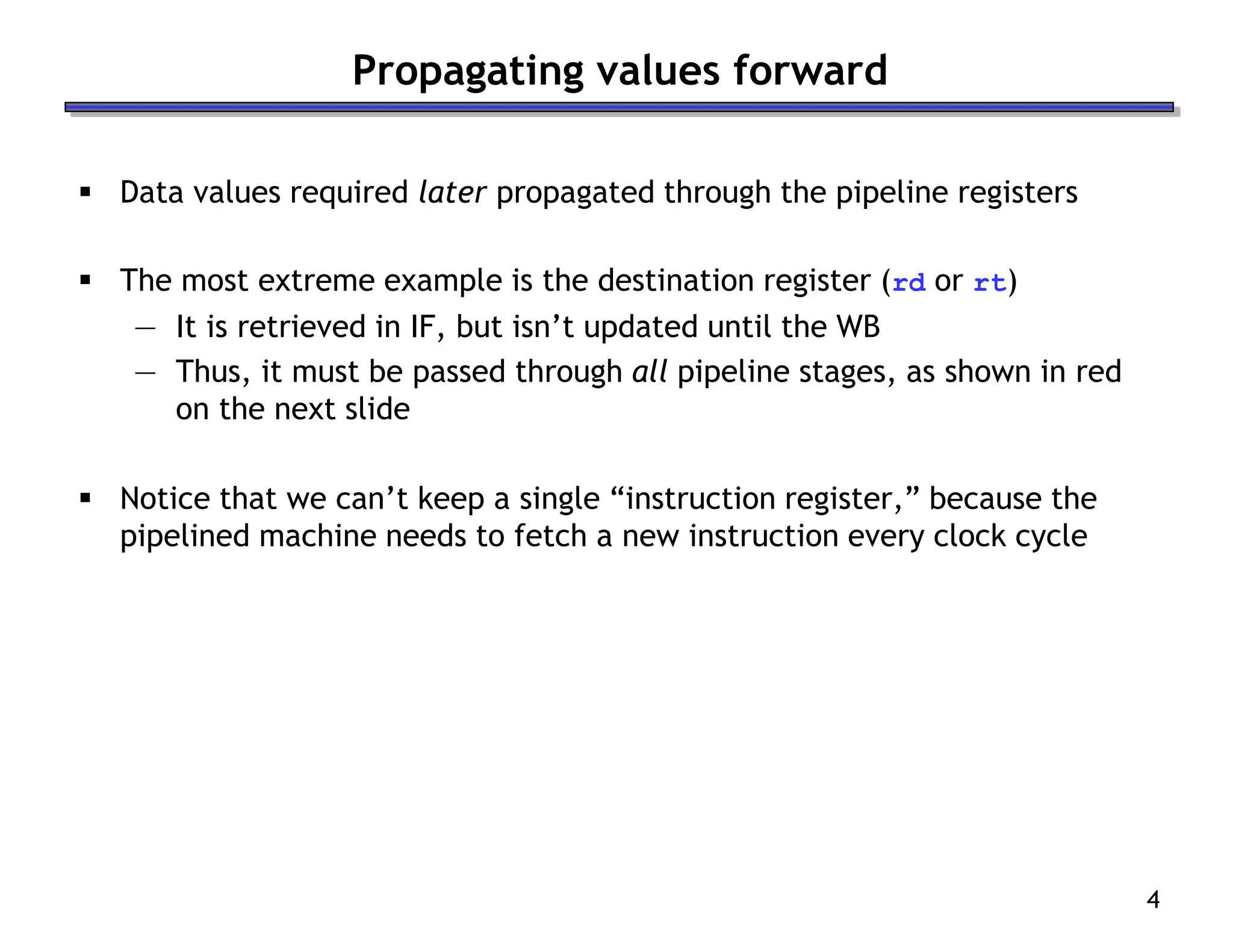

4 Propagating values forward  Data values required later propagated through the pipeline registers  The most extreme example is the destination register (rd or rt) — It is retrieved in IF, but isn’t updated until the WB — Thus, it must be passed through all pipeline stages, as shown in red on the next slide  Notice that we can’t keep a single “instruction register,” because the pipelined machine needs to fetch a new instruction every clock cycle
5 The destination register Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 MemToReg 4 Shift left 2 Add ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB 1 0 PCSrc P C Sign extend
6 What about control signals?  Control signals generated similar to the single-cycle processor — in the ID stage, the processor decodes the instruction fetched in IF and produces the appropriate control values  Some of the control signals will not be needed until later stages — These signals must be propagated through the pipeline until they reach the appropriate stage — We just pass them in the pipeline registers, along with the data  Control signals can be categorized by the pipeline stage that uses them Stage Control signals needed EX ALUSrc ALUOp RegDst MEM MemRead MemWrite PCSrc WB RegWrite MemToReg

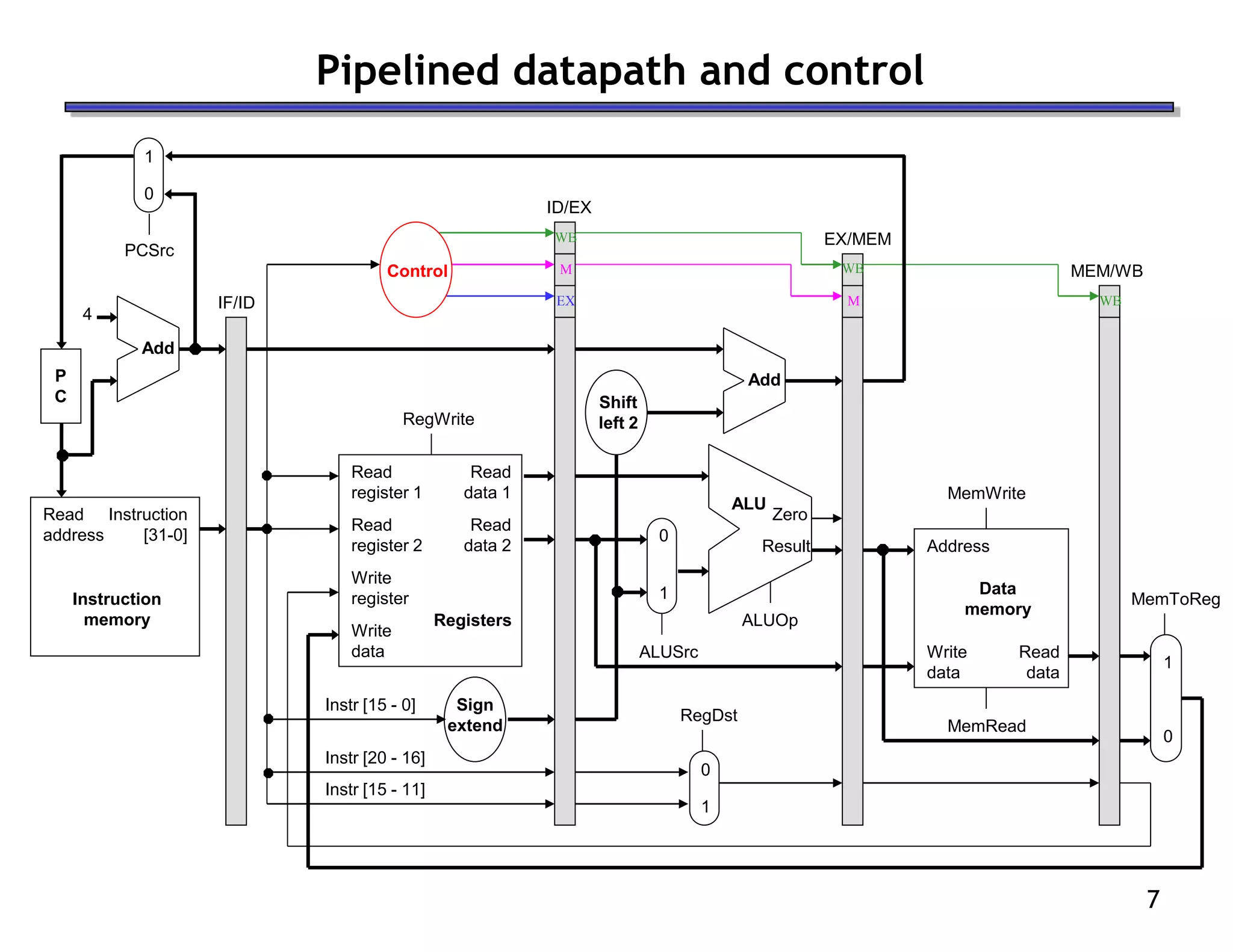

7 Pipelined datapath and control Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 MemToReg 4 Shift left 2 Add ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB P C 1 0 PCSrc Sign extend EX M WB

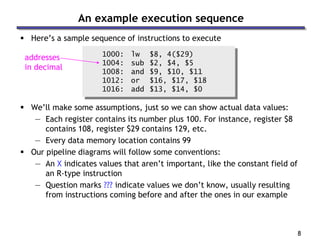

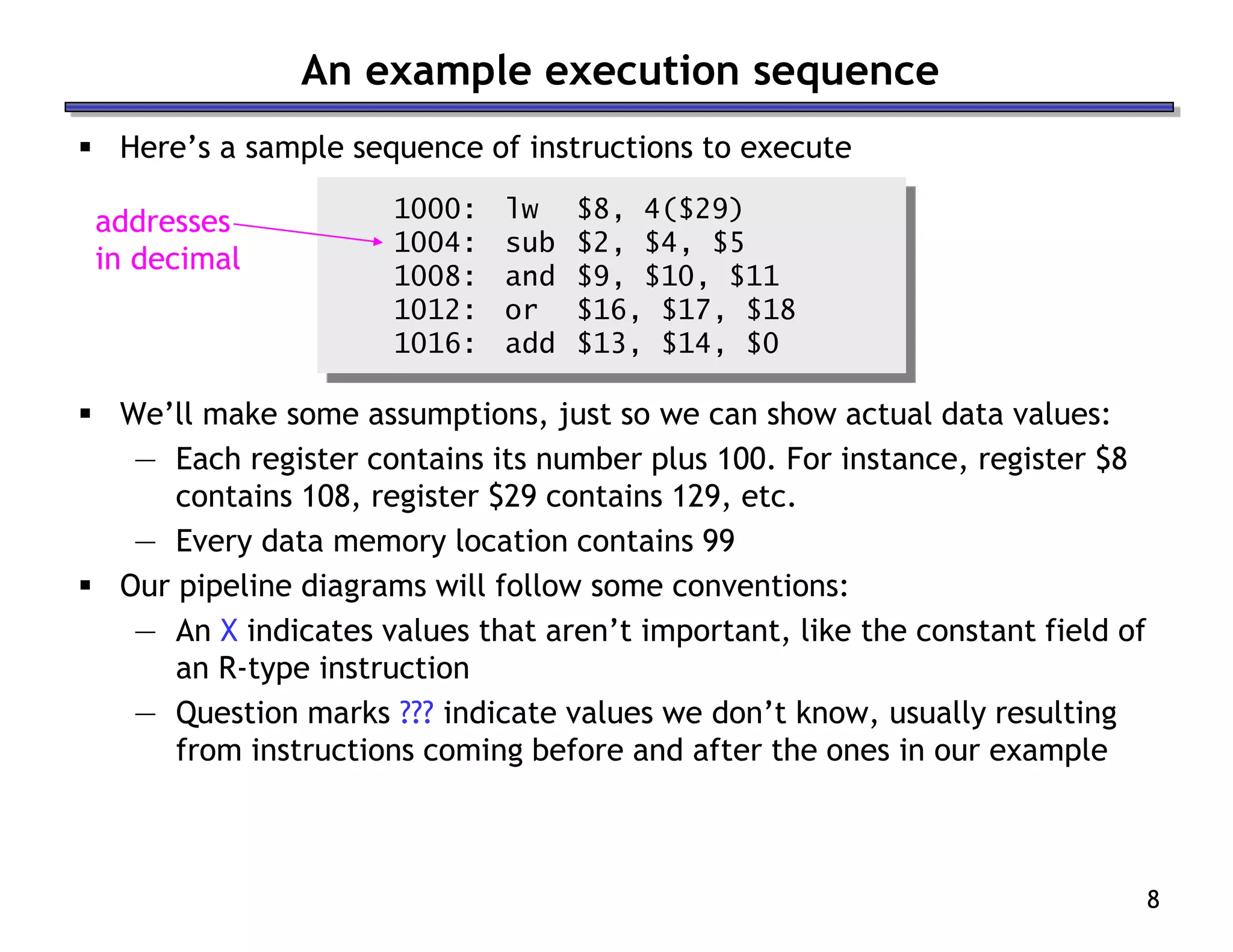

8  Here’s a sample sequence of instructions to execute 1000: lw $8, 4($29) 1004: sub $2, $4, $5 1008: and $9, $10, $11 1012: or $16, $17, $18 1016: add $13, $14, $0  We’ll make some assumptions, just so we can show actual data values: — Each register contains its number plus 100. For instance, register $8 contains 108, register $29 contains 129, etc. — Every data memory location contains 99  Our pipeline diagrams will follow some conventions: — An X indicates values that aren’t important, like the constant field of an R-type instruction — Question marks ??? indicate values we don’t know, usually resulting from instructions coming before and after the ones in our example An example execution sequence addresses in decimal

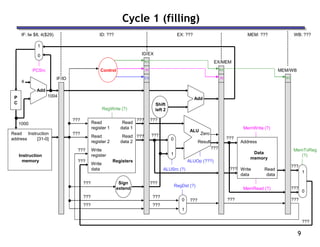

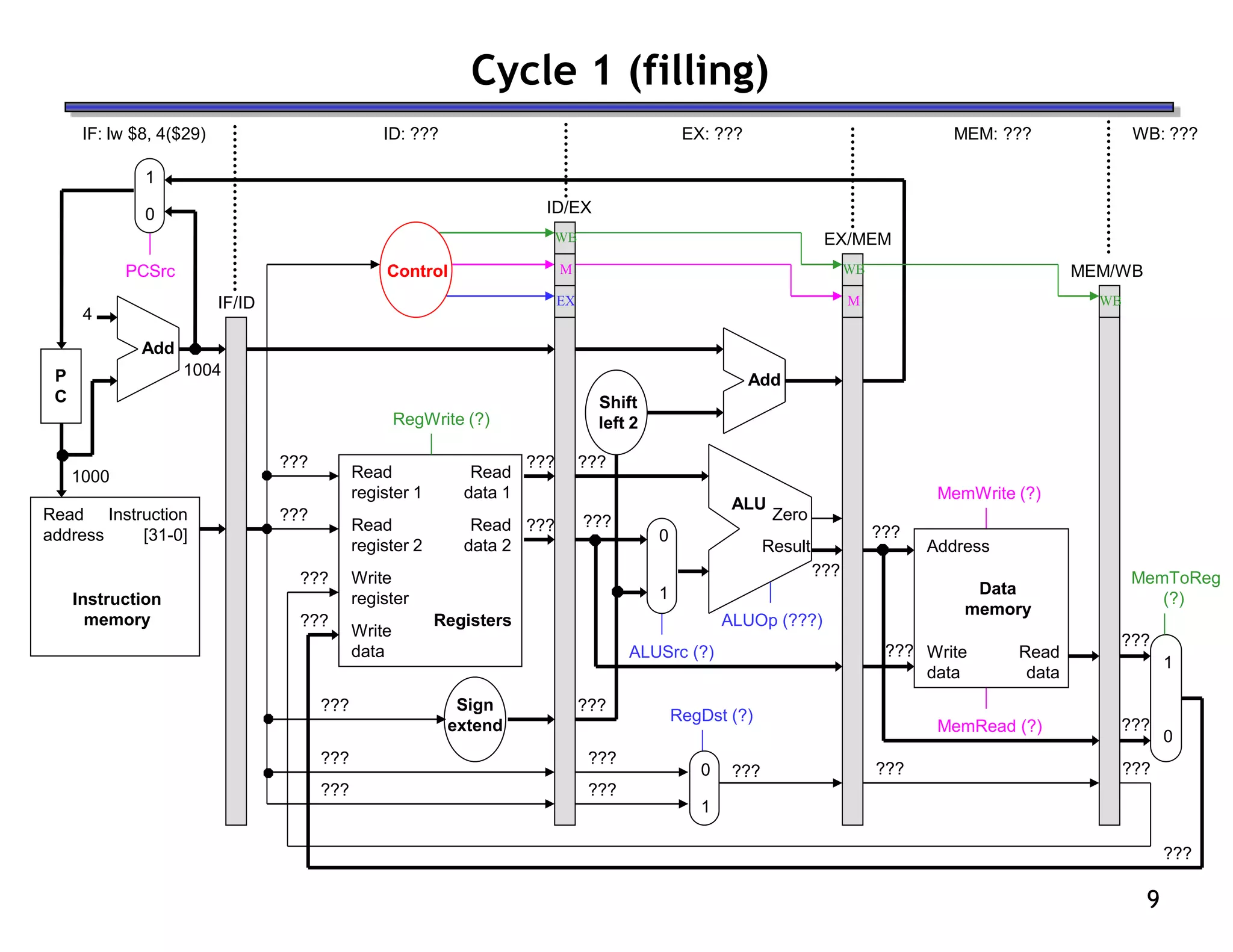

9 Cycle 1 (filling) IF: lw $8, 4($29) MEM: ??? WB: ??? EX: ??? ID: ??? Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (?) MemRead (?) 1 0 MemToReg (?) Shift left 2 Add 1 0 PCSrc ALUSrc (?) Result Zero ALU ALUOp (???) RegDst (?) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (?) Add 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1000 1004 ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? 4 P C Sign extend EX M WB

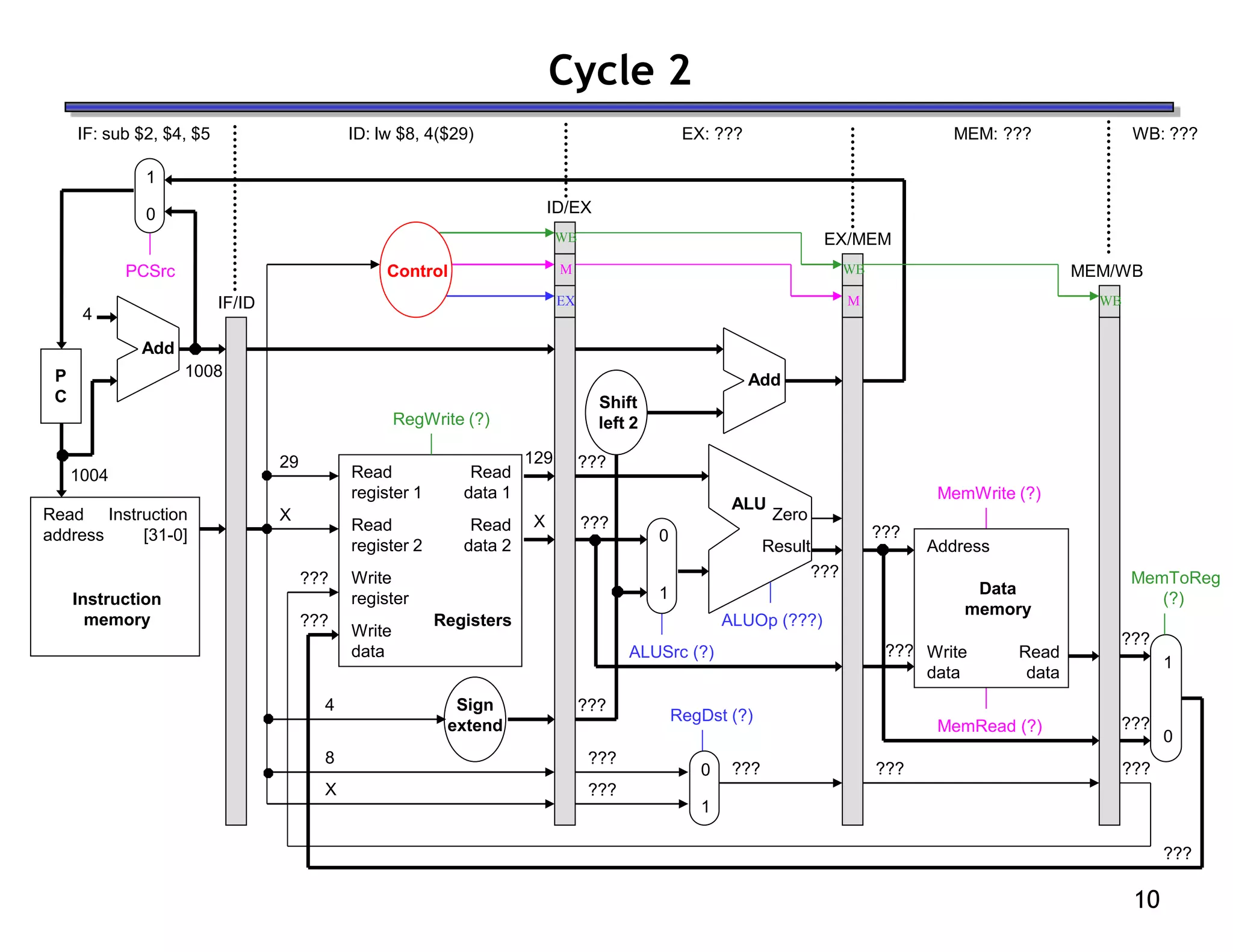

10 Cycle 2 ID: lw $8, 4($29) IF: sub $2, $4, $5 MEM: ??? WB: ??? EX: ??? Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data 1 0 4 Shift left 2 Add PCSrc Result Zero ALU 4 Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers Add X 8 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1004 29 X 1008 129 X MemToReg (?) ??? ??? ??? ??? ??? ??? RegWrite (?) MemWrite (?) MemRead (?) ??? ??? ??? ALUSrc (?) ALUOp (???) RegDst (?) ??? ??? ??? ??? ??? ??? ??? P C Sign extend EX M WB 1 0

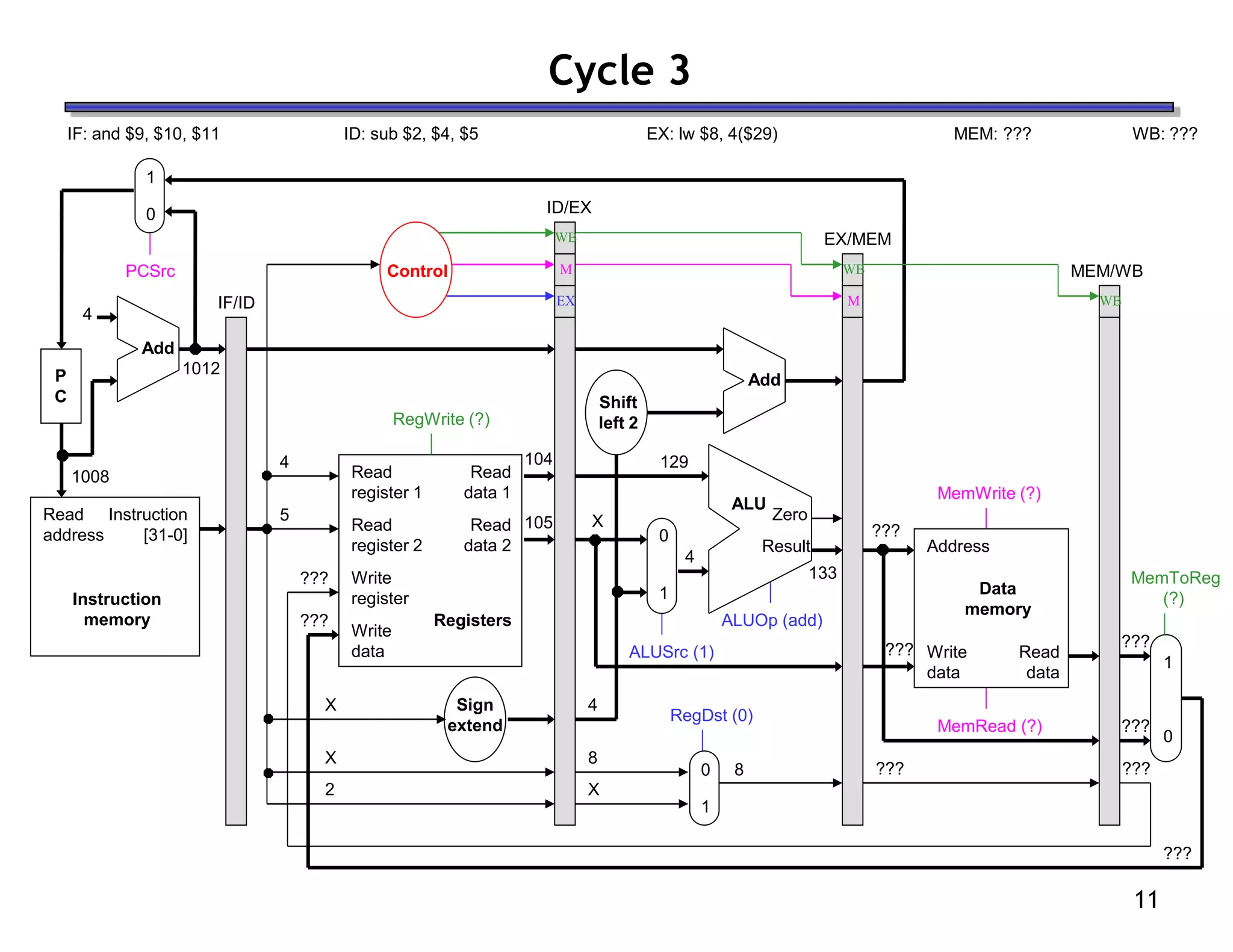

11 Cycle 3 ID: sub $2, $4, $5 IF: and $9, $10, $11 EX: lw $8, 4($29) MEM: ??? WB: ??? MemToReg (?) Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (?) MemRead (?) 1 0 4 Shift left 2 Add PCSrc ALUSrc (1) Result Zero ALU ALUOp (add) X RegDst (0) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers Add 2 X 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1008 4 5 1012 104 105 129 4 X 8 X 8 133 4 ??? ??? ??? ??? ??? ??? RegWrite (?) ??? ??? ??? P C Sign extend 1 0 EX M WB

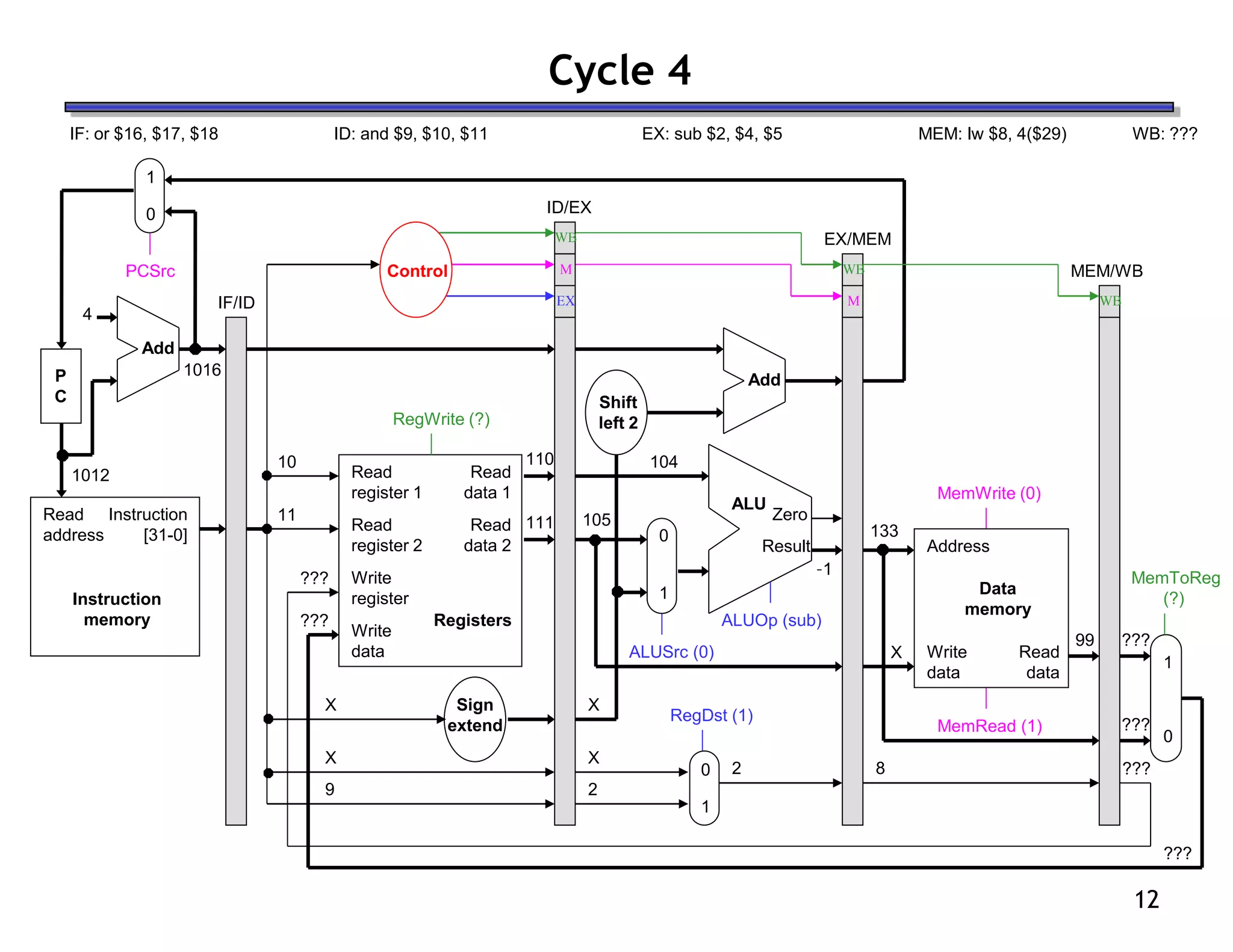

12 Cycle 4 ID: and $9, $10, $11 IF: or $16, $17, $18 EX: sub $2, $4, $5 MEM: lw $8, 4($29) WB: ??? Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (1) 1 0 MemToReg (?) 4 Shift left 2 Add PCSrc ALUSrc (0) Result Zero ALU ALUOp (sub) X RegDst (1) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (?) Add 9 X 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1012 10 11 1016 110 111 104 X 105 X 2 2 –1 133 X 99 8 ??? ??? ??? ??? ??? ??? P C Sign extend EX M WB 1 0

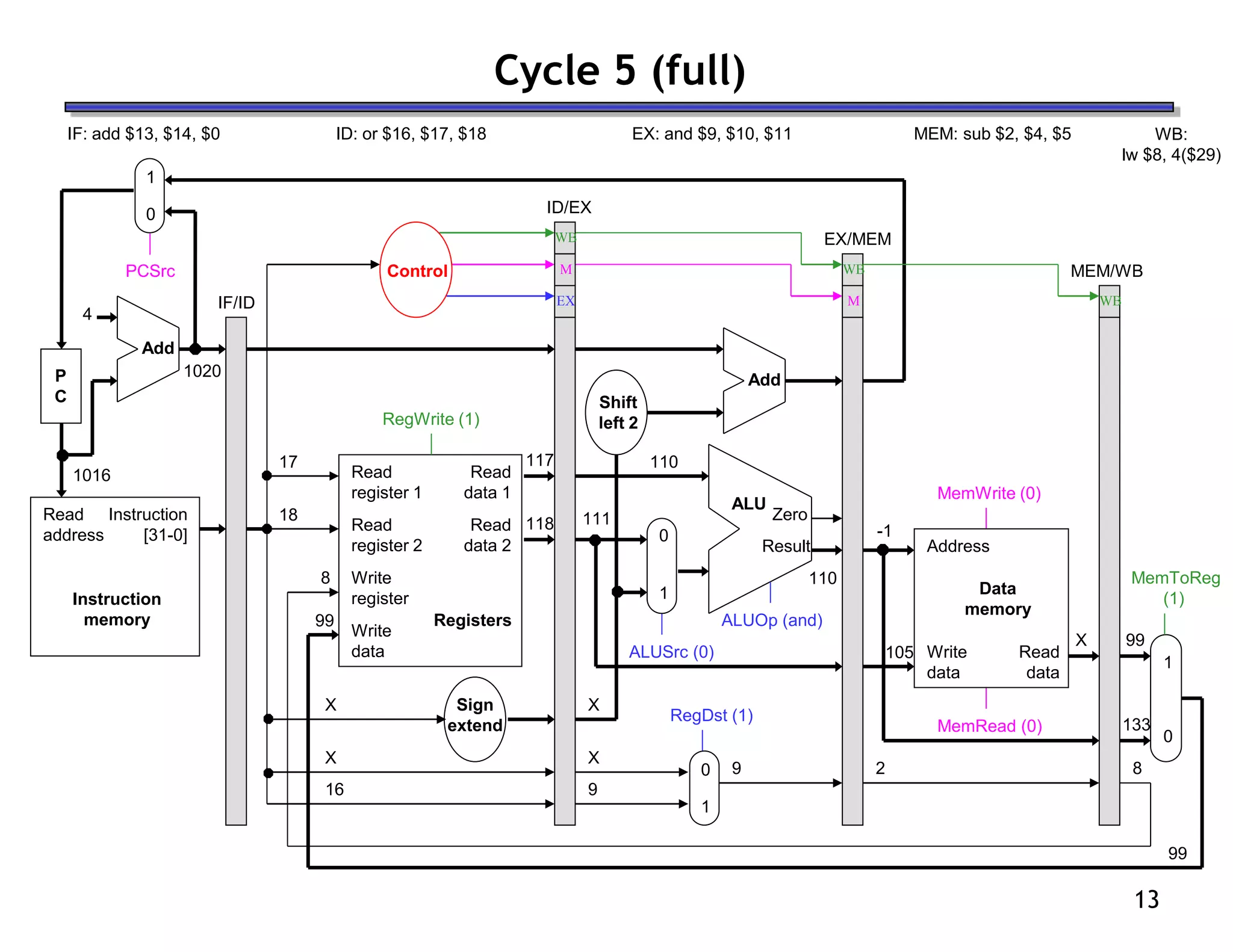

13 Cycle 5 (full) ID: or $16, $17, $18 IF: add $13, $14, $0 EX: and $9, $10, $11 MEM: sub $2, $4, $5 WB: lw $8, 4($29) Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (0) 1 0 MemToReg (1) 4 Shift left 2 Add PCSrc ALUSrc (0) Result Zero ALU ALUOp (and) X RegDst (1) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add 16 X 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1016 17 18 1020 117 118 110 X 111 X 9 9 110 -1 105 X 2 99 133 99 8 99 8 P C Sign extend EX M WB 1 0

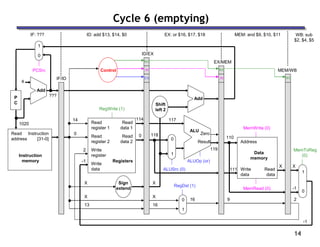

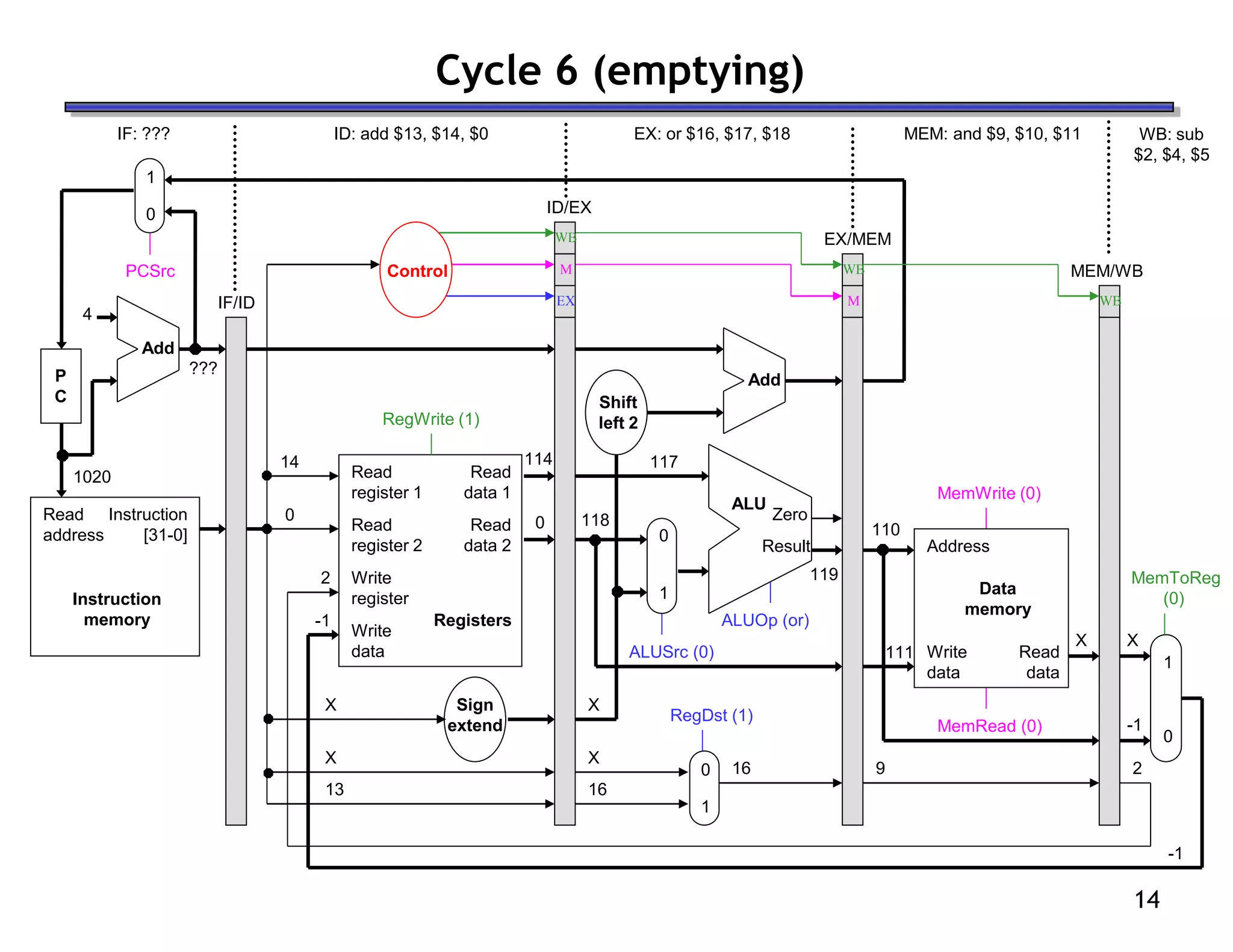

14 Cycle 6 (emptying) ID: add $13, $14, $0 IF: ??? EX: or $16, $17, $18 MEM: and $9, $10, $11 WB: sub $2, $4, $5 Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (0) 1 0 MemToReg (0) 4 Shift left 2 Add PCSrc ALUSrc (0) Result Zero ALU ALUOp (or) X RegDst (1) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add 13 X 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1020 14 0 ??? 114 0 117 X 118 X 16 16 119 110 111 X 9 X -1 -1 2 -1 2 P C Sign extend 1 0 EX M WB
15 Cycle 7 ID: ??? IF: ??? EX: add $13, $14, $0 MEM: or $16, $17, $18 WB: and $9, $10, $11 Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (0) 1 0 MemToReg (0) 4 Shift left 2 Add PCSrc ALUSrc (0) Result Zero ALU ALUOp (add) ??? RegDst (1) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add ??? ??? 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB ??? ??? ??? ??? 114 X 0 X 13 13 114 119 118 X 16 X 110 110 9 110 9 P C Sign extend ??? ??? EX M WB 1 0

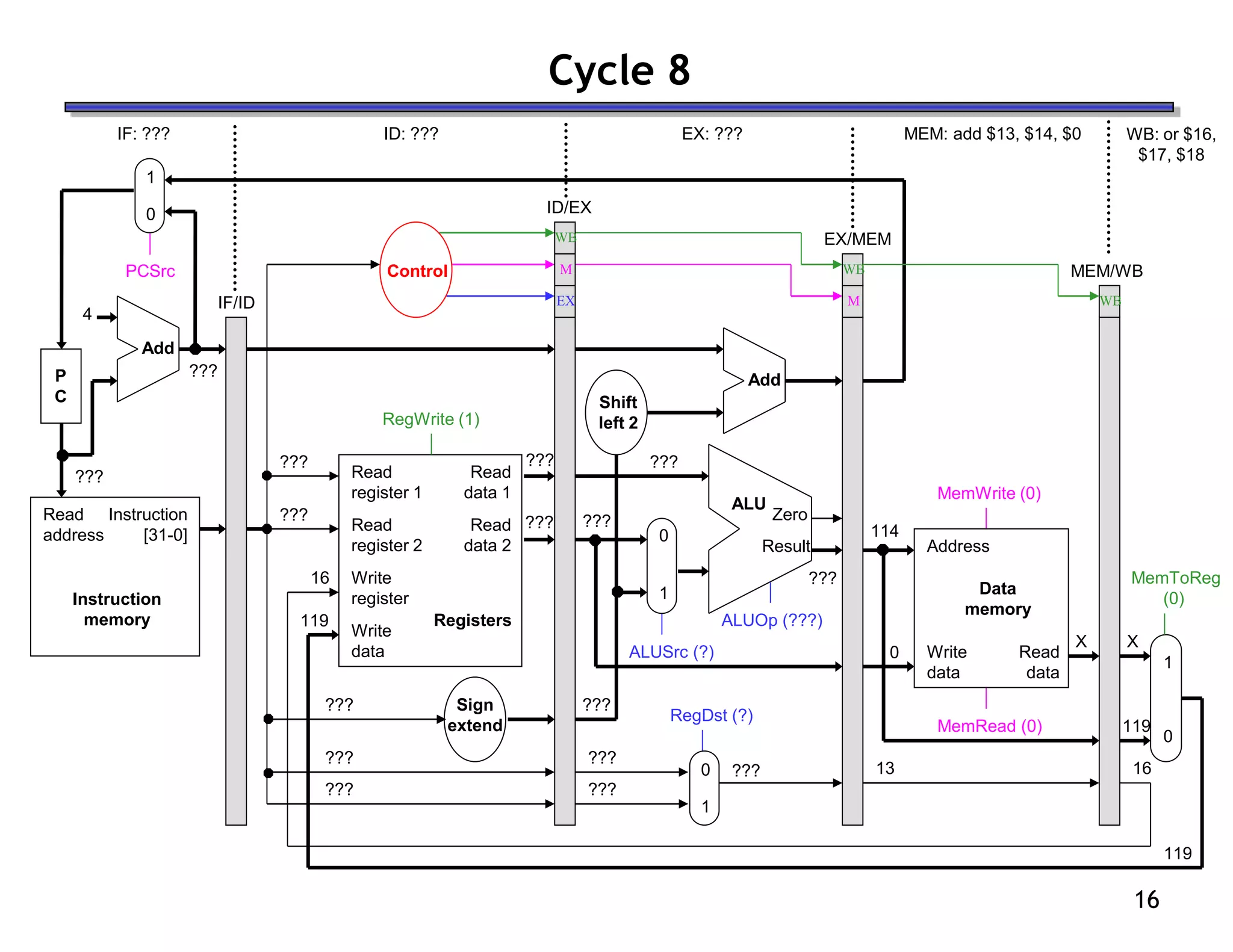

16 Cycle 8 ID: ??? IF: ??? EX: ??? MEM: add $13, $14, $0 WB: or $16, $17, $18 Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (0) 1 0 MemToReg (0) 4 Shift left 2 Add PCSrc ALUSrc (?) Result Zero ALU ALUOp (???) ??? RegDst (?) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add ??? ??? 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB ??? ??? ??? ??? ??? ??? 114 0 X 13 X 119 119 16 119 16 P C Sign extend ??? ??? ??? ??? ??? ??? ??? 1 0 EX M WB

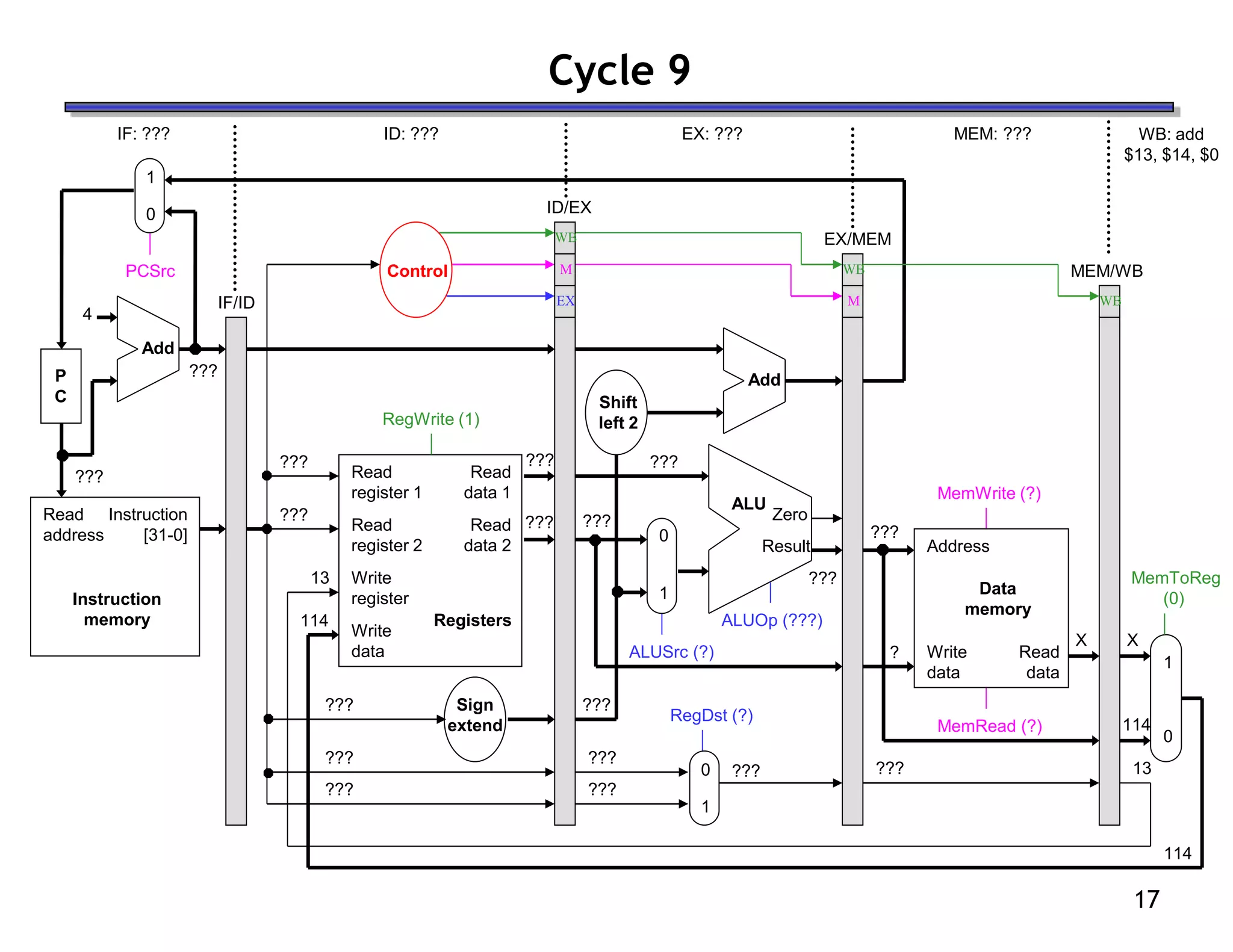

17 Cycle 9 ID: ??? IF: ??? EX: ??? MEM: ??? WB: add $13, $14, $0 Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (?) MemRead (?) 1 0 MemToReg (0) 4 Shift left 2 Add PCSrc ALUSrc (?) Result Zero ALU ALUOp (???) ??? RegDst (?) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add ??? ??? 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB ??? ??? ??? ??? ??? ??? ??? ??? ? X ??? X 114 114 13 114 13 P C Sign extend ??? ??? ??? ??? ??? ??? 1 0 EX M WB
18 That’s a lot of diagrams there  Compare the last few slides with the pipeline diagram above — You can see how instruction executions are overlapped — Each functional unit is used by a different instruction in each cycle — The pipeline registers save control and data values generated in previous clock cycles for later use — When the pipeline is full in clock cycle 5, all of the hardware units are utilized. This is the ideal situation, and what makes pipelined processors so fast  See the textbook for more examples Clock cycle 1 2 3 4 5 6 7 8 9 lw $t0, 4($sp) IF ID EX MEM WB sub $v0, $a0, $a1 IF ID EX MEM WB and $t1, $t2, $t3 IF ID EX MEM WB or $s0, $s1, $s2 IF ID EX MEM WB add $t5, $t6, $0 IF ID EX MEM WB

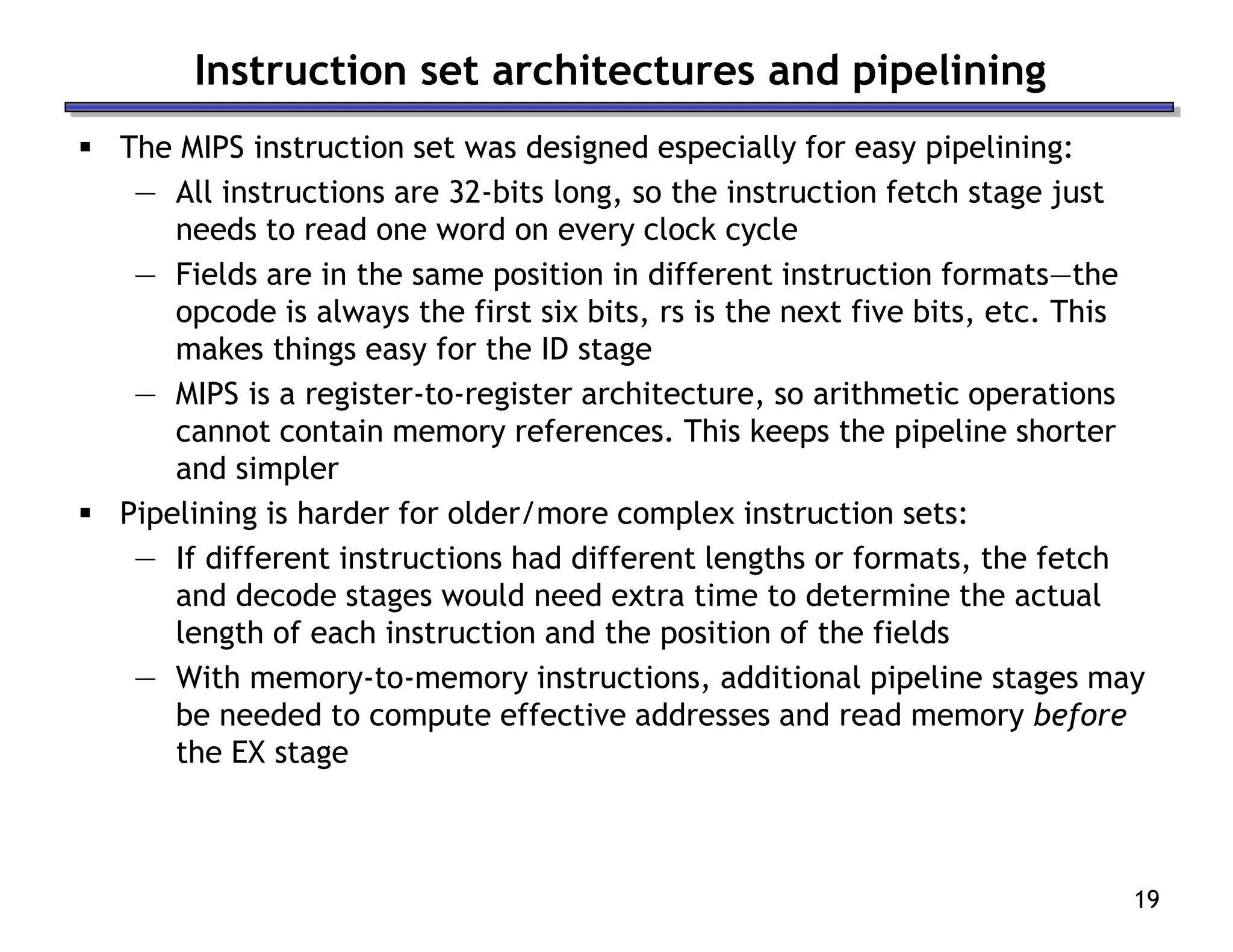

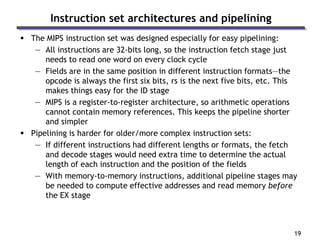

19 Instruction set architectures and pipelining  The MIPS instruction set was designed especially for easy pipelining: — All instructions are 32-bits long, so the instruction fetch stage just needs to read one word on every clock cycle — Fields are in the same position in different instruction formats—the opcode is always the first six bits, rs is the next five bits, etc. This makes things easy for the ID stage — MIPS is a register-to-register architecture, so arithmetic operations cannot contain memory references. This keeps the pipeline shorter and simpler  Pipelining is harder for older/more complex instruction sets: — If different instructions had different lengths or formats, the fetch and decode stages would need extra time to determine the actual length of each instruction and the position of the fields — With memory-to-memory instructions, additional pipeline stages may be needed to compute effective addresses and read memory before the EX stage

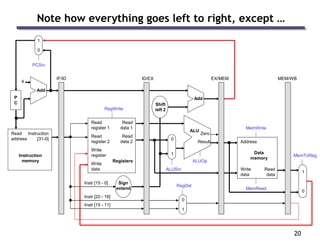

20 Note how everything goes left to right, except … Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 MemToReg 4 Shift left 2 Add Sign extend ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB 1 0 PCSrc P C

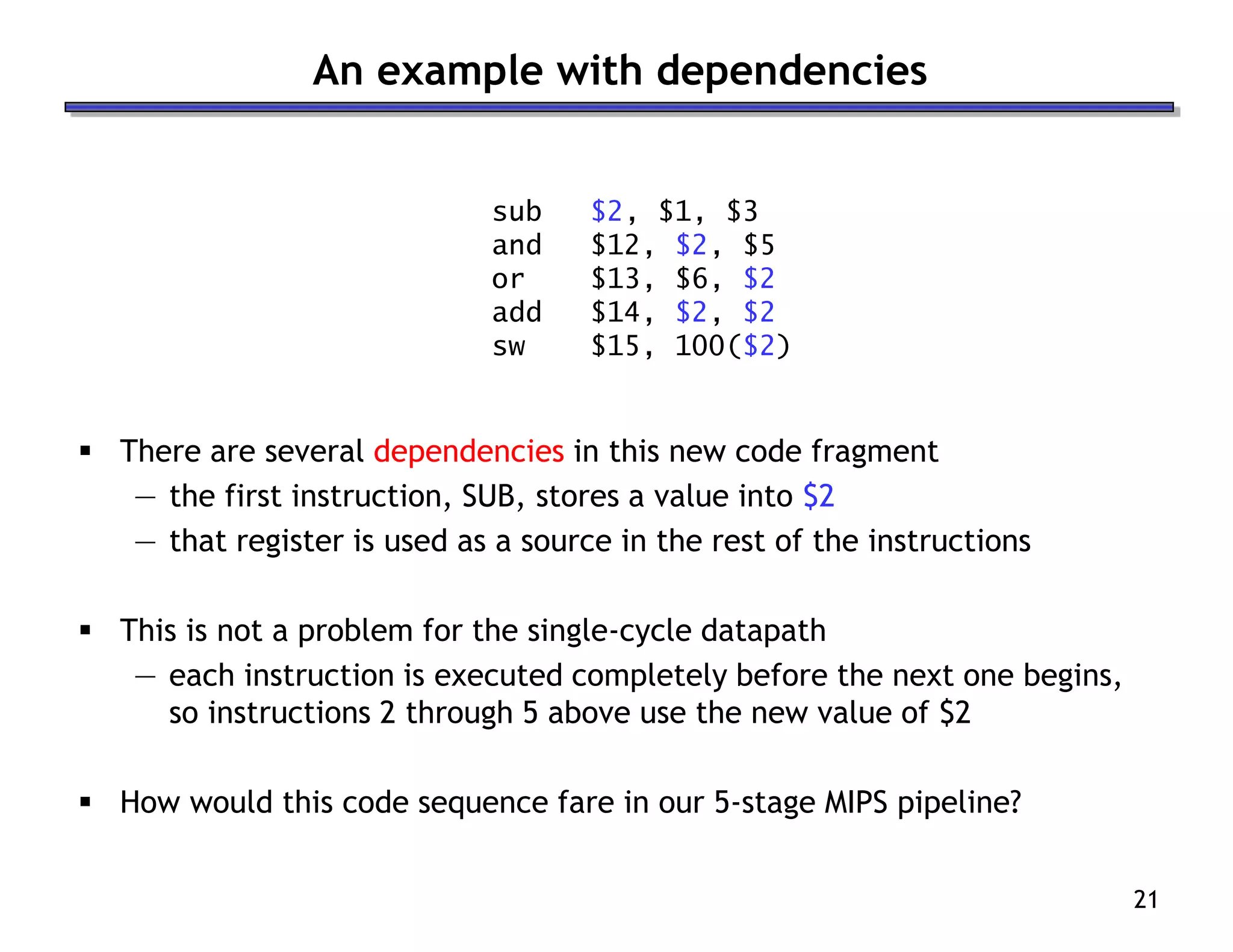

21 An example with dependencies sub $2, $1, $3 and $12, $2, $5 or $13, $6, $2 add $14, $2, $2 sw $15, 100($2)  There are several dependencies in this new code fragment — the first instruction, SUB, stores a value into $2 — that register is used as a source in the rest of the instructions  This is not a problem for the single-cycle datapath — each instruction is executed completely before the next one begins, so instructions 2 through 5 above use the new value of $2  How would this code sequence fare in our 5-stage MIPS pipeline?
22 Clock cycle 1 2 3 4 5 6 7 8 9 sub $2, $1, $3 IF ID EX MEM WB and $12, $2, $5 IF ID EX MEM WB or $13, $6, $2 IF ID EX MEM WB add $14, $2, $2 IF ID EX MEM WB sw $15, 100($2) IF ID EX MEM WB  The sub instruction does not write to register $2 until clock cycle 5. This causes two data hazards in our current pipelined datapath: — the and reads register $2 in cycle 3, and since sub hasn’t modified the register yet, this will be the old value of $2, not the new one — the or instruction uses register $2 in cycle 4, again before it’s actually updated by sub Data hazards in the pipeline diagram

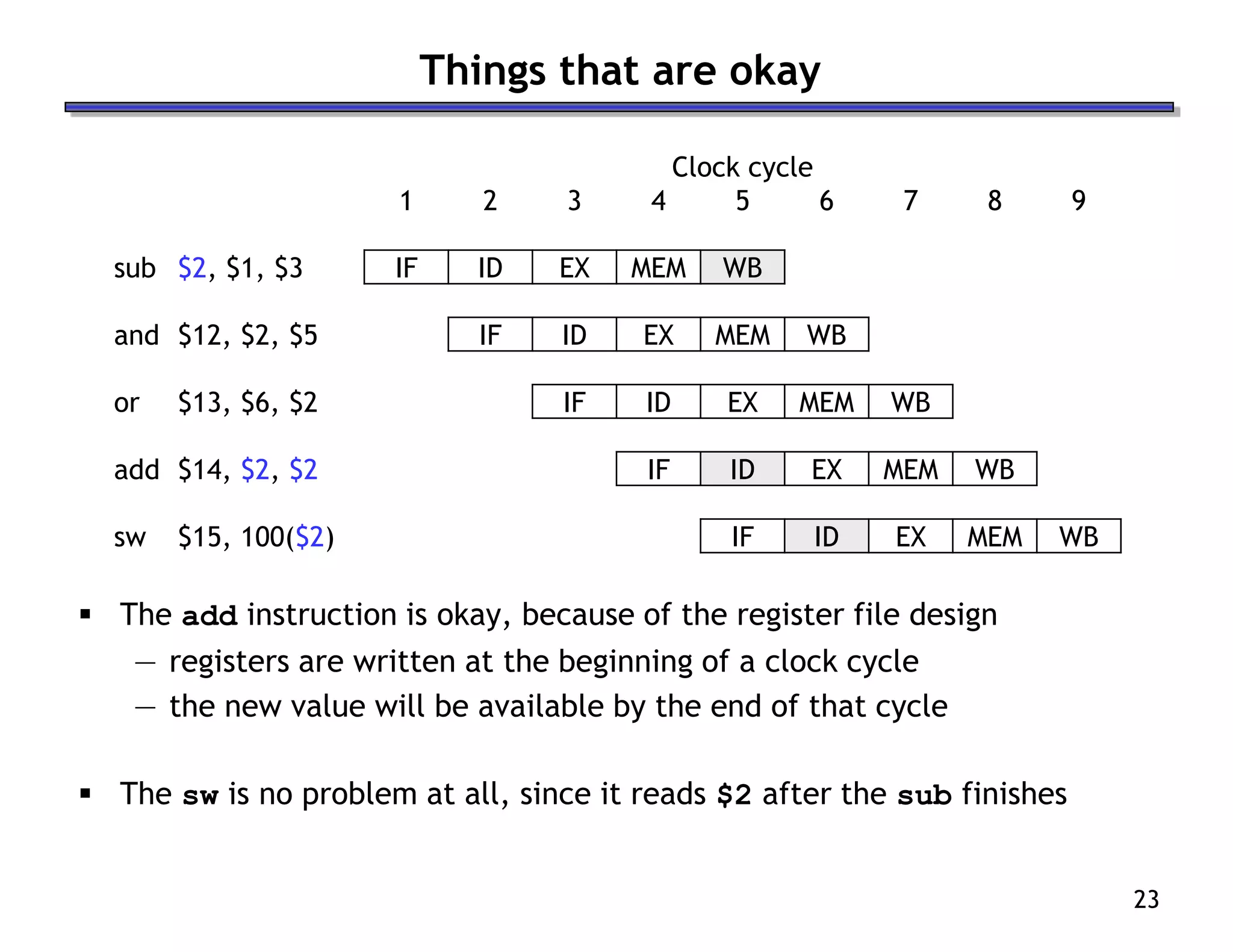

23 Clock cycle 1 2 3 4 5 6 7 8 9 sub $2, $1, $3 IF ID EX MEM WB and $12, $2, $5 IF ID EX MEM WB or $13, $6, $2 IF ID EX MEM WB add $14, $2, $2 IF ID EX MEM WB sw $15, 100($2) IF ID EX MEM WB  The add instruction is okay, because of the register file design — registers are written at the beginning of a clock cycle — the new value will be available by the end of that cycle  The sw is no problem at all, since it reads $2 after the sub finishes Things that are okay
24 Clock cycle 1 2 3 4 5 6 7 8 9 sub $2, $1, $3 IF ID EX MEM WB and $12, $2, $5 IF ID EX MEM WB or $13, $6, $2 IF ID EX MEM WB add $14, $2, $2 IF ID EX MEM WB sw $15, 100($2) IF ID EX MEM WB  Arrows indicate the flow of data between instructions — The tails of the arrows show when register $2 is written — The heads of the arrows show when $2 is read  Any arrow that points backwards in time represents a data hazard in our basic pipelined datapath Dependency arrows

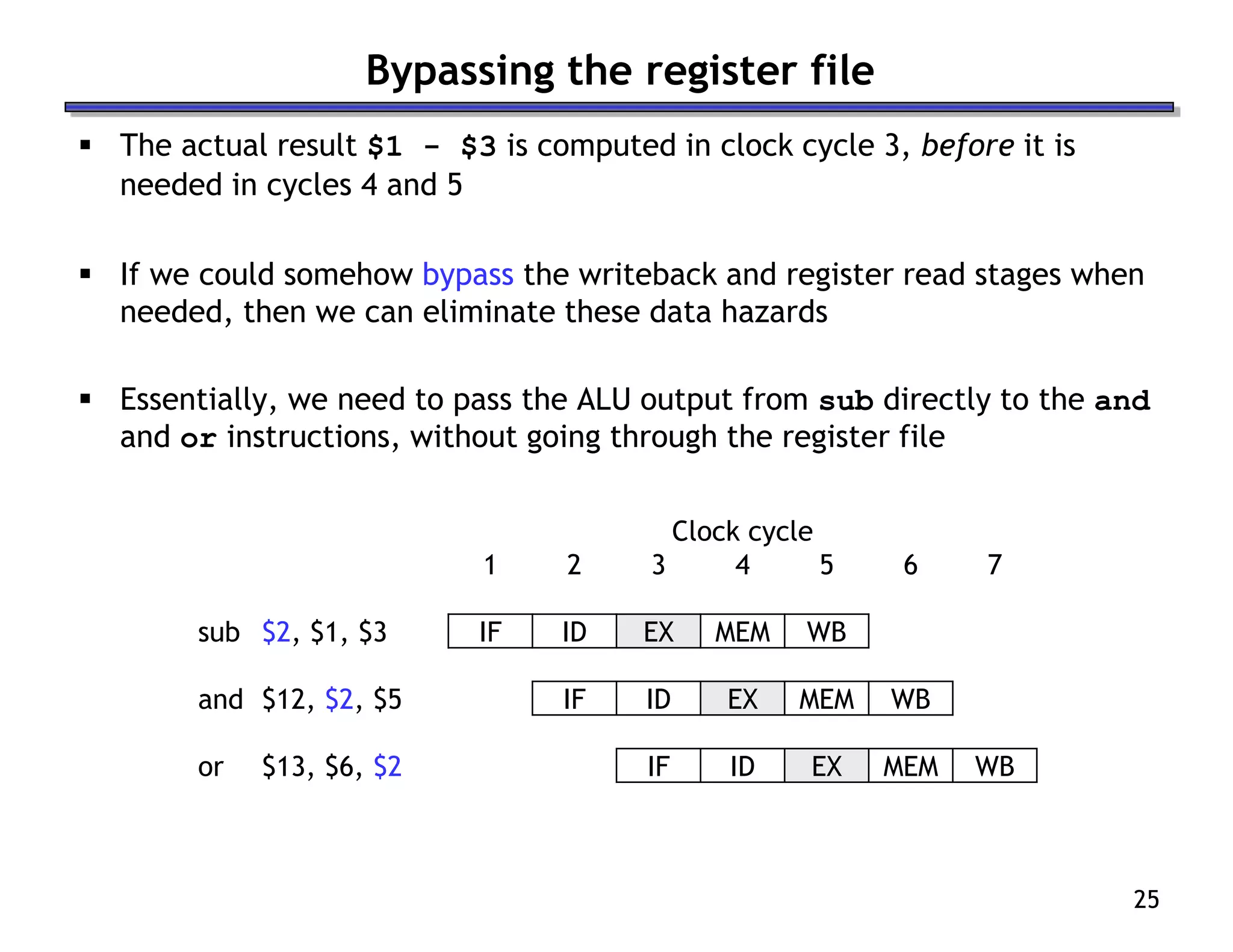

25 Bypassing the register file  The actual result $1 - $3 is computed in clock cycle 3, before it is needed in cycles 4 and 5  If we could somehow bypass the writeback and register read stages when needed, then we can eliminate these data hazards  Essentially, we need to pass the ALU output from sub directly to the and and or instructions, without going through the register file Clock cycle 1 2 3 4 5 6 7 sub $2, $1, $3 IF ID EX MEM WB and $12, $2, $5 IF ID EX MEM WB or $13, $6, $2 IF ID EX MEM WB

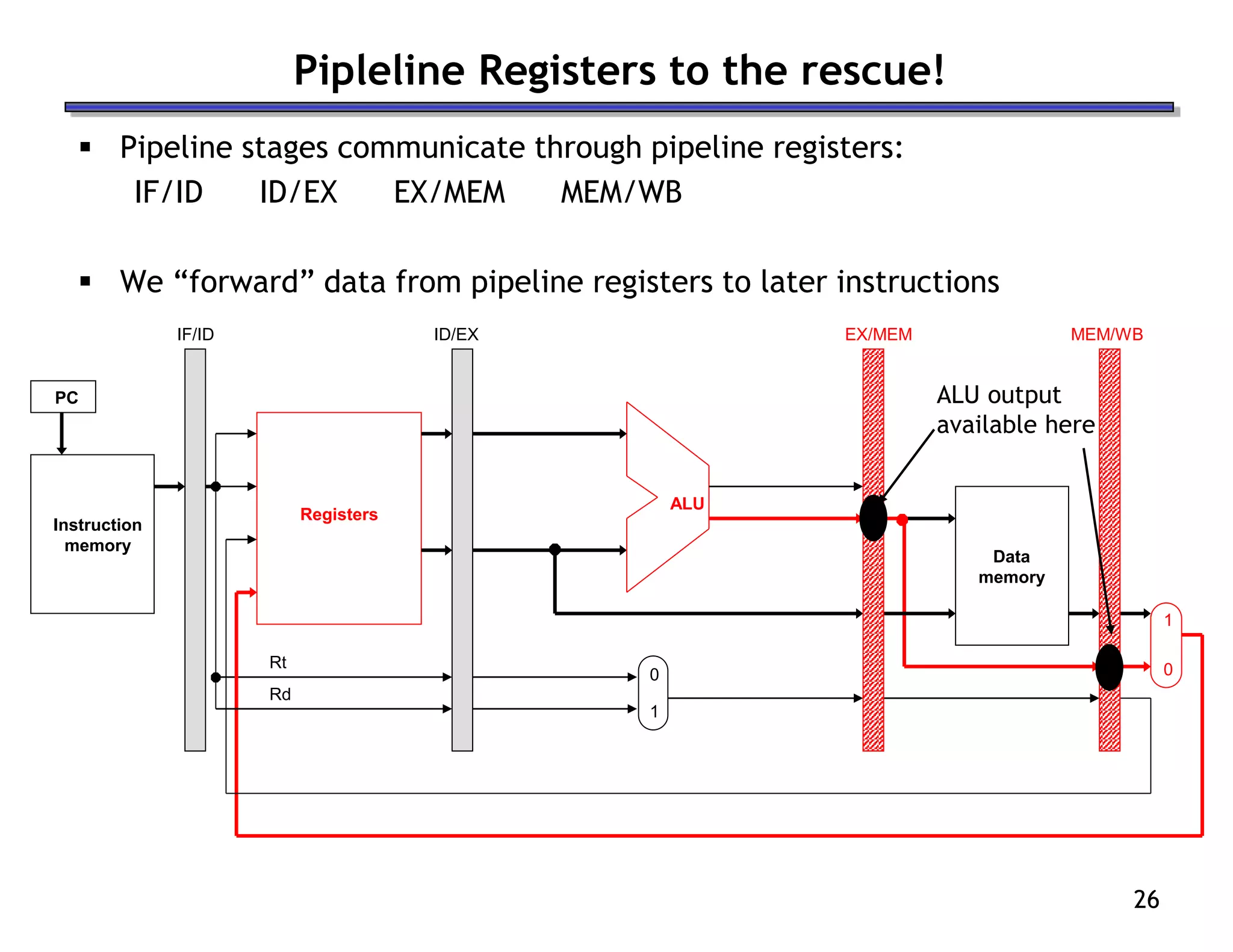

26 Pipleline Registers to the rescue!  Pipeline stages communicate through pipeline registers: IF/ID ID/EX EX/MEM MEM/WB  We “forward” data from pipeline registers to later instructions Instruction memory Data memory 1 0 PC ALU Registers Rd Rt 0 1 IF/ID ID/EX EX/MEM MEM/WB ALU output available here

More Related Content

PPT
Lec1 Computer Architecture by Hsien-Hsin Sean Lee Georgia Tech -- Pipelining
byHsien-Hsin Sean Lee, Ph.D.

PDF
Below is the syntax and the encoding. The instruction below computes.pdf
byarpittradersjdr

PPTX
Computer Architecture - Data Path & Pipeline Hazards
byThyagharajan K.K.

PPT
L12-Forwarding.ppt
byRevathiSoundiran1

PPTX
BASICS OF MIPS ARCHITECTURE AND THEIR INSTRUCTION SET
bySaritha Sri

PDF
3. Single Cycle Data Path in computer architecture
bybsse20142018

PDF
Maximizing CPU Efficiency: A Comprehensive Exploration of Pipelining in Compu...
byhaseebali10701

PPTX
CMPN301-Pipelining_V2.pptx
byNadaAAmin

Lec1 Computer Architecture by Hsien-Hsin Sean Lee Georgia Tech -- Pipelining
byHsien-Hsin Sean Lee, Ph.D.

Below is the syntax and the encoding. The instruction below computes.pdf
byarpittradersjdr

Computer Architecture - Data Path & Pipeline Hazards
byThyagharajan K.K.

L12-Forwarding.ppt
byRevathiSoundiran1

BASICS OF MIPS ARCHITECTURE AND THEIR INSTRUCTION SET
bySaritha Sri

3. Single Cycle Data Path in computer architecture
bybsse20142018

Maximizing CPU Efficiency: A Comprehensive Exploration of Pipelining in Compu...
byhaseebali10701

CMPN301-Pipelining_V2.pptx
byNadaAAmin


Similar to L11.ppt

PPTX
Pipelining1
bySriranjani Ramasubramanian

PPTX
UNIT 3 - General Purpose Processors
byButtaRajasekhar2

PPT
Pipeline data path u3
byKarthik Vivek

PPTX
ARM instruction set
byKarthik Vivek

PPTX
Lecture two: Pipelining and Hazards
byssuser292482

PPT
Chapter 4
byececourse

PPT
Performance Enhancement with Pipelining
byAneesh Raveendran

PDF
Slide kiến trúc máy tính chương 7 uet vnu
by22022150

PPTX
Instruction Execution in Computer Organization.pptx
byhodcse768718

PDF
Arch 1112-6
byHector Sanjuan

PPT
CH-5-Pipelining Computer architecture and organization.ppt
byssuser127433

PPTX
Unit iii
byJanani S

PPTX
Introduction to Microprocesso programming and interfacing.pptx
byvipinkmenon1

PPT
Chapter 4 the processor
bys9007912

PPTX
ARM instruction set
byKarthik Vivek

PPTX
Lecture 2 - the principles of pipelining
byssuser292482

PDF
Lecture6.pdf computer architecture for computer science
bykareem mohamed

PPTX
Risc proscesser qwertyuiop[asdfghjklzxc.pptx
byNickKumar17

PPT
Chapter 4 The Processor
byguest4f73554

PPT
Arm organization and implementation
byShubham Singh

Pipelining1
bySriranjani Ramasubramanian

UNIT 3 - General Purpose Processors
byButtaRajasekhar2

Pipeline data path u3
byKarthik Vivek

ARM instruction set
byKarthik Vivek

Lecture two: Pipelining and Hazards
byssuser292482

Chapter 4
byececourse

Performance Enhancement with Pipelining
byAneesh Raveendran

Slide kiến trúc máy tính chương 7 uet vnu
by22022150

Instruction Execution in Computer Organization.pptx
byhodcse768718

Arch 1112-6
byHector Sanjuan

CH-5-Pipelining Computer architecture and organization.ppt
byssuser127433

Unit iii
byJanani S

Introduction to Microprocesso programming and interfacing.pptx
byvipinkmenon1

Chapter 4 the processor
bys9007912

ARM instruction set
byKarthik Vivek

Lecture 2 - the principles of pipelining
byssuser292482

Lecture6.pdf computer architecture for computer science
bykareem mohamed

Risc proscesser qwertyuiop[asdfghjklzxc.pptx
byNickKumar17

Chapter 4 The Processor
byguest4f73554

Arm organization and implementation
byShubham Singh


Recently uploaded

PDF
[BDD 2025 - Full-Stack Development] Digital Accessibility: Why Developers nee...
bywintari3

PDF
10 Best Automation QA Testing Software Tools in 2025.pdf
byRohitBhandari66

PPTX
MuleSoft AI Series : Introduction to MCP
byMulesoftMunichMeetup

PDF
[BDD 2025 - Mobile Development] Mobile Engineer and Software Engineer: Are we...
bywintari3

PDF
KMWorld - KM & AI Bring Collectivity, Nostalgia, & Selectivity
byJonathan Ralton

PDF
Parallel Computing BCS702 Module notes of the vtu college 7th sem 4.pdf
byMatheshVishnu

PDF
Integrating AI with Meaningful Human Collaboration
byCadabra Studio

PDF
[BDD 2025 - Mobile Development] Exploring Apple’s On-Device FoundationModels
byWintari Yasmin

PDF
"DISC as GPS for team leaders: how to lead a team from storming to performing...
byFwdays

PPTX
Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]
byUiPathCommunity

PPTX
kernel PPT (Explanation of Windows Kernal).pptx
byINFOBYTES1

PDF
DUBAI IT MODERNIZATION WITH AZURE MANAGED SERVICES.pdf
byLogicEra

PDF
Open Source Post-Quantum Cryptography - Matt Caswell
byAll Things Open

PDF
Cheryl Hung, Vibe Coding Auth Without Melting Down! isaqb Software Architectu...
byCheryl Hung

PDF
Dev Dives: Build smarter agents with UiPath Agent Builder
byUiPathCommunity

PDF
Crane Accident Prevention Guide: Key OSHA Regulations for Safer Operations
bySharpEagle Technology

PPTX
UFCD 0797 - SISTEMAS OPERATIVOS_Unidade Completa.pptx
byscribddobruno

PPTX
The power of Slack and MuleSoft | Bangalore MuleSoft Meetup #60
byshyamraj55

PDF
[BDD 2025 - Full-Stack Development] PHP in AI Age: The Laravel Way. (Rizqy Hi...
byWintari Yasmin

PDF
[BDD 2025 - Mobile Development] Crafting Immersive UI with E2E and AGSL Shade...
byWintari Yasmin

[BDD 2025 - Full-Stack Development] Digital Accessibility: Why Developers nee...
bywintari3

10 Best Automation QA Testing Software Tools in 2025.pdf
byRohitBhandari66

MuleSoft AI Series : Introduction to MCP
byMulesoftMunichMeetup

[BDD 2025 - Mobile Development] Mobile Engineer and Software Engineer: Are we...
bywintari3

KMWorld - KM & AI Bring Collectivity, Nostalgia, & Selectivity
byJonathan Ralton

Parallel Computing BCS702 Module notes of the vtu college 7th sem 4.pdf
byMatheshVishnu

Integrating AI with Meaningful Human Collaboration
byCadabra Studio

[BDD 2025 - Mobile Development] Exploring Apple’s On-Device FoundationModels
byWintari Yasmin

"DISC as GPS for team leaders: how to lead a team from storming to performing...
byFwdays

Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]
byUiPathCommunity

kernel PPT (Explanation of Windows Kernal).pptx
byINFOBYTES1

DUBAI IT MODERNIZATION WITH AZURE MANAGED SERVICES.pdf
byLogicEra

Open Source Post-Quantum Cryptography - Matt Caswell
byAll Things Open

Cheryl Hung, Vibe Coding Auth Without Melting Down! isaqb Software Architectu...
byCheryl Hung

Dev Dives: Build smarter agents with UiPath Agent Builder
byUiPathCommunity

Crane Accident Prevention Guide: Key OSHA Regulations for Safer Operations
bySharpEagle Technology

UFCD 0797 - SISTEMAS OPERATIVOS_Unidade Completa.pptx
byscribddobruno

The power of Slack and MuleSoft | Bangalore MuleSoft Meetup #60
byshyamraj55

[BDD 2025 - Full-Stack Development] PHP in AI Age: The Laravel Way. (Rizqy Hi...
byWintari Yasmin

[BDD 2025 - Mobile Development] Crafting Immersive UI with E2E and AGSL Shade...
byWintari Yasmin


L11.ppt

  • 1.

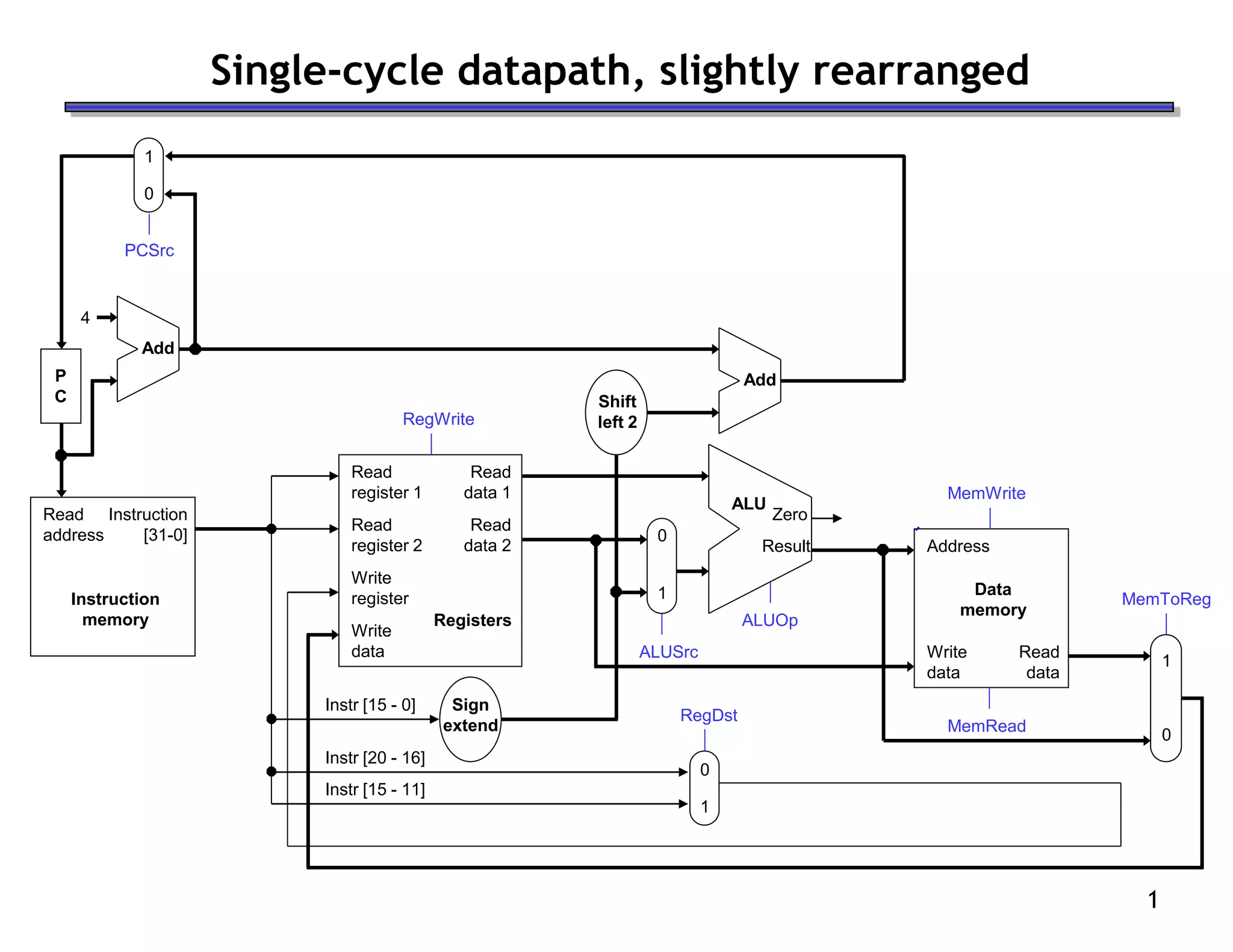

    1 Single-cycle datapath, slightlyrearranged MemToReg Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 4 Shift left 2 P C Add 1 0 PCSrc Sign extend ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1
  • 2.
    2 Pipeline registers  Inpipelining, we divide instruction execution into multiple cycles — IF ID EX MEM WB  Information computed during one cycle may be needed in a later cycle: — Instruction read in IF stage determines which registers are fetched in ID stage, what immediate is used for EX stage, and what destination register is for WB — Register values read in ID are used in EX and/or MEM stages — ALU output produced in EX is an effective address for MEM or a result for WB  A lot of information to save! — Saved in intermediate registers called pipeline registers  The registers are named for the stages they connect: IF/ID ID/EX EX/MEM MEM/WB  No register is needed after the WB stage, because after WB the instruction is done
  • 3.
    3 Pipelined datapath Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 MemToReg 4 Shift left 2 Add Sign extend ALUSrc Result Zero ALU ALUOp Instr[15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB 1 0 PCSrc P C
  • 4.
    4 Propagating values forward Data values required later propagated through the pipeline registers  The most extreme example is the destination register (rd or rt) — It is retrieved in IF, but isn’t updated until the WB — Thus, it must be passed through all pipeline stages, as shown in red on the next slide  Notice that we can’t keep a single “instruction register,” because the pipelined machine needs to fetch a new instruction every clock cycle
  • 5.

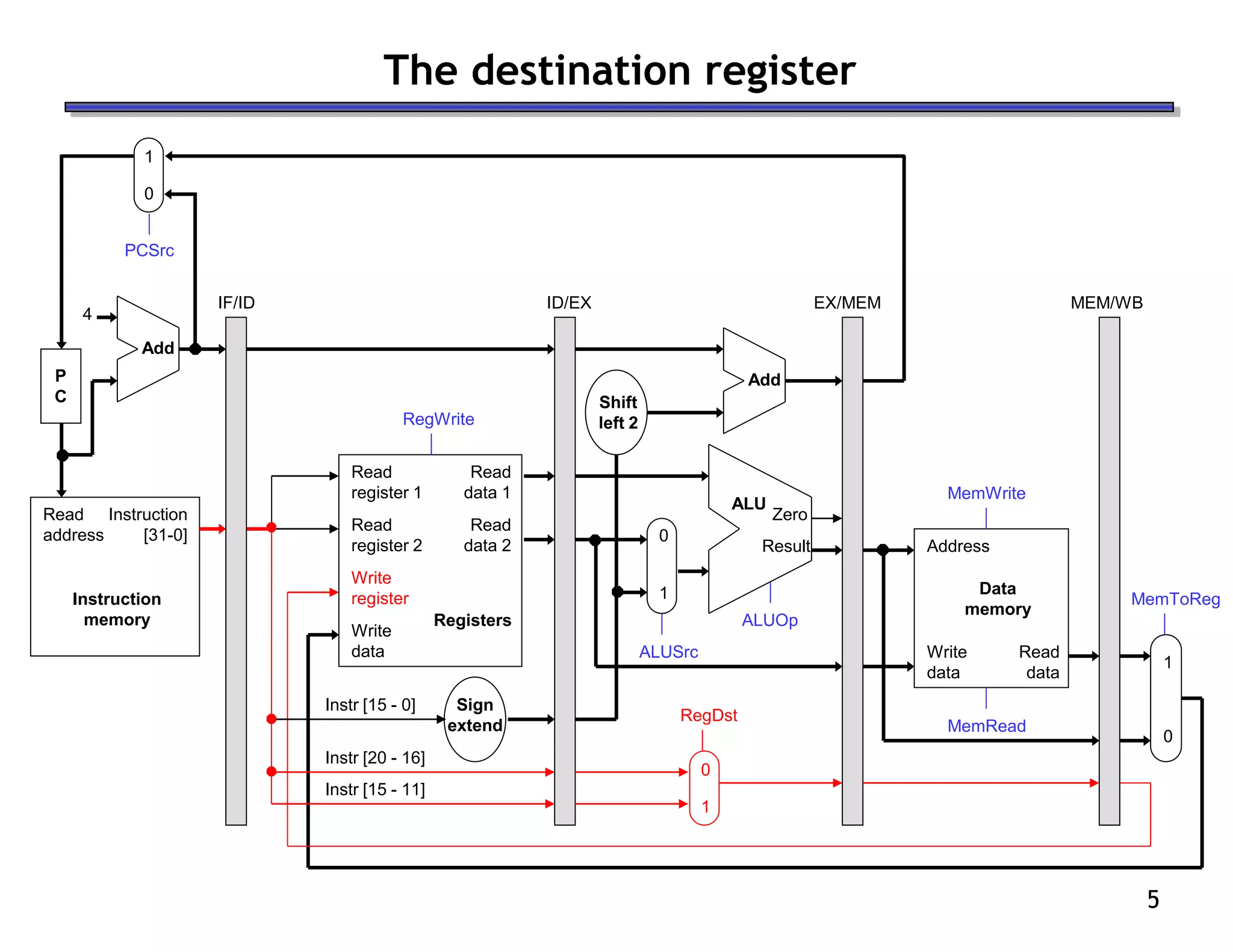

    5 The destination register Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 MemToReg 4 Shift left2 Add ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB 1 0 PCSrc P C Sign extend
  • 6.

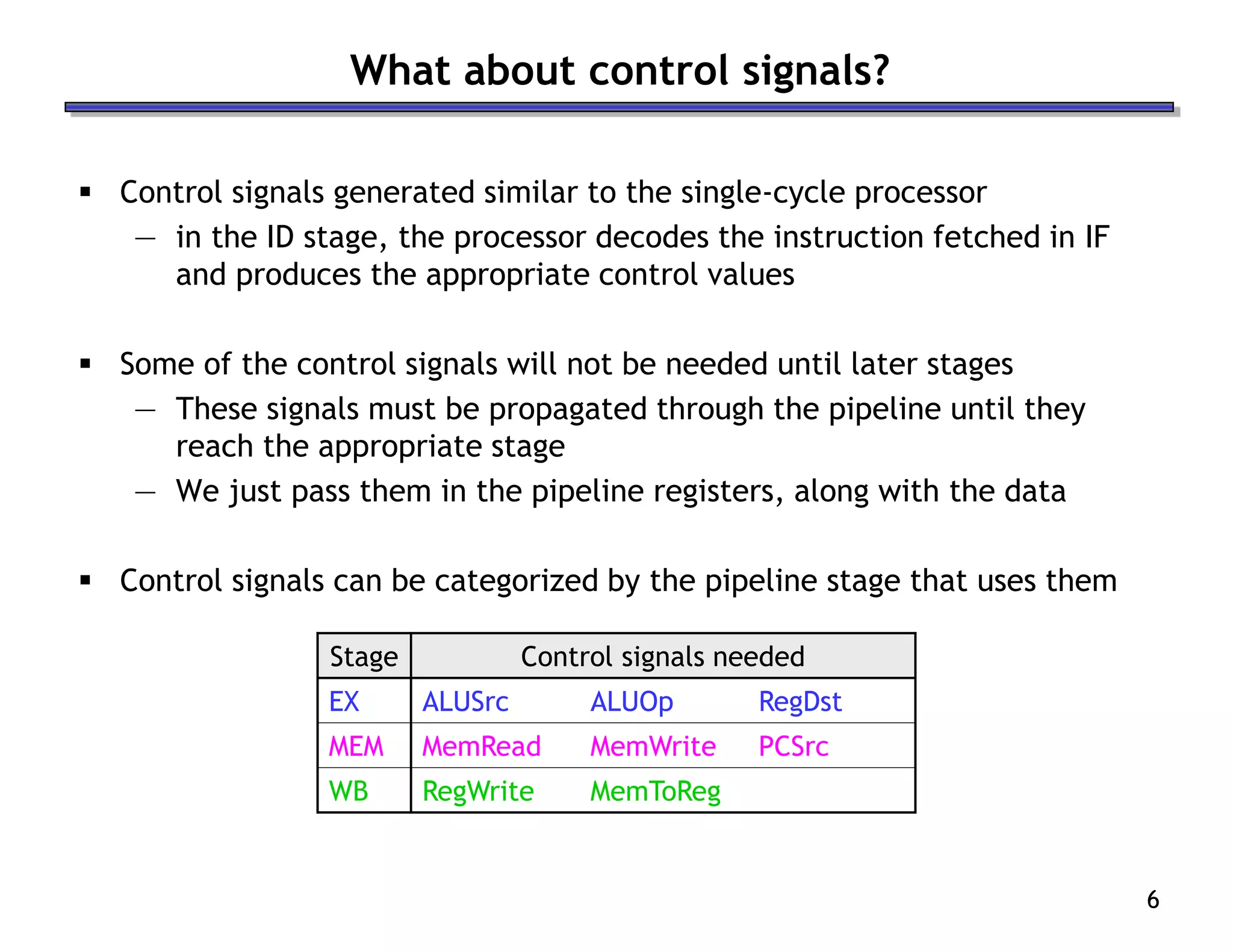

    6 What about controlsignals?  Control signals generated similar to the single-cycle processor — in the ID stage, the processor decodes the instruction fetched in IF and produces the appropriate control values  Some of the control signals will not be needed until later stages — These signals must be propagated through the pipeline until they reach the appropriate stage — We just pass them in the pipeline registers, along with the data  Control signals can be categorized by the pipeline stage that uses them Stage Control signals needed EX ALUSrc ALUOp RegDst MEM MemRead MemWrite PCSrc WB RegWrite MemToReg
  • 7.
    7 Pipelined datapath andcontrol Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 MemToReg 4 Shift left 2 Add ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB P C 1 0 PCSrc Sign extend EX M WB
  • 8.
    8  Here’s asample sequence of instructions to execute 1000: lw $8, 4($29) 1004: sub $2, $4, $5 1008: and $9, $10, $11 1012: or $16, $17, $18 1016: add $13, $14, $0  We’ll make some assumptions, just so we can show actual data values: — Each register contains its number plus 100. For instance, register $8 contains 108, register $29 contains 129, etc. — Every data memory location contains 99  Our pipeline diagrams will follow some conventions: — An X indicates values that aren’t important, like the constant field of an R-type instruction — Question marks ??? indicate values we don’t know, usually resulting from instructions coming before and after the ones in our example An example execution sequence addresses in decimal
  • 9.
    9 Cycle 1 (filling) IF:lw $8, 4($29) MEM: ??? WB: ??? EX: ??? ID: ??? Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (?) MemRead (?) 1 0 MemToReg (?) Shift left 2 Add 1 0 PCSrc ALUSrc (?) Result Zero ALU ALUOp (???) RegDst (?) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (?) Add 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1000 1004 ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? 4 P C Sign extend EX M WB
  • 10.
    10 Cycle 2 ID: lw$8, 4($29) IF: sub $2, $4, $5 MEM: ??? WB: ??? EX: ??? Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data 1 0 4 Shift left 2 Add PCSrc Result Zero ALU 4 Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers Add X 8 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1004 29 X 1008 129 X MemToReg (?) ??? ??? ??? ??? ??? ??? RegWrite (?) MemWrite (?) MemRead (?) ??? ??? ??? ALUSrc (?) ALUOp (???) RegDst (?) ??? ??? ??? ??? ??? ??? ??? P C Sign extend EX M WB 1 0
  • 11.
    11 Cycle 3 ID: sub$2, $4, $5 IF: and $9, $10, $11 EX: lw $8, 4($29) MEM: ??? WB: ??? MemToReg (?) Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (?) MemRead (?) 1 0 4 Shift left 2 Add PCSrc ALUSrc (1) Result Zero ALU ALUOp (add) X RegDst (0) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers Add 2 X 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1008 4 5 1012 104 105 129 4 X 8 X 8 133 4 ??? ??? ??? ??? ??? ??? RegWrite (?) ??? ??? ??? P C Sign extend 1 0 EX M WB
  • 12.
    12 Cycle 4 ID: and$9, $10, $11 IF: or $16, $17, $18 EX: sub $2, $4, $5 MEM: lw $8, 4($29) WB: ??? Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (1) 1 0 MemToReg (?) 4 Shift left 2 Add PCSrc ALUSrc (0) Result Zero ALU ALUOp (sub) X RegDst (1) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (?) Add 9 X 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1012 10 11 1016 110 111 104 X 105 X 2 2 –1 133 X 99 8 ??? ??? ??? ??? ??? ??? P C Sign extend EX M WB 1 0
  • 13.

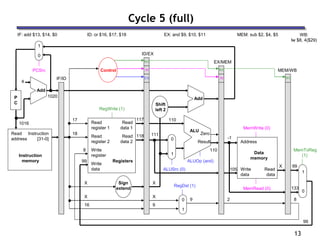

    13 Cycle 5 (full) ID:or $16, $17, $18 IF: add $13, $14, $0 EX: and $9, $10, $11 MEM: sub $2, $4, $5 WB: lw $8, 4($29) Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (0) 1 0 MemToReg (1) 4 Shift left 2 Add PCSrc ALUSrc (0) Result Zero ALU ALUOp (and) X RegDst (1) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add 16 X 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1016 17 18 1020 117 118 110 X 111 X 9 9 110 -1 105 X 2 99 133 99 8 99 8 P C Sign extend EX M WB 1 0
  • 14.
    14 Cycle 6 (emptying) ID:add $13, $14, $0 IF: ??? EX: or $16, $17, $18 MEM: and $9, $10, $11 WB: sub $2, $4, $5 Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (0) 1 0 MemToReg (0) 4 Shift left 2 Add PCSrc ALUSrc (0) Result Zero ALU ALUOp (or) X RegDst (1) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add 13 X 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB 1020 14 0 ??? 114 0 117 X 118 X 16 16 119 110 111 X 9 X -1 -1 2 -1 2 P C Sign extend 1 0 EX M WB
  • 15.

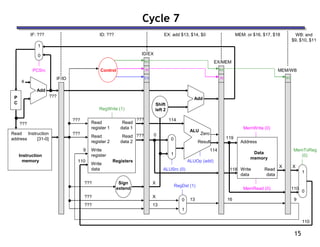

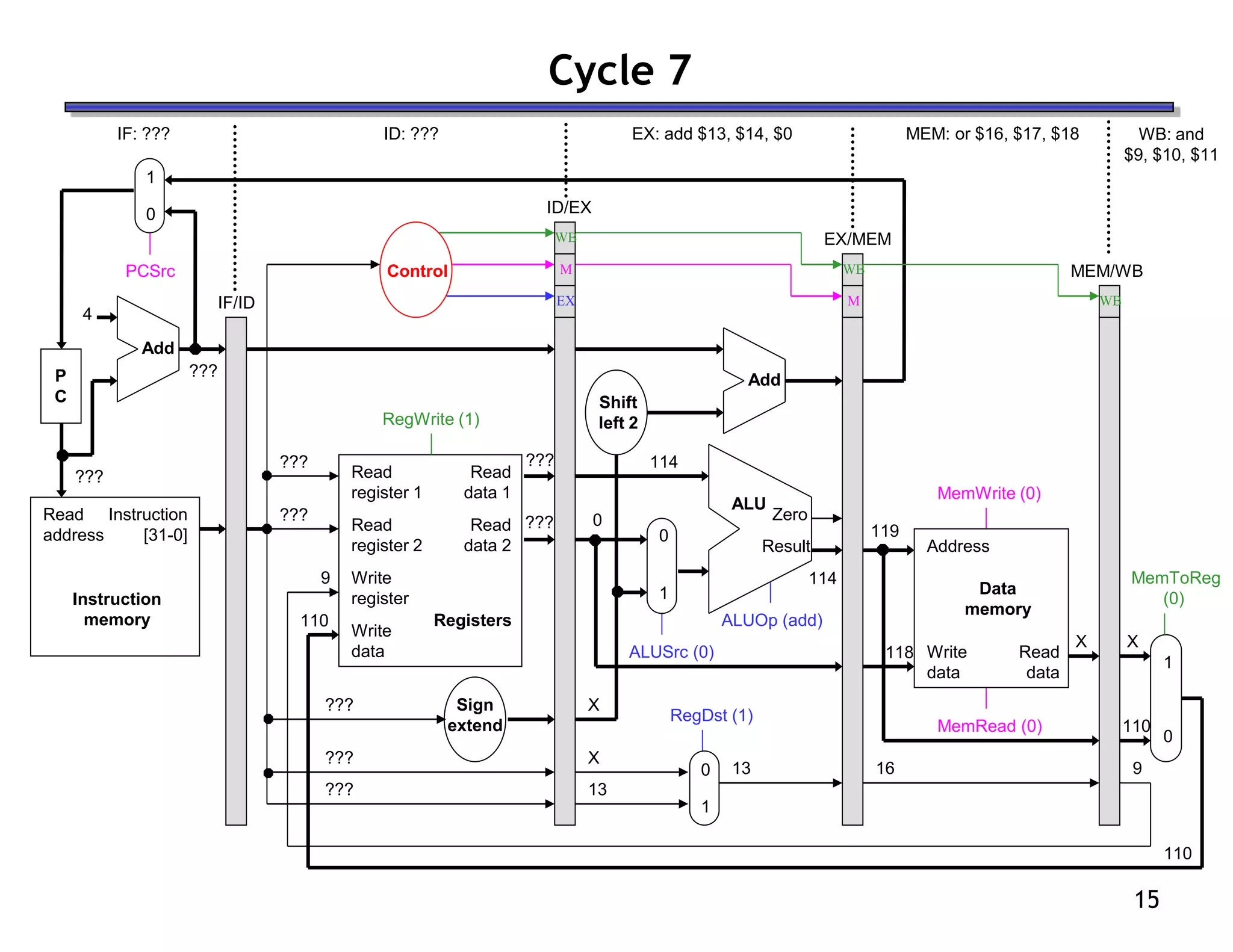

    15 Cycle 7 ID: ??? IF:??? EX: add $13, $14, $0 MEM: or $16, $17, $18 WB: and $9, $10, $11 Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (0) 1 0 MemToReg (0) 4 Shift left 2 Add PCSrc ALUSrc (0) Result Zero ALU ALUOp (add) ??? RegDst (1) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add ??? ??? 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB ??? ??? ??? ??? 114 X 0 X 13 13 114 119 118 X 16 X 110 110 9 110 9 P C Sign extend ??? ??? EX M WB 1 0
  • 16.

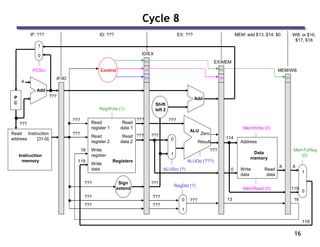

    16 Cycle 8 ID: ??? IF:??? EX: ??? MEM: add $13, $14, $0 WB: or $16, $17, $18 Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (0) MemRead (0) 1 0 MemToReg (0) 4 Shift left 2 Add PCSrc ALUSrc (?) Result Zero ALU ALUOp (???) ??? RegDst (?) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add ??? ??? 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB ??? ??? ??? ??? ??? ??? 114 0 X 13 X 119 119 16 119 16 P C Sign extend ??? ??? ??? ??? ??? ??? ??? 1 0 EX M WB
  • 17.

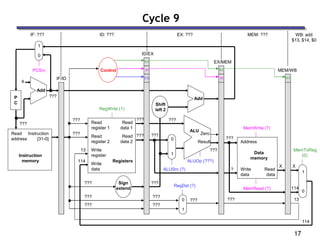

    17 Cycle 9 ID: ??? IF:??? EX: ??? MEM: ??? WB: add $13, $14, $0 Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite (?) MemRead (?) 1 0 MemToReg (0) 4 Shift left 2 Add PCSrc ALUSrc (?) Result Zero ALU ALUOp (???) ??? RegDst (?) Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite (1) Add ??? ??? 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB Control M WB WB ??? ??? ??? ??? ??? ??? ??? ??? ? X ??? X 114 114 13 114 13 P C Sign extend ??? ??? ??? ??? ??? ??? 1 0 EX M WB
  • 18.

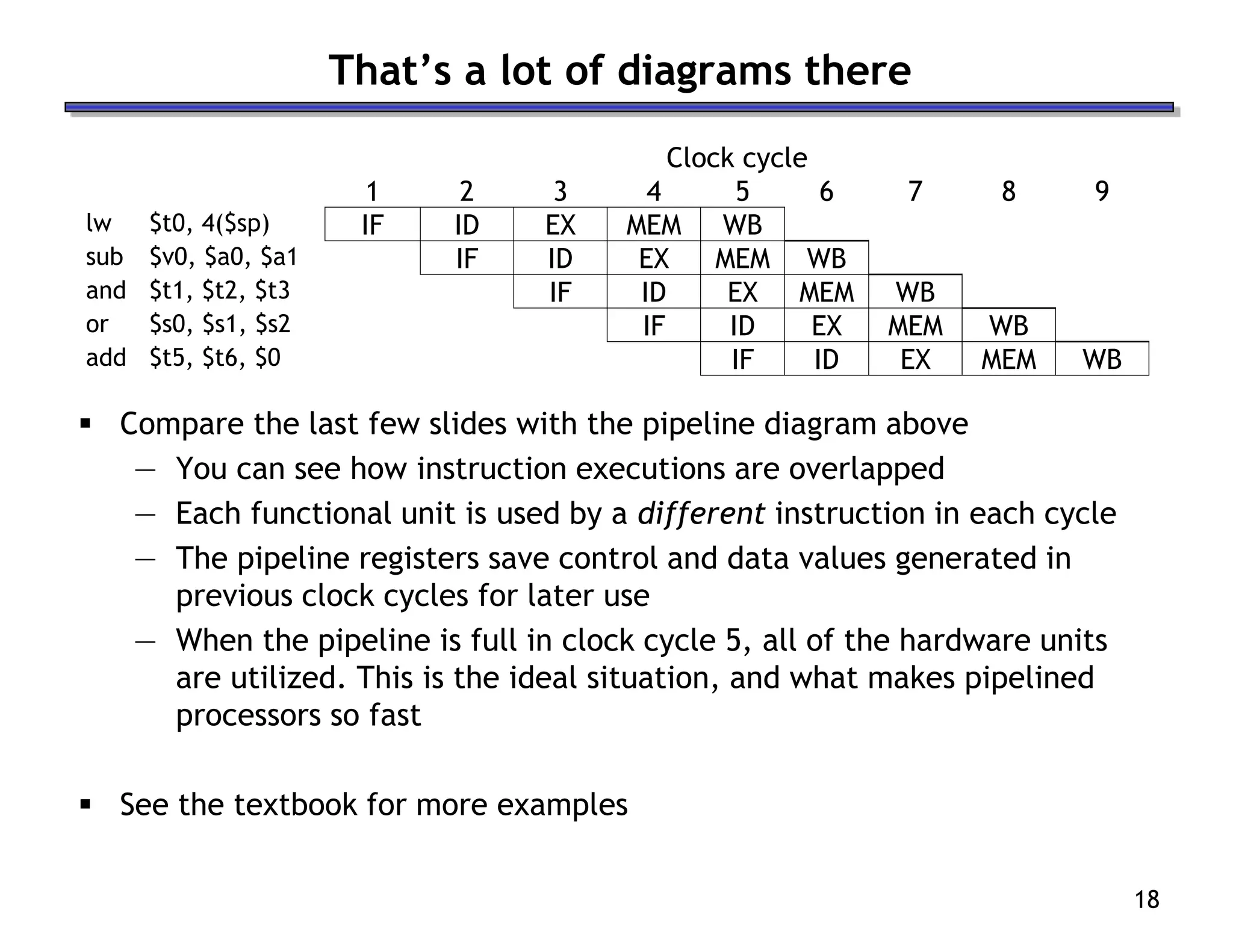

    18 That’s a lotof diagrams there  Compare the last few slides with the pipeline diagram above — You can see how instruction executions are overlapped — Each functional unit is used by a different instruction in each cycle — The pipeline registers save control and data values generated in previous clock cycles for later use — When the pipeline is full in clock cycle 5, all of the hardware units are utilized. This is the ideal situation, and what makes pipelined processors so fast  See the textbook for more examples Clock cycle 1 2 3 4 5 6 7 8 9 lw $t0, 4($sp) IF ID EX MEM WB sub $v0, $a0, $a1 IF ID EX MEM WB and $t1, $t2, $t3 IF ID EX MEM WB or $s0, $s1, $s2 IF ID EX MEM WB add $t5, $t6, $0 IF ID EX MEM WB
  • 19.
    19 Instruction set architecturesand pipelining  The MIPS instruction set was designed especially for easy pipelining: — All instructions are 32-bits long, so the instruction fetch stage just needs to read one word on every clock cycle — Fields are in the same position in different instruction formats—the opcode is always the first six bits, rs is the next five bits, etc. This makes things easy for the ID stage — MIPS is a register-to-register architecture, so arithmetic operations cannot contain memory references. This keeps the pipeline shorter and simpler  Pipelining is harder for older/more complex instruction sets: — If different instructions had different lengths or formats, the fetch and decode stages would need extra time to determine the actual length of each instruction and the position of the fields — With memory-to-memory instructions, additional pipeline stages may be needed to compute effective addresses and read memory before the EX stage
  • 20.

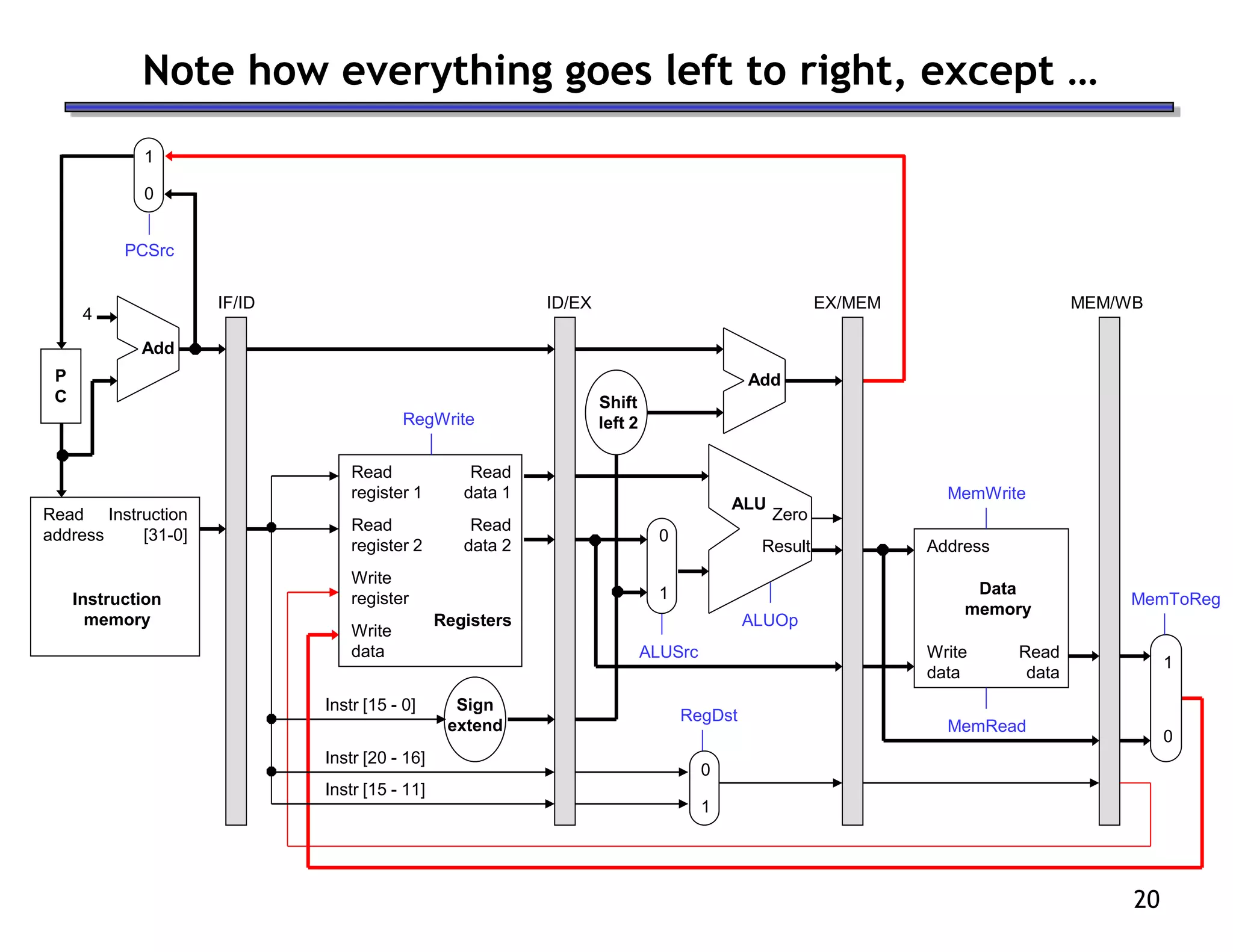

    20 Note how everythinggoes left to right, except … Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1 0 MemToReg 4 Shift left 2 Add Sign extend ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0 1 0 1 IF/ID ID/EX EX/MEM MEM/WB 1 0 PCSrc P C
  • 21.
    21 An example withdependencies sub $2, $1, $3 and $12, $2, $5 or $13, $6, $2 add $14, $2, $2 sw $15, 100($2)  There are several dependencies in this new code fragment — the first instruction, SUB, stores a value into $2 — that register is used as a source in the rest of the instructions  This is not a problem for the single-cycle datapath — each instruction is executed completely before the next one begins, so instructions 2 through 5 above use the new value of $2  How would this code sequence fare in our 5-stage MIPS pipeline?
  • 22.

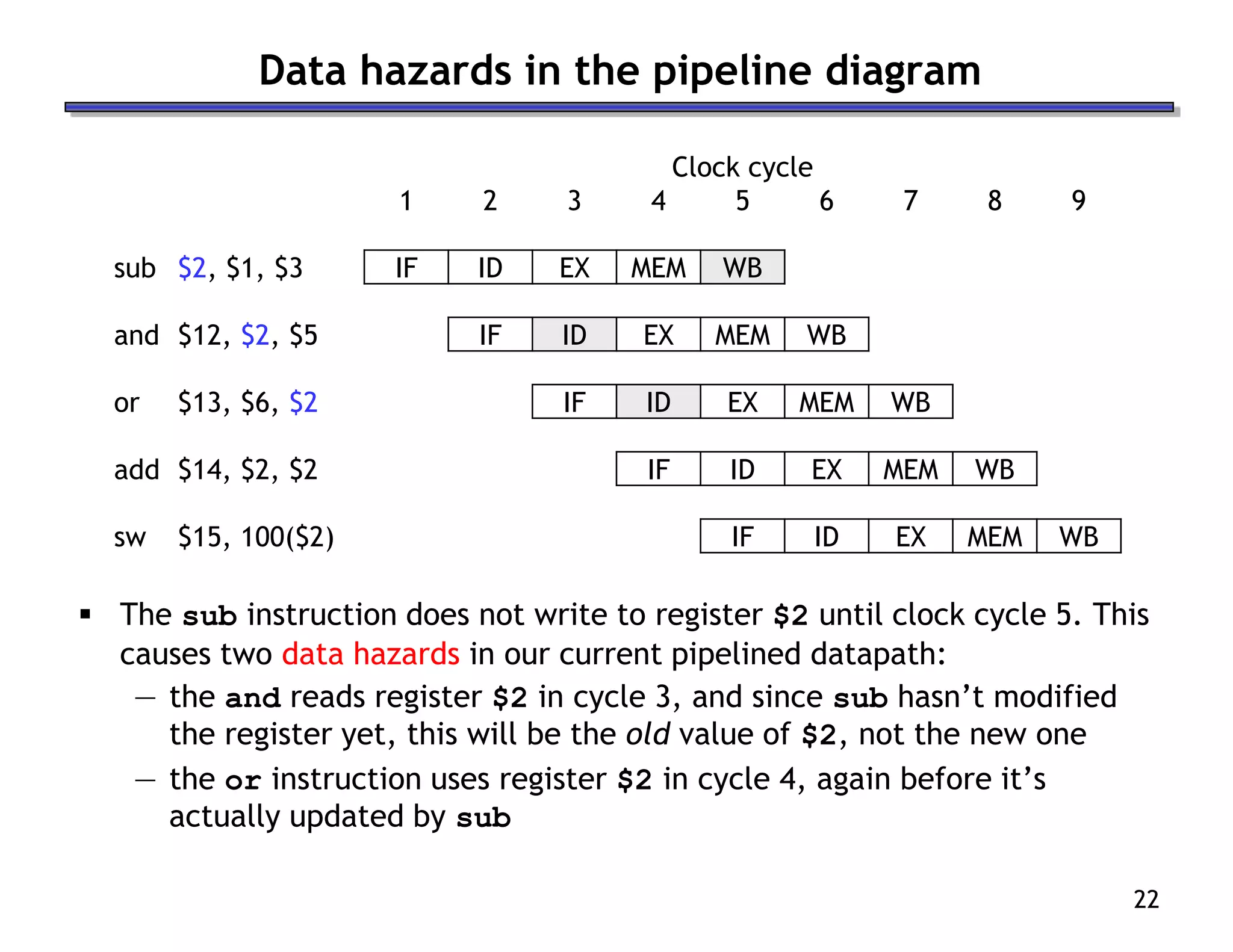

    22 Clock cycle 1 23 4 5 6 7 8 9 sub $2, $1, $3 IF ID EX MEM WB and $12, $2, $5 IF ID EX MEM WB or $13, $6, $2 IF ID EX MEM WB add $14, $2, $2 IF ID EX MEM WB sw $15, 100($2) IF ID EX MEM WB  The sub instruction does not write to register $2 until clock cycle 5. This causes two data hazards in our current pipelined datapath: — the and reads register $2 in cycle 3, and since sub hasn’t modified the register yet, this will be the old value of $2, not the new one — the or instruction uses register $2 in cycle 4, again before it’s actually updated by sub Data hazards in the pipeline diagram
  • 23.
    23 Clock cycle 1 23 4 5 6 7 8 9 sub $2, $1, $3 IF ID EX MEM WB and $12, $2, $5 IF ID EX MEM WB or $13, $6, $2 IF ID EX MEM WB add $14, $2, $2 IF ID EX MEM WB sw $15, 100($2) IF ID EX MEM WB  The add instruction is okay, because of the register file design — registers are written at the beginning of a clock cycle — the new value will be available by the end of that cycle  The sw is no problem at all, since it reads $2 after the sub finishes Things that are okay
  • 24.

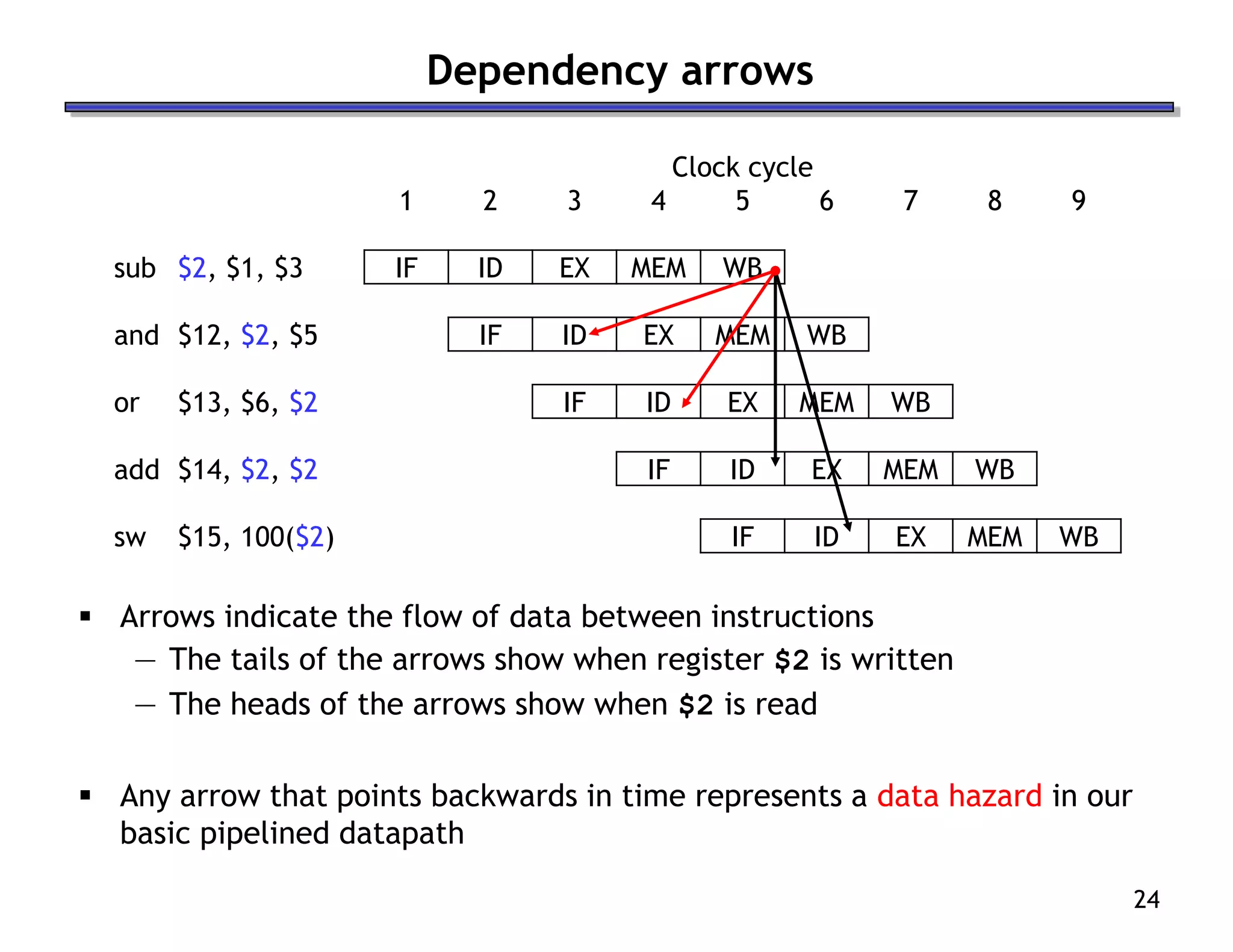

    24 Clock cycle 1 23 4 5 6 7 8 9 sub $2, $1, $3 IF ID EX MEM WB and $12, $2, $5 IF ID EX MEM WB or $13, $6, $2 IF ID EX MEM WB add $14, $2, $2 IF ID EX MEM WB sw $15, 100($2) IF ID EX MEM WB  Arrows indicate the flow of data between instructions — The tails of the arrows show when register $2 is written — The heads of the arrows show when $2 is read  Any arrow that points backwards in time represents a data hazard in our basic pipelined datapath Dependency arrows
