The document discusses sustainable air conditioning solutions that use less energy and water. It introduces the Ambiator, a two-stage air conditioning system that uses 100% fresh air and has an efficiency of 55-60%. It also uses evaporative cooling and has lower power and water consumption than traditional AC. The document also describes the Toro Hybrid air handling unit, which uses a combination of free cooling and chilled water to provide comfort cooling with 30% less energy use compared to refrigerative cooling alone. Both solutions provide more sustainable alternatives to traditional AC.

1. www.ambitor.com
Sustainable Air Conditioning
Copyright © TORO 2012

2. A story
Sustainable Air Conditioning
Copyright © TORO 2012

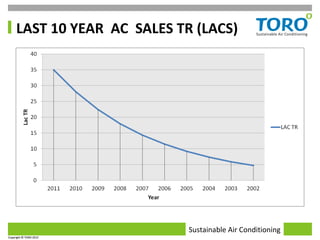

3. LAST 10 YEAR AC SALES TR (LACS)
Sustainable Air Conditioning
Copyright © TORO 2012

4. ENERGY USE –YEAR WISE
Sustainable Air Conditioning
Copyright © TORO 2012

5. Sustainable Air Conditioning
Copyright © TORO 2012

6. Agenda
 Low Energy cooling solutions – a paradigm
shift
Sustainable Air Conditioning
Copyright © TORO 2012

7. What is Air Conditioning
 The process of treating air so as to control
simultaneously its temperature, humidity,
cleanliness and distribution to meet the
comfort requirements of the occupants of the
conditioned space
Sustainable Air Conditioning
Copyright © TORO 2012

8. New Idea !!!
Sustainable Air Conditioning
Copyright © TORO 2012

9. New view points
 Technologies which are India centric
– Alternate refrigerant - Water
 DSM – Demand Side Management
 Alternate approach for comfort cooling
– Divide & Rule
Sustainable Air Conditioning
Copyright © TORO 2012

10. Divide & Rule!!!
Sustainable Air Conditioning
Copyright © TORO 2012

11. “SENSIBLE” Cooling
Sustainable Air Conditioning
Copyright © TORO 2012

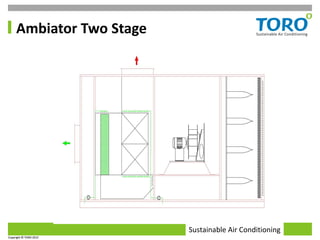

12. Ambiator Two Stage
Sustainable Air Conditioning
Copyright © TORO 2012

13. Highlights
 Once through 100% fresh air system
 55 - 60% Efficiency
 Very Good replacement for direct evap.
cooling
 Low power consumption & Low water
consumption
 Suitable for dry climate zones
 System capacity from 10000 – 150000 CFM
Sustainable Air Conditioning
Copyright © TORO 2012

14. Differentiators
 Blow Through Design
 Direct Drive fans
 Plug Flow Fan with VFD
 All wet components in FRP
 No secondary fan required
 Standard AHU structure
Sustainable Air Conditioning
Copyright © TORO 2012

15. COMPARISON –EVAPORATIVE COOLING
EVAPORATIVE COOLING TORO AMBIATOR COOLING
AIR QTY 10000 CFM AIR QTY 6000 CFM
CONNECTD LOAD 3.7 KW
CONNECTED LOAD 8 KW
IKW 1.8 KW
IKW 6 KW
WATER USE 80 LPH
WATER USE 150 LPH
COST 2.5 LACS COST 3.6 LACS
COST DIFFERENCE 1.1
PY BACK HOURS 4200
Sustainable Air Conditioning
Copyright © TORO 2012

16. Applications
Sustainable Air Conditioning
Copyright © TORO 2012

17. Divide & Rule!!!
Sustainable Air Conditioning
Copyright © TORO 2012

18. Toro Hybrid Air Handling Unit
Sustainable Air Conditioning
Copyright © TORO 2012

19. Hybrid Air Conditioner
Sustainable Air Conditioning
Copyright © TORO 2012

20. Highlights
• Low cost comfort cooling solution
• Plug and Play with maximum free cooling
• 30% Fresh air with pre cooled return air
• Suitable for retrofits & new installations
• Uses lowest amount of chilled water for
dehumidification
• Semi automatic controls for seasonal operation
• Suitable for all climate zones
• System capacity from 5000 – 50000 CFM
Sustainable Air Conditioning
Copyright © TORO 2012

21. COMPARISON
REFRIGERATIVE COOLING TORO HYBRID AHU
LOAD 20 TR LOAD 20 TR
CONNECTED LOAD 30KW CONNECTED LOAD 10 KW
AIR QTY 6000 CFM AIR QUANTITY 6000 CFM
COST 10 LACS 15 LACS
ENERGY SAVINGS
5 LACS
PAYBACK 4000 HOURS
Sustainable Air Conditioning
Copyright © TORO 2012

22. View Point
It’s a matter of view point
Sustainable Air Conditioning
Copyright © TORO 2012

23. Sustainable Air Conditioning
Copyright © TORO 2012
