Kubernetes Story - Day 3: Deploying and Scaling Applications on OpenShift

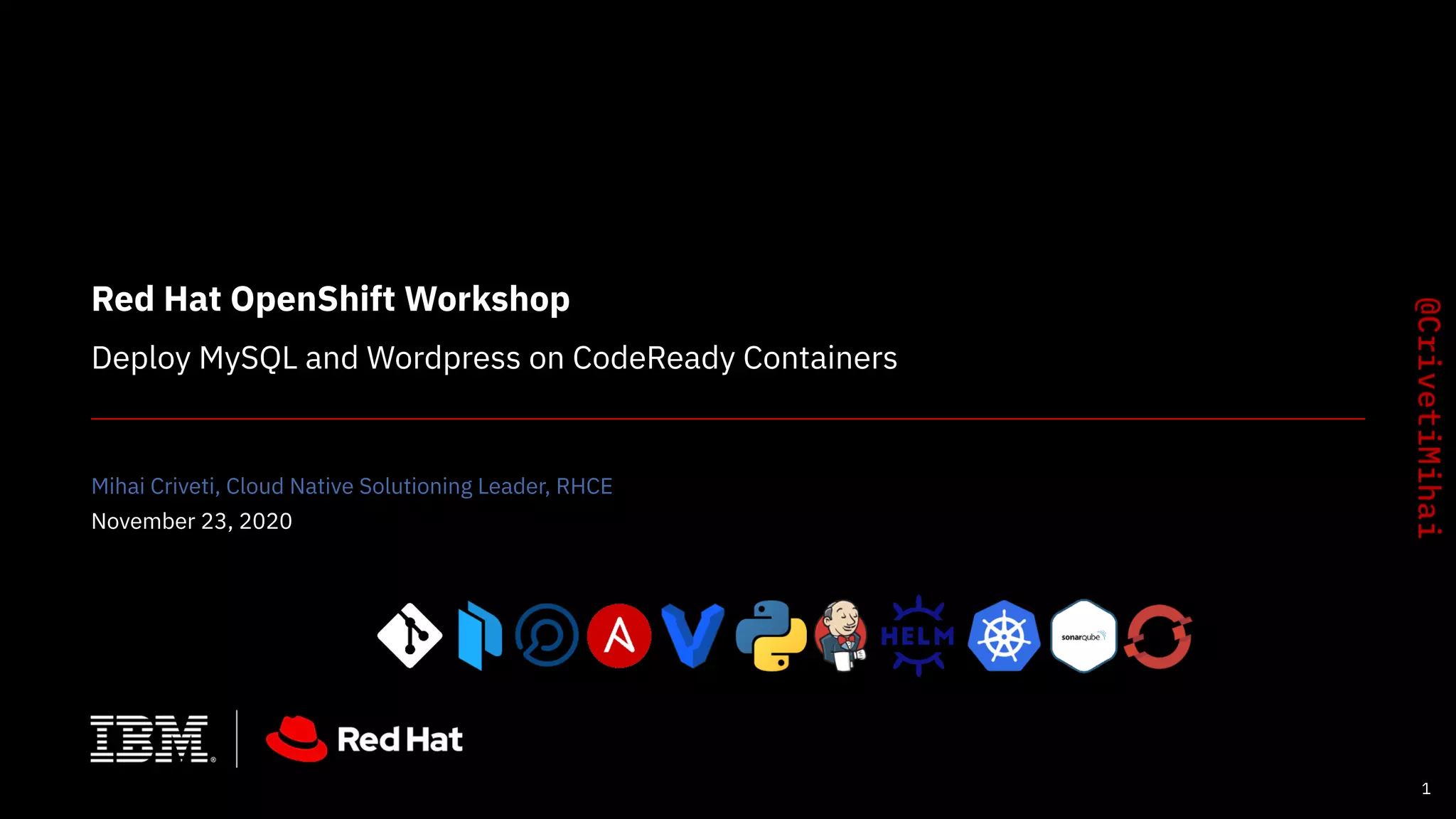

- 1. Red Hat OpenShift Workshop Deploy MySQL and Wordpress on CodeReady Containers Mihai Criveti, Cloud Native Solutioning Leader, RHCE November 23, 2020 1

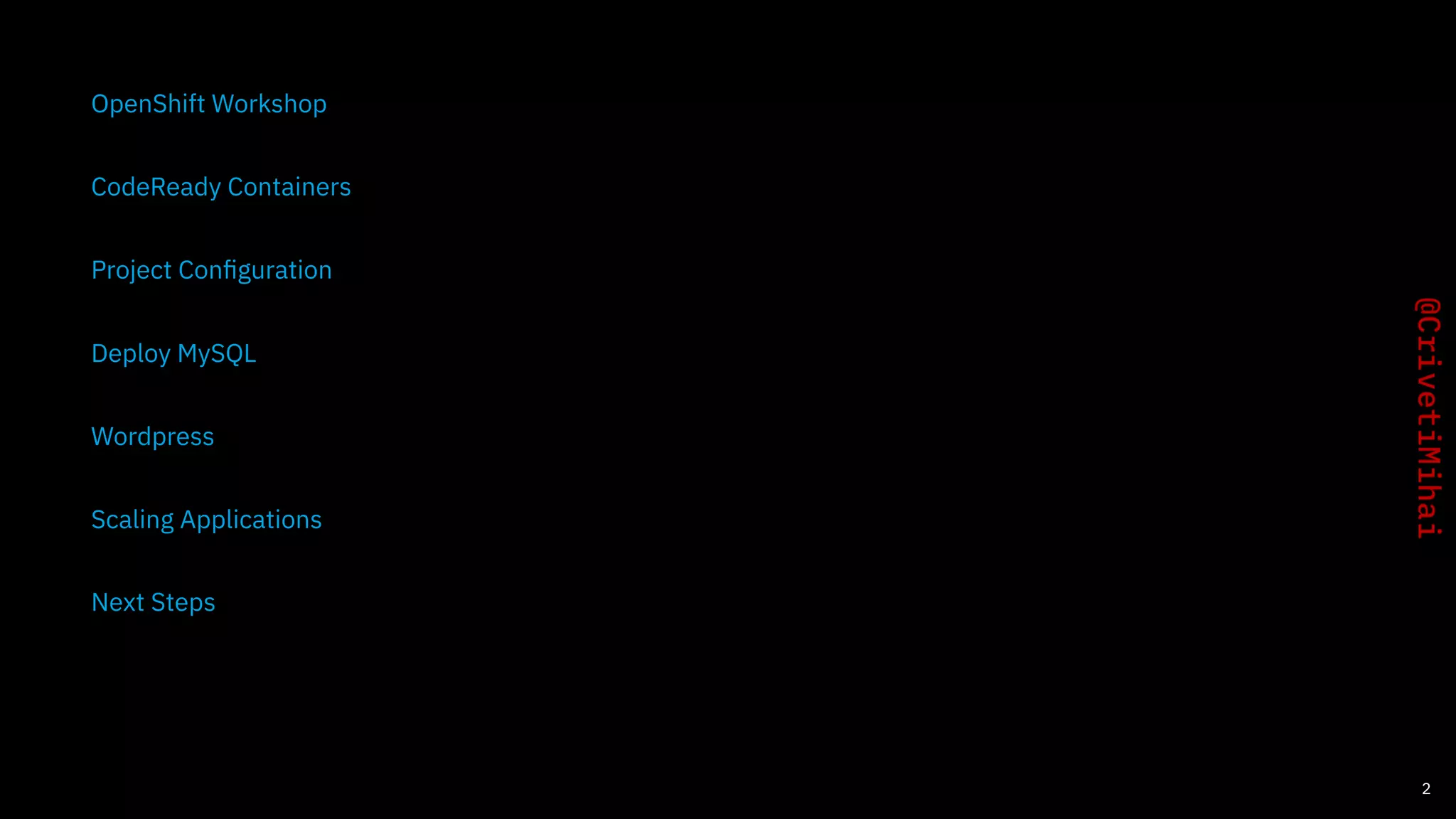

- 2. OpenShift Workshop CodeReady Containers Project Configuration Deploy MySQL Wordpress Scaling Applications Next Steps 2
- 4. Scenario Overview Figure 1: WordPress and MySQL on OpenShift 3
- 5. Steps 0. Test MySQL + Wordpress using podman. 1. Install CodeReady Containers 2. Create a project called wordpress 3. Create users and groups and setup htpassword authentication • User admin as cluster admin • developers:developer as edit for project • leaders:leader as self-provisioner group • testers:tester as view for project 4. Deploy mysql from registry.redhat.io/rhel8/mysql-80 and configure the secret 5. Deploy wordpress from docker.io/library/wordpress:5.5.0-php7.2-apache 6. Create a route and test wordpress 7. Scale 8. Setup probes and monitoring 4
- 8. Install CodeReady Containers Download CodeReady Containers Go to http://cloud.redhat.com and download CodeReady Containers and the Pull Secret. Unpack the archive tar Jxf crc-linux-amd64.tar.xz cd crc-linux-1.14.0-amd64 Setup CRC ./crc setup ./crc config set memory 16536 ./crc config set cpus 8 ./crc start 6
- 9. Deleting and Recreating your CRC ./crc stop ./crc delete 7
- 10. Connect to OCP Setup the environment and autocomplete eval $(./crc oc-env) source <(oc completion zsh) export API=https://api.crc.testing:6443 Get console info and login ./crc console --credentials ./crc console export KUBEPASS=abcd oc login -u kubeadmin -p $KUBEPASS $API oc whoami; oc whoami --show-server 8
- 11. Setup users and OAuth Create a random user password export PASS=$(openssl rand -hex 15) echo $PASS > password Create users using htpasswd yum provides htpasswd; sudo dnf install httpd-tools htpasswd -c -b -B htpass-secret admin $PASS htpasswd -b -B htpass-secret developer $PASS htpasswd -b -B htpass-secret leader $PASS htpasswd -b -B htpass-secret tester $PASS cat htpass-secret 9
- 12. Setup secrets Create OpenShift secrets in the openshift-config namespace oc get secret/htpass-secret -n openshift-config oc create secret generic htpass-secret -o yaml -n openshift-config --from-file=htpasswd=htpass-secret --dry-run | oc create -f - oc create secret generic htpass-secret -o yaml -n openshift-config --from-file=htpasswd=htpass-secret --dry-run | oc replace -f - oc extract secret/htpass-secret -n openshift-config --to - | tee htpass-secret 10
- 13. Setup cluster OAuth Get oauth to edit oc get oauth cluster -o yaml | tee oauth.yaml 11
- 14. Setup identityProviders Edit oauth.yaml spec: identityProviders: - htpasswd: fileData: name: htpass-secret mappingMethod: claim name: htpasswd_provider type: HTPasswd Apply oc replace -f oauth.yaml 12
- 15. Setup cluster admin Give the admin user cluster-admin permissions oc adm policy add-cluster-role-to-user cluster-admin admin Login as admin oc login -u admin -p $PASS oc login -u admin -p $PASS --loglevel 10 $API oc whoami 13
- 16. Setup groups Create groups oc adm groups new leaders oc adm groups new developers oc adm groups new testers oc get groups Setup groups users oc adm groups add-users leaders leader oc adm groups add-users developers developer oc adm groups add-users testers tester oc get groups 14
- 17. Setup self-provisioning Disable self-provisioning for all users oc api-resources | grep rbac oc get clusterrolebindings | grep self oc describe clusterrolebindings self-provisioner oc adm policy remove-cluster-role-from-group self-provisioner system:authenticated:oauth Leaders can create projects oc adm policy add-cluster-role-to-group self-provisioner leaders 15
- 19. Create a project and setup policies Create a new project and assign to developer oc login -u leader -p $PASS $API oc new-project wordpress oc adm policy add-role-to-group edit developers oc adm policy add-role-to-group view testers oc login -u developer -p $PASS 16
- 20. Setup Quotas oc create --save-config dev-quota.yaml # or oc create quota dev-quota --hard services=10,cpu=1300,memory=2Gi oc get resource quota oc describe quota 17
- 21. Deploy MySQL
- 22. Create a project and setup policies Create a new project and assign to developer oc login -u leader -p $PASS $API oc new-project wordpress oc adm policy add-role-to-group edit developers oc adm policy add-role-to-group view testers oc login -u developer -p $PASS 18
- 23. Deploy MySQL Create a mysql secret oc create secret generic mysql --from-literal database=wordpress --from-literal user=wpuser --from-literal password=password Deploy MySQL from Red Hat oc new-app --name mysql --docker-image=registry.redhat.io/rhel8/mysql-80 --as-deployment-config=true Check status - env is not yet set, app will crash oc get dc,pod oc status oc logs pod/mysql-1-xxxxx 19
- 24. Configure my.cnf with ConfigMaps Create a my.cnf file from the existing one oc rsh mysql-2-hcstt cat /etc/my.cnf > my.cnf echo 'default-authentication-plugin=mysql_native_password' >> my.cnf Create a configmap oc create configmap mysql-config --from-file my.cnf oc set volume dc/mysql --add --name mysql-config --overwrite --type=configmap --configmap-name=mysql-config --mount-path=/etc/mysql-config Check the settings oc describe configmaps mysql-config oc set volume dc --all oc get all -l app=mysql 20
- 25. Configure the environment to use secrets Set the environment to use the secret and config file oc set env dc/mysql --from=secret/mysql --prefix=MYSQL_ DEFAULTS_FILE=/etc/mysql-config/my.cnf oc set env pods --all --list Get status oc get dc,pod oc status oc logs pod/mysql-3-deploy oc logs pod/mysql-3-xxxx oc get all -l app=mysql 21
- 26. Test your database Log into your container using oc rsh oc rsh mysql-2-xxxxx mysql -u wpuser --password=password wordpress -e 'show databases;' exit 22
- 27. Wordpress
- 28. Deploy the Wordpress Pods Deploy wordpress oc new-app --name wordpress --docker-image docker.io/library/wordpress:5.5.0-php7.2-apache -e WORDPRESS_DB_HOST=mysql -e WORDPRESS_DB_NAME=wordpress -e WORDPRESS_DB_USER=wpuser -e WORDPRESS_DB_PASSWORD=password --as-deployment-config=true Get status oc get pod oc logs pod/wordpress-1-7kf49 23
- 29. Create a service account Create a service account oc login -u admin -p $PASS oc create sa wordpress-sa oc adm policy add-scc-to-user anyuid -z wordpress-sa Set wordpress-sa for the deploymentconfig oc login -u developer -p $PASS oc set serviceaccount deploymentconfig wordpress wordpress-sa Get the status oc get all oc get events oc logs pod/wordpress-2-468kp 24
- 30. Expose the application Create a route oc expose svc/wordpress oc get routes Setup WordPress Go to http://wordpress-wordpress.apps-crc.testing/ to setup WordPress. 25
- 31. Cleanup Deleting individual apps oc delete all -l app=wordpress oc delete all -l app=mysql Deleting the entire project oc delete projects wordpress 26
- 32. Debugging Debug a deployment as root to check for permissions oc debug -t deployment/wordpress --as-root Replace the image oc debug -t deployment/mysql --image registry.access.redehat.com/ubi/ubi:8.0 27
- 34. Manual Scaling Get the dc oc get dc NAME REVISION DESIRED CURRENT mysql 5 1 1 wordpress 2 1 1 Scale the dc oc scale dc wordpress --replicas=3 oc get dc,pod 28
- 35. Create a PostgreSQL Operator using CLI Operators • MariaDB ? • PostgreSQL 29
- 36. Next Steps
- 37. Next Steps 1. Add Health Checks 2. Scale up the application 3. Set up auto-scaling 4. Use a MySQL Operator to manage the database instead. 30
