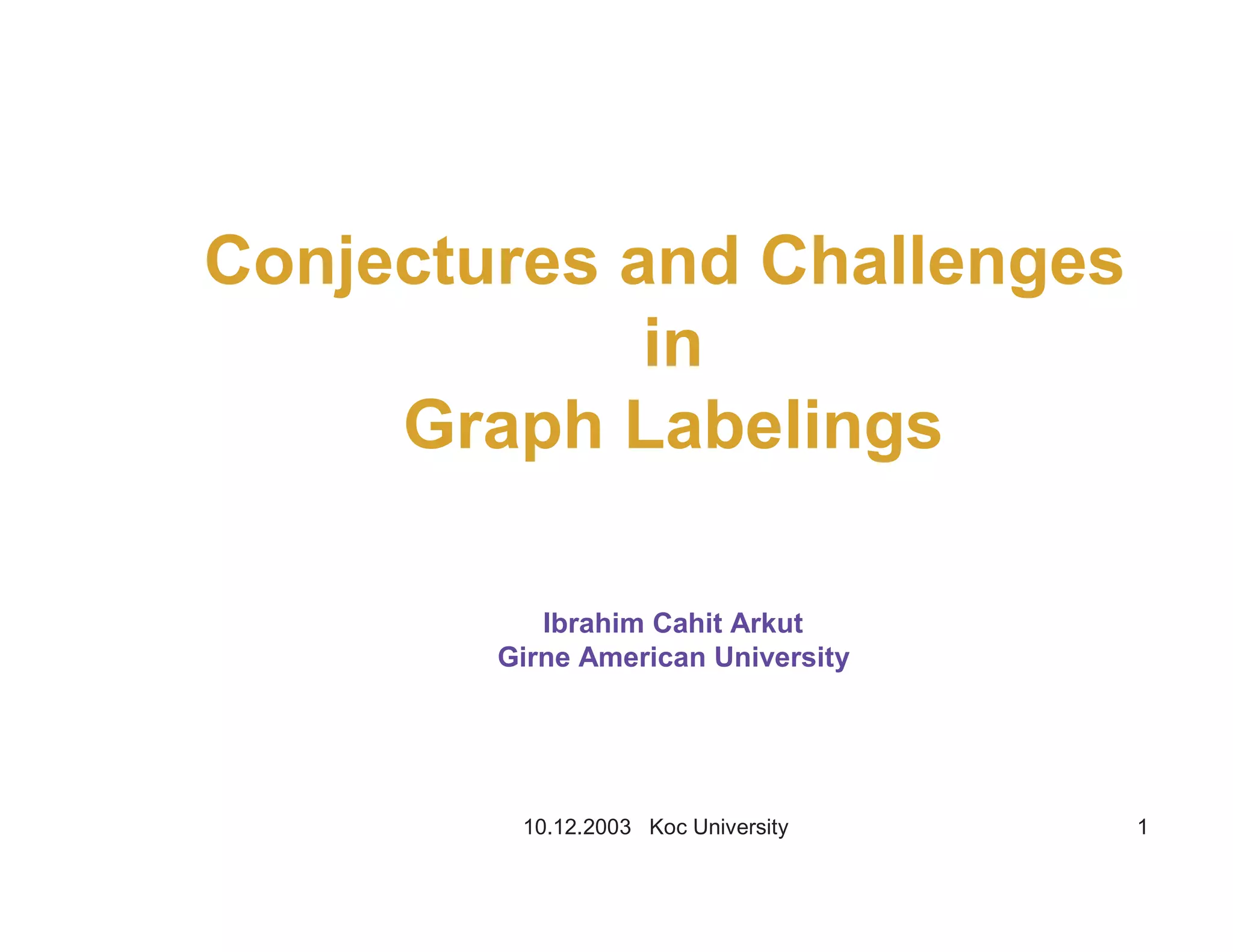

1. 10.12.2003 Koc University 1
Conjectures and Challenges
in
Graph Labelings
Ibrahim Cahit Arkut
Girne American University

2. 10.12.2003 Koc University 2

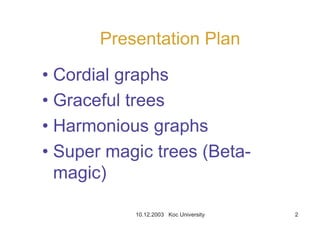

Presentation Plan
• Cordial graphs
• Graceful trees
• Harmonious graphs
• Super magic trees (Beta-
magic)

3. 10.12.2003 Koc University 3

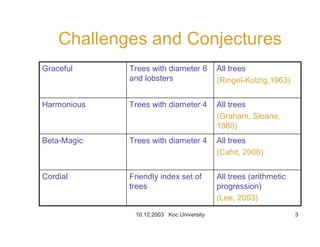

Challenges and Conjectures
All trees (arithmetic
progression)
(Lee, 2003)
Friendly index set of
trees
Cordial
All trees
(Cahit, 2000)
Trees with diameter 4Beta-Magic
All trees
(Graham, Sloane,
1980)
Trees with diameter 4Harmonious
All trees
(Ringel-Kotzig,1963)
Trees with diameter 6
and lobsters
Graceful

4. 10.12.2003 Koc University 4

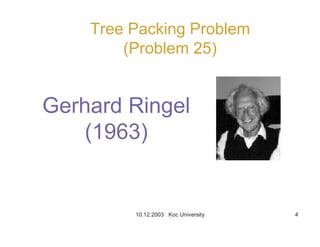

Tree Packing Problem
(Problem 25)
Gerhard Ringel
(1963)

5. 10.12.2003 Koc University 5

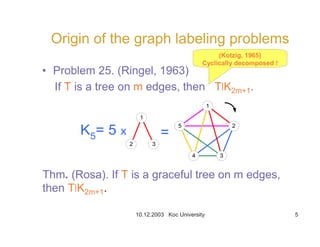

Origin of the graph labeling problems
• Problem 25. (Ringel, 1963)
If T is a tree on m edges, then T6K2m+1.
2 3
1
5 2
4 3
1
=K5= 5 x
(Kotzig, 1965)
Cyclically decomposed !
Thm. (Rosa). If T is a graceful tree on m edges,
then T6K2m+1.

6. 10.12.2003 Koc University 6

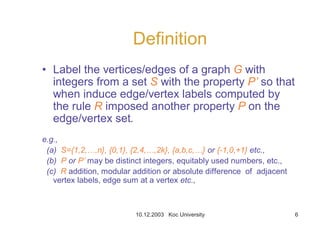

Definition
• Label the vertices/edges of a graph G with
integers from a set S with the property P’ so that
when induce edge/vertex labels computed by
the rule R imposed another property P on the
edge/vertex set.
e.g.,
(a) S={1,2,…,n}, {0,1}, {2,4,…,2k}, {a,b,c,…} or {-1,0,+1} etc.,
(b) P or P’ may be distinct integers, equitably used numbers, etc.,
(c) R addition, modular addition or absolute difference of adjacent
vertex labels, edge sum at a vertex etc.,

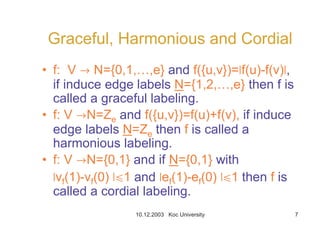

7. 10.12.2003 Koc University 7
Graceful, Harmonious and Cordial
• f: V T N={0,1,…,e} and f({u,v})=6f(u)-f(v)6,
if induce edge labels N={1,2,…,e} then f is
called a graceful labeling.
• f: V TN=Ze and f({u,v})=f(u)+f(v), if induce
edge labels N=Ze then f is called a
harmonious labeling.
• f: V TN={0,1} and if N={0,1} with
6vf(1)-vf(0) 6b1 and 6ef(1)-ef(0) 6b1 then f is
called a cordial labeling.

8. 10.12.2003 Koc University 8

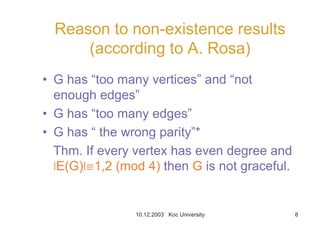

Reason to non-existence results
(according to A. Rosa)
• G has “too many vertices” and “not
enough edges”
• G has “too many edges”
• G has “ the wrong parity”*
Thm. If every vertex has even degree and
6E(G)6ª1,2 (mod 4) then G is not graceful.

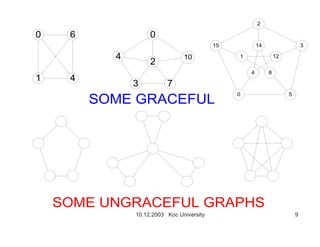

9. 10.12.2003 Koc University 9
0
1 4
6
4
3
2
0
7
10
15
0 5
4
1
14
12
8
2
3
SOME GRACEFUL
SOME UNGRACEFUL GRAPHS

10. 10.12.2003 Koc University 10

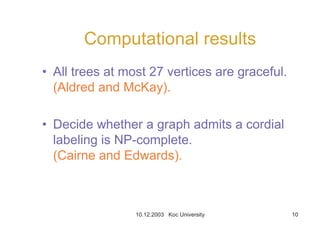

Computational results
• All trees at most 27 vertices are graceful.
(Aldred and McKay).
• Decide whether a graph admits a cordial
labeling is NP-complete.
(Cairne and Edwards).

11. 10.12.2003 Koc University 11

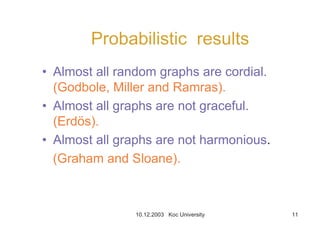

Probabilistic results
• Almost all random graphs are cordial.
(Godbole, Miller and Ramras).
• Almost all graphs are not graceful.
(Erdös).
• Almost all graphs are not harmonious.
(Graham and Sloane).

12. 10.12.2003 Koc University 12
Cordial Labeling
Ibrahim Cahit
(1986)

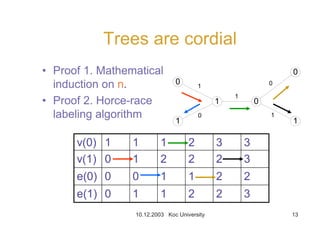

13. 10.12.2003 Koc University 13
Trees are cordial
• Proof 1. Mathematical
induction on n.
• Proof 2. Horce-race
labeling algorithm
0
1
1 0
1
0
1
0
1
0
1
322110e(1)
221100e(0)
322210v(1)
332111v(0)

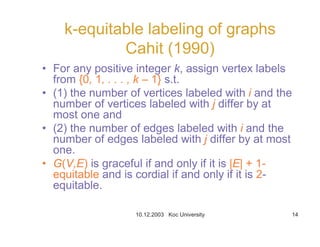

14. 10.12.2003 Koc University 14
k-equitable labeling of graphs
Cahit (1990)
• For any positive integer k, assign vertex labels
from {0, 1, . . . , k – 1} s.t.
• (1) the number of vertices labeled with i and the
number of vertices labeled with j differ by at
most one and
• (2) the number of edges labeled with i and the
number of edges labeled with j differ by at most
one.
• G(V,E) is graceful if and only if it is |E| + 1-
equitable and is cordial if and only if it is 2-
equitable.

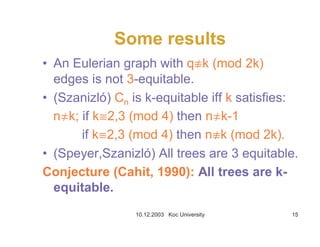

15. 10.12.2003 Koc University 15
Some results
• An Eulerian graph with qTk (mod 2k)
edges is not 3-equitable.
• (Szanizló) Cn is k-equitable iff k satisfies:
n∫k; if kª2,3 (mod 4) then n∫k-1
if kª2,3 (mod 4) then nTk (mod 2k).
• (Speyer,Szanizló) All trees are 3 equitable.
Conjecture (Cahit, 1990): All trees are k-
equitable.

16. 10.12.2003 Koc University 16

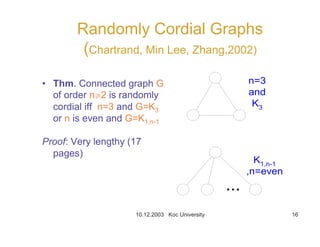

Randomly Cordial Graphs
(Chartrand, Min Lee, Zhang,2002)
• Thm. Connected graph G
of order nr2 is randomly
cordial iff n=3 and G=K3
or n is even and G=K1,n-1
Proof: Very lengthy (17
pages)
n=3
and
K3
K1,n-1
,n=even

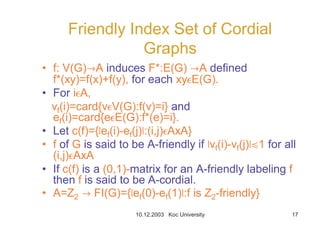

17. 10.12.2003 Koc University 17
Friendly Index Set of Cordial
Graphs
• f: V(G)TA induces F*:E(G) TA defined
f*(xy)=f(x)+f(y), for each xyeE(G).
• For ieA,
vf(i)=card{veV(G):f(v)=i} and
ef(i)=card{eeE(G):f*(e)=i}.
• Let c(f)={6ef(i)-ef(j)6:(i,j)eAxA}
• f of G is said to be A-friendly if 6vf(i)-vf(j)6b1 for all
(i,j)eAxA
• If c(f) is a (0,1)-matrix for an A-friendly labeling f
then f is said to be A-cordial.
• A=Z2 T FI(G)={6ef(0)-ef(1)6:f is Z2-friendly}

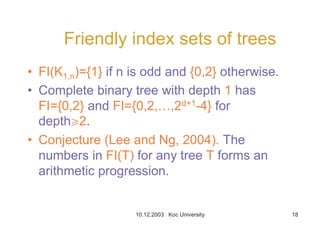

18. 10.12.2003 Koc University 18
Friendly index sets of trees
• FI(K1,n)={1} if n is odd and {0,2} otherwise.
• Complete binary tree with depth 1 has
FI={0,2} and FI={0,2,…,2d+1-4} for
depthr2.
• Conjecture (Lee and Ng, 2004). The
numbers in FI(T) for any tree T forms an
arithmetic progression.

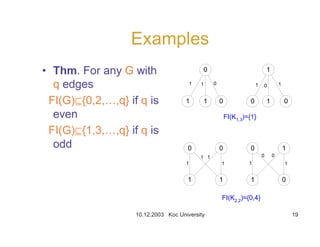

19. 10.12.2003 Koc University 19
Examples
• Thm. For any G with
q edges
FI(G)m{0,2,…,q} if q is
even
FI(G)m{1,3,…,q} if q is
odd
0 0
1 1
0
1
0
1 1 0
0 1
1
1 1
1
0
011
1
00 1
1 1 0 1 0 1
FI(K1,3
)={1}
FI(K2,2
)={0,4}

20. 10.12.2003 Koc University 20

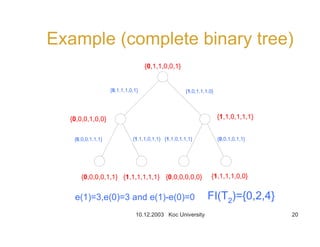

Example (complete binary tree)
{0,1,1,0,0,1}
{0,0,0,1,0,0} {1,1,0,1,1,1}
{0,0,0,0,1,1} {1,1,1,1,1,1} {0,0,0,0,0,0} {1,1,1,1,0,0}
{0,1,1,1,0,1} {1,0,1,1,1,0}
{0,0,0,1,1,1} {1,1,1,0,1,1} {1,1,0,1,1,1} {0,0,1,0,1,1}
e(1)=3,e(0)=3 and e(1)-e(0)=0 FI(T2)={0,2,4}

21. 10.12.2003 Koc University 21
Graceful Labeling
Alexandre
Rosa(1965)

22. 10.12.2003 Koc University 22
Alpha-labeling of graphs (Rosa)
• If f is an graceful
labeling and there
exists mœ{1,2,…,n}
s.t. for an arbitrary
edge (x,y) of G either
f(x)bm and f(y)>m or
f(x)>m and f(y)bm
holds.

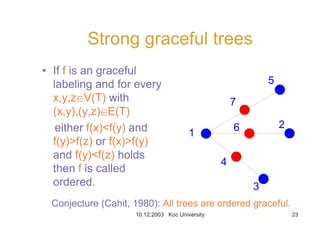

23. 10.12.2003 Koc University 23
Strong graceful trees
• If f is an graceful
labeling and for every
x,y,zœV(T) with
(x,y),(y,z)œE(T)
either f(x)<f(y) and
f(y)>f(z) or f(x)>f(y)
and f(y)<f(z) holds
then f is called
ordered.
1
7
5
6 2
4
3
Conjecture (Cahit, 1980): All trees are ordered graceful.

24. 10.12.2003 Koc University 24

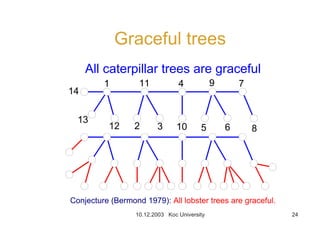

Graceful trees
1
2 3
4
5 6
7
8
9
10
11
12
13
14
All caterpillar trees are graceful
Conjecture (Bermond 1979): All lobster trees are graceful.

25. 10.12.2003 Koc University 25

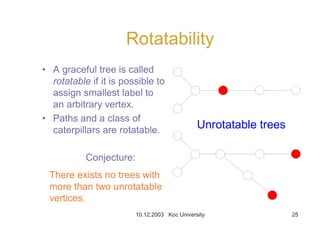

Rotatability
• A graceful tree is called
rotatable if it is possible to
assign smallest label to
an arbitrary vertex.
• Paths and a class of
caterpillars are rotatable. Unrotatable trees
Conjecture:
There exists no trees with
more than two unrotatable
vertices.

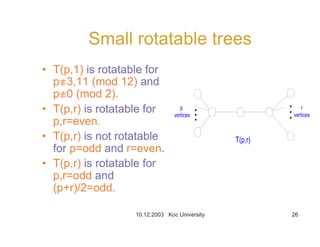

26. 10.12.2003 Koc University 26
Small rotatable trees
• T(p,1) is rotatable for
pT3,11 (mod 12) and
pT0 (mod 2).
• T(p,r) is rotatable for
p,r=even.
• T(p,r) is not rotatable
for p=odd and r=even.
• T(p,r) is rotatable for
p,r=odd and
(p+r)/2=odd.
p
vertices
r
vertices
T(p,r)

27. 10.12.2003 Koc University 27
Spiral canonic labeling
1
10
2
9
3
8
4
7
5
6
1 n 2 n-1 3 n-2
(1) All trees with
diameter four are
graceful (Cahit, 1985)
(2) All trees with
diameter five are
graceful (Hrnciar,
Haviar, 2001)

28. 10.12.2003 Koc University 28

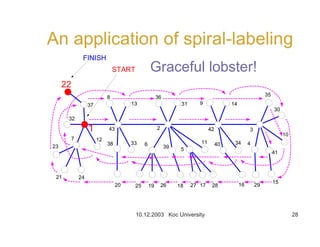

An application of spiral-labeling
22
37
8
13
36
31 9 14
35
30
10
41
4344011
53963338
127
32
1 43 2 42 3
15
29162817271826192520
2421
23
START
FINISH
Graceful lobster!

29. 10.12.2003 Koc University 29

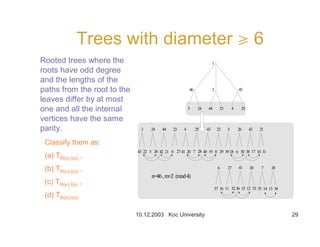

Trees with diameter r 6
Rooted trees where the
roots have odd degree
and the lengths of the
paths from the root to the
leaves differ by at most
one and all the internal
vertices have the same
parity.
1
2
3 4
5
6
7 8 9 10
11 131416
17181920
22
2324 25
26
27
28 29 30 31
32 343537
383940
46 45
43
44
3 24 44 23 4 25 42 21
43 22 626 42 215 27 41
7 2841 20
36 15 12 33
n=46,m=2 (mod4)
Classify them as:
(a) TR(o),I(e) ,
(b) TR(o),I(o) ,
(c) TR(e),I(e) ,
(d) TR(e),I(o)

30. 10.12.2003 Koc University 30
Harmonious Labeling
Ron L. Graham
and
Neil J. A. Sloane
(1980)

31. 10.12.2003 Koc University 31

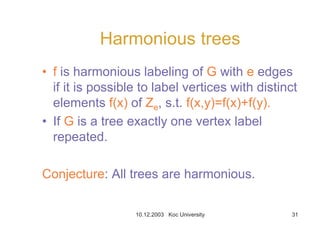

Harmonious trees
• f is harmonious labeling of G with e edges
if it is possible to label vertices with distinct
elements f(x) of Ze, s.t. f(x,y)=f(x)+f(y).
• If G is a tree exactly one vertex label
repeated.
Conjecture: All trees are harmonious.

32. 10.12.2003 Koc University 32

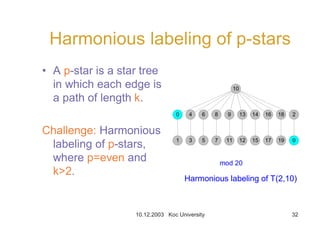

Harmonious labeling of p-stars
• A p-star is a star tree
in which each edge is
a path of length k.
Challenge: Harmonious
labeling of p-stars,
where p=even and
k>2.
10
9
12
8
11
6
75
4
31
20 181614
0
13
191715
mod 20
Harmonious labeling of T(2,10)

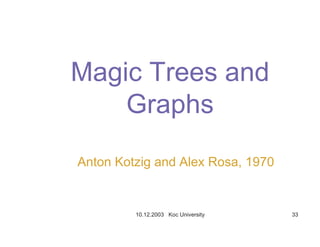

33. 10.12.2003 Koc University 33
Magic Trees and
Graphs
Anton Kotzig and Alex Rosa, 1970

34. 10.12.2003 Koc University 34
Magic (edge) labeling
• f: V(G)(E(G)T{1,2,…,6V(G)6(6E(G)6} is edge-
magic if f(x)+f(y)+f(xy)=C for any xyeE(G).
• f is called super-magic if additionally
f(V(G))={1,2,…, 6V(G)6} and f(E(G))={6V(G)6+1,…,
6V(G)6(6E(G)6}
• Paths and caterpillars are edge-magic. (Kotzig
and Rosa, 1970).
• Complete binary trees are edge-magic. (Cahit,
1980).

35. 10.12.2003 Koc University 35

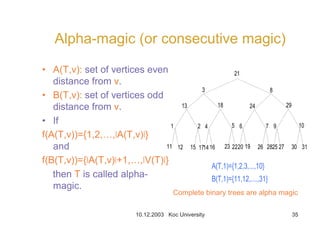

Alpha-magic (or consecutive magic)
• A(T,v): set of vertices even
distance from v.
• B(T,v): set of vertices odd
distance from v.
• If
f(A(T,v))={1,2,…,6A(T,v)6}
and
f(B(T,v))={6A(T,v)6+1,…,6V(T)6}
then T is called alpha-
magic.
21
3 8
13 18 24 29
1 2 4 5 6 7 9 10
11 12 15 171416 23 2220 19 26 2825 27 30 31
A(T,1)={1,2,3,...,10}
B(T,1)={11,12,....,31}
Complete binary trees are alpha magic

36. 10.12.2003 Koc University 36
Beta-magic trees (Cahit 2003)
• A tree T is beta-magic if it is super-magic
and its vertices partitioned into three color
classes C1,C2,C3 of consecutive labels.
• All alpha magic trees are beta magic
(reverse is not true).
• All comets (2-stars) are beta magic.
Conjecture: All trees are beta-magic.

37. 10.12.2003 Koc University 37

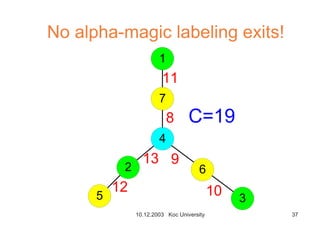

2
5
7
1
4
6
3
13
12
11
8
9
10
C=19
No alpha-magic labeling exits!

38. 10.12.2003 Koc University 38

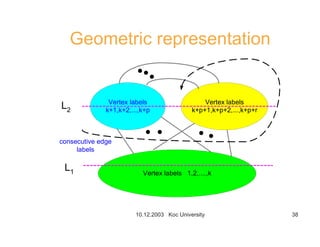

Geometric representation
Vertex labels 1,2,....,k
Vertex labels
k+p+1,k+p+2,...,k+p+r
Vertex labels
k+1,k+2,...,k+p
L1
L2
consecutive edge
labels

39. 10.12.2003 Koc University 39

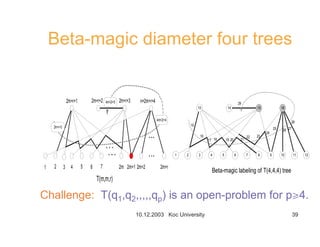

Beta-magic diameter four trees
1 2 4 5 6 7 2m 2m+1 2m+2 2m+r
2m+r+1 2m+r+2 2m+r+3 n=2m+r+4
T(m,m,r)
3
2m+r+3
4m+2r+5
4m+2r+4
13 14 15 16
321 121110987654
15
16
17 18 19 20 21
22 23
24
25 26 27
28
29
Beta-magic labeling of T(4,4,4) tree
Challenge: T(q1,q2,,,,,qp) is an open-problem for pr4.

40. 10.12.2003 Koc University 40
Beta-magic labeling of
T(2,2,2,2,2,2,2,2), qi=2, 1bib8
1812
9 1 4 5 3 7 13 14
20
10 2 8 6 16 19 17 15
21 22 23 24 25
11
pr9 ???

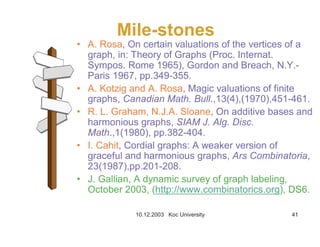

41. 10.12.2003 Koc University 41
Mile-stones
• A. Rosa, On certain valuations of the vertices of a
graph, in: Theory of Graphs (Proc. Internat.
Sympos. Rome 1965), Gordon and Breach, N.Y.-
Paris 1967, pp.349-355.
• A. Kotzig and A. Rosa, Magic valuations of finite
graphs, Canadian Math. Bull.,13(4),(1970),451-461.
• R. L. Graham, N.J.A. Sloane, On additive bases and
harmonious graphs, SIAM J. Alg. Disc.
Math.,1(1980), pp.382-404.
• I. Cahit, Cordial graphs: A weaker version of
graceful and harmonious graphs, Ars Combinatoria,
23(1987),pp.201-208.
• J. Gallian, A dynamic survey of graph labeling,
October 2003, (http://www.combinatorics.org), DS6.
