The document discusses the knight's tour problem on a chessboard, emphasizing its nature as a Hamiltonian path problem that can be solved using backtracking strategies. It explains how backtracking optimizes the naive approach of generating all possible tours, detailing the algorithm and moves available to the knight based on its position. Additionally, it highlights the complexity of the problem, noting its exponential time complexity and scenarios for best-case performance.

1. KNIGHT’S TOUR ON
CHESSBOARD
USING BACKTRACKING
STRATEGY
By :
ABHISHEK KUMAR
SINGH

2. What is Knights Tour?
–The problem is that if” The knight is
placed on any block of an empty chess
board and, moving according to the
rules of chess, must visit each square
exactly once.”
–This Problem is an application of
Hamiltonian Path or cycle

3. BACKTRAKING STRATEGY
• Backtracking is an algorithmic paradigm that tries
different solutions until finds a solution that “works”.
Problems which are typically solved using
backtracking technique have following property in
common. These problems can only be solved by
trying every possible configuration and each
configuration is tried only once. A Naive solution for
these problems is to try all configurations and output
a configuration that follows given problem
constraints. Backtracking works in incremental way
and is an optimization over the Naive solution where
all possible configurations are generated and tried.

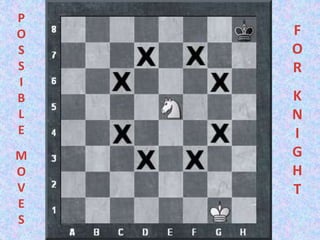

4. P
O
S
S
I
B
L
E
M
O
V
E
S
F
O
R
K
N
I
G
H
T

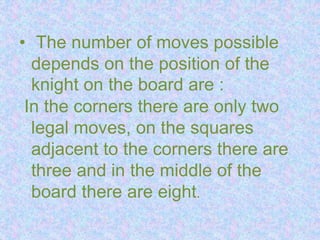

5. • The number of moves possible
depends on the position of the
knight on the board are :
In the corners there are only two
legal moves, on the squares
adjacent to the corners there are
three and in the middle of the
board there are eight.

6. Knights tour
This is the pictorial representation of the knights tour on the chessboard

7. Open Tour

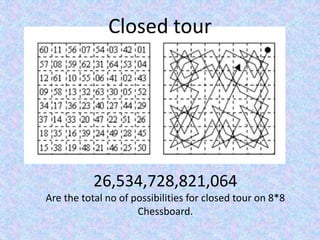

8. Closed tour
26,534,728,821,064
Are the total no of possibilities for closed tour on 8*8
Chessboard.

9. Algorithm
Naïve approach to Knight’s tour problem
The Naive Algorithm is to generate all tours one by
one and check if the generated tour satisfies the
constraints.
while there are untried tours
{
generate the next tour;
if this tour covers all squares
{
print this path;
}
}

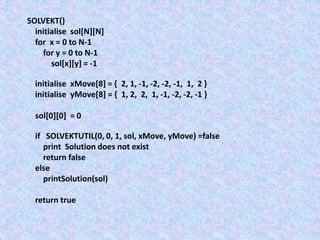

10. SOLVEKT()
initialise sol[N][N]
for x = 0 to N-1
for y = 0 to N-1
sol[x][y] = -1
initialise xMove[8] = { 2, 1, -1, -2, -2, -1, 1, 2 }
initialise yMove[8] = { 1, 2, 2, 1, -1, -2, -2, -1 }
sol[0][0] = 0
if SOLVEKTUTIL(0, 0, 1, sol, xMove, yMove) =false
print Solution does not exist
return false
else
printSolution(sol)
return true

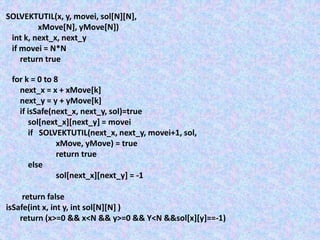

11. SOLVEKTUTIL(x, y, movei, sol[N][N],
xMove[N], yMove[N])
int k, next_x, next_y
if movei = N*N
return true
for k = 0 to 8
next_x = x + xMove[k]
next_y = y + yMove[k]
if isSafe(next_x, next_y, sol)=true
sol[next_x][next_y] = movei
if SOLVEKTUTIL(next_x, next_y, movei+1, sol,
xMove, yMove) = true
return true
else
sol[next_x][next_y] = -1
return false
isSafe(int x, int y, int sol[N][N] )
return (x>=0 && x<N && y>=0 && Y<N &&sol[x][y]==-1)

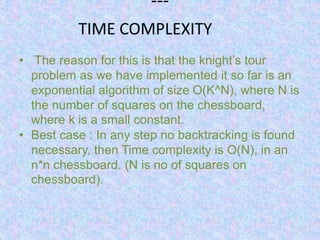

12. ---
• The reason for this is that the knight’s tour
problem as we have implemented it so far is an
exponential algorithm of size O(K^N), where N is
the number of squares on the chessboard,
where k is a small constant.
• Best case : In any step no backtracking is found
necessary, then Time complexity is O(N), in an
n*n chessboard. (N is no of squares on
chessboard).
TIME COMPLEXITY
