The document discusses the transition from MySQL to Cassandra for real-time spam detection and web filtering at Barracuda Networks, highlighting their experiences, challenges, and lessons learned over two years in production. Key points include the necessity of careful planning, the challenges of data migration, and the importance of automation in managing systems. The final takeaway is that despite the pain of migration, Cassandra emerged as the best fit for their persistence needs and scalability for future growth.

1. Hindsight is 20/20:
MySQL to Cassandra
Michael Kjellman (@mkjellman)
Barracuda Networks
#cassandra13

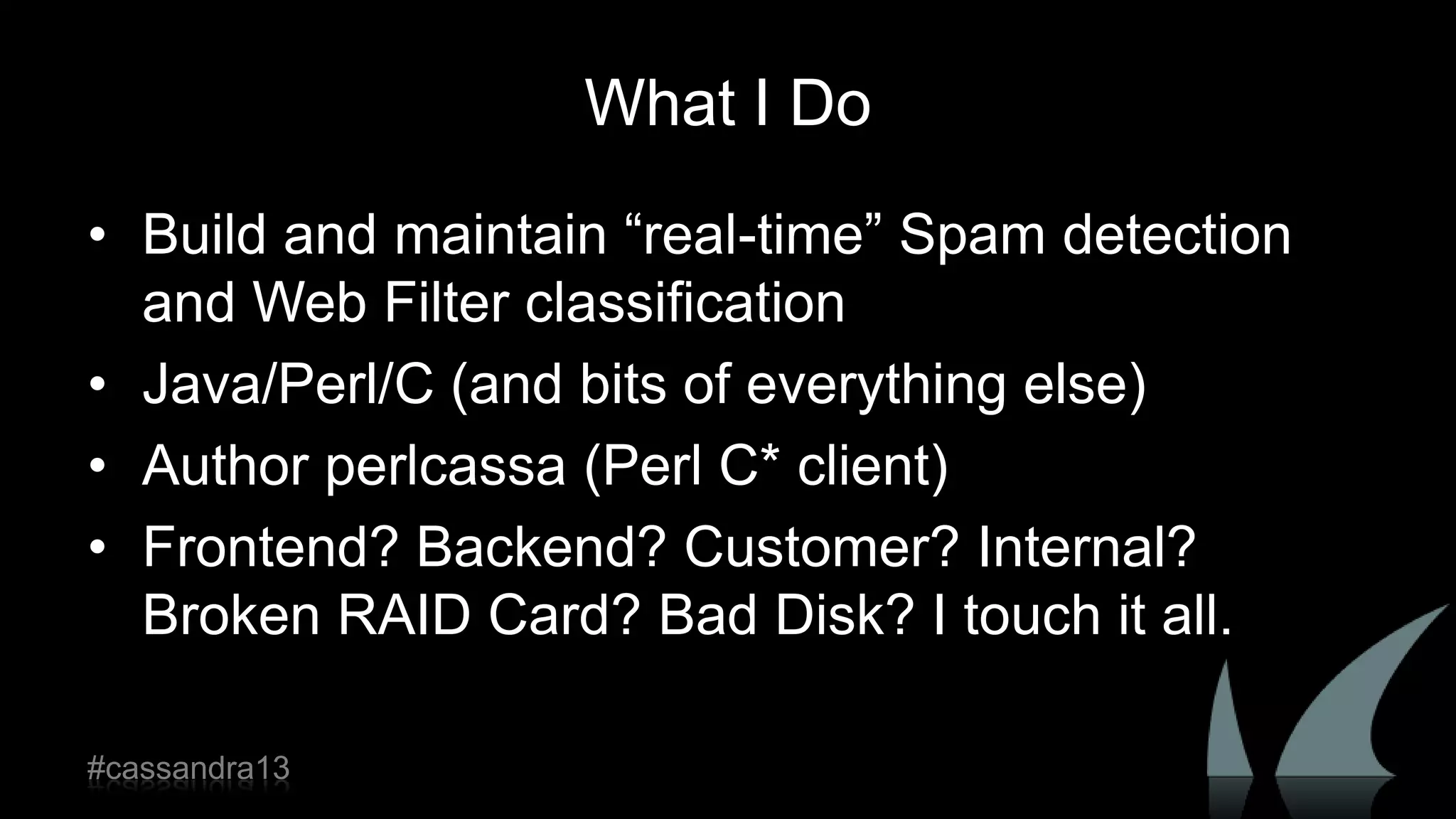

2. What I Do
• Build and maintain “real-time” Spam detection
and Web Filter classification
• Java/Perl/C (and bits of everything else)
• Author perlcassa (Perl C* client)
• Frontend? Backend? Customer? Internal?
Broken RAID Card? Bad Disk? I touch it all.
#cassandra13

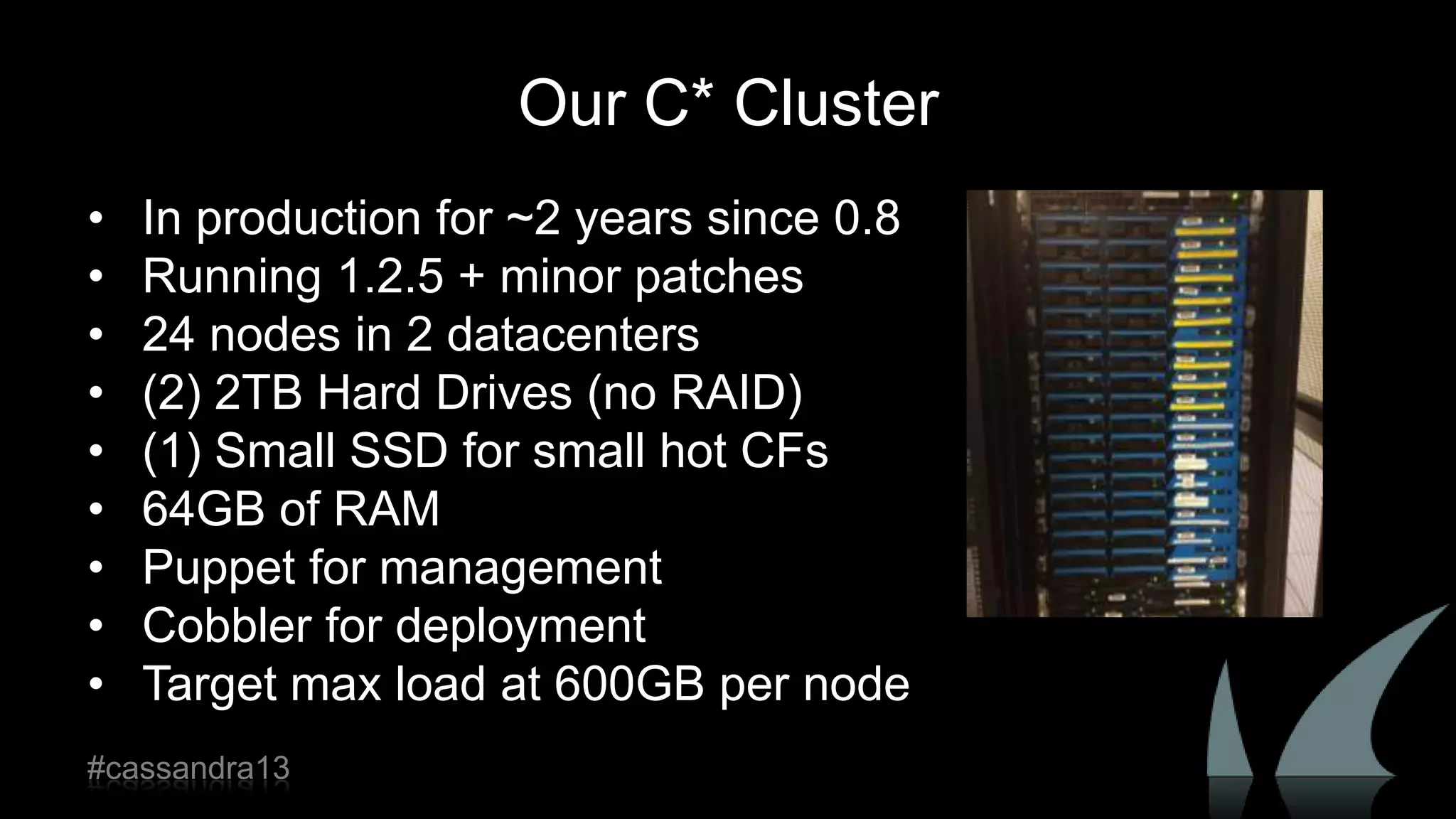

3. Our C* Cluster
• In production for ~2 years since 0.8
• Running 1.2.5 + minor patches
• 24 nodes in 2 datacenters
• (2) 2TB Hard Drives (no RAID)
• (1) Small SSD for small hot CFs
• 64GB of RAM
• Puppet for management
• Cobbler for deployment
• Target max load at 600GB per node
#cassandra13

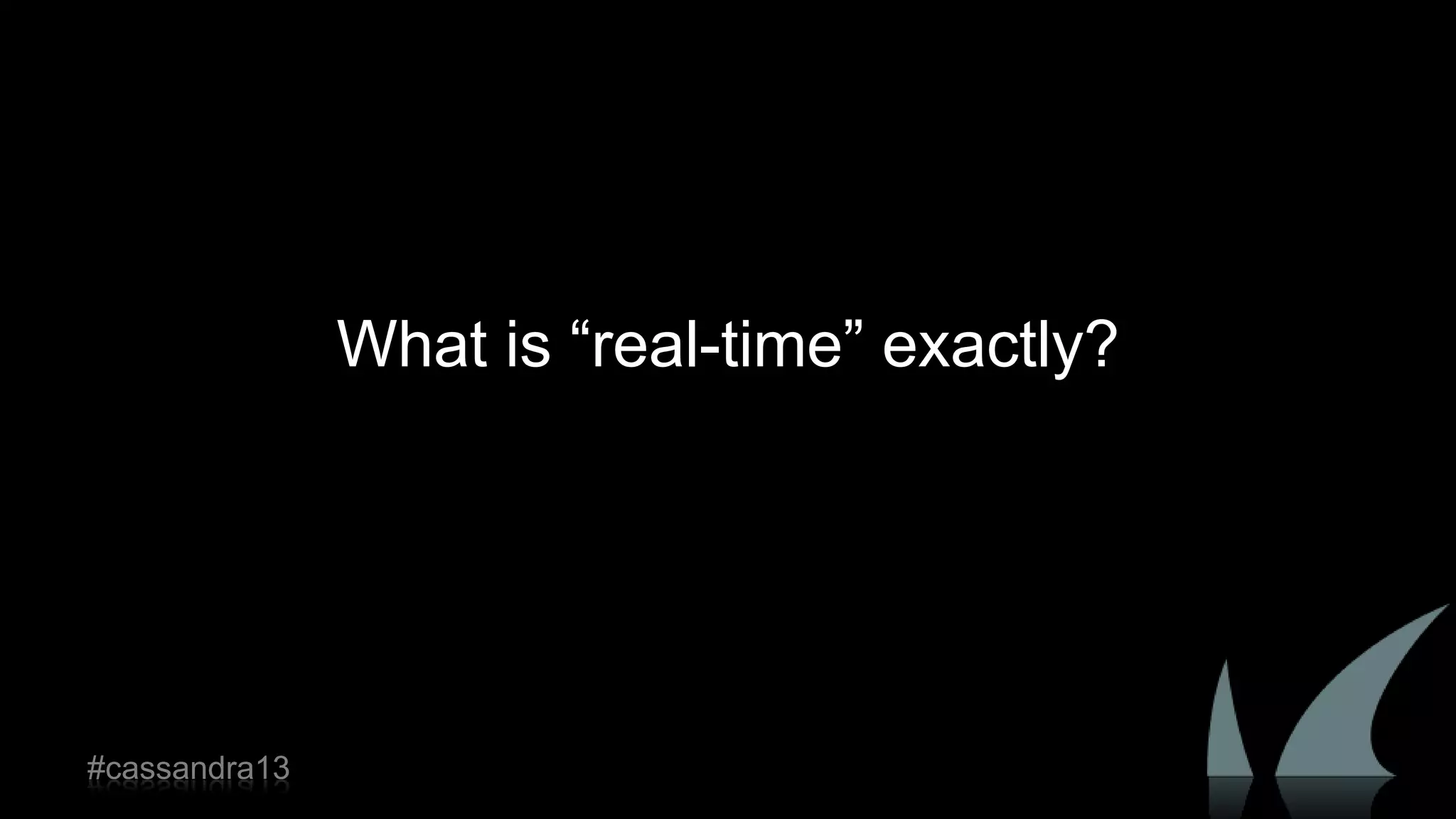

4. What is “real-time” exactly?
#cassandra13

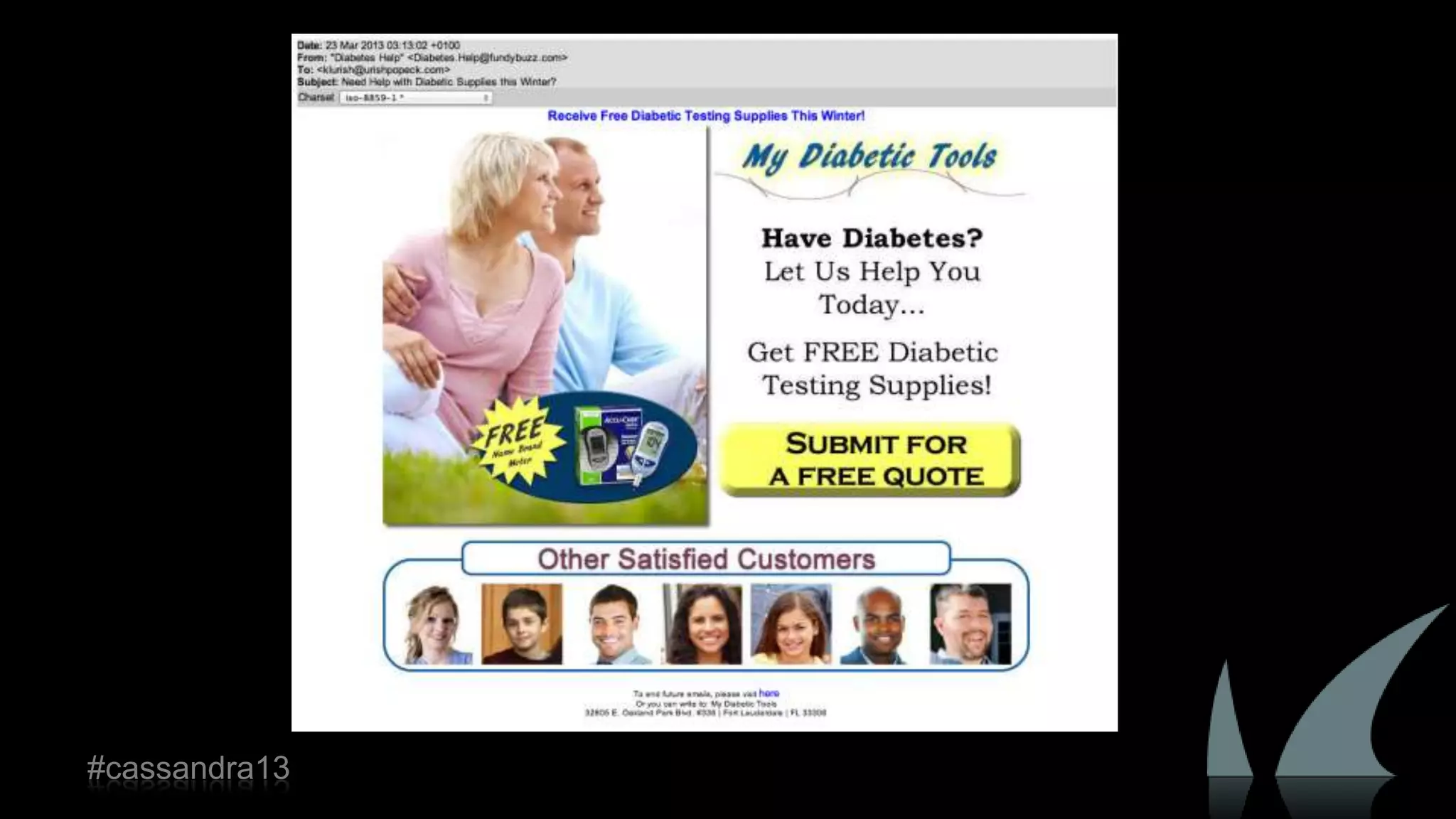

5. #cassandra13

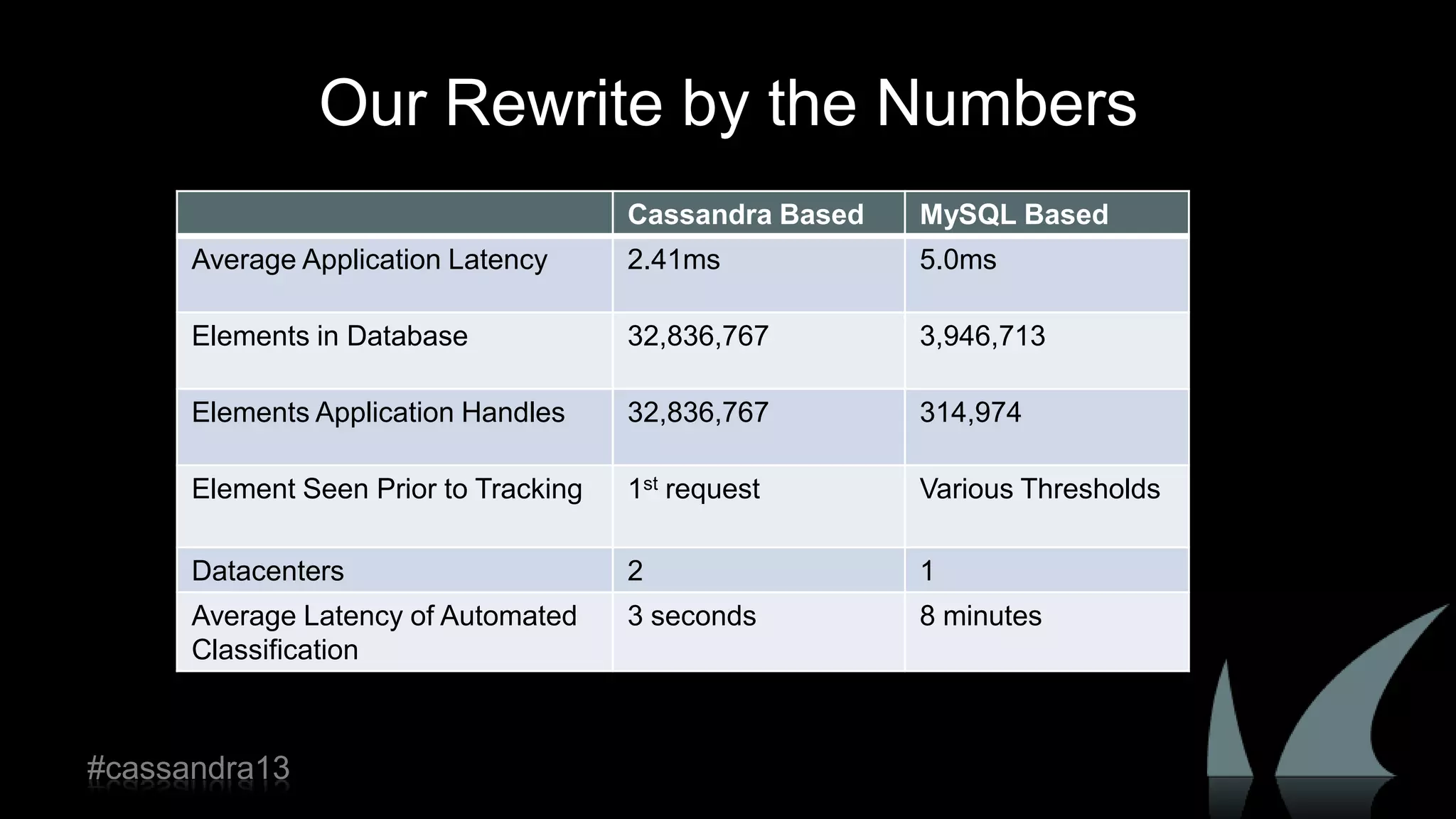

6. Our Rewrite by the Numbers
Cassandra Based MySQL Based
Average Application Latency 2.41ms 5.0ms
Elements in Database 32,836,767 3,946,713
Elements Application Handles 32,836,767 314,974
Element Seen Prior to Tracking 1st request Various Thresholds
Datacenters 2 1
Average Latency of Automated
Classification
3 seconds 8 minutes
#cassandra13

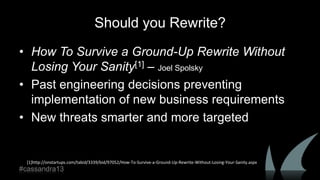

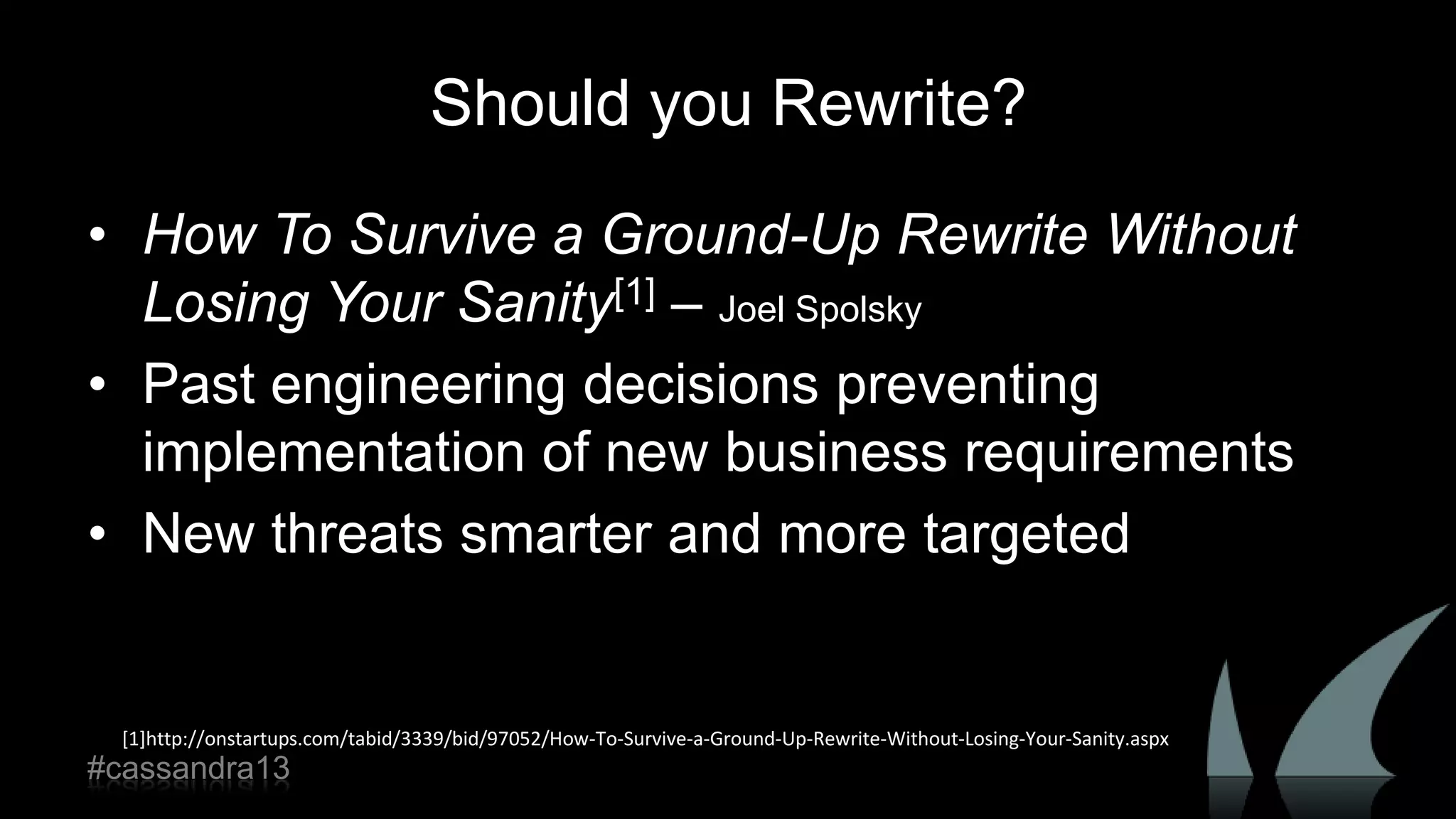

7. Should you Rewrite?
• How To Survive a Ground-Up Rewrite Without
Losing Your Sanity[1] – Joel Spolsky
• Past engineering decisions preventing
implementation of new business requirements
• New threats smarter and more targeted
[1]http://onstartups.com/tabid/3339/bid/97052/How-To-Survive-a-Ground-Up-Rewrite-Without-Losing-Your-Sanity.aspx
#cassandra13

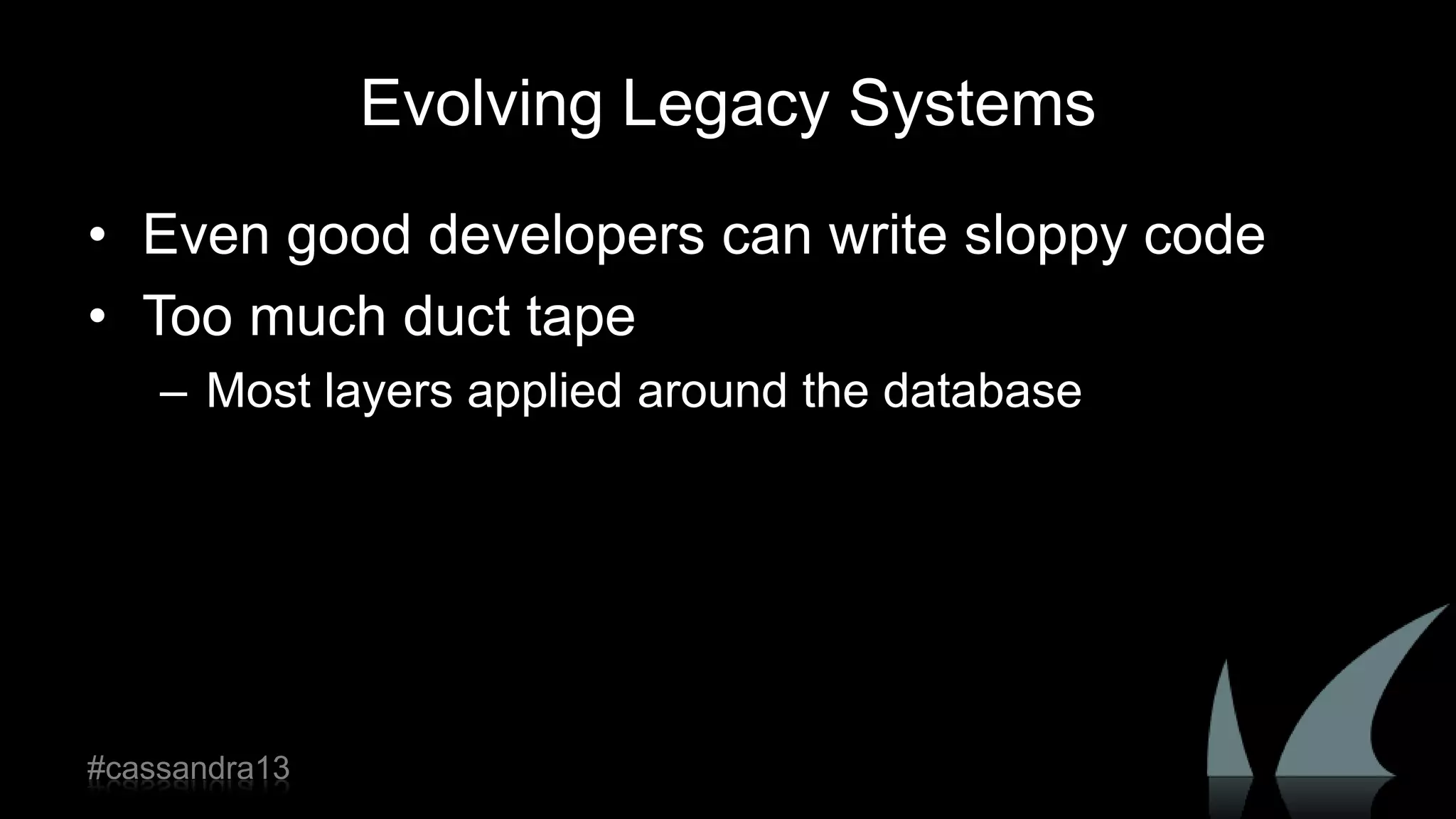

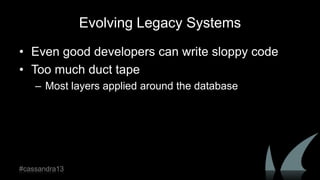

8. Evolving Legacy Systems
• Even good developers can write sloppy code
• Too much duct tape
– Most layers applied around the database
#cassandra13

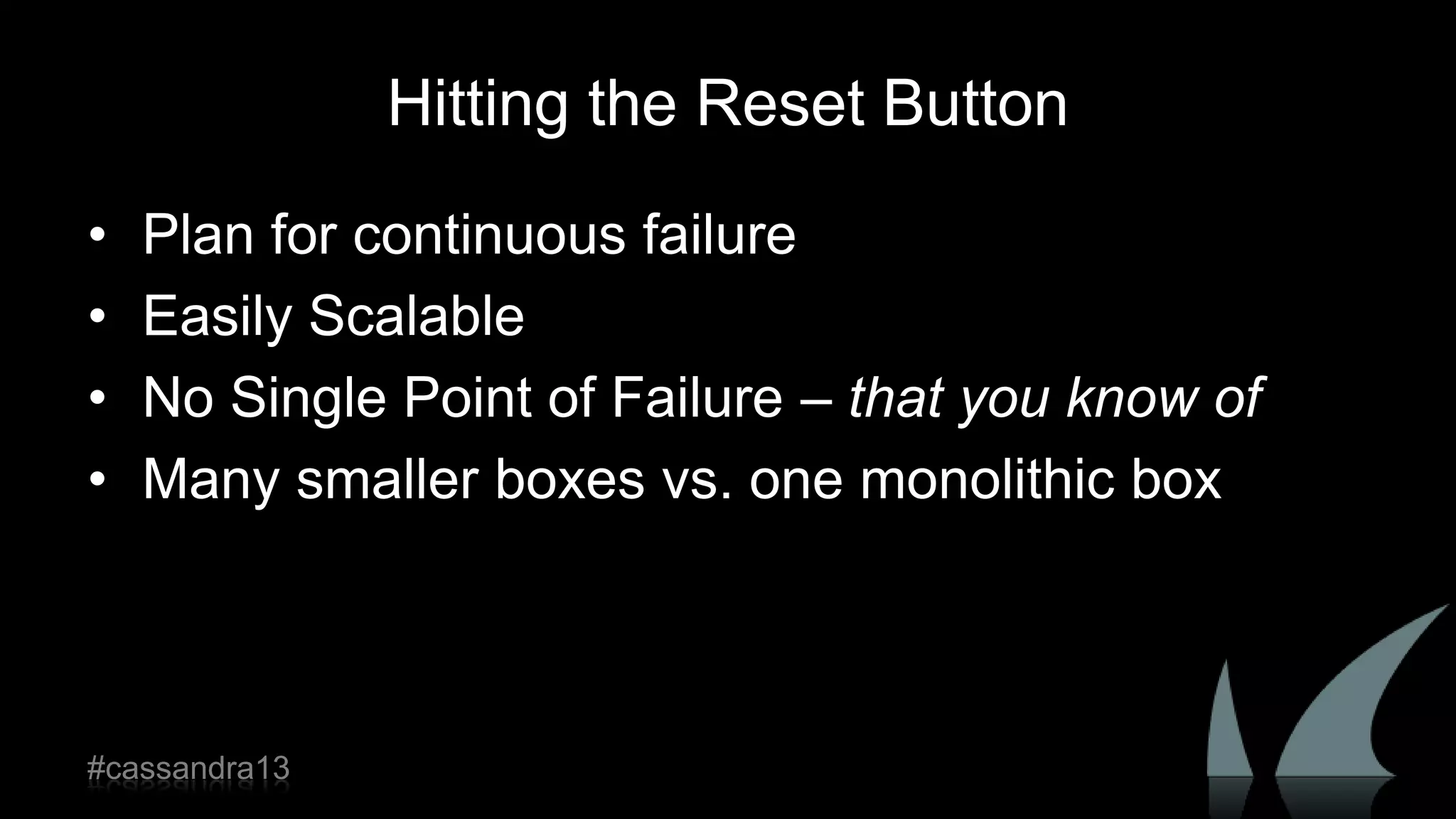

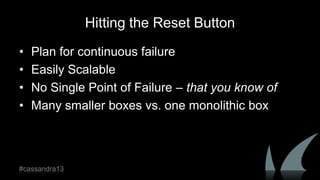

9. Hitting the Reset Button
• Plan for continuous failure
• Easily Scalable
• No Single Point of Failure – that you know of
• Many smaller boxes vs. one monolithic box
#cassandra13

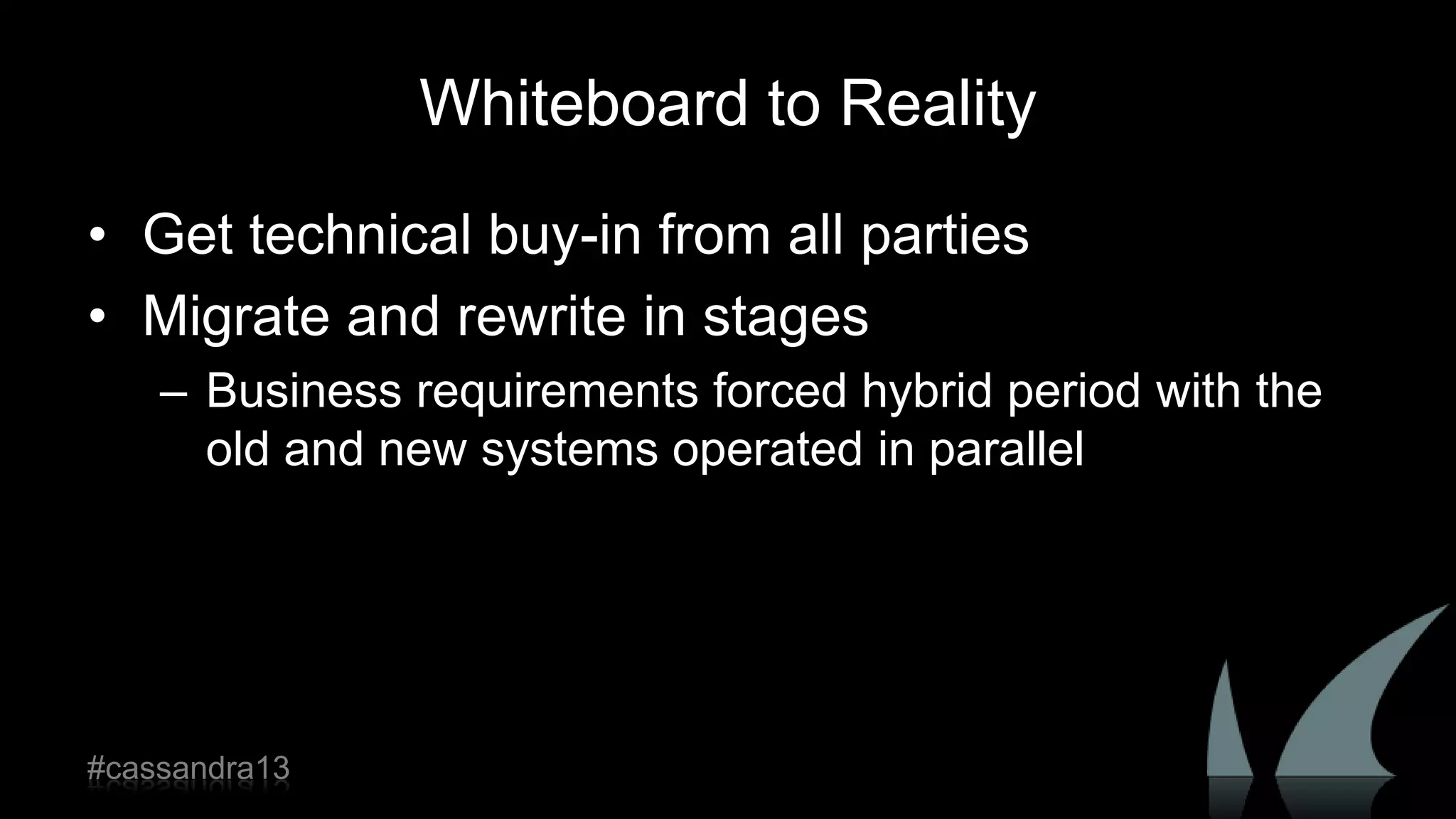

10. Whiteboard to Reality
• Get technical buy-in from all parties
• Migrate and rewrite in stages
– Business requirements forced hybrid period with the
old and new systems operated in parallel
#cassandra13

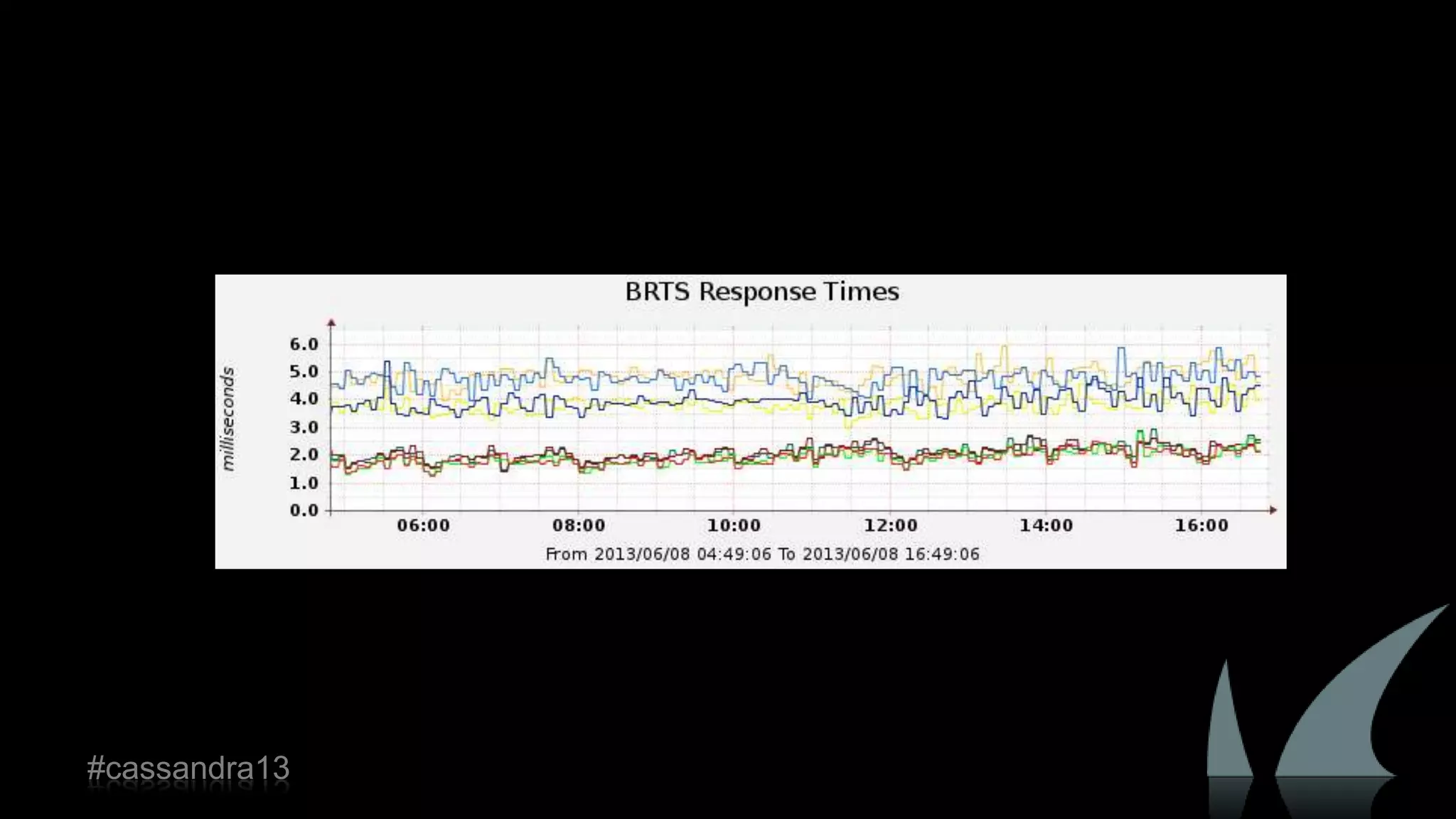

11. #cassandra13

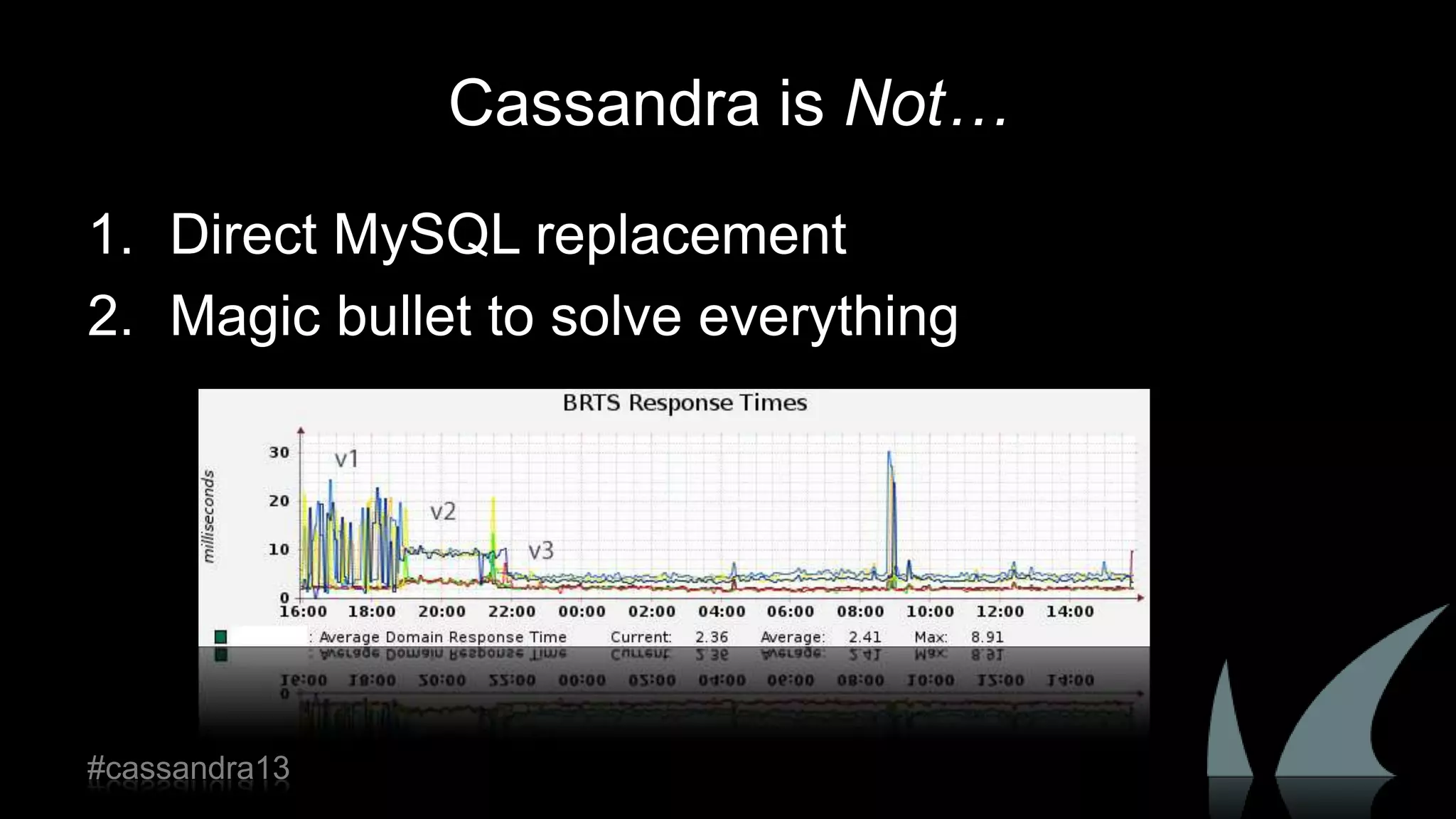

12. Cassandra is Not…
1. Direct MySQL replacement
2. Magic bullet to solve everything
#cassandra13

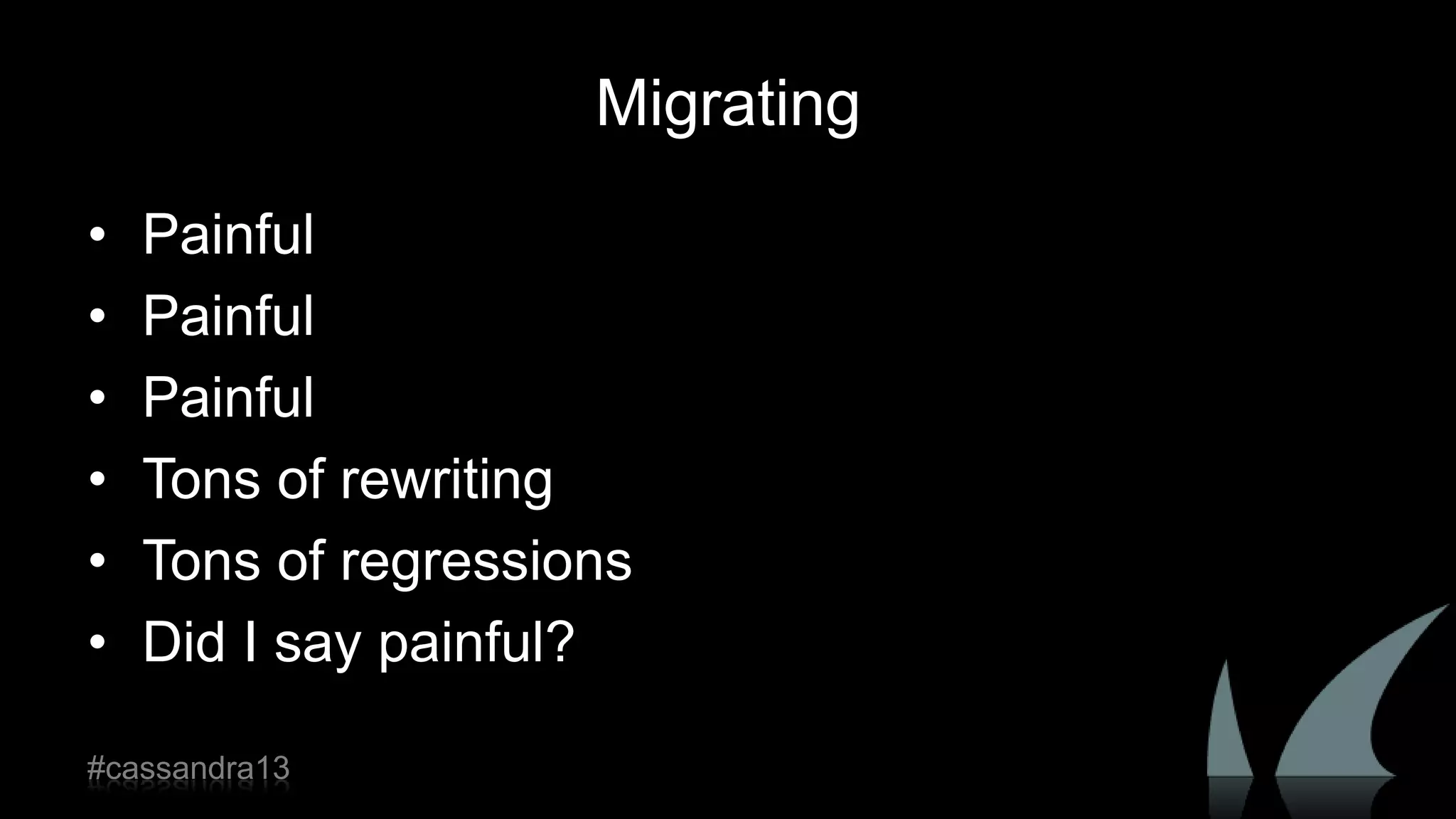

13. Migrating
• Painful
• Painful
• Painful
• Tons of rewriting
• Tons of regressions
• Did I say painful?
#cassandra13

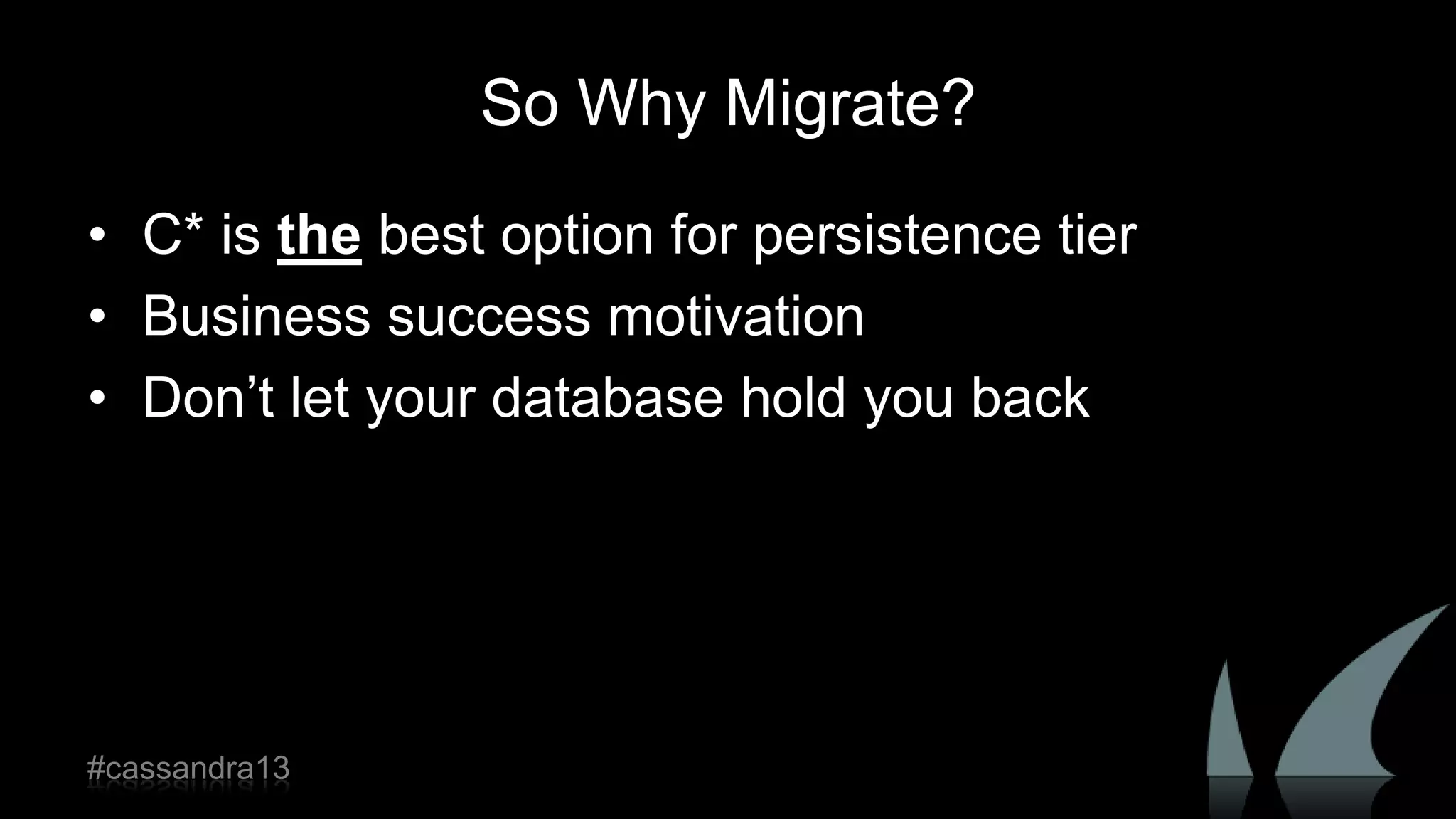

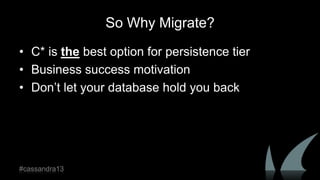

14. So Why Migrate?
• C* is the best option for persistence tier
• Business success motivation
• Don‟t let your database hold you back
#cassandra13

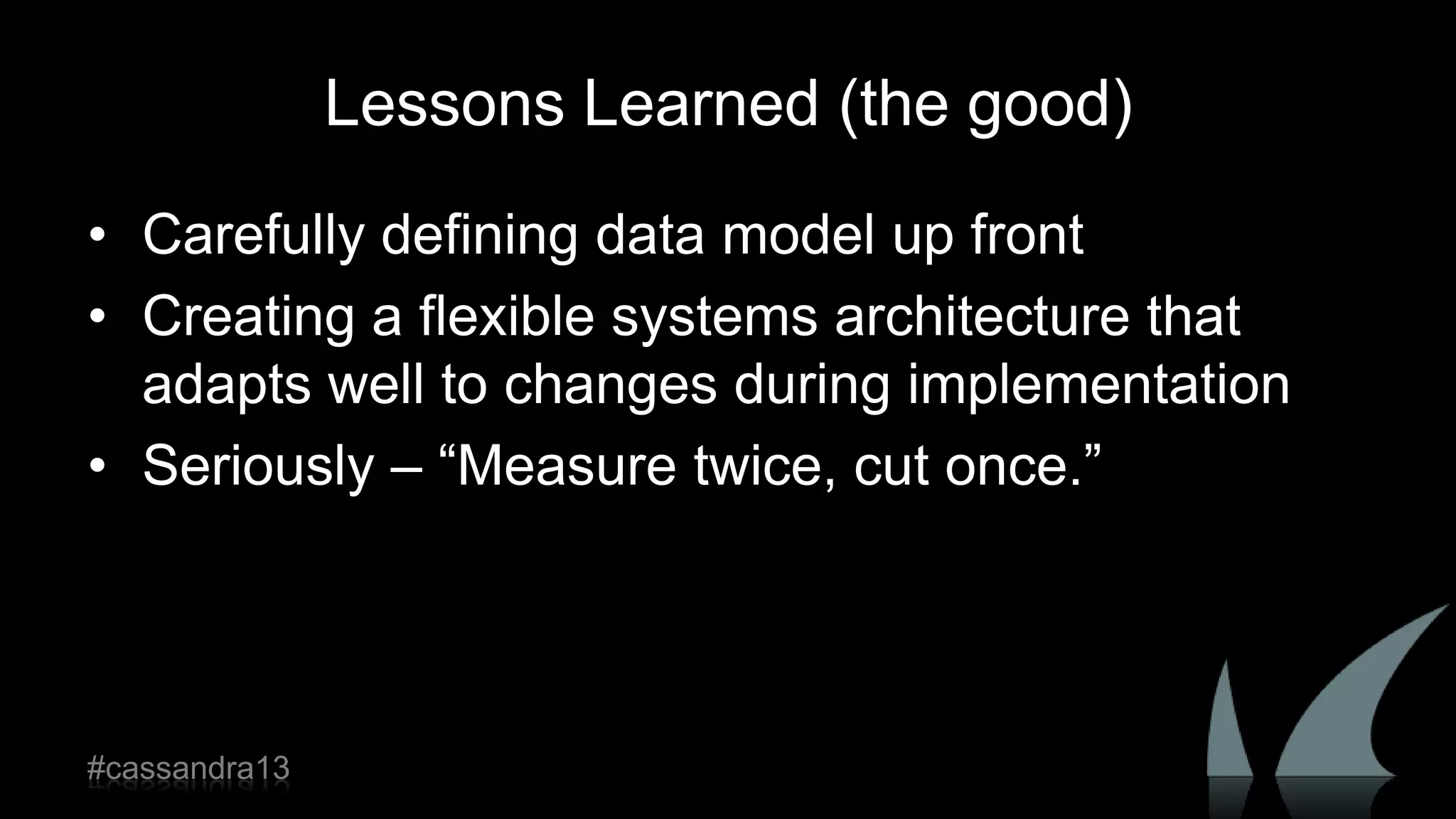

15. Lessons Learned (the good)
• Carefully defining data model up front
• Creating a flexible systems architecture that
adapts well to changes during implementation
• Seriously – “Measure twice, cut once.”
#cassandra13

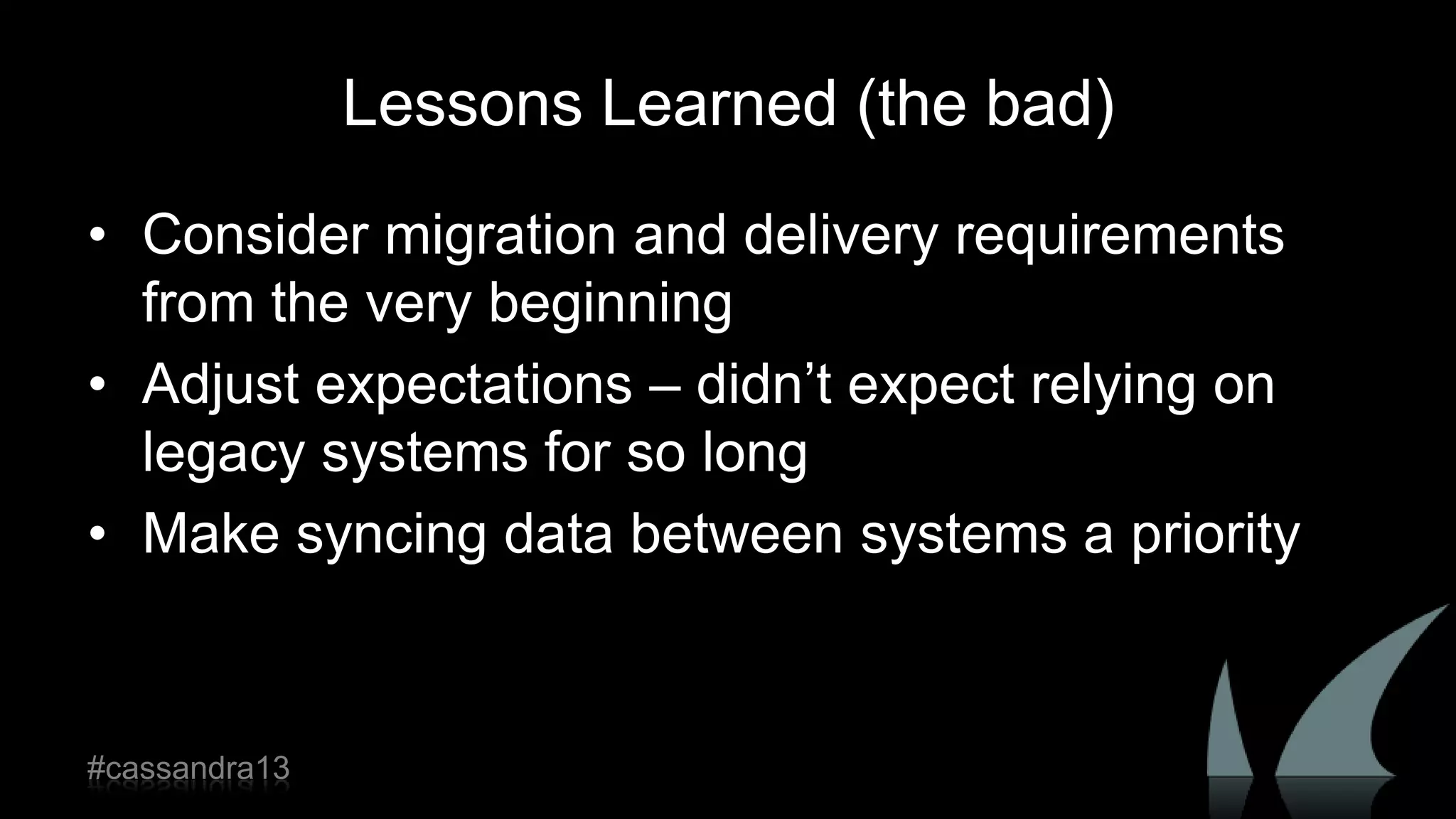

16. Lessons Learned (the bad)
• Consider migration and delivery requirements
from the very beginning
• Adjust expectations – didn‟t expect relying on
legacy systems for so long
• Make syncing data between systems a priority
#cassandra13

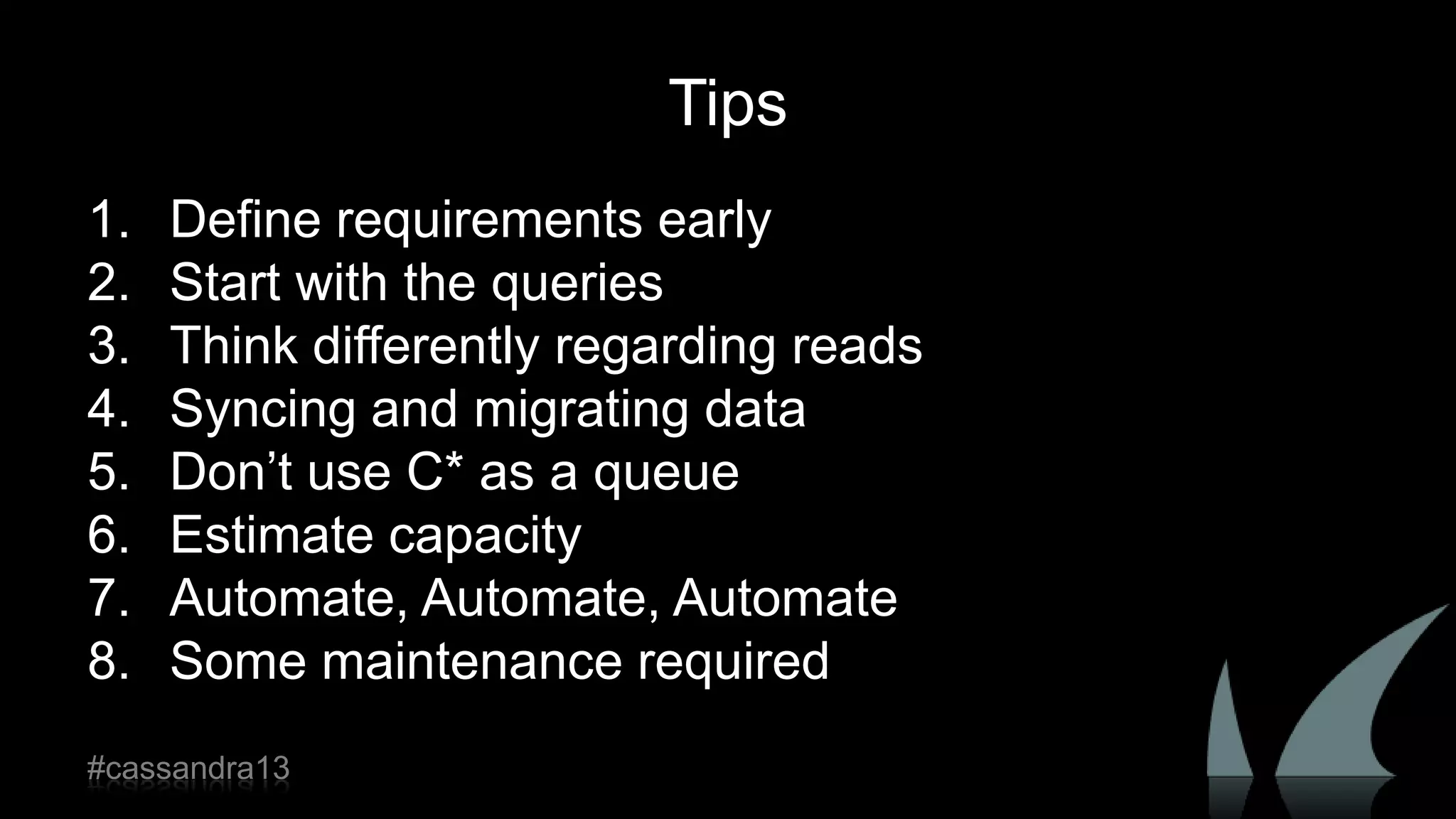

17. Tips
1. Define requirements early
2. Start with the queries
3. Think differently regarding reads
4. Syncing and migrating data
5. Don‟t use C* as a queue
6. Estimate capacity
7. Automate, Automate, Automate
8. Some maintenance required
#cassandra13

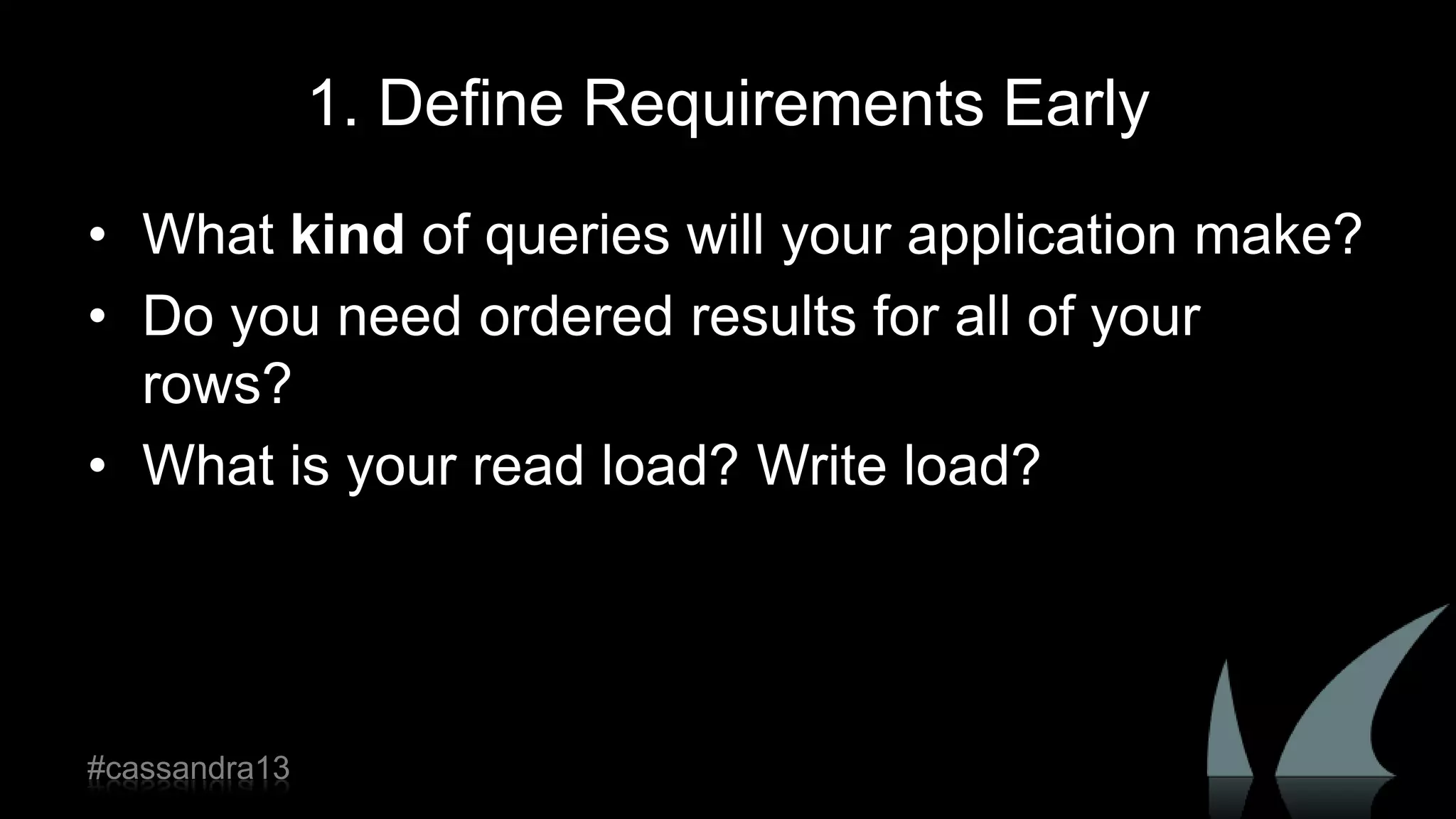

18. 1. Define Requirements Early
• What kind of queries will your application make?
• Do you need ordered results for all of your
rows?
• What is your read load? Write load?
#cassandra13

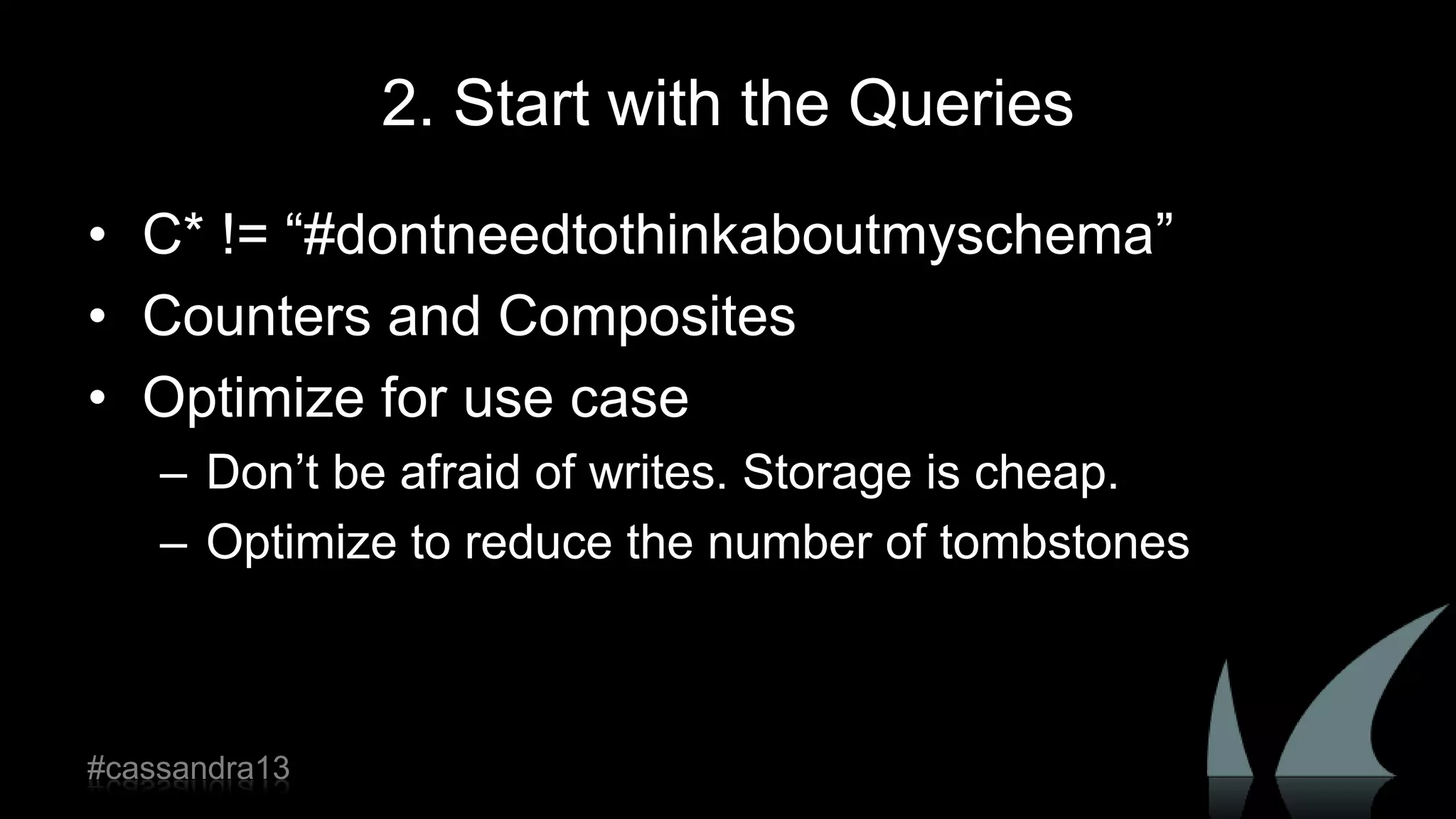

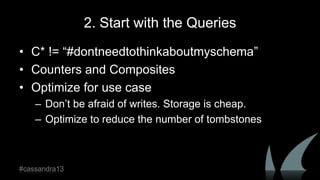

19. 2. Start with the Queries
• C* != “#dontneedtothinkaboutmyschema”
• Counters and Composites
• Optimize for use case
– Don‟t be afraid of writes. Storage is cheap.
– Optimize to reduce the number of tombstones
#cassandra13

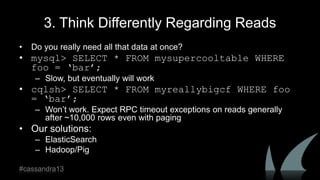

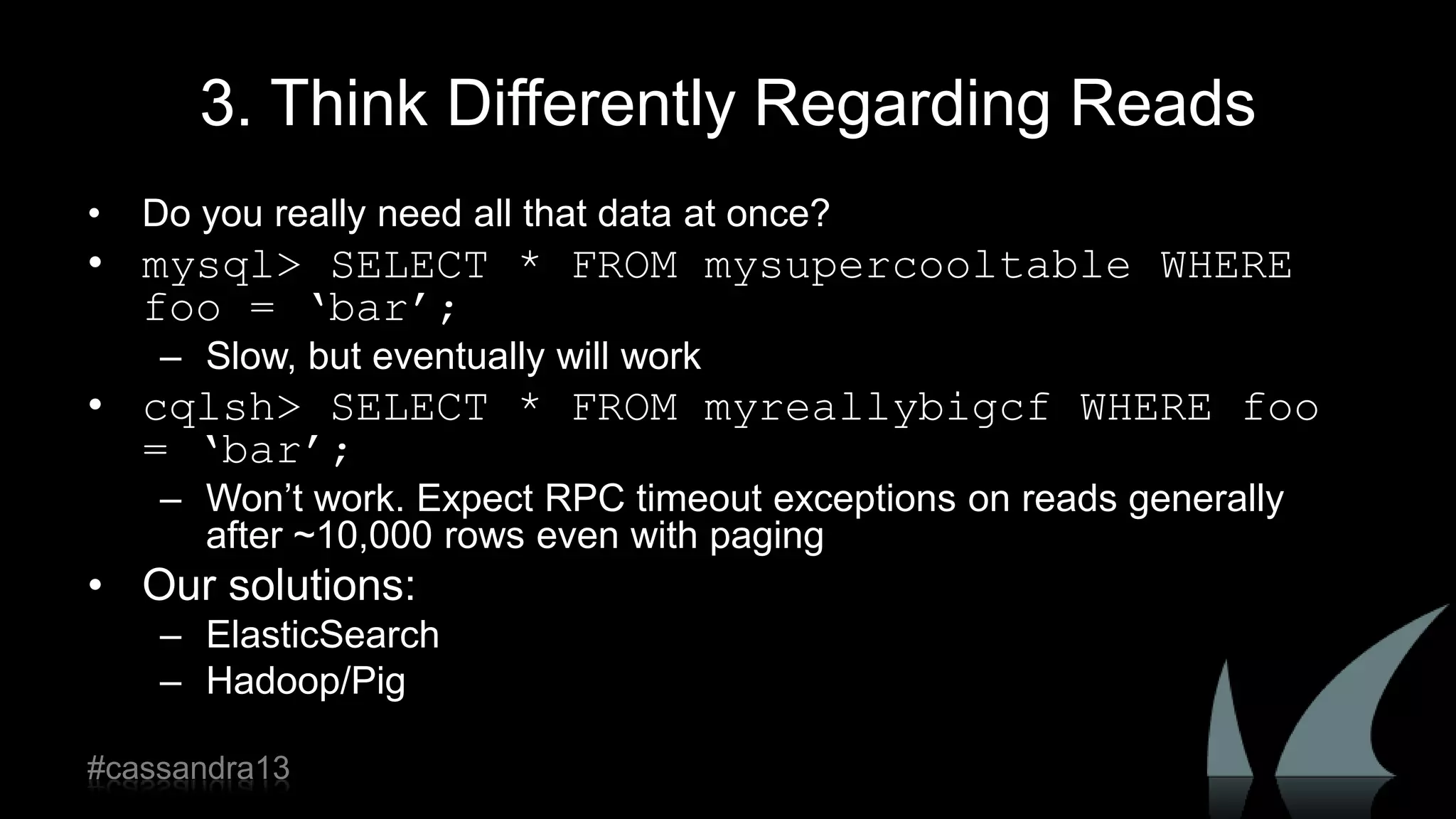

20. 3. Think Differently Regarding Reads
• Do you really need all that data at once?
• mysql> SELECT * FROM mysupercooltable WHERE
foo = ‘bar’;
– Slow, but eventually will work
• cqlsh> SELECT * FROM myreallybigcf WHERE foo
= ‘bar’;
– Won‟t work. Expect RPC timeout exceptions on reads generally
after ~10,000 rows even with paging
• Our solutions:
– ElasticSearch
– Hadoop/Pig
#cassandra13

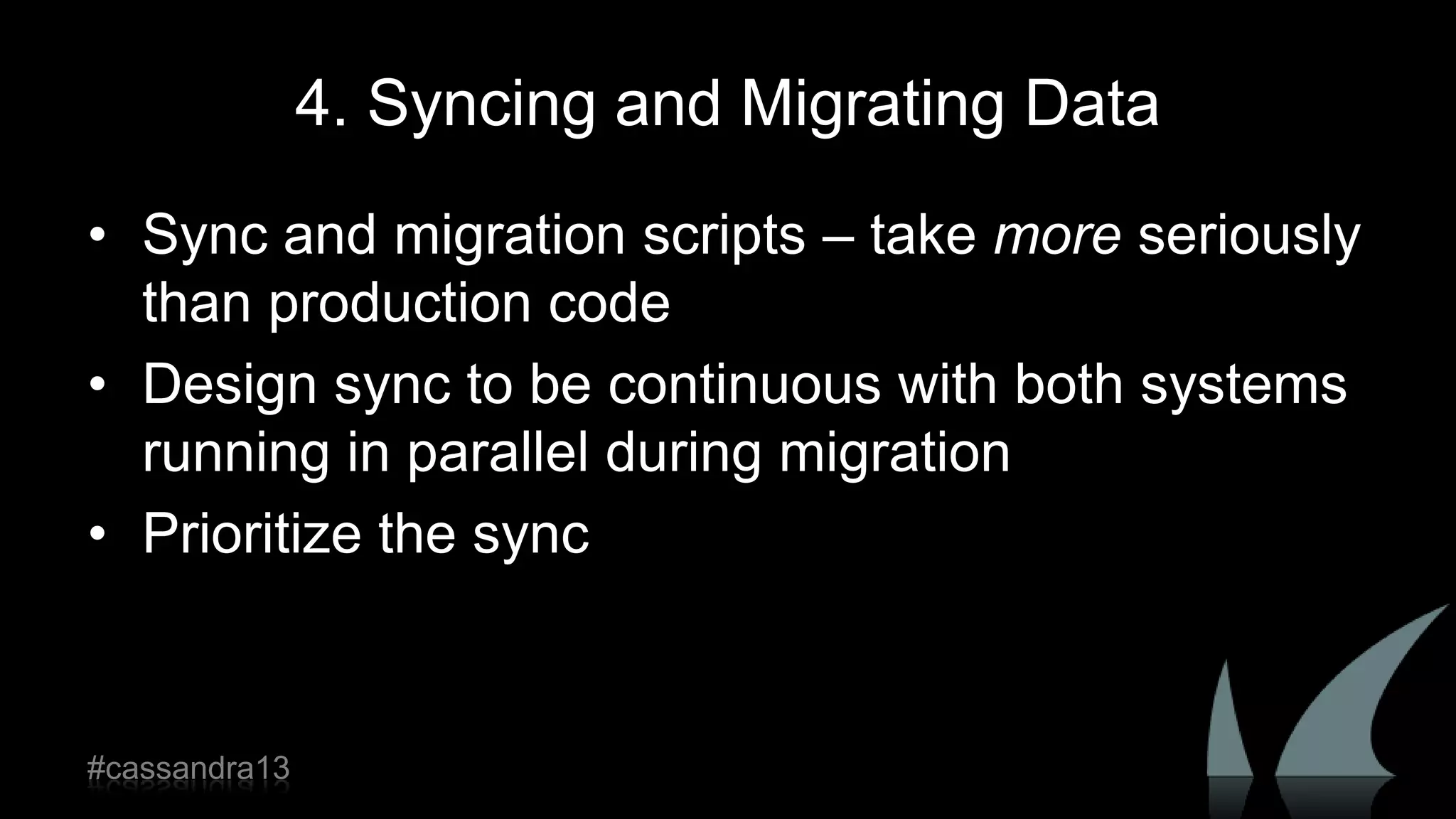

21. 4. Syncing and Migrating Data
• Sync and migration scripts – take more seriously
than production code
• Design sync to be continuous with both systems
running in parallel during migration
• Prioritize the sync
#cassandra13

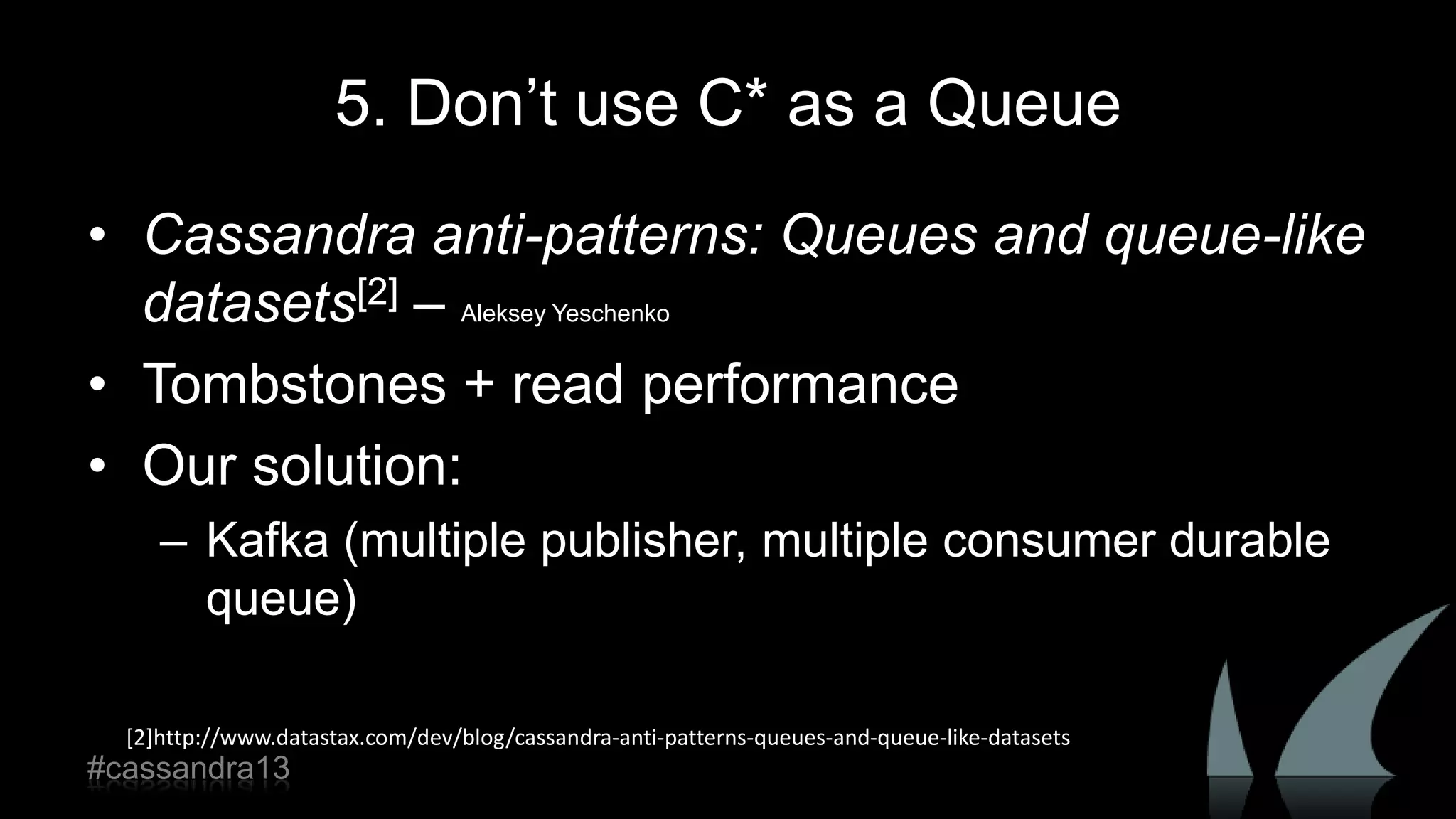

22. 5. Don‟t use C* as a Queue
• Cassandra anti-patterns: Queues and queue-like
datasets[2] – Aleksey Yeschenko
• Tombstones + read performance
• Our solution:
– Kafka (multiple publisher, multiple consumer durable
queue)
[2]http://www.datastax.com/dev/blog/cassandra-anti-patterns-queues-and-queue-like-datasets
#cassandra13

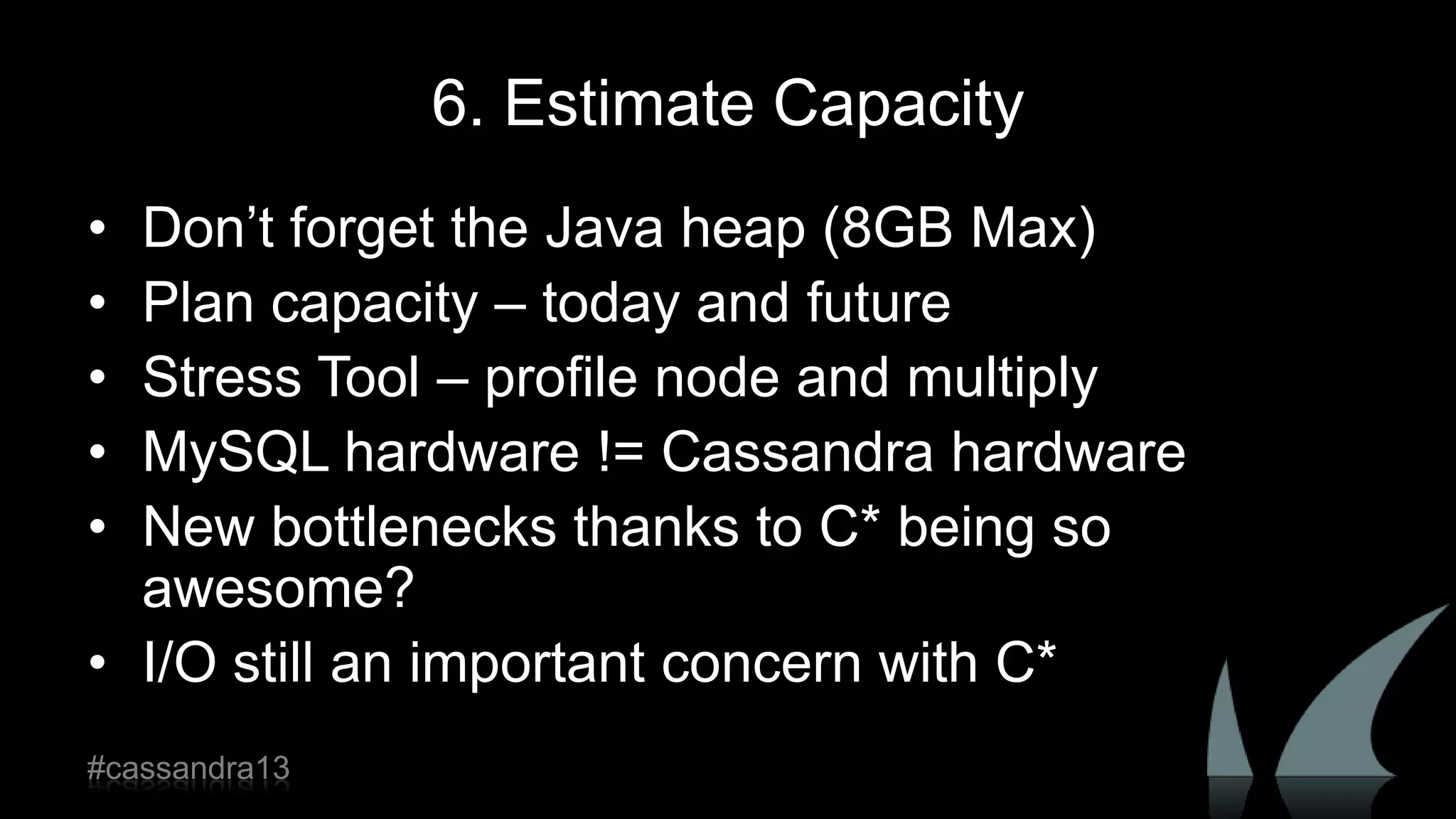

23. 6. Estimate Capacity
• Don‟t forget the Java heap (8GB Max)
• Plan capacity – today and future
• Stress Tool – profile node and multiply
• MySQL hardware != Cassandra hardware
• New bottlenecks thanks to C* being so
awesome?
• I/O still an important concern with C*
#cassandra13

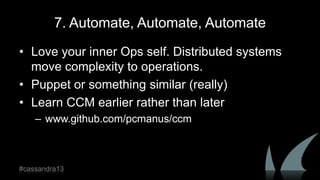

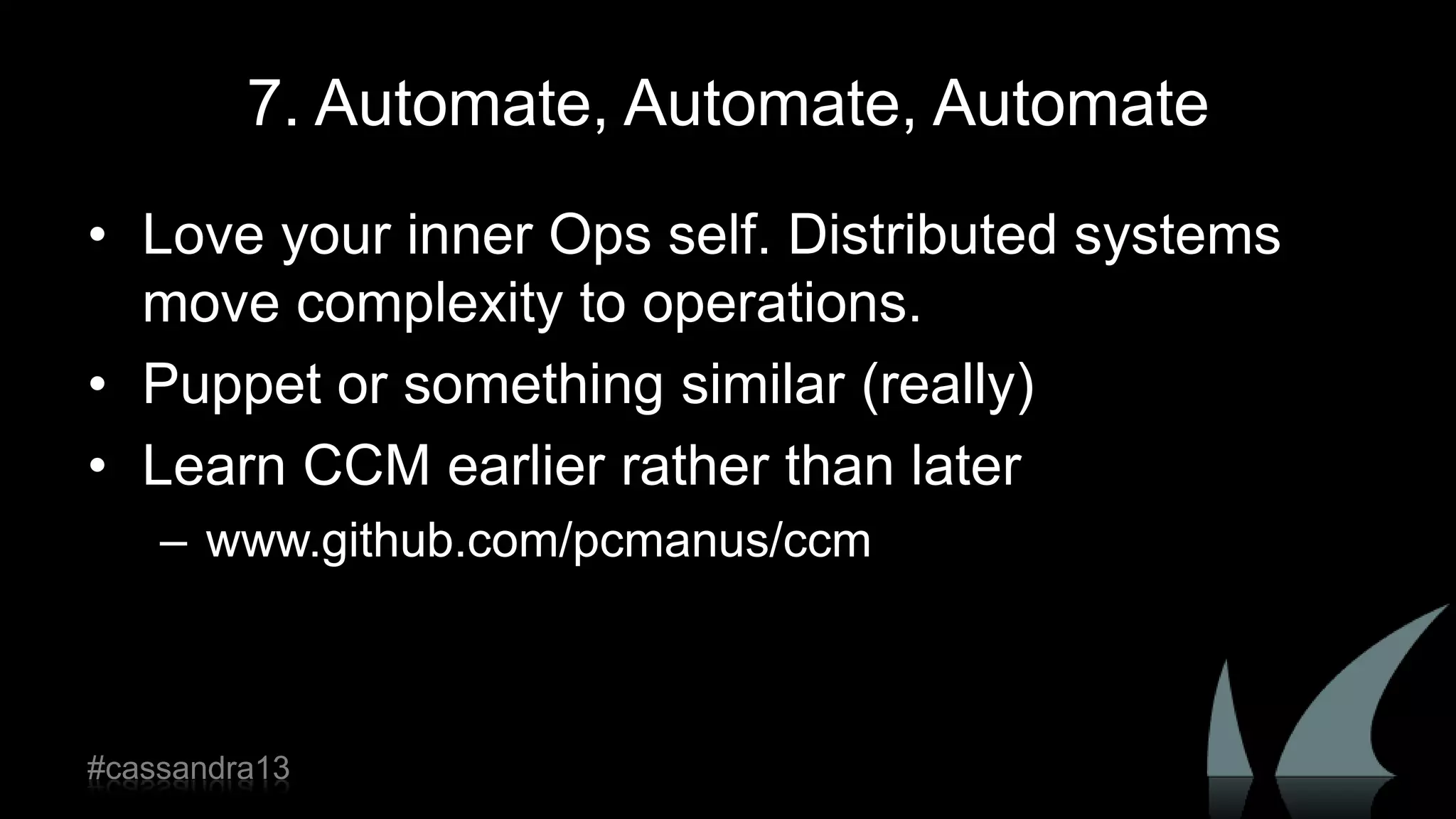

24. 7. Automate, Automate, Automate
• Love your inner Ops self. Distributed systems
move complexity to operations.
• Puppet or something similar (really)
• Learn CCM earlier rather than later
– www.github.com/pcmanus/ccm
#cassandra13

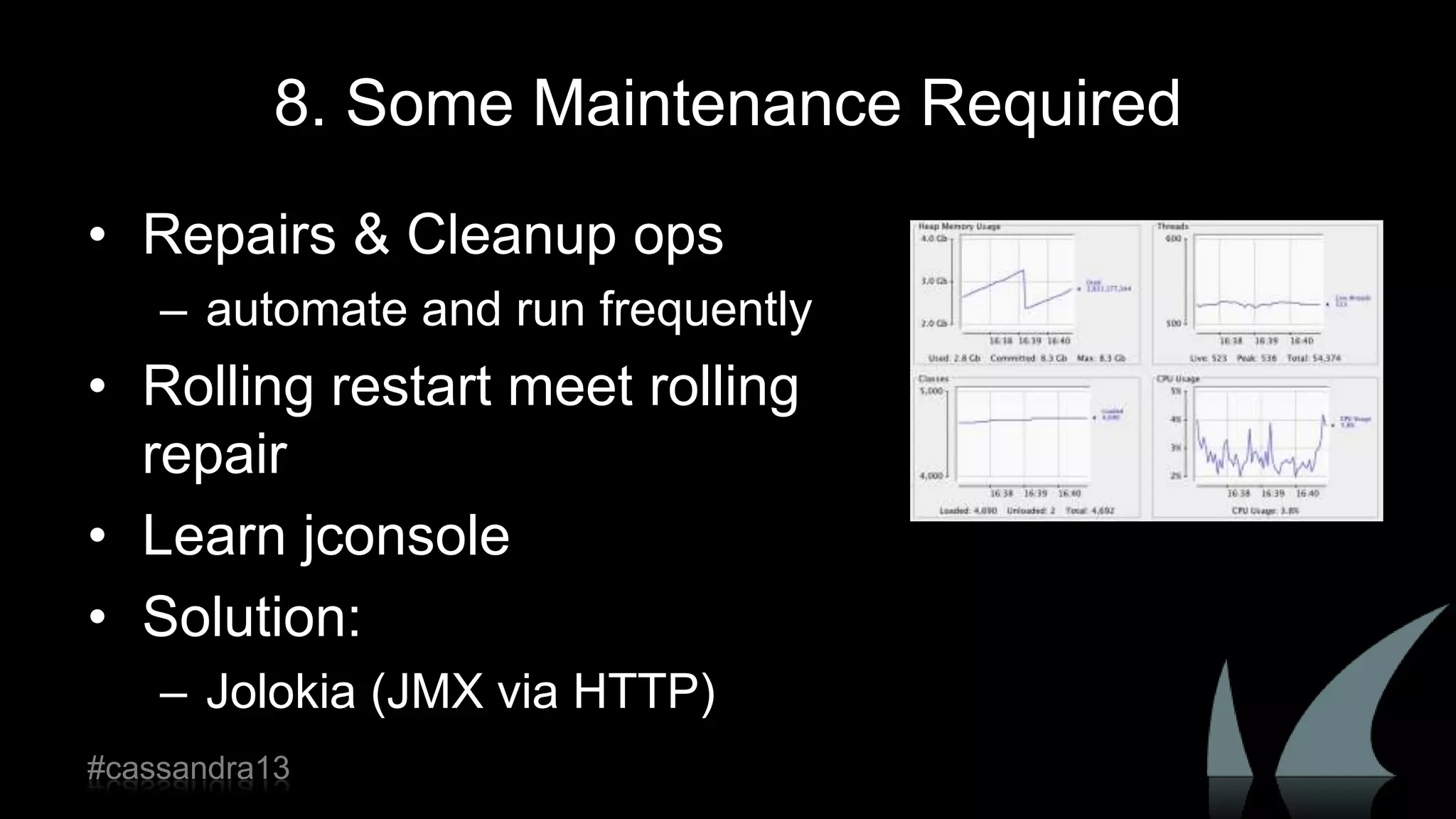

25. 8. Some Maintenance Required
• Repairs & Cleanup ops
– automate and run frequently
• Rolling restart meet rolling
repair
• Learn jconsole
• Solution:
– Jolokia (JMX via HTTP)
#cassandra13

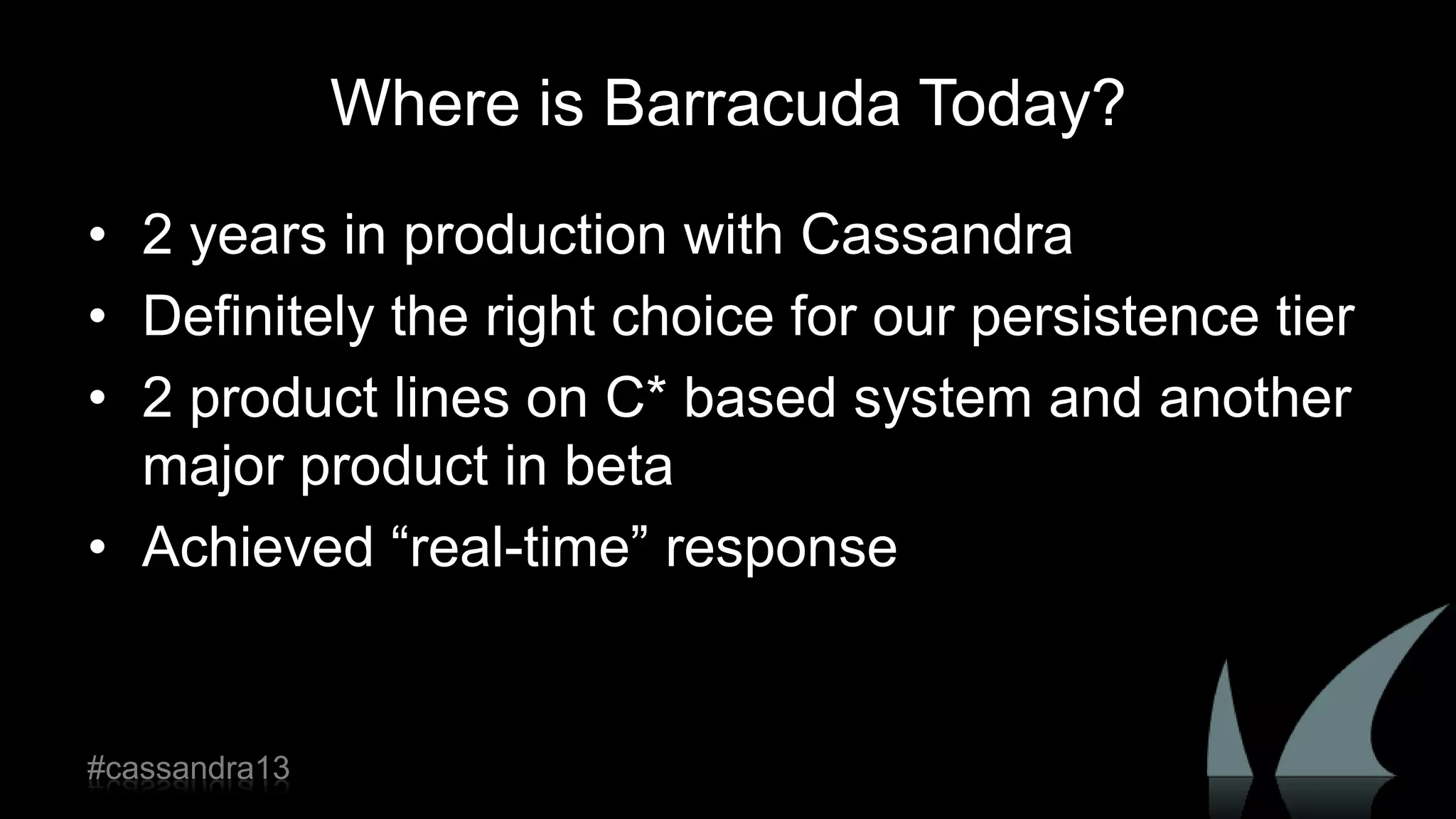

26. Where is Barracuda Today?
• 2 years in production with Cassandra
• Definitely the right choice for our persistence tier
• 2 product lines on C* based system and another
major product in beta
• Achieved “real-time” response
#cassandra13

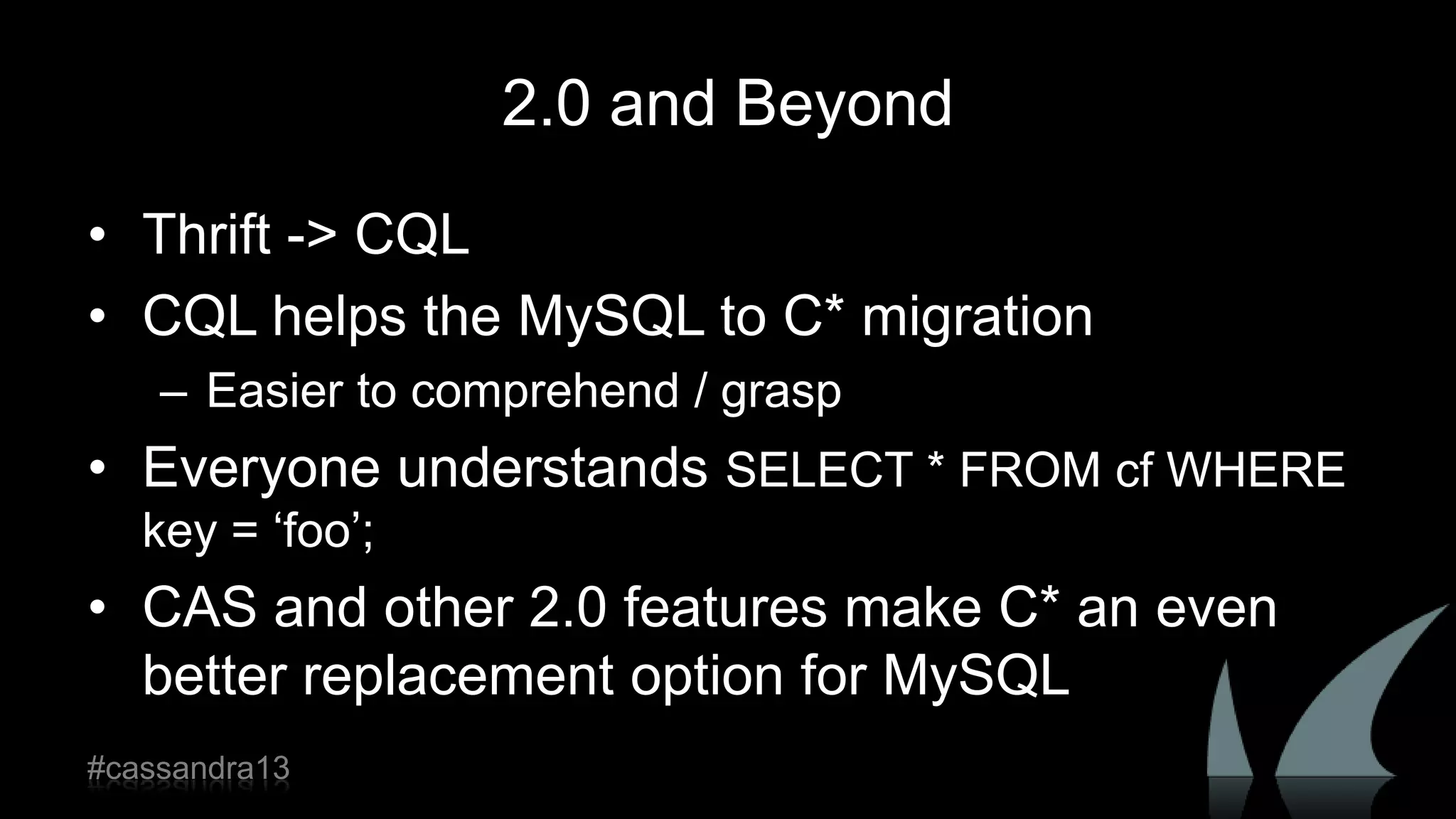

27. 2.0 and Beyond
• Thrift -> CQL
• CQL helps the MySQL to C* migration
– Easier to comprehend / grasp
• Everyone understands SELECT * FROM cf WHERE
key = „foo‟;
• CAS and other 2.0 features make C* an even
better replacement option for MySQL
#cassandra13

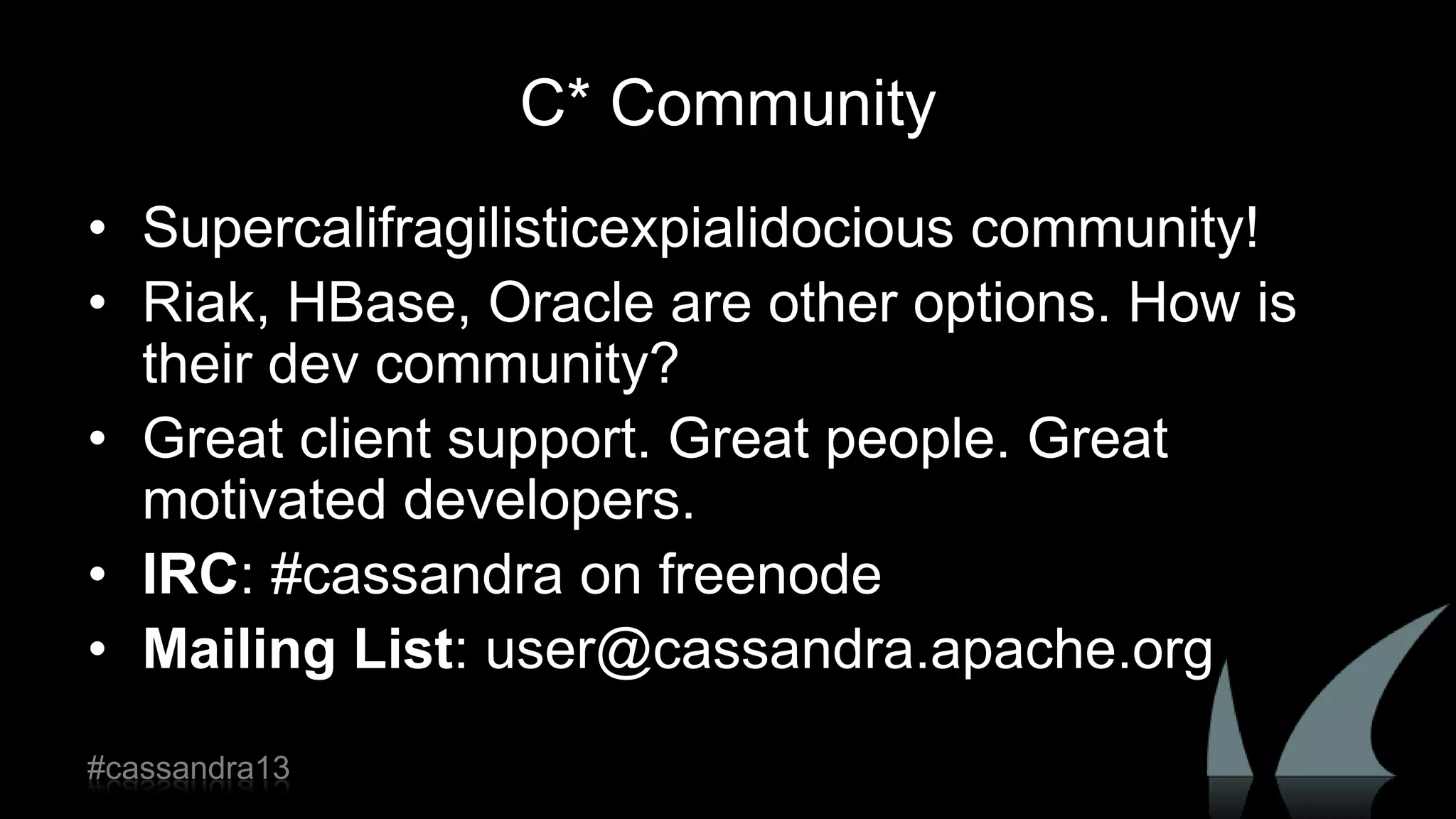

28. C* Community
• Supercalifragilisticexpialidocious community!
• Riak, HBase, Oracle are other options. How is
their dev community?
• Great client support. Great people. Great
motivated developers.
• IRC: #cassandra on freenode
• Mailing List: user@cassandra.apache.org
#cassandra13
