1. KERNEL MEMORY ALLOCATION,
REVIEW OF RELOCATION,
PROGRAM FORMS
Roopak Bhama
(MCA/25003/18)
BIRLA INSTITUTE OF TECHNOLOGY
MESRA, JAIPUR CAMPUS

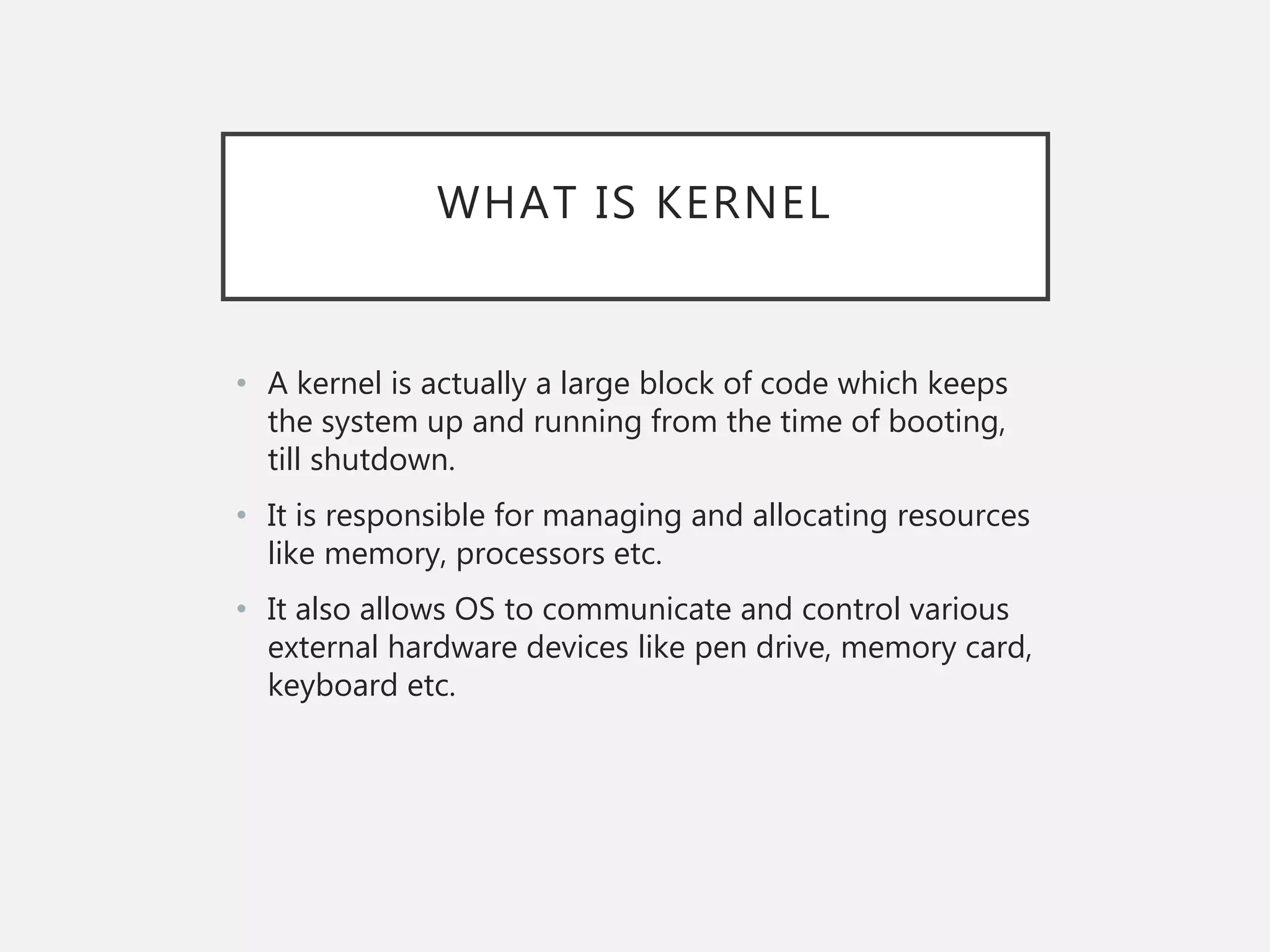

2. WHAT IS KERNEL
• A kernel is actually a large block of code which keeps
the system up and running from the time of booting,
till shutdown.
• It is responsible for managing and allocating resources
like memory, processors etc.
• It also allows OS to communicate and control various
external hardware devices like pen drive, memory card,
keyboard etc.

3. MICRO KERNEL
• Mostly used by OS.
• It manages all system
resources.
• User Services and Kernel
Services are implemented in
different address space.
• The kernel program runs in
another memory area called
“kernel space”.
• Kernel programming means
power to access anything
and everything in a system.
MONOLITHIC KERNEL
MICRO KERNEL VS MONOLITHIC
KERNEL

4. USER PROGRAM
• User program or
applications runs in a
memory area called “user
space”.
• Cannot access kernel space
directly, so system calls are
made which acts as software
interrupts.
• The kernel program runs in
another memory area called
“kernel space”.
• Kernel programming means
power to access anything
and everything in a system,
called supper access mode.
KERNEL PROGRAM
USER PROGRAM VS KERNEL
PROGRAM

5. DIFFERENCE BETWEEN KERNEL
AND USER PROGRAM
• Execution Differences
• Kernel modules have separate address space.
• Kernel modules have higher execution privilege.
• Kernel modules do not execute sequentially
• Structural Differences
• Kernel modules do not define a main program.
• instead of main(), looks for open() as it’s a software interface
for I/O
• Kernel modules use different header files.
• Kernel modules can be customized for hardware.

6. ALLOCATING KERNEL MEMORY
• Unix divides memory into fixed size of continuous block
of virtual memory page.
• Page size is a power of two – typical size is 4 Kbytes.
• It is treated differently from user memory.
• Kernel request memory of different structures of variable
sizes
• minimize waste due to fragmentation
• Two strategies are used for memory managing
• Buddy System
• Slab System

7. THE BUDDY SYSTEM
• Buddy allocation system is an algorithm in which a
larger memory block is divided into small parts to
satisfy the request. Each equal half of a split buffer is
called a buddy.
• In the same manner one of the two buddies will
further divide into smaller parts until the request is
fulfilled.

8. THE BUDDY SYSTEM
• Advantages – flexible – allows to use buffers of different
sizes, easy exchange of memory between the allocator
and the paging system.
• Disadvantage - poor performance, inconvenient
programming interface, impossible to release a part of a
buffer.

9. THE BINARY BUDDY SYSTEM
• The buddy system maintains a list of the free blocks of
each size (called a free list), so that it is easy to find a
block of the desired size, if one is available.
• It provides storage in block sizes which are powers of
2, from a pool of available memory space of size 2k.
• When a block of size 2k is requested, the available
space list is examined. If a block of the proper size is
available, it is used. Otherwise, an iterative request for
a block of size 2k+1 is made.
• The effectiveness is determined by measuring two
types of losses in storage utilization: internal memory
fragmentation and external memory fragmentation.

10. THE BINARY BUDDY SYSTEM
• Internal fragmentation is the
result of allocating only blocks
of predetermined sizes, so
that a request for memory
must be rounded up to the
next larger block size.
• External fragmentation is
the result of breaking down
memory into separate blocks
which cannot be combined
into a desired larger block.

11. WEIGHTED BUDDY SYSTEM
• The differences between binary and weighted methods
lie in how the blocks are split, the mechanism of
address calculation.
• In Binary, 2k is followed while creating memory blocks
but in Weighted, 3*2k is followed.
• A block of size 2k+2 is split into two blocks of sizes
3*2k and 2k. Blocks of size 3*2k are split into sizes and
2k.
• Blocks split from the same parent block are called
buddies. Since the buddies of a pair have different
sizes, they are called weighted buddies.

12. WEIGHTED BUDDY SYSTEM

13. FIBONACCI BUDDY SYSTEM
• This is the system in which blocks are divided into sizes
which are Fibonacci numbers.
• 0, 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, 144, 233, 377, 610.
• Advantages
• Memory Allocation is implemented using binary tree.
• Fast to allocate and deallocate.
• Cost to allocate and deallocate memory is low.
• Easy address calculation
• Coalescing – Defined as how quickly adjacent buddies can be
combined to form larger segments.

14. SLAB ALLOCATION
• In slab allocation memory chunks suitable to fit data
objects of certain type or size are pre allocated. Cache
does not free the space immediately. Two terms
required are:
• Slab
• made up of one or more physically contiguous pages.
• The slab is the actual container of data
• Cache
• represents a small amount of very fast memory.
• A cache consists of one or more slabs. There is a single
cache for each unique kernel data structure.

15. SLAB ALLOCATION

16. IMPLEMENTING SLAB
ALLOCATION
• The slab allocation algorithm uses caches to store
kernel objects. When a cache is created a number of
objects which are initially marked as free are allocated
to the cache.
• When a new object for a kernel data structure is
needed, the allocator can assign any free object from
the cache to satisfy the request. The object assigned
from the cache is marked as used.
• In Linux, a slab may in one of three possible states:
• Full – All objects in the slab are marked as used
• Empty – All objects in the slab are marked as free
• Partial – The slab consists of both
