The document provides information about the Kathrein 86010026 Central Control Unit, including: 1) It is used to control Remote Electrical Tilt (RET) and Tower Mounted Amplifiers from an indoor location. 2) It connects to the base station via Ethernet and RS-232 and provides power and control signals to RET units via RS-485. 3) It can control up to 27 RET units and 6 amplifiers and has interfaces for network management and alarms.

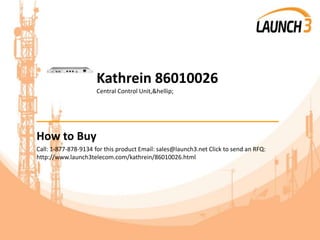

2. Kathrein 86010026
Central Control Unit,…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/kathrein/86010026.html

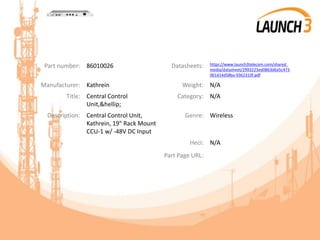

3. Part number: 86010026 Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/2993223ed08b3d6a5c473
001d14d58ba-9362310f.pdf
Manufacturer: Kathrein Weight: N/A
Title: Central Control
Unit,…
Category: N/A
Description: Central Control Unit,
Kathrein, 19" Rack Mount
CCU-1 w/ -48V DC Input
Genre: Wireless
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Kathrein replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Kathrein 86010026 -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Kathrein
86010026. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Kathrein 86010026 item while
inventory and sale last.

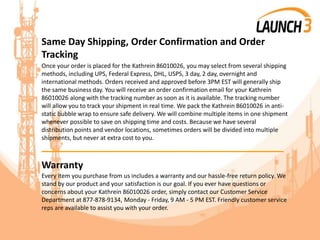

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Kathrein 86010026, you may select from several shipping
methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Kathrein
86010026 along with the tracking number as soon as it is available. The tracking number
will allow you to track your shipment in real time. We pack the Kathrein 86010026 in anti-
static bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Kathrein 86010026 order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Kathrein
86010026, provides maintenance contracts,
De-installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

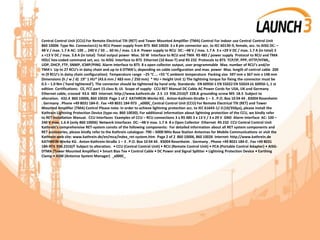

7. Central Control Unit (CCU) For Remote Electrical Tilt (RET) and Tower Mounted Amplifier (TMA) Control For indoor use Central Control Unit
860 10006 Type No. Connectors1) to RCU Power supply from BTS 860 10026 3 x 8 pin connector acc. to IEC 60130-9, female, acc. to AISG DC: –
48 V / max. 1.7 A AC: 100 … 240 V / 50 ... 60 Hz / max. 1.6 A Power supply to RCU DC: –48 V / max. 1.7 A 3 x +29 V DC / max. 1.7 A (in total) 3
x +13 V DC / max. 3.8 A (in total) Total output power Max. 50 W Interface to RCU and TMA RS 485 / power supply Protocol to RCU and TMA
HDLC hex-coded command set, acc. to AISG Interface to BTS Ethernet (10 Base-T) and RS 232 Protocols to BTS TCP/IP, PPP, HTTP/HTML,
UDP, DHCP, FTP, SNMP, ICMP/PING Alarm interface to BTS 8 x open collector output, user programmable Max. number of RCU’s and/or
TMA’s Up to 27 RCU’s in daisy chain and up to 6 DTMA’s; depending on cable configuration and max. power Max. length of control cable 200
m (9 RCU’s in daisy chain configuration) Temperature range –25 °C ... +55 °C ambient temperature Packing size 597 mm x 367 mm x 148 mm
Dimensions (h / w / d) 19" 1 HU* (43.6 mm / 483 mm / 250 mm) * HU = Height Unit 1) The tightning torque for fixing the connector must be
0.5 – 1.0 Nm (´hand tightened’). The connector should be tightened by hand only. Standards: EN 60950-1 EN 55022 EN 55024 UL 60950-1, 1 st
edition Certifications: CE, FCC part 15 class B; UL Scope of supply: CCU RET Manual DC Cable AC Power Cords for USA, UK and Germany
Ethernet cable, crossed 43.6 483 Internet: http://www.kathrein.de 2.5 13 936.2310/f 228.8 grounding screw M5 18.5 Subject to
alteration. 432.4 860 10006, 860 10026 Page 1 of 2 KATHREIN-Werke KG . Anton-Kathrein-Straße 1 – 3 . P.O. Box 10 04 44 . 83004 Rosenheim
. Germany . Phone +49 8031 184-0 . Fax +49 8031 184-973 _x000C_Central Control Unit (CCU) For Remote Electrical Tilt (RET) and Tower
Mounted Amplifier (TMA) Control Please note: In order to achieve lightning protection acc. to IEC 61643-1/-3 (10/350µs), please install the
Kathrein Lightning Protection Device (type-no. 860 10030). For additional information about lightning protection of the CCU, we kindly refer
to RET Installation Manual. CCU Interfaces Examples of CCU – RCU connections 3 x RS 485 3 x 13 V / 3 x 29 V GND Alarm Interface AC: 100 –
240 V max. 1.6 A (only 860 10006) Network Interfaces DC: –48 V max. 1.7 A 8 x Open Collector Ethernet RS 232 CCU Central Control Unit
Kathrein’s comprehensive RET-system consits of the following components: For detailed information about all RET system components and
RET accessories, please kindly refer to the Kathrein catalogue: 790 – 6000 MHz Base Station Antennas for Mobile Communications or visit the
Kathrein web site: www.kathrein.de/en/mca/index_ret-system.htm Page 2 of 2 860 10006, 860 10026 Internet: http://www.kathrein.de
KATHREIN-Werke KG . Anton-Kathrein-Straße 1 – 3 . P.O. Box 10 04 44 . 83004 Rosenheim . Germany . Phone +49 8031 184-0 . Fax +49 8031
184-973 936.2310/f Subject to alteration. • CCU (Central Control Unit) • RCU (Remote Control Unit) • PCA (Portable Control Adapter) • AISG-
DTMA (Tower Mounted Amplifier) • Smart Bias Tee • Control Cable • DC Power and Signal Splitter • Lightning Protection Device • Earthing
Clamp • ASM (Antenna System Manager) _x000C_
