This document provides product information and purchasing details for the Kathrein 840 10452 control cables. It describes the cables' specifications, including their connectors, construction, temperature range, and bend radius. Ordering information is given for various cable lengths. Maximum total cable lengths are specified depending on the number and configuration of remote control units used.

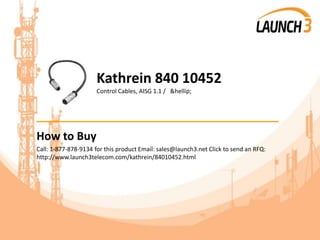

2. Kathrein 840 10452
Control Cables, AISG 1.1 / …
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/kathrein/84010452.html

3. Part number: 840 10452 Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/7e4f37be4c69882f43bc14
83810ef709-840_104.pdf
Manufacturer: Kathrein Weight: N/A
Title: Control Cables, AISG 1.1 /
…
Category: N/A
Description: Control Cables, AISG 1.1 /
2.0, 200 METERS, 8 P
The Kathrein remote
control cables are made
with connectors to
match...
Genre: Wireless
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Kathrein replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Kathrein 840 10452 -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Kathrein 840
10452. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Kathrein 840 10452 item while
inventory and sale last.

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Kathrein 840 10452, you may select from several shipping
methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Kathrein 840
10452 along with the tracking number as soon as it is available. The tracking number will
allow you to track your shipment in real time. We pack the Kathrein 840 10452 in anti-
static bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Kathrein 840 10452 order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Kathrein
840 10452, provides maintenance contracts,
De-installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

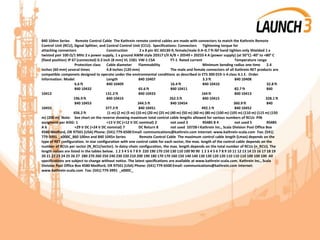

7. 840 104nn Series Remote Control Cable The Kathrein remote control cables are made with connectors to match the Kathrein Remote
Control Unit (RCU), Signal Splitter, and Central Control Unit (CCU). Specifications: Connectors Tightening torque for
attaching connectors Construction 2 x 8 pin IEC 60130-9, female/male 0.4–0.7 ft-lbf hand tighten only Shielded 1 x
twisted pair 100 Ω/1 MHz 2 x power supply, 1 x ground AWM style 20317 I/II A/B + 20549 + 20233 4 A (power supply) (at 50°C) -40° to +80° C
(fixed position) IP 67 (connected) 0.3 inch (8 mm) VL 1581 VW-1 CSA FT-1 Rated current Temperature range
Protection class Cable diameter Flammability Minimum bending radius one time 2.4
inches (60 mm) several times 4.8 inches (120 mm) The male and female connectors of all Kathrein RET products are
compatible componets designed to operate under the environmental conditions as described in ETS 300 019-1-4 class 4.1 E. Order
Information: Model Length 840 10407 3.3 ft 840 10408
6.6 ft 840 10409 16.4 ft 840 10410 32.8 ft
840 10432 65.6 ft 840 10411 82.7 ft 840
10412 131.2 ft 840 10433 164 ft 840 10413
196.9 ft 840 10414 262.5 ft 840 10415 328.1 ft
840 10453 344.5 ft 840 10454 360.9 ft 840
10455 377.3 ft 840 10451 492.1 ft 840 10452
656.2 ft (1 m) (2 m) (5 m) (10 m) (20 m) (25 m) (40 m) (50 m) (60 m) (80 m) (100 m) (105 m) (110 m) (115 m) (150
m) (200 m) Note: See chart on the reverse showing maximum total control cable lengths allowed for various numbers of RCUs PIN
assigment per AISG: 1 +13 V DC (+12 V DC nominal) 2 not used 3 RS485 B 4 not used 5 RS485
A 6 +29 V DC (+24 V DC nominal) 7 DC Return 8 not used 10728-I Kathrein Inc., Scala Division Post Office Box
4580 Medford, OR 97501 (USA) Phone: (541) 779-6500 Email: communications@kathrein.com Internet: www.kathrein-scala.com Fax: (541)
779-3991 _x000C_860 100nn and 840 1045n Series Remote Control Cable The maximum control cable length (Lmax) depends on the
type of RET configuration. In star configuration with one control cable for each sector, the max. length of the control cable depends on the
number of RCUs per sector (N_RCU/sector). In daisy-chain configuration, the max. length depends on the total number of RCUs (n_RCU). The
length values are listed in the tables below. 1 2 3 4 5 6 7 8 9 220 190 170 150 130 110 100 90 90 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 280 270 260 250 240 230 220 210 200 190 180 170 170 160 150 140 140 130 130 120 120 110 110 110 100 100 100 All
specifications are subject to change without notice. The latest specifications are available at www.kathrein-scala.com. Kathrein Inc., Scala
Division Post Office Box 4580 Medford, OR 97501 (USA) Phone: (541) 779-6500 Email: communications@kathrein.com Internet:
www.kathrein-scala.com Fax: (541) 779-3991 _x000C_
