Ge Feeder Protection Numerical Relays

Digital And Smart Grid Enterprises
Digital And Smart Grid Enterprises are known as the most reputed Trader of Automation Controller,
Digital Grid, Protection Relay, Automation Control System, Motor Protection Relay, etc. Our
company is a Sole Proprietorship (Individual) based company.
We are consistently progressing in the industry and made our mark in the Power Sector. Our
Services are well acclaimed and appreciated by our clients. We have never looked back since
our foundation and expanded our services on a PAN INDIA basis. Our goal is to give the best
technical solutions which are commercially viable without compromising the technical
aspect.
At DSG Enterprises, we believe that, it is essential to change with time and to make things change
smartness is essential.
www.dsgenterprises.in , info@dsgenterprises.in, +91-9819614841, +91-9833686249
2

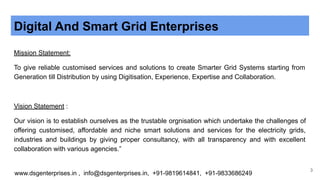

Mission Statement:
To give reliable customised services and solutions to create Smarter Grid Systems starting from
Generation till Distribution by using Digitisation, Experience, Expertise and Collaboration.
Vision Statement :
Our vision is to establish ourselves as the trustable orgnisation which undertake the challenges of
offering customised, affordable and niche smart solutions and services for the electricity grids,
industries and buildings by giving proper consultancy, with all transparency and with excellent
collaboration with various agencies.”
3

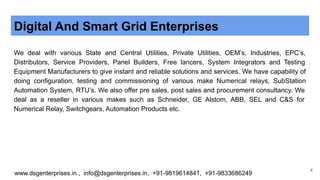

We deal with various State and Central Utilities, Private Utilities, OEM’s, Industries, EPC’s,
Distributors, Service Providers, Panel Builders, Free lancers, System Integrators and Testing
Equipment Manufacturers to give instant and reliable solutions and services. We have capability of
doing configuration, testing and commissioning of various make Numerical relays, SubStation
Automation System, RTU’s. We also offer pre sales, post sales and procurement consultancy. We
deal as a reseller in various makes such as Schneider, GE Alstom, ABB, SEL and C&S for
Numerical Relay, Switchgears, Automation Products etc.
4

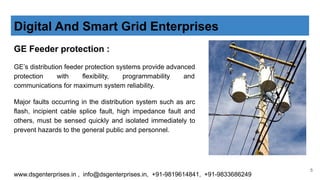

GE Feeder protection :
GE’s distribution feeder protection systems provide advanced
protection with flexibility, programmability and
communications for maximum system reliability.
Major faults occurring in the distribution system such as arc
flash, incipient cable splice fault, high impedance fault and
others, must be sensed quickly and isolated immediately to
prevent hazards to the general public and personnel.
5

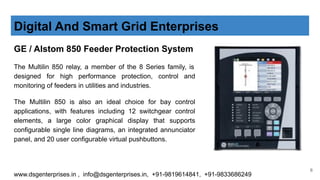

GE / Alstom 850 Feeder Protection System
The Multilin 850 relay, a member of the 8 Series family, is
designed for high performance protection, control and
monitoring of feeders in utilities and industries.
The Multilin 850 is also an ideal choice for bay control
applications, with features including 12 switchgear control
elements, a large color graphical display that supports
configurable single line diagrams, an integrated annunciator
panel, and 20 user configurable virtual pushbuttons.
6

GE / Alstom F650 Feeder Protection
System :
It gives high end features in an economical package.
The F650, a member of the 650 family of protection relays, is
high performance digital device that incorporates protection,
control, and metering in a economical package.
Use the F650 to protect HV/MV feeders, bus couplers,
transformers and capacitor banks. The F650 is the first
feeder relay with remote I/O capabilities via the CIO module.
7

GE / Alstom MiCOM Agile P14N, P14D &
P94V Feeder Protection:
The P14N non-directional feeder, P14D directional feeder,
and P94V voltage and frequency IEDs are ideal for
protection, control and monitoring of overhead lines,
underground cables, busbars, breakers, transformers,
reactors and distributed generation.
For application in-solidly grounded, resistance-earthed, and
Petersen coil systems alike, additionally offering advanced
cybersecurity and harmonic measurement features.
8

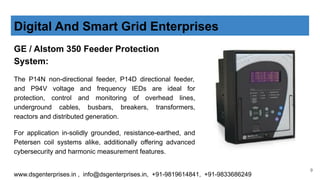

GE / Alstom 350 Feeder Protection
System:
The P14N non-directional feeder, P14D directional feeder,
and P94V voltage and frequency IEDs are ideal for
protection, control and monitoring of overhead lines,
underground cables, busbars, breakers, transformers,
reactors and distributed generation.
For application in-solidly grounded, resistance-earthed, and
Petersen coil systems alike, additionally offering advanced
cybersecurity and harmonic measurement features.
9

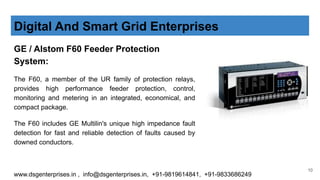

GE / Alstom F60 Feeder Protection
System:
The F60, a member of the UR family of protection relays,
provides high performance feeder protection, control,
monitoring and metering in an integrated, economical, and
compact package.
The F60 includes GE Multilin's unique high impedance fault
detection for fast and reliable detection of faults caused by
downed conductors.
10

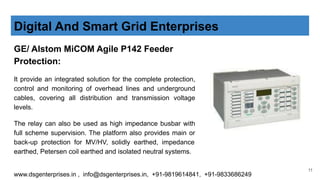

GE/ Alstom MiCOM Agile P142 Feeder
Protection:
It provide an integrated solution for the complete protection,
control and monitoring of overhead lines and underground
cables, covering all distribution and transmission voltage
levels.
The relay can also be used as high impedance busbar with
full scheme supervision. The platform also provides main or
back-up protection for MV/HV, solidly earthed, impedance
earthed, Petersen coil earthed and isolated neutral systems.
11

GE / Alstom 850D & 850P Multiple Feeder
Protection Systems:
The Multilin 850D & 850P relays, members of the 8 Series
family, have been designed for the management, protection
and control of multi feeder applications supporting both
traditional voltage inputs as well as Low Energy Analog (LEA)
inputs.
With support for industry leading communications protocols
and technologies,it provides easy integration into new or
existing SCADA or DCS for enhanced situational awareness.
12

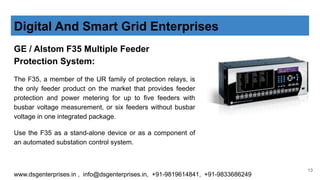

GE / Alstom F35 Multiple Feeder
Protection System:
The F35, a member of the UR family of protection relays, is
the only feeder product on the market that provides feeder
protection and power metering for up to five feeders with
busbar voltage measurement, or six feeders without busbar
voltage in one integrated package.
Use the F35 as a stand-alone device or as a component of
an automated substation control system.
13

GE / Alstom P50 Agile P153 Compact
Feeder Protection :
The P153 offers non directional overcurrent and earth fault
protection, with functions designed to cover a wide range of
applications in the protection of cables and overhead lines
deployed in industrial installations, public distribution
networks, and substations.
The P153 relays offer supervision features such as
measurement, monitoring and recording functions.
14

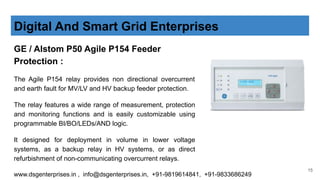

GE / Alstom P50 Agile P154 Feeder
Protection :
The Agile P154 relay provides non directional overcurrent
and earth fault for MV/LV and HV backup feeder protection.
The relay features a wide range of measurement, protection
and monitoring functions and is easily customizable using
programmable BI/BO/LEDs/AND logic.
It designed for deployment in volume in lower voltage
systems, as a backup relay in HV systems, or as direct
refurbishment of non-communicating overcurrent relays.
15

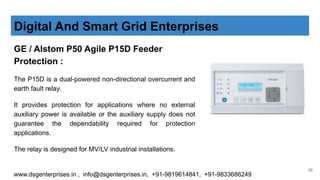

GE / Alstom P50 Agile P15D Feeder
Protection :
The P15D is a dual-powered non-directional overcurrent and
earth fault relay.
It provides protection for applications where no external
auxiliary power is available or the auxiliary supply does not
guarantee the dependability required for protection
applications.
The relay is designed for MV/LV industrial installations.
16

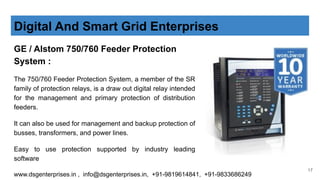

GE / Alstom 750/760 Feeder Protection
System :
The 750/760 Feeder Protection System, a member of the SR
family of protection relays, is a draw out digital relay intended
for the management and primary protection of distribution
feeders.
It can also be used for management and backup protection of
busses, transformers, and power lines.
Easy to use protection supported by industry leading
software
17
