1. Will it blend?
Joint
OpenStack
Kubernetes
Environment
A pragmatic operational assessment of if and when
Kubernetes can become an underlay for OpenStack.

2. TL;DR: Not today.
In the future, yes.

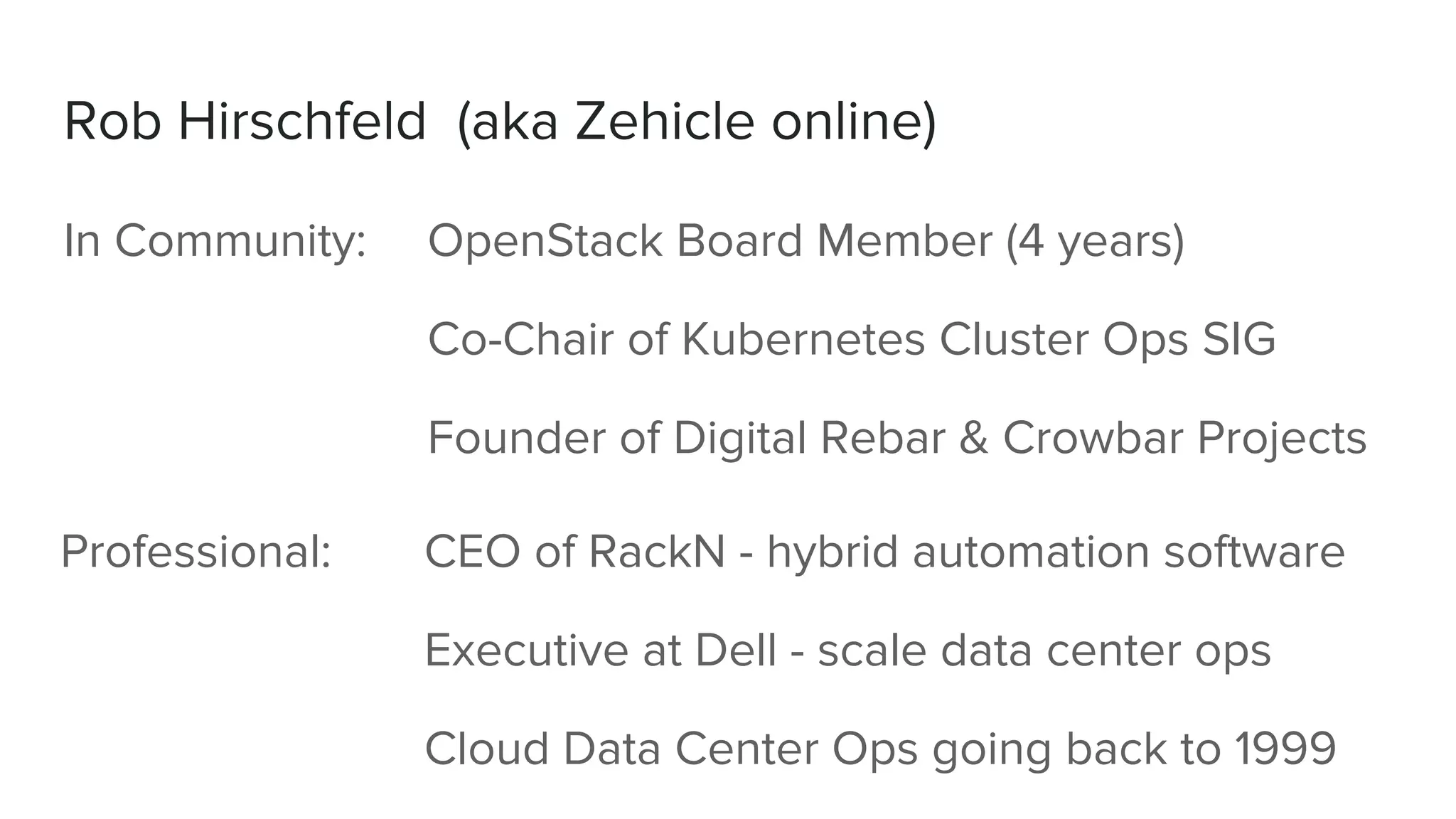

3. Rob Hirschfeld (aka Zehicle online)
In Community: OpenStack Board Member (4 years)
Co-Chair of Kubernetes Cluster Ops SIG
Founder of Digital Rebar & Crowbar Projects
Professional: CEO of RackN - hybrid automation software
Executive at Dell - scale data center ops
Cloud Data Center Ops going back to 1999

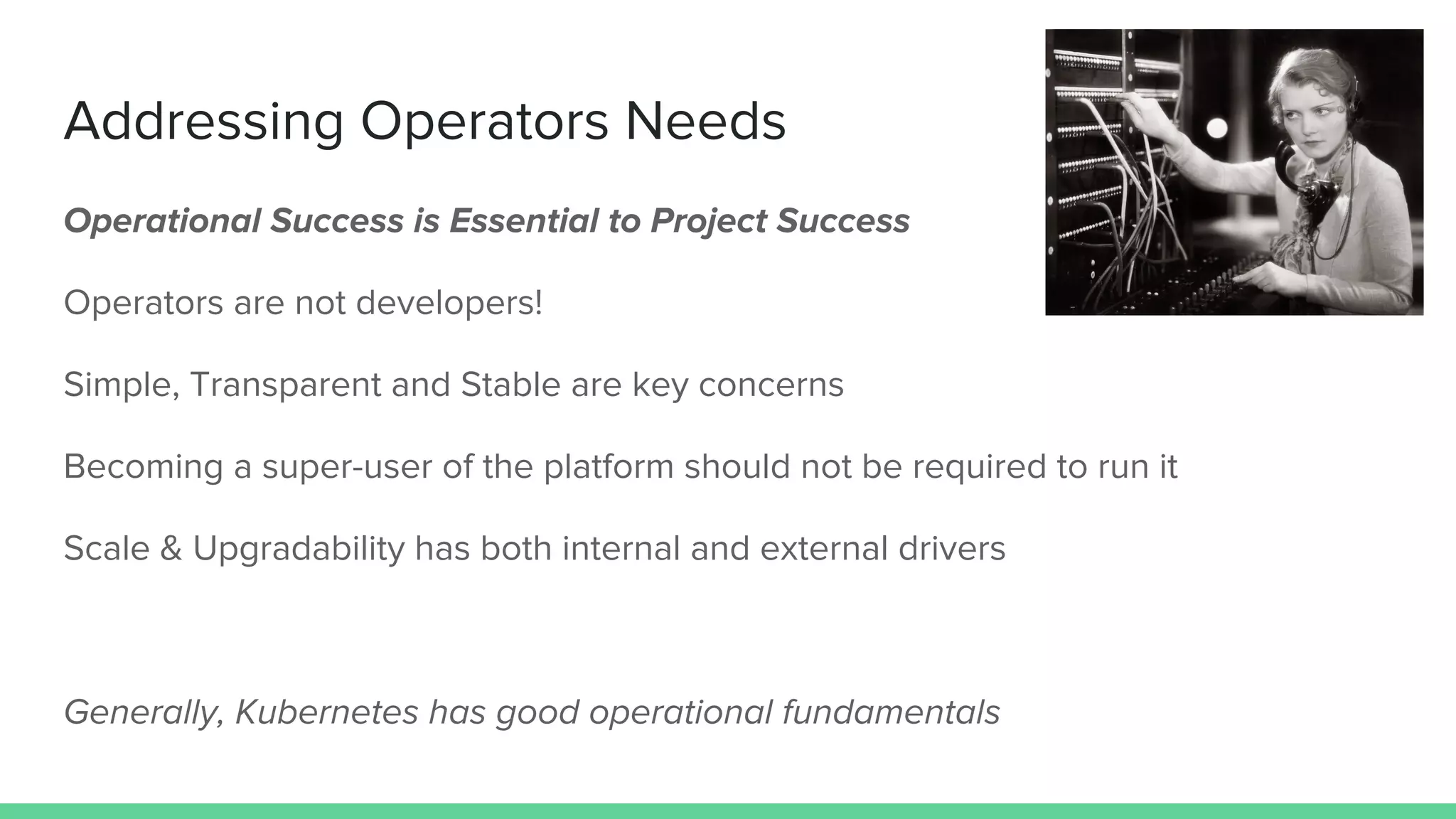

4. Addressing Operators Needs
Operational Success is Essential to Project Success
Operators are not developers!
Simple, Transparent and Stable are key concerns
Becoming a super-user of the platform should not be required to run it
Scale & Upgradability has both internal and external drivers
Generally, Kubernetes has good operational fundamentals

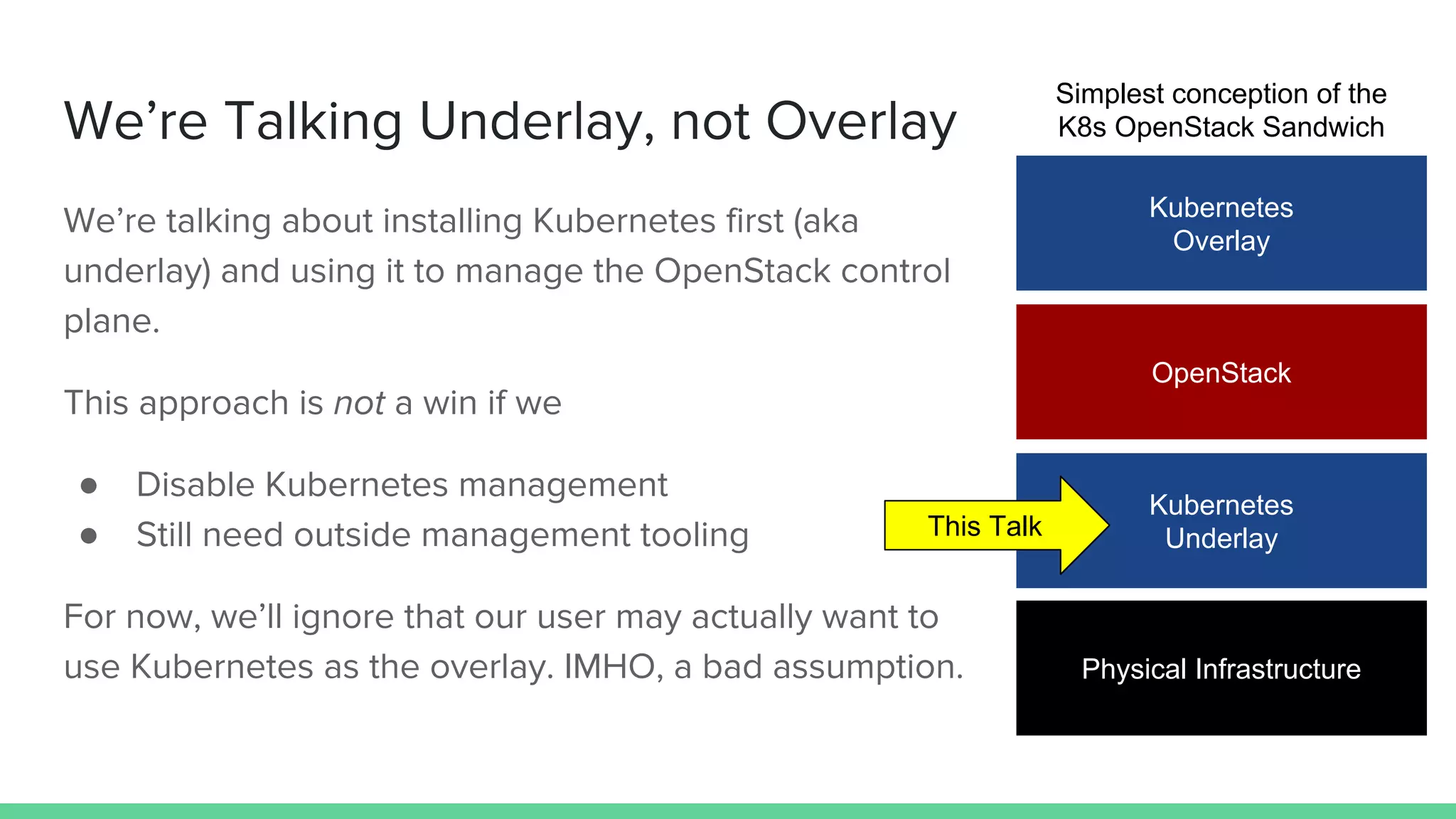

5. We’re Talking Underlay, not Overlay
We’re talking about installing Kubernetes first (aka
underlay) and using it to manage the OpenStack control
plane.
This approach is not a win if we
● Disable Kubernetes management
● Still need outside management tooling
For now, we’ll ignore that our user may actually want to
use Kubernetes as the overlay. IMHO, a bad assumption. Physical Infrastructure
Kubernetes
Underlay
OpenStack
Kubernetes
Overlay
This Talk
Simplest conception of the
K8s OpenStack Sandwich

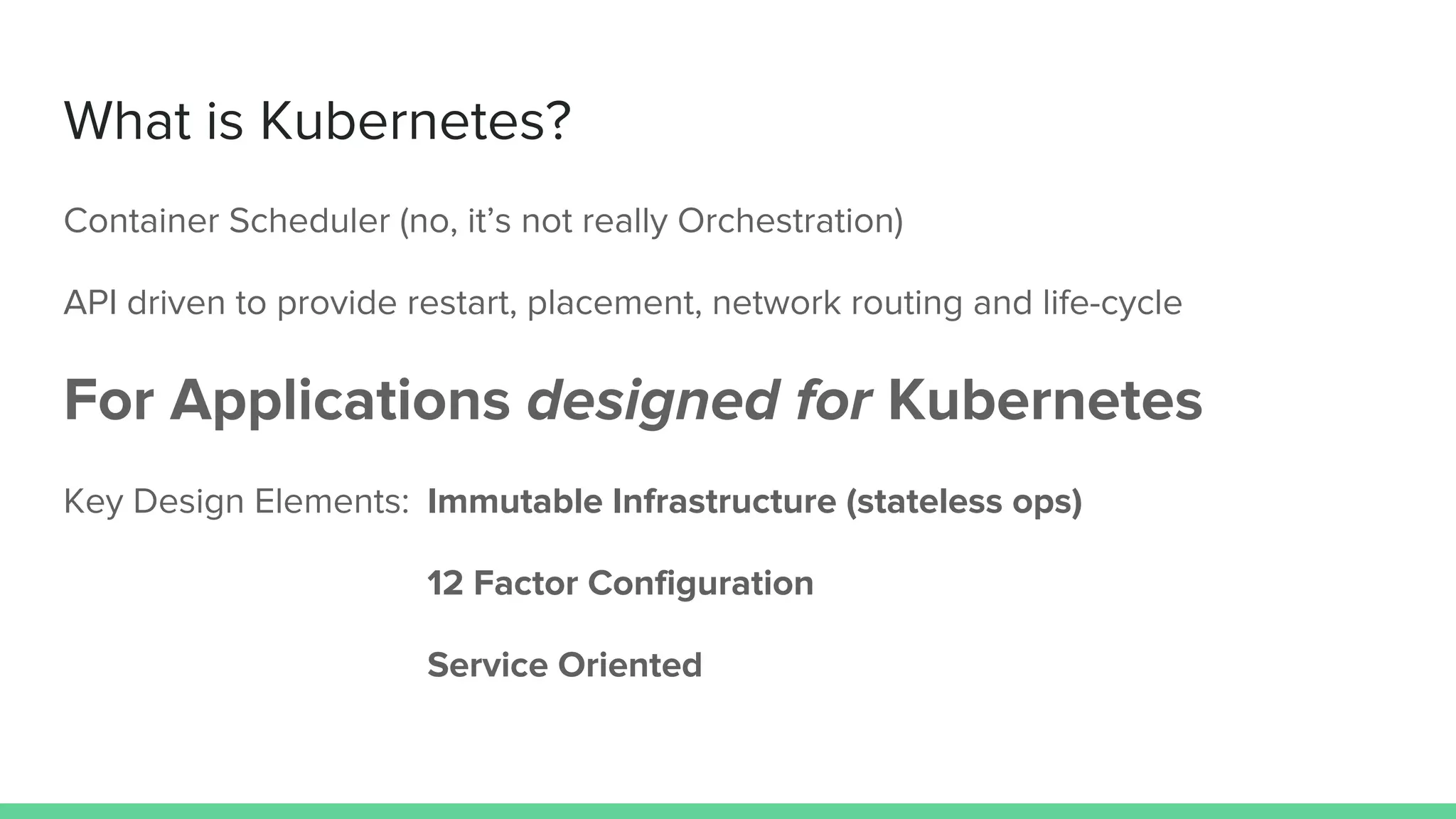

6. What is Kubernetes?
Container Scheduler (no, it’s not really Orchestration)
API driven to provide restart, placement, network routing and life-cycle
For Applications designed for Kubernetes
Key Design Elements: Immutable Infrastructure (stateless ops)
12 Factor Configuration
Service Oriented

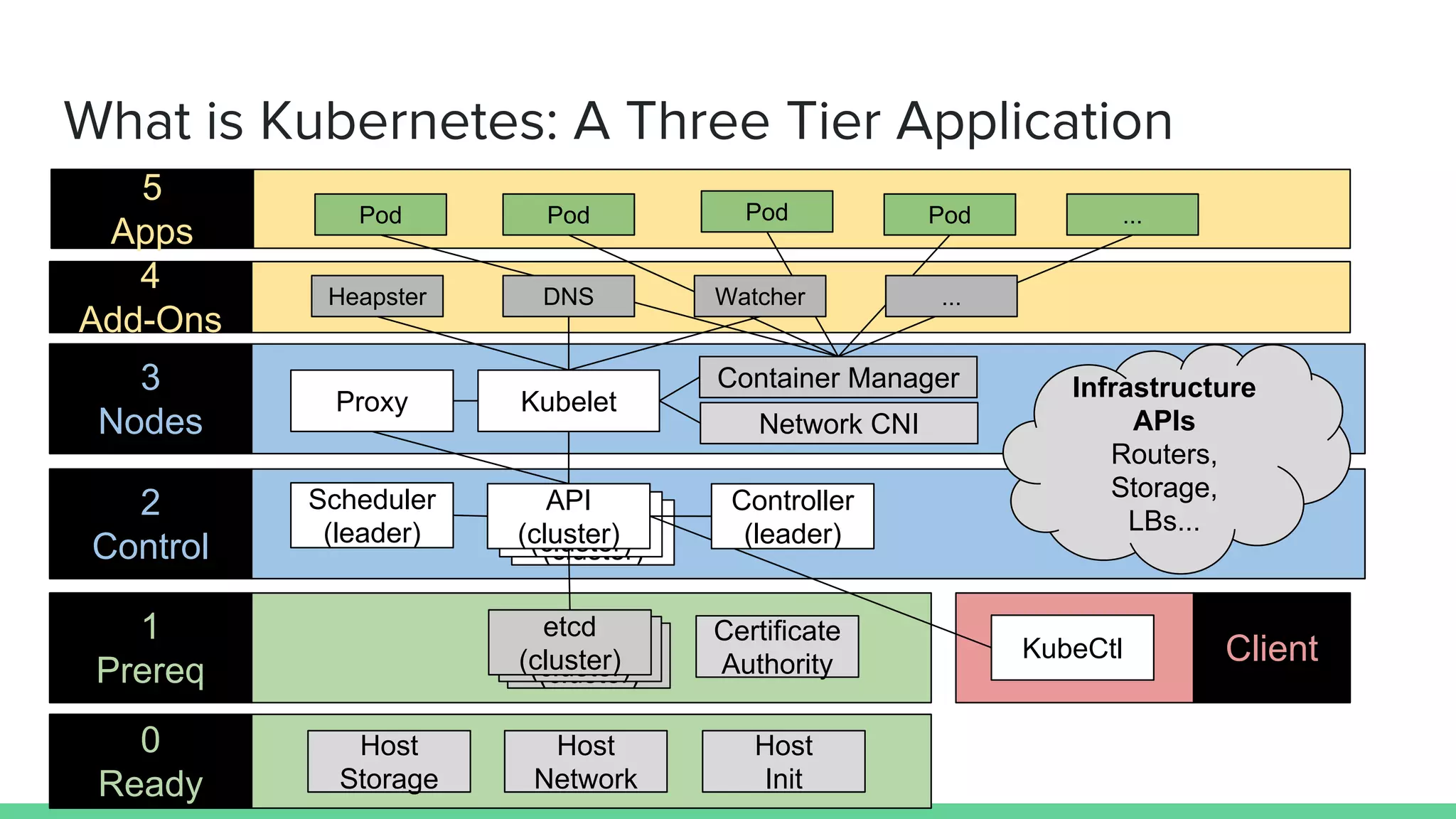

7. What is Kubernetes: A Three Tier Application
Client
0
Ready
1
Prereq
2
Control
3
Nodes
etcd
(cluster)
etcd
(cluster)
etcd
(cluster)
API
(cluster)
API
(cluster)
API
(cluster)
Kubelet
KubeCtl
Container Manager
5
Apps
Network CNI
Host
Network
Host
Storage
Host
Init
Pod Pod Pod Pod
4
Add-Ons
Certificate
Authority
Scheduler
(leader)
Heapster
Infrastructure
APIs
Routers,
Storage,
LBs...
Proxy
...
Controller
(leader)
DNS Watcher ...

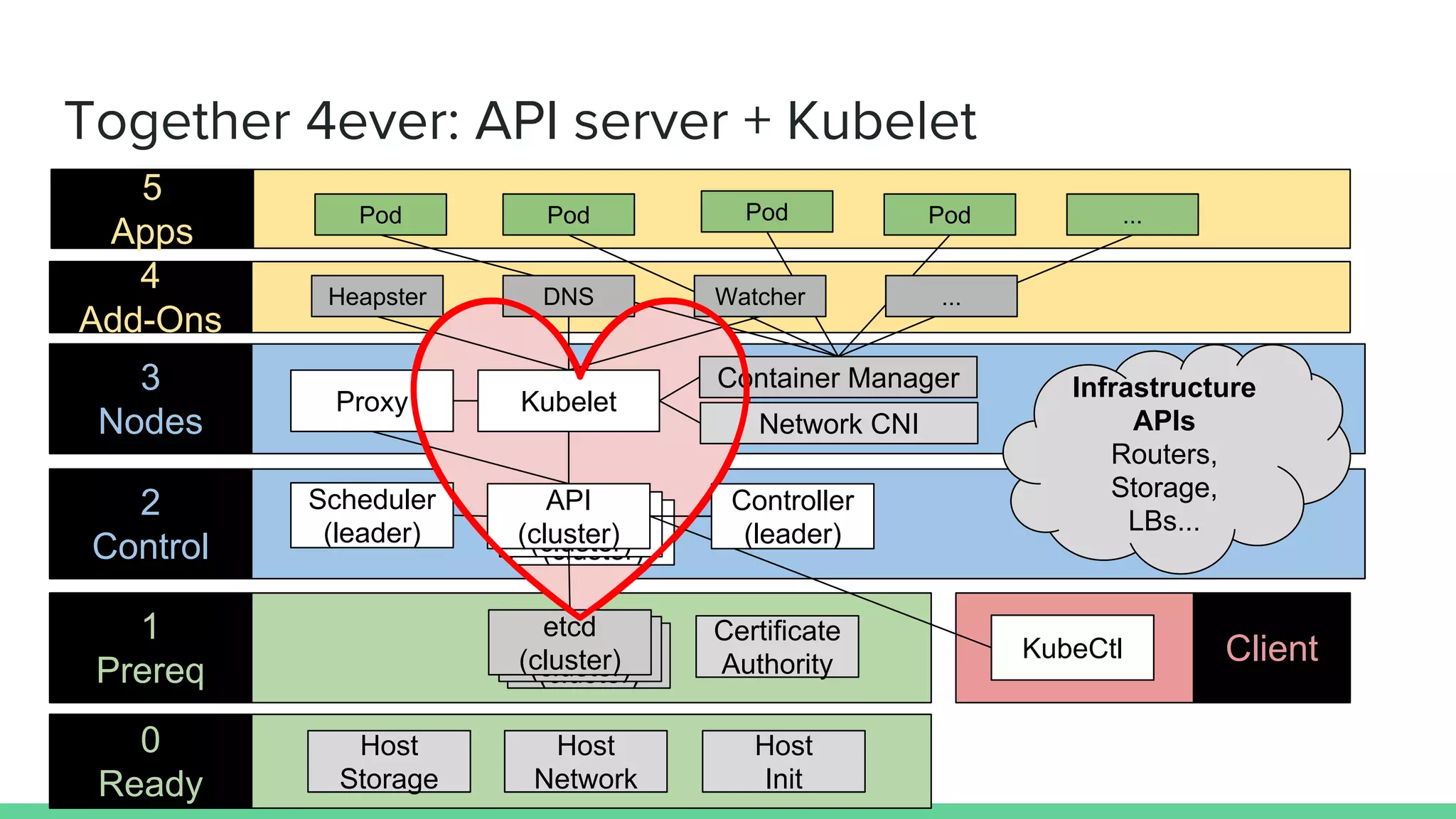

8. Together 4ever: API server + Kubelet
Client
0
Ready
1
Prereq
2
Control
3
Nodes
etcd
(cluster)
etcd
(cluster)
etcd
(cluster)
API
(cluster)
API
(cluster)
API
(cluster)
Kubelet
KubeCtl
Container Manager
5
Apps
Network CNI
Host
Network
Host
Storage
Host
Init
Pod Pod Pod Pod
4
Add-Ons
Certificate
Authority
Scheduler
(leader)
Heapster
Infrastructure
APIs
Routers,
Storage,
LBs...
Proxy
...
Controller
(leader)
DNS Watcher ...

9. Kubernetes = Rainbows?!

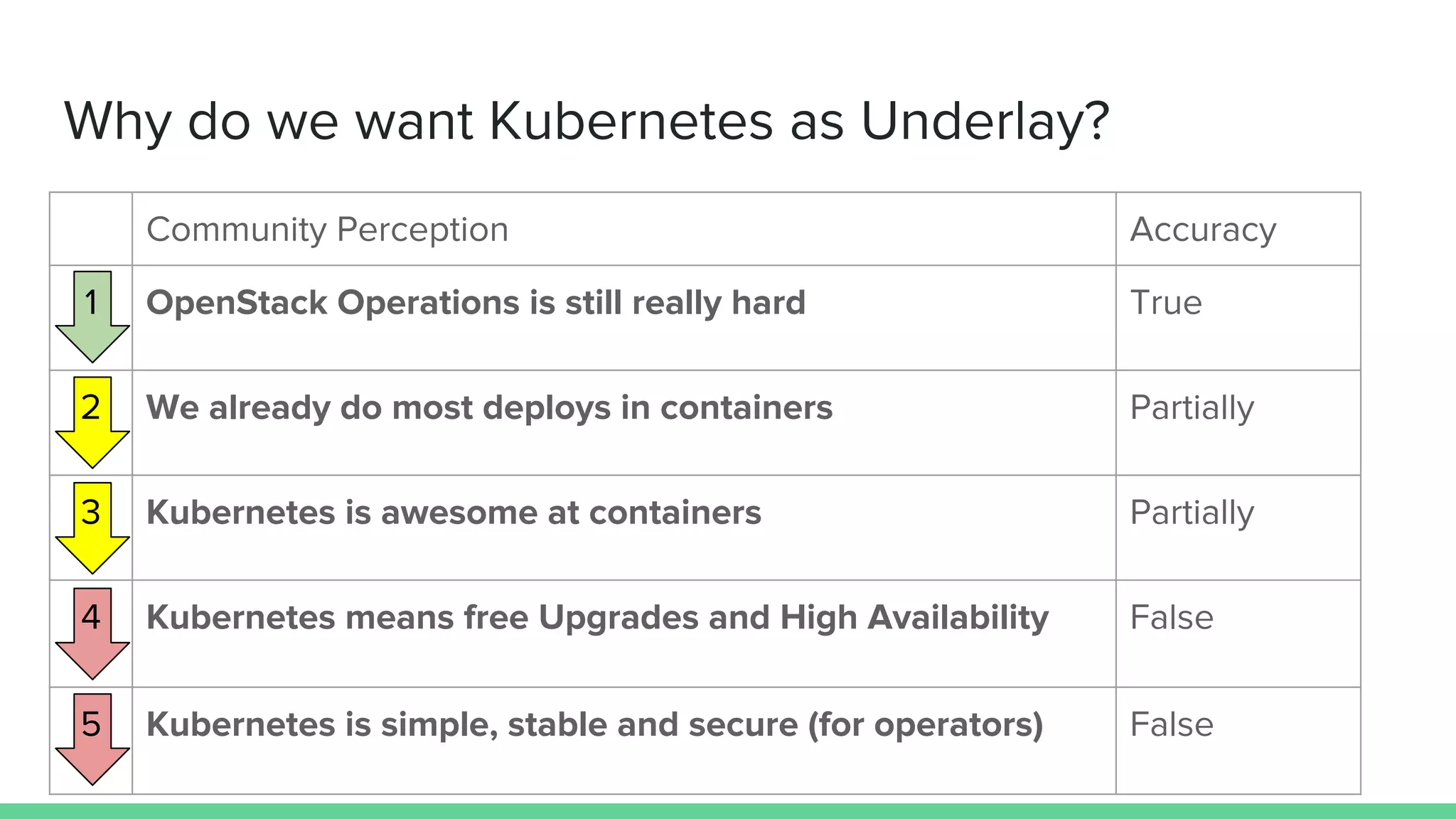

10. Why do we want Kubernetes as Underlay?
Community Perception Accuracy
1 OpenStack Operations is still really hard True
2 We already do most deploys in containers Partially
3 Kubernetes is awesome at containers Partially
4 Kubernetes means free Upgrades and High Availability False
5 Kubernetes is simple, stable and secure (for operators) False

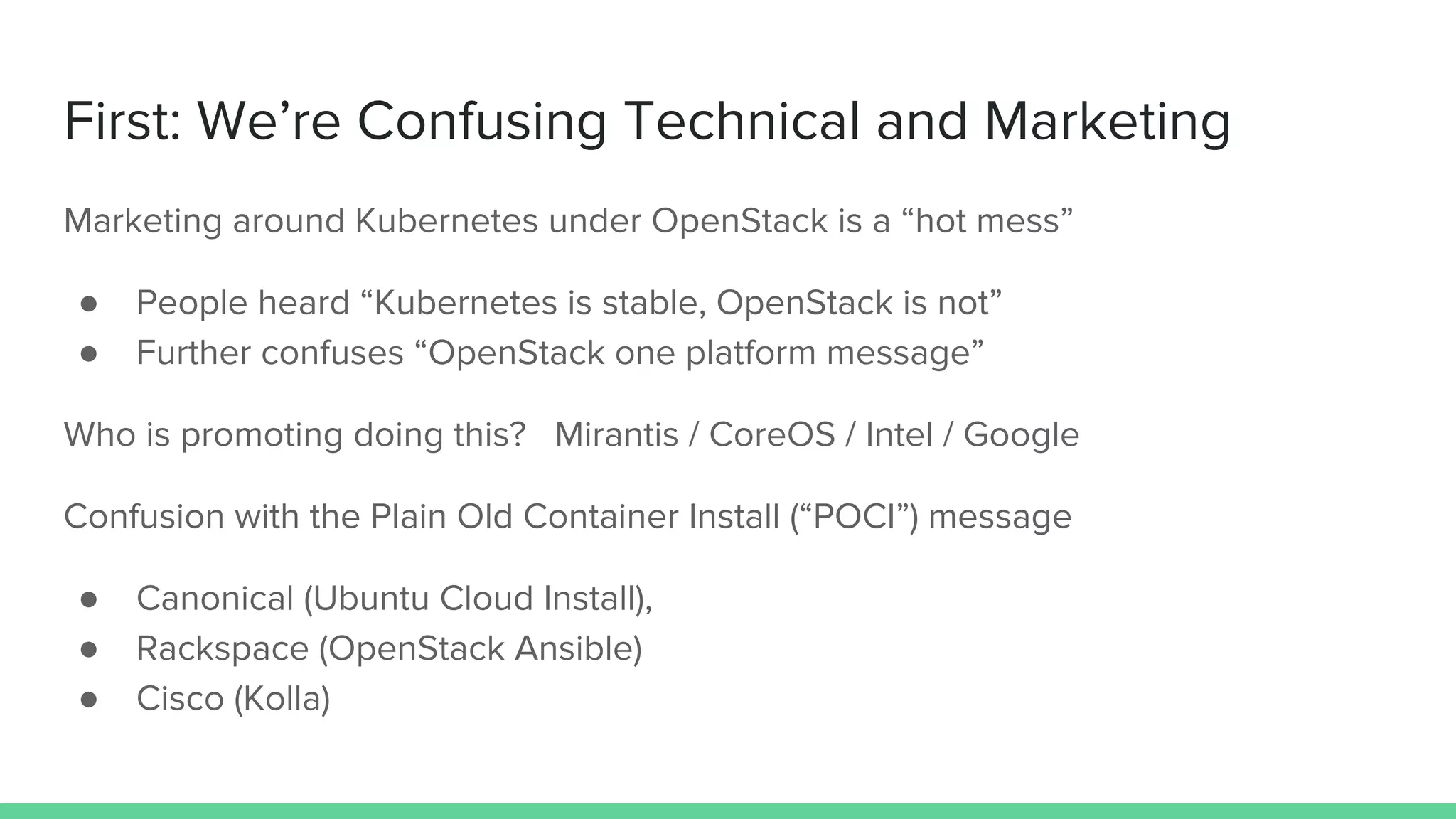

11. First: We’re Confusing Technical and Marketing
Marketing around Kubernetes under OpenStack is a “hot mess”
● People heard “Kubernetes is stable, OpenStack is not”
● Further confuses “OpenStack one platform message”
Who is promoting doing this? Mirantis / CoreOS / Intel / Google
Confusion with the Plain Old Container Install (“POCI”) message
● Canonical (Ubuntu Cloud Install),
● Rackspace (OpenStack Ansible)
● Cisco (Kolla)

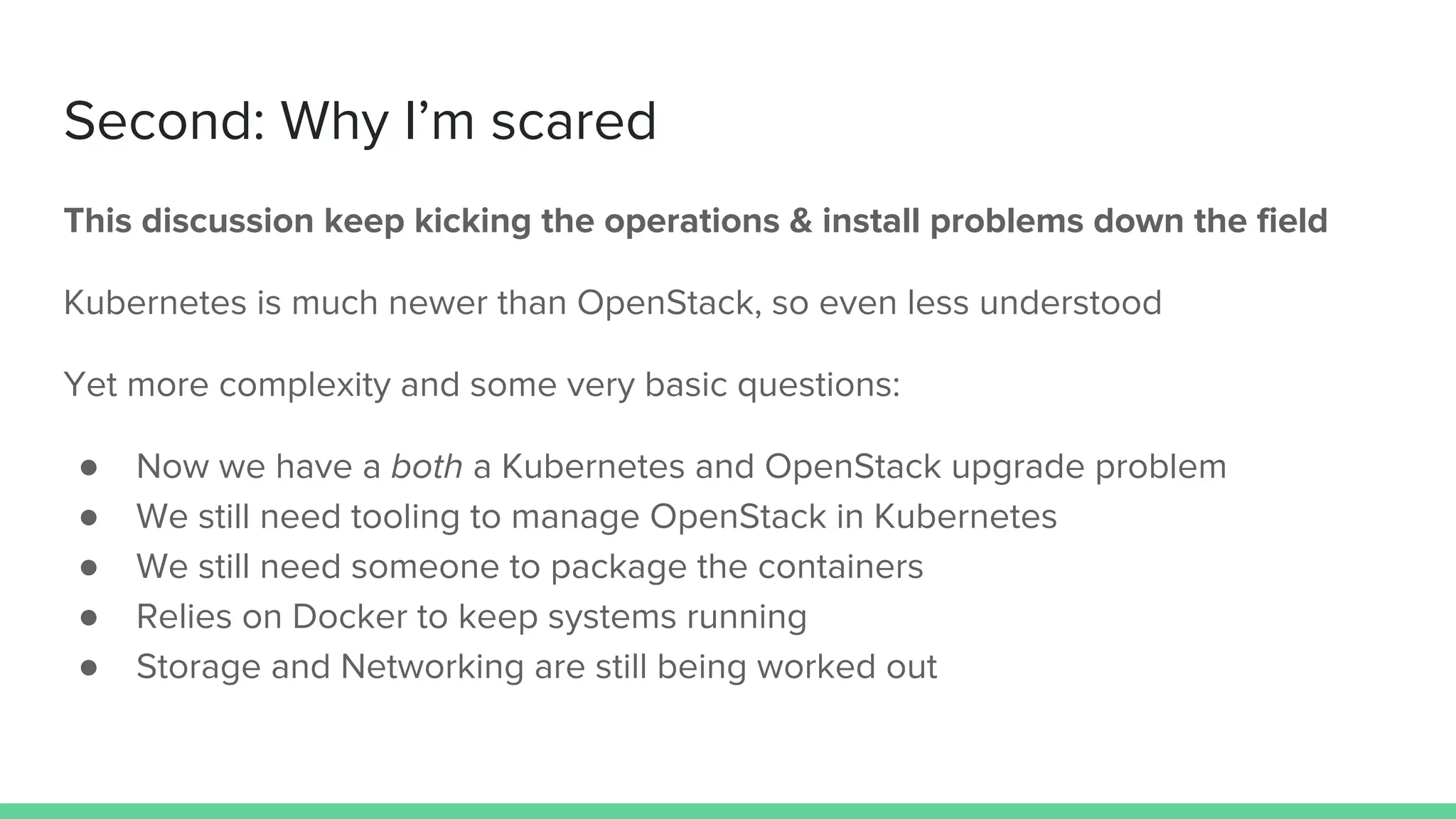

12. Second: Why I’m scared
This discussion keep kicking the operations & install problems down the field
Kubernetes is much newer than OpenStack, so even less understood
Yet more complexity and some very basic questions:
● Now we have a both a Kubernetes and OpenStack upgrade problem
● We still need tooling to manage OpenStack in Kubernetes
● We still need someone to package the containers
● Relies on Docker to keep systems running
● Storage and Networking are still being worked out

13. But, it’s going to
happen anyway…
So let’s get
pragmatic about it.

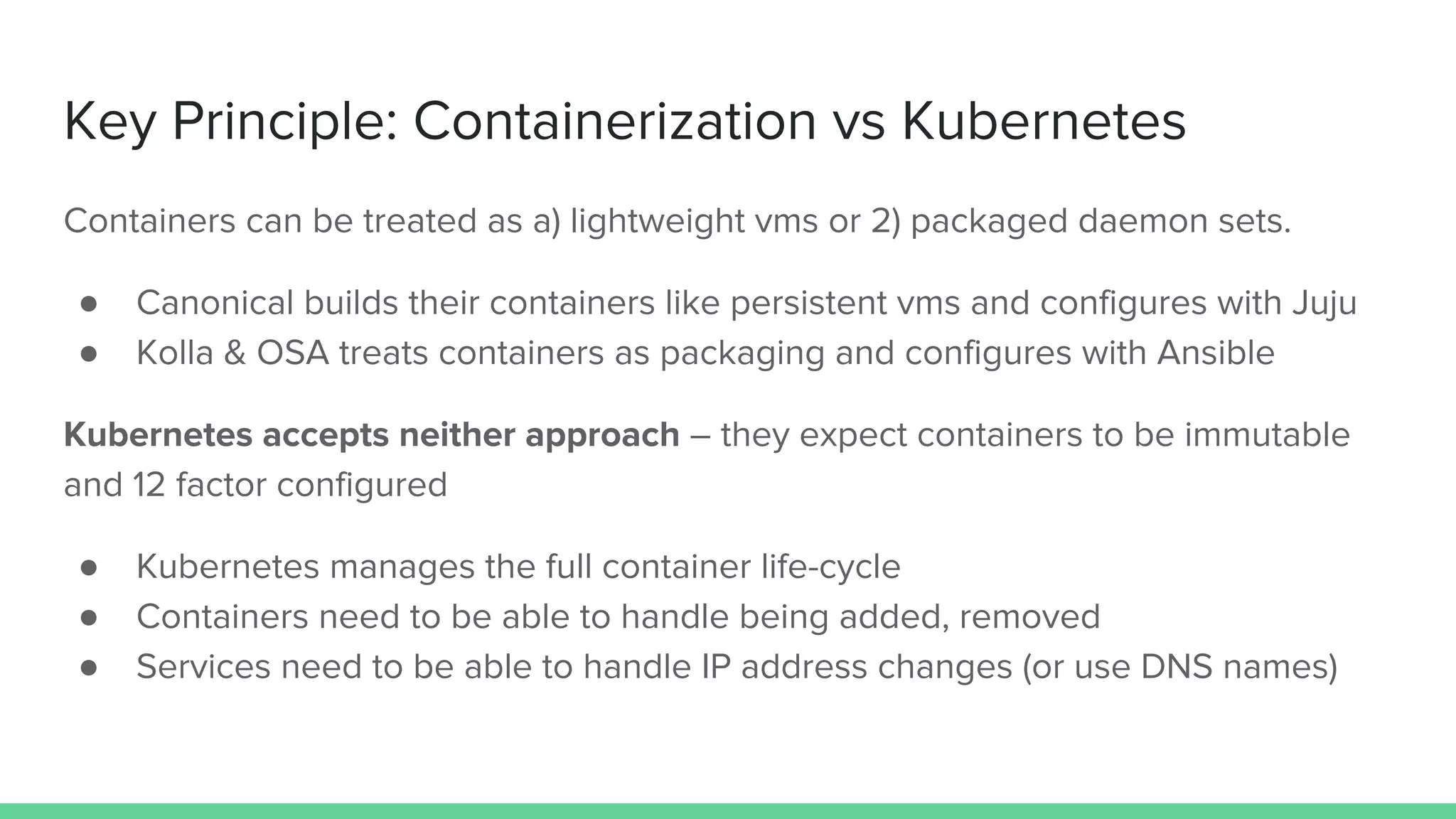

14. Key Principle: Containerization vs Kubernetes
Containers can be treated as a) lightweight vms or 2) packaged daemon sets.
● Canonical builds their containers like persistent vms and configures with Juju
● Kolla & OSA treats containers as packaging and configures with Ansible
Kubernetes accepts neither approach – they expect containers to be immutable
and 12 factor configured
● Kubernetes manages the full container life-cycle
● Containers need to be able to handle being added, removed
● Services need to be able to handle IP address changes (or use DNS names)

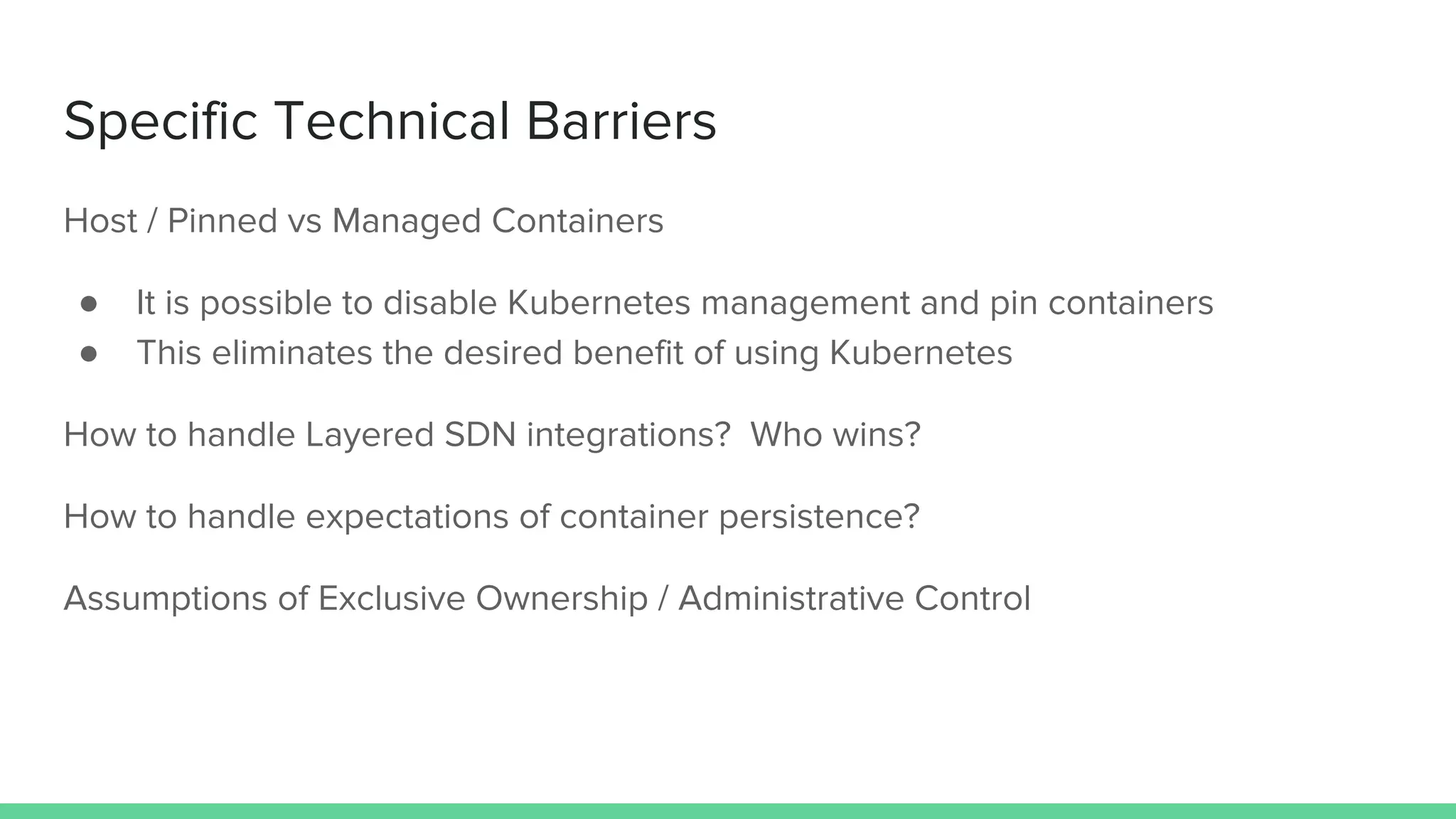

15. Specific Technical Barriers
Host / Pinned vs Managed Containers
● It is possible to disable Kubernetes management and pin containers
● This eliminates the desired benefit of using Kubernetes
How to handle Layered SDN integrations? Who wins?
How to handle expectations of container persistence?
Assumptions of Exclusive Ownership / Administrative Control

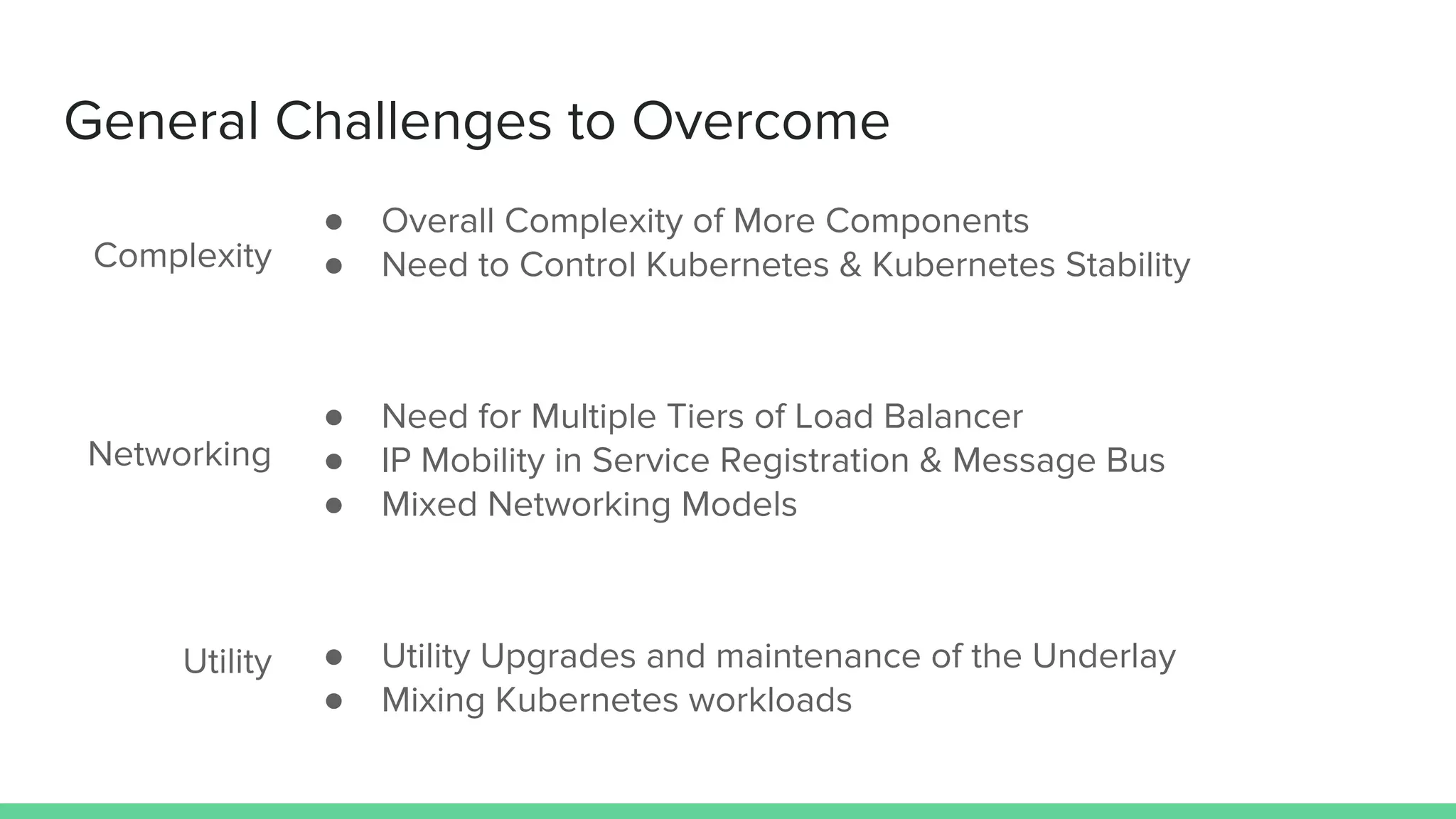

16. General Challenges to Overcome
Complexity
● Overall Complexity of More Components
● Need to Control Kubernetes & Kubernetes Stability
● Need for Multiple Tiers of Load Balancer
● IP Mobility in Service Registration & Message Bus
● Mixed Networking Models
● Utility Upgrades and maintenance of the Underlay
● Mixing Kubernetes workloads
Networking
Utility

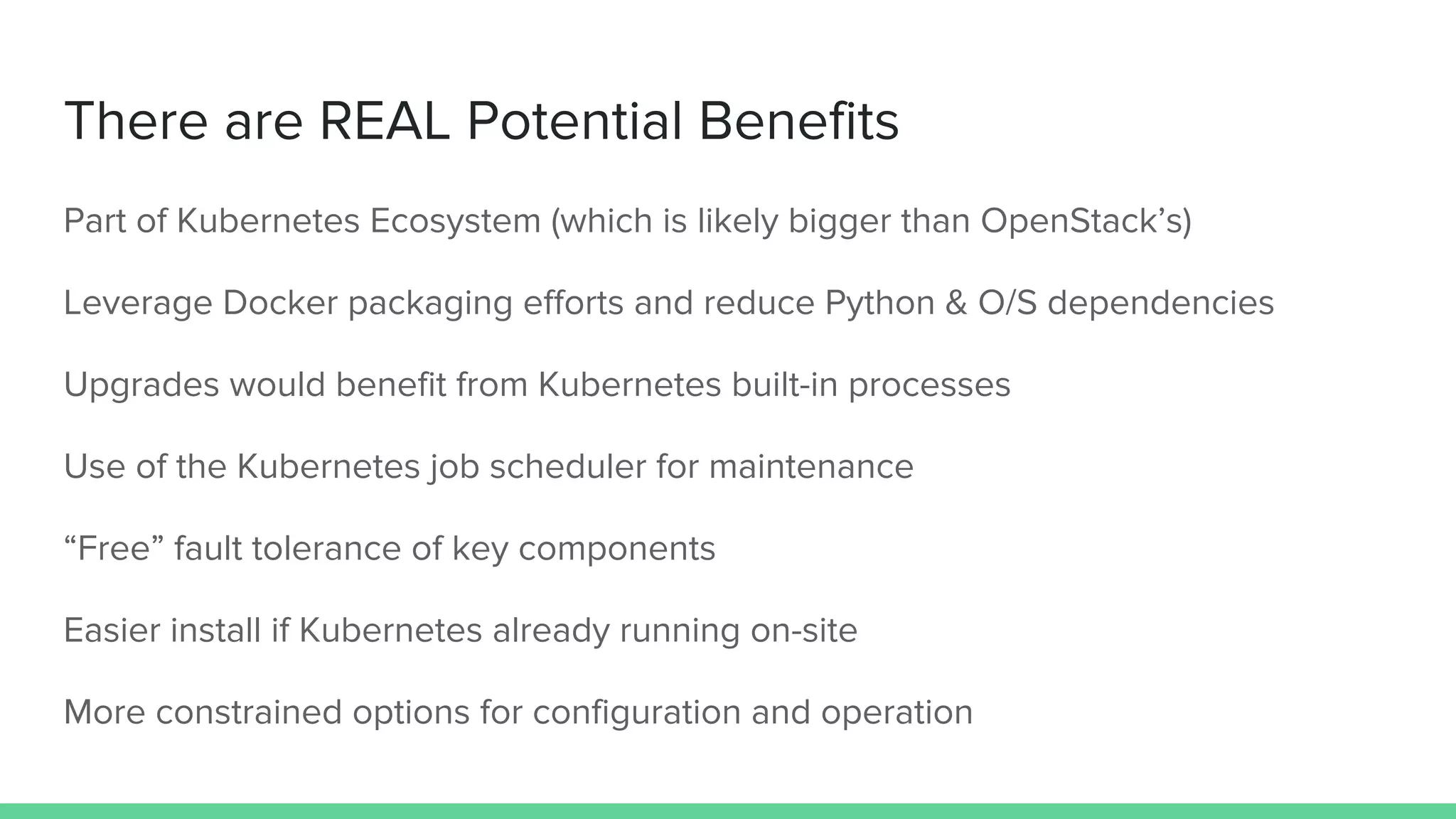

17. There are REAL Potential Benefits
Part of Kubernetes Ecosystem (which is likely bigger than OpenStack’s)
Leverage Docker packaging efforts and reduce Python & O/S dependencies
Upgrades would benefit from Kubernetes built-in processes
Use of the Kubernetes job scheduler for maintenance
“Free” fault tolerance of key components
Easier install if Kubernetes already running on-site
More constrained options for configuration and operation

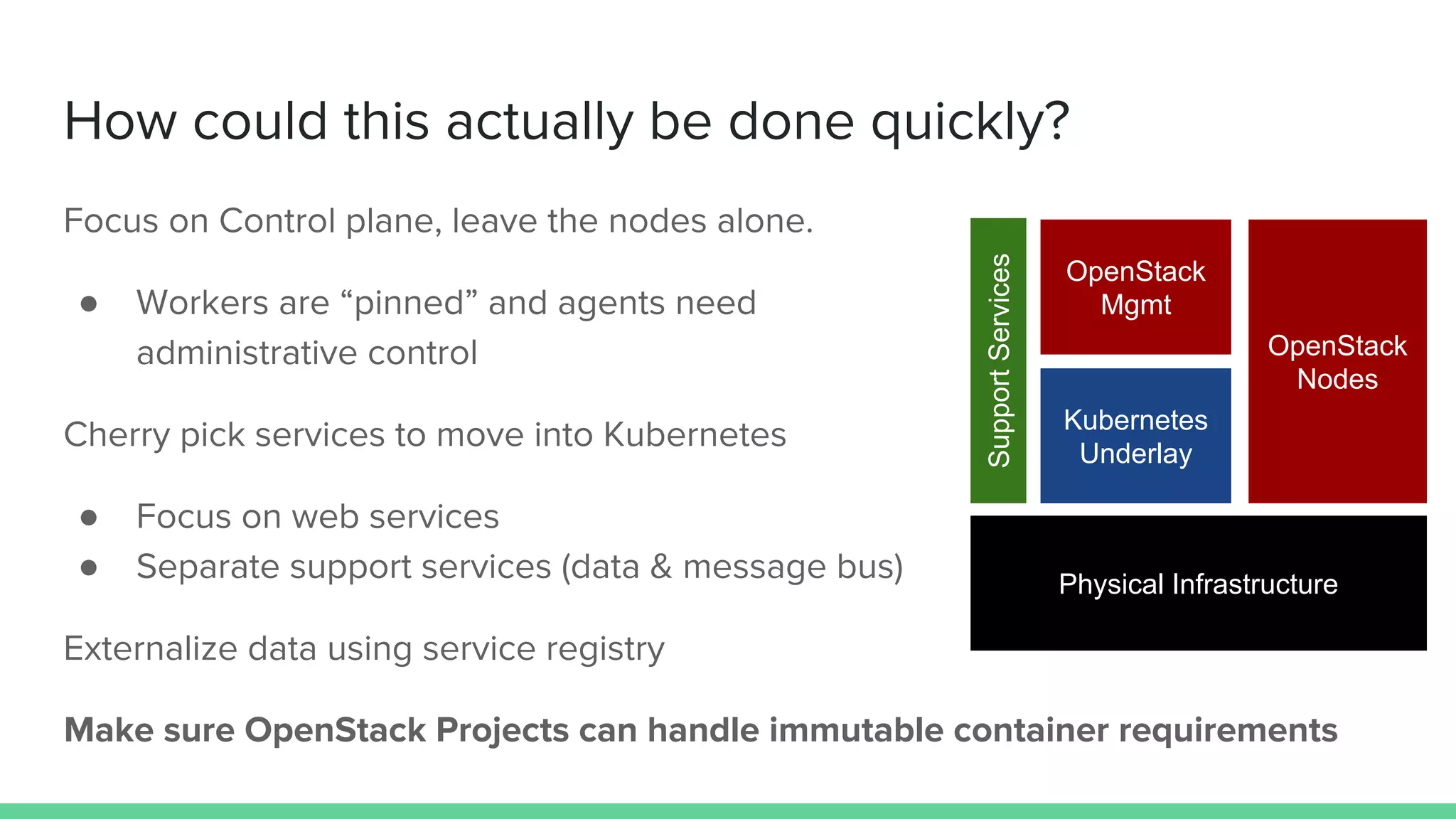

18. How could this actually be done quickly?
Focus on Control plane, leave the nodes alone.
● Workers are “pinned” and agents need
administrative control
Cherry pick services to move into Kubernetes
● Focus on web services
● Separate support services (data & message bus)
Externalize data using service registry
Physical Infrastructure
Kubernetes
Underlay
OpenStack
Mgmt
OpenStack
Nodes
SupportServices
Make sure OpenStack Projects can handle immutable container requirements

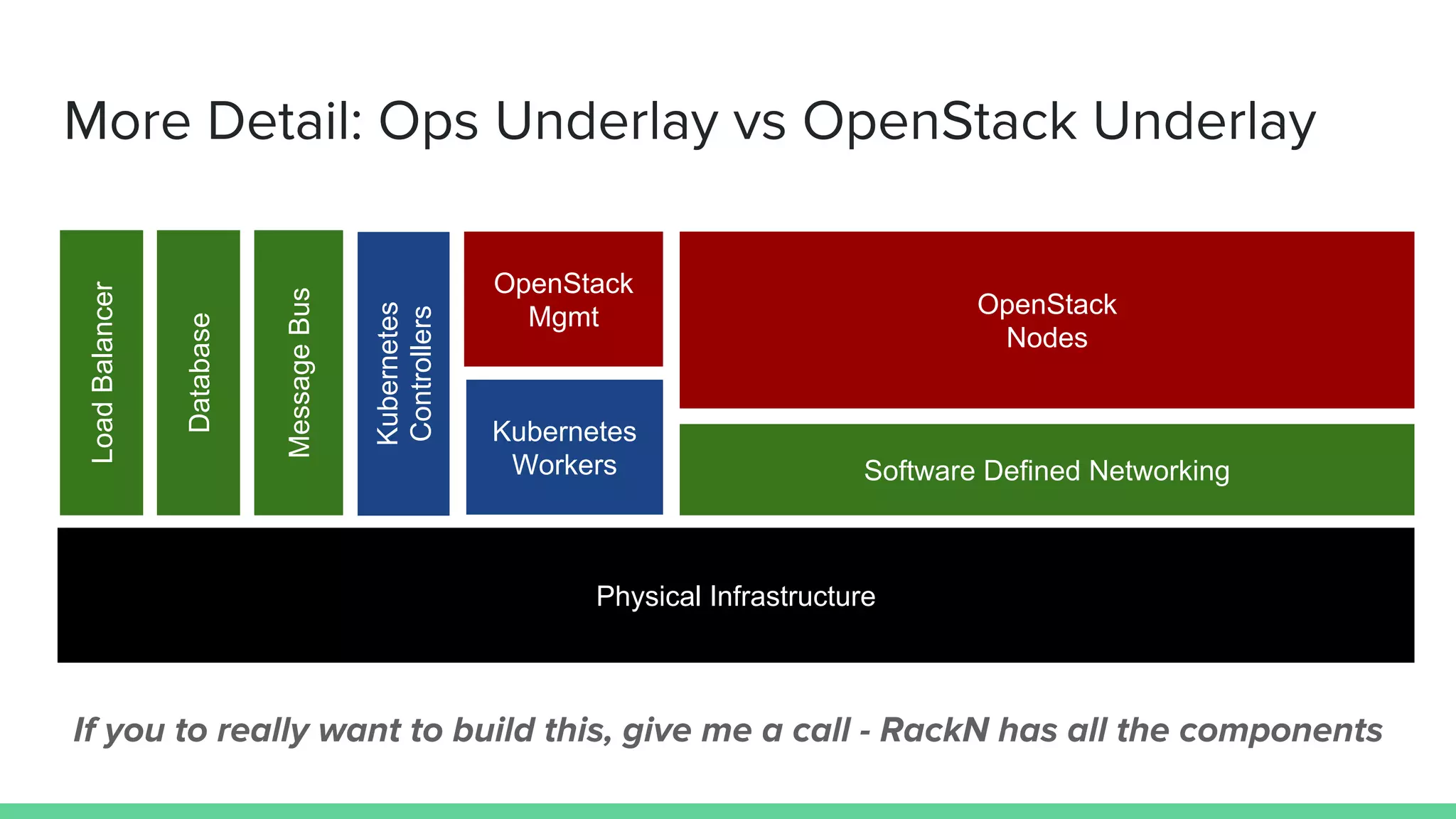

19. More Detail: Ops Underlay vs OpenStack Underlay
Physical Infrastructure
Kubernetes
Controllers
OpenStack
Mgmt OpenStack
Nodes
Database
If you to really want to build this, give me a call - RackN has all the components
MessageBus
Software Defined Networking
Kubernetes
Workers
LoadBalancer

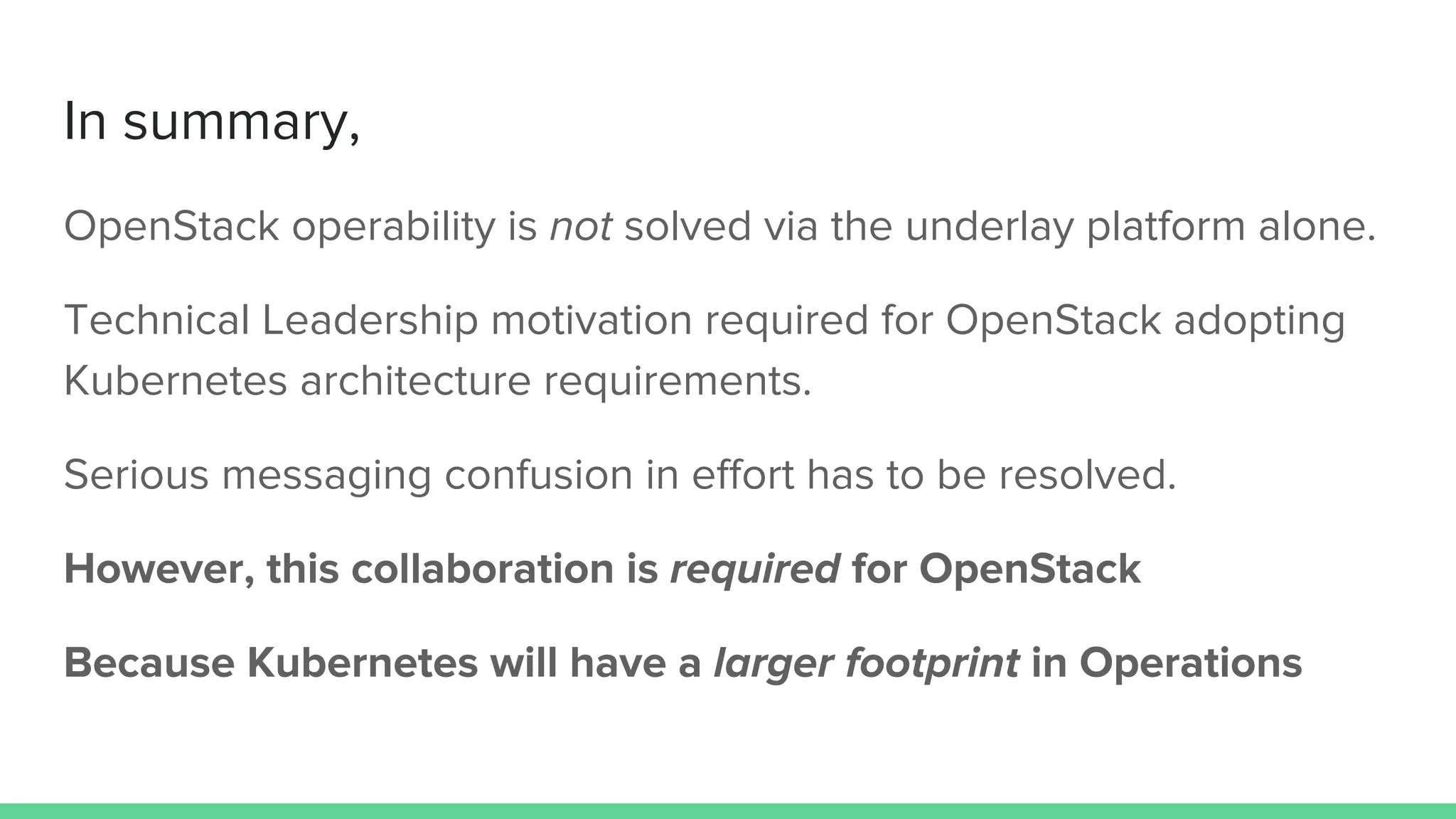

20. In summary,
OpenStack operability is not solved via the underlay platform alone.
Technical Leadership motivation required for OpenStack adopting
Kubernetes architecture requirements.
Serious messaging confusion in effort has to be resolved.
However, this collaboration is required for OpenStack
Because Kubernetes will have a larger footprint in Operations
