1. Java Memory Model
for mortals
Nikolas Papirniy

2. Java and c++ developers
Java dev: May I…...
C++ dev: DEPENDS ON
IMPLEMENTATION!
Java dev: Wait, I didn’t ask a
question

3. Why should I spend time on JMM?

4. Why should I spend time on JMM?
It’s getting asked on job interviews!

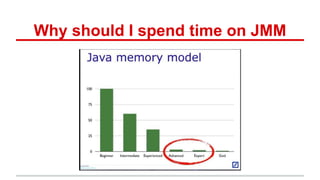

5. Why should I spend time on JMM

6. Why not everyone knows JMM?

7. JMM is important!

8. Today’s goal!

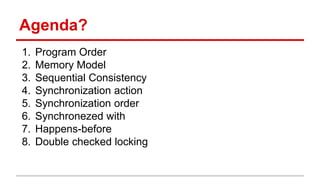

9. Agenda?

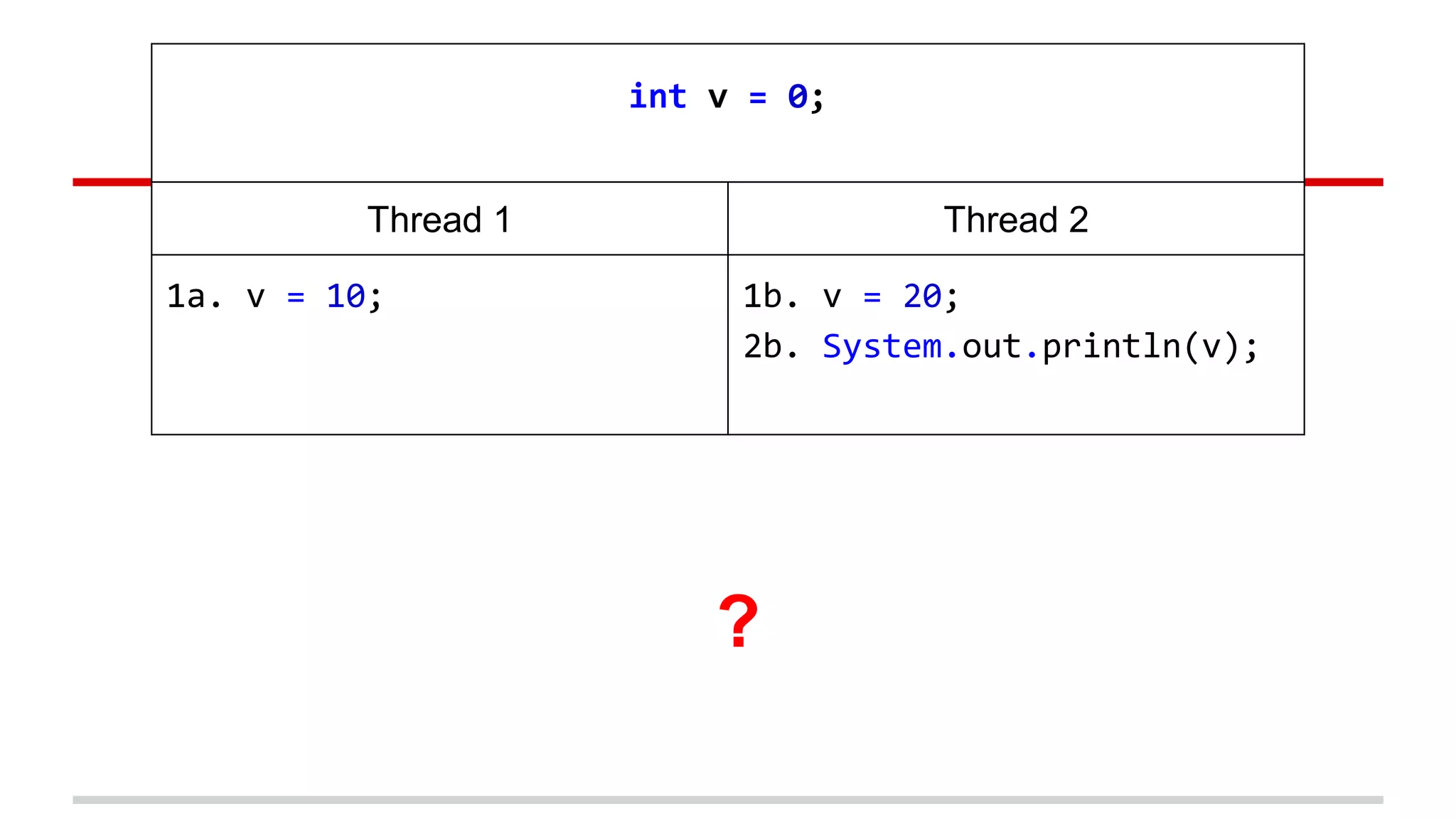

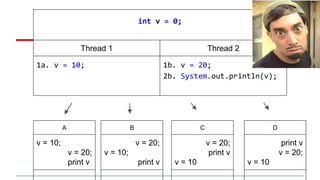

1. Program Order
2. Memory Model

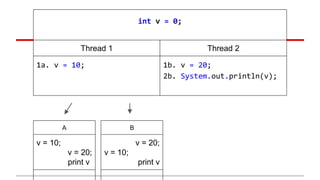

3. Sequential Consistency
4. Synchronization action
5. Synchronization order
6. Synchronezed with
7. Happens-before
8. Double checked locking

10. Baruch about concurrency
In this case, you can shoot
yourself in any limb of any
caliber!

11. Is it about Shipilev?
Java Memory Model Pragmatics

12. There is a little problem

13. Who visit Shipilev’s presentations?
1) Those who don’t understand Shipilev
2) Those who think they understand Shipilev
3) Shipilev

14. What was before JMM?

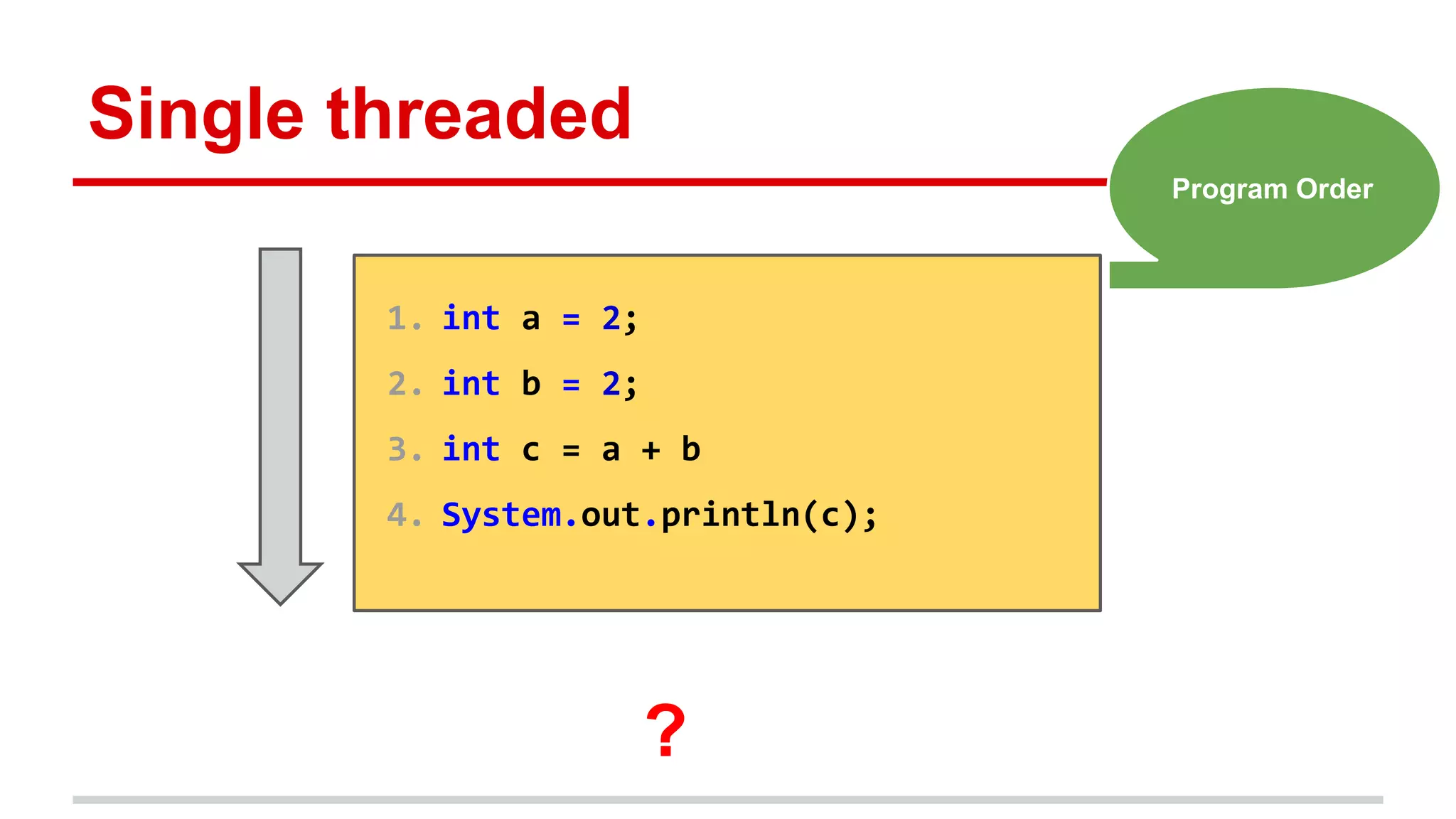

15. Single threaded
1. int a = 2;
2. int b = 2;
3. int c = a + b
4. System.out.println(c);
Program Order
?

16. Single threaded

17. What have we learned?
1. Program order

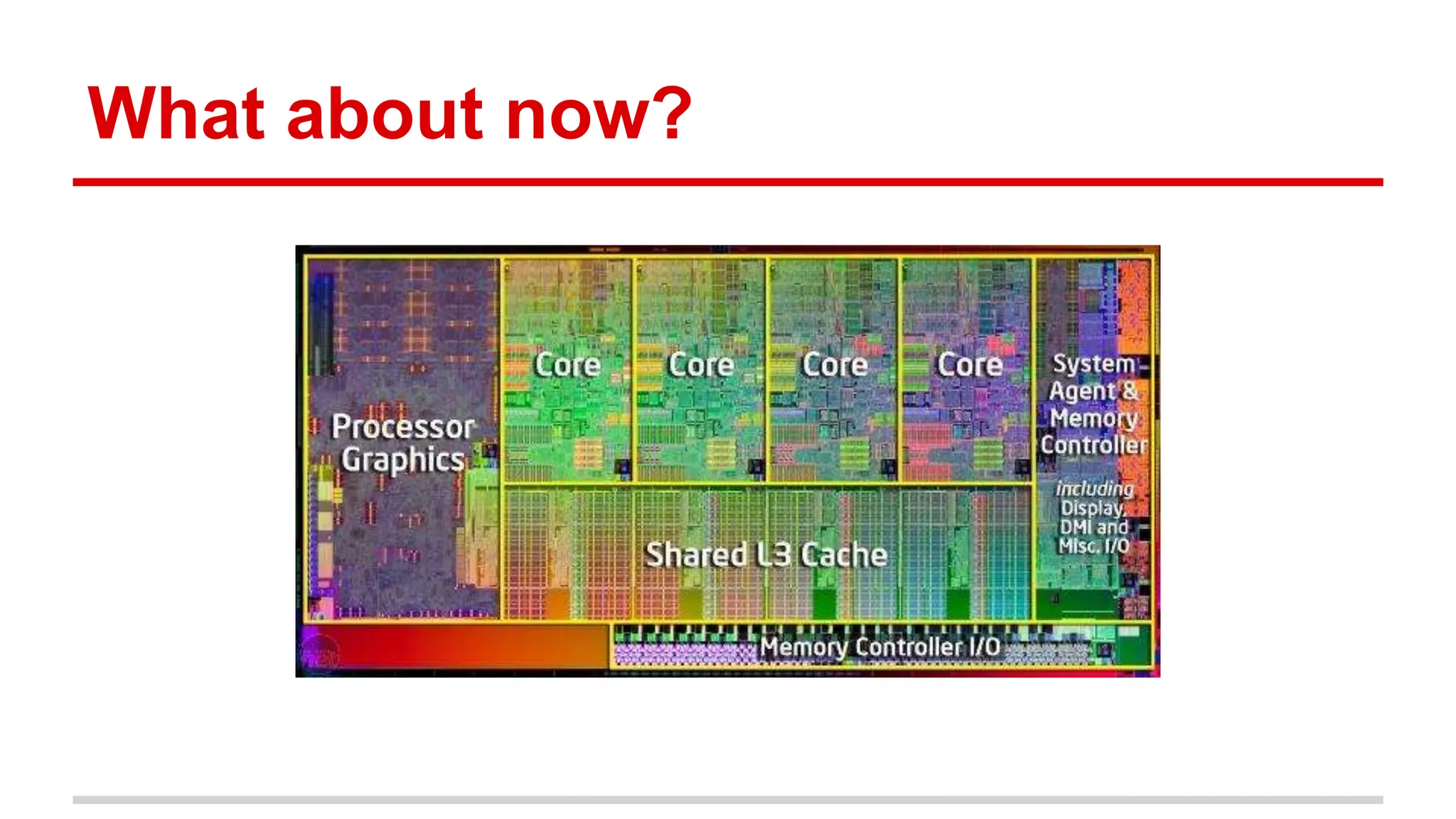

18. What about now?

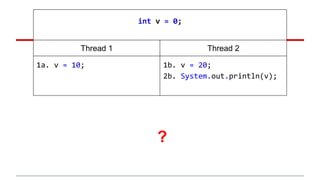

19. int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
?

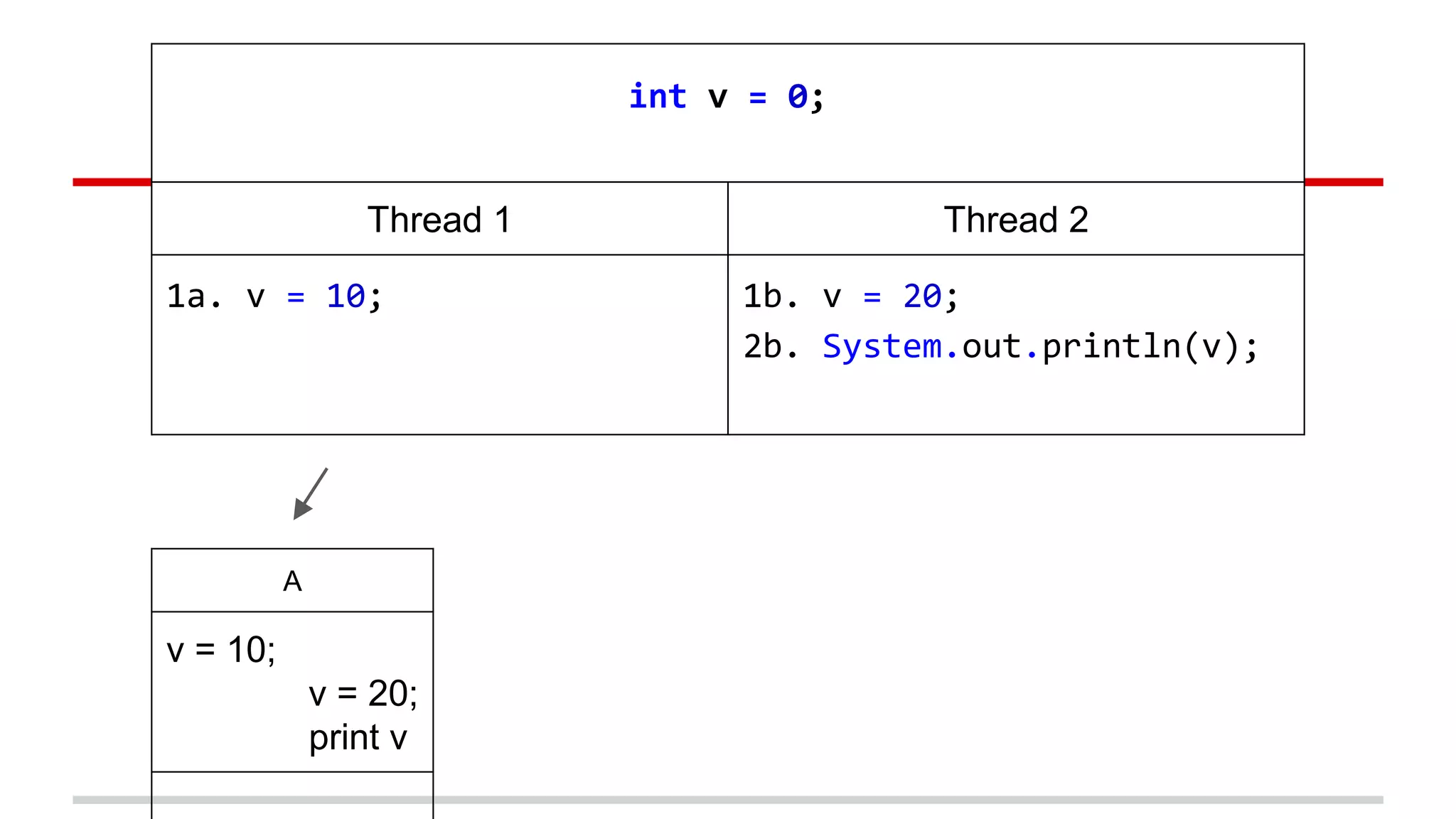

20. int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
A
v = 10;
v = 20;
print v

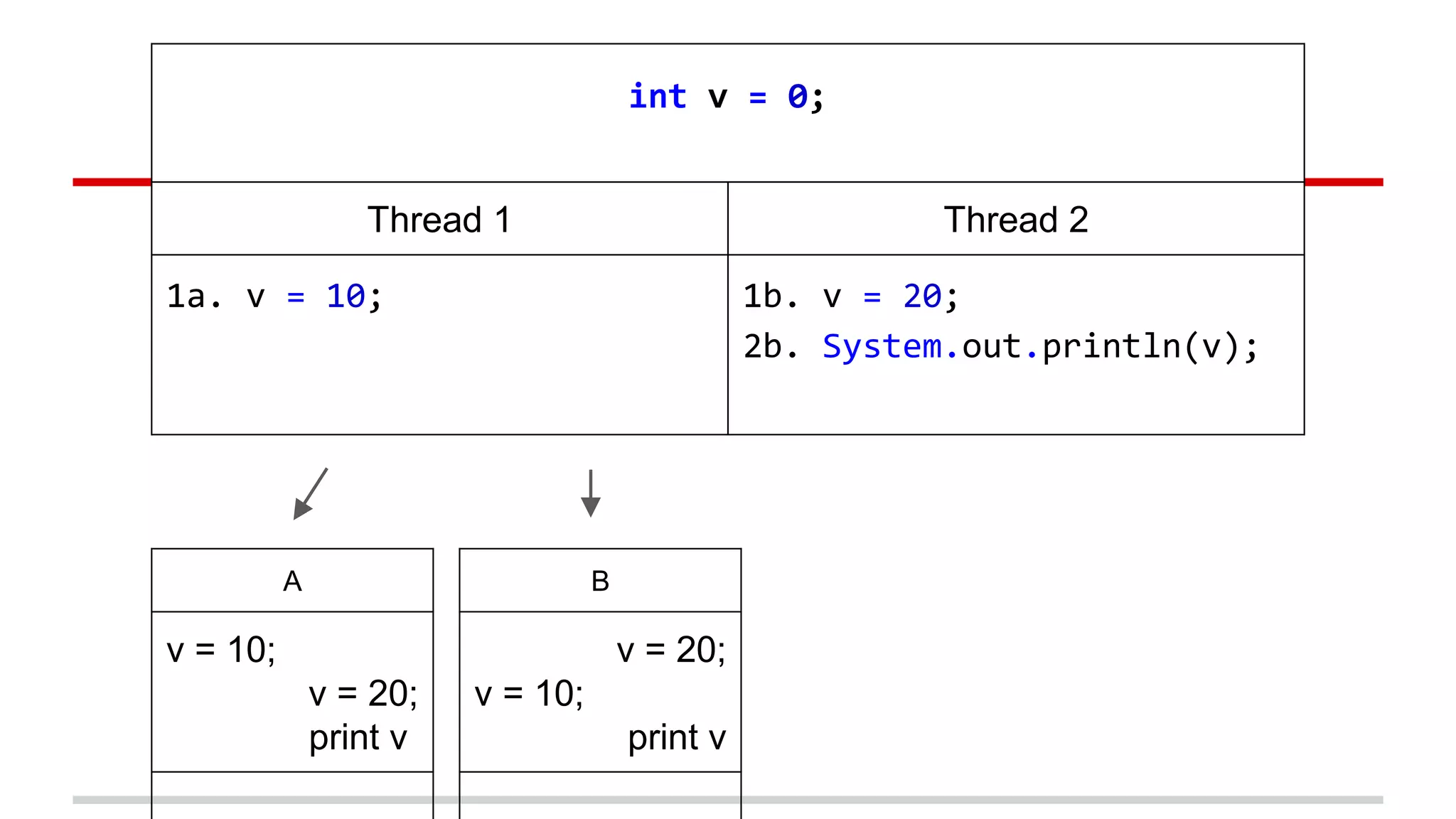

21. int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
A
v = 10;
v = 20;
print v
B
v = 20;
v = 10;
print v

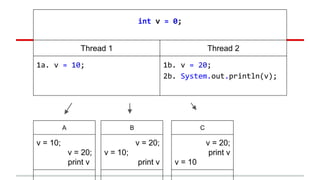

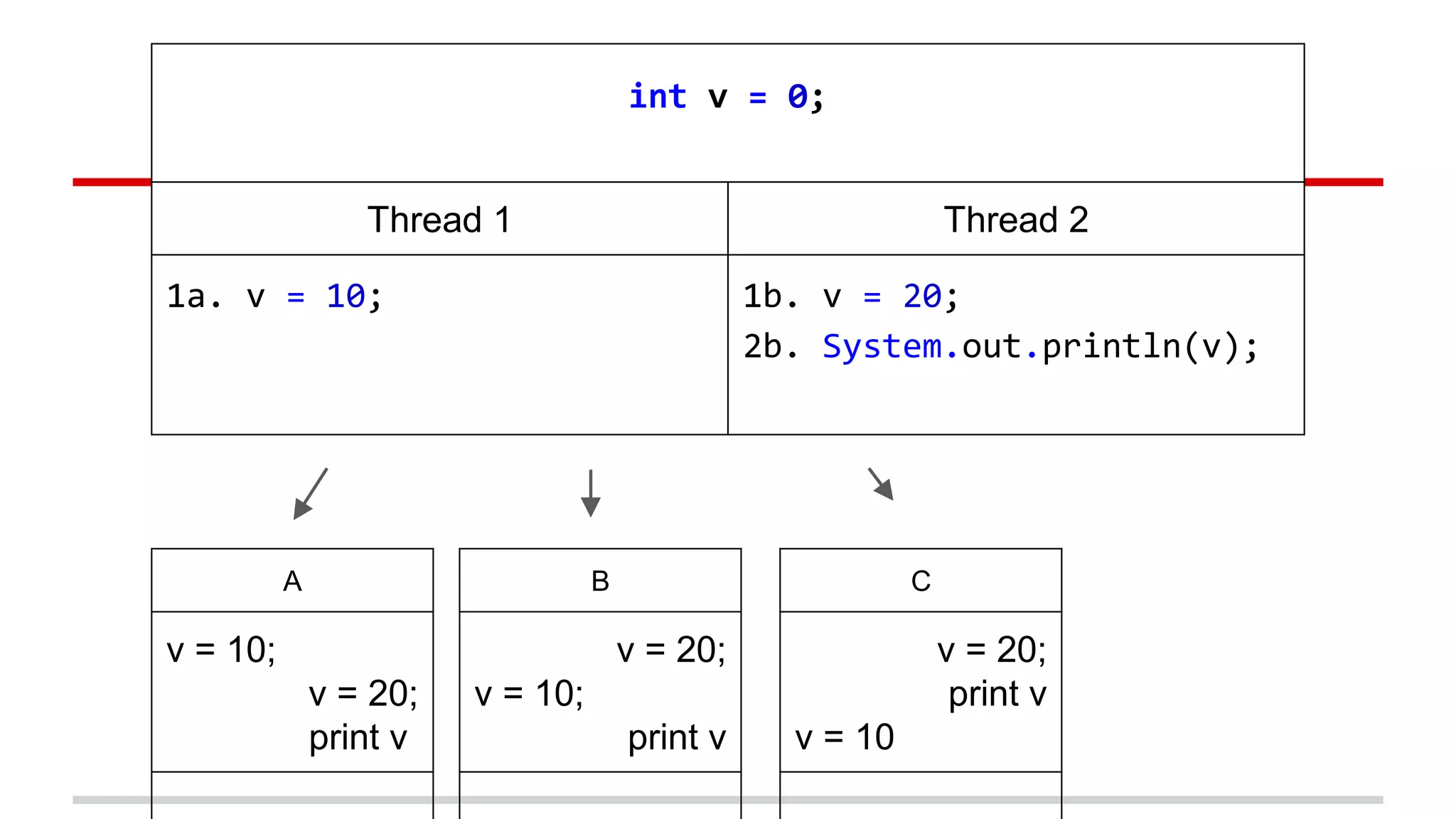

22. int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
A
v = 10;
v = 20;
print v
B
v = 20;
v = 10;
print v
C
v = 20;
print v
v = 10

23. int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
A
v = 10;
v = 20;
print v
B
v = 20;
v = 10;
print v
C
v = 20;
print v
v = 10
D
print v
v = 20;
v = 10

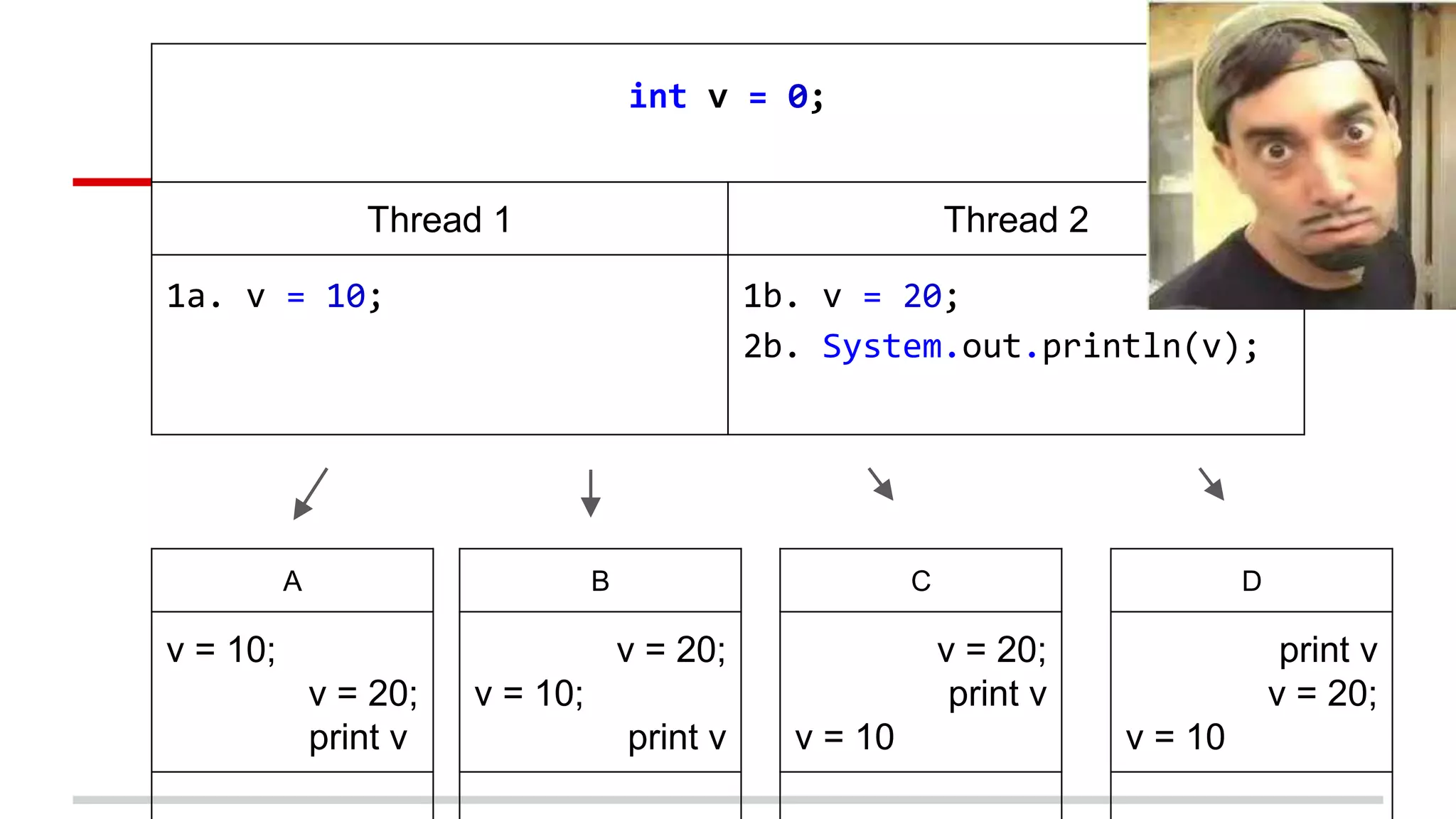

24. int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
A
v = 10;
v = 20;
print v
B
v = 20;
v = 10;
print v
C
v = 20;
print v
v = 10
D
print v
v = 20;
v = 10

25. WAT?

26. Situation….
1. Compiler
2. Runtime
3. Hardware

27. Hello memory model!

28. Memory model QUESTION
What will you see in a certain moment of
program execution?

29. What is Java Memory Model

30. int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
A
v = 10;
v = 20;
print v
B
v = 20;
v = 10;
print v
C
v = 20;
print v
v = 10
D
print v
v = 20;
v = 10

31. What have we learned?
1. Program order
2. Memory model

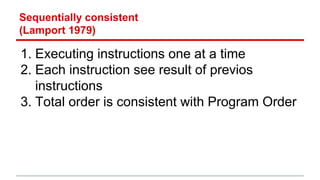

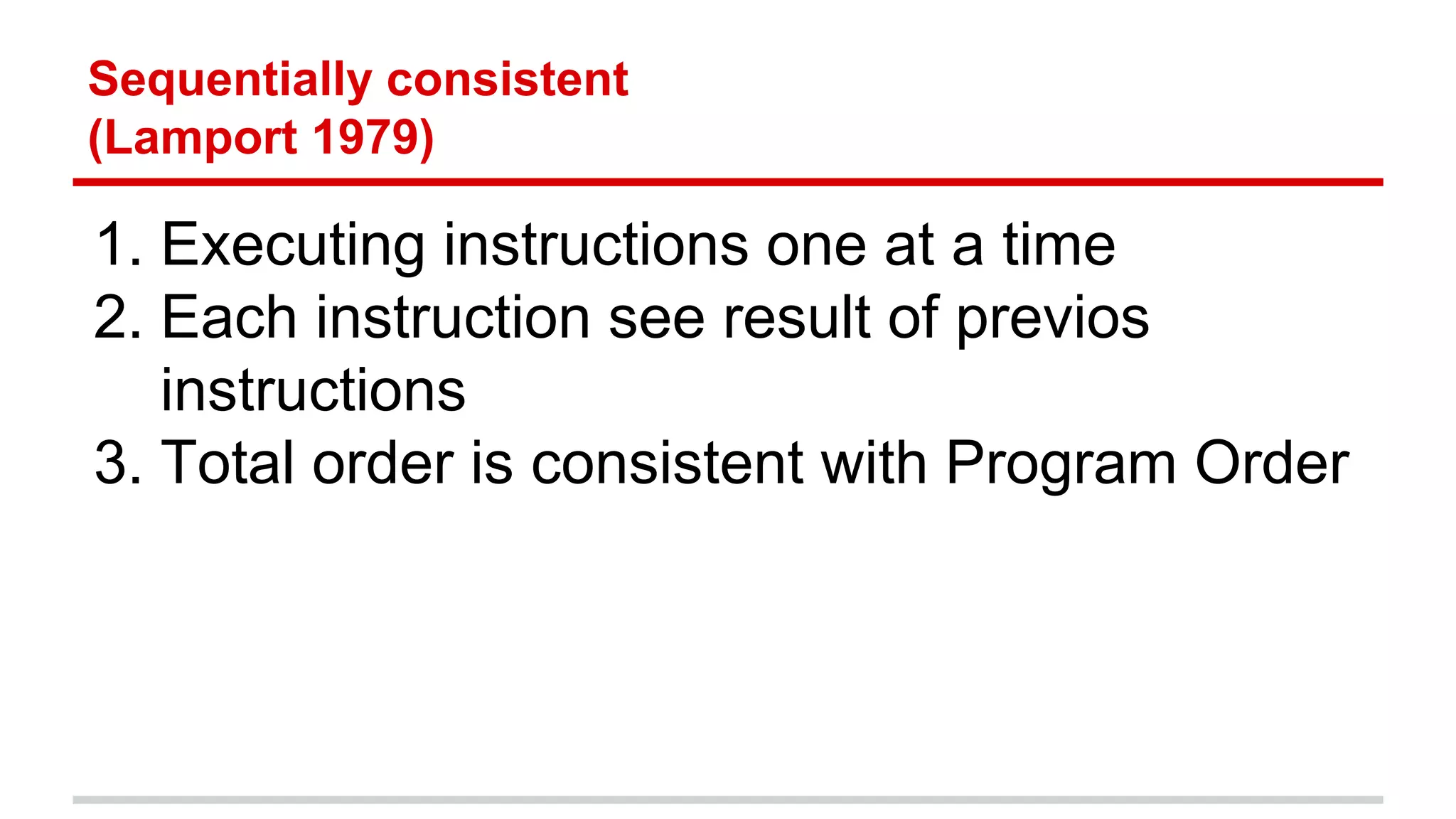

32. Sequentially consistent
(Lamport 1979)
1. Executing instructions one at a time
2. Each instruction see result of previos
instructions
3. Total order is consistent with Program Order

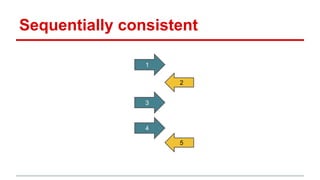

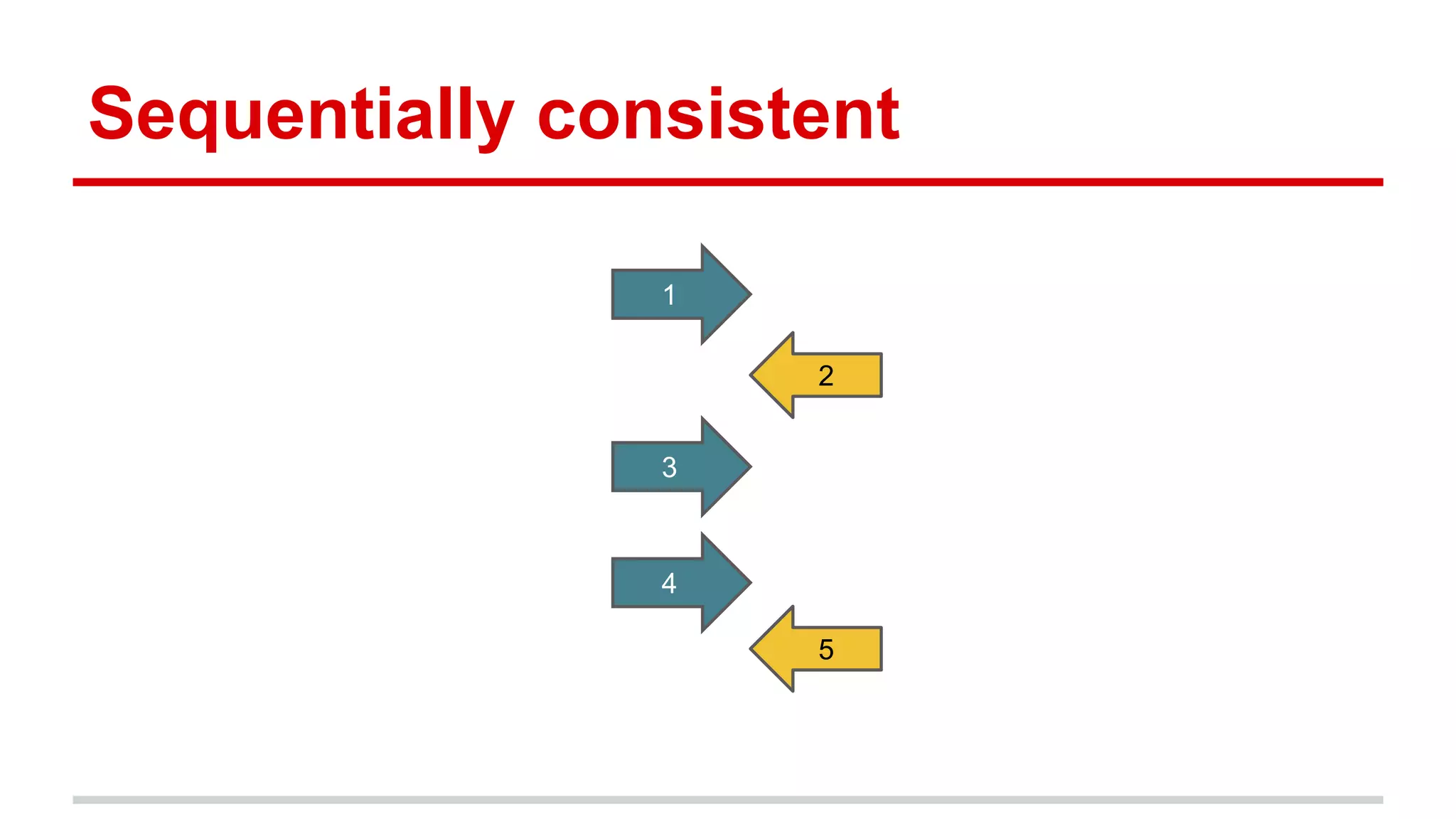

33. Sequentially consistent
1
5
3
4
2

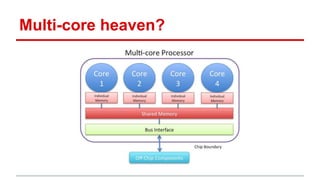

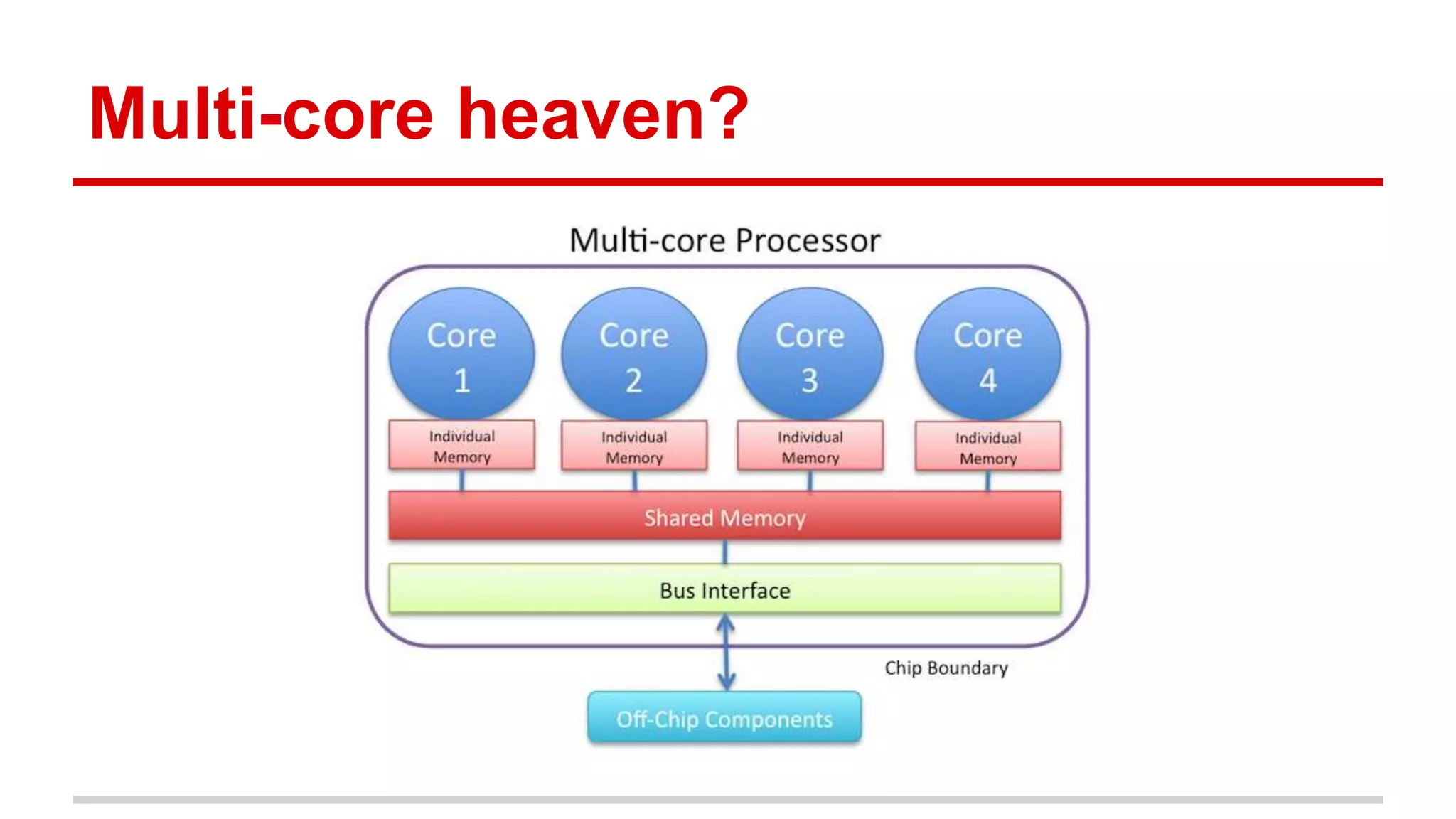

34. Multi-core heaven?

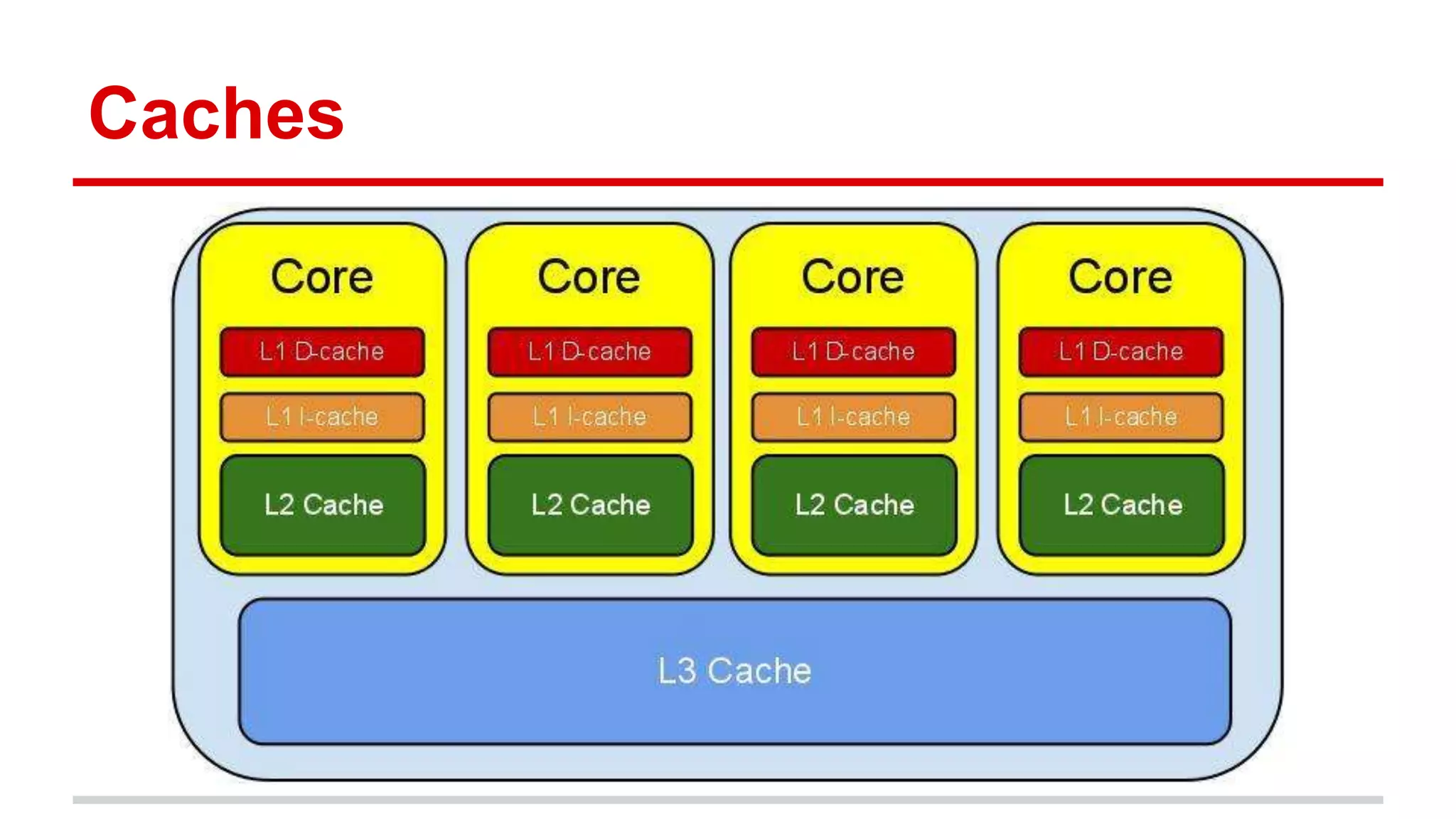

35. Caches

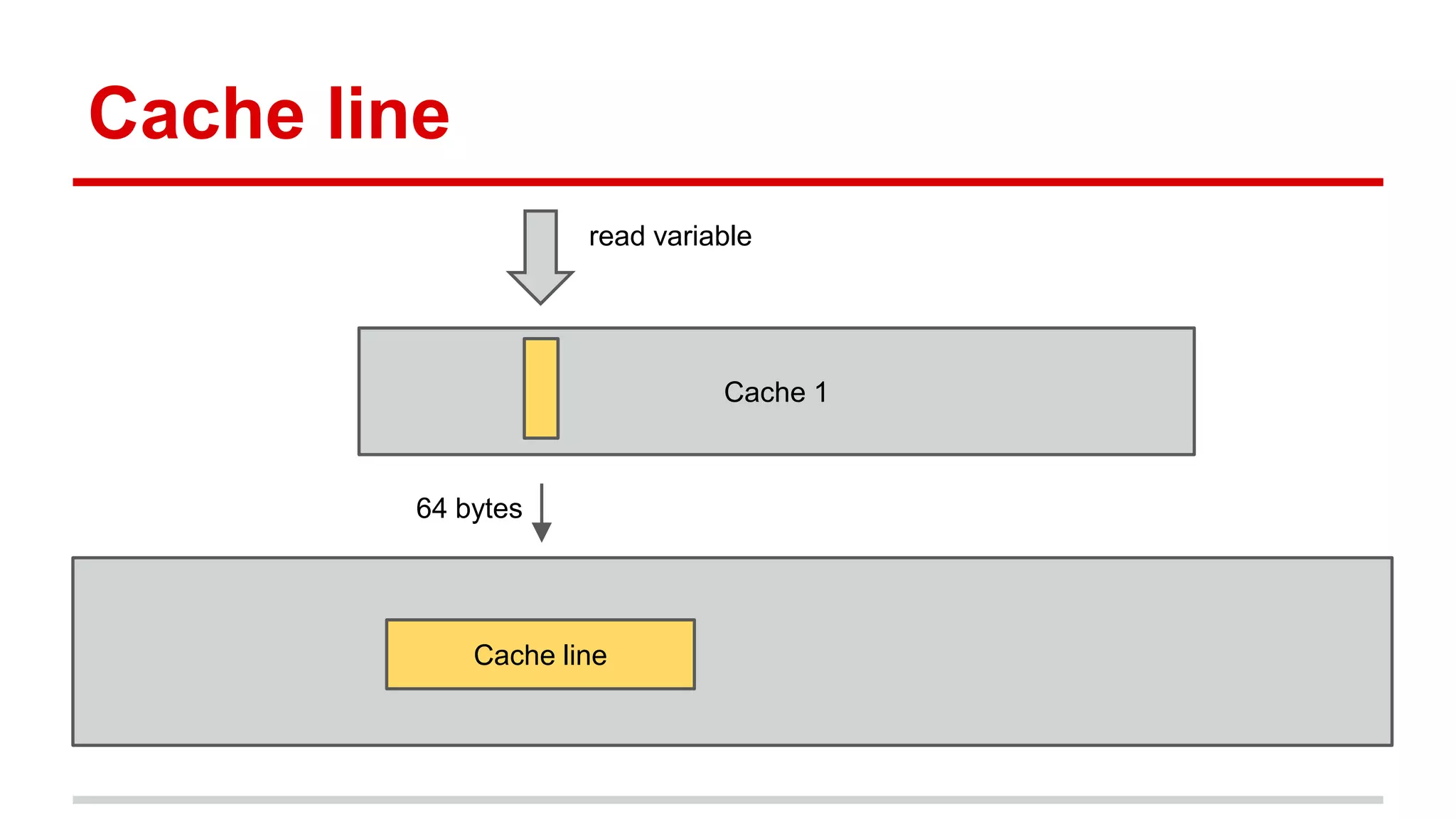

36. Cache line
read variable
Cache 1
64 bytes
Cache line

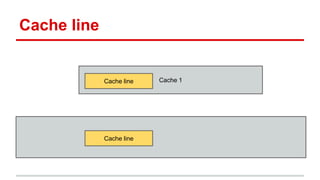

37. Cache line
Cache 1
Cache line
Cache line

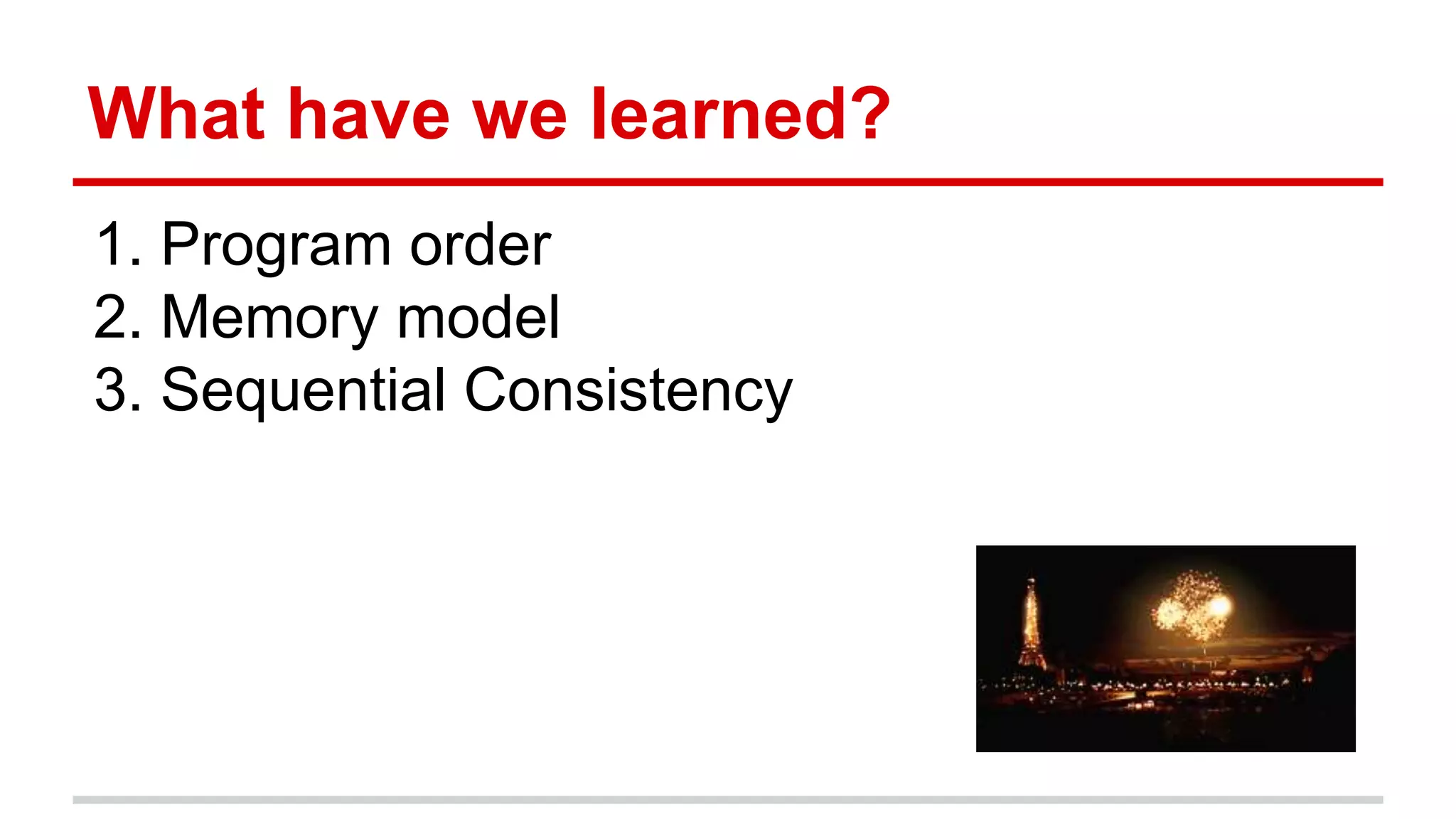

39. What have we learned?
1. Program order
2. Memory model
3. Sequential Consistency

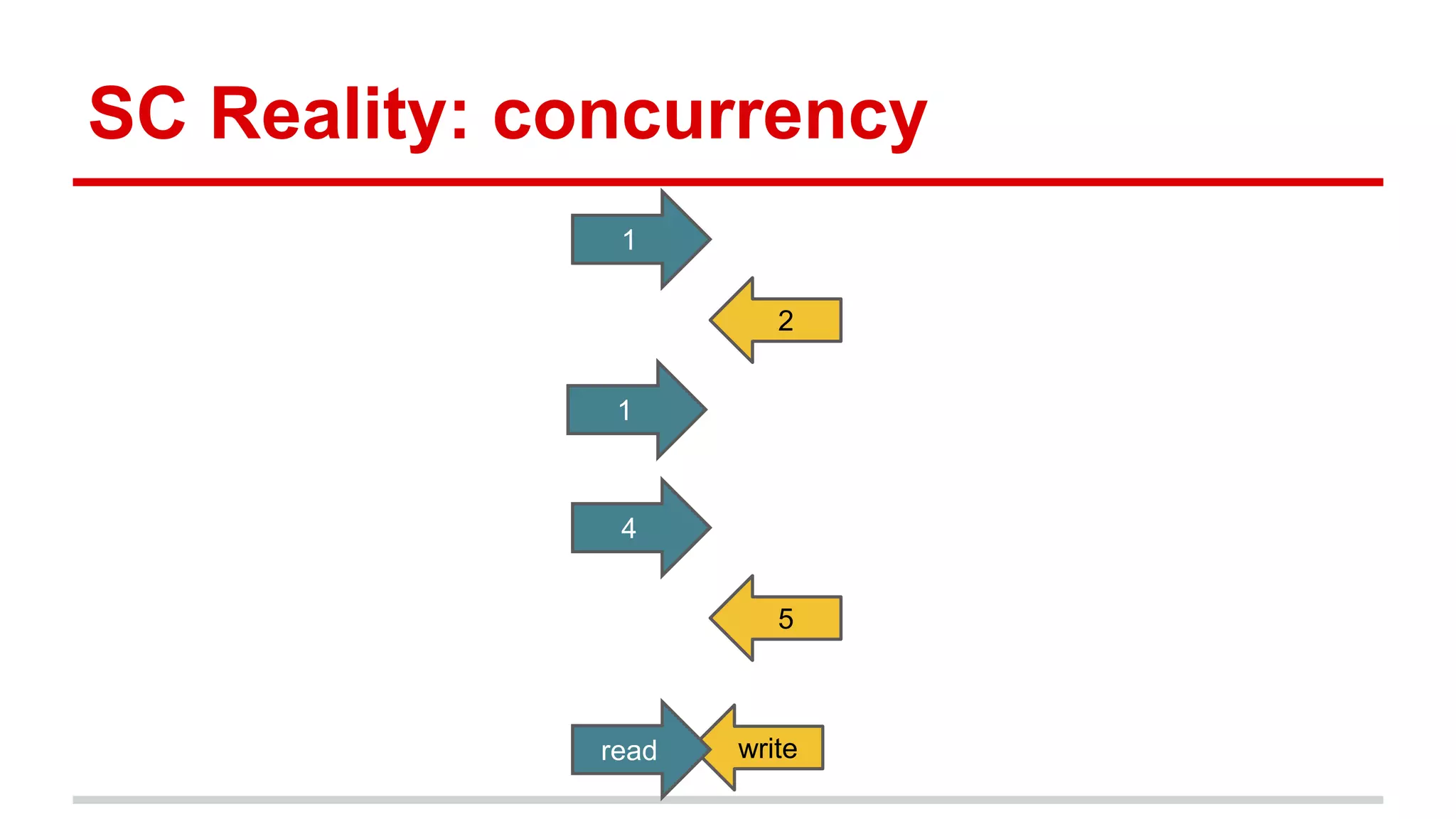

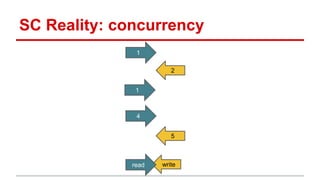

40. SC Reality: concurrency
1
write
1
5
4
read
2

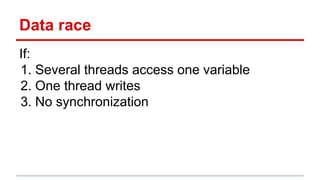

41. Data race
If:
1. Several threads access one variable
2. One thread writes
3. No synchronization

42. Data race

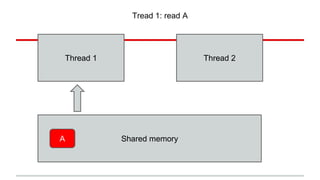

43. Tread 1: read A
Thread 1 Thread 2
A Shared memory

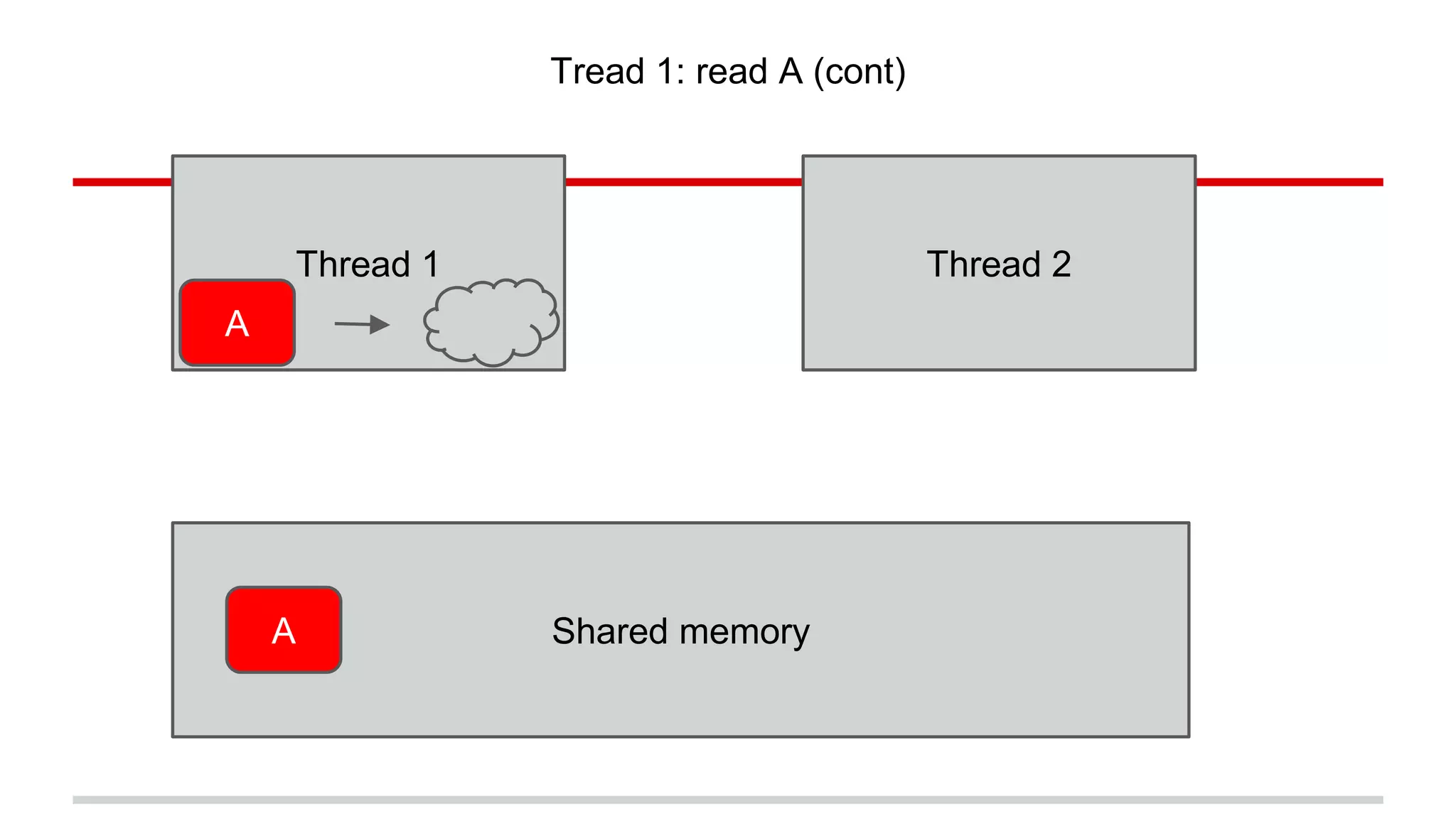

44. Tread 1: read A (cont)
Thread 1 Thread 2
A Shared memory
A

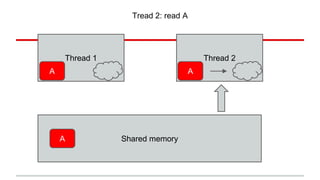

45. Tread 2: read A
Thread 1 Thread 2
A A
A Shared memory

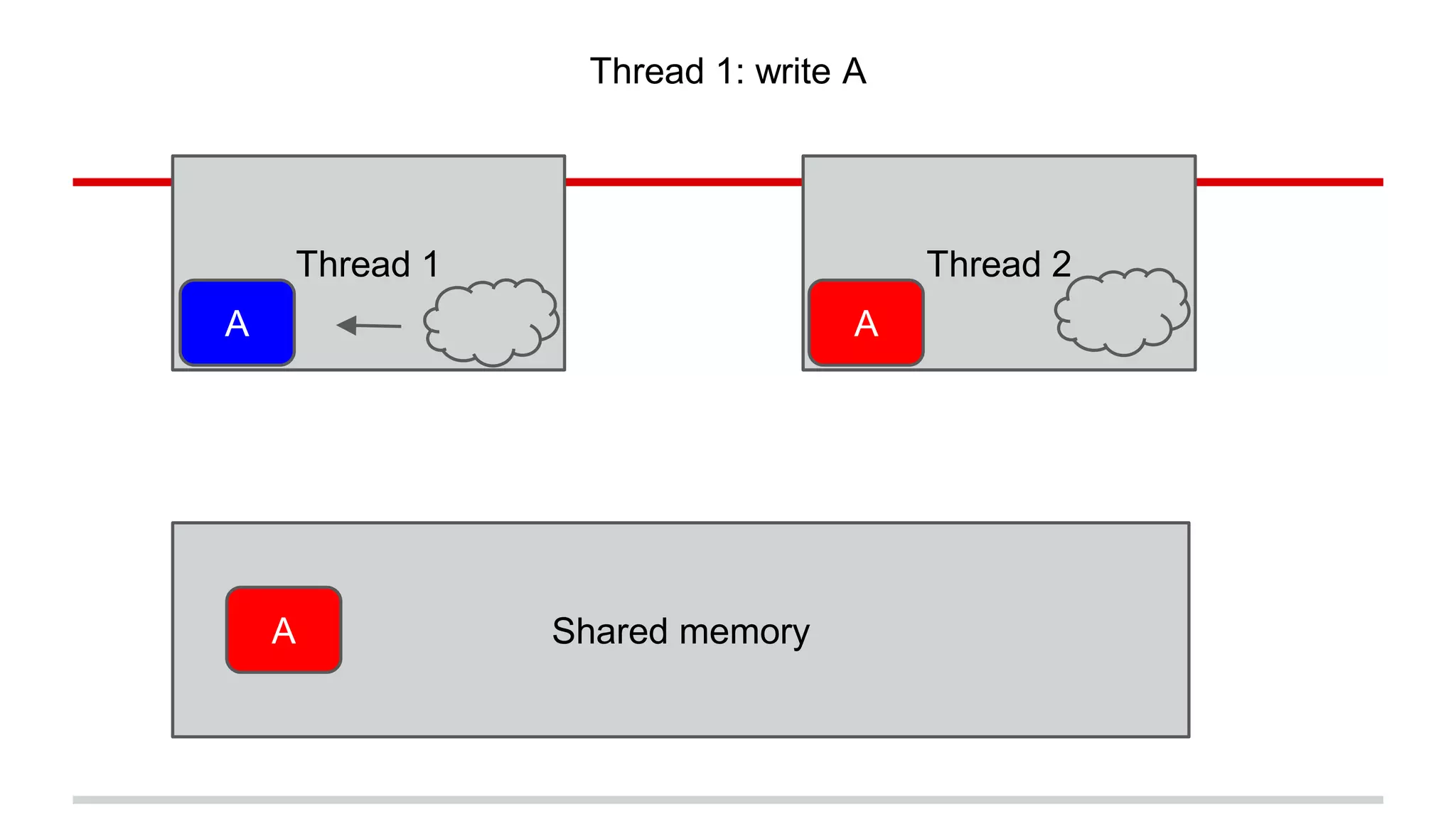

46. Thread 1: write A
Thread 1 Thread 2
A A
A Shared memory

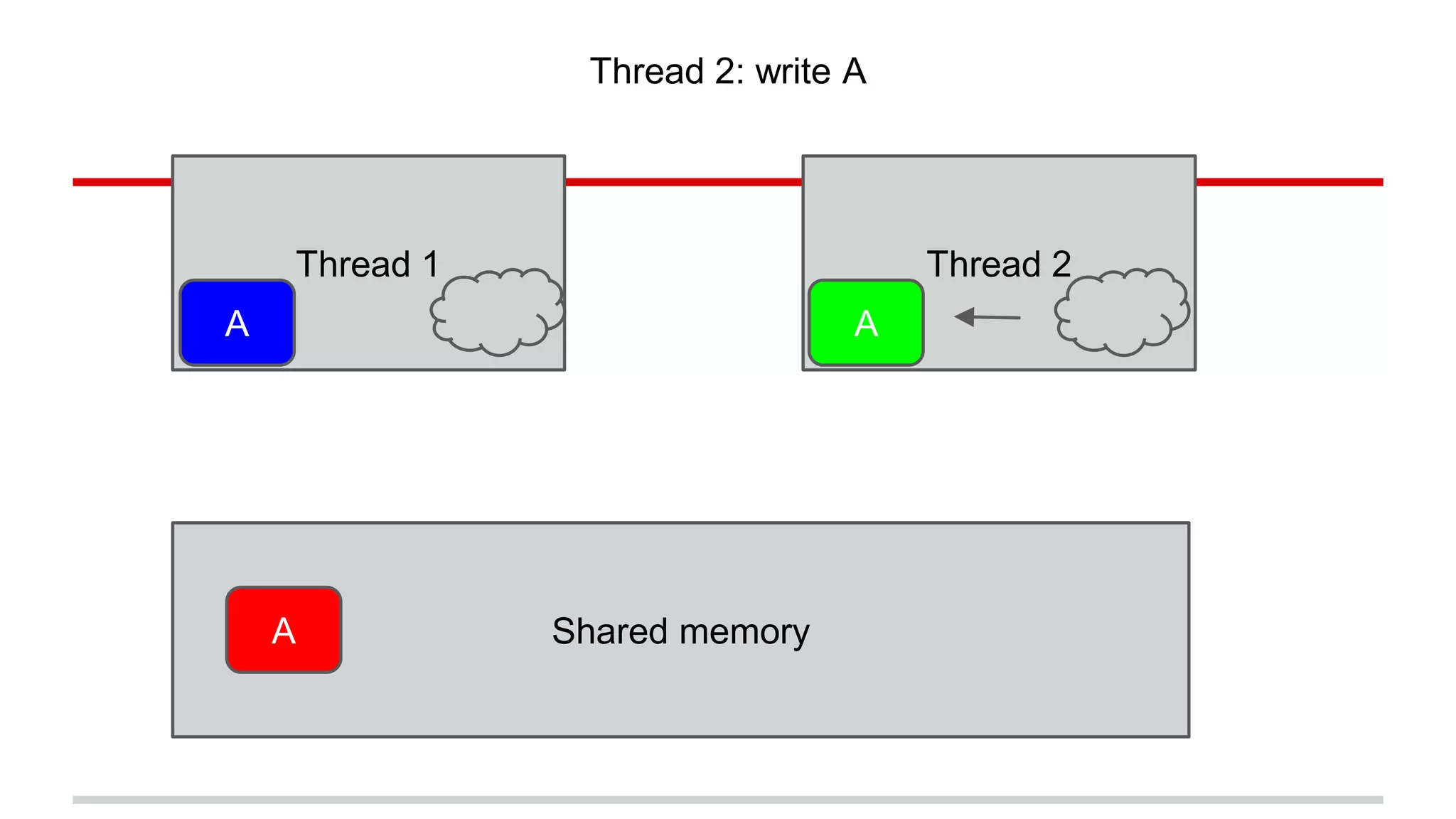

47. Thread 2: write A
Thread 1 Thread 2
A A
A Shared memory

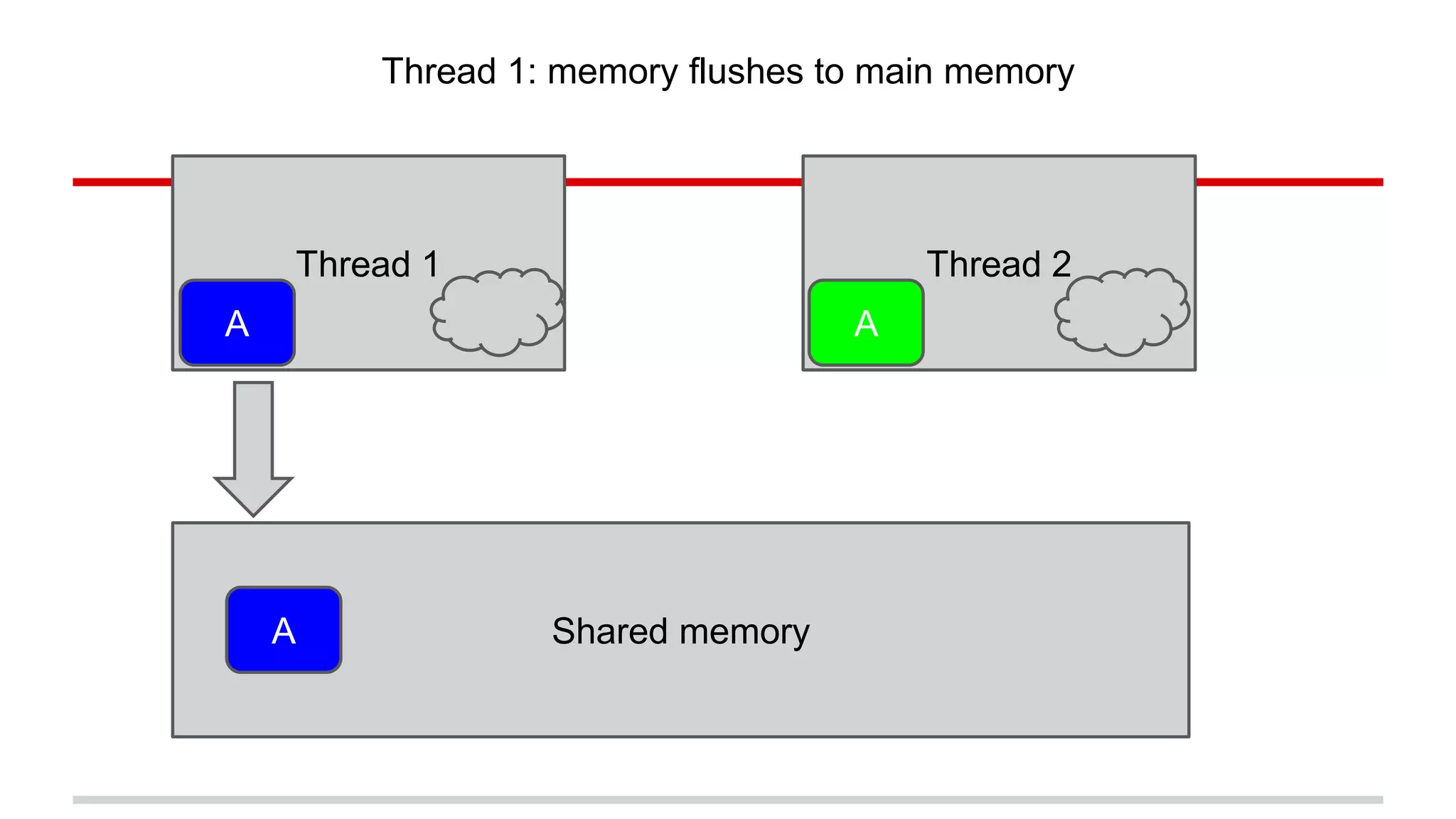

48. Thread 1: memory flushes to main memory
Thread 1 Thread 2
A A
A
Shared memory

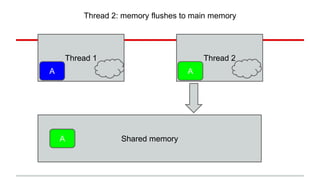

49. Thread 2: memory flushes to main memory
Thread 1 Thread 2
A A
A
Shared memory

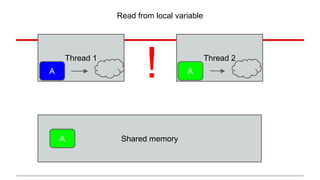

50. Read from local variable
!
Thread 1 Thread 2
A A
A
Shared memory

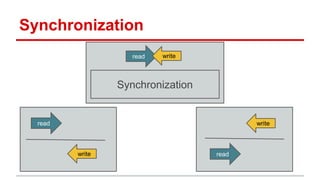

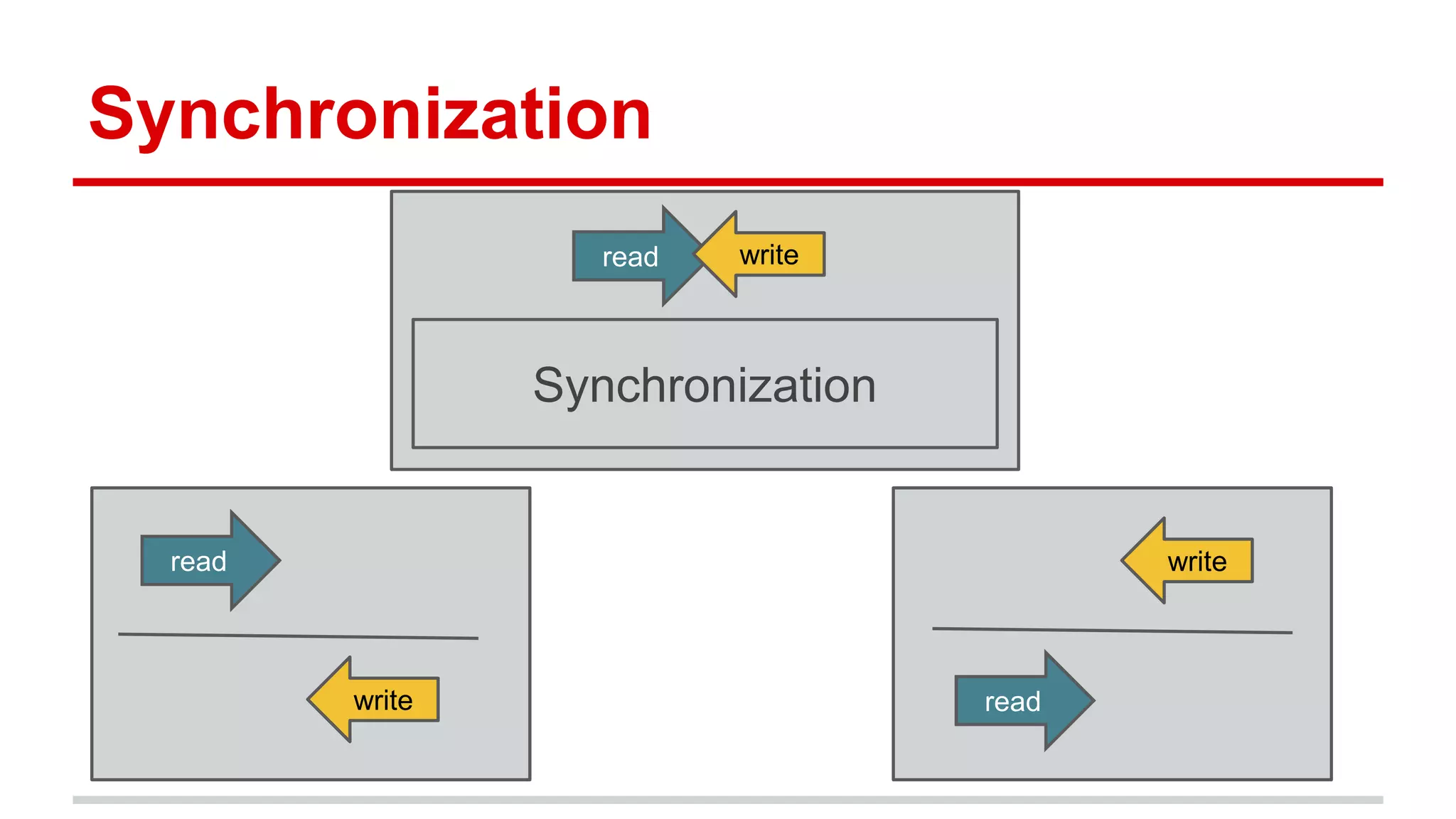

51. Synchronization
read
read write
write read
write
Synchronization

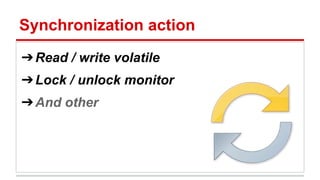

52. Synchronization action
➔Read / write volatile
➔Lock / unlock monitor
➔And other

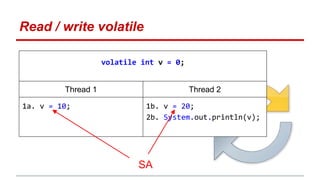

53. Read / write volatile
volatile int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
SA

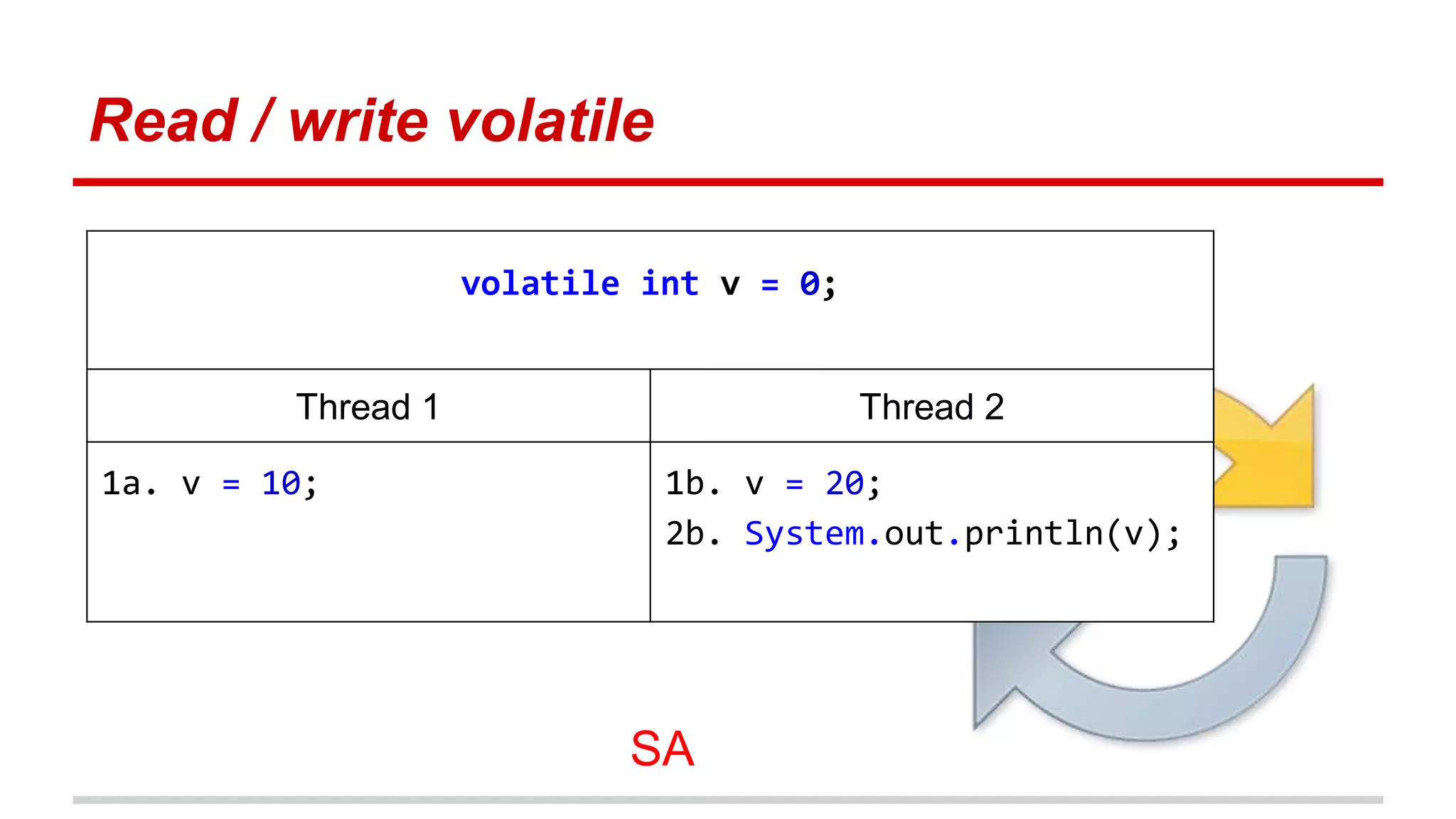

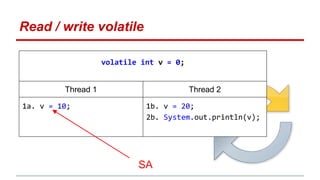

54. Read / write volatile
volatile int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
SA

55. Read / write volatile
volatile int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
SA

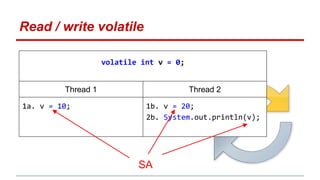

56. Read / write volatile
volatile int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
SA

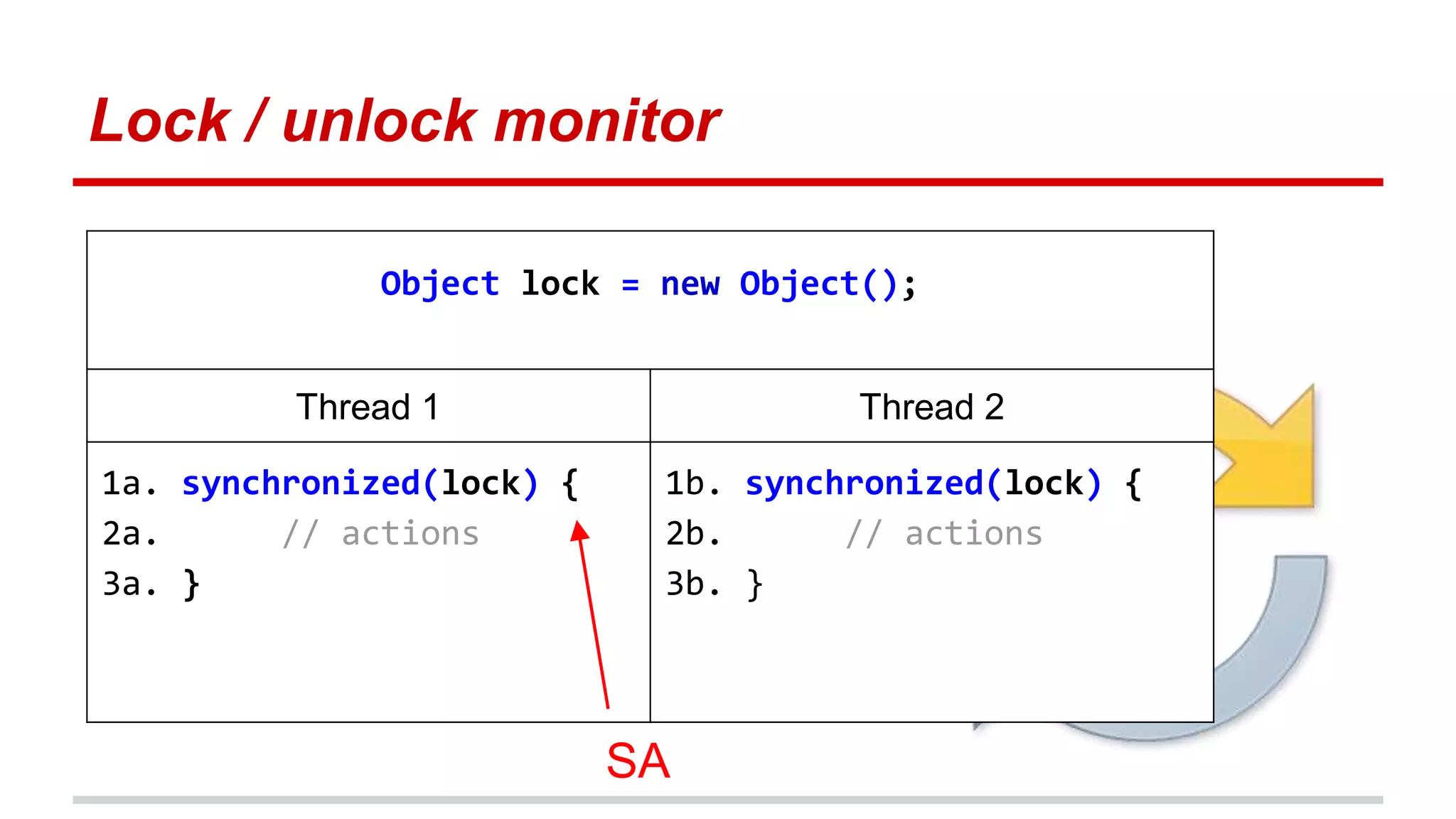

57. Lock / unlock monitor
Object lock = new Object();
Thread 1 Thread 2
1a. synchronized(lock) {
2a. // actions
3a. }
1b. synchronized(lock) {
2b. // actions
3b. }
SA

58. Lock / unlock monitor
Object lock = new Object();
Thread 1 Thread 2
1a. synchronized(lock) {
2a. // actions
3a. }
1b. synchronized(lock) {
2b. // actions
3b. }
SA

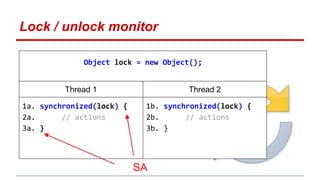

59. Lock / unlock monitor
Object lock = new Object();
Thread 1 Thread 2
1a. synchronized(lock) {
2a. // actions
3a. }
1b. synchronized(lock) {
2b. // actions
3b. }
SA

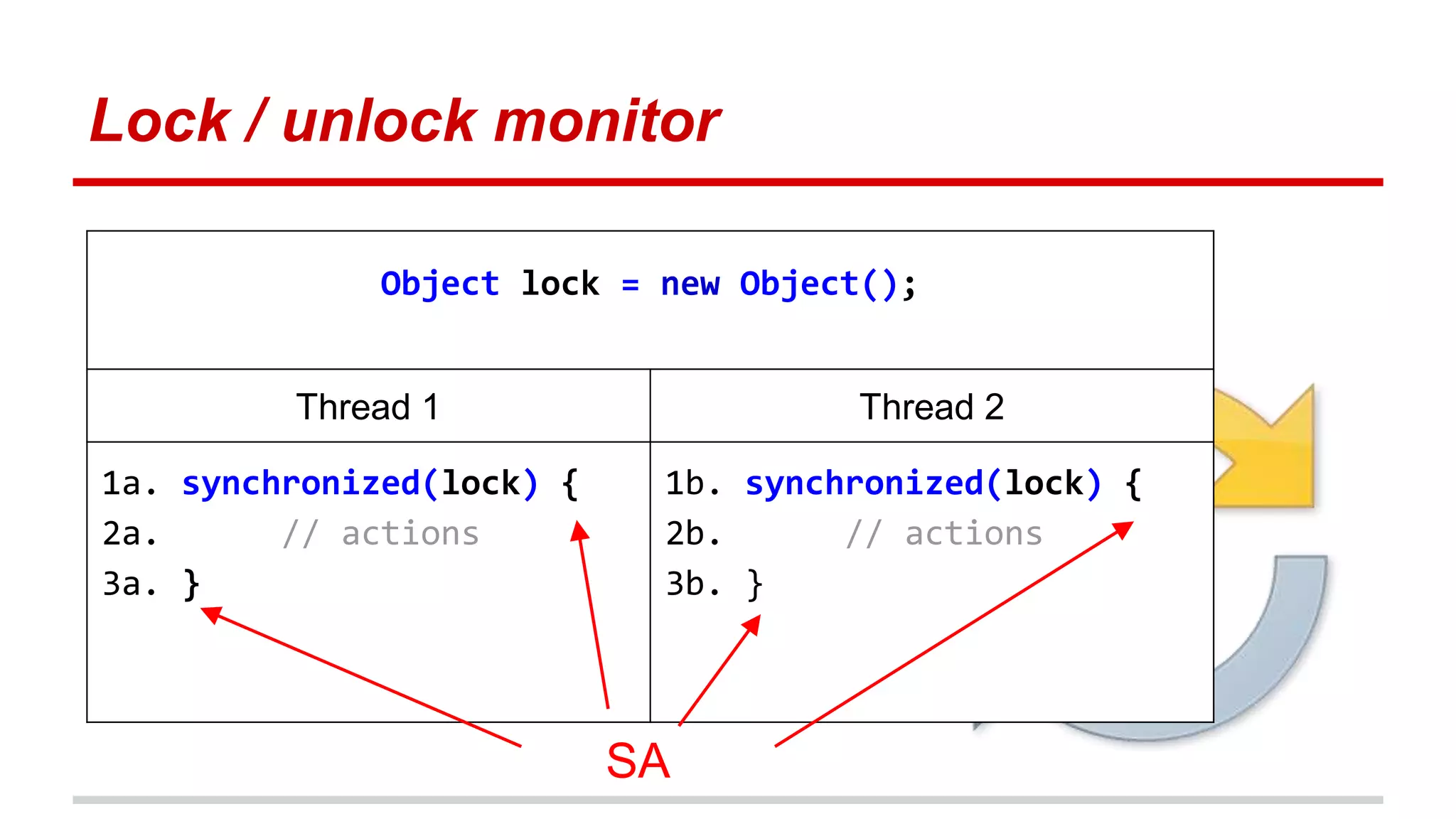

60. Lock / unlock monitor
Object lock = new Object();
Thread 1 Thread 2
1a. synchronized(lock) {
2a. // actions
3a. }
1b. synchronized(lock) {
2b. // actions
3b. }
SA

61. Lock / unlock monitor
Object lock = new Object();
Thread 1 Thread 2
1a. synchronized(lock) {
2a. // actions
3a. }
1b. synchronized(lock) {
2b. // actions
3b. }
SA

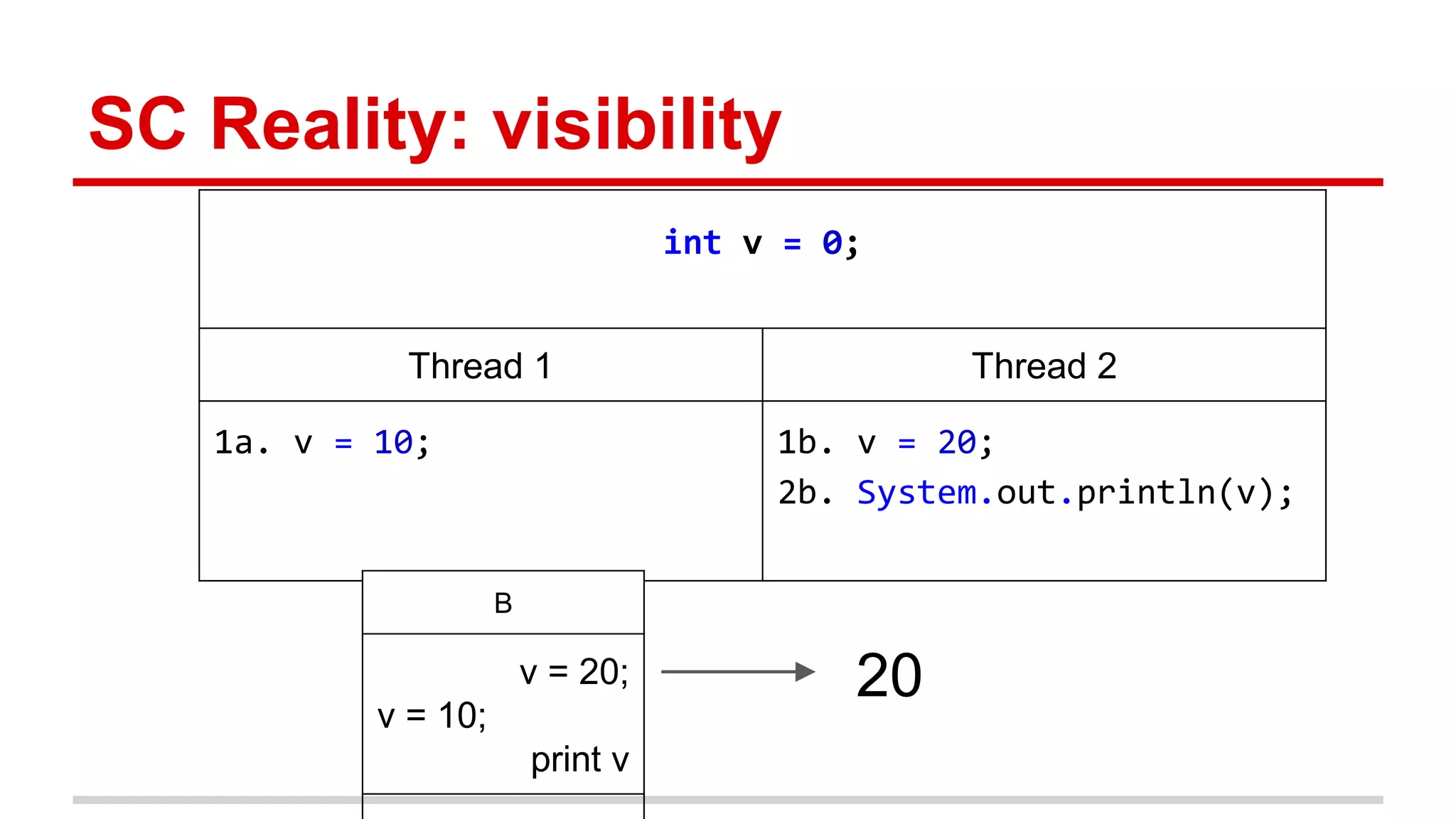

62. SC Reality: visibility
int v = 0;
Thread 1 Thread 2
1a. v = 10; 1b. v = 20;
2b. System.out.println(v);
20
B
v = 20;
v = 10;
print v

63. What have we learned?
1. Program order
2. Memory model
3. Sequential Consistency
4. Synchronization action

64. Visibility of volatile variables

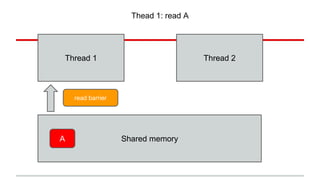

65. Thead 1: read A
Thread 1 Thread 2
read barrier
A Shared memory

66. Thead 1: read A (cont)
Thread 1 Thread 2
A Shared memory
A

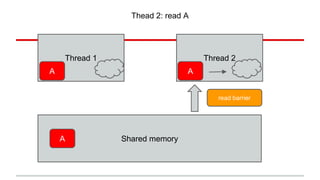

67. Thead 2: read A
Thread 1 Thread 2
A Shared memory
A
read barrier
A

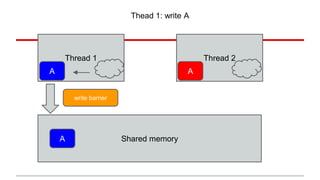

68. Thead 1: write A
Thread 1 Thread 2
A A
write barrier
A
Shared memory

69. Thead 2: write A
Thread 1 Thread 2
A A
A
Shared memory
write barrier

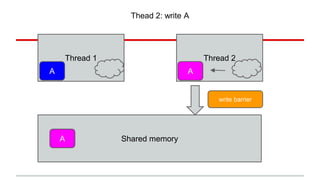

70. Thead 2: write A
Thread 1 Thread 2
A A
A
Shared memory
write barrier

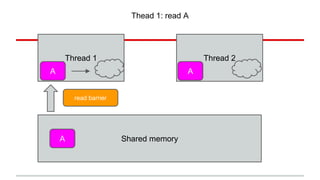

71. Thead 1: read A
Thread 1 Thread 2
A
Shared memory
A
read barrier
A

72. SC Reality: atomicity
long v = 0L;
Thread 1 Thread 2
v = Long.MAX_VALUE; System.out.println(v);
A. Long.MAX_VALUE B. 0L
C. FFFF FFFF 0000 0000 D. 0000 0000 FFFF FFFF

73. SC Reality: atomicity
long v = 0L;
Thread 1 Thread 2
v = Long.MAX_VALUE; System.out.println(v);
A. Long.MAX_VALUE B. 0L
C. FFFF FFFF 0000 0000 D. 0000 0000 FFFF FFFF

74. SC Reality: atomicity

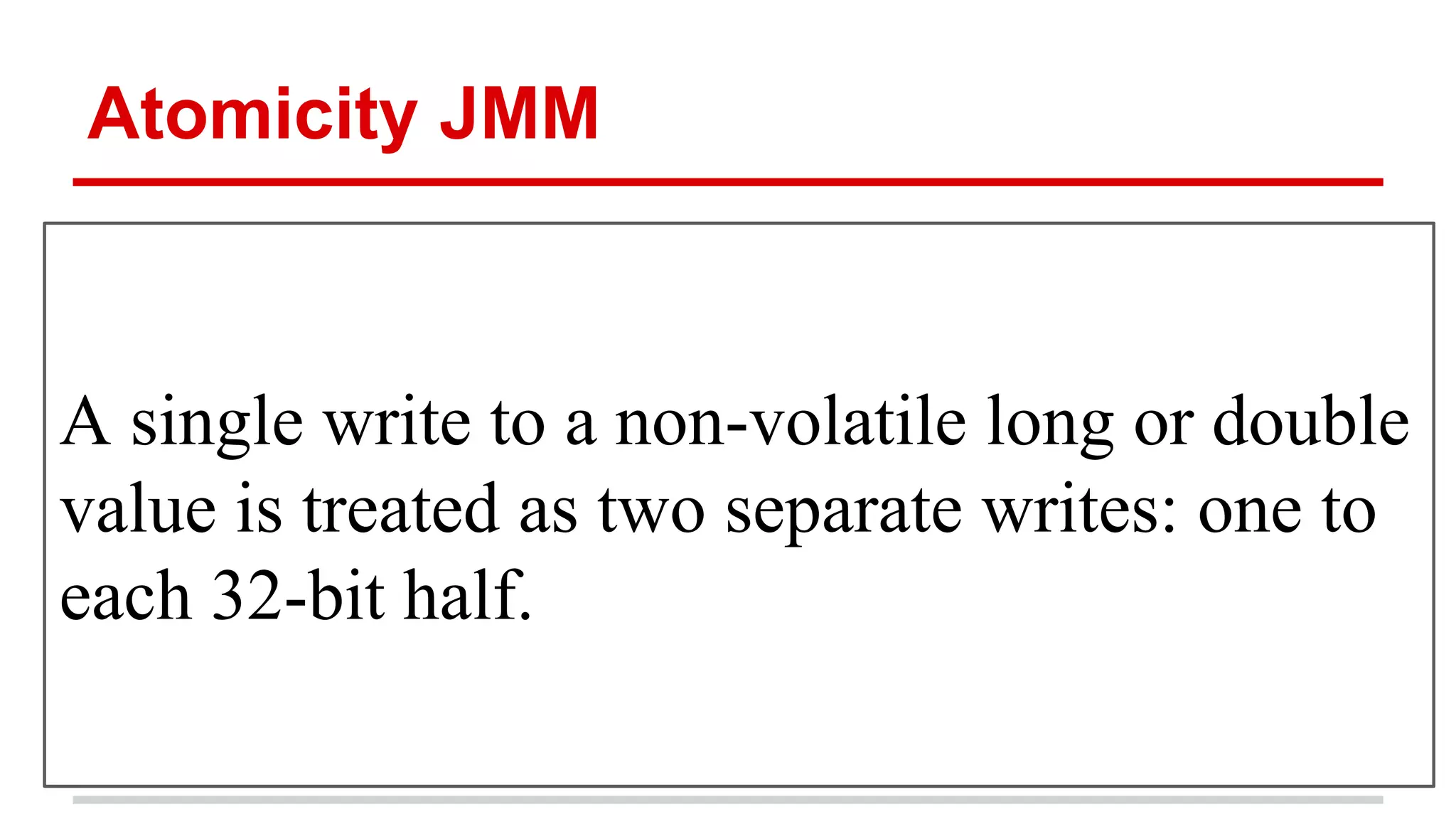

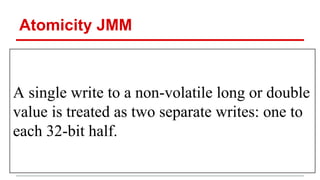

75. Atomicity JMM
A single write to a non-volatile long or double
value is treated as two separate writes: one to
each 32-bit half.

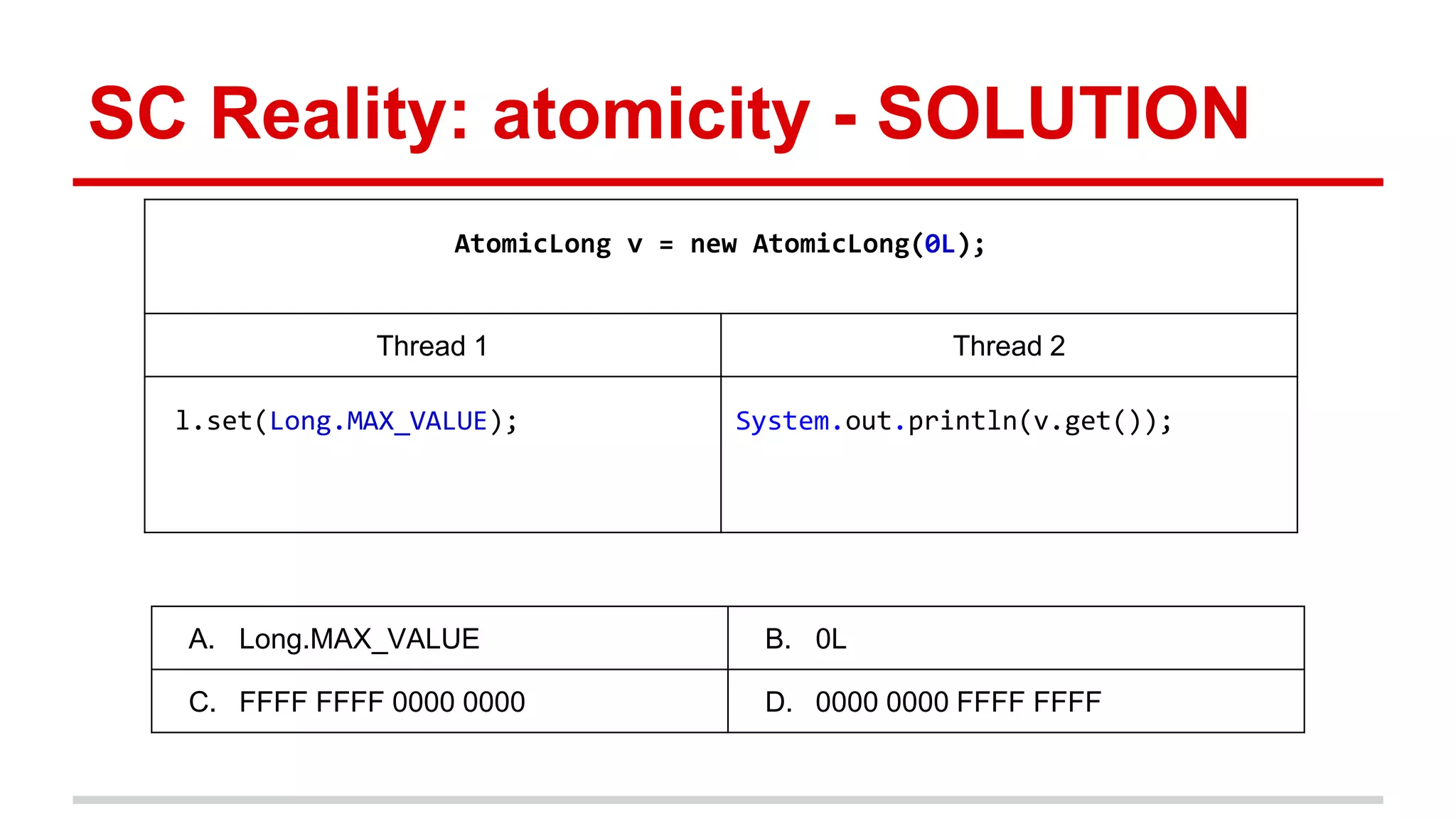

76. SC Reality: atomicity - SOLUTION
AtomicLong v = new AtomicLong(0L);
Thread 1 Thread 2
l.set(Long.MAX_VALUE); System.out.println(v.get());
A. Long.MAX_VALUE B. 0L
C. FFFF FFFF 0000 0000 D. 0000 0000 FFFF FFFF

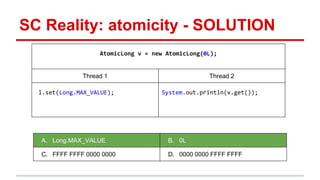

77. SC Reality: atomicity - SOLUTION
AtomicLong v = new AtomicLong(0L);
Thread 1 Thread 2
l.set(Long.MAX_VALUE); System.out.println(v.get());
A. Long.MAX_VALUE B. 0L
C. FFFF FFFF 0000 0000 D. 0000 0000 FFFF FFFF

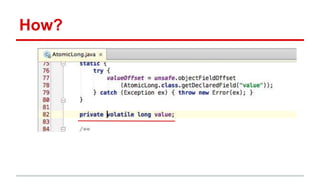

78. How?

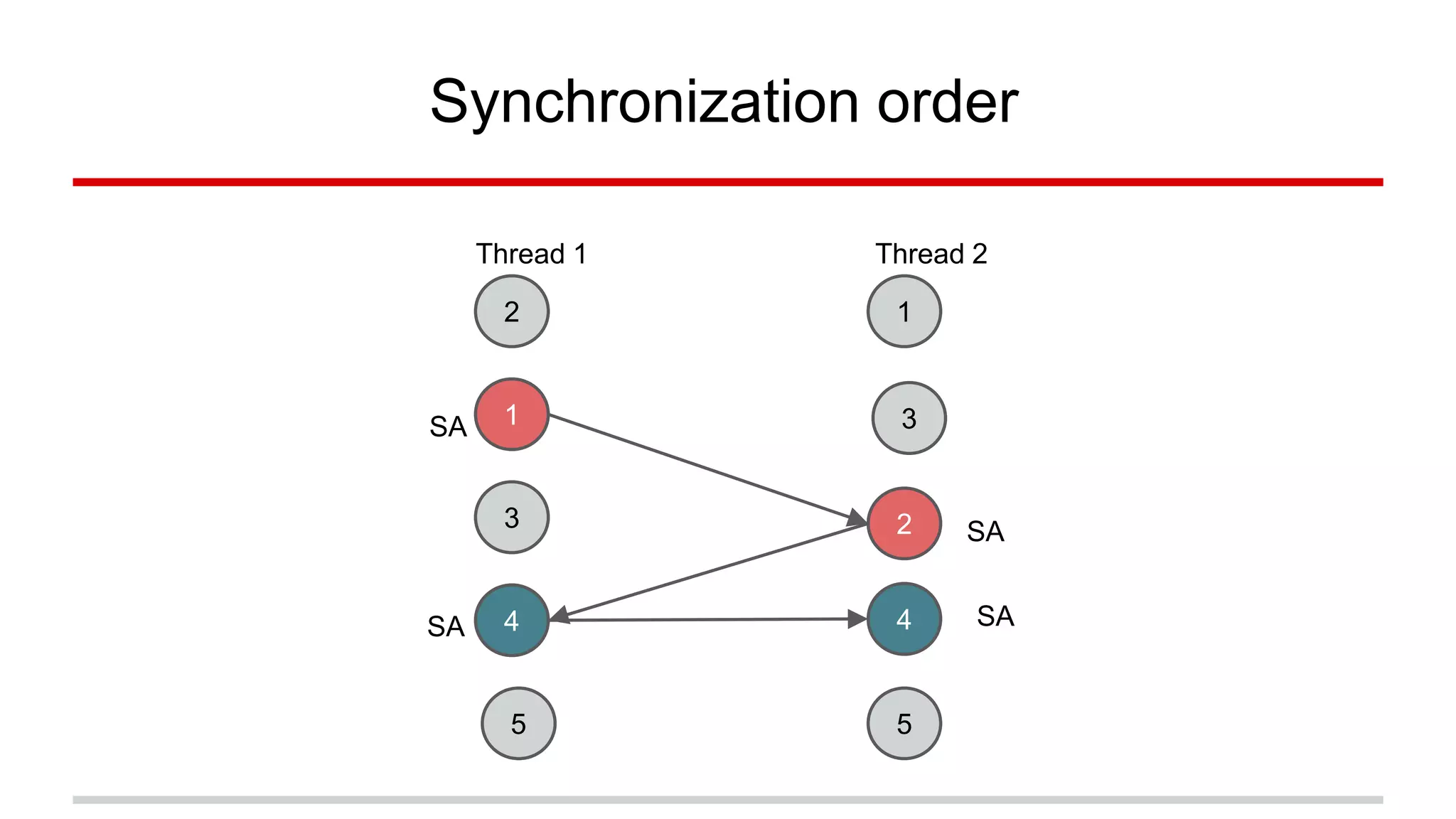

80. Synchronization order
Thread 1 Thread 2
2 1
1
3
2
3
4 4
SA
SA
SA
SA
5 5

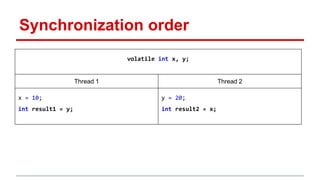

81. Synchronization order
volatile int x, y;
Thread 1 Thread 2
x = 10;
int result1 = y;
y = 20;
int result2 = x;

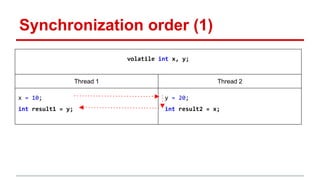

82. Synchronization order (1)
volatile int x, y;
Thread 1 Thread 2
x = 10;
int result1 = y;
y = 20;
int result2 = x;

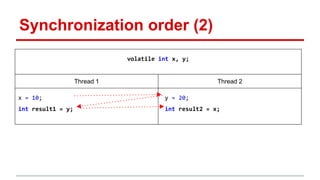

83. Synchronization order (2)
volatile int x, y;
Thread 1 Thread 2
x = 10;
int result1 = y;
y = 20;
int result2 = x;

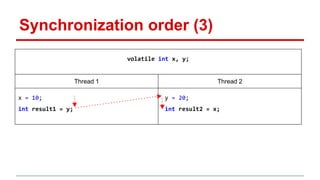

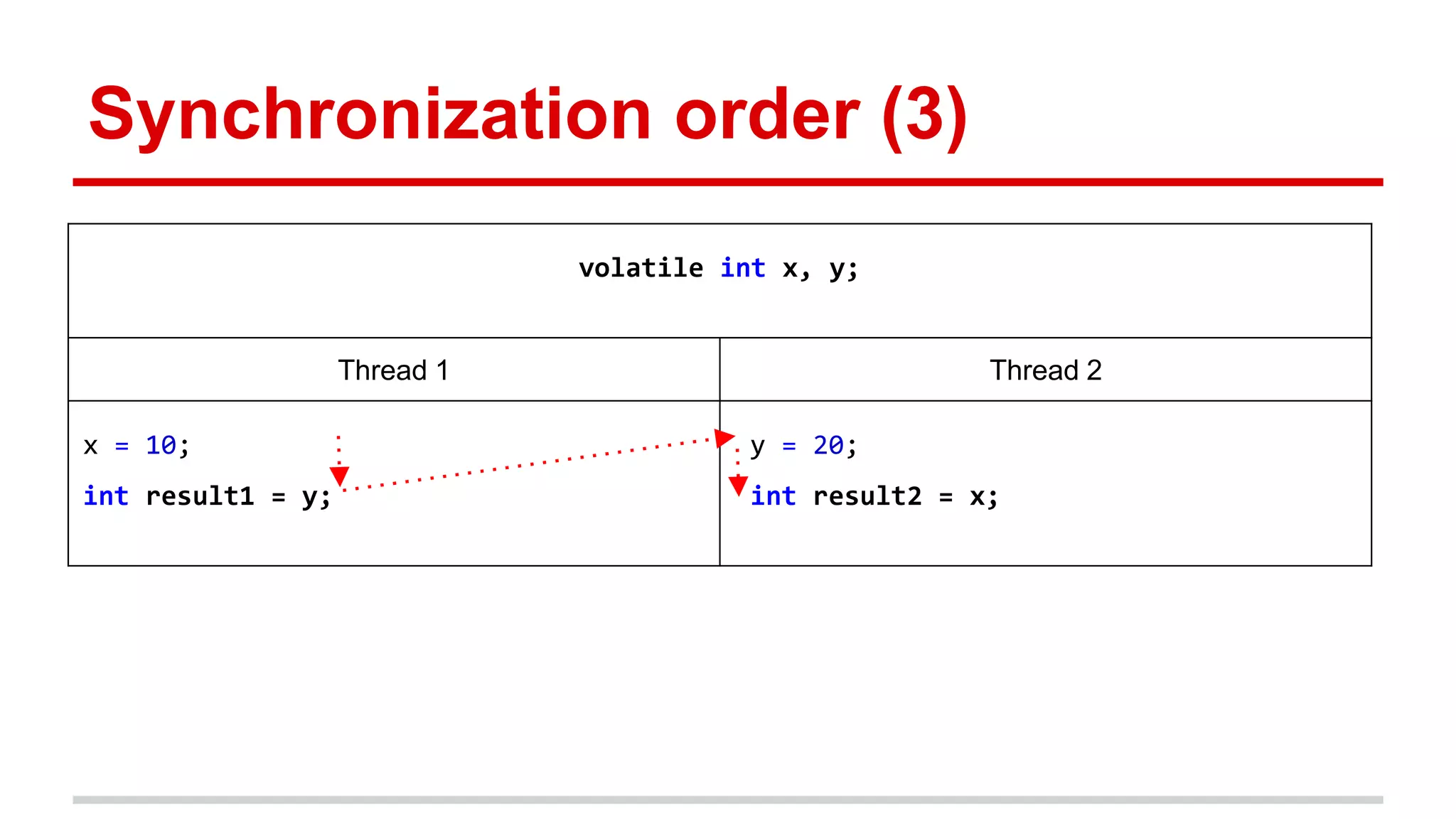

84. Synchronization order (3)
volatile int x, y;
Thread 1 Thread 2
x = 10;
int result1 = y;
y = 20;
int result2 = x;

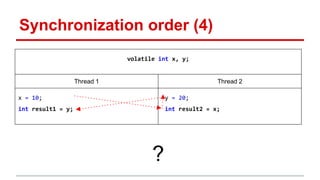

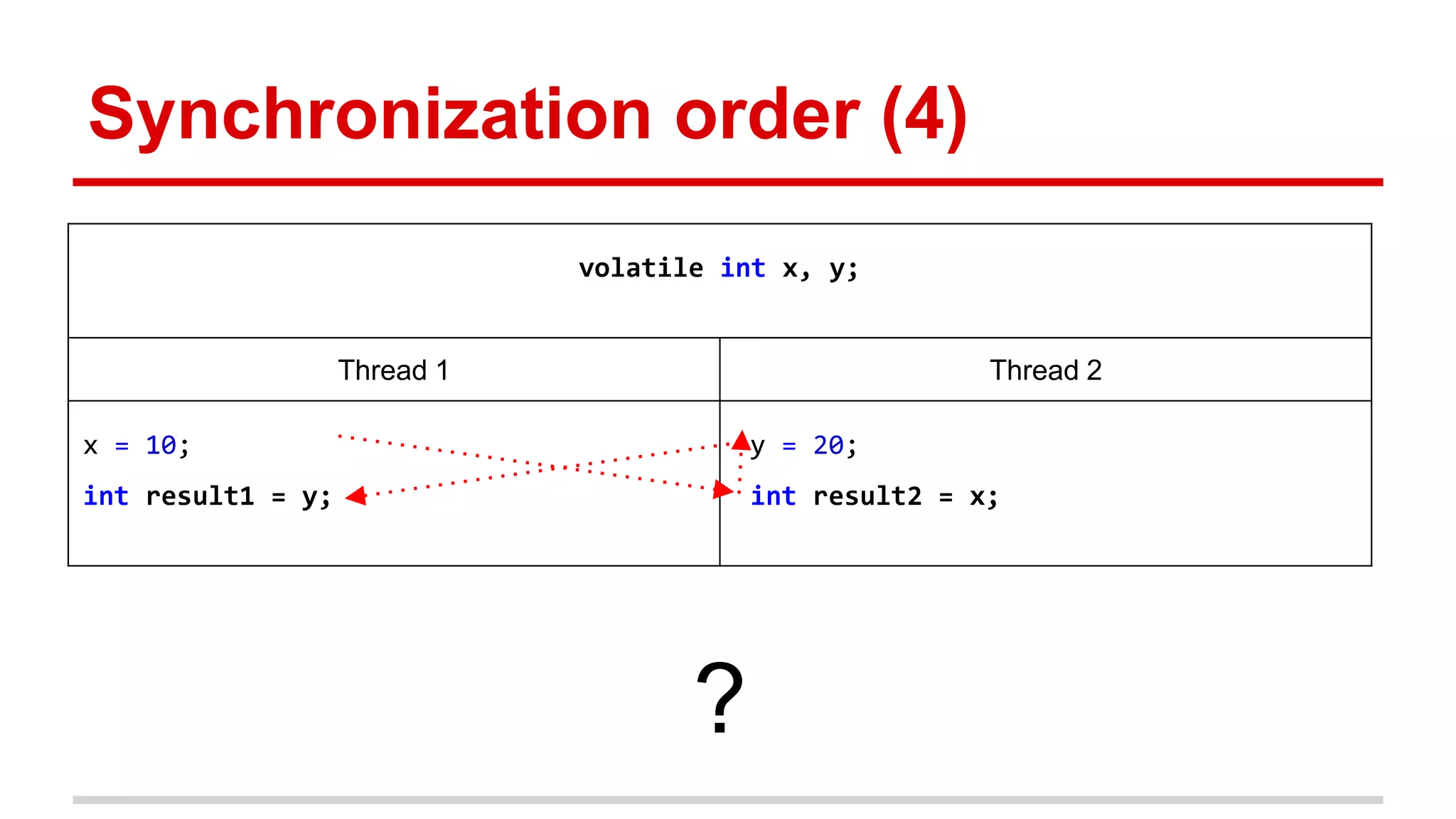

85. Synchronization order (4)
volatile int x, y;
Thread 1 Thread 2
x = 10;
int result1 = y;
y = 20;
int result2 = x;
?

86. Synchronization order (4)
volatile int x, y;
Thread 1 Thread 2
x = 10;
int result1 = y;
y = 20;
int result2 = x;
Synchronization order consistent with Program Order

87. What have we learned?
1. Program order
2. Memory model
3. Sequential Consistency
4. Synchronization action
5. Synchronization order

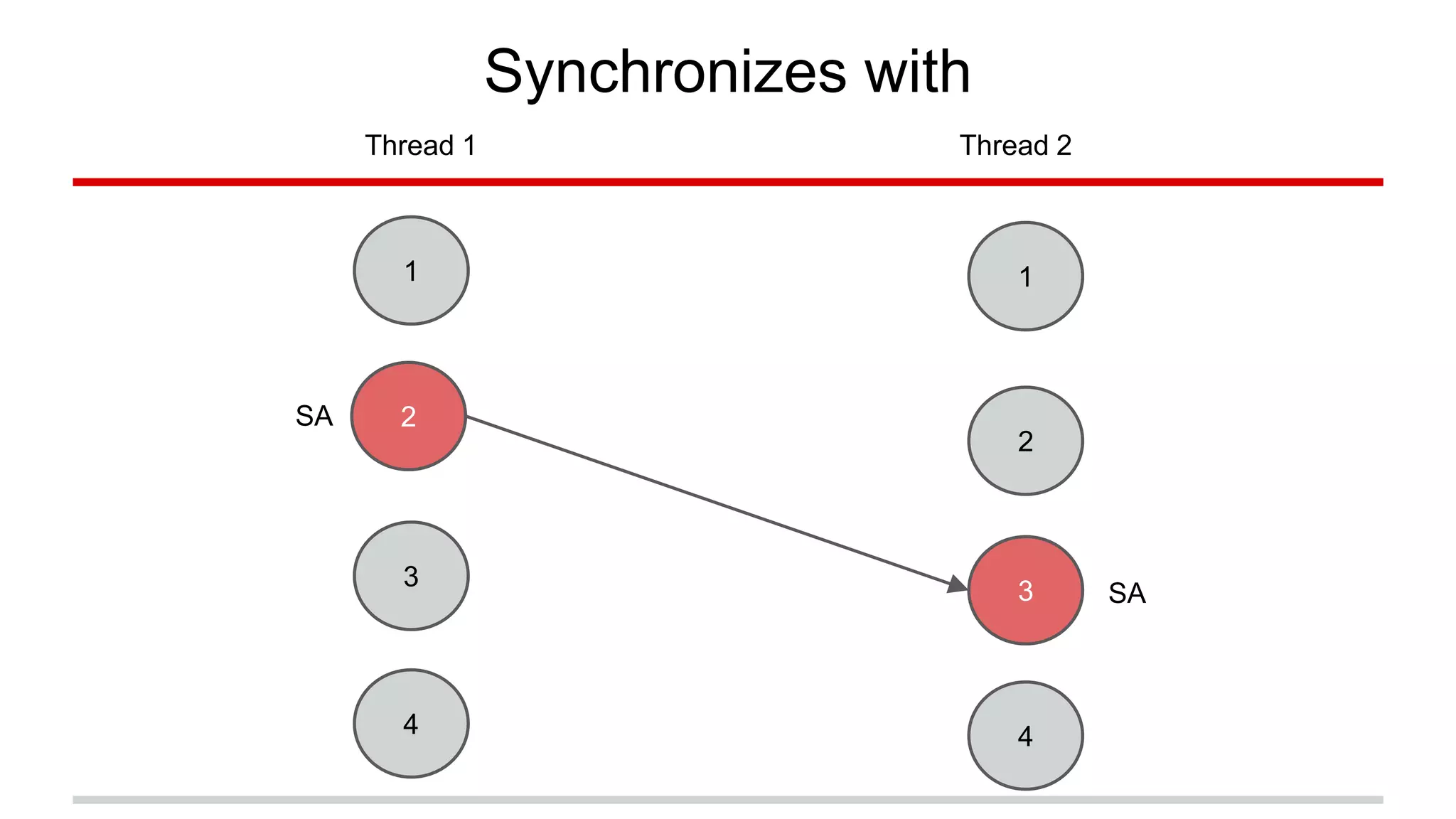

88. Synchronizes with
2
1
2
3
1
3
4 4
SA
SA
Thread 1 Thread 2

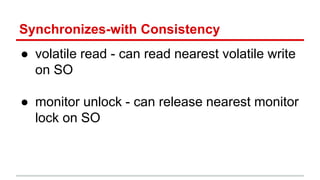

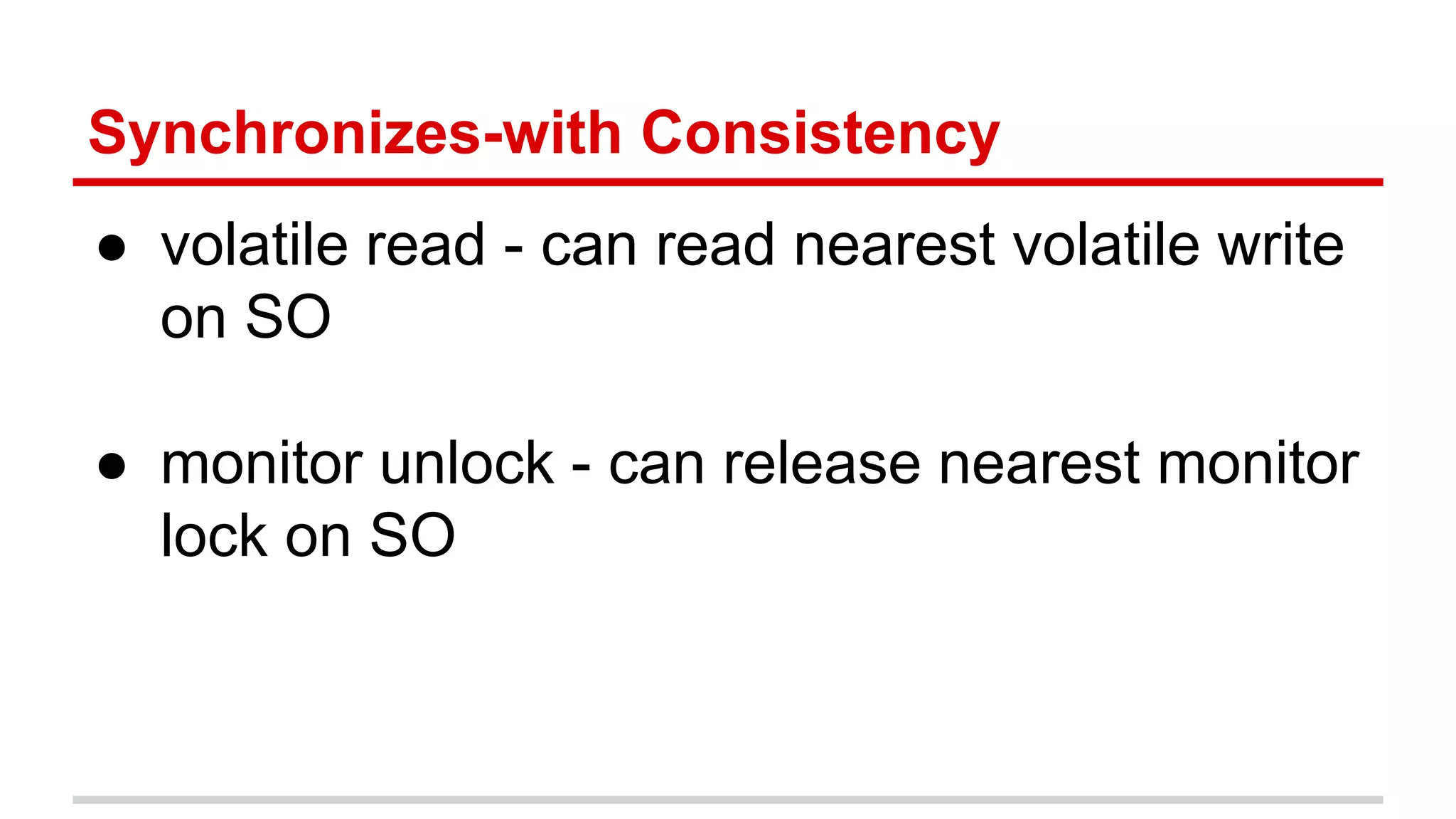

89. Synchronizes-with Consistency
● volatile read - can read nearest volatile write
on SO
● monitor unlock - can release nearest monitor
lock on SO

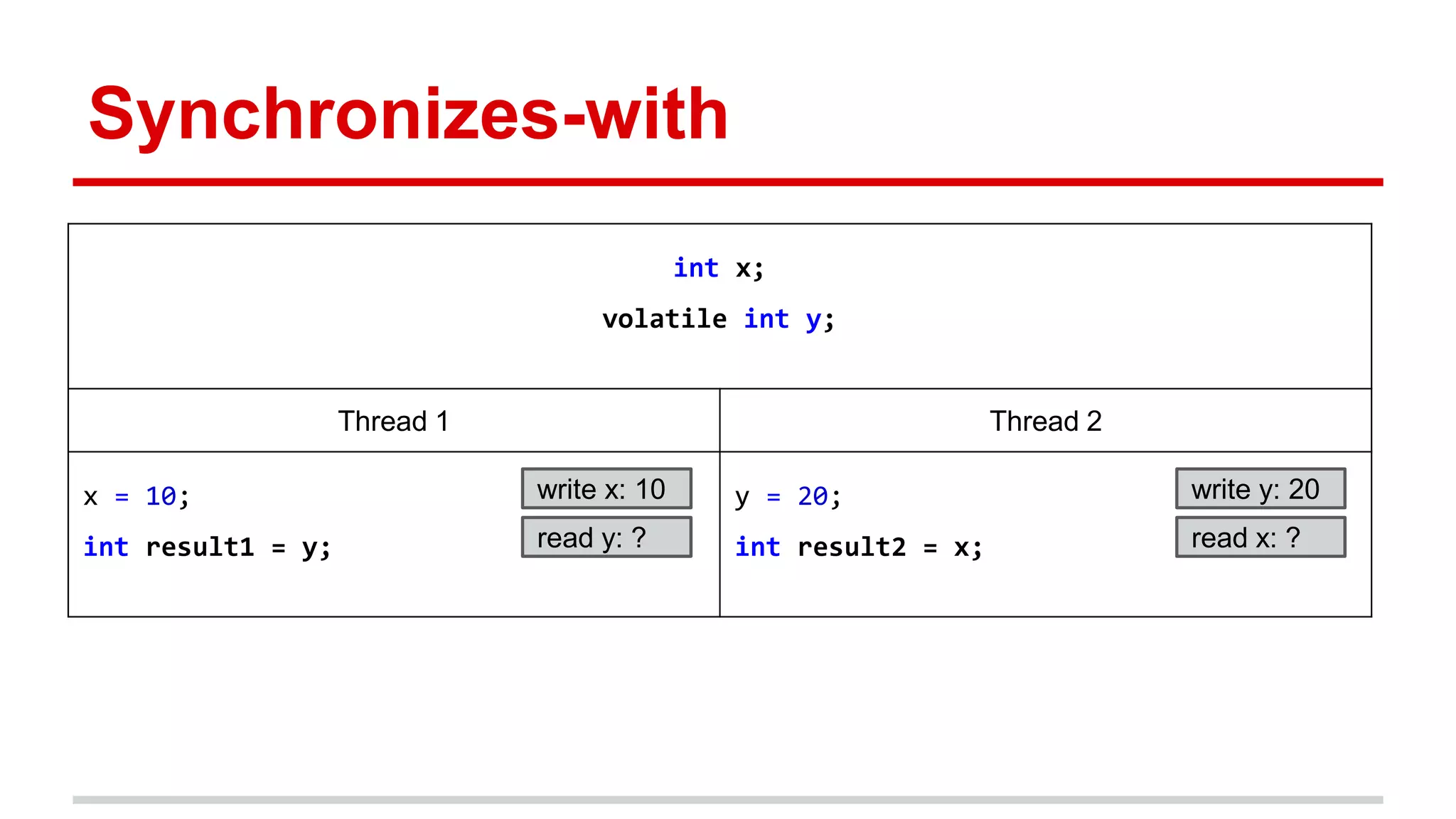

90. Synchronizes-with
int x;
volatile int y;
Thread 1 Thread 2
x = 10;
int result1 = y;
write x: 10
read y: ? read x: ?
y = 20;
int result2 = x;
write y: 20

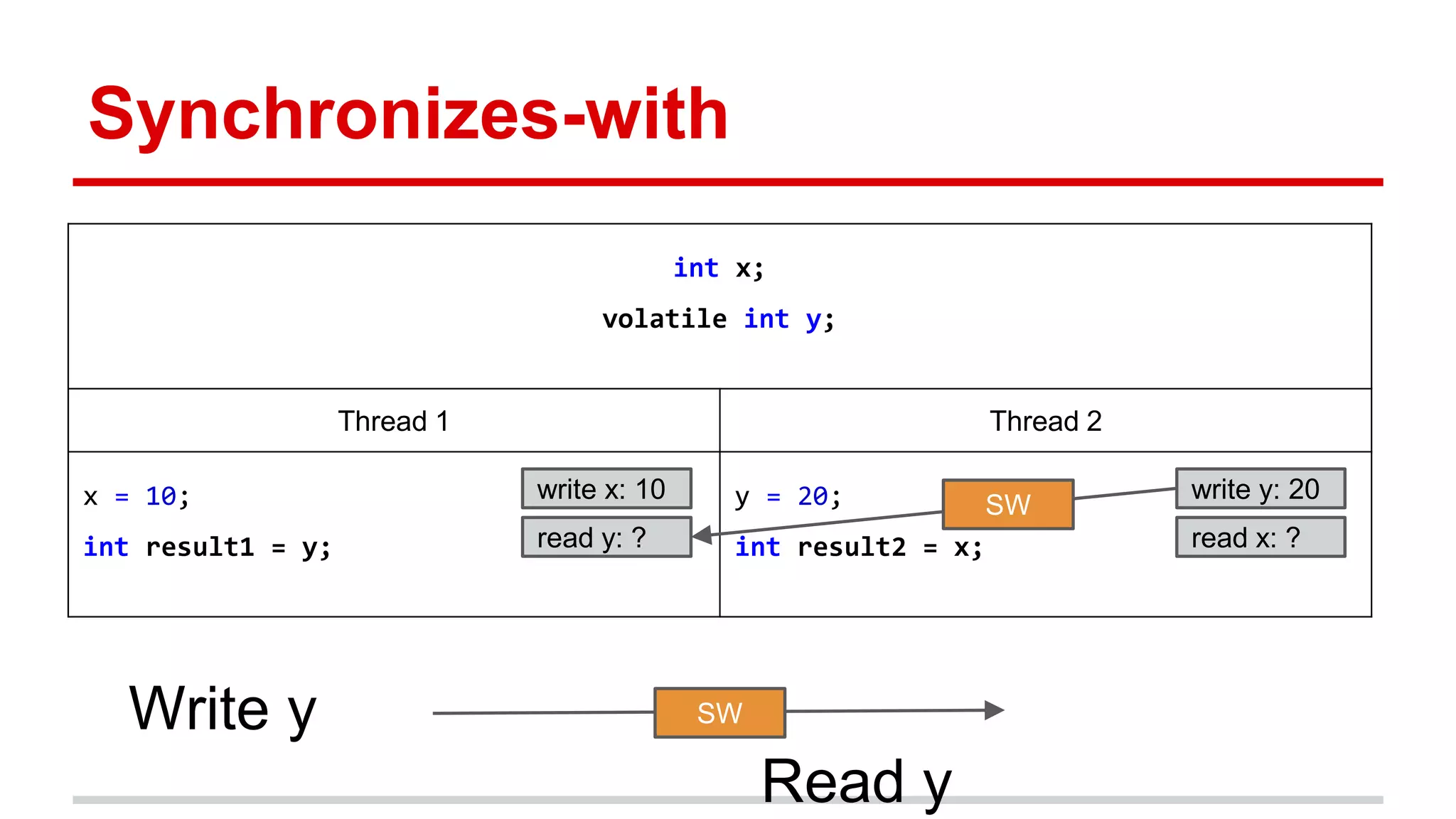

91. Synchronizes-with
int x;
volatile int y;
Thread 1 Thread 2
x = 10;
int result1 = y;
write x: 10
read y: ? read x: ?
y = 20;
int result2 = x;
write y: 20
SW
Write y
Read y
SW

92. What have we learned?
1. Program order
2. Memory model
3. Sequential Consistency
4. Synchronization action
5. Synchronization order
6. Synchronezed with

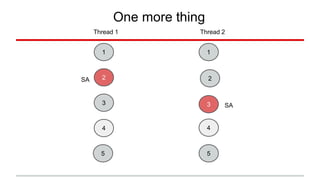

94. One more thing
Thread 1 Thread 2
2
1
2
3
4
1
3
4
SA
SA
5 5

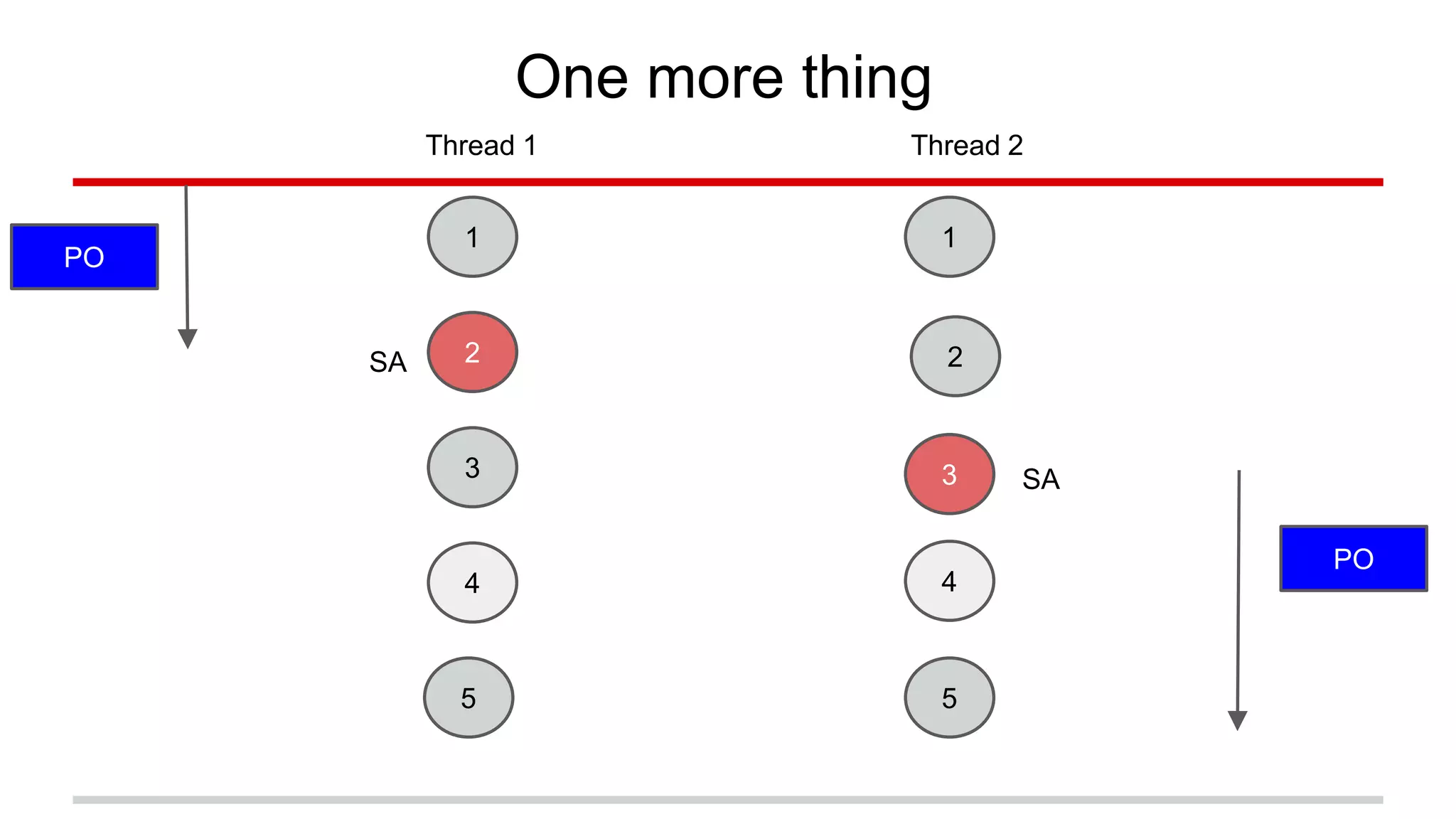

95. One more thing
Thread 1 Thread 2
2
1
2
3
4
1
3
4
SA
SA
5 5
PO
PO

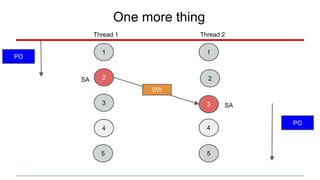

96. One more thing
Thread 1 Thread 2
2
1
2
3
4
1
3
4
SA
SA
5 5
PO
PO
SW

97. Happens-before!
Thread 1 Thread 2
2
1
2
3
4
1
3
4
SA
SA
5 5
PO
PO
SW

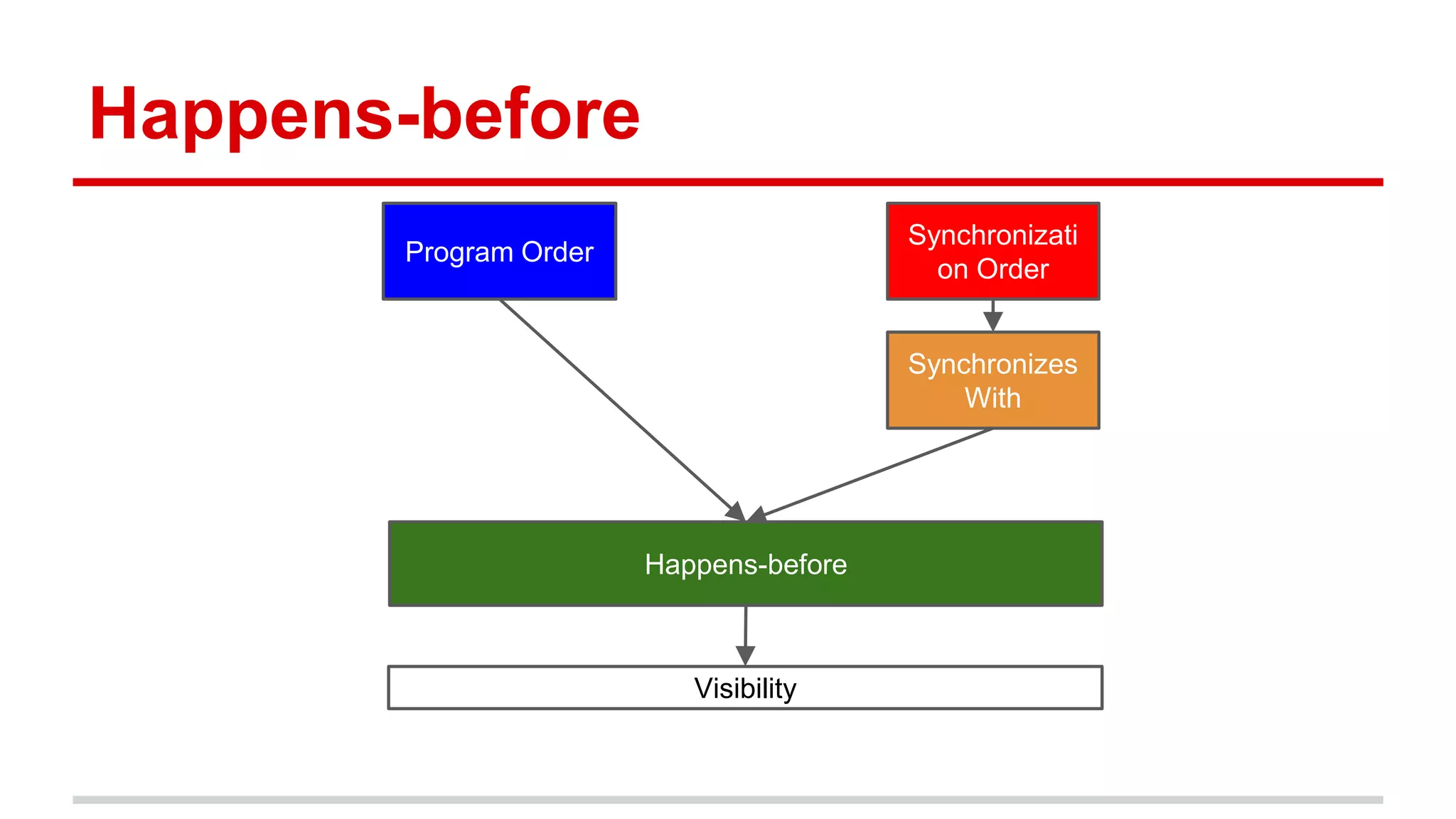

98. Happens-before
Program Order
Synchronizati
on Order
Synchronizes
With
Happens-before
Visibility

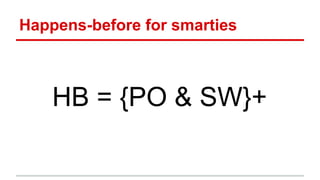

99. Happens-before for smarties
HB = {PO & SW}+

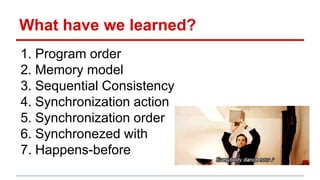

100. What have we learned?
1. Program order
2. Memory model
3. Sequential Consistency
4. Synchronization action
5. Synchronization order
6. Synchronezed with
7. Happens-before

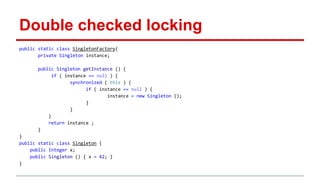

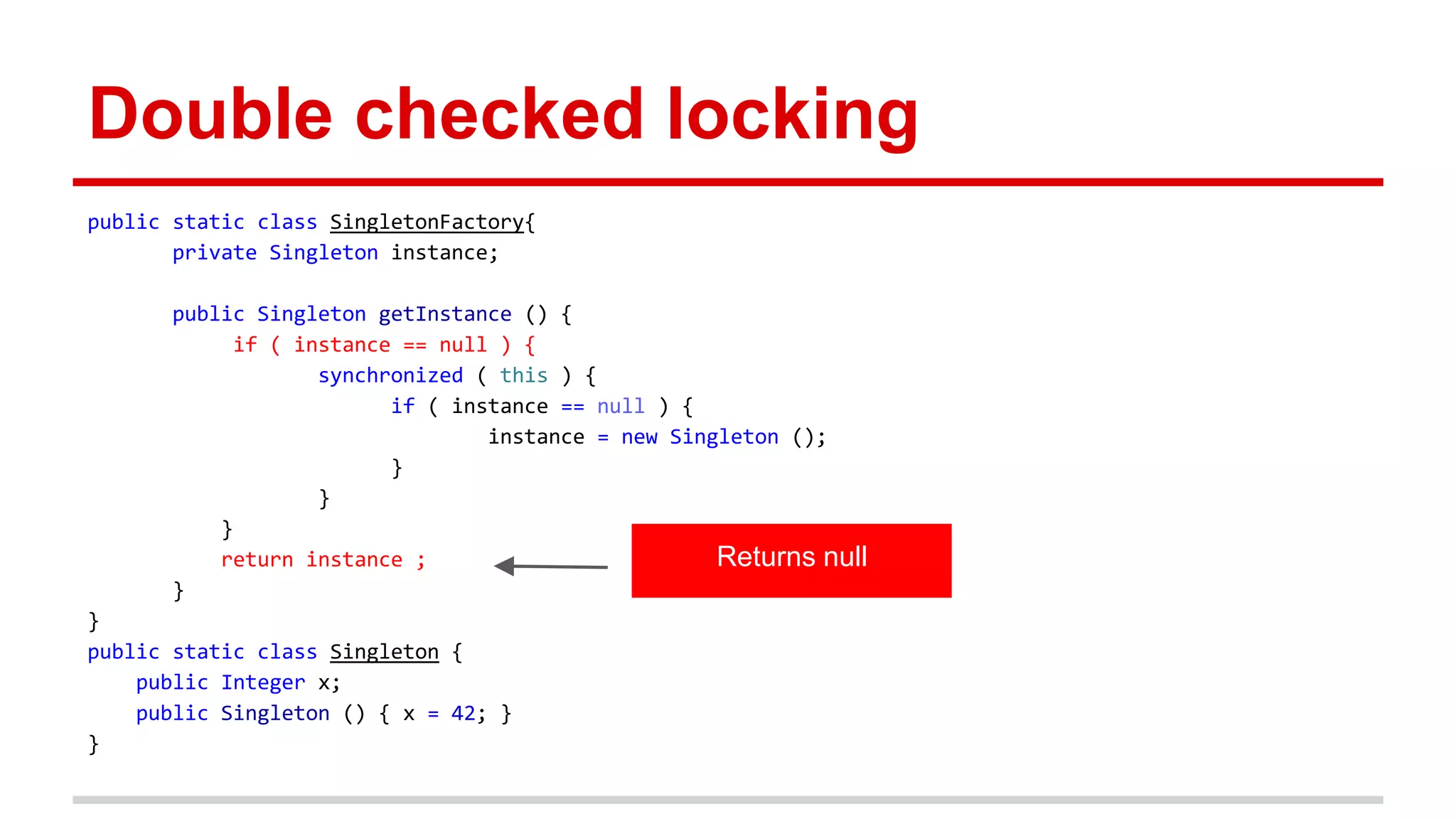

101. Double checked locking
public static class SingletonFactory{
private Singleton instance;
public Singleton getInstance () {
if ( instance == null ) {
synchronized ( this ) {
if ( instance == null ) {
instance = new Singleton ();
}
}
}
return instance ;
}
}
public static class Singleton {
public Integer x;
public Singleton () { x = 42; }
}

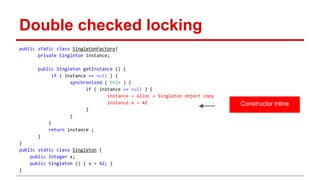

102. Double checked locking
public static class SingletonFactory{
private Singleton instance;
public Singleton getInstance () {
if ( instance == null ) {
synchronized ( this ) {
if ( instance == null ) {
instance = alloc + Singleton object copy
instance.x = 42
}
}
}
return instance ;
}
}
public static class Singleton {
public Integer x;
public Singleton () { x = 42; }
}
Constructor inline

103. Double checked locking
public static class SingletonFactory{
private Singleton instance;
public Singleton getInstance () {
if ( instance == null ) {
synchronized ( this ) {
if ( instance == null ) {
instance = new Singleton ();
}
}
}
return instance ;
}
}
public static class Singleton {
public Integer x;
public Singleton () { x = 42; }
}
Returns null

105. Double checked locking
public static class SingletonFactory{
private Singleton instance;
public Singleton getInstance () {
if ( instance == null ) {
synchronized ( this ) {
if ( instance == null ) {
instance = new Singleton ();
}
}
}
return instance ;
}
}
public static class Singleton {
public Integer x;
public Singleton () { x = 42; }
}
Returns null

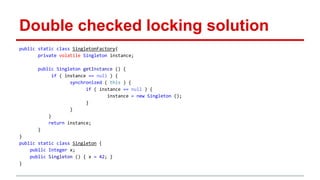

106. Double checked locking solution
public static class SingletonFactory{
private volatile Singleton instance;
public Singleton getInstance () {
if ( instance == null ) {
synchronized ( this ) {
if ( instance == null ) {
instance = new Singleton ();
}
}
}
return instance;
}
}
public static class Singleton {
public Integer x;
public Singleton () { x = 42; }
}

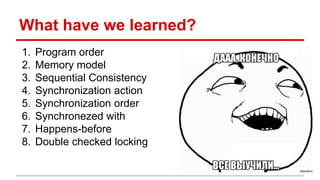

107. What have we learned?
1. Program order
2. Memory model
3. Sequential Consistency
4. Synchronization action
5. Synchronization order
6. Synchronezed with
7. Happens-before
8. Double checked locking

108. Reading
