JingFu Mold Engineering Co., Limited is a professional mold maker located in
Dongguan city. With 17 years of custom tooling and injection molding experience, we stick
to make high quality mold and product. We fully provide the service of product optimization,
mold designing, mold making, injection molding and other beyond-value service. We serve
a broad range of customers in the field of Aero parts, Auto parts, Household Appliances,
Industrial and Beauty.
You are warmly welcome to pay a visit to our website www.jingfu-mold.com for further details.
Solution Provider
About Us

Factory General:
Factory Profile: 6,000 square meters for mold making, 8,000 square meters for injection molding,
more than 160 well- trained staff, including 20 engineers, operate 2 shifts, provide 7X24 hours for
urgent project.
Factory Output: Over 40 molds per month / 400 molds per year
Annual Sales of 2014: US$8,220,142 (RMB50,142,870)
Max Mold Size: 3200x2200 mm, Max Mold Weight: 25 Ton
Business Scope: High-Quality Plastic Injection Mold Designing & Mold Making
alue-Added Service: Product design optimize, Prototype parts, Prototype mold, Injection molding
Our Mission: Utilizing a friendly and safe work environment, JF-Mold is working to achieve
customer satisfaction and success at competitive prices.
Solution Provider

Mold Sales In 2014
Mold Market In 2014
25%
20%
25%
20%
10% Auto Parts
Aero Parts
Household Appliance
Industrial Parts
Beauty Parts
10%
15%
40%
35%
Euro
North America
Asia
The Middle East
Solution Provider

Mold Making Equipment
JingFu Mold owns over 80 advanced automatic equipments for high quality mold
making. All the equipments are very suitable for auto parts & home appliances
plastic molds manufacturing. We adopt world-class software of CAD/CAM/CAE to
support all kinds of mold processing, and have experienced technicians operate
equipments efficiently. All of these enable us to be the excellent world-class mold
maker.
Solution Provider

China310TLD Type
China220T/5TLH Type
Travelling Crane
China2M2‐M50/Jing zhunTapping Machine
China4/Ying ShunGrinding Machine
China10M5/M3Ying ShunMilling Machine
China10200‐600200‐600Jing zhun
China113001300Jing zhun
China115001500Jing zhun
Drilling Machine
3400X300
3800X600430Hai zhu
NC Cutting Machine
Tai Wan3400X300ZNC430Hua Fong
Tai Wan3500X400ZNC540Hua Fong
Two‐HeadShanghai11800X1000HE1800HSPK
EDM Machine
Tai Wan2500X350CNC 500Jiatie
Tai Wan2600X500CNC 600PollexMachihe
Tai Wan2600X500CNC 650Lokshun
High Speed CNC
Machine
Tai Wan3800X500CNC850Daphen
Tai Wan21000X600CNC1000
Tai Wan21200X700CNC1270
Tai Wan11500X800CNC1580Lokshun
Great LongmenTai Wan13000X1970X920HB‐3190Hartford
Great LongmenTai Wan13100X2200X1300B‐3122KaFo
CNC Machine
RemarkSupplierQtySpecificationModelBrandDescription
EquipmentListForMoldMaking
EquipmentListForMoldMaking
Solution Provider

Solution Provider
The Great Longmen CNC with the capacity of
maximum size of workpiece 3200*2200*1200mm,
weight up to 25T
To guarantee the machining precision, we verify
machines regularly and update tool storeroom timely.
Great Longmen CNC
CNC Machine
Great Longmen CNC
New Machine
Purchased on 2014

Solution Provider
Middle size CNC
High Speed CNC for electrode
Wel renovate machines every year, improve and
update the processing technic to match the new
product market requirements from our customer.
Driller work the cooling hole and ejector hole,
diameter range from 3mm to 35mm, the deepness
stroke reach 3000mm. It guarantees the ejector
hole and cooling hole machining precision and
depth on automobile, household appliances and
other large molds.
New Machine
Updated on 2014

Solution Provider
Two-head EDM EDM
Milling machine group
We have the most advanced Two-head EDM
machine, the work stroke reach 1800*1500*800mm,
the processing precision is high, the EDM process
speed is 2 times of the ordinary spark machine,
which greatly shorten the processing time in the
premise to ensure the machining accuracy. In
addition, we own 6 sets ordinary EDM machines,
we can strictly control the mold lead time as
promised.
New Machine
Updated on 2014

Solution Provider
Engineering Strength
We always do a comprehensive moldflow analysis
for complicated mold before mold making, the
mold flow report provides a full view for fill pattern,
weld line, air traps, deformation, needed clamp
force and injection pressure etc
JingFu Mold has a team of 20 experienced engineers,
most of them have engaged in mold design and
production for more than 10 years, they have extensive
and practical experiences in mold design, manufacturing
process and injection molding.
JingFu Mold engineers are able to skillfully use a variety of
software, such as Pro-Engineer, Solid works, UG, Auto
CAD in mold design, manufacture and analyses.

Solution Provider
Quality Assurance

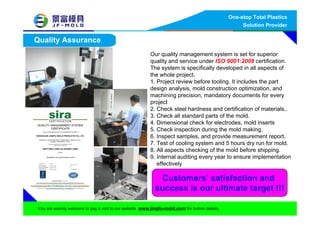

Our quality management system is set for superior
quality and service under ISO 9001:2008 certification.
The system is specifically developed in all aspects of
the whole project.
1. Project review before tooling. It includes the part
design analysis, mold construction optimization, and
machining precision, mandatory documents for every
project
2. Check steel hardness and certification of materials..
3. Check all standard parts of the mold.
4. Dimensional check for electrodes, mold inserts
5. Check inspection during the mold making.
6. Inspect samples, and provide measurement report.
7. Test of cooling system and 5 hours dry run for mold.
8. All aspects checking of the mold before shipping.
9. Internal auditing every year to ensure implementation
effectively
Customers’ satisfaction and
success is our ultimate target !!!

Solution Provider
Injection Molding
like ABS, PC, PP, PE, PS, PMMA, PVC,
Ultem PEI, PEEK, PA6,PA66, PET, POM…
JingFu Mold owns over 30 various types of injection machines from 88T to 2800T, and
equipped with desiccant dryer, mold temperature controller, hot runner controller and other
Injection molding machine peripherals, the full range of injection molding machineries
enable JingFu Mold to satisfy different customer molds requirements. We familiar with the
reins

Solution Provider
EquipmentListForInjectionMolding
EquipmentListForInjectionMolding
2013298127-350360 x 31088JM88-C/ESZhen Xiong19
20121250180-410400 x 380128HTF128HAI TIAN17
201211200280-730730 x 730380HTF380W2HAI TIAN11
201011500300-800800 x 800500HTF500W2HAI TIAN10
200812300380-880880 x 880600HTF600W2HAI TIAN9
201213200400-980980 x 980780HTF780XHAI TIAN8
201414500550-11801200 x 12001000HTF1000HAI TIAN7
200813000500-12001160 x 11601000D1000CHAI TIAN6
201415500560-13001200 x 12001200HTF1200HAI TIAN5
201417800600-13501250 x 12001300HTF1300HAI TIAN4
201419000650-14501350 x 13001600HTF1600HAI TIAN3
2008110200780-15601650 x 15002000HTF2000HAI TIAN2
2014118000900-21002300 x 20002800HTF2800HAI TIAN1
Updated
Date
Quant
ity
Injection
Weight(PS)(g)
Mold Height
(mm)
Space Between
Tie Bars (mm)
Clamp
Tonnage(Ton)
TypeBrandNo.

Solution Provider
Mold Display

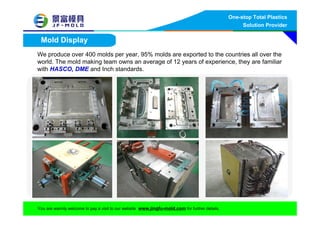

We produce over 400 molds per year, 95% molds are exported to the countries all over the
world. The mold making team owns an average of 12 years of experience, they are familiar
with HASCO, DME and Inch standards.

Solution Provider

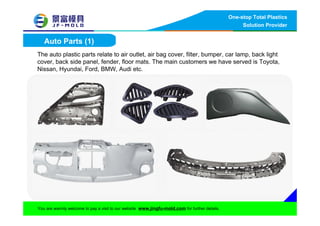

The auto plastic parts relate to air outlet, air bag cover, filter, bumper, car lamp, back light
cover, back side panel, fender, floor mats. The main customers we have served is Toyota,
Nissan, Hyundai, Ford, BMW, Audi etc.
Auto Parts (1)

Solution Provider
Auto Parts (2)
The auto plastic parts relate to air outlet, air bag cover, filter, bumper, car lamp, back light
cover, back side panel, fender, floor mats. The main customers we have served is Toyota,
Nissan, Hyundai, Ford, BMW, Audi etc.

Solution Provider
Aerospace Parts
Since 2007, we have abundant experience for Aero parts plastic molds standard and the
plastic parts requirement. The Aero plastic parts relate to chair arms, window frame, TV
Cover, sensor system for luggage shelf and so on…

Solution Provider
Household Appliance Parts(1)

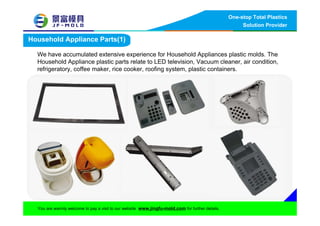

We have accumulated extensive experience for Household Appliances plastic molds. The
Household Appliance plastic parts relate to LED television, Vacuum cleaner, air condition,
refrigeratory, coffee maker, rice cooker, roofing system, plastic containers.

Solution Provider
Household Appliance Parts(2)
We have accumulated extensive experience for Household Appliances plastic molds. The
Household Appliance plastic parts relate to LED television, Vacuum cleaner, air condition,
refrigeratory, coffee maker, rice cooker, roofing system, plastic containers.

Solution Provider
Industrial Parts(1)

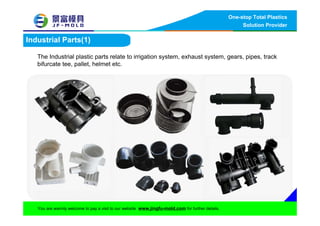

The Industrial plastic parts relate to irrigation system, exhaust system, gears, pipes, track
bifurcate tee, pallet, helmet etc.

Solution Provider
Industrial Parts(2)
The Industrial plastic parts relate to irrigation system, exhaust system, gears, pipes, track
bifurcate tee, pallet, helmet etc.

Solution Provider
Beauty Parts
We are involved in Beauty field since 2009, and have abundant experience for Beauty
parts plastic molds standard and the plastic parts requirement. The Beauty plastic parts
relate to Cosmetic and Body care products.
