- 1. jBPM 4 TomBaeyens JBoss, Red Hat 1

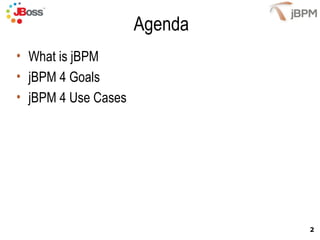

- 2. Agenda • What isjBPM • jBPM 4 Goals • jBPM 4 Use Cases 2
- 3. Tom Baeyens • Lead and founder of JBoss jBPM • Consulting for numerous BPM projects • Bringing BPM mainstream • Articles – InfoQ, TSS, Dzone, OnJava,… • Blogs – http://processdevelopments.blogspot.com/ • Talks – JavaOne, JBossWorld, JAOO, TSS,… 3

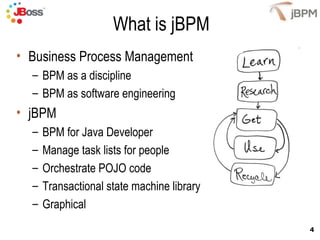

- 4. What is jBPM •Business Process Management – BPM as a discipline – BPM as software engineering • jBPM – BPM for Java Developer – Manage task lists for people – Orchestrate POJO code – Transactional state machine library – Graphical 4

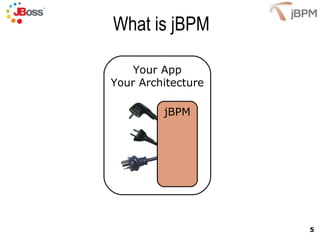

- 5. What is jBPM Your App Your Architecture jBPM 5

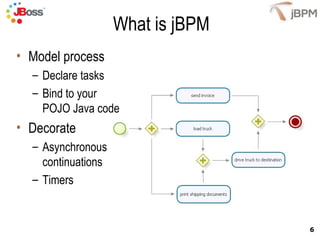

- 6. What is jBPM •Model process – Declare tasks – Bind to your POJO Java code • Decorate – Asynchronous continuations – Timers 6
- 7. jBPM 4 Goals • Improve supportability • Grow to next level of adoption • Raise 'ability to execute' • Implementation improvements 7

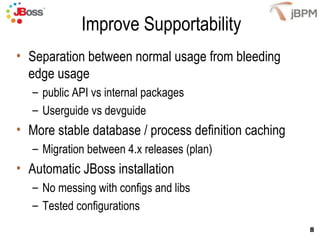

- 8. Improve Supportability • Separationbetween normal usage from bleeding edge usage – public API vs internal packages – Userguide vs devguide • More stable database / process definition caching – Migration between 4.x releases (plan) • Automatic JBoss installation – No messing with configs and libs – Tested configurations 8
- 9. Improve Supportability • Continuousintegration – Ability to reproduce bugs – Collect community knowledge in test suite Ability to keep improving over longer time Longer lifespan of jBPM 4 • Config import system – Less error prone – Imports for hibernate tx, jta tx, spring tx – Allows for default updates in default imports 9
- 10. Grow to NextLevel of Adoption • Lowering the treshold to get started – Simpler API • Split normal usage from bleeding edge • API based queries – Better container and app pluggability • Much! improved docs • Examples • Automatic installations – Remove need for messing on your own • Easier configuration abstraction through imports 10
- 11. Increase ‘Ability toExecute' • Historical data separated from runtime data – Queryable history information – Keeps runtime data healthy • Improved transaction mappings • Proper handling of timers and external triggers • More stable database – DB data migration becomes possible • Improved job executor 11
- 12. Implementation Improvements • Improvedpluggable architecture – Changed composition to inheritence. – Direct variable access • Interfaces for activity implementations – Only exposing the methods that can be invoked. • Changed recursion with iteration – Dealing with automatic long loops. 12

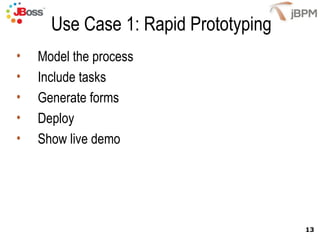

- 13. Use Case 1:Rapid Prototyping • Model the process • Include tasks • Generate forms • Deploy • Show live demo 13

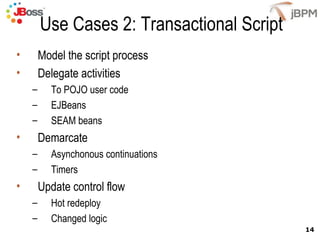

- 14. Use Cases 2:Transactional Script • Model the script process • Delegate activities – To POJO user code – EJBeans – SEAM beans • Demarcate – Asynchonous continuations – Timers • Update control flow – Hot redeploy – Changed logic 14

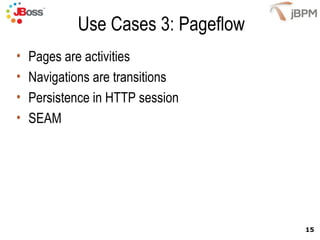

- 15. Use Cases 3:Pageflow • Pages are activities • Navigations are transitions • Persistence in HTTP session • SEAM 15

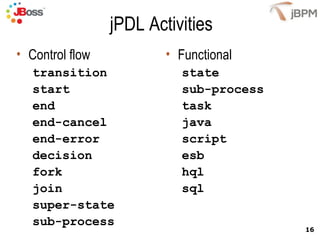

- 16. jPDL Activities • Controlflow • Functional transition state start sub-process end task end-cancel java end-error script decision esb fork hql join sql super-state sub-process 16

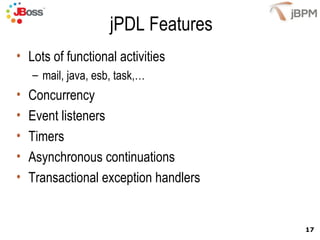

- 17. jPDL Features • Lotsof functional activities – mail, java, esb, task,… • Concurrency • Event listeners • Timers • Asynchronous continuations • Transactional exception handlers 17

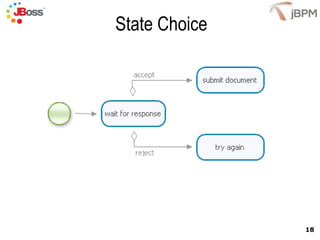

- 18. State Choice 18

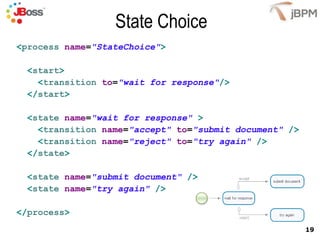

- 19. State Choice <process name="StateChoice"> <start> <transition to="wait for response"/> </start> <state name="wait for response" > <transition name="accept" to="submit document" /> <transition name="reject" to="try again" /> </state> <state name="submit document" /> <state name="try again" /> </process> 19

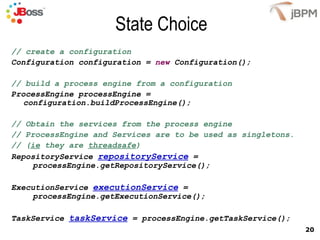

- 20. State Choice // createa configuration Configuration configuration = new Configuration(); // build a process engine from a configuration ProcessEngine processEngine = configuration.buildProcessEngine(); // Obtain the services from the process engine // ProcessEngine and Services are to be used as singletons. // (ie they are threadsafe) RepositoryService repositoryService = processEngine.getRepositoryService(); ExecutionService executionService = processEngine.getExecutionService(); TaskService taskService = processEngine.getTaskService(); 20

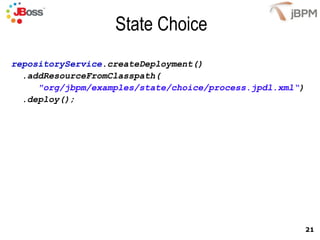

- 21. State Choice repositoryService.createDeployment() .addResourceFromClasspath( "org/jbpm/examples/state/choice/process.jpdl.xml“) .deploy(); 21

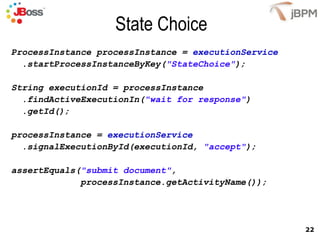

- 22. State Choice ProcessInstance processInstance= executionService .startProcessInstanceByKey("StateChoice"); String executionId = processInstance .findActiveExecutionIn("wait for response") .getId(); processInstance = executionService .signalExecutionById(executionId, "accept"); assertEquals("submit document", processInstance.getActivityName()); 22

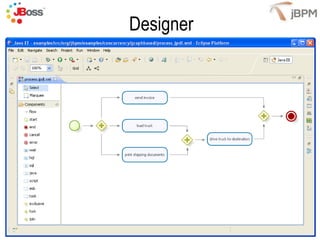

- 23. Designer 23

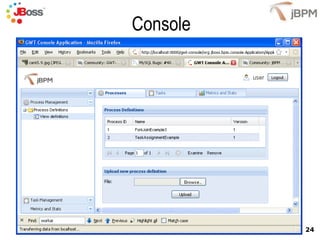

- 24. Console 24

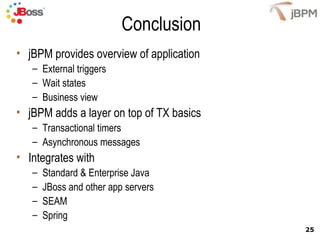

- 25. Conclusion • jBPM providesoverview of application – External triggers – Wait states – Business view • jBPM adds a layer on top of TX basics – Transactional timers – Asynchronous messages • Integrates with – Standard & Enterprise Java – JBoss and other app servers – SEAM – Spring 25
