The document discusses emerging web application architectures using Java and Node.js. It covers topics like 3-tier web applications, Java-based web apps, fullstack JavaScript development, and the performance differences between Node.js and Java for CPU-bound versus I/O-bound workloads. Example code is provided to demonstrate writing HTTP servers and clustering in Node.js. The document also discusses language selection and choosing the right language based on the type of service being built.

1. Emerging Web App Architectures
Using Java and Node.js

2. 2
@stevewallin
Steve Wallin
JCP EC member
Program Director, IBM

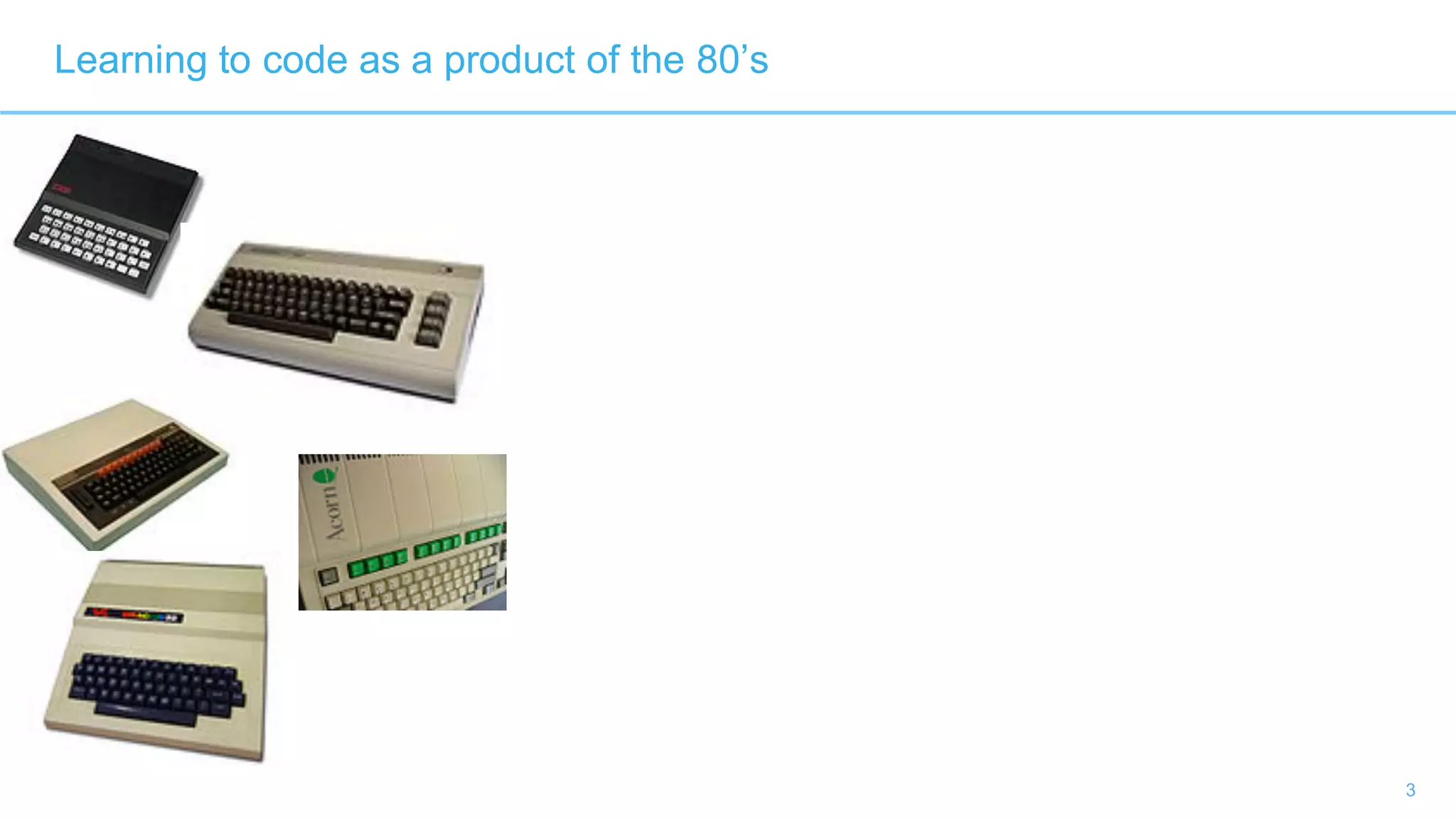

3. 3

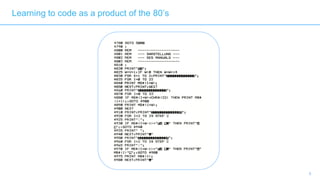

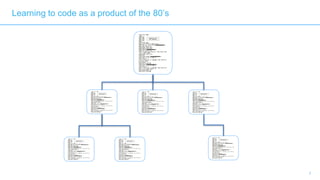

Learning to code as a product of the 80’s

4. 4
Learning to code as a product of the 80’s

5. 5
Learning to code as a product of the 80’s

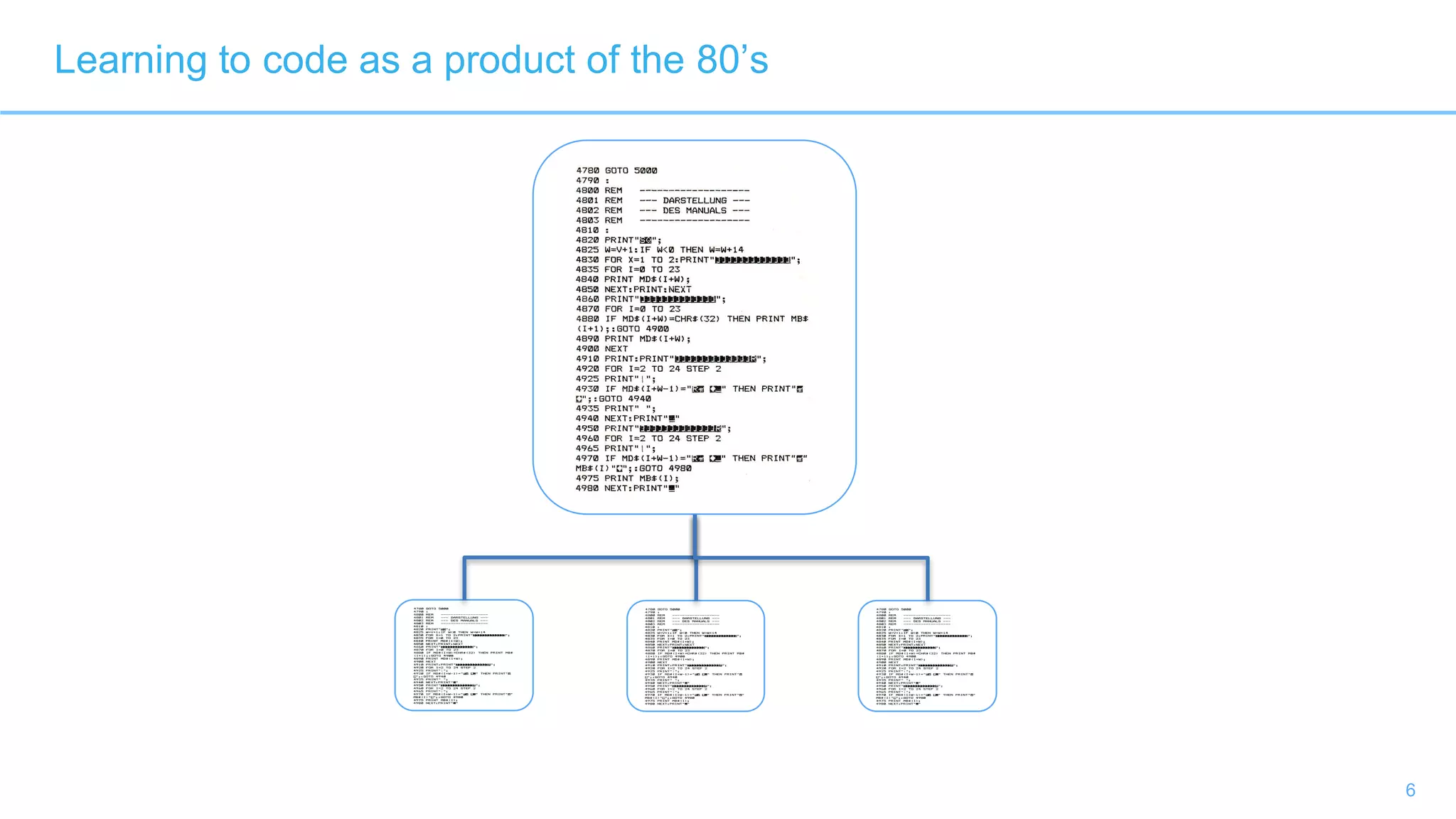

6. 6
Learning to code as a product of the 80’s

7. 7

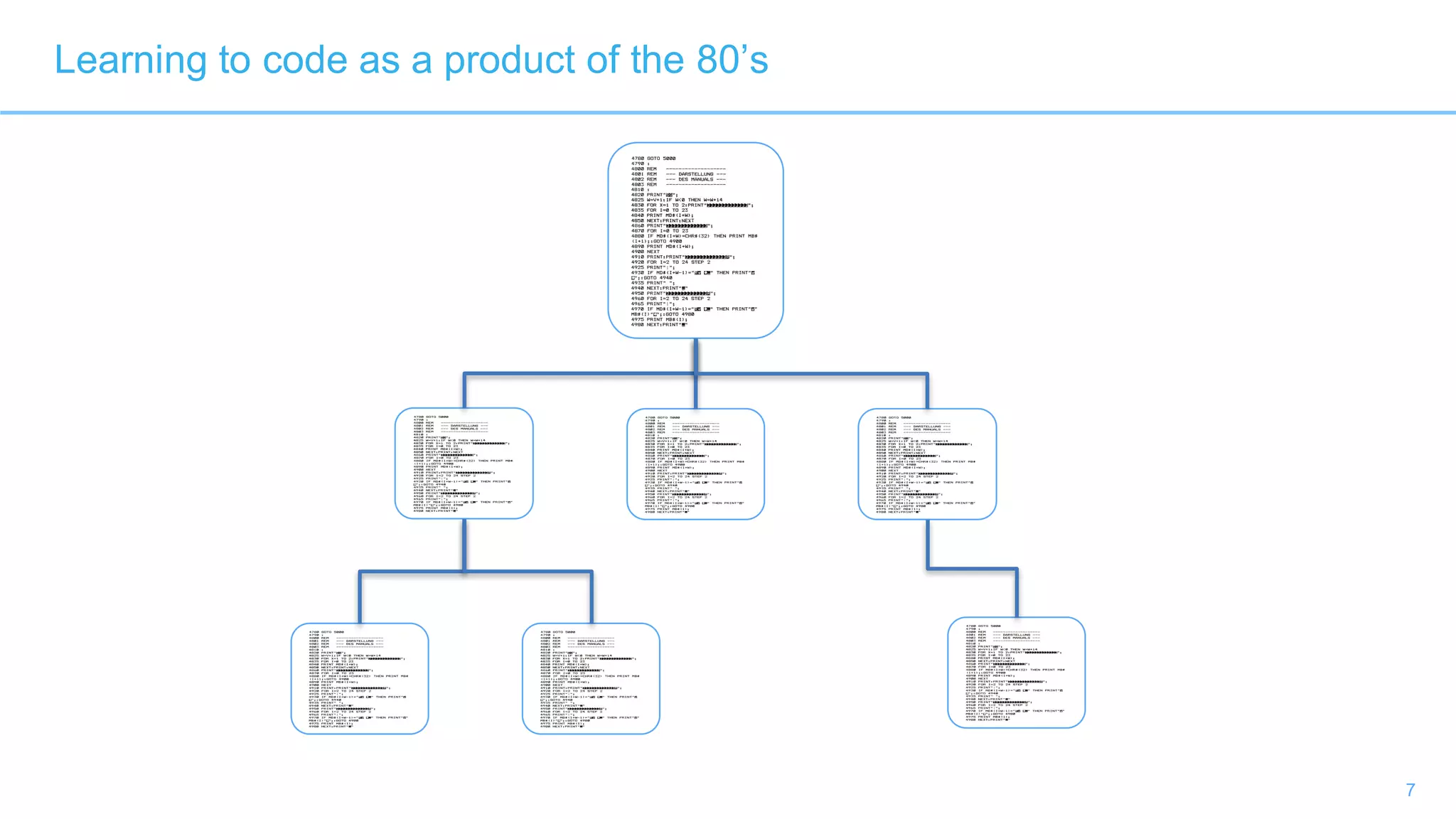

Learning to code as a product of the 80’s

8. 8
Learning to code as a product of the 80’s / 90’s

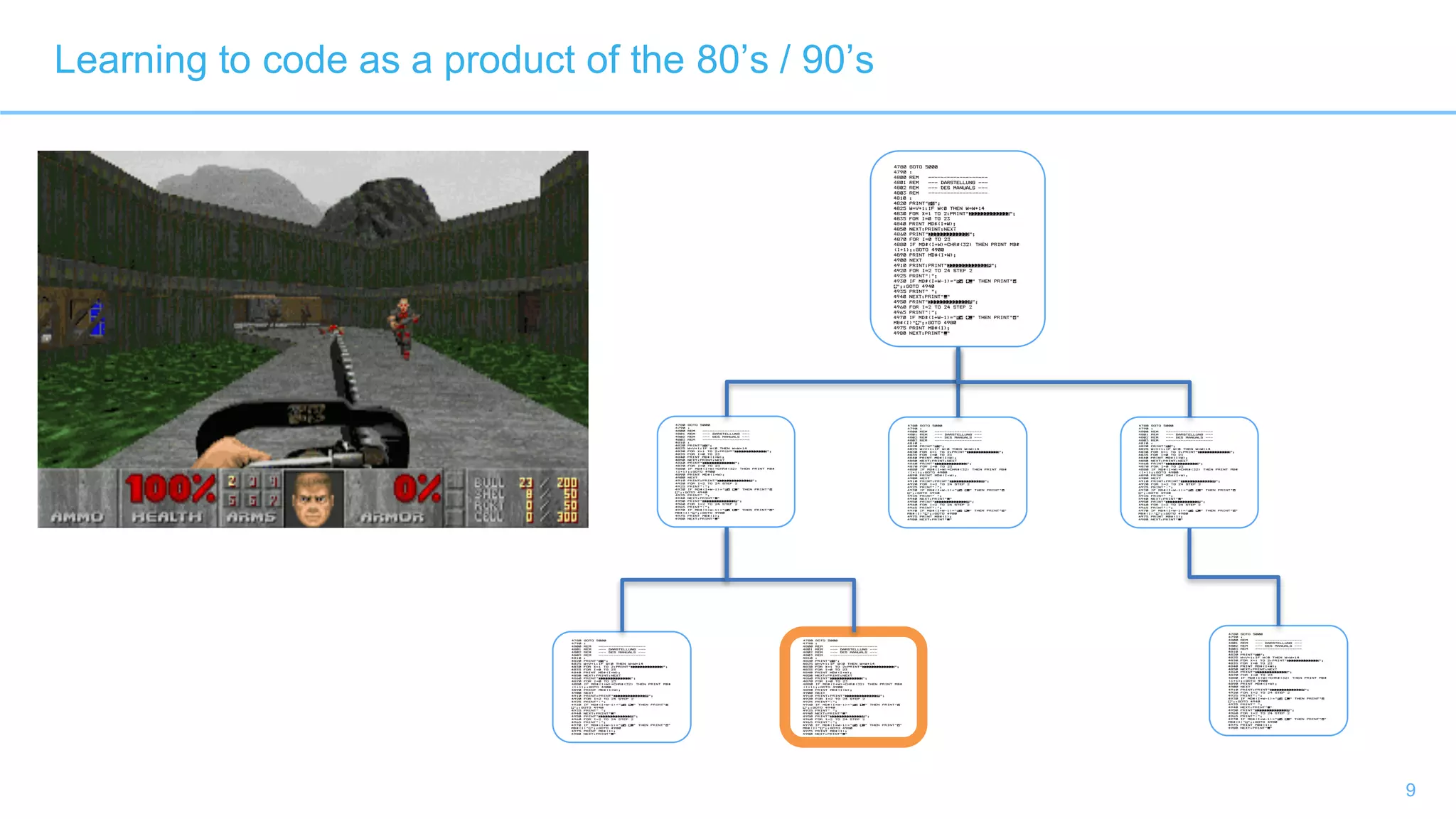

9. 9
Learning to code as a product of the 80’s / 90’s

10. 10

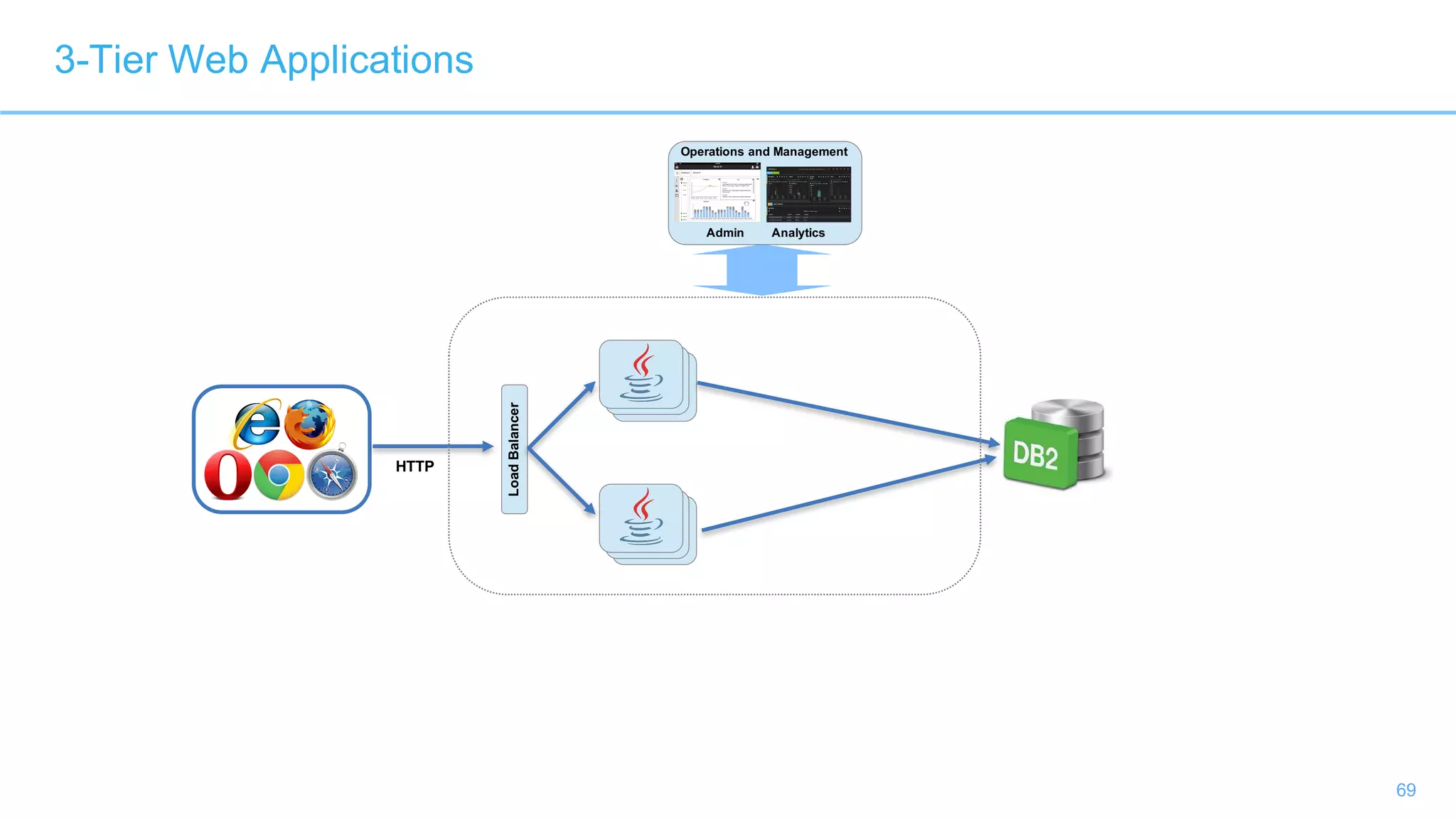

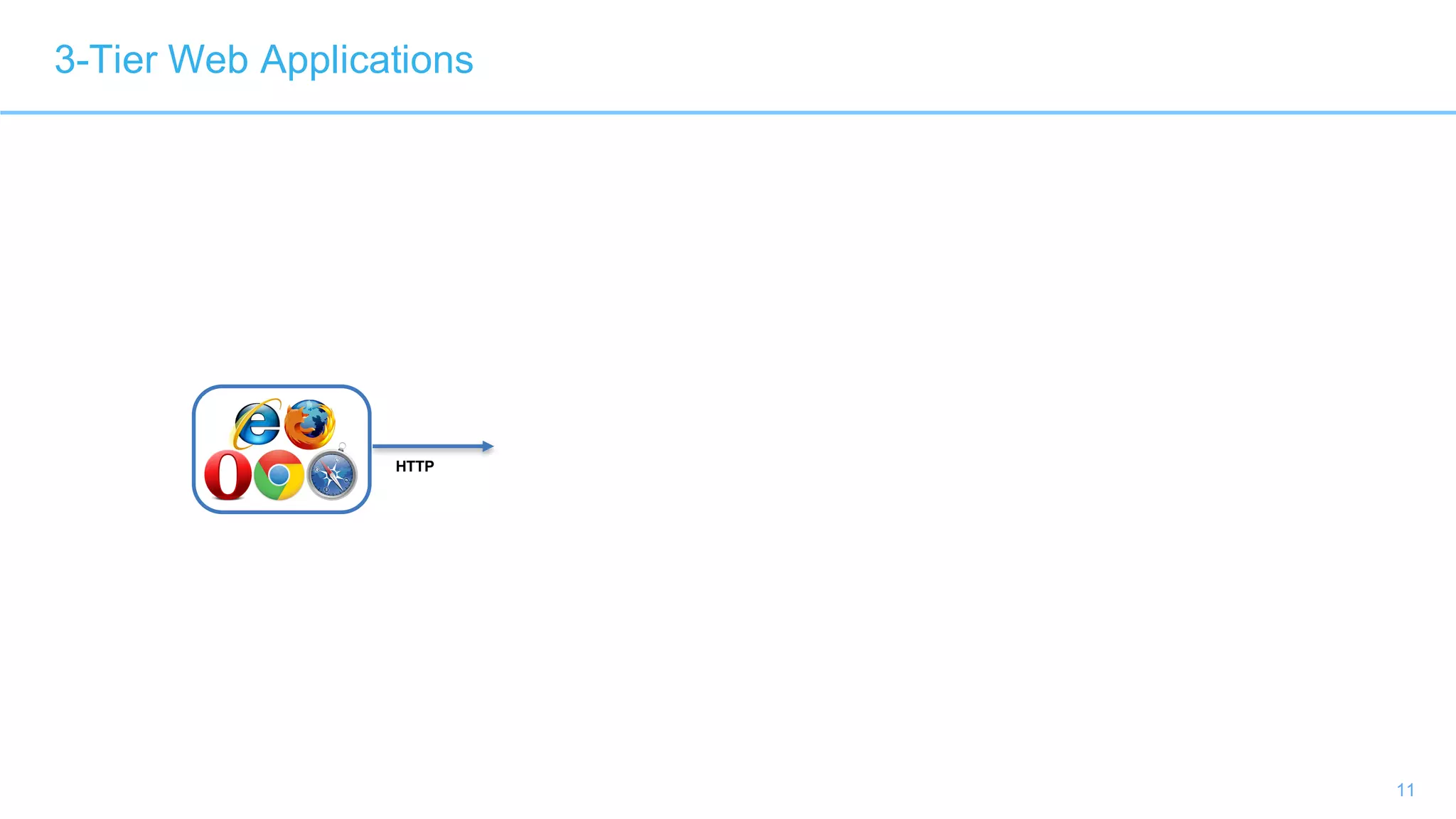

3-Tier Web Applications

11. 11
3-Tier Web Applications
HTTP

12. 12

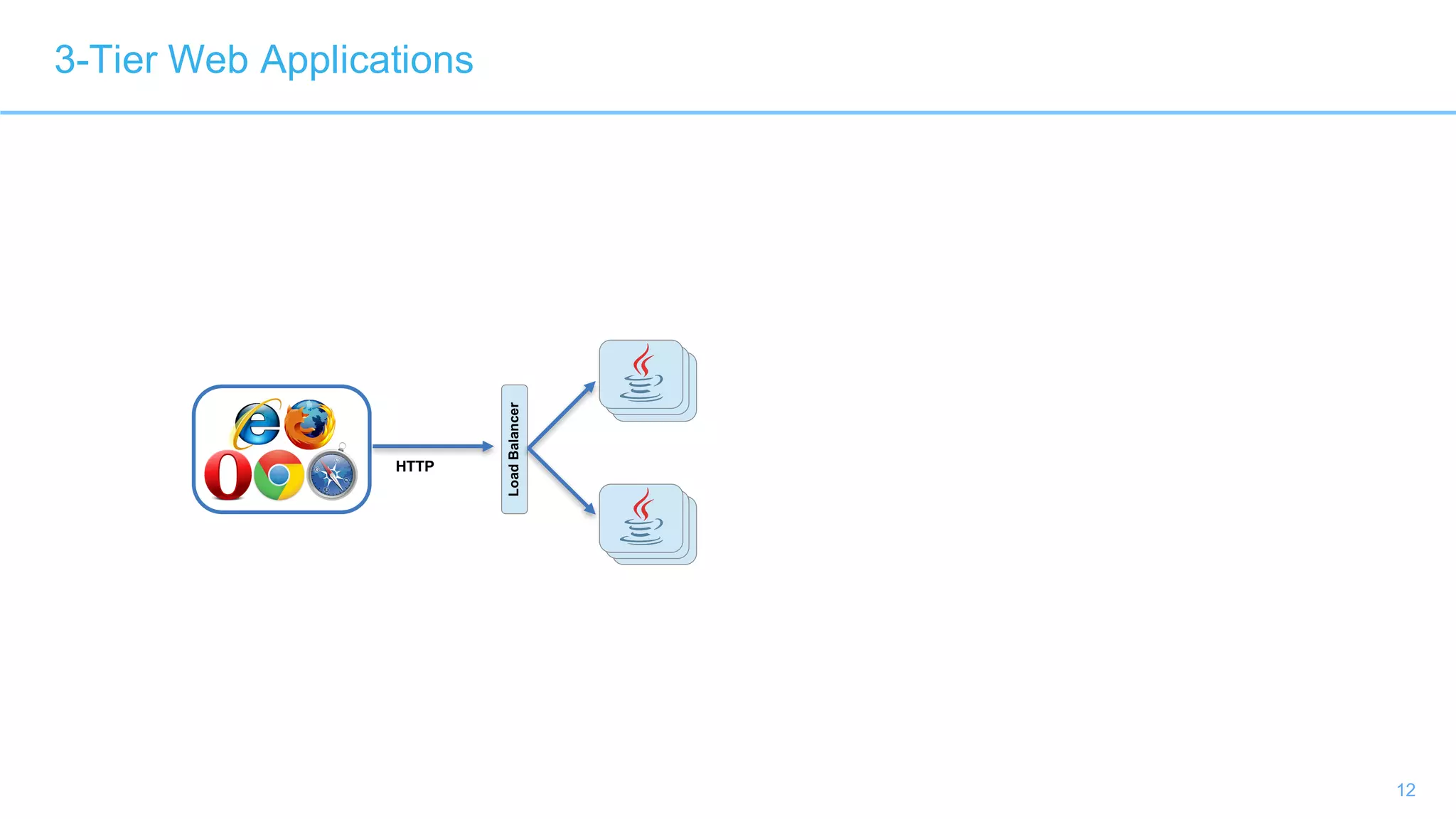

3-Tier Web Applications
HTTP
LoadBalancer

13. 13

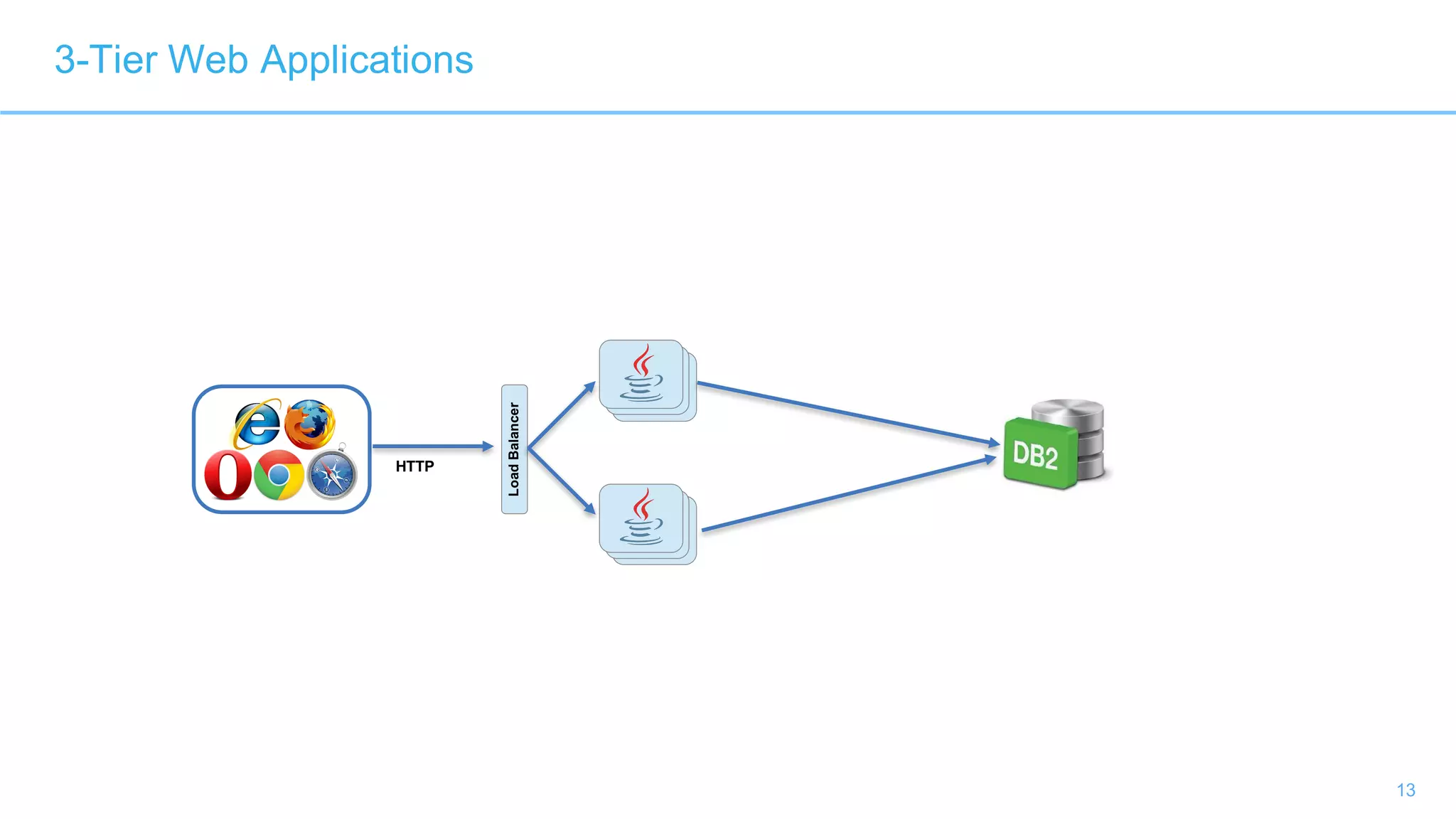

3-Tier Web Applications
HTTP
LoadBalancer

14. 14
Operations and Management
Admin Analytics
LoadBalancer
HTTP
3-Tier Web Applications

15. 15
Java and JEE based Web Applications

16. 16

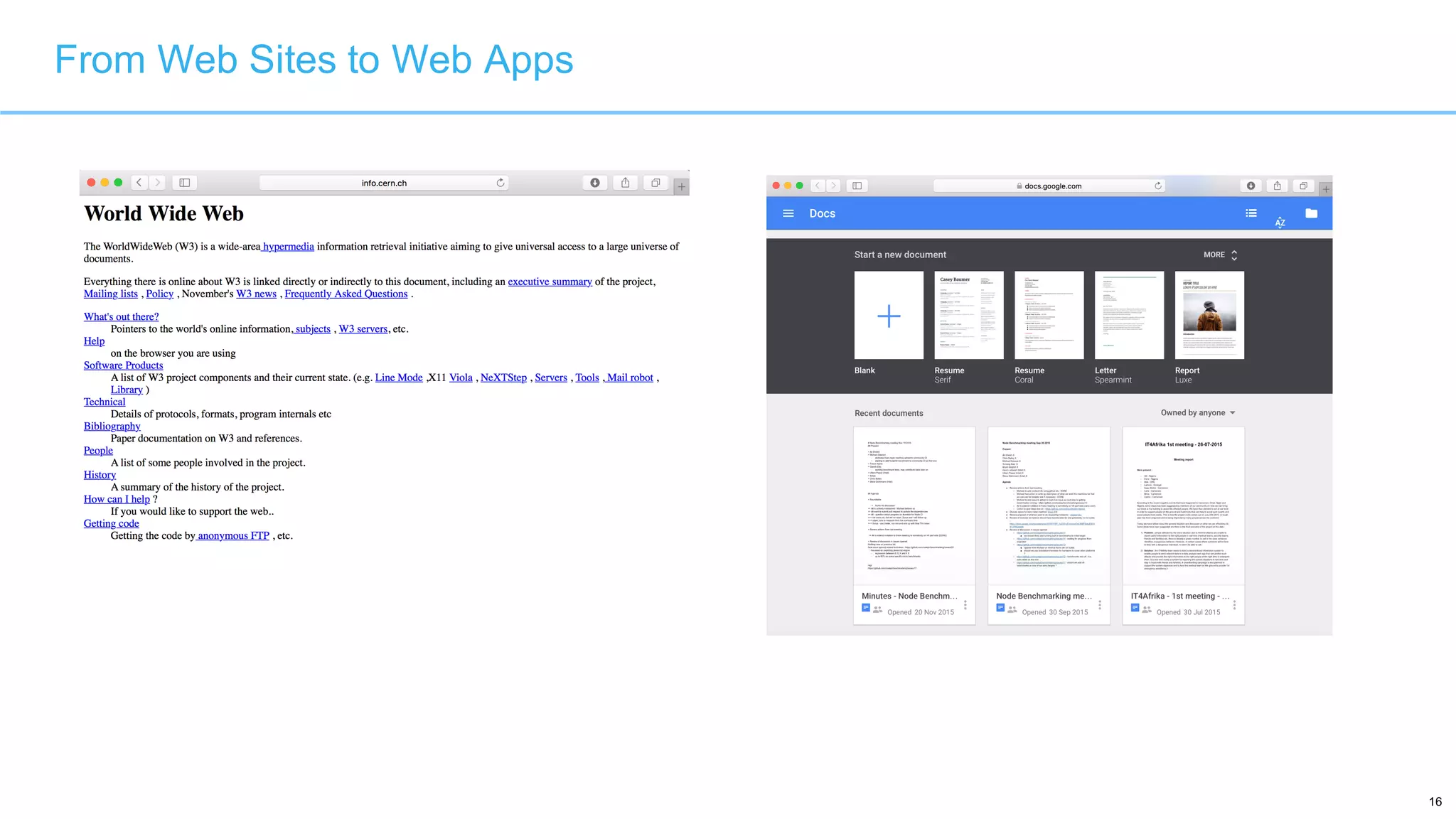

From Web Sites to Web Apps

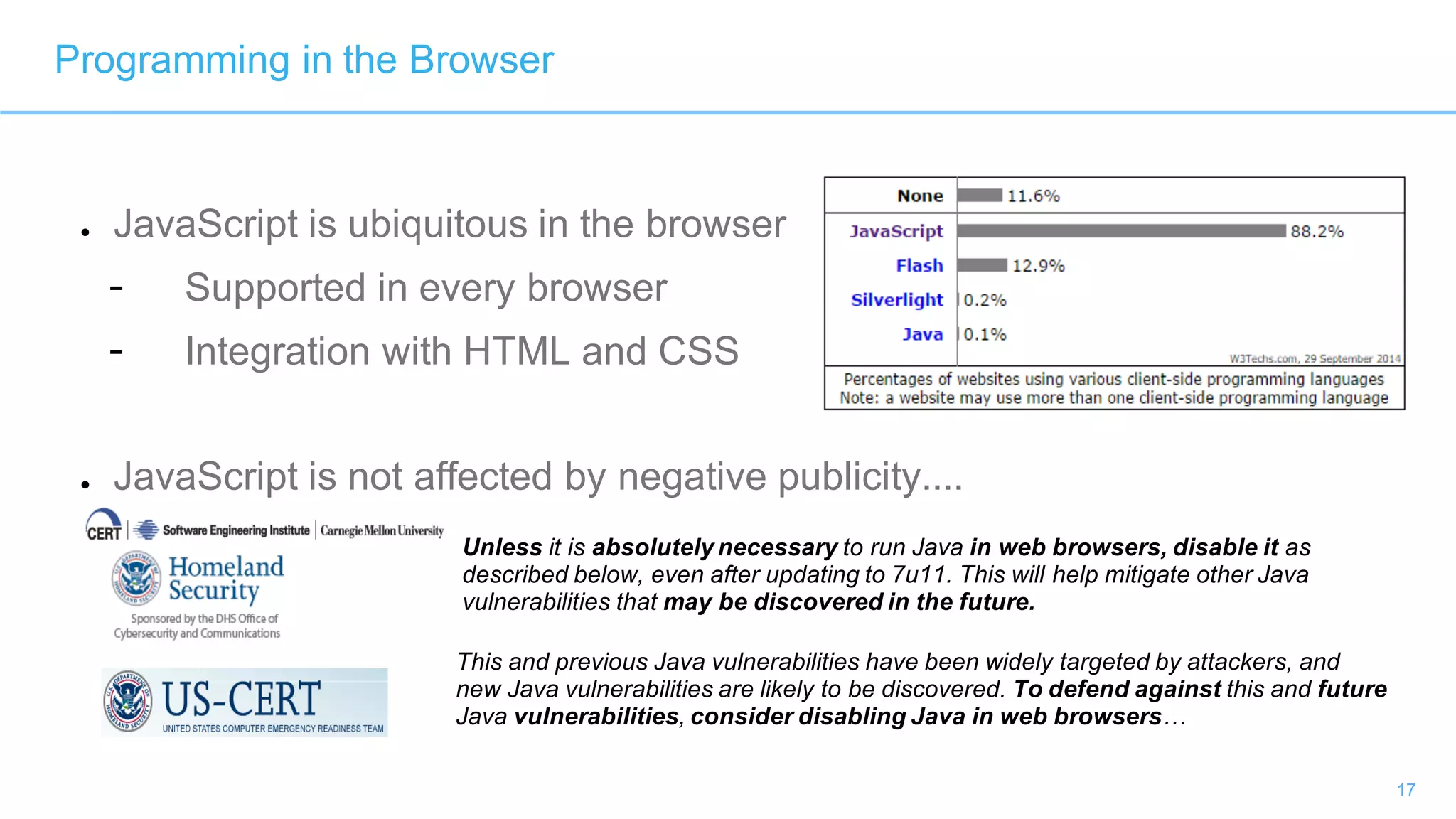

17. ● JavaScript is ubiquitous in the browser
- Supported in every browser
- Integration with HTML and CSS
● JavaScript is not affected by negative publicity....
17
Unless it is absolutely necessary to run Java in web browsers, disable it as
described below, even after updating to 7u11. This will help mitigate other Java
vulnerabilities that may be discovered in the future.
This and previous Java vulnerabilities have been widely targeted by attackers, and
new Java vulnerabilities are likely to be discovered. To defend against this and future
Java vulnerabilities, consider disabling Java in web browsers…
Programming in the Browser

18. 18

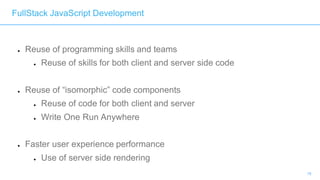

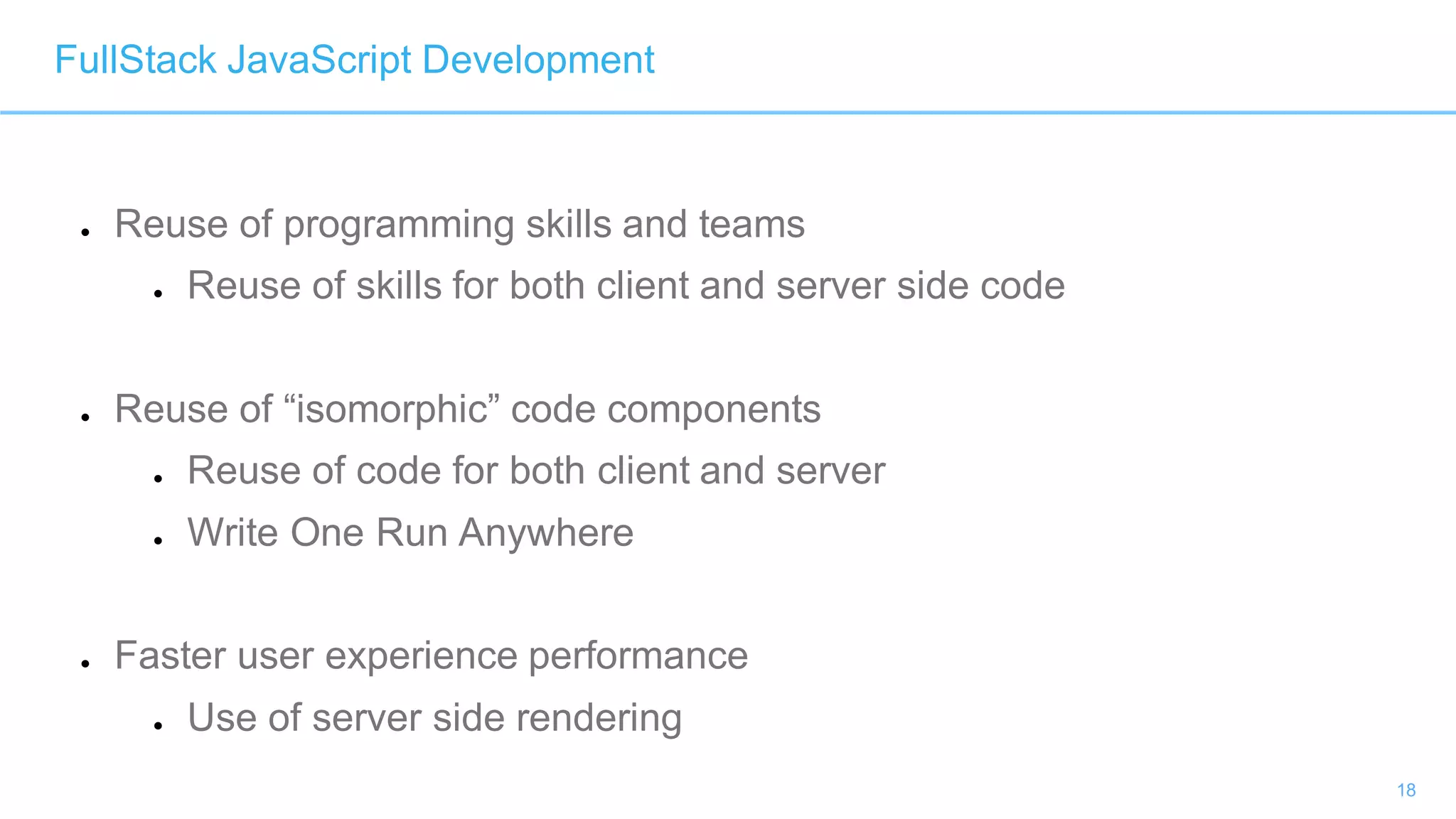

FullStack JavaScript Development
● Reuse of programming skills and teams
● Reuse of skills for both client and server side code
● Reuse of “isomorphic” code components
● Reuse of code for both client and server
● Write One Run Anywhere
● Faster user experience performance
● Use of server side rendering

19. 19
Fashion and trends

20. 20
+
Node.js and Java

21. 21

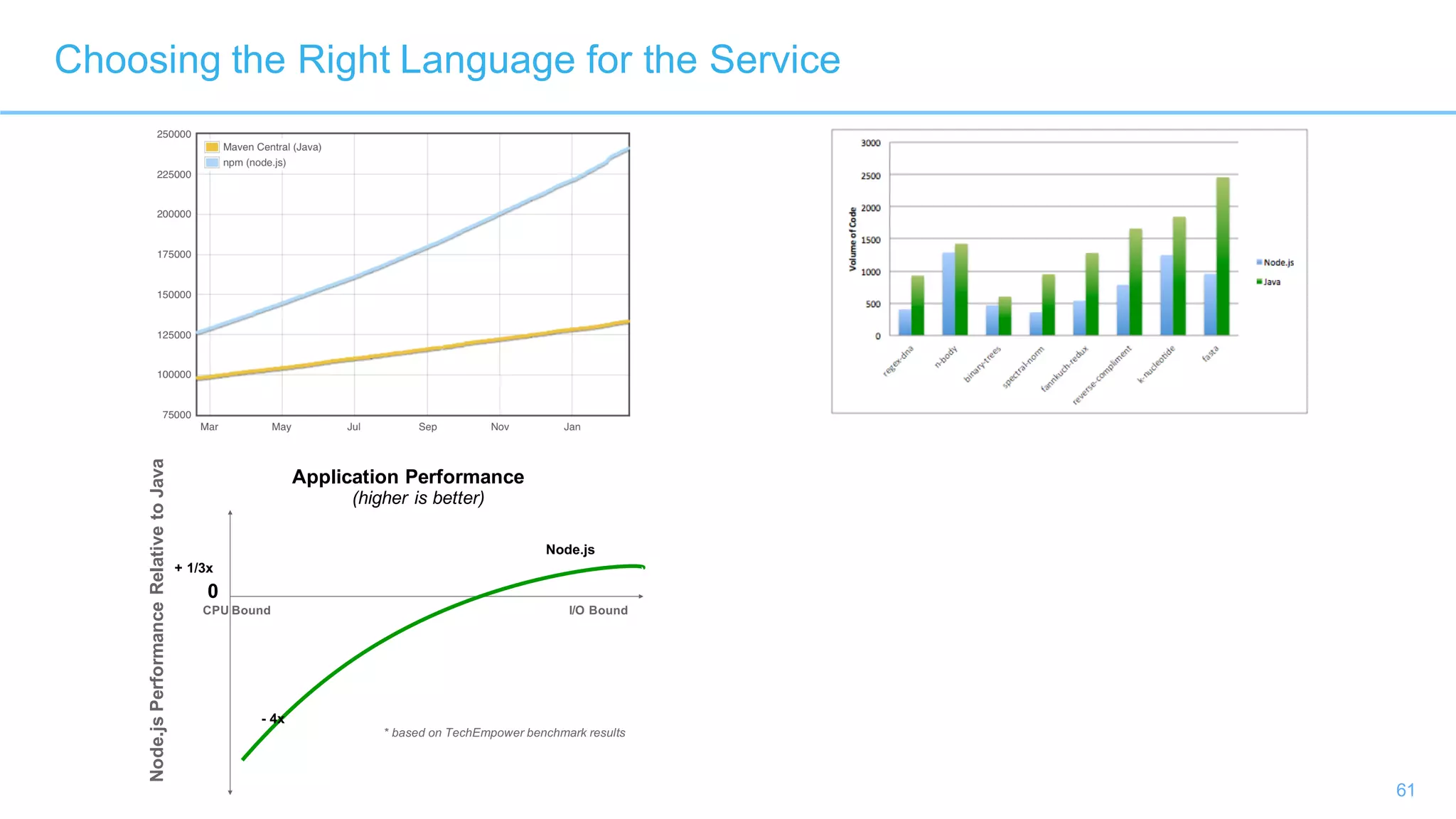

Language selection

22. 22
Language selection

23. 23

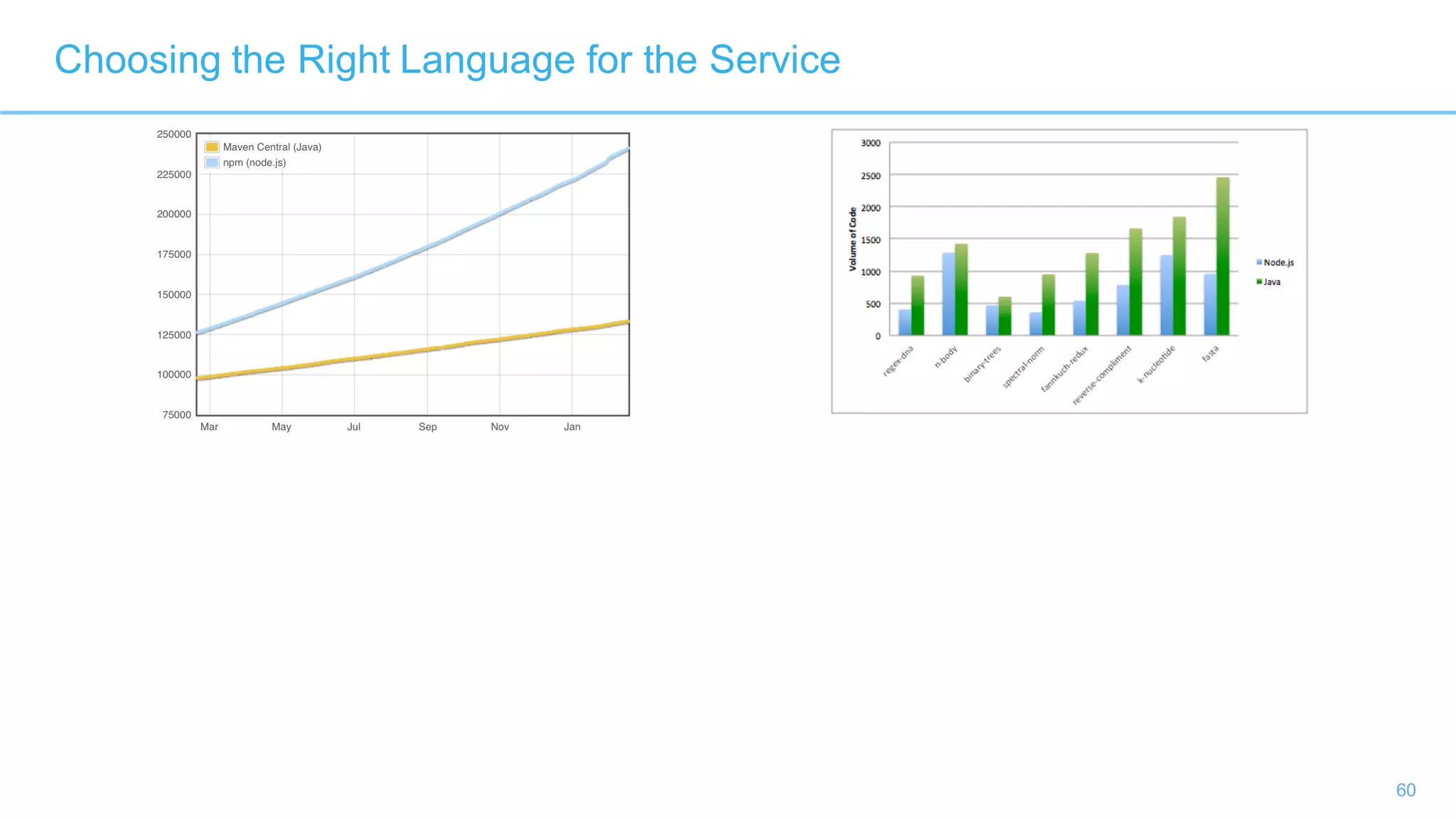

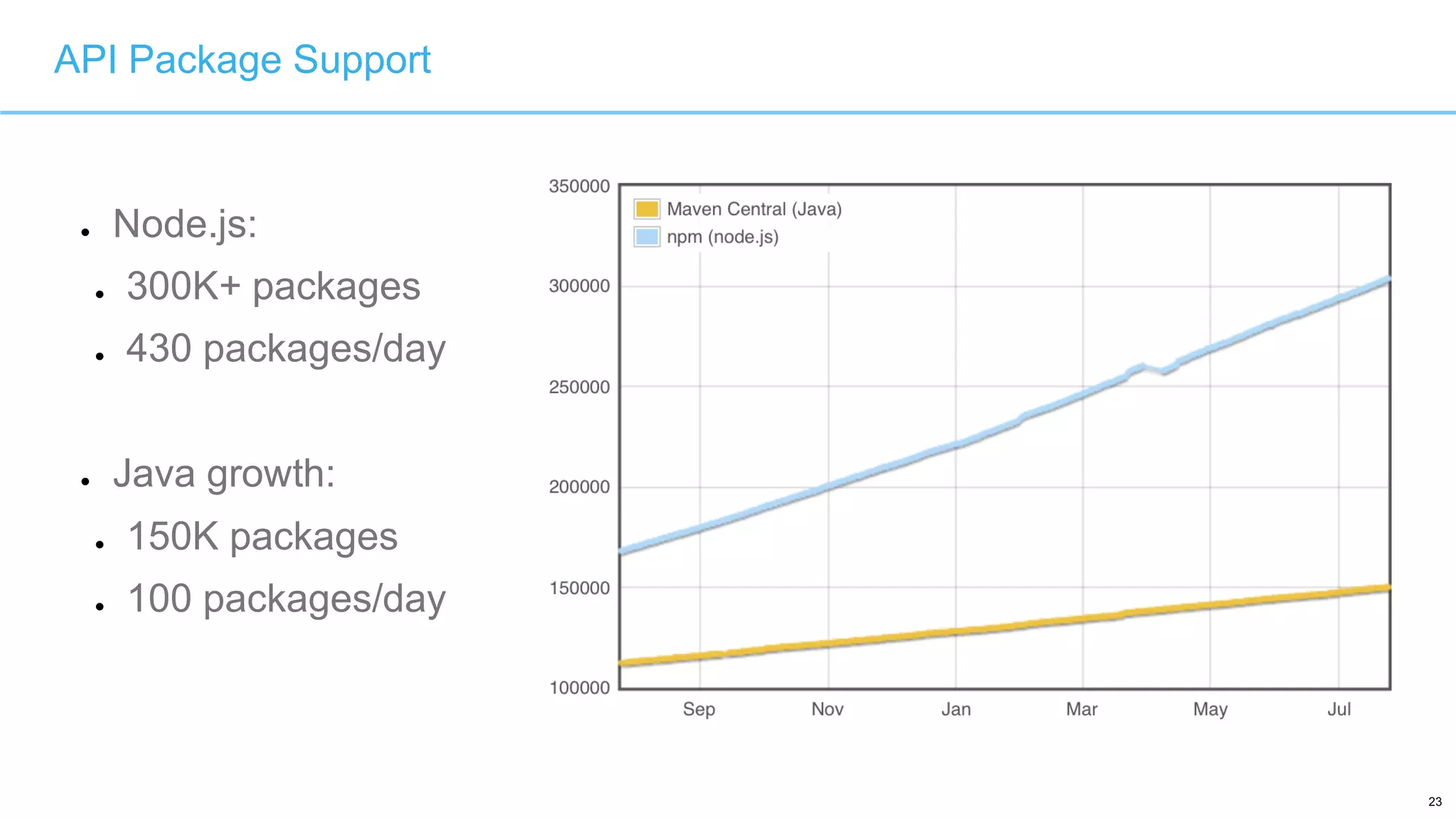

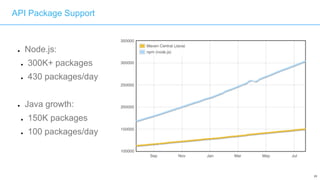

API Package Support
● Node.js:
● 300K+ packages
● 430 packages/day
● Java growth:
● 150K packages
● 100 packages/day

24. 24

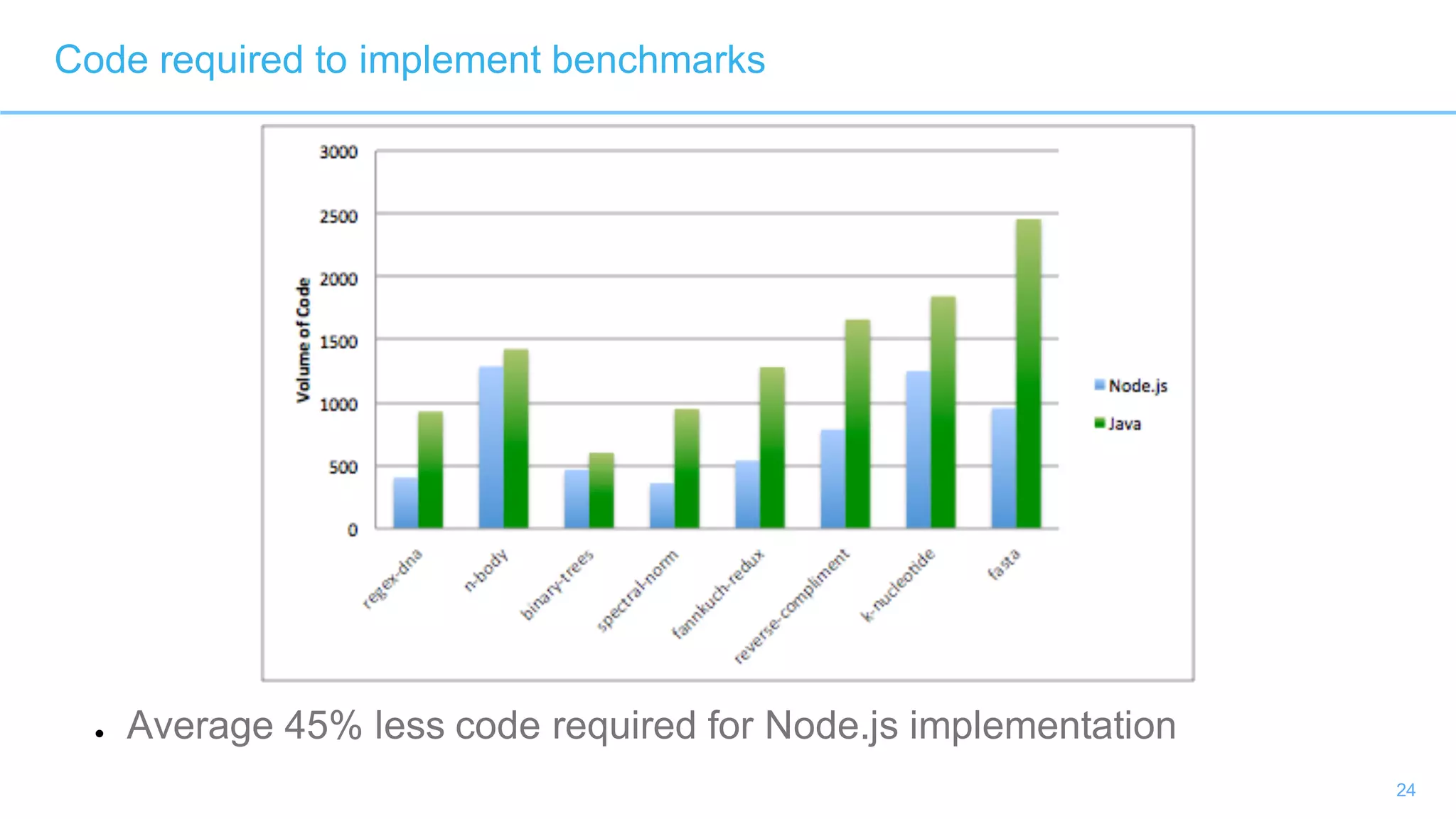

● Average 45% less code required for Node.js implementation
Code required to implement benchmarks

25. 25
var cluster = require('cluster');
var cpus = require('os').cpus().length;
var http = require('http');
if (cluster.isMaster) {
for (var i = 0; i < cpus; i++) {
cluster.fork();
}
cluster.on('death', function(worker) {
console.log("Worker" + worker.pid + "died");
});
} else {
http.createServer(function(request, response) {
response.writeHead(200, {"Content-Type": "text/plain"});
response.write("Hello World!n");
response.end();
}).listen(8080);
}
Writing a HTTP Server

26. 26
var cluster = require('cluster');
var cpus = require('os').cpus().length;
var http = require('http');
if (cluster.isMaster) {
for (var i = 0; i < cpus; i++) {
cluster.fork();
}
cluster.on('death', function(worker) {
console.log("Worker" + worker.pid + "died");
});
} else {
http.createServer(function(request, response) {
response.writeHead(200, {"Content-Type": "text/plain"});
response.write("Hello World!n");
response.end();
}).listen(8080);
}

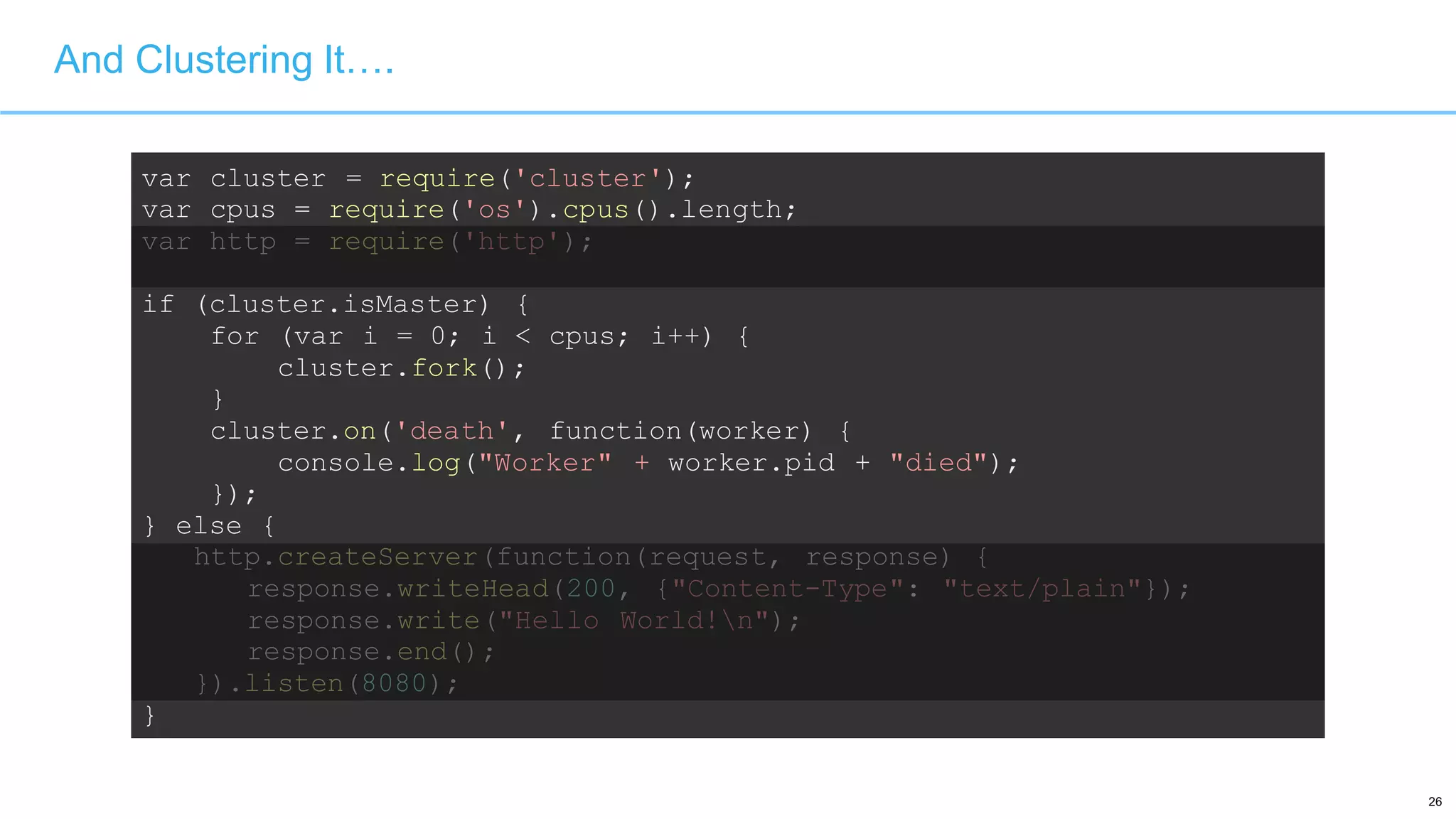

And Clustering It….

27. 27

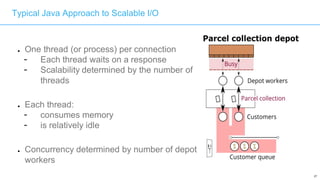

● One thread (or process) per connection
- Each thread waits on a response
- Scalability determined by the number of
threads
● Each thread:
- consumes memory
- is relatively idle
● Concurrency determined by number of depot
workers
Typical Java Approach to Scalable I/O

28. 28

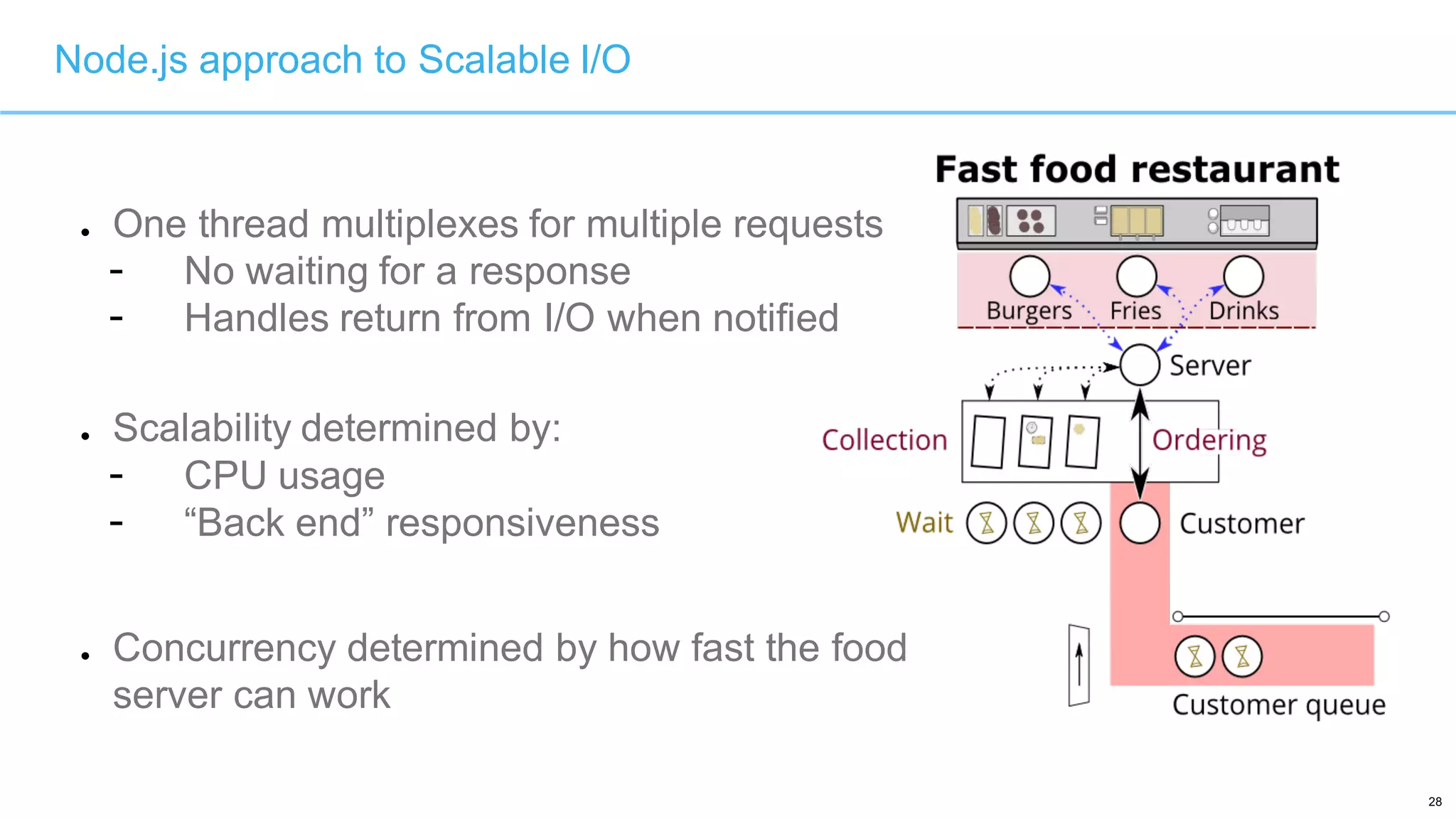

● One thread multiplexes for multiple requests
- No waiting for a response
- Handles return from I/O when notified
● Scalability determined by:
- CPU usage
- “Back end” responsiveness
● Concurrency determined by how fast the food
server can work
Node.js approach to Scalable I/O

29. 29

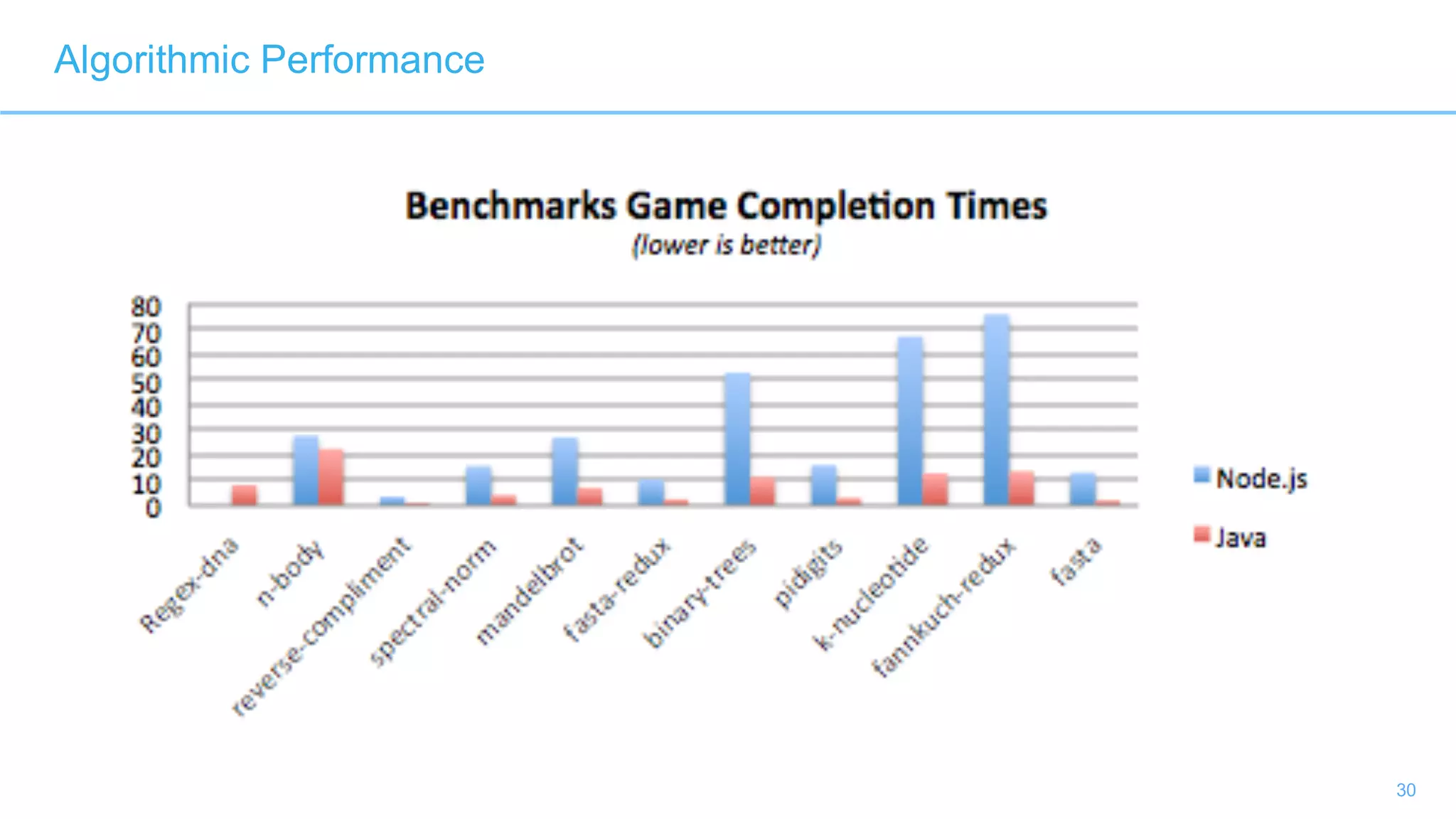

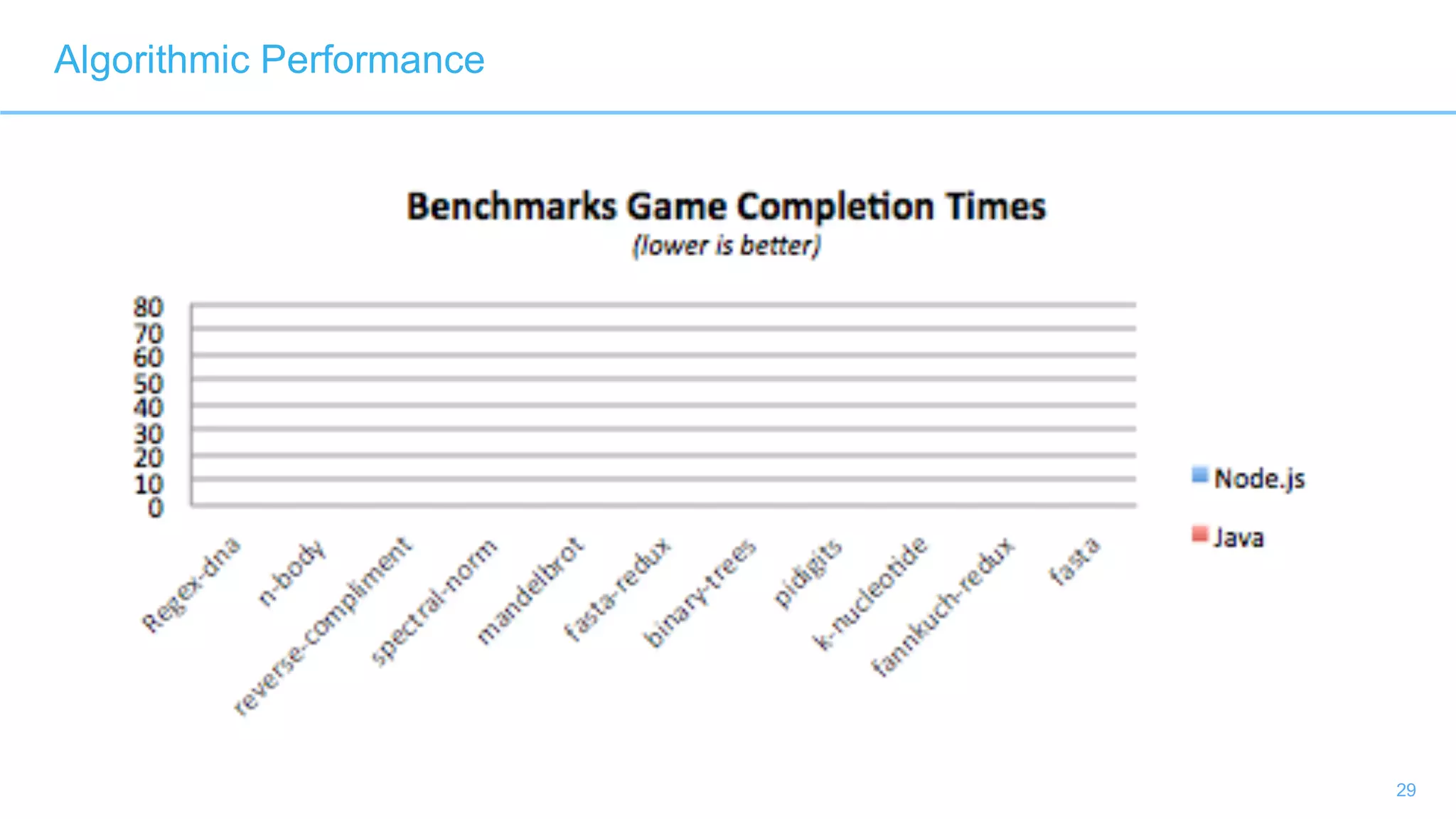

Algorithmic Performance

30. 30
Algorithmic Performance

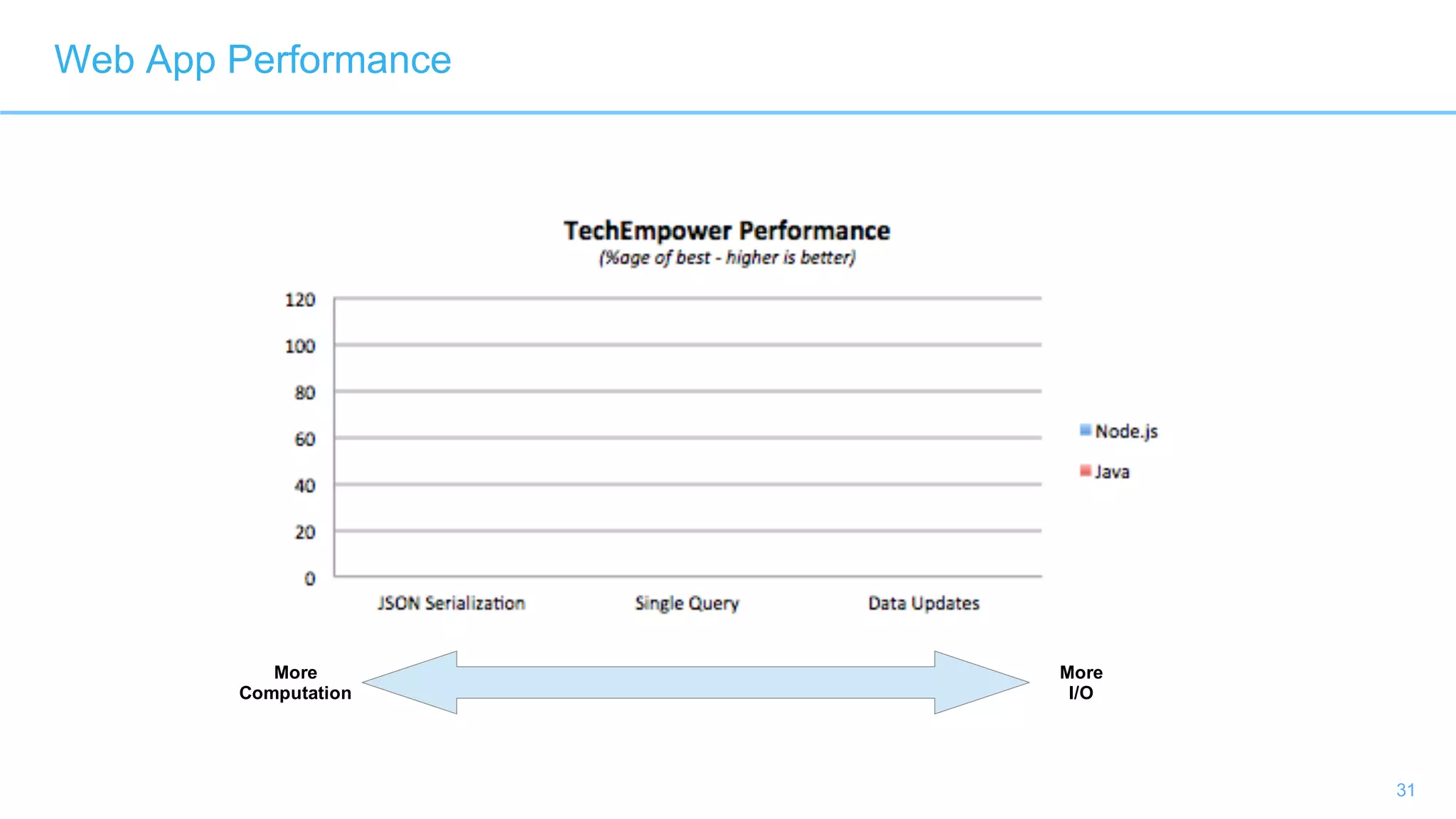

31. 31

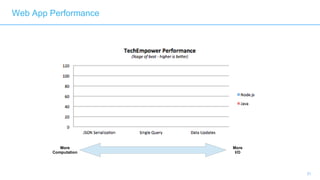

Web App Performance
More
Computation
More
I/O

32. 32

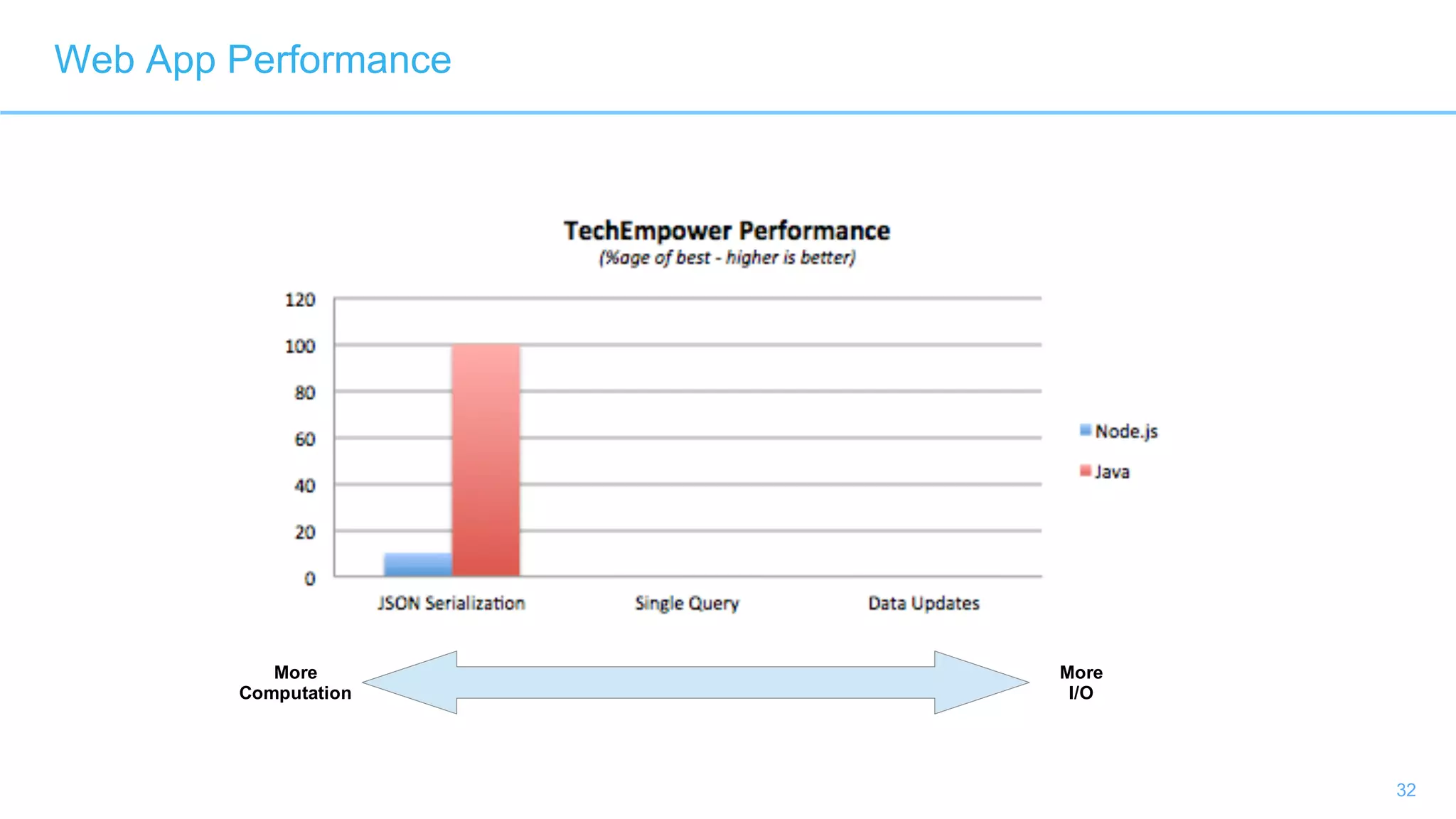

Web App Performance
More
Computation
More
I/O

33. 33

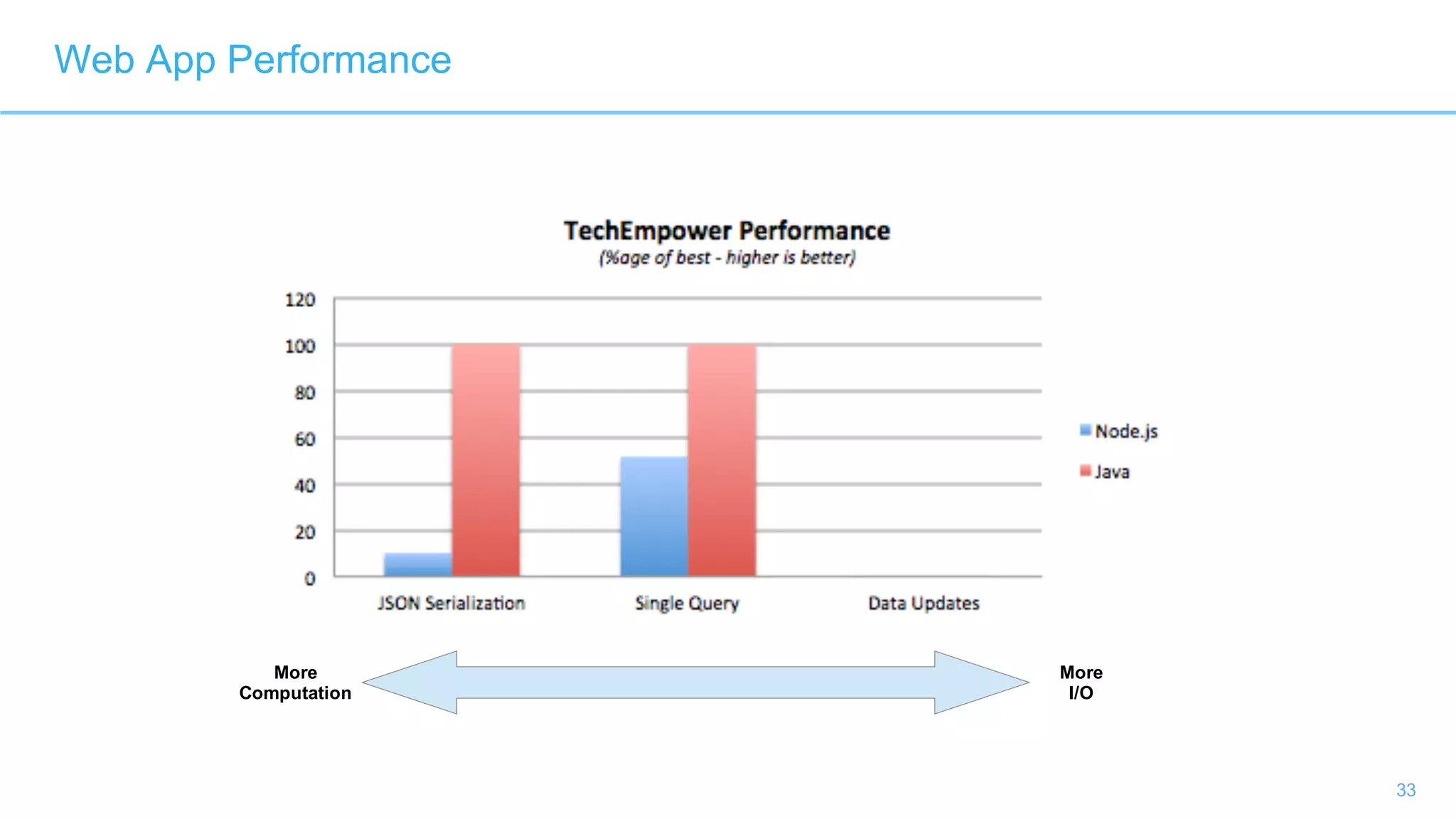

Web App Performance
More
Computation
More
I/O

34. 34

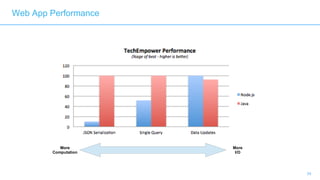

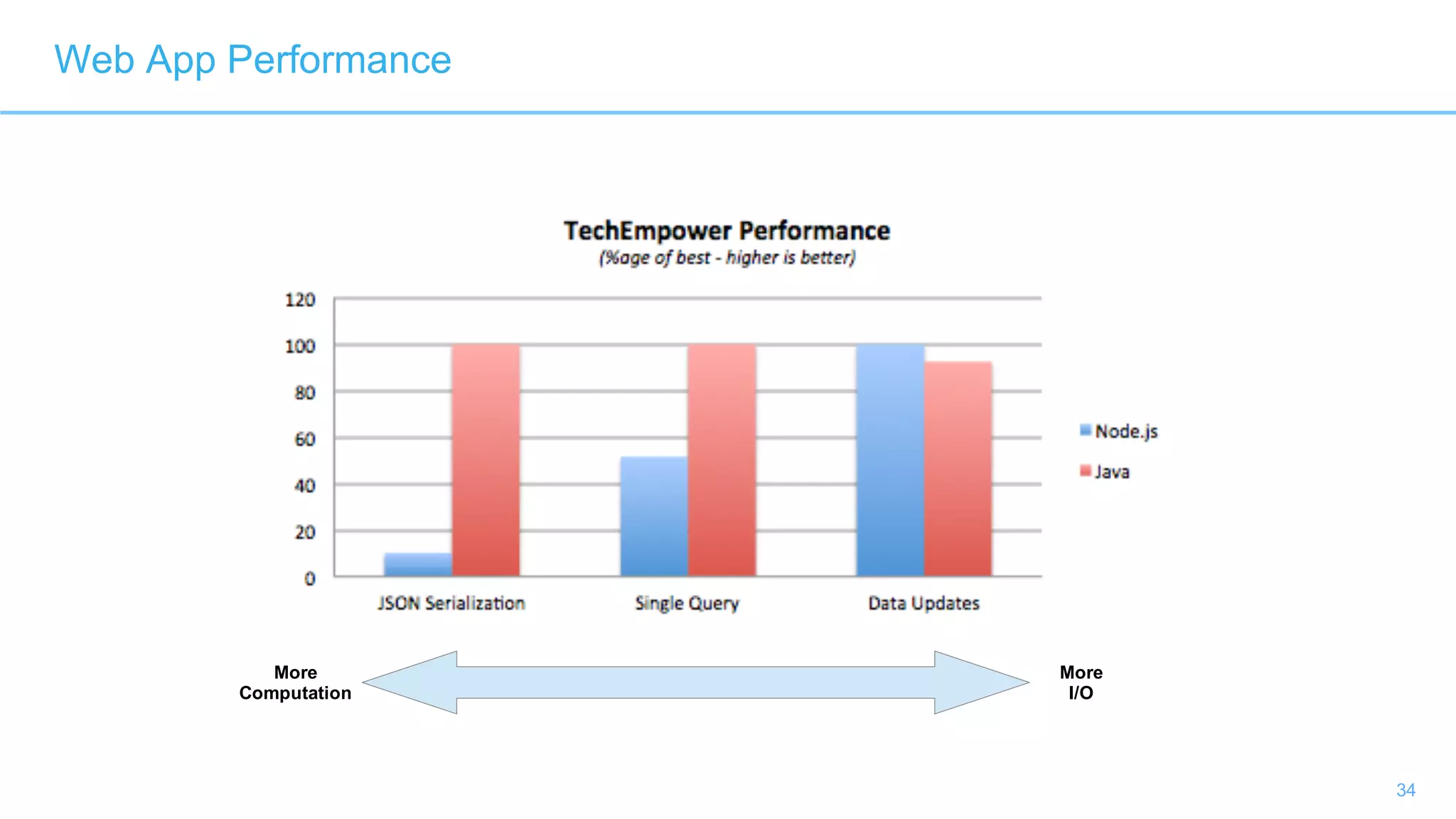

Web App Performance
More
Computation
More
I/O

35. 35

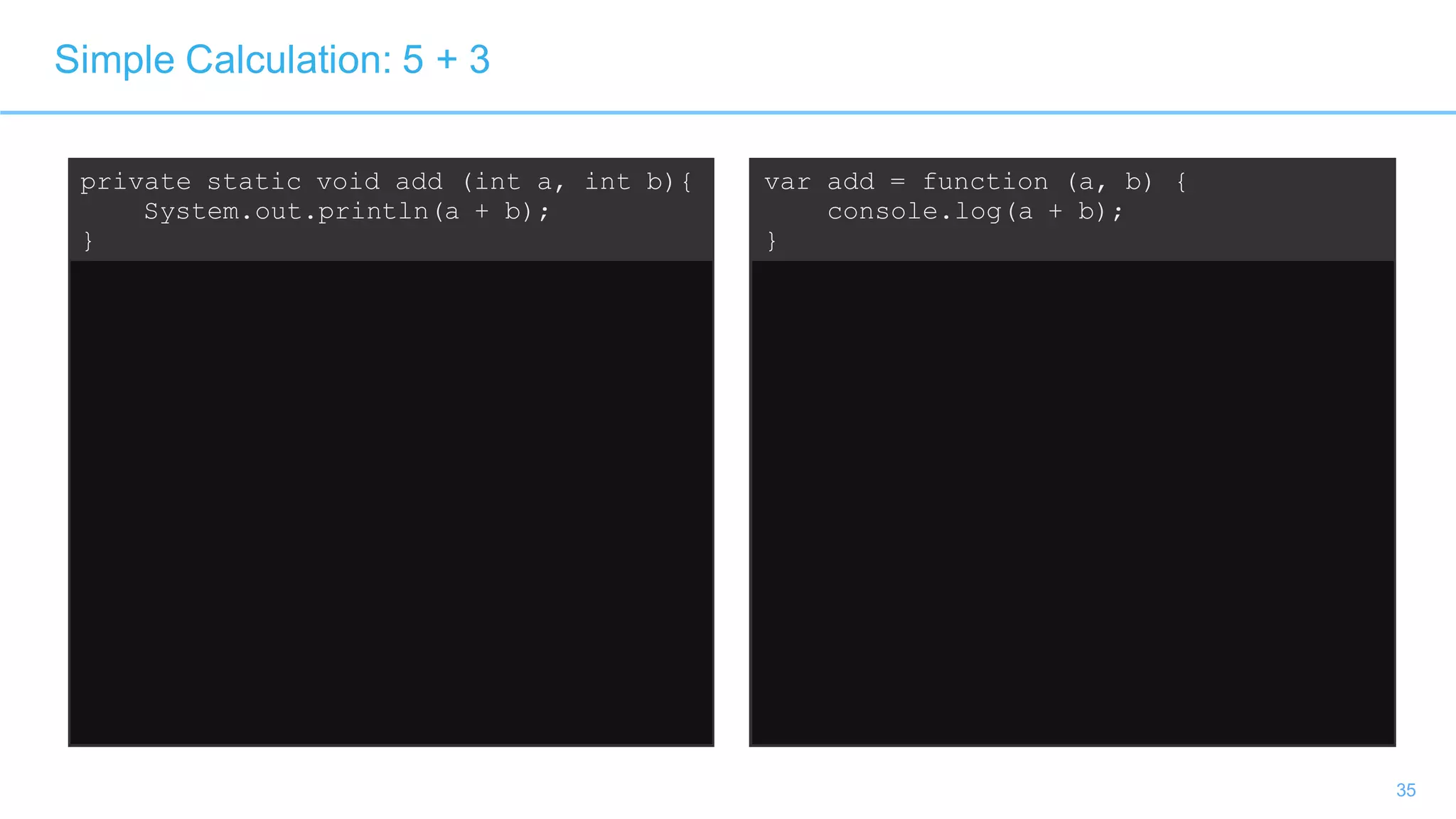

Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

36. 36

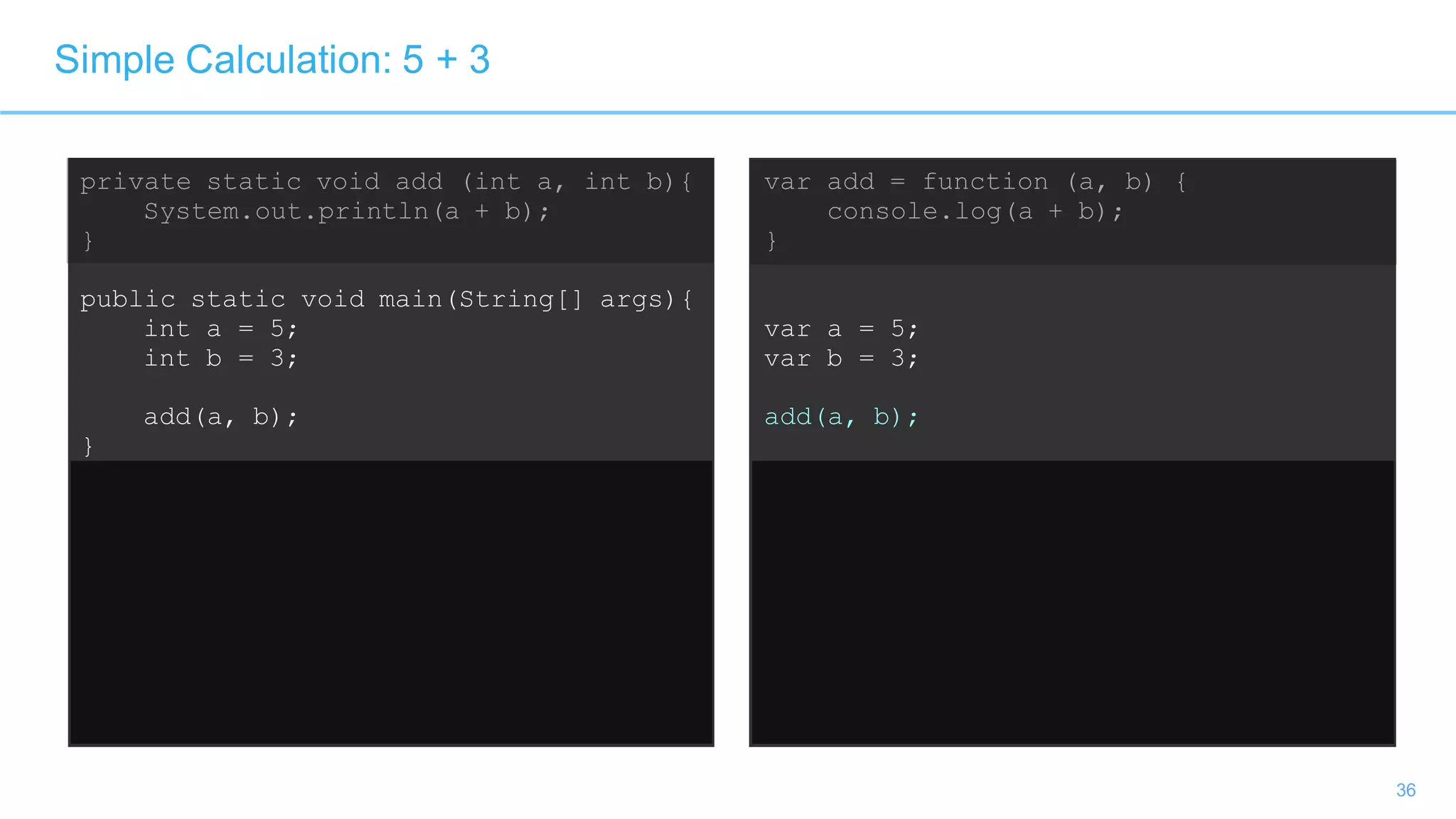

Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

37. 37

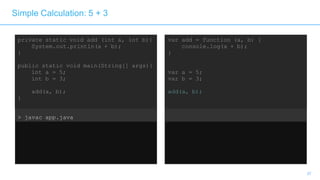

Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

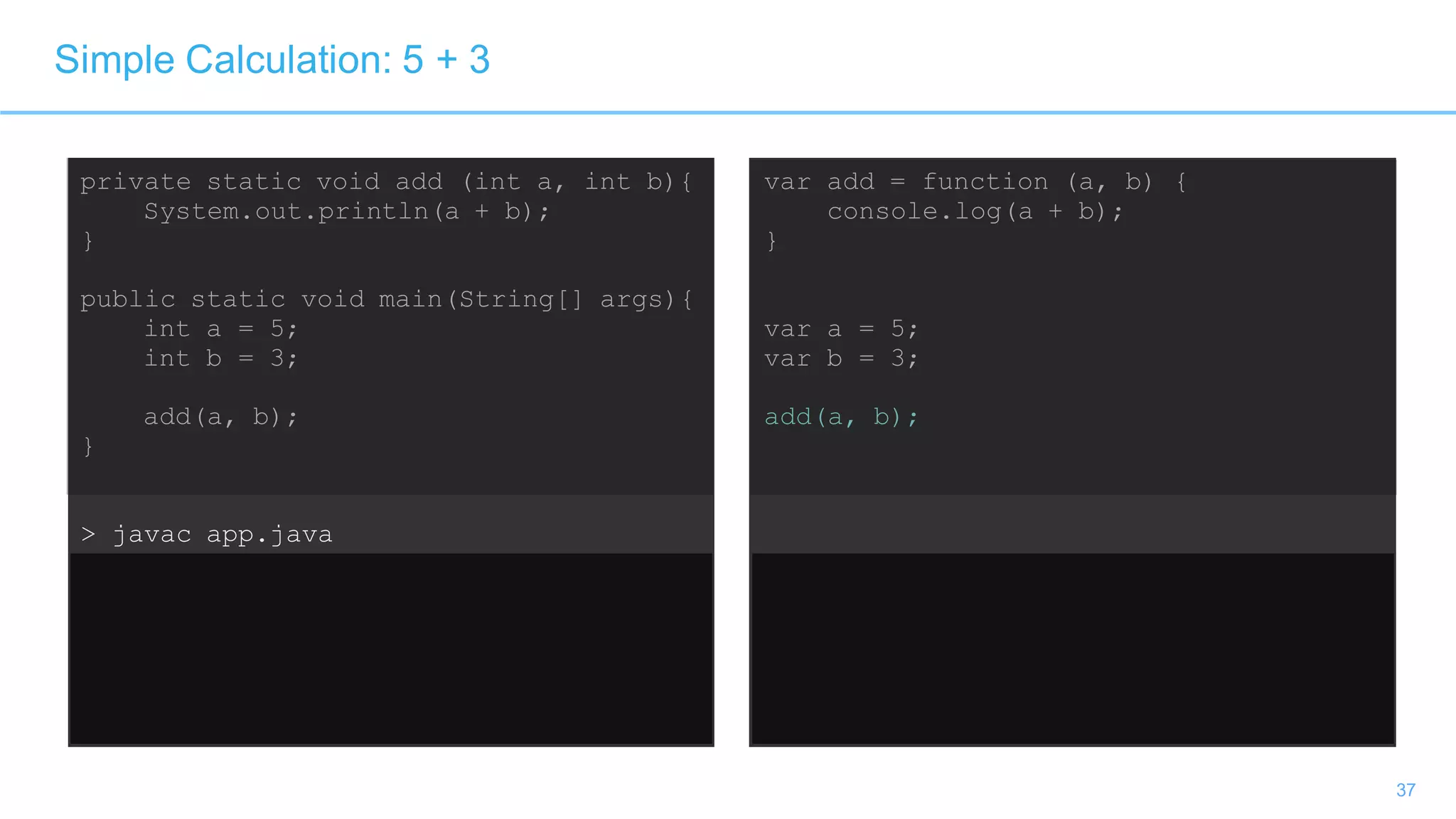

38. 38

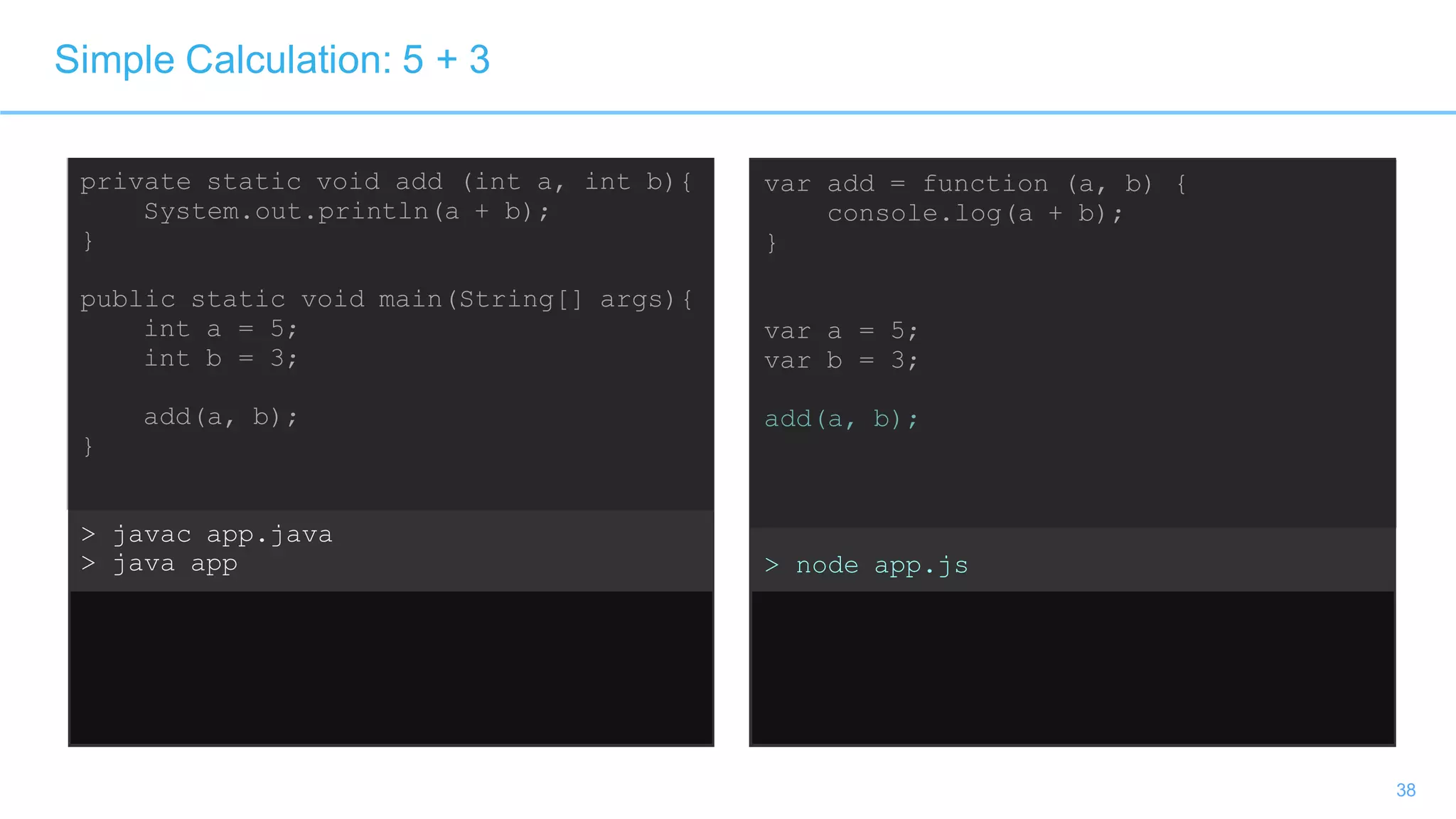

Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

39. 39
Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
int a = 5;
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = 5;
var b = 3;
add(a, b);
> node app.js
> 8

40. 40

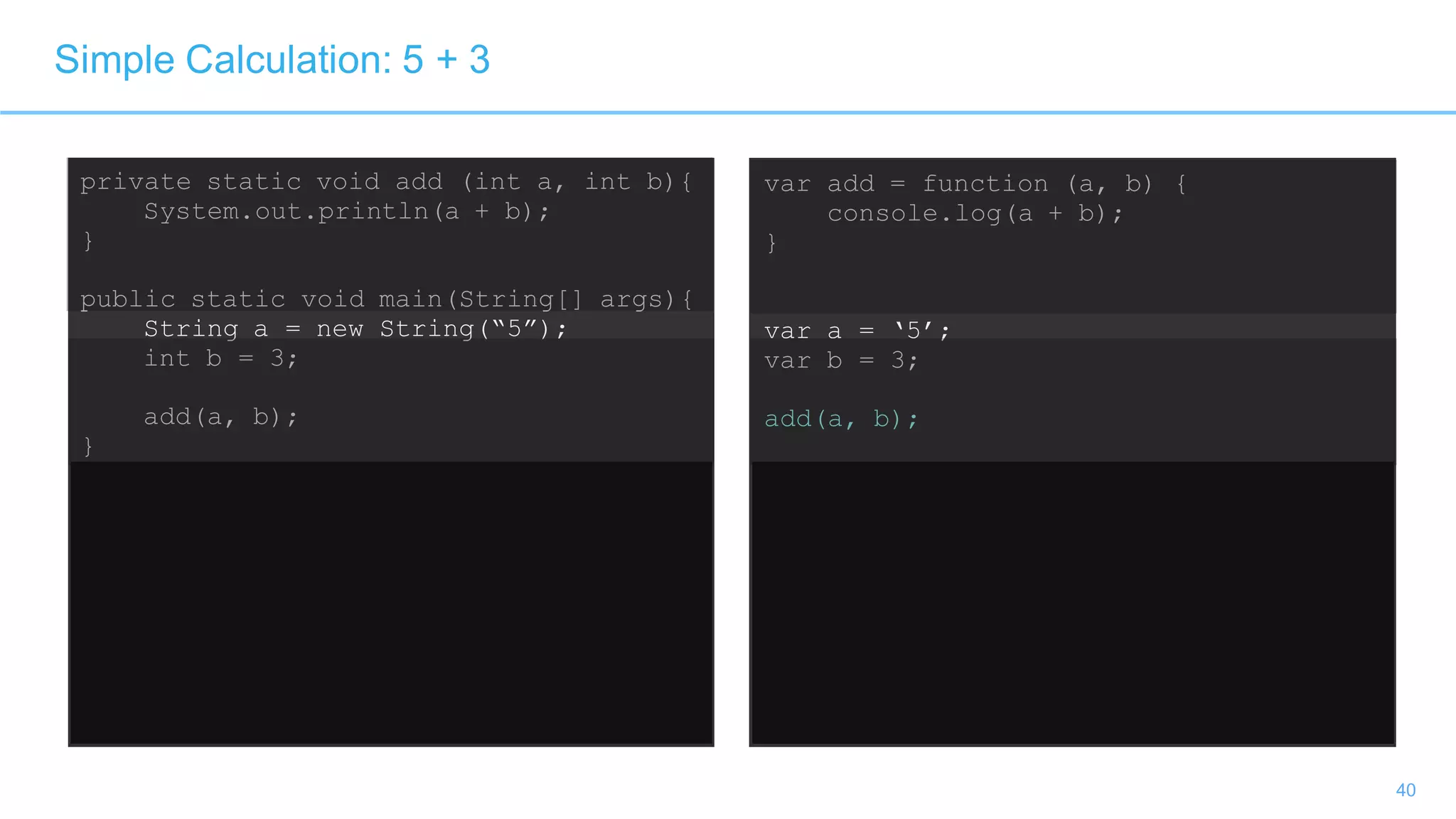

Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
String a = new String(“5”);
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = ‘5’;
var b = 3;
add(a, b);
> node app.js
> 8

41. 41

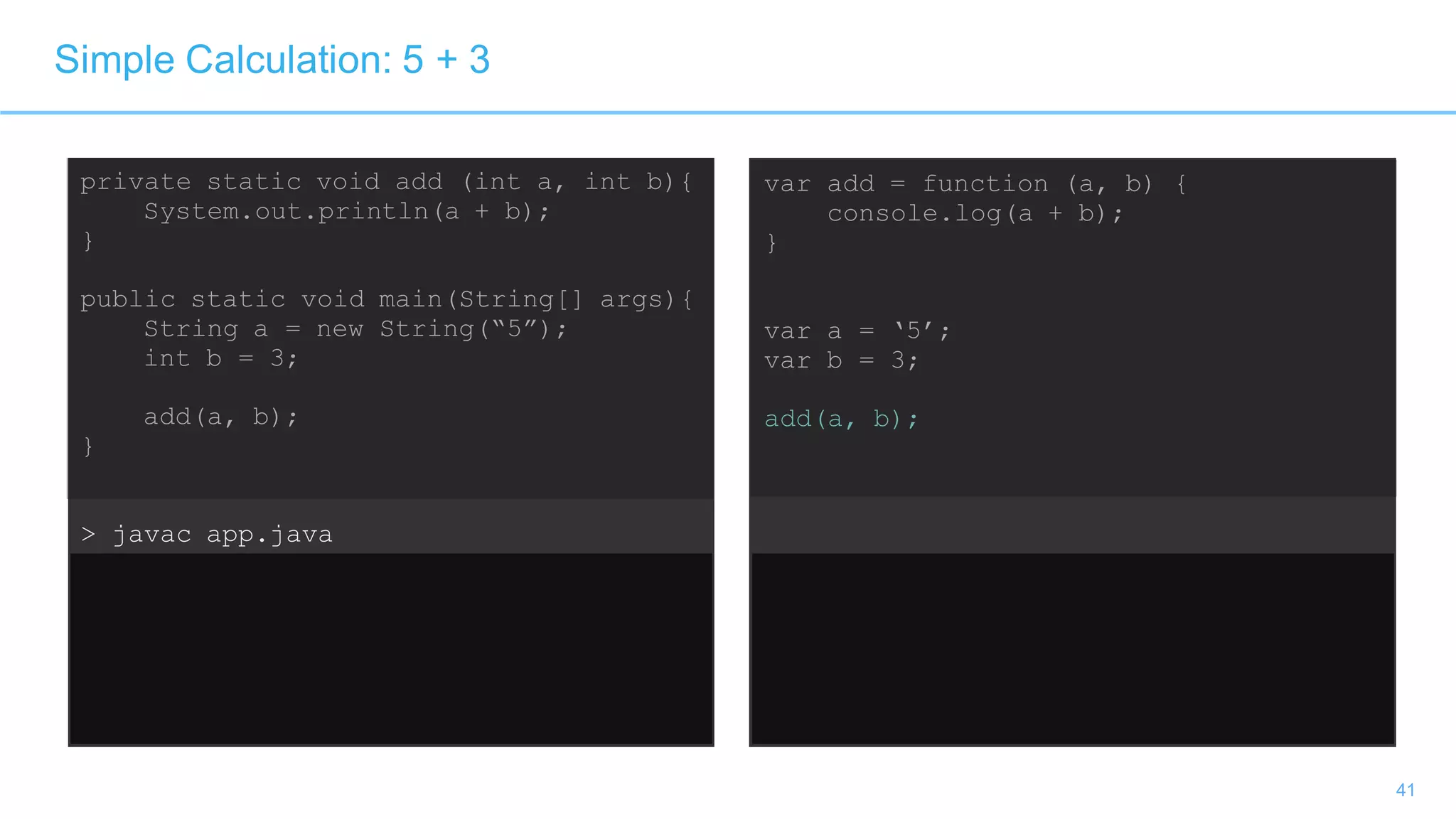

Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
String a = new String(“5”);
int b = 3;
add(a, b);
}
> javac app.java
> java app
> 8
var add = function (a, b) {
console.log(a + b);
}
var a = ‘5’;
var b = 3;
add(a, b);
> node app.js
> 8

42. 42

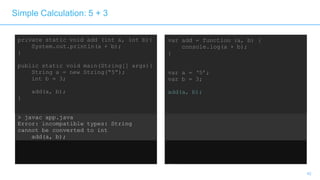

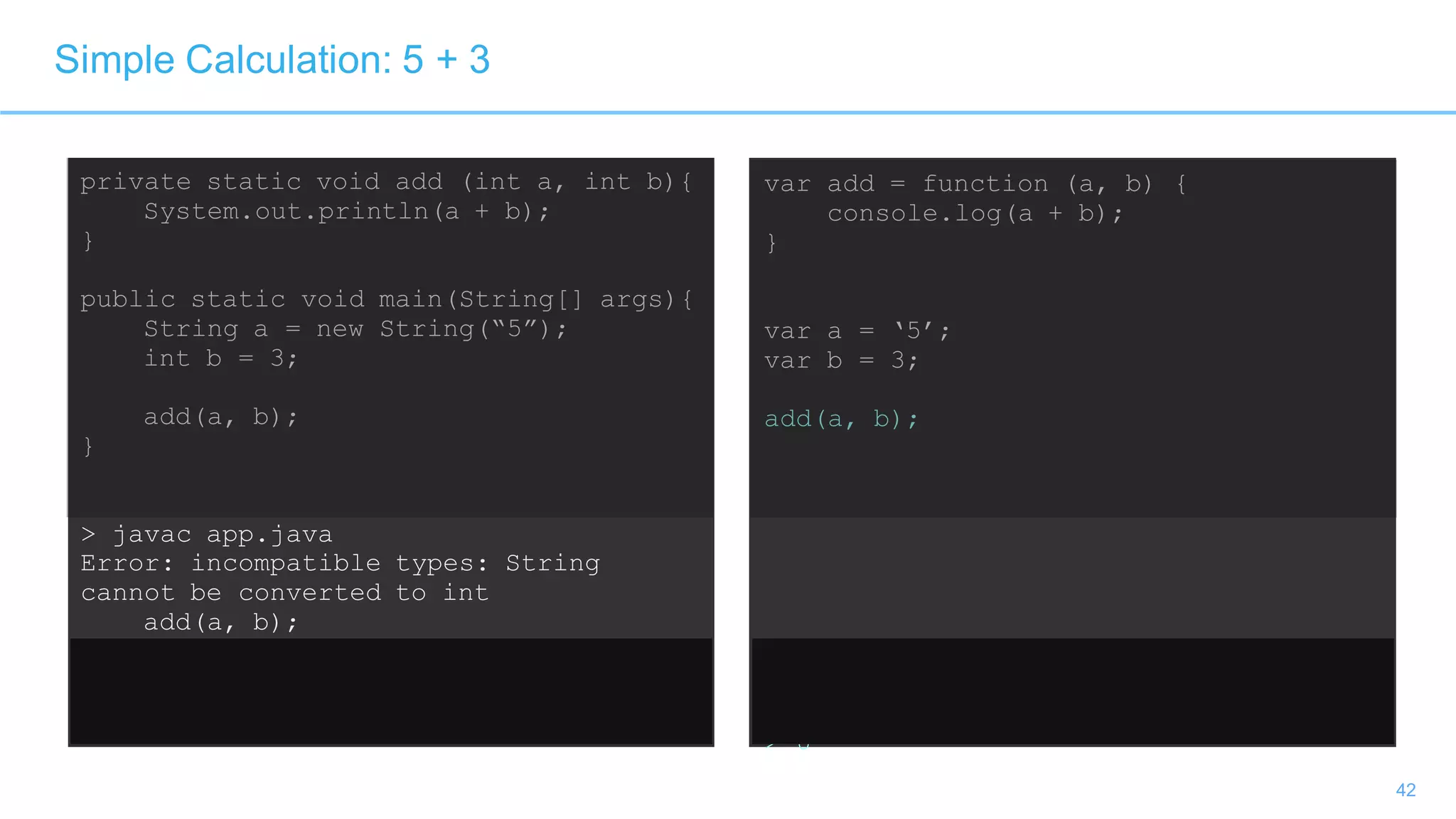

Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
String a = new String(“5”);
int b = 3;
add(a, b);
}
> javac app.java
Error: incompatible types: String
cannot be converted to int
add(a, b);
^
var add = function (a, b) {
console.log(a + b);
}
var a = ‘5’;
var b = 3;
add(a, b);
> node app.js
> 8

43. 43

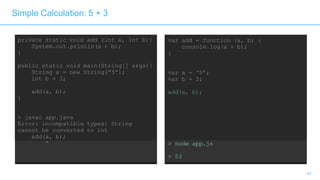

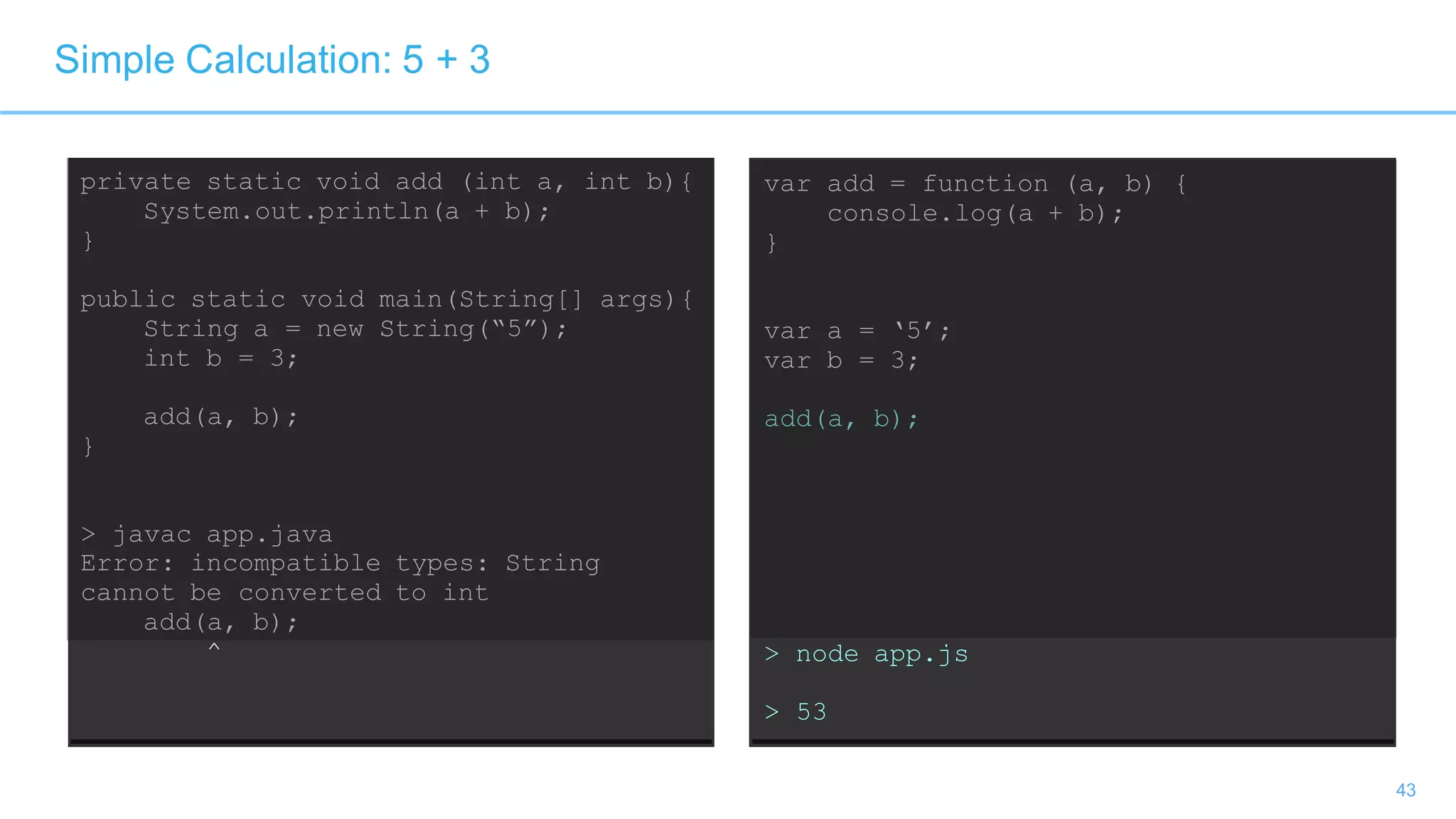

Simple Calculation: 5 + 3
private static void add (int a, int b){
System.out.println(a + b);
}
public static void main(String[] args){
String a = new String(“5”);
int b = 3;
add(a, b);
}
> javac app.java
Error: incompatible types: String
cannot be converted to int
add(a, b);
^
var add = function (a, b) {
console.log(a + b);
}
var a = ‘5’;
var b = 3;
add(a, b);
> node app.js
> 53

44. 44

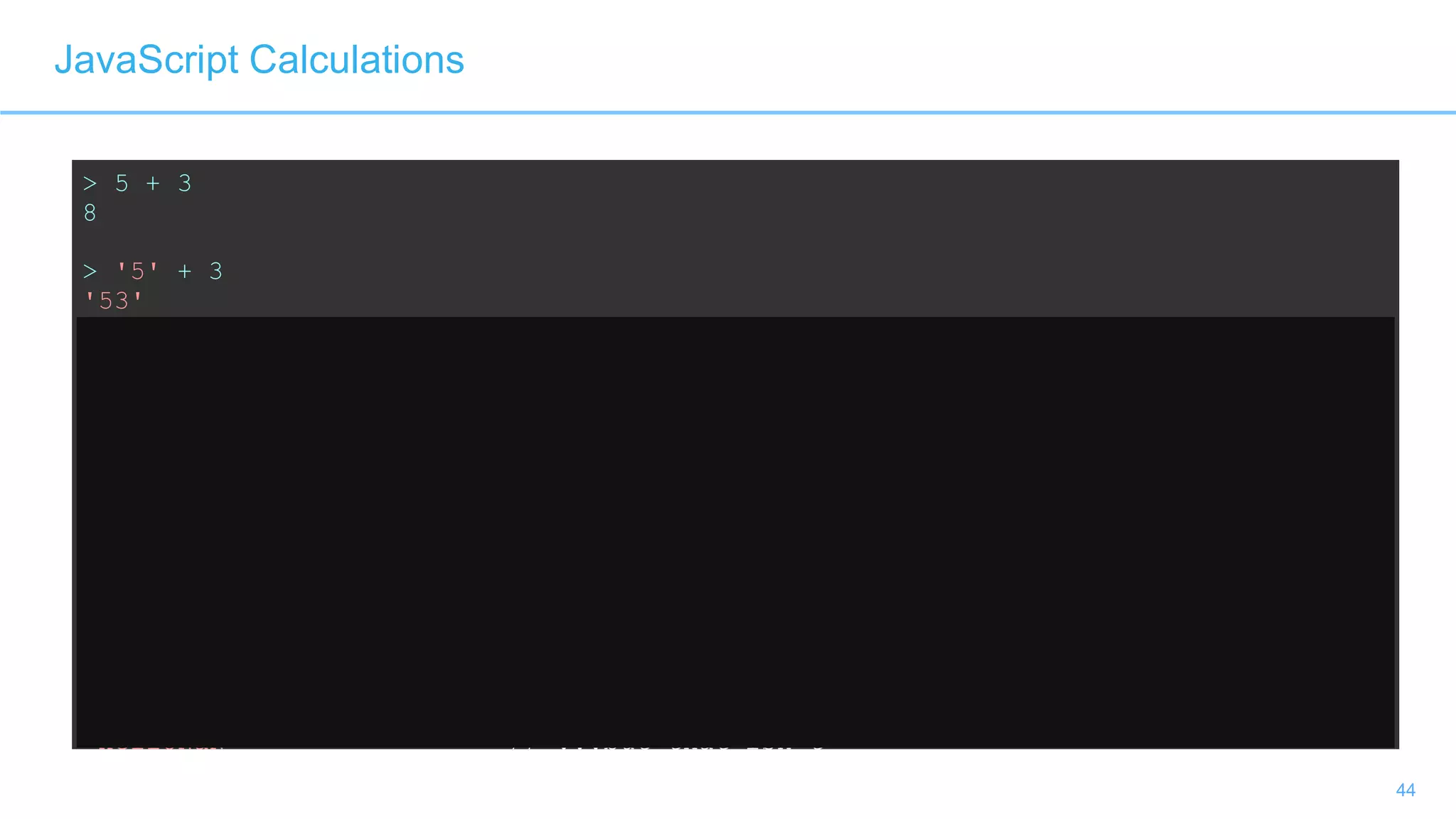

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // Weak typing, implicit conversion
> '5' – '4'
1 // String minus String = Integer??
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

45. 45

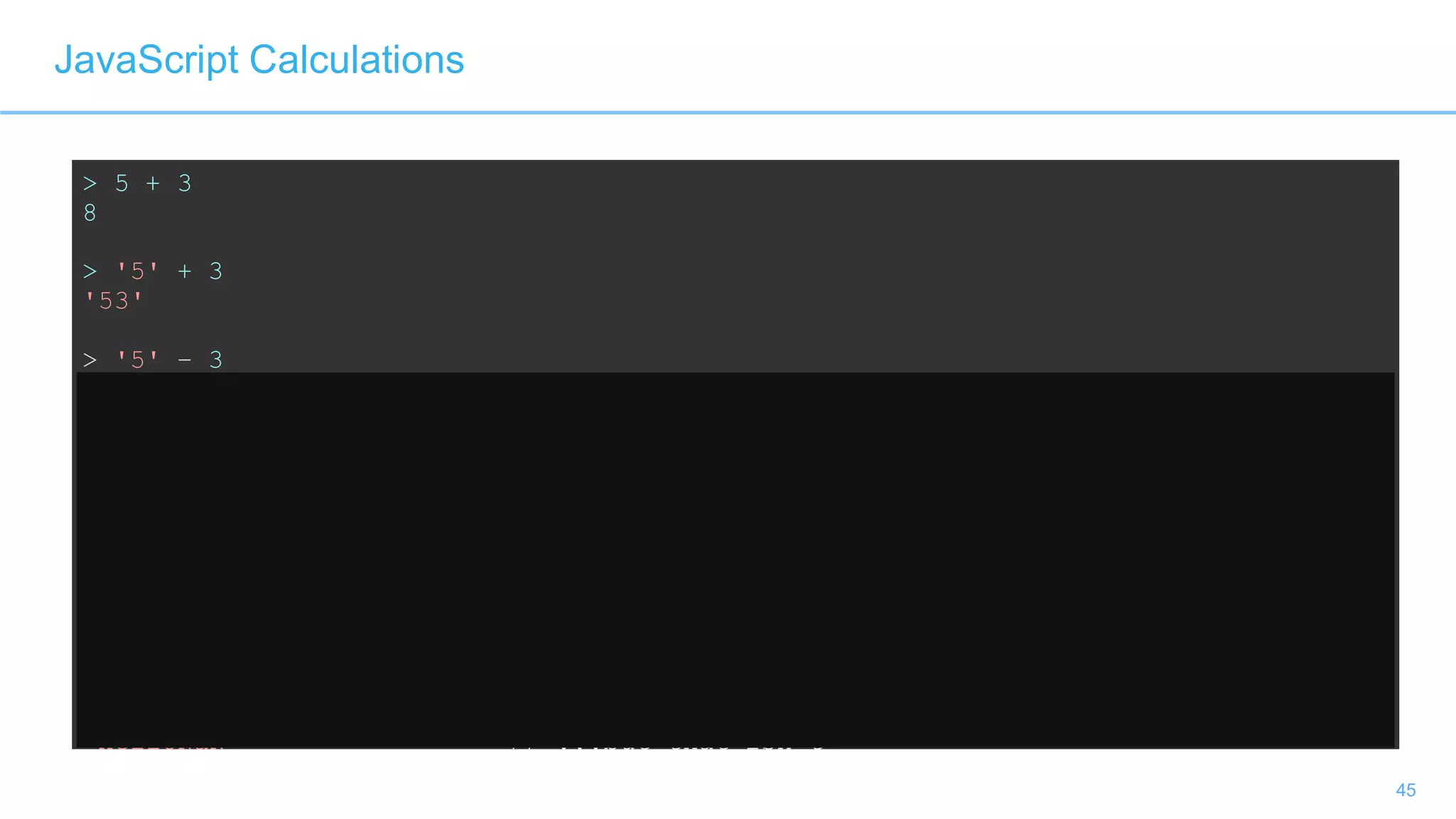

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // Weak typing, implicit conversion
> '5' – '4'
1 // String minus String = Integer??
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

46. 46

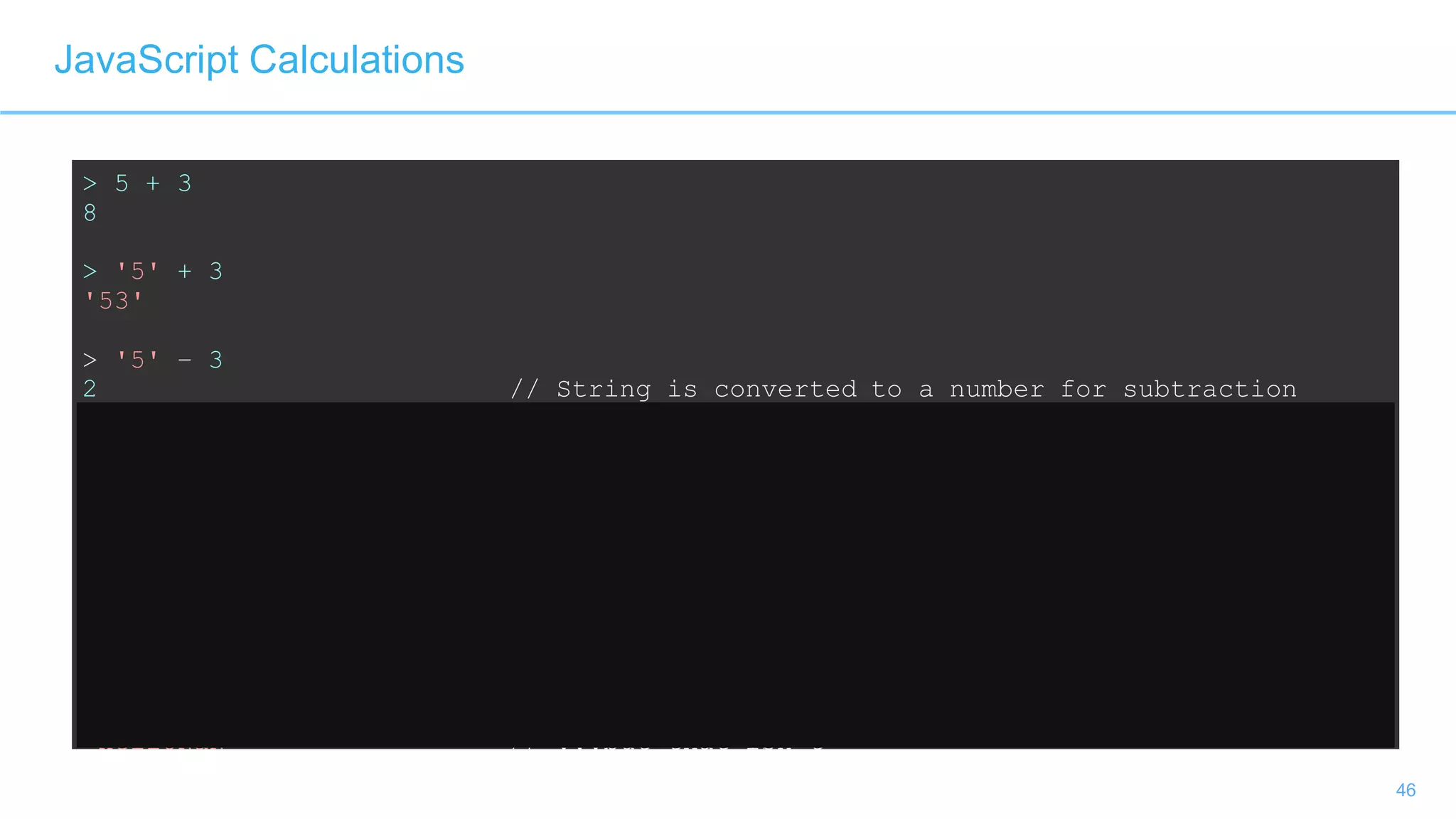

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // String minus String = Integer??
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

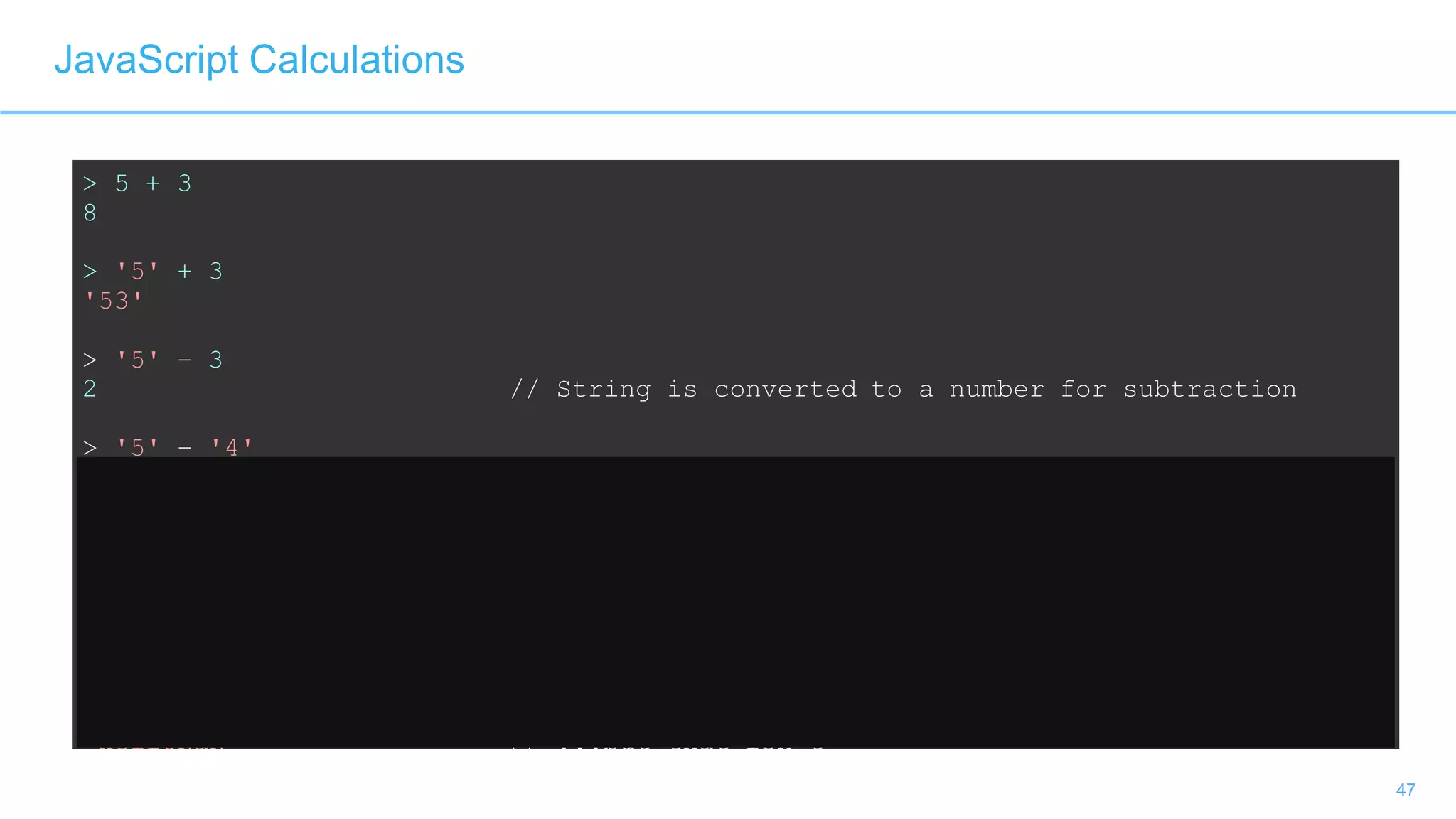

47. 47
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // String minus String = Integer??
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

48. 48
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

49. 49

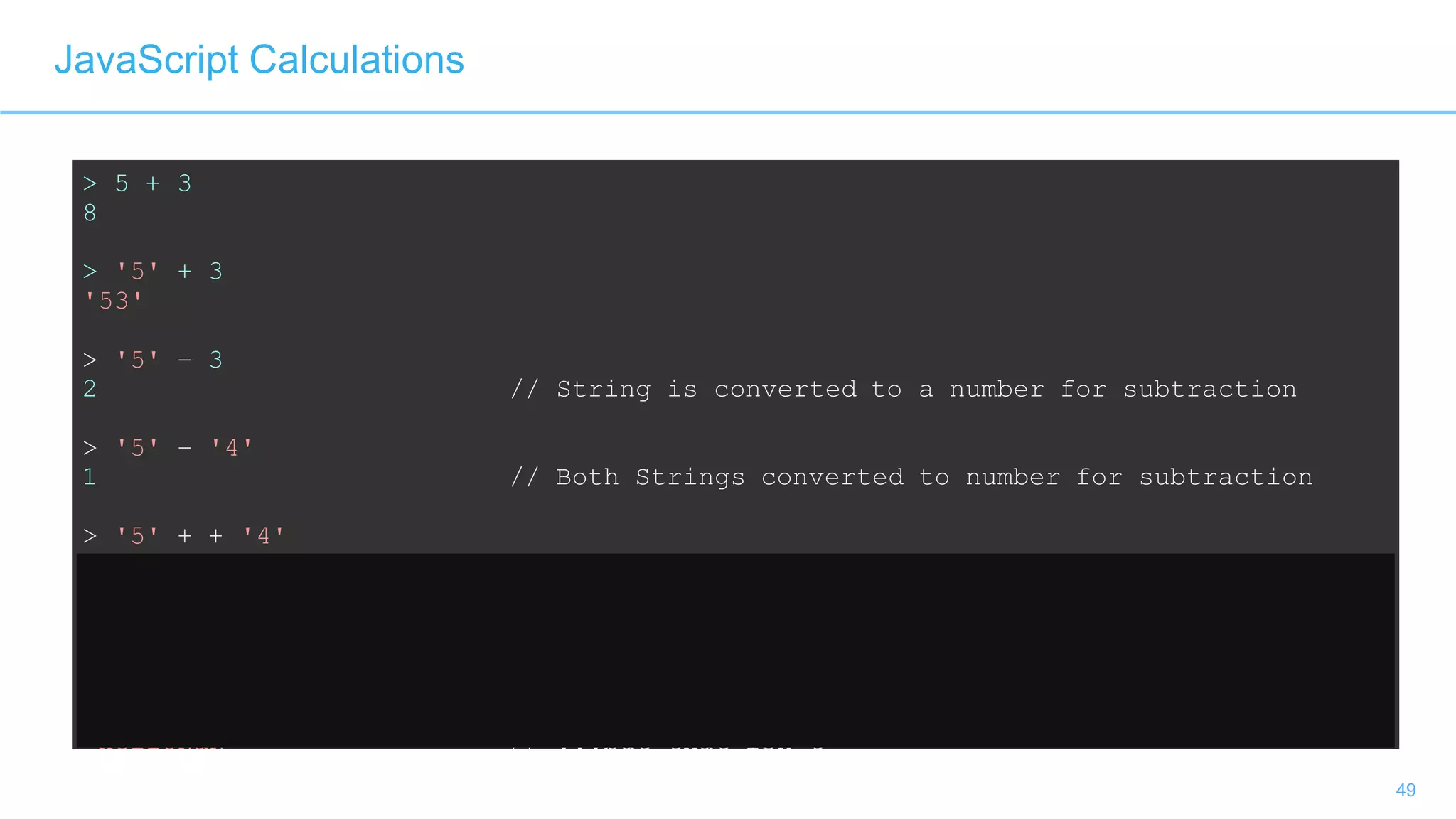

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

50. 50

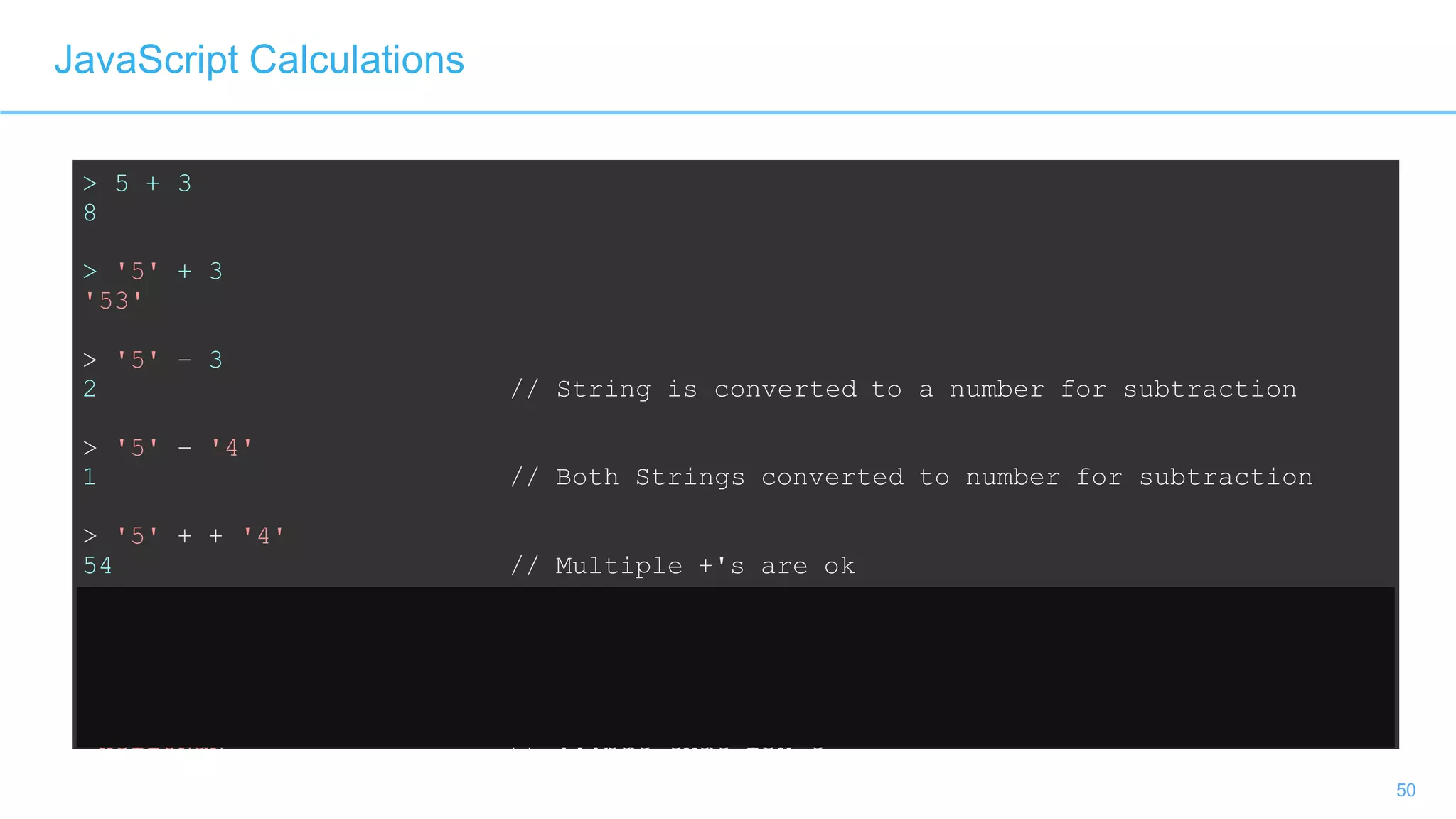

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

51. 51

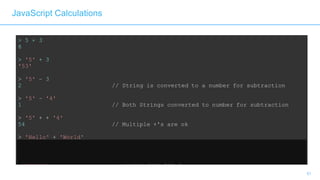

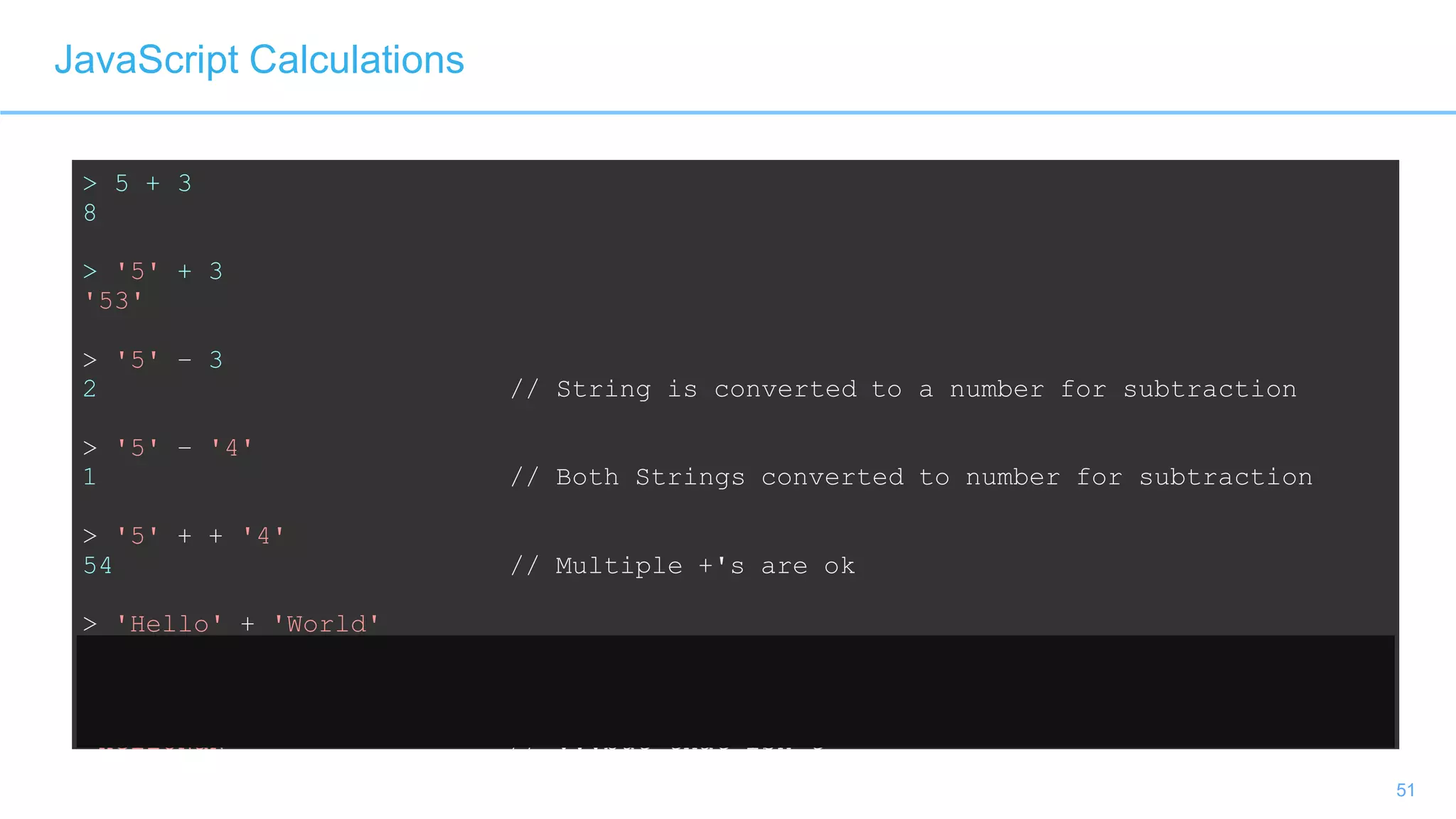

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

52. 52

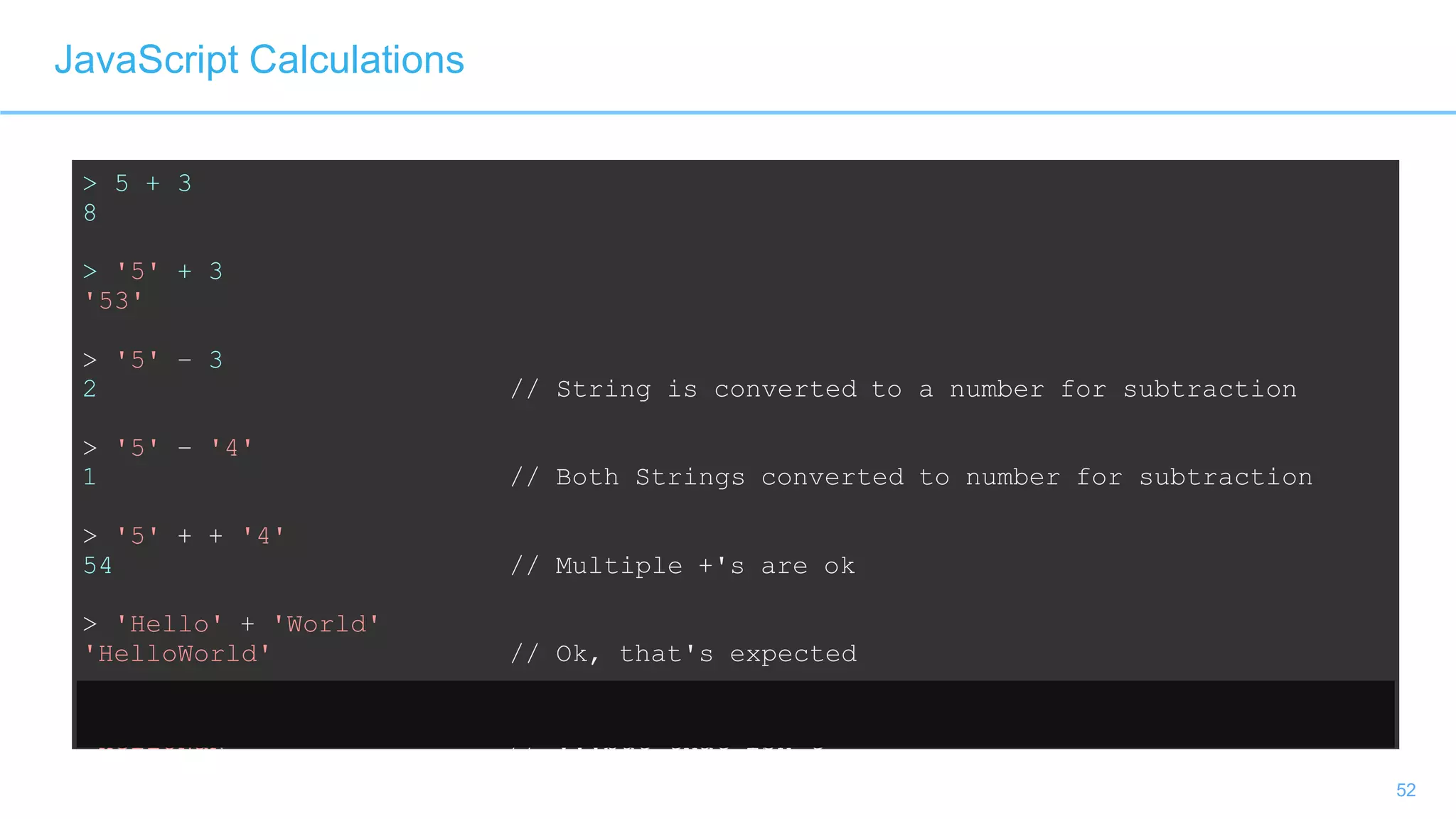

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

53. 53

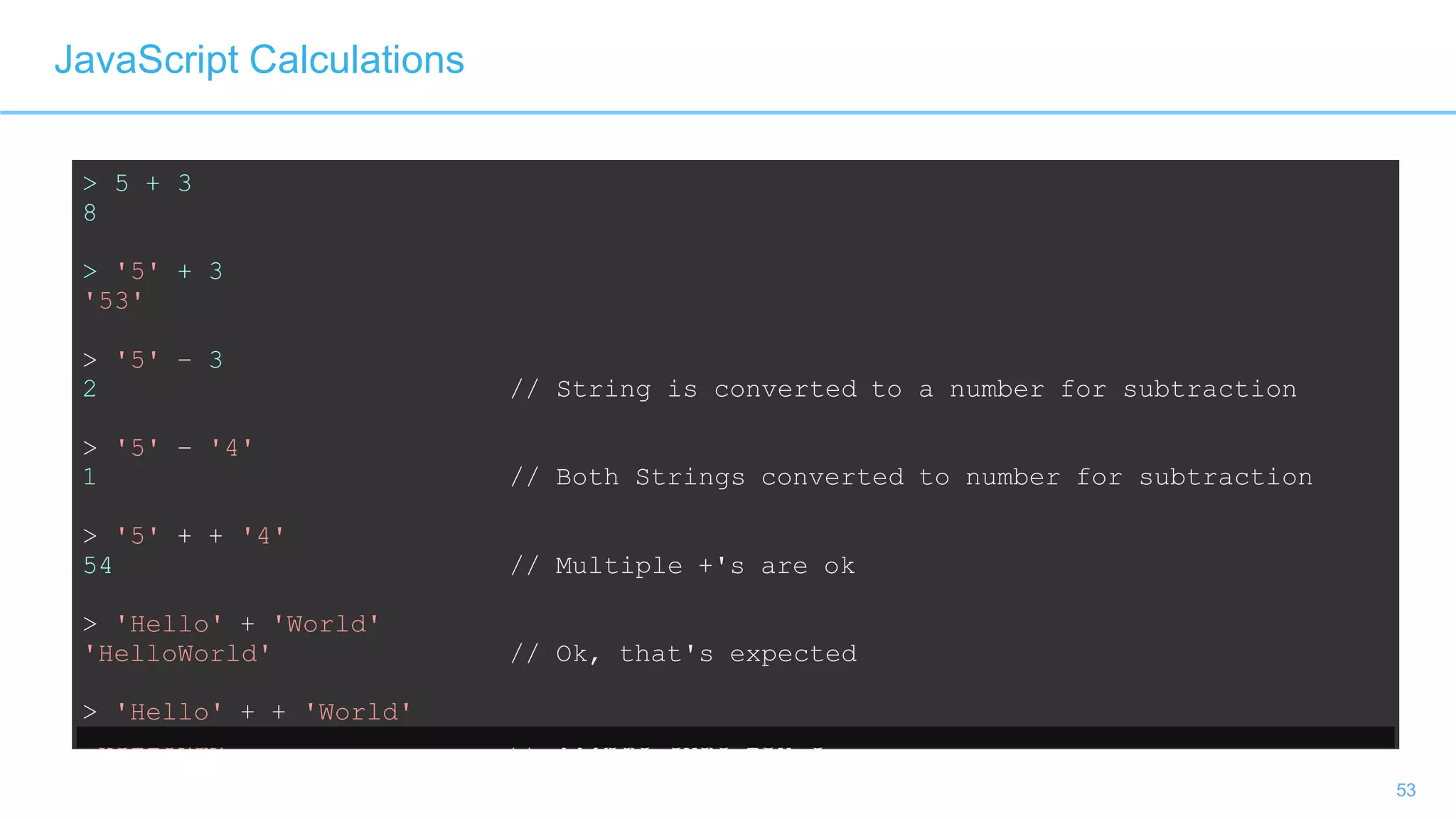

JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // ...but that isn't

54. 54
JavaScript Calculations
> 5 + 3
8
> '5' + 3
'53'
> '5' – 3
2 // String is converted to a number for subtraction
> '5' – '4'
1 // Both Strings converted to number for subtraction
> '5' + + '4'
54 // Multiple +'s are ok
> 'Hello' + 'World'
'HelloWorld' // Ok, that's expected
> 'Hello' + + 'World'
'HelloNaN' // Multiple plus must cause String to number conversion

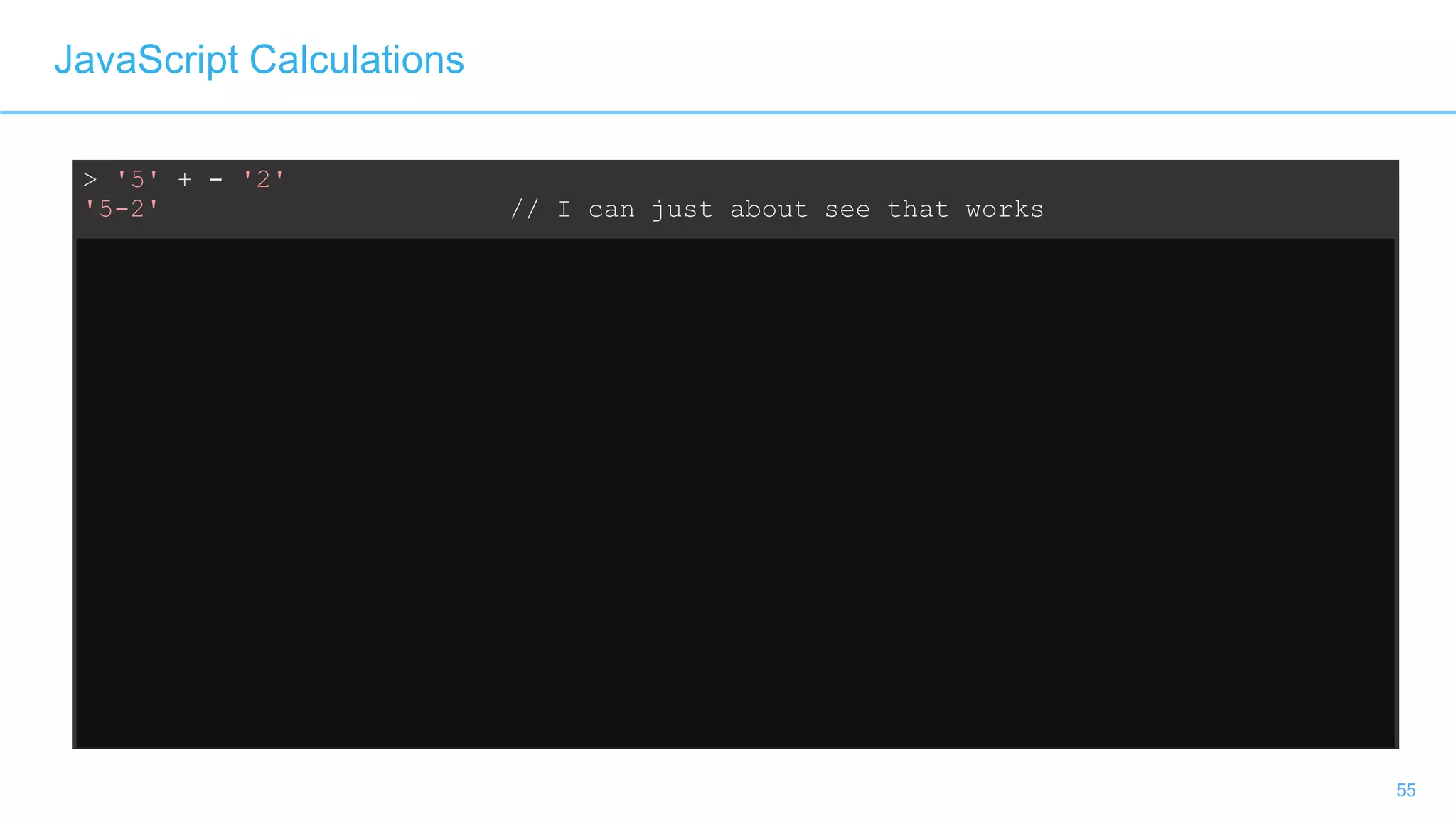

55. 55
JavaScript Calculations
> '5' + - '2'
'5-2' // I can just about see that works
> var x = 3
undefined
> '5' – x + x
5 // Ok, that makes sense
> var x = 3
undefined
> '5' + x - x
50 // What???

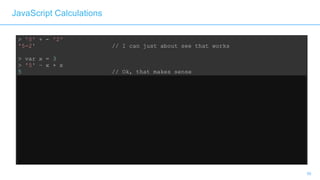

56. 56
JavaScript Calculations
> '5' + - '2'
'5-2' // I can just about see that works
> var x = 3
> '5' – x + x
5 // Ok, that makes sense
> var x = 3
undefined
> '5' + x - x
50 // What???

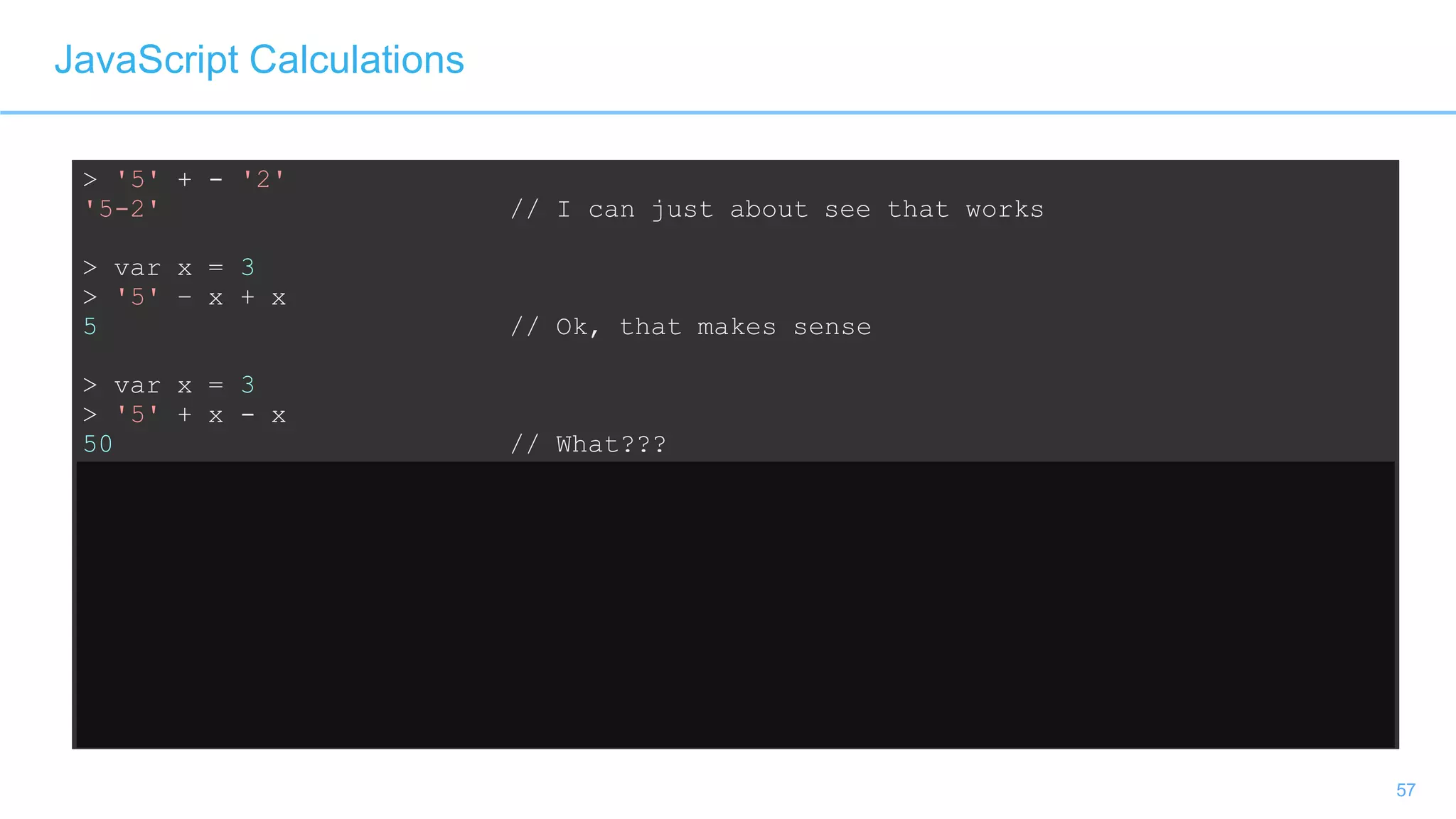

57. 57
JavaScript Calculations
> '5' + - '2'
'5-2' // I can just about see that works
> var x = 3
> '5' – x + x
5 // Ok, that makes sense
> var x = 3
> '5' + x - x
50 // What???

58. 58
Language
Selection

59. 59

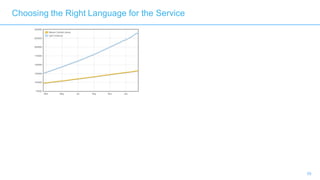

Choosing the Right Language for the Service

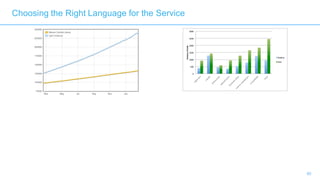

60. 60
Choosing the Right Language for the Service

61. 61
Node.js
0
- 4x
+ 1/3x
Node.jsPerformanceRelativetoJava
CPU Bound I/O Bound
* based on TechEmpower benchmark results
Application Performance
(higher is better)
Choosing the Right Language for the Service

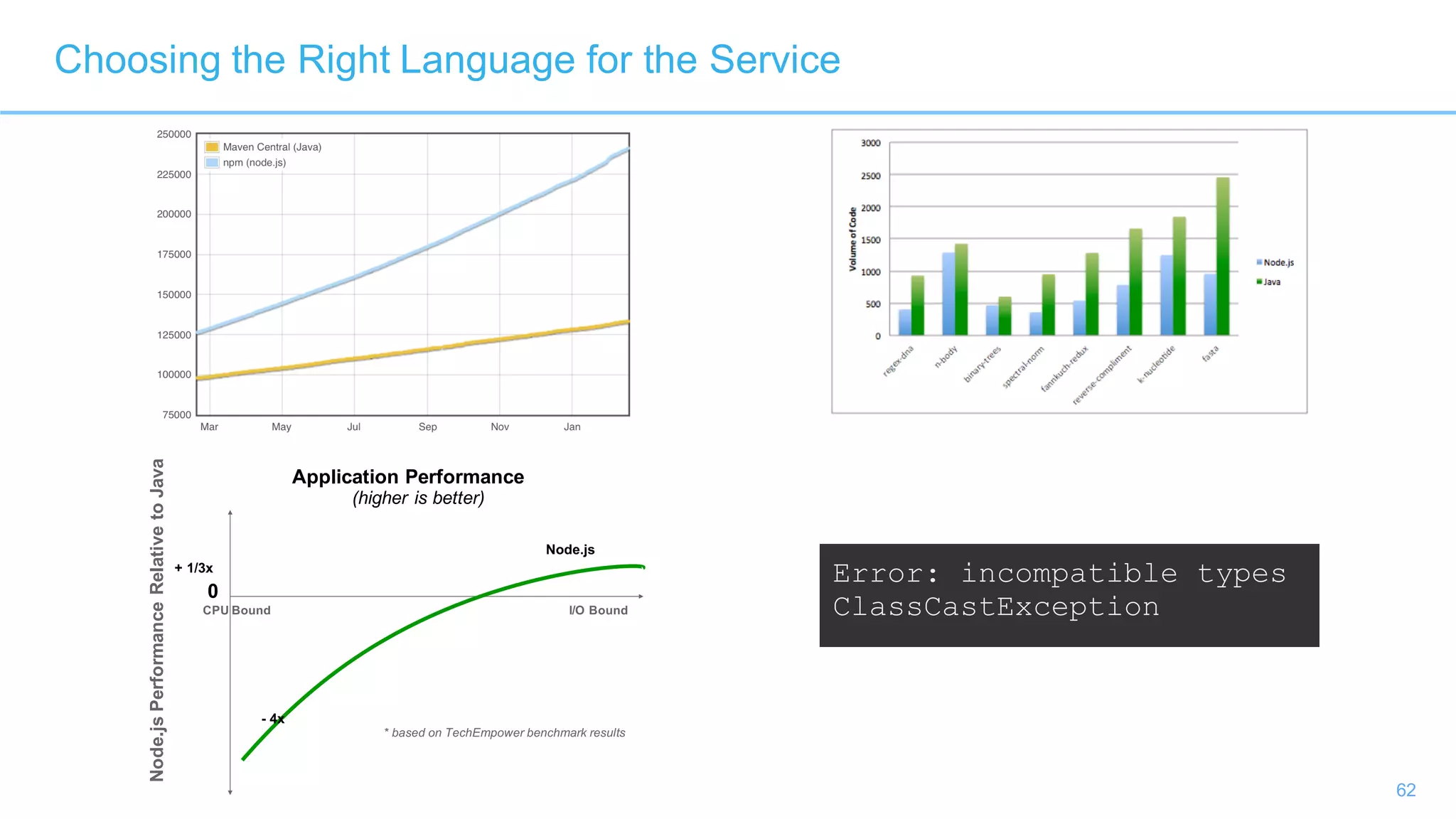

62. 62
Node.js
0
- 4x
+ 1/3x
Node.jsPerformanceRelativetoJava
CPU Bound I/O Bound
* based on TechEmpower benchmark results
Application Performance
(higher is better)
Choosing the Right Language for the Service
Error: incompatible types
ClassCastException

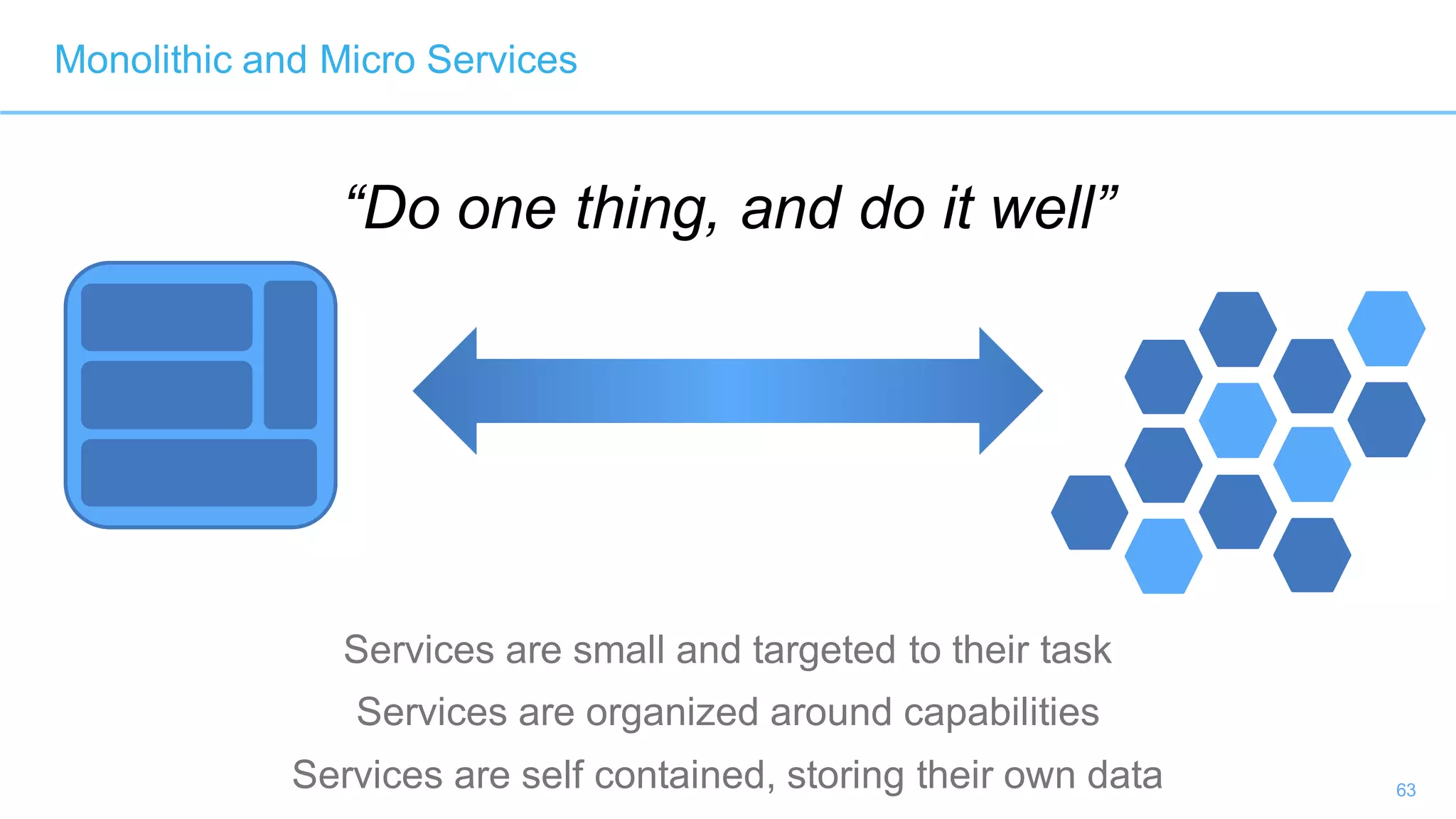

63. 63

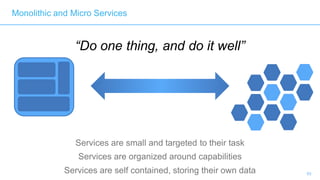

Monolithic and Micro Services
Services are small and targeted to their task
Services are organized around capabilities
Services are self contained, storing their own data
“Do one thing, and do it well”

64. 64
● Higher performance for I/O
● Easier async programming
● Fullstack/isomorphic development
Choosing the Right Language for the Service

65. 65
Choosing the Right Language for the Service
● Higher processing performance
● Type safety for calculations
● Transaction processing frameworks

66. 66
● Highly performant, scalable rich web applications
● Highly performant, reliable transaction processing
● Self-contained micro-service components
Choosing the Right Language for the Service
+

67. 67
Emerging
Architectures

68. 68

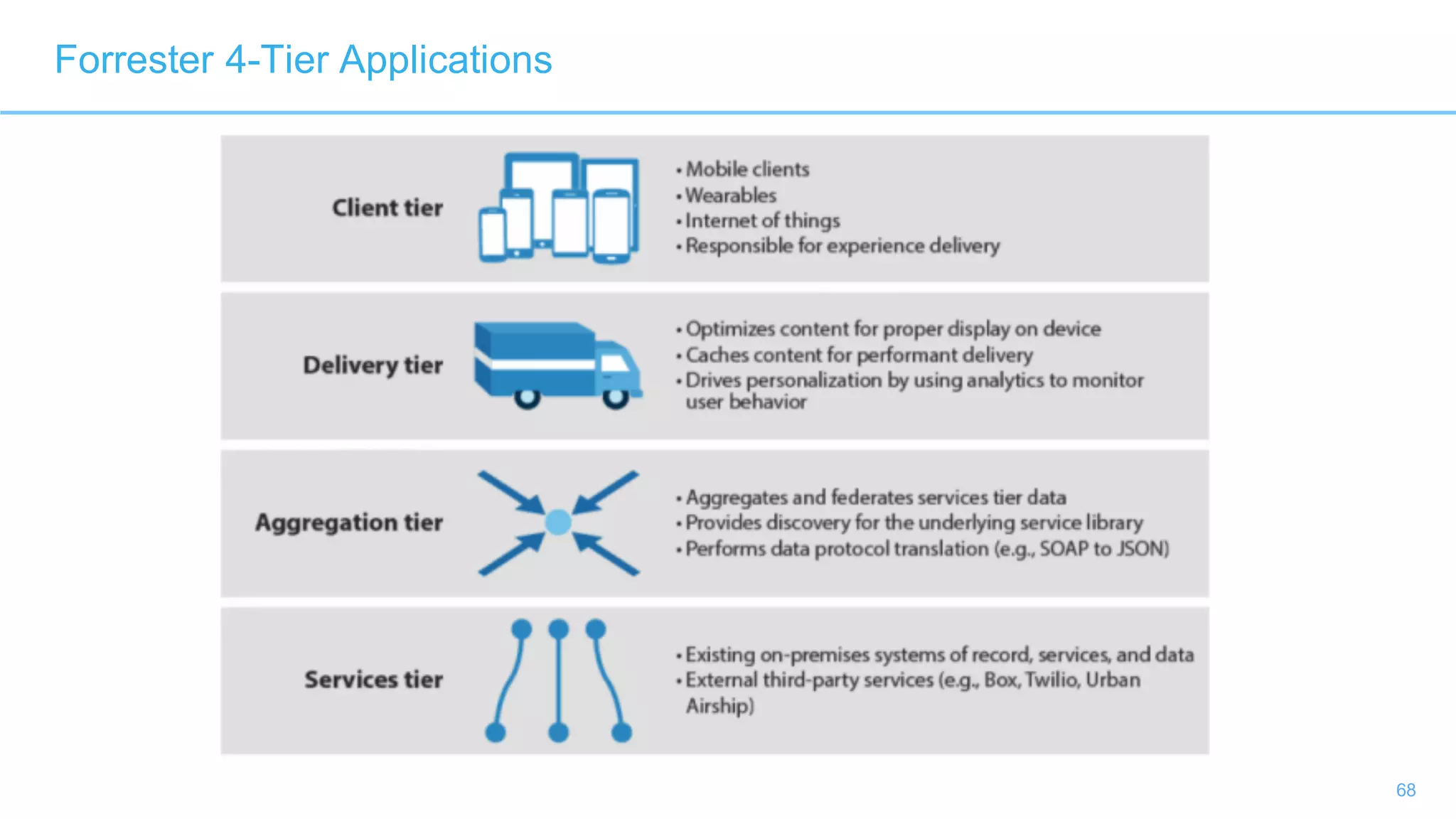

Forrester 4-Tier Applications

69. 69
Operations and Management
Admin Analytics
LoadBalancer
HTTP
3-Tier Web Applications

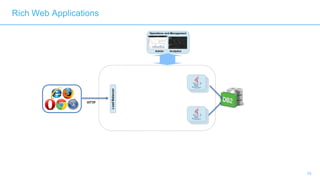

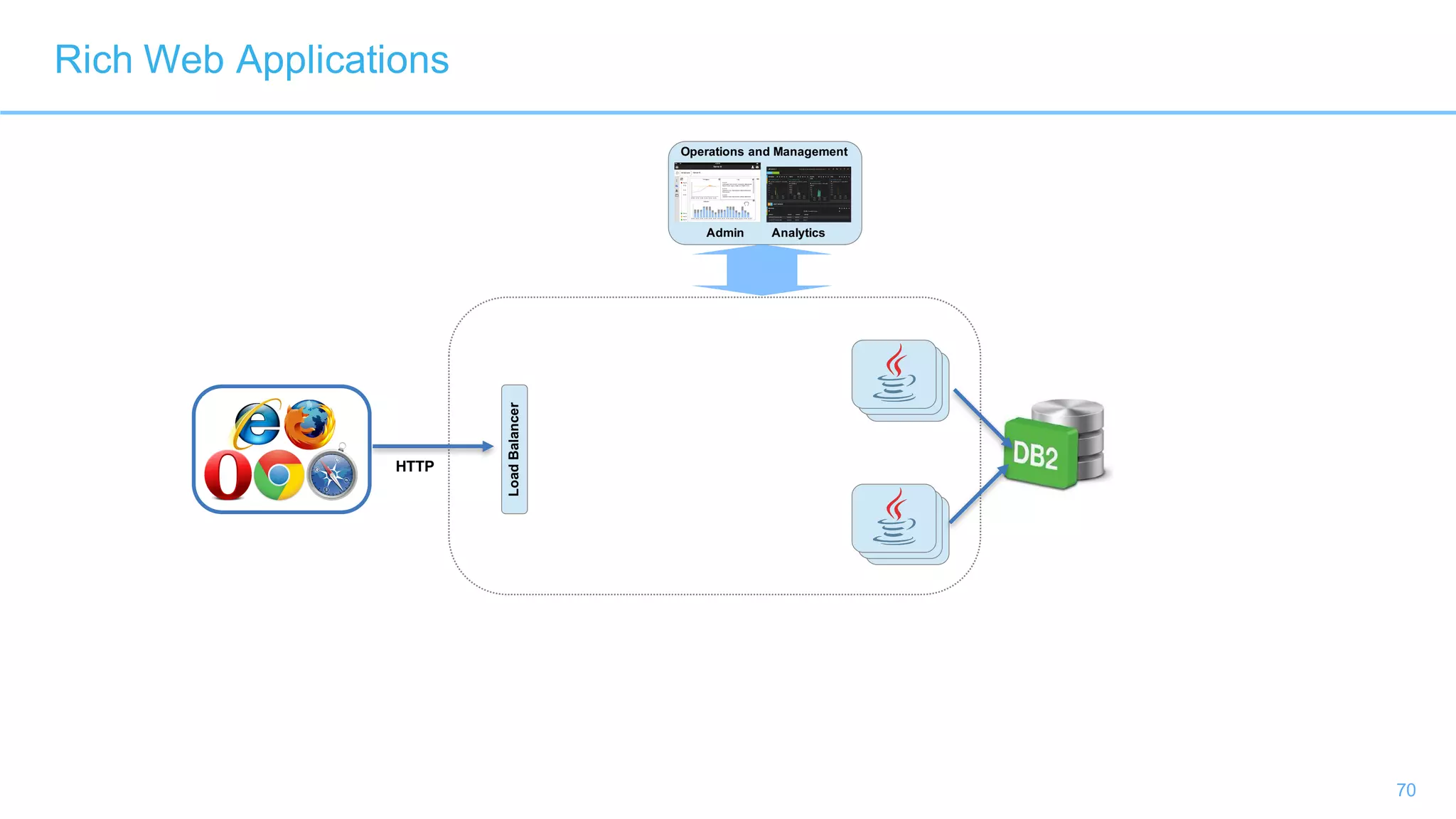

70. 70
Operations and Management
Admin Analytics
LoadBalancer
HTTP
Rich Web Applications

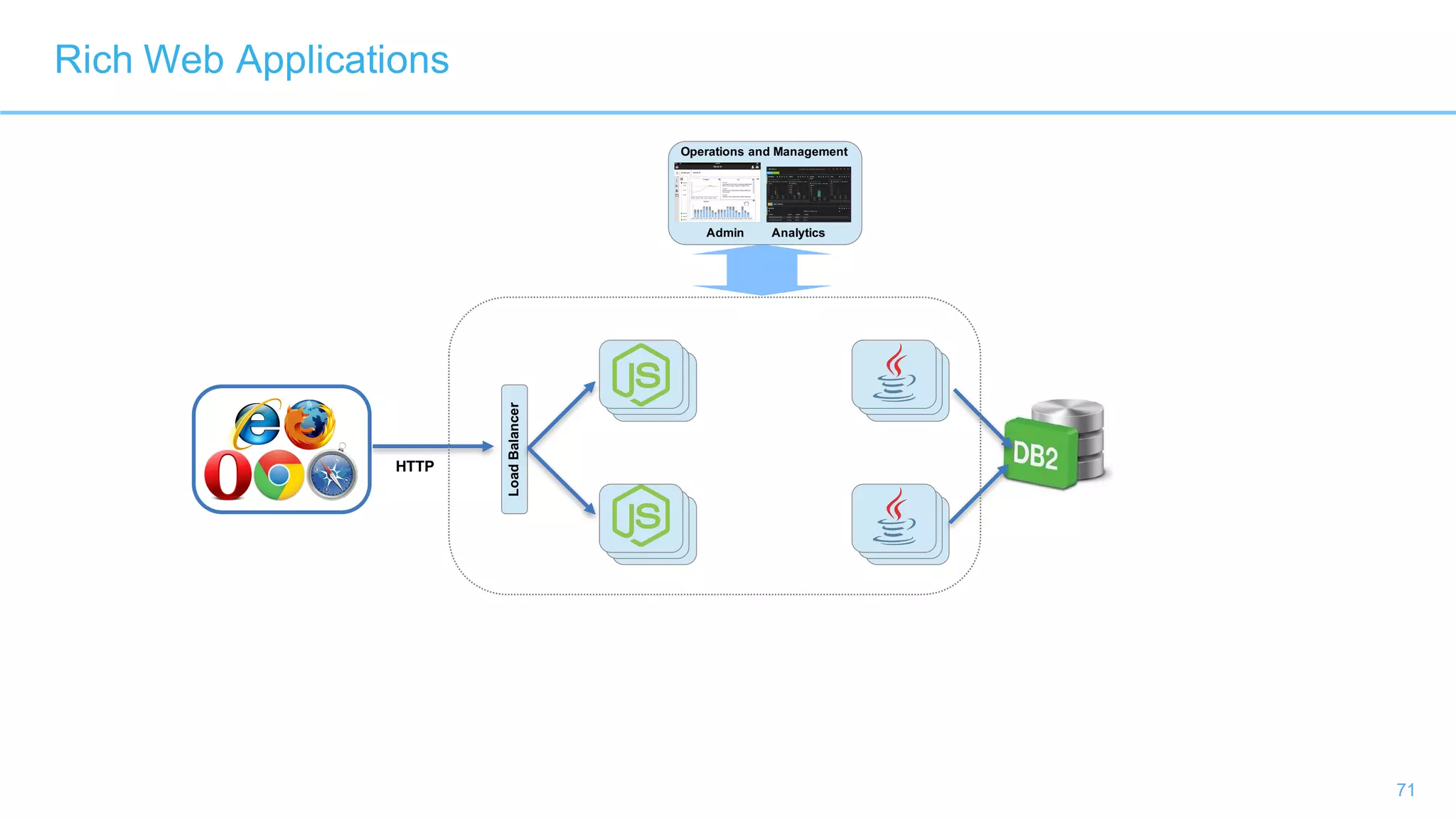

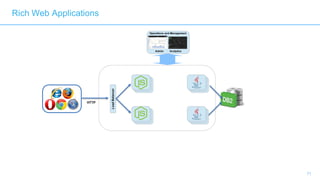

71. 71
Operations and Management
Admin Analytics
LoadBalancer
HTTP
Rich Web Applications

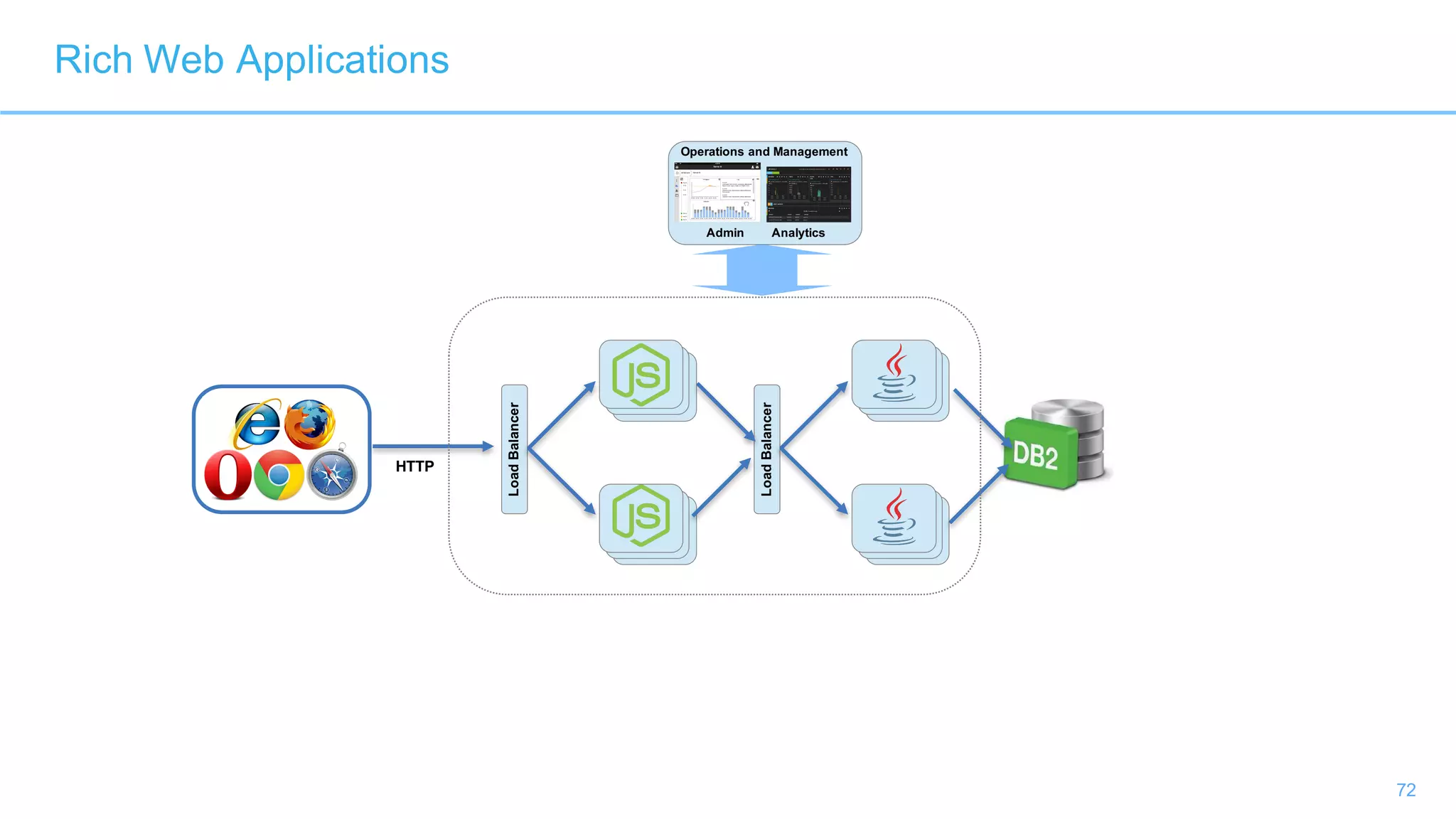

72. 72
Operations and Management
Admin Analytics
LoadBalancer
HTTP
Rich Web Applications
LoadBalancer

73. 73
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
LoadBalancer

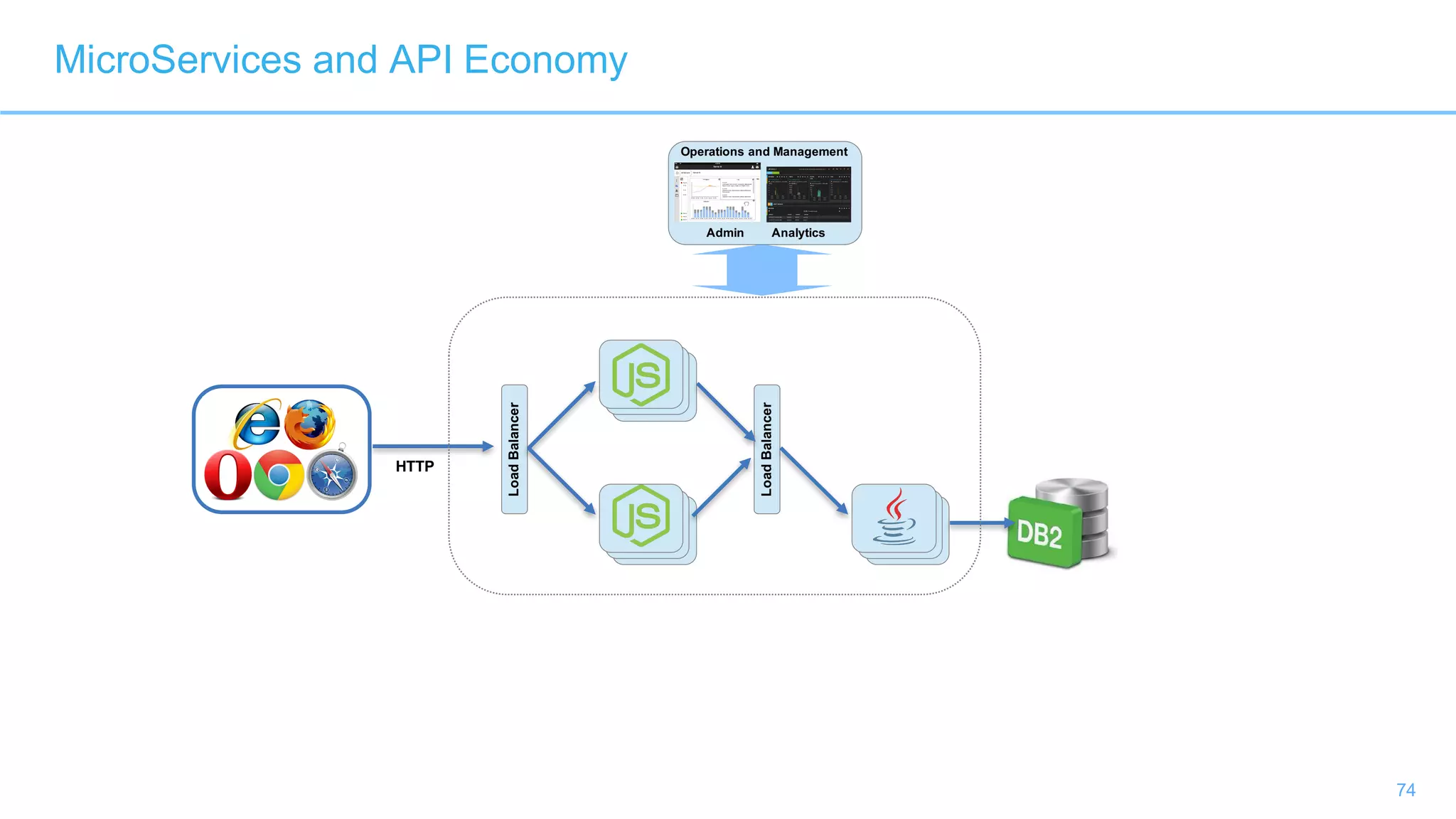

74. 74

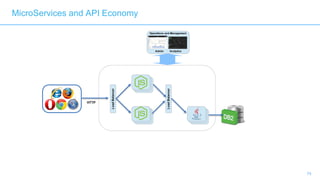

Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
LoadBalancer

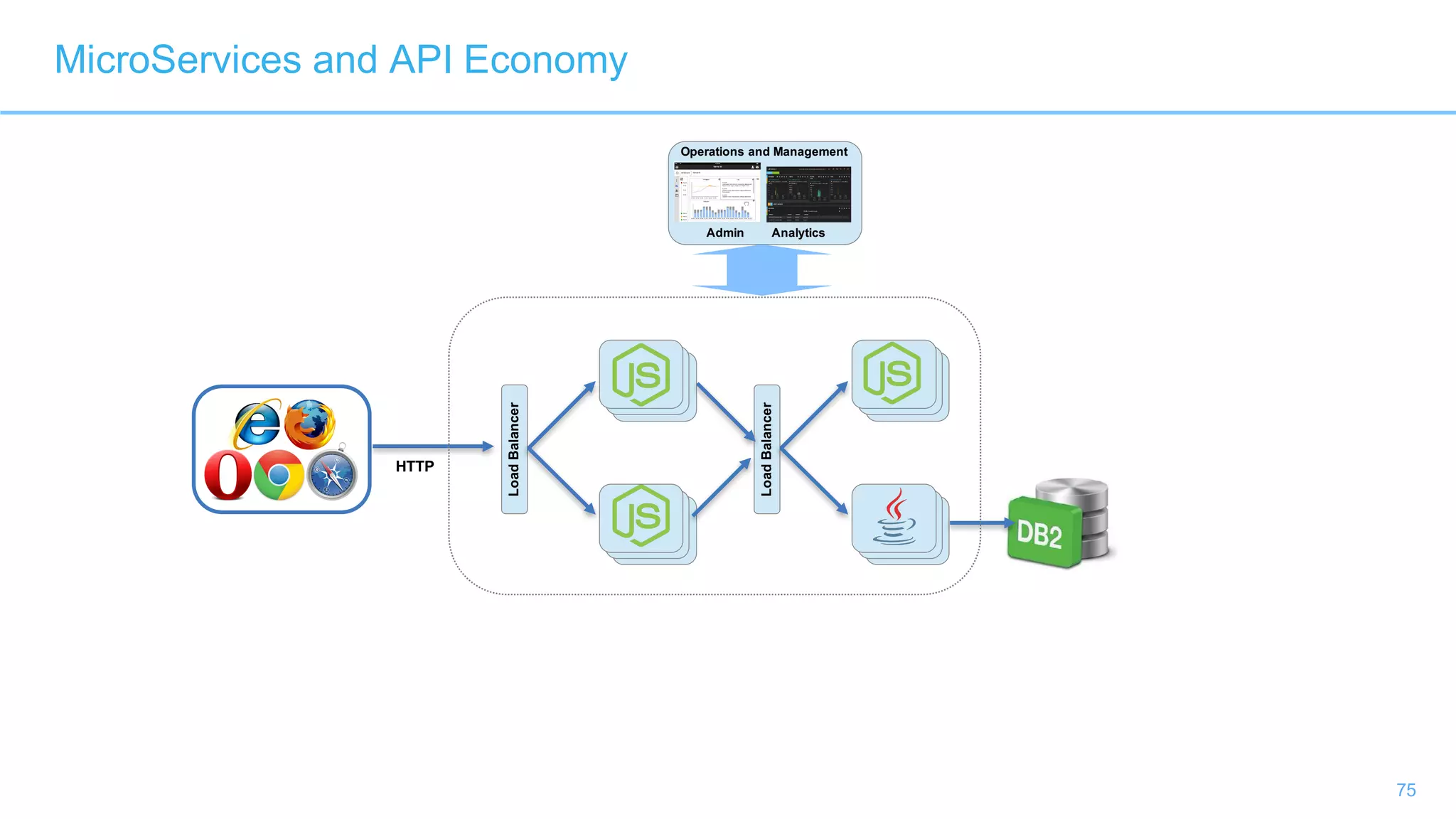

75. 75
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
LoadBalancer

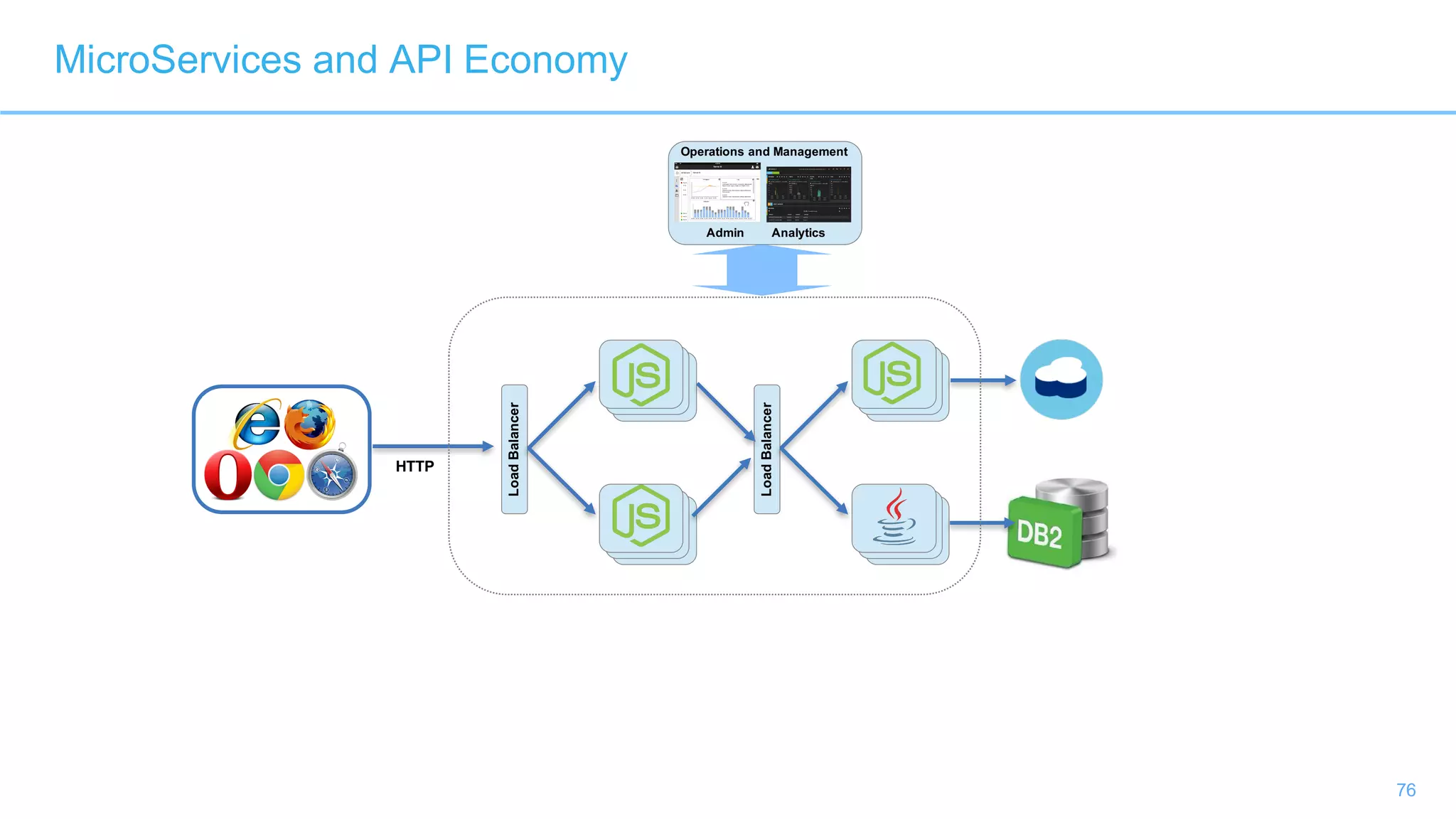

76. 76
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
LoadBalancer

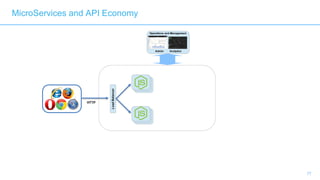

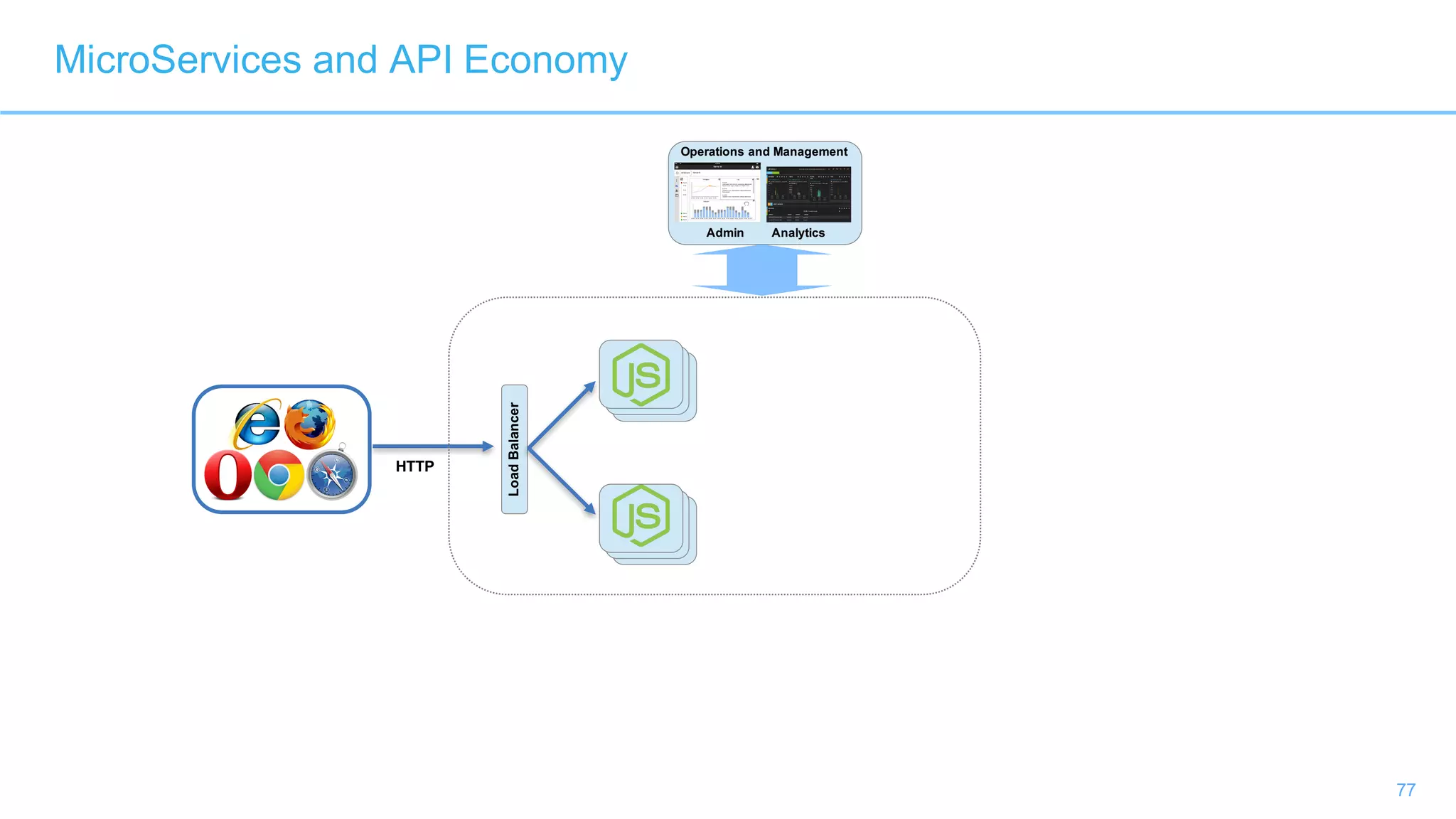

77. 77
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy

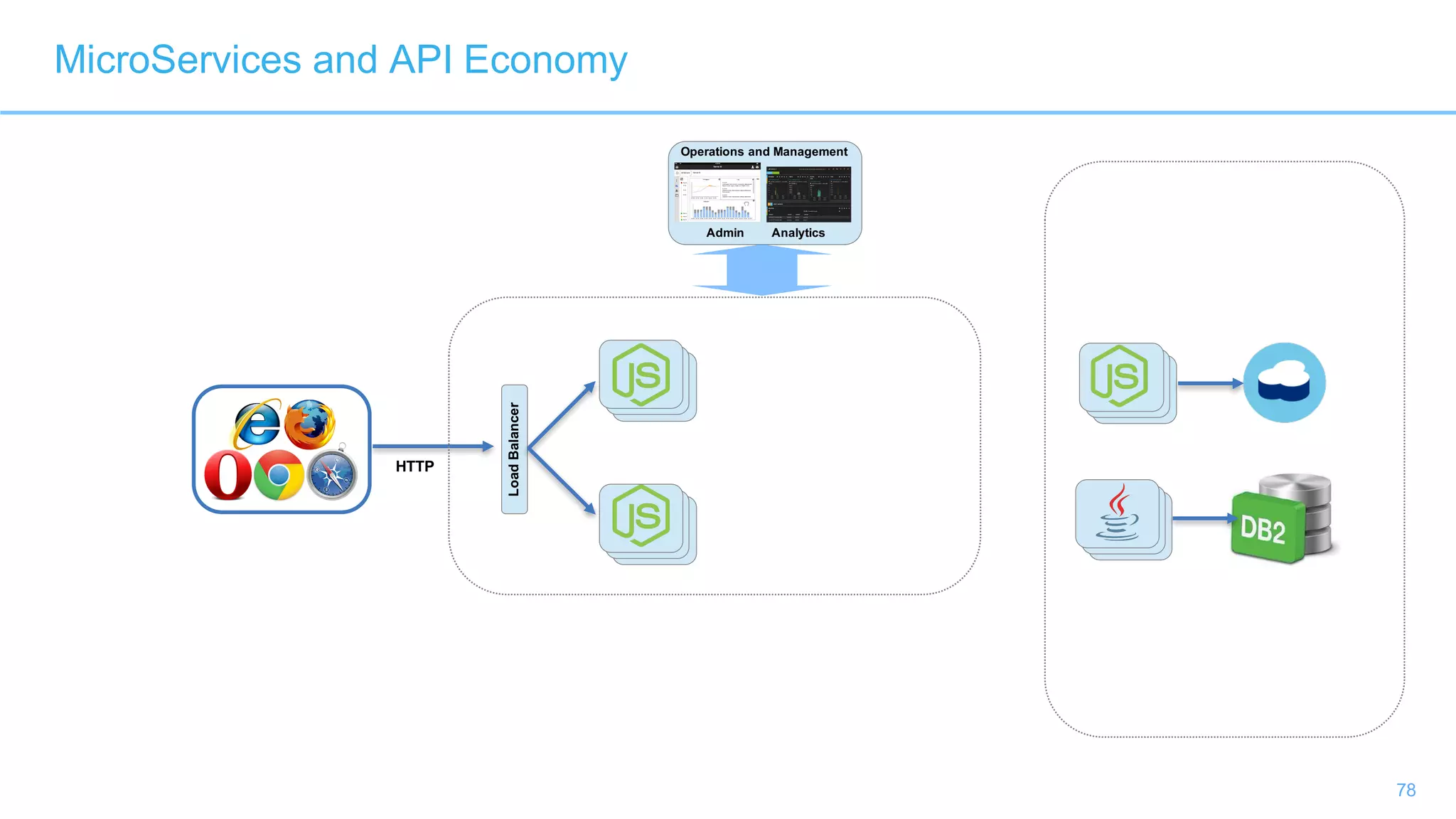

78. 78
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy

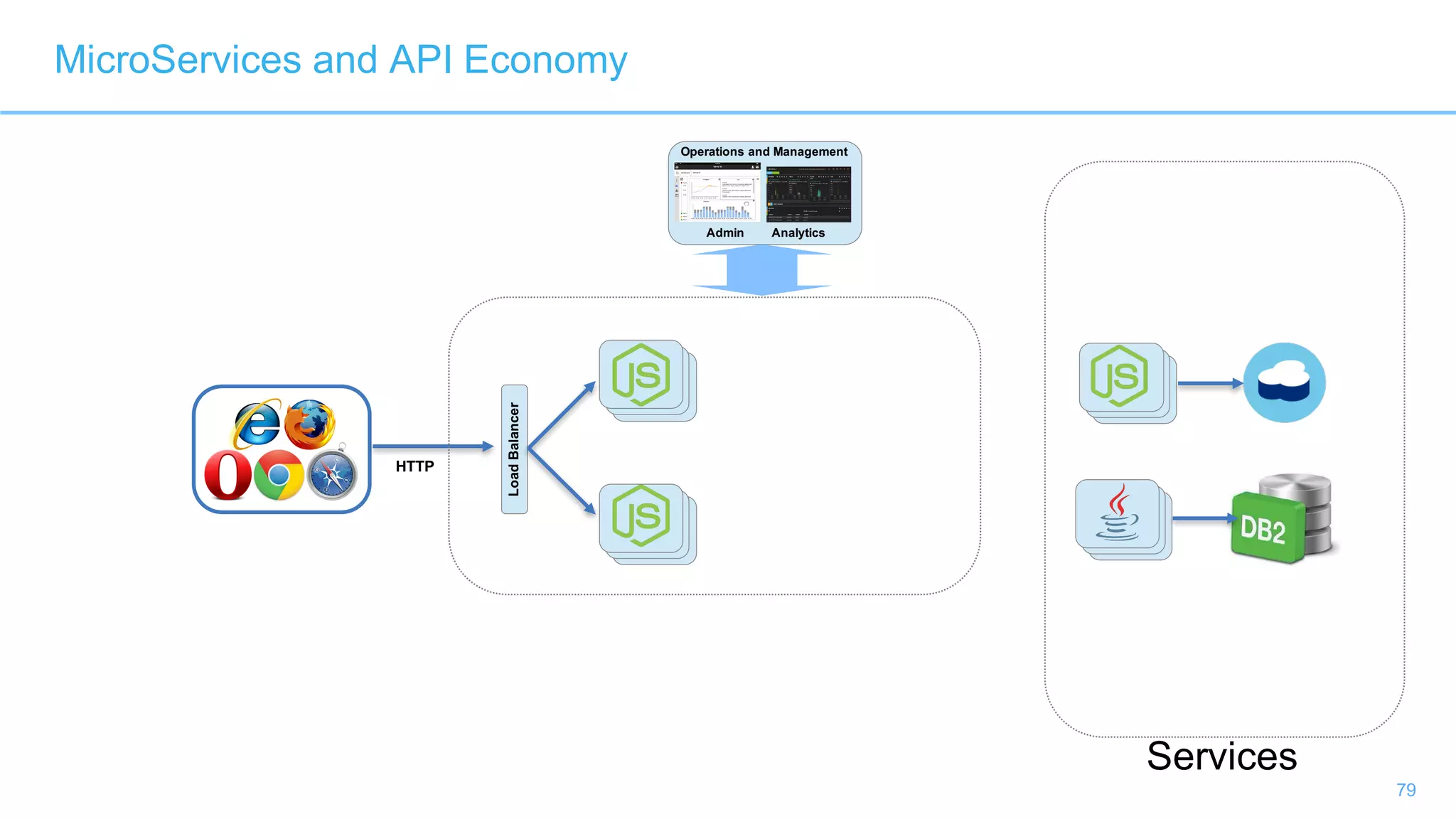

79. 79
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services

80. 80

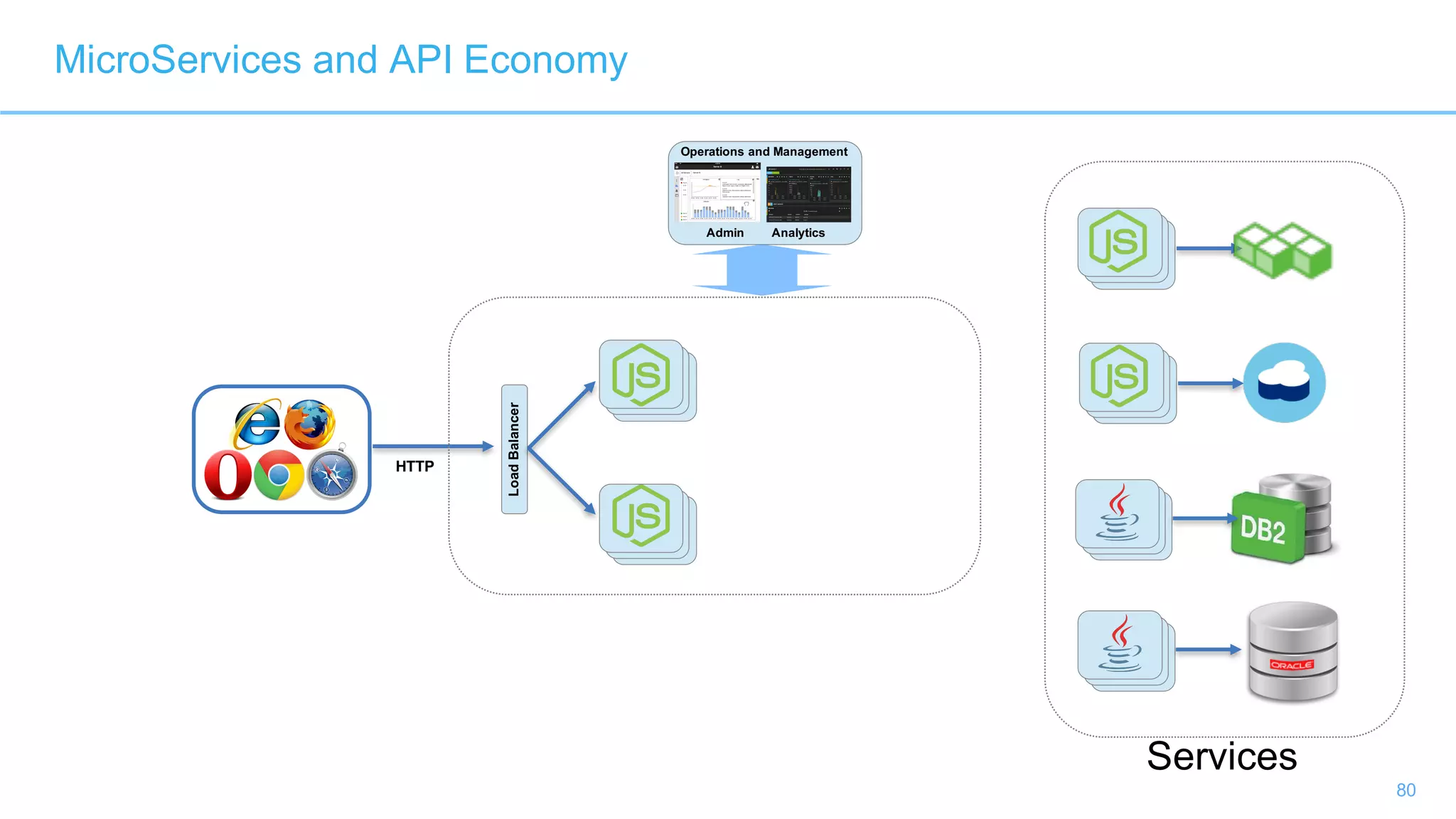

Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services

81. 81
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services

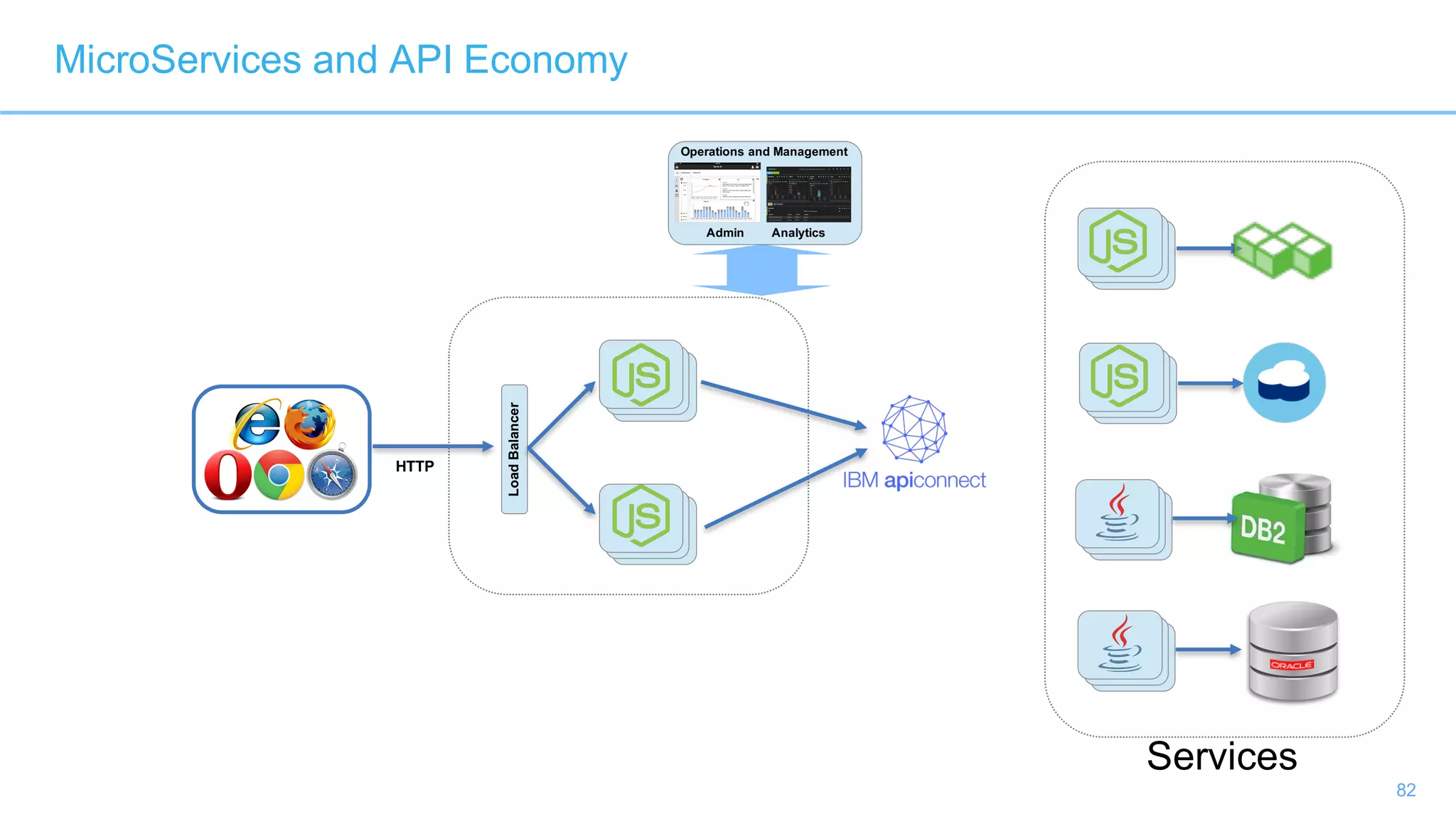

82. 82
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services

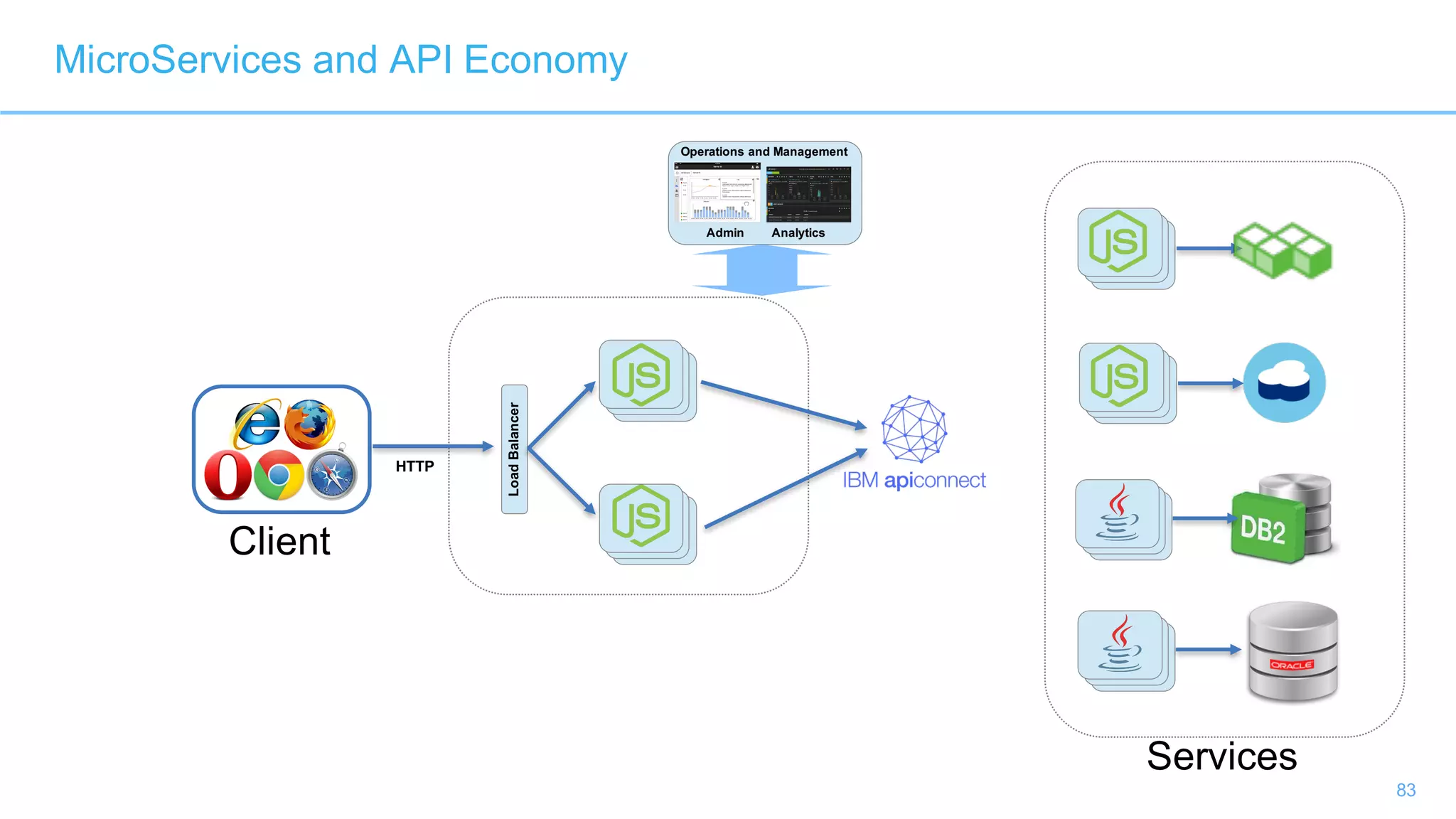

83. 83
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services
Client

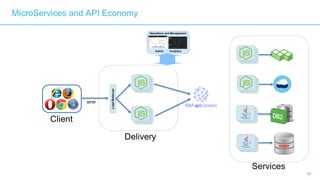

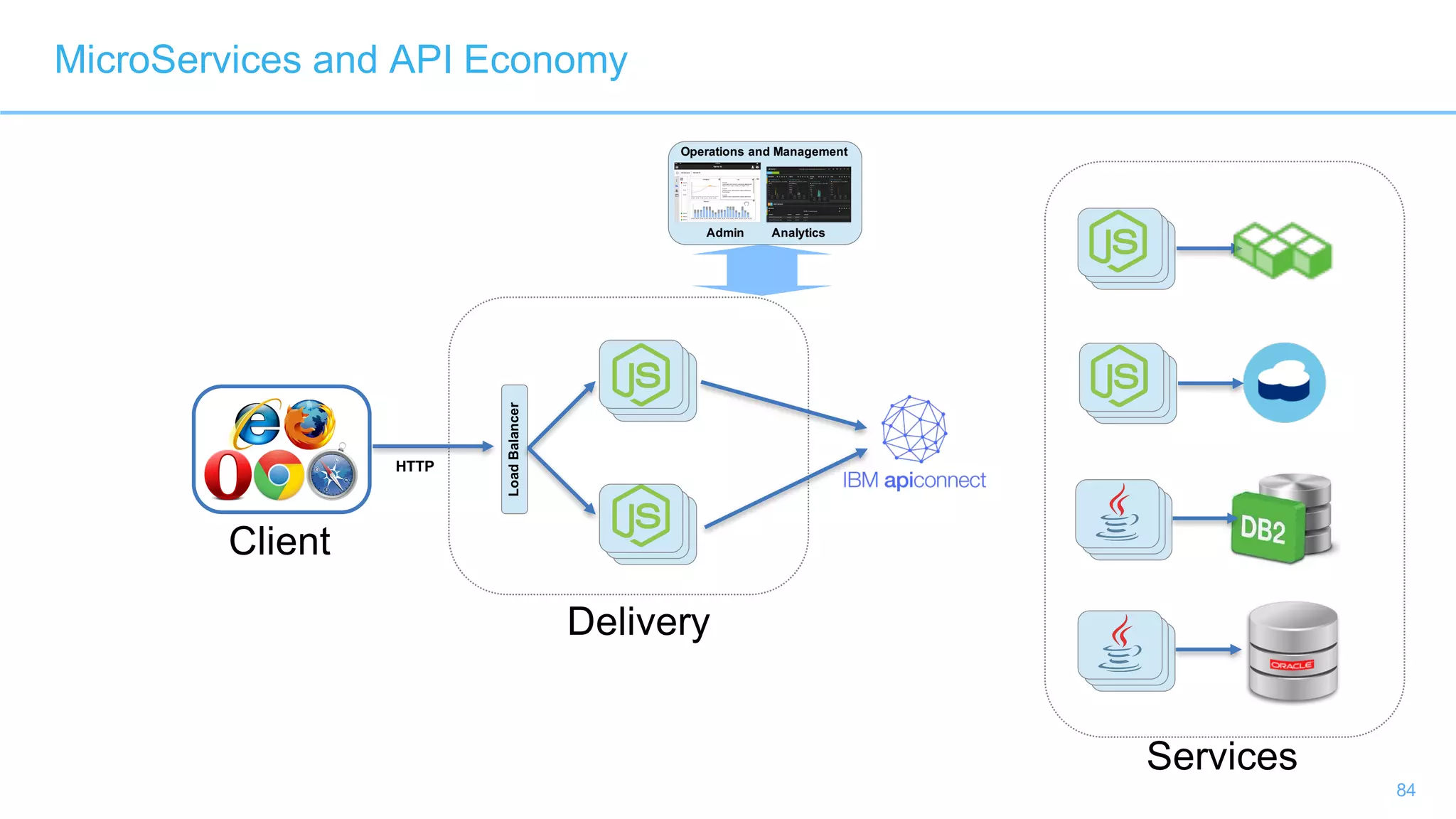

84. 84
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Services
Client
Delivery

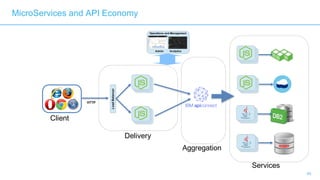

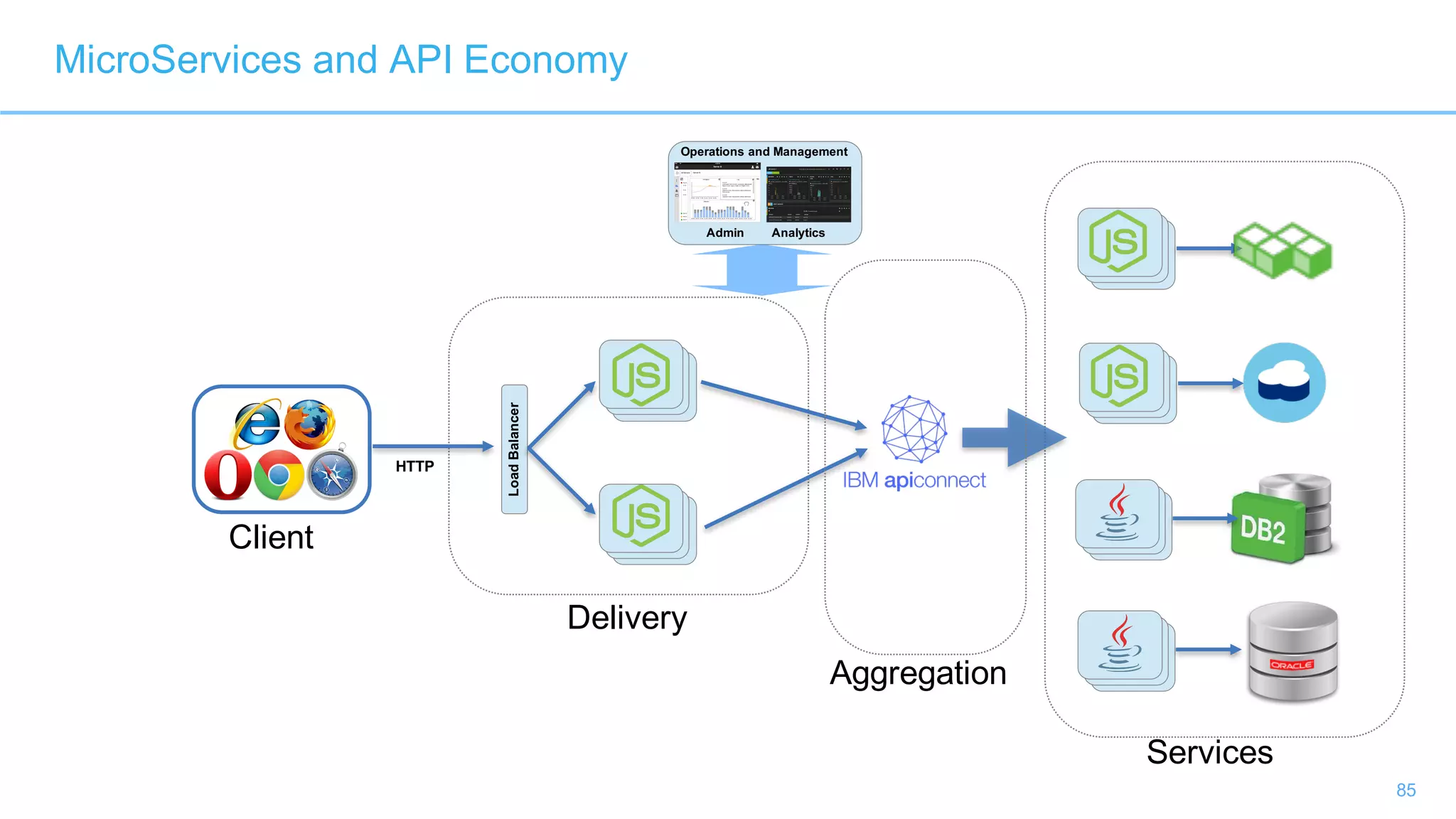

85. 85
Operations and Management
Admin Analytics
LoadBalancer
HTTP
MicroServices and API Economy
Client
Delivery
Aggregation
Services

86. 86
Node.js and Java
+

87. Get a Java Docker
container today !
hub.docker.com
ibmjava
@stevewallin
Come and see us at the booth
nodereport
appmetrics
