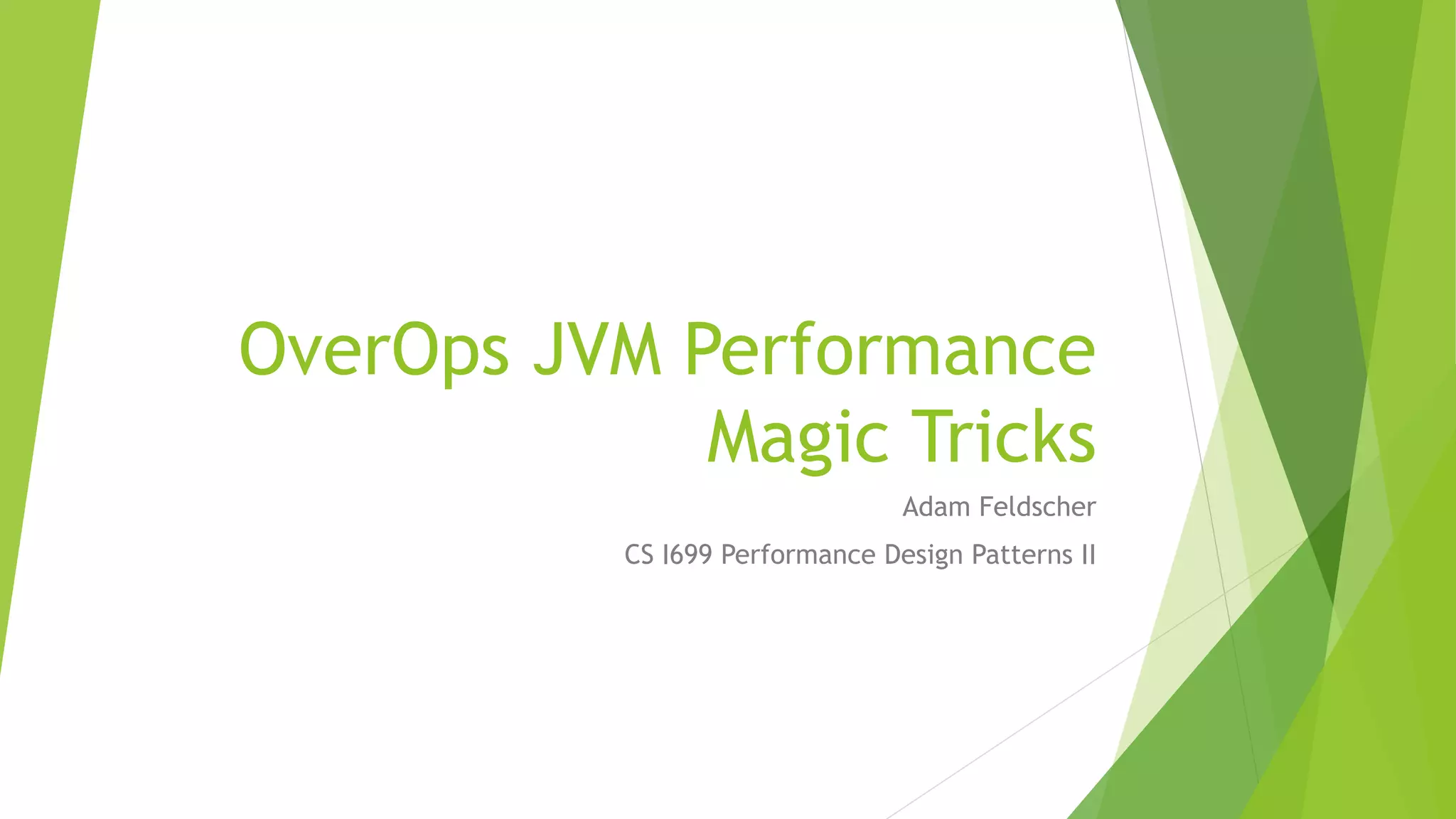

1. OverOps JVM Performance
Magic Tricks
Adam Feldscher
CS I699 Performance Design Patterns II

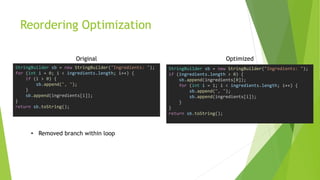

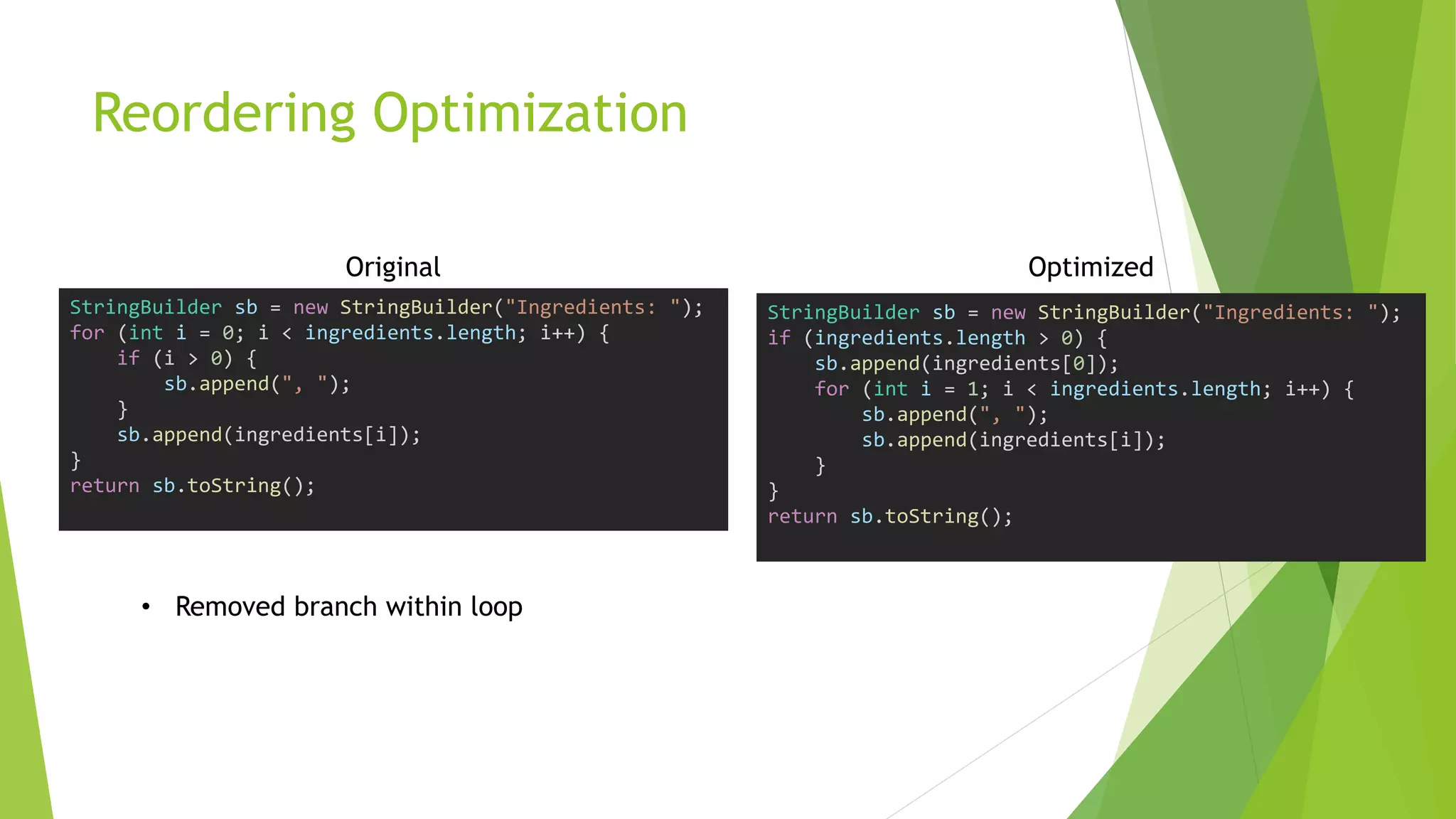

2. Reordering Optimization
StringBuilder sb = new StringBuilder("Ingredients: ");
for (int i = 0; i < ingredients.length; i++) {
if (i > 0) {
sb.append(", ");
}
sb.append(ingredients[i]);
}
return sb.toString();
StringBuilder sb = new StringBuilder("Ingredients: ");
if (ingredients.length > 0) {
sb.append(ingredients[0]);
for (int i = 1; i < ingredients.length; i++) {
sb.append(", ");
sb.append(ingredients[i]);
}
}
return sb.toString();
Original Optimized
• Removed branch within loop

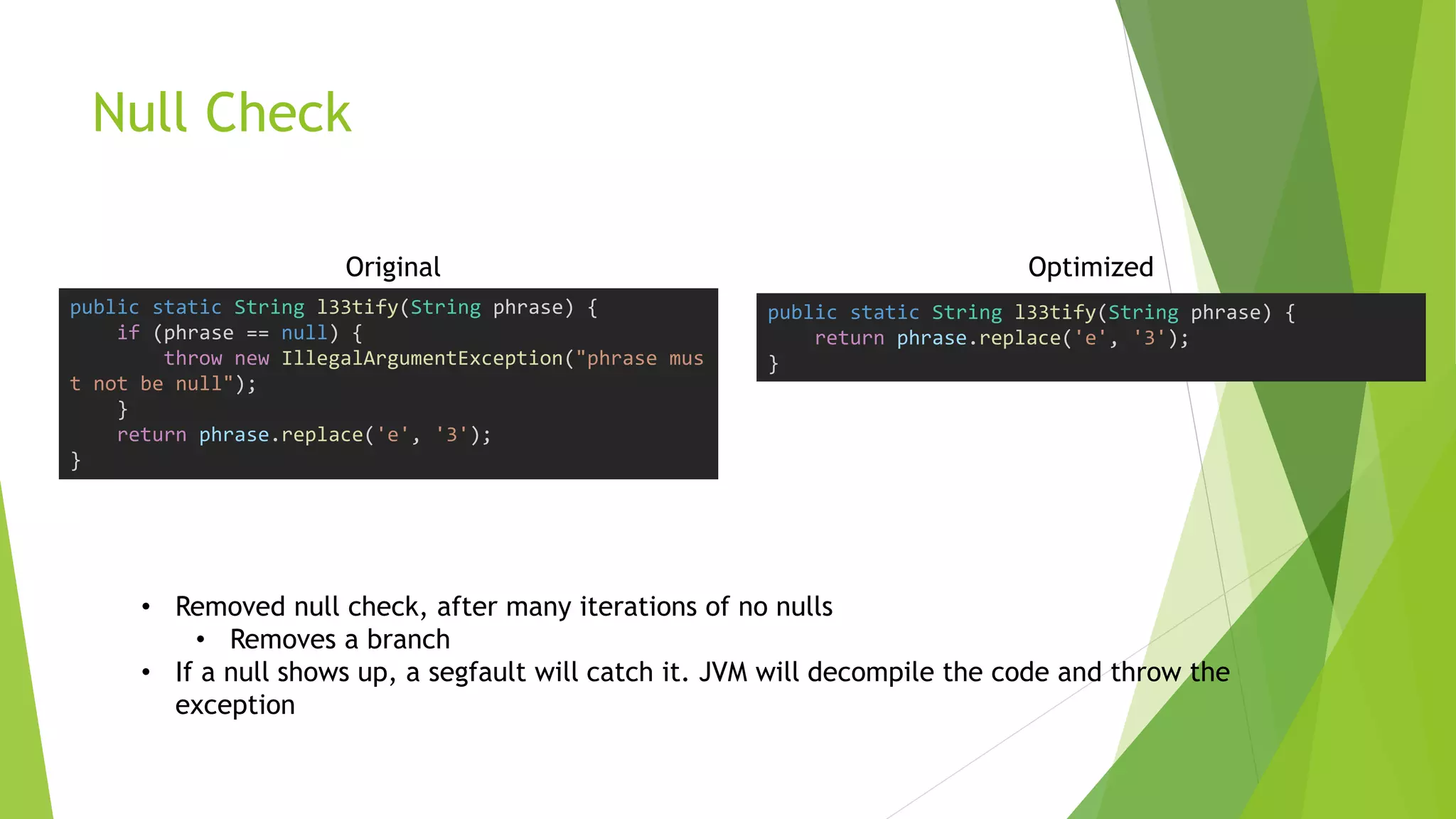

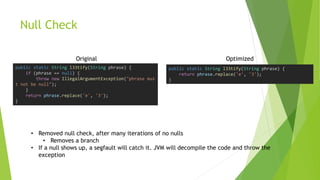

3. Null Check
public static String l33tify(String phrase) {
if (phrase == null) {
throw new IllegalArgumentException("phrase mus
t not be null");
}
return phrase.replace('e', '3');
}
public static String l33tify(String phrase) {
return phrase.replace('e', '3');
}
Original Optimized
• Removed null check, after many iterations of no nulls
• Removes a branch
• If a null shows up, a segfault will catch it. JVM will decompile the code and throw the
exception

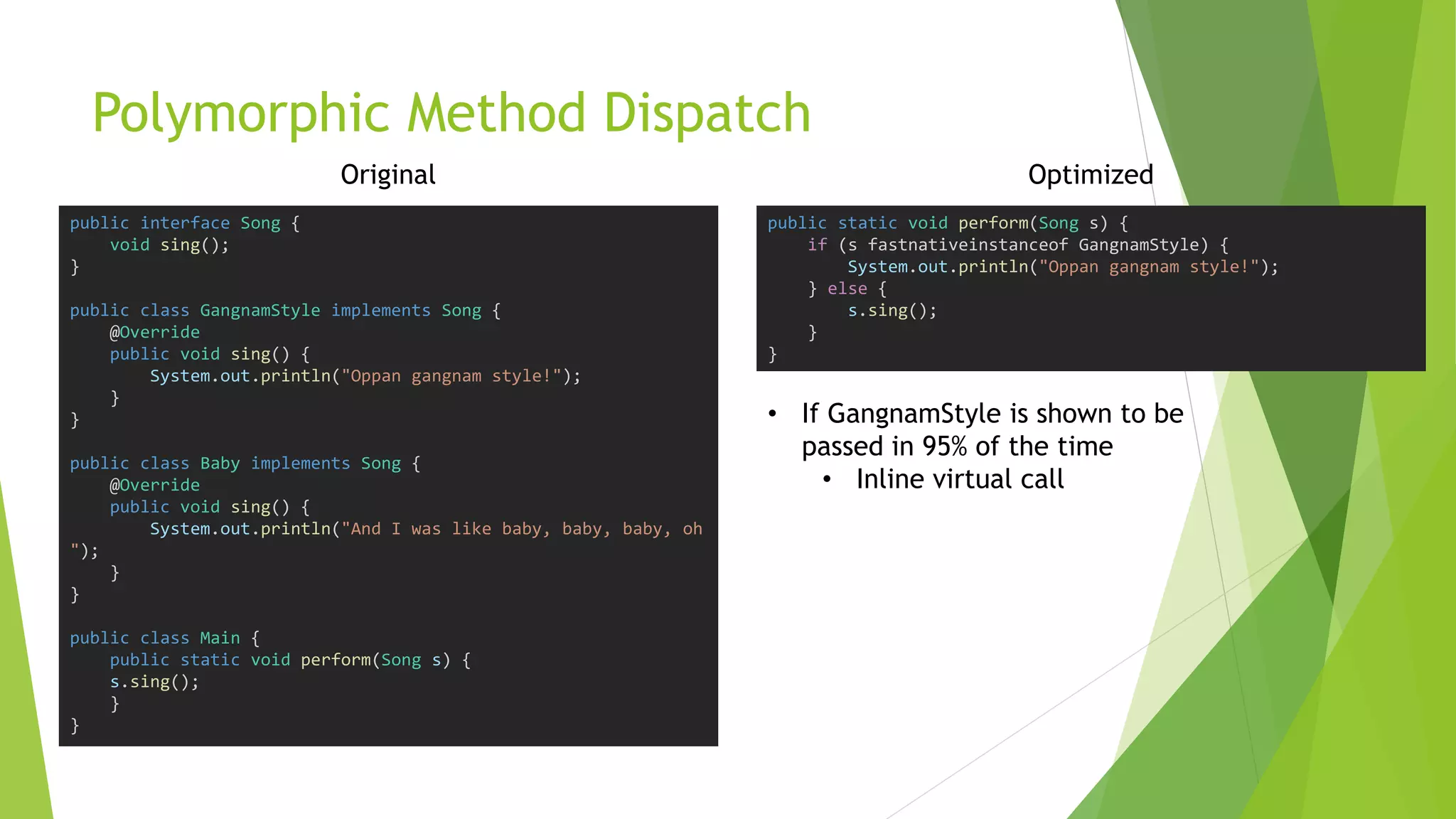

4. Polymorphic Method Dispatch
public interface Song {
void sing();
}
public class GangnamStyle implements Song {
@Override
public void sing() {
System.out.println("Oppan gangnam style!");
}
}
public class Baby implements Song {
@Override
public void sing() {
System.out.println("And I was like baby, baby, baby, oh
");
}
}
public class Main {
public static void perform(Song s) {
s.sing();
}
}
public static void perform(Song s) {
if (s fastnativeinstanceof GangnamStyle) {
System.out.println("Oppan gangnam style!");
} else {
s.sing();
}
}
Original Optimized
• If GangnamStyle is shown to be
passed in 95% of the time
• Inline virtual call

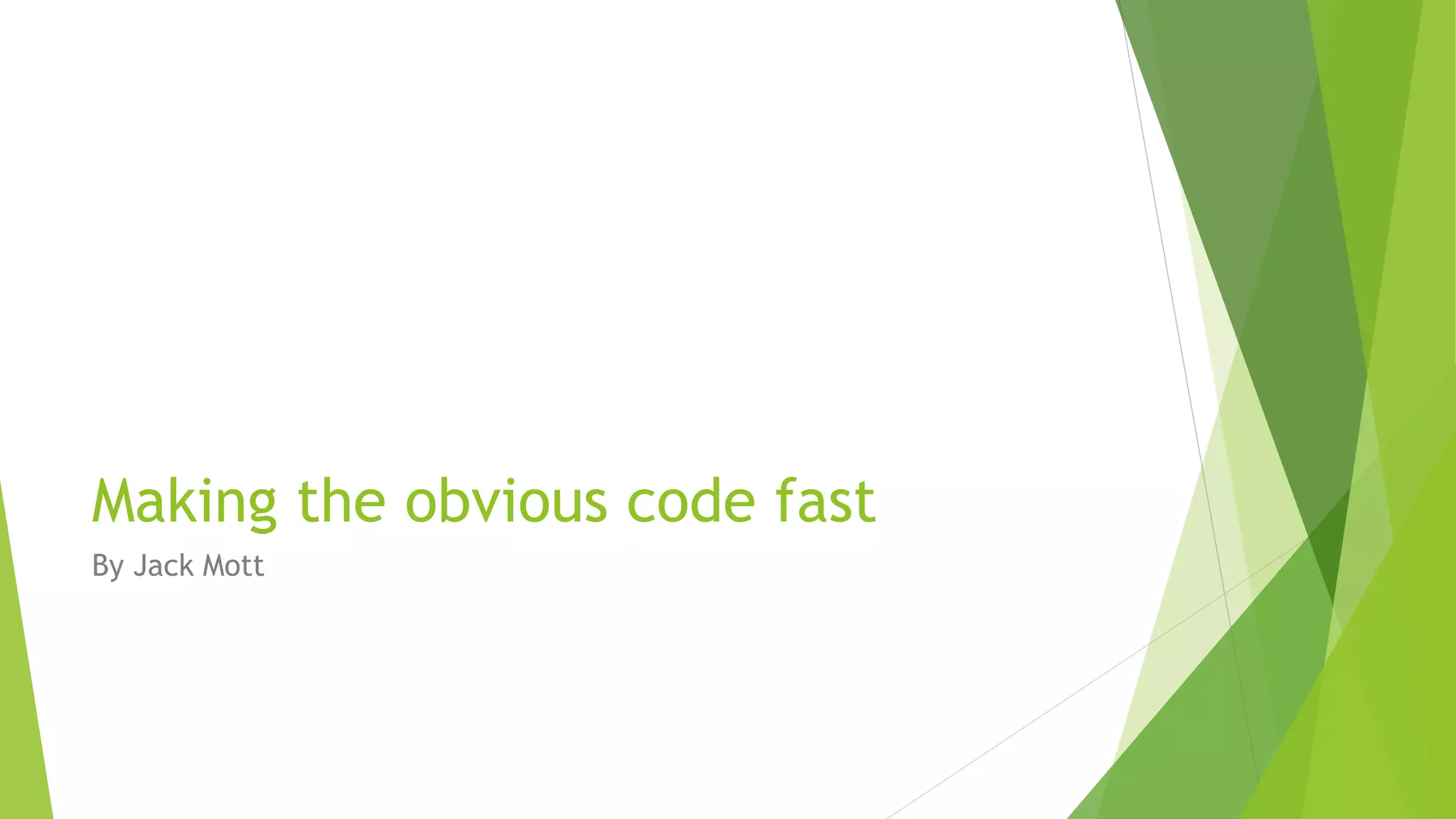

5. Making the obvious code fast
By Jack Mott

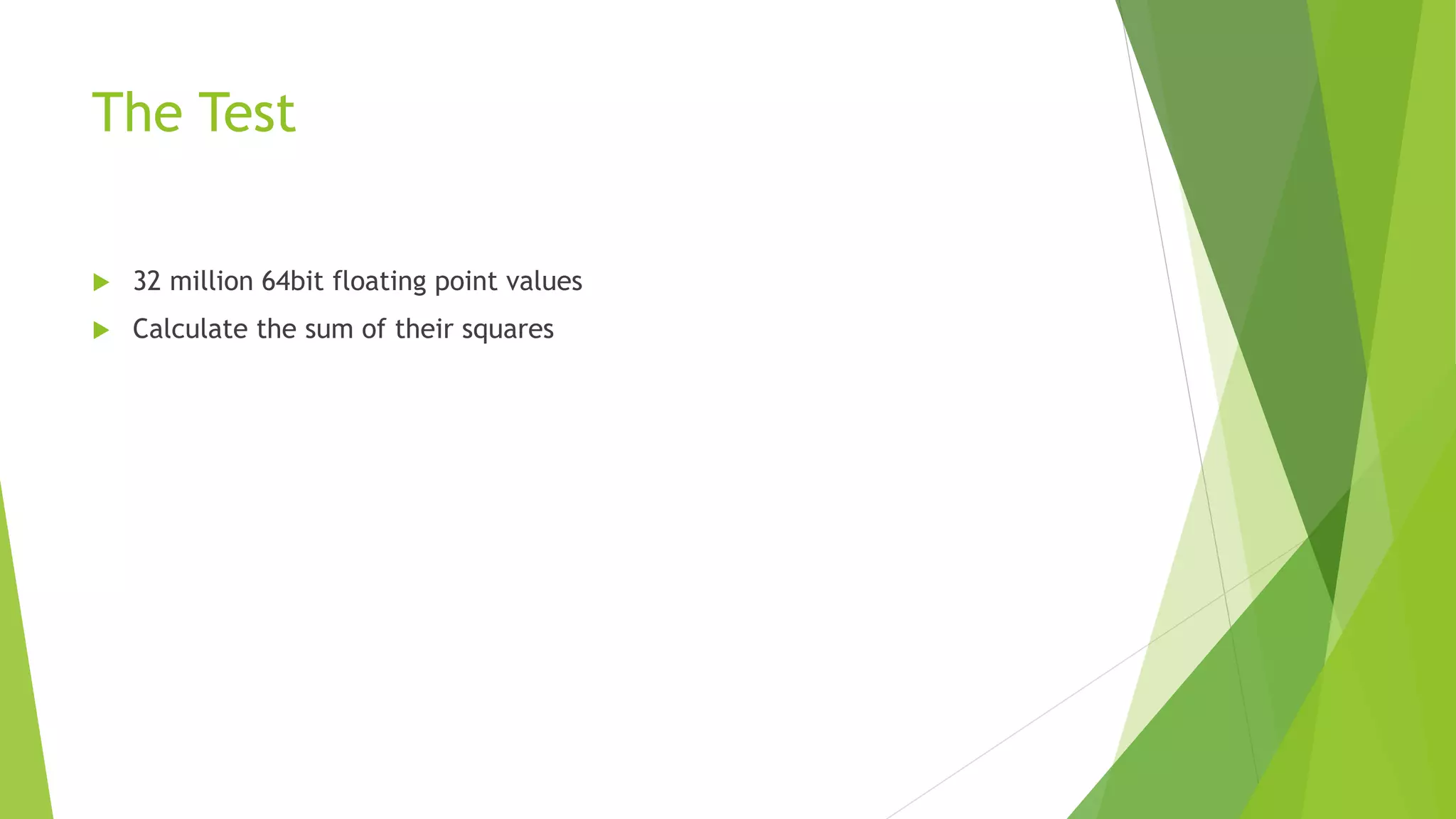

6. The Test
 32 million 64bit floating point values
 Calculate the sum of their squares

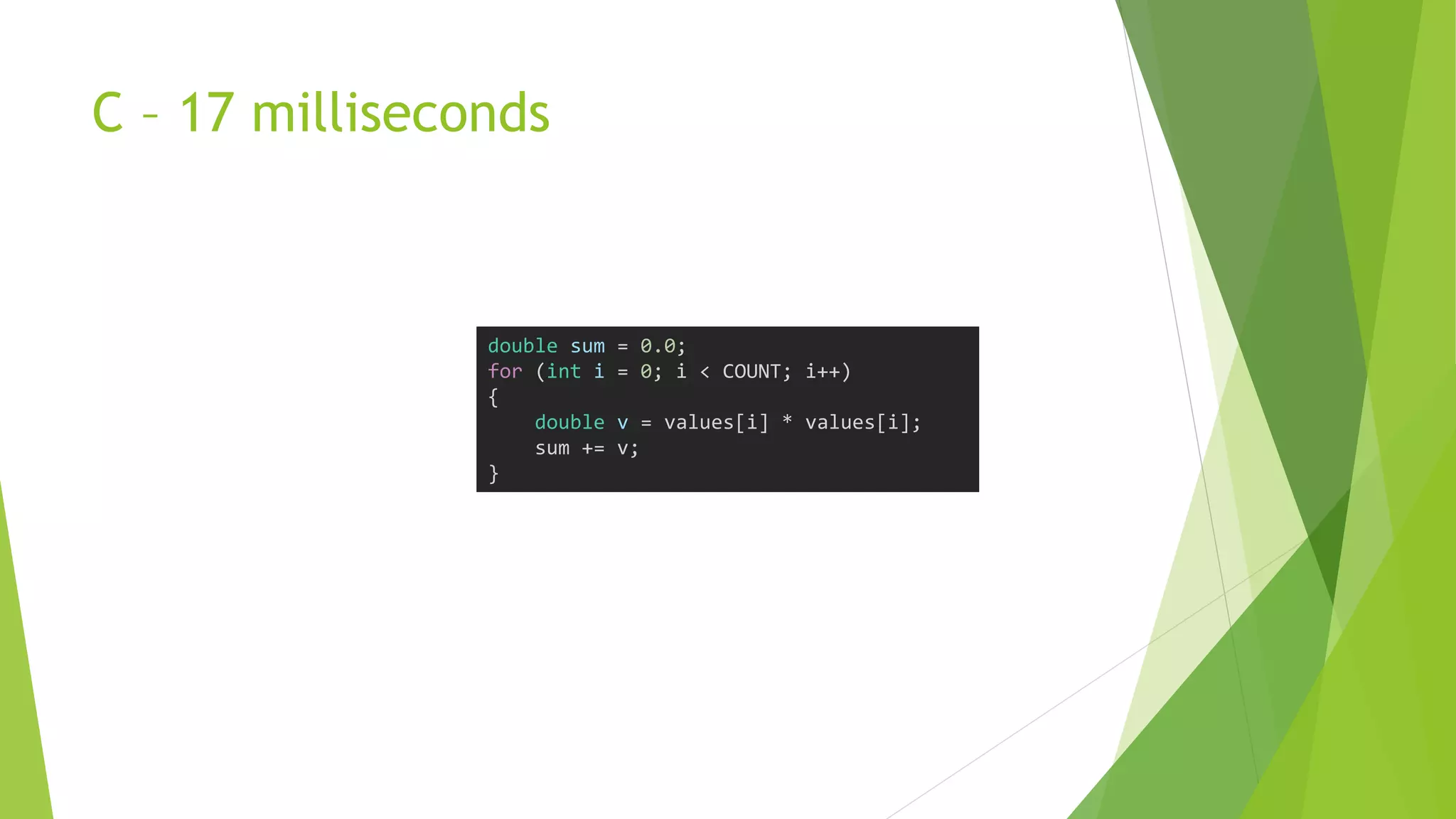

7. C – 17 milliseconds
double sum = 0.0;
for (int i = 0; i < COUNT; i++)
{
double v = values[i] * values[i];
sum += v;
}

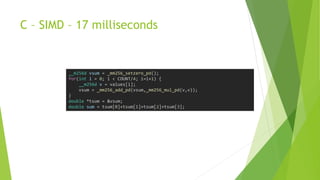

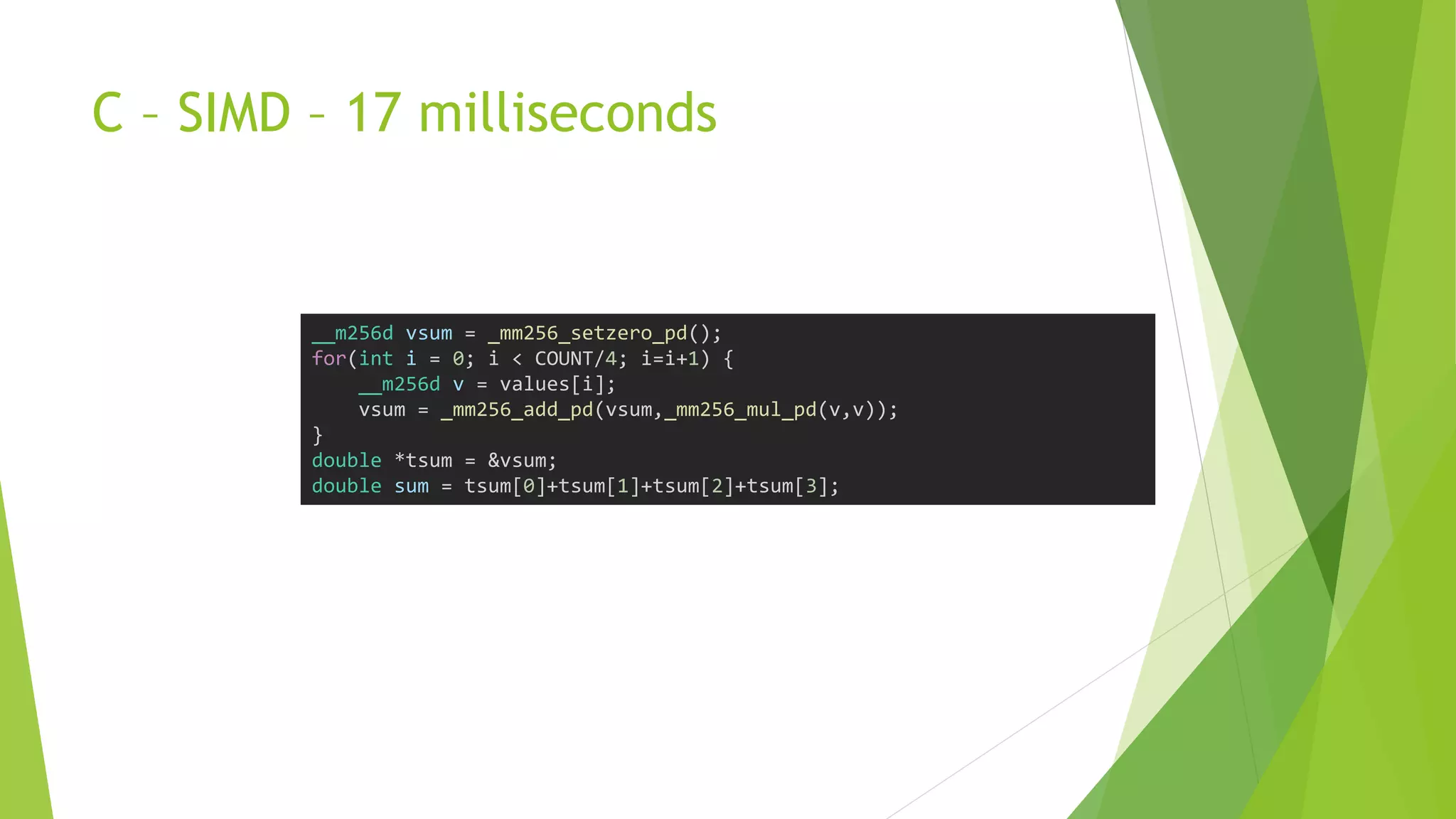

8. C – SIMD – 17 milliseconds
__m256d vsum = _mm256_setzero_pd();
for(int i = 0; i < COUNT/4; i=i+1) {
__m256d v = values[i];
vsum = _mm256_add_pd(vsum,_mm256_mul_pd(v,v));
}
double *tsum = &vsum;
double sum = tsum[0]+tsum[1]+tsum[2]+tsum[3];

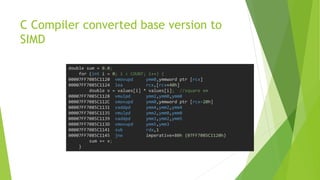

9. C Compiler converted base version to
SIMD
double sum = 0.0;
for (int i = 0; i < COUNT; i++) {
00007FF7085C1120 vmovupd ymm0,ymmword ptr [rcx]
00007FF7085C1124 lea rcx,[rcx+40h]
double v = values[i] * values[i]; //square em
00007FF7085C1128 vmulpd ymm2,ymm0,ymm0
00007FF7085C112C vmovupd ymm0,ymmword ptr [rcx-20h]
00007FF7085C1131 vaddpd ymm4,ymm2,ymm4
00007FF7085C1135 vmulpd ymm2,ymm0,ymm0
00007FF7085C1139 vaddpd ymm3,ymm2,ymm5
00007FF7085C113D vmovupd ymm5,ymm3
00007FF7085C1141 sub rdx,1
00007FF7085C1145 jne imperative+80h (07FF7085C1120h)
sum += v;
}

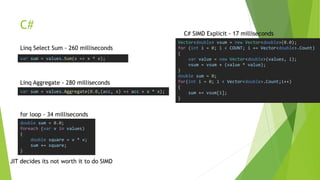

10. C#
var sum = values.Sum(x => x * x);
Linq Select Sum - 260 milliseconds
Linq Aggregate - 280 milliseconds
var sum = values.Aggregate(0.0,(acc, x) => acc + x * x);
for loop - 34 milliseconds
double sum = 0.0;
foreach (var v in values)
{
double square = v * v;
sum += square;
}
JIT decides its not worth it to do SIMD
C# SIMD Explicit - 17 milliseconds
Vector<double> vsum = new Vector<double>(0.0);
for (int i = 0; i < COUNT; i += Vector<double>.Count)
{
var value = new Vector<double>(values, i);
vsum = vsum + (value * value);
}
double sum = 0;
for(int i = 0; i < Vector<double>.Count;i++)
{
sum += vsum[i];
}

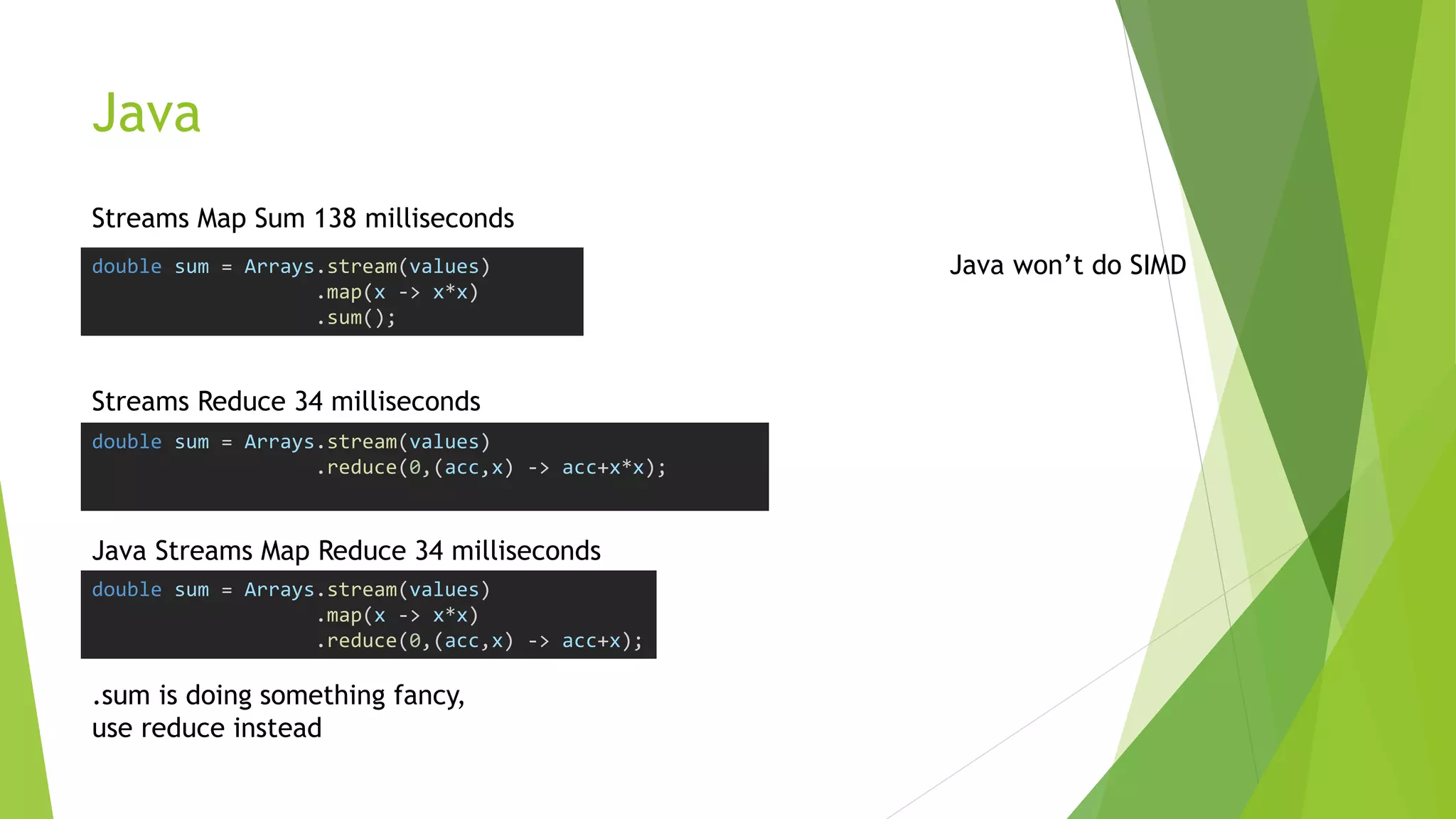

11. Java
double sum = Arrays.stream(values)
.map(x -> x*x)
.sum();
Streams Map Sum 138 milliseconds
Streams Reduce 34 milliseconds
double sum = Arrays.stream(values)
.reduce(0,(acc,x) -> acc+x*x);
Java Streams Map Reduce 34 milliseconds
double sum = Arrays.stream(values)
.map(x -> x*x)
.reduce(0,(acc,x) -> acc+x);
.sum is doing something fancy,
use reduce instead
Java won’t do SIMD

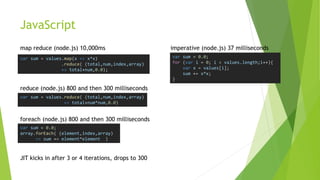

12. JavaScript
var sum = values.map(x => x*x)
.reduce( (total,num,index,array)
=> total+num,0.0);
map reduce (node.js) 10,000ms
reduce (node.js) 800 and then 300 milliseconds
var sum = values.reduce( (total,num,index,array)
=> total+num*num,0.0)
foreach (node.js) 800 and then 300 milliseconds
var sum = 0.0;
array.forEach( (element,index,array)
=> sum += element*element )
JIT kicks in after 3 or 4 iterations, drops to 300
imperative (node.js) 37 milliseconds
var sum = 0.0;
for (var i = 0; i < values.length;i++){
var x = values[i];
sum += x*x;
}
