1. Java Enterprise Paradise
Amr Salah El-Hanbaly
Oracle SOA Foundation
Practitioner
Software Engineer
@Asset Technology Group
Amr.salah.2010@gmail.com
Dec 10, 2011. Java Mansoura User Group

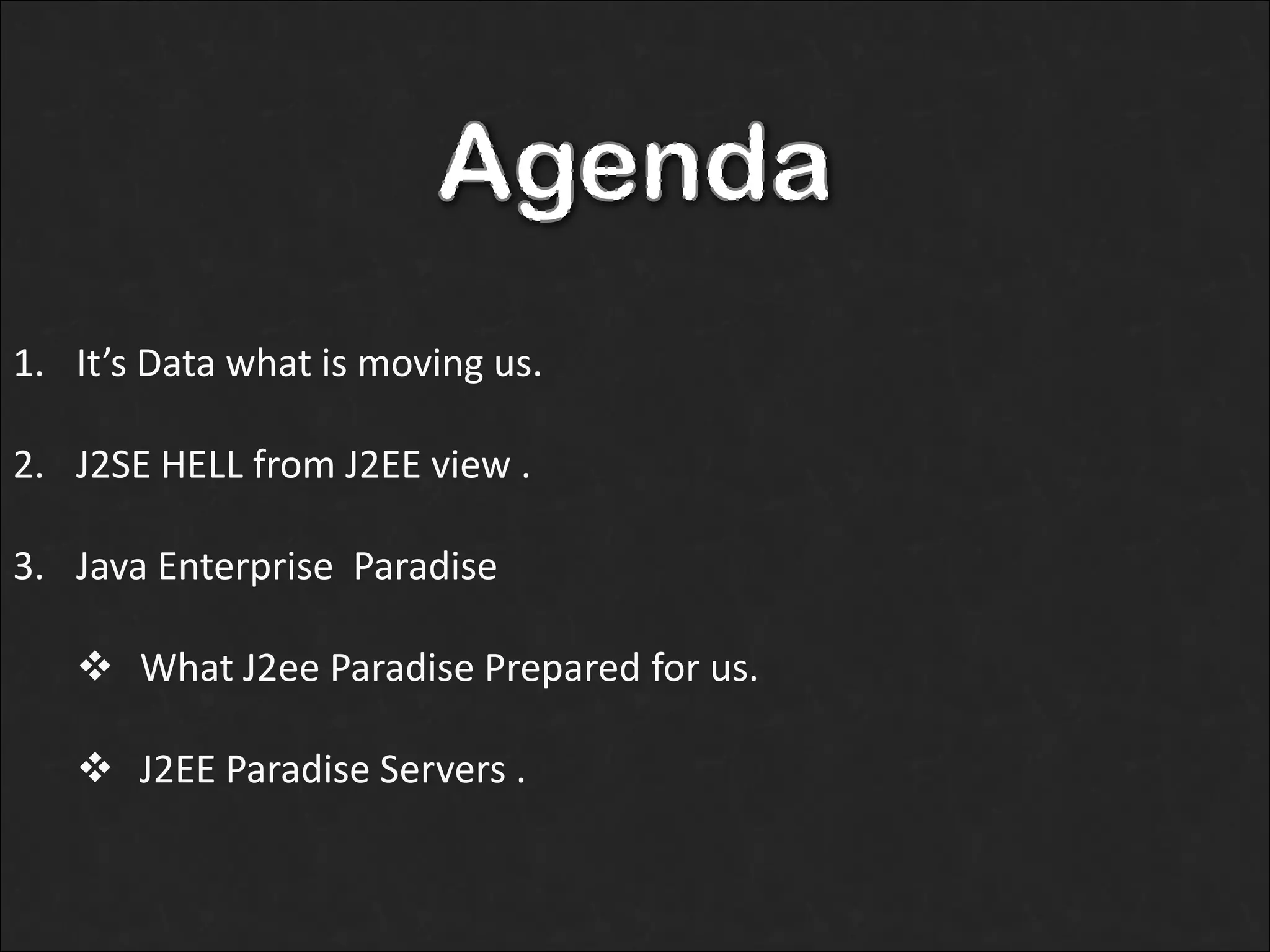

2. 1. It’s Data what is moving us.
2. J2SE HELL from J2EE view .
3. Java Enterprise Paradise
 What J2ee Paradise Prepared for us.
 J2EE Paradise Servers .

3. It’s Data What is moving us
3
It’s Data What is moving us

4. J2SE HELL from J2EE view
4
 Data amount
 Database Connection
 Network Connection
 Manual Transactions
 Every one has a software on his desktop
 Every one has separated Database
It’s Data What is moving us

5. What J2EE Paradise Prepared for us ?

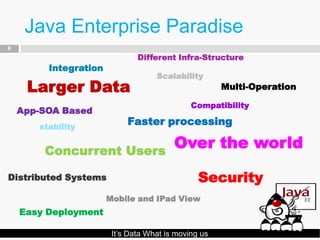

6. Java Enterprise Paradise
6
Different Infra-Structure
Integration
Scalability
Larger Data Multi-Operation
Compatibility
App-SOA Based
stability
Faster processing
Concurrent Users
Over the world
Distributed Systems Security
Mobile and IPad View
Easy Deployment
It’s Data What is moving us

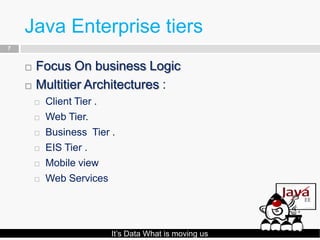

7. Java Enterprise tiers
7
 Focus On business Logic
 Multitier Architectures :
 Client Tier .
 Web Tier.
 Business Tier .
 EIS Tier .
 Mobile view
 Web Services
It’s Data What is moving us

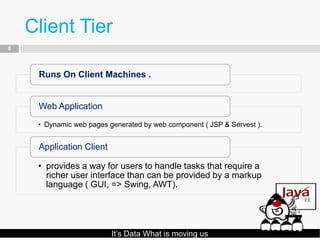

8. Client Tier
8
Runs On Client Machines .
Web Application
• Dynamic web pages generated by web component ( JSP & Servest ).
Application Client
• provides a way for users to handle tasks that require a
richer user interface than can be provided by a markup
language ( GUI, => Swing, AWT).
It’s Data What is moving us

9. Web Tier
9
Run on Web Server ( a part from J2EE Server ) to generate
Dynamic Content .
Servlets
• Java Classes that process request and construct response .
JSP ( Java Server Pages )
• Text-based Documents that executes as Servlets , but allow more
natural approach .
JSF ( Java Server Faces )
• Provide UI component framework for Web Application above JSP &
Servlets .
It’s Data What is moving us

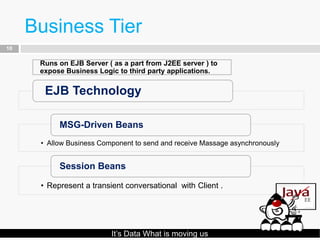

10. Business Tier
10
Runs on EJB Server ( as a part from J2EE server ) to
expose Business Logic to third party applications.
EJB Technology
MSG-Driven Beans
• Allow Business Component to send and receive Massage asynchronously
Session Beans
• Represent a transient conversational with Client .
It’s Data What is moving us

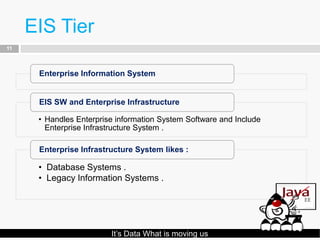

11. EIS Tier
11
Enterprise Information System
EIS SW and Enterprise Infrastructure
• Handles Enterprise information System Software and Include
Enterprise Infrastructure System .
Enterprise Infrastructure System likes :
• Database Systems .
• Legacy Information Systems .
It’s Data What is moving us

12. J2EE features
12
Some frameworks support more
features
Mobile and IPad View
• ADF supports some libraries for Mobile and IPad View
Web-Services
• Application Based on SOA .
It’s Data What is moving us

13. J2EE IDEs
13
 Integration Development Environment
 We can use what ever Java IDE to Develop
Enterprise Application using any framework .
 BUT each IDE help well on some frameworks
 Netbeans : EJBs, JSP & Servlet .
 Eclipse : Spring, Build tools .
 Jdeveloper : ADF, Fusion Application, JSF .
 WPS and RDA : JSF Based on IBM Implementation
It’s Data What is moving us

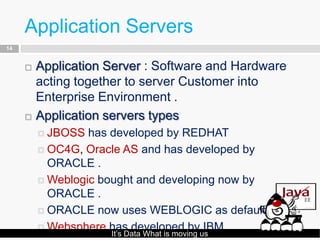

14. Application Servers
14
 Application Server : Software and Hardware
acting together to server Customer into
Enterprise Environment .
 Application servers types
 JBOSS has developed by REDHAT
 OC4G, Oracle AS and has developed by
ORACLE .
 Weblogic bought and developing now by
ORACLE .
 ORACLE now uses WEBLOGIC as default AS .
 Websphere has developed by IBM .
It’s Data What is moving us

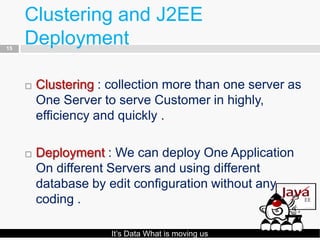

15. Clustering and J2EE
15
Deployment
 Clustering : collection more than one server as
One Server to serve Customer in highly,
efficiency and quickly .
 Deployment : We can deploy One Application
On different Servers and using different
database by edit configuration without any
coding .
It’s Data What is moving us

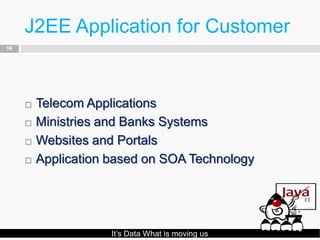

16. J2EE Application for Customer
16
 Telecom Applications
 Ministries and Banks Systems
 Websites and Portals
 Application based on SOA Technology
It’s Data What is moving us

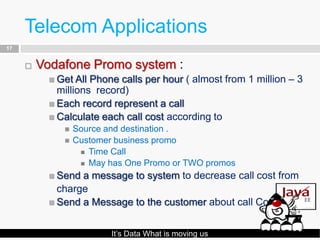

17. Telecom Applications
17
 Vodafone Promo system :
 Get All Phone calls per hour ( almost from 1 million – 3
millions record)
 Each record represent a call
 Calculate each call cost according to
 Source and destination .
 Customer business promo
 Time Call
 May has One Promo or TWO promos
 Send a message to system to decrease call cost from
charge
 Send a Message to the customer about call Cost .
It’s Data What is moving us

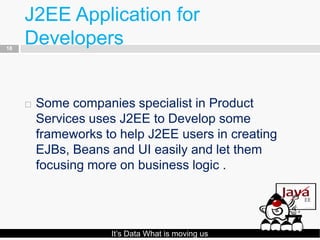

18. J2EE Application for
18
Developers
 Some companies specialist in Product
Services uses J2EE to Develop some
frameworks to help J2EE users in creating
EJBs, Beans and UI easily and let them
focusing more on business logic .
It’s Data What is moving us

19. Frameworks
19
Java Server Faces - JSF
Spring Framework
Application Development
Faces - ADF
It’s Data What is moving us

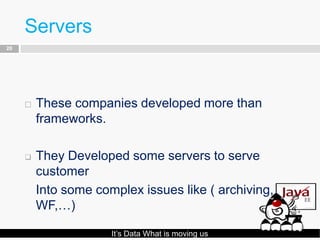

20. Servers
20
 These companies developed more than
frameworks.
 They Developed some servers to serve
customer
Into some complex issues like ( archiving,
WF,…)
It’s Data What is moving us

21. J2EE Paradise Servers

22. Archiving Servers
22
It’s Data What is moving us

23. Workflow Servers
23
It’s Data What is moving us

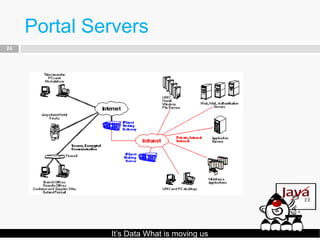

24. Portal Servers
24
It’s Data What is moving us

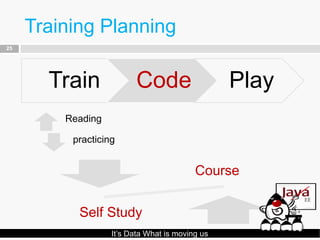

25. Training Planning
25
Train Code Play
Reading
practicing
Course
Self Study
It’s Data What is moving us

26. Do You hear Me !
Don’t Give up learning Java
Before Learning Java
26
Enterprise and some
Frameworks .

27. 27
ASK TO LEARN
Questions?

28. Thank you ...
Amr Salah El-Hanbaly
Oracle SOA Foundation
Practitioner
Software Engineer
@Asset Technology Group
Contact :
Email :
Dec 10, 2011. Java Mansoura User Group
