1. DETAIL A
A
OF PEAKERSERVICES INCORPORATED.
ENGINEEREDSYSTEMSGROUPBY
.X=
TOLERANCES
.XX=
PHONE: (248) 437-4174
1
.015
.030
DONOTSCALETHISDRAWING.
.XXX=
ANG.=
DRAWN:

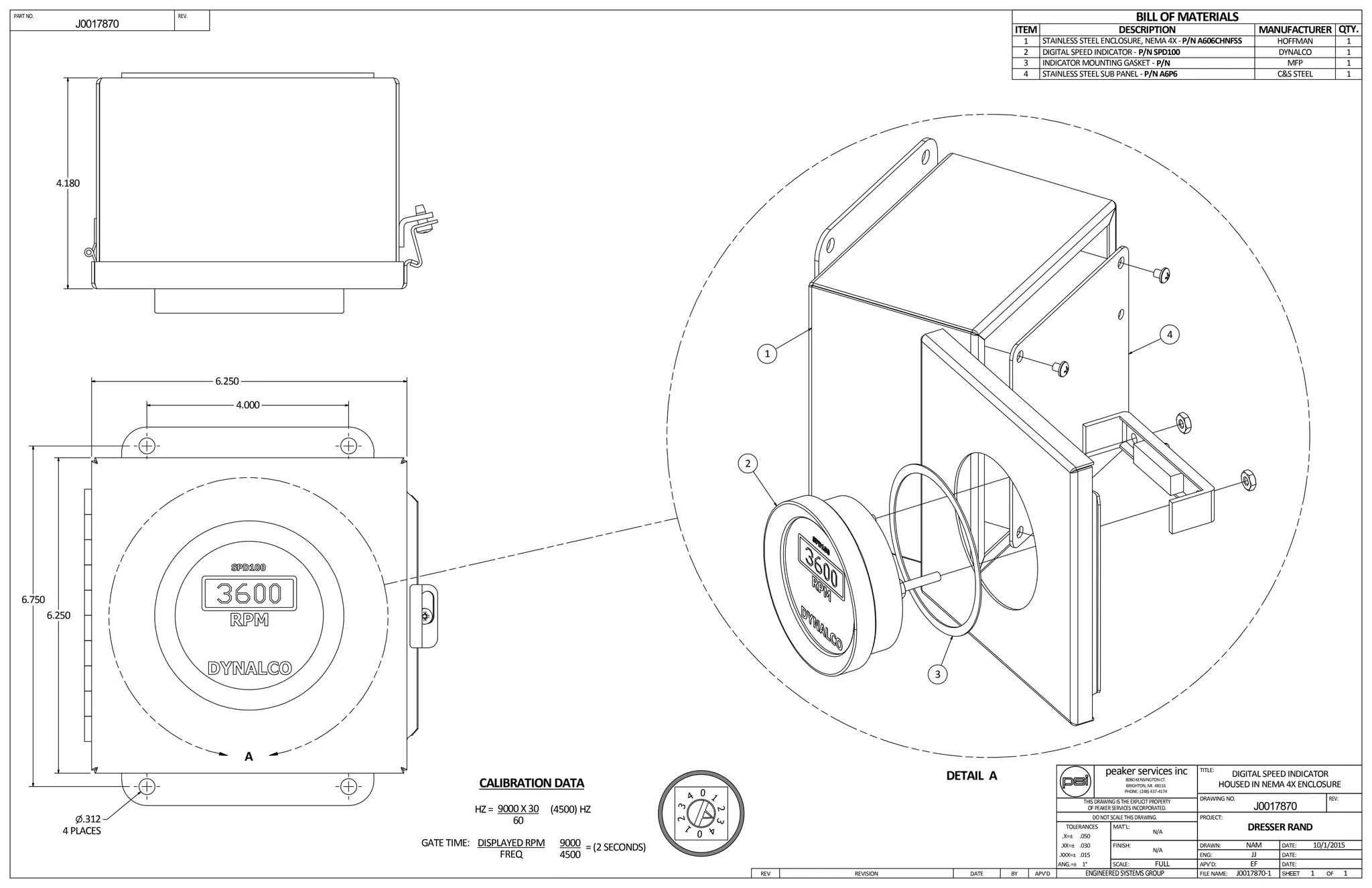

TITLE:
DRESSER RAND
DIGITAL SPEED INDICATOR
HOUSED IN NEMA 4X ENCLOSURE
J0017870
EF
NAM 10/1/2015
DRAWING NO.THIS DRAWING ISTHEEXPLICITPROPERTY
FULL
peaker services inc
8080 KENSINGTONCT.
BRIGHTON, MI. 48116
FINISH:
SCALE:
MAT'L:
N/A
.050
PROJECT:
N/A
JJ
J0017870-1FILE NAME:
APV'D:
ENG:
DATE:
1
REV:
DATE:
DATE:
SHEET 1OFAPV'DREV REVISION DATE
PARTNO. REV.
J0017870
0 1
23
401
23
4
6.250
6.250
6.750
4.000
4.180
1
2
3
4
BILL OF MATERIALS
ITEM DESCRIPTION MANUFACTURER QTY.
1 STAINLESS STEEL ENCLOSURE, NEMA 4X- HOFFMAN 1
2 DIGITAL SPEED INDICATOR- DYNALCO 1
3 INDICATOR MOUNTINGGASKET - MFP 1
4 STAINLESS STEEL SUB PANEL - C&S STEEL 1
P/NA606CHNFSS
P/NSPD100
P/N
P/NA6P6
.312
4 PLACES
CALIBRATION DATA
HZ =
GATE TIME: = (2 SECONDS)
(4500) HZ9000 X 30
60
DISPLAYEDRPM
FREQ
9000
4500
