1. Efficient Data Protection
The fast way to implement efficient data protection
Walter Graf, IT Future Paris, September 20th, 2011
0 Copyright 2011 FUJITSU

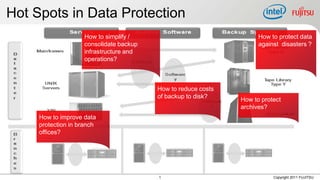

2. Hot Spots in Data Protection
How to simplify / How to protect data
consolidate backup against disasters ?
infrastructure and
operations?
How to reduce costs
of backup to disk?
How to protect
archives?
How to improve data
protection in branch
offices?
1 Copyright 2011 FUJITSU

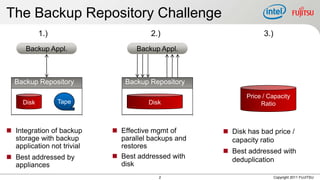

3. The Backup Repository Challenge
1.) 2.) 3.)
Backup Appl. Backup Appl.
Backup Repository Backup Repository
Price / Capacity
Disk Tape Disk Ratio
 Integration of backup  Effective mgmt of  Disk has bad price /
storage with backup parallel backups and capacity ratio
application not trivial restores
 Best addressed with
 Best addressed by  Best addressed with deduplication
appliances disk
2 Copyright 2011 FUJITSU

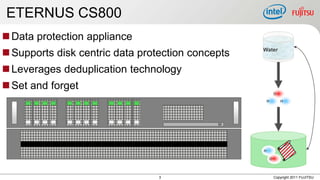

4. ETERNUS CS800
 Data protection appliance
 Supports disk centric data protection concepts Water
 Leverages deduplication technology
 Set and forget
O
H H
H
O
3 Copyright 2011 FUJITSU

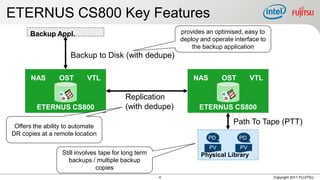

5. ETERNUS CS800 Key Features
Backup Appl. provides an optimised, easy to
deploy and operate interface to
the backup application
Backup to Disk (with dedupe)
NAS OST VTL NAS OST VTL
H H
O Replication O
ETERNUS CS800 (with dedupe) ETERNUS CS800
Offers the ability to automate
Path To Tape (PTT)
DR copies at a remote location
PD PD
PV PV
Still involves tape for long term Physical Library
backups / multiple backup
copies
4 Copyright 2011 FUJITSU

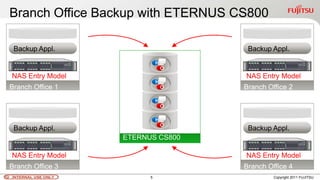

6. Branch Office Backup with ETERNUS CS800
Backup Appl. Backup Appl.
H
O
NAS Entry Model NAS Entry Model
H
Branch Office 1 O Branch Office 2
H
O
H
O
Backup Appl. Backup Appl.
ETERNUS CS800
NAS Entry Model NAS Entry Model
Branch Office 3 Branch Office 4
INTERNAL USE ONLY 5 Copyright 2011 FUJITSU

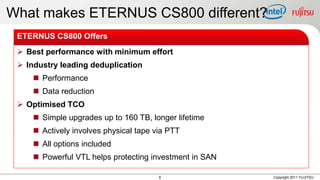

7. What makes ETERNUS CS800 different?
ETERNUS CS800 Offers
 Best performance with minimum effort
 Industry leading deduplication
 Performance
 Data reduction
 Optimised TCO
 Simple upgrades up to 160 TB, longer lifetime
 Actively involves physical tape via PTT
 All options included
 Powerful VTL helps protecting investment in SAN
6 Copyright 2011 FUJITSU

8. ETERNUS CS800
How to simplify backup
operations?

How to reduce costs of
backup to disk?

How to improve data
protection in branch offices?

7 Copyright 2011 FUJITSU

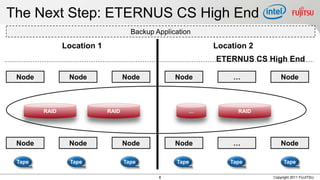

9. The Next Step: ETERNUS CS High End
Backup Application
Location 1 Location 2
ETERNUS CS High End
Node Node Node Node … Node
RAID RAID … RAID
Node Node Node Node … Node
Tape Tape Tape Tape Tape Tape
8 Copyright 2011 FUJITSU

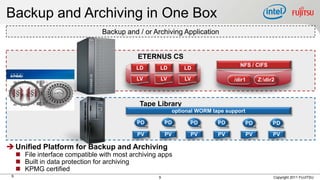

10. Backup and Archiving in One Box
Backup and / or Archiving Application
ETERNUS CS
NFS / CIFS
LD LD LD
LV LV LV /dir1 Z:dir2
Tape Library
optional WORM tape support
PD PD PD PD PD PD
PV PV PV PV PV PV
 Unified Platform for Backup and Archiving
 File interface compatible with most archiving apps
 Built in data protection for archiving
 KPMG certified
9 9 Copyright 2011 FUJITSU

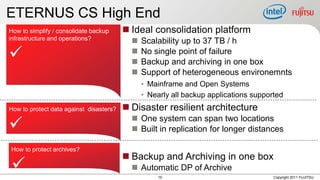

11. ETERNUS CS High End
How to simplify / consolidate backup  Ideal consolidation platform
infrastructure and operations?  Scalability up to 37 TB / h
 

No single point of failure
Backup and archiving in one box
 Support of heterogeneous environemnts
• Mainframe and Open Systems
• Nearly all backup applications supported
How to protect data against disasters?  Disaster resilient architecture
 One system can span two locations
  Built in replication for longer distances
How to protect archives?
 Backup and Archiving in one box
  Automatic DP of Archive
10 Copyright 2011 FUJITSU

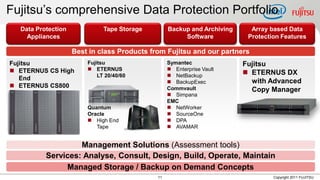

12. Fujitsu’s comprehensive Data Protection Portfolio
Data Protection Tape Storage Backup and Archiving Array based Data
Appliances Software Protection Features
Best in class Products from Fujitsu and our partners
Fujitsu Fujitsu Symantec Fujitsu
 ETERNUS CS High  ETERNUS  Enterprise Vault
LT 20/40/60  NetBackup  ETERNUS DX
End with Advanced
 BackupExec
 ETERNUS CS800 Commvault Copy Manager
 Simpana
EMC
Quantum  NetWorker
Oracle  SourceOne
 High End  DPA
Tape  AVAMAR
Management Solutions (Assessment tools)
Services: Analyse, Consult, Design, Build, Operate, Maintain
Managed Storage / Backup on Demand Concepts
11 Copyright 2011 FUJITSU

13. Questions & Answers
12 Copyright 2011 FUJITSU
