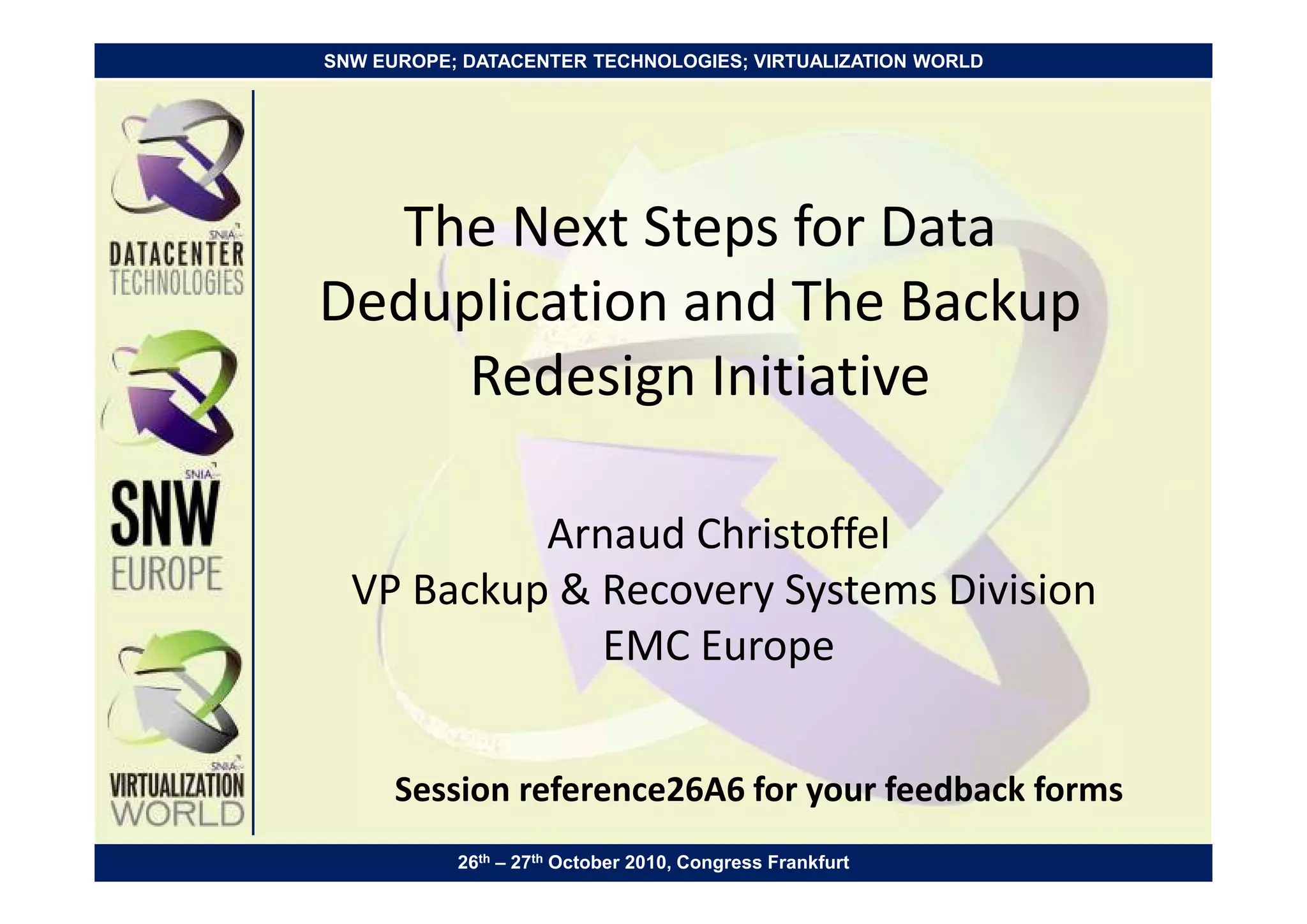

The Next Steps for Data
Deduplication and The Backup
Redesign Initiative
Arnaud Christoffel
VP Backup & Recovery Systems Division
EMC Europe
Session reference26A6 for your feedback forms
26th – 27th October 2010, Congress Frankfurt

2. The Next Steps for Data
Deduplication and The
Backup Redesign
Initiative
Arnaud Christoffel
EMEA Vice President
EMC Backup Recovery Systems
© Copyright 2010 EMC Corporation. All rights reserved. 2

3. Presentation Overview
• How Far Have We Actually Come?
– Dedupe Market Adoption
– Old Industry Battles That Have Been Resolved
– What is “True Dedupe” and Why Does it Matter?
• Exactly What is the “Backup Redesign
Initiative?”
– Why is it an “Initiative?”
• What’s Next for Dedupe?
– The Next Battleground for Deduplication
Technology?
– Further Down the Road: “Imagine a world
where….”
© Copyright 2010 EMC Corporation. All rights reserved. 3

4. Dedupe Market Adoption at Large & Mid-Sized
Enterprises TheInfoPro Storage Study Wave 13
F1000: Backup Data Reduction/Deduplication
Roll-up Implementation Storage Networking
Heat Index Rank: 1
Time Frame
• 40% In-Use
• 80% In-Use or In-Plan
• #1 “Heat Index” Ranking
MSE: Backup Data Reduction/Deduplication
Storage Networking
Heat Index Rank: 1
• 36.5% In-Use
• 73% In-Use or In-Plan
• #1 “Heat Index” Ranking
Source: TheInfoPro Storage Study (Q4 2009) | (11/12/09): F1000 Sample. Left and Top Right Charts: n=183. Lower Right Chart: n=76. Lower Bottom Right Chart: n=37.
© Copyright 2010 EMC Corporation. All rights reserved. 4

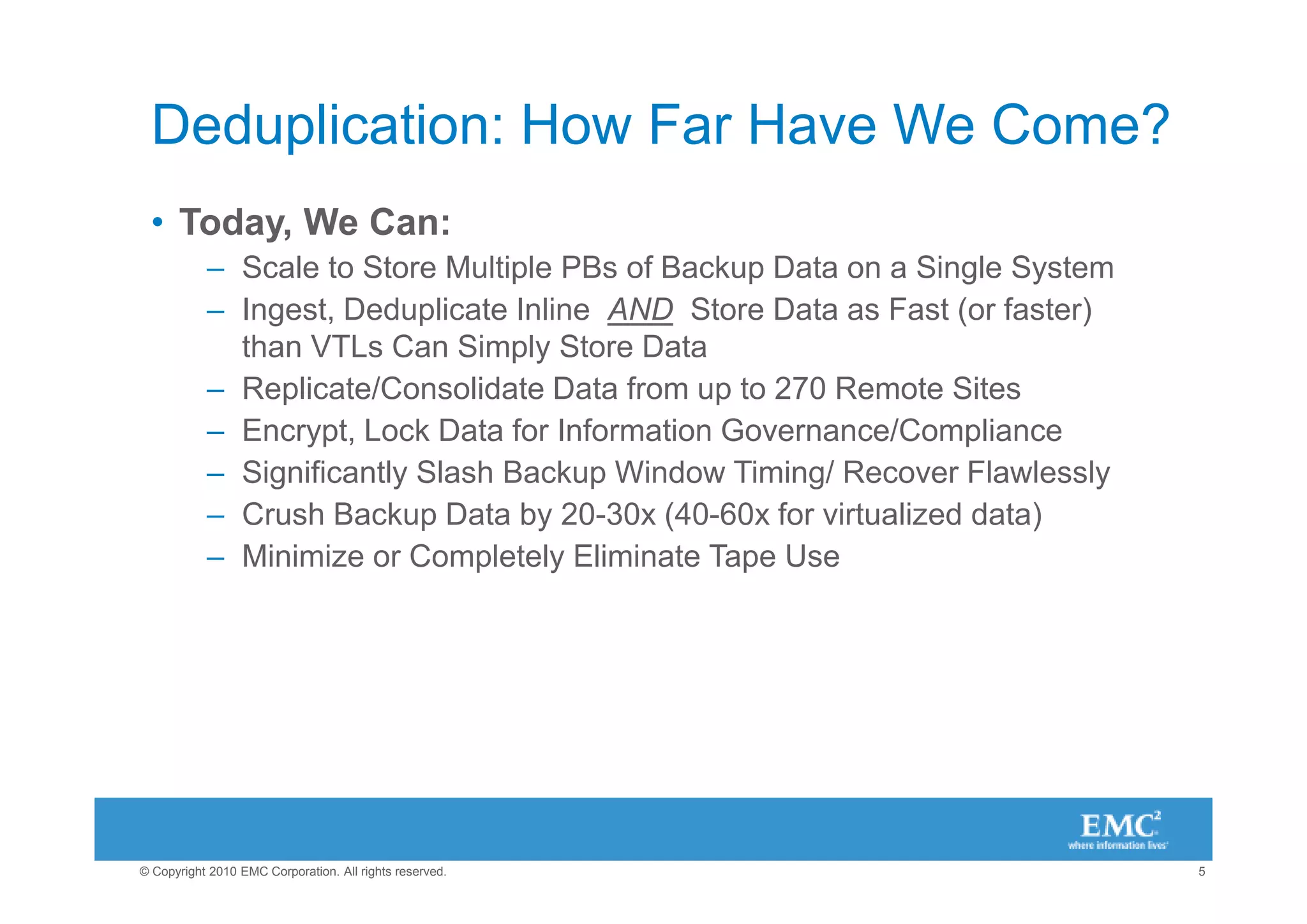

5. Deduplication: How Far Have We Come?
• Today, We Can:
– Scale to Store Multiple PBs of Backup Data on a Single System
– Ingest, Deduplicate Inline AND Store Data as Fast (or faster)
than VTLs Can Simply Store Data
– Replicate/Consolidate Data from up to 270 Remote Sites
– Encrypt, Lock Data for Information Governance/Compliance
– Significantly Slash Backup Window Timing/ Recover Flawlessly
– Crush Backup Data by 20-30x (40-60x for virtualized data)
– Minimize or Completely Eliminate Tape Use
© Copyright 2010 EMC Corporation. All rights reserved. 5

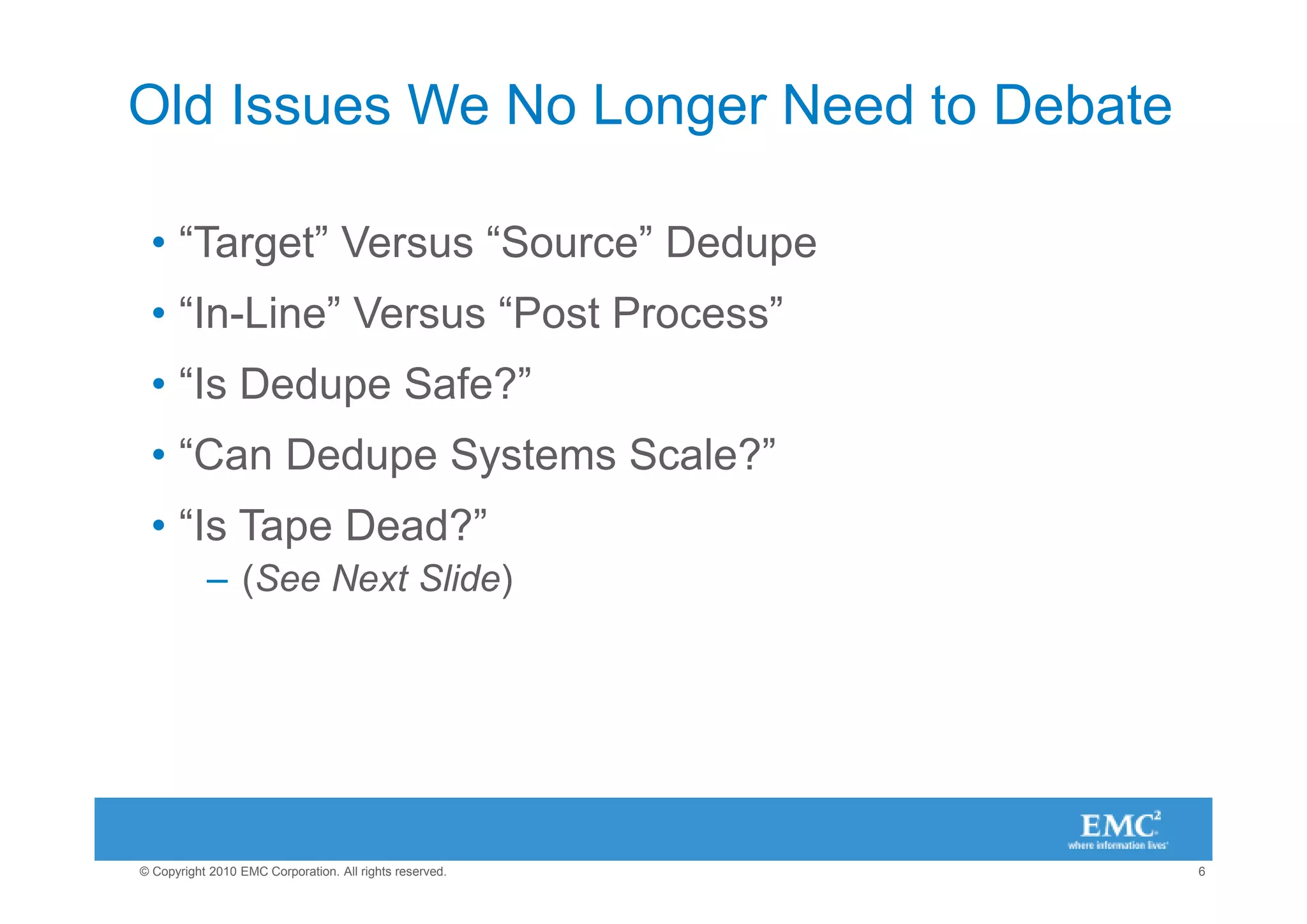

6. Old Issues We No Longer Need to Debate
• “Target” Versus “Source” Dedupe
• “In-Line” Versus “Post Process”
• “Is Dedupe Safe?”
• “Can Dedupe Systems Scale?”
• “Is Tape Dead?”
– (See Next Slide)
© Copyright 2010 EMC Corporation. All rights reserved. 6

7. Worldwide Tape Automation Market
Worldwide Tape Automation Factory Revenue (US$B)
$1.6
$1.5
$1.4
$1.4 $1.3
$1.2
$1.2
$1.0
$1.0 $1.0
$0.9
$0.9
$0.8
$0.8
$0.6
$0.4
$0.2
$0.0
2005 2006 2007 2008 2009 2010 2011 2012 2013
2013 2005-2013
market estimates CAGR
are 40% lower -6%
than 2005
• “Copy to Tape” mandate sometimes “embedded” into companies’ compliance processes, so
legacy tape hard to completely eliminate, many co’s still archive to tape
• When tape market rate of decline is juxtaposed against typical data growth rates (35-
45%/year) …the trend becomes clearer
Source: IDC, 4/09
© Copyright 2010 EMC Corporation. All rights reserved. 7

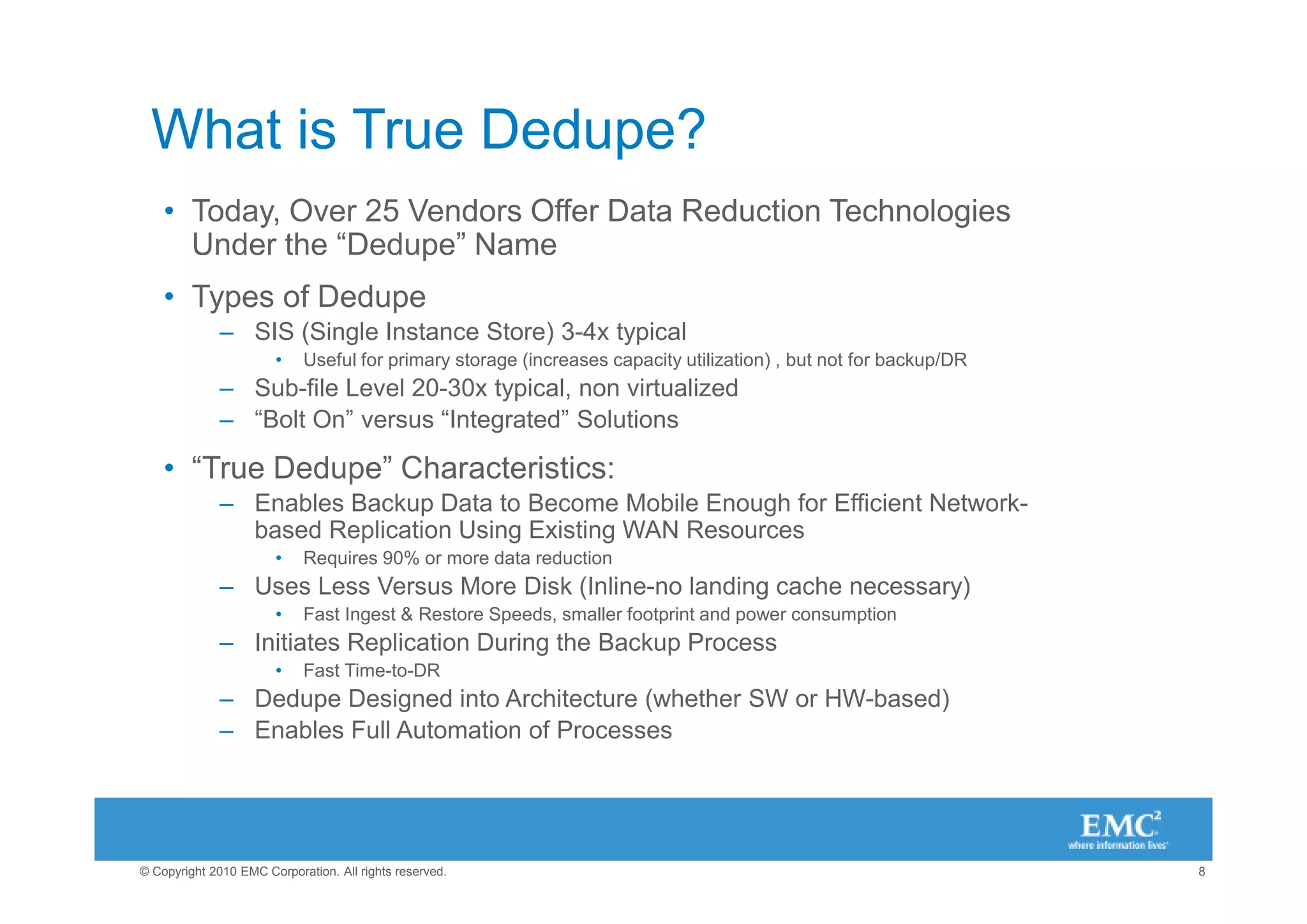

8. What is True Dedupe?
• Today, Over 25 Vendors Offer Data Reduction Technologies
Under the “Dedupe” Name
• Types of Dedupe
– SIS (Single Instance Store) 3-4x typical
• Useful for primary storage (increases capacity utilization) , but not for backup/DR
– Sub-file Level 20-30x typical, non virtualized
– “Bolt On” versus “Integrated” Solutions
• “True Dedupe” Characteristics:
– Enables Backup Data to Become Mobile Enough for Efficient Network-
based Replication Using Existing WAN Resources
• Requires 90% or more data reduction
– Uses Less Versus More Disk (Inline-no landing cache necessary)
• Fast Ingest & Restore Speeds, smaller footprint and power consumption
– Initiates Replication During the Backup Process
• Fast Time-to-DR
– Dedupe Designed into Architecture (whether SW or HW-based)
– Enables Full Automation of Processes
© Copyright 2010 EMC Corporation. All rights reserved. 8

9. The Backup Redesign Initiative
• What is it?
© Copyright 2010 EMC Corporation. All rights reserved. 9

10. The Journey to Disk-based Data Protection
Conventional Transitional Transformational
Tape & Truck Centric Disk + Tape Disk Centric
Virtual Fulls
VM Image-
Based backup
Add
Dedupe Integrate
Add Disk Dedupe Replication
Staging w/ Backup Software
Disk
Classic Add
Tape Dedupe
Replication
© Copyright 2010 EMC Corporation. All rights reserved. 10

11. Classic Tape
Server
Backup/media Tape Offsite Storage
Server Library
Primary
Storage
© Copyright 2010 EMC Corporation. All rights reserved. 11

12. Add Staging Disk: Still Tape-centric
Server
Backup/media Staging Tape Offsite Storage
Server Disk Library
Primary
Storage
© Copyright 2010 EMC Corporation. All rights reserved. 12

13. Add Deduplication Disk:
Tape-centric, but Less Tape
Server
Backup/media Dedupe Tape Offsite Storage
Server Storage Library
Primary
Storage
© Copyright 2010 EMC Corporation. All rights reserved. 13

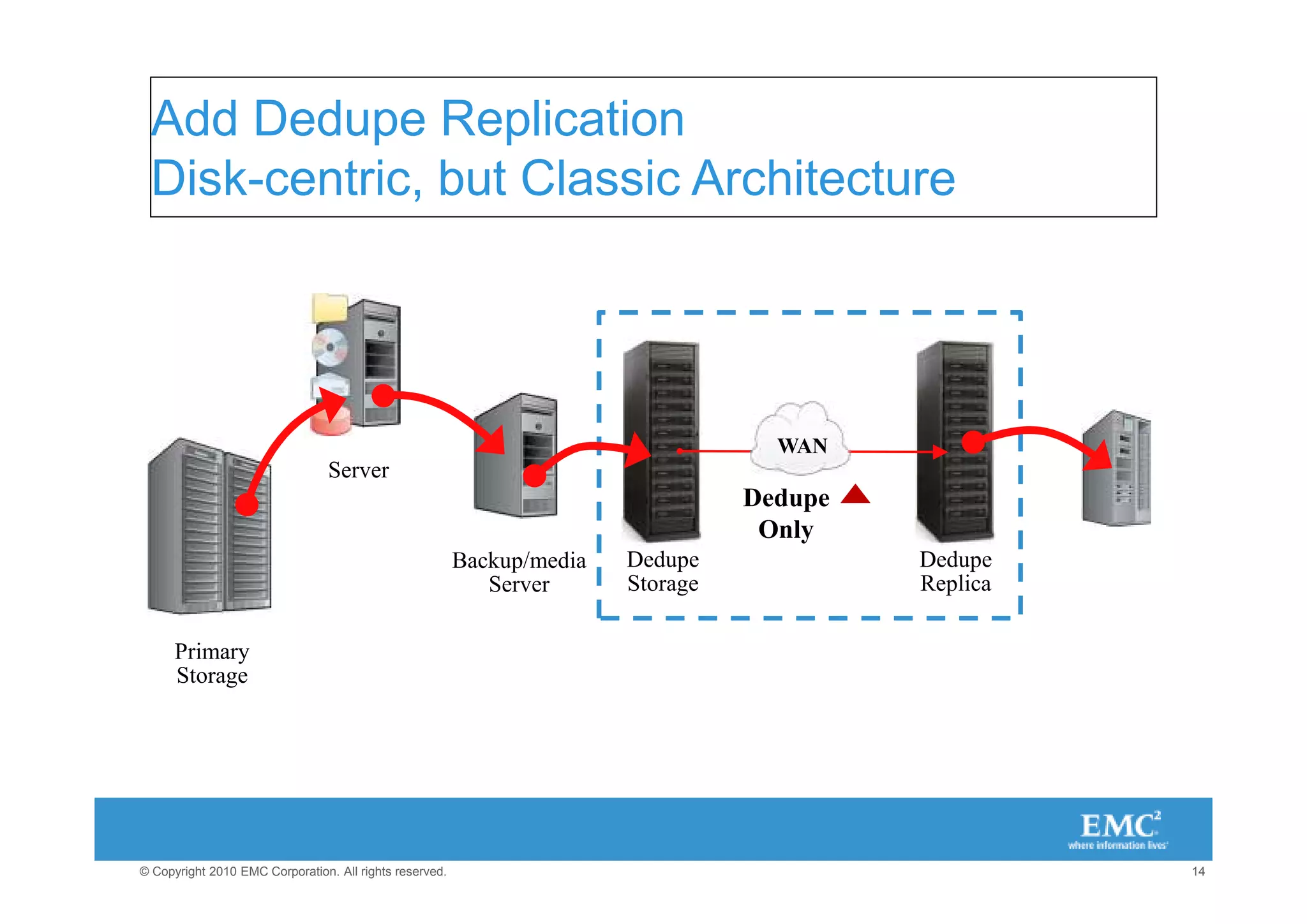

14. Add Dedupe Replication
Disk-centric, but Classic Architecture
WAN
Server
Dedupe
Only
Backup/media Dedupe Dedupe
Server Storage Replica
Primary
Storage
© Copyright 2010 EMC Corporation. All rights reserved. 14

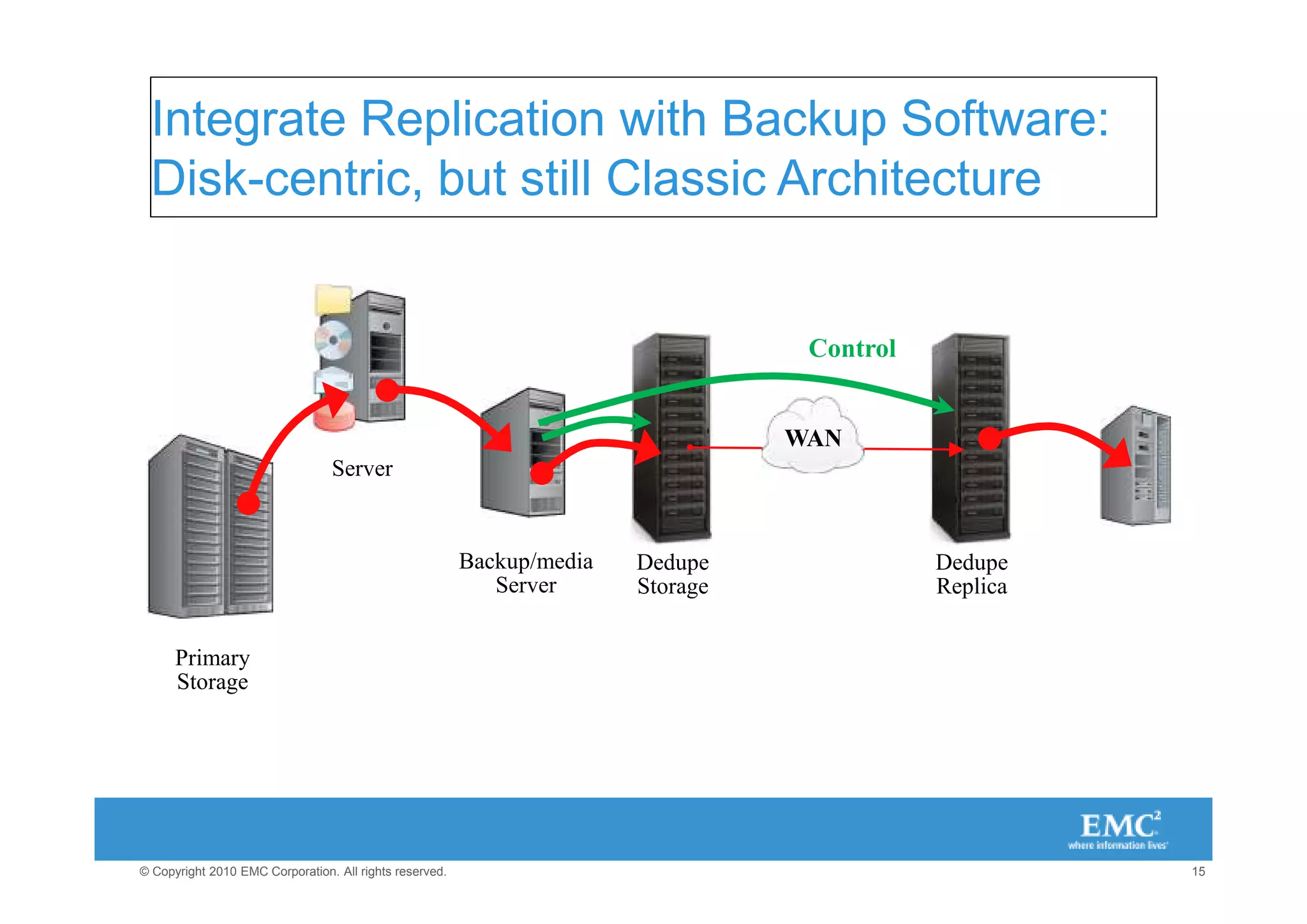

15. Integrate Replication with Backup Software:
Disk-centric, but still Classic Architecture
Control
WAN
Server
Backup/media Dedupe Dedupe
Server Storage Replica
Primary
Storage
© Copyright 2010 EMC Corporation. All rights reserved. 15

16. Virtual Full Backups: Disk-centric Redesign
Dedupe
Only
Only WAN
Server
Backup/media Dedupe Dedupe
Server Storage Replica
Primary
Storage
© Copyright 2010 EMC Corporation. All rights reserved. 16

17. VM Image-based Backup: Use vs. Restore
Exchange
File/Print ERP CRM
SAPOracle
Exchange
File/Print ERP CRM
SAPOracle
Virtualization Dedupe Virtualization
Only
Only WAN
Server
Backup/media Dedupe Dedupe
Server Storage Replica
e t P M e t P M
e t
P M e t P M
e t P M e t P M
Primary e t P M
e t P M
e t P M
e t P M
Storage
© Copyright 2010 EMC Corporation. All rights reserved. 17

18. Customers’ Top Virtualization Initiatives
Source: ESG Research Report, 2010 IT Spending Intentions, January 2010
© Copyright 2010 EMC Corporation. All rights reserved. 18

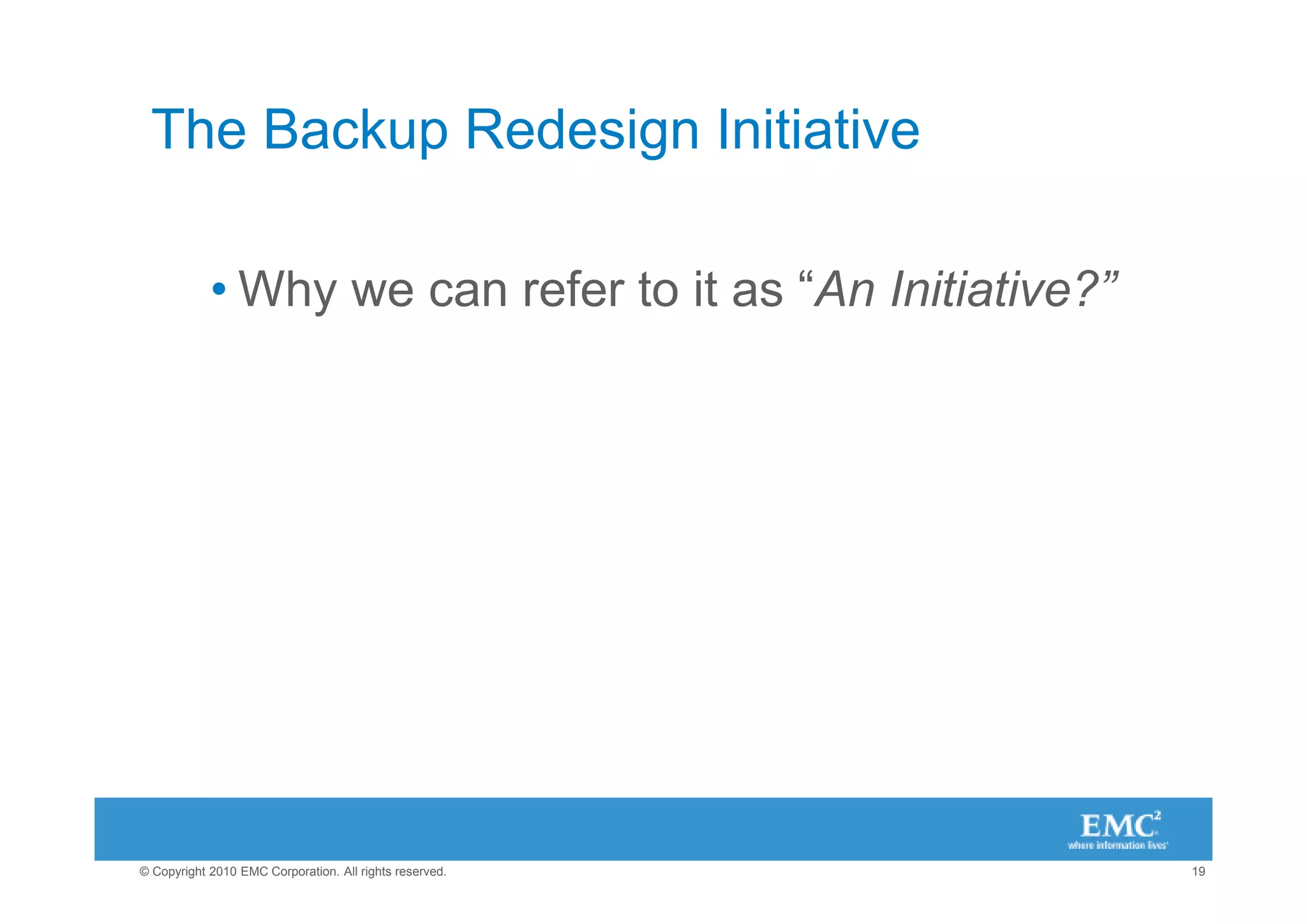

19. The Backup Redesign Initiative
• Why we can refer to it as “An Initiative?”
© Copyright 2010 EMC Corporation. All rights reserved. 19

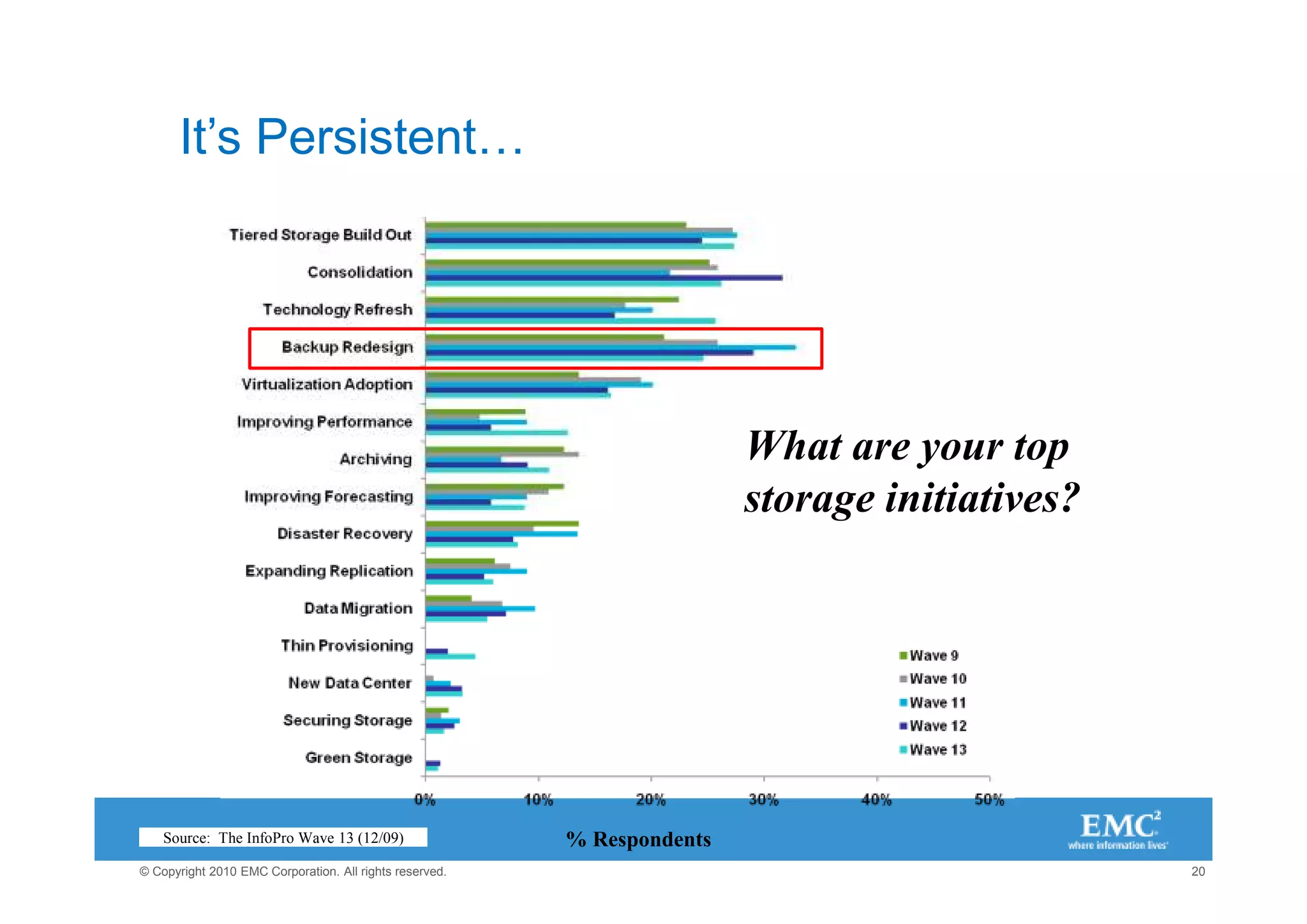

20. It’s Persistent…
What are your top
storage initiatives?
Source: The InfoPro Wave 13 (12/09) % Respondents
© Copyright 2010 EMC Corporation. All rights reserved. 20

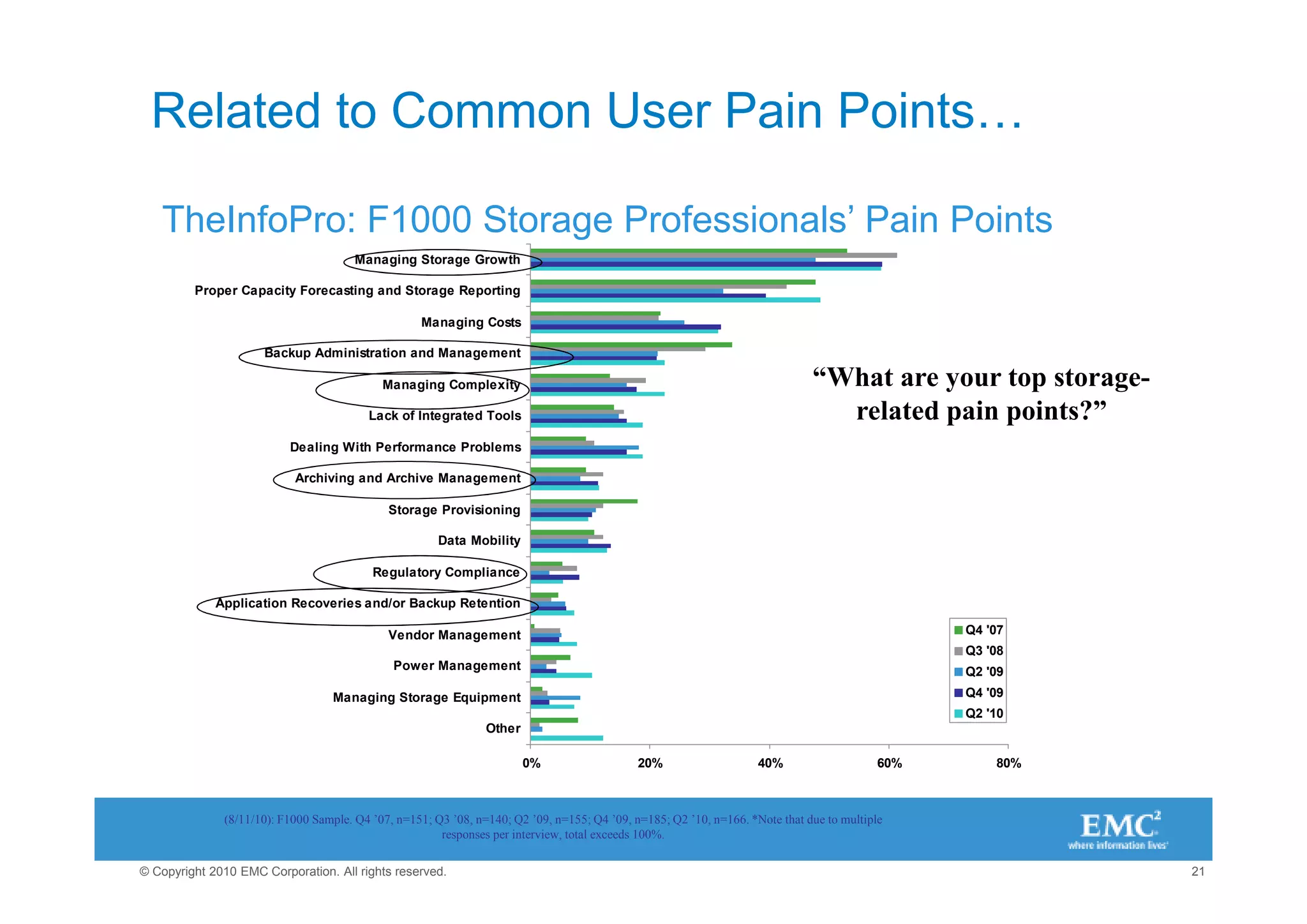

21. Related to Common User Pain Points…
TheInfoPro: F1000 Storage Professionals’ Pain Points
Managing Storage Growth
Proper Capacity Forecasting and Storage Reporting
Managing Costs
Backup Administration and Management
Managing Complexity “What are your top storage-
Lack of Integrated Tools related pain points?”
Dealing With Performance Problems
Archiving and Archive Management
Storage Provisioning
Data Mobility
Regulatory Compliance
Application Recoveries and/or Backup Retention
Vendor Management Q4 '07
Q3 '08
Power Management Q2 '09
Managing Storage Equipment Q4 '09
Q2 '10
Other
0% 20% 40% 60% 80%
(8/11/10): F1000 Sample. Q4 ’07, n=151; Q3 ’08, n=140; Q2 ’09, n=155; Q4 ’09, n=185; Q2 ’10, n=166. *Note that due to multiple
responses per interview, total exceeds 100%.
© Copyright 2010 EMC Corporation. All rights reserved. 21

22. Sustained Level of User Urgency…
TheInfoPro Storage Networking Technology Heat Index® Change – F1000
(Gauges the Immediacy of User Needs and Planned Spending for Each Technology)
Q2 '06 Q3 '06 Q1 '07 Q1 '07 Q4 '07 Q3 '08 Q2 '09 Q4 '09 Q2 '10
Technology
Rank Rank Rank Rank Rank Rank Rank Rank Rank
Backup Data Reduction/Deduplication N/A 19 14 1 1 1 1 1 1
Solid-state Disk Drives (SSD) N/A N/A 21 25 N/A 23 10 3 2
10Gbps Ethernet for Storage 16 19 12 19 19 17 19 16 3
Virtual Server Image Storage N/A N/A N/A N/A N/A N/A 9 9 4
Remote Block Mirroring and/or Wide-area Replication (Async) 2 8 7 14 4 9 8 6 5
8Gbps Fibre Channel N/A N/A N/A N/A N/A 18 11 6 5
Virtual Tape Libraries (VTL) for Open Systems 1 1 2 3 2 2 3 4 7
Online Data Reduction/Deduplication N/A N/A N/A N/A N/A N/A 2 2 8
Serial-attached SCSI Drives (SAS) 19 20 19 21 20 18 5 11 9
Fibre Channel over Ethernet (FCoE) N/A N/A N/A N/A 22 21 16 14 10
Block Replication (Sync) 14 12 11 8 8 6 7 8 11
Multiprotocol Storage Systems (FC/NAS/IP/FCoE) N/A N/A N/A N/A N/A N/A N/A N/A 11
NPIV – Virtualized I/O N/A N/A N/A 15 13 4 6 12 13
IP SAN/iSCSI Storage Arrays N/A N/A N/A N/A N/A N/A N/A N/A 14
Remote File Mirroring and/or Wide-area Replication (Async) N/A 9 10 17 17 14 13 10 15
File Replication (Sync) N/A 15 12 15 15 8 12 13 16
Fixed Content and/or Content-addressed Storage (CAS) Arrays 13 17 16 12 10 10 16 18 17
TCP/IP Offload Engine (TOE) N/A N/A N/A N/A N/A N/A N/A N/A 18
© Copyright 2010 EMC Corporation. All rights reserved. 22

23. Pervasive Underlying Technology…
Gartner Data Center Conference Poll:
Which of the following technologies will most affect your storage infrastructure during the next three
years?
Source: Gartner DCC: "The Enterprise Storage Scenario: Future-Proofing Your Investment" Session
(December 2009)
Data Deduplication Will Be Even Bigger in 2010, February 8, 2010 ID Number: G00174272
© Copyright 2010 EMC Corporation. All rights reserved. 23

24. What’s Next for Data Deduplication?
• Deeper Integration Between Backup Software and Dedupe
Storage
– Benefits Include:
• Increased Performance &Functionality
• Cost Reduction (Including OpEx)
• Significantly Reduced Management Time
Single Pane Management/Monitor and Reporting for all Systems
Centralized Global Replication Management
• Rapid Deployment and Configuration
• Already Underway
– Vendors Including EMC, Symantec, NetApp/SyncSort have deployed
“The integration of backup software with deduplication
storage is not just about enhancing performance—it’s about
increasing functionality to enable a more streamlined and
sophisticated user experience.”
Laura DuBois, Program Director, Storage Software
IDC
May 2010
© Copyright 2010 EMC Corporation. All rights reserved. 24

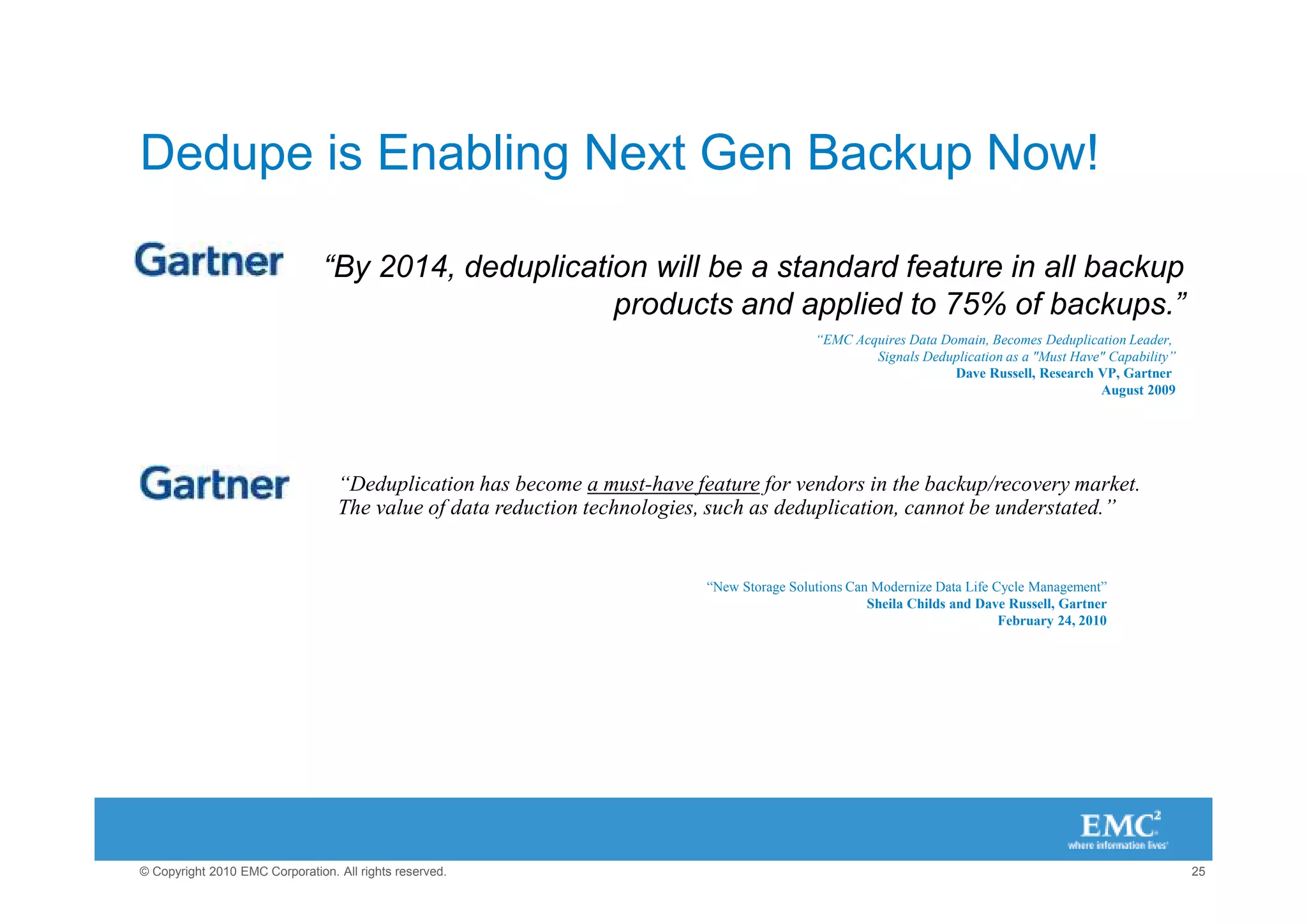

25. Dedupe is Enabling Next Gen Backup Now!
“By 2014, deduplication will be a standard feature in all backup
products and applied to 75% of backups.”
“EMC Acquires Data Domain, Becomes Deduplication Leader,
Signals Deduplication as a "Must Have" Capability”
Dave Russell, Research VP, Gartner
August 2009
“Deduplication has become a must-have feature for vendors in the backup/recovery market.
The value of data reduction technologies, such as deduplication, cannot be understated.”
“New Storage Solutions Can Modernize Data Life Cycle Management”
Sheila Childs and Dave Russell, Gartner
February 24, 2010
© Copyright 2010 EMC Corporation. All rights reserved. 25
