1. EMC & Microsoft
Integrated Backup with
Deduplication
Agora - Business Continuity/ Disaster Recovery
Bucharest, April 28th
Horia Constantinescu
Sales Territory Manager
Backup Recovery Systems
constantinescu_horia@emc.com
© Copyright 2010 EMC Corporation. All rights reserved. 1

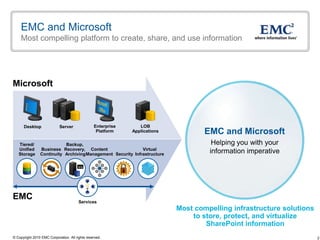

2. EMC and Microsoft
Most compelling platform to create, share, and use information
Microsoft
Desktop Server Enterprise LOB
Platform Applications EMC and Microsoft
Tiered/ Backup, Helping you with your
Unified Business Recovery, Content Virtual
Storage Continuity Archiving Management Security Infrastructure
information imperative
EMC Services
Most compelling infrastructure solutions
to store, protect, and virtualize
SharePoint information
© Copyright 2010 EMC Corporation. All rights reserved. 2

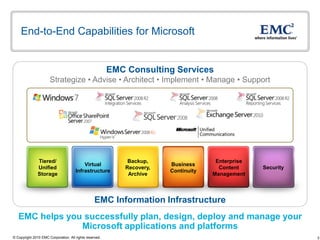

3. End-to-End Capabilities for Microsoft
EMC Consulting Services
Strategize • Advise • Architect • Implement • Manage • Support
Tiered/ Backup, Enterprise
Virtual Business
Unified Recovery, Content Security
Infrastructure Continuity
Storage Archive Management
EMC Information Infrastructure
EMC helps you successfully plan, design, deploy and manage your
Microsoft applications and platforms
© Copyright 2010 EMC Corporation. All rights reserved. 3

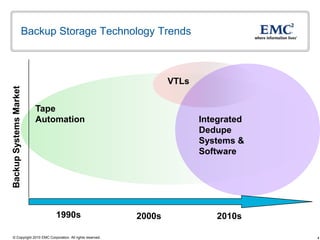

4. Backup Storage Technology Trends
VTLs
Backup Systems Market
Tape
Automation Integrated
Dedupe
Systems &
Software
1990s 2000s 2010s
© Copyright 2010 EMC Corporation. All rights reserved. 4

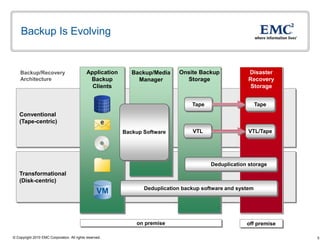

5. Backup Is Evolving
Backup/Recovery Application Backup/Media Onsite Backup Disaster
Architecture Backup Manager Storage Recovery
Clients Storage
Tape Tape
Conventional
(Tape-centric)
Backup Software VTL VTL/Tape
Deduplication storage
Transformational
(Disk-centric)
Deduplication backup software and system
VM
on premise off premise
© Copyright 2010 EMC Corporation. All rights reserved. 5

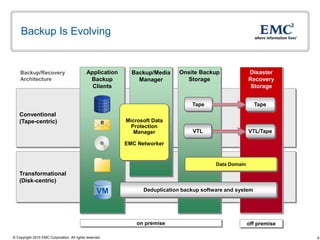

6. Backup Is Evolving
Backup/Recovery Application Backup/Media Onsite Backup Disaster
Architecture Backup Manager Storage Recovery
Clients Storage
Tape Tape
Conventional
(Tape-centric) Microsoft Data
Protection
Manager VTL VTL/Tape
EMC Networker
Data Domain
Transformational
(Disk-centric)
VM Deduplication backup software and system
on premise off premise
© Copyright 2010 EMC Corporation. All rights reserved. 6

7. Online Snapshots (up to 512)
Active Directory® Disk-based
System State Recovery
Up to
Every 15 minutes
Data Protection Data Protection Manager
Manager Disaster Recovery
with offsite replication & tape
Tape-based
Backup
file services
© Copyright 2010 EMC Corporation. All rights reserved. 8

8. EMC NetWorker
Central Management for Protection Technologies
Data Domain
Deduplication Disk-based snapshots
Traditional Tape
EMC NetWorker
EMC RecoverPoint
Centralized Control
Application Integration and Backup
Continuous Data Protection
Modules Management
O
O HH
HH O H
O HH
HH O O
HH
EMC AVAMAR
Global Data Deduplication
Backup Analytics
© Copyright 2010 EMC Corporation. All rights reserved. 9

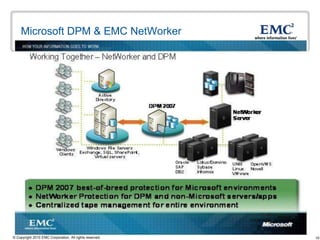

9. Microsoft DPM & EMC NetWorker
© Copyright 2010 EMC Corporation. All rights reserved. 10

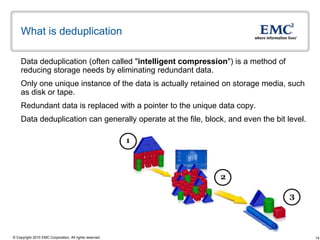

10. What is deduplication
Data deduplication (often called "intelligent compression") is a method of
reducing storage needs by eliminating redundant data.
Only one unique instance of the data is actually retained on storage media, such
as disk or tape.
Redundant data is replaced with a pointer to the unique data copy.
Data deduplication can generally operate at the file, block, and even the bit level.
© Copyright 2010 EMC Corporation. All rights reserved. 14

11. Deduplication Dramatically Reduces Storage
Capacity Requirements
Deduplication
10–30 times less data stored versus fulls + incrementals with typical retention policies
30
20
Data Stored
10
0
1 5 10 15 20
Weeks in Use
Deduplication storage
Traditional storage
© Copyright 2010 EMC Corporation. All rights reserved. 15

12. With Data Domain Deduplication Storage
Systems, You Can…
Retain longer
Keep backups onsite longer with less disk
for fast, reliable restores, and eliminate the
use of tape for operational recovery
Replicate smarter
WAN
Move only deduplicated data over existing
networks with up to 99% bandwidth
efficiency for cost-effective disaster recovery
Recover reliably
Continuous fault detection and self-healing
ensure data recoverability to meet service
level agreements
© Copyright 2010 EMC Corporation. All rights reserved. 16

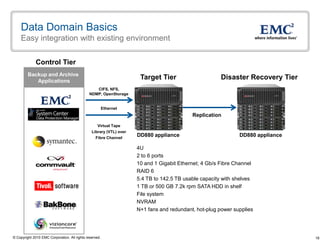

13. Data Domain Basics
Easy integration with existing environment
Control Tier
Backup and Archive
Applications
Target Tier Disaster Recovery Tier
CIFS, NFS,
NDMP, OpenStorage
Ethernet
Replication
Virtual Tape
Library (VTL) over
Fibre Channel
DD880 appliance DD880 appliance
4U
2 to 6 ports
10 and 1 Gigabit Ethernet; 4 Gb/s Fibre Channel
RAID 6
5.4 TB to 142.5 TB usable capacity with shelves
1 TB or 500 GB 7.2k rpm SATA HDD in shelf
File system
NVRAM
N+1 fans and redundant, hot-plug power supplies
© Copyright 2010 EMC Corporation. All rights reserved. 18

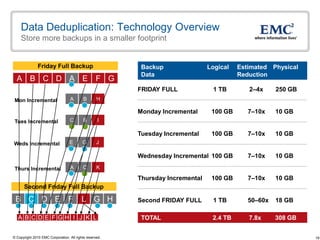

14. Data Deduplication: Technology Overview
Store more backups in a smaller footprint
Friday Full Backup Backup Logical Estimated Physical
Data Reduction
A B C D A E F G
FRIDAY FULL 1 TB 2–4x 250 GB
Mon Incremental A B H
Monday Incremental 100 GB 7–10x 10 GB
Tues Incremental C B I
Tuesday Incremental 100 GB 7–10x 10 GB
Weds Incremental E G J
Wednesday Incremental 100 GB 7–10x 10 GB
Thurs Incremental A C K
Thursday Incremental 100 GB 7–10x 10 GB
Second Friday Full Backup
B C D E F L G H Second FRIDAY FULL 1 TB 50–60x 18 GB
A BCDE FGH I J K L TOTAL 2.4 TB 7.8x 308 GB
© Copyright 2010 EMC Corporation. All rights reserved. 19

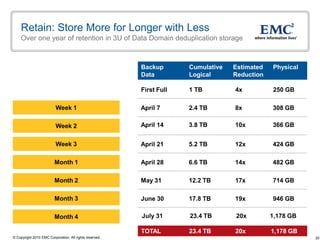

15. Retain: Store More for Longer with Less
Over one year of retention in 3U of Data Domain deduplication storage
Backup Cumulative Estimated Physical
Data Logical Reduction
First Full 1 TB 4x 250 GB
Week 1 April 7 2.4 TB 8x 308 GB
Week 2 April 14 3.8 TB 10x 366 GB
Week 3 April 21 5.2 TB 12x 424 GB
Month 1 April 28 6.6 TB 14x 482 GB
Month 2 May 31 12.2 TB 17x 714 GB
Month 3 June 30 17.8 TB 19x 946 GB
Month 4 July 31 23.4 TB 20x 1,178 GB
TOTAL 23.4 TB 20x 1,178 GB
© Copyright 2010 EMC Corporation. All rights reserved. 20

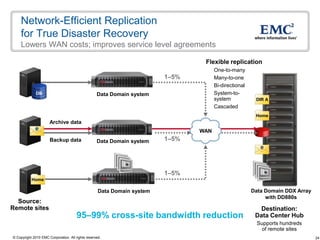

16. Network-Efficient Replication
for True Disaster Recovery
Lowers WAN costs; improves service level agreements
Flexible replication
One-to-many
1–5% Many-to-one
Bi-directional
DB Data Domain system System-to-
system DIR A
Cascaded
Home
Archive data
WAN
Backup data Data Domain system 1–5%
1–5%
Home
Data Domain system Data Domain DDX Array
with DD880s
Source:
Remote sites Destination:
95–99% cross-site bandwidth reduction Data Center Hub
Supports hundreds
of remote sites
© Copyright 2010 EMC Corporation. All rights reserved. 24

17. Enterprise Recoverability Readiness
at Disaster Recovery Site
Data Domain Disaster
Inline recovery
(DR)-ready
Deduplicated Replicate during backup
Replication
“Adaptive” Backup to Cache Backup time 1.7 times longer than Data Domain
Post-process
Deduplicated DR-ready
Replication Deduplicate and replicate <50% ingest speed—two times longer if uncompressed at fixed bandwidth
“Scheduled” Backup to Cache Backup time 1.1x longer than Data Domain
Post-process
Deduplicated DR-ready
Replication Deduplicate and replicate <50% ingest speed—two times longer if uncompressed at fixed bandwidth
Backup to VTL Recall tapes
VTL/Tape/Truck Copy to tape ?
Truck to storage Truck from storage
© Copyright 2010 EMC Corporation. All rights reserved. 25

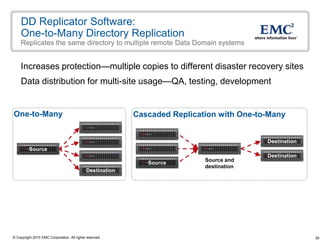

18. DD Replicator Software:
One-to-Many Directory Replication
Replicates the same directory to multiple remote Data Domain systems
Increases protection—multiple copies to different disaster recovery sites
Data distribution for multi-site usage—QA, testing, development
One-to-Many Cascaded Replication with One-to-Many
Destination
Source
Destination
Source and
Source
destination
Destination
© Copyright 2010 EMC Corporation. All rights reserved. 26

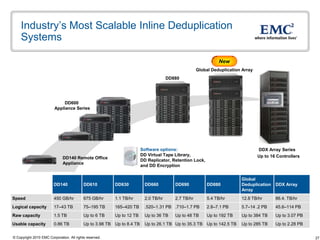

19. Industry’s Most Scalable Inline Deduplication
Systems
New
Global Deduplication Array
DD880
DD600
Appliance Series
Software options: DDX Array Series
DD Virtual Tape Library, Up to 16 Controllers
DD140 Remote Office
DD Replicator, Retention Lock,
Appliance
and DD Encryption
Global
DD140 DD610 DD630 DD660 DD690 DD880 Deduplication DDX Array
Array
Speed 450 GB/hr 675 GB/hr 1.1 TB/hr 2.0 TB/hr 2.7 TB/hr 5.4 TB/hr 12.8 TB/hr 86.4. TB/hr
Logical capacity 17–43 TB 75–195 TB 165–420 TB .520–1.31 PB .710–1.7 PB 2.8–7.1 PB 5.7–14 .2 PB 45.6–114 PB
Raw capacity 1.5 TB Up to 6 TB Up to 12 TB Up to 36 TB Up to 48 TB Up to 192 TB Up to 384 TB Up to 3.07 PB
Usable capacity 0.86 TB Up to 3.98 TB Up to 8.4 TB Up to 26.1 TB Up to 35.3 TB Up to 142.5 TB Up to 285 TB Up to 2.28 PB
© Copyright 2010 EMC Corporation. All rights reserved. 27

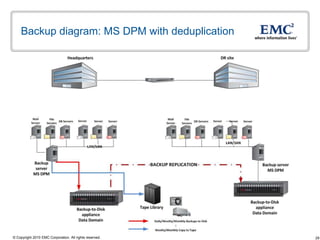

20. Backup diagram: MS DPM with deduplication
© Copyright 2010 EMC Corporation. All rights reserved. 29

21. Backup diagram: Microsoft – EMC integration
© Copyright 2010 EMC Corporation. All rights reserved. 30

22. © Copyright 2010 EMC Corporation. All rights reserved. 31
