1. © 2007 AVOCENT CORPORATION
IPMI Specification V2.0
of Section 35
2011/5/23
As presented by Simon

2. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
2DCN:DOC-TENT-OSA1012.0011-01.00
Section 35
• Sensor Device Commands

3. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
3DCN:DOC-TENT-OSA1012.0011-01.00

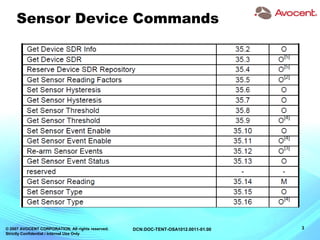

Sensor Device Commands

4. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
4DCN:DOC-TENT-OSA1012.0011-01.00
Get Sensor Reading(1/3)

5. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
5DCN:DOC-TENT-OSA1012.0011-01.00

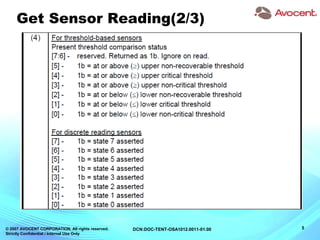

Get Sensor Reading(2/3)

6. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
6DCN:DOC-TENT-OSA1012.0011-01.00

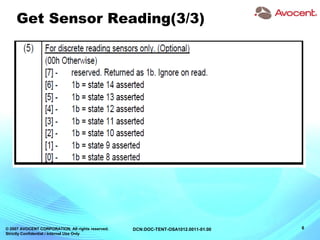

Get Sensor Reading(3/3)

7. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
7DCN:DOC-TENT-OSA1012.0011-01.00

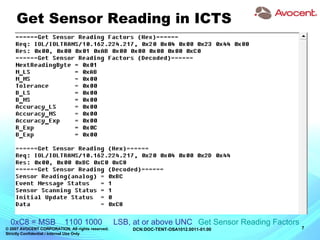

Get Sensor Reading in ICTS
Get Sensor Reading Factors0xC8 = MSB 1100 1000 LSB, at or above UNC

8. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
8DCN:DOC-TENT-OSA1012.0011-01.00

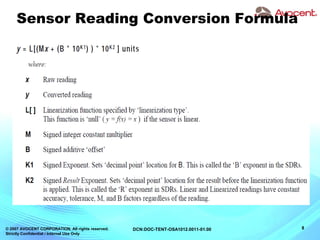

Sensor Reading Conversion Formula

9. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
9DCN:DOC-TENT-OSA1012.0011-01.00
Calculate
• x = 0xBC = 188
• M = 0xAB = 171
• B = 0
• K1 = 0
• K2 = 0xC = (1100)2= -(0100)= -4
• L[] see Full Sensor Record Byte 24, units see
Byte 21~23
• y=188*171*0.0001=3.2148 (V) Appendix

10. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
10DCN:DOC-TENT-OSA1012.0011-01.00

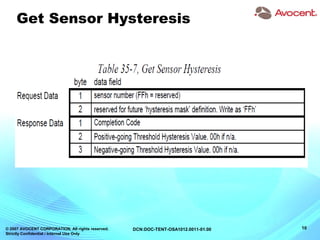

Get Sensor Hysteresis

11. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
11DCN:DOC-TENT-OSA1012.0011-01.00
Hysteresis

12. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
12DCN:DOC-TENT-OSA1012.0011-01.00

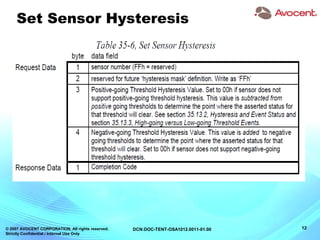

Set Sensor Hysteresis

13. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
13DCN:DOC-TENT-OSA1012.0011-01.00

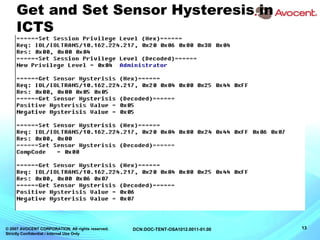

Get and Set Sensor Hysteresis in
ICTS

14. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
14DCN:DOC-TENT-OSA1012.0011-01.00

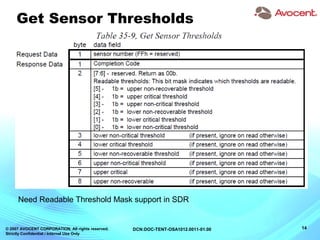

Get Sensor Thresholds
Need Readable Threshold Mask support in SDR

15. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
15DCN:DOC-TENT-OSA1012.0011-01.00

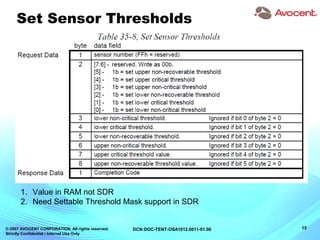

Set Sensor Thresholds
1. Value in RAM not SDR
2. Need Settable Threshold Mask support in SDR

16. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
16DCN:DOC-TENT-OSA1012.0011-01.00

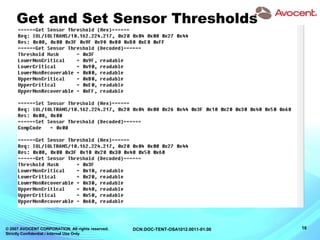

Get and Set Sensor Thresholds

17. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
17DCN:DOC-TENT-OSA1012.0011-01.00

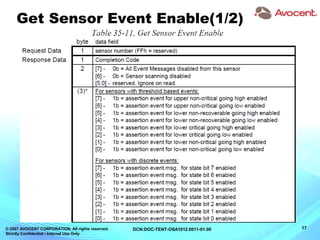

Get Sensor Event Enable(1/2)

18. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
18DCN:DOC-TENT-OSA1012.0011-01.00

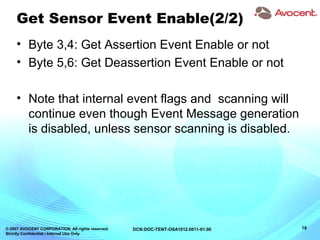

Get Sensor Event Enable(2/2)
• Byte 3,4: Get Assertion Event Enable or not
• Byte 5,6: Get Deassertion Event Enable or not
• Note that internal event flags and scanning will
continue even though Event Message generation
is disabled, unless sensor scanning is disabled.

19. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
19DCN:DOC-TENT-OSA1012.0011-01.00

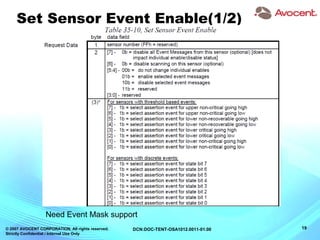

Set Sensor Event Enable(1/2)
Need Event Mask support

20. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
20DCN:DOC-TENT-OSA1012.0011-01.00

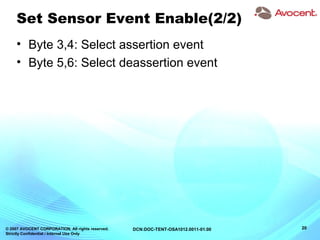

Set Sensor Event Enable(2/2)
• Byte 3,4: Select assertion event
• Byte 5,6: Select deassertion event

21. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
21DCN:DOC-TENT-OSA1012.0011-01.00

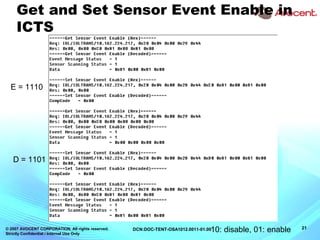

Get and Set Sensor Event Enable in
ICTS
10: disable, 01: enable
E = 1110
D = 1101

22. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
22DCN:DOC-TENT-OSA1012.0011-01.00

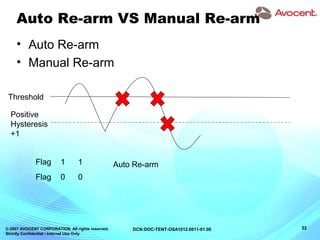

Auto Re-arm VS Manual Re-arm
• Auto Re-arm
• Manual Re-arm
Flag 0 0
1 1Flag
Threshold
Positive
Hysteresis
+1
Auto Re-arm

23. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
23DCN:DOC-TENT-OSA1012.0011-01.00

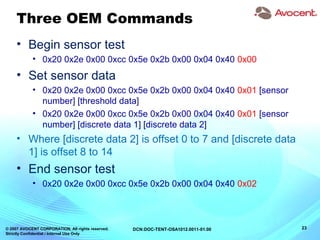

Three OEM Commands
• Begin sensor test
• 0x20 0x2e 0x00 0xcc 0x5e 0x2b 0x00 0x04 0x40 0x00
• Set sensor data
• 0x20 0x2e 0x00 0xcc 0x5e 0x2b 0x00 0x04 0x40 0x01 [sensor
number] [threshold data]
• 0x20 0x2e 0x00 0xcc 0x5e 0x2b 0x00 0x04 0x40 0x01 [sensor
number] [discrete data 1] [discrete data 2]
• Where [discrete data 2] is offset 0 to 7 and [discrete data
1] is offset 8 to 14
• End sensor test
• 0x20 0x2e 0x00 0xcc 0x5e 0x2b 0x00 0x04 0x40 0x02

24. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
24DCN:DOC-TENT-OSA1012.0011-01.00

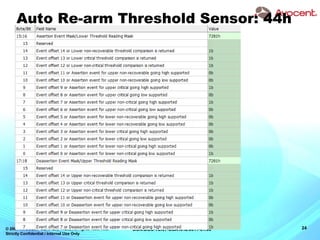

Auto Re-arm Threshold Sensor: 44h

25. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
25DCN:DOC-TENT-OSA1012.0011-01.00

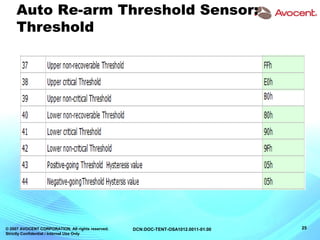

Auto Re-arm Threshold Sensor:
Threshold

26. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
26DCN:DOC-TENT-OSA1012.0011-01.00

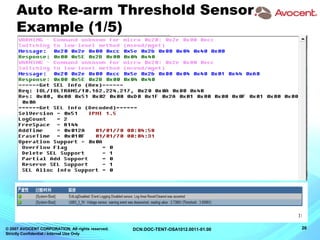

Auto Re-arm Threshold Sensor
Example (1/5)

27. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
27DCN:DOC-TENT-OSA1012.0011-01.00

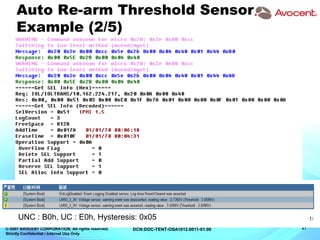

Auto Re-arm Threshold Sensor
Example (2/5)
UNC : B0h, UC : E0h, Hysteresis: 0x05

28. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
28DCN:DOC-TENT-OSA1012.0011-01.00

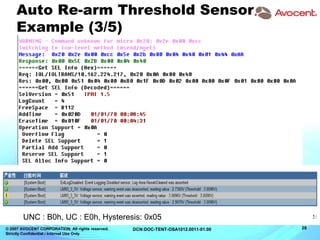

Auto Re-arm Threshold Sensor
Example (3/5)
UNC : B0h, UC : E0h, Hysteresis: 0x05

29. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
29DCN:DOC-TENT-OSA1012.0011-01.00
Auto Re-arm Threshold Sensor
Example (4/5)
UNC : B0h, UC : E0h

30. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
30DCN:DOC-TENT-OSA1012.0011-01.00

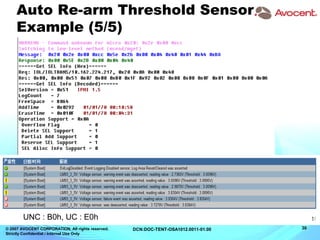

Auto Re-arm Threshold Sensor
Example (5/5)
UNC : B0h, UC : E0h

31. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
31DCN:DOC-TENT-OSA1012.0011-01.00

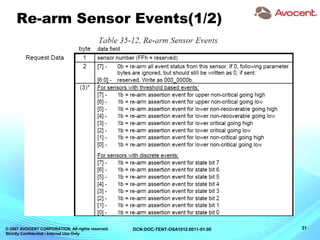

Re-arm Sensor Events(1/2)

32. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
32DCN:DOC-TENT-OSA1012.0011-01.00

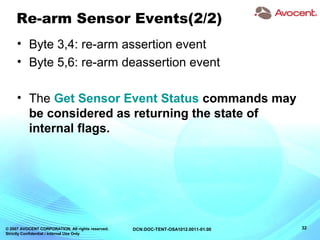

Re-arm Sensor Events(2/2)
• Byte 3,4: re-arm assertion event
• Byte 5,6: re-arm deassertion event
• The Get Sensor Event Status commands may
be considered as returning the state of
internal flags.

33. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
33DCN:DOC-TENT-OSA1012.0011-01.00

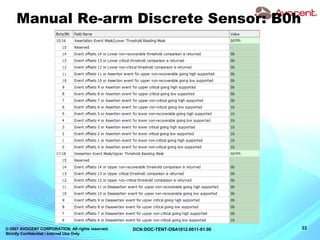

Manual Re-arm Discrete Sensor: B0h

34. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
34DCN:DOC-TENT-OSA1012.0011-01.00

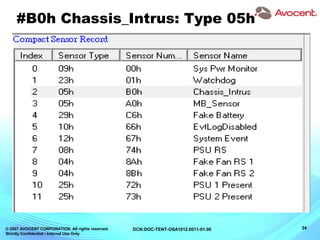

#B0h Chassis_Intrus: Type 05h

35. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
35DCN:DOC-TENT-OSA1012.0011-01.00

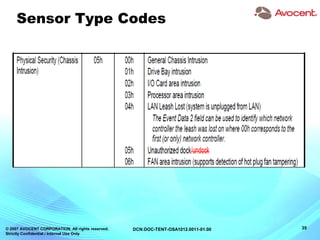

Sensor Type Codes

36. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
36DCN:DOC-TENT-OSA1012.0011-01.00

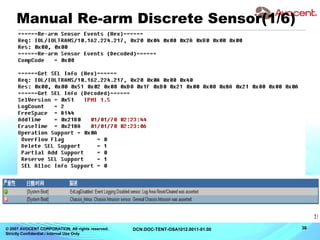

Manual Re-arm Discrete Sensor(1/6)

37. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
37DCN:DOC-TENT-OSA1012.0011-01.00
Manual Re-arm Discrete Sensor(2/6)

38. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
38DCN:DOC-TENT-OSA1012.0011-01.00

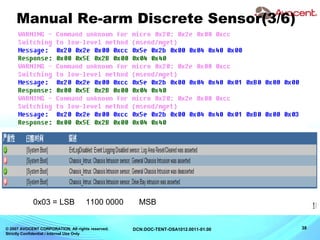

Manual Re-arm Discrete Sensor(3/6)
0x03 = LSB 1100 0000 MSB

39. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
39DCN:DOC-TENT-OSA1012.0011-01.00

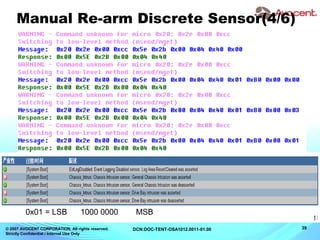

Manual Re-arm Discrete Sensor(4/6)
0x01 = LSB 1000 0000 MSB

40. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
40DCN:DOC-TENT-OSA1012.0011-01.00
Manual Re-arm Discrete Sensor(5/6)
0x0C = LSB 0011 0000 MSB

41. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
41DCN:DOC-TENT-OSA1012.0011-01.00

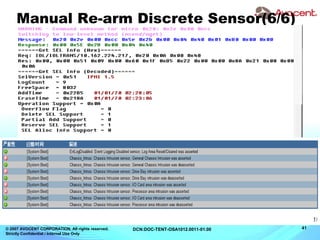

Manual Re-arm Discrete Sensor(6/6)

42. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
42DCN:DOC-TENT-OSA1012.0011-01.00
The End
•Thanks!

43. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
43DCN:DOC-TENT-OSA1012.0011-01.00

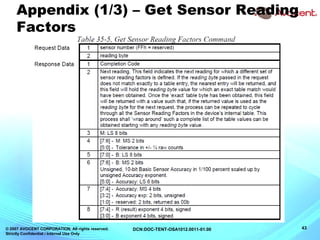

Appendix (1/3) – Get Sensor Reading
Factors

44. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
44DCN:DOC-TENT-OSA1012.0011-01.00

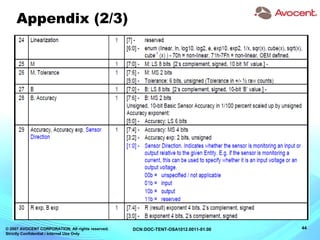

Appendix (2/3)

45. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
45DCN:DOC-TENT-OSA1012.0011-01.00
Appendix (3/3)

46. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
46DCN:DOC-TENT-OSA1012.0011-01.00

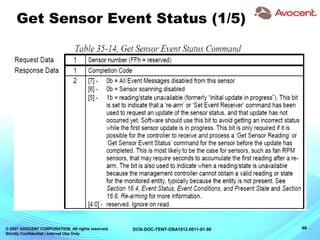

Get Sensor Event Status (1/5)

47. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
47DCN:DOC-TENT-OSA1012.0011-01.00

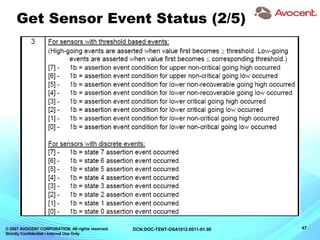

Get Sensor Event Status (2/5)

48. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
48DCN:DOC-TENT-OSA1012.0011-01.00

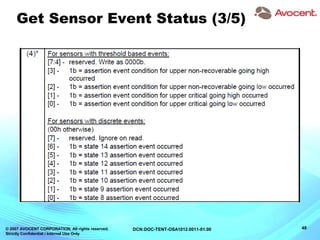

Get Sensor Event Status (3/5)

49. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
49DCN:DOC-TENT-OSA1012.0011-01.00

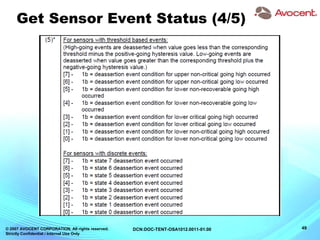

Get Sensor Event Status (4/5)

50. © 2007 AVOCENT CORPORATION. All rights reserved.
Strictly Confidential / Internal Use Only
50DCN:DOC-TENT-OSA1012.0011-01.00

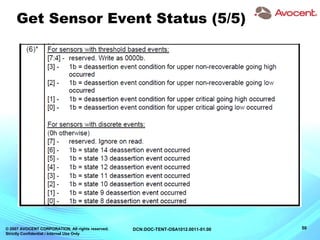

Get Sensor Event Status (5/5)
