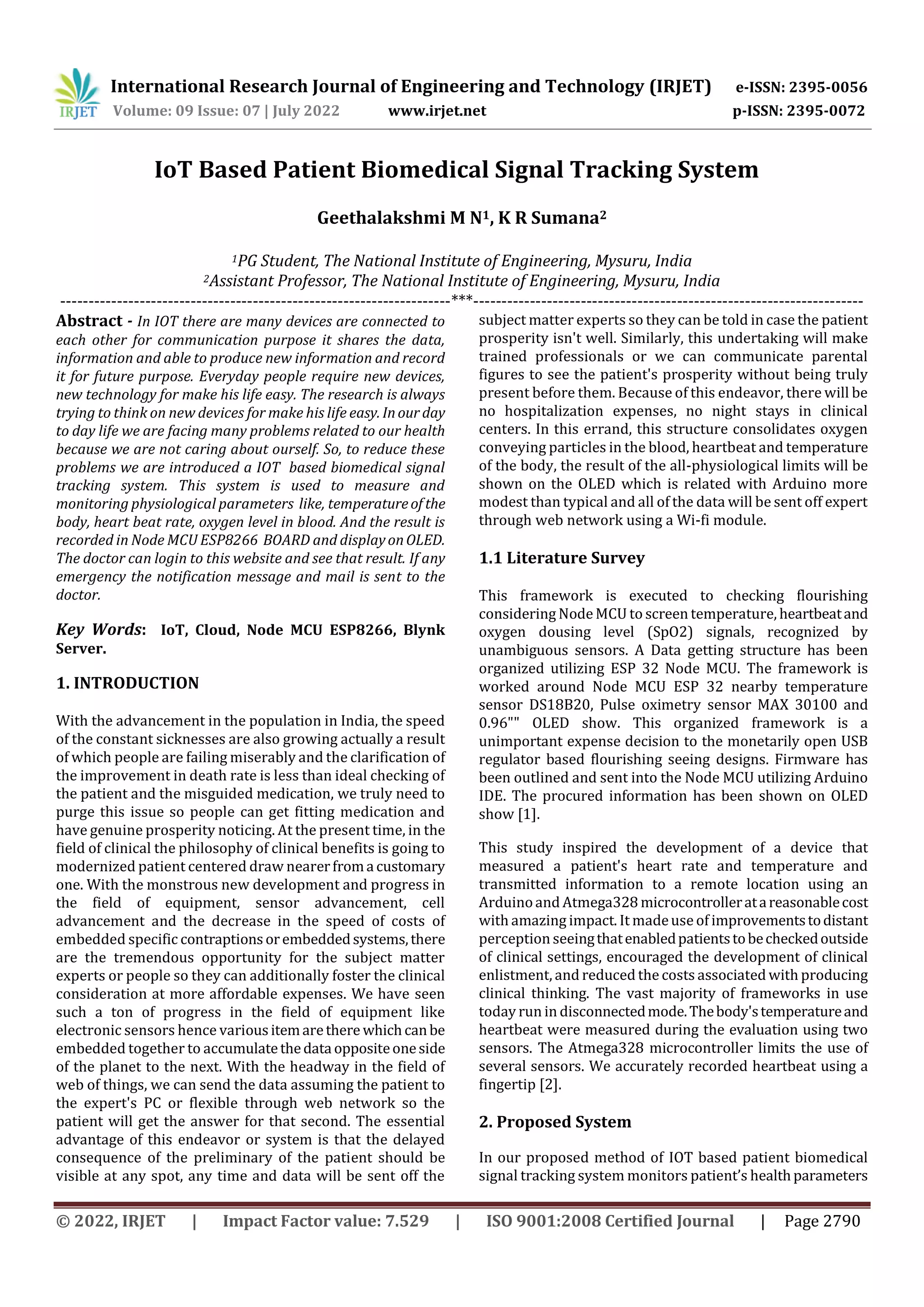

IoT Based Patient Biomedical Signal Tracking System
Geethalakshmi M N1, K R Sumana2
1PG Student, The National Institute of Engineering, Mysuru, India
2Assistant Professor, The National Institute of Engineering, Mysuru, India
---------------------------------------------------------------------***---------------------------------------------------------------------
Abstract - In IOT there are many devices are connected to
each other for communication purpose it shares the data,
information and able to produce new information and record
it for future purpose. Everyday people require new devices,
new technology for make his life easy. The research is always
trying to think on new devices for make his life easy. Inour day
to day life we are facing many problems related to our health
because we are not caring about ourself. So, to reduce these
problems we are introduced a IOT based biomedical signal
tracking system. This system is used to measure and
monitoring physiological parameters like, temperatureof the
body, heart beat rate, oxygen level in blood. And the result is
recorded in Node MCU ESP8266 BOARD and displayonOLED.
The doctor can login to this website and see that result. If any
emergency the notification message and mail is sent to the
doctor.
Key Words: IoT, Cloud, Node MCU ESP8266, Blynk
Server.
1. INTRODUCTION
With the advancement in the population in India, the speed
of the constant sicknesses are also growing actually a result
of which people are failing miserably and the clarification of
the improvement in death rate is less than ideal checking of
the patient and the misguided medication, we truly need to
purge this issue so people can get fitting medication and
have genuine prosperity noticing. At the present time, in the
field of clinical the philosophy of clinical benefits is going to
modernized patient centered draw nearerfroma customary
one. With the monstrous new development and progress in
the field of equipment, sensor advancement, cell
advancement and the decrease in the speed of costs of
embedded specific contraptionsorembeddedsystems,there
are the tremendous opportunity for the subject matter
experts or people so they can additionally foster the clinical
consideration at more affordable expenses. We have seen
such a ton of progress in the field of equipment like
electronic sensors hence variousitemarethere whichcanbe
embedded together to accumulatethedata oppositeoneside
of the planet to the next. With the headway in the field of
web of things, we can send the data assuming the patient to
the expert's PC or flexible through web network so the
patient will get the answer for that second. The essential
advantage of this endeavor or system is that the delayed
consequence of the preliminary of the patient should be
visible at any spot, any time and data will be sent off the
subject matter experts so they can be told in case the patient
prosperity isn't well. Similarly, this undertaking will make
trained professionals or we can communicate parental
figures to see the patient's prosperity without being truly
present before them. Because of this endeavor, there will be
no hospitalization expenses, no night stays in clinical
centers. In this errand, this structure consolidates oxygen
conveying particles in the blood, heartbeat and temperature
of the body, the result of the all-physiological limits will be
shown on the OLED which is related with Arduino more
modest than typical and all of the data will be sent off expert
through web network using a Wi-fi module.
1.1 Literature Survey
This framework is executed to checking flourishing
considering NodeMCU to screen temperature, heartbeatand
oxygen dousing level (SpO2) signals, recognized by
unambiguous sensors. A Data getting structure has been
organized utilizing ESP 32 Node MCU. The framework is
worked around Node MCU ESP 32 nearby temperature
sensor DS18B20, Pulse oximetry sensor MAX 30100 and
0.96ʺʺ OLED show. This organized framework is a
unimportant expense decision to the monetarily open USB
regulator based flourishing seeing designs. Firmware has
been outlined and sent into the Node MCU utilizing Arduino
IDE. The procured information has been shown on OLED
show [1].
This study inspired the development of a device that
measured a patient's heart rate and temperature and
transmitted information to a remote location using an
Arduinoand Atmega328 microcontrolleratareasonablecost
with amazing impact. It madeuse of improvementstodistant
perception seeingthatenabledpatientstobecheckedoutside
of clinical settings, encouraged the development of clinical
enlistment, and reduced the costs associated with producing
clinical thinking. The vast majority of frameworks in use
today run in disconnectedmode.Thebody'stemperatureand
heartbeat were measured during the evaluation using two
sensors. The Atmega328 microcontroller limits the use of
several sensors. We accurately recorded heartbeat using a
fingertip [2].
2. Proposed System
In our proposed method of IOT based patient biomedical
signal tracking system monitors patient’s healthparameters

using different sensors with Node MCU which having inbuilt
Wi-Fi and its performance is better than Arduino. Whole
system is based on latest IoT technology. Nod MCU collect
information from sensor the heart beat ratesensorandspo2
sensor and Arduino mini which collects the temperature
information and through serial communication data send to
node MCU which display the result on display unit. The
process information stored in cloud using inbuilt Wi-Fi Data
is updated in every 60 seconds.
The model consists of a Pulse Oximeter and heart beat rate
sensor (MAX30100), Body Temperature Sensor (DS18B20),
NODEMCU(ESP8266) Microcontroller, Arduino mini. All the
Sensors are connected to the GPIO pins of NODEMCU and a
suitable program is written in Arduino IDE software to read
the values all the sensors and display them in Blynk App as
well as in serial monitor of Arduino IDE software. After
Compilation, the program is loaded to the NODEMCU using
serial port. In Blynk App the values are displayed in widgets
which are designed by drag and drop method.

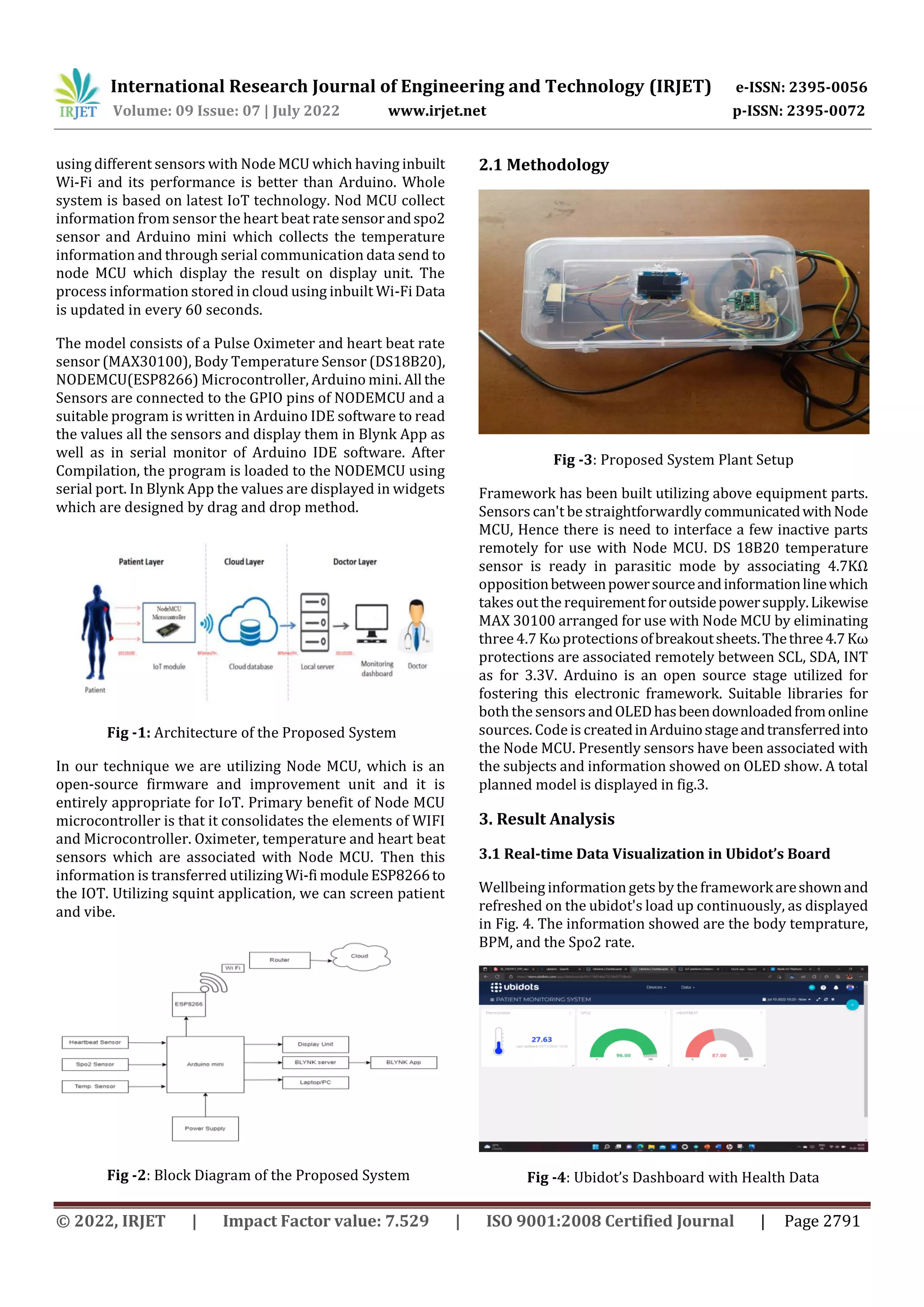

Fig -1: Architecture of the Proposed System
In our technique we are utilizing Node MCU, which is an
open-source firmware and improvement unit and it is
entirely appropriate for IoT. Primary benefit of Node MCU
microcontroller is that it consolidates the elements of WIFI
and Microcontroller. Oximeter, temperature and heart beat
sensors which are associated with Node MCU. Then this
information is transferred utilizingWi-fi module ESP8266to
the IOT. Utilizing squint application, we can screen patient
and vibe.
Fig -2: Block Diagram of the Proposed System
2.1 Methodology
Fig -3: Proposed System Plant Setup
Framework has been built utilizing above equipment parts.
Sensors can't be straightforwardly communicatedwithNode
MCU, Hence there is need to interface a few inactive parts
remotely for use with Node MCU. DS 18B20 temperature
sensor is ready in parasitic mode by associating 4.7KΩ
oppositionbetweenpowersourceandinformationlinewhich
takes out the requirementforoutsidepowersupply.Likewise
MAX 30100 arranged for use with Node MCU by eliminating
three 4.7 Kωprotectionsofbreakoutsheets.Thethree4.7Kω
protections are associated remotely between SCL, SDA, INT
as for 3.3V. Arduino is an open source stage utilized for
fostering this electronic framework. Suitable libraries for
both the sensors andOLEDhasbeendownloadedfromonline
sources. Codeis createdinArduinostageandtransferredinto
the Node MCU. Presently sensors have been associated with
the subjects and information showed on OLED show. A total
planned model is displayed in fig.3.
3. Result Analysis
3.1 Real-time Data Visualization in Ubidot’s Board
Wellbeing information gets by the frameworkareshownand
refreshed on the ubidot's load up continuously, as displayed
in Fig. 4. The information showed are the body temprature,
BPM, and the Spo2 rate.
Fig -4: Ubidot’s Dashboard with Health Data

The login clients can see the information alloted by the
administrator. The client assistance given by ubidot's board
empowers the relegated clients to monitor the client's
ailment. Fig. 5 shows the login connection of assigned user.

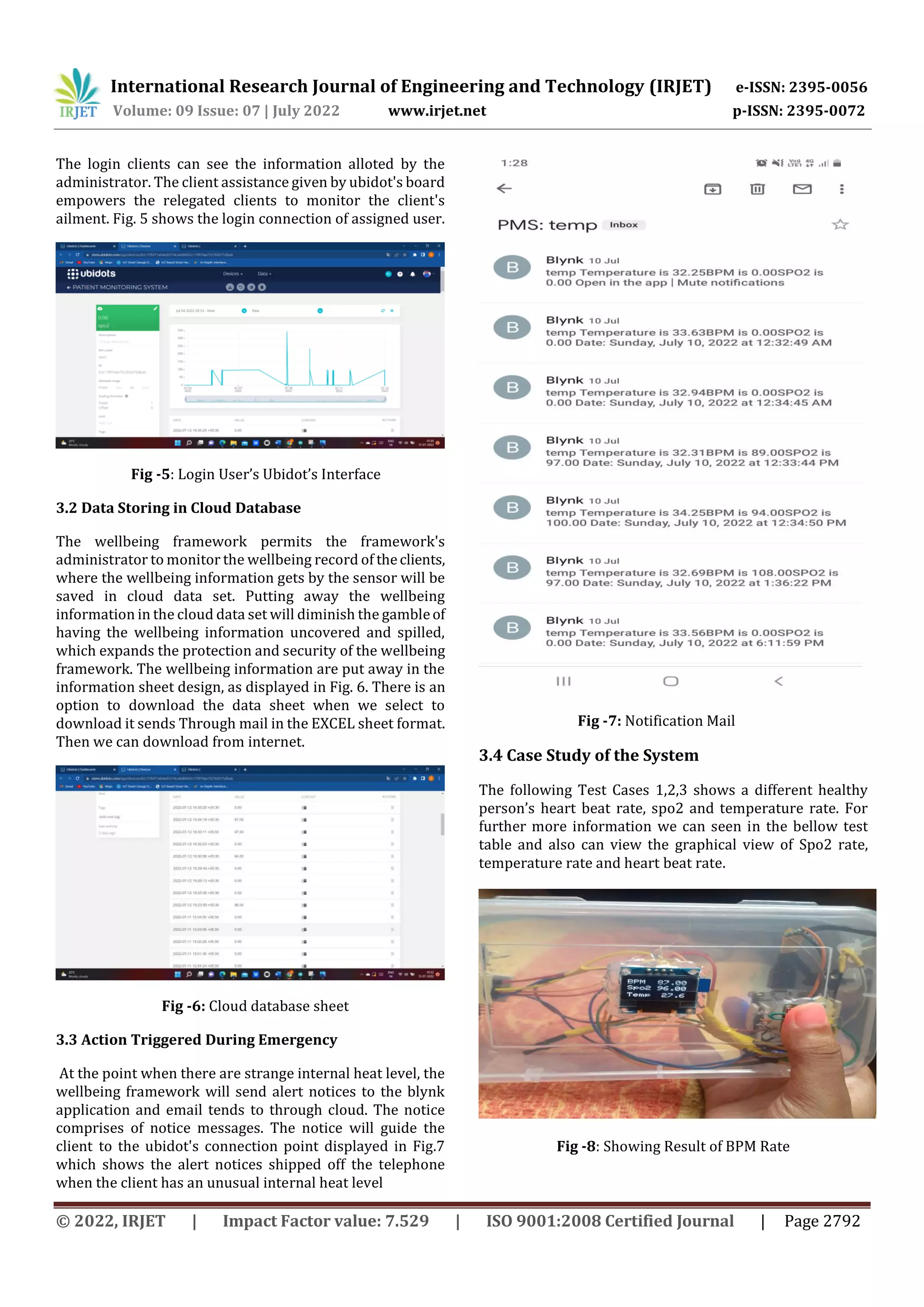

Fig -5: Login User’s Ubidot’s Interface
3.2 Data Storing in Cloud Database
The wellbeing framework permits the framework's
administrator to monitor the wellbeing record of theclients,
where the wellbeing information gets by the sensor will be
saved in cloud data set. Putting away the wellbeing
information in the cloud data set will diminish the gambleof
having the wellbeing information uncovered and spilled,
which expands the protection and security of the wellbeing
framework. The wellbeing information are put away in the
information sheet design, as displayed in Fig. 6. There is an
option to download the data sheet when we select to
download it sends Through mail in the EXCEL sheet format.
Then we can download from internet.
Fig -6: Cloud database sheet
3.3 Action Triggered During Emergency
At the point when there are strange internal heat level, the
wellbeing framework will send alert notices to the blynk
application and email tends to through cloud. The notice
comprises of notice messages. The notice will guide the
client to the ubidot's connection point displayed in Fig.7
which shows the alert notices shipped off the telephone
when the client has an unusual internal heat level
Fig -7: Notification Mail
3.4 Case Study of the System
The following Test Cases 1,2,3 shows a different healthy
person’s heart beat rate, spo2 and temperature rate. For
further more information we can seen in the bellow test
table and also can view the graphical view of Spo2 rate,
temperature rate and heart beat rate.
Fig -8: Showing Result of BPM Rate

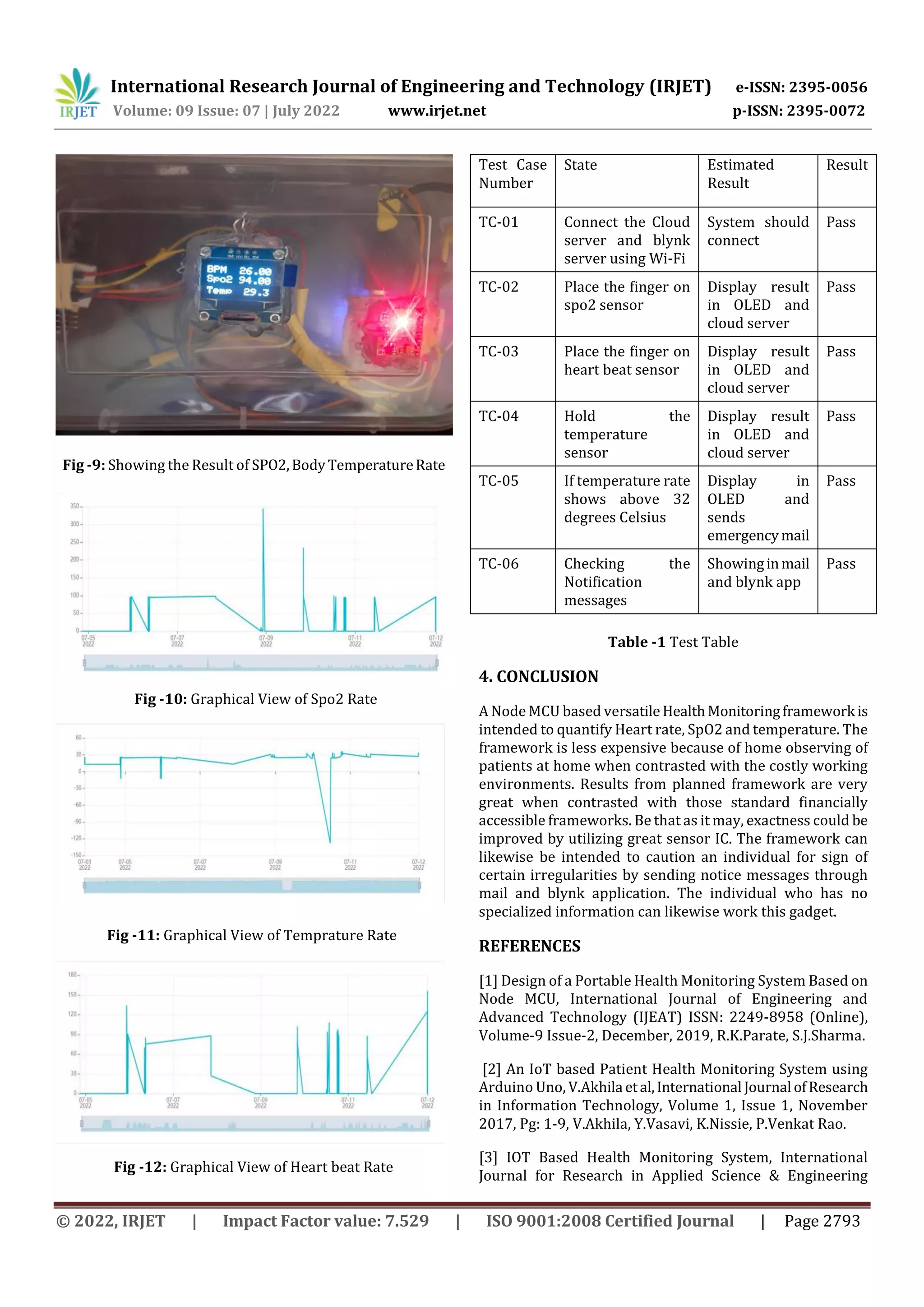

Fig -9: Showing the Result of SPO2,BodyTemperatureRate
Fig -10: Graphical View of Spo2 Rate
Fig -12: Graphical View of Heart beat Rate
Test Case
Number
State Estimated
Result
Result
TC-01 Connect the Cloud
server and blynk
server using Wi-Fi
System should
connect
Pass
TC-02 Place the finger on
spo2 sensor
Display result
in OLED and
cloud server
Pass
TC-03 Place the finger on
heart beat sensor
Display result
in OLED and
cloud server
Pass
TC-04 Hold the
temperature
sensor
Display result
in OLED and
cloud server
Pass
TC-05 If temperature rate
shows above 32
degrees Celsius
Display in
OLED and
sends
emergencymail
Pass
TC-06 Checking the
Notification
messages
Showinginmail
and blynk app
Pass
Table -1 Test Table
4. CONCLUSION
A Node MCU based versatile HealthMonitoringframework is
intended to quantify Heart rate, SpO2 and temperature. The
framework is less expensive because of home observing of
patients at home when contrasted with the costly working
environments. Results from planned framework are very
great when contrasted with those standard financially
accessible frameworks. Be that as it may, exactness could be
improved by utilizing great sensor IC. The framework can
likewise be intended to caution an individual for sign of
certain irregularities by sending notice messages through
mail and blynk application. The individual who has no
specialized information can likewise work this gadget.
REFERENCES
[1] Design of a Portable Health Monitoring System Based on
Node MCU, International Journal of Engineering and
Advanced Technology (IJEAT) ISSN: 2249-8958 (Online),
Volume-9 Issue-2, December, 2019, R.K.Parate, S.J.Sharma.
[2] An IoT based Patient Health Monitoring System using
Arduino Uno, V.Akhila etal,International Journal ofResearch
in Information Technology, Volume 1, Issue 1, November
2017, Pg: 1-9, V.Akhila, Y.Vasavi, K.Nissie, P.Venkat Rao.

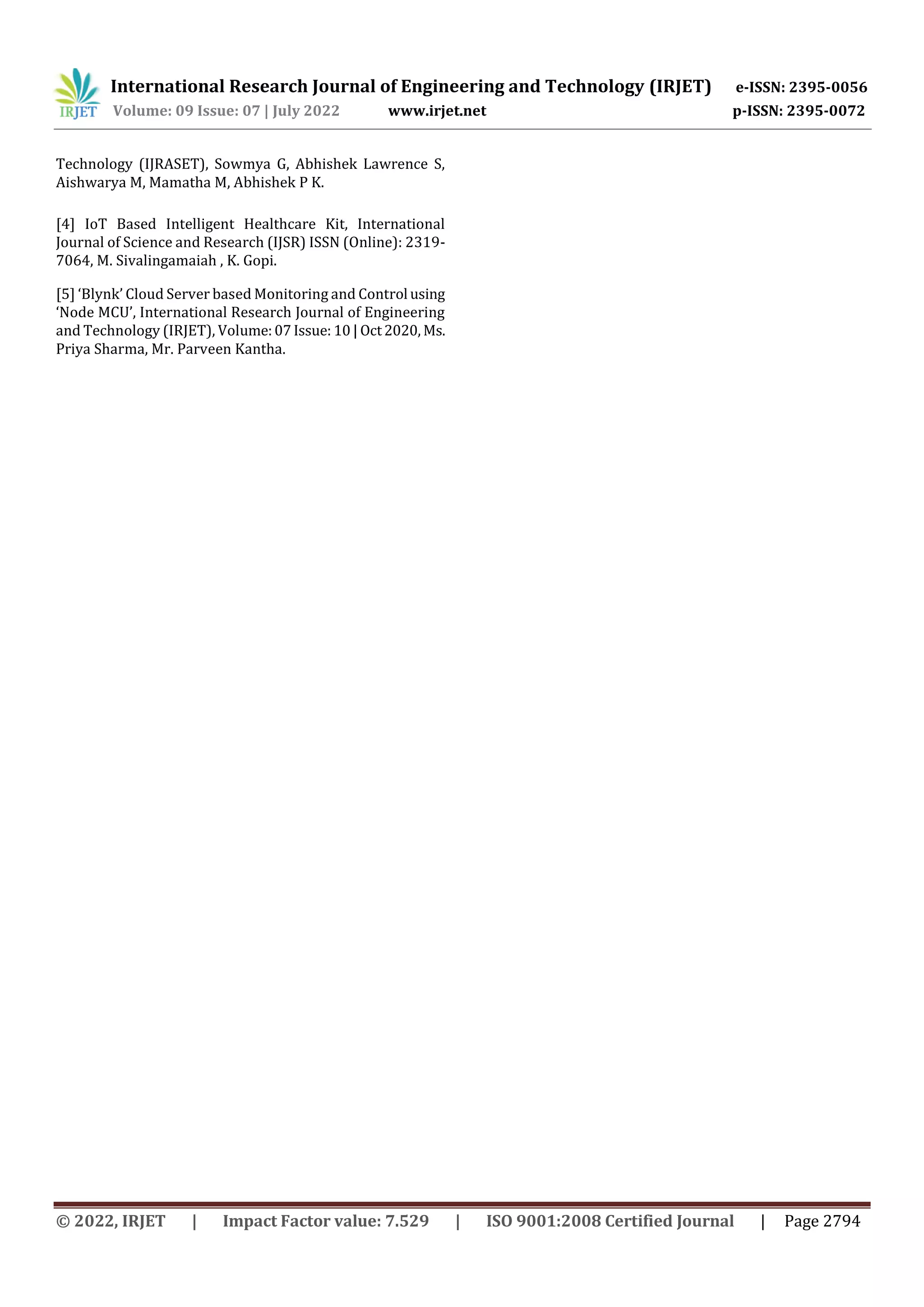

[3] IOT Based Health Monitoring System, International
Journal for Research in Applied Science & Engineering
Fig -11: Graphical View of Temprature Rate

Technology (IJRASET), Sowmya G, Abhishek Lawrence S,
Aishwarya M, Mamatha M, Abhishek P K.
[4] IoT Based Intelligent Healthcare Kit, International
Journal of Science and Research (IJSR) ISSN (Online): 2319-
7064, M. Sivalingamaiah , K. Gopi.
[5] ‘Blynk’ Cloud Server based Monitoring and Control using
‘Node MCU’, International Research Journal of Engineering
and Technology (IRJET), Volume:07Issue: 10| Oct2020, Ms.
Priya Sharma, Mr. Parveen Kantha.

IoT Based Patient Biomedical Signal Tracking System

More Related Content

Similar to IoT Based Patient Biomedical Signal Tracking System

More from IRJET Journal

Recently uploaded

IoT Based Patient Biomedical Signal Tracking System
