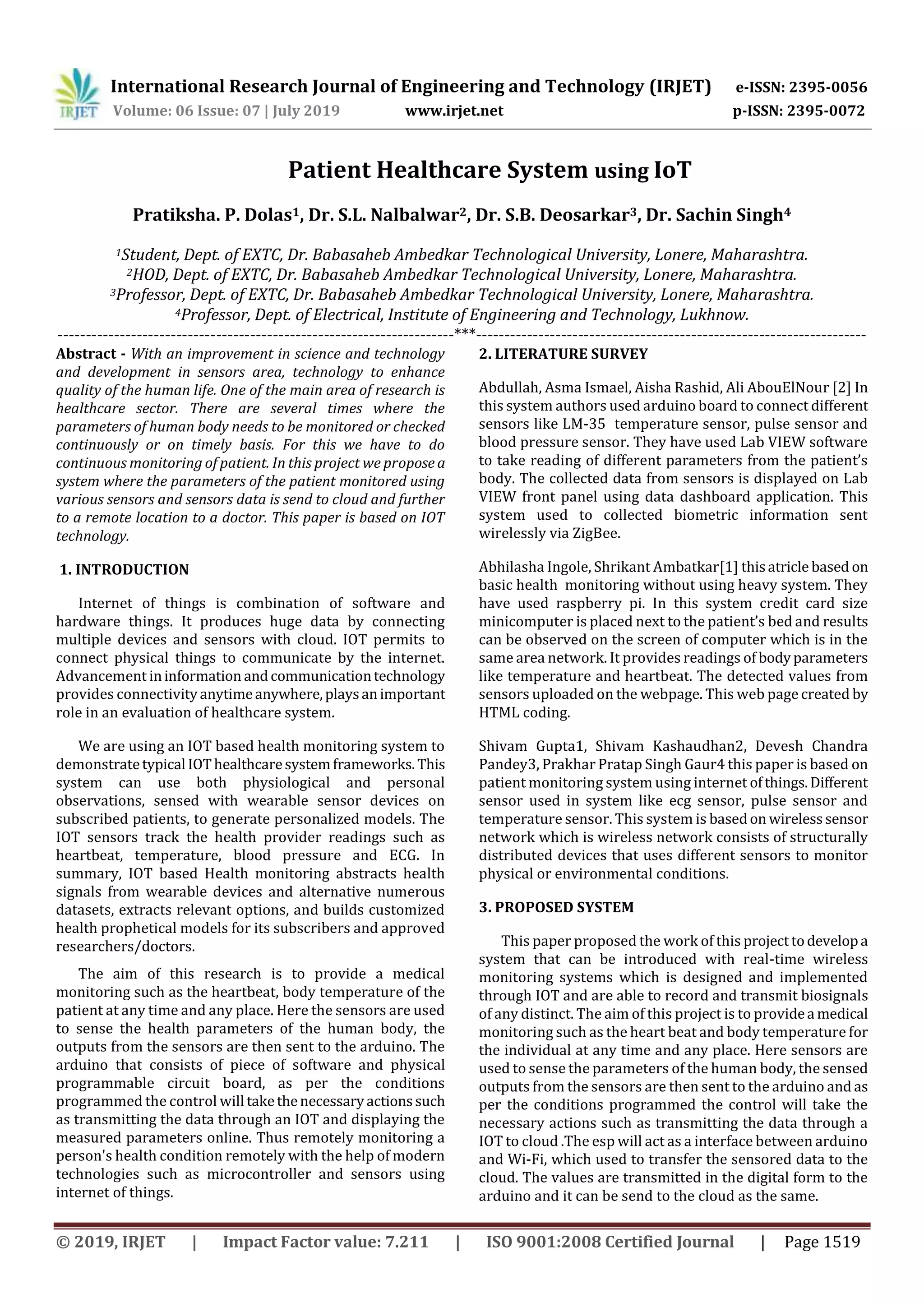

1. International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 06 Issue: 07 | July 2019 www.irjet.net p-ISSN: 2395-0072
© 2019, IRJET | Impact Factor value: 7.211 | ISO 9001:2008 Certified Journal | Page 1519
Patient Healthcare System using IoT
Pratiksha. P. Dolas1, Dr. S.L. Nalbalwar2, Dr. S.B. Deosarkar3, Dr. Sachin Singh4
1Student, Dept. of EXTC, Dr. Babasaheb Ambedkar Technological University, Lonere, Maharashtra.
2HOD, Dept. of EXTC, Dr. Babasaheb Ambedkar Technological University, Lonere, Maharashtra.
3Professor, Dept. of EXTC, Dr. Babasaheb Ambedkar Technological University, Lonere, Maharashtra.
4Professor, Dept. of Electrical, Institute of Engineering and Technology, Lukhnow.
----------------------------------------------------------------------***---------------------------------------------------------------------
Abstract - With an improvement in science and technology
and development in sensors area, technology to enhance
quality of the human life. One of the main area of research is
healthcare sector. There are several times where the
parameters of human body needs to be monitored or checked
continuously or on timely basis. For this we have to do
continuous monitoring of patient. In this project we propose a
system where the parameters of the patient monitored using
various sensors and sensors data is send to cloud and further
to a remote location to a doctor. This paper is based on IOT
technology.
1. INTRODUCTION
Internet of things is combination of software and
hardware things. It produces huge data by connecting
multiple devices and sensors with cloud. IOT permits to
connect physical things to communicate by the internet.
Advancement ininformation andcommunicationtechnology
provides connectivity anytimeanywhere,playsanimportant
role in an evaluation of healthcare system.
We are using an IOT based health monitoring system to
demonstratetypical IOThealthcaresystemframeworks.This
system can use both physiological and personal
observations, sensed with wearable sensor devices on
subscribed patients, to generate personalized models. The
IOT sensors track the health provider readings such as
heartbeat, temperature, blood pressure and ECG. In
summary, IOT based Health monitoring abstracts health
signals from wearable devices and alternative numerous
datasets, extracts relevant options, and builds customized
health prophetical models for its subscribers and approved
researchers/doctors.
The aim of this research is to provide a medical
monitoring such as the heartbeat, body temperature of the
patient at any time and any place. Here the sensors are used
to sense the health parameters of the human body, the
outputs from the sensors are then sent to the arduino. The
arduino that consists of piece of software and physical
programmable circuit board, as per the conditions
programmed the control will takethenecessaryactionssuch
as transmitting the data through an IOT and displaying the
measured parameters online. Thus remotely monitoring a
person's health condition remotely with the help of modern
technologies such as microcontroller and sensors using
internet of things.
2. LITERATURE SURVEY
Abdullah, Asma Ismael, Aisha Rashid, Ali AbouElNour [2] In
this system authors used arduino board to connect different
sensors like LM-35 temperature sensor, pulse sensor and
blood pressure sensor. They have used Lab VIEW software
to take reading of different parameters from the patient’s
body. The collected data from sensors is displayed on Lab
VIEW front panel using data dashboard application. This
system used to collected biometric information sent
wirelessly via ZigBee.
Abhilasha Ingole, Shrikant Ambatkar[1] thisatricle based on
basic health monitoring without using heavy system. They
have used raspberry pi. In this system credit card size
minicomputer is placed next to the patient’s bed and results
can be observed on the screen of computer which is in the
same area network. It provides readings of bodyparameters
like temperature and heartbeat. The detected values from
sensors uploaded on the webpage. This web page created by
HTML coding.
Shivam Gupta1, Shivam Kashaudhan2, Devesh Chandra
Pandey3, Prakhar Pratap Singh Gaur4 this paper is based on
patient monitoring system using internet ofthings.Different
sensor used in system like ecg sensor, pulse sensor and
temperature sensor. This system is basedon wirelesssensor
network which is wireless network consists of structurally
distributed devices that uses different sensors to monitor
physical or environmental conditions.
3. PROPOSED SYSTEM
This paper proposed the work of this projecttodevelopa
system that can be introduced with real-time wireless
monitoring systems which is designed and implemented
through IOT and are able to record and transmit biosignals
of any distinct. The aim of this project is to providea medical
monitoring such as the heart beat and body temperature for
the individual at any time and any place. Here sensors are
used to sense the parameters of the human body, the sensed
outputs from the sensors are then sent to the arduino and as
per the conditions programmed the control will take the
necessary actions such as transmitting the data through a
IOT to cloud .The esp will act as a interface between arduino
and Wi-Fi, which used to transfer the sensored data to the
cloud. The values are transmitted in the digital form to the
arduino and it can be send to the cloud as the same.

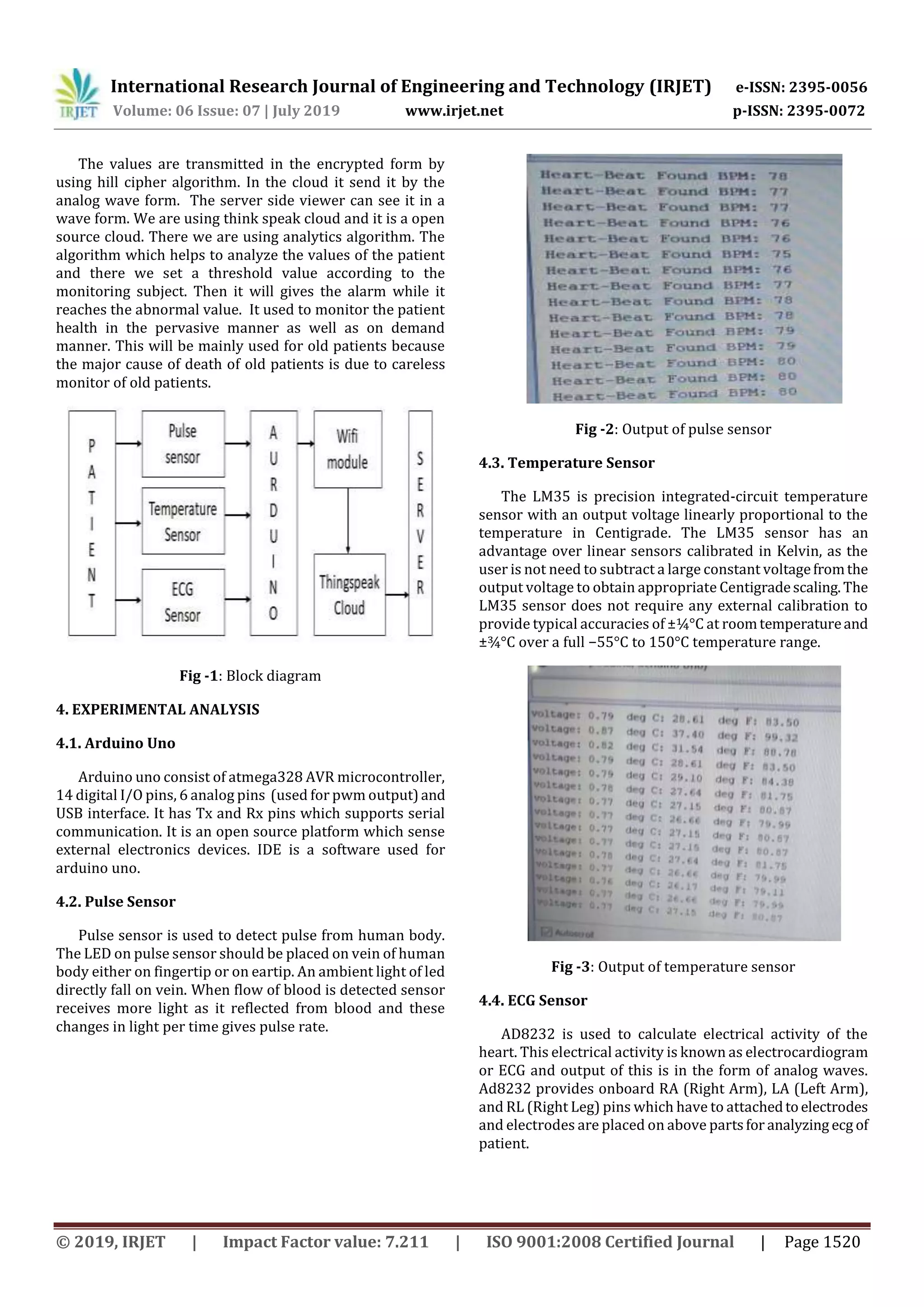

2. International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 06 Issue: 07 | July 2019 www.irjet.net p-ISSN: 2395-0072
© 2019, IRJET | Impact Factor value: 7.211 | ISO 9001:2008 Certified Journal | Page 1520
The values are transmitted in the encrypted form by
using hill cipher algorithm. In the cloud it send it by the
analog wave form. The server side viewer can see it in a
wave form. We are using think speak cloud and it is a open
source cloud. There we are using analytics algorithm. The
algorithm which helps to analyze the values of the patient
and there we set a threshold value according to the
monitoring subject. Then it will gives the alarm while it
reaches the abnormal value. It used to monitor the patient
health in the pervasive manner as well as on demand
manner. This will be mainly used for old patients because
the major cause of death of old patients is due to careless
monitor of old patients.
Fig -1: Block diagram
4. EXPERIMENTAL ANALYSIS
4.1. Arduino Uno
Arduino uno consist of atmega328 AVR microcontroller,
14 digital I/O pins, 6 analog pins (used for pwm output)and
USB interface. It has Tx and Rx pins which supports serial
communication. It is an open source platform which sense
external electronics devices. IDE is a software used for
arduino uno.
4.2. Pulse Sensor
Pulse sensor is used to detect pulse from human body.
The LED on pulse sensor should be placed on vein of human
body either on fingertip or on eartip. An ambient light of led
directly fall on vein. When flow of blood is detected sensor
receives more light as it reflected from blood and these
changes in light per time gives pulse rate.
Fig -2: Output of pulse sensor
4.3. Temperature Sensor
The LM35 is precision integrated-circuit temperature
sensor with an output voltage linearly proportional to the
temperature in Centigrade. The LM35 sensor has an
advantage over linear sensors calibrated in Kelvin, as the
user is not need to subtract a large constant voltagefromthe
output voltage to obtain appropriate Centigradescaling.The
LM35 sensor does not require any external calibration to
provide typical accuracies of ±¼°C at roomtemperatureand
±¾°C over a full −55°C to 150°C temperature range.
Fig -3: Output of temperature sensor
4.4. ECG Sensor
AD8232 is used to calculate electrical activity of the
heart. This electrical activity is known as electrocardiogram
or ECG and output of this is in the form of analog waves.
Ad8232 provides onboard RA (Right Arm), LA (Left Arm),
and RL (Right Leg) pins which have to attachedtoelectrodes
and electrodes are placed on above partsfor analyzing ecg of
patient.

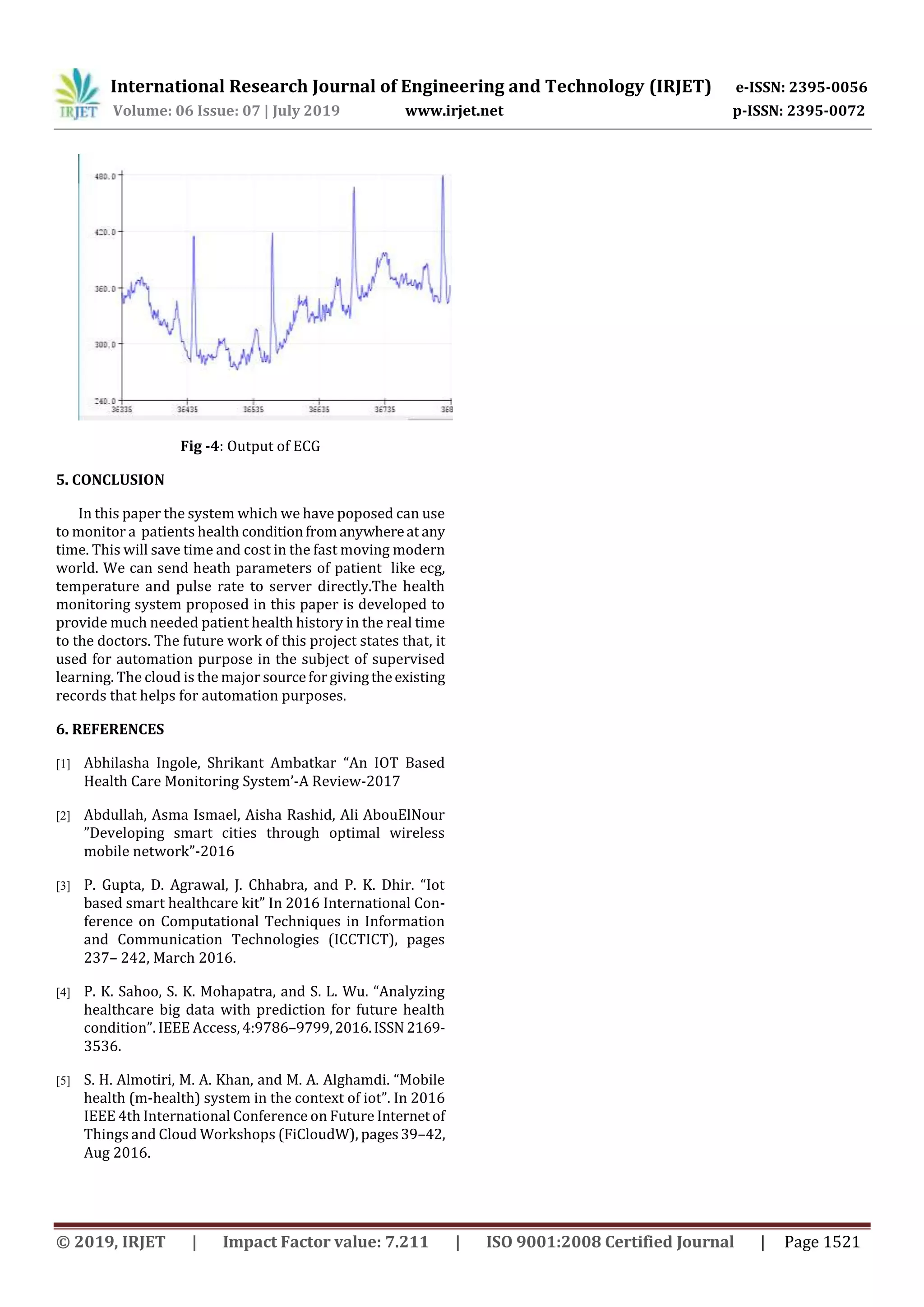

3. International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 06 Issue: 07 | July 2019 www.irjet.net p-ISSN: 2395-0072
© 2019, IRJET | Impact Factor value: 7.211 | ISO 9001:2008 Certified Journal | Page 1521
Fig -4: Output of ECG
5. CONCLUSION
In this paper the system which we have poposed can use
to monitor a patients health conditionfromanywhereat any
time. This will save time and cost in the fast moving modern
world. We can send heath parameters of patient like ecg,
temperature and pulse rate to server directly.The health
monitoring system proposed in this paper is developed to
provide much needed patient health history in the real time
to the doctors. The future work of this project states that, it
used for automation purpose in the subject of supervised
learning. The cloud is the major sourceforgivingtheexisting
records that helps for automation purposes.
