The system to monitor the air of environment using arduino micro controller. Iot technology proposed to improve quality of air. Gas sensor gives the sense of different type of dangerous gases. It supports new technology and healthy life concept.

1. IoT Based Air Pollution Monitoring System Using
Arduino
Presentation
By
Binayak Kumar Reddy

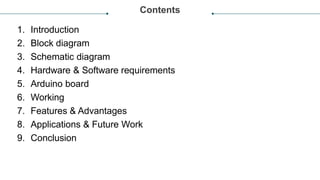

2. Contents
1. Introduction
2. Block diagram
3. Schematic diagram
4. Hardware & Software requirements
5. Arduino board
6. Working
7. Features & Advantages
8. Applications & Future Work
9. Conclusion

3. Introduction
• The main objective of this project is to monitor the air eminence in
industrial and urban areas.
• In this Arduino platform is used to communicate the data simply and
quickly.
• WSN (Wireless sensor network) acts as the trans receiver.
communication technology.
• The projected monitoring system can be transferred to or shared by
different applications. Through IOT we can able to visualize the values
from the globe.
• Keywords – Wireless Sensor Network(WSN), Air Quality Monitoring
Systems (AQMS), Gas Sensors (CO).

4. Block Diagram

5. Schematic Diagram

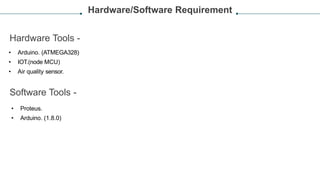

6. Hardware/Software Requirement
• Arduino. (ATMEGA328)
• IOT.(node MCU)
• Air quality sensor.
Software Tools -
• Proteus.
• Arduino. (1.8.0)
Hardware Tools -

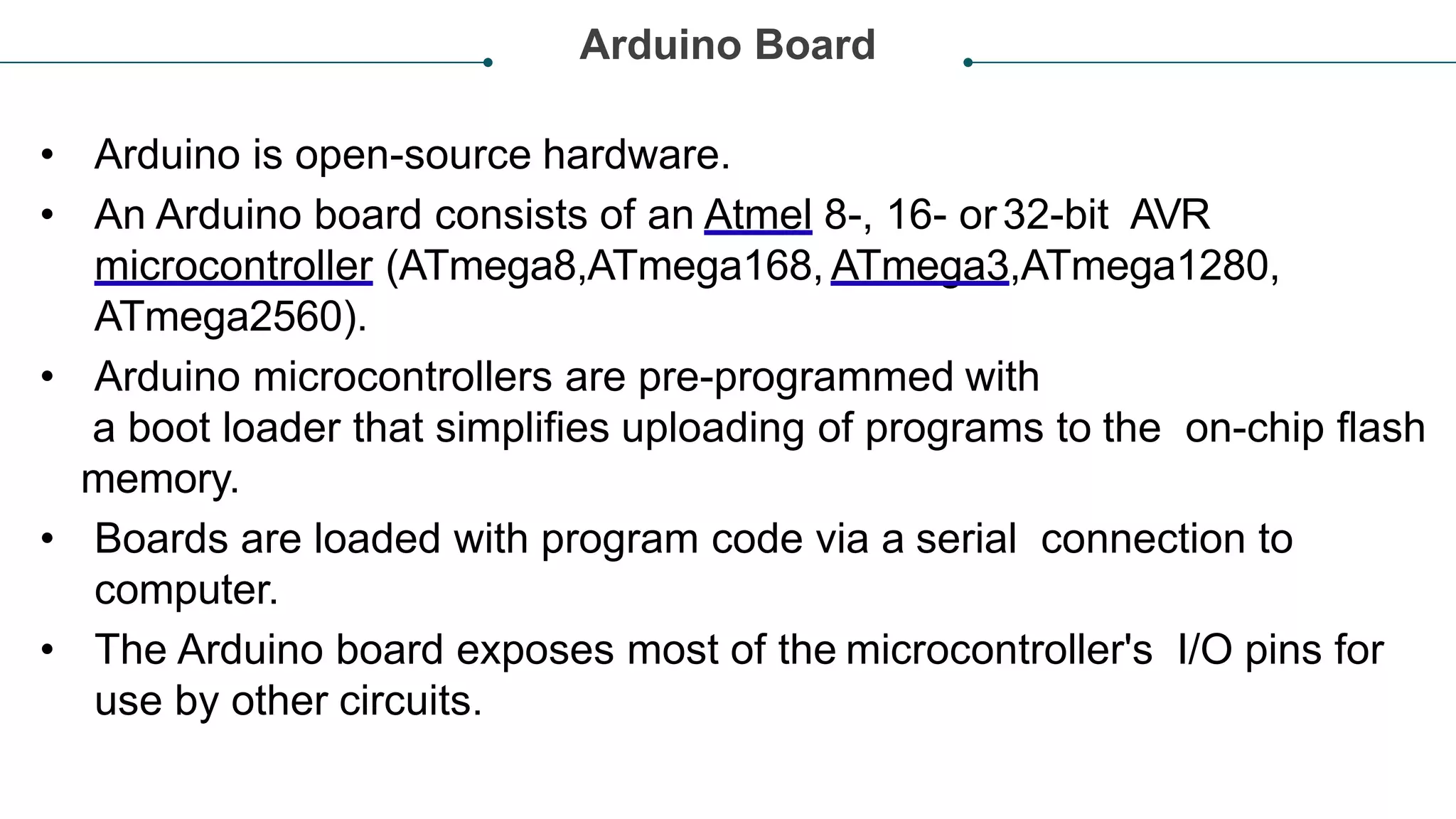

7. Arduino Board
• Arduino is open-source hardware.
• An Arduino board consists of an Atmel 8-, 16- or32-bit AVR
microcontroller (ATmega8,ATmega168, ATmega3,ATmega1280,
ATmega2560).
• Arduino microcontrollers are pre-programmed with
a boot loader that simplifies uploading of programs to the on-chip flash
memory.
• Boards are loaded with program code via a serial connection to
computer.
• The Arduino board exposes most of the microcontroller's I/O pins for
use by other circuits.

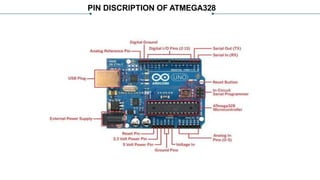

8. PIN DISCRIPTION OF ATMEGA328

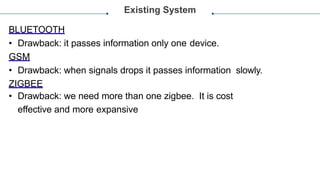

9. Existing System
BLUETOOTH
• Drawback: it passes information only one device.
GSM
• Drawback: when signals drops it passes information slowly.
ZIGBEE
• Drawback: we need more than one zigbee. It is cost
effective and more expansive

10. Proposed System

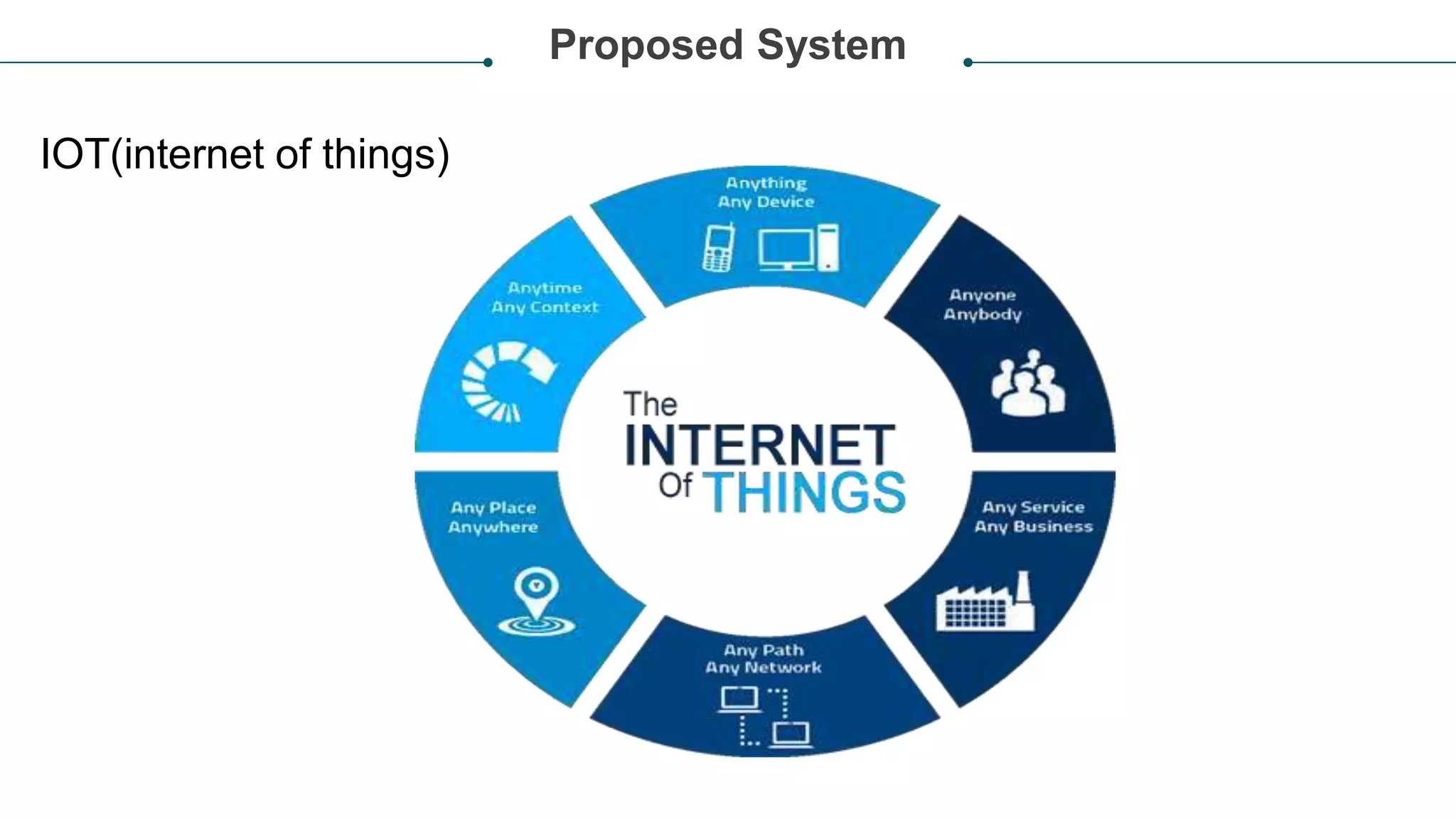

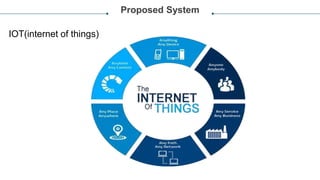

IOT(internet of things)

11. Proposed System
IOT(NODE MCU)
• Node mcu is an open source iot platform.
• It includes firmware which runs on the ESP8266 WIFI SOC from
Espressif Systems,and hardware which is based on the ESP-12
module.
• The firmware uses the Lua scripting language.
• It is based on the eLua project,and built on the Espressif Non-OS
SDK for ESP8266.
• It uses many open source projects,such as lua- cjson,and spiffs.

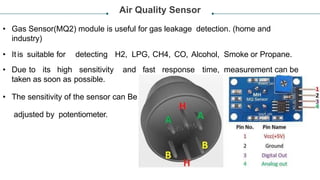

12. Air Quality Sensor
• Gas Sensor(MQ2) module is useful for gas leakage detection. (home and
industry)
• It is suitable for detecting H2, LPG, CH4, CO, Alcohol, Smoke or Propane.
• Due to its high sensitivity and fast response time, measurement can be
taken as soon as possible.
• The sensitivity of the sensor can Be
adjusted by potentiometer.

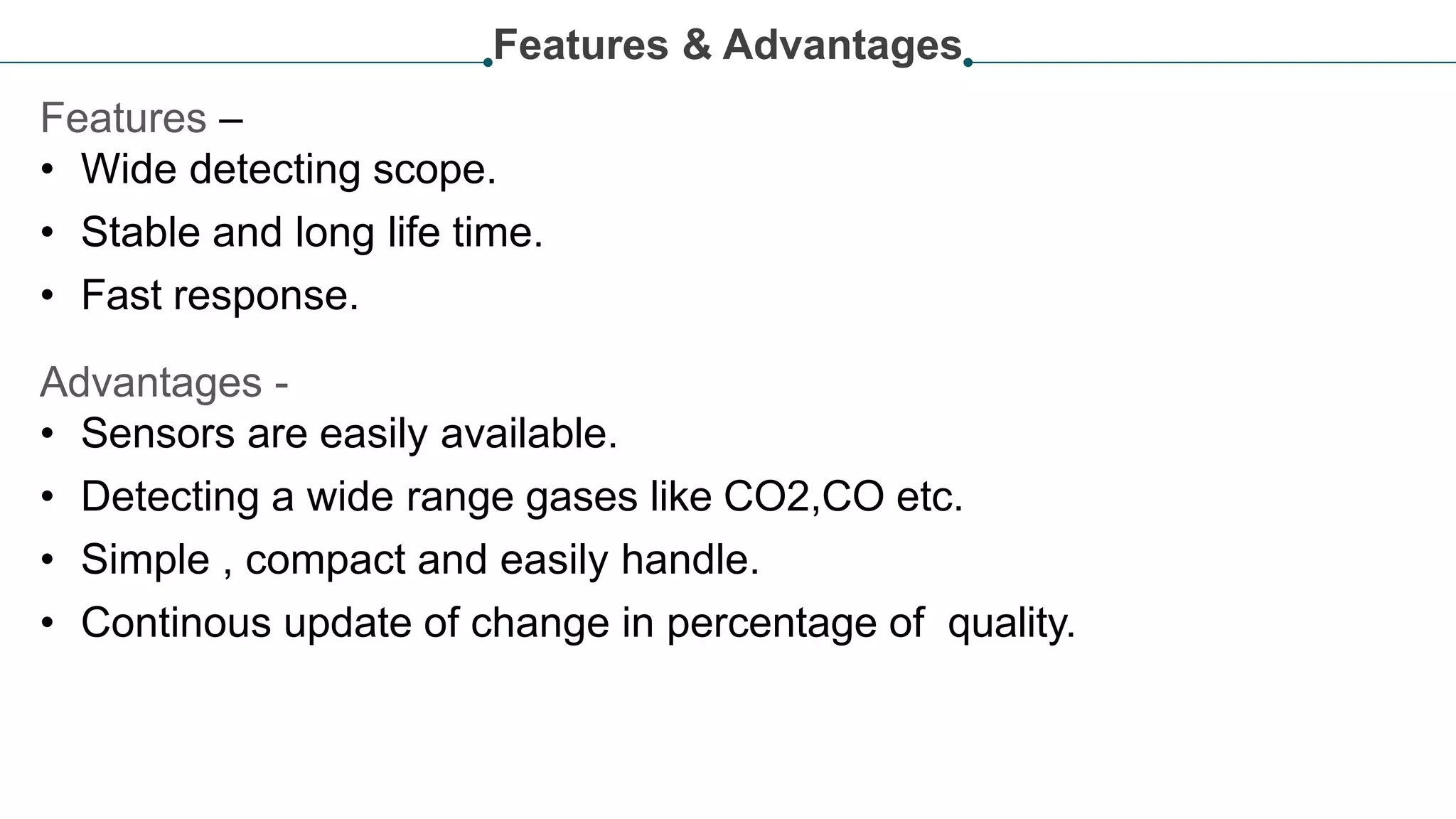

13. Features & Advantages
Features –
• Wide detecting scope.
• Stable and long life time.
• Fast response.
Advantages -
• Sensors are easily available.
• Detecting a wide range gases like CO2,CO etc.
• Simple , compact and easily handle.
• Continous update of change in percentage of quality.

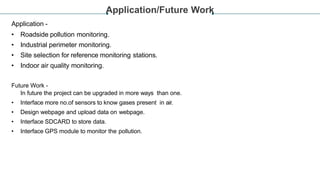

14. Application/Future Work
Application -
• Roadside pollution monitoring.
• Industrial perimeter monitoring.
• Site selection for reference monitoring stations.
• Indoor air quality monitoring.
Future Work -
In future the project can be upgraded in more ways than one.
• Interface more no.of sensors to know gases present in air.
• Design webpage and upload data on webpage.
• Interface SDCARD to store data.
• Interface GPS module to monitor the pollution.

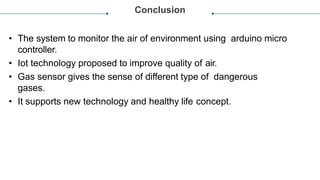

15. Conclusion
• The system to monitor the air of environment using arduino micro
controller.
• Iot technology proposed to improve quality of air.
• Gas sensor gives the sense of different type of dangerous
gases.
• It supports new technology and healthy life concept.

16. Thank You
