The document provides an overview of Struts 2, an open-source MVC framework for developing Java web applications. It discusses how Struts 2 uses plain POJO action classes and annotation-based configuration for simplifying code structure. The document also includes examples of Struts 2 validation and interceptors to reduce coupling. Finally, it lists the company's social media accounts for further contact.

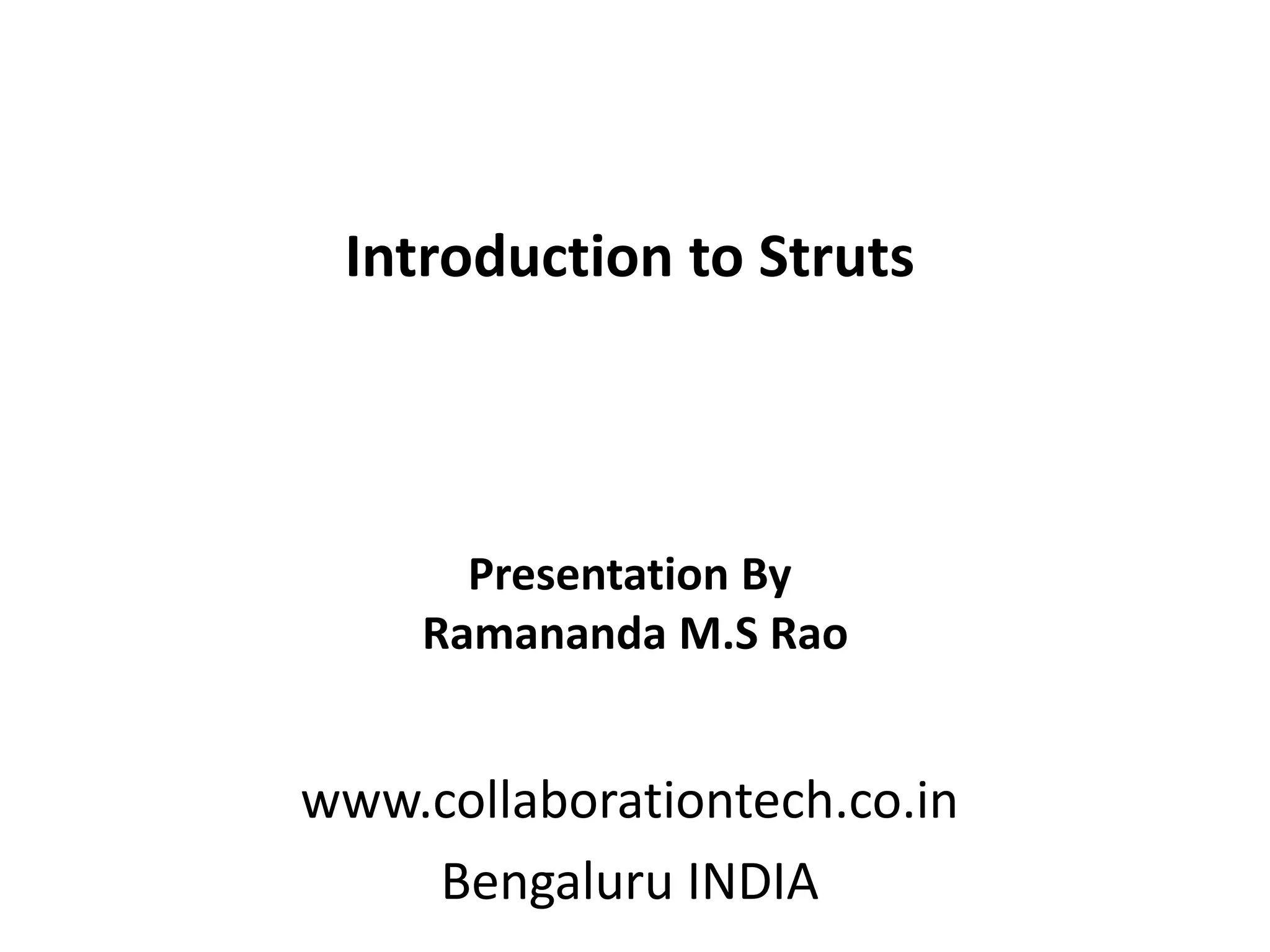

1. Introduction to Struts
www.collaborationtech.co.in
Bengaluru INDIA
Presentation By
Ramananda M.S Rao

2. Content
Content
Overview
Get Started
STR UTS 1.X
STR UTS 2
Struts2 Configuration
Interceptors
Struts 2 & Ajax Validation
Struts2 with I18N
About Us
www.collaborationtech.co.in

3. Overview
 Struts2 is popular and mature web application framework based
on the MVC design pattern. Struts2 is not just the next version of
Struts 1, but it is a complete rewrite of the Struts architecture.
 Struts2 supports annotation based configurations which are easy
to create and more intuitive. Action class in Struts 2 act as the
model in the web application. Unlike Struts 1.X, Struts 2 Action
class are plain POJO objects, thus simplifying the testing of the
code.
 Struts2 also comes with power APIs to configure Interceptors that
reduce greatly the coupling in application. The view part of Struts 2
is highly configurable and it supports different result-types such as
Velocity, FreeMarker, JSP, etc.
www.collaborationtech.co.in

4. Struts 2 - Validation
Register.java
package collaba.validation;
import com.opensymphony.xwork2.ActionSupport;
public class Register extends ActionSupport{
private String name,password,email;
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
public String getName() {
return name;
}
www.collaborationtech.co.in

5. Struts 2 - Validation
public void setName(String name) {
this.name = name;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
public String execute(){
return "success";
}
}
Register-validation.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE validators PUBLIC "-//OpenSymphony Group//XWork Validator 1.0.2//EN"
"http://www.opensymphony.com/xwork/xwork-validator-1.0.2.dtd">
www.collaborationtech.co.in

6. Struts 2 - Validation
<validators>
<field name="name">
<field-validator type="requiredstring">
<message>Name can't be blank</message>
</field-validator>
</field>
<field name="email">
<field-validator type="requiredstring">
<message>Email ID can't be blank</message>
</field-validator>
<field-validator type="email">
<message>Please enter a valid email ID</message>
</field-validator>
</field>
<field name="password">
<field-validator type="requiredstring">
<message>Password can't be blank</message>
</field-validator>
<field-validator type="stringlength">
<param name="minLength">5</param>
<param name="maxLength">10</param>
<message>Password can't be less than 5 or greater than 10</message>
</field-validator>
</field>
</validators>
www.collaborationtech.co.in

7. Struts 2 - Validation
struts.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC "-//Apache Software Foundation//DTD Struts Configuration 2.1//EN"
"http://struts.apache.org/dtds/struts-2.1.dtd">
<struts>
<package name="a" extends="struts-default">
<action name="register" class="collaba.validation.Register">
<interceptor-ref name="jsonValidationWorkflowStack"></interceptor-ref>
<result name="success">/welcome.jsp</result>
<result name="input">/index.jsp</result>
</action>
</package>
</struts>
www.collaborationtech.co.in

8. Struts 2 - Validation
WEB-INF
Web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
<filter>
<filter-name>struts2</filter-name>
<filter-class>
org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter
</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping></web-app>
www.collaborationtech.co.in

9. Struts 2 - Validation
index.jsp
<%@ taglib uri="/struts-tags" prefix="s"%>
<%@ taglib uri="/struts-dojo-tags" prefix="d"%>
<html>
<head>
<d:head/>
</head>
<body><marquee>Registration Page.............</marquee>
<s:form action="register">
<s:textfield name="name" label="Username"></s:textfield>
<s:textfield name="email" label="Email ID"></s:textfield>
<s:password name="password" label="Password"></s:password>
<d:submit validate="true" type="image" src="reg.jpg"></d:submit>
</s:form>
</body>
</html>
welcome.jsp
<%@ taglib uri="/struts-tags" prefix="s" %>
Welcome, <s:property value="name"/>
www.collaborationtech.co.in

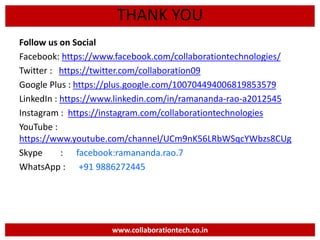

10. Follow us on Social
