The SAML protocol presentation discusses Single Sign-On (SSO) and the Security Assertion Markup Language (SAML) standard. It provides an overview of how SAML enables SSO between an Identity Provider (IDP) and Service Provider (SP) by allowing the IDP to authenticate a principal and issue a SAML response to the SP. The presentation also recommends several open source SAML identity and service provider implementations that can be used to enable SSO.

1. The SAML Protocol
Clément OUDOT
FOSDEM 2014

2. Clément OUDOT
Work
10
Free software
2

3. Single Sign On
3

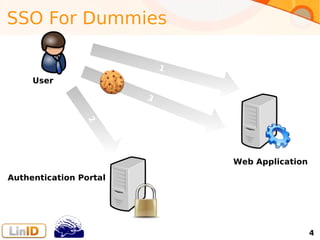

4. SSO For Dummies
1
User
3
2
Web Application
Authentication Portal
02/01/14
http://lemonldap-ng.org
4

5. SAML protocol
5

6. SAML
Security
Assertion
Markup
Language
6

7. A standard
●
SAML is an OASIS standard, described in:
●
saml-core-2.0-os: 86 pages
●
saml-authn-context-2.0-os: 70 pages
●
saml-bindings-2.0-os: 46 pages
●
saml-conformance-2.0-os: 19 pages
●
saml-metadata-2.0-os: 43 pages
●
saml-profiles-2.0-os: 66 pages

8. SAML For Dummies
1
SAML
AuthnResponse
Principal
SAML
AuthnRequest
3
2
Service Provider
(SP)
Identity Provider
(IDP)
02/01/14
http://lemonldap-ng.org
8

9. SAML AuthnRequest
<samlp:AuthnRequest
xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"
xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion"
ID="_1e2c45b773e7d423f0219e8151fdd8fce24f15ba06"
Version="2.0"
IssueInstant="2014-02-01T09:21:30Z"
Destination="http://auth.example.com/saml/singleSignOn
ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST">
<saml:Issuer>
http://localhost/simplesamlphp/module.php/saml/sp/metadata.php/default-sp
</saml:Issuer>
<samlp:NameIDPolicy
Format="urn:oasis:names:tc:SAML:2.0:nameid-format:transient"
AllowCreate="true"
/>
</samlp:AuthnRequest>

10. amlp:Response xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion"
="_7C1F81C9A66969B2142EE7FDD88DDFE6" InResponseTo="_1e2c45b773e7d423f0219e8151fdd8fce24f15ba06" Version="2.0"
ueInstant="2014-02-01T09:27:32Z" Destination="http://localhost/simplesamlphp/module.php/saml/sp/saml2-acs.php/default-sp" >
aml:Issuer>http://auth.example.com/saml/metadata</saml:Issuer> <Signature xmlns="http://www.w3.org/2000/09/xmldsig#">
gnedInfo> <CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" /> <SignatureMethod
orithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1" /> <Reference URI="#_7C1F81C9A66969B2142EE7FDD88DDFE6">
ransforms> <Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature" /> <Transform
orithm="http://www.w3.org/2001/10/xml-exc-c14n#" /> </Transforms> <DigestMethod
orithm="http://www.w3.org/2000/09/xmldsig#sha1" /> <DigestValue>G6SgXRVQNjx+ygGLrbM4iROE/oM=</DigestValue> </Refere
SignedInfo> <SignatureValue>IiGxqykAnw7leBVCTRyM5ynrZmwYbs5cEBV7D6iiKjy8gOEA8zjGfUuyPmCgDhNv
zuWbyIcQ20E/MkuQqKDCuT0vxnCmHxzZsKfAzrZcJOvEjEhhAy+piXIMqRV0fI
SZesz952myQa2T8u/CWpzKpwd74D+KUBKVb11IViEc5hhtDnR7/qTJAC2eAqgZ
YgWCgqwIAuZiplKOZd5CbAFsc6WWGws8ibyrDRfe66hbhL1BfZf7oWBIAX9bg
CpjdTIDT0ezrWOG00jaj9lq/2PS6asxuEMhzxFW30RDttkA88LJ/I8tpMbia4 ePetXQc3JgE7XPO3FXLTPg==</SignatureValue> </Signature
amlp:Status> <samlp:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success" /> </samlp:Status> <saml:Assertion Version
="_010733F043795952C49CC92549117C0B" IssueInstant="2014-02-01T09:27:32Z" >
aml:Issuer>http://auth.example.com/saml/metadata</saml:Issuer> <Signature xmlns="http://www.w3.org/2000/09/xmldsig#">
gnedInfo> <CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" /> <SignatureMethod
orithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1" /> <Reference URI="#_010733F043795952C49CC92549117C0B"> <Trans
ransform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature" /> <Transform
orithm="http://www.w3.org/2001/10/xml-exc-c14n#" /> </Transforms> <DigestMethod
orithm="http://www.w3.org/2000/09/xmldsig#sha1" /> <DigestValue>yLe6dFDmmJYlXDJA/BhtO2XyZ7c=</DigestValue> </Referen
SignedInfo> <SignatureValue>LKNiSDR9Vylb9v0s+ghKl564XHBdNcKQf+8KjHd8qOpusKGZFhPC31vgWktWpsT2
ENrAEPSox7YaQJocSRFutndNOc1o/qgAifNqdbwNjV1FPJXLbf7rJLSzr89bnE
qAPPHpTqa/rziD+6D/uvwyOm8o1KM/GC8LcU9ioB43+ZUUZjz2yGBDxzF1dbHB
Oz9quwg8l4X88HW1sNdRghGaAVLJ481oVuxxbUEQ+n+DlaRJRqHU4+hvRkBO6P
C6VjHQKsGRU1NlRkAjZ/ctrYyOTF98rUyKyQg8VJf9CA/6Q44Q9pX0EJCTY+eU Zc12qQPnYTk4Q501JRqWVA==</SignatureValue>
Signature> <saml:Subject> <saml:NameID Format="urn:oasis:names:tc:SAML:2.0:nameidmat:transient">_41F6883FB69BA9CA1470F6E509AA7DE3</saml:NameID> <saml:SubjectConfirmation
thod="urn:oasis:names:tc:SAML:2.0:cm:bearer"> <saml:SubjectConfirmationData NotOnOrAfter="2014-02-02T05:27:32Z"
cipient="http://localhost/simplesamlphp/module.php/saml/sp/saml2-acs.php/default-sp"
esponseTo="_1e2c45b773e7d423f0219e8151fdd8fce24f15ba06" /> </saml:SubjectConfirmation> </saml:Subject> <saml:Conditio
Before="2014-02-01T09:26:32Z" NotOnOrAfter="2014-02-02T09:28:32Z" > <saml:AudienceRestriction>
aml:Audience>http://localhost/simplesamlphp/module.php/saml/sp/metadata.php/default-sp</saml:Audience>
aml:AudienceRestriction> </saml:Conditions> <saml:AuthnStatement AuthnInstant="2014-02-01T09:27:32Z"
sionIndex="0m2dhM54mG5LYWXVQlHeqVmBzA9JnCIiBlEd8R5H74k=" SessionNotOnOrAfter="2014-02-02T05:27:32Z" >
aml:AuthnContext> <saml:AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:Password</saml:AuthnContextClassRef>
aml:AuthnContext> </saml:AuthnStatement> <saml:AttributeStatement> <saml:Attribute Name="uid"
meFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="uid" >
aml:AttributeValue>coudot</saml:AttributeValue> </saml:Attribute> <saml:Attribute Name="cn"
meFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="cn" > <saml:AttributeValue>Clément
DOT</saml:AttributeValue> </saml:Attribute> <saml:Attribute Name="mail" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname
SAML AuthnResponse

11. SAML AuthnResponse – Part 1
<samlp:Response
xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"
xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion"
ID="_7C1F81C9A66969B2142EE7FDD88DDFE6"
InResponseTo="_1e2c45b773e7d423f0219e8151fdd8fce24f15ba06"
Version="2.0"
IssueInstant="2014-02-01T09:27:32Z"
Destination="http://localhost/simplesamlphp/module.php/saml/sp/saml2acs.php/default-sp">
<saml:Issuer>
http://auth.example.com/saml/metadata
</saml:Issuer>
<Signature xmlns="http://www.w3.org/2000/09/xmldsig#">
XXXX
</Signature>
<samlp:Status>
<samlp:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success" />
</samlp:Status>

12. SAML AuthnResponse – Part 2
<saml:Assertion Version="2.0"
ID="_010733F043795952C49CC92549117C0B"
IssueInstant="2014-02-01T09:27:32Z">
<saml:Issuer>
http://auth.example.com/saml/metadata
</saml:Issuer>
<Signature xmlns="http://www.w3.org/2000/09/xmldsig#">
XXXX
</Signature>
<saml:Subject>
<saml:NameID Format="urn:oasis:names:tc:SAML:2.0:nameidformat:transient">
_41F6883FB69BA9CA1470F6E509AA7DE3
</saml:NameID>
<saml:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer">
XXXX
</saml:SubjectConfirmation>
</saml:Subject>

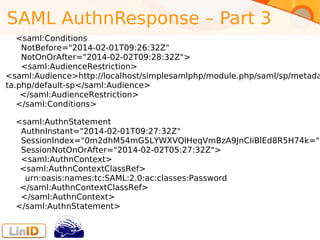

13. SAML AuthnResponse – Part 3
<saml:Conditions
NotBefore="2014-02-01T09:26:32Z"
NotOnOrAfter="2014-02-02T09:28:32Z">
<saml:AudienceRestriction>
<saml:Audience>http://localhost/simplesamlphp/module.php/saml/sp/metada
ta.php/default-sp</saml:Audience>
</saml:AudienceRestriction>
</saml:Conditions>
<saml:AuthnStatement
AuthnInstant="2014-02-01T09:27:32Z"
SessionIndex="0m2dhM54mG5LYWXVQlHeqVmBzA9JnCIiBlEd8R5H74k="
SessionNotOnOrAfter="2014-02-02T05:27:32Z">
<saml:AuthnContext>
<saml:AuthnContextClassRef>
urn:oasis:names:tc:SAML:2.0:ac:classes:Password
</saml:AuthnContextClassRef>
</saml:AuthnContext>
</saml:AuthnStatement>

14. SAML AuthnResponse – Part 4
<saml:AttributeStatement>
<saml:Attribute Name="uid"
NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic"
FriendlyName="uid">
<saml:AttributeValue>coudot</saml:AttributeValue>
</saml:Attribute>
<saml:Attribute Name="mail"
NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic"
FriendlyName="mail">
<saml:AttributeValue>coudot@linagora.com</saml:AttributeValue>
</saml:Attribute>
</saml:AttributeStatement>
</saml:Assertion>
</samlp:Response>

15. Yes you can do SAML
20

16. Free software
●
Libraries:
● Lasso: https://dev.entrouvert.org/projects/lasso
●
●
OpenSAML: http://www.opensaml.org/
Identity provider/Service provider:
● LemonLDAP::NG: http://lemonldap-ng.org
●
Authentic2:
https://dev.entrouvert.org/projects/authentic
●
SimpleSAMLphp: http://simplesamlphp.org/
●
Shibboleth: http://shibboleth.net/
●
OpenAM: http://openam.forgerock.org/
21
