This document introduces React and MobX. It discusses that React is a JavaScript library for building user interfaces using components. It also explains how React works using a virtual DOM, component lifecycles, and state management with MobX which provides mechanisms to synchronize state with React components using a reactive state graph. MobX core concepts include observable state, computed values, reactions, and actions.

1. Introduction to React
& MobX
Anjali Chawla
SDE-II Expedia

2. Agenda
 What is React
 How React works
 React Component lifecycle
 State management - MobX

3. What is React
 A JavaScript library for building user interfaces
Declarative
 Create interactive Uis
 Design simple views
 Predictable and easier
to debug code
Component Based
 Building block of
complex UI
 Manage their own
state
Learn Once, write
anywhere
 Create Web based
applications
 Progressive WebApps
 Native Mobile Apps

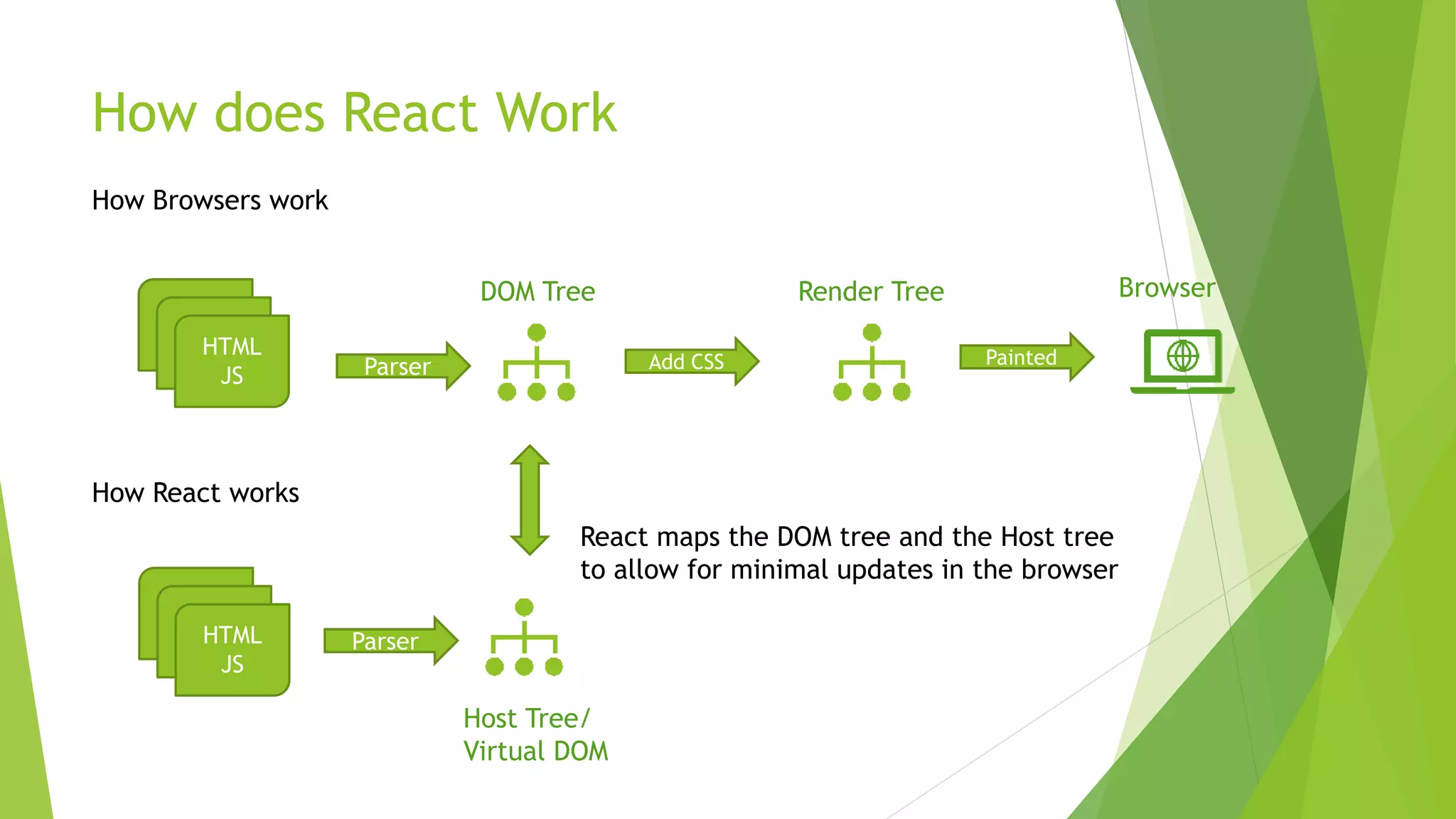

4. How does React Work
HTML
JS
How Browsers work
Add CSS
DOM Tree
Parser
Render Tree
Painted
Browser
How React works
HTML
JS
Host Tree/
Virtual DOM
Parser
React maps the DOM tree and the Host tree
to allow for minimal updates in the browser

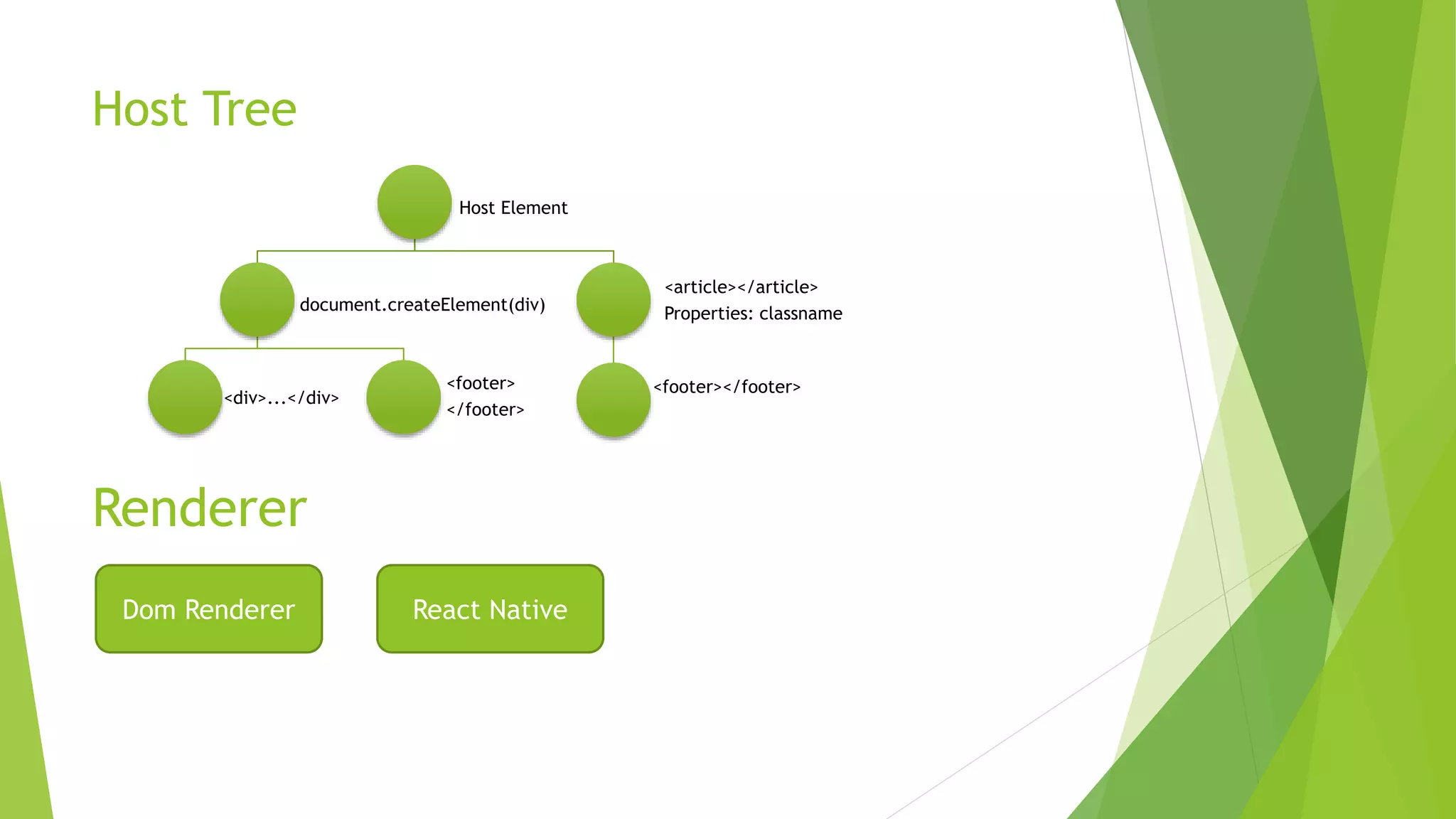

5. Host Tree
Host Element
document.createElement(div)
<div>...</div>
<footer>
</footer>
<article></article>
Properties: classname
<footer></footer>
Renderer
Dom Renderer React Native

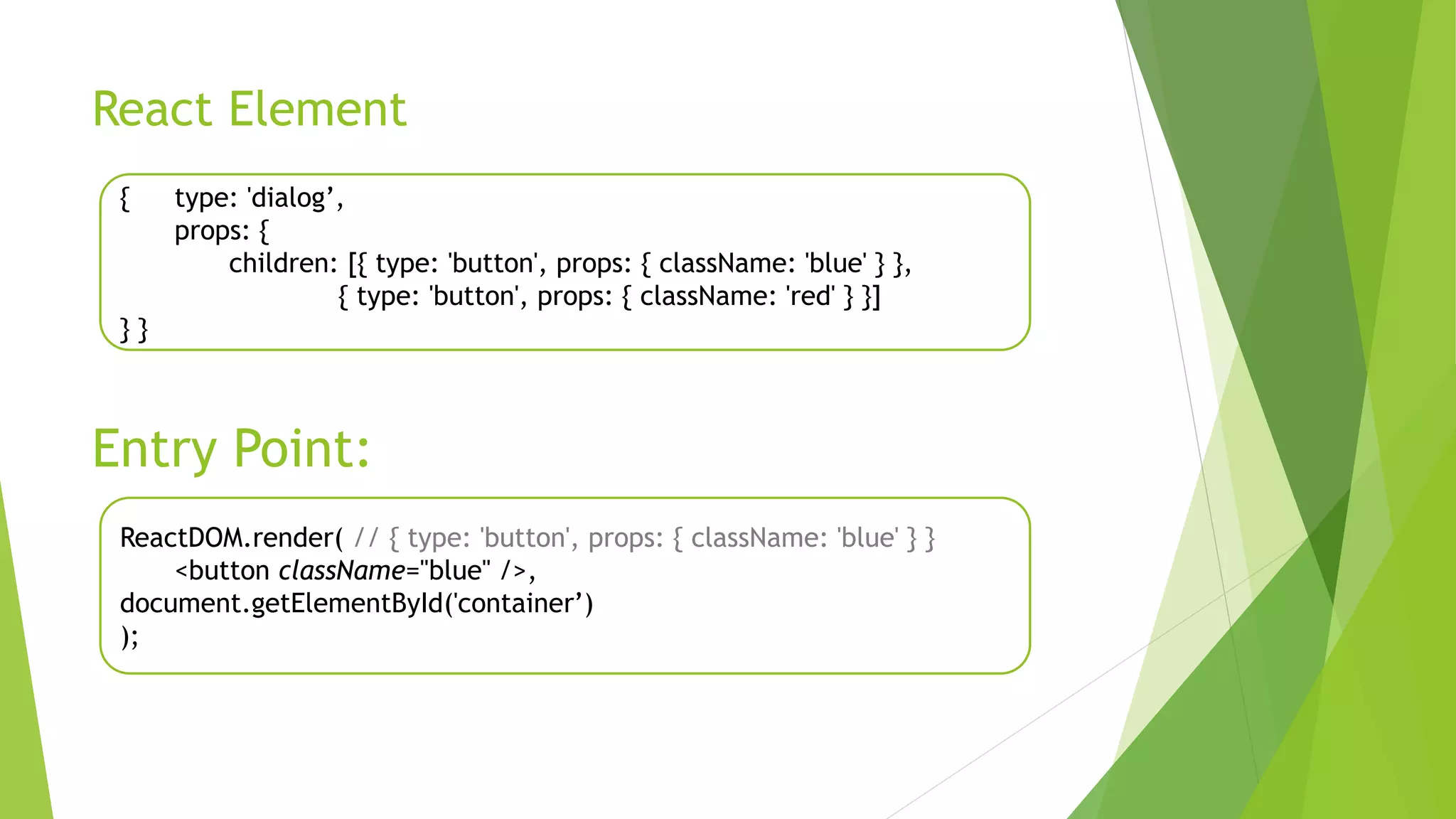

6. React Element
{ type: 'dialog’,
props: {
children: [{ type: 'button', props: { className: 'blue' } },
{ type: 'button', props: { className: 'red' } }]
} }
Entry Point:
ReactDOM.render( // { type: 'button', props: { className: 'blue' } }
<button className="blue" />,
document.getElementById('container’)
);

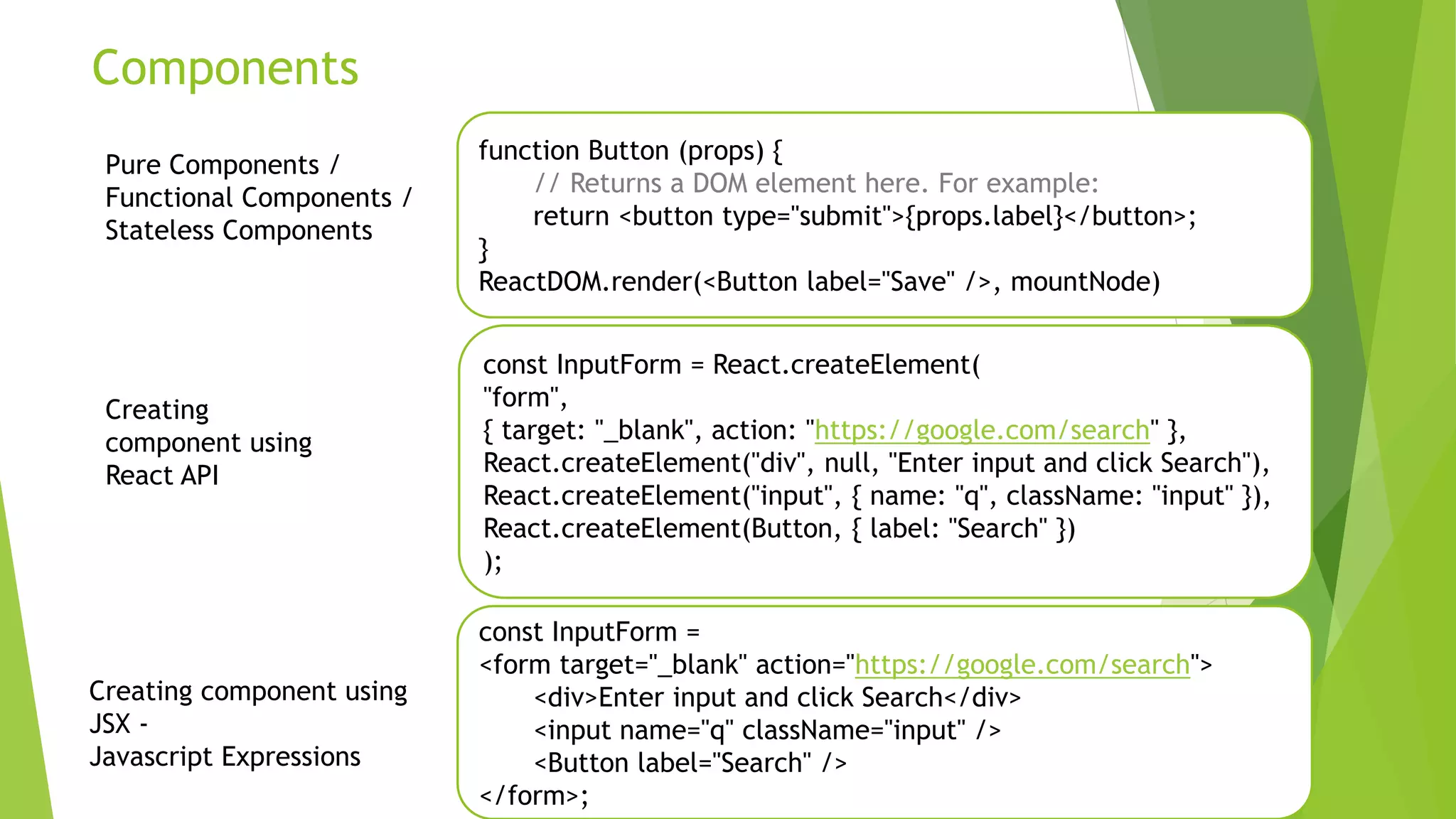

7. Components
function Button (props) {
// Returns a DOM element here. For example:
return <button type="submit">{props.label}</button>;
}
ReactDOM.render(<Button label="Save" />, mountNode)
const InputForm = React.createElement(
"form",
{ target: "_blank", action: "https://google.com/search" },
React.createElement("div", null, "Enter input and click Search"),
React.createElement("input", { name: "q", className: "input" }),
React.createElement(Button, { label: "Search" })
);
Pure Components /
Functional Components /
Stateless Components
const InputForm =
<form target="_blank" action="https://google.com/search">
<div>Enter input and click Search</div>
<input name="q" className="input" />
<Button label="Search" />
</form>;
Creating component using
JSX -
Javascript Expressions
Creating
component using
React API

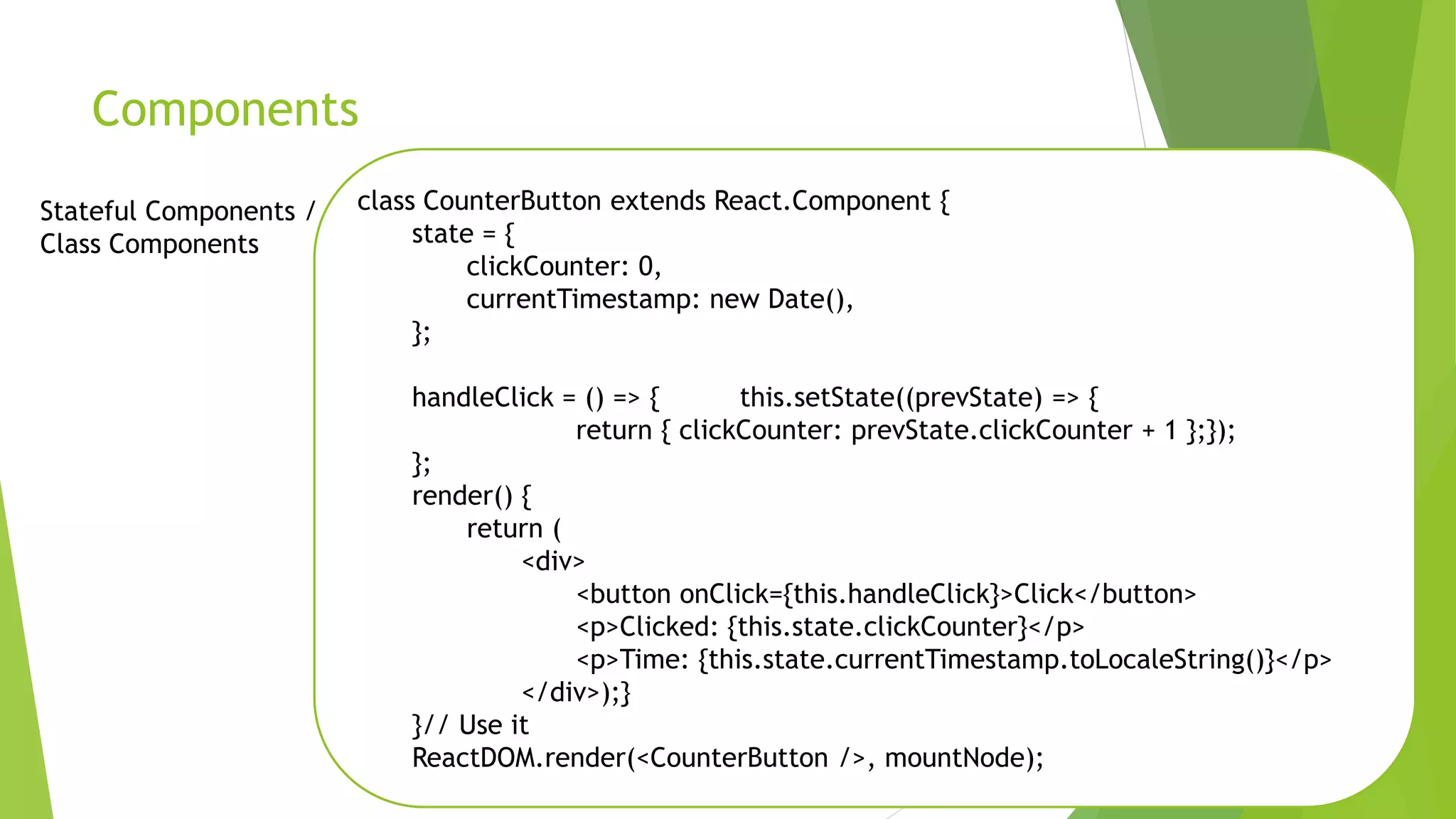

8. Components
class CounterButton extends React.Component {
state = {
clickCounter: 0,
currentTimestamp: new Date(),
};
handleClick = () => { this.setState((prevState) => {
return { clickCounter: prevState.clickCounter + 1 };});
};
render() {
return (
<div>
<button onClick={this.handleClick}>Click</button>
<p>Clicked: {this.state.clickCounter}</p>
<p>Time: {this.state.currentTimestamp.toLocaleString()}</p>
</div>);}
}// Use it
ReactDOM.render(<CounterButton />, mountNode);
Stateful Components /
Class Components

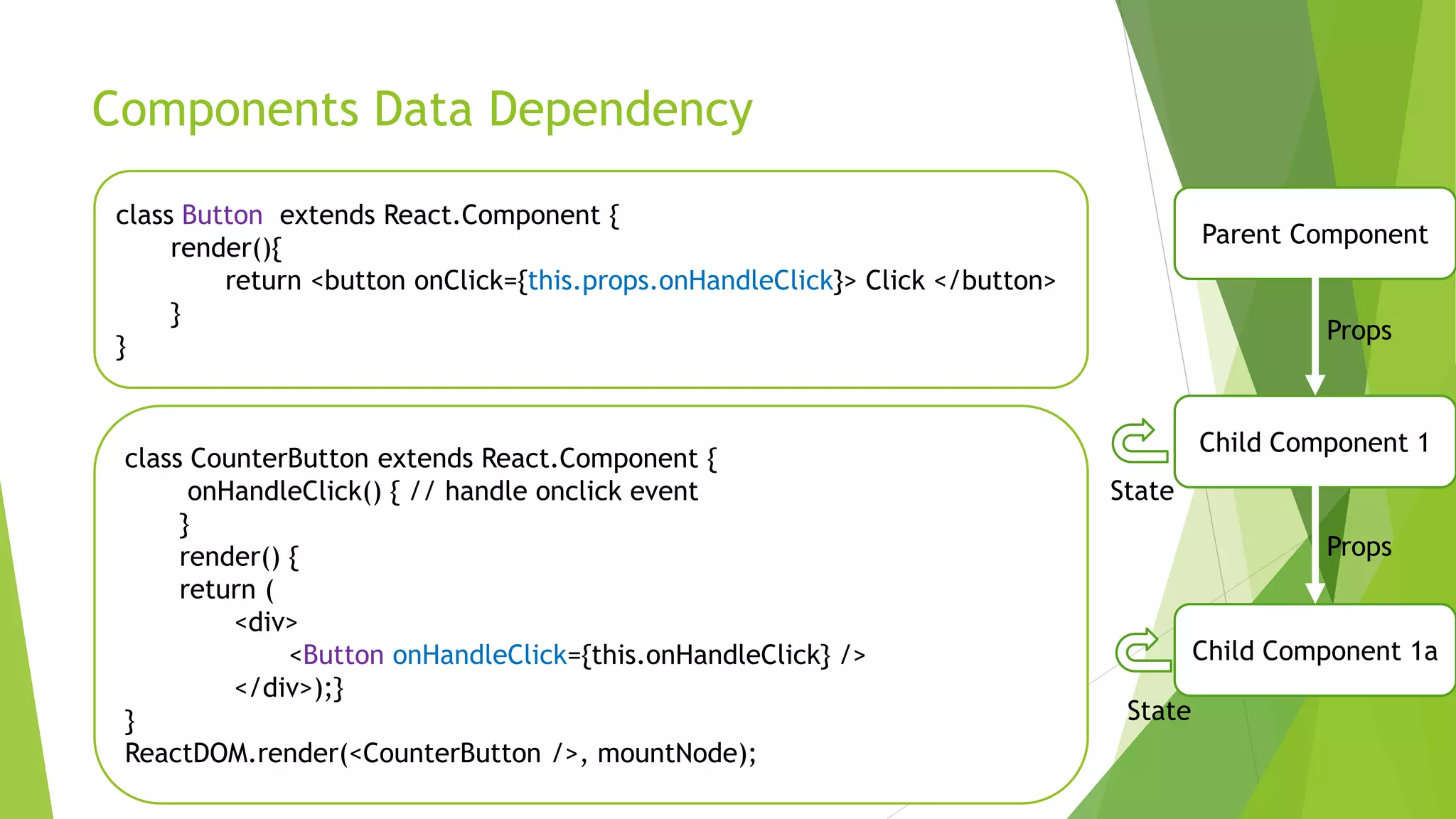

9. Components Data Dependency
class CounterButton extends React.Component {
onHandleClick() { // handle onclick event
}
render() {
return (
<div>
<Button onHandleClick={this.onHandleClick} />
</div>);}
}
ReactDOM.render(<CounterButton />, mountNode);
class Button extends React.Component {
render(){
return <button onClick={this.props.onHandleClick}> Click </button>
}
}
Parent Component
Child Component 1a
Child Component 1
Props
Props
State
State

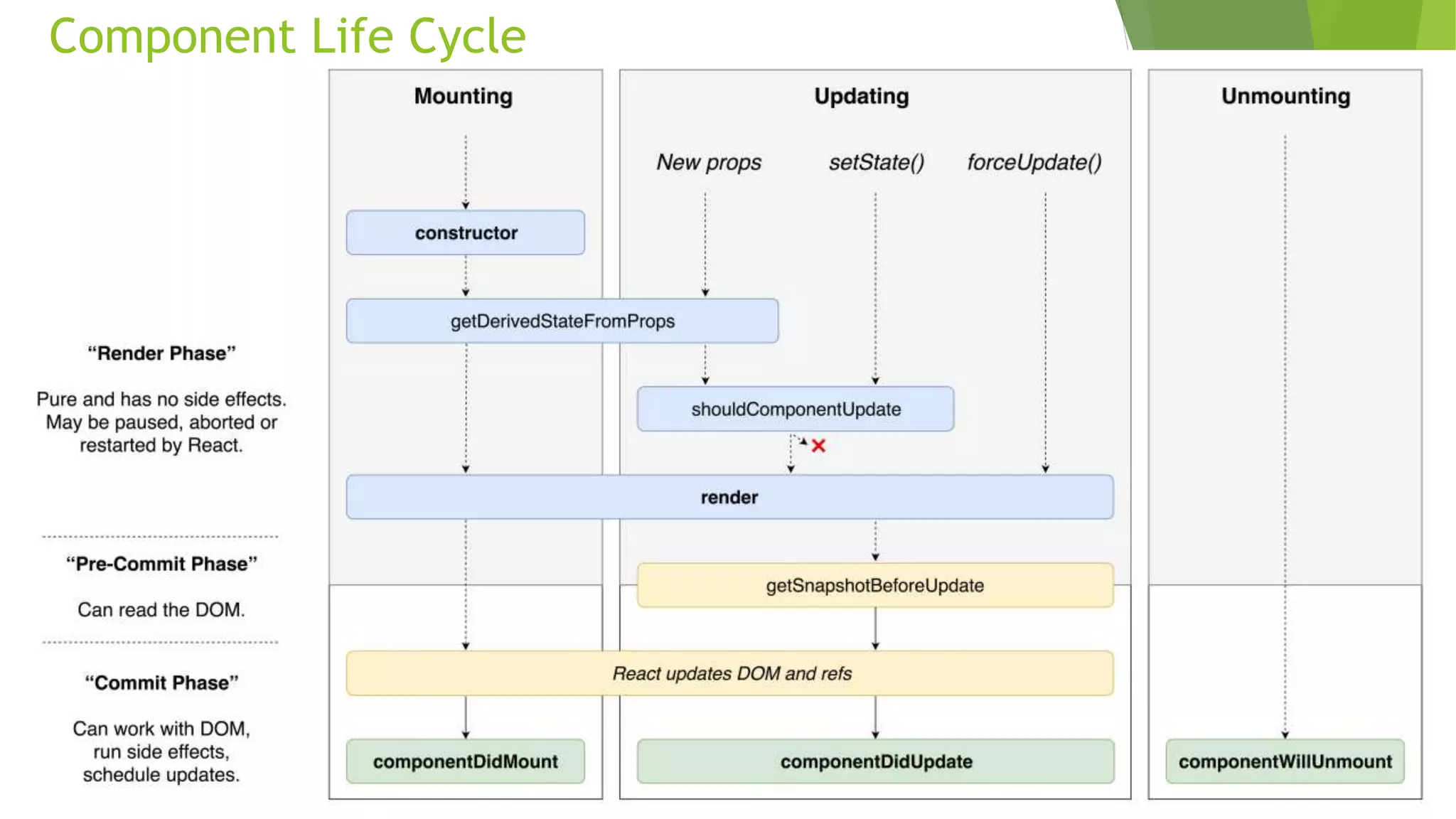

10. Component Life Cycle

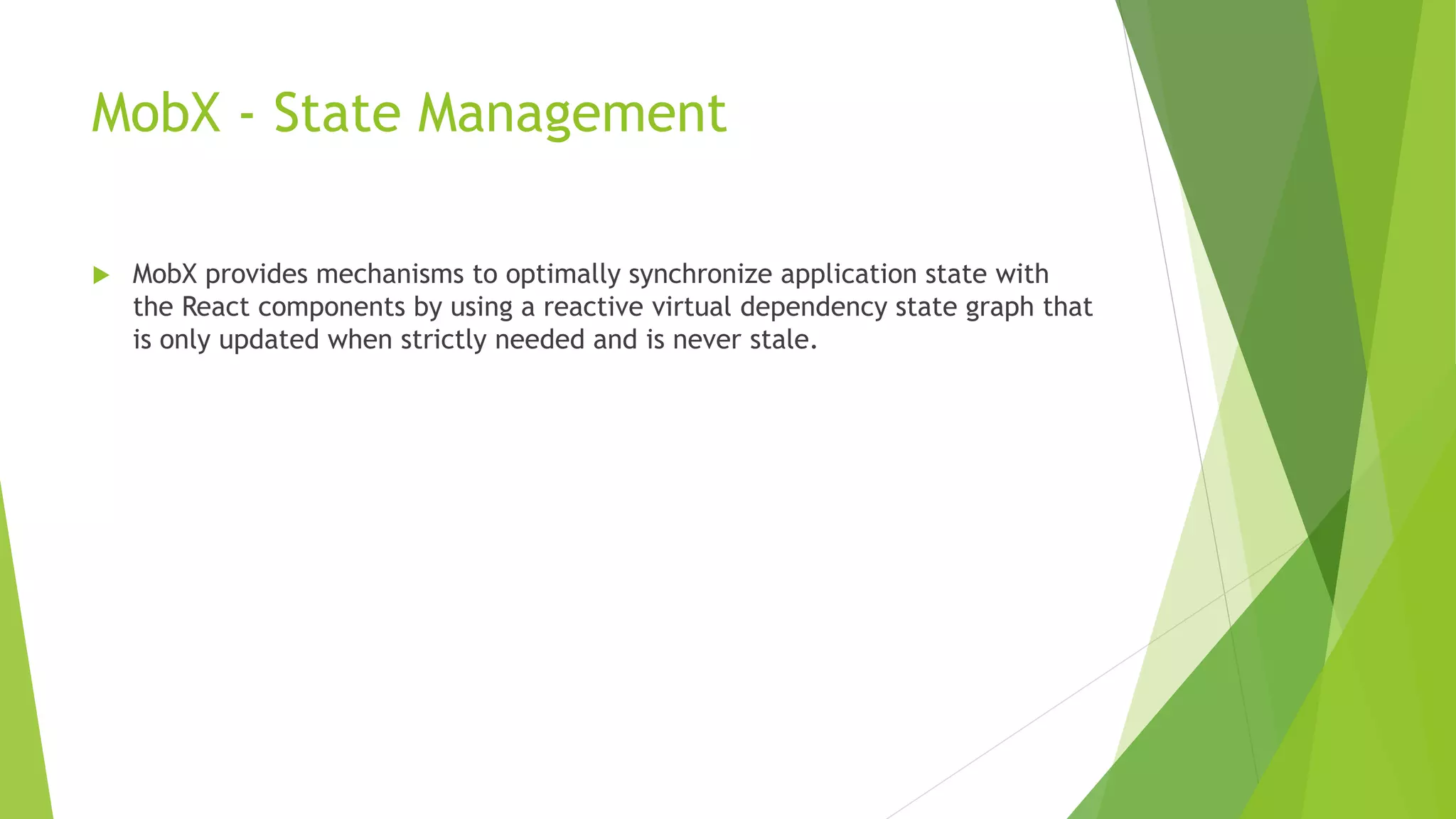

11. MobX - State Management
 MobX provides mechanisms to optimally synchronize application state with
the React components by using a reactive virtual dependency state graph that
is only updated when strictly needed and is never stale.

12. MobX

13. MobX - Core Concepts
 Observable state
 Computed values
import { observable } from "mobx";
class Todo {
id = Math.random();
@observable title = "";
@observable finished = false; }
class TodoList {
@observable todos = [];
@computed get unfinishedTodoCount() {
return this.todos.filter(todo => !todo.finished).length;
}
}

14. MobX – Core Concepts
 Reactions
 Actions
@observer
class TodoListView extends Component {
render() {
return ( <div> <ul>
{this.props.todoList.todos.map(todo => ( <TodoView todo={todo} key={todo.id} />
))} </ul>
Tasks left: {this.props.todoList.unfinishedTodoCount}
</div> ); } }
store.todos.push(new Todo("Get Coffee"), new Todo("Write simpler code"));
store.todos[0].finished = true;

15. References
 https://reactjs.org/
 https://overreacted.io/react-as-a-ui-runtime/
 https://medium.freecodecamp.org/all-the-fundamental-react-js-concepts-
jammed-into-this-single-medium-article-c83f9b53eac2
 https://mobx.js.org/
 https://medium.com/@mweststrate/mobx-4-better-simpler-faster-smaller-
c1fbc08008da
 https://hackernoon.com/becoming-fully-reactive-an-in-depth-explanation-of-
mobservable-55995262a254
