Introduction to Immersive Web

Google XR ARCore/Daydream
EOL
ARCore

Advances in Web Technology
<video>
<canvas>
WebRTC’s getUserMedia();
WebGL three.jsvideo tag, canvas tag OpenCV + emscripten
WebVR

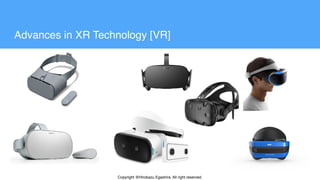

Advances in XR Technology [VR]

Advances in XR Technology [AR]
ARKit

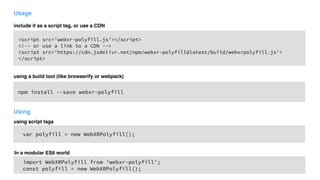

Usage
<script src='webxr-polyfill.js'></script>

<script src='https://cdn.jsdelivr.net/npm/webxr-polyfill@latest/build/webxrpolyfill.js'> 
</script>
using a build tool (like browserify or webpack)
npm install --save webxr-polyfill
var polyfill = new WebXRPolyfill();
include it as a script tag, or use a CDN
Using
using script tags
import WebXRPolyfill from 'webxr-polyfill';
const polyfill = new WebXRPolyfill();
In a modular ES6 world

<script src=‘https://cdn.jsdelivr.net/npm/webxr-polyfill@latest/build/webxr-polyfill.js'></
script>
<body>
<header>
<details open>
<summary>Viewport Scaling</summary>
<p>
<a class="back" href="./">Back</a>
</p>
</details>
</header>
</body>

// initXR()
function initFallback() {
initGL();
document.body.appendChild(gl.canvas);
let fallbackHelper = new FallbackHelper(scene, gl);
fallbackHelper.emulateStage = true;
}
// initXR()
function onRequestSession(device) {
// Set up a mirror canvas
let mirrorCanvas = document.createElement('canvas');
let ctx = mirrorCanvas.getContext('xrpresent');
mirrorCanvas.setAttribute('id', 'mirror-canvas');
document.body.appendChild(mirrorCanvas);
device.requestSession({ exclusive: true, outputContext:
ctx }).then((session) => {
xrButton.setSession(session);
onSessionStarted(session);
});
}
// initFallback()
function initGL(compatibleDevice) {
if (gl)
return;
gl = createWebGLContext({
compatibleXRDevice: compatibleDevice
});
renderer = new Renderer(gl);
scene.setRenderer(renderer);
}

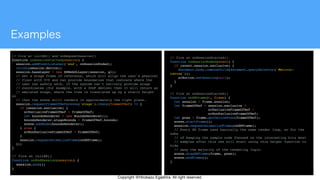

// fire ar initXR() and onRequestSession()
function onSessionStarted(session) {
session.addEventListener('end', onSessionEnded);
initGL(session.device);
session.baseLayer = new XRWebGLLayer(session, gl);
// Get a stage frame of reference, which will align the user's physical
// floor with Y=0 and can provide boundaries that indicate where the
// user can safely walk. If the system can't natively provide stage
// coordinates (for example, with a 3DoF device) then it will return an
// emulated stage, where the view is translated up by a static height
so
// that the scene still renders in approximately the right place.
session.requestFrameOfReference('stage').then((frameOfRef) => {
if (session.exclusive) {
xrExclusiveFrameOfRef = frameOfRef;
let boundsRenderer = new BoundsRenderer();
boundsRenderer.stageBounds = frameOfRef.bounds;
scene.addNode(boundsRenderer);
} else {
xrNonExclusiveFrameOfRef = frameOfRef;
}
session.requestAnimationFrame(onXRFrame);
});
}
// fire at initXR()
function onEndSession(session) {
session.end();
}
// fire at onSessionStarted()
function onSessionEnded(event) {
if (event.session.exclusive) {
document.body.removeChild(document.querySelector('#mirror-
canvas'));
xrButton.setSession(null);
}
}
// fire at onSessionStarted()
function onXRFrame(t, frame) {
let session = frame.session;
let frameOfRef = session.exclusive ?
xrExclusiveFrameOfRef :
xrNonExclusiveFrameOfRef;
let pose = frame.getDevicePose(frameOfRef);
scene.startFrame();
session.requestAnimationFrame(onXRFrame);
// Every XR frame uses basically the same render loop, so for the
sake
// of keeping the sample code focused on the interesting bits most
// samples after this one will start using this helper function to
hide
// away the majority of the rendering logic.
scene.drawXRFrame(frame, pose);
scene.endFrame();
}

// Start the XR application.
initXR();
})();

https://immersive-web.github.io/webxr-samples/

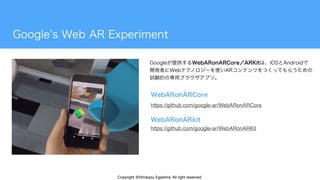

https://github.com/google-ar/WebARonARCore
https://github.com/google-ar/WebARonARKit

https://github.com/google-ar/three.ar.js

CD MD
CUI GUI
☓ ☓ ☓ ☓
 
☓
☓
☓
☓
 
☓
 
☓
 
☓

DTM

 

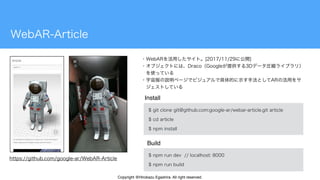

Install
Build

References
Immersive Web
• https://www.w3.org/community/immersive-web/
• https://github.com/immersive-web
• https://immersive-web.github.io/webxr/
• https://github.com/immersive-web/webxr-samples/
• https://immersive-web.github.io/webxr-reference/
• https://immersive-web.github.io/webvr/
• https://immersive-web.github.io/webxr-samples/
• https://github.com/immersive-web/webxr-polyﬁll
• https://github.com/immersive-web/webvr-polyﬁll

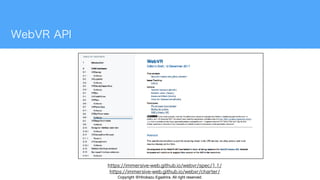

• https://immersive-web.github.io/webvr/spec/1.1/
• https://immersive-web.github.io/webxr/charter/
• https://webvr.info/

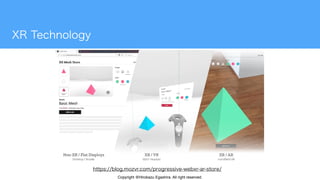

• https://blog.mozvr.com/progressive-webxr-ar-store/
• https://blog.mozvr.com/experimenting-with-computer-vision-in-webxr/
• https://blog.mozvr.com/experimenting-with-ar-and-the-web-on-ios/
• https://itunes.apple.com/us/app/webxr-viewer/id1295998056?mt=8
• https://github.com/mozilla-mobile/webxr-ios
• https://github.com/mozilla/webxr-polyﬁll
• https://github.com/mozilla/aframe-xr
• https://mozilla.github.io/aframe-xr/
• https://aframe.io/
Mozilla Web XR
References

• https://developers.google.com/ar/develop/web/quickstart
• https://github.com/google-ar/WebARonARCore
• https://github.com/google-ar/WebARonARKit
• https://github.com/google-ar/three.ar.js
• https://github.com/google-ar/WebAR-Article
• https://github.com/google-ar/three.ar.js/issues/82
• https://youtu.be/1t1gBVykneA
• https://www.chromestatus.com/feature/5680169905815552
• https://developers.google.com/ar/

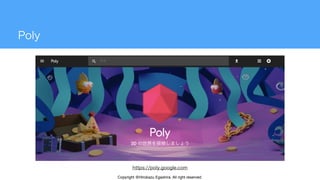

• https://poly.google.com
Google WebXR

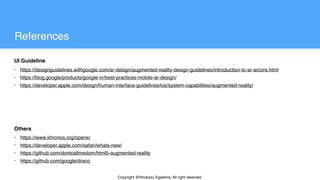

References

• https://designguidelines.withgoogle.com/ar-design/augmented-reality-design-guidelines/introduction-to-ar-arcore.html
• https://blog.google/products/google-vr/best-practices-mobile-ar-design/
• https://developer.apple.com/design/human-interface-guidelines/ios/system-capabilities/augmented-reality/
UI Guideline
Others
• https://www.khronos.org/openxr
• https://developer.apple.com/safari/whats-new/
• https://github.com/dontcallmedom/html5-augmented-reality
• https://github.com/google/draco
References

• https://github.com/jcmellado/js-aruco
• https://github.com/artoolkit/jsartoolkit5
• https://github.com/jeromeetienne/AR.js
• https://github.com/awe-media/awe.js/
• https://www.argonjs.io/
• https://facebook.github.io/react-360/
• https://github.com/facebook/react-360
• https://www.nativescript.org/blog/preview-of-augmented-reality-in-nativescript
• https://www.nativescript.org/blog/getting-started-with-augmented-reality-in-nativescript
• https://github.com/EddyVerbruggen/nativescript-ar
JavaScript Library for XR
JavaScript Framework for XR
References
