Introduction to graph databases: Neo4j and Cypher
- 1. A Graph platform for the Life Scientists Anjani K. Dhrangadhariya

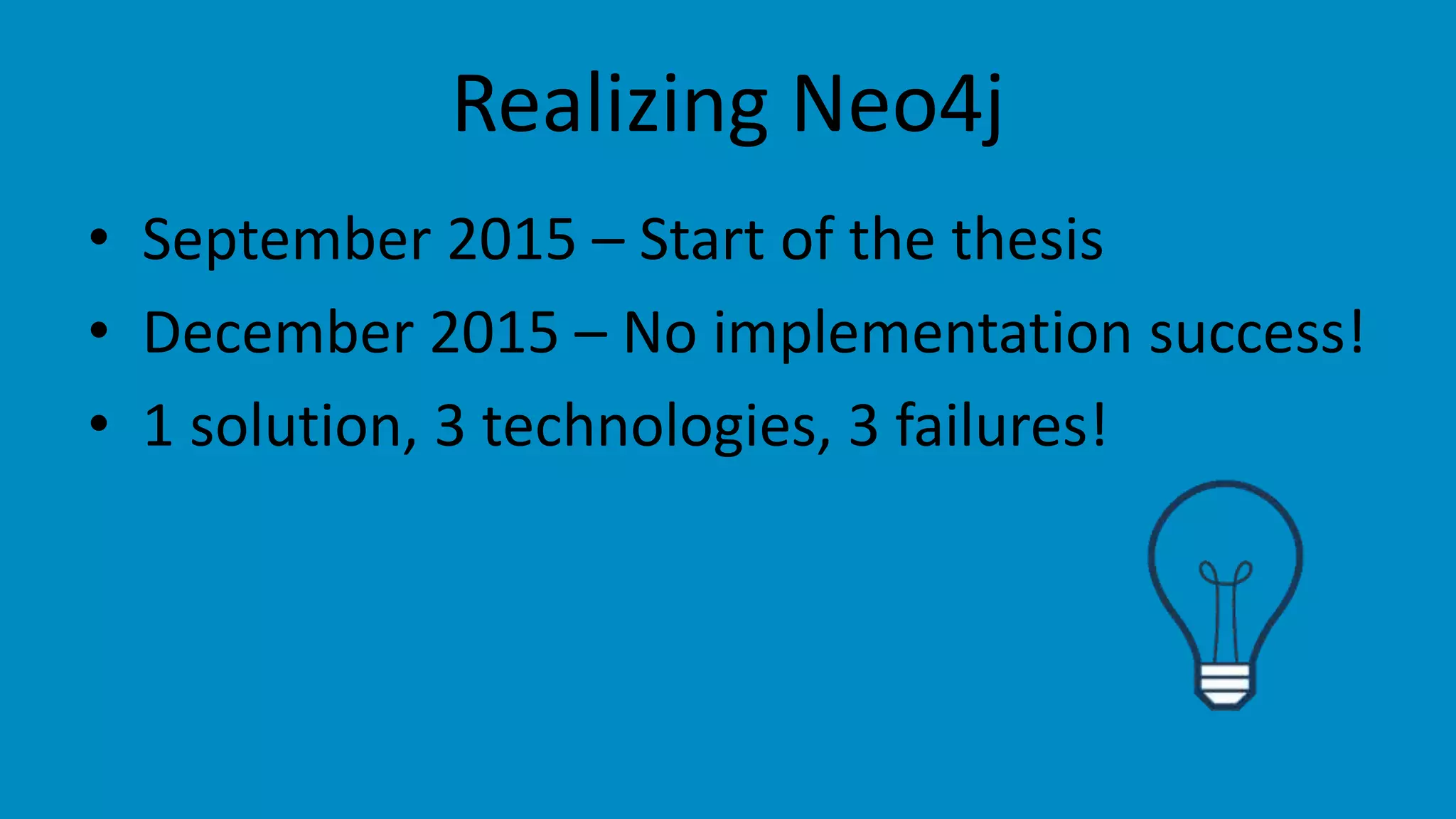

- 2. Realizing Neo4j • September 2015 – Start of the thesis • December 2015 – No implementation success! • 1 solution, 3 technologies, 3 failures!
- 4. Successful
- 6. Changing your view Illustration by David Pohl Reductionist view Systems view
- 7. Reductionism vs. Systems Reductionism Source: http://sysbiol.cnb.csic.es/SysBiol/sysbiol.html System sDissection Integration
- 8. Reductionist view Experiment: Microarray Sample: Huntingtons disease Drug: Drug_X Action: Increased Protein: Protein_A, Protein_B Experiment: Yeast two hybrid Sample: Alzheimer’s disease Protein1: Protein_A Protein2: Mutated_Protein_X Action: Binding, deactivation Experiment: Mass spectrometry Sample: Alzheimer’s disease late stage Observation: Mutated_Protein_X Biomarker: Brain atrophy DB: DrugBank Microarray Huntington’s disease Drug_X Protein_A, Protein_B Action: Increased DB: BioGRID Yeast 2 hybrid screening Alzheimer’s disease Protein1: Protein_A Protein2: Mutated_Protein_X Effect: Binding, deactivation DB: MassBank Mass spectrometry Alzheimer’s disease Late st. Protein: Mutated_Protein_X Phenotype: Brain atrophy Effect: Increase
- 9. Brain Atrophy • Nerve cell death • Tissue loss throughout the brain
- 10. Systems View DB: DrugBank Microarray Huntington’s disease Drug_X Protein_A, Protein_B Action: Increase DB: BioGRID Yeast 2 hybrid screening Alzheimer’s disease Protein1: Protein_A Protein2: Mutated_Protein_X Action: Binding, deactivation DB: MassBank Mass spectrometry Alzheimer’s disease Late St. Protein: Protein_X Phenotype: Brain atrophy Effect: Increase Drug_X Protein_A Protein_B Protein_X Binds Brain atrophy Increases So if we use Drug_X to increase Protein_A, which in turn binds to Mutated_Protein_X and deactivates it, then will it also reduce brain atrophy in Alzheimer’s disease.
- 11. Database statistics • Number of interactions in BioGRID: 80,050 • Total Drug in DrugBank: 10,562 • Total Drug-Target interactions in DrugBank: 16,959 • Total Spectra studies in MassBank: 41,092 Source: bioGRID, DrugBank, MassBank
- 12. 1 2 3 Difference? 1. Table vs. graph 2. Separate vs. connected 3. No relationship vs. Relationship 1 - Introduction
- 13. Why Graph? • Data explosion – Genomics, Proteomics, Metabolomics, Transcriptomics, Metagenomics, Lipidomics, Foodomics, Glycomics, … • Most of the biological data is stored in such tabular databases or flat files. • No connections between the already available biological data stored in tables. • No bigger picture!
- 14. Why Graph?
- 15. Why Graph? (cotd.) • Connections are very important in Biology. • Biology does not happen in tables! • Graphs are the closest to the natural way of representing biological situations.
- 16. A Graph? • Pie graph? • Bar graph? • Line graph?
- 17. What is a Graph? Schematic representation of a graph Vertex 2 Vertex 1 Vertex 4 Vertex 3 Graph = A set/collection of Vertices and Edges Mathematical notation G = (V, E)
- 18. Graph or Network Graph Network Vertex Node Edge Relationship/link Mathematical representation Applied representation Node Node Node Node Schematic representation of a network
- 20. Real world • The main elements in a graph are Nodes and these elements are connected by relationships as they are connected in the real world. • Model real world scenario into a graph
- 21. Model?
- 22. Graphs are Everywhere General examples • Community/ Social • Internet • Terrorist network • World Wide Web • Air-route connection Examples in Biology • Protein-protein Interaction • Gene-regulatory network • Metabolic network • Neuronal network • Drug mechanism of action network
- 23. Internet graph The network structure of the Internet by Hal Burch and Bill Cheswick. Copyright Lumeta Corporation 2009. Source URL: http://www.mathaware.org/mam/04/6_Internet_structure.html https://www.lucidchart.com/blog/network-diagram-templates Simple internet graph: A network of connections (wired/wireless) between devices like laptop, phone, printer, etc.
- 24. Social graph Facebook friendships between people across the globe. A visualization created by Paul, an engineering intern at Facebook, using R programming language. Source: https://www.facebook.com/notes/facebook-engineering/visualizing-friendships/469716398919
- 25. Twitter graph Generated using yEd graph editor, yED works
- 26. The WWW
- 27. Terrorist Network Saddam Hussein Network (2003) The Universe C. Wilson. Searching for Saddam: a five-part series on how the US military used social networking to capture the Iraqi dictator. 2010. Source: https://www.slideshare.net/mathieu-bastian/visualize-big-graph-data
- 28. Airport connection This infographic is a map of the 3,275 global airports and all of the connecting flight routes. Designed by Martin Grandjean, each bubble represents an individual airport and the bubble sizes represents the number of flight routes (37,153 routes in total) based on OpenFlights.org data. Source: http://coolinfographics.com/blog/tag/network
- 29. Life Sciences • Graphs are the closest to the natural way of representing biological situations. • Biology, biochemistry, pharmaceuticals or even healthcare, anatomy, neurosciences
- 30. Protein-Protein Interaction Image source: https://www.nature.com/articles/nrg1272 A protein-protein interaction network for yeast. A network of interactions between proteins in the single-celled organism Saccharomyces cerevisiae (bakerʹs yeast), as determined using, primarily, two-hybrid screen experiments. From Jeong et al. Copyright Macmillan Publishers Ltd.
- 31. Protein-protein Interaction Fig: Schematic Protein interaction Fig: Protein interaction network of insulin in human Source: STRING Database In a protein interaction network, nodes denote a protein molecules and the links denote physical interaction between proteins.
- 32. Metabolic network Source: Kyoto Encyclopedia of Genes and Genomes URL: http://www.genome.jp/kegg-bin/show_pathway?map01100 Global metabolic pathway Entry: map01100
- 33. Neuronal network White matter tracts within a human brain, as visualized by MRItractography. In a neuronal network, the neurons are the nodes and the synapses are the links between them. These networks are usually studied using Graph theory and machine learning. Source: https://en.wikipedia.org/wiki/Connectome
- 35. Graph Data Model
- 36. Labeled Property Graph model ANN DAN IS_MARRIED_TO LIVES_WITH Person name: Ann Mueller DOB: May, 1980 Twitter: @ann NODELABEL RELATIONSHIPS PROPERTIES name: Dan Mueller DOB: Dec, 1981 Twitter: @danPerson
- 37. Another familiar example ANJANI CHRIST COLLEGE STUDIED_AT Person name: Anjani KD DOB: May, 1980 Twitter: @anjani NODELABEL RELATIONSHIPS PROPERTIES name: Christ College established: 2002 Twitter: @christClgPlace Student
- 38. Insulin – INSR Interaction INS INSR LINKED_TO Protein Protein name: Insulin receptor ID: ENSP00000303830 alias: CD220, HHF5 org: Homo sapiens Hormone link_Evi: 0.866 coMention_scr: 0.900 binding_scr: 0.900 activation_scr: 0.900 total_scr: 0.999 Source: STRING database: © STRING CONSORTIUM 2017 URL: https://string-db.org/cgi/network.pl?taskId=XRAdWcZivE1K name: Insulin ID: ENSP00000250971 alias: IDDM, IDDM1 org: Homo sapiens
- 39. Node • Nodes are the main data elements • Nodes are connected to other nodes via relationships • Nodes can have one or more properties (i.e., attributes stored as key/value pairs) • Nodes have one or more labels that describes its role in the graph ANJANI name: Anjani KD DOB: May, 1980 Twitter: @anjaniPerson Student
- 40. Relationships • Relationships connect two nodes • Relationships are directional • Nodes can have multiple, even recursive relationships • Relationships can have one or more properties (i.e., attributes stored as key/value pairs)
- 41. Properties • Properties are named values where the name (or key) is a string. – Key:Value • Properties are used to describe nodes and relationships. INS name: Insulin ID: ENSP00000250971 alias: IDDM, IDDM1 org: Homo sapiens name : Insulin id : ENSP00000250971 alias : IDDM, IDDM1 org : Homo sapiens
- 42. Labels • Labels are used to group nodes into sets • A node may have multiple labels • Labels are indexed to accelerate finding nodes in the graph INS Protein Hormone
- 43. Task: Graph modeling Model any biological scenario into a labeled property graph • Rules 1. Should have at least 15 nodes 2. Be creative • Hint • Glycolysis!
- 44. Database
- 45. Database Collection of data, stores data Genomics – Genome sequencing Microarray databases - GEO Crystallography - PDB Literature databases - PubMed Protein-protein interaction data – STRING, BioGRID Human biological pathway - KEGG Chemical databases – ChEMBL, DrugBank
- 46. Database • CRUD – Creating, Reading, Updating, Deleting • Data security • Transaction data – Secure data transfer without loss • Backup data (unlike on paper) • … Relational databases Non-relational databases Tables XML files, Graphs
- 47. Relational vs. Graph Name Stud_id Alice 111 Fatema 222 Sonya 333 Dept_id Dept_name 001 Chemistry 002 Physics 003 English Stud_id Dept_id 111 003 222 001 333 002 In which department Alice studies?
- 48. Graph database • Online database management system • CRUD - Create, Read, Update, Delete • Data model – Storage for graphs • Connections are first class citizens of a graph database
- 49. What is Neo4j? • Database, store information • Data model – Graph or labeled property graph • Cypher is its query language • Easy modeling • Active Community Labeled Property graph model
- 50. Who uses Neo4j?
- 51. Who uses Neo4j for the research?
- 52. Google trends – Neo4j Source: Google trends
- 53. Query language The bridge between our data model or data and a database
- 54. What is Cypher? • Declarative query language for Neo4j • Allows creating, querying and updating database Cypher Property graph Database
- 55. Cypher - properties • Expressive and efficient • Simple and powerful • Human-friendly – Suitable for developers and non- developers alike • Based on English language • Readable
- 56. Getting started 1. Download Neo4j 2. Install Neo4j 3. Run Neo4j 4. Password change (Don’t forget it )
- 57. Start Neo4j • Find the Neo4j application and double click it. 1 3 2
- 58. Explore the empty interface Node info Relation info Property info
- 59. Load: The Movie Database :play movie graph
- 61. 1 2
- 64. A Triple • A graph triple is composed of three element. Two nodes and relationship.
- 65. Cypher syntax - Node () (x) (x:Person) (x:Person {name:”Your name”}) (x:Person {name:”Your name”, born:birthYear}) Node Variable Node Label Property – Key:Value
- 66. Variable • A variable can take any value • Similarly, a “Node variable” can be any Node from the graph. – E.g. “x” student in classroom
- 67. (node:Movie {name:”Alien”, tagline:”In space…”, released:1979}) Exercise: Cypher Node syntax
- 68. Cypher syntax - Properties Property pattern - {Key:Value} Property types comprise • String values {name:”Kalpana Chawla”} • Numerical Integer {born:1989} • Numerical Float {height_ft:6.5} • Boolean value {switch_on:true}
- 69. Exercise: Cypher Label syntax (x:Person:Actor {name:”Jannis Niewohner”, born:1992})
- 70. Cypher syntax - Relationship (x:Person {name:”Abdul”})-[rel:STUDENT_IN {id: 560914}]->(y:University {uni_name: BMSIT})
- 71. Exercise: Cypher Relationship syntax (x:Actor{name:”Charlize Theron”, born:1977})- [rel:ACTED_IN ]->(y:Movie {title:”The devils advocate”, tagline:”Evil has its own winning ways”, released:1997})
- 73. Add a Node • CREATE clause – To create a Node or a Relationship • RETURN clause – Returns the requested values CREATE (me:Person {name: "My Name"}) RETURN me
- 74. MATCH a node • Fetch the last node you created with MATCH clause. • MATCH clause – Specify the patterns to match in the database MATCH (me:Person {name:”My Name”}) RETURN me.name
- 75. The All Nodes Query • If you want to retrieve all the nodes in the graph Any Node MATCH (n) RETURN n
- 76. MATCH a node • Fetch the last node “My Name” that you created using WHERE. MATCH (me:Person) WHERE me.name="My Name“ RETURN me.name
- 77. Exercise: Create a Node • Create a node with label “Movie” where title of the movie is “Mystic River” and the release year is 1993. Fetch the node. CREATE (n:Movie {title:”Mystic River”, released:1993}) RETURN n
- 78. Add a property • Add the “We bury our sins here, Dave. We wash them clean” tagline to the movie Mystic River. • First fetch the movie Mystic river and then set its “tagline” property. MATCH (n:MOVIE) WHERE n.name=“Mystic River” SET n.tagline = “We bury our sins here, Dave. We wash them clean” RETURN movie.title, movie.tagline
- 79. Exercise: Update a Node property • The movie “Mystic river” was released in 2003, not 1993. Update this property. • Hint: The pattern for adding a property and updating it are the same.
- 80. Schema free Because Neo4j is schema-free, you can add any property you want to any node or relationship.
- 81. Format for adding relationship (n)-[:REL_TYPE {prop: value}]->(m)
- 82. Add a Relationship • Now, find the actor Kevin Bacon and the movie Mystic River and add the relationship between the movie and the actor to the dataset. MATCH (kevin:Person) WHERE kevin.name = "Kevin Bacon" MATCH (mystic:Movie) WHERE mystic.title = "Mystic River" CREATE (kevin)-[rel:ACTED_IN {roles:["Sean"]}]->(mystic) RETURN mystic,r, kevin
- 83. Exercise: Update a Relation property • Change the role of Kevin Bacon in Mystic River from ["Sean"] to ["Sean Devine"]. • Hint: The pattern for adding a property and updating it are the same.
- 84. Answer MATCH (kevin:Person) WHERE kevin.name = "Kevin Bacon" MATCH (mystic:Movie) WHERE mystic.title = "Mystic River" MATCH (kevin)-[r:ACTED_IN {roles:["Sean"]}]->(mystic) SET r.roles = "Sean Devine" RETURN kevin.name, r.roles, mystic.title
- 85. Exercise: Add a relationship • Create a relationship between “Yourself” and the movie “Mystic river” where you are the reviewer of the movie. MATCH (me:Person), (movie:Movie) WHERE me.name="My Name" AND movie.title="Mystic River“ CREATE (me)-[r:REVIEWED {rating:80, summary:"tragic character movie"}]->(movie) RETURN me, r, movie
- 86. Two nodes, One relationship • Find all the nodes that have a relationship between them. MATCH (n)-[relationship]->(m) RETURN n, relationship, m
- 87. Exercise • Add Clint Eastwood as the director of Mystic River. 1. Add a “Clint Eastwood” node 2. Create a relationship between “Clint Eastwood” and “Mystic River”
- 88. Answer • Fetch the “Clint Eastwood” node and “The Matrix” node. Then create a relationship between them where Clint Eastwood is the director of The Matrix. MATCH (n:Person {name:"Clint Eastwood"}) MATCH (m:Movie {title:"The Matrix"}) CREATE (n)-[rel:DIRECTED]->(m) RETURN n,rel,m
- 89. Delete a Node • You already added yourself to the graph. Now you want to delete yourself. Please run the following query. • Did you delete yourself? No. MATCH (n:Person {name:”Your name”}) DELETE n
- 91. Delete a Node • Deleting a node with relationship MATCH (n:Person {name:“Your name"}) OPTIONAL MATCH (n)-[r]-() DELETE n,r Optional match checks if a node has any relationship with other nodes.
- 92. DETACH DELETE • Deleting a node the easy way MATCH (emil:Person {name:"Emil Eifrem"}) DETACH DELETE emil
- 93. Exercise • RETURN a list of all the characters in the movie ”The Matrix”. Hint 1. Find out all the actors that played in the movie “The Matrix”. 2. List their roles from the movie
- 94. Answer MATCH (n:Person)-[r:ACTED_IN]->(m:Movie {title:"The Matrix"}) RETURN n.name, r.roles, m.title
- 95. ORDER BY • Display the oldest people in our database. • ORDER BY – Allows you to order the returned results MATCH (person:Person) RETURN person.name, person.born ORDER BY person.born
- 96. LIMIT • LIMIT - To limit the number of results returned. MATCH (actor:Person)-[:ACTED_IN]->(movie:Movie) RETURN actor.name, movie.title LIMIT 10;
- 97. Exercise • Return the five oldest people in the database MATCH (person:Person) RETURN person ORDER BY person.born LIMIT 5;
- 98. Using DISTINCT • Often you find yourself wanting to return only distinct results for a query. For example, let’s look at the list of the oldest actors. Initially, we might try the following: • MATCH (actor:Person)-[:ACTED_IN]->() RETURN actor ORDER BY actor.born LIMIT 5
- 99. Using DISTINCT • But if any of the five oldest actors were in more than one movie, we’ll get them multiple times. So the query we really want to run is: • DISTINCT – Returns unique values by removing the duplicate entries MATCH (actor:Person)-[:ACTED_IN]->() RETURN DISTINCT actor ORDER BY actor.born LIMIT 5
- 100. Using conditions! • WHERE • ><=
- 101. Filter comparisons • Find all the actors that acted with Tom Hanks and are older than him. MATCH (tom:Person)-[:ACTED_IN]->()<-[:ACTED_IN]-(actor:Person) WHERE tom.name="Tom Hanks" AND actor.born < tom.born RETURN actor.name AS Name
- 103. Filter comparisons • Find all the actors that acted with Gene Hackman. MATCH (gene:Person)-[:ACTED_IN]->()<-[:ACTED_IN]-(other:Person) WHERE gene.name="Gene Hackman“ RETURN DISTINCT other
- 104. Filter comparisons • Find all the actors that acted with Gene Hackman who are also directors MATCH (gene:Person)-[:ACTED_IN]->()<-[:ACTED_IN]-(other:Person) WHERE gene.name="Gene Hackman" AND exists( (other)-[:DIRECTED]->() ) RETURN DISTINCT othe
- 105. Filter comparisons • Gene Hackman and not Robin Williams • Find actors who worked with Gene Hackman, but not when he was also working with Robin Williamsin the same movie. •MATCH (gene:Person {name:"Gene Hackman"})-[:ACTED_IN]- >(movie:Movie), (other:Person)-[:ACTED_IN]->(movie), (robin:Person {name:"Robin Williams"}) WHERE NOT exists( (robin)-[:ACTED_IN]- >(movie) ) RETURN DISTINCT other
- 106. Filter comparisons • Find all the movies that Tom Hanks acted in which were released after the year 2000. MATCH (tom:Person)-[:ACTED_IN]->(movie) WHERE tom.name="Tom Hanks" AND movie.released > 2000 RETURN movie.title AS `Movie Title`
- 107. Filter comparisons • Find all movies that Keanu Reeves acted in. MATCH (keanu:Person)-[r:ACTED_IN]->(movie) WHERE keanu.name="Keanu Reeves” RETURN movie.title
- 108. Filter comparisons • Find all movies in which Keanu Reeves played the role Neo. MATCH (keanu:Person)-[r:ACTED_IN]->(movie) WHERE keanu.name="Keanu Reeves" AND "Neo" IN r.roles RETURN movie.title
- 109. Path • Path: Series of connected nodes and relationships.
- 111. Collection • Listing the movie titles that an actor participated in. • For every Person who has acted in at least one movie, the query will RETURN their name and an array of strings containing the movie titles. MATCH (person:Person)-[:ACTED_IN]->(movie:Movie) RETURN person.name, collect(movie.title);
- 112. Exercise: Collection • Return the names of all the directors each actor has worked with. MATCH (person:Person)-[:ACTED_IN]->(movie:Movie)<-[:DIRECTED]-(director:Person) RETURN person.name, collect(director.name);
- 113. Count • Return the count of movies that each actor has worked in. MATCH (person:Person)-[:ACTED_IN]->(movie:Movie) RETURN person.name, count(movie);
- 114. Exercise: Count • Return the count of movies in which an actor and director have jointly worked. MATCH (person:Person)-[:ACTED_IN]->(movie:Movie)<-[:DIRECTED]-(director:Person) RETURN person.name, director.name, count(movie);
- 115. Top n • If we were interested in the top ten actors who acted in the most movies, the query would look like this. 1. Find the number of movies each actor played in. (COLLECT) 2. Arrange the results in order (ORDER BY) (DESC) 3. Get only top 10 results (LIMIT) MATCH (person:Person)-[:ACTED_IN]->(movie:Movie)<-[:DIRECTED]-(director:Person) RETURN person.name, director.name, count(movie);
- 116. Exercise • Who are the five busiest actors? MATCH
- 117. Lets play another game • Hands-on • Create a small biological graph in Neo4j (Maybe the one that you designed earlier on the paper?) • Rules 1. There must be at least than 15 nodes 2. The scenario should be biological • Be creative
- 118. The HetNet Awakens Dr. Daniel Himmelstein Uni Penn. https://neo4j.het.io/browser/
- 119. HetioNet • Hetionet is a network of biology, disease, and pharmacology. • Knowledge from millions of biomedical studies over the last half century have been encoded into a single hetnet. • Version 1.0 contains 47,031 nodes of 11 types and 2,250,197 relationships of 24 types.
- 120. HetioNet – Neo4j
- 122. • Analyze the HetioNet by yourself Explore: HetioNet
- 123. Neo4j Resources • Books: https://neo4j.com/books/ • Graph tours: https://neo4j.com/graphtour/ • Best learning resources: https://neo4j.com/blog/top-13- resources-graph-theory-algorithms/ • Neo4j training: Neo4j certification, Udemy, PluralSight
- 125. Get connected with me
Editor's Notes
- Reductionist approach is based on dividing biological systems into its constituent parts: From studying organisms to dividing it into organ system, later into organs, then studying at the level of tissues, biological assemblies, and finally getting at the level of biomolecules like DNA, RNA, Protein, Metabolities. They started studying individual biomolecules like protein-protein interaction, Drug-target interaction, Protein-profiling, transcript/RNA profiling, etc. That is it. How does the system on the whole play? How does a pathway connect to another pathway resulting into a function of the cell? How do different disease pathways cancer interact in a way to kill an entire organism?
- The movie database has two types of nodes. The nodes with Person label and the ones with Movie label. Each node has its own properties. Person node has two properties: Name of the person and his/her birth date. Movie node has three properties related to the movie. The title of the movie, the tagline and the release date of the movie. Every person node has a relationship with the movie node. There are 6 kinds of relationships between the movie and the person. A person follows a movie, a person acted in a movie, a person directed a movie, a person produced a movie, a person review or wrote the movie. Some of the relationships have their own property. The properties of the relationship include the role a person played in the movie, the summary of the movie, and movie rating. This graph was already made by someone else, but even you can do it/code it. For that reason, you need to know how to work with Cypher Query Language.
- What this query does is it tries to MATCH a node “n” with the label “Person” where n.name property = your name and after fetching the this specific node it returns it to the user.
- The query is doing a full graph search. It visits every single node to see whether it matches the pattern of (n). In this concrete case, the pattern is simply a node that may or may not have a label or relationships, so it will match every single node in the graph. The RETURN clause then returns all of the information about each of those nodes, including all of their properties.
- What this query does is it tries to MATCH a node “n” with the label “Person” where n.name property = your name and after fetching the this specific node it returns it to the user.
- Let’s say we wanted to add a tagline to the Mystic River :Movie node we’ve just added. First, we have to locate the single movie again by its title, then SET the tagline property.
- Let’s say we wanted to return all of the nodes that have relationships to another node. This is still going to return every single node that has a relationship to another node, along with the other node. But it’s moving us in an important direction, so stay with us for a little longer.
