In this session, we will learn about how Dataflow is a fully managed streaming analytics service that minimizes latency, processing time, and cost through autoscaling and batch processing.

1. Introduction to
GCP DataFlow
Presenter Name
Ankit Mogha

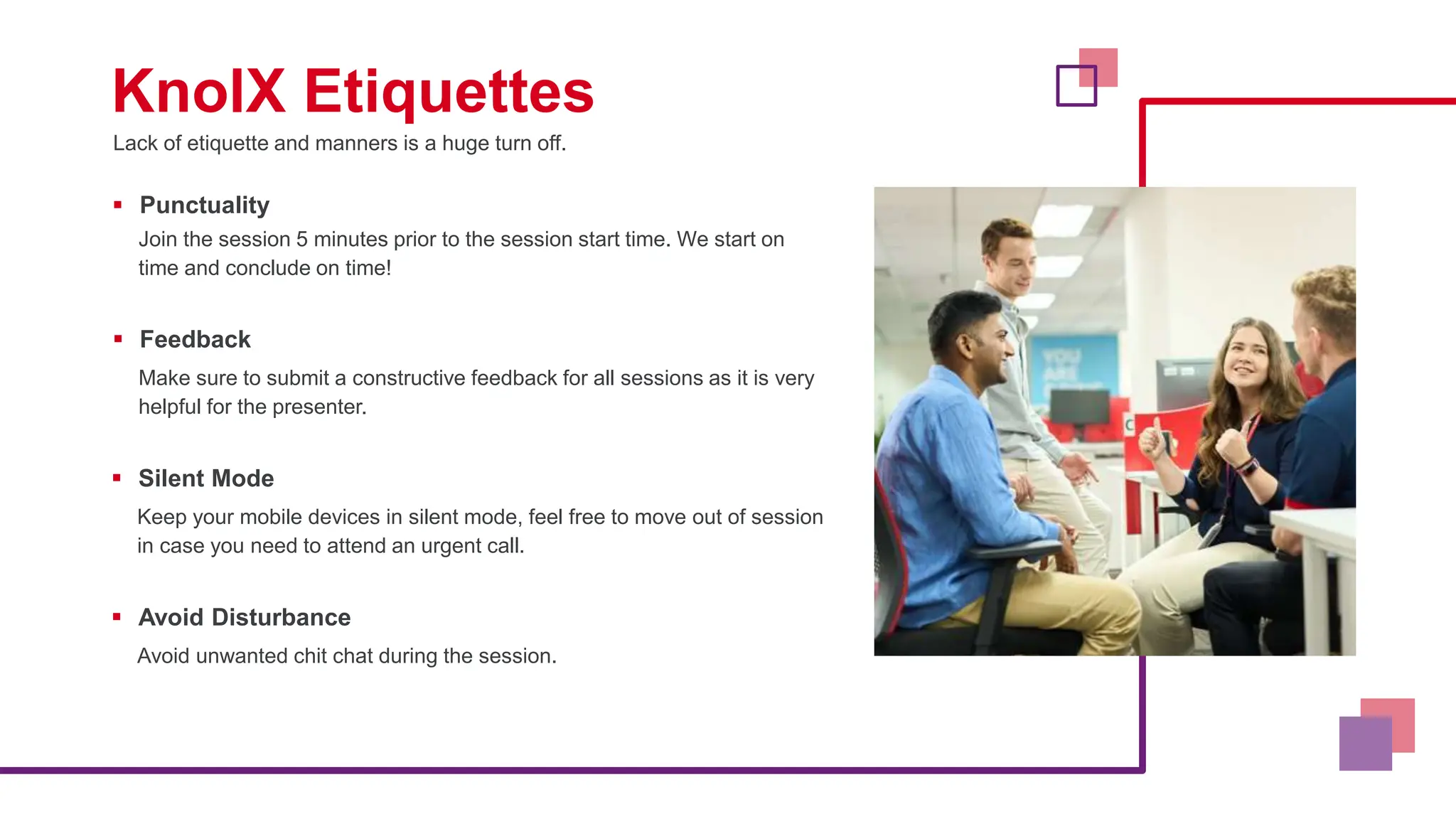

2. Lack of etiquette and manners is a huge turn off.
KnolX Etiquettes
 Punctuality
Join the session 5 minutes prior to the session start time. We start on
time and conclude on time!
 Feedback
Make sure to submit a constructive feedback for all sessions as it is very
helpful for the presenter.
 Silent Mode
Keep your mobile devices in silent mode, feel free to move out of session
in case you need to attend an urgent call.
 Avoid Disturbance
Avoid unwanted chit chat during the session.

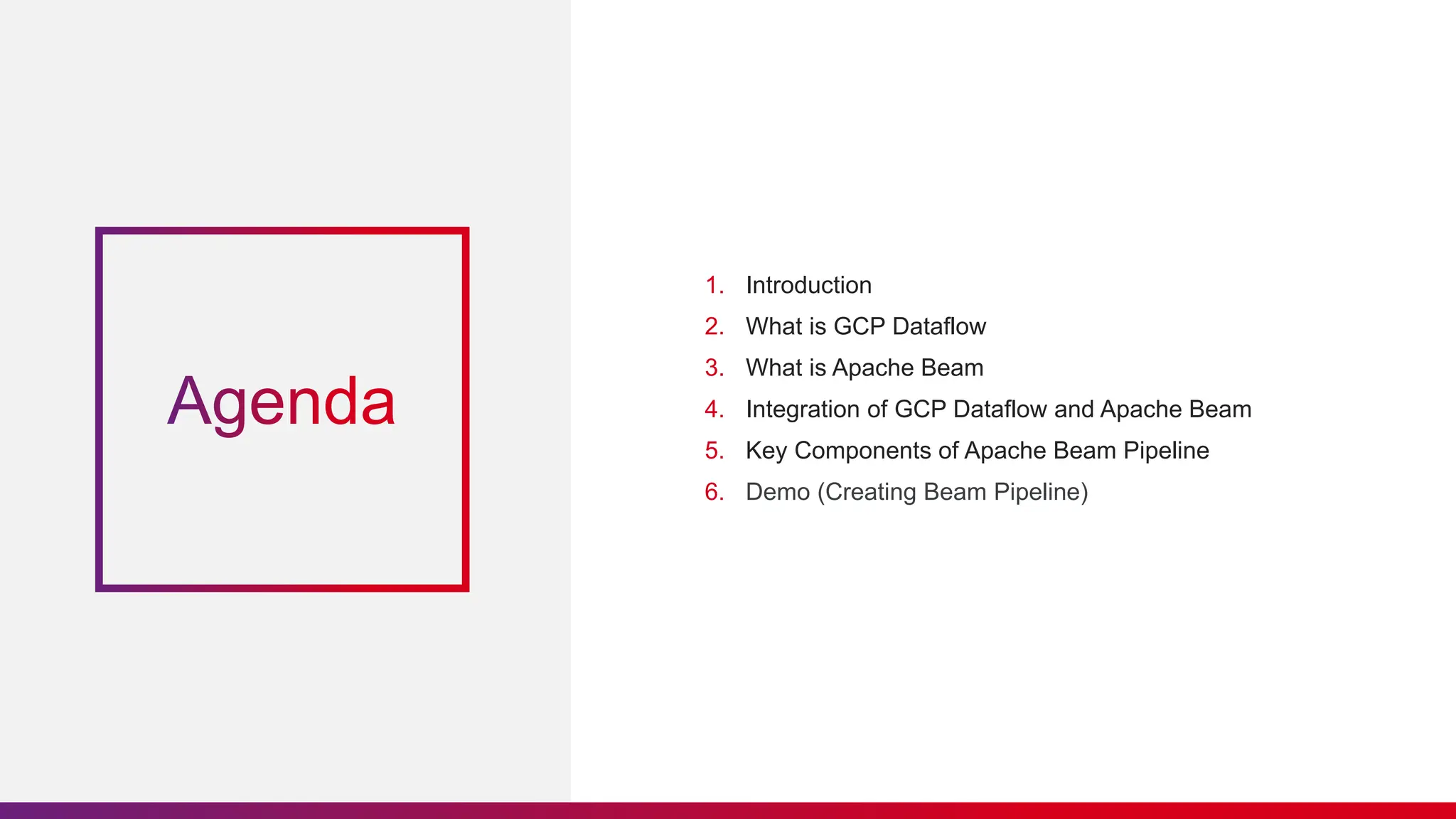

3. 1. Introduction
2. What is GCP Dataflow
3. What is Apache Beam
4. Integration of GCP Dataflow and Apache Beam
5. Key Components of Apache Beam Pipeline
6. Demo (Creating Beam Pipeline)

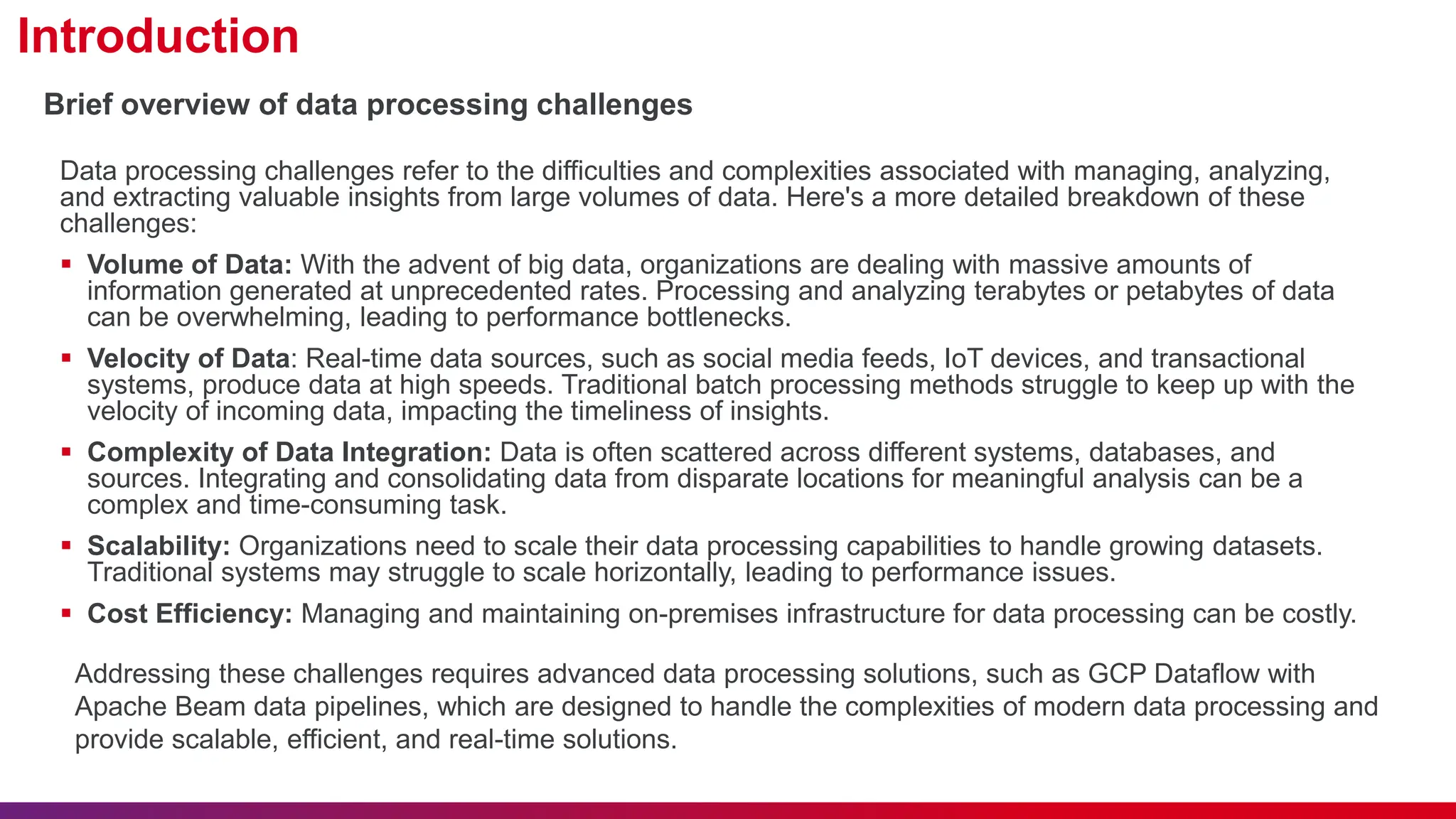

4. Introduction
Data processing challenges refer to the difficulties and complexities associated with managing, analyzing,
and extracting valuable insights from large volumes of data. Here's a more detailed breakdown of these
challenges:
 Volume of Data: With the advent of big data, organizations are dealing with massive amounts of
information generated at unprecedented rates. Processing and analyzing terabytes or petabytes of data
can be overwhelming, leading to performance bottlenecks.
 Velocity of Data: Real-time data sources, such as social media feeds, IoT devices, and transactional
systems, produce data at high speeds. Traditional batch processing methods struggle to keep up with the
velocity of incoming data, impacting the timeliness of insights.
 Complexity of Data Integration: Data is often scattered across different systems, databases, and
sources. Integrating and consolidating data from disparate locations for meaningful analysis can be a
complex and time-consuming task.
 Scalability: Organizations need to scale their data processing capabilities to handle growing datasets.
Traditional systems may struggle to scale horizontally, leading to performance issues.
 Cost Efficiency: Managing and maintaining on-premises infrastructure for data processing can be costly.
Brief overview of data processing challenges
Addressing these challenges requires advanced data processing solutions, such as GCP Dataflow with
Apache Beam data pipelines, which are designed to handle the complexities of modern data processing and
provide scalable, efficient, and real-time solutions.

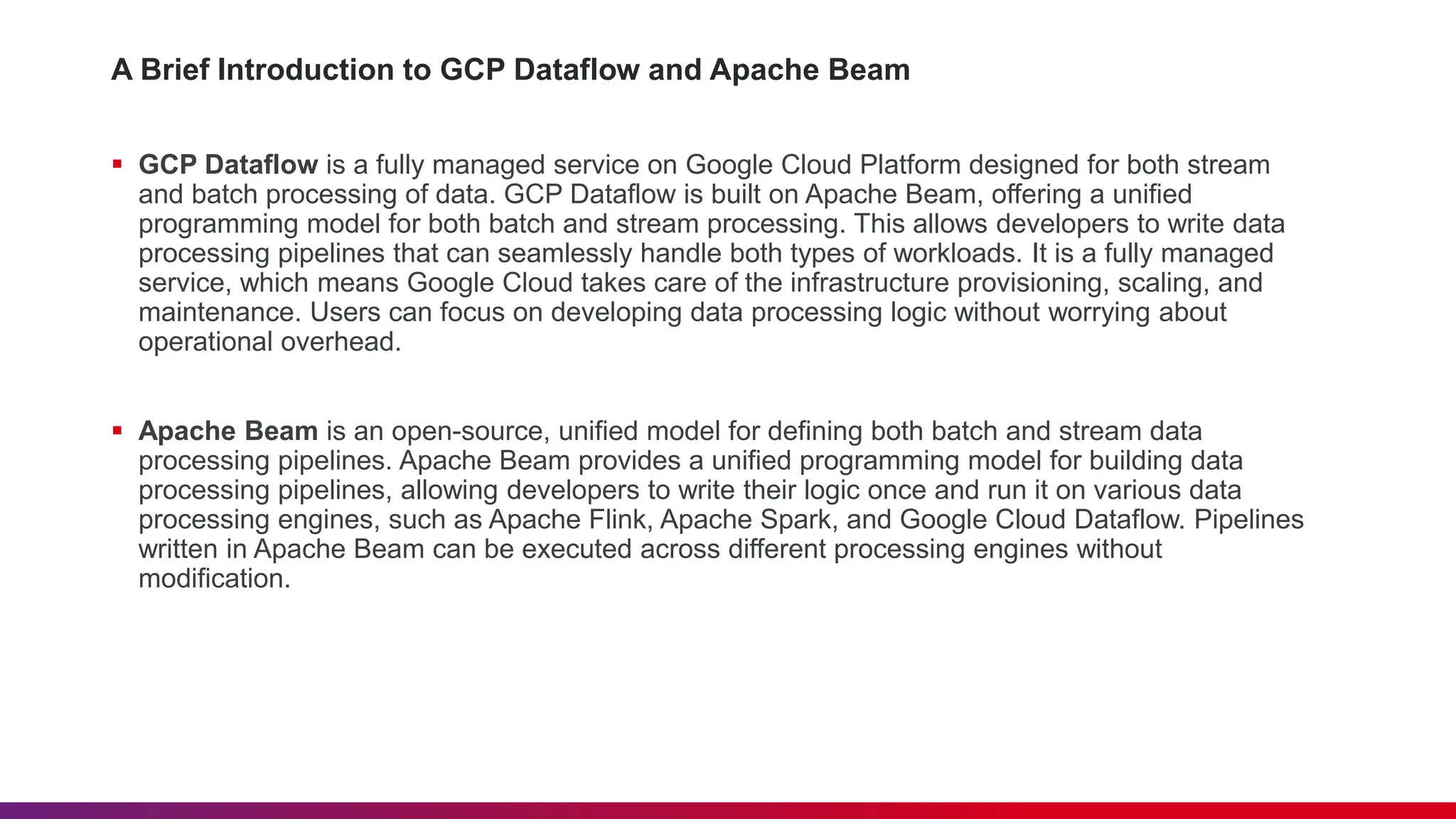

5. A Brief Introduction to GCP Dataflow and Apache Beam
 GCP Dataflow is a fully managed service on Google Cloud Platform designed for both stream
and batch processing of data. GCP Dataflow is built on Apache Beam, offering a unified
programming model for both batch and stream processing. This allows developers to write data
processing pipelines that can seamlessly handle both types of workloads. It is a fully managed
service, which means Google Cloud takes care of the infrastructure provisioning, scaling, and
maintenance. Users can focus on developing data processing logic without worrying about
operational overhead.
 Apache Beam is an open-source, unified model for defining both batch and stream data
processing pipelines. Apache Beam provides a unified programming model for building data
processing pipelines, allowing developers to write their logic once and run it on various data
processing engines, such as Apache Flink, Apache Spark, and Google Cloud Dataflow. Pipelines
written in Apache Beam can be executed across different processing engines without
modification.

6. What is GCP Dataflow
Google Cloud Dataflow is a fully managed service provided by Google Cloud Platform (GCP) for
stream and batch processing of data. Here's are the features of GCP Dataflow:
 Data Processing as a Service: GCP Dataflow allows organizations to process and analyze large
volumes of data in real-time (streaming) or in batches. It abstracts the complexities of
infrastructure management, providing a serverless and fully managed environment for data
processing tasks.
 Based on Apache Beam: It is built on Apache Beam, an open-source, unified model for
expressing both batch and stream processing workflows. This integration ensures consistency in
programming models, allowing developers to write data processing logic that is portable across
different processing engines.
 Dynamic Scaling: Dataflow offers dynamic scaling, automatically adjusting the resources
allocated to a job based on the volume of data being processed. This ensures efficient resource
utilization and optimal performance, especially when dealing with varying workloads.
 Serverless Execution: GCP Dataflow operates in a serverless mode, eliminating the need for
users to manage underlying infrastructure. Developers can focus on writing the data processing
logic without worrying about provisioning, configuring, or scaling the infrastructure.

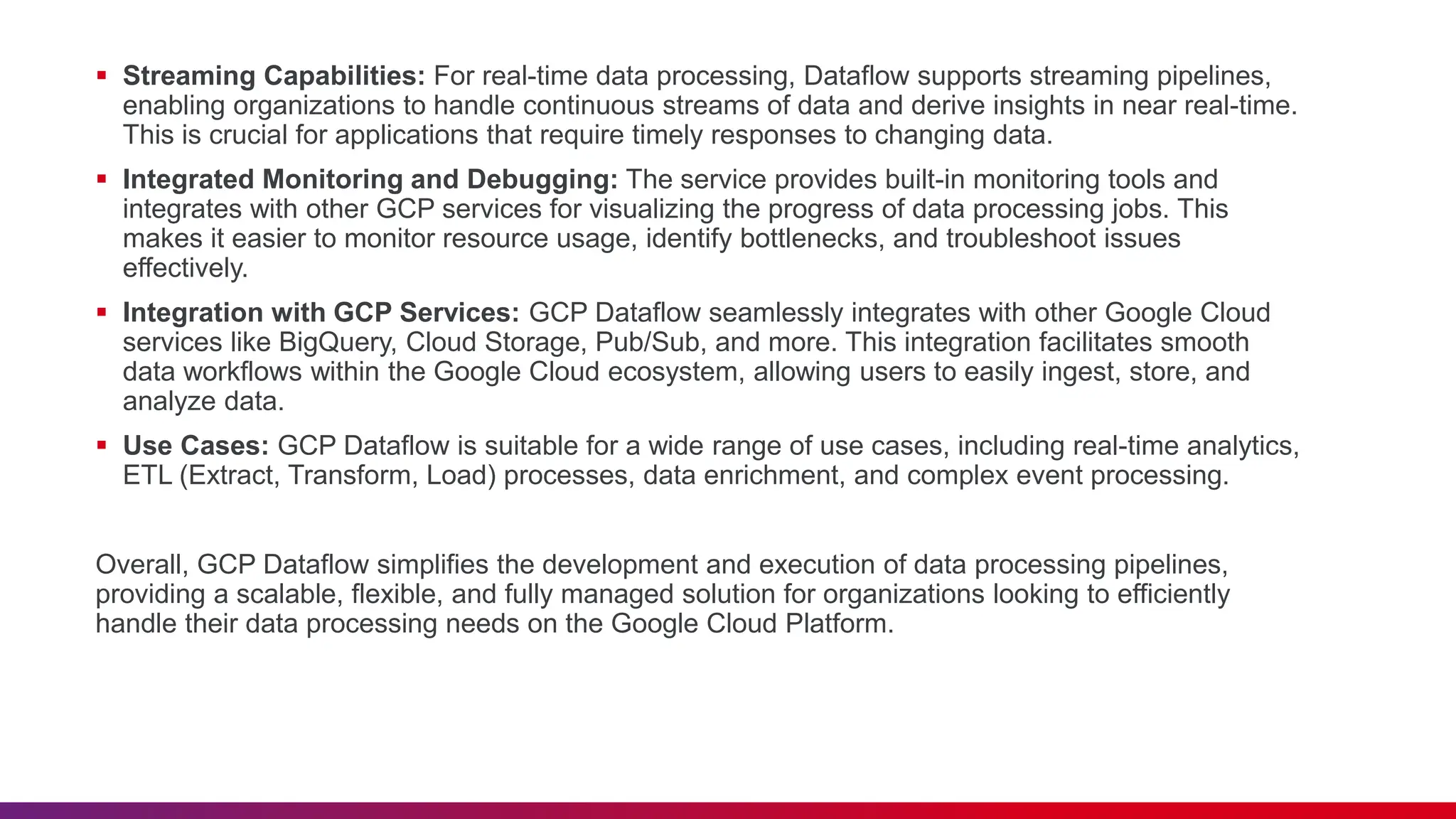

7.  Streaming Capabilities: For real-time data processing, Dataflow supports streaming pipelines,
enabling organizations to handle continuous streams of data and derive insights in near real-time.
This is crucial for applications that require timely responses to changing data.
 Integrated Monitoring and Debugging: The service provides built-in monitoring tools and
integrates with other GCP services for visualizing the progress of data processing jobs. This
makes it easier to monitor resource usage, identify bottlenecks, and troubleshoot issues
effectively.
 Integration with GCP Services: GCP Dataflow seamlessly integrates with other Google Cloud
services like BigQuery, Cloud Storage, Pub/Sub, and more. This integration facilitates smooth
data workflows within the Google Cloud ecosystem, allowing users to easily ingest, store, and
analyze data.
 Use Cases: GCP Dataflow is suitable for a wide range of use cases, including real-time analytics,
ETL (Extract, Transform, Load) processes, data enrichment, and complex event processing.
Overall, GCP Dataflow simplifies the development and execution of data processing pipelines,
providing a scalable, flexible, and fully managed solution for organizations looking to efficiently
handle their data processing needs on the Google Cloud Platform.

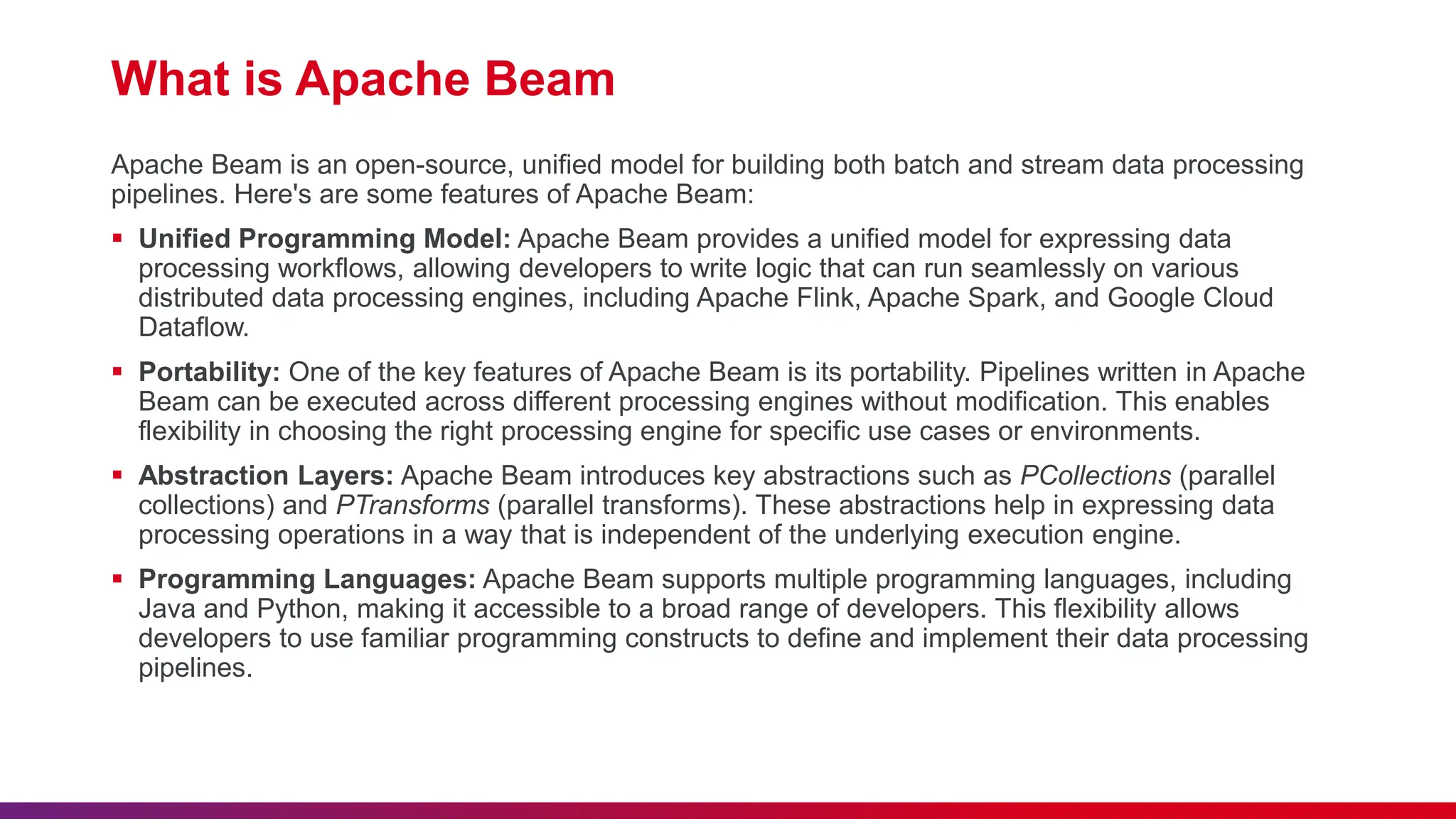

8. What is Apache Beam
Apache Beam is an open-source, unified model for building both batch and stream data processing
pipelines. Here's are some features of Apache Beam:
 Unified Programming Model: Apache Beam provides a unified model for expressing data
processing workflows, allowing developers to write logic that can run seamlessly on various
distributed data processing engines, including Apache Flink, Apache Spark, and Google Cloud
Dataflow.
 Portability: One of the key features of Apache Beam is its portability. Pipelines written in Apache
Beam can be executed across different processing engines without modification. This enables
flexibility in choosing the right processing engine for specific use cases or environments.
 Abstraction Layers: Apache Beam introduces key abstractions such as PCollections (parallel
collections) and PTransforms (parallel transforms). These abstractions help in expressing data
processing operations in a way that is independent of the underlying execution engine.
 Programming Languages: Apache Beam supports multiple programming languages, including
Java and Python, making it accessible to a broad range of developers. This flexibility allows
developers to use familiar programming constructs to define and implement their data processing
pipelines.

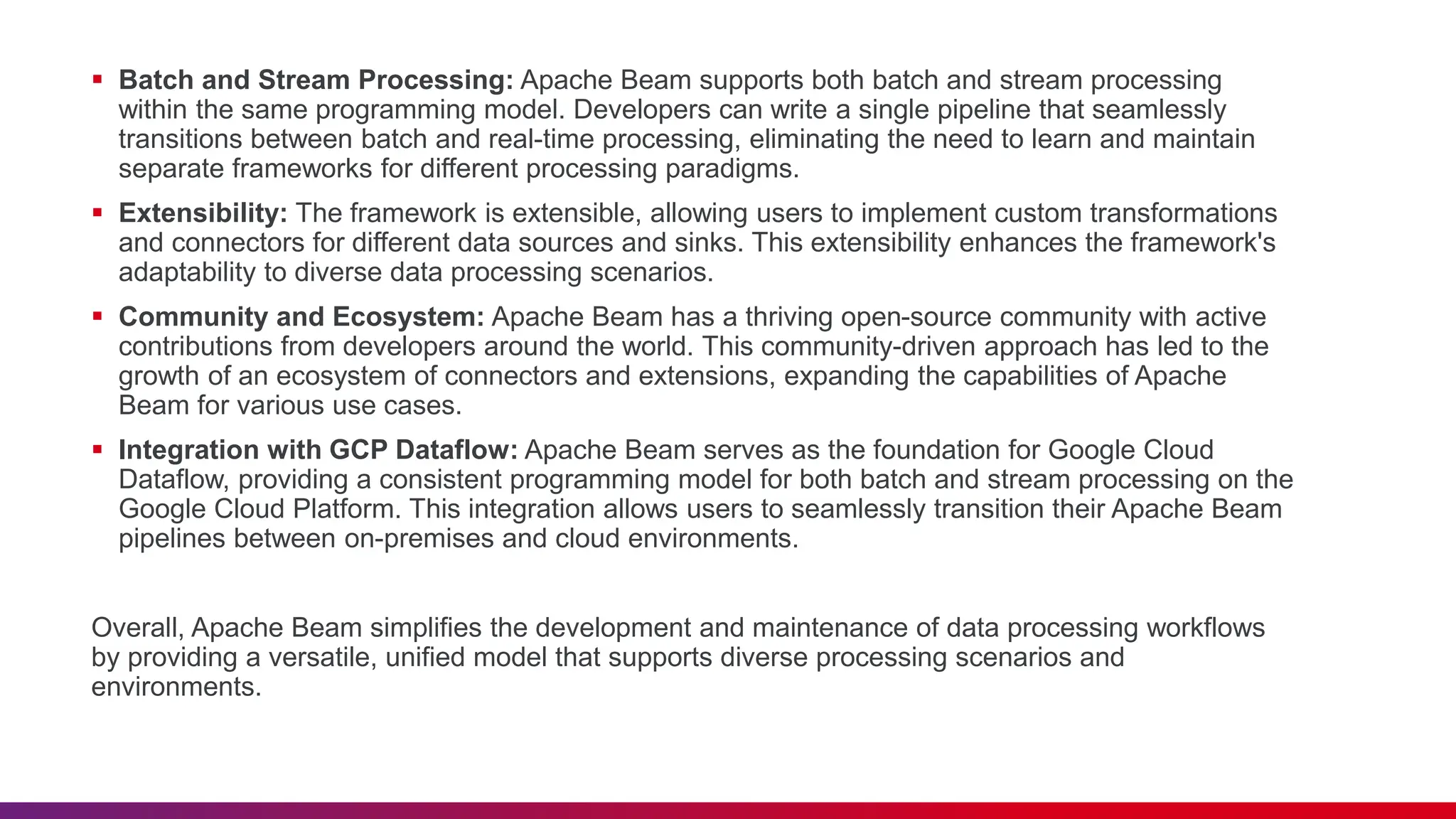

9.  Batch and Stream Processing: Apache Beam supports both batch and stream processing
within the same programming model. Developers can write a single pipeline that seamlessly
transitions between batch and real-time processing, eliminating the need to learn and maintain
separate frameworks for different processing paradigms.
 Extensibility: The framework is extensible, allowing users to implement custom transformations
and connectors for different data sources and sinks. This extensibility enhances the framework's
adaptability to diverse data processing scenarios.
 Community and Ecosystem: Apache Beam has a thriving open-source community with active
contributions from developers around the world. This community-driven approach has led to the
growth of an ecosystem of connectors and extensions, expanding the capabilities of Apache
Beam for various use cases.
 Integration with GCP Dataflow: Apache Beam serves as the foundation for Google Cloud
Dataflow, providing a consistent programming model for both batch and stream processing on the
Google Cloud Platform. This integration allows users to seamlessly transition their Apache Beam
pipelines between on-premises and cloud environments.
Overall, Apache Beam simplifies the development and maintenance of data processing workflows
by providing a versatile, unified model that supports diverse processing scenarios and
environments.

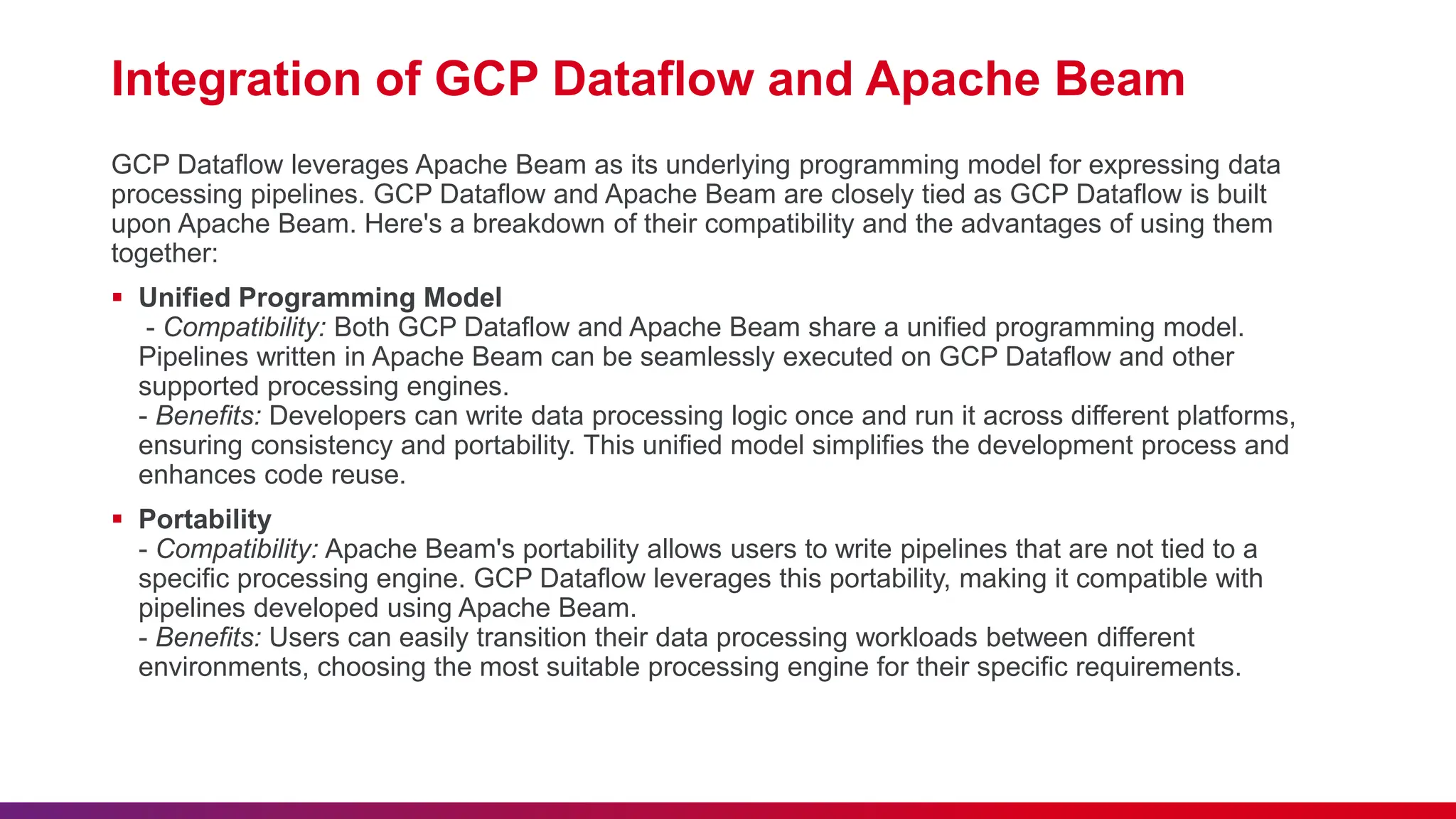

10. Integration of GCP Dataflow and Apache Beam
GCP Dataflow leverages Apache Beam as its underlying programming model for expressing data
processing pipelines. GCP Dataflow and Apache Beam are closely tied as GCP Dataflow is built
upon Apache Beam. Here's a breakdown of their compatibility and the advantages of using them
together:
 Unified Programming Model
- Compatibility: Both GCP Dataflow and Apache Beam share a unified programming model.
Pipelines written in Apache Beam can be seamlessly executed on GCP Dataflow and other
supported processing engines.
- Benefits: Developers can write data processing logic once and run it across different platforms,
ensuring consistency and portability. This unified model simplifies the development process and
enhances code reuse.
 Portability
- Compatibility: Apache Beam's portability allows users to write pipelines that are not tied to a
specific processing engine. GCP Dataflow leverages this portability, making it compatible with
pipelines developed using Apache Beam.
- Benefits: Users can easily transition their data processing workloads between different
environments, choosing the most suitable processing engine for their specific requirements.

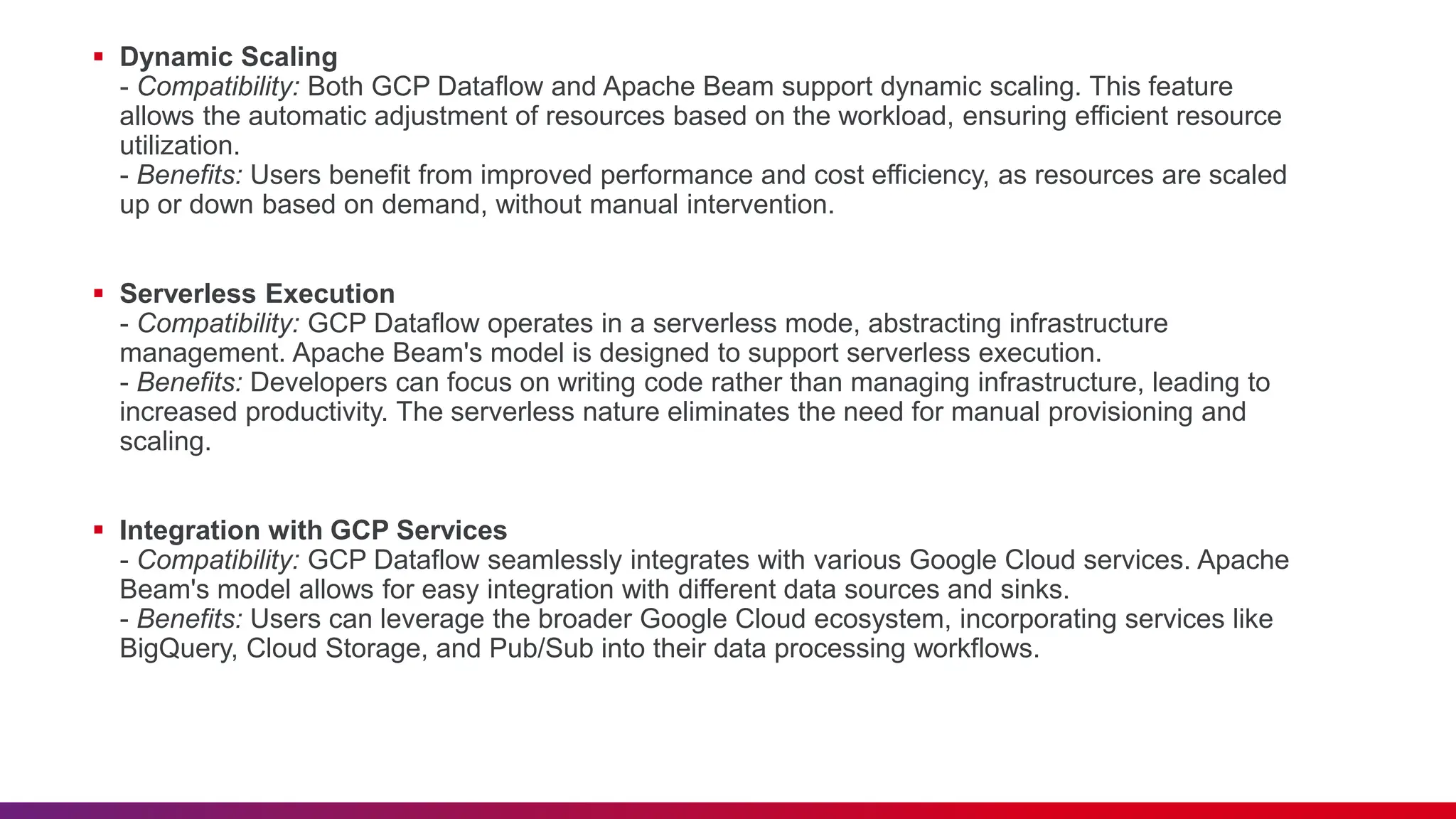

11.  Dynamic Scaling
- Compatibility: Both GCP Dataflow and Apache Beam support dynamic scaling. This feature
allows the automatic adjustment of resources based on the workload, ensuring efficient resource
utilization.
- Benefits: Users benefit from improved performance and cost efficiency, as resources are scaled
up or down based on demand, without manual intervention.
 Serverless Execution
- Compatibility: GCP Dataflow operates in a serverless mode, abstracting infrastructure
management. Apache Beam's model is designed to support serverless execution.
- Benefits: Developers can focus on writing code rather than managing infrastructure, leading to
increased productivity. The serverless nature eliminates the need for manual provisioning and
scaling.
 Integration with GCP Services
- Compatibility: GCP Dataflow seamlessly integrates with various Google Cloud services. Apache
Beam's model allows for easy integration with different data sources and sinks.
- Benefits: Users can leverage the broader Google Cloud ecosystem, incorporating services like
BigQuery, Cloud Storage, and Pub/Sub into their data processing workflows.

12.  Community and Ecosystem
- Compatibility: Both GCP Dataflow and Apache Beam benefit from active open-source
communities.
- Benefits: Users have access to a wide range of community-contributed connectors, extensions,
and best practices. This collaborative environment enhances the capabilities of both GCP
Dataflow and Apache Beam.
 Flexibility in Processing Engines
- Compatibility: Apache Beam's model allows pipelines to be executed on various processing
engines. GCP Dataflow supports this flexibility.
- Benefits: Users can choose the most suitable processing engine for their specific requirements,
whether it's on-premises or in the cloud, without rewriting their data processing logic.
In summary, the compatibility between GCP Dataflow and Apache Beam, along with their shared
benefits, results in a powerful and flexible framework for developing, deploying, and managing data
processing pipelines across different environments and processing engines.

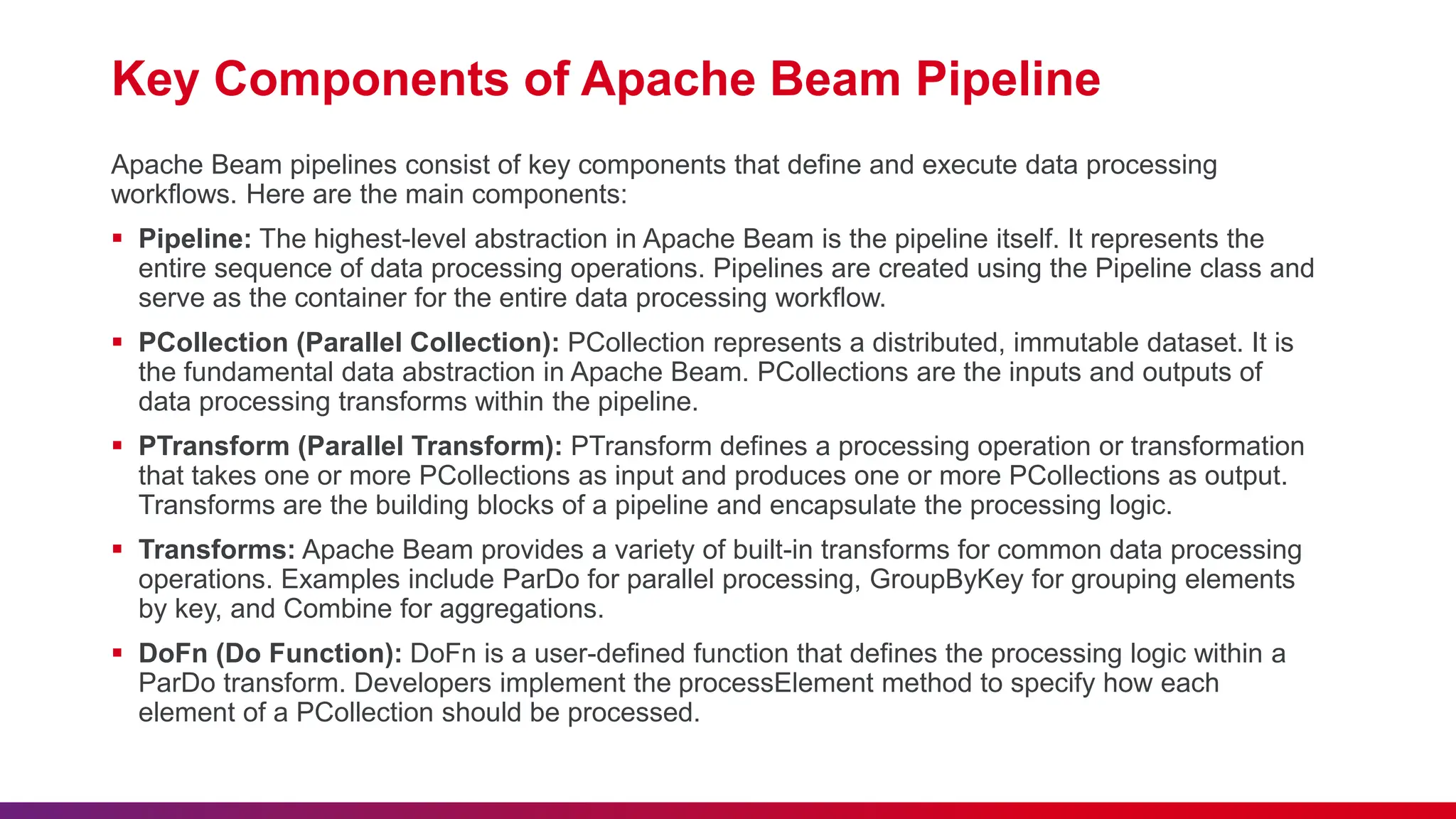

13. Key Components of Apache Beam Pipeline
Apache Beam pipelines consist of key components that define and execute data processing
workflows. Here are the main components:
 Pipeline: The highest-level abstraction in Apache Beam is the pipeline itself. It represents the
entire sequence of data processing operations. Pipelines are created using the Pipeline class and
serve as the container for the entire data processing workflow.
 PCollection (Parallel Collection): PCollection represents a distributed, immutable dataset. It is
the fundamental data abstraction in Apache Beam. PCollections are the inputs and outputs of
data processing transforms within the pipeline.
 PTransform (Parallel Transform): PTransform defines a processing operation or transformation
that takes one or more PCollections as input and produces one or more PCollections as output.
Transforms are the building blocks of a pipeline and encapsulate the processing logic.
 Transforms: Apache Beam provides a variety of built-in transforms for common data processing
operations. Examples include ParDo for parallel processing, GroupByKey for grouping elements
by key, and Combine for aggregations.
 DoFn (Do Function): DoFn is a user-defined function that defines the processing logic within a
ParDo transform. Developers implement the processElement method to specify how each
element of a PCollection should be processed.

14.  Windowing: Windowing allows you to organize and group elements in time-based or custom
windows. This is crucial for handling data streams and defining the scope over which
aggregations or transformations occur.
 Coder: Coder defines how data elements are serialized and deserialized as they move through
the pipeline. It ensures that data can be efficiently encoded for transmission between distributed
processing nodes.
 IO Connectors: Input and output connectors (IO connectors) provide the means to read from or
write to external data sources. Apache Beam supports a variety of connectors, including those for
reading from and writing to cloud storage, databases, and messaging systems.
 Windowed PCollections: Windowed PCollections represent the result of applying windowing
functions to the data. These are essential for handling time-based processing and aggregations.
 Composite Transforms: Developers can create composite transforms by combining multiple
primitive transforms. This allows the creation of reusable and modular processing components
within the pipeline.
 Timestamps and Watermarks: Timestamps are associated with each element in a PCollection,
representing when the data was generated. Watermarks indicate up to what point in time the
system believes it has seen all data, essential for handling event time processing in streaming
scenarios.

15. Demo
