1. Introduction to Firewalls
© N. Ganesan, Ph.D.

2. Overview

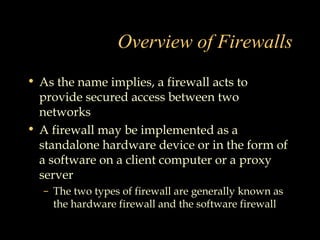

3. Overview of Firewalls
• As the name implies, a firewall acts to
provide secured access between two
networks
• A firewall may be implemented as a
standalone hardware device or in the form of
a software on a client computer or a proxy
server
– The two types of firewall are generally known as
the hardware firewall and the software firewall

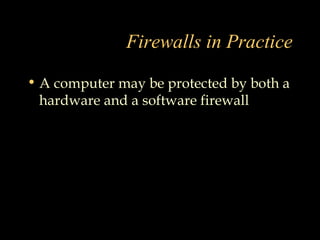

4. Firewalls in Practice
• A computer may be protected by both a
hardware and a software firewall

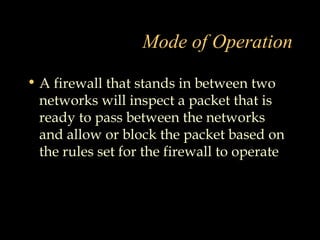

5. Mode of Operation
• A firewall that stands in between two
networks will inspect a packet that is
ready to pass between the networks
and allow or block the packet based on
the rules set for the firewall to operate

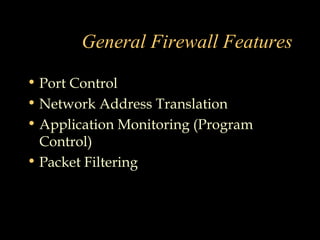

6. General Firewall Features
• Port Control
• Network Address Translation
• Application Monitoring (Program
Control)
• Packet Filtering

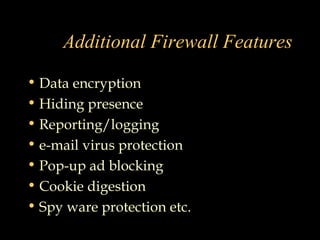

7. Additional Firewall Features
• Data encryption
• Hiding presence
• Reporting/logging
• e-mail virus protection
• Pop-up ad blocking
• Cookie digestion
• Spy ware protection etc.

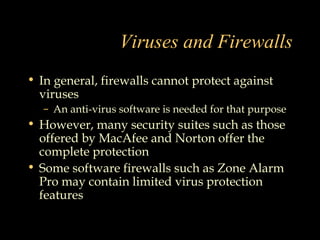

8. Viruses and Firewalls
• In general, firewalls cannot protect against
viruses
– An anti-virus software is needed for that purpose
• However, many security suites such as those
offered by MacAfee and Norton offer the
complete protection
• Some software firewalls such as Zone Alarm
Pro may contain limited virus protection
features

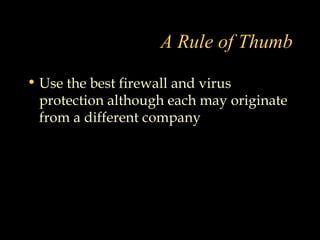

9. A Rule of Thumb
• Use the best firewall and virus
protection although each may originate
from a different company

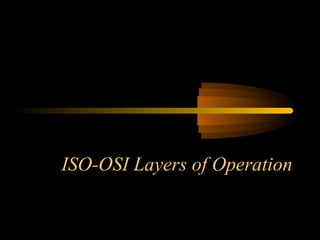

10. ISO-OSI Layers of Operation

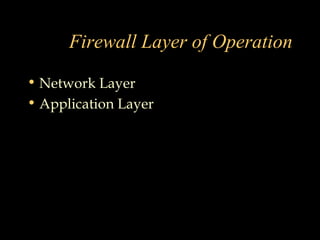

11. Firewall Layer of Operation
• Network Layer
• Application Layer

12. Network Layer
• Makes decision based on the source,
destination addresses, and ports in
individual IP packets.
• Based on routers
• Has the ability to perform static and
dynamic packet filtering and stateful
inspection.

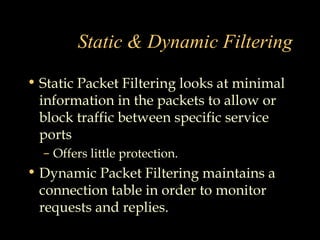

13. Static & Dynamic Filtering
• Static Packet Filtering looks at minimal
information in the packets to allow or
block traffic between specific service
ports
– Offers little protection.
• Dynamic Packet Filtering maintains a
connection table in order to monitor
requests and replies.

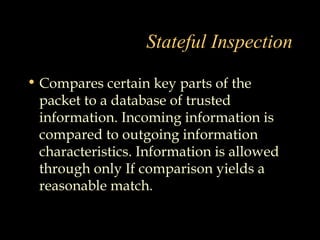

14. Stateful Inspection
• Compares certain key parts of the
packet to a database of trusted
information. Incoming information is
compared to outgoing information
characteristics. Information is allowed
through only If comparison yields a
reasonable match.

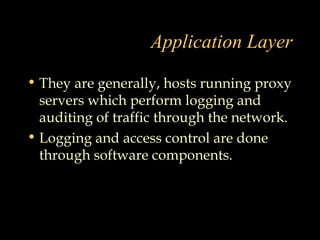

15. Application Layer
• They are generally, hosts running proxy
servers which perform logging and
auditing of traffic through the network.
• Logging and access control are done
through software components.

16. Proxy Services
• Application that mediates traffic
between a protected network and the
internet.
• Able to understand the application
protocol being utilized and implement
protocol specific security.
• Application protocols include: FTP,
HTTP, Telnet etc.

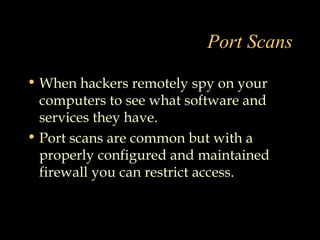

17. Port Scans
• When hackers remotely spy on your
computers to see what software and
services they have.
• Port scans are common but with a
properly configured and maintained
firewall you can restrict access.

18. DMZ
• Demilitarized zone
• Neither part of the internal network nor
part of the Internet
• Never offer attackers more to work with
than is absolutely necessary

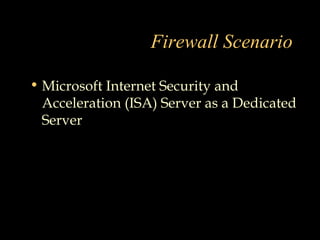

19. Firewall Scenario
• Microsoft Internet Security and
Acceleration (ISA) Server as a Dedicated
Server

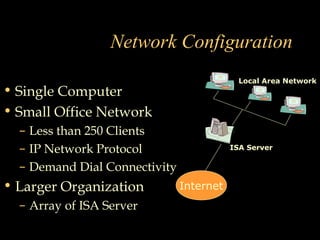

20. Network Configuration
• Single Computer
• Small Office Network
– Less than 250 Clients
– IP Network Protocol
– Demand Dial Connectivity
• Larger Organization
– Array of ISA Server
Internet
ISA Server
Local Area Network

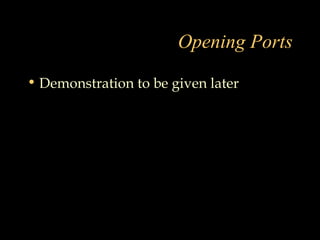

21. Opening Ports
• Demonstration to be given later

22. Software Firewalls
• Firewall for Windows
– Zone Alarm
– Winroute
– Trojan Trap - Trojan Horse
• Firewall for Linux
– Iptables
• Firewall for Mac
– Netbarrier

23. Software Firewall
Implementation

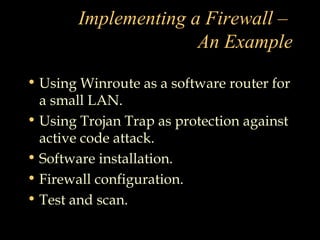

24. Implementing a Firewall –
An Example
• Using Winroute as a software router for
a small LAN.
• Using Trojan Trap as protection against
active code attack.
• Software installation.
• Firewall configuration.
• Test and scan.

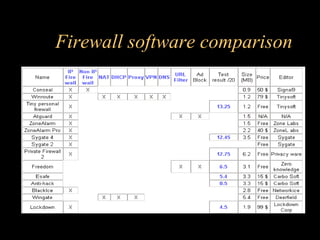

25. Firewall software comparison

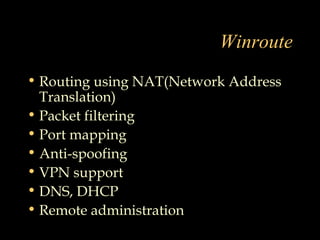

26. Winroute
• Routing using NAT(Network Address
Translation)
• Packet filtering
• Port mapping
• Anti-spoofing
• VPN support
• DNS, DHCP
• Remote administration

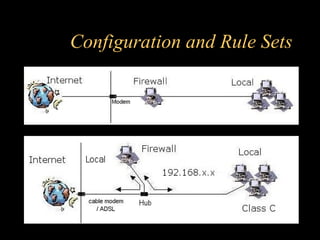

27. Configuration and Rule Sets
•

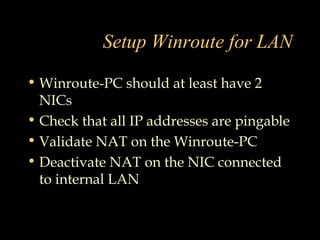

28. Setup Winroute for LAN
• Winroute-PC should at least have 2
NICs
• Check that all IP addresses are pingable
• Validate NAT on the Winroute-PC
• Deactivate NAT on the NIC connected
to internal LAN

29. Setup Winroute for LAN
• No gateway configured on your local
interface of the Winroute-PC
• Configure forwarding options
• On each internal PC configure the
default gateway
• On each internal PC configure the DNS
server

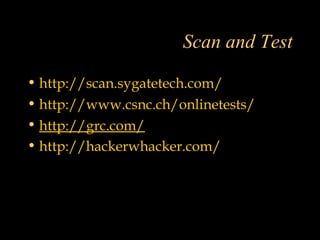

30. Scan and Test
• http://scan.sygatetech.com/
• http://www.csnc.ch/onlinetests/
• http://grc.com/
• http://hackerwhacker.com/

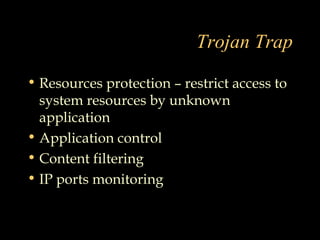

31. Trojan Trap
• Resources protection – restrict access to
system resources by unknown
application
• Application control
• Content filtering
• IP ports monitoring

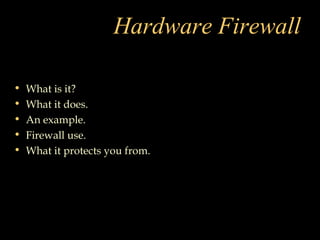

32. Hardware Firewall
• What is it?
• What it does.
• An example.
• Firewall use.
• What it protects you from.

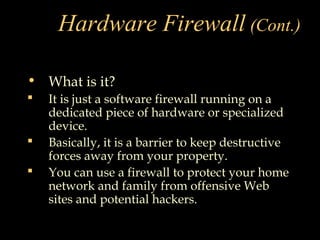

33. Hardware Firewall (Cont.)
• What is it?
 It is just a software firewall running on a
dedicated piece of hardware or specialized
device.
 Basically, it is a barrier to keep destructive
forces away from your property.
 You can use a firewall to protect your home
network and family from offensive Web
sites and potential hackers.

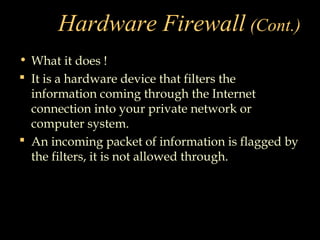

34. Hardware Firewall (Cont.)
• What it does !
 It is a hardware device that filters the
information coming through the Internet
connection into your private network or
computer system.
 An incoming packet of information is flagged by
the filters, it is not allowed through.

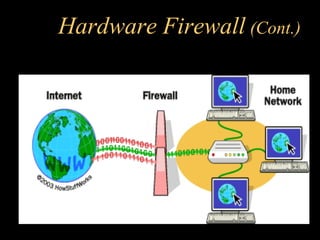

35. Hardware Firewall (Cont.)
• An example !

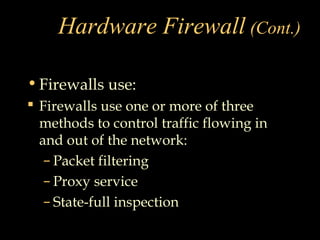

36. Hardware Firewall (Cont.)
•Firewalls use:
 Firewalls use one or more of three
methods to control traffic flowing in
and out of the network:
– Packet filtering
– Proxy service
– State-full inspection

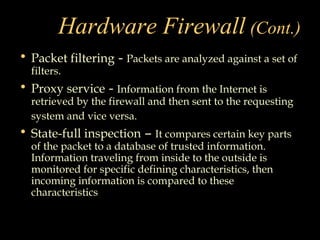

37. Hardware Firewall (Cont.)
• Packet filtering - Packets are analyzed against a set of
filters.
• Proxy service - Information from the Internet is
retrieved by the firewall and then sent to the requesting
system and vice versa.
• State-full inspection – It compares certain key parts
of the packet to a database of trusted information.
Information traveling from inside to the outside is
monitored for specific defining characteristics, then
incoming information is compared to these
characteristics.

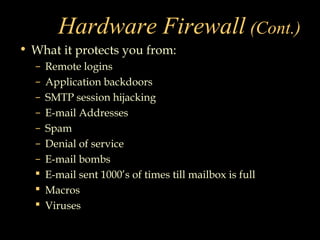

38. Hardware Firewall (Cont.)
• What it protects you from:
– Remote logins
– Application backdoors
– SMTP session hijacking
– E-mail Addresses
– Spam
– Denial of service
– E-mail bombs
 E-mail sent 1000’s of times till mailbox is full
 Macros
 Viruses

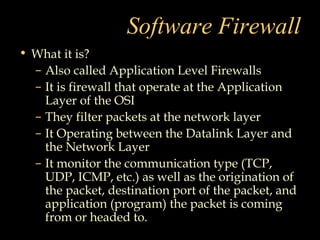

39. Software Firewall
• What it is?
– Also called Application Level Firewalls
– It is firewall that operate at the Application
Layer of the OSI
– They filter packets at the network layer
– It Operating between the Datalink Layer and
the Network Layer
– It monitor the communication type (TCP,
UDP, ICMP, etc.) as well as the origination of
the packet, destination port of the packet, and
application (program) the packet is coming
from or headed to.

40. Software Firewall (Cont.)
• How does software firewall works ?

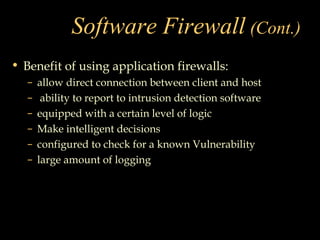

41. Software Firewall (Cont.)
• Benefit of using application firewalls:
– allow direct connection between client and host
– ability to report to intrusion detection software
– equipped with a certain level of logic
– Make intelligent decisions
– configured to check for a known Vulnerability
– large amount of logging

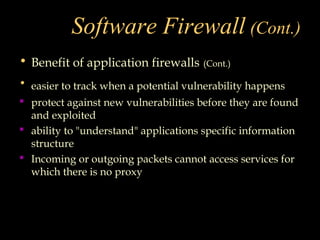

42. Software Firewall (Cont.)
• Benefit of application firewalls (Cont.)
• easier to track when a potential vulnerability happens
 protect against new vulnerabilities before they are found
and exploited
 ability to "understand" applications specific information
structure
 Incoming or outgoing packets cannot access services for
which there is no proxy

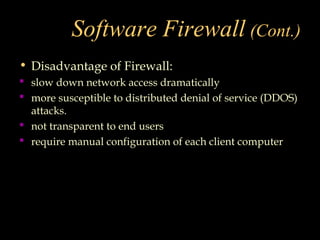

43. Software Firewall (Cont.)
• Disadvantage of Firewall:
 slow down network access dramatically
 more susceptible to distributed denial of service (DDOS)
attacks.
 not transparent to end users
 require manual configuration of each client computer

44. Top Picks Personal Firewalls
• Norton Personal Firewall
• ZoneAlarm Free/Plus/Pro

45. Conclusion

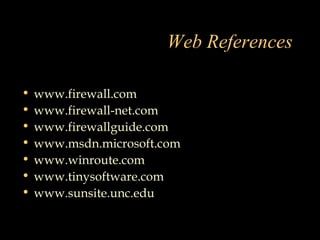

46. Web References
• www.firewall.com
• www.firewall-net.com
• www.firewallguide.com
• www.msdn.microsoft.com
• www.winroute.com
• www.tinysoftware.com
• www.sunsite.unc.edu

47. Benefits of Firewall-Summary
• Prevent intrusion
• Choke point for security audit
• Reduce attacks by hackers
• Hide network behind a single IP
address
• Part of total network security policy

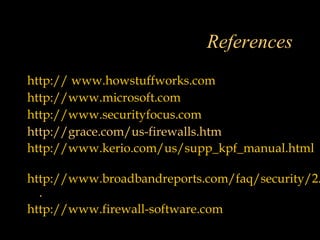

48. References
http:// www.howstuffworks.com
http://www.microsoft.com
http://www.securityfocus.com
http://grace.com/us-firewalls.htm
http://www.kerio.com/us/supp_kpf_manual.html
http://www.broadbandreports.com/faq/security/2.
.
http://www.firewall-software.com

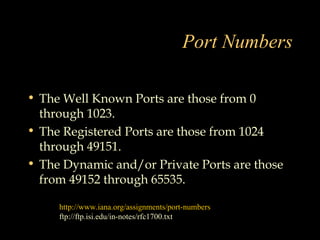

49. Port Numbers
• The Well Known Ports are those from 0
through 1023.
• The Registered Ports are those from 1024
through 49151.
• The Dynamic and/or Private Ports are those
from 49152 through 65535.
http://www.iana.org/assignments/port-numbers
ftp://ftp.isi.edu/in-notes/rfc1700.txt

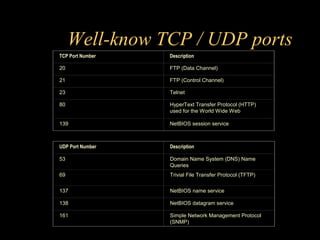

50. Well-know TCP / UDP ports
TCP Port Number Description
20 FTP (Data Channel)
21 FTP (Control Channel)
23 Telnet
80 HyperText Transfer Protocol (HTTP)
used for the World Wide Web
139 NetBIOS session service
UDP Port Number Description
53 Domain Name System (DNS) Name
Queries
69 Trivial File Transfer Protocol (TFTP)
137 NetBIOS name service
138 NetBIOS datagram service
161 Simple Network Management Protocol
(SNMP)

51. References
• http://www.tlc.discovery.com/convergence/hacker
s/hackers.html
• http://www.tuxedo.org/~esr/faqs/hacker-
howto.html
• http://www.iss.net/security_center/advice/Underg
round/Hacking/Methods/Technical/
• http://www.infosecuritymag.com/articles/march01
/features4_battle_plans.shtml
• http://www.nmrc.org/faqs/www/wsec09.html
• http://www.microsoft.com/. Tim RainsTim Rains •• Technical LeadTechnical Lead ••
Networking TeamNetworking Team
• Q310099, "Description of the Portqry.exe Command-
Line Utility"

52. Hardware Firewalls

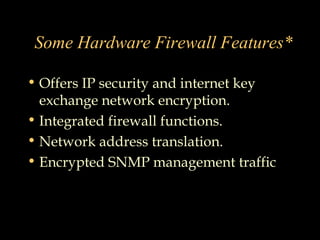

53. Some Hardware Firewall Features*
• Offers IP security and internet key
exchange network encryption.
• Integrated firewall functions.
• Network address translation.
• Encrypted SNMP management traffic

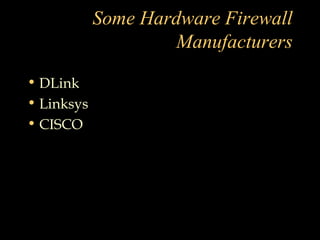

54. Some Hardware Firewall
Manufacturers
• DLink
• Linksys
• CISCO

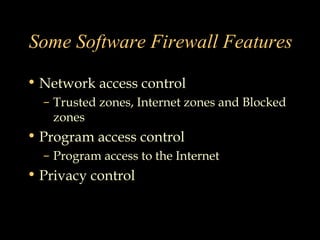

55. Some Software Firewall Features
• Network access control
– Trusted zones, Internet zones and Blocked
zones
• Program access control
– Program access to the Internet
• Privacy control

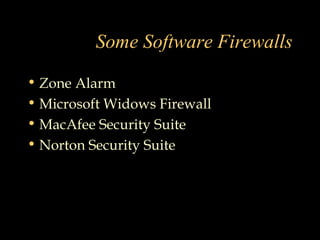

56. Some Software Firewalls
• Zone Alarm
• Microsoft Widows Firewall
• MacAfee Security Suite
• Norton Security Suite

57. Layer of Operation
