1. Introduction to DevOps
Len Bass
copyright 2015 Len Bass 1

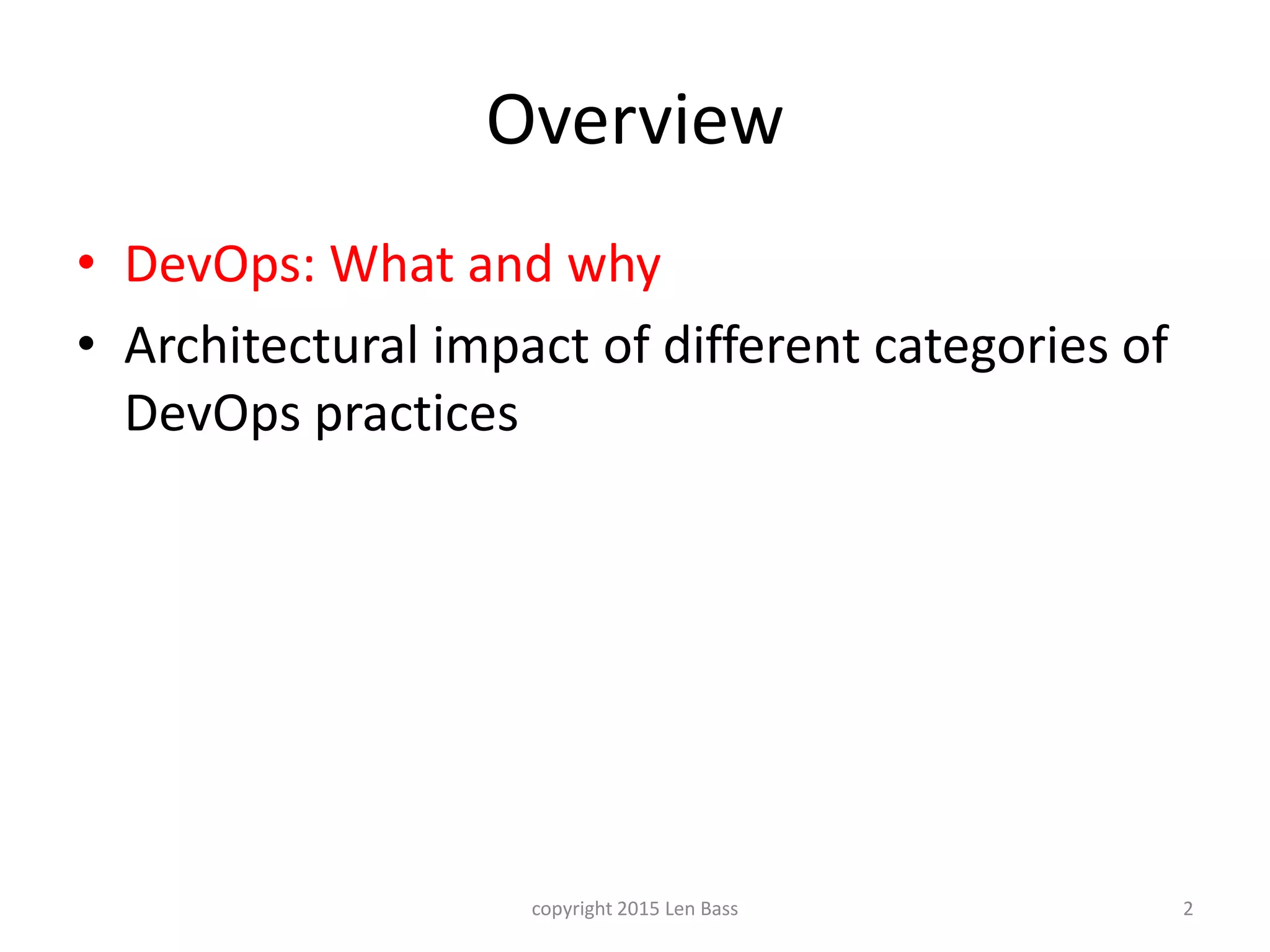

2. Overview
• DevOps: What and why
• Architectural impact of different categories of
DevOps practices
copyright 2015 Len Bass 2

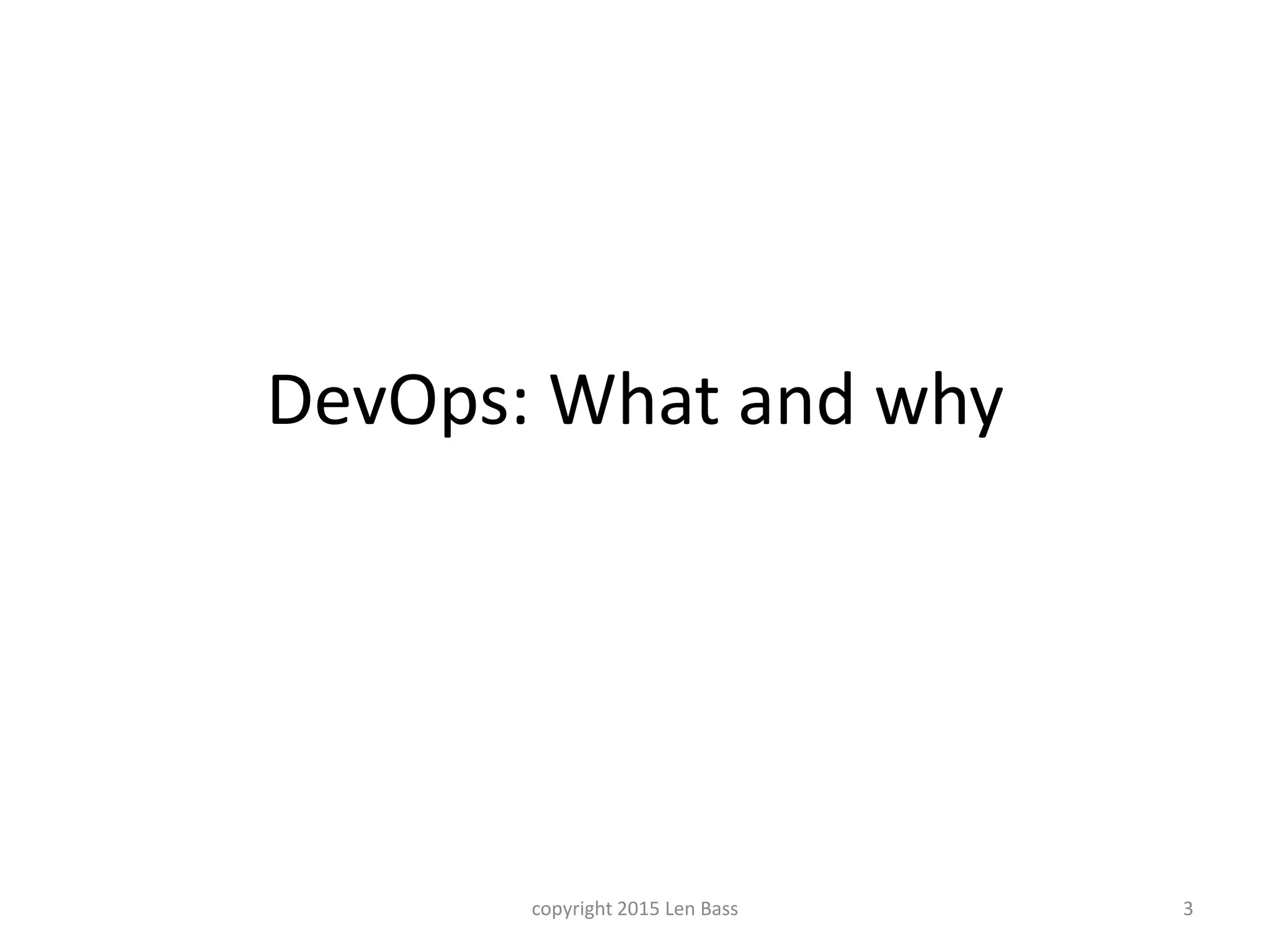

3. DevOps: What and why
copyright 2015 Len Bass 3

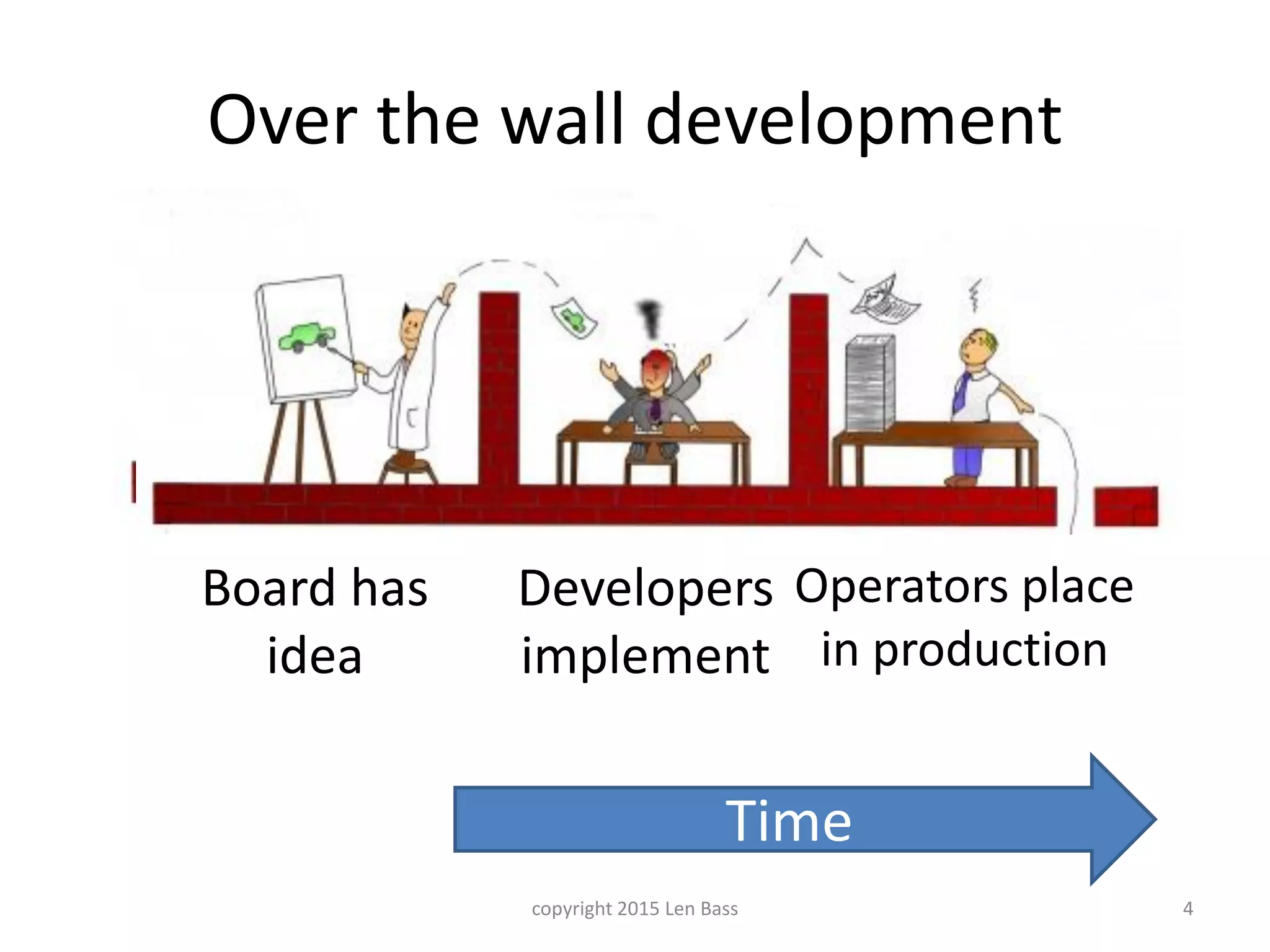

4. Over the wall development
copyright 2015 Len Bass 4
Board has
idea
Developers
implement
Operators place
in production
Time

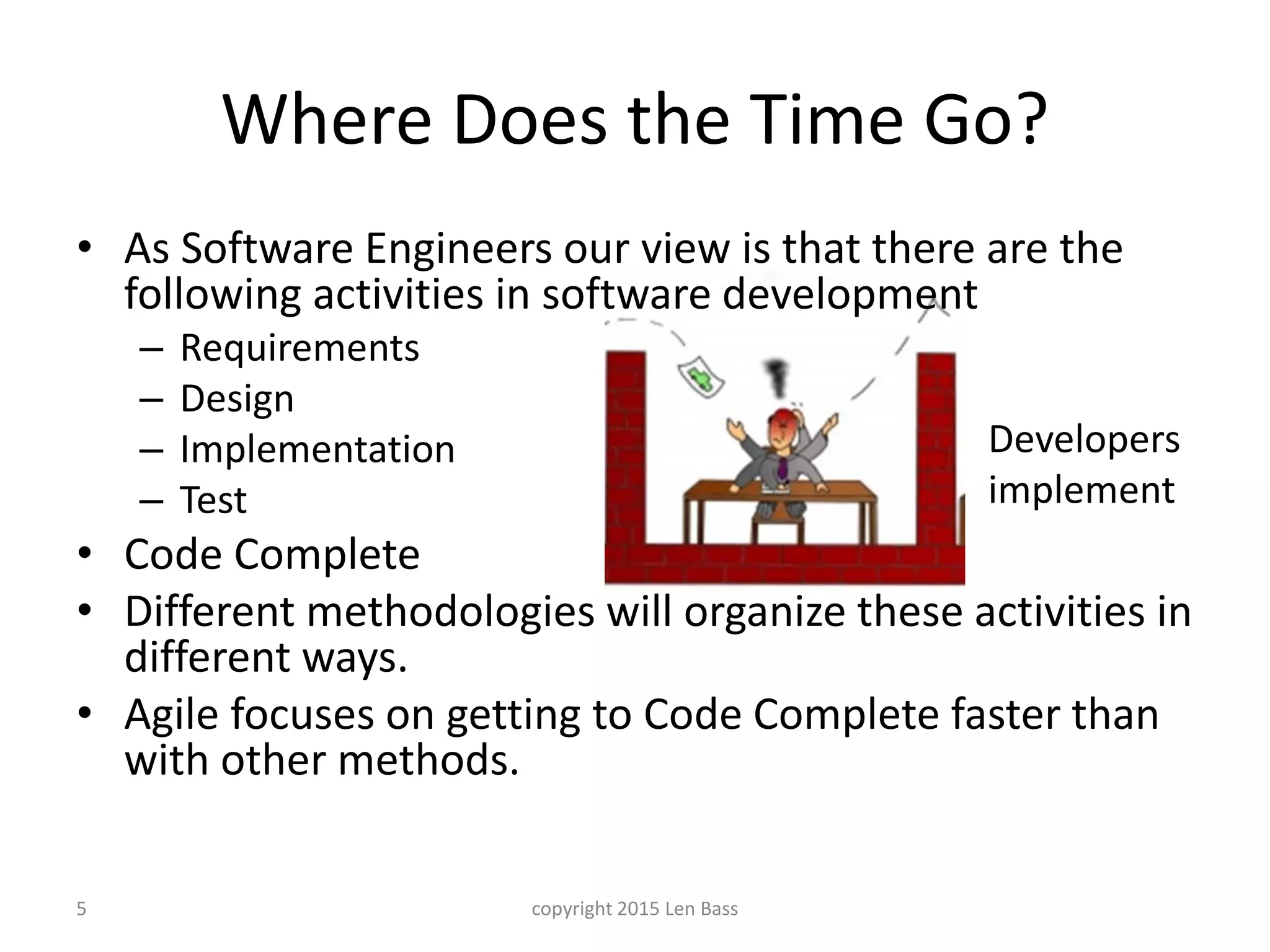

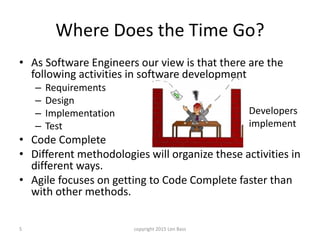

5. Where Does the Time Go?
• As Software Engineers our view is that there are the
following activities in software development
– Requirements
– Design
– Implementation
– Test
• Code Complete
• Different methodologies will organize these activities in
different ways.
• Agile focuses on getting to Code Complete faster than
with other methods.
5
Developers
implement
copyright 2015 Len Bass

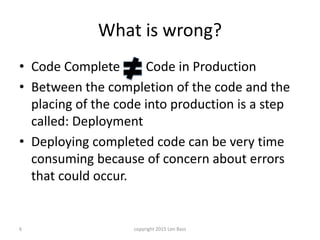

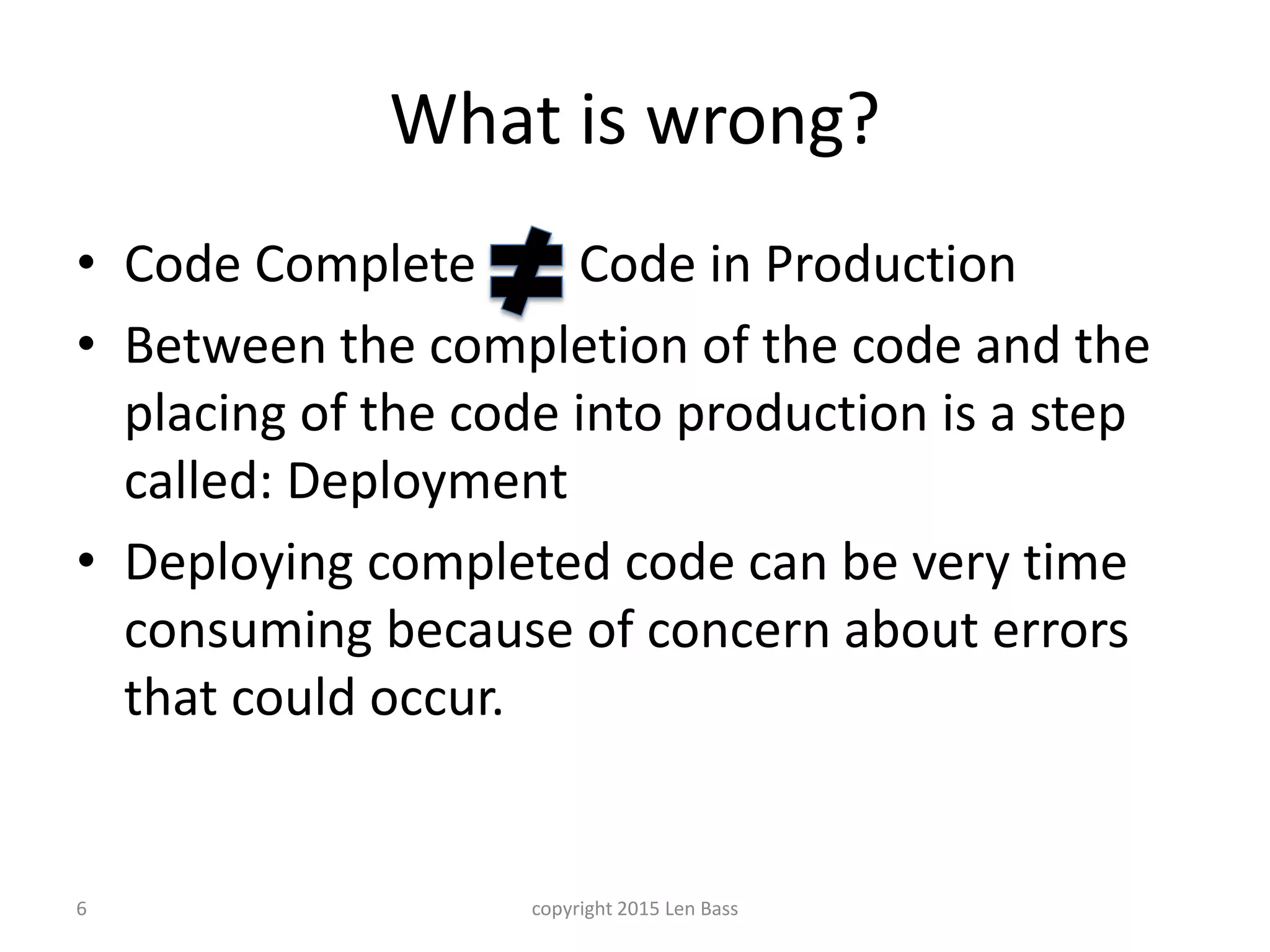

6. What is wrong?
• Code Complete Code in Production
• Between the completion of the code and the
placing of the code into production is a step
called: Deployment
• Deploying completed code can be very time
consuming because of concern about errors
that could occur.
6 copyright 2015 Len Bass

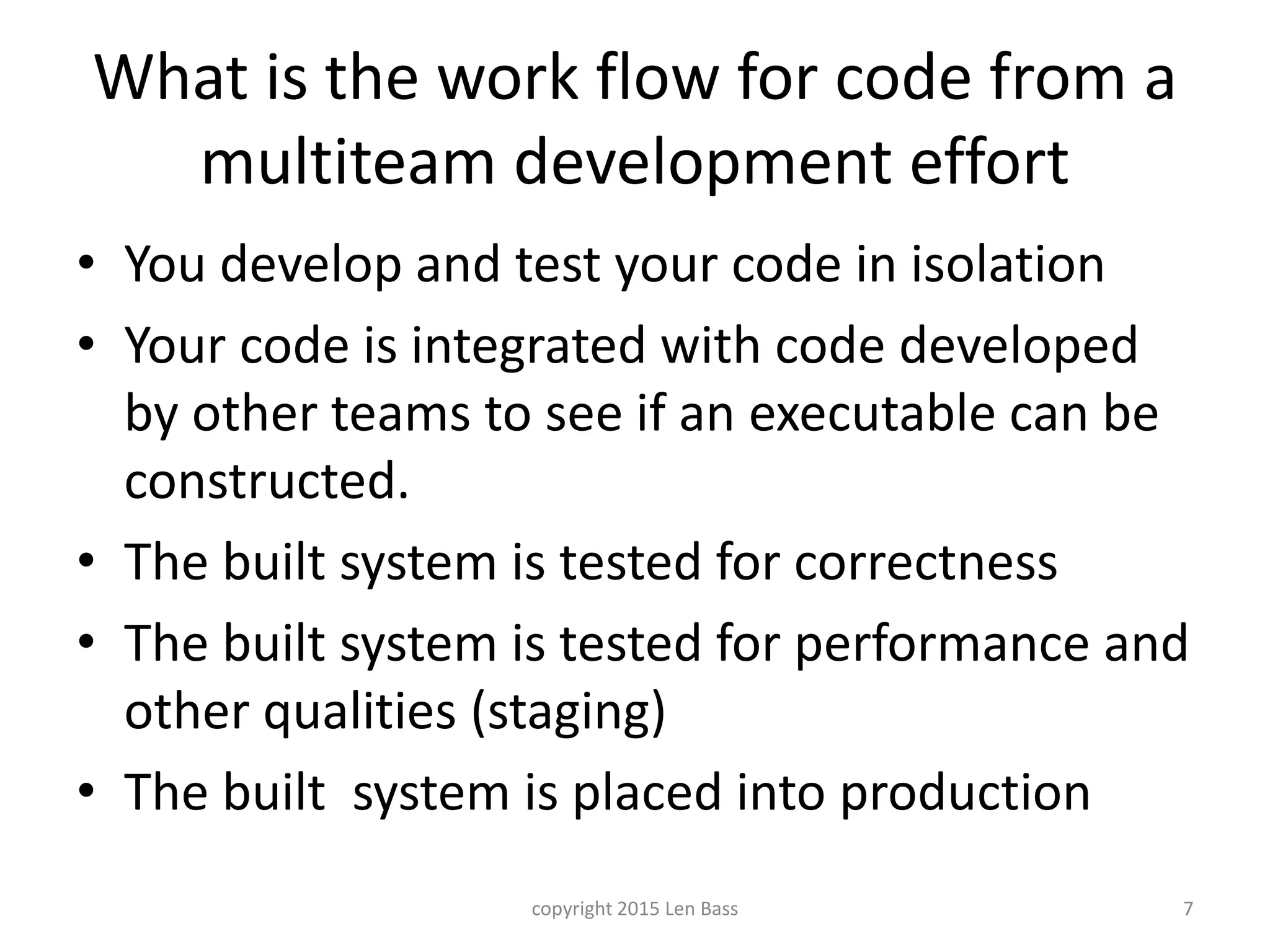

7. What is the work flow for code from a
multiteam development effort
• You develop and test your code in isolation
• Your code is integrated with code developed
by other teams to see if an executable can be
constructed.
• The built system is tested for correctness
• The built system is tested for performance and
other qualities (staging)
• The built system is placed into production
copyright 2015 Len Bass 7

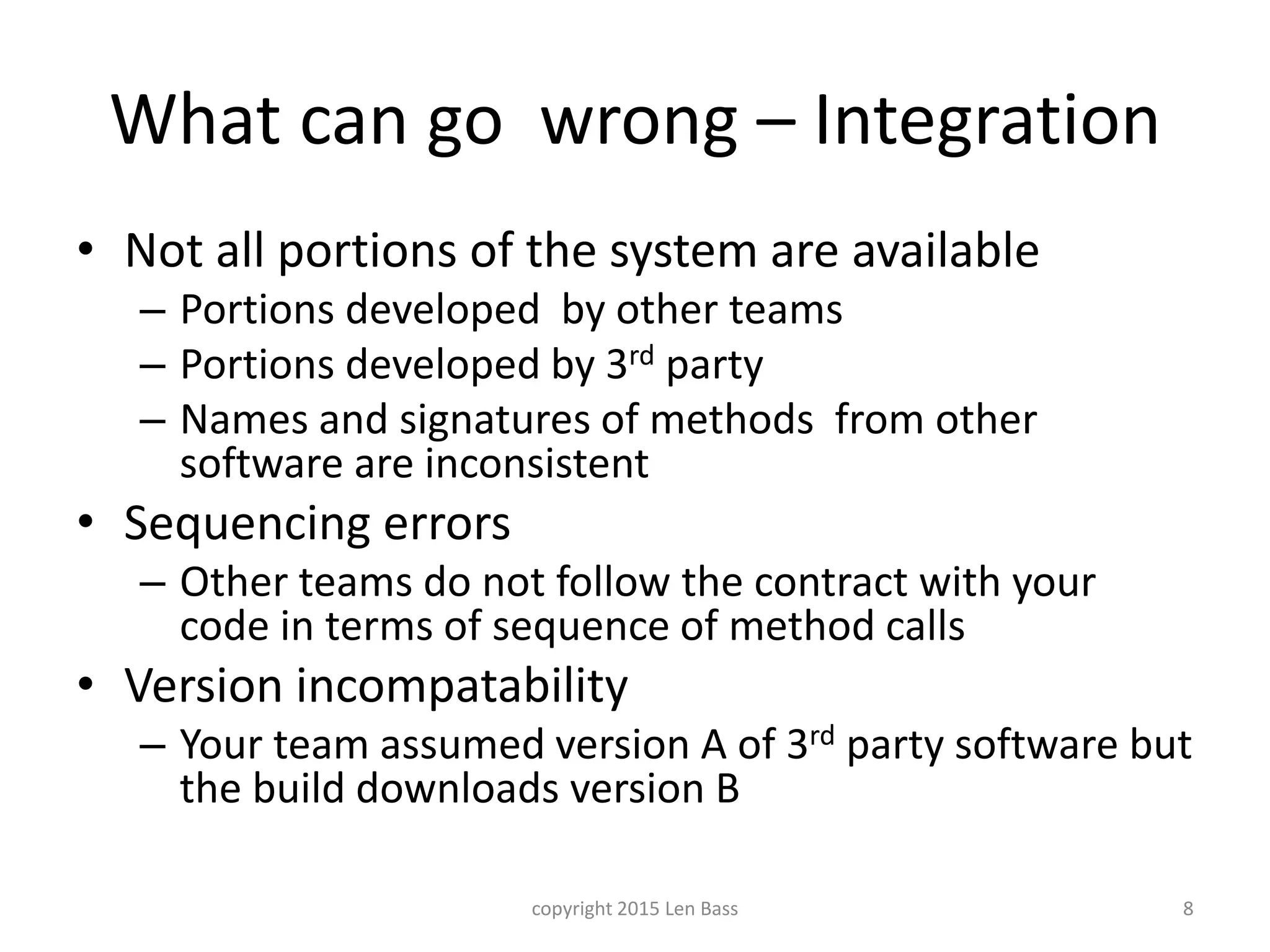

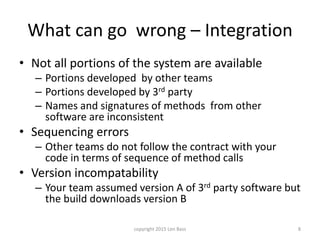

8. What can go wrong – Integration
• Not all portions of the system are available
– Portions developed by other teams
– Portions developed by 3rd party
– Names and signatures of methods from other
software are inconsistent
• Sequencing errors
– Other teams do not follow the contract with your
code in terms of sequence of method calls
• Version incompatability
– Your team assumed version A of 3rd party software but
the build downloads version B
copyright 2015 Len Bass 8

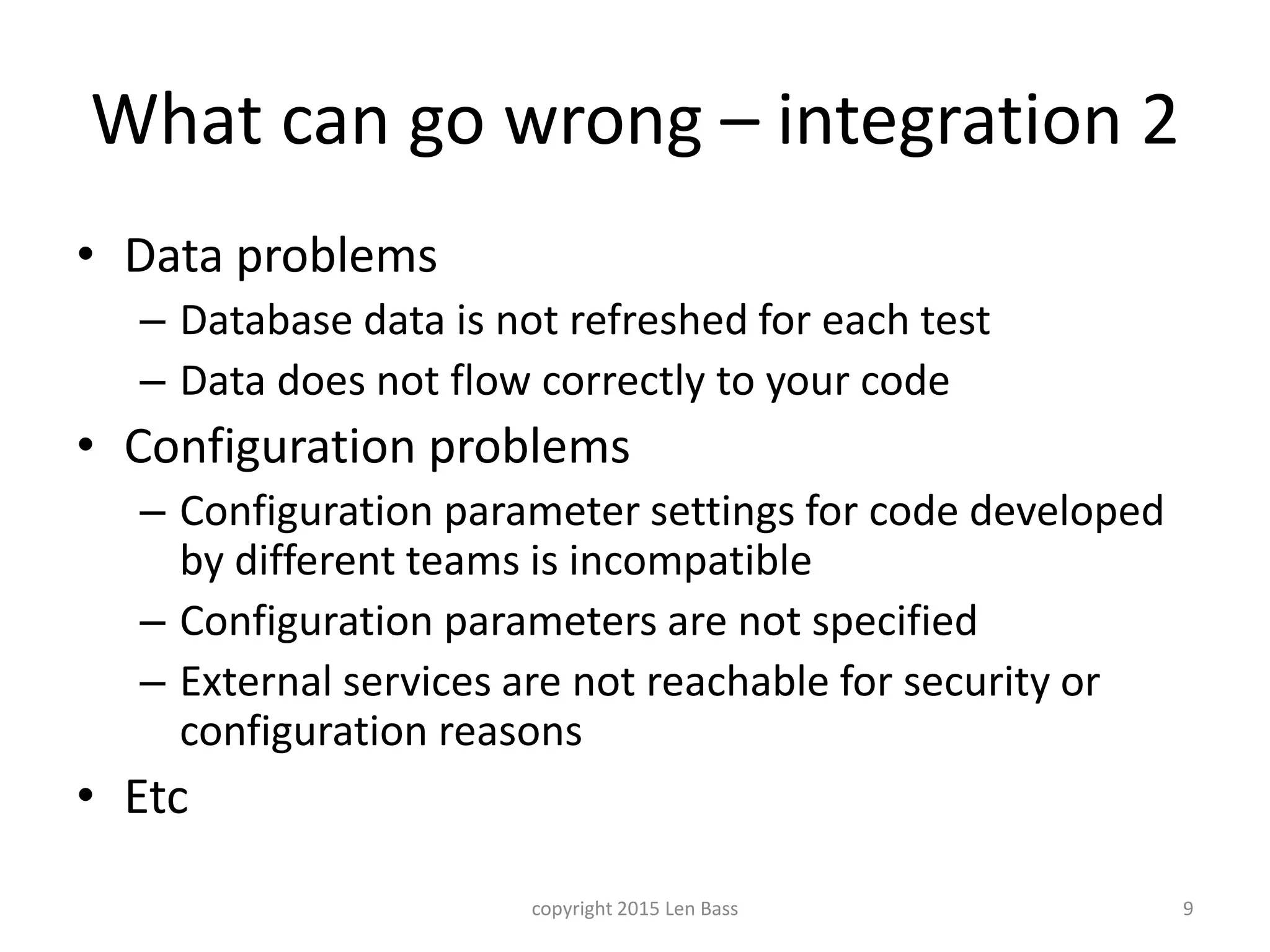

9. What can go wrong – integration 2
• Data problems
– Database data is not refreshed for each test
– Data does not flow correctly to your code
• Configuration problems
– Configuration parameter settings for code developed
by different teams is incompatible
– Configuration parameters are not specified
– External services are not reachable for security or
configuration reasons
• Etc
copyright 2015 Len Bass 9

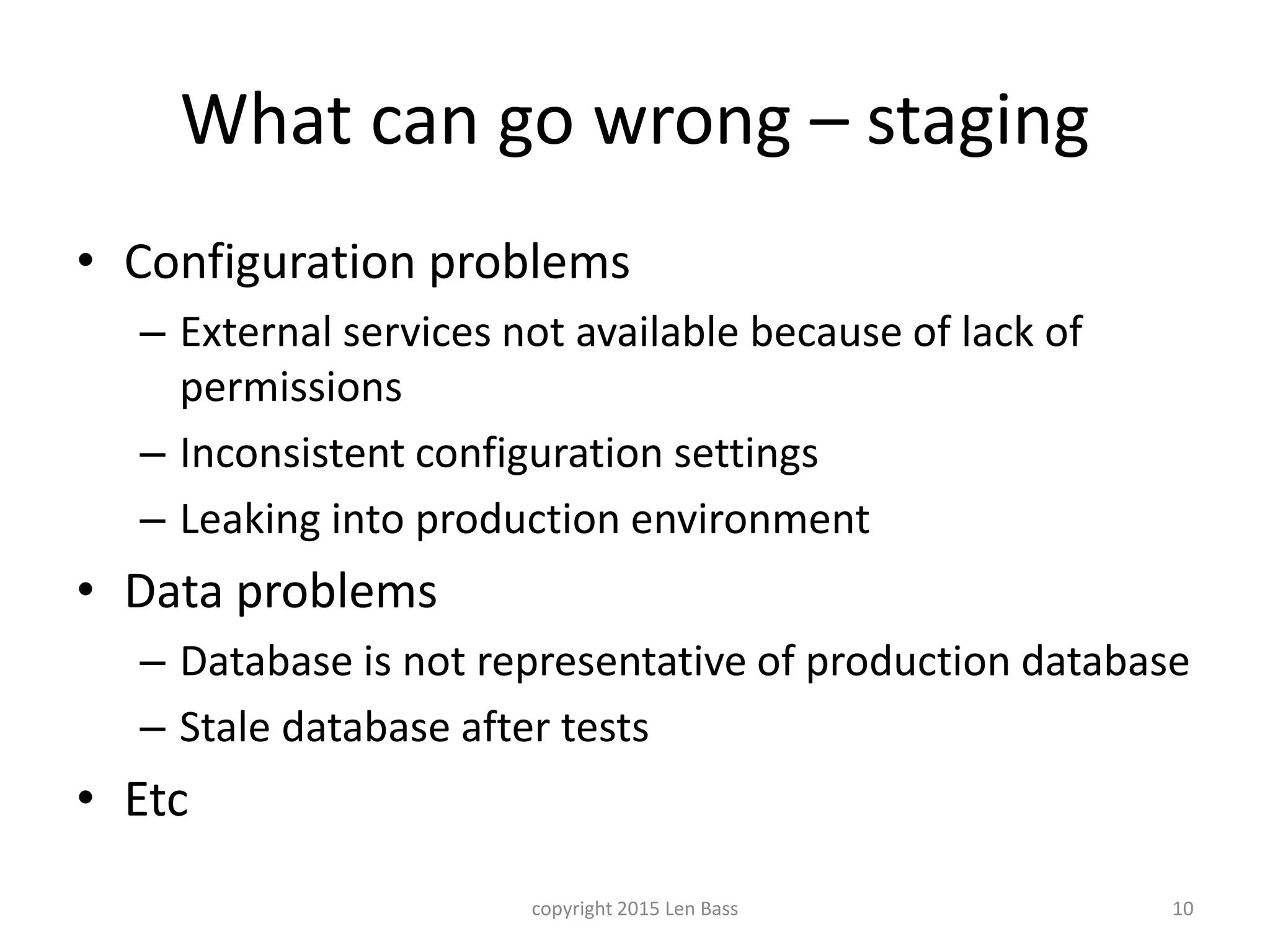

10. What can go wrong – staging
• Configuration problems
– External services not available because of lack of
permissions
– Inconsistent configuration settings
– Leaking into production environment
• Data problems
– Database is not representative of production database
– Stale database after tests
• Etc
copyright 2015 Len Bass 10

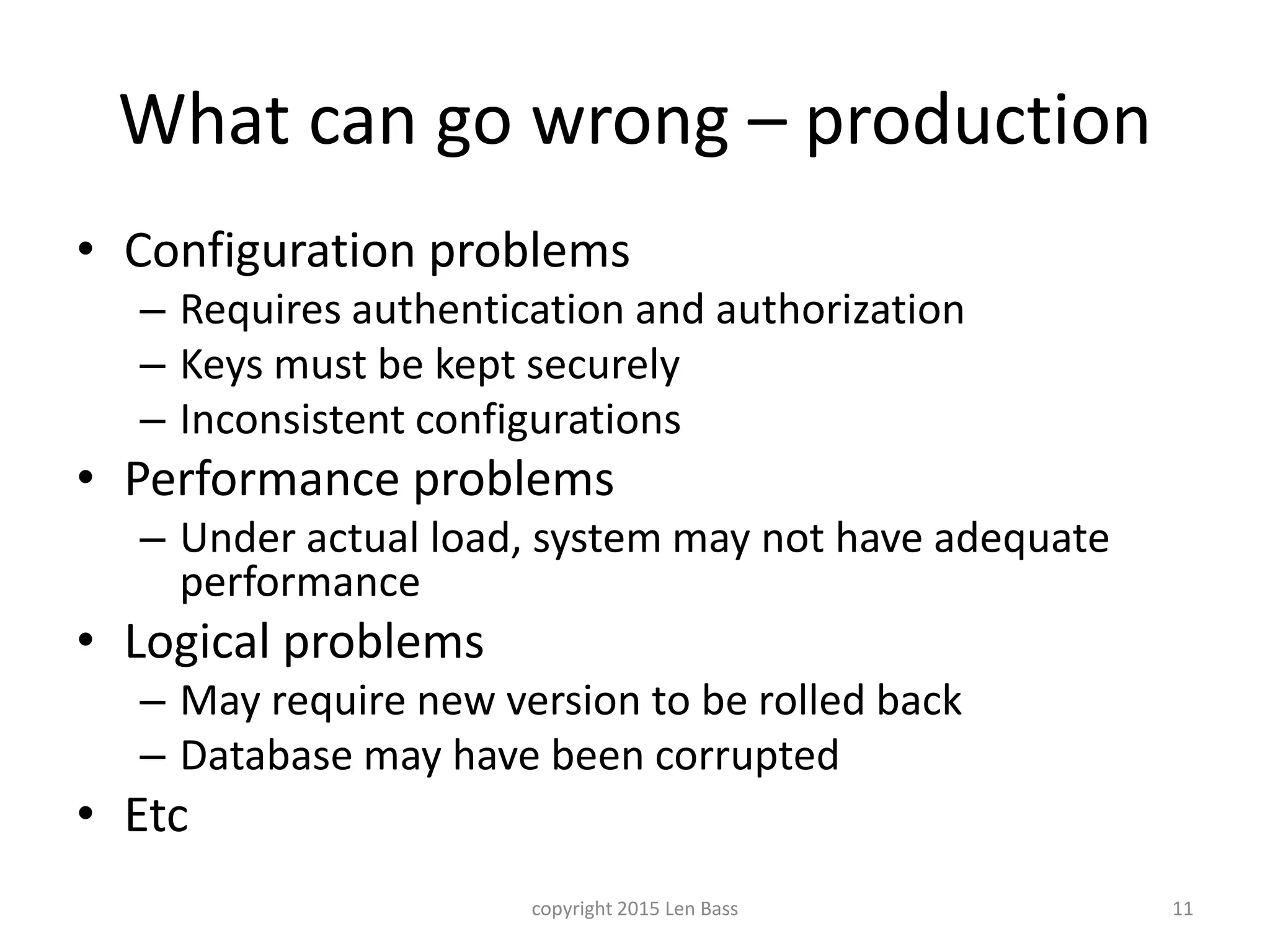

11. What can go wrong – production
• Configuration problems
– Requires authentication and authorization
– Keys must be kept securely
– Inconsistent configurations
• Performance problems
– Under actual load, system may not have adequate
performance
• Logical problems
– May require new version to be rolled back
– Database may have been corrupted
• Etc
copyright 2015 Len Bass 11

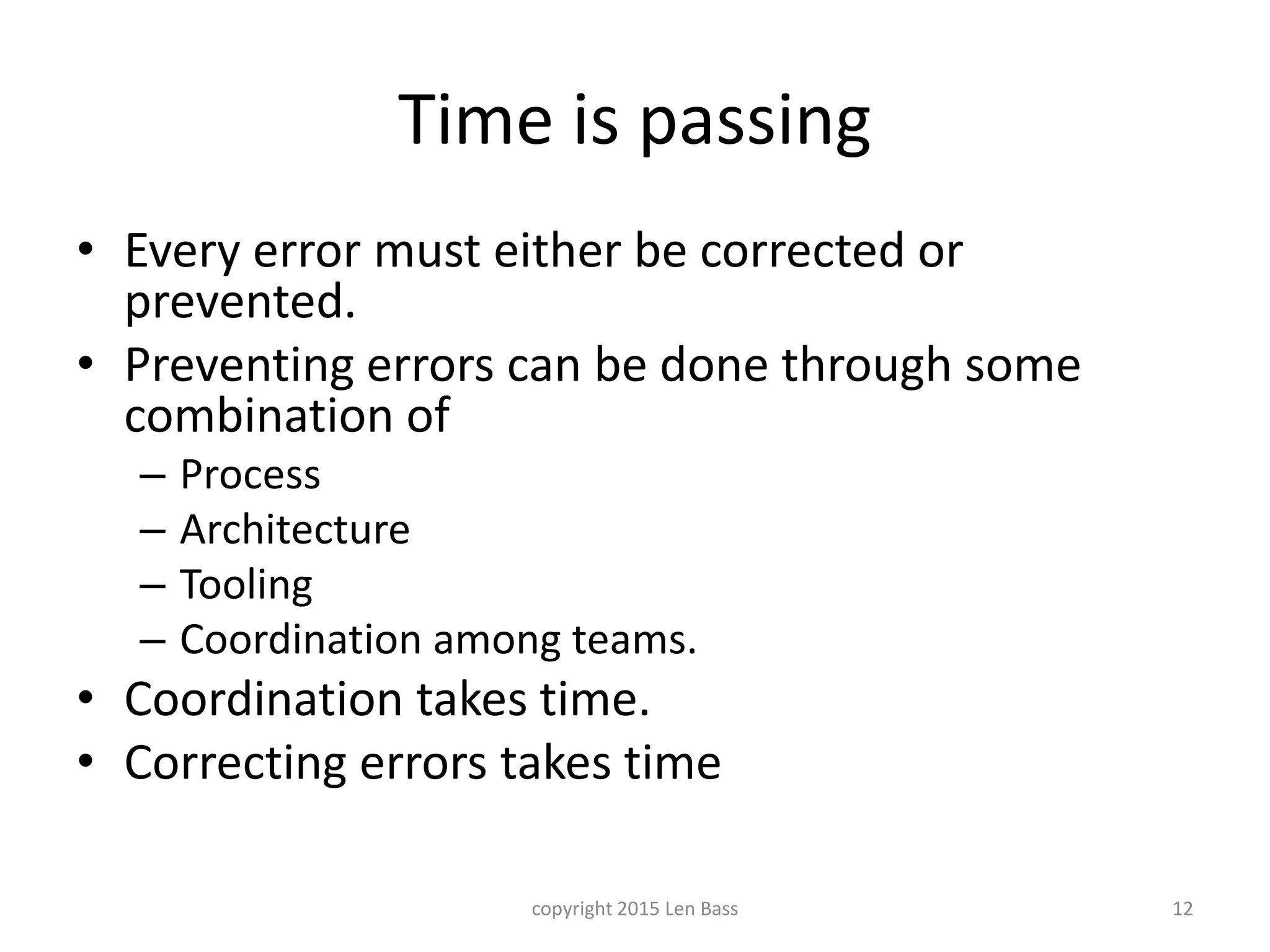

12. Time is passing
• Every error must either be corrected or
prevented.
• Preventing errors can be done through some
combination of
– Process
– Architecture
– Tooling
– Coordination among teams.
• Coordination takes time.
• Correcting errors takes time
copyright 2015 Len Bass 12

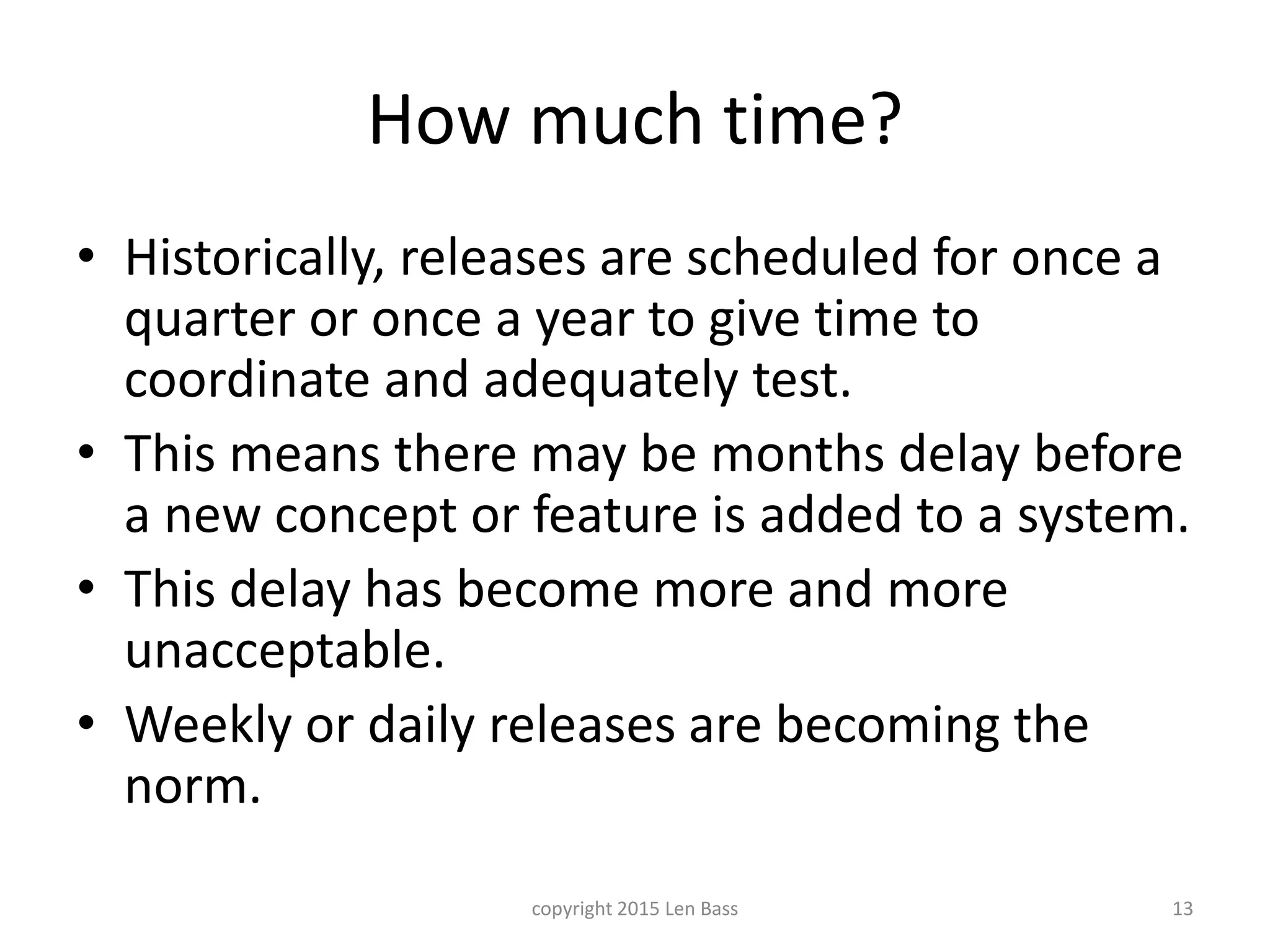

13. How much time?
• Historically, releases are scheduled for once a
quarter or once a year to give time to
coordinate and adequately test.
• This means there may be months delay before
a new concept or feature is added to a system.
• This delay has become more and more
unacceptable.
• Weekly or daily releases are becoming the
norm.
copyright 2015 Len Bass 13

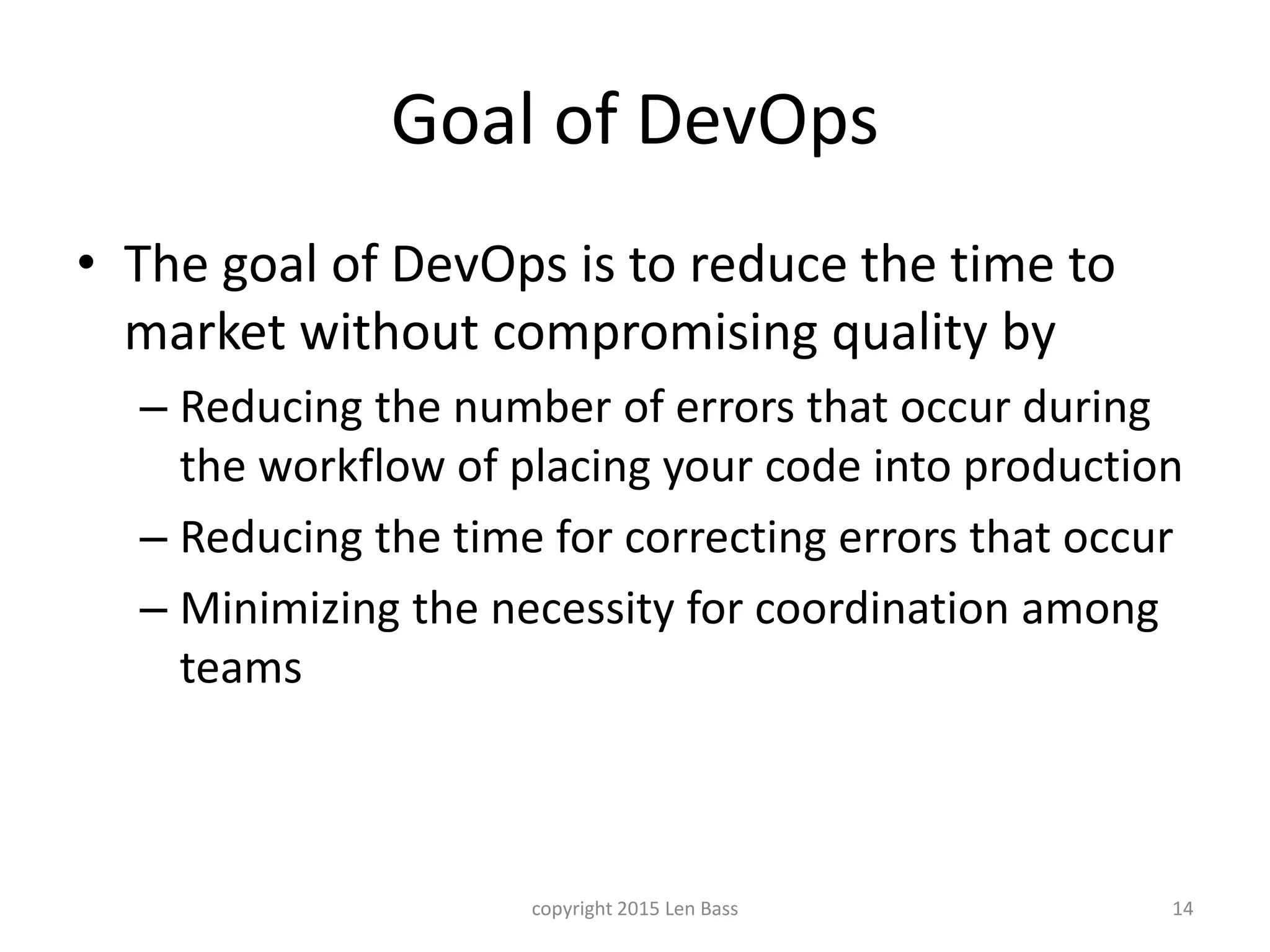

14. Goal of DevOps
• The goal of DevOps is to reduce the time to
market without compromising quality by
– Reducing the number of errors that occur during
the workflow of placing your code into production
– Reducing the time for correcting errors that occur
– Minimizing the necessity for coordination among
teams
copyright 2015 Len Bass 14

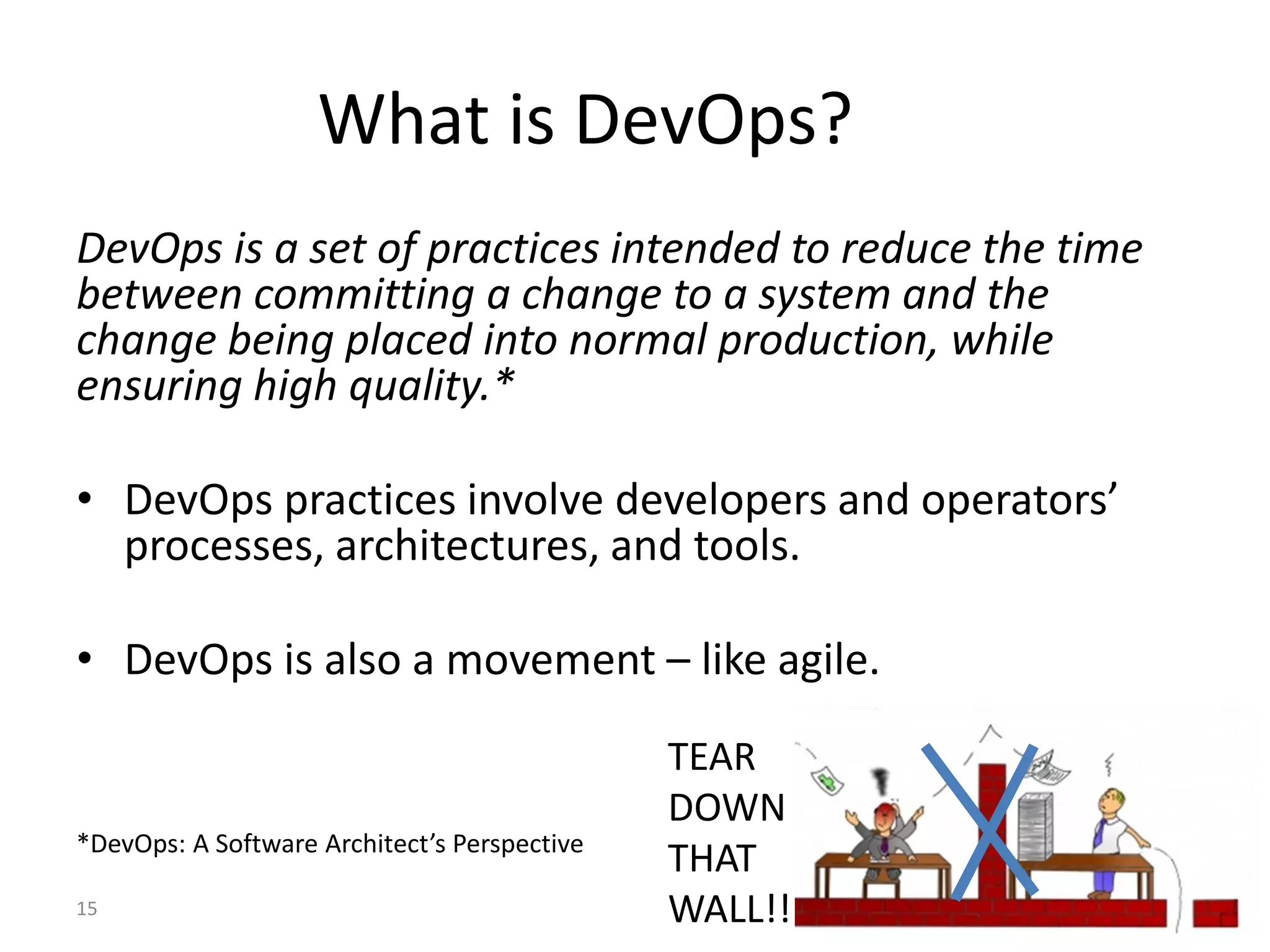

15. DevOps is a set of practices intended to reduce the time
between committing a change to a system and the
change being placed into normal production, while
ensuring high quality.*
• DevOps practices involve developers and operators’
processes, architectures, and tools.
• DevOps is also a movement – like agile.
*DevOps: A Software Architect’s Perspective
What is DevOps?
15
TEAR
DOWN
THAT
WALL!!

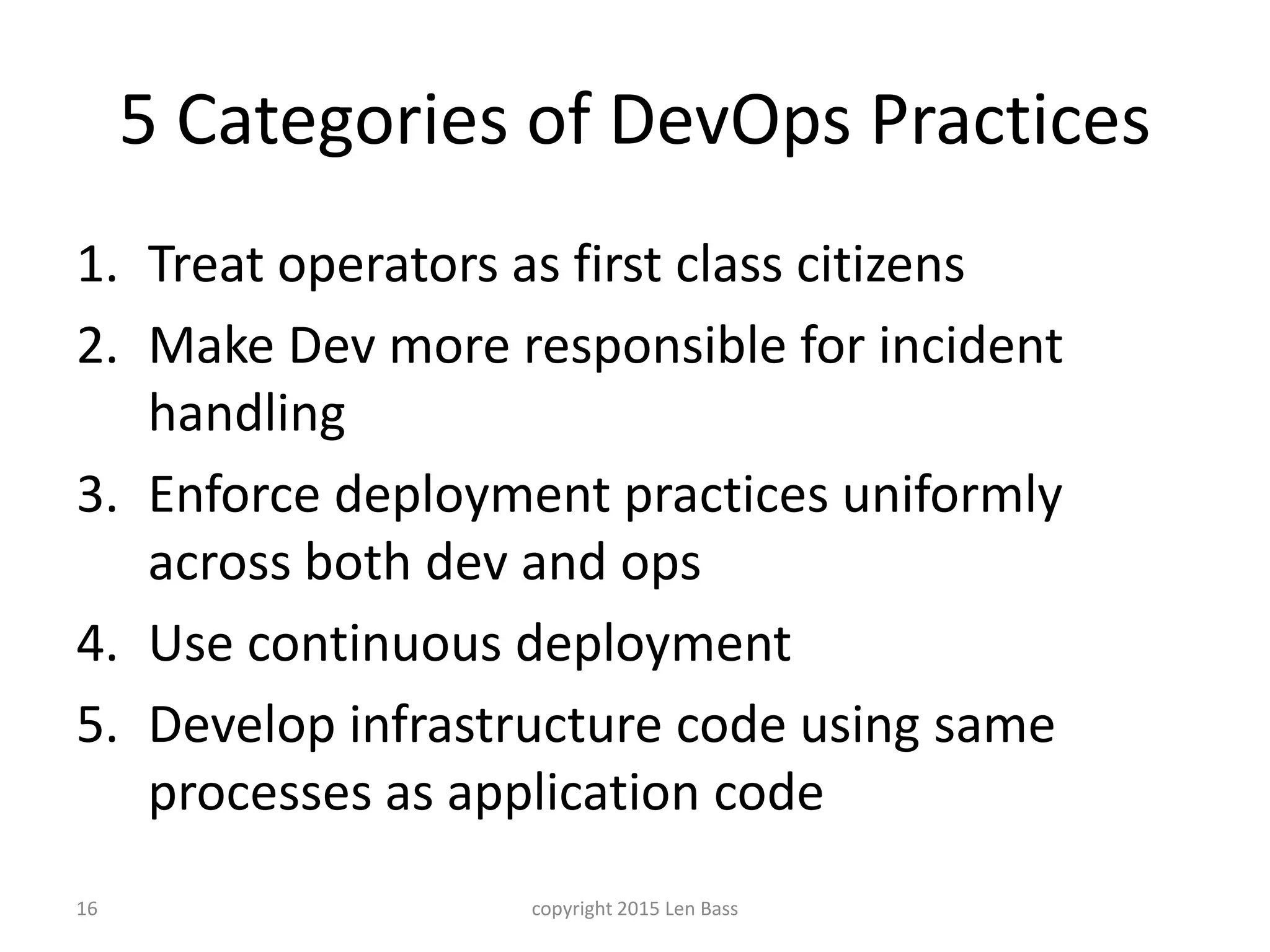

16. 5 Categories of DevOps Practices
1. Treat operators as first class citizens
2. Make Dev more responsible for incident
handling
3. Enforce deployment practices uniformly
across both dev and ops
4. Use continuous deployment
5. Develop infrastructure code using same
processes as application code
16 copyright 2015 Len Bass

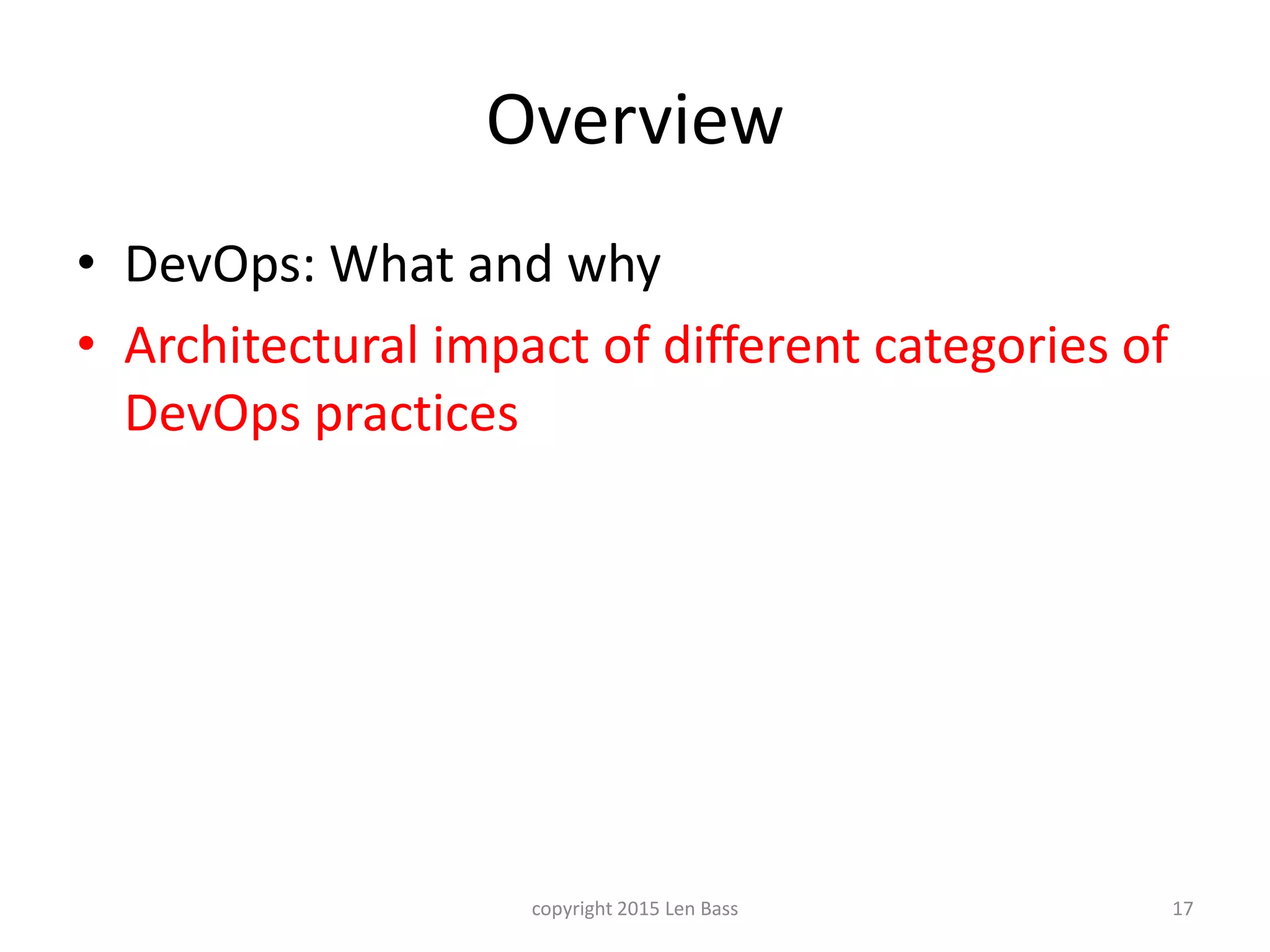

17. Overview
• DevOps: What and why
• Architectural impact of different categories of
DevOps practices
copyright 2015 Len Bass 17

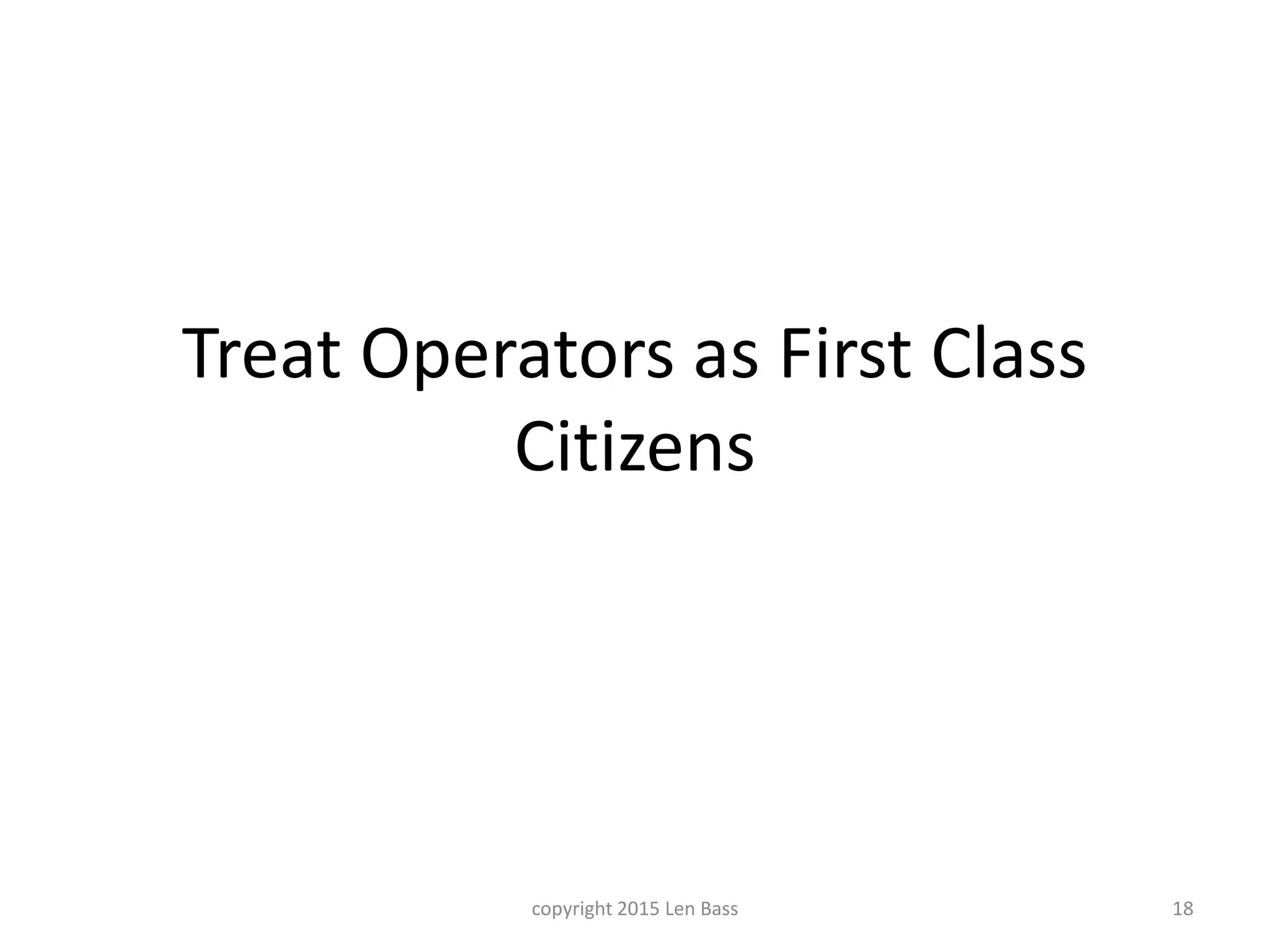

18. Treat Operators as First Class
Citizens
copyright 2015 Len Bass 18

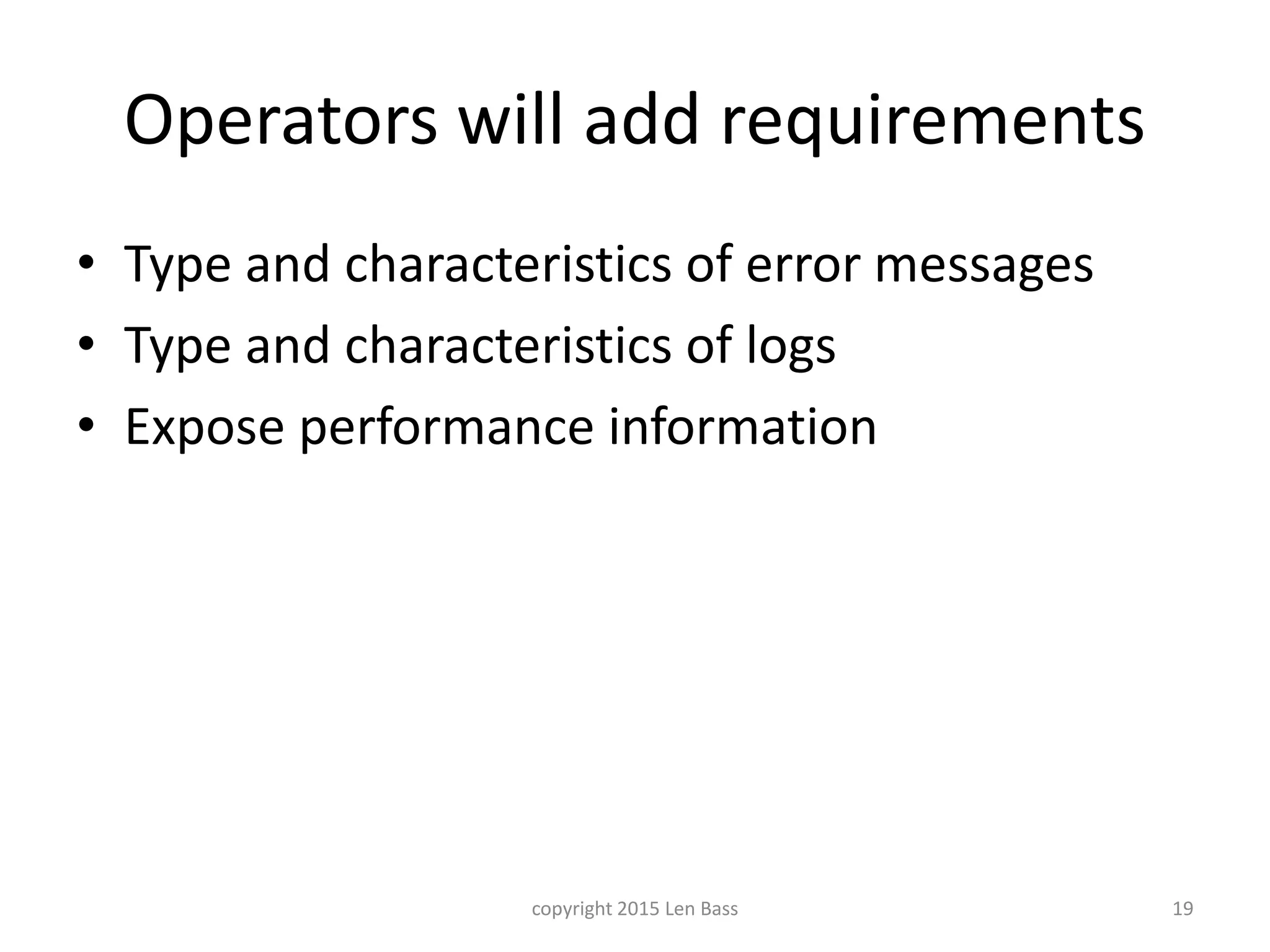

19. Operators will add requirements
• Type and characteristics of error messages
• Type and characteristics of logs
• Expose performance information
copyright 2015 Len Bass 19

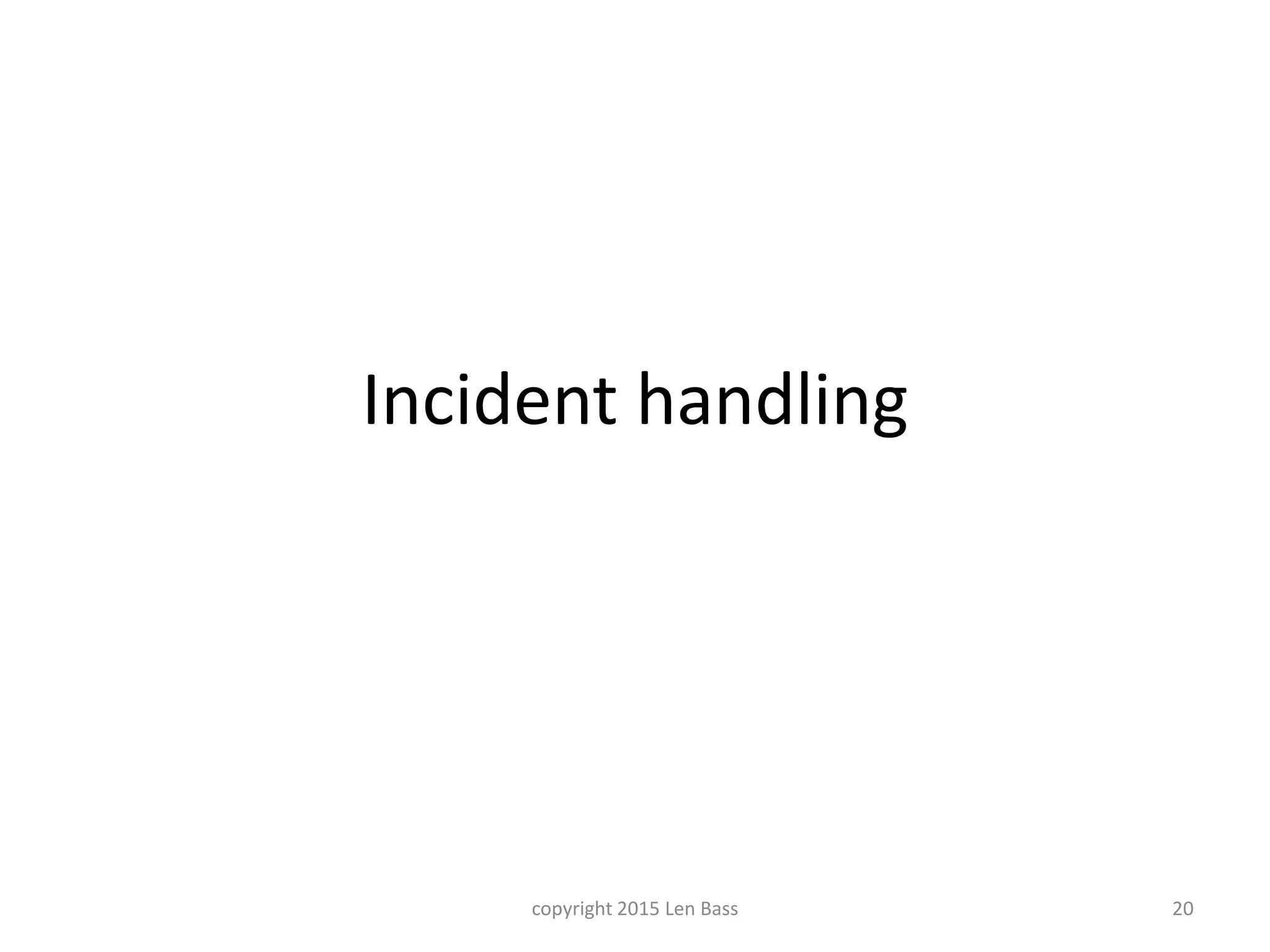

20. Incident handling
copyright 2015 Len Bass 20

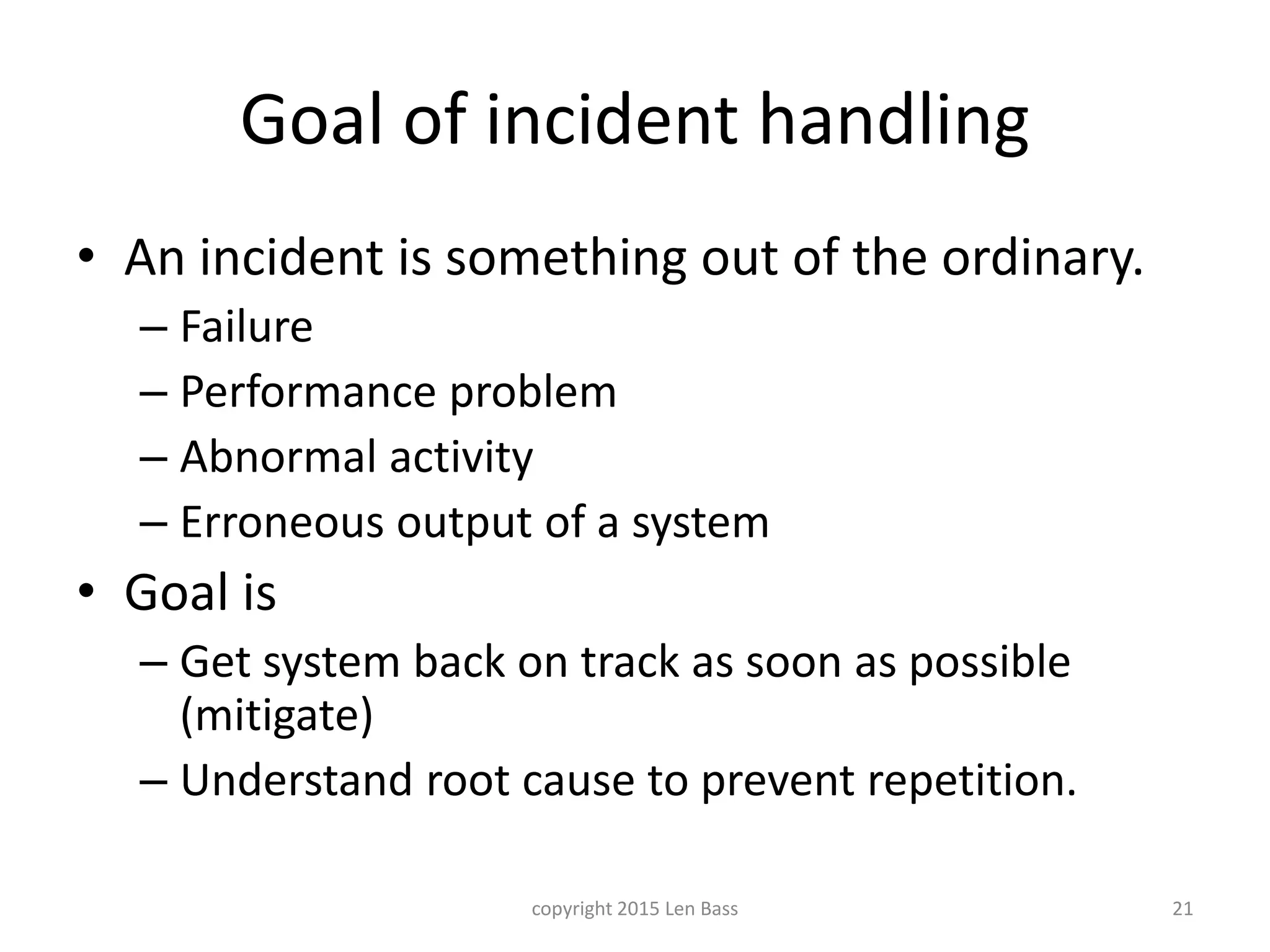

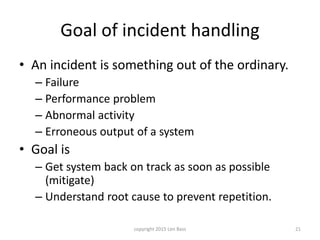

21. Goal of incident handling
• An incident is something out of the ordinary.
– Failure
– Performance problem
– Abnormal activity
– Erroneous output of a system
• Goal is
– Get system back on track as soon as possible
(mitigate)
– Understand root cause to prevent repetition.
copyright 2015 Len Bass 21

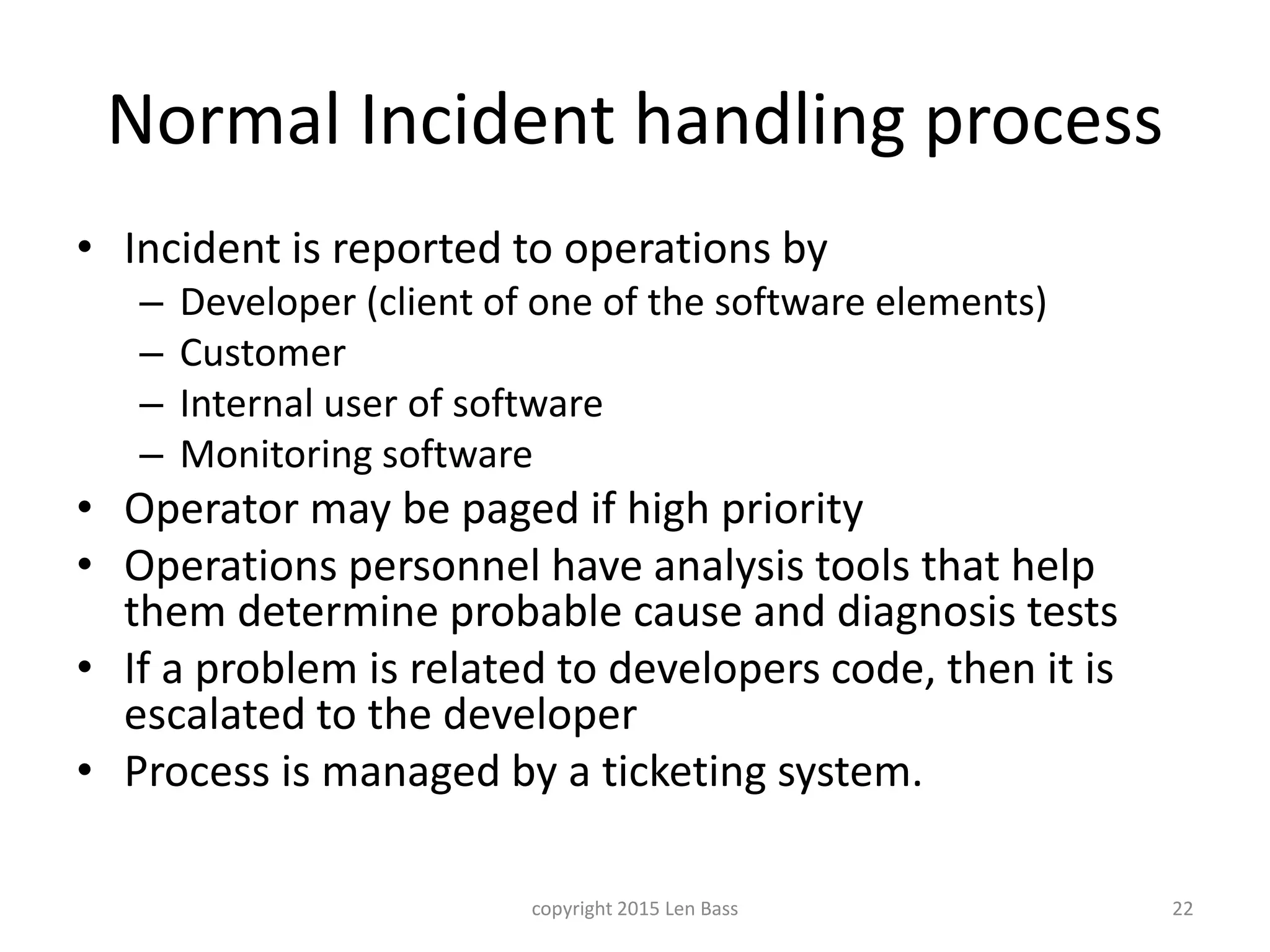

22. Normal Incident handling process
• Incident is reported to operations by
– Developer (client of one of the software elements)
– Customer
– Internal user of software
– Monitoring software
• Operator may be paged if high priority
• Operations personnel have analysis tools that help
them determine probable cause and diagnosis tests
• If a problem is related to developers code, then it is
escalated to the developer
• Process is managed by a ticketing system.
copyright 2015 Len Bass 22

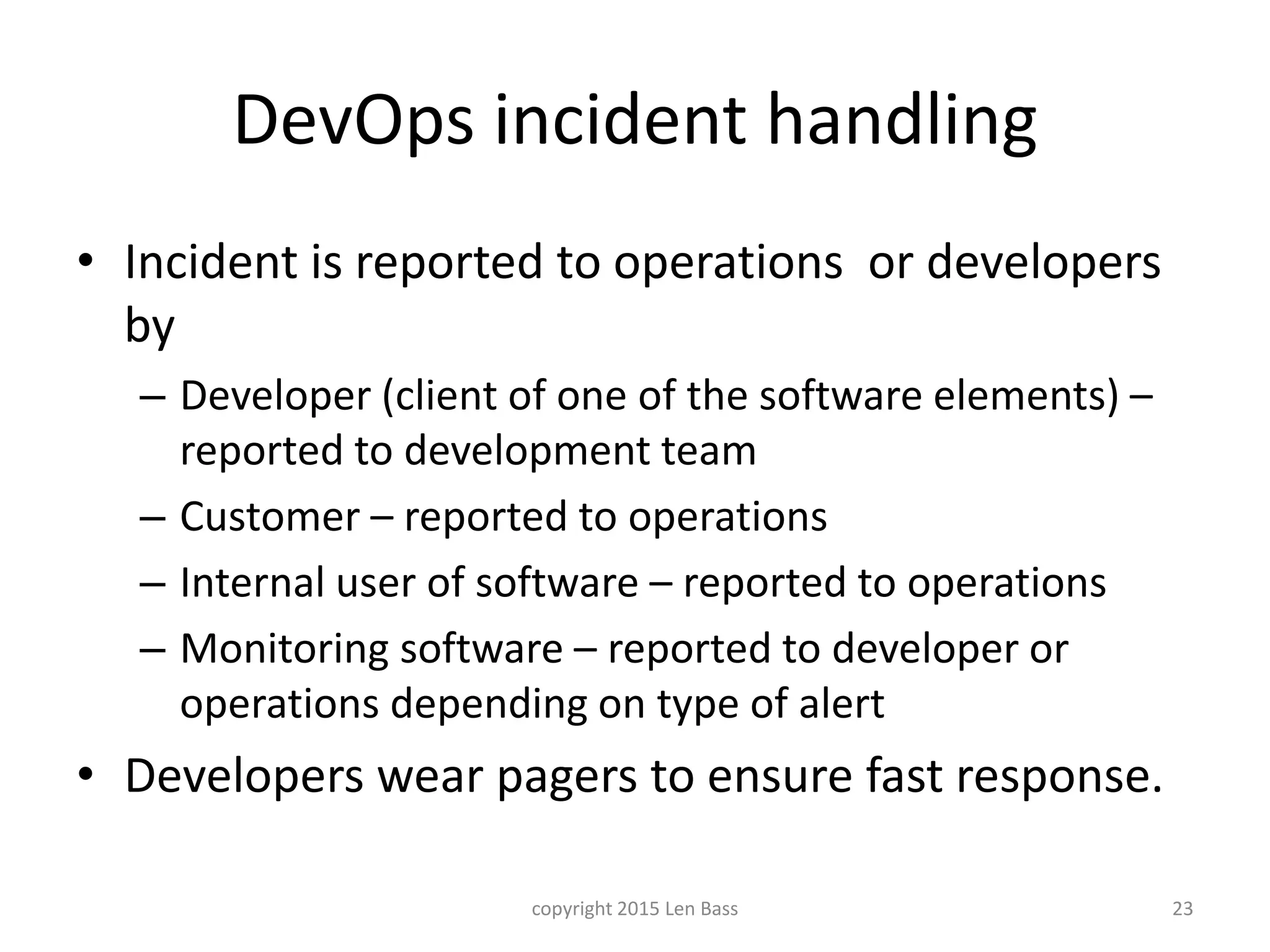

23. DevOps incident handling
• Incident is reported to operations or developers
by
– Developer (client of one of the software elements) –
reported to development team
– Customer – reported to operations
– Internal user of software – reported to operations
– Monitoring software – reported to developer or
operations depending on type of alert
• Developers wear pagers to ensure fast response.
copyright 2015 Len Bass 23

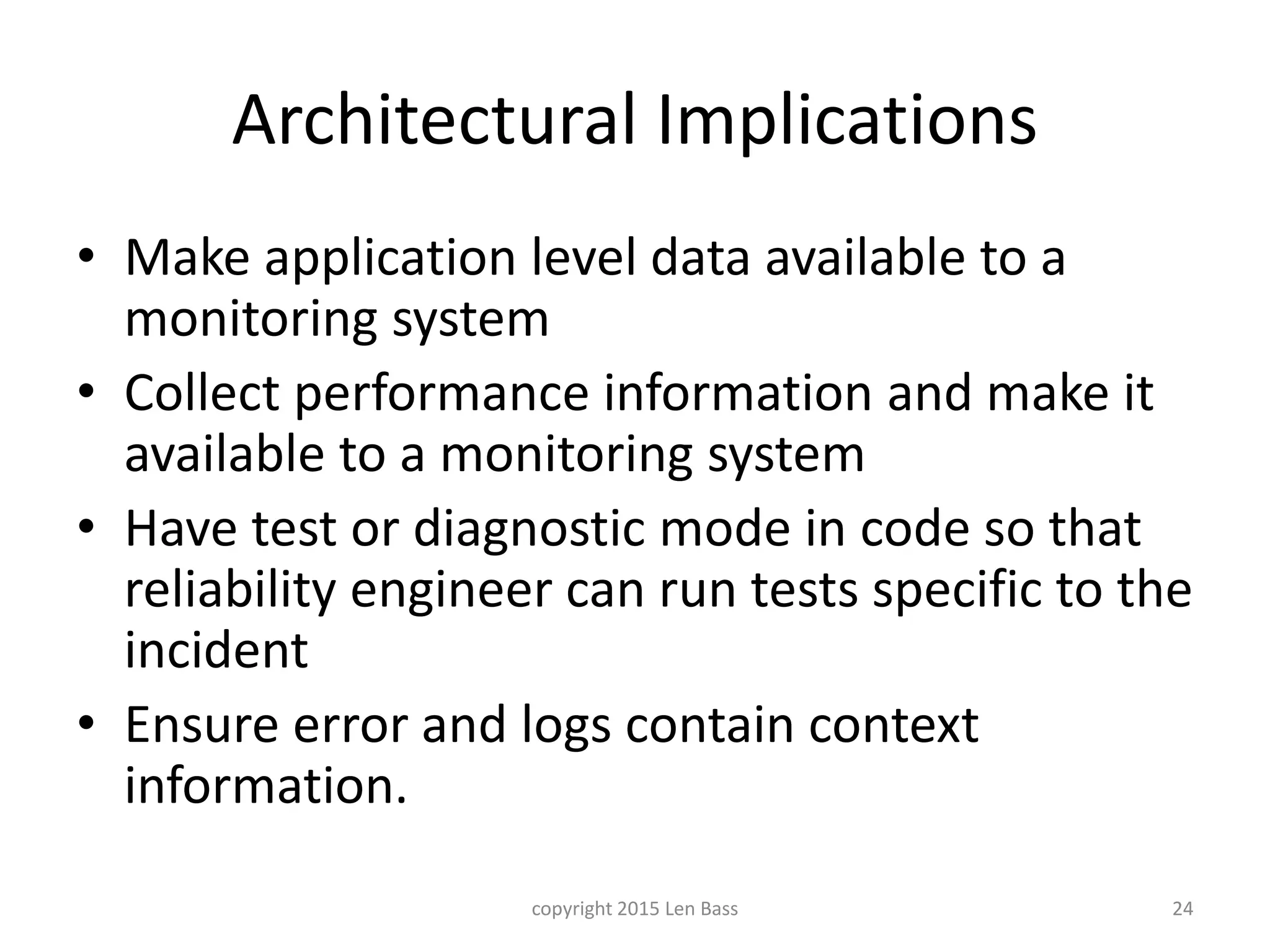

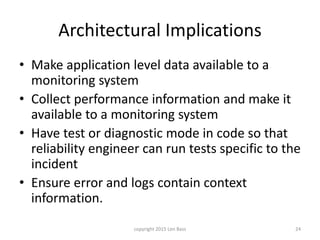

24. Architectural Implications
• Make application level data available to a
monitoring system
• Collect performance information and make it
available to a monitoring system
• Have test or diagnostic mode in code so that
reliability engineer can run tests specific to the
incident
• Ensure error and logs contain context
information.
copyright 2015 Len Bass 24

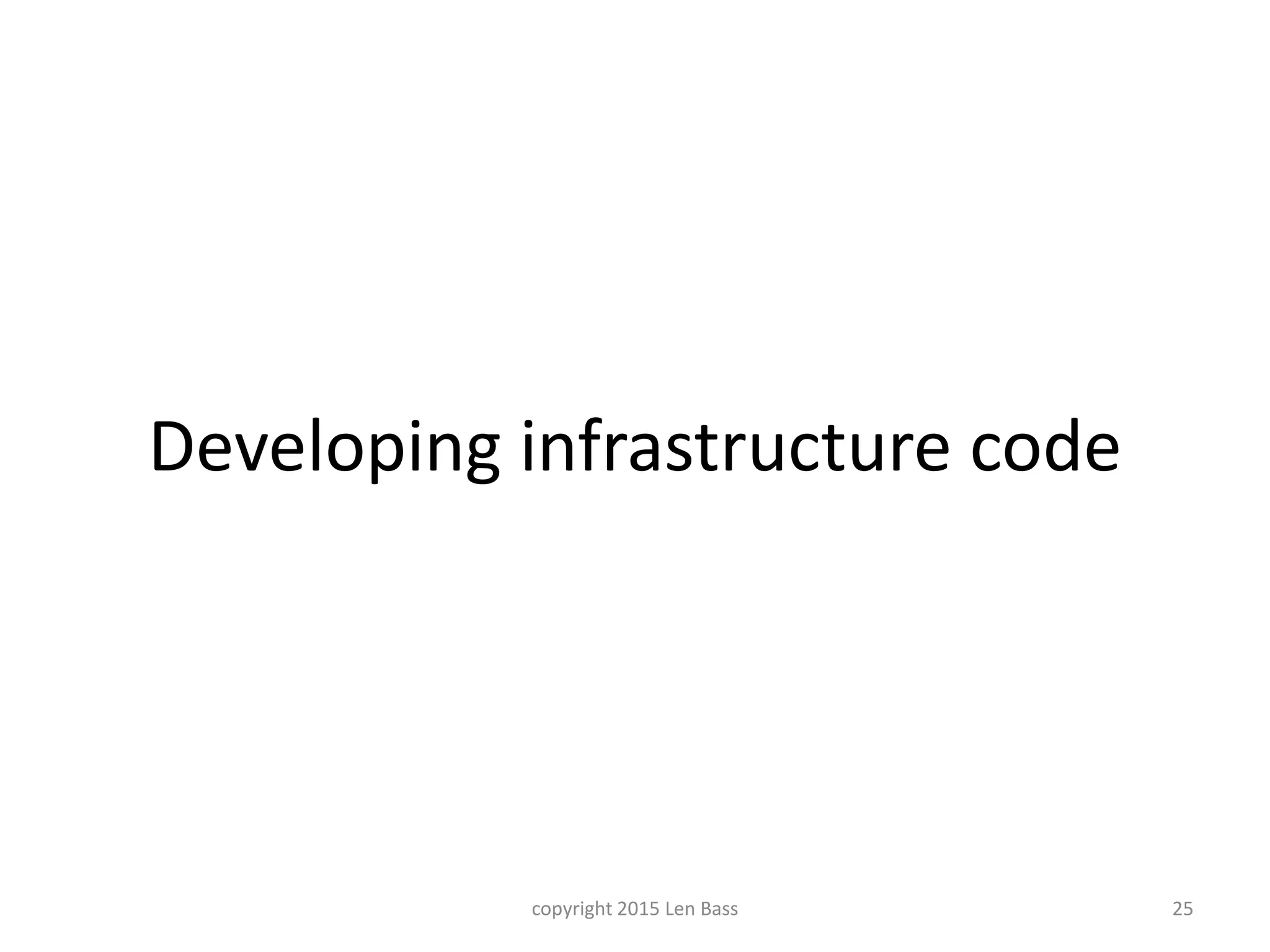

25. Developing infrastructure code
copyright 2015 Len Bass 25

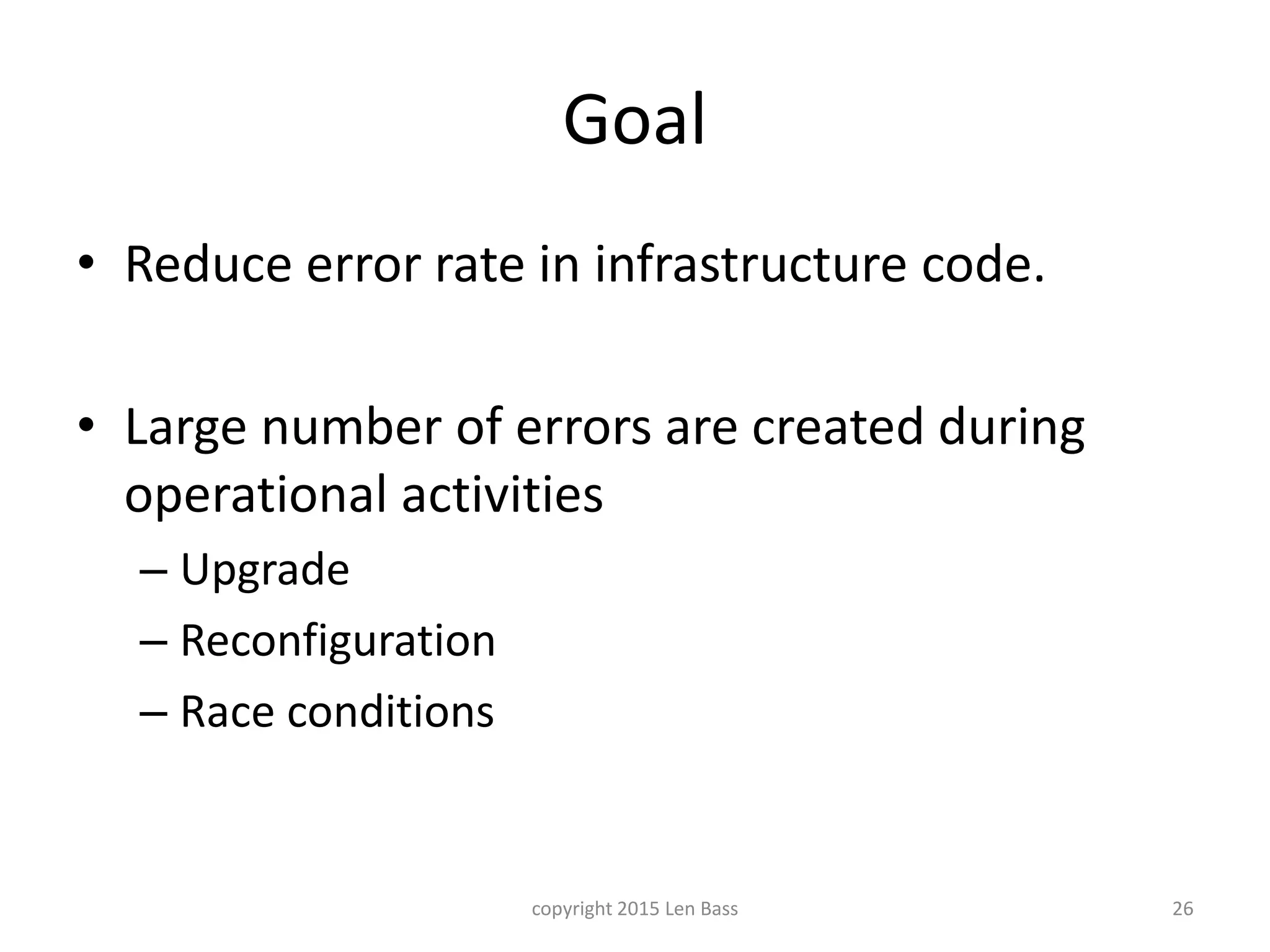

26. Goal
• Reduce error rate in infrastructure code.
• Large number of errors are created during
operational activities
– Upgrade
– Reconfiguration
– Race conditions
copyright 2015 Len Bass 26

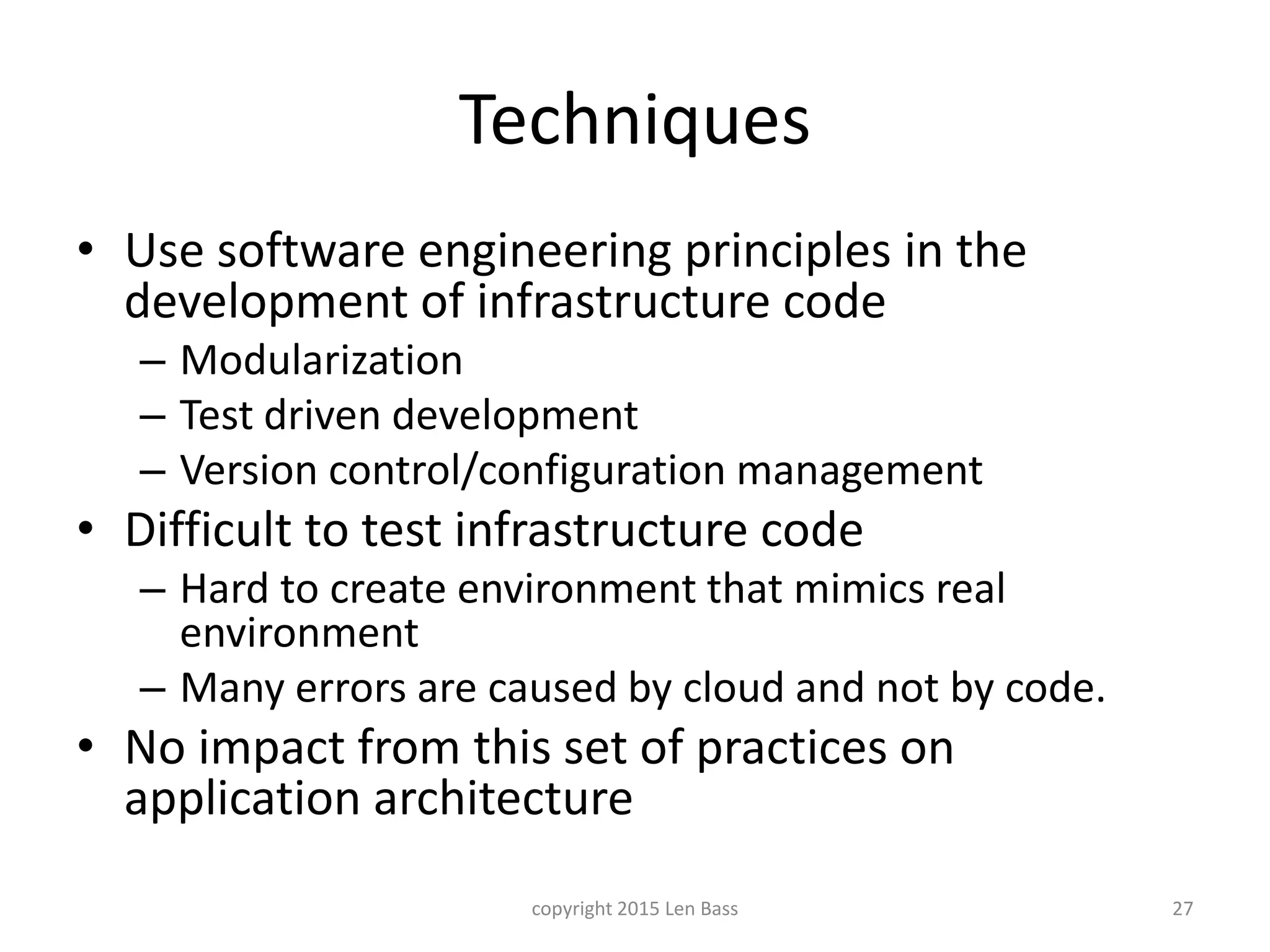

27. Techniques
• Use software engineering principles in the
development of infrastructure code
– Modularization
– Test driven development
– Version control/configuration management
• Difficult to test infrastructure code
– Hard to create environment that mimics real
environment
– Many errors are caused by cloud and not by code.
• No impact from this set of practices on
application architecture
copyright 2015 Len Bass 27

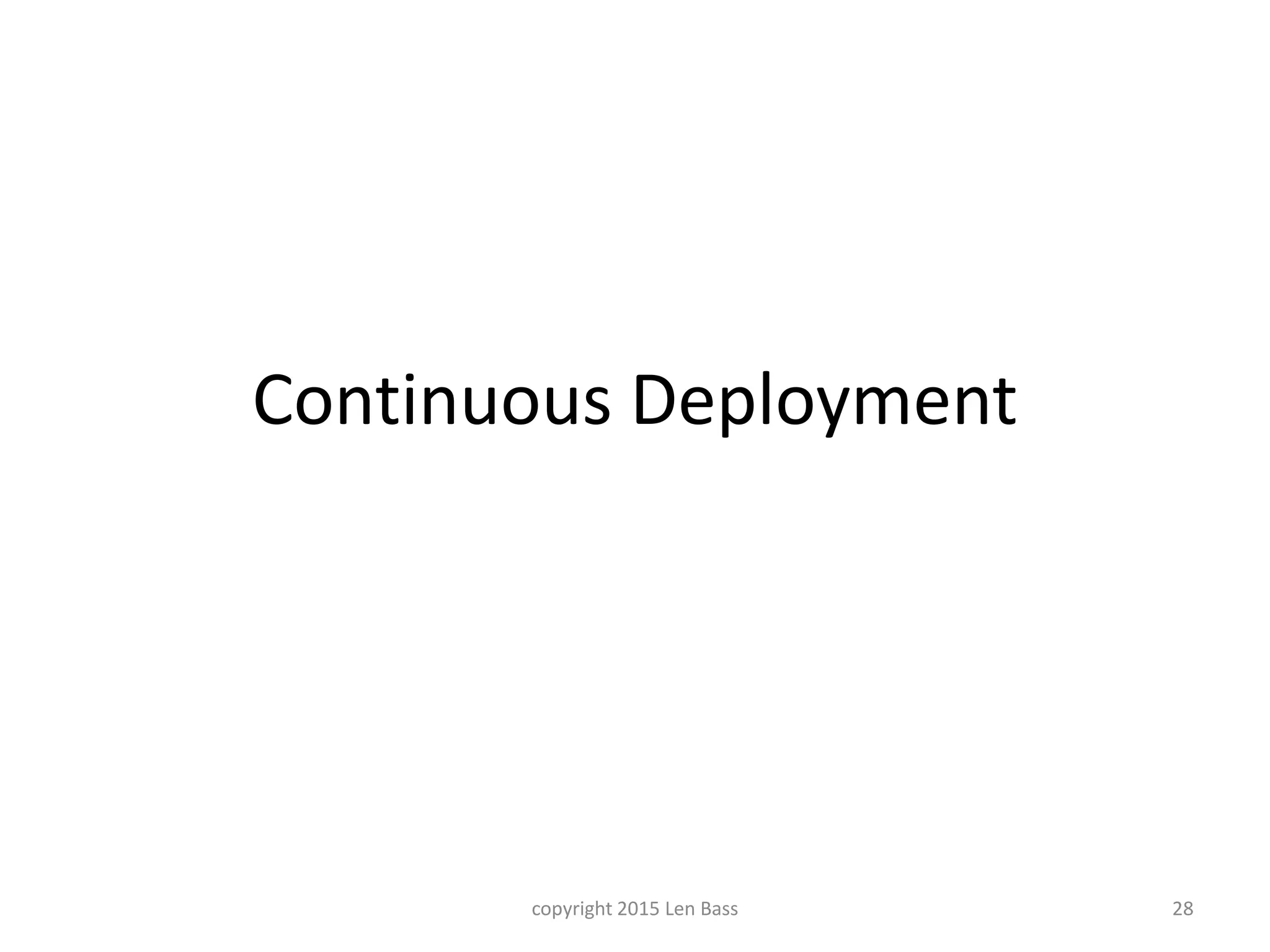

28. Continuous Deployment
copyright 2015 Len Bass 28

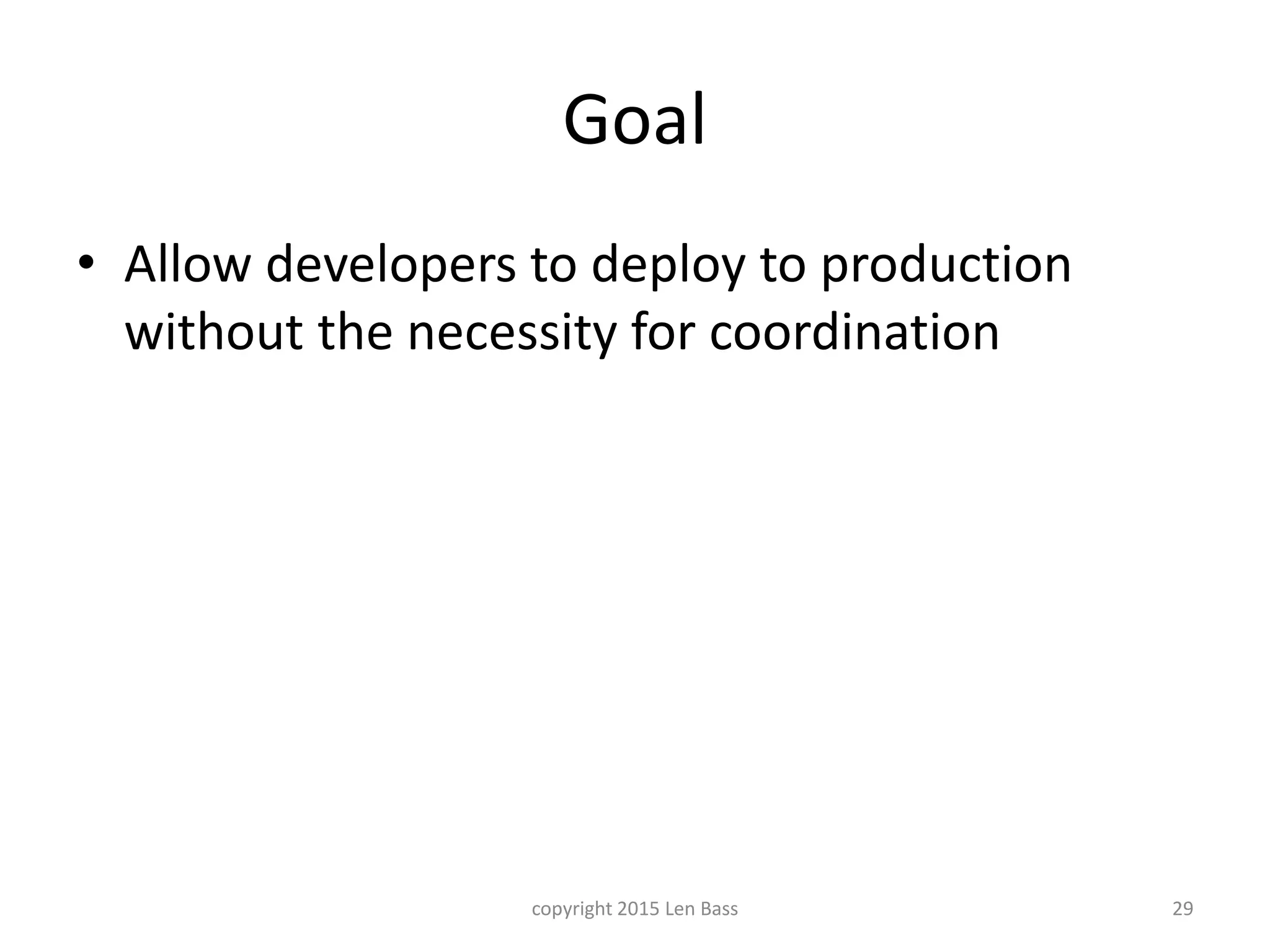

29. Goal
• Allow developers to deploy to production
without the necessity for coordination
copyright 2015 Len Bass 29

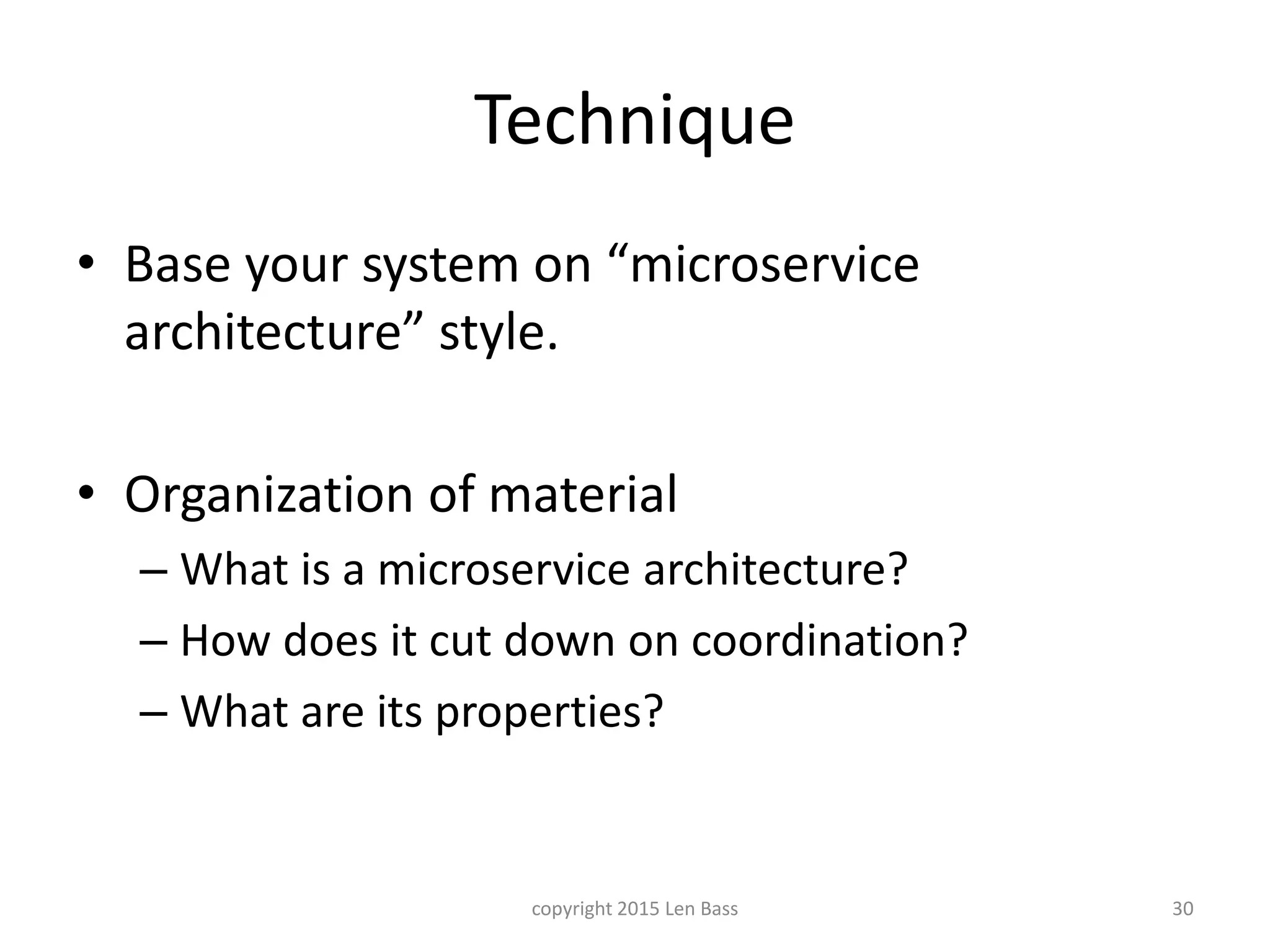

30. Technique
• Base your system on “microservice
architecture” style.
• Organization of material
– What is a microservice architecture?
– How does it cut down on coordination?
– What are its properties?
copyright 2015 Len Bass 30

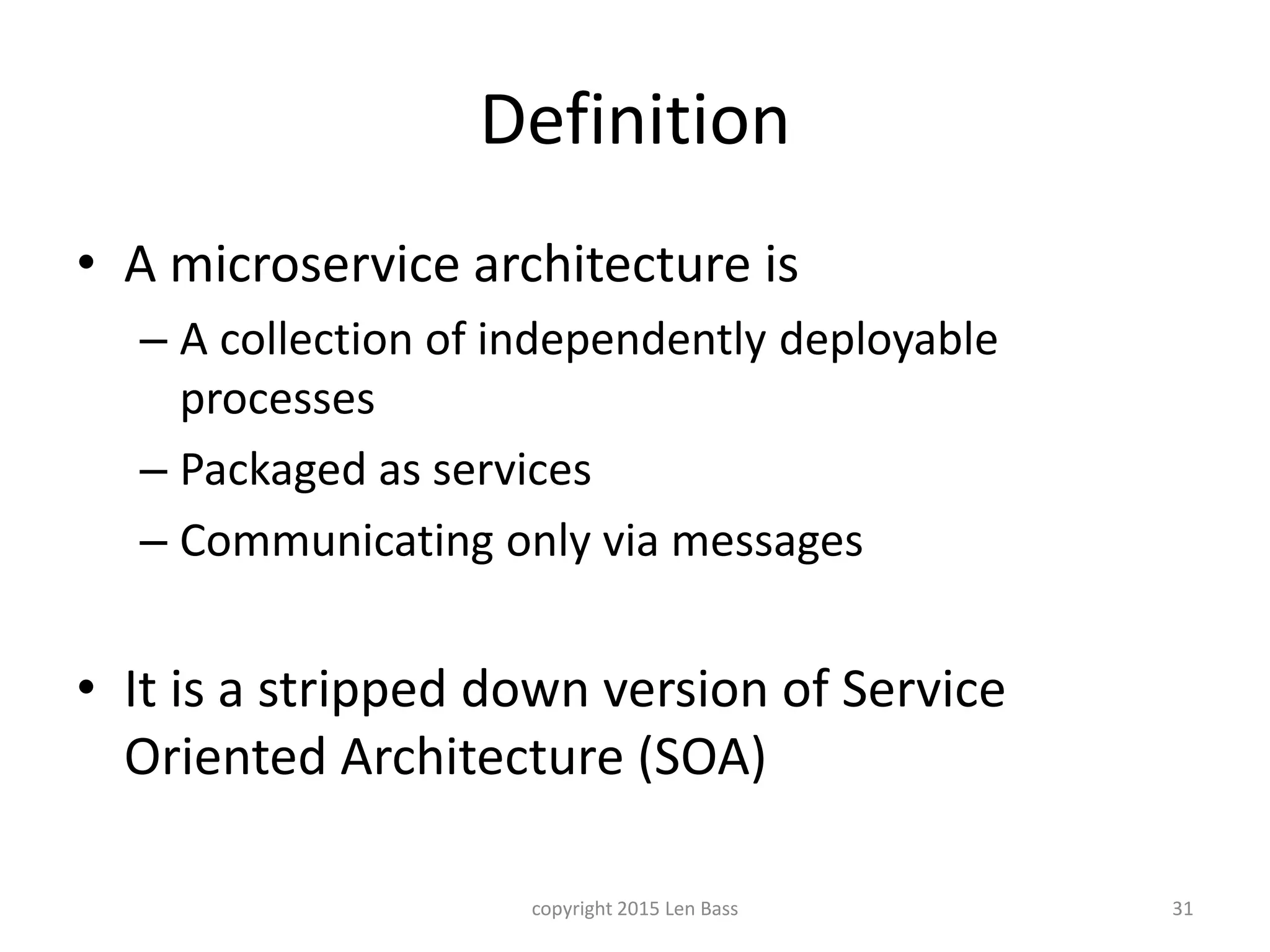

31. Definition
• A microservice architecture is
– A collection of independently deployable
processes
– Packaged as services
– Communicating only via messages
• It is a stripped down version of Service
Oriented Architecture (SOA)
copyright 2015 Len Bass 31

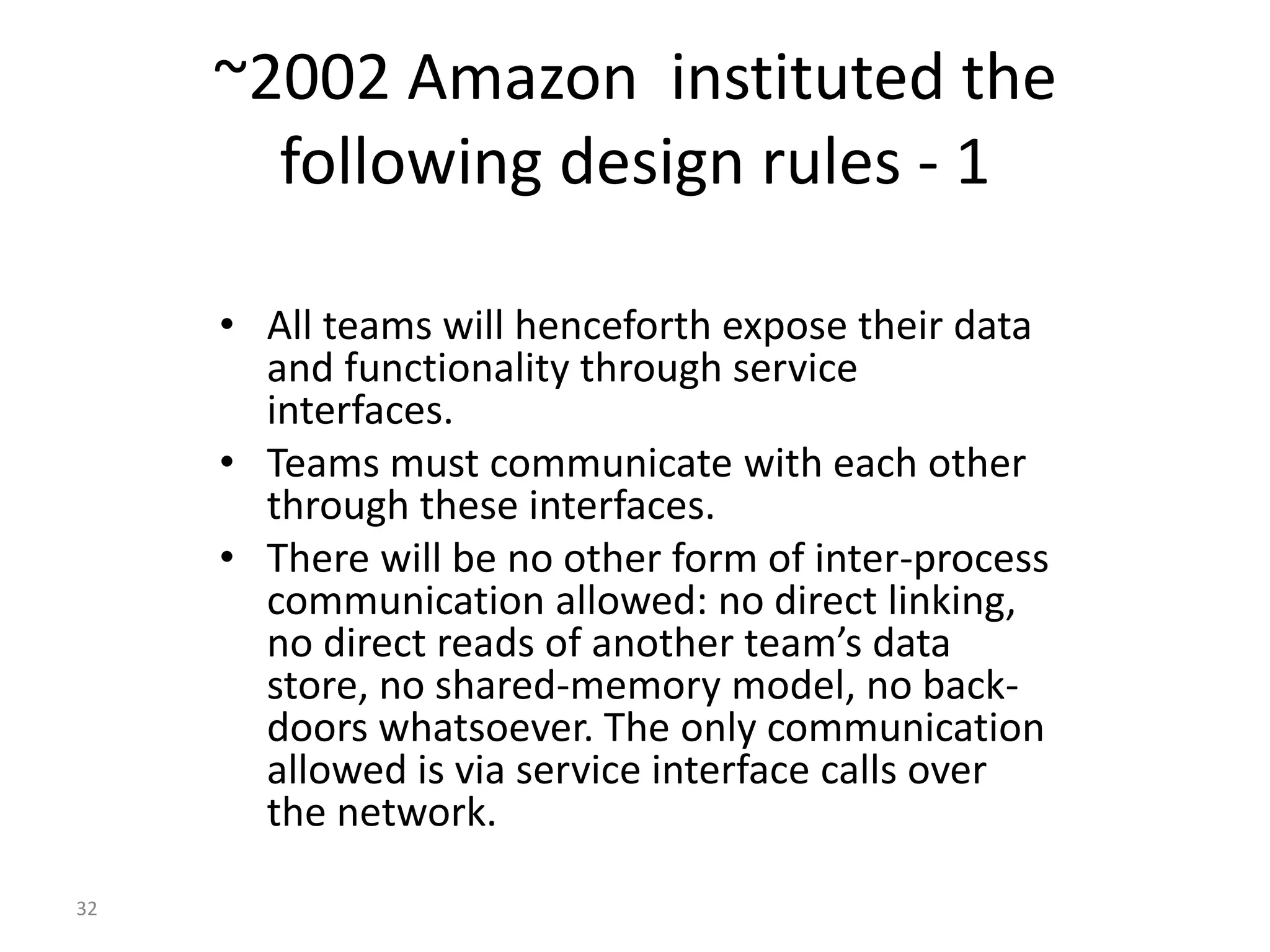

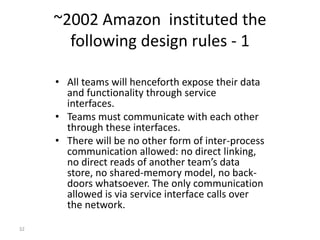

32. ~2002 Amazon instituted the
following design rules - 1
• All teams will henceforth expose their data
and functionality through service
interfaces.
• Teams must communicate with each other
through these interfaces.
• There will be no other form of inter-process
communication allowed: no direct linking,
no direct reads of another team’s data
store, no shared-memory model, no back-
doors whatsoever. The only communication
allowed is via service interface calls over
the network.
32

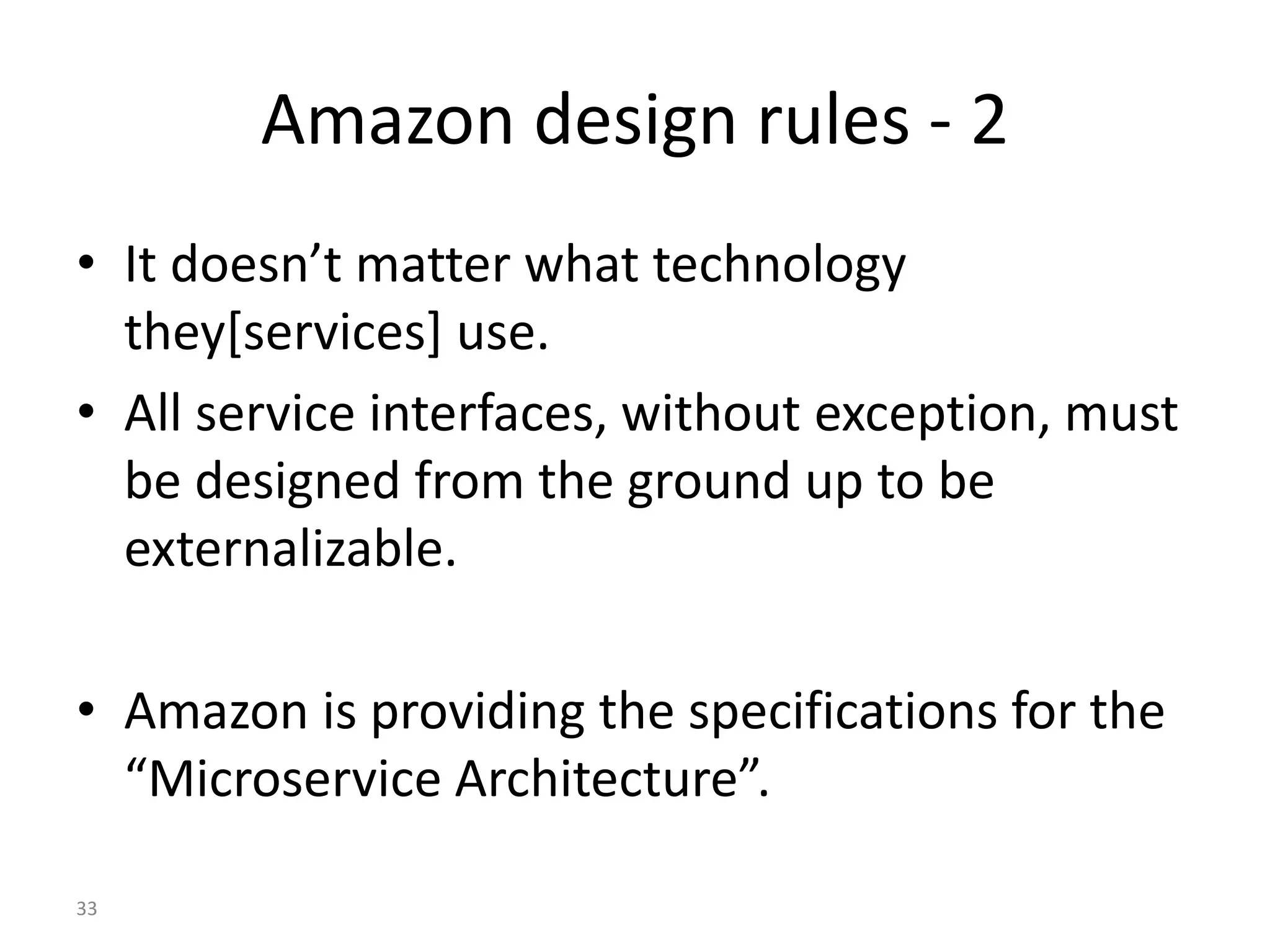

33. Amazon design rules - 2
• It doesn’t matter what technology
they[services] use.
• All service interfaces, without exception, must
be designed from the ground up to be
externalizable.
• Amazon is providing the specifications for the
“Microservice Architecture”.
33

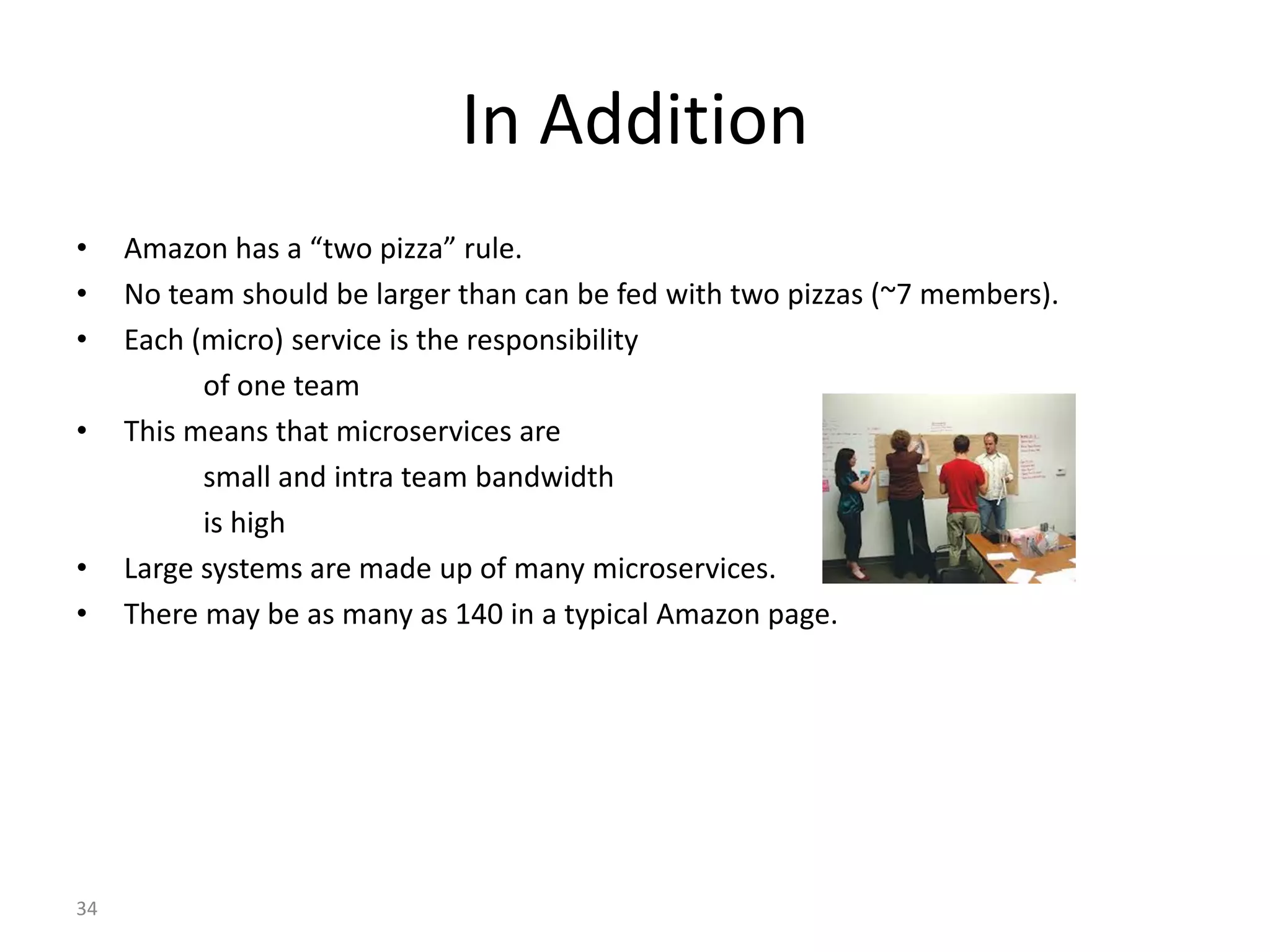

34. In Addition
• Amazon has a “two pizza” rule.
• No team should be larger than can be fed with two pizzas (~7 members).
• Each (micro) service is the responsibility
of one team
• This means that microservices are
small and intra team bandwidth
is high
• Large systems are made up of many microservices.
• There may be as many as 140 in a typical Amazon page.
34

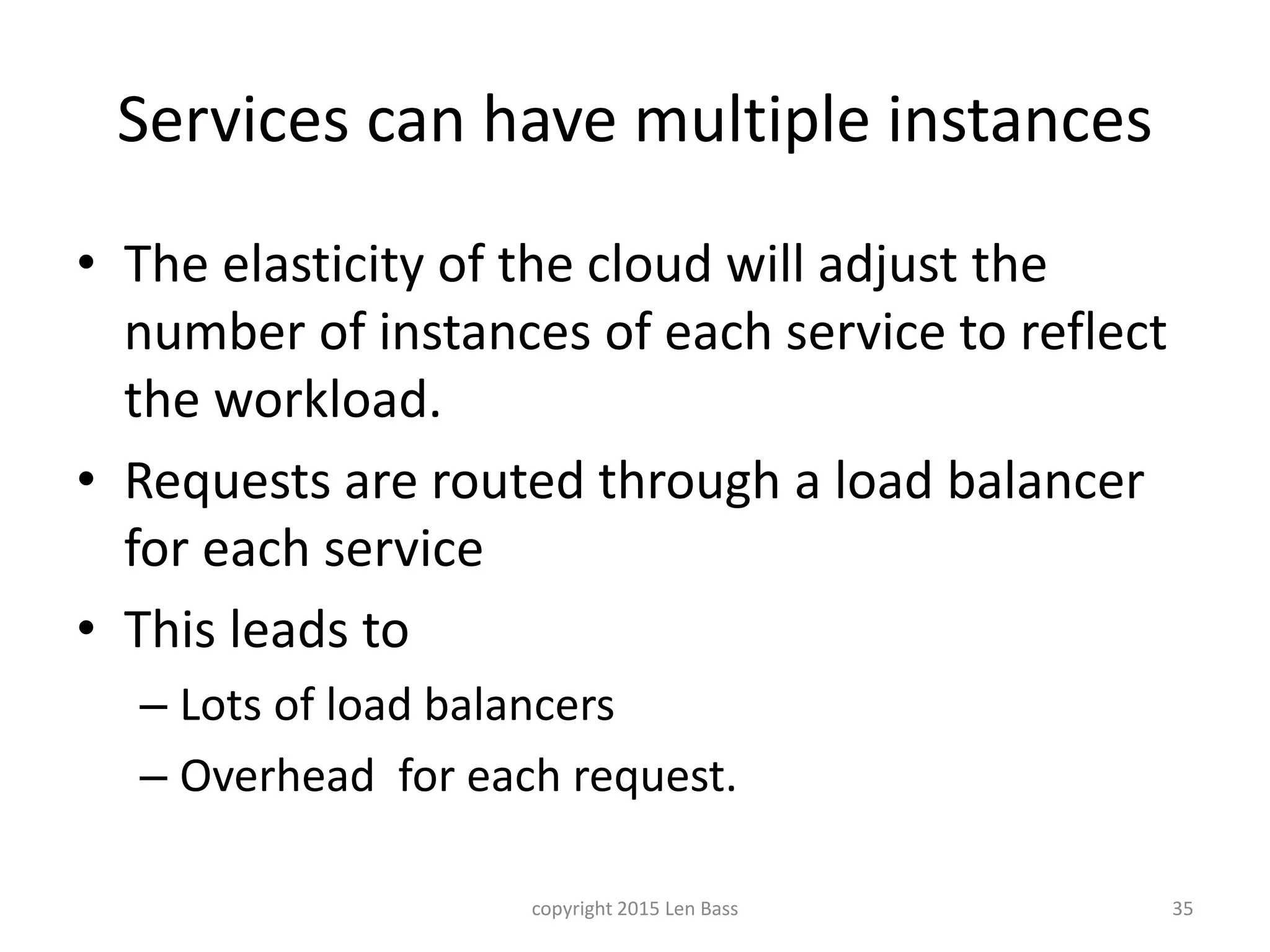

35. Services can have multiple instances
• The elasticity of the cloud will adjust the
number of instances of each service to reflect
the workload.
• Requests are routed through a load balancer
for each service
• This leads to
– Lots of load balancers
– Overhead for each request.
copyright 2015 Len Bass 35

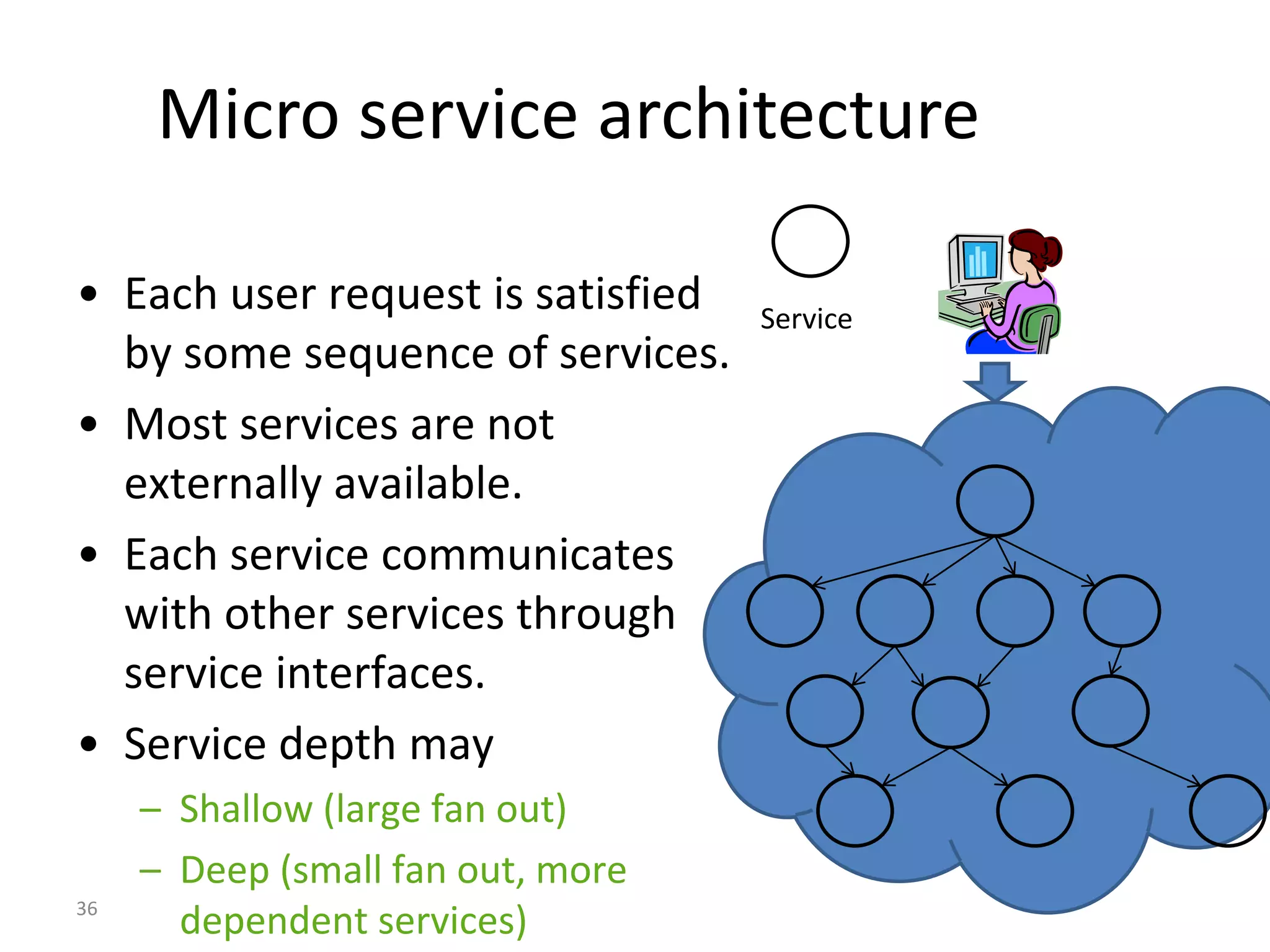

36. Micro service architecture
36
Service
• Each user request is satisfied
by some sequence of services.
• Most services are not
externally available.
• Each service communicates
with other services through
service interfaces.
• Service depth may
– Shallow (large fan out)
– Deep (small fan out, more
dependent services)

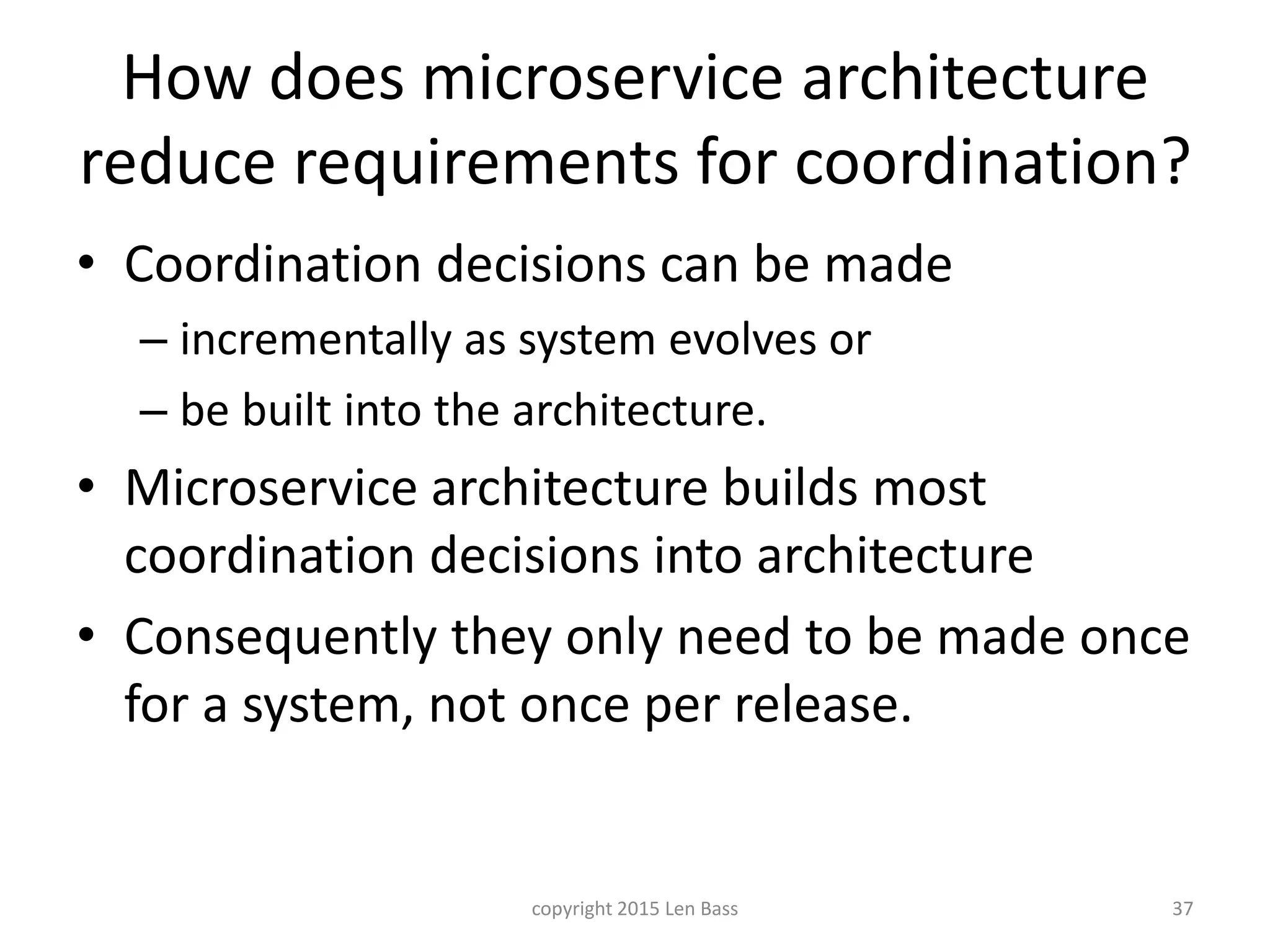

37. How does microservice architecture
reduce requirements for coordination?
• Coordination decisions can be made
– incrementally as system evolves or
– be built into the architecture.
• Microservice architecture builds most
coordination decisions into architecture
• Consequently they only need to be made once
for a system, not once per release.
copyright 2015 Len Bass 37

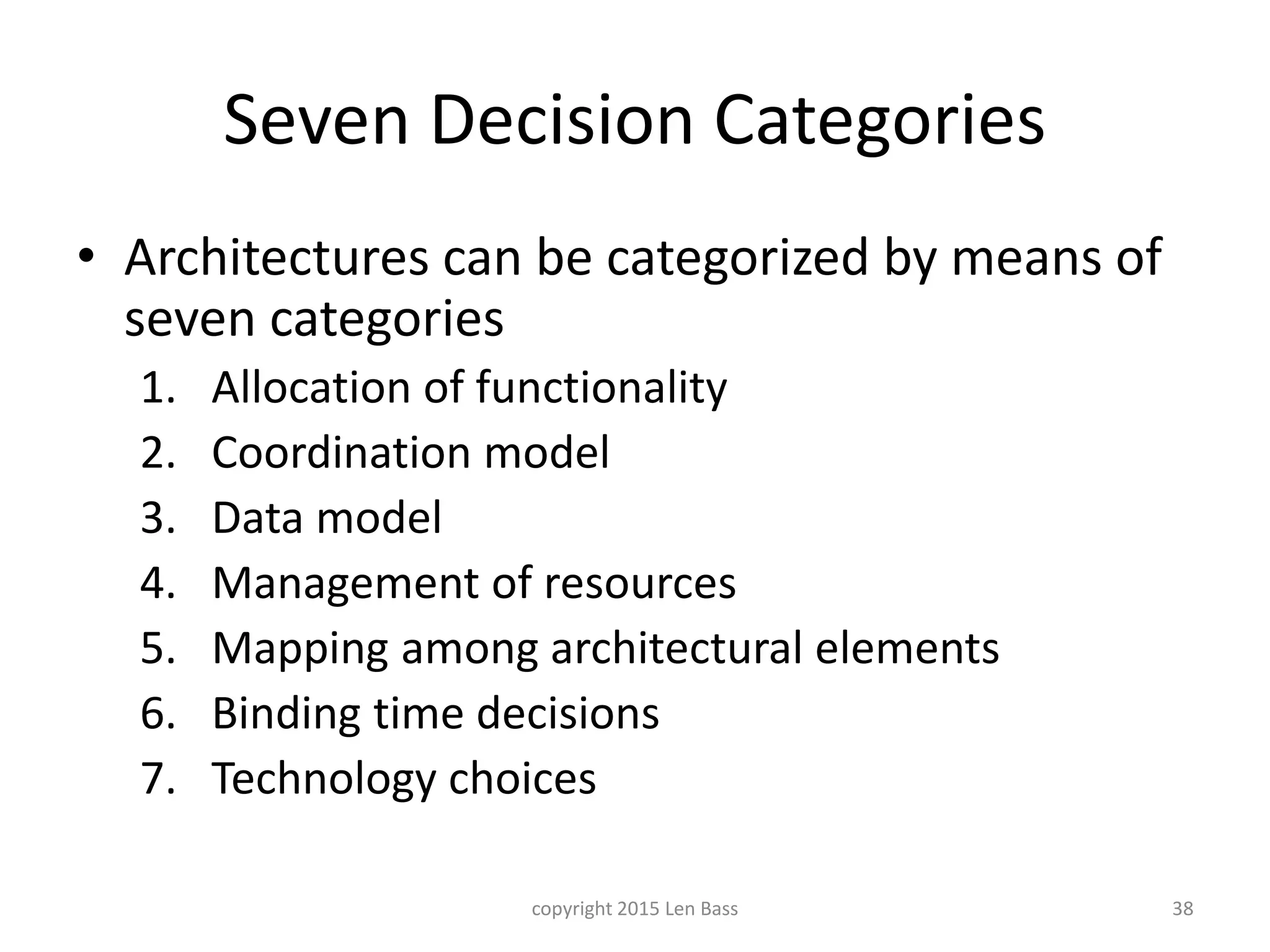

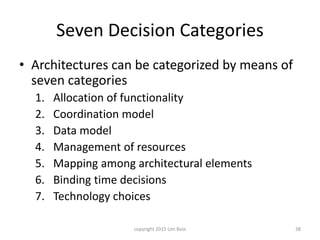

38. Seven Decision Categories
• Architectures can be categorized by means of
seven categories
1. Allocation of functionality
2. Coordination model
3. Data model
4. Management of resources
5. Mapping among architectural elements
6. Binding time decisions
7. Technology choices
copyright 2015 Len Bass 38

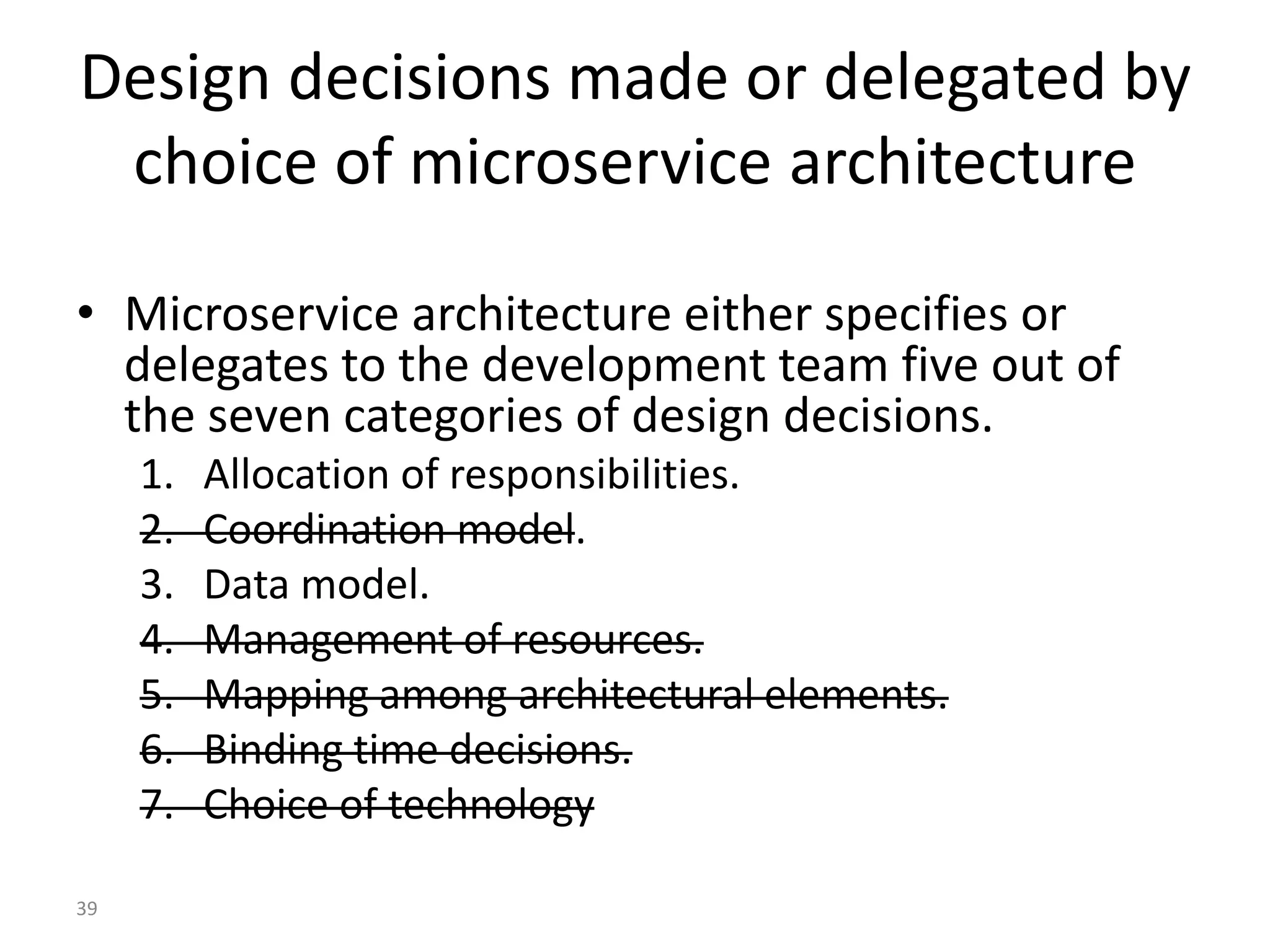

39. Design decisions made or delegated by
choice of microservice architecture
• Microservice architecture either specifies or
delegates to the development team five out of
the seven categories of design decisions.
1. Allocation of responsibilities.
2. Coordination model.
3. Data model.
4. Management of resources.
5. Mapping among architectural elements.
6. Binding time decisions.
7. Choice of technology
39

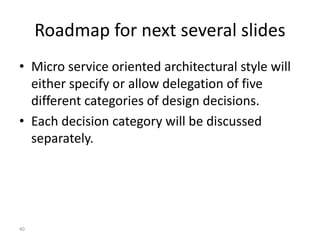

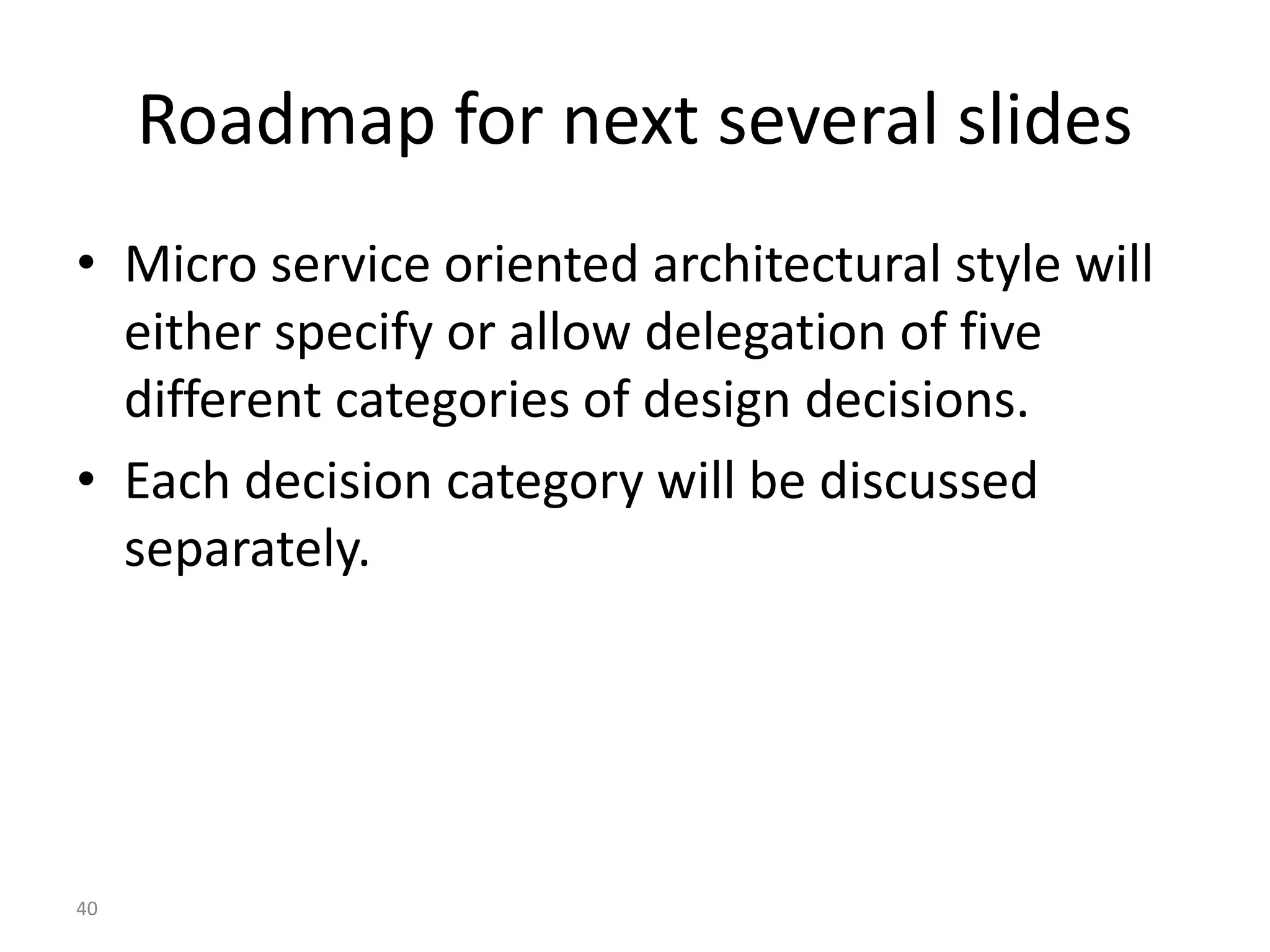

40. Roadmap for next several slides
• Micro service oriented architectural style will
either specify or allow delegation of five
different categories of design decisions.
• Each decision category will be discussed
separately.
40

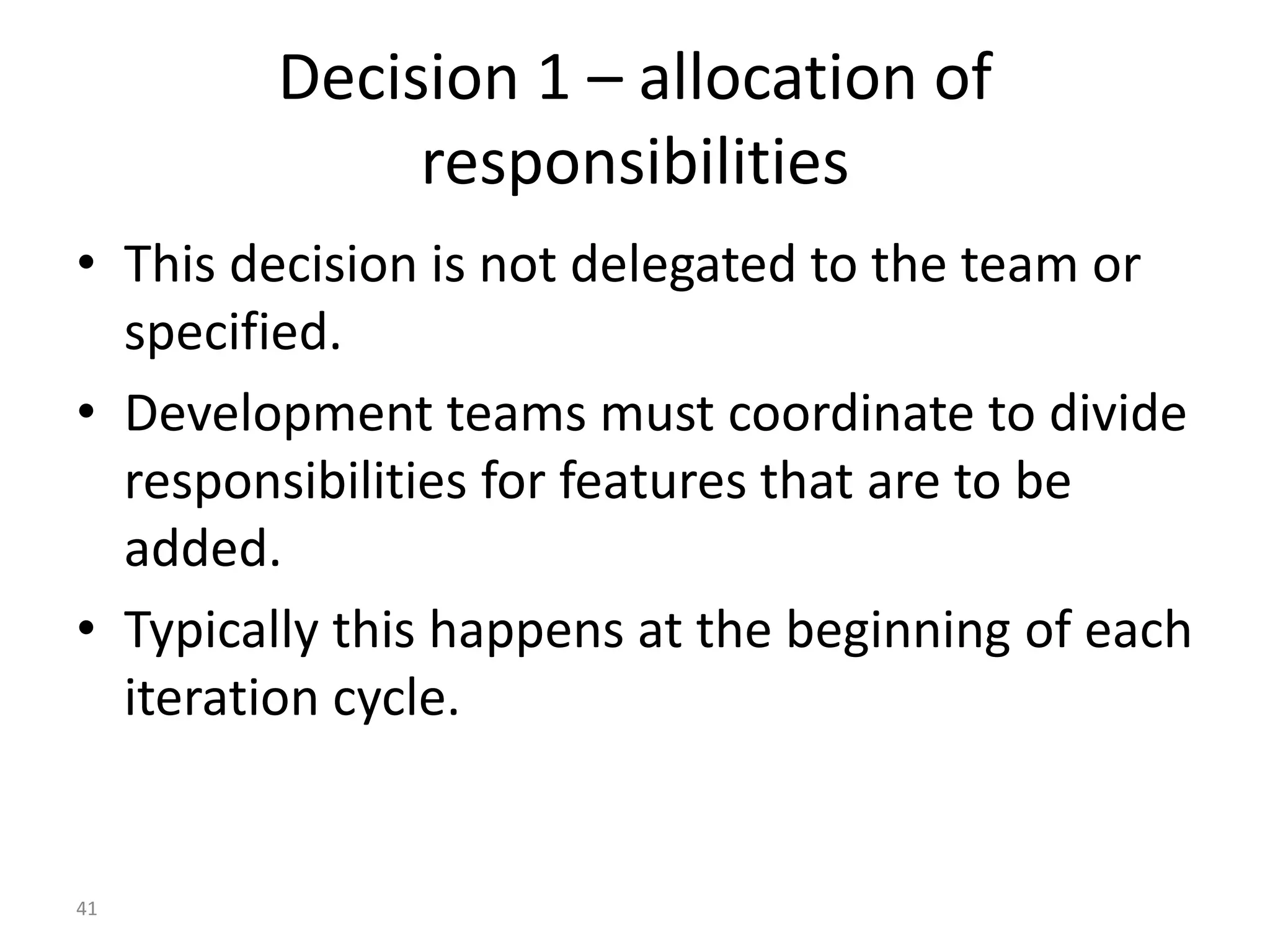

41. Decision 1 – allocation of
responsibilities
• This decision is not delegated to the team or
specified.
• Development teams must coordinate to divide
responsibilities for features that are to be
added.
• Typically this happens at the beginning of each
iteration cycle.
41

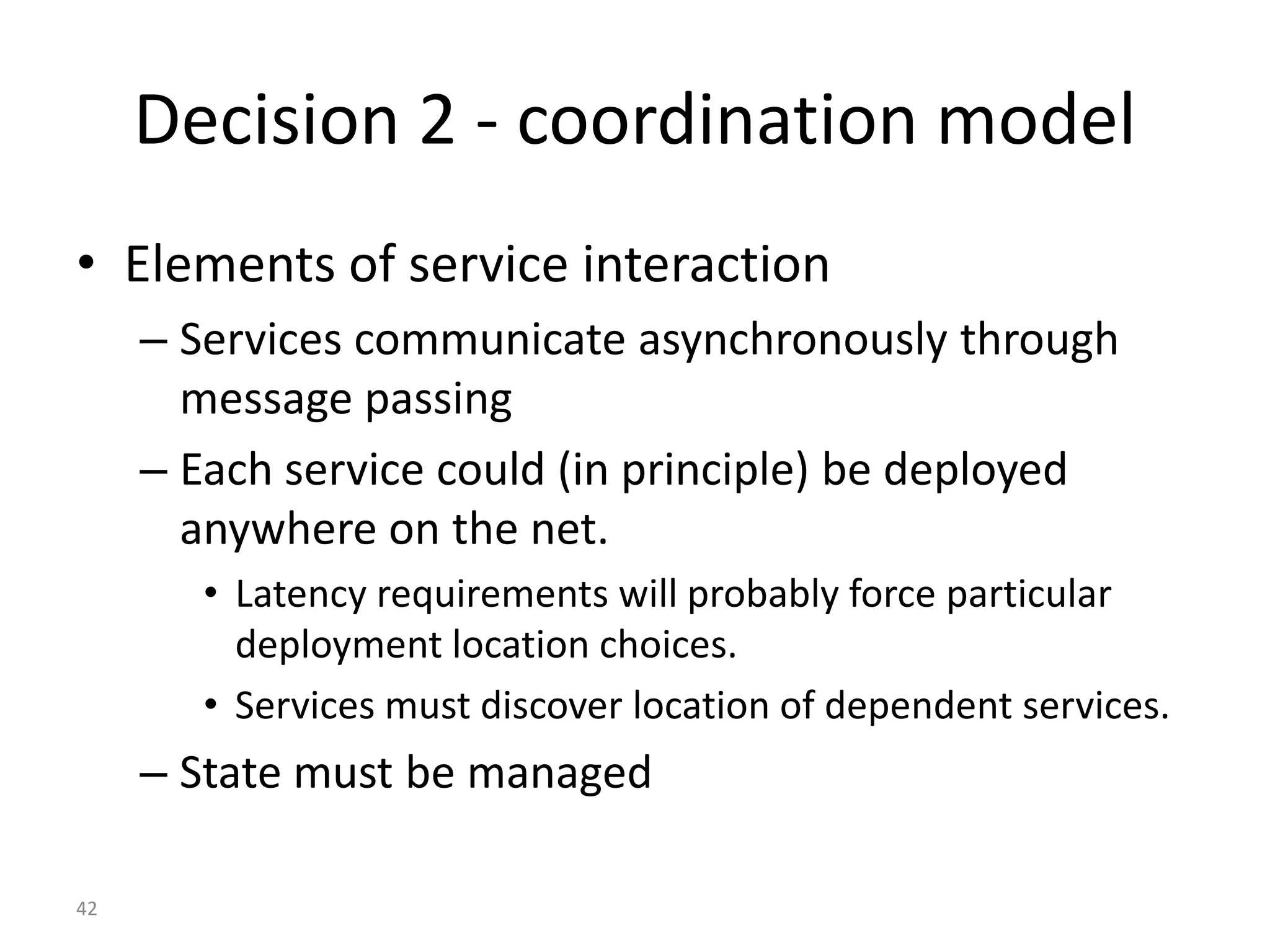

42. Decision 2 - coordination model
• Elements of service interaction
– Services communicate asynchronously through
message passing
– Each service could (in principle) be deployed
anywhere on the net.
• Latency requirements will probably force particular
deployment location choices.
• Services must discover location of dependent services.
– State must be managed
42

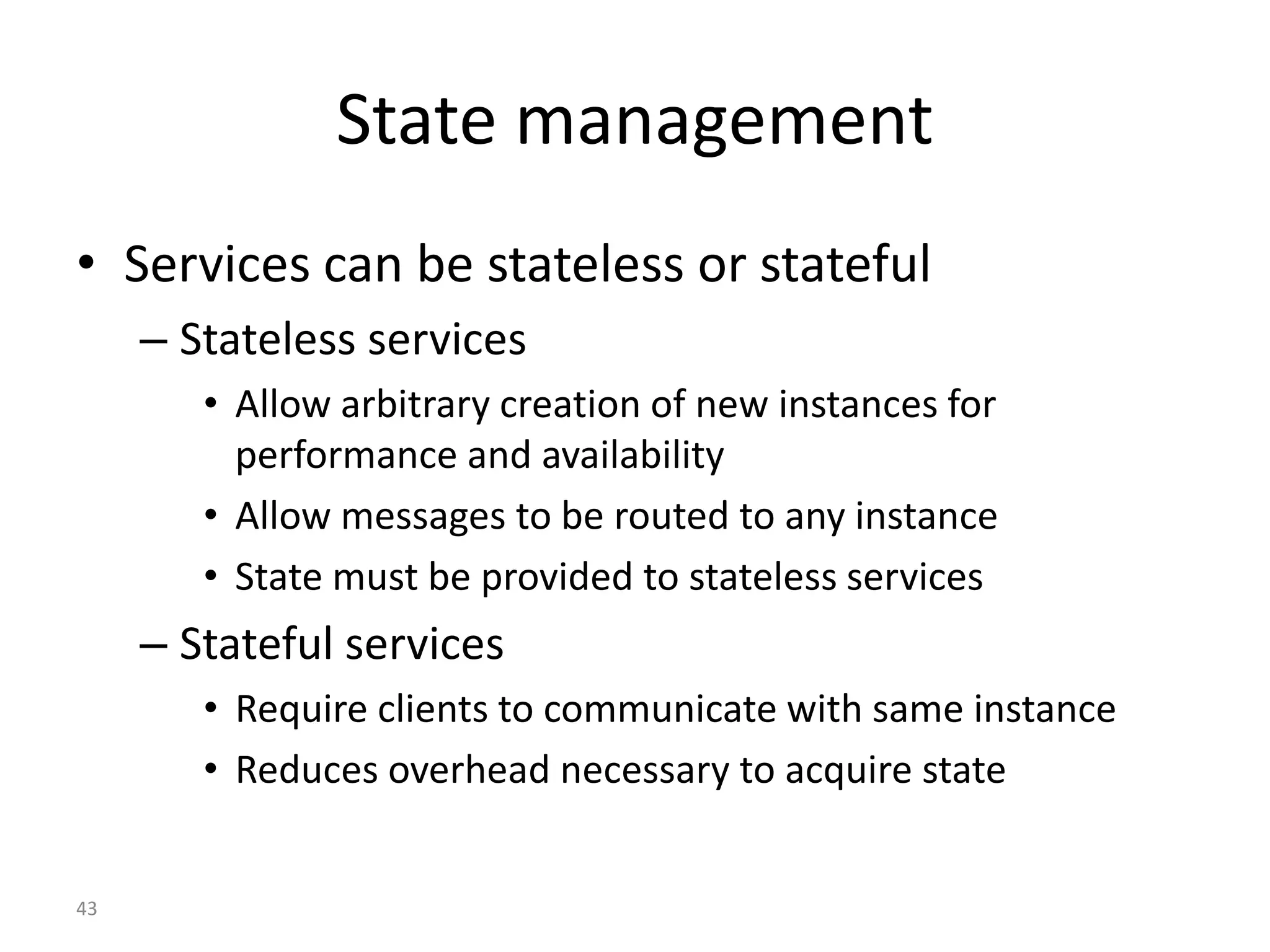

43. State management
• Services can be stateless or stateful
– Stateless services
• Allow arbitrary creation of new instances for
performance and availability
• Allow messages to be routed to any instance
• State must be provided to stateless services
– Stateful services
• Require clients to communicate with same instance
• Reduces overhead necessary to acquire state
43

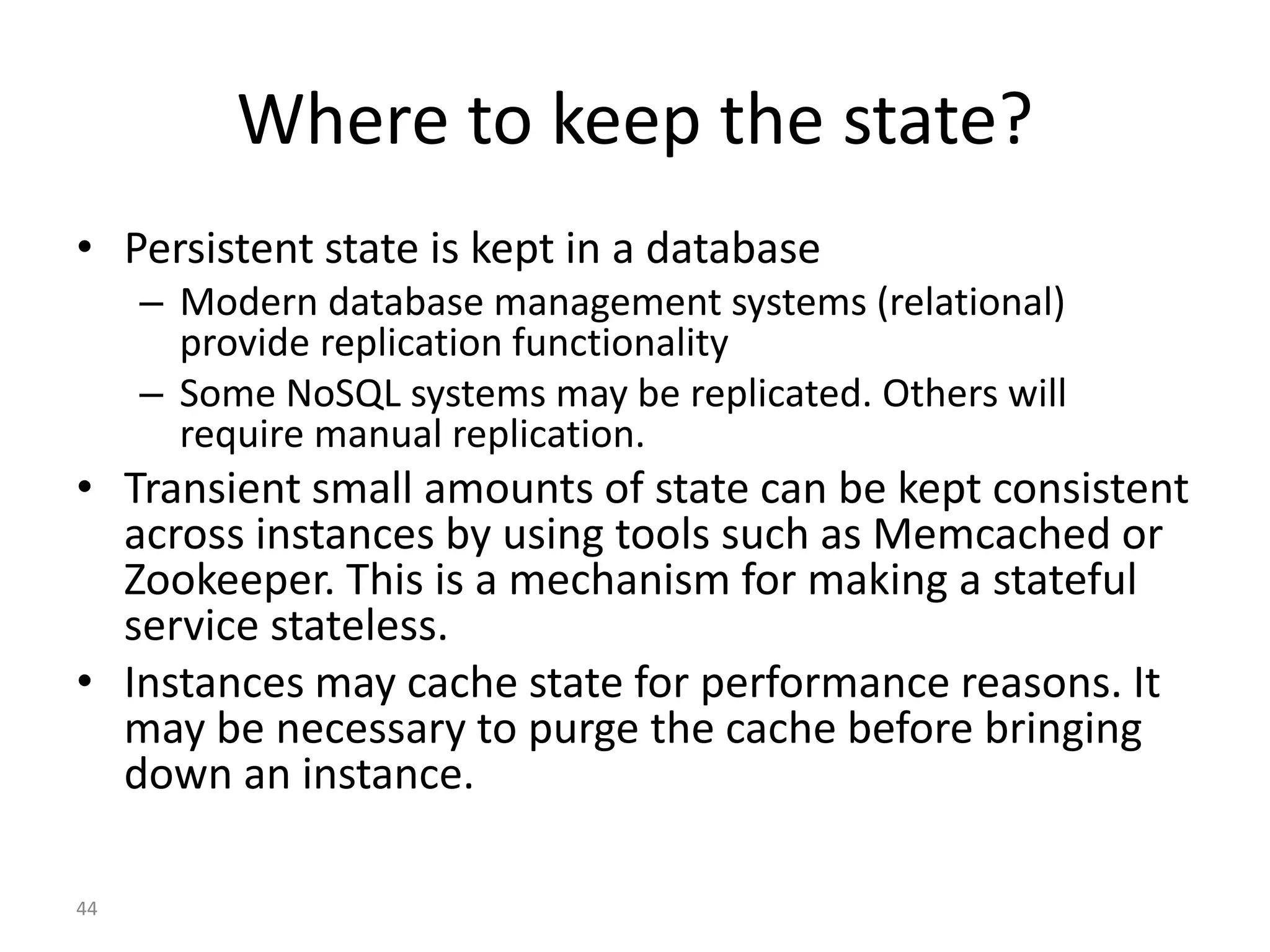

44. Where to keep the state?
• Persistent state is kept in a database
– Modern database management systems (relational)
provide replication functionality
– Some NoSQL systems may be replicated. Others will
require manual replication.
• Transient small amounts of state can be kept consistent
across instances by using tools such as Memcached or
Zookeeper. This is a mechanism for making a stateful
service stateless.
• Instances may cache state for performance reasons. It
may be necessary to purge the cache before bringing
down an instance.
44

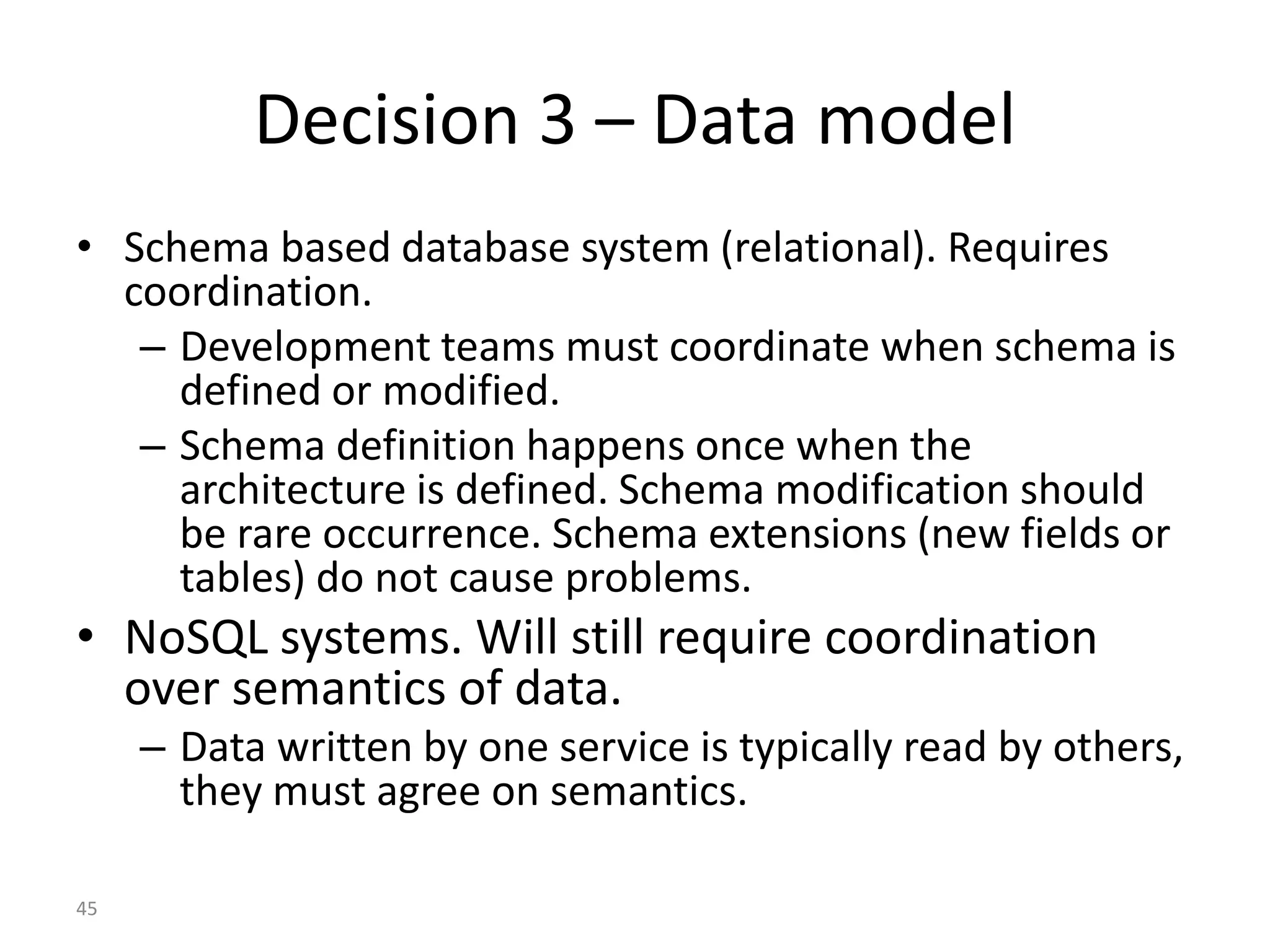

45. Decision 3 – Data model
• Schema based database system (relational). Requires
coordination.
– Development teams must coordinate when schema is
defined or modified.
– Schema definition happens once when the
architecture is defined. Schema modification should
be rare occurrence. Schema extensions (new fields or
tables) do not cause problems.
• NoSQL systems. Will still require coordination
over semantics of data.
– Data written by one service is typically read by others,
they must agree on semantics.
45

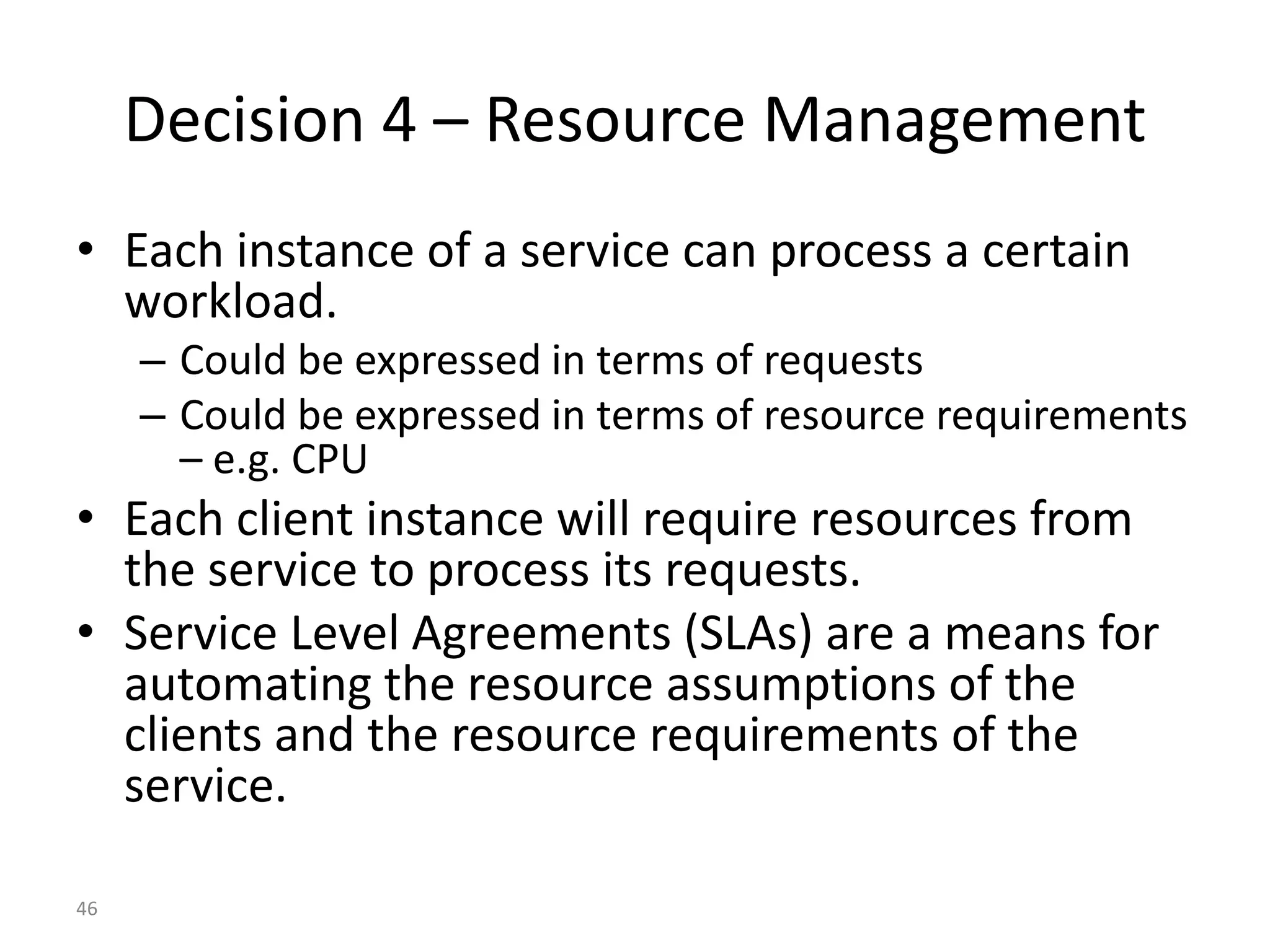

46. Decision 4 – Resource Management
• Each instance of a service can process a certain
workload.
– Could be expressed in terms of requests
– Could be expressed in terms of resource requirements
– e.g. CPU
• Each client instance will require resources from
the service to process its requests.
• Service Level Agreements (SLAs) are a means for
automating the resource assumptions of the
clients and the resource requirements of the
service.
46

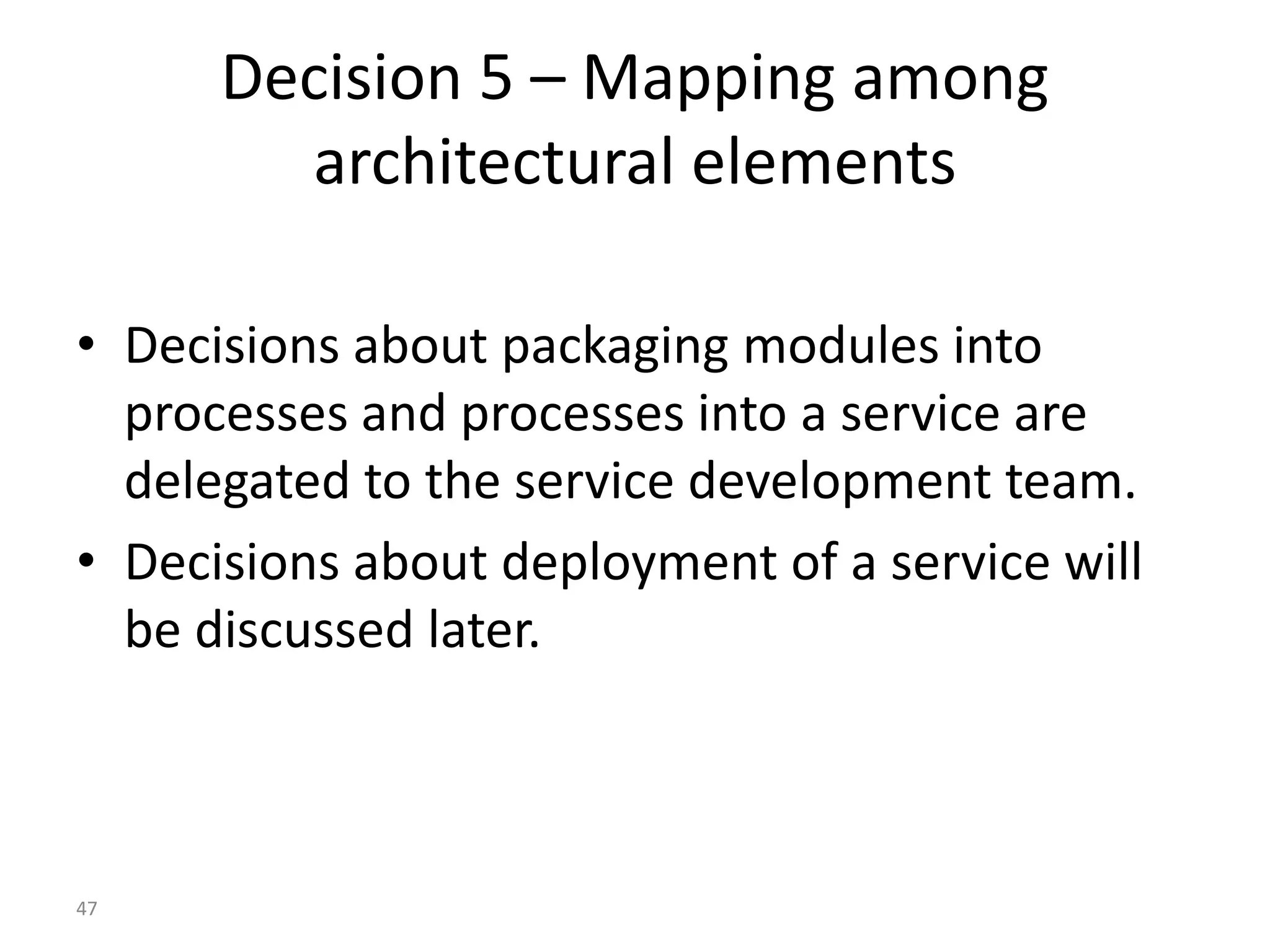

47. Decision 5 – Mapping among
architectural elements
• Decisions about packaging modules into
processes and processes into a service are
delegated to the service development team.
• Decisions about deployment of a service will
be discussed later.
47

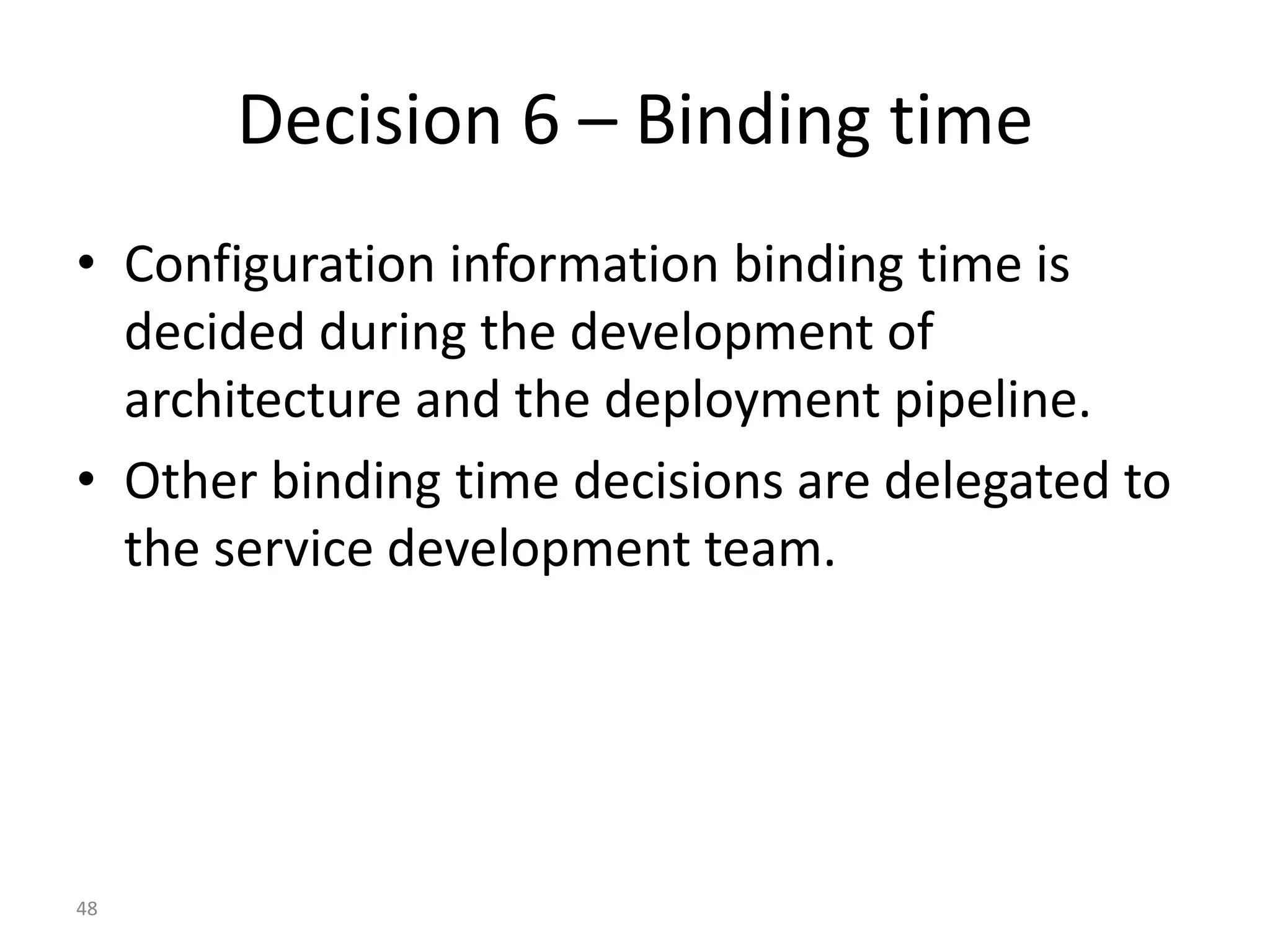

48. Decision 6 – Binding time
• Configuration information binding time is
decided during the development of
architecture and the deployment pipeline.
• Other binding time decisions are delegated to
the service development team.
48

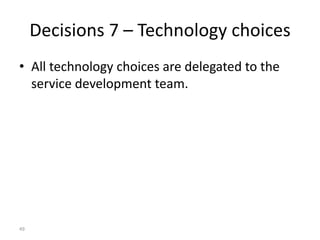

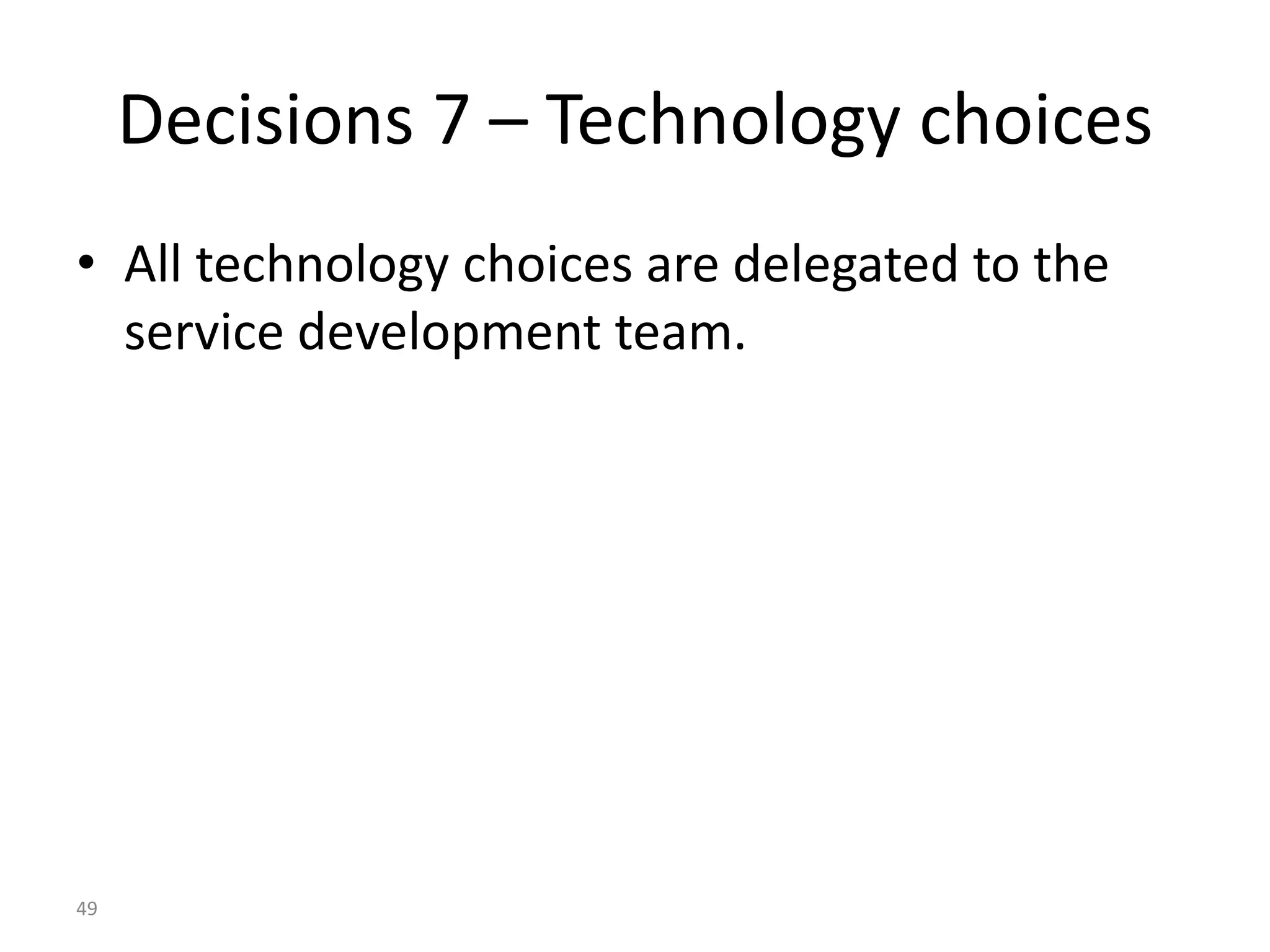

49. Decisions 7 – Technology choices
• All technology choices are delegated to the
service development team.
49

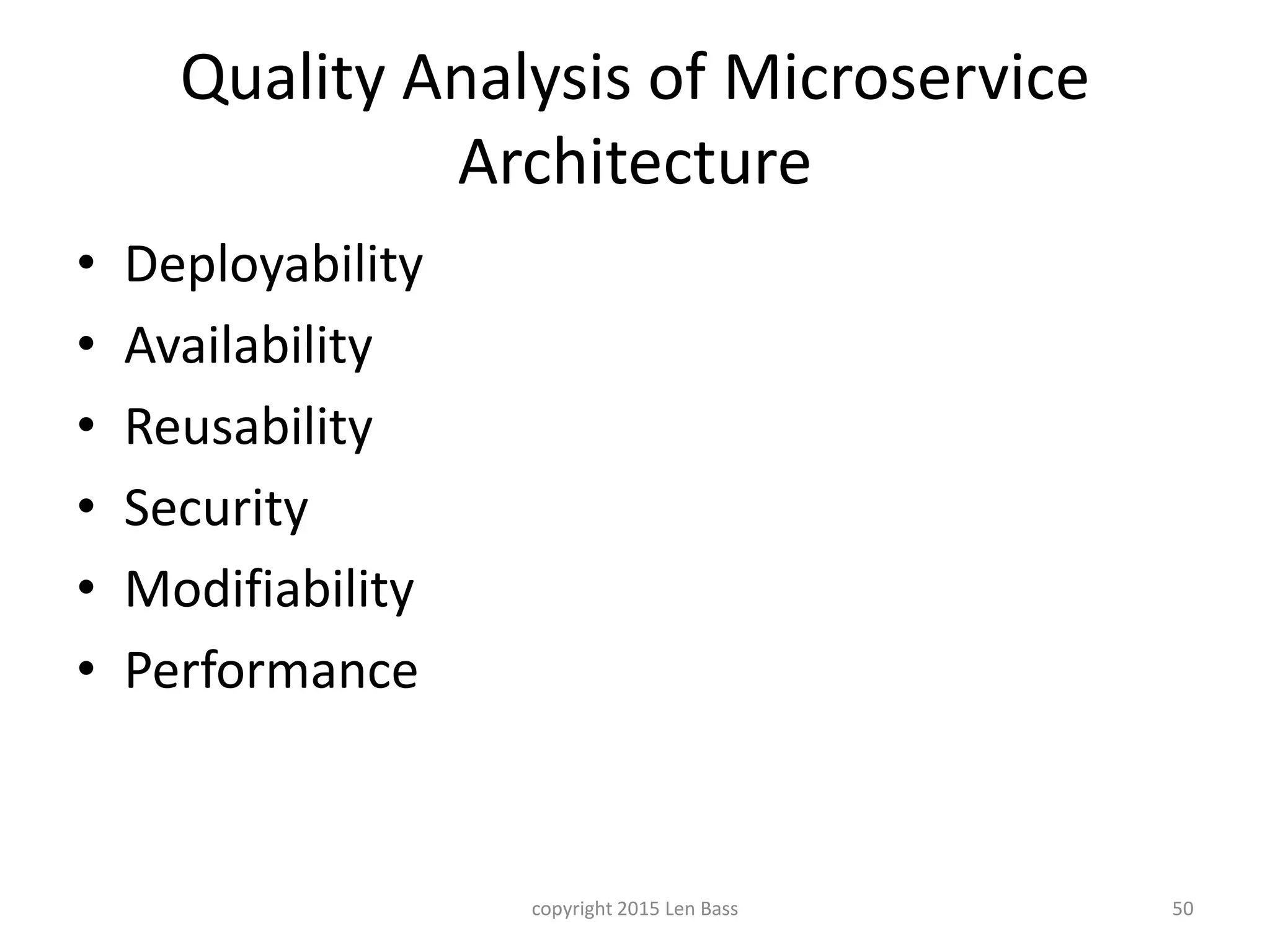

50. Quality Analysis of Microservice
Architecture
• Deployability
• Availability
• Reusability
• Security
• Modifiability
• Performance
copyright 2015 Len Bass 50

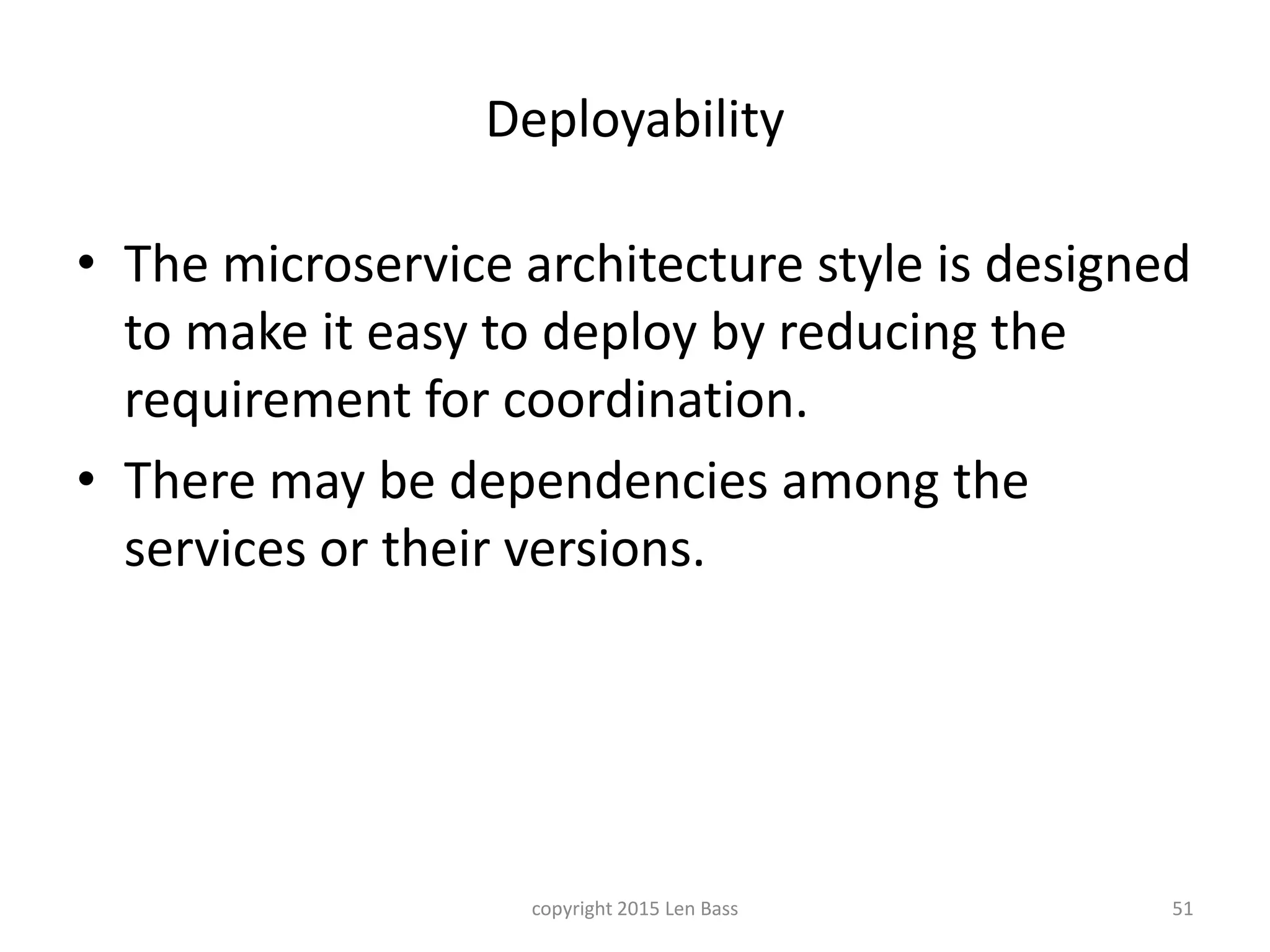

51. Deployability
• The microservice architecture style is designed
to make it easy to deploy by reducing the
requirement for coordination.
• There may be dependencies among the
services or their versions.
copyright 2015 Len Bass 51

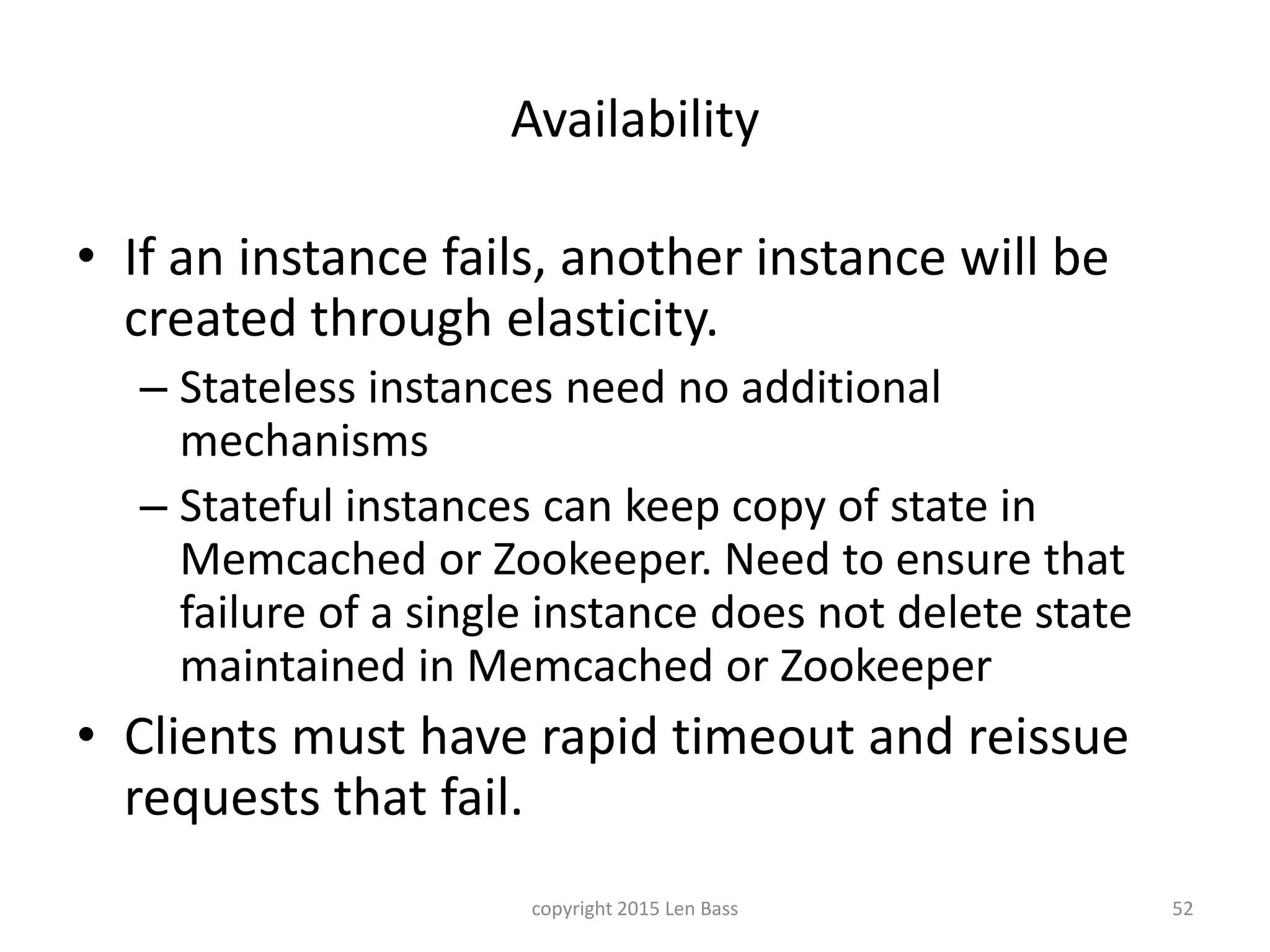

52. Availability
• If an instance fails, another instance will be
created through elasticity.
– Stateless instances need no additional
mechanisms
– Stateful instances can keep copy of state in
Memcached or Zookeeper. Need to ensure that
failure of a single instance does not delete state
maintained in Memcached or Zookeeper
• Clients must have rapid timeout and reissue
requests that fail.
copyright 2015 Len Bass 52

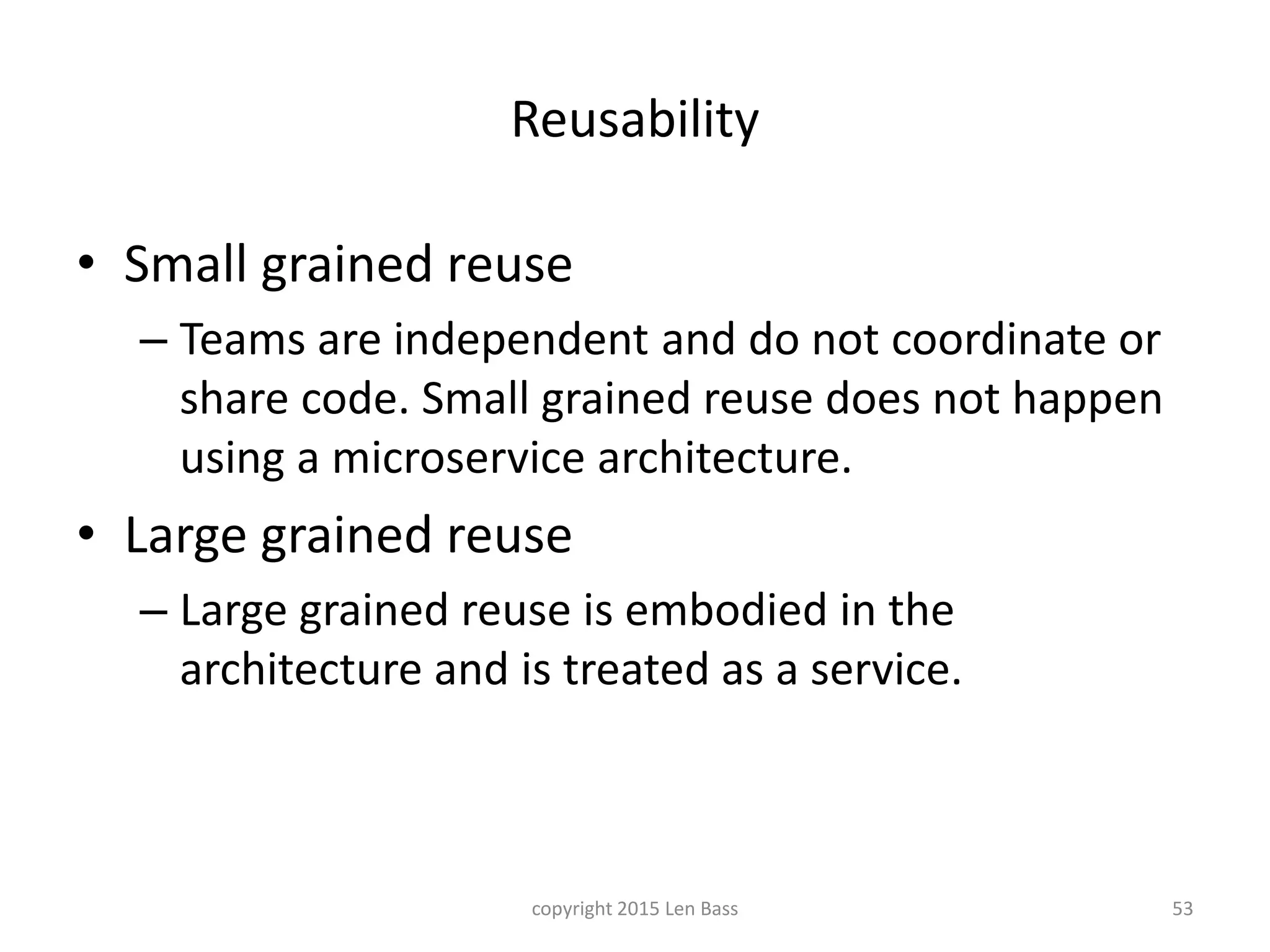

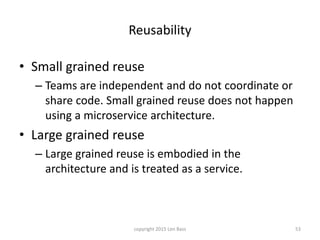

53. Reusability
• Small grained reuse
– Teams are independent and do not coordinate or
share code. Small grained reuse does not happen
using a microservice architecture.
• Large grained reuse
– Large grained reuse is embodied in the
architecture and is treated as a service.
copyright 2015 Len Bass 53

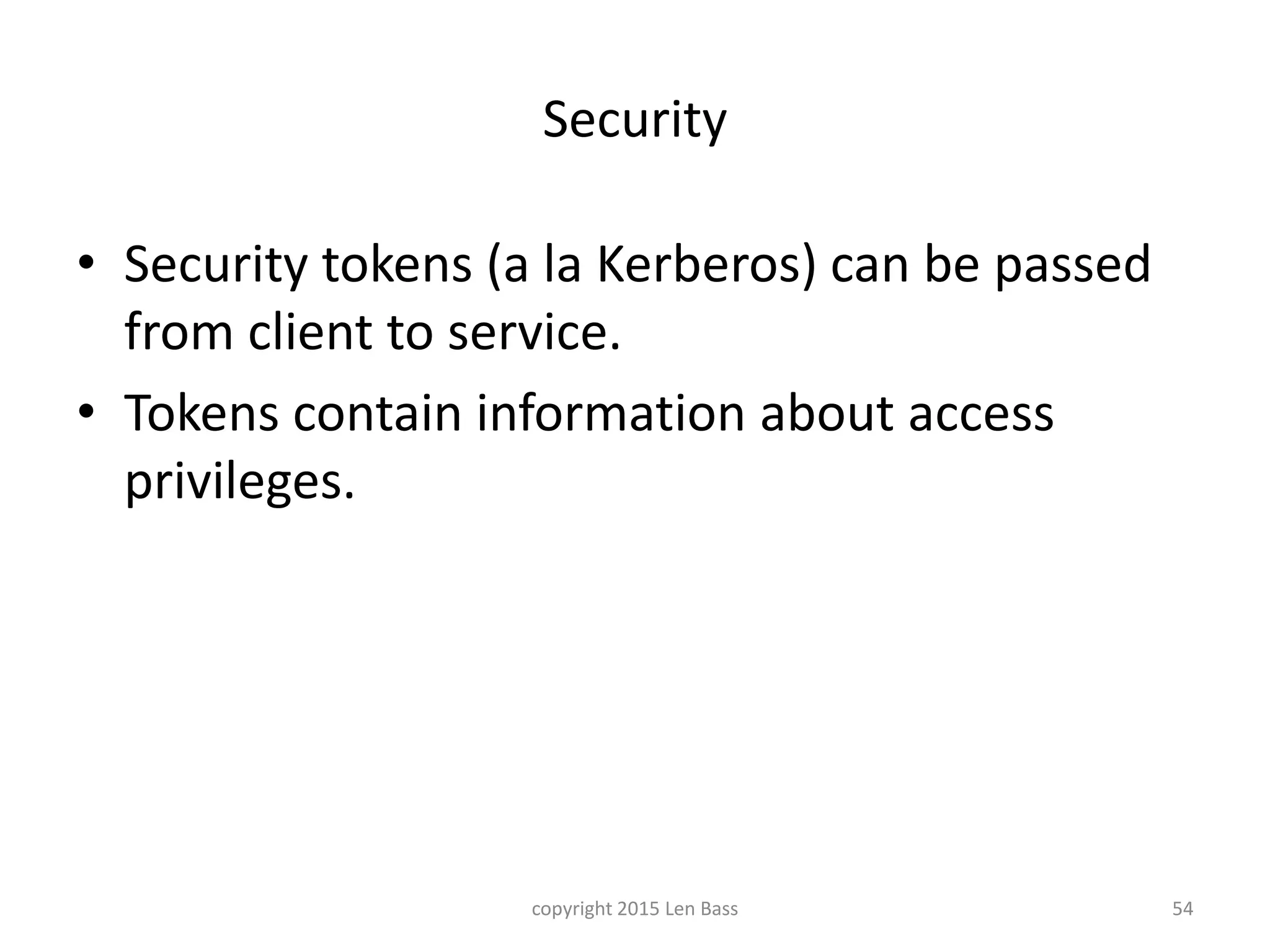

54. Security
• Security tokens (a la Kerberos) can be passed
from client to service.
• Tokens contain information about access
privileges.
copyright 2015 Len Bass 54

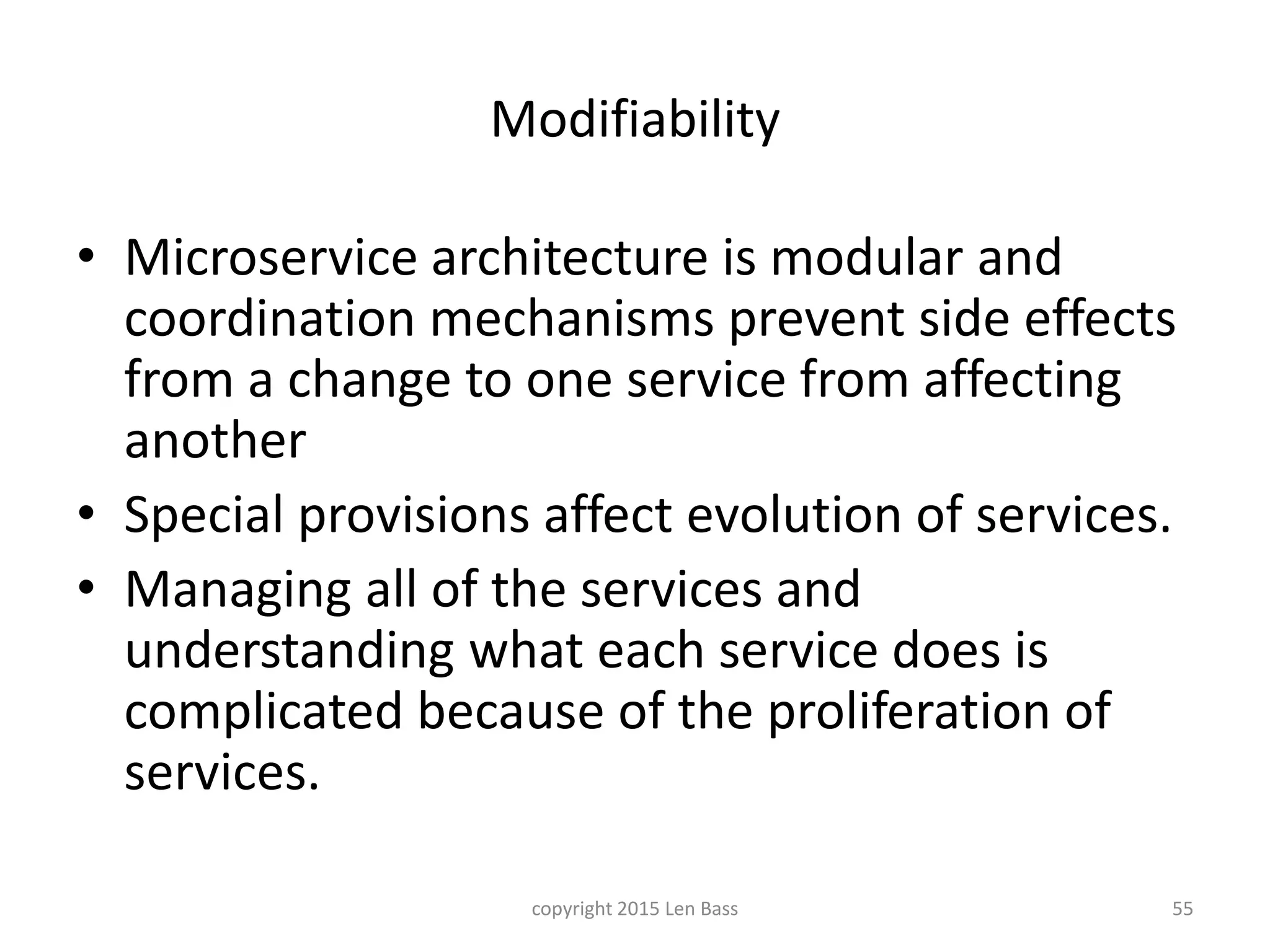

55. Modifiability
• Microservice architecture is modular and
coordination mechanisms prevent side effects
from a change to one service from affecting
another
• Special provisions affect evolution of services.
• Managing all of the services and
understanding what each service does is
complicated because of the proliferation of
services.
copyright 2015 Len Bass 55

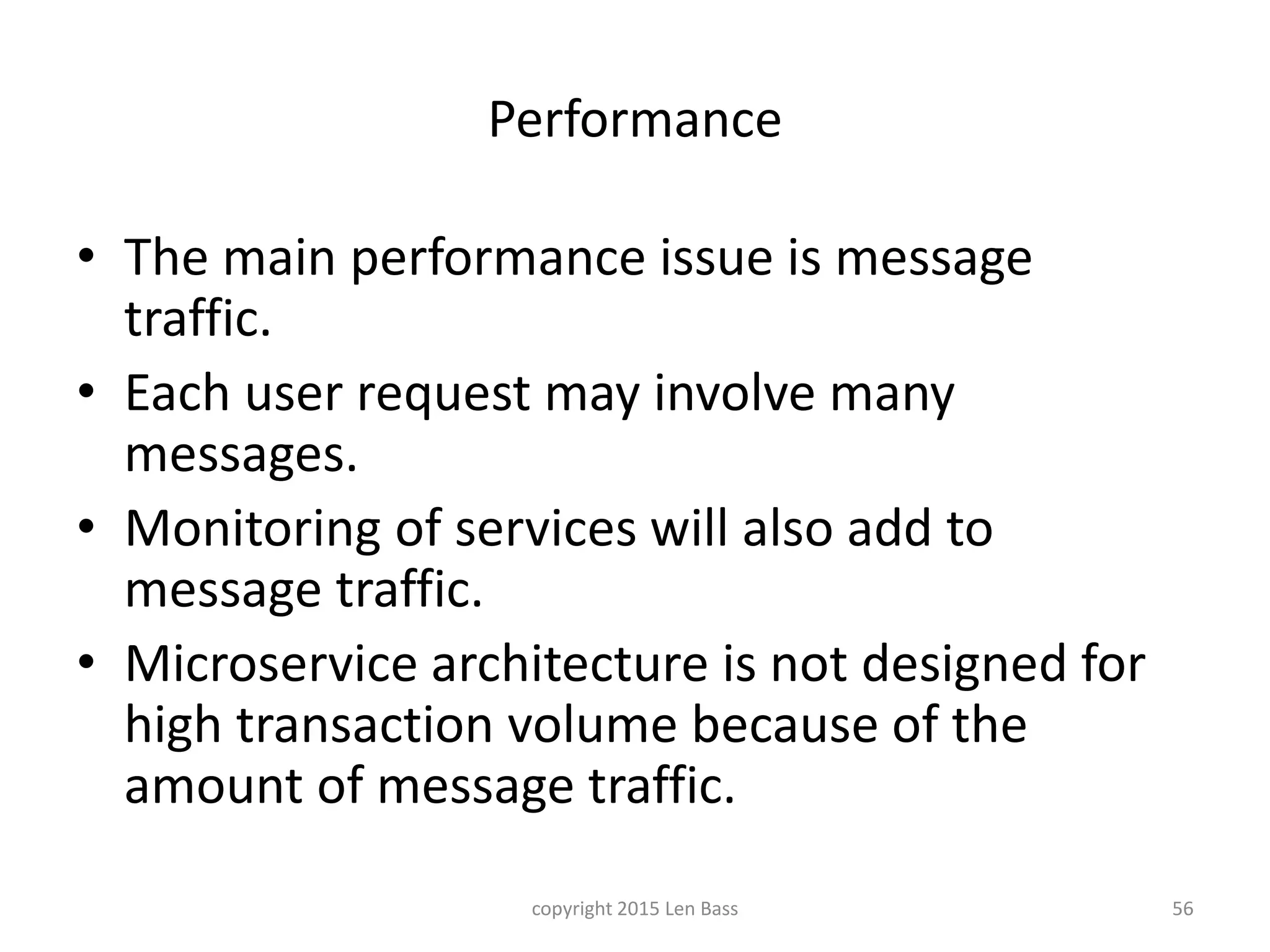

56. Performance
• The main performance issue is message
traffic.
• Each user request may involve many
messages.
• Monitoring of services will also add to
message traffic.
• Microservice architecture is not designed for
high transaction volume because of the
amount of message traffic.
copyright 2015 Len Bass 56

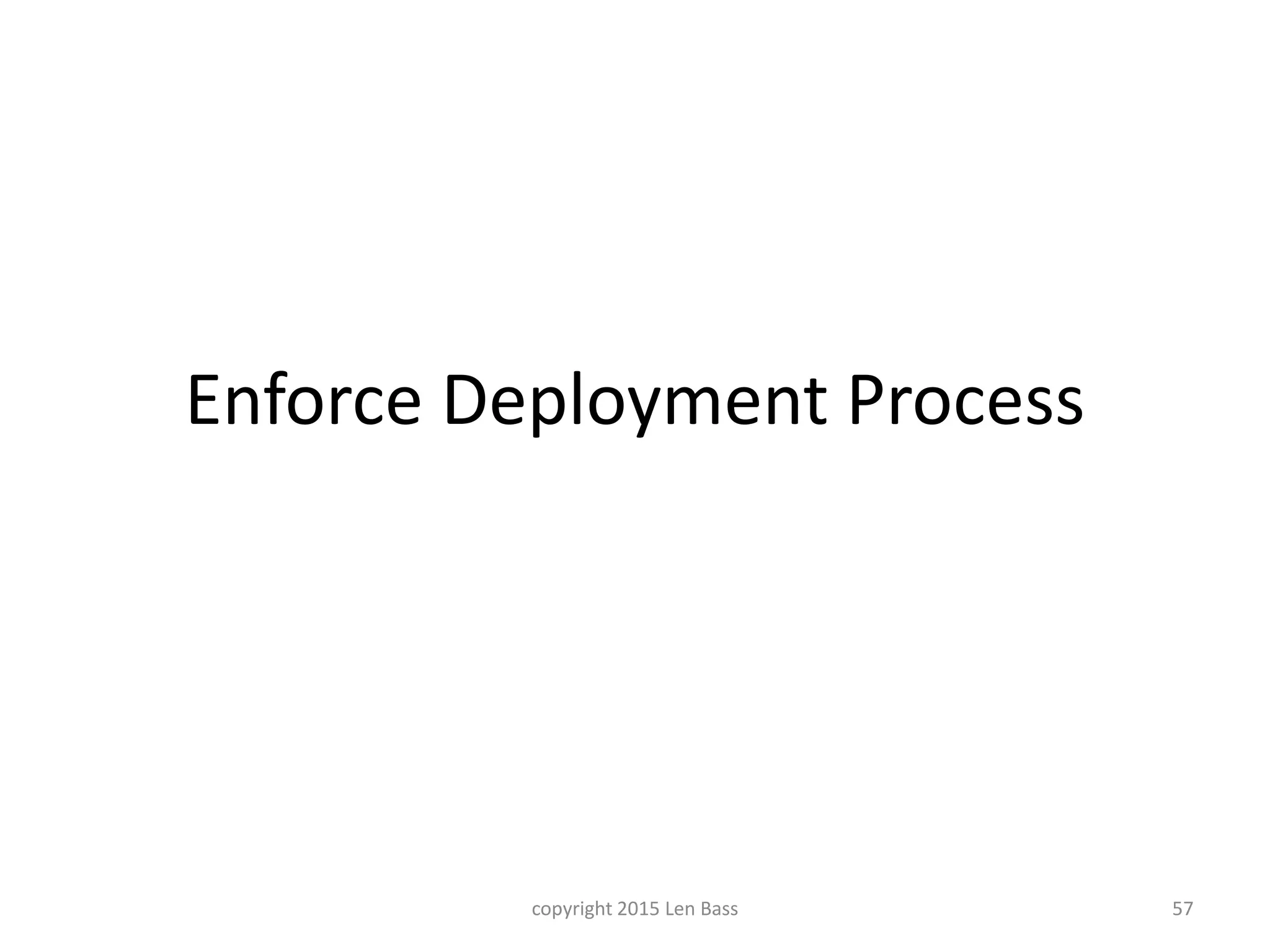

57. Enforce Deployment Process
copyright 2015 Len Bass 57

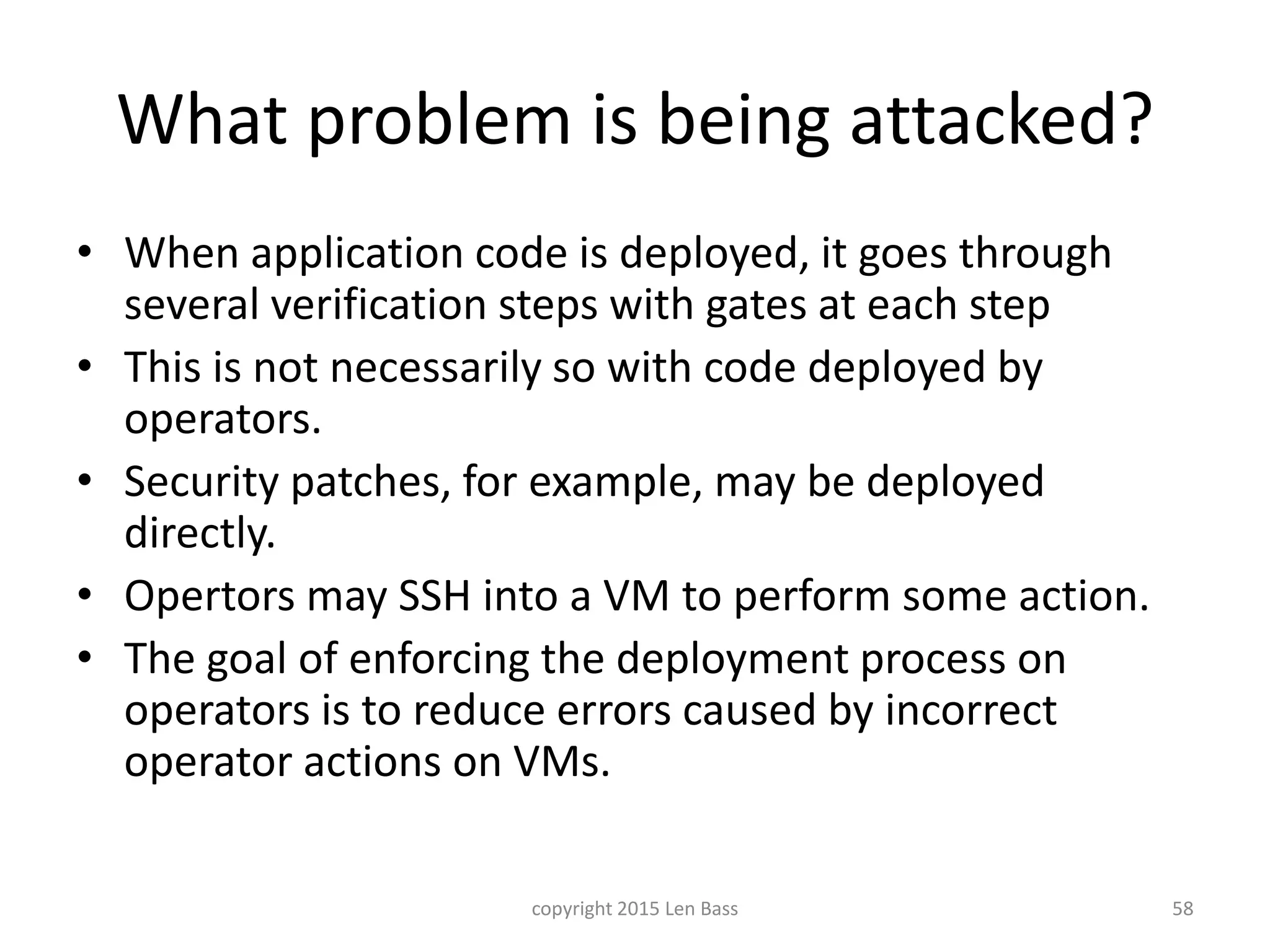

58. What problem is being attacked?
• When application code is deployed, it goes through
several verification steps with gates at each step
• This is not necessarily so with code deployed by
operators.
• Security patches, for example, may be deployed
directly.
• Opertors may SSH into a VM to perform some action.
• The goal of enforcing the deployment process on
operators is to reduce errors caused by incorrect
operator actions on VMs.
copyright 2015 Len Bass 58

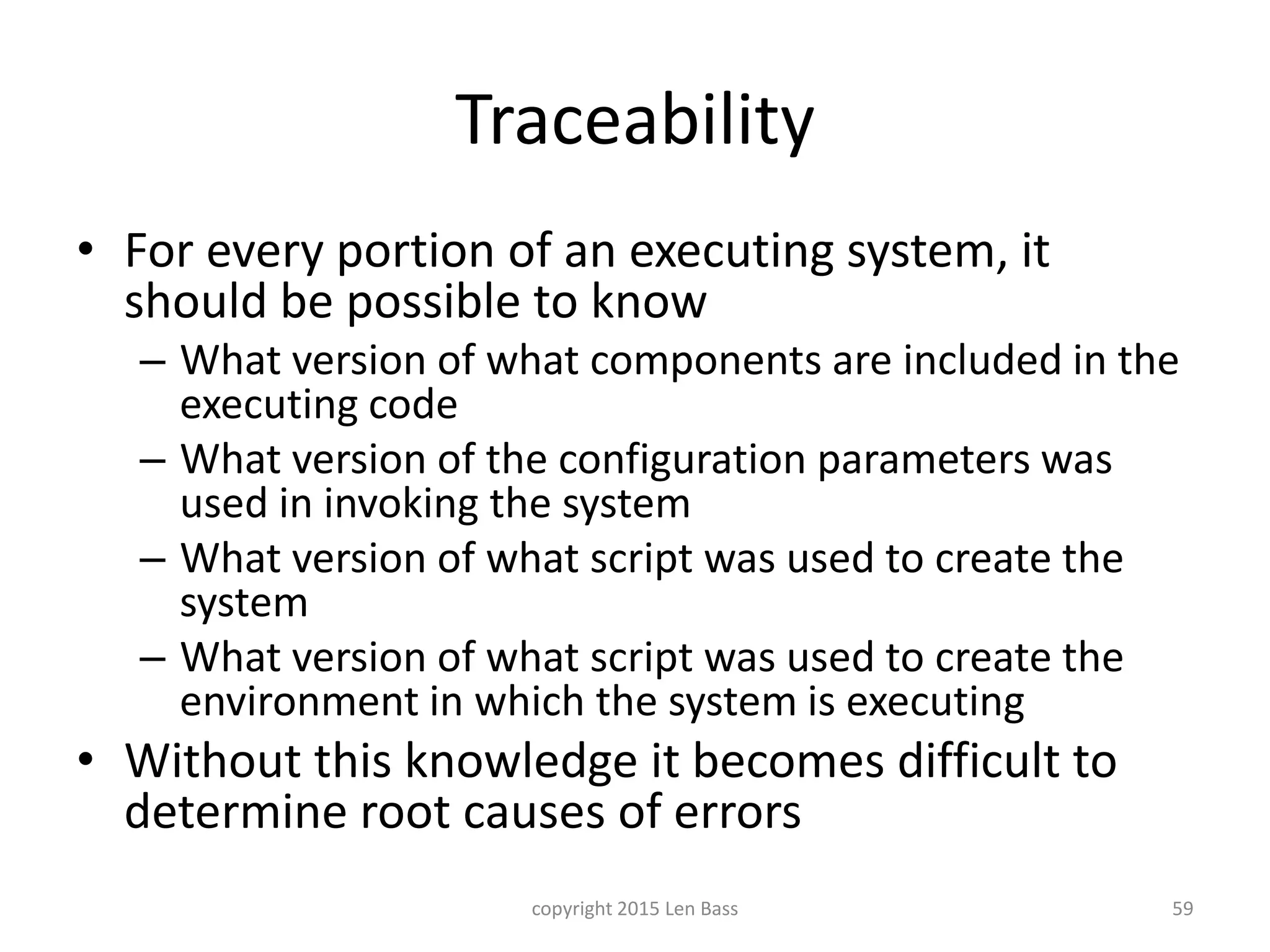

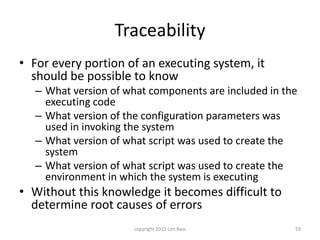

59. Traceability
• For every portion of an executing system, it
should be possible to know
– What version of what components are included in the
executing code
– What version of the configuration parameters was
used in invoking the system
– What version of what script was used to create the
system
– What version of what script was used to create the
environment in which the system is executing
• Without this knowledge it becomes difficult to
determine root causes of errors
copyright 2015 Len Bass 59

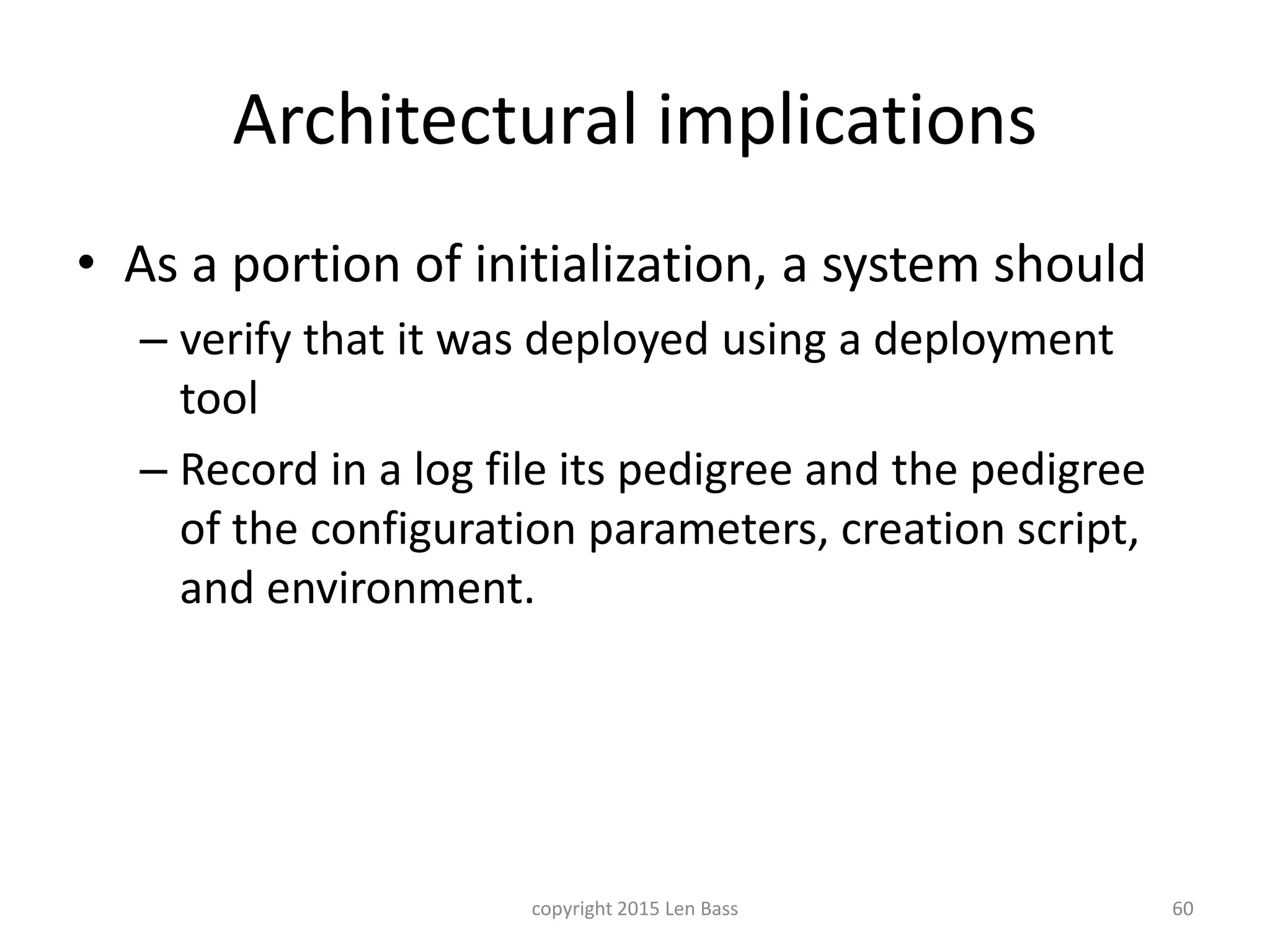

60. Architectural implications
• As a portion of initialization, a system should
– verify that it was deployed using a deployment
tool
– Record in a log file its pedigree and the pedigree
of the configuration parameters, creation script,
and environment.
copyright 2015 Len Bass 60

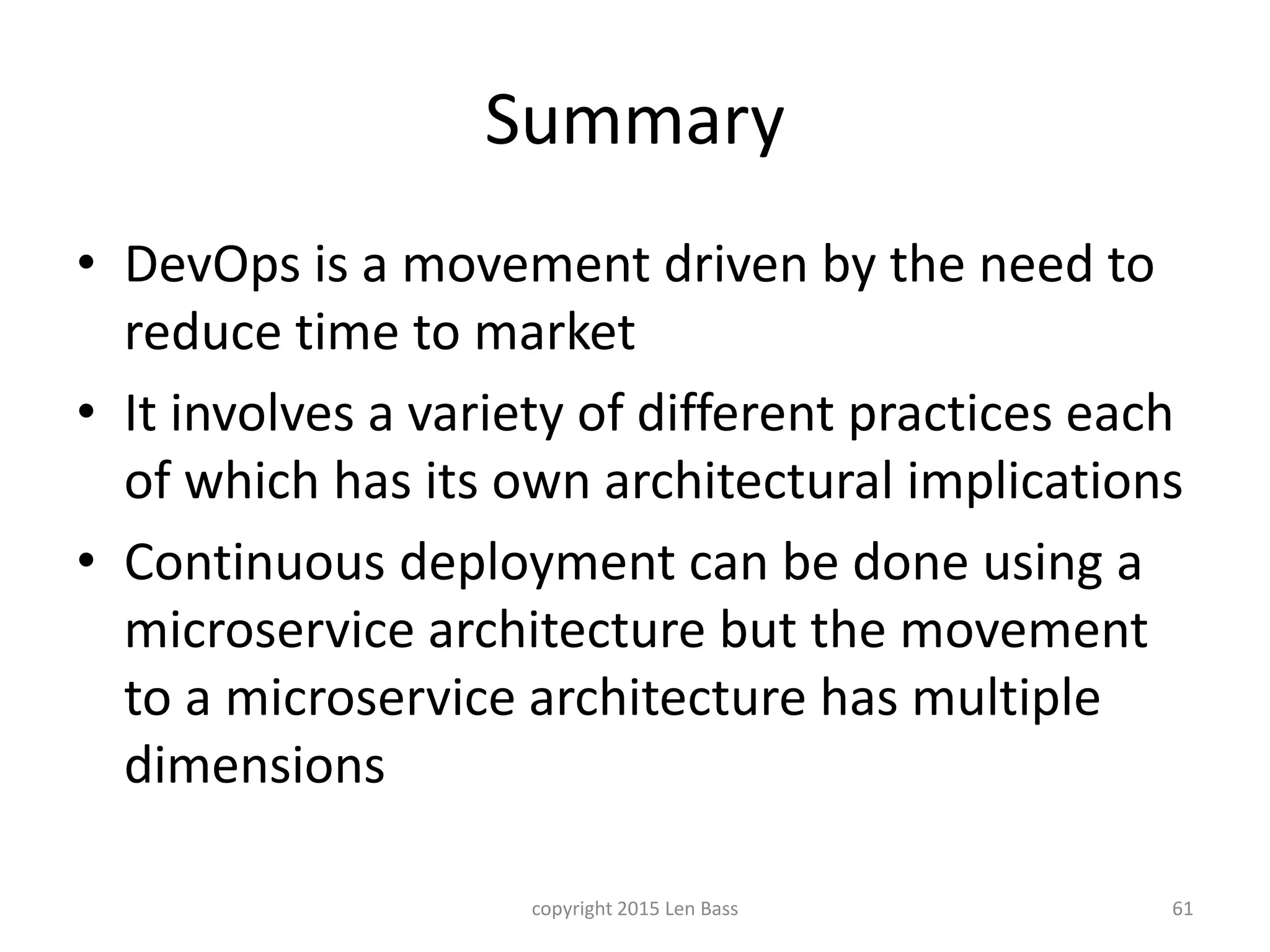

61. Summary
• DevOps is a movement driven by the need to
reduce time to market
• It involves a variety of different practices each
of which has its own architectural implications
• Continuous deployment can be done using a
microservice architecture but the movement
to a microservice architecture has multiple
dimensions
copyright 2015 Len Bass 61

62. More Information
Contact lenbass@acm.org
DevOps: A Software Architect’s
Perspective is available from your
favorite bookseller
62
