This document provides an overview of key architecture components and concepts in BizTalk, including: - Hosts run BizTalk applications and can have multiple instances across servers. - Adapters handle communication between BizTalk and external systems through ports. - Pipelines process messages through stages like encoding, validation, and assembly. - Orchestrations graphically represent business processes through shapes and subscriptions. - Other concepts covered are mappings, filtering, persistence, versioning and ports.

1. A brief description of the
Architecture Components Details & Important Concepts

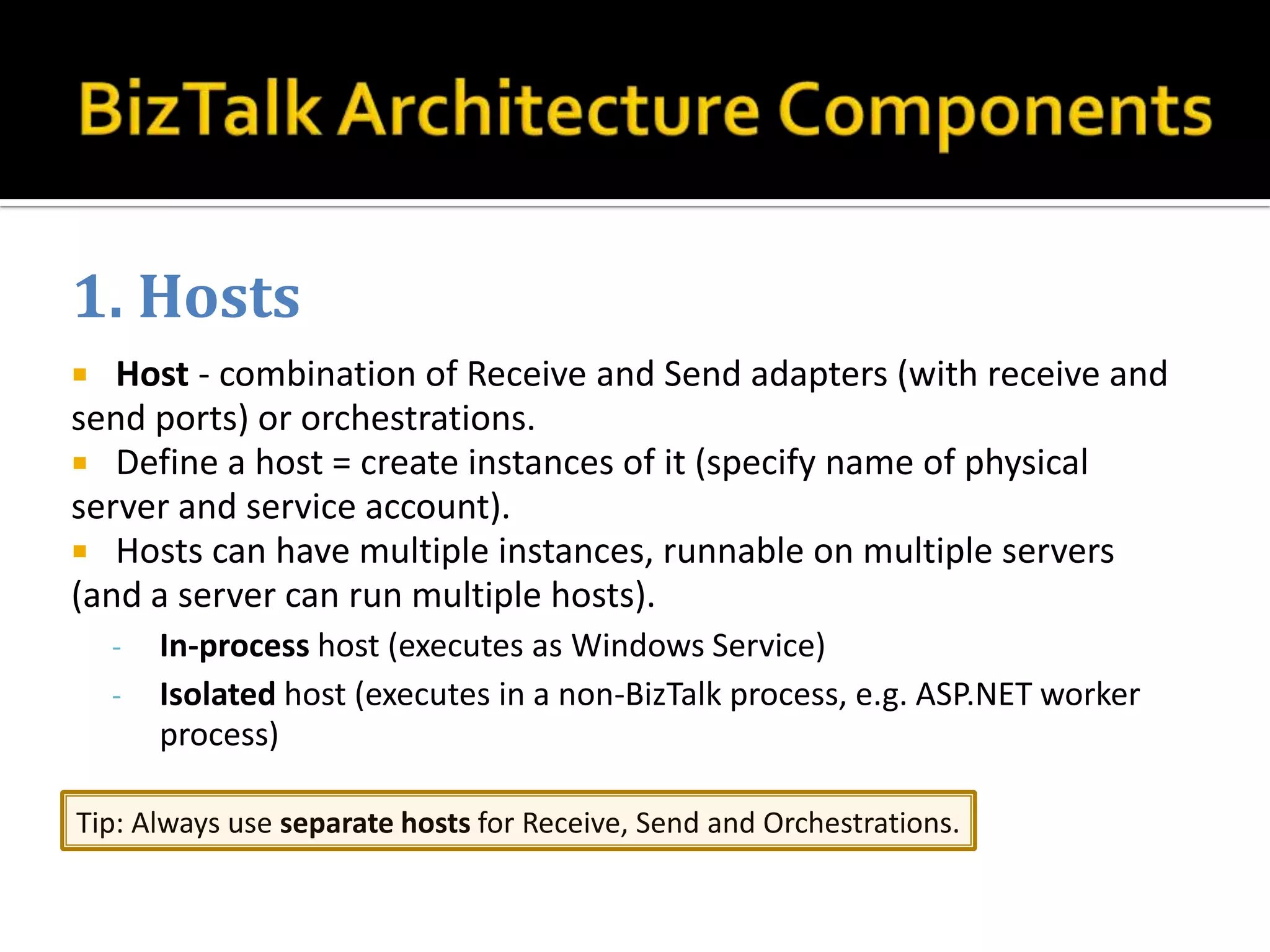

2. 1. Hosts
 Host - combination of Receive and Send adapters (with receive and
send ports) or orchestrations.
 Define a host = create instances of it (specify name of physical
server and service account).
 Hosts can have multiple instances, runnable on multiple servers
(and a server can run multiple hosts).
- In-process host (executes as Windows Service)
- Isolated host (executes in a non-BizTalk process, e.g. ASP.NET worker
process)
Tip: Always use separate hosts for Receive, Send and Orchestrations.

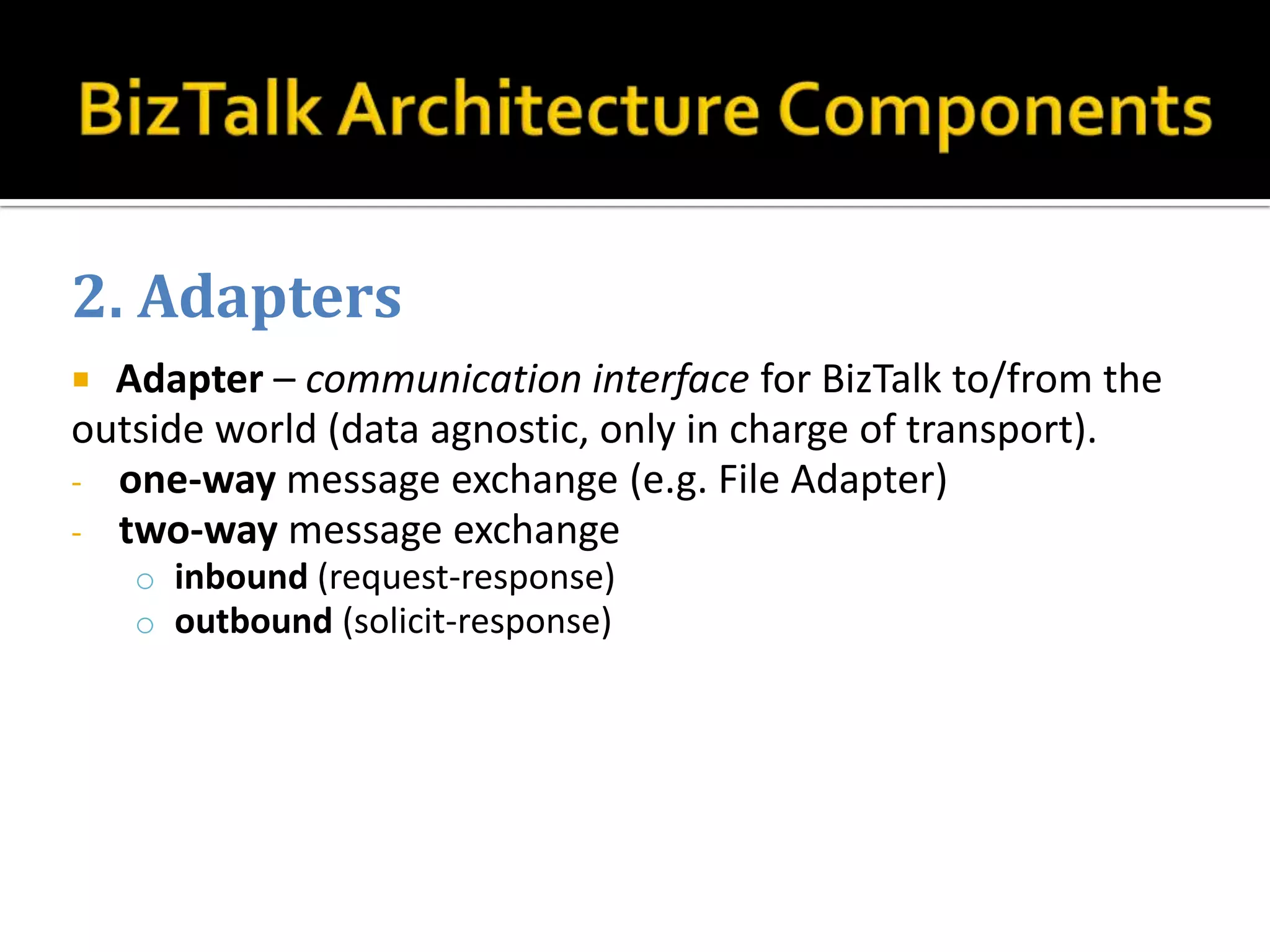

3. 2. Adapters
 Adapter – communication interface for BizTalk to/from the
outside world (data agnostic, only in charge of transport).
- one-way message exchange (e.g. File Adapter)
- two-way message exchange
o inbound (request-response)
o outbound (solicit-response)

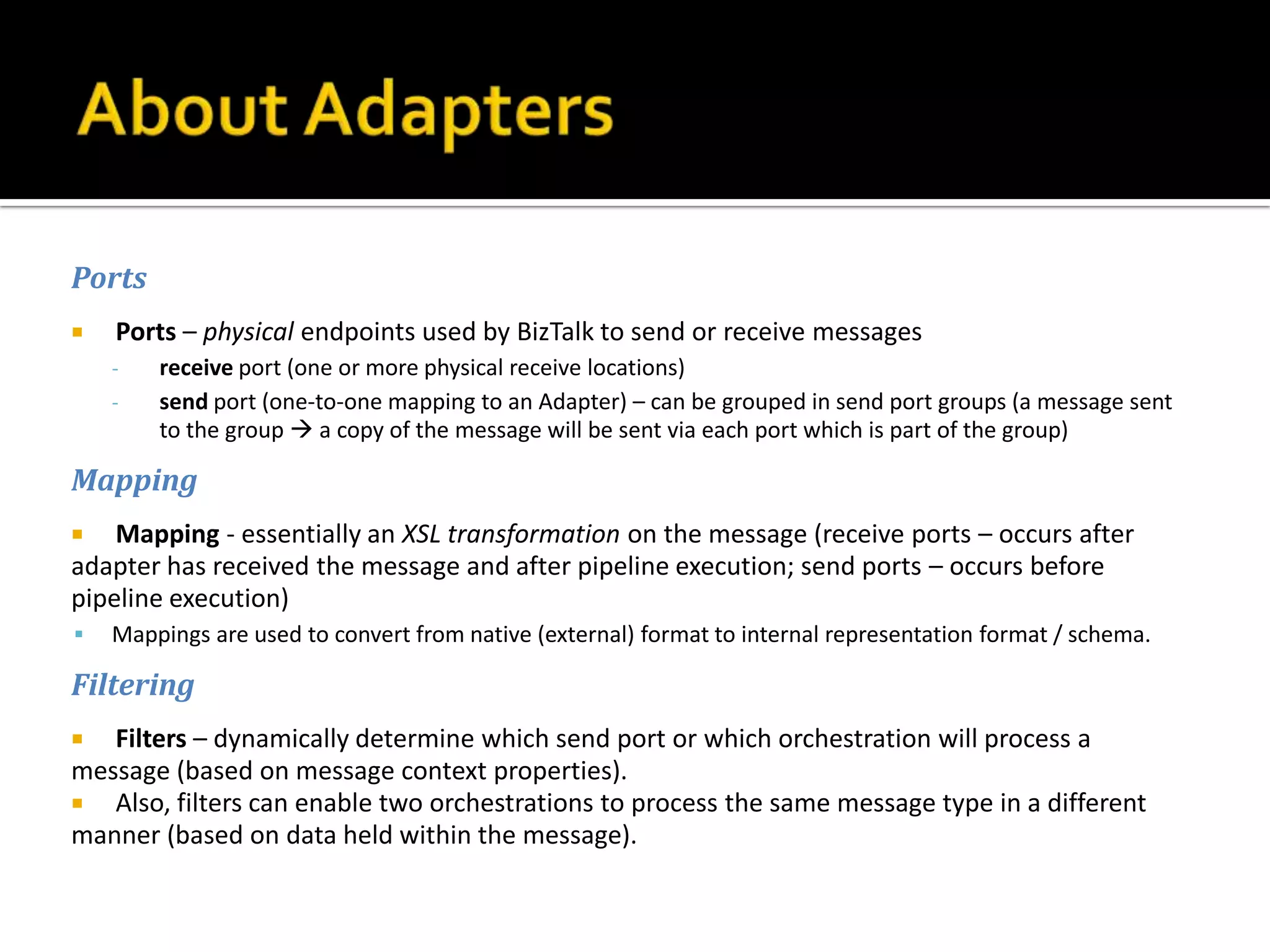

4. Ports
 Ports – physical endpoints used by BizTalk to send or receive messages
- receive port (one or more physical receive locations)
- send port (one-to-one mapping to an Adapter) – can be grouped in send port groups (a message sent
to the group  a copy of the message will be sent via each port which is part of the group)
Mapping
 Mapping - essentially an XSL transformation on the message (receive ports – occurs after
adapter has received the message and after pipeline execution; send ports – occurs before
pipeline execution)
 Mappings are used to convert from native (external) format to internal representation format / schema.
Filtering
 Filters – dynamically determine which send port or which orchestration will process a
message (based on message context properties).
 Also, filters can enable two orchestrations to process the same message type in a different
manner (based on data held within the message).

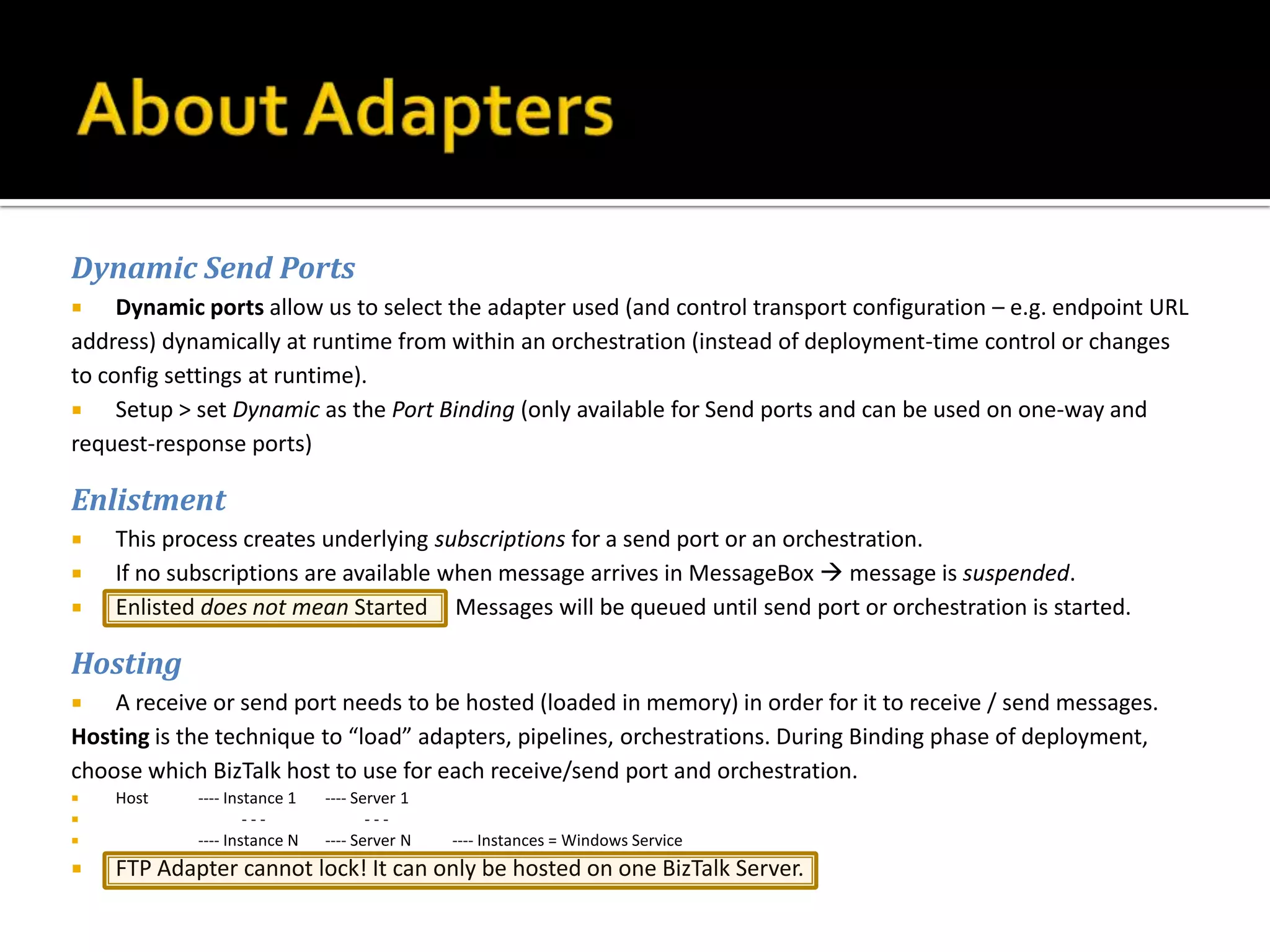

5. Dynamic Send Ports
 Dynamic ports allow us to select the adapter used (and control transport configuration – e.g. endpoint URL
address) dynamically at runtime from within an orchestration (instead of deployment-time control or changes
to config settings at runtime).
 Setup > set Dynamic as the Port Binding (only available for Send ports and can be used on one-way and
request-response ports)
Enlistment
 This process creates underlying subscriptions for a send port or an orchestration.
 If no subscriptions are available when message arrives in MessageBox  message is suspended.
 Enlisted does not mean Started Messages will be queued until send port or orchestration is started.
Hosting
 A receive or send port needs to be hosted (loaded in memory) in order for it to receive / send messages.
Hosting is the technique to “load” adapters, pipelines, orchestrations. During Binding phase of deployment,
choose which BizTalk host to use for each receive/send port and orchestration.
 Host ---- Instance 1 ---- Server 1
 --- ---
 ---- Instance N ---- Server N ---- Instances = Windows Service
 FTP Adapter cannot lock! It can only be hosted on one BizTalk Server.

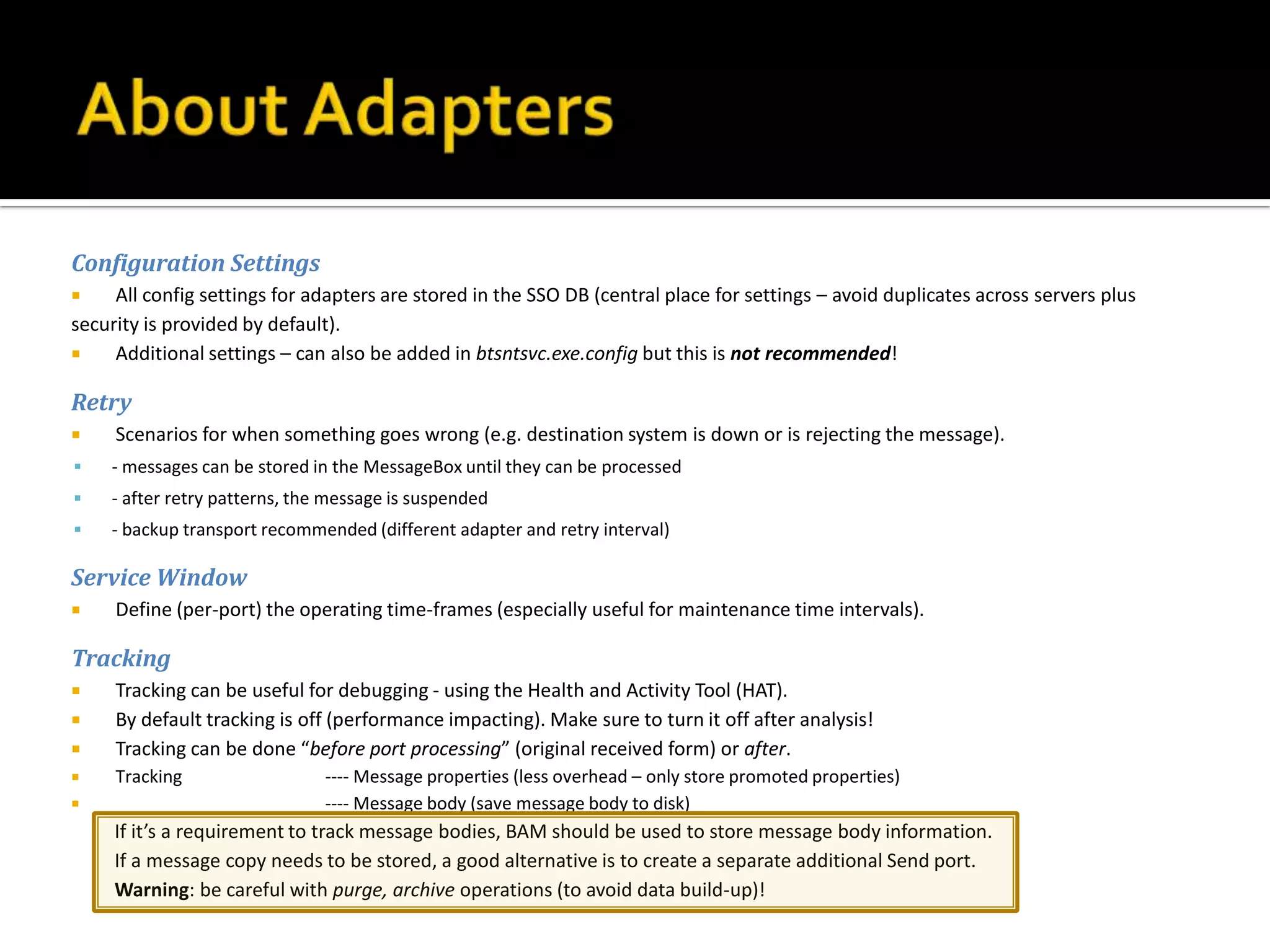

6. Configuration Settings
 All config settings for adapters are stored in the SSO DB (central place for settings – avoid duplicates across servers plus
security is provided by default).
 Additional settings – can also be added in btsntsvc.exe.config but this is not recommended!
Retry
 Scenarios for when something goes wrong (e.g. destination system is down or is rejecting the message).
 - messages can be stored in the MessageBox until they can be processed
 - after retry patterns, the message is suspended
 - backup transport recommended (different adapter and retry interval)
Service Window
 Define (per-port) the operating time-frames (especially useful for maintenance time intervals).
Tracking
 Tracking can be useful for debugging - using the Health and Activity Tool (HAT).
 By default tracking is off (performance impacting). Make sure to turn it off after analysis!
 Tracking can be done “before port processing” (original received form) or after.
 Tracking ---- Message properties (less overhead – only store promoted properties)
 ---- Message body (save message body to disk)
If it’s a requirement to track message bodies, BAM should be used to store message body information.
If a message copy needs to be stored, a good alternative is to create a separate additional Send port.
Warning: be careful with purge, archive operations (to avoid data build-up)!

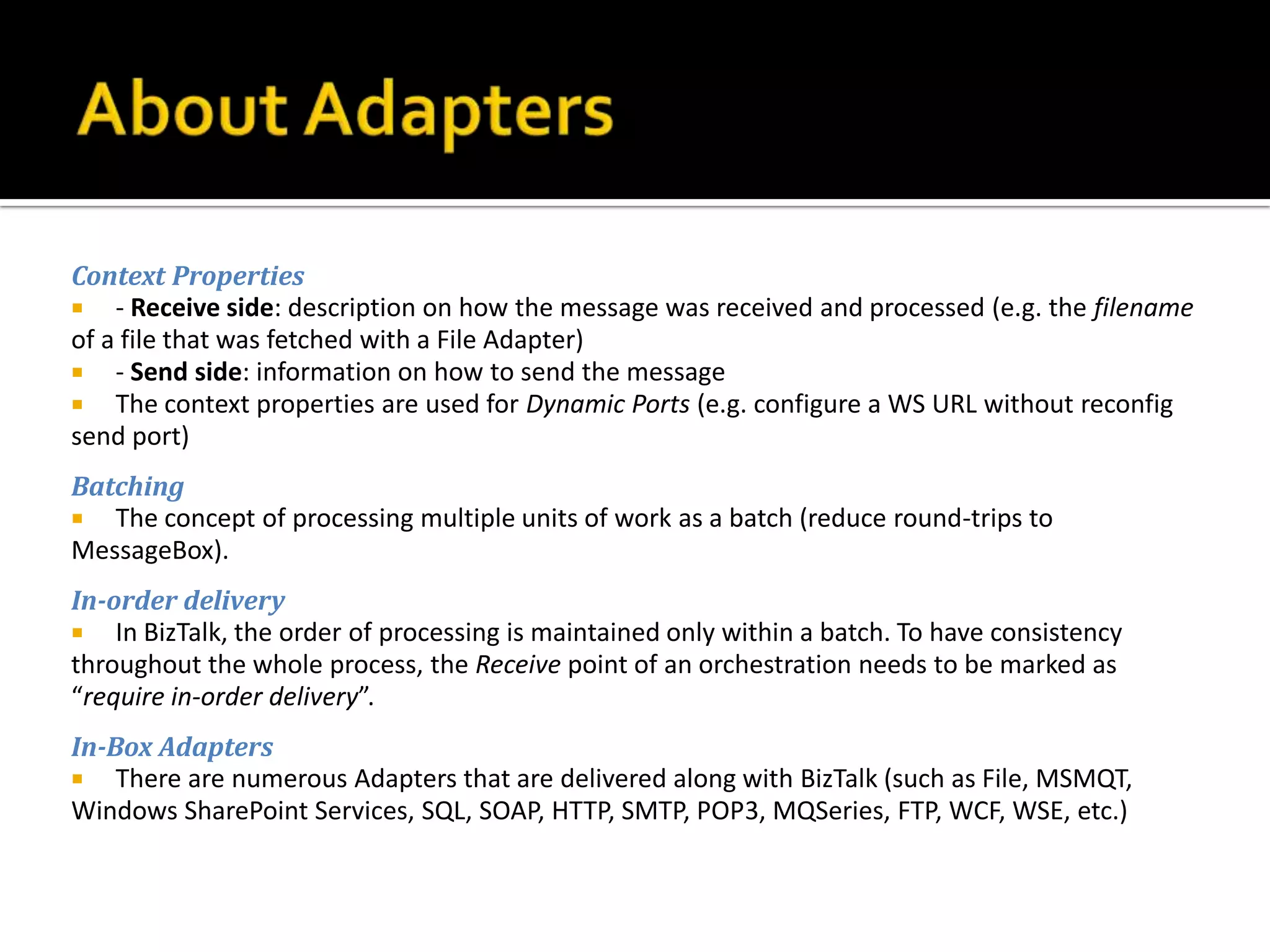

7. Context Properties
 - Receive side: description on how the message was received and processed (e.g. the filename
of a file that was fetched with a File Adapter)
 - Send side: information on how to send the message
 The context properties are used for Dynamic Ports (e.g. configure a WS URL without reconfig
send port)
Batching
 The concept of processing multiple units of work as a batch (reduce round-trips to
MessageBox).
In-order delivery
 In BizTalk, the order of processing is maintained only within a batch. To have consistency
throughout the whole process, the Receive point of an orchestration needs to be marked as
“require in-order delivery”.
In-Box Adapters
 There are numerous Adapters that are delivered along with BizTalk (such as File, MSMQT,
Windows SharePoint Services, SQL, SOAP, HTTP, SMTP, POP3, MQSeries, FTP, WCF, WSE, etc.)

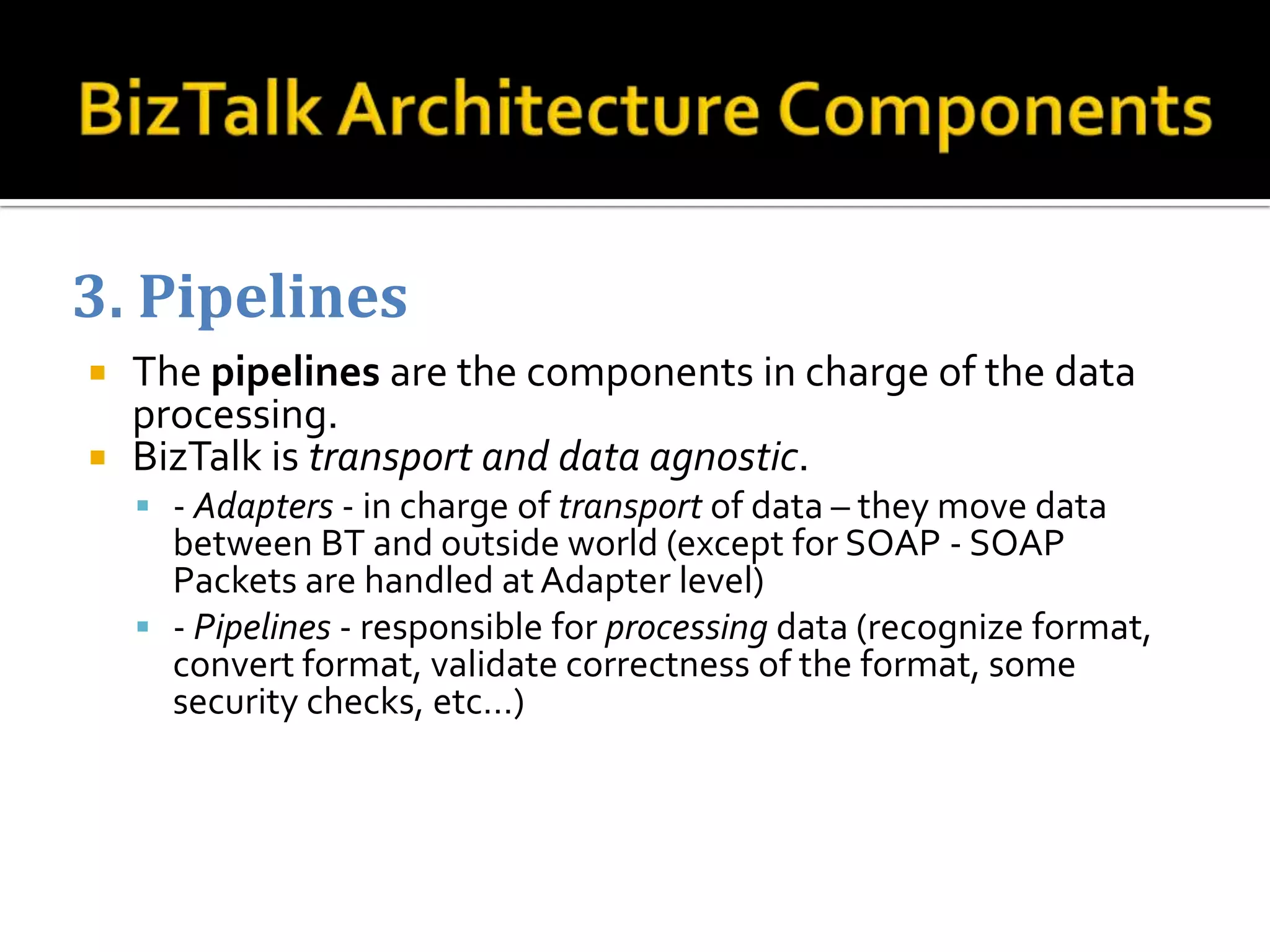

8. 3. Pipelines
 The pipelines are the components in charge of the data
processing.
 BizTalk is transport and data agnostic.
 - Adapters - in charge of transport of data – they move data
between BT and outside world (except for SOAP - SOAP
Packets are handled at Adapter level)
 - Pipelines - responsible for processing data (recognize format,
convert format, validate correctness of the format, some
security checks, etc…)

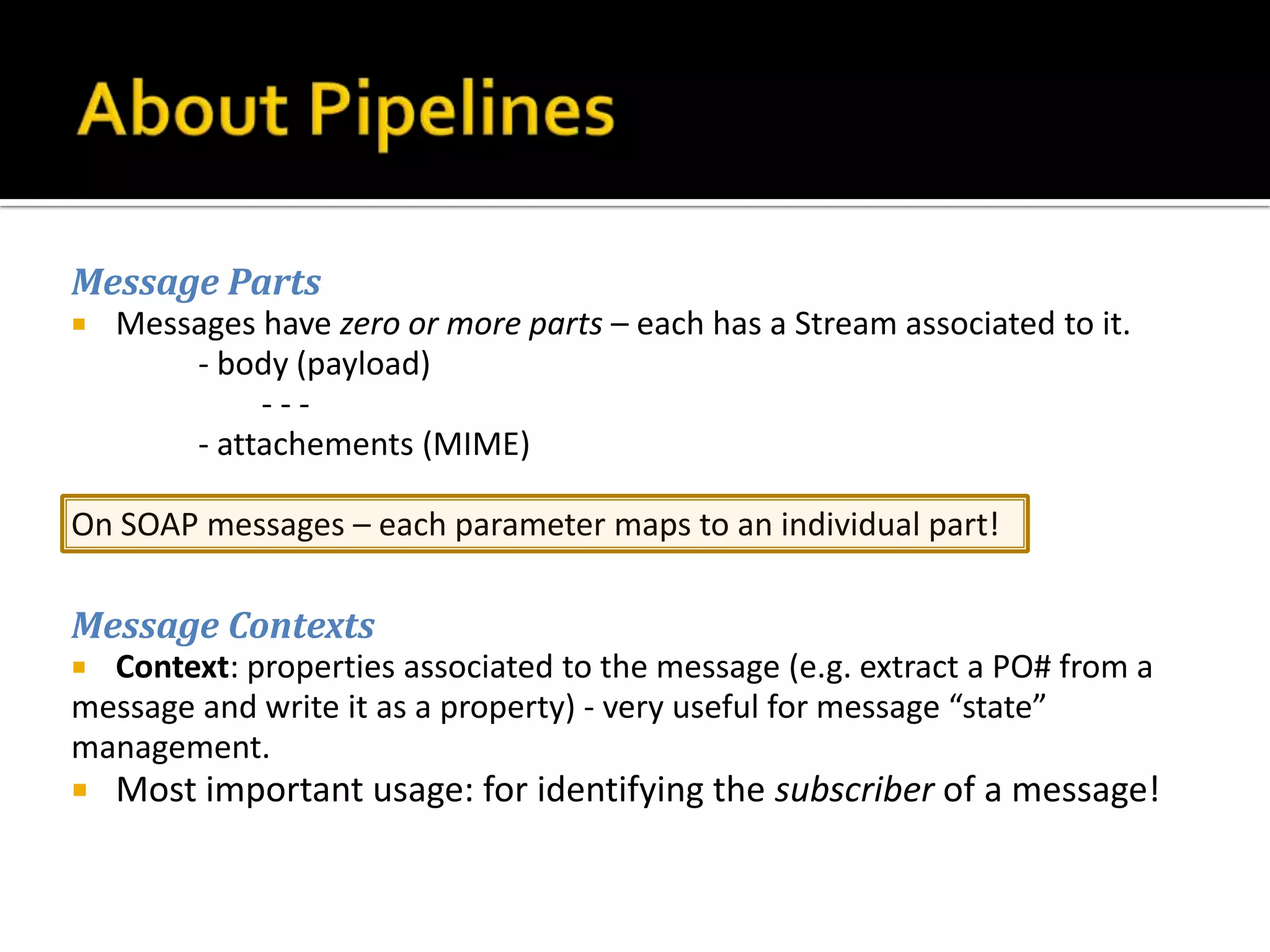

9. Message Parts
 Messages have zero or more parts – each has a Stream associated to it.
- body (payload)
---
- attachements (MIME)
On SOAP messages – each parameter maps to an individual part!
Message Contexts
 Context: properties associated to the message (e.g. extract a PO# from a
message and write it as a property) - very useful for message “state”
management.
 Most important usage: for identifying the subscriber of a message!

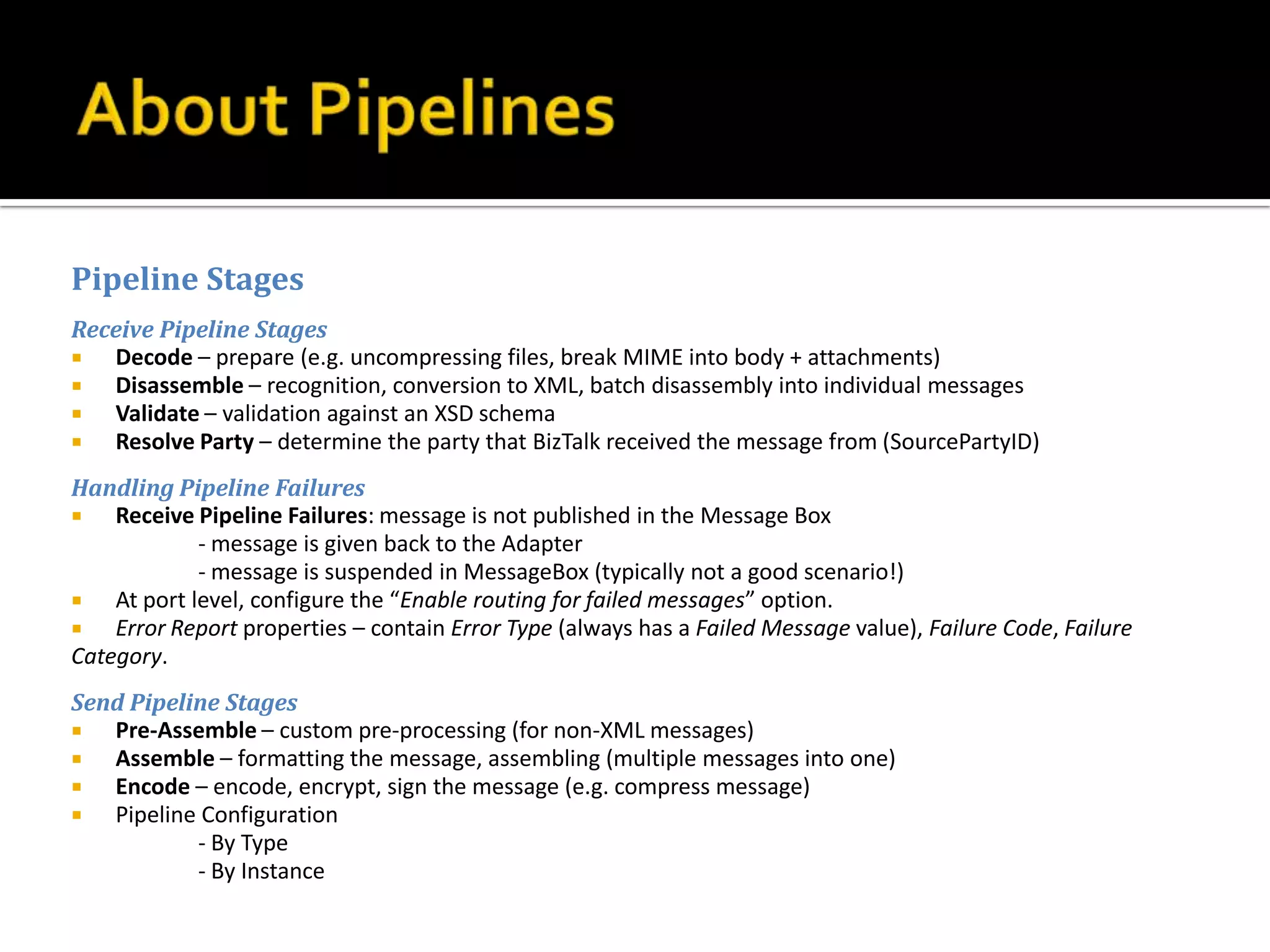

10. Pipeline Stages
Receive Pipeline Stages
 Decode – prepare (e.g. uncompressing files, break MIME into body + attachments)
 Disassemble – recognition, conversion to XML, batch disassembly into individual messages
 Validate – validation against an XSD schema
 Resolve Party – determine the party that BizTalk received the message from (SourcePartyID)
Handling Pipeline Failures
 Receive Pipeline Failures: message is not published in the Message Box
- message is given back to the Adapter
- message is suspended in MessageBox (typically not a good scenario!)
 At port level, configure the “Enable routing for failed messages” option.
 Error Report properties – contain Error Type (always has a Failed Message value), Failure Code, Failure
Category.
Send Pipeline Stages
 Pre-Assemble – custom pre-processing (for non-XML messages)
 Assemble – formatting the message, assembling (multiple messages into one)
 Encode – encode, encrypt, sign the message (e.g. compress message)
 Pipeline Configuration
- By Type
- By Instance

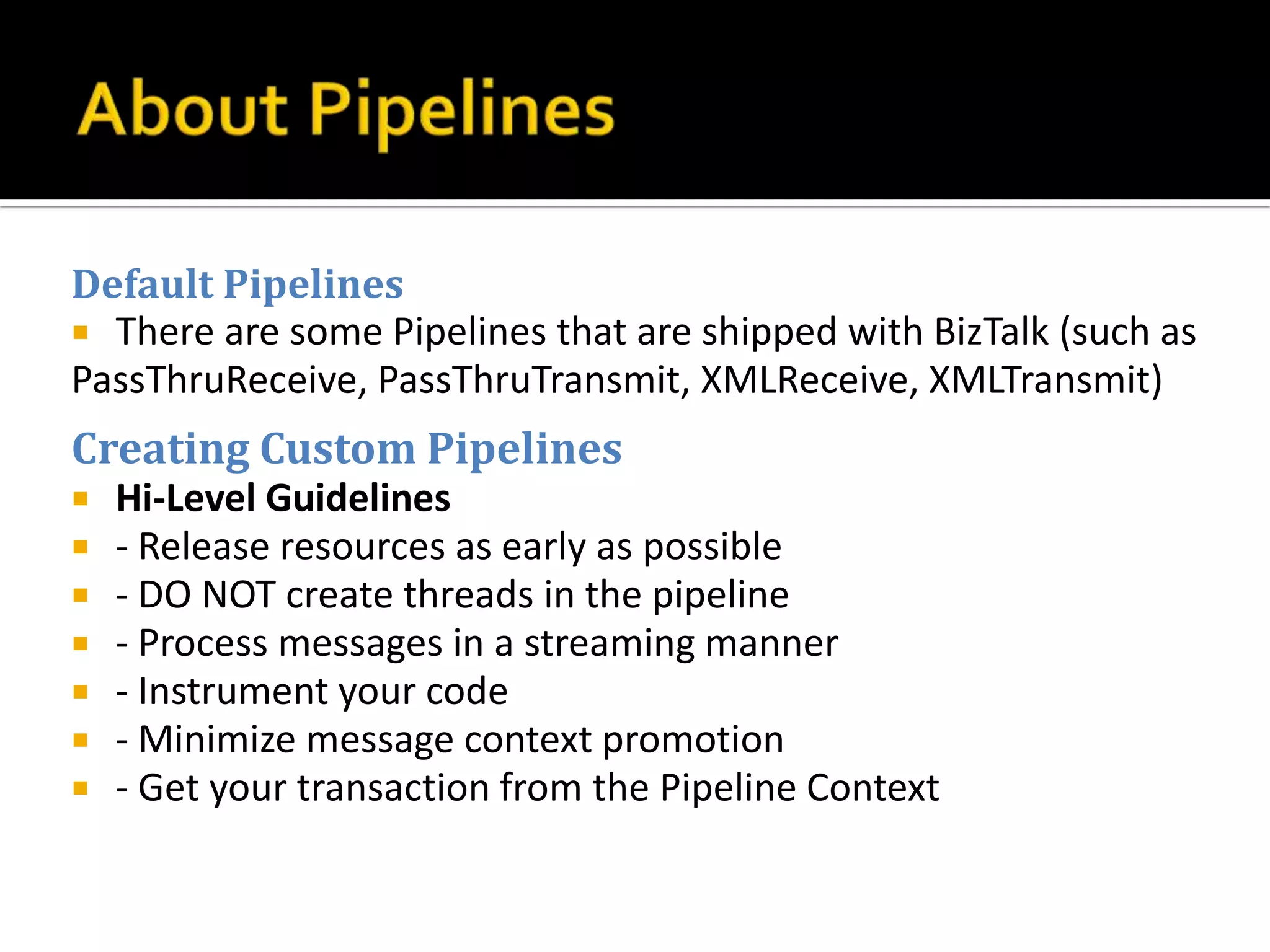

11. Default Pipelines
 There are some Pipelines that are shipped with BizTalk (such as
PassThruReceive, PassThruTransmit, XMLReceive, XMLTransmit)
Creating Custom Pipelines
 Hi-Level Guidelines
 - Release resources as early as possible
 - DO NOT create threads in the pipeline
 - Process messages in a streaming manner
 - Instrument your code
 - Minimize message context promotion
 - Get your transaction from the Pipeline Context

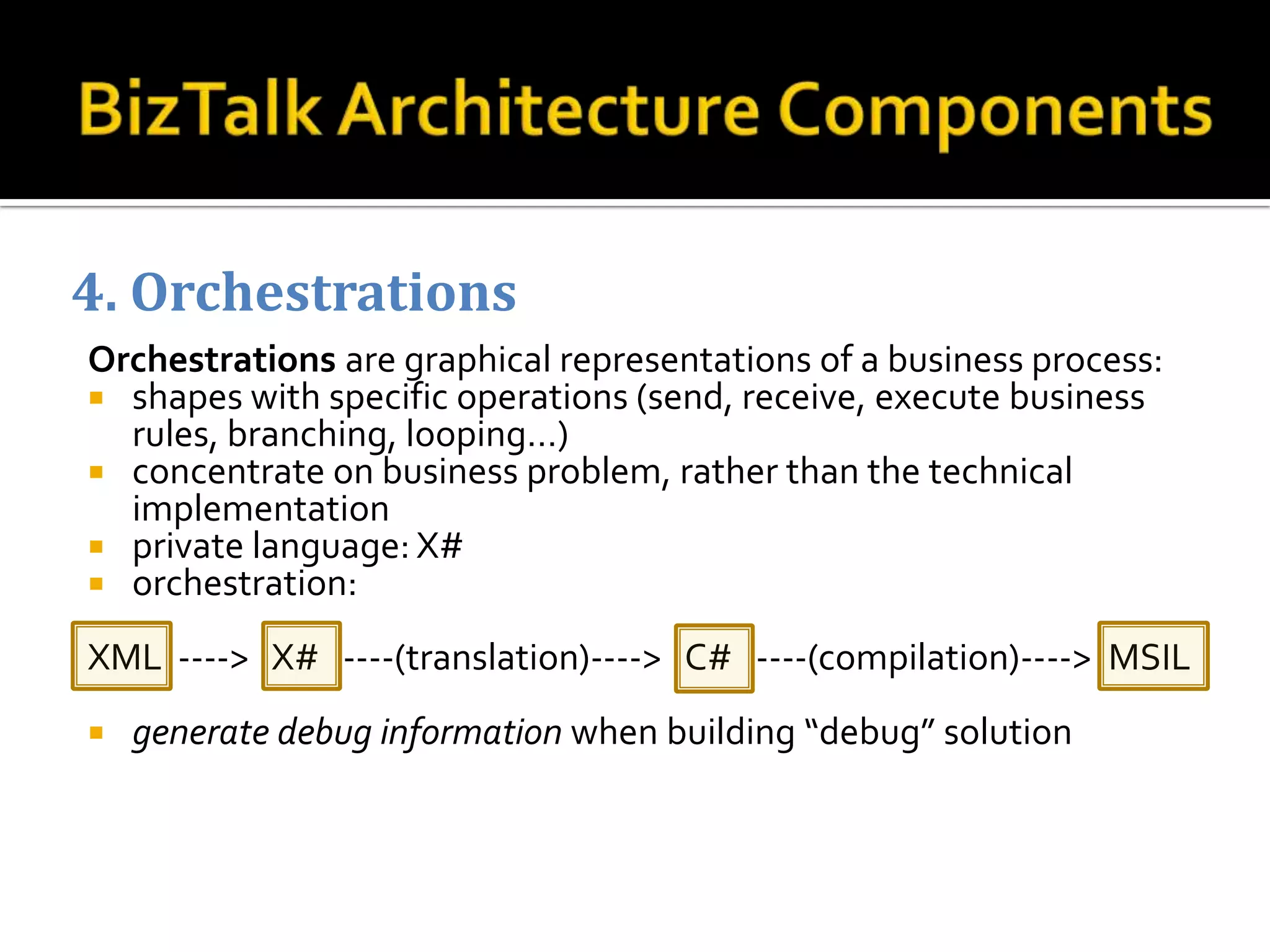

12. 4. Orchestrations
Orchestrations are graphical representations of a business process:
 shapes with specific operations (send, receive, execute business
rules, branching, looping…)
 concentrate on business problem, rather than the technical
implementation
 private language: X#
 orchestration:
XML ----> X# ----(translation)----> C# ----(compilation)----> MSIL
 generate debug information when building “debug” solution

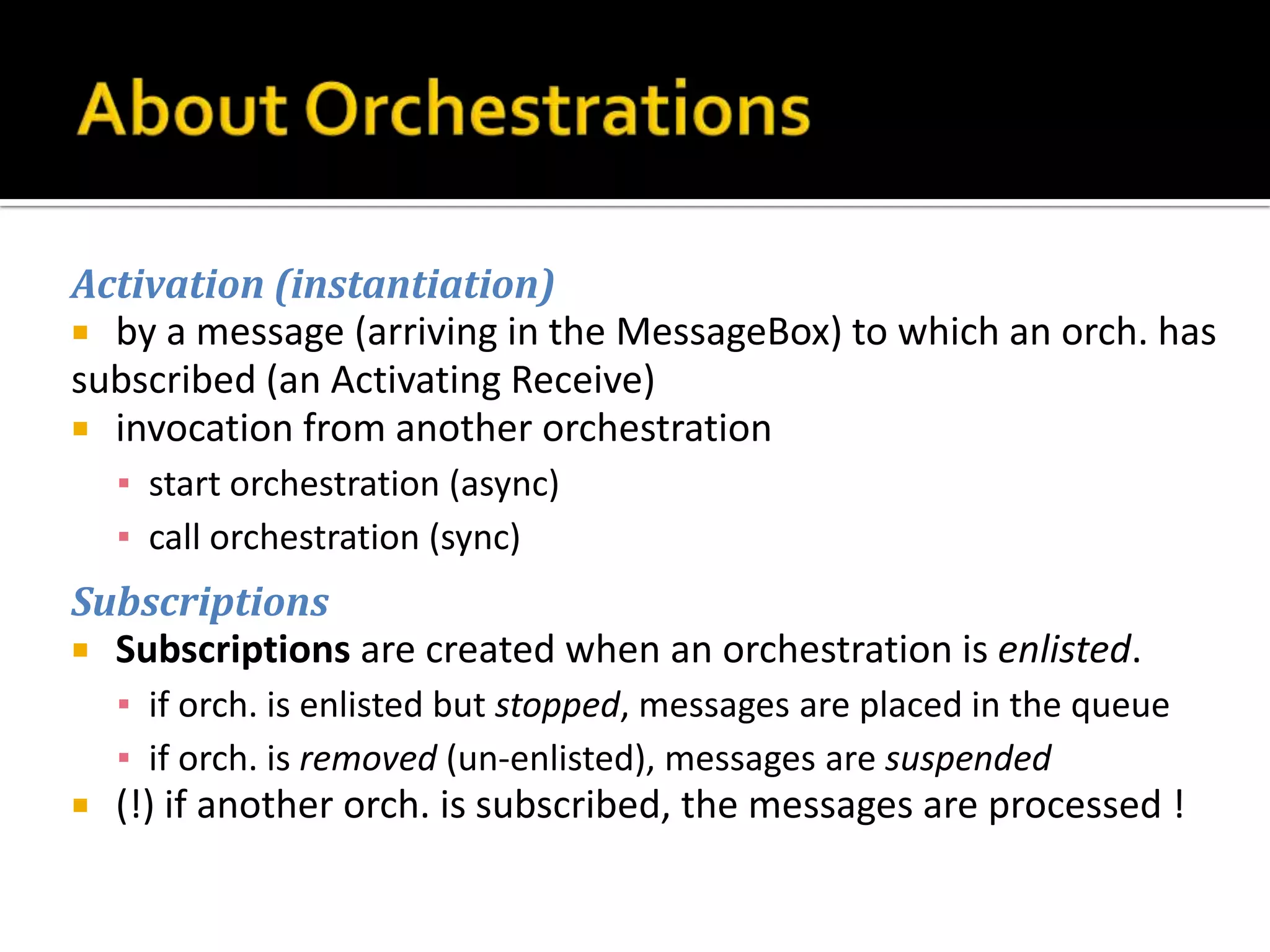

13. Activation (instantiation)
 by a message (arriving in the MessageBox) to which an orch. has
subscribed (an Activating Receive)
 invocation from another orchestration
▪ start orchestration (async)
▪ call orchestration (sync)
Subscriptions
 Subscriptions are created when an orchestration is enlisted.
▪ if orch. is enlisted but stopped, messages are placed in the queue
▪ if orch. is removed (un-enlisted), messages are suspended
 (!) if another orch. is subscribed, the messages are processed !

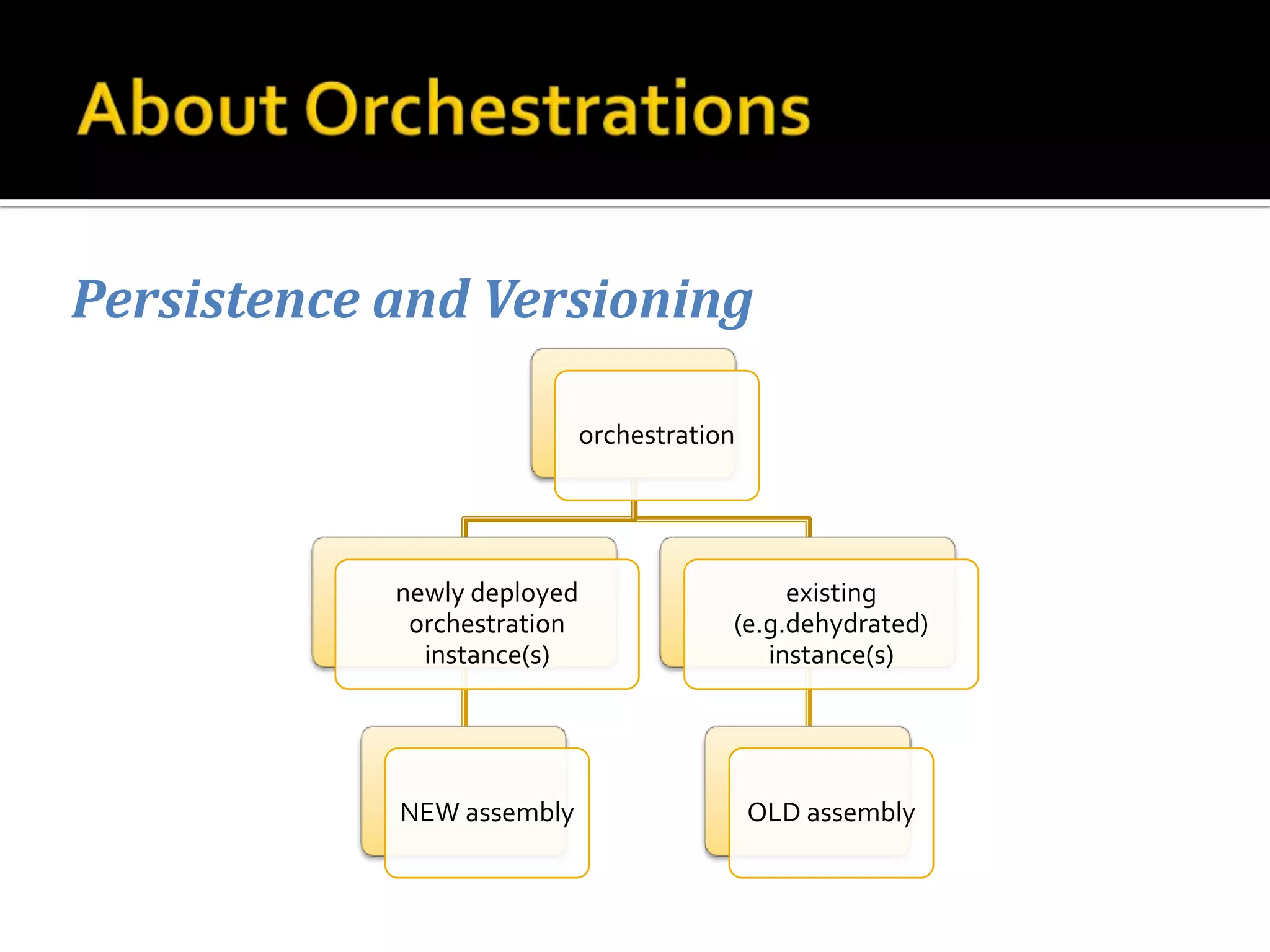

14. Persistence and Versioning
orchestration
newly deployed existing
orchestration (e.g.dehydrated)
instance(s) instance(s)
NEW assembly OLD assembly

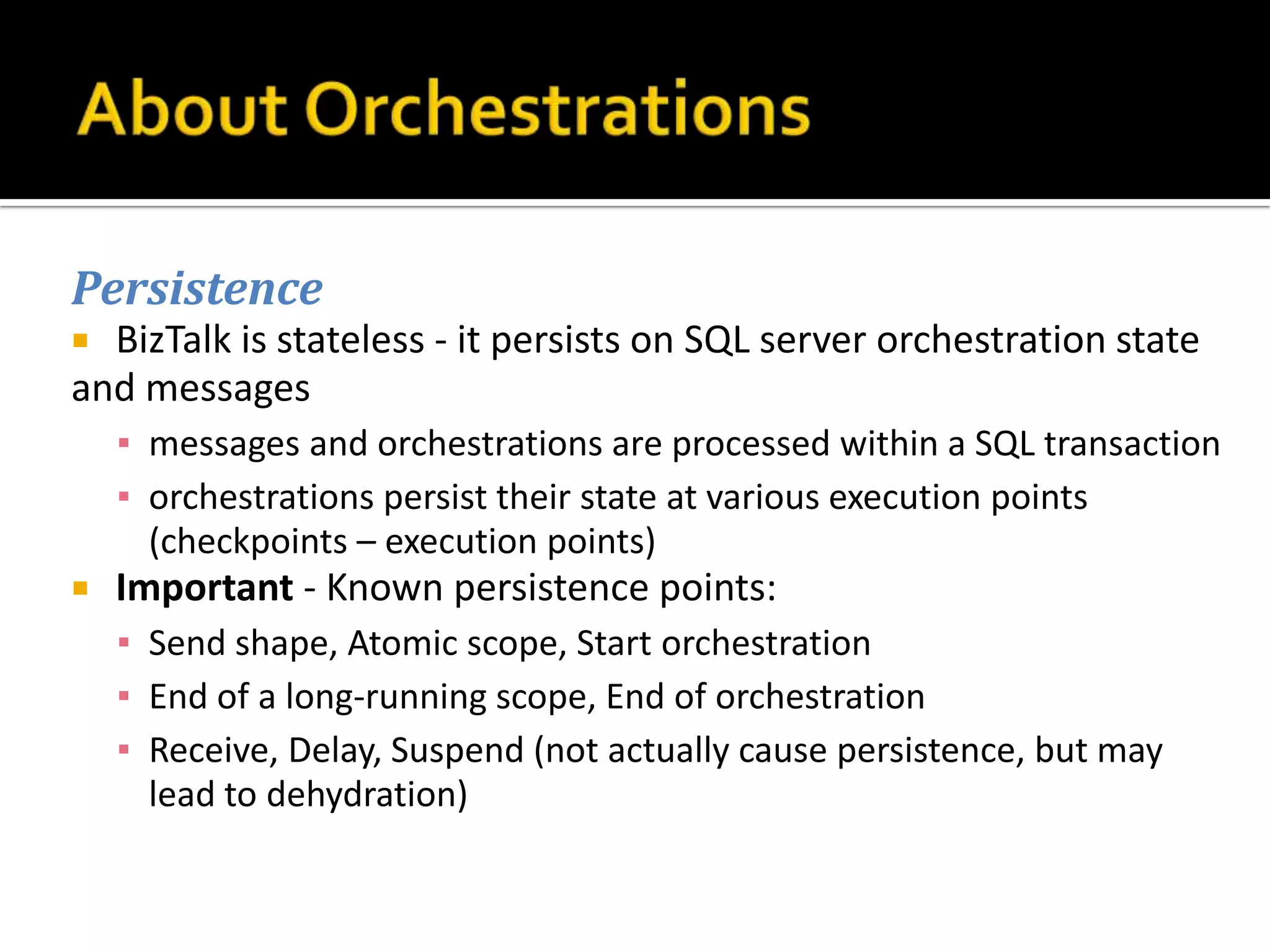

15. Persistence
 BizTalk is stateless - it persists on SQL server orchestration state
and messages
▪ messages and orchestrations are processed within a SQL transaction
▪ orchestrations persist their state at various execution points
(checkpoints – execution points)
 Important - Known persistence points:
▪ Send shape, Atomic scope, Start orchestration
▪ End of a long-running scope, End of orchestration
▪ Receive, Delay, Suspend (not actually cause persistence, but may
lead to dehydration)

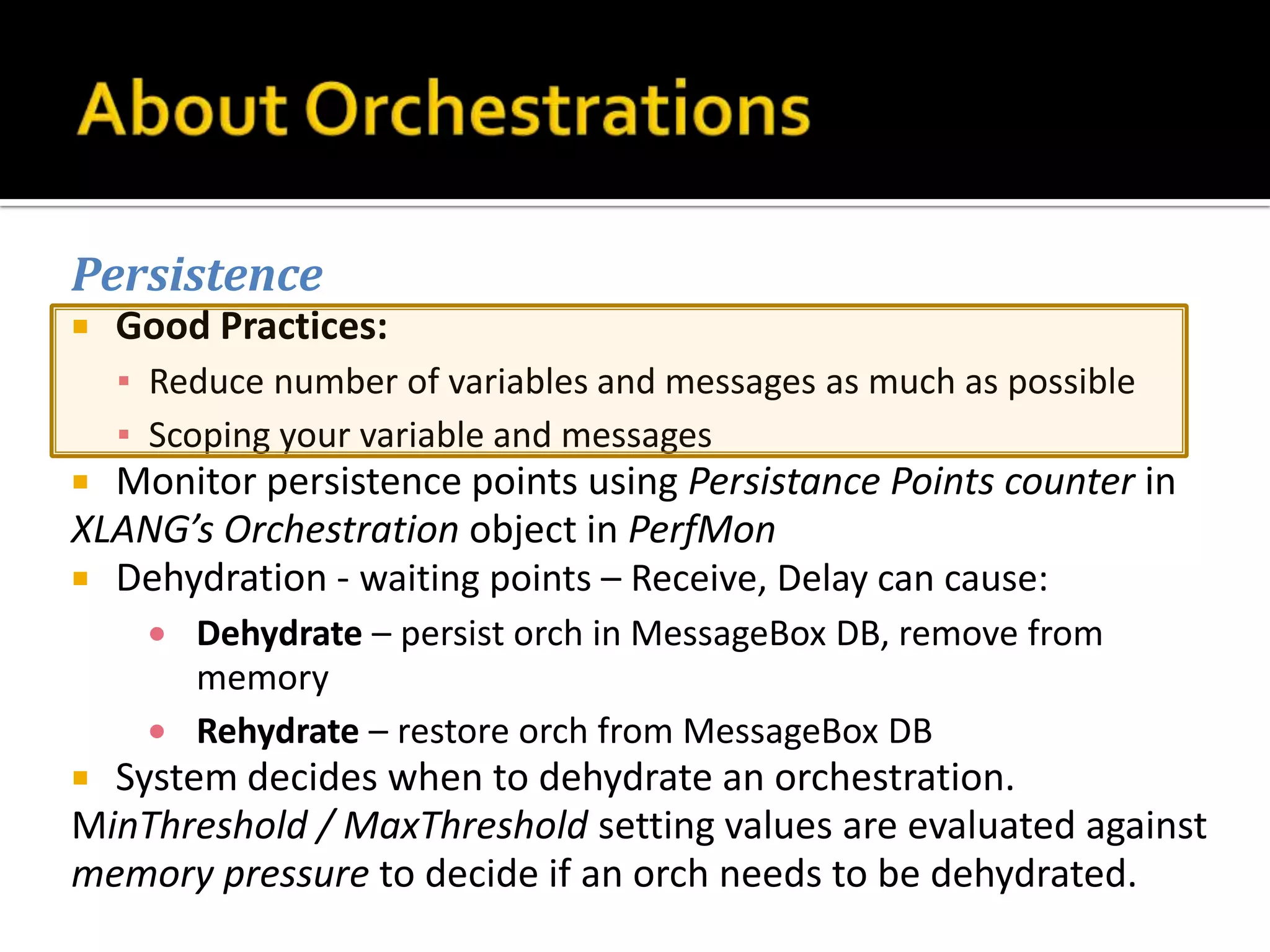

16. Persistence
 Good Practices:
▪ Reduce number of variables and messages as much as possible
▪ Scoping your variable and messages
 Monitor persistence points using Persistance Points counter in
XLANG’s Orchestration object in PerfMon
 Dehydration - waiting points – Receive, Delay can cause:
Dehydrate – persist orch in MessageBox DB, remove from
memory
Rehydrate – restore orch from MessageBox DB
 System decides when to dehydrate an orchestration.
MinThreshold / MaxThreshold setting values are evaluated against
memory pressure to decide if an orch needs to be dehydrated.

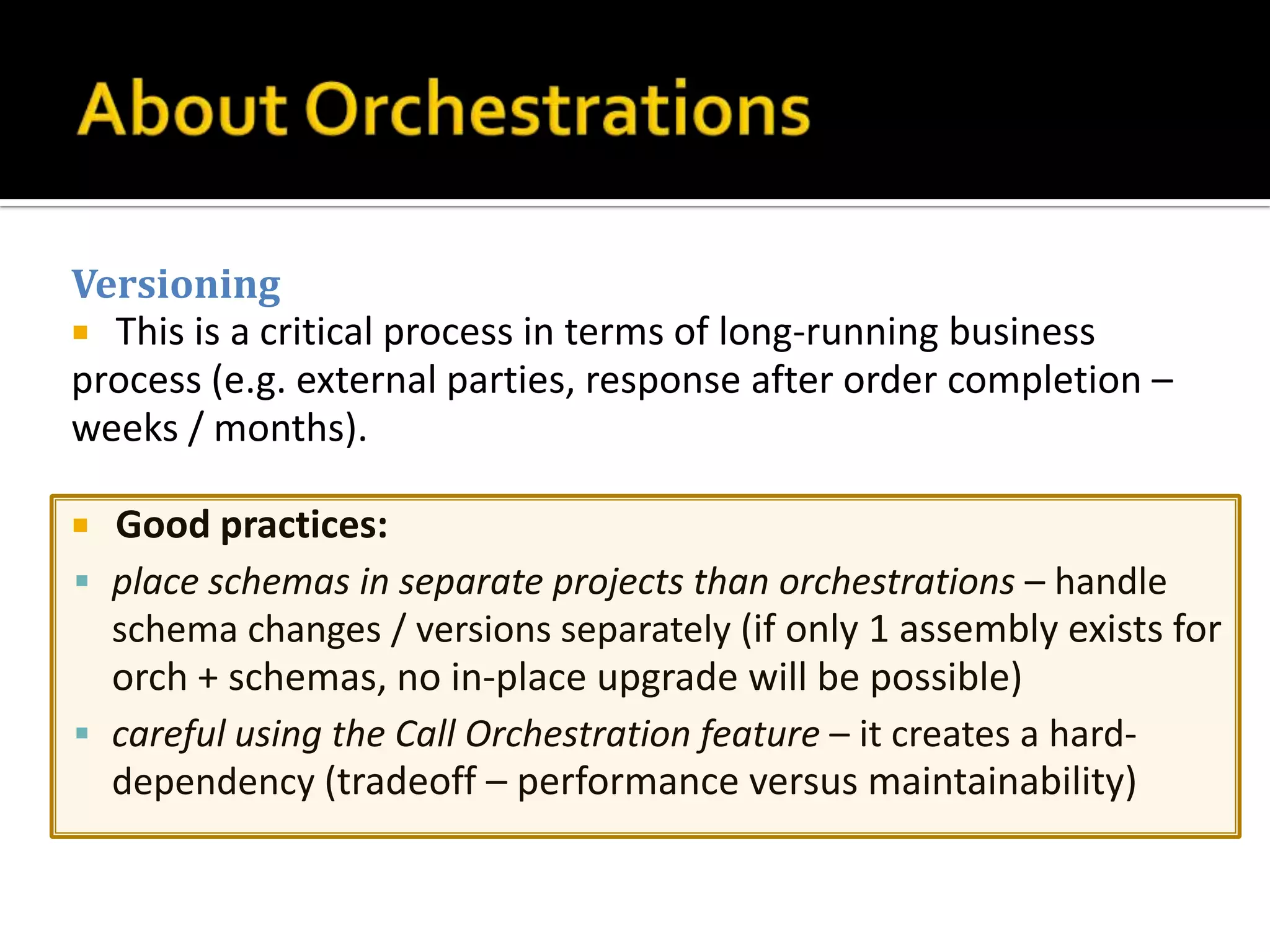

17. Versioning
 This is a critical process in terms of long-running business
process (e.g. external parties, response after order completion –
weeks / months).
 Good practices:
 place schemas in separate projects than orchestrations – handle
schema changes / versions separately (if only 1 assembly exists for
orch + schemas, no in-place upgrade will be possible)
 careful using the Call Orchestration feature – it creates a hard-
dependency (tradeoff – performance versus maintainability)

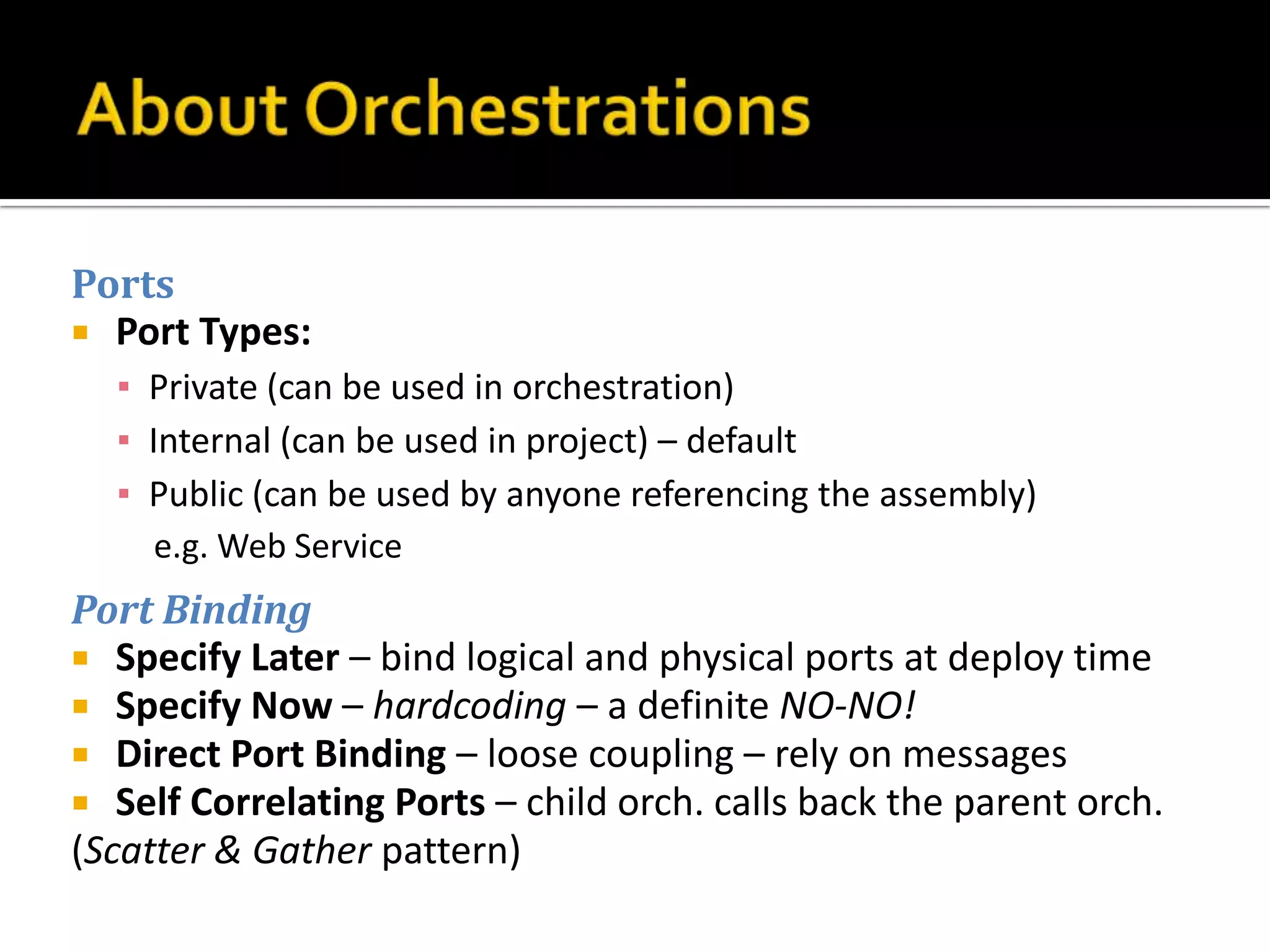

18. Ports
 Port Types:
▪ Private (can be used in orchestration)
▪ Internal (can be used in project) – default
▪ Public (can be used by anyone referencing the assembly)
e.g. Web Service
Port Binding
 Specify Later – bind logical and physical ports at deploy time
 Specify Now – hardcoding – a definite NO-NO!
 Direct Port Binding – loose coupling – rely on messages
 Self Correlating Ports – child orch. calls back the parent orch.
(Scatter & Gather pattern)

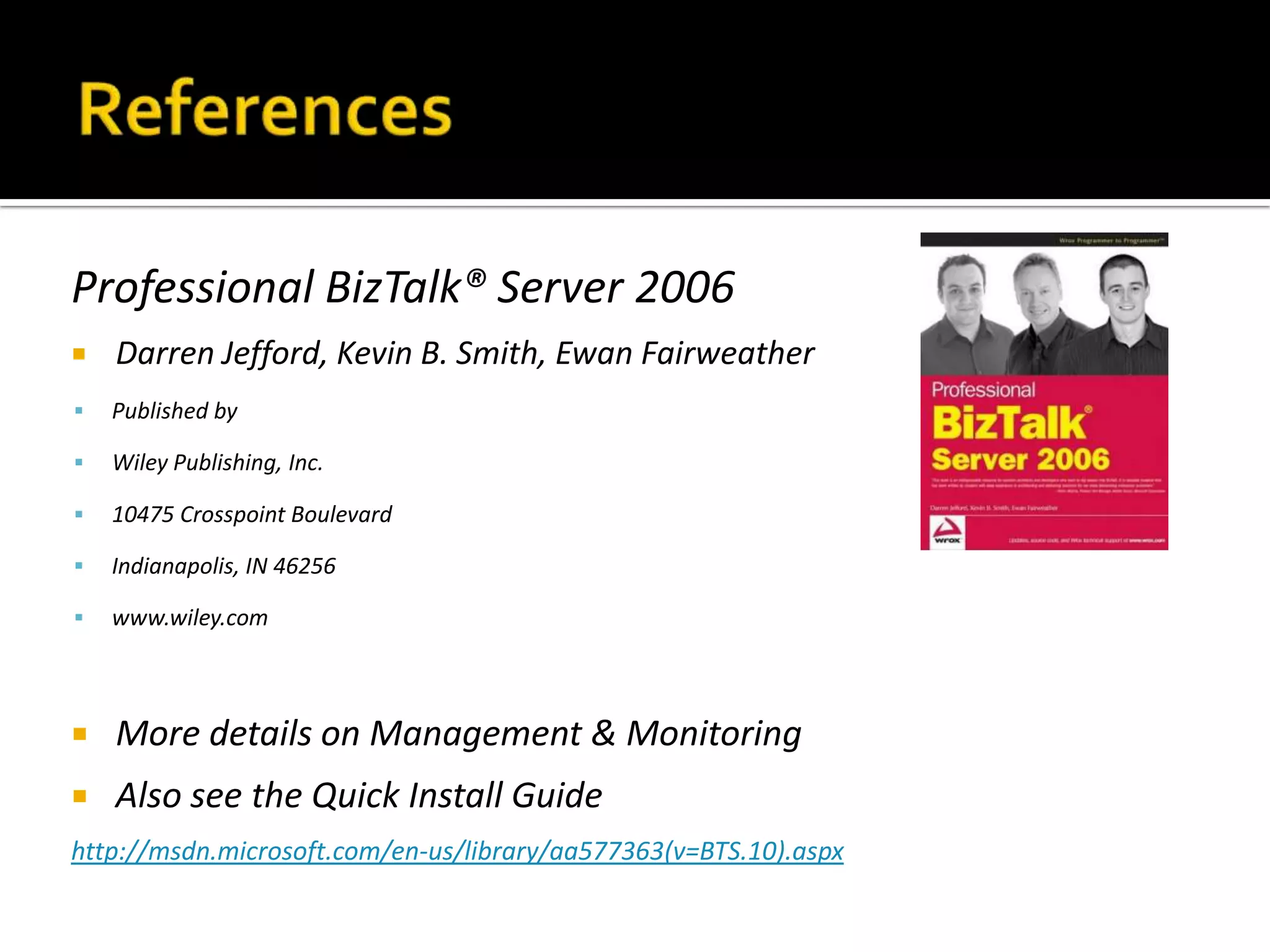

19. Professional BizTalk® Server 2006
 Darren Jefford, Kevin B. Smith, Ewan Fairweather
 Published by
 Wiley Publishing, Inc.
 10475 Crosspoint Boulevard
 Indianapolis, IN 46256
 www.wiley.com
 More details on Management & Monitoring
 Also see the Quick Install Guide
http://msdn.microsoft.com/en-us/library/aa577363(v=BTS.10).aspx

20.  Stay Tuned!
