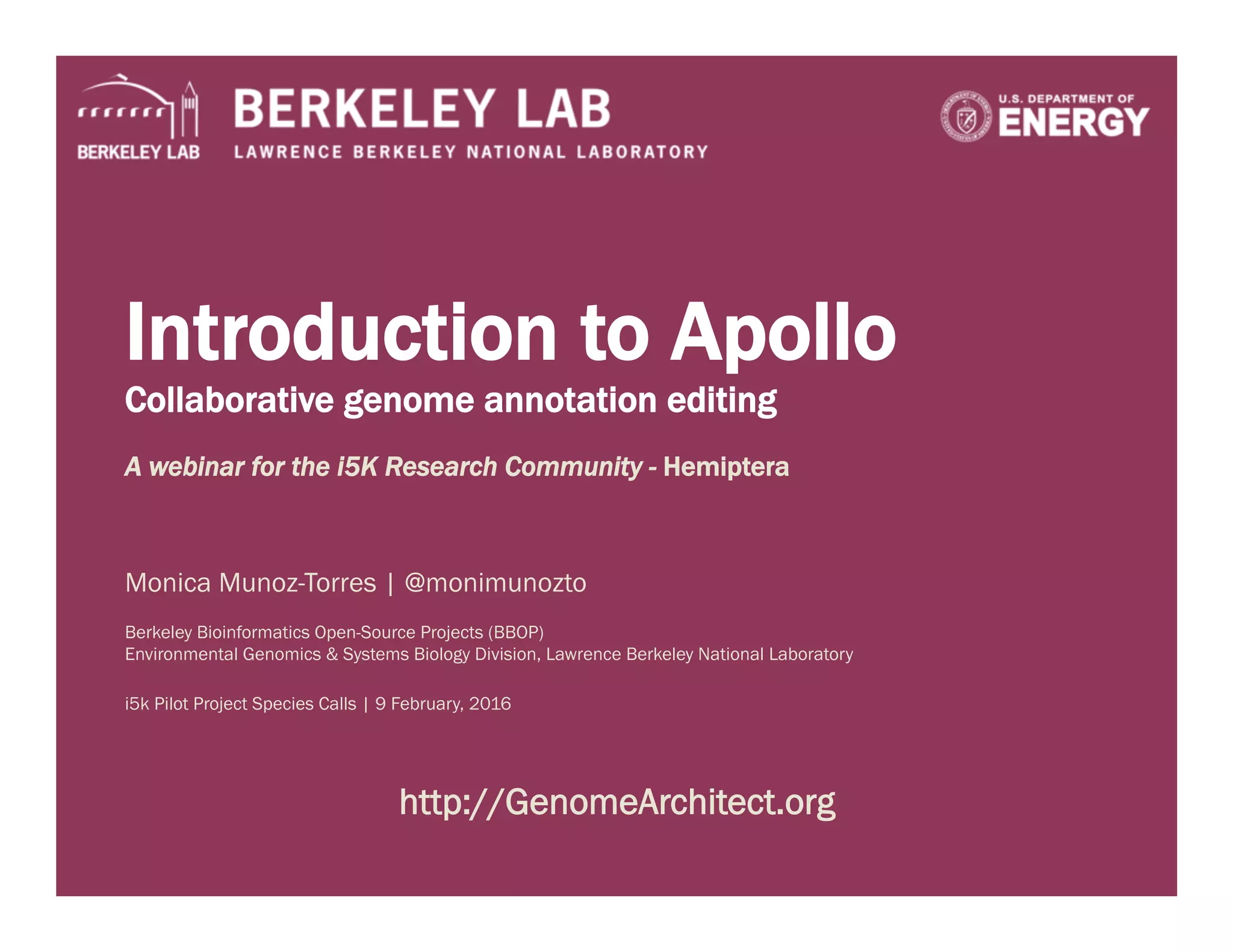

Introduction to Apollo
Collaborative genome annotation editing
A webinar for the i5K Research Community - Hemiptera
Monica Munoz-Torres | @monimunozto
Berkeley Bioinformatics Open-Source Projects (BBOP)
Environmental Genomics & Systems Biology Division, Lawrence Berkeley National Laboratory
i5k Pilot Project Species Calls | 9 February, 2016
http://GenomeArchitect.org

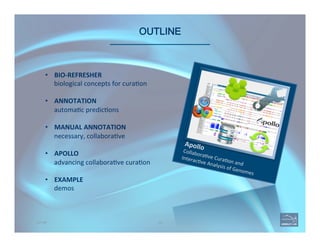

Outline
•  Today you will discover
effective ways to extract
valuable information
about a genome through
curation efforts. Apollo
  Collabora've
  Cura'on
  and


Interac've
  Analysis
  of
  Genomes

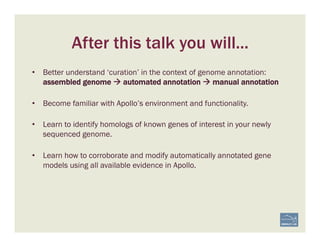

After this talk you will...
•  Better understand ‘curation’ in the context of genome annotation:
assembled genome à automated annotation à manual annotation
•  Become familiar with Apollo’s environment and functionality.
•  Learn to identify homologs of known genes of interest in your newly
sequenced genome.
•  Learn how to corroborate and modify automatically annotated gene
models using all available evidence in Apollo.

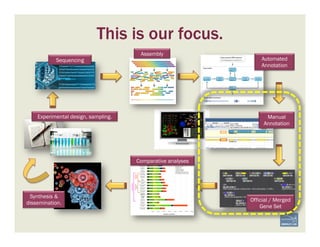

Experimental design, sampling.
Comparative analyses
Official / Merged
Gene Set
Manual
Annotation
Automated
Annotation
Sequencing
Assembly
Synthesis &
dissemination.
This is our focus.

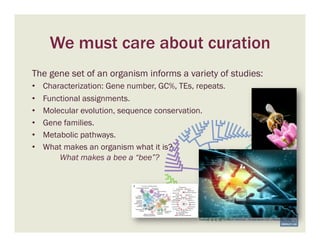

We must care about curation
Marbach et al. 2011. Nature Methods | Shutterstock.com | Alexander Wild
The gene set of an organism informs a variety of studies:
•  Characterization: Gene number, GC%, TEs, repeats.
•  Functional assignments.
•  Molecular evolution, sequence conservation.
•  Gene families.
•  Metabolic pathways.
•  What makes an organism what it is?
What makes a bee a “bee”?

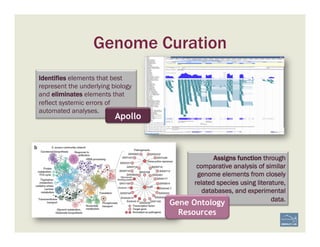

Genome Curation
Identifies elements that best
represent the underlying biology
and eliminates elements that
reflect systemic errors of
automated analyses.
Assigns function through
comparative analysis of similar
genome elements from closely
related species using literature,
databases, and experimental
data.
Apollo
Gene Ontology
Resources
A few things to remember

when conducting manual annotation
To
  remember…
  Biological
  concepts
  to
  be;er

understand
  manual
  annota'on

7BIO-REFRESHER
•  KEEP
  A
  GLOSSARY
  HANDY


from
  con$g
  to
  splice
  site



•  WHAT
  IS
  A
  GENE?

defining
  your
  goal

•  TRANSCRIPTION

mRNA
  in
  detail



•  TRANSLATION

reading
  frames,
  etc.

•  GENOME
  CURATION

steps
  involved

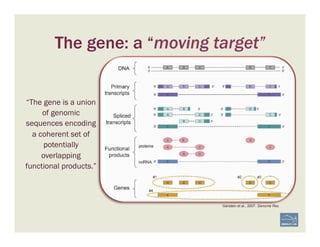

The gene: a “moving target”
“The gene is a union
of genomic
sequences encoding
a coherent set of
potentially
overlapping
functional products.”
Gerstein et al., 2007. Genome Res
9
"Gene structure" by Daycd- Wikimedia Commons

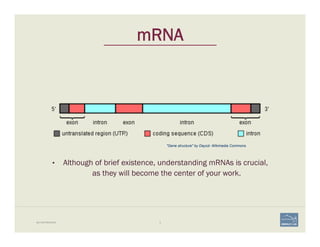

BIO-REFRESHER
mRNA
•  Although of brief existence, understanding mRNAs is crucial,
as they will become the center of your work.
10BIO-REFRESHER

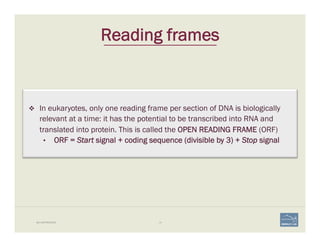

Reading frames
v  In eukaryotes, only one reading frame per section of DNA is biologically
relevant at a time: it has the potential to be transcribed into RNA and
translated into protein. This is called the OPEN READING FRAME (ORF)
•  ORF = Start signal + coding sequence (divisible by 3) + Stop signal
11BIO-REFRESHER

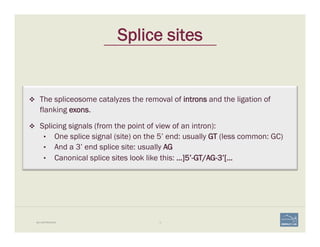

Splice sites
v  The spliceosome catalyzes the removal of introns and the ligation of
flanking exons.
v  Splicing signals (from the point of view of an intron):
•  One splice signal (site) on the 5’ end: usually GT (less common: GC)
•  And a 3’ end splice site: usually AG
•  Canonical splice sites look like this: …]5’-GT/AG-3’[…
12BIO-REFRESHER

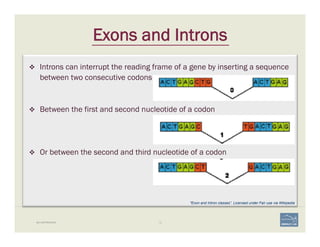

Exons and Introns
v  Introns can interrupt the reading frame of a gene by inserting a sequence
between two consecutive codons
v  Between the first and second nucleotide of a codon
v  Or between the second and third nucleotide of a codon
"Exon and Intron classes”. Licensed under Fair use via Wikipedia

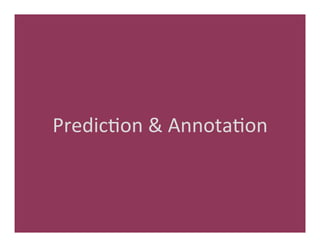

Predic'on
  &
  Annota'on

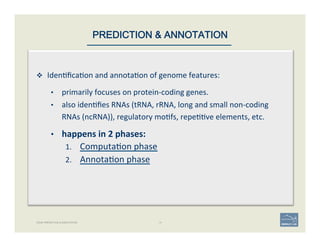

14GENE PREDICTION & ANNOTATION
PREDICTION & ANNOTATION
v  Iden'fica'on
  and
  annota'on
  of
  genome
  features:



•  primarily
  focuses
  on
  protein-­‐coding
  genes.


•  also
  iden'fies
  RNAs
  (tRNA,
  rRNA,
  long
  and
  small
  non-­‐coding

RNAs
  (ncRNA)),
  regulatory
  mo'fs,
  repe''ve
  elements,
  etc.



•  happens
  in
  2
  phases:

1.  Computa'on
  phase


2.  Annota'on
  phase

15GENE PREDICTION & ANNOTATION

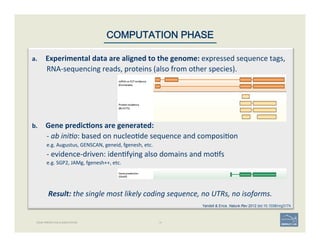

COMPUTATION PHASE
a.  Experimental
  data
  are
  aligned
  to
  the
  genome:
  expressed
  sequence
  tags,

RNA-­‐sequencing
  reads,
  proteins
  (also
  from
  other
  species).











b.  Gene
  predic;ons
  are
  generated:



  -­‐
  ab
  ini$o:
  based
  on
  nucleo'de
  sequence
  and
  composi'on


  e.g.
  Augustus,
  GENSCAN,
  geneid,
  fgenesh,
  etc.


  -­‐
  evidence-­‐driven:
  iden'fying
  also
  domains
  and
  mo'fs


  e.g.
  SGP2,
  JAMg,
  fgenesh++,
  etc.





Result:
  the
  single
  most
  likely
  coding
  sequence,
  no
  UTRs,
  no
  isoforms.

Yandell & Ence. Nature Rev 2012 doi:10.1038/nrg3174
16GENE PREDICTION & ANNOTATION

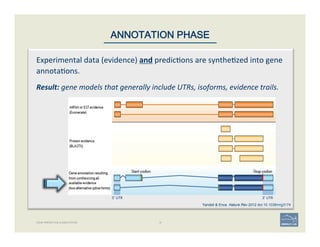

ANNOTATION PHASE
Experimental
  data
  (evidence)
  and
  predic'ons
  are
  synthe'zed
  into
  gene

annota'ons.



Result:
  gene
  models
  that
  generally
  include
  UTRs,
  isoforms,
  evidence
  trails.

Yandell & Ence. Nature Rev 2012 doi:10.1038/nrg3174
5’
  UTR
   3’
  UTR

17

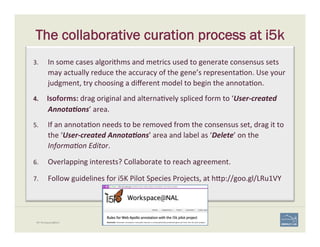

In
  some
  cases
  algorithms
  and
  metrics
  used
  to
  generate

consensus
  sets
  may
  actually
  reduce
  the
  accuracy
  of
  the
  gene’s

representa'on.

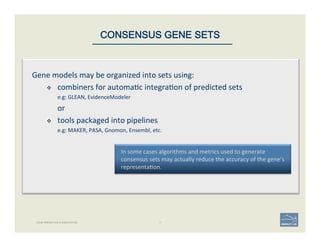

CONSENSUS GENE SETS
Gene
  models
  may
  be
  organized
  into
  sets
  using:

v  combiners
  for
  automa'c
  integra'on
  of
  predicted
  sets


e.g:
  GLEAN,
  EvidenceModeler

or

v  tools
  packaged
  into
  pipelines

e.g:
  MAKER,
  PASA,
  Gnomon,
  Ensembl,
  etc.

GENE PREDICTION & ANNOTATION
ANNOTATION

needs some refinement
No one is perfect, least of all automated annotation. 18

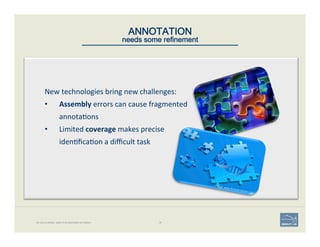

New
  technologies
  bring
  new
  challenges:


•  Assembly
  errors
  can
  cause
  fragmented

annota'ons

•  Limited
  coverage
  makes
  precise

iden'fica'on
  a
  difficult
  task

Image: www.BroadInstitute.org
MANUAL ANNOTATION

improving predictions
Precise
  elucida;on
  of
  biological
  features

encoded
  in
  the
  genome
  requires
  careful

examina;on
  and
  review.


Schiex
  et
  al.
  Nucleic
  Acids
  2003
  (31)
  13:
  3738-­‐3741

Automated Predictions
Experimental Evidence
Manual Annotation – to the rescue. 19
cDNAs,
  HMM
  domain
  searches,
  RNAseq,

genes
  from
  other
  species.

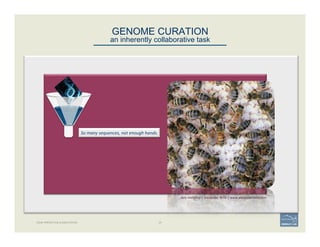

GENOME CURATION

an inherently collaborative task
GENE PREDICTION & ANNOTATION 20
So
  many
  sequences,
  not
  enough
  hands.

Apis
  mellifera
  |
  Alexander
  Wild
  |
  www.alexanderwild.com

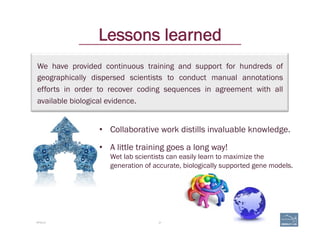

We have provided continuous training and support for hundreds of
geographically dispersed scientists to conduct manual annotations
efforts in order to recover coding sequences in agreement with all
available biological evidence.
21
Lessons learned
APOLLO
•  Collaborative work distills invaluable knowledge.
•  A little training goes a long way!
Wet lab scientists can easily learn to maximize the
generation of accurate, biologically supported gene models.
Apollo

APOLLO: versatile genome annotation editing

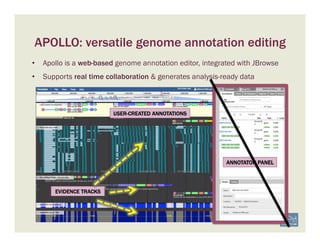

•  Apollo is a web-based genome annotation editor, integrated with JBrowse
•  Supports real time collaboration & generates analysis-ready data
USER-CREATED ANNOTATIONS
EVIDENCE TRACKS
ANNOTATOR PANEL
BECOMING ACQUAINTED WITH APOLLO 24

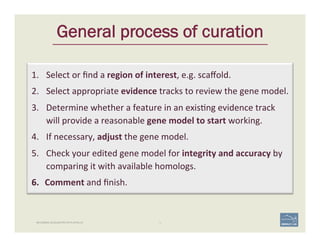

General process of curation
1.  Select
  or
  find
  a
  region
  of
  interest,
  e.g.
  scaffold.

2.  Select
  appropriate
  evidence
  tracks
  to
  review
  the
  gene
  model.

3.  Determine
  whether
  a
  feature
  in
  an
  exis'ng
  evidence
  track

will
  provide
  a
  reasonable
  gene
  model
  to
  start
  working.

4.  If
  necessary,
  adjust
  the
  gene
  model.

5.  Check
  your
  edited
  gene
  model
  for
  integrity
  and
  accuracy
  by

comparing
  it
  with
  available
  homologs.

6.  Comment
  and
  finish.

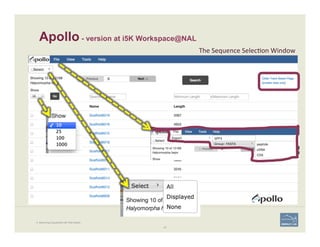

Apollo - version at i5K Workspace@NAL
254. Becoming Acquainted with Web Apollo.
25

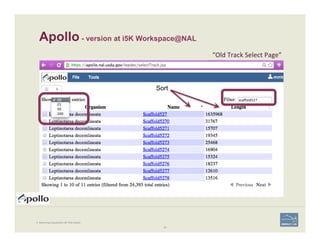

The
  Sequence
  Selec'on
  Window

Sort
Apollo - version at i5K Workspace@NAL
26
“Old
  Track
  Select
  Page”

4. Becoming Acquainted with Web Apollo.
26
27
APOLLO

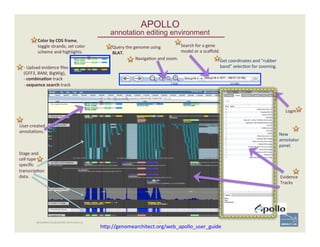

annotation editing environment
BECOMING ACQUAINTED WITH APOLLO
Color
  by
  CDS
  frame,

toggle
  strands,
  set
  color

scheme
  and
  highlights.

-­‐
  Upload
  evidence
  files

(GFF3,
  BAM,
  BigWig),

-­‐
  combina;on
  track


-­‐
  sequence
  search
  track

Query
  the
  genome
  using

BLAT.

Naviga'on
  and
  zoom.

Search
  for
  a
  gene

model
  or
  a
  scaffold.

Get
  coordinates
  and
  “rubber

band”
  selec'on
  for
  zooming.

Login

User-­‐created

annota'ons.

New

annotator

panel.

Evidence

Tracks

Stage
  and

cell-­‐type

specific

transcrip'on

data.


  h;p://genomearchitect.org/web_apollo_user_guide


28 | 28
BECOMING ACQUAINTED WITH APOLLO

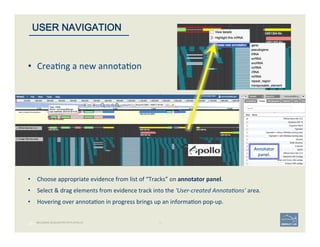

USER NAVIGATION
Annotator

panel.

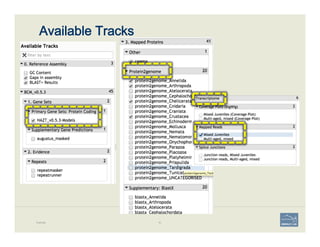

•  Choose
  appropriate
  evidence
  from
  list
  of
  “Tracks”
  on
  annotator
  panel.




•  Select
  &
  drag
  elements
  from
  evidence
  track
  into
  the
  ‘User-­‐created
  Annota$ons’
  area.



•  Hovering
  over
  annota'on
  in
  progress
  brings
  up
  an
  informa'on
  pop-­‐up.

•  Crea'ng
  a
  new
  annota'on

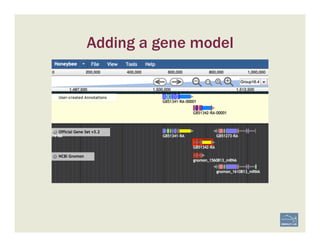

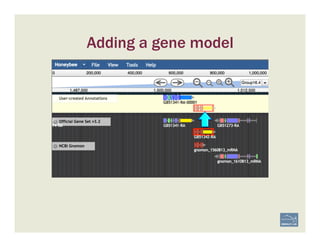

Adding a gene model
Adding a gene model
Adding a gene model

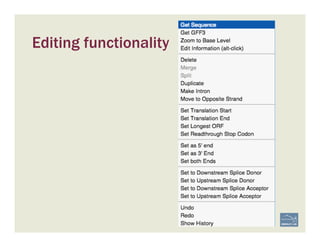

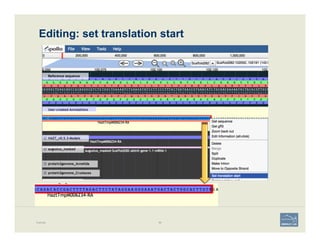

Editing functionality
Editing functionality

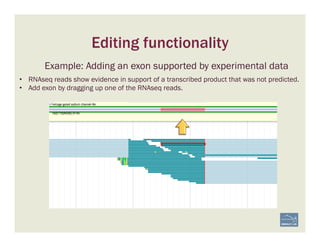

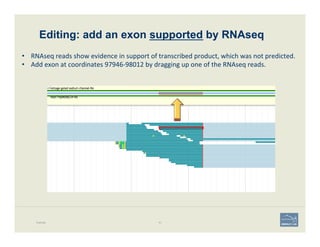

Example: Adding an exon supported by experimental data
•  RNAseq reads show evidence in support of a transcribed product that was not predicted.
•  Add exon by dragging up one of the RNAseq reads.
Editing functionality

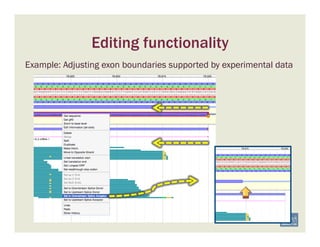

Example: Adjusting exon boundaries supported by experimental data
Cura'ng
  with
  Apollo

36 | 36
USER NAVIGATION
BECOMING ACQUAINTED WITH APOLLO

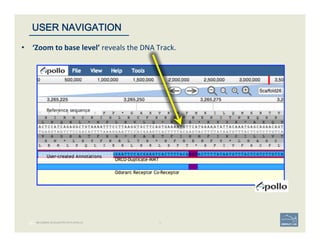

•  ‘Zoom
  to
  base
  level’
  reveals
  the
  DNA
  Track.

37 | 37
USER NAVIGATION
BECOMING ACQUAINTED WITH APOLLO

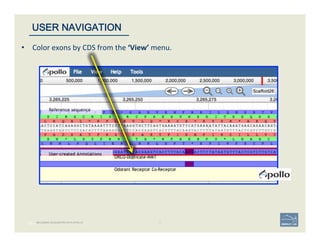

•  Color
  exons
  by
  CDS
  from
  the
  ‘View’
  menu.

38 |
Zoom
  in/out
  with
  keyboard:

shio
  +
  arrow
  keys
  up/down

38
USER NAVIGATION
BECOMING ACQUAINTED WITH APOLLO

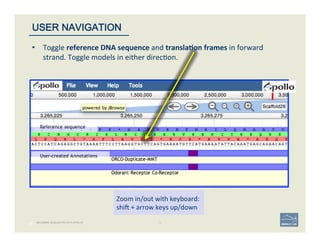

•  Toggle
  reference
  DNA
  sequence
  and
  transla;on
  frames
  in
  forward

strand.
  Toggle
  models
  in
  either
  direc'on.

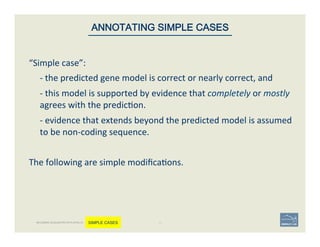

annota'ng
  simple
  cases

“Simple
  case”:



  -­‐
  the
  predicted
  gene
  model
  is
  correct
  or
  nearly
  correct,
  and



  -­‐
  this
  model
  is
  supported
  by
  evidence
  that
  completely
  or
  mostly

agrees
  with
  the
  predic'on.



  -­‐
  evidence
  that
  extends
  beyond
  the
  predicted
  model
  is
  assumed

to
  be
  non-­‐coding
  sequence.




The
  following
  are
  simple
  modifica'ons.




40
ANNOTATING SIMPLE CASES
BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
•  A

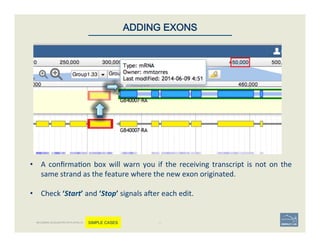

  confirma'on
  box
  will
  warn
  you
  if
  the
  receiving
  transcript
  is
  not
  on
  the

same
  strand
  as
  the
  feature
  where
  the
  new
  exon
  originated.



•  Check
  ‘Start’
  and
  ‘Stop’
  signals
  aoer
  each
  edit.

41
ADDING EXONS
BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
If
  transcript
  alignment
  data
  are
  available
  &
  extend
  beyond
  your
  original
  annota'on,


you
  may
  extend
  or
  add

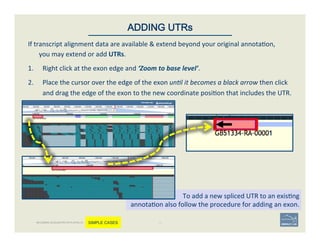

  UTRs.


1.  Right
  click
  at
  the
  exon
  edge
  and
  ‘Zoom
  to
  base
  level’.


2.  Place
  the
  cursor
  over
  the
  edge
  of
  the
  exon
  un$l
  it
  becomes
  a
  black
  arrow
  then
  click

and
  drag
  the
  edge
  of
  the
  exon
  to
  the
  new
  coordinate
  posi'on
  that
  includes
  the
  UTR.


42
ADDING UTRs
To
  add
  a
  new
  spliced
  UTR
  to
  an
  exis'ng


annota'on
  also
  follow
  the
  procedure
  for
  adding
  an
  exon.

BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
To
  modify
  an
  exon
  boundary
  and
  match

data
   in
   the
   evidence
   tracks:
   select

both
   the
   [offending]
   exon
   and
   the

feature
  with
  the
  expected
  boundary,

then
  right
  click
  on
  the
  annota'on
  to

select

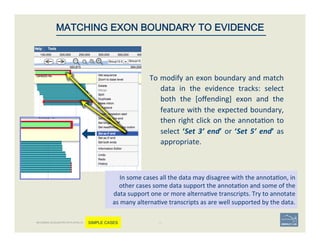

  ‘Set
  3’
  end’
  or
  ‘Set
  5’
  end’
  as

appropriate.



In
  some
  cases
  all
  the
  data
  may
  disagree
  with
  the
  annota'on,
  in

other
  cases
  some
  data
  support
  the
  annota'on
  and
  some
  of
  the

data
  support
  one
  or
  more
  alterna've
  transcripts.
  Try
  to
  annotate

as
  many
  alterna've
  transcripts
  as
  are
  well
  supported
  by
  the
  data.

43
MATCHING EXON BOUNDARY TO EVIDENCE
BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
Non-­‐canonical
  splice
  sites
  flags.
   Double
  click:
  selec'on
  of

feature
  and
  sub-­‐features

Evidence
  Tracks
  Area

‘User-­‐created
  Annota$ons’
  Track

Edge-­‐matching

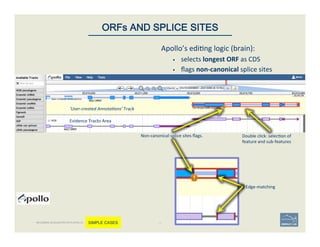

Apollo’s
  edi'ng
  logic
  (brain):


§  selects
  longest
  ORF
  as
  CDS

§  flags
  non-­‐canonical
  splice
  sites

44
ORFs AND SPLICE SITES
BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES

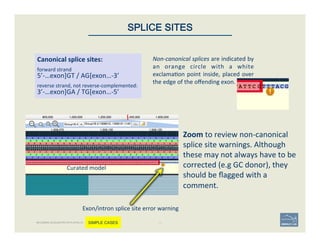

Non-­‐canonical
  splices
  are
  indicated
  by

an
   orange
   circle
   with
   a
   white

exclama'on
  point
  inside,
  placed
  over

the
  edge
  of
  the
  offending
  exon.


Canonical
  splice
  sites:

3’-­‐…exon]GA
  /
  TG[exon…-­‐5’

5’-­‐…exon]GT
  /
  AG[exon…-­‐3’

reverse
  strand,
  not
  reverse-­‐complemented:

forward
  strand

45
SPLICE SITES
Zoom
  to
  review
  non-­‐canonical

splice
  site
  warnings.
  Although

these
  may
  not
  always
  have
  to
  be

corrected
  (e.g
  GC
  donor),
  they

should
  be
  flagged
  with
  a

comment.


Exon/intron
  splice
  site
  error
  warning

Curated
  model

BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES

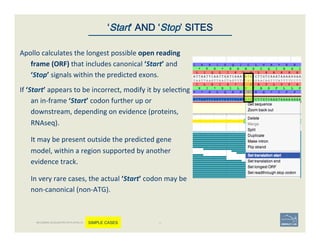

Apollo
  calculates
  the
  longest
  possible
  open
  reading

frame
  (ORF)
  that
  includes
  canonical
  ‘Start’
  and

‘Stop’
  signals
  within
  the
  predicted
  exons.


If
  ‘Start’
  appears
  to
  be
  incorrect,
  modify
  it
  by
  selec'ng

an
  in-­‐frame
  ‘Start’
  codon
  further
  up
  or

downstream,
  depending
  on
  evidence
  (proteins,

RNAseq).




It
  may
  be
  present
  outside
  the
  predicted
  gene

model,
  within
  a
  region
  supported
  by
  another

evidence
  track.



In
  very
  rare
  cases,
  the
  actual
  ‘Start’
  codon
  may
  be

non-­‐canonical
  (non-­‐ATG).


46
‘Start’ AND ‘Stop’ SITES
BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES

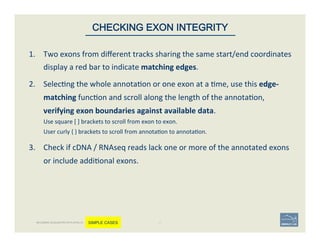

1.  Two
  exons
  from
  different
  tracks
  sharing
  the
  same
  start/end
  coordinates

display
  a
  red
  bar
  to
  indicate
  matching
  edges.

2.  Selec'ng
  the
  whole
  annota'on
  or
  one
  exon
  at
  a
  'me,
  use
  this
  edge-­‐
matching
  func'on
  and
  scroll
  along
  the
  length
  of
  the
  annota'on,

verifying
  exon
  boundaries
  against
  available
  data.


Use
  square
  [
  ]
  brackets
  to
  scroll
  from
  exon
  to
  exon.

User
  curly
  {
  }
  brackets
  to
  scroll
  from
  annota'on
  to
  annota'on.

3.  Check
  if
  cDNA
  /
  RNAseq
  reads
  lack
  one
  or
  more
  of
  the
  annotated
  exons

or
  include
  addi'onal
  exons.


47
CHECKING EXON INTEGRITY
BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
annota'ng
  complex
  cases

Evidence
  may
  support
  joining
  two
  or
  more
  different
  gene
  models.


Warning:
  protein
  alignments
  may
  have
  incorrect
  splice
  sites
  and
  lack
  non-­‐conserved
  regions!

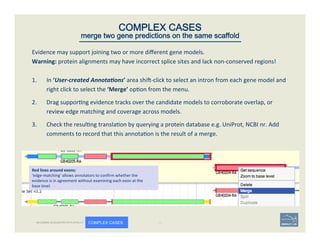

1.  In
  ‘User-­‐created
  Annota<ons’
  area
  shio-­‐click
  to
  select
  an
  intron
  from
  each
  gene
  model
  and

right
  click
  to
  select
  the

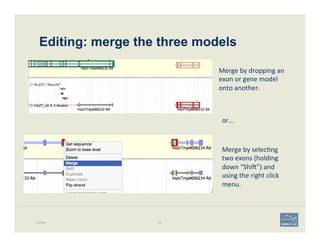

  ‘Merge’
  op'on
  from
  the
  menu.


2.  Drag
  suppor'ng
  evidence
  tracks
  over
  the
  candidate
  models
  to
  corroborate
  overlap,
  or

review
  edge
  matching
  and
  coverage
  across
  models.

3.  Check
  the
  resul'ng
  transla'on
  by
  querying

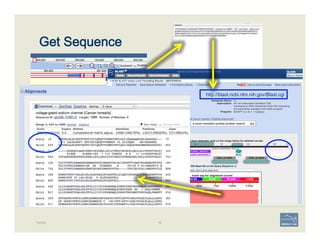

  a
  protein
  database
  e.g.
  UniProt,
  NCBI
  nr.
  Add

comments
  to
  record
  that
  this
  annota'on
  is
  the
  result
  of
  a
  merge.

49

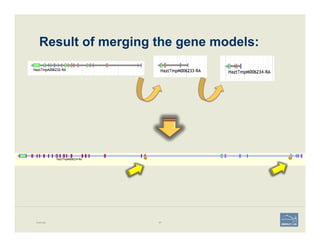

Red
  lines
  around
  exons:

‘edge-­‐matching’
  allows
  annotators
  to
  confirm
  whether
  the

evidence
  is
  in
  agreement
  without
  examining
  each
  exon
  at
  the

base
  level.

COMPLEX CASES
merge two gene predictions on the same scaffold
BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES

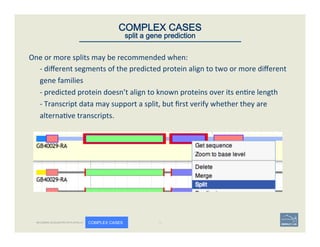

One
  or
  more
  splits
  may
  be
  recommended
  when:


-­‐
  different
  segments
  of
  the
  predicted
  protein
  align
  to
  two
  or
  more
  different

gene
  families


-­‐
  predicted
  protein
  doesn’t
  align
  to
  known
  proteins
  over
  its
  en're
  length

-­‐
  Transcript
  data
  may
  support
  a
  split,
  but
  first
  verify
  whether
  they
  are

alterna've
  transcripts.


50
COMPLEX CASES
split a gene prediction
BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
DNA
  Track

‘User-­‐created
  Annota;ons’
  Track

51
COMPLEX CASES
annotate frameshifts and correct single-base errors

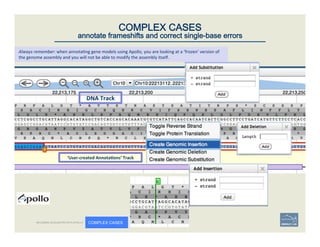

Always
  remember:
  when
  annota'ng
  gene
  models
  using
  Apollo,
  you
  are
  looking
  at
  a
  ‘frozen’
  version
  of

the
  genome
  assembly
  and
  you
  will
  not
  be
  able
  to
  modify
  the
  assembly
  itself.

BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
52
COMPLEX CASES

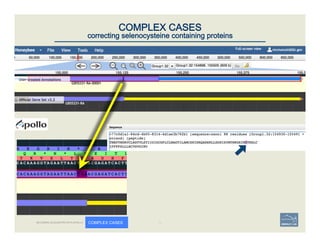

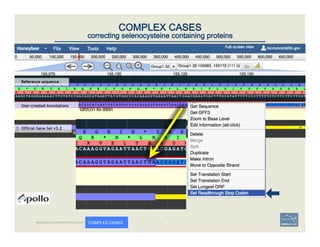

correcting selenocysteine containing proteins
BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
53
COMPLEX CASES
correcting selenocysteine containing proteins
BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES

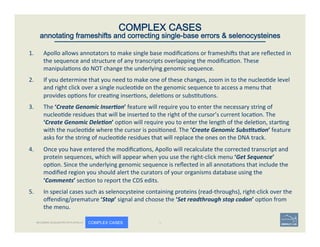

1.  Apollo
  allows
  annotators
  to
  make
  single
  base
  modifica'ons
  or
  frameshios
  that
  are
  reflected
  in

the
  sequence
  and
  structure
  of
  any
  transcripts
  overlapping
  the
  modifica'on.
  These

manipula'ons
  do
  NOT
  change
  the
  underlying
  genomic
  sequence.


2.  If
  you
  determine
  that
  you
  need
  to
  make
  one
  of
  these
  changes,
  zoom
  in
  to
  the
  nucleo'de
  level

and
  right
  click
  over
  a
  single
  nucleo'de
  on
  the
  genomic
  sequence
  to
  access
  a
  menu
  that

provides
  op'ons
  for
  crea'ng
  inser'ons,
  dele'ons
  or
  subs'tu'ons.


3.  The
  ‘Create
  Genomic
  Inser<on’
  feature
  will
  require
  you
  to
  enter
  the
  necessary
  string
  of

nucleo'de
  residues
  that
  will
  be
  inserted
  to
  the
  right
  of
  the
  cursor’s
  current
  loca'on.
  The

‘Create
  Genomic
  Dele<on’
  op'on
  will
  require
  you
  to
  enter
  the
  length
  of
  the
  dele'on,
  star'ng

with
  the
  nucleo'de
  where
  the
  cursor
  is
  posi'oned.
  The
  ‘Create
  Genomic
  Subs<tu<on’
  feature

asks
  for
  the
  string
  of
  nucleo'de
  residues
  that
  will
  replace
  the
  ones
  on
  the
  DNA
  track.

4.  Once
  you
  have
  entered
  the
  modifica'ons,
  Apollo
  will
  recalculate
  the
  corrected
  transcript
  and

protein
  sequences,
  which
  will
  appear
  when
  you
  use
  the
  right-­‐click
  menu
  ‘Get
  Sequence’

op'on.
  Since
  the
  underlying
  genomic
  sequence
  is
  reflected
  in
  all
  annota'ons
  that
  include
  the

modified
  region
  you
  should
  alert
  the
  curators
  of
  your
  organisms
  database
  using
  the

‘Comments’
  sec'on
  to
  report
  the
  CDS
  edits.


5.  In
  special
  cases
  such
  as
  selenocysteine
  containing
  proteins
  (read-­‐throughs),
  right-­‐click
  over
  the

offending/premature
  ‘Stop’
  signal
  and
  choose
  the
  ‘Set
  readthrough
  stop
  codon’
  op'on
  from

the
  menu.


   54
COMPLEX CASES
annotating frameshifts and correcting single-base errors & selenocysteines
BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
55 | 55

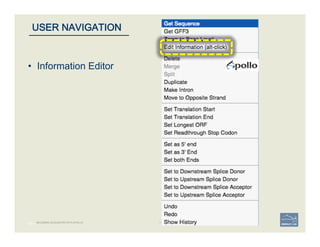

USER NAVIGATION
BECOMING ACQUAINTED WITH APOLLO
•  Information Editor
56
The

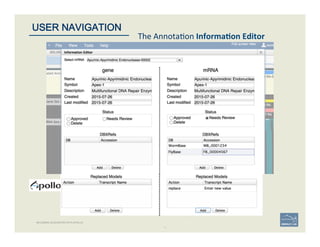

  Annota'on
  Informa;on
  Editor

56
USER NAVIGATION
BECOMING ACQUAINTED WITH APOLLO
57

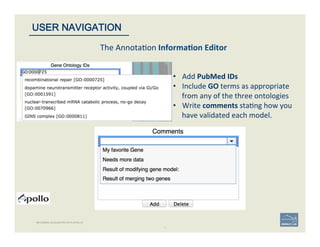

The
  Annota'on
  Informa;on
  Editor

•  Add
  PubMed
  IDs

•  Include
  GO
  terms
  as
  appropriate

from
  any
  of
  the
  three
  ontologies

•  Write
  comments
  sta'ng
  how
  you

have
  validated
  each
  model.

57
USER NAVIGATION
BECOMING ACQUAINTED WITH APOLLO
58 | 58
USER NAVIGATION
BECOMING ACQUAINTED WITH APOLLO

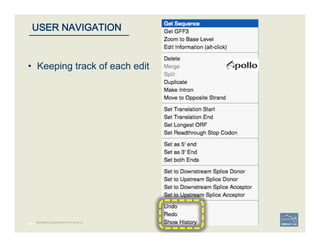

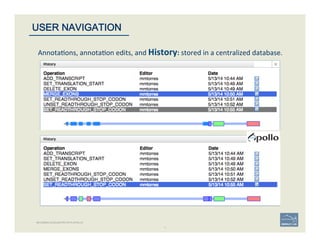

•  Keeping track of each edit
59
Annota'ons,
  annota'on
  edits,
  and
  History:
  stored
  in
  a
  centralized
  database.

59
USER NAVIGATION
BECOMING ACQUAINTED WITH APOLLO
Follow
  the
  checklist
  un'l
  you
  are
  happy
  with
  the
  annota'on!

And
  remember
  to…

–  comment
  to
  validate
  your
  annota'on,
  even
  if
  you
  made
  no
  changes
  to
  an

exis'ng
  model.
  Think
  of
  comments
  as
  your
  vote
  of
  confidence.



–  or
  add
  a
  comment
  to
  inform
  the
  community
  of
  unresolved
  issues
  you

think
  this
  model
  may
  have.

60 | 60
Always
  Remember:
  Apollo
  cura'on
  is
  a
  community
  effort
  so
  please

use
  comments
  to
  communicate
  the
  reasons
  for
  your


annota'on.
  Your
  comments
  will
  be
  visible
  to
  everyone.

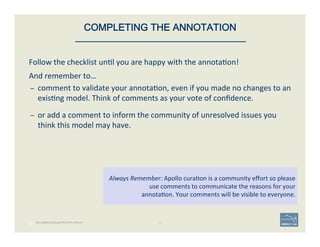

COMPLETING THE ANNOTATION
BECOMING ACQUAINTED WITH APOLLO
Checklist

•  Check
  ‘Start’
  and
  ‘Stop’
  sites.

•  Check

  splice
  sites:
  most
  splice
  sites
  display

these
  residues
  …]5’-­‐GT/AG-­‐3’[…

•  Check
  if
  you
  can
  annotate
  UTRs,
  for
  example

using
  RNA-­‐Seq
  data:

– align
  it
  against
  relevant
  genes/gene
  family

– blastp
  against
  NCBI’s
  RefSeq
  or
  nr

•  Check
  for
  gaps
  in
  the
  genome.

•  Addi'onal
  func'onality
  may
  be
  necessary:

– merging
  2
  gene
  predic'ons
  -­‐
  same
  scaffold

– merging
  2
  gene
  predic'ons
  -­‐
  different

scaffolds


– spli`ng
  a
  gene
  predic'on

– annota'ng
  frameshias

– annota'ng
  selenocysteines,
  correc'ng

single-­‐base
  and
  other
  assembly
  errors,
  etc.

62 | 62
•  Add:

–  Important
  project
  informa'on
  in
  the
  form
  of

comments

–  IDs
  from
  public
  databases
  e.g.
  GenBank
  (via

DBXRef),
  gene
  symbol(s),
  common
  name(s),

synonyms,
  top
  BLAST
  hits,
  orthologs
  with

species
  names,
  and
  everything
  else
  you
  can

think
  of,
  because
  you
  are
  the
  expert.

–  Comments
  about
  the
  kinds
  of
  changes
  you

made
  to
  the
  gene
  model
  of
  interest,
  if
  any.


–  Any
  appropriate
  func'onal
  assignments,
  e.g.

via
  BLAST,
  RNA-­‐Seq
  data,
  literature
  searches,

etc.

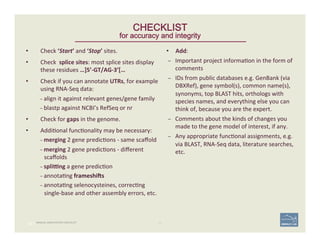

CHECKLIST
for accuracy and integrity
MANUAL ANNOTATION CHECKLIST
Genome
  cura'on
  with
  i5k

64i5K Workspace@NAL

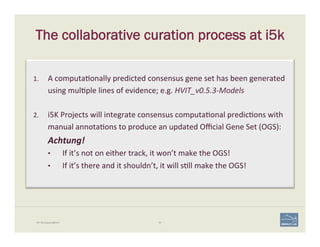

The collaborative curation process at i5k
1.  A
  computa'onally
  predicted
  consensus
  gene
  set
  has
  been
  generated

using
  mul'ple
  lines
  of
  evidence;
  e.g.
  HVIT_v0.5.3-­‐Models



2.  i5K
  Projects
  will
  integrate
  consensus
  computa'onal
  predic'ons
  with

manual
  annota'ons
  to
  produce
  an
  updated
  Official
  Gene
  Set
  (OGS):

Achtung!

•  If
  it’s
  not
  on
  either
  track,
  it
  won’t
  make
  the
  OGS!

•  If
  it’s
  there
  and
  it
  shouldn’t,
  it
  will
  s'll
  make
  the
  OGS!

65

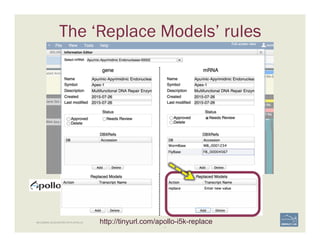

The ‘Replace Models’ rules
65
BECOMING ACQUAINTED WITH APOLLO http://tinyurl.com/apollo-i5k-replace
66i5K Workspace@NAL
3.  In
  some
  cases
  algorithms
  and
  metrics
  used
  to
  generate
  consensus
  sets

may
  actually
  reduce
  the
  accuracy
  of
  the
  gene’s
  representa'on.
  Use
  your

judgment,
  try
  choosing
  a
  different
  model
  to
  begin
  the
  annota'on.

4.  Isoforms:
  drag
  original
  and
  alterna'vely
  spliced
  form
  to
  ‘User-­‐created

Annota<ons’
  area.

5.  If
  an
  annota'on
  needs
  to
  be
  removed
  from
  the
  consensus
  set,
  drag
  it
  to

the
  ‘User-­‐created
  Annota<ons’
  area
  and
  label
  as
  ‘Delete’
  on
  the

Informa$on
  Editor.

6.  Overlapping
  interests?
  Collaborate
  to
  reach
  agreement.

7.  Follow
  guidelines
  for
  i5K
  Pilot
  Species
  Projects,
  at
  h;p://goo.gl/LRu1VY

The collaborative curation process at i5k
Example

What’s new?...

finding inspiration in PubMed.
Example 68
“Molecular analysis of bed bug populations from across the USA and Europe
found that >80% and >95% of the respective populations contained V419L and/
or L925I mutations in the voltage-gated sodium channel gene, indicating
widespread distribution of target-site-based pyrethroid resistance.”
Homalodisca vitripennis | Alexander Wild | www.alexanderwild.comHalyomorpha halys | Fondazione Edmund Mach - Italy
Now for our species of interest. . .
Example
Example 69

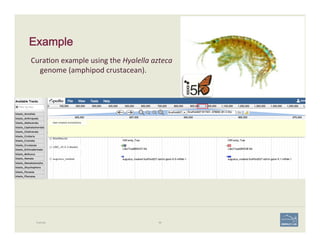

  Cura'on
  example
  using
  the
  Hyalella
  azteca

genome
  (amphipod
  crustacean).

What do we know about this genome?
•  Currently
  publicly
  available
  data
  at
  NCBI:

•  >37,000

  nucleo'de
  seqsà
  scaffolds,
  mitochondrial
  genes

•  344

  amino
  acid
  seqsà
  mitochondrion

•  47

  ESTs

•  0


  conserved
  domains
  iden'fied

•  0

  “gene”
  entries
  submi;ed



•  Data
  at
  i5K
  Workspace@NAL
  (annota'on
  hosted
  at
  USDA)


-­‐
  10,832
  scaffolds:
  23,288
  transcripts:
  12,906
  proteins

Example 70

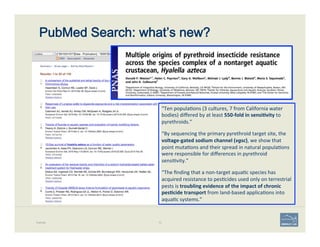

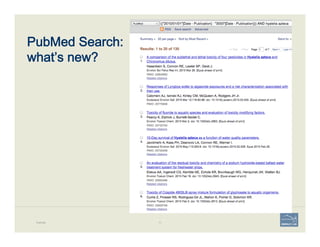

PubMed Search:

what’s new?
Example 71
PubMed Search: what’s new?
Example 72
“Ten
  popula'ons
  (3
  cultures,
  7
  from
  California
  water

bodies)
  differed
  by
  at
  least
  550-­‐fold
  in
  sensi;vity
  to

pyrethroids.”


“By
  sequencing
  the
  primary
  pyrethroid
  target
  site,
  the

voltage-­‐gated
  sodium
  channel
  (vgsc),
  we
  show
  that

point
  muta'ons
  and
  their
  spread
  in
  natural
  popula'ons

were
  responsible
  for
  differences
  in
  pyrethroid

sensi'vity.”

“The
  finding
  that
  a
  non-­‐target
  aqua'c
  species
  has

acquired
  resistance
  to
  pes'cides
  used
  only
  on
  terrestrial

pests
  is
  troubling
  evidence
  of
  the
  impact
  of
  chronic

pes;cide
  transport
  from
  land-­‐based
  applica'ons
  into

aqua'c
  systems.”

How many sequences are there, publicly available,
for our gene of interest?
Example 73
•  Para,
  (voltage-­‐gated
  sodium
  channel
  alpha

subunit;
  Nasonia
  vitripennis).


•  NaCP60E
  (Sodium
  channel
  protein
  60
  E;
  D.

melanogaster).

–  MF:
  voltage-­‐gated
  ca'on
  channel
  ac'vity

(IDA,
  GO:0022843).

–  BP:
  olfactory
  behavior
  (IMP,
  GO:
0042048),
  sodium
  ion
  transmembrane

transport
  (ISS,GO:0035725).

–  CC:
  voltage-­‐gated
  sodium
  channel

complex
  (IEA,
  GO:0001518).

And
  what
  do
  we
  know
  about
  them?

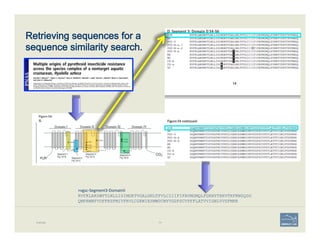

Retrieving sequences for a

sequence similarity search.
Example 74
>vgsc-­‐Segment3-­‐DomainII

RVFKLAKSWPTLNLLISIMGKTVGALGNLTFVLCIIIFIFAVMGMQLFGKNYTEKVTKFKWSQDG
QMPRWNFVDFFHSFMIVFRVLCGEWIESMWDCMYVGDFSCVPFFLATVVIGNLVVSFMHR

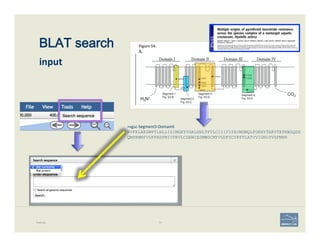

BLAT search



input

Example 75
>vgsc-­‐Segment3-­‐DomainII

RVFKLAKSWPTLNLLISIMGKTVGALGNLTFVLCIIIFIFAVMGMQLFGKNYTEKVTKFKWSQDG
QMPRWNFVDFFHSFMIVFRVLCGEWIESMWDCMYVGDFSCVPFFLATVVIGNLVVSFMHR
BLAT search

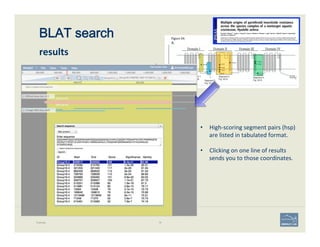

results

Example 76
•  High-­‐scoring
  segment
  pairs
  (hsp)

are
  listed
  in
  tabulated
  format.

•  Clicking
  on
  one
  line
  of
  results

sends
  you
  to
  those
  coordinates.

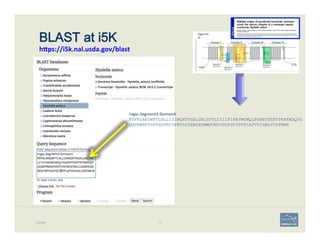

BLAST at i5K

heps://i5k.nal.usda.gov/blast
Example 77
>vgsc-­‐Segment3-­‐DomainII

RVFKLAKSWPTLNLLISIMGKTVGALGNLTFVLCIIIFIFAVMGMQLFGKNYTEKVTKFKWSQDG
QMPRWNFVDFFHSFMIVFRVLCGEWIESMWDCMYVGDFSCVPFFLATVVIGNLVVSFMHR
BLAST at i5K

heps://i5k.nal.usda.gov/blast

Example 78

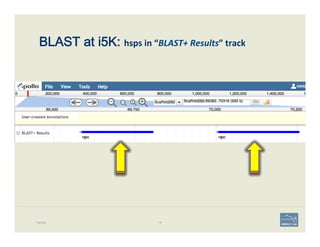

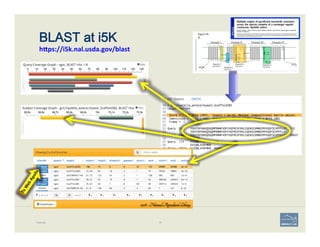

BLAST at i5K: hsps
  in
  “BLAST+
  Results”
  track

Example 79

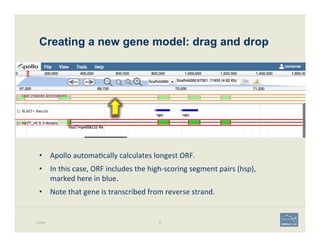

Creating a new gene model: drag and drop
Example 80
•  Apollo
  automa'cally
  calculates
  longest
  ORF.


•  In
  this
  case,
  ORF
  includes
  the
  high-­‐scoring
  segment
  pairs
  (hsp),

marked
  here
  in
  blue.

•  Note
  that
  gene
  is
  transcribed
  from
  reverse
  strand.

Available Tracks
Example 81
Get Sequence
Example 82
http://blast.ncbi.nlm.nih.gov/Blast.cgi
Also, flanking sequences (other gene models) vs. NCBI nr
Example 83
In
  this
  case,
  two
  gene

models
  upstream,
  at
  5’

end.

BLAST
  hsps

Review alignments
Example 84
HaztTmpM006234

HaztTmpM006233

HaztTmpM006232

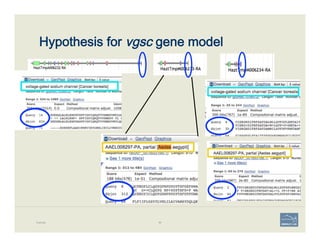

Hypothesis for vgsc gene model
Example 85
Editing: merge the three models
Example 86
Merge
  by
  dropping
  an

exon
  or
  gene
  model

onto
  another.

Merge
  by
  selec'ng

two
  exons
  (holding

down
  “Shio”)
  and

using
  the
  right
  click

menu.

or…

Result of merging the gene models:
Example 87

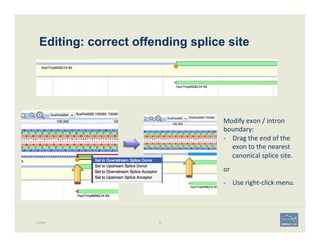

Editing: correct offending splice site
Example 88
Modify
  exon
  /
  intron

boundary:


-­‐  Drag
  the
  end
  of
  the

exon
  to
  the
  nearest

canonical
  splice
  site.



or



-­‐  Use
  right-­‐click
  menu.

Editing: set translation start
Example 89

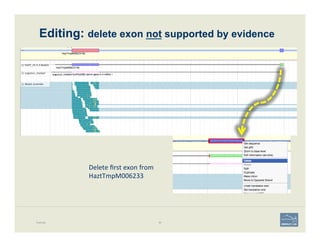

Editing: delete exon not supported by evidence
Example 90
Delete
  first
  exon
  from

HaztTmpM006233

Editing: add an exon supported by RNAseq
Example 91
•  RNAseq
  reads
  show
  evidence
  in
  support
  of
  transcribed
  product,
  which
  was
  not
  predicted.

•  Add
  exon
  at
  coordinates
  97946-­‐98012
  by
  dragging
  up
  one
  of
  the
  RNAseq
  reads.

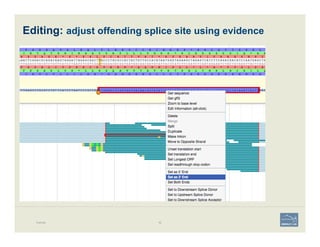

Editing: adjust offending splice site using evidence
Example 92

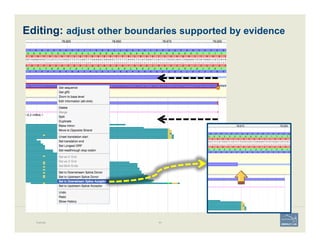

Editing: adjust other boundaries supported by evidence
Example 93
Finished model

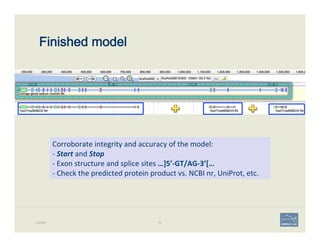

Example 94
Corroborate
  integrity
  and
  accuracy
  of
  the
  model:


-­‐
  Start
  and
  Stop

-­‐
  Exon
  structure
  and
  splice
  sites
  …]5’-­‐GT/AG-­‐3’[…

-­‐
  Check
  the
  predicted
  protein
  product
  vs.
  NCBI
  nr,
  UniProt,
  etc.

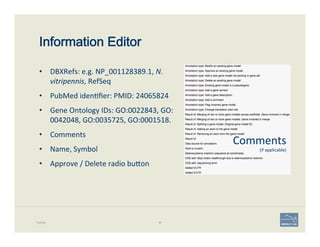

Information Editor
•  DBXRefs:
  e.g.
  NP_001128389.1,
  N.

vitripennis,
  RefSeq

•  PubMed
  iden'fier:
  PMID:
  24065824

•  Gene
  Ontology
  IDs:
  GO:0022843,
  GO:
0042048,
  GO:0035725,
  GO:0001518.

•  Comments

•  Name,
  Symbol

•  Approve
  /
  Delete
  radio
  bu;on

Example 95
Comments

(if
  applicable)

Go
  play!

PUBLIC DEMO
97 | 97
APOLLO ON THE WEB

instructions
At
  i5K

1.  Register
  for
  access
  to
  Apollo
  at
  the
  i5K
  Workspace@NAL
  at

h;ps://i5k.nal.usda.gov/web-­‐apollo-­‐registra'on



2.  Contact
  the
  coordinator
  for
  each
  species
  community
  to
  receive

more
  informa'on
  about
  how
  to
  contribute.
  Contact
  info
  is
  available

on
  each
  organism’s
  page.

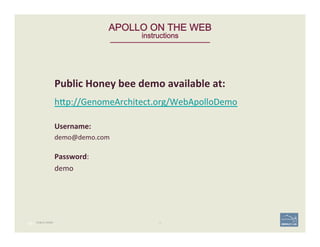

PUBLIC DEMO
98 | 98
APOLLO ON THE WEB

instructions
Public
  Honey
  bee
  demo
  available
  at:


h;p://GenomeArchitect.org/WebApolloDemo




Username:

demo@demo.com



Password:

demo

APOLLO

demonstration
PUBLIC DEMO 99
Demonstra'on
  video
  is
  available
  at


h;ps://youtu.be/VgPtAP_fvxY

OUTLINE

Apollo
  Collabora've
  Cura'on
  and


Interac've
  Analysis
  of
  Genomes

100OUTLINE
•  BIO-­‐REFRESHER

biological
  concepts
  for
  cura'on

•  ANNOTATION

automa'c
  predic'ons

•  MANUAL
  ANNOTATION

necessary,
  collabora've



•  APOLLO

advancing
  collabora've
  cura'on



•  EXAMPLE

demos

Apollo Development
Nathan Dunn
Eric Yao
Christine Elsik’s Lab,
University of Missouri
Suzi Lewis
Principal Investigator
BBOP
Moni Munoz-Torres Colin DieshDeepak Unni
JBrowse. Ian Holmes’ Lab
University of California, Berkeley
•  Berkeley Bioinformatics Open-source Projects (BBOP),
Berkeley Lab: Apollo and Gene Ontology teams.
Suzanna E. Lewis (PI).
•  § Christine G. Elsik (PI). University of Missouri.
•  * Ian Holmes (PI). University of California Berkeley.
•  Arthropod genomics community & i5K Steering
Committee.
•  Stephen Ficklin, GenSAS, Washington State University
•  Apollo is supported by NIH grants 5R01GM080203
from NIGMS, and 5R01HG004483 from NHGRI. Also
supported by the Director, Office of Science, Office of
Basic Energy Sciences, of the U.S. Department of
Energy under Contract No. DE-AC02-05CH11231
•  For your attention, thank you!
Apollo
Nathan Dunn
Colin Diesh §
Deepak Unni §
Gene Ontology
Chris Mungall
Seth Carbon
Heiko Dietze
BBOP
Learn more about Apollo at http://GenomeArchitect.org
Thank you!
NAL at USDA
Monica Poelchau
Mei-Ju Chen
Christopher Childers
Gary Moore
HGSC at BCM
fringy Richards
Kim Worley
JBrowse Eric Yao *
Introduction to Apollo for i5k

More Related Content

What's hot

Gene expression profiling
Gene expression profilingGene expression profiling
Gene expression profiling
PriyankaPriyanka63

Differential gene profiling methods
Differential gene profiling methodsDifferential gene profiling methods
Differential gene profiling methods
sonamyadav82

Apollo - A webinar for the Phascolarctos cinereus research community
Apollo - A webinar for the Phascolarctos cinereus research communityApollo - A webinar for the Phascolarctos cinereus research community
Apollo - A webinar for the Phascolarctos cinereus research community
Monica Munoz-Torres

Tyler functional annotation thurs 1120
Tyler functional annotation thurs 1120Tyler functional annotation thurs 1120
Tyler functional annotation thurs 1120
Sucheta Tripathy

Gene identification and discovery
Gene identification and discoveryGene identification and discovery
Gene identification and discovery
Amit Ruchi Yadav

Express sequence tags
Express sequence tagsExpress sequence tags
Express sequence tags
Dhananjay Desai

Est database
Est databaseEst database
Est database
Amit Ruchi Yadav

Gene prediction strategies
Gene prediction strategies Gene prediction strategies
Gene prediction strategies
Amity university, Noida

Genome annotation
Genome annotationGenome annotation
Genome annotation
Shifa Ansari

Bioalgo 2012-01-gene-prediction-stat
Bioalgo 2012-01-gene-prediction-statBioalgo 2012-01-gene-prediction-stat
Bioalgo 2012-01-gene-prediction-stat
BioinformaticsInstitute

Gene prediction methods vijay
Gene prediction methods  vijayGene prediction methods  vijay
Gene prediction methods vijay
Vijay Hemmadi

B.sc biochem i bobi u 4 gene prediction
B.sc biochem i bobi u 4 gene predictionB.sc biochem i bobi u 4 gene prediction
B.sc biochem i bobi u 4 gene prediction
Rai University

Bioinformatics
BioinformaticsBioinformatics
Bioinformatics
Afra Fathima

RNA-seq Analysis
RNA-seq AnalysisRNA-seq Analysis
RNA-seq Analysis
COST action BM1006

Bioalgo 2012-01-gene-prediction-sim
Bioalgo 2012-01-gene-prediction-simBioalgo 2012-01-gene-prediction-sim
Bioalgo 2012-01-gene-prediction-sim
BioinformaticsInstitute

gene prediction programs
gene prediction programsgene prediction programs
gene prediction programs
MugdhaSharma11

Differential gene expression
Differential gene expressionDifferential gene expression
Differential gene expression
Denis C. Bauer

Genome assembly
Genome assemblyGenome assembly
Genome analysis2
Genome analysis2Genome analysis2
BIOL335: How to annotate a genome
BIOL335: How to annotate a genomeBIOL335: How to annotate a genome
BIOL335: How to annotate a genome
Paul Gardner


What's hot (20)

Gene expression profiling
Gene expression profilingGene expression profiling
Gene expression profiling

Differential gene profiling methods
Differential gene profiling methodsDifferential gene profiling methods
Differential gene profiling methods

Apollo - A webinar for the Phascolarctos cinereus research community
Apollo - A webinar for the Phascolarctos cinereus research communityApollo - A webinar for the Phascolarctos cinereus research community
Apollo - A webinar for the Phascolarctos cinereus research community

Tyler functional annotation thurs 1120
Tyler functional annotation thurs 1120Tyler functional annotation thurs 1120
Tyler functional annotation thurs 1120

Gene identification and discovery
Gene identification and discoveryGene identification and discovery
Gene identification and discovery

Express sequence tags
Express sequence tagsExpress sequence tags
Express sequence tags

Est database
Est databaseEst database
Est database

Gene prediction strategies
Gene prediction strategies Gene prediction strategies
Gene prediction strategies

Genome annotation
Genome annotationGenome annotation
Genome annotation

Bioalgo 2012-01-gene-prediction-stat
Bioalgo 2012-01-gene-prediction-statBioalgo 2012-01-gene-prediction-stat
Bioalgo 2012-01-gene-prediction-stat

Gene prediction methods vijay
Gene prediction methods  vijayGene prediction methods  vijay
Gene prediction methods vijay

B.sc biochem i bobi u 4 gene prediction
B.sc biochem i bobi u 4 gene predictionB.sc biochem i bobi u 4 gene prediction
B.sc biochem i bobi u 4 gene prediction

Bioinformatics
BioinformaticsBioinformatics
Bioinformatics

RNA-seq Analysis
RNA-seq AnalysisRNA-seq Analysis
RNA-seq Analysis

Bioalgo 2012-01-gene-prediction-sim
Bioalgo 2012-01-gene-prediction-simBioalgo 2012-01-gene-prediction-sim
Bioalgo 2012-01-gene-prediction-sim

gene prediction programs
gene prediction programsgene prediction programs
gene prediction programs

Differential gene expression
Differential gene expressionDifferential gene expression
Differential gene expression

Genome assembly
Genome assemblyGenome assembly
Genome assembly

Genome analysis2
Genome analysis2Genome analysis2
Genome analysis2

BIOL335: How to annotate a genome
BIOL335: How to annotate a genomeBIOL335: How to annotate a genome
BIOL335: How to annotate a genome


Viewers also liked

Apollo: Scalable & collaborative curation of genomes - Biocuration 2015
Apollo: Scalable & collaborative curation of genomes - Biocuration 2015Apollo: Scalable & collaborative curation of genomes - Biocuration 2015
Apollo: Scalable & collaborative curation of genomes - Biocuration 2015
Monica Munoz-Torres

PAINT Family PTHR13451-MUS81
PAINT Family PTHR13451-MUS81PAINT Family PTHR13451-MUS81
PAINT Family PTHR13451-MUS81
Monica Munoz-Torres

Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Introduction to Apollo - i5k Research Community – Calanoida (copepod)Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Monica Munoz-Torres

Genome assembly: then and now — v1.0
Genome assembly: then and now — v1.0Genome assembly: then and now — v1.0
Genome assembly: then and now — v1.0
Keith Bradnam

Apollo Workshop at KSU 2015
Apollo Workshop at KSU 2015Apollo Workshop at KSU 2015
Apollo Workshop at KSU 2015
Monica Munoz-Torres

2 md2016 annotation
2 md2016 annotation2 md2016 annotation
2 md2016 annotation
Scott Dawson

Curation Introduction - Apollo Workshop
Curation Introduction - Apollo WorkshopCuration Introduction - Apollo Workshop
Curation Introduction - Apollo Workshop
Monica Munoz-Torres

CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcionalCONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
Monica Munoz-Torres

Genome assembly: the art of trying to make one big thing from millions of ver...
Genome assembly: the art of trying to make one big thing from millions of ver...Genome assembly: the art of trying to make one big thing from millions of ver...
Genome assembly: the art of trying to make one big thing from millions of ver...
Keith Bradnam

Genome Assembly
Genome AssemblyGenome Assembly
Genome Assembly
Aureliano Bombarely

Computational Approaches to Systems Biology
Computational Approaches to Systems BiologyComputational Approaches to Systems Biology
Computational Approaches to Systems Biology
Mike Hucka

Genome annotation 2013
Genome annotation 2013Genome annotation 2013
Genome annotation 2013
Karan Veer Singh

Editing Functionality - Apollo Workshop
Editing Functionality - Apollo WorkshopEditing Functionality - Apollo Workshop
Editing Functionality - Apollo Workshop
Monica Munoz-Torres

Overview of Genome Assembly Algorithms
Overview of Genome Assembly AlgorithmsOverview of Genome Assembly Algorithms
Overview of Genome Assembly Algorithms
Ntino Krampis

2013 hmp-assembly-webinar
2013 hmp-assembly-webinar2013 hmp-assembly-webinar
2013 hmp-assembly-webinar
c.titus.brown

Gemome annotation
Gemome annotationGemome annotation
Gemome annotation
Tajammal Daultana


Viewers also liked (16)

Apollo: Scalable & collaborative curation of genomes - Biocuration 2015
Apollo: Scalable & collaborative curation of genomes - Biocuration 2015Apollo: Scalable & collaborative curation of genomes - Biocuration 2015
Apollo: Scalable & collaborative curation of genomes - Biocuration 2015

PAINT Family PTHR13451-MUS81
PAINT Family PTHR13451-MUS81PAINT Family PTHR13451-MUS81
PAINT Family PTHR13451-MUS81

Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Introduction to Apollo - i5k Research Community – Calanoida (copepod)Introduction to Apollo - i5k Research Community – Calanoida (copepod)
Introduction to Apollo - i5k Research Community – Calanoida (copepod)

Genome assembly: then and now — v1.0
Genome assembly: then and now — v1.0Genome assembly: then and now — v1.0
Genome assembly: then and now — v1.0

Apollo Workshop at KSU 2015
Apollo Workshop at KSU 2015Apollo Workshop at KSU 2015
Apollo Workshop at KSU 2015

2 md2016 annotation
2 md2016 annotation2 md2016 annotation
2 md2016 annotation

Curation Introduction - Apollo Workshop
Curation Introduction - Apollo WorkshopCuration Introduction - Apollo Workshop
Curation Introduction - Apollo Workshop

CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcionalCONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional
CONSORCIO ONTOLOGÍA DE GENES: herramientas para anotación funcional

Genome assembly: the art of trying to make one big thing from millions of ver...
Genome assembly: the art of trying to make one big thing from millions of ver...Genome assembly: the art of trying to make one big thing from millions of ver...
Genome assembly: the art of trying to make one big thing from millions of ver...

Genome Assembly
Genome AssemblyGenome Assembly
Genome Assembly

Computational Approaches to Systems Biology
Computational Approaches to Systems BiologyComputational Approaches to Systems Biology
Computational Approaches to Systems Biology

Genome annotation 2013
Genome annotation 2013Genome annotation 2013
Genome annotation 2013

Editing Functionality - Apollo Workshop
Editing Functionality - Apollo WorkshopEditing Functionality - Apollo Workshop
Editing Functionality - Apollo Workshop

Overview of Genome Assembly Algorithms
Overview of Genome Assembly AlgorithmsOverview of Genome Assembly Algorithms
Overview of Genome Assembly Algorithms

2013 hmp-assembly-webinar
2013 hmp-assembly-webinar2013 hmp-assembly-webinar
2013 hmp-assembly-webinar

Gemome annotation
Gemome annotationGemome annotation
Gemome annotation


Similar to Introduction to Apollo for i5k

Apollo Collaborative genome annotation editing
Apollo Collaborative genome annotation editing Apollo Collaborative genome annotation editing
Apollo Collaborative genome annotation editing
Monica Munoz-Torres

Web Apollo Workshop University of Exeter
Web Apollo Workshop University of ExeterWeb Apollo Workshop University of Exeter
Web Apollo Workshop University of Exeter
Monica Munoz-Torres

Munoz torres web-apollo-workshop_exeter-2014_ss
Munoz torres web-apollo-workshop_exeter-2014_ssMunoz torres web-apollo-workshop_exeter-2014_ss
Munoz torres web-apollo-workshop_exeter-2014_ss
Monica Munoz-Torres

20150601 bio sb_assembly_course
20150601 bio sb_assembly_course20150601 bio sb_assembly_course
20150601 bio sb_assembly_course
hansjansen9999

Web Apollo Tutorial for the i5K copepod research community.
Web Apollo Tutorial for the i5K copepod research community.Web Apollo Tutorial for the i5K copepod research community.
Web Apollo Tutorial for the i5K copepod research community.
Monica Munoz-Torres

Structural annotation................pptx
Structural annotation................pptxStructural annotation................pptx
Structural annotation................pptx
Cherry

Whole genome sequencing of bacteria & analysis
Whole genome sequencing of bacteria & analysisWhole genome sequencing of bacteria & analysis
Whole genome sequencing of bacteria & analysis
drelamuruganvet

An introduction to Web Apollo for the Biomphalaria glabatra research community.
An introduction to Web Apollo for the Biomphalaria glabatra research community.An introduction to Web Apollo for the Biomphalaria glabatra research community.
An introduction to Web Apollo for the Biomphalaria glabatra research community.
Monica Munoz-Torres

Variant analysis and whole exome sequencing
Variant analysis and whole exome sequencingVariant analysis and whole exome sequencing
Variant analysis and whole exome sequencing
Bioinformatics and Computational Biosciences Branch

Web Apollo at Genome Informatics 2014
Web Apollo at Genome Informatics 2014Web Apollo at Genome Informatics 2014
Web Apollo at Genome Informatics 2014
Monica Munoz-Torres

Genome editing with engineered nucleases
Genome editing with engineered nucleasesGenome editing with engineered nucleases
Genome editing with engineered nucleases
Krishan Kumar

Bioinformatics.Practical Notebook
Bioinformatics.Practical NotebookBioinformatics.Practical Notebook
Bioinformatics.Practical Notebook
Naima Tahsin

Apollo Workshop AGS2017 Introduction
Apollo Workshop AGS2017 IntroductionApollo Workshop AGS2017 Introduction
Apollo Workshop AGS2017 Introduction
Monica Munoz-Torres

Understanding Genome
Understanding Genome Understanding Genome
Understanding Genome
Rajendra K Labala

Dgaston dec-06-2012
Dgaston dec-06-2012Dgaston dec-06-2012
Dgaston dec-06-2012
Dan Gaston

Exploring DNA/RNA-Seq Analysis Results with Golden Helix GenomeBrowse and SVS
Exploring DNA/RNA-Seq Analysis Results with Golden Helix GenomeBrowse and SVSExploring DNA/RNA-Seq Analysis Results with Golden Helix GenomeBrowse and SVS
Exploring DNA/RNA-Seq Analysis Results with Golden Helix GenomeBrowse and SVS
Golden Helix Inc

Introduction to Web Apollo for the i5K pilot species.
Introduction to Web Apollo for the i5K pilot species.Introduction to Web Apollo for the i5K pilot species.
Introduction to Web Apollo for the i5K pilot species.
Monica Munoz-Torres

Plant functionalgenomics
Plant functionalgenomicsPlant functionalgenomics
Plant functionalgenomics
Clifford Stone

CROP GENOME SEQUENCING
CROP GENOME SEQUENCINGCROP GENOME SEQUENCING
CROP GENOME SEQUENCING
SABYASACHISAHU10

Forsharing cshl2011 sequencing
Forsharing cshl2011 sequencingForsharing cshl2011 sequencing
Forsharing cshl2011 sequencing
Sean Davis


Similar to Introduction to Apollo for i5k (20)

Apollo Collaborative genome annotation editing
Apollo Collaborative genome annotation editing Apollo Collaborative genome annotation editing
Apollo Collaborative genome annotation editing

Web Apollo Workshop University of Exeter
Web Apollo Workshop University of ExeterWeb Apollo Workshop University of Exeter
Web Apollo Workshop University of Exeter

Munoz torres web-apollo-workshop_exeter-2014_ss
Munoz torres web-apollo-workshop_exeter-2014_ssMunoz torres web-apollo-workshop_exeter-2014_ss
Munoz torres web-apollo-workshop_exeter-2014_ss

20150601 bio sb_assembly_course
20150601 bio sb_assembly_course20150601 bio sb_assembly_course
20150601 bio sb_assembly_course

Web Apollo Tutorial for the i5K copepod research community.
Web Apollo Tutorial for the i5K copepod research community.Web Apollo Tutorial for the i5K copepod research community.
Web Apollo Tutorial for the i5K copepod research community.

Structural annotation................pptx
Structural annotation................pptxStructural annotation................pptx
Structural annotation................pptx

Whole genome sequencing of bacteria & analysis
Whole genome sequencing of bacteria & analysisWhole genome sequencing of bacteria & analysis
Whole genome sequencing of bacteria & analysis

An introduction to Web Apollo for the Biomphalaria glabatra research community.
An introduction to Web Apollo for the Biomphalaria glabatra research community.An introduction to Web Apollo for the Biomphalaria glabatra research community.
An introduction to Web Apollo for the Biomphalaria glabatra research community.

Variant analysis and whole exome sequencing
Variant analysis and whole exome sequencingVariant analysis and whole exome sequencing
Variant analysis and whole exome sequencing

Web Apollo at Genome Informatics 2014
Web Apollo at Genome Informatics 2014Web Apollo at Genome Informatics 2014
Web Apollo at Genome Informatics 2014

Genome editing with engineered nucleases
Genome editing with engineered nucleasesGenome editing with engineered nucleases
Genome editing with engineered nucleases

Bioinformatics.Practical Notebook
Bioinformatics.Practical NotebookBioinformatics.Practical Notebook
Bioinformatics.Practical Notebook

Apollo Workshop AGS2017 Introduction
Apollo Workshop AGS2017 IntroductionApollo Workshop AGS2017 Introduction
Apollo Workshop AGS2017 Introduction

Understanding Genome
Understanding Genome Understanding Genome
Understanding Genome

Dgaston dec-06-2012
Dgaston dec-06-2012Dgaston dec-06-2012
Dgaston dec-06-2012

Exploring DNA/RNA-Seq Analysis Results with Golden Helix GenomeBrowse and SVS
Exploring DNA/RNA-Seq Analysis Results with Golden Helix GenomeBrowse and SVSExploring DNA/RNA-Seq Analysis Results with Golden Helix GenomeBrowse and SVS
Exploring DNA/RNA-Seq Analysis Results with Golden Helix GenomeBrowse and SVS

Introduction to Web Apollo for the i5K pilot species.
Introduction to Web Apollo for the i5K pilot species.Introduction to Web Apollo for the i5K pilot species.
Introduction to Web Apollo for the i5K pilot species.

Plant functionalgenomics
Plant functionalgenomicsPlant functionalgenomics
Plant functionalgenomics

CROP GENOME SEQUENCING
CROP GENOME SEQUENCINGCROP GENOME SEQUENCING
CROP GENOME SEQUENCING

Forsharing cshl2011 sequencing
Forsharing cshl2011 sequencingForsharing cshl2011 sequencing
Forsharing cshl2011 sequencing


More from Monica Munoz-Torres

Apollo Workshop AGS2017 Editing functionality
Apollo Workshop AGS2017 Editing functionalityApollo Workshop AGS2017 Editing functionality
Apollo Workshop AGS2017 Editing functionality
Monica Munoz-Torres

Apollo Exercises Kansas State University 2015
Apollo Exercises Kansas State University 2015Apollo Exercises Kansas State University 2015
Apollo Exercises Kansas State University 2015
Monica Munoz-Torres

Apollo annotation guidelines for i5k projects Diaphorina citri
Apollo annotation guidelines for i5k projects Diaphorina citriApollo annotation guidelines for i5k projects Diaphorina citri
Apollo annotation guidelines for i5k projects Diaphorina citri
Monica Munoz-Torres

JBrowse & Apollo Overview - for AGR
JBrowse & Apollo Overview - for AGRJBrowse & Apollo Overview - for AGR
JBrowse & Apollo Overview - for AGR
Monica Munoz-Torres

Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Monica Munoz-Torres

Gene Ontology Consortium: Website & COmmunity
Gene Ontology Consortium: Website & COmmunityGene Ontology Consortium: Website & COmmunity
Gene Ontology Consortium: Website & COmmunity
Monica Munoz-Torres

Essential Requirements for Community Annotation Tools
Essential Requirements for Community Annotation ToolsEssential Requirements for Community Annotation Tools
Essential Requirements for Community Annotation Tools
Monica Munoz-Torres

Data Visualization And Annotation Workshop at Biocuration 2015
Data Visualization And Annotation Workshop at Biocuration 2015Data Visualization And Annotation Workshop at Biocuration 2015
Data Visualization And Annotation Workshop at Biocuration 2015
Monica Munoz-Torres

Apollo: developers call 2015-02-05
Apollo: developers call 2015-02-05Apollo: developers call 2015-02-05
Apollo: developers call 2015-02-05
Monica Munoz-Torres

Apollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Apollo and i5K: Collaborative Curation and Interactive Analysis of GenomesApollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Apollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Monica Munoz-Torres


More from Monica Munoz-Torres (10)

Apollo Workshop AGS2017 Editing functionality
Apollo Workshop AGS2017 Editing functionalityApollo Workshop AGS2017 Editing functionality
Apollo Workshop AGS2017 Editing functionality

Apollo Exercises Kansas State University 2015
Apollo Exercises Kansas State University 2015Apollo Exercises Kansas State University 2015
Apollo Exercises Kansas State University 2015

Apollo annotation guidelines for i5k projects Diaphorina citri
Apollo annotation guidelines for i5k projects Diaphorina citriApollo annotation guidelines for i5k projects Diaphorina citri
Apollo annotation guidelines for i5k projects Diaphorina citri

JBrowse & Apollo Overview - for AGR
JBrowse & Apollo Overview - for AGRJBrowse & Apollo Overview - for AGR
JBrowse & Apollo Overview - for AGR

Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...
Apollo Genome Annotation Editor: Latest Updates, Including New Galaxy Integra...

Gene Ontology Consortium: Website & COmmunity
Gene Ontology Consortium: Website & COmmunityGene Ontology Consortium: Website & COmmunity
Gene Ontology Consortium: Website & COmmunity

Essential Requirements for Community Annotation Tools
Essential Requirements for Community Annotation ToolsEssential Requirements for Community Annotation Tools
Essential Requirements for Community Annotation Tools

Data Visualization And Annotation Workshop at Biocuration 2015
Data Visualization And Annotation Workshop at Biocuration 2015Data Visualization And Annotation Workshop at Biocuration 2015
Data Visualization And Annotation Workshop at Biocuration 2015

Apollo: developers call 2015-02-05
Apollo: developers call 2015-02-05Apollo: developers call 2015-02-05
Apollo: developers call 2015-02-05

Apollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Apollo and i5K: Collaborative Curation and Interactive Analysis of GenomesApollo and i5K: Collaborative Curation and Interactive Analysis of Genomes
Apollo and i5K: Collaborative Curation and Interactive Analysis of Genomes


Recently uploaded

Lunar Mobility Drivers and Needs - Artemis
Lunar Mobility Drivers and Needs - ArtemisLunar Mobility Drivers and Needs - Artemis
Lunar Mobility Drivers and Needs - Artemis
Sérgio Sacani

ANTIGENS_.pptx ( Ranjitha SL) PRESENTATION SLIDE
ANTIGENS_.pptx ( Ranjitha SL) PRESENTATION SLIDEANTIGENS_.pptx ( Ranjitha SL) PRESENTATION SLIDE
ANTIGENS_.pptx ( Ranjitha SL) PRESENTATION SLIDE
RanjithaSL

2. Osmotic pressure, osmotic potential, turgor pressure, wall pressure, water...
2. Osmotic pressure, osmotic potential, turgor pressure, wall pressure, water...2. Osmotic pressure, osmotic potential, turgor pressure, wall pressure, water...
2. Osmotic pressure, osmotic potential, turgor pressure, wall pressure, water...
khadija07kubra

Adjusted NuGOweek 2024 Ghent programme flyer
Adjusted NuGOweek 2024 Ghent programme flyerAdjusted NuGOweek 2024 Ghent programme flyer
Adjusted NuGOweek 2024 Ghent programme flyer
pablovgd

Introduction to Artificial Intelligence.pdf
Introduction to Artificial Intelligence.pdfIntroduction to Artificial Intelligence.pdf
Introduction to Artificial Intelligence.pdf
kaavyashreegoskula

Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdfGametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
SELF-EXPLANATORY

Computer aided biopharmaceutical characterization
Computer aided biopharmaceutical characterizationComputer aided biopharmaceutical characterization
Computer aided biopharmaceutical characterization
souravpaul769171

MCQ in Electrostatics. for class XII pptx
MCQ in Electrostatics. for class XII  pptxMCQ in Electrostatics. for class XII  pptx
MCQ in Electrostatics. for class XII pptx
ArunachalamM22

Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Sérgio Sacani

GIT hormones- II_12345677809876543235780963.pptx
GIT hormones- II_12345677809876543235780963.pptxGIT hormones- II_12345677809876543235780963.pptx
GIT hormones- II_12345677809876543235780963.pptx
muralinath2

20240710 ACMJ Diagrams Set 3.docx . Apache, Csharp, Mysql, Javascript stack a...
20240710 ACMJ Diagrams Set 3.docx . Apache, Csharp, Mysql, Javascript stack a...20240710 ACMJ Diagrams Set 3.docx . Apache, Csharp, Mysql, Javascript stack a...
20240710 ACMJ Diagrams Set 3.docx . Apache, Csharp, Mysql, Javascript stack a...
Sharon Liu

Summer program introduction in Yunnan university
Summer program introduction in Yunnan universitySummer program introduction in Yunnan university
Summer program introduction in Yunnan university
Hayato Shimabukuro

Modelling, Simulation, and Computer-aided Design in Computational, Evolutiona...
Modelling, Simulation, and Computer-aided Design in Computational, Evolutiona...Modelling, Simulation, and Computer-aided Design in Computational, Evolutiona...
Modelling, Simulation, and Computer-aided Design in Computational, Evolutiona...
University of Maribor

[1] Data Mining - Concepts and Techniques (3rd Ed).pdf
[1] Data Mining - Concepts and Techniques (3rd Ed).pdf[1] Data Mining - Concepts and Techniques (3rd Ed).pdf
[1] Data Mining - Concepts and Techniques (3rd Ed).pdf
PANDURANGLAWATE1

Deploying DAPHNE Computational Intelligence on EuroHPC Vega for Benchmarking ...
Deploying DAPHNE Computational Intelligence on EuroHPC Vega for Benchmarking ...Deploying DAPHNE Computational Intelligence on EuroHPC Vega for Benchmarking ...
Deploying DAPHNE Computational Intelligence on EuroHPC Vega for Benchmarking ...
University of Maribor

A slightly oblate dark matter halo revealed by a retrograde precessing Galact...
A slightly oblate dark matter halo revealed by a retrograde precessing Galact...A slightly oblate dark matter halo revealed by a retrograde precessing Galact...
A slightly oblate dark matter halo revealed by a retrograde precessing Galact...
Sérgio Sacani

Bragg Brentano Alignment for D4 with LynxEye Rev3.pptx
Bragg Brentano Alignment for D4 with LynxEye Rev3.pptxBragg Brentano Alignment for D4 with LynxEye Rev3.pptx
Bragg Brentano Alignment for D4 with LynxEye Rev3.pptx
Lisandro Cunci

PART 1 & PART 2 The New Natural Principles of Newtonian Mechanics, Electromec...
PART 1 & PART 2 The New Natural Principles of Newtonian Mechanics, Electromec...PART 1 & PART 2 The New Natural Principles of Newtonian Mechanics, Electromec...
PART 1 & PART 2 The New Natural Principles of Newtonian Mechanics, Electromec...
Thane Heins

smallintestinedisorders-causessymptoms-240626051934-b669b27d.pptx
smallintestinedisorders-causessymptoms-240626051934-b669b27d.pptxsmallintestinedisorders-causessymptoms-240626051934-b669b27d.pptx
smallintestinedisorders-causessymptoms-240626051934-b669b27d.pptx
muralinath2

Phytoremediation: Harnessing Nature's Power with Phytoremediation
Phytoremediation: Harnessing Nature's Power with PhytoremediationPhytoremediation: Harnessing Nature's Power with Phytoremediation
Phytoremediation: Harnessing Nature's Power with Phytoremediation
Gurjant Singh


Recently uploaded (20)

Lunar Mobility Drivers and Needs - Artemis
Lunar Mobility Drivers and Needs - ArtemisLunar Mobility Drivers and Needs - Artemis
Lunar Mobility Drivers and Needs - Artemis

ANTIGENS_.pptx ( Ranjitha SL) PRESENTATION SLIDE
ANTIGENS_.pptx ( Ranjitha SL) PRESENTATION SLIDEANTIGENS_.pptx ( Ranjitha SL) PRESENTATION SLIDE
ANTIGENS_.pptx ( Ranjitha SL) PRESENTATION SLIDE

2. Osmotic pressure, osmotic potential, turgor pressure, wall pressure, water...
2. Osmotic pressure, osmotic potential, turgor pressure, wall pressure, water...2. Osmotic pressure, osmotic potential, turgor pressure, wall pressure, water...
2. Osmotic pressure, osmotic potential, turgor pressure, wall pressure, water...

Adjusted NuGOweek 2024 Ghent programme flyer
Adjusted NuGOweek 2024 Ghent programme flyerAdjusted NuGOweek 2024 Ghent programme flyer
Adjusted NuGOweek 2024 Ghent programme flyer

Introduction to Artificial Intelligence.pdf
Introduction to Artificial Intelligence.pdfIntroduction to Artificial Intelligence.pdf
Introduction to Artificial Intelligence.pdf

Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdfGametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdf

Computer aided biopharmaceutical characterization
Computer aided biopharmaceutical characterizationComputer aided biopharmaceutical characterization
Computer aided biopharmaceutical characterization

MCQ in Electrostatics. for class XII pptx
MCQ in Electrostatics. for class XII  pptxMCQ in Electrostatics. for class XII  pptx
MCQ in Electrostatics. for class XII pptx

Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...

GIT hormones- II_12345677809876543235780963.pptx
GIT hormones- II_12345677809876543235780963.pptxGIT hormones- II_12345677809876543235780963.pptx
GIT hormones- II_12345677809876543235780963.pptx

20240710 ACMJ Diagrams Set 3.docx . Apache, Csharp, Mysql, Javascript stack a...
20240710 ACMJ Diagrams Set 3.docx . Apache, Csharp, Mysql, Javascript stack a...20240710 ACMJ Diagrams Set 3.docx . Apache, Csharp, Mysql, Javascript stack a...
20240710 ACMJ Diagrams Set 3.docx . Apache, Csharp, Mysql, Javascript stack a...

Summer program introduction in Yunnan university
Summer program introduction in Yunnan universitySummer program introduction in Yunnan university
Summer program introduction in Yunnan university

Modelling, Simulation, and Computer-aided Design in Computational, Evolutiona...
Modelling, Simulation, and Computer-aided Design in Computational, Evolutiona...Modelling, Simulation, and Computer-aided Design in Computational, Evolutiona...
Modelling, Simulation, and Computer-aided Design in Computational, Evolutiona...

[1] Data Mining - Concepts and Techniques (3rd Ed).pdf
[1] Data Mining - Concepts and Techniques (3rd Ed).pdf[1] Data Mining - Concepts and Techniques (3rd Ed).pdf
[1] Data Mining - Concepts and Techniques (3rd Ed).pdf

Deploying DAPHNE Computational Intelligence on EuroHPC Vega for Benchmarking ...
Deploying DAPHNE Computational Intelligence on EuroHPC Vega for Benchmarking ...Deploying DAPHNE Computational Intelligence on EuroHPC Vega for Benchmarking ...
Deploying DAPHNE Computational Intelligence on EuroHPC Vega for Benchmarking ...

A slightly oblate dark matter halo revealed by a retrograde precessing Galact...
A slightly oblate dark matter halo revealed by a retrograde precessing Galact...A slightly oblate dark matter halo revealed by a retrograde precessing Galact...
A slightly oblate dark matter halo revealed by a retrograde precessing Galact...

Bragg Brentano Alignment for D4 with LynxEye Rev3.pptx
Bragg Brentano Alignment for D4 with LynxEye Rev3.pptxBragg Brentano Alignment for D4 with LynxEye Rev3.pptx
Bragg Brentano Alignment for D4 with LynxEye Rev3.pptx

PART 1 & PART 2 The New Natural Principles of Newtonian Mechanics, Electromec...
PART 1 & PART 2 The New Natural Principles of Newtonian Mechanics, Electromec...PART 1 & PART 2 The New Natural Principles of Newtonian Mechanics, Electromec...
PART 1 & PART 2 The New Natural Principles of Newtonian Mechanics, Electromec...

smallintestinedisorders-causessymptoms-240626051934-b669b27d.pptx
smallintestinedisorders-causessymptoms-240626051934-b669b27d.pptxsmallintestinedisorders-causessymptoms-240626051934-b669b27d.pptx
smallintestinedisorders-causessymptoms-240626051934-b669b27d.pptx

Phytoremediation: Harnessing Nature's Power with Phytoremediation
Phytoremediation: Harnessing Nature's Power with PhytoremediationPhytoremediation: Harnessing Nature's Power with Phytoremediation
Phytoremediation: Harnessing Nature's Power with Phytoremediation


Introduction to Apollo for i5k

  • 1. Introduction to Apollo Collaborative genome annotation editing A webinar for the i5K Research Community - Hemiptera Monica Munoz-Torres | @monimunozto Berkeley Bioinformatics Open-Source Projects (BBOP) Environmental Genomics & Systems Biology Division, Lawrence Berkeley National Laboratory i5k Pilot Project Species Calls | 9 February, 2016 http://GenomeArchitect.org
  • 2. Outline •  Today you will discover effective ways to extract valuable information about a genome through curation efforts. Apollo  Collabora've  Cura'on  and     Interac've  Analysis  of  Genomes
  • 3. After this talk you will... •  Better understand ‘curation’ in the context of genome annotation: assembled genome à automated annotation à manual annotation •  Become familiar with Apollo’s environment and functionality. •  Learn to identify homologs of known genes of interest in your newly sequenced genome. •  Learn how to corroborate and modify automatically annotated gene models using all available evidence in Apollo.
  • 4. Experimental design, sampling. Comparative analyses Official / Merged Gene Set Manual Annotation Automated Annotation Sequencing Assembly Synthesis & dissemination. This is our focus.
  • 5. We must care about curation Marbach et al. 2011. Nature Methods | Shutterstock.com | Alexander Wild The gene set of an organism informs a variety of studies: •  Characterization: Gene number, GC%, TEs, repeats. •  Functional assignments. •  Molecular evolution, sequence conservation. •  Gene families. •  Metabolic pathways. •  What makes an organism what it is? What makes a bee a “bee”?
  • 6. Genome Curation Identifies elements that best represent the underlying biology and eliminates elements that reflect systemic errors of automated analyses. Assigns function through comparative analysis of similar genome elements from closely related species using literature, databases, and experimental data. Apollo Gene Ontology Resources
  • 7. A few things to remember
 when conducting manual annotation To  remember…  Biological  concepts  to  be;er   understand  manual  annota'on   7BIO-REFRESHER •  KEEP  A  GLOSSARY  HANDY     from  con$g  to  splice  site     •  WHAT  IS  A  GENE?   defining  your  goal   •  TRANSCRIPTION   mRNA  in  detail     •  TRANSLATION   reading  frames,  etc.   •  GENOME  CURATION   steps  involved
  • 8. The gene: a “moving target” “The gene is a union of genomic sequences encoding a coherent set of potentially overlapping functional products.” Gerstein et al., 2007. Genome Res
  • 9. 9 "Gene structure" by Daycd- Wikimedia Commons BIO-REFRESHER mRNA •  Although of brief existence, understanding mRNAs is crucial, as they will become the center of your work.
  • 10. 10BIO-REFRESHER Reading frames v  In eukaryotes, only one reading frame per section of DNA is biologically relevant at a time: it has the potential to be transcribed into RNA and translated into protein. This is called the OPEN READING FRAME (ORF) •  ORF = Start signal + coding sequence (divisible by 3) + Stop signal
  • 11. 11BIO-REFRESHER Splice sites v  The spliceosome catalyzes the removal of introns and the ligation of flanking exons. v  Splicing signals (from the point of view of an intron): •  One splice signal (site) on the 5’ end: usually GT (less common: GC) •  And a 3’ end splice site: usually AG •  Canonical splice sites look like this: …]5’-GT/AG-3’[…
  • 12. 12BIO-REFRESHER Exons and Introns v  Introns can interrupt the reading frame of a gene by inserting a sequence between two consecutive codons v  Between the first and second nucleotide of a codon v  Or between the second and third nucleotide of a codon "Exon and Intron classes”. Licensed under Fair use via Wikipedia
  • 14. 14GENE PREDICTION & ANNOTATION PREDICTION & ANNOTATION v  Iden'fica'on  and  annota'on  of  genome  features:     •  primarily  focuses  on  protein-­‐coding  genes.     •  also  iden'fies  RNAs  (tRNA,  rRNA,  long  and  small  non-­‐coding   RNAs  (ncRNA)),  regulatory  mo'fs,  repe''ve  elements,  etc.     •  happens  in  2  phases:   1.  Computa'on  phase     2.  Annota'on  phase
  • 15. 15GENE PREDICTION & ANNOTATION COMPUTATION PHASE a.  Experimental  data  are  aligned  to  the  genome:  expressed  sequence  tags,   RNA-­‐sequencing  reads,  proteins  (also  from  other  species).             b.  Gene  predic;ons  are  generated:      -­‐  ab  ini$o:  based  on  nucleo'de  sequence  and  composi'on    e.g.  Augustus,  GENSCAN,  geneid,  fgenesh,  etc.    -­‐  evidence-­‐driven:  iden'fying  also  domains  and  mo'fs    e.g.  SGP2,  JAMg,  fgenesh++,  etc.       Result:  the  single  most  likely  coding  sequence,  no  UTRs,  no  isoforms.   Yandell & Ence. Nature Rev 2012 doi:10.1038/nrg3174
  • 16. 16GENE PREDICTION & ANNOTATION ANNOTATION PHASE Experimental  data  (evidence)  and  predic'ons  are  synthe'zed  into  gene   annota'ons.     Result:  gene  models  that  generally  include  UTRs,  isoforms,  evidence  trails.   Yandell & Ence. Nature Rev 2012 doi:10.1038/nrg3174 5’  UTR   3’  UTR
  • 17. 17 In  some  cases  algorithms  and  metrics  used  to  generate   consensus  sets  may  actually  reduce  the  accuracy  of  the  gene’s   representa'on.   CONSENSUS GENE SETS Gene  models  may  be  organized  into  sets  using:   v  combiners  for  automa'c  integra'on  of  predicted  sets     e.g:  GLEAN,  EvidenceModeler   or   v  tools  packaged  into  pipelines   e.g:  MAKER,  PASA,  Gnomon,  Ensembl,  etc.   GENE PREDICTION & ANNOTATION
  • 18. ANNOTATION
 needs some refinement No one is perfect, least of all automated annotation. 18 New  technologies  bring  new  challenges:     •  Assembly  errors  can  cause  fragmented   annota'ons   •  Limited  coverage  makes  precise   iden'fica'on  a  difficult  task   Image: www.BroadInstitute.org
  • 19. MANUAL ANNOTATION
 improving predictions Precise  elucida;on  of  biological  features   encoded  in  the  genome  requires  careful   examina;on  and  review.     Schiex  et  al.  Nucleic  Acids  2003  (31)  13:  3738-­‐3741   Automated Predictions Experimental Evidence Manual Annotation – to the rescue. 19 cDNAs,  HMM  domain  searches,  RNAseq,   genes  from  other  species.
  • 20. GENOME CURATION
 an inherently collaborative task GENE PREDICTION & ANNOTATION 20 So  many  sequences,  not  enough  hands.   Apis  mellifera  |  Alexander  Wild  |  www.alexanderwild.com
  • 21. We have provided continuous training and support for hundreds of geographically dispersed scientists to conduct manual annotations efforts in order to recover coding sequences in agreement with all available biological evidence. 21 Lessons learned APOLLO •  Collaborative work distills invaluable knowledge. •  A little training goes a long way! Wet lab scientists can easily learn to maximize the generation of accurate, biologically supported gene models.
  • 23. APOLLO: versatile genome annotation editing •  Apollo is a web-based genome annotation editor, integrated with JBrowse •  Supports real time collaboration & generates analysis-ready data USER-CREATED ANNOTATIONS EVIDENCE TRACKS ANNOTATOR PANEL
  • 24. BECOMING ACQUAINTED WITH APOLLO 24 General process of curation 1.  Select  or  find  a  region  of  interest,  e.g.  scaffold.   2.  Select  appropriate  evidence  tracks  to  review  the  gene  model.   3.  Determine  whether  a  feature  in  an  exis'ng  evidence  track   will  provide  a  reasonable  gene  model  to  start  working.   4.  If  necessary,  adjust  the  gene  model.   5.  Check  your  edited  gene  model  for  integrity  and  accuracy  by   comparing  it  with  available  homologs.   6.  Comment  and  finish.
  • 25. Apollo - version at i5K Workspace@NAL 254. Becoming Acquainted with Web Apollo. 25 The  Sequence  Selec'on  Window
  • 26. Sort Apollo - version at i5K Workspace@NAL 26 “Old  Track  Select  Page”   4. Becoming Acquainted with Web Apollo. 26
  • 27. 27 APOLLO
 annotation editing environment BECOMING ACQUAINTED WITH APOLLO Color  by  CDS  frame,   toggle  strands,  set  color   scheme  and  highlights.   -­‐  Upload  evidence  files   (GFF3,  BAM,  BigWig),   -­‐  combina;on  track     -­‐  sequence  search  track   Query  the  genome  using   BLAT.   Naviga'on  and  zoom.   Search  for  a  gene   model  or  a  scaffold.   Get  coordinates  and  “rubber   band”  selec'on  for  zooming.   Login   User-­‐created   annota'ons.   New   annotator   panel.   Evidence   Tracks   Stage  and   cell-­‐type   specific   transcrip'on   data.    h;p://genomearchitect.org/web_apollo_user_guide
  • 28. 28 | 28 BECOMING ACQUAINTED WITH APOLLO USER NAVIGATION Annotator   panel.   •  Choose  appropriate  evidence  from  list  of  “Tracks”  on  annotator  panel.       •  Select  &  drag  elements  from  evidence  track  into  the  ‘User-­‐created  Annota$ons’  area.     •  Hovering  over  annota'on  in  progress  brings  up  an  informa'on  pop-­‐up.   •  Crea'ng  a  new  annota'on
  • 29. Adding a gene model
  • 30. Adding a gene model
  • 31. Adding a gene model
  • 33. Editing functionality Example: Adding an exon supported by experimental data •  RNAseq reads show evidence in support of a transcribed product that was not predicted. •  Add exon by dragging up one of the RNAseq reads.
  • 34. Editing functionality Example: Adjusting exon boundaries supported by experimental data
  • 36. 36 | 36 USER NAVIGATION BECOMING ACQUAINTED WITH APOLLO •  ‘Zoom  to  base  level’  reveals  the  DNA  Track.
  • 37. 37 | 37 USER NAVIGATION BECOMING ACQUAINTED WITH APOLLO •  Color  exons  by  CDS  from  the  ‘View’  menu.
  • 38. 38 | Zoom  in/out  with  keyboard:   shio  +  arrow  keys  up/down   38 USER NAVIGATION BECOMING ACQUAINTED WITH APOLLO •  Toggle  reference  DNA  sequence  and  transla;on  frames  in  forward   strand.  Toggle  models  in  either  direc'on.
  • 40. “Simple  case”:      -­‐  the  predicted  gene  model  is  correct  or  nearly  correct,  and      -­‐  this  model  is  supported  by  evidence  that  completely  or  mostly   agrees  with  the  predic'on.      -­‐  evidence  that  extends  beyond  the  predicted  model  is  assumed   to  be  non-­‐coding  sequence.       The  following  are  simple  modifica'ons.       40 ANNOTATING SIMPLE CASES BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
  • 41. •  A  confirma'on  box  will  warn  you  if  the  receiving  transcript  is  not  on  the   same  strand  as  the  feature  where  the  new  exon  originated.     •  Check  ‘Start’  and  ‘Stop’  signals  aoer  each  edit.   41 ADDING EXONS BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
  • 42. If  transcript  alignment  data  are  available  &  extend  beyond  your  original  annota'on,     you  may  extend  or  add  UTRs.     1.  Right  click  at  the  exon  edge  and  ‘Zoom  to  base  level’.     2.  Place  the  cursor  over  the  edge  of  the  exon  un$l  it  becomes  a  black  arrow  then  click   and  drag  the  edge  of  the  exon  to  the  new  coordinate  posi'on  that  includes  the  UTR.     42 ADDING UTRs To  add  a  new  spliced  UTR  to  an  exis'ng     annota'on  also  follow  the  procedure  for  adding  an  exon.   BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
  • 43. To  modify  an  exon  boundary  and  match   data   in   the   evidence   tracks:   select   both   the   [offending]   exon   and   the   feature  with  the  expected  boundary,   then  right  click  on  the  annota'on  to   select  ‘Set  3’  end’  or  ‘Set  5’  end’  as   appropriate.     In  some  cases  all  the  data  may  disagree  with  the  annota'on,  in   other  cases  some  data  support  the  annota'on  and  some  of  the   data  support  one  or  more  alterna've  transcripts.  Try  to  annotate   as  many  alterna've  transcripts  as  are  well  supported  by  the  data.   43 MATCHING EXON BOUNDARY TO EVIDENCE BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
  • 44. Non-­‐canonical  splice  sites  flags.   Double  click:  selec'on  of   feature  and  sub-­‐features   Evidence  Tracks  Area   ‘User-­‐created  Annota$ons’  Track   Edge-­‐matching   Apollo’s  edi'ng  logic  (brain):     §  selects  longest  ORF  as  CDS   §  flags  non-­‐canonical  splice  sites   44 ORFs AND SPLICE SITES BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
  • 45. Non-­‐canonical  splices  are  indicated  by   an   orange   circle   with   a   white   exclama'on  point  inside,  placed  over   the  edge  of  the  offending  exon.     Canonical  splice  sites:   3’-­‐…exon]GA  /  TG[exon…-­‐5’   5’-­‐…exon]GT  /  AG[exon…-­‐3’   reverse  strand,  not  reverse-­‐complemented:   forward  strand   45 SPLICE SITES Zoom  to  review  non-­‐canonical   splice  site  warnings.  Although   these  may  not  always  have  to  be   corrected  (e.g  GC  donor),  they   should  be  flagged  with  a   comment.     Exon/intron  splice  site  error  warning   Curated  model   BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
  • 46. Apollo  calculates  the  longest  possible  open  reading   frame  (ORF)  that  includes  canonical  ‘Start’  and   ‘Stop’  signals  within  the  predicted  exons.     If  ‘Start’  appears  to  be  incorrect,  modify  it  by  selec'ng   an  in-­‐frame  ‘Start’  codon  further  up  or   downstream,  depending  on  evidence  (proteins,   RNAseq).       It  may  be  present  outside  the  predicted  gene   model,  within  a  region  supported  by  another   evidence  track.     In  very  rare  cases,  the  actual  ‘Start’  codon  may  be   non-­‐canonical  (non-­‐ATG).     46 ‘Start’ AND ‘Stop’ SITES BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
  • 47. 1.  Two  exons  from  different  tracks  sharing  the  same  start/end  coordinates   display  a  red  bar  to  indicate  matching  edges.   2.  Selec'ng  the  whole  annota'on  or  one  exon  at  a  'me,  use  this  edge-­‐ matching  func'on  and  scroll  along  the  length  of  the  annota'on,   verifying  exon  boundaries  against  available  data.     Use  square  [  ]  brackets  to  scroll  from  exon  to  exon.   User  curly  {  }  brackets  to  scroll  from  annota'on  to  annota'on.   3.  Check  if  cDNA  /  RNAseq  reads  lack  one  or  more  of  the  annotated  exons   or  include  addi'onal  exons.     47 CHECKING EXON INTEGRITY BECOMING ACQUAINTED WITH APOLLO SIMPLE CASES
  • 49. Evidence  may  support  joining  two  or  more  different  gene  models.     Warning:  protein  alignments  may  have  incorrect  splice  sites  and  lack  non-­‐conserved  regions!     1.  In  ‘User-­‐created  Annota<ons’  area  shio-­‐click  to  select  an  intron  from  each  gene  model  and   right  click  to  select  the  ‘Merge’  op'on  from  the  menu.     2.  Drag  suppor'ng  evidence  tracks  over  the  candidate  models  to  corroborate  overlap,  or   review  edge  matching  and  coverage  across  models.   3.  Check  the  resul'ng  transla'on  by  querying  a  protein  database  e.g.  UniProt,  NCBI  nr.  Add   comments  to  record  that  this  annota'on  is  the  result  of  a  merge.   49 Red  lines  around  exons:   ‘edge-­‐matching’  allows  annotators  to  confirm  whether  the   evidence  is  in  agreement  without  examining  each  exon  at  the   base  level.   COMPLEX CASES merge two gene predictions on the same scaffold BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
  • 50. One  or  more  splits  may  be  recommended  when:     -­‐  different  segments  of  the  predicted  protein  align  to  two  or  more  different   gene  families     -­‐  predicted  protein  doesn’t  align  to  known  proteins  over  its  en're  length   -­‐  Transcript  data  may  support  a  split,  but  first  verify  whether  they  are   alterna've  transcripts.     50 COMPLEX CASES split a gene prediction BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
  • 51. DNA  Track   ‘User-­‐created  Annota;ons’  Track   51 COMPLEX CASES annotate frameshifts and correct single-base errors Always  remember:  when  annota'ng  gene  models  using  Apollo,  you  are  looking  at  a  ‘frozen’  version  of   the  genome  assembly  and  you  will  not  be  able  to  modify  the  assembly  itself.   BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
  • 52. 52 COMPLEX CASES correcting selenocysteine containing proteins BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
  • 53. 53 COMPLEX CASES correcting selenocysteine containing proteins BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
  • 54. 1.  Apollo  allows  annotators  to  make  single  base  modifica'ons  or  frameshios  that  are  reflected  in   the  sequence  and  structure  of  any  transcripts  overlapping  the  modifica'on.  These   manipula'ons  do  NOT  change  the  underlying  genomic  sequence.     2.  If  you  determine  that  you  need  to  make  one  of  these  changes,  zoom  in  to  the  nucleo'de  level   and  right  click  over  a  single  nucleo'de  on  the  genomic  sequence  to  access  a  menu  that   provides  op'ons  for  crea'ng  inser'ons,  dele'ons  or  subs'tu'ons.     3.  The  ‘Create  Genomic  Inser<on’  feature  will  require  you  to  enter  the  necessary  string  of   nucleo'de  residues  that  will  be  inserted  to  the  right  of  the  cursor’s  current  loca'on.  The   ‘Create  Genomic  Dele<on’  op'on  will  require  you  to  enter  the  length  of  the  dele'on,  star'ng   with  the  nucleo'de  where  the  cursor  is  posi'oned.  The  ‘Create  Genomic  Subs<tu<on’  feature   asks  for  the  string  of  nucleo'de  residues  that  will  replace  the  ones  on  the  DNA  track.   4.  Once  you  have  entered  the  modifica'ons,  Apollo  will  recalculate  the  corrected  transcript  and   protein  sequences,  which  will  appear  when  you  use  the  right-­‐click  menu  ‘Get  Sequence’   op'on.  Since  the  underlying  genomic  sequence  is  reflected  in  all  annota'ons  that  include  the   modified  region  you  should  alert  the  curators  of  your  organisms  database  using  the   ‘Comments’  sec'on  to  report  the  CDS  edits.     5.  In  special  cases  such  as  selenocysteine  containing  proteins  (read-­‐throughs),  right-­‐click  over  the   offending/premature  ‘Stop’  signal  and  choose  the  ‘Set  readthrough  stop  codon’  op'on  from   the  menu.     54 COMPLEX CASES annotating frameshifts and correcting single-base errors & selenocysteines BECOMING ACQUAINTED WITH APOLLO COMPLEX CASES
  • 55. 55 | 55 USER NAVIGATION BECOMING ACQUAINTED WITH APOLLO •  Information Editor
  • 56. 56 The  Annota'on  Informa;on  Editor   56 USER NAVIGATION BECOMING ACQUAINTED WITH APOLLO
  • 57. 57 The  Annota'on  Informa;on  Editor   •  Add  PubMed  IDs   •  Include  GO  terms  as  appropriate   from  any  of  the  three  ontologies   •  Write  comments  sta'ng  how  you   have  validated  each  model.   57 USER NAVIGATION BECOMING ACQUAINTED WITH APOLLO
  • 58. 58 | 58 USER NAVIGATION BECOMING ACQUAINTED WITH APOLLO •  Keeping track of each edit
  • 59. 59 Annota'ons,  annota'on  edits,  and  History:  stored  in  a  centralized  database.   59 USER NAVIGATION BECOMING ACQUAINTED WITH APOLLO
  • 60. Follow  the  checklist  un'l  you  are  happy  with  the  annota'on!   And  remember  to…   –  comment  to  validate  your  annota'on,  even  if  you  made  no  changes  to  an   exis'ng  model.  Think  of  comments  as  your  vote  of  confidence.     –  or  add  a  comment  to  inform  the  community  of  unresolved  issues  you   think  this  model  may  have.   60 | 60 Always  Remember:  Apollo  cura'on  is  a  community  effort  so  please   use  comments  to  communicate  the  reasons  for  your     annota'on.  Your  comments  will  be  visible  to  everyone.   COMPLETING THE ANNOTATION BECOMING ACQUAINTED WITH APOLLO
  • 62. •  Check  ‘Start’  and  ‘Stop’  sites.   •  Check    splice  sites:  most  splice  sites  display   these  residues  …]5’-­‐GT/AG-­‐3’[…   •  Check  if  you  can  annotate  UTRs,  for  example   using  RNA-­‐Seq  data:   – align  it  against  relevant  genes/gene  family   – blastp  against  NCBI’s  RefSeq  or  nr   •  Check  for  gaps  in  the  genome.   •  Addi'onal  func'onality  may  be  necessary:   – merging  2  gene  predic'ons  -­‐  same  scaffold   – merging  2  gene  predic'ons  -­‐  different   scaffolds     – spli`ng  a  gene  predic'on   – annota'ng  frameshias   – annota'ng  selenocysteines,  correc'ng   single-­‐base  and  other  assembly  errors,  etc.   62 | 62 •  Add:   –  Important  project  informa'on  in  the  form  of   comments   –  IDs  from  public  databases  e.g.  GenBank  (via   DBXRef),  gene  symbol(s),  common  name(s),   synonyms,  top  BLAST  hits,  orthologs  with   species  names,  and  everything  else  you  can   think  of,  because  you  are  the  expert.   –  Comments  about  the  kinds  of  changes  you   made  to  the  gene  model  of  interest,  if  any.     –  Any  appropriate  func'onal  assignments,  e.g.   via  BLAST,  RNA-­‐Seq  data,  literature  searches,   etc.   CHECKLIST for accuracy and integrity MANUAL ANNOTATION CHECKLIST
  • 64. 64i5K Workspace@NAL The collaborative curation process at i5k 1.  A  computa'onally  predicted  consensus  gene  set  has  been  generated   using  mul'ple  lines  of  evidence;  e.g.  HVIT_v0.5.3-­‐Models     2.  i5K  Projects  will  integrate  consensus  computa'onal  predic'ons  with   manual  annota'ons  to  produce  an  updated  Official  Gene  Set  (OGS):   Achtung!   •  If  it’s  not  on  either  track,  it  won’t  make  the  OGS!   •  If  it’s  there  and  it  shouldn’t,  it  will  s'll  make  the  OGS!
  • 65. 65 The ‘Replace Models’ rules 65 BECOMING ACQUAINTED WITH APOLLO http://tinyurl.com/apollo-i5k-replace
  • 66. 66i5K Workspace@NAL 3.  In  some  cases  algorithms  and  metrics  used  to  generate  consensus  sets   may  actually  reduce  the  accuracy  of  the  gene’s  representa'on.  Use  your   judgment,  try  choosing  a  different  model  to  begin  the  annota'on.   4.  Isoforms:  drag  original  and  alterna'vely  spliced  form  to  ‘User-­‐created   Annota<ons’  area.   5.  If  an  annota'on  needs  to  be  removed  from  the  consensus  set,  drag  it  to   the  ‘User-­‐created  Annota<ons’  area  and  label  as  ‘Delete’  on  the   Informa$on  Editor.   6.  Overlapping  interests?  Collaborate  to  reach  agreement.   7.  Follow  guidelines  for  i5K  Pilot  Species  Projects,  at  h;p://goo.gl/LRu1VY   The collaborative curation process at i5k
  • 68. What’s new?...
 finding inspiration in PubMed. Example 68 “Molecular analysis of bed bug populations from across the USA and Europe found that >80% and >95% of the respective populations contained V419L and/ or L925I mutations in the voltage-gated sodium channel gene, indicating widespread distribution of target-site-based pyrethroid resistance.” Homalodisca vitripennis | Alexander Wild | www.alexanderwild.comHalyomorpha halys | Fondazione Edmund Mach - Italy Now for our species of interest. . .
  • 69. Example Example 69  Cura'on  example  using  the  Hyalella  azteca   genome  (amphipod  crustacean).
  • 70. What do we know about this genome? •  Currently  publicly  available  data  at  NCBI:   •  >37,000    nucleo'de  seqsà  scaffolds,  mitochondrial  genes   •  344    amino  acid  seqsà  mitochondrion   •  47    ESTs   •  0      conserved  domains  iden'fied   •  0    “gene”  entries  submi;ed     •  Data  at  i5K  Workspace@NAL  (annota'on  hosted  at  USDA)     -­‐  10,832  scaffolds:  23,288  transcripts:  12,906  proteins   Example 70
  • 71. PubMed Search:
 what’s new? Example 71
  • 72. PubMed Search: what’s new? Example 72 “Ten  popula'ons  (3  cultures,  7  from  California  water   bodies)  differed  by  at  least  550-­‐fold  in  sensi;vity  to   pyrethroids.”     “By  sequencing  the  primary  pyrethroid  target  site,  the   voltage-­‐gated  sodium  channel  (vgsc),  we  show  that   point  muta'ons  and  their  spread  in  natural  popula'ons   were  responsible  for  differences  in  pyrethroid   sensi'vity.”   “The  finding  that  a  non-­‐target  aqua'c  species  has   acquired  resistance  to  pes'cides  used  only  on  terrestrial   pests  is  troubling  evidence  of  the  impact  of  chronic   pes;cide  transport  from  land-­‐based  applica'ons  into   aqua'c  systems.”
  • 73. How many sequences are there, publicly available, for our gene of interest? Example 73 •  Para,  (voltage-­‐gated  sodium  channel  alpha   subunit;  Nasonia  vitripennis).     •  NaCP60E  (Sodium  channel  protein  60  E;  D.   melanogaster).   –  MF:  voltage-­‐gated  ca'on  channel  ac'vity   (IDA,  GO:0022843).   –  BP:  olfactory  behavior  (IMP,  GO: 0042048),  sodium  ion  transmembrane   transport  (ISS,GO:0035725).   –  CC:  voltage-­‐gated  sodium  channel   complex  (IEA,  GO:0001518).   And  what  do  we  know  about  them?
  • 74. Retrieving sequences for a
 sequence similarity search. Example 74 >vgsc-­‐Segment3-­‐DomainII   RVFKLAKSWPTLNLLISIMGKTVGALGNLTFVLCIIIFIFAVMGMQLFGKNYTEKVTKFKWSQDG QMPRWNFVDFFHSFMIVFRVLCGEWIESMWDCMYVGDFSCVPFFLATVVIGNLVVSFMHR
  • 75. BLAT search

 input   Example 75 >vgsc-­‐Segment3-­‐DomainII   RVFKLAKSWPTLNLLISIMGKTVGALGNLTFVLCIIIFIFAVMGMQLFGKNYTEKVTKFKWSQDG QMPRWNFVDFFHSFMIVFRVLCGEWIESMWDCMYVGDFSCVPFFLATVVIGNLVVSFMHR
  • 76. BLAT search

 results   Example 76 •  High-­‐scoring  segment  pairs  (hsp)   are  listed  in  tabulated  format.   •  Clicking  on  one  line  of  results   sends  you  to  those  coordinates.
  • 77. BLAST at i5K
 heps://i5k.nal.usda.gov/blast Example 77 >vgsc-­‐Segment3-­‐DomainII   RVFKLAKSWPTLNLLISIMGKTVGALGNLTFVLCIIIFIFAVMGMQLFGKNYTEKVTKFKWSQDG QMPRWNFVDFFHSFMIVFRVLCGEWIESMWDCMYVGDFSCVPFFLATVVIGNLVVSFMHR
  • 78. BLAST at i5K
 heps://i5k.nal.usda.gov/blast   Example 78
  • 79. BLAST at i5K: hsps  in  “BLAST+  Results”  track   Example 79
  • 80. Creating a new gene model: drag and drop Example 80 •  Apollo  automa'cally  calculates  longest  ORF.     •  In  this  case,  ORF  includes  the  high-­‐scoring  segment  pairs  (hsp),   marked  here  in  blue.   •  Note  that  gene  is  transcribed  from  reverse  strand.
  • 83. Also, flanking sequences (other gene models) vs. NCBI nr Example 83 In  this  case,  two  gene   models  upstream,  at  5’   end.   BLAST  hsps
  • 84. Review alignments Example 84 HaztTmpM006234   HaztTmpM006233   HaztTmpM006232
  • 85. Hypothesis for vgsc gene model Example 85
  • 86. Editing: merge the three models Example 86 Merge  by  dropping  an   exon  or  gene  model   onto  another.   Merge  by  selec'ng   two  exons  (holding   down  “Shio”)  and   using  the  right  click   menu.   or…
  • 87. Result of merging the gene models: Example 87
  • 88. Editing: correct offending splice site Example 88 Modify  exon  /  intron   boundary:     -­‐  Drag  the  end  of  the   exon  to  the  nearest   canonical  splice  site.     or     -­‐  Use  right-­‐click  menu.
  • 89. Editing: set translation start Example 89
  • 90. Editing: delete exon not supported by evidence Example 90 Delete  first  exon  from   HaztTmpM006233
  • 91. Editing: add an exon supported by RNAseq Example 91 •  RNAseq  reads  show  evidence  in  support  of  transcribed  product,  which  was  not  predicted.   •  Add  exon  at  coordinates  97946-­‐98012  by  dragging  up  one  of  the  RNAseq  reads.
  • 92. Editing: adjust offending splice site using evidence Example 92
  • 93. Editing: adjust other boundaries supported by evidence Example 93
  • 94. Finished model Example 94 Corroborate  integrity  and  accuracy  of  the  model:     -­‐  Start  and  Stop   -­‐  Exon  structure  and  splice  sites  …]5’-­‐GT/AG-­‐3’[…   -­‐  Check  the  predicted  protein  product  vs.  NCBI  nr,  UniProt,  etc.
  • 95. Information Editor •  DBXRefs:  e.g.  NP_001128389.1,  N.   vitripennis,  RefSeq   •  PubMed  iden'fier:  PMID:  24065824   •  Gene  Ontology  IDs:  GO:0022843,  GO: 0042048,  GO:0035725,  GO:0001518.   •  Comments   •  Name,  Symbol   •  Approve  /  Delete  radio  bu;on   Example 95 Comments   (if  applicable)
  • 97. PUBLIC DEMO 97 | 97 APOLLO ON THE WEB
 instructions At  i5K   1.  Register  for  access  to  Apollo  at  the  i5K  Workspace@NAL  at   h;ps://i5k.nal.usda.gov/web-­‐apollo-­‐registra'on     2.  Contact  the  coordinator  for  each  species  community  to  receive   more  informa'on  about  how  to  contribute.  Contact  info  is  available   on  each  organism’s  page.
  • 98. PUBLIC DEMO 98 | 98 APOLLO ON THE WEB
 instructions Public  Honey  bee  demo  available  at:     h;p://GenomeArchitect.org/WebApolloDemo       Username:   demo@demo.com     Password:   demo
  • 99. APOLLO
 demonstration PUBLIC DEMO 99 Demonstra'on  video  is  available  at     h;ps://youtu.be/VgPtAP_fvxY
  • 100. OUTLINE
 Apollo  Collabora've  Cura'on  and     Interac've  Analysis  of  Genomes   100OUTLINE •  BIO-­‐REFRESHER   biological  concepts  for  cura'on   •  ANNOTATION   automa'c  predic'ons   •  MANUAL  ANNOTATION   necessary,  collabora've     •  APOLLO   advancing  collabora've  cura'on     •  EXAMPLE   demos
  • 101. Apollo Development Nathan Dunn Eric Yao Christine Elsik’s Lab, University of Missouri Suzi Lewis Principal Investigator BBOP Moni Munoz-Torres Colin DieshDeepak Unni JBrowse. Ian Holmes’ Lab University of California, Berkeley
  • 102. •  Berkeley Bioinformatics Open-source Projects (BBOP), Berkeley Lab: Apollo and Gene Ontology teams. Suzanna E. Lewis (PI). •  § Christine G. Elsik (PI). University of Missouri. •  * Ian Holmes (PI). University of California Berkeley. •  Arthropod genomics community & i5K Steering Committee. •  Stephen Ficklin, GenSAS, Washington State University •  Apollo is supported by NIH grants 5R01GM080203 from NIGMS, and 5R01HG004483 from NHGRI. Also supported by the Director, Office of Science, Office of Basic Energy Sciences, of the U.S. Department of Energy under Contract No. DE-AC02-05CH11231 •  For your attention, thank you! Apollo Nathan Dunn Colin Diesh § Deepak Unni § Gene Ontology Chris Mungall Seth Carbon Heiko Dietze BBOP Learn more about Apollo at http://GenomeArchitect.org Thank you! NAL at USDA Monica Poelchau Mei-Ju Chen Christopher Childers Gary Moore HGSC at BCM fringy Richards Kim Worley JBrowse Eric Yao *
