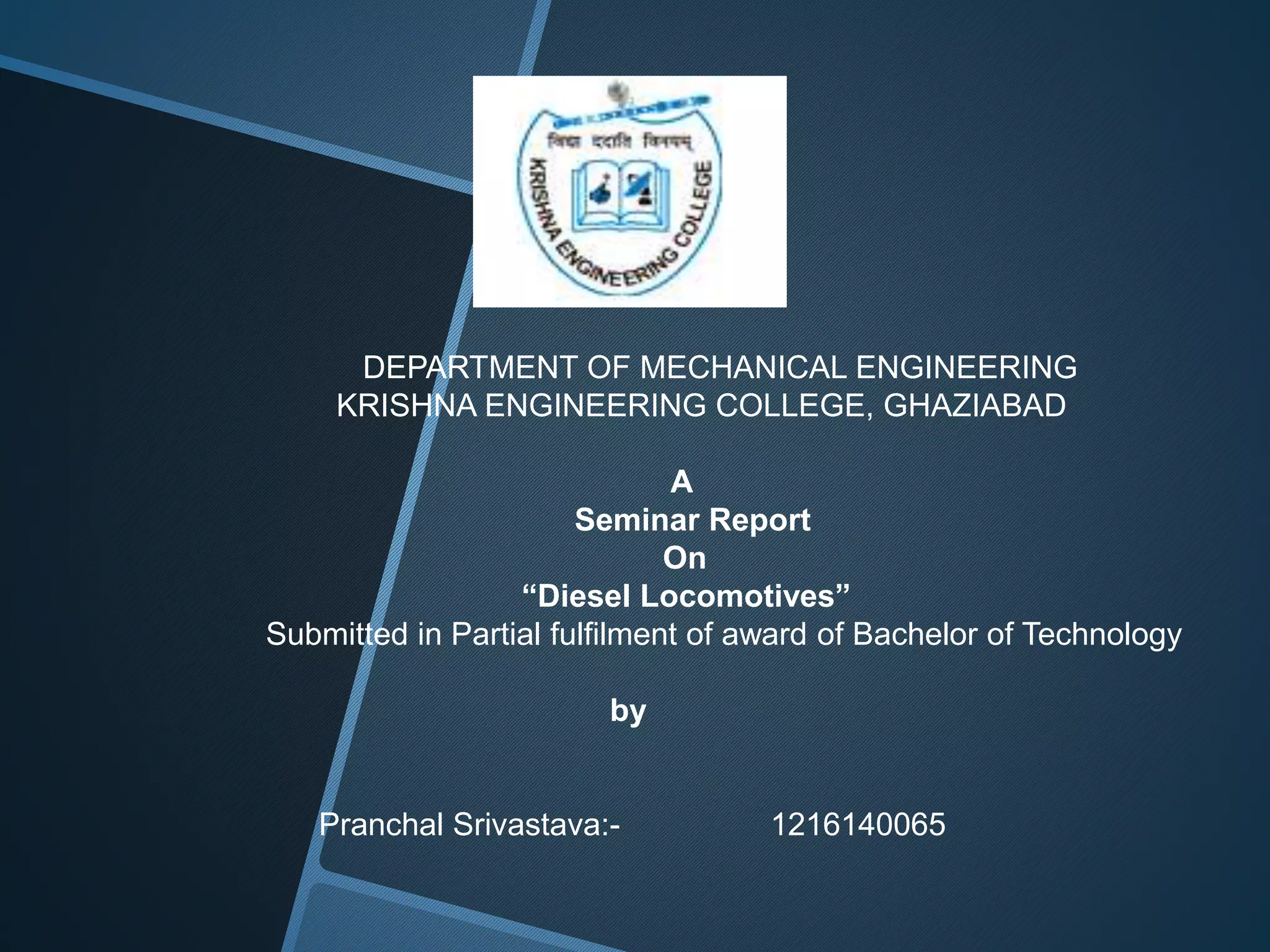

1. DEPARTMENT OF MECHANICAL ENGINEERING
KRISHNA ENGINEERING COLLEGE, GHAZIABAD
A
Seminar Report
On
“Diesel Locomotives”
Submitted in Partial fulfilment of award of Bachelor of Technology
by
Pranchal Srivastava:- 1216140065

3. INTRODUCTION
The locomotives of India presently consist of electric and diesel
locomotives
Diesel Locomotives are the locomotives that run on diesel as there
fuel. The diesel locomotives are in a wide range of use even though
being running of a non-renewable resource because of their power
capacity. The diesel locomotives are widely used goods as compared
to passenger use. The Diesel engines are used only for high altitude.
The Diesel Engines Were Previously Imported from United states of
America and Assembled in India. But After The setup Of Diesel
Locomotive Works (DLW), Varanasi They are Produced in here only.
Right Now there are produced in collaboration with Electromotive
Division (EMD) , An Subsidiary of General Motors

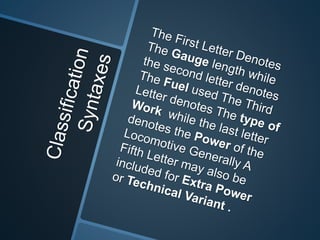

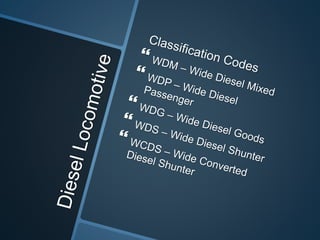

6. For Ex-
WDG4B
W- Wide Gauge
D- Diesel
G- Goods
4- 4000 HP
B- Extra 200HP

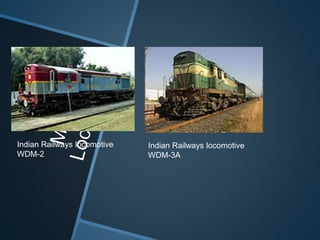

8. Indian Railways locomotive
WDM-2
Indian Railways locomotive
WDM-3A

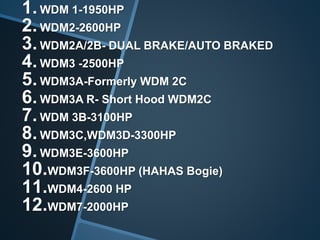

9. 1.WDM 1-1950HP
2.WDM2-2600HP
3.WDM2A/2B- DUAL BRAKE/AUTO BRAKED
4.WDM3 -2500HP
5.WDM3A-Formerly WDM 2C
6.WDM3A R- Short Hood WDM2C
7.WDM 3B-3100HP
8.WDM3C,WDM3D-3300HP
9.WDM3E-3600HP
10.WDM3F-3600HP (HAHAS Bogie)
11.WDM4-2600 HP
12.WDM7-2000HP

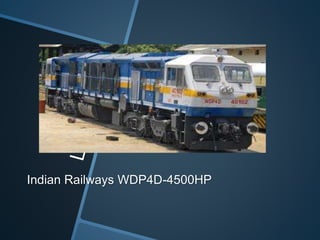

10. Indian Railways WDP4D-4500HP

11. 1.WDP1-2300HP
2.WDP2-3100HP
3.WDP3-2300HP(Prototype never produced)
4.WDP4-400HP
5.WDP4B-4500HP
6.WDP4D-4500HP (Dual Cabin)

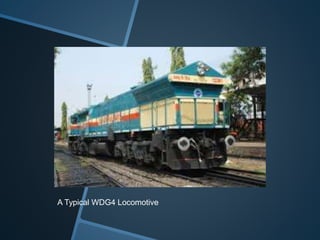

12. A Typical WDG4 Locomotive

13. 1.WDG2-3100HP
2.WDG3B,WDG3C-3100HP(Rebuilt WDG2)
3.WDG3D-3330HP
4.WDG4-4000HP
5.WDG4D-4500HP
6.WDG5-5500HP(Only One Produced )

14. Indian Railways Shunting locomotive WDS-4D

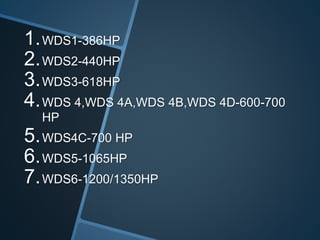

15. 1.WDS1-386HP
2.WDS2-440HP
3.WDS3-618HP
4.WDS 4,WDS 4A,WDS 4B,WDS 4D-600-700
HP
5.WDS4C-700 HP
6.WDS5-1065HP
7.WDS6-1200/1350HP

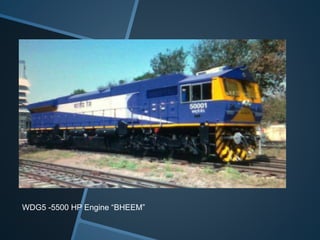

18. WDG5 -5500 HP Engine “BHEEM”

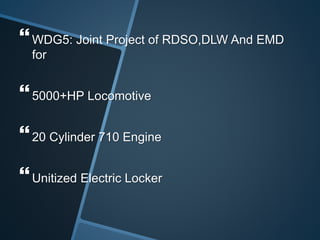

19. WDG5: Joint Project of RDSO,DLW And EMD
for
5000+HP Locomotive
20 Cylinder 710 Engine
Unitized Electric Locker

20.  Power- Diesel/Electric
 Builder- EMD and DLW
 Model – GT46MAC
 Wheels – Co-Co
 Gauge – 1676mm
 Length-2126mm
 Height-4110mm
 Axle Load – 67000lbf
 Loco Weight – 1260T
 Fuel Capacity – 6100L
 Engine type – 2 stroke
 Cylinder – 16
 Top Speed – 121kmph
 Tractive Effort – 540KN

22. Completed Engines Ready For Delivery (From Left-WDG4,WDP4,WDP4D,WDG4
