Project Frankenstein: A multitenant, horizontally scalable Prometheus as a service
Project Frankenstein aims to create a multi-tenant, scalable Prometheus-as-a-service solution, designed to meet specific requirements such as API compatibility, manageability, and high user capacity. The project has progressed with early design documents and a proof of concept that is reportedly scalable, but still has challenges such as limited query capabilities and potential hotspots in the system. The team is seeking feedback and is open to further development while also hiring for various positions.
More Related Content
Similar to Project Frankenstein: A multitenant, horizontally scalable Prometheus as a service
Project Frankenstein: A multitenant, horizontally scalable Prometheus as a service
- 1. Project Frankenstein A multi-tenant,horizontally scalable Prometheus as a Service Tom Wilkie (& Julius Volz) Weaveworks, September 2016

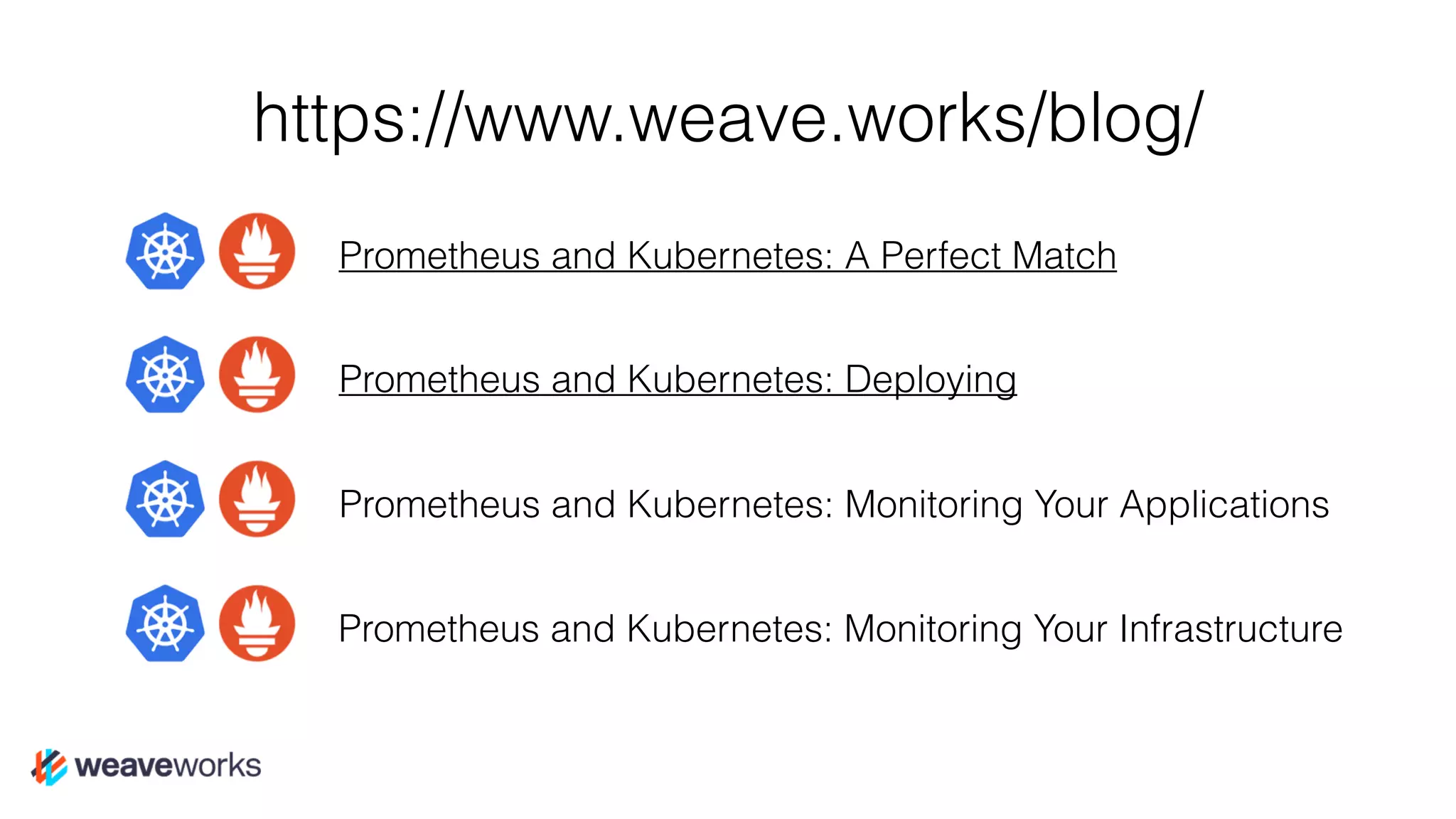

- 6. Prometheus and Kubernetes:A Perfect Match Prometheus and Kubernetes: Deploying https://www.weave.works/blog/ Prometheus and Kubernetes: Monitoring Your Applications Prometheus and Kubernetes: Monitoring Your Infrastructure
- 7.

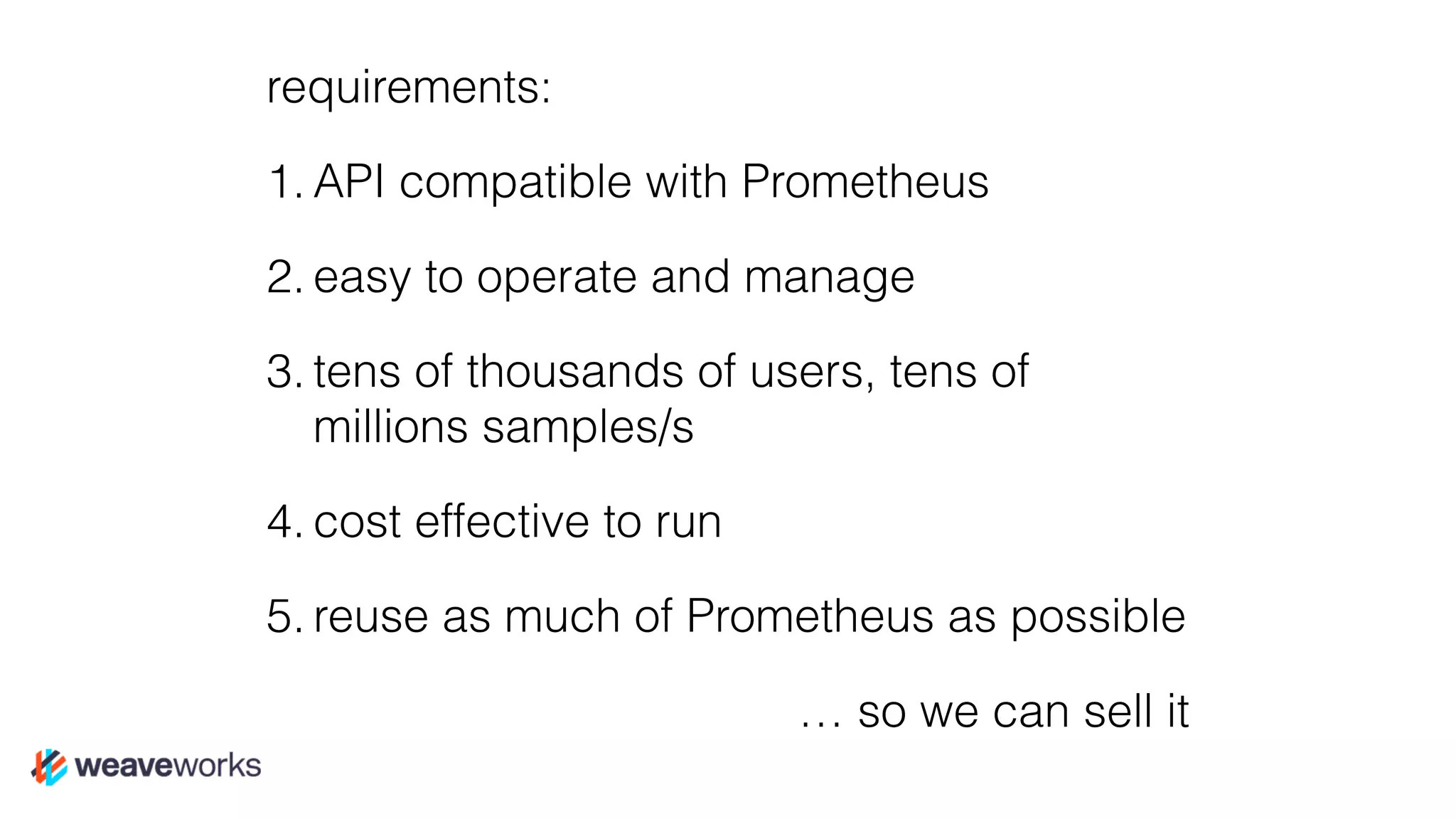

- 8. requirements: 1. API compatiblewith Prometheus 2. easy to operate and manage 3. tens of thousands of users, tens of millions samples/s 4. cost effective to run 5. reuse as much of Prometheus as possible … so we can sell it

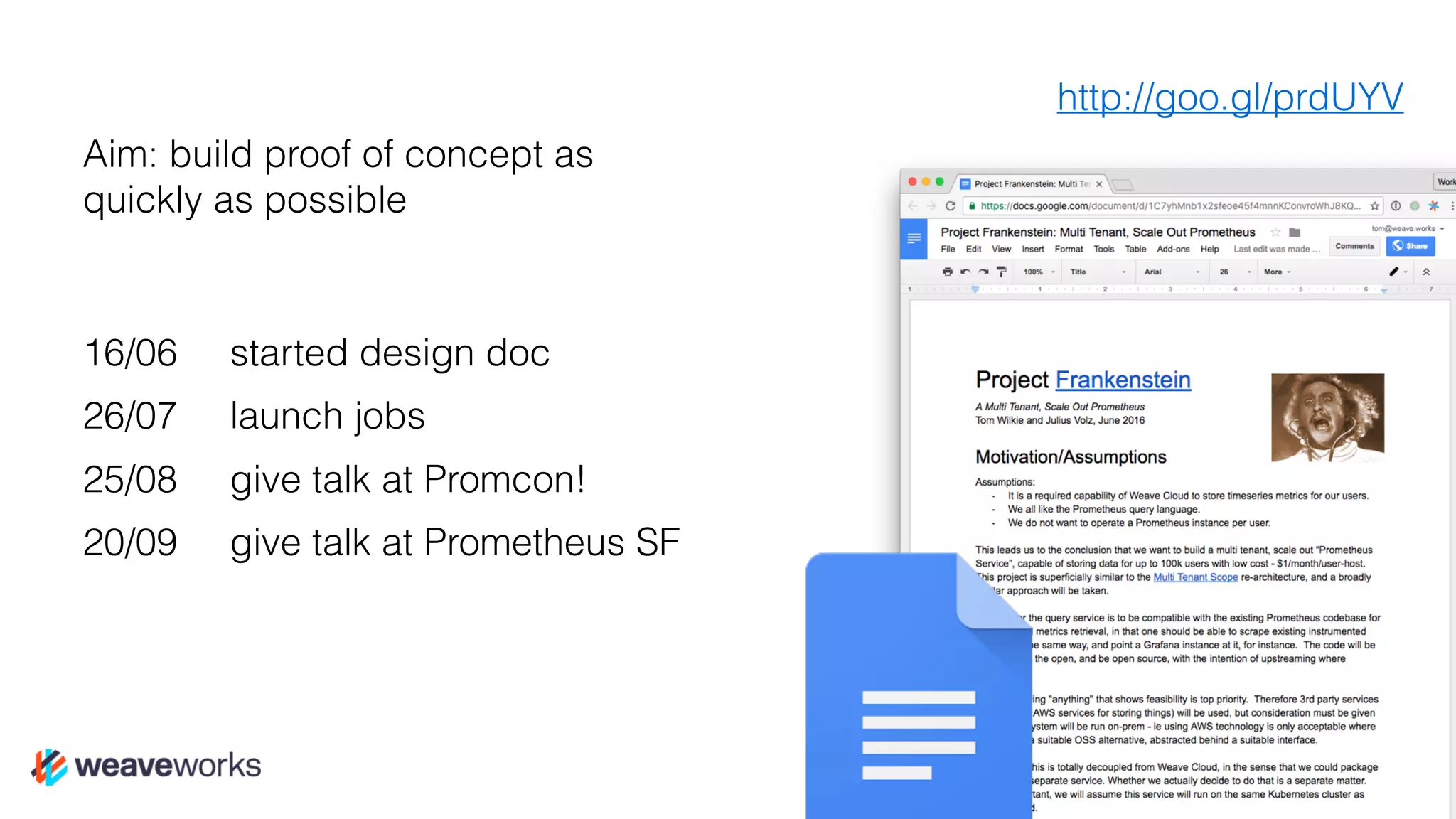

- 9. Aim: build proofof concept as quickly as possible 16/06 started design doc 26/07 launch jobs 25/08 give talk at Promcon! 20/09 give talk at Prometheus SF http://goo.gl/prdUYV

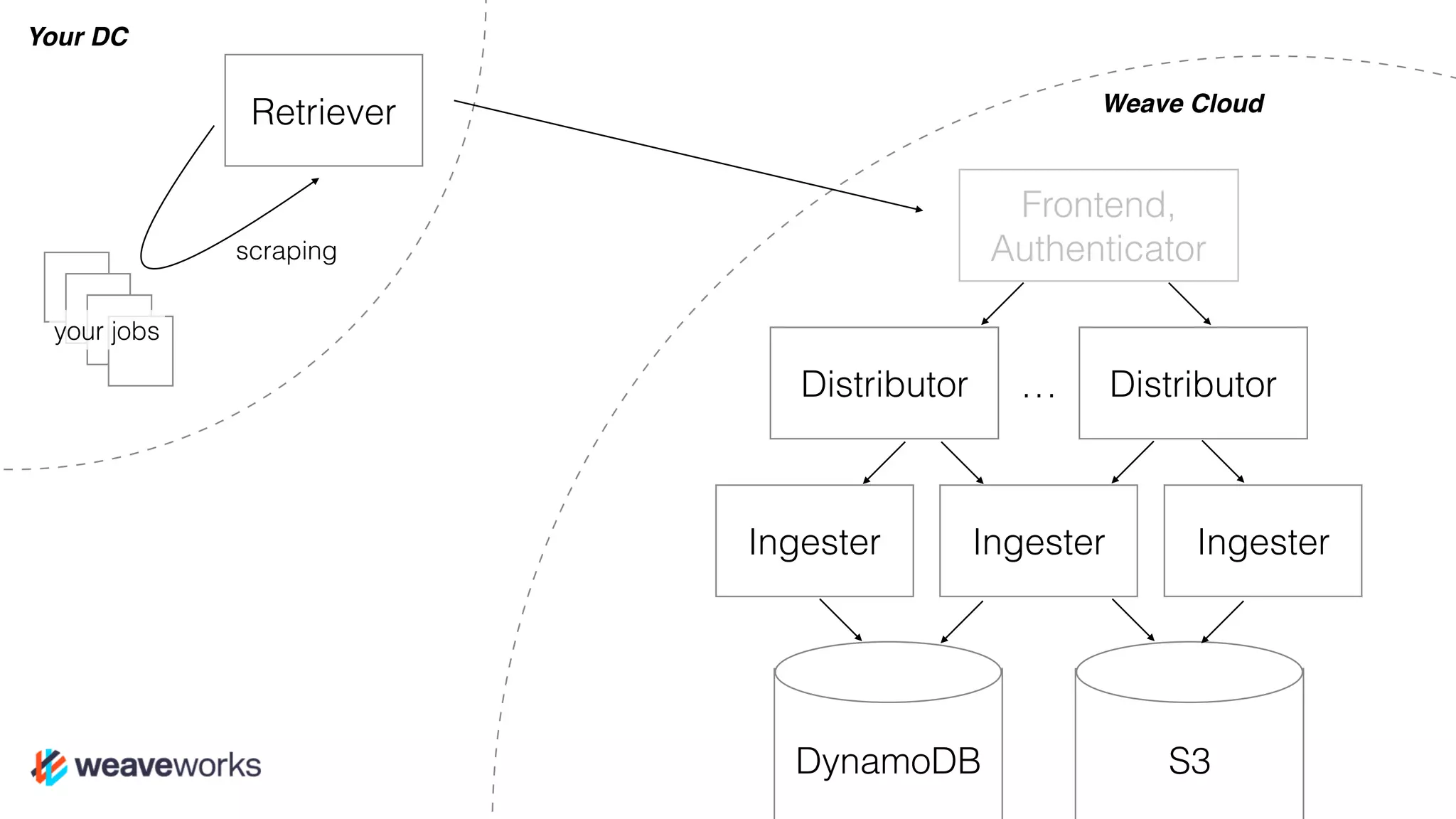

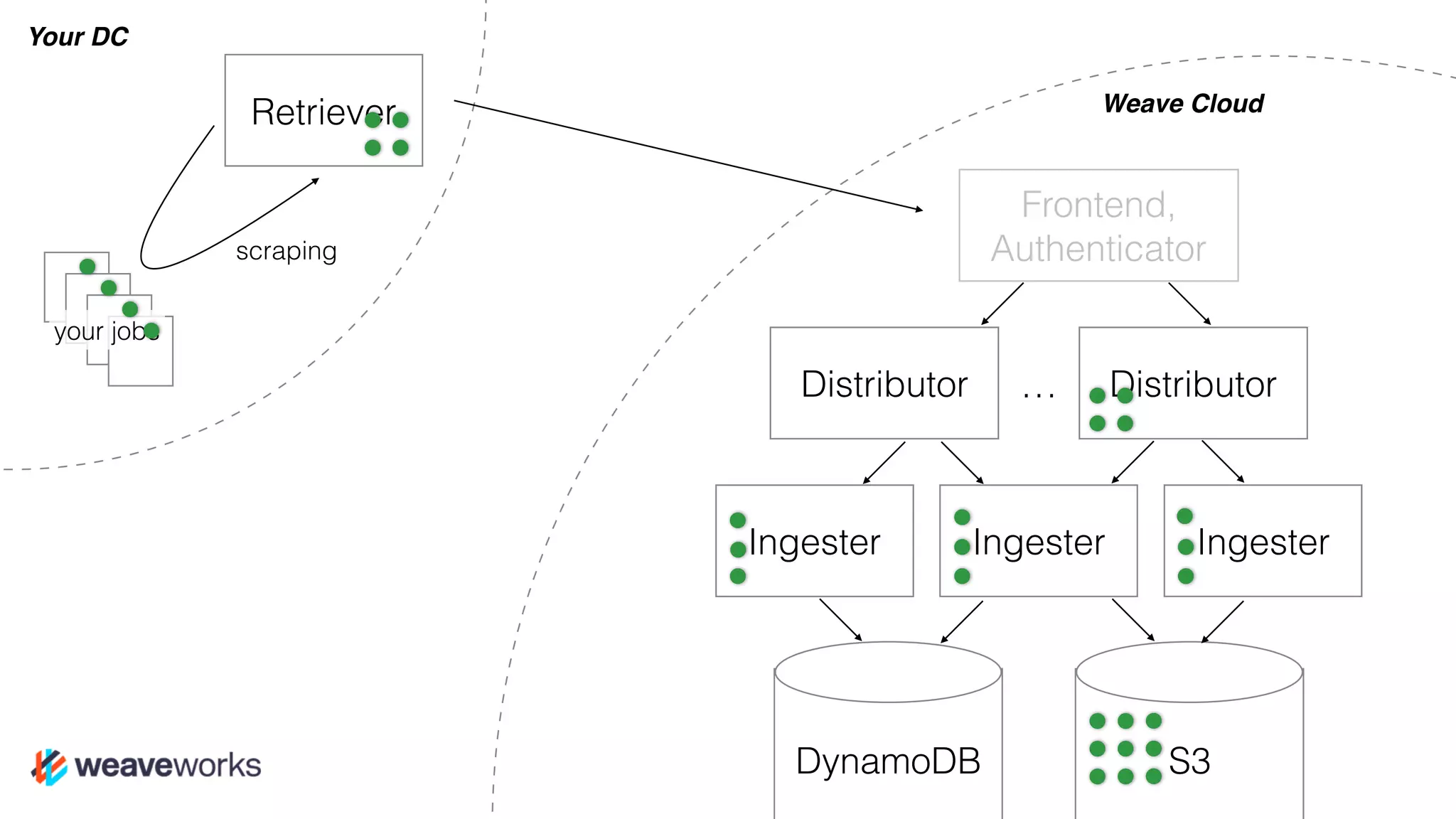

- 10. Retriever scraping your jobs Your DC WeaveCloud Frontend, Authenticator Distributor Ingester Distributor… IngesterIngester DynamoDB S3

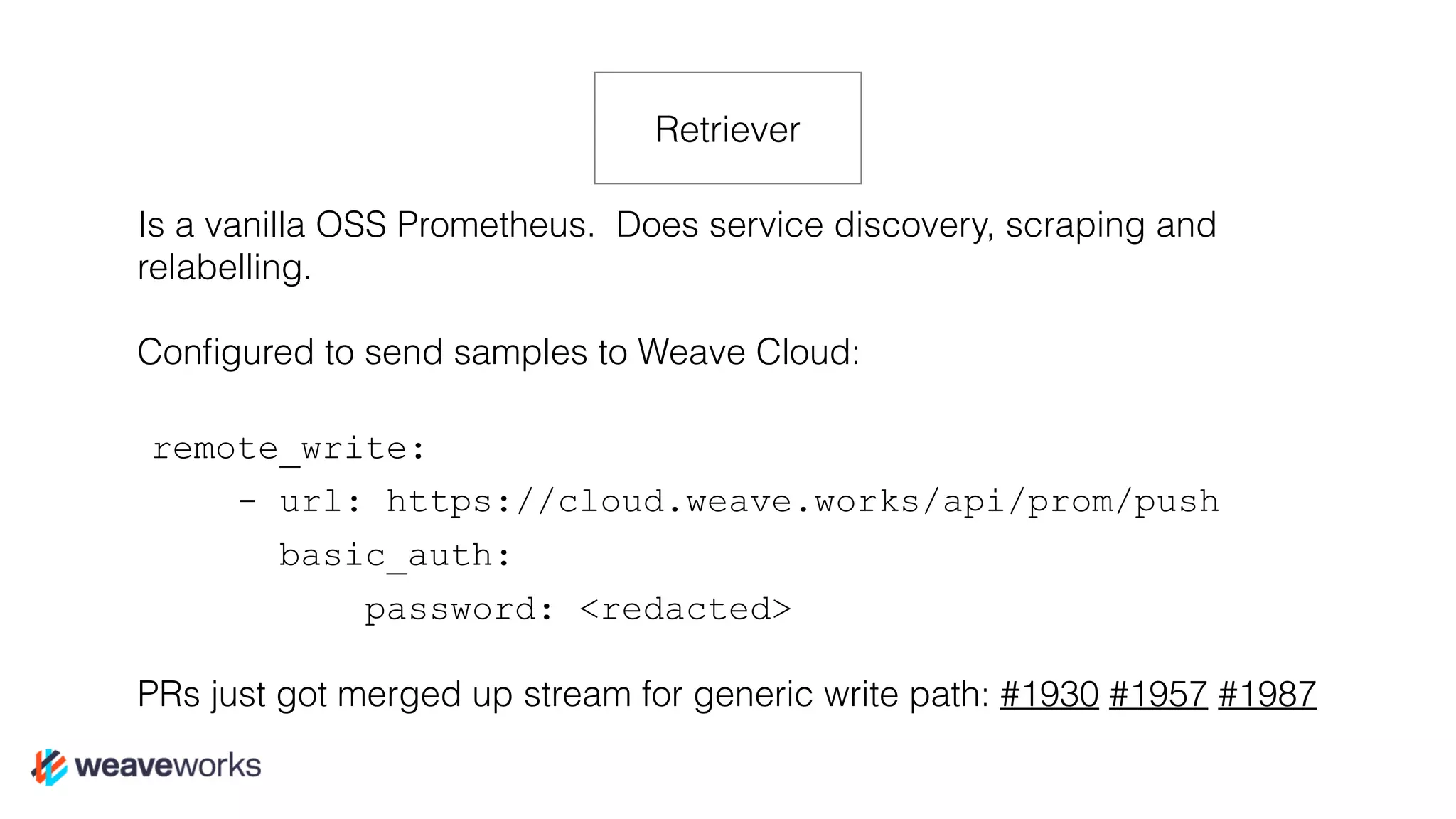

- 11. Is a vanillaOSS Prometheus. Does service discovery, scraping and relabelling. Configured to send samples to Weave Cloud: remote_write: - url: https://cloud.weave.works/api/prom/push basic_auth: password: <redacted> PRs just got merged up stream for generic write path: #1930 #1957 #1987 Retriever
- 12. Retriever scraping your jobs Your DC WeaveCloud Frontend, Authenticator Distributor Ingester Distributor… IngesterIngester DynamoDB S3

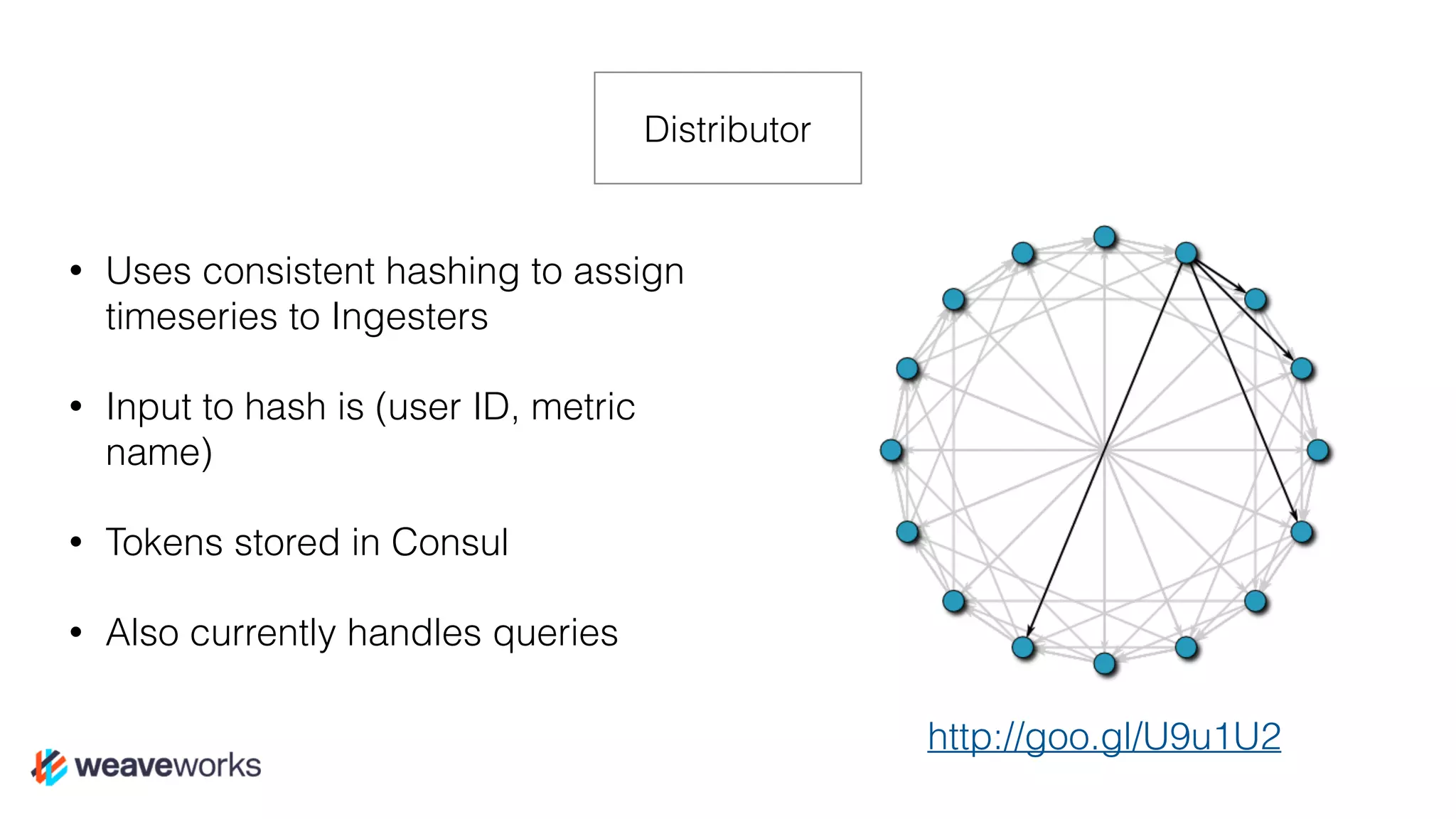

- 13. • Uses consistenthashing to assign timeseries to Ingesters • Input to hash is (user ID, metric name) • Tokens stored in Consul • Also currently handles queries Distributor http://goo.gl/U9u1U2
- 14. Retriever scraping your jobs Your DC WeaveCloud Frontend, Authenticator Distributor Ingester Distributor… IngesterIngester DynamoDB S3

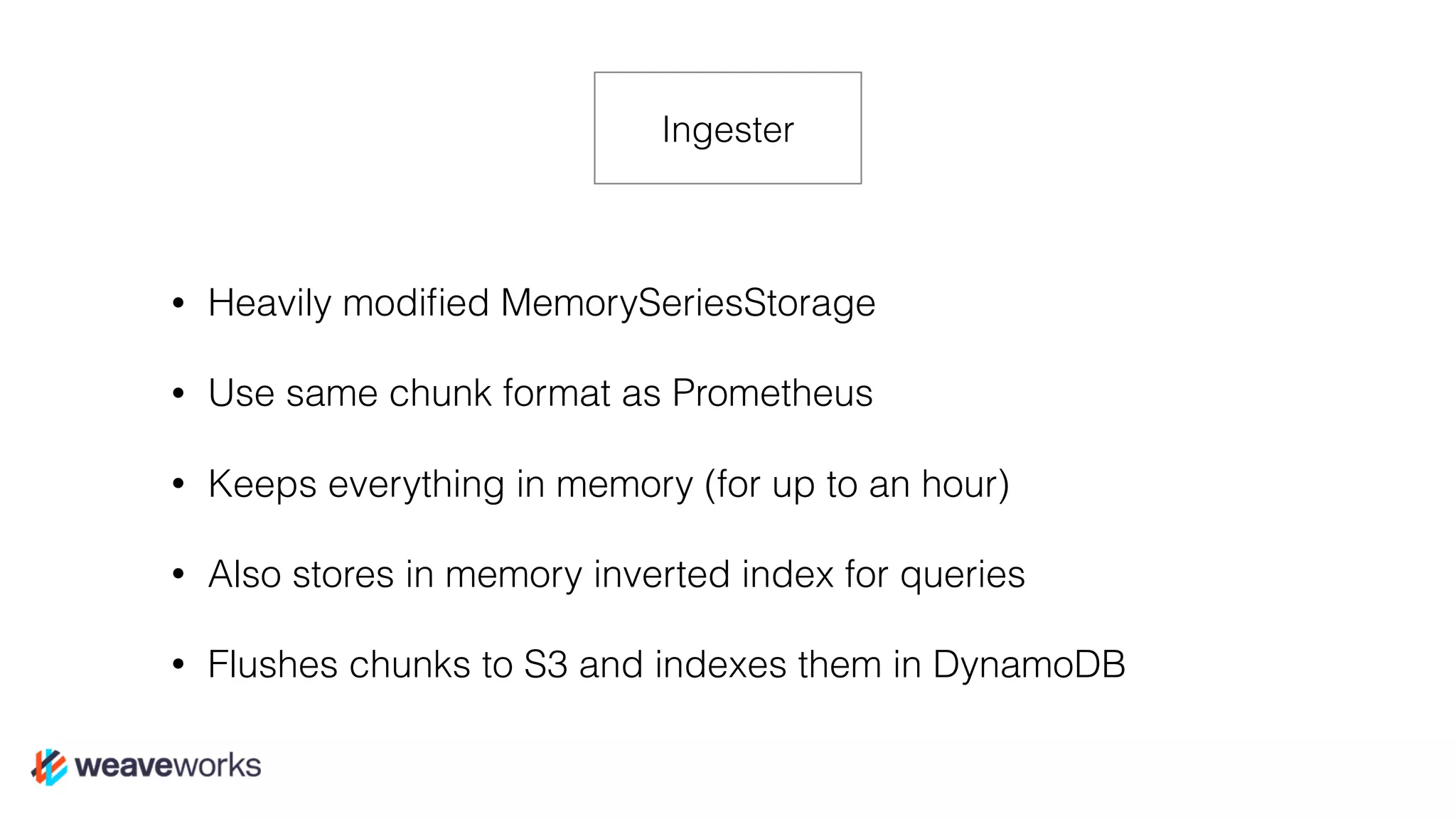

- 15. • Heavily modifiedMemorySeriesStorage • Use same chunk format as Prometheus • Keeps everything in memory (for up to an hour) • Also stores in memory inverted index for queries • Flushes chunks to S3 and indexes them in DynamoDB Ingester
- 16. Retriever scraping your jobs Your DC WeaveCloud Frontend, Authenticator Distributor Ingester Distributor… IngesterIngester DynamoDB S3

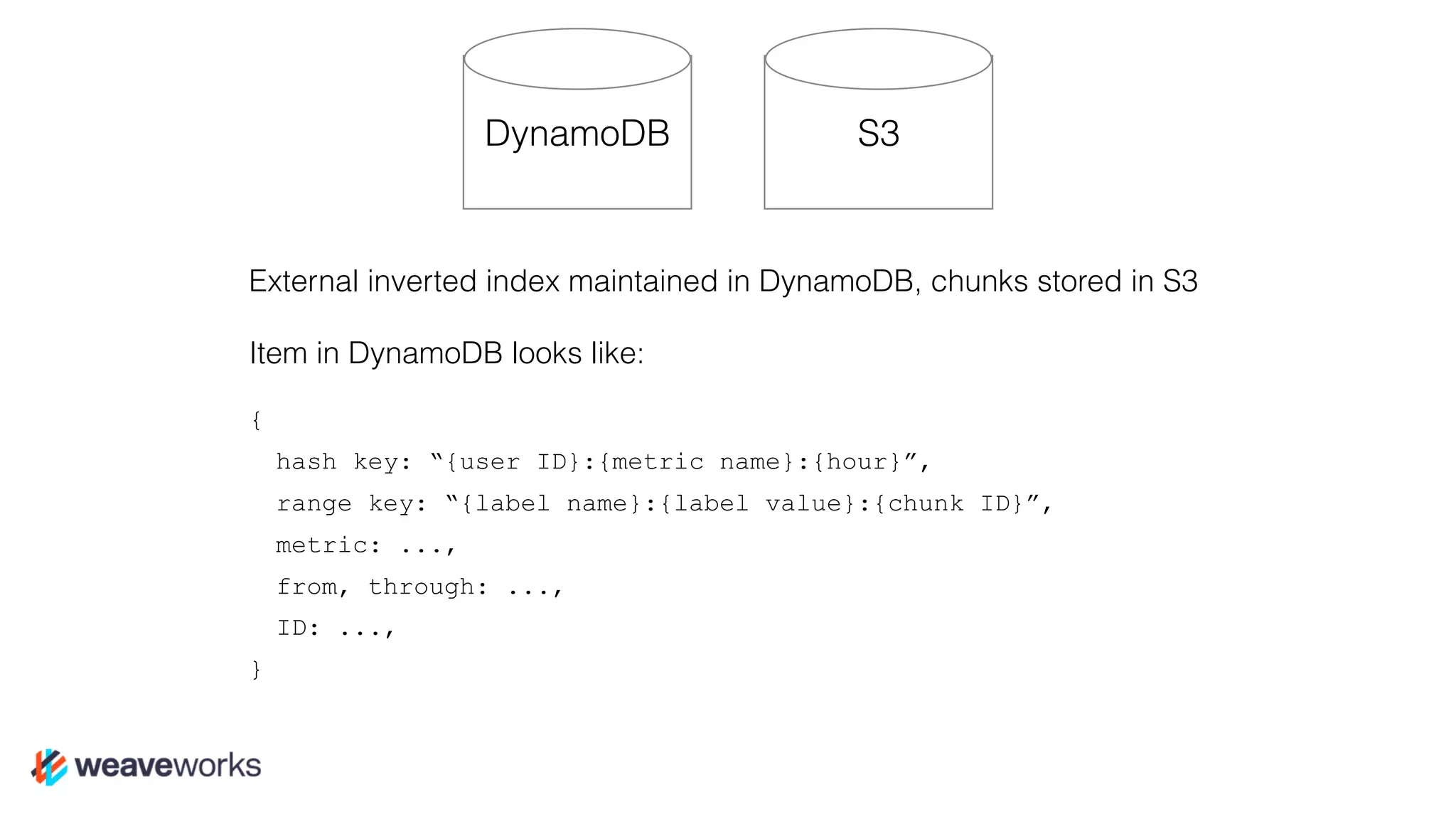

- 17. External inverted indexmaintained in DynamoDB, chunks stored in S3 Item in DynamoDB looks like: { hash key: “{user ID}:{metric name}:{hour}”, range key: “{label name}:{label value}:{chunk ID}”, metric: ..., from, through: ..., ID: ..., } DynamoDB S3
- 18.

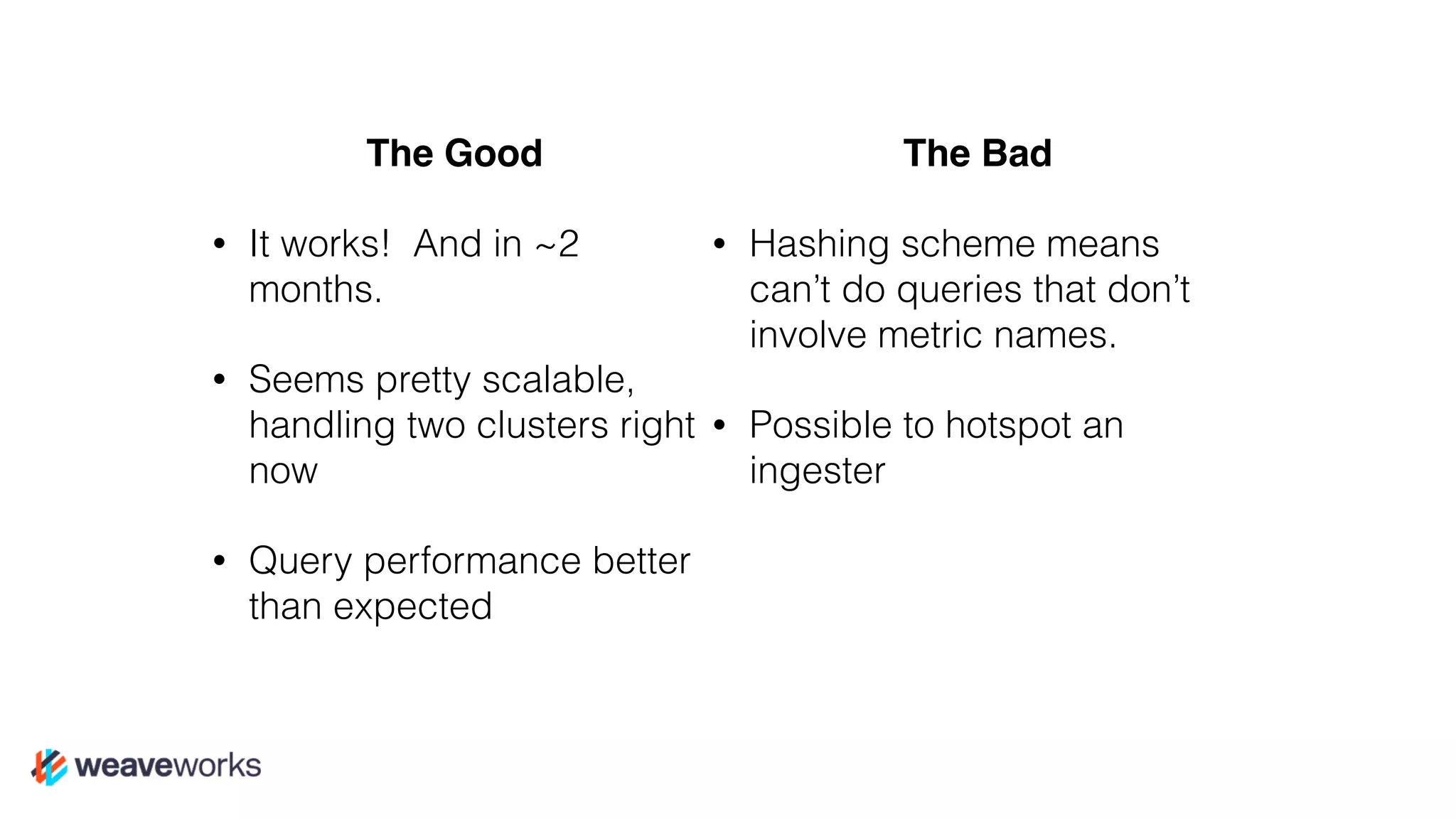

- 19. The Good • Itworks! And in ~2 months. • Seems pretty scalable, handling two clusters right now • Query performance better than expected The Bad • Hashing scheme means can’t do queries that don’t involve metric names. • Possible to hotspot an ingester

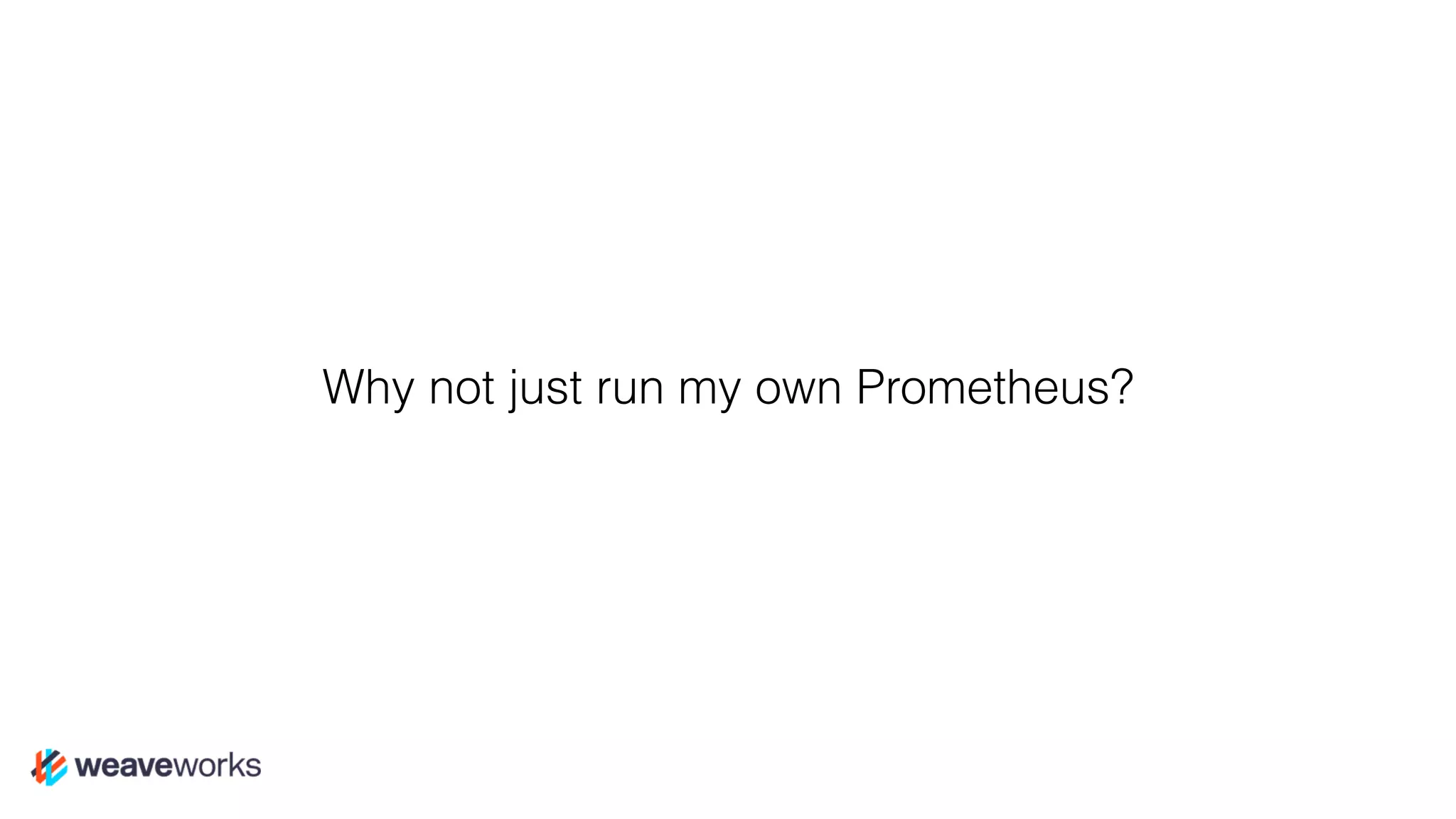

- 20. Why not justrun my own Prometheus?
- 21.

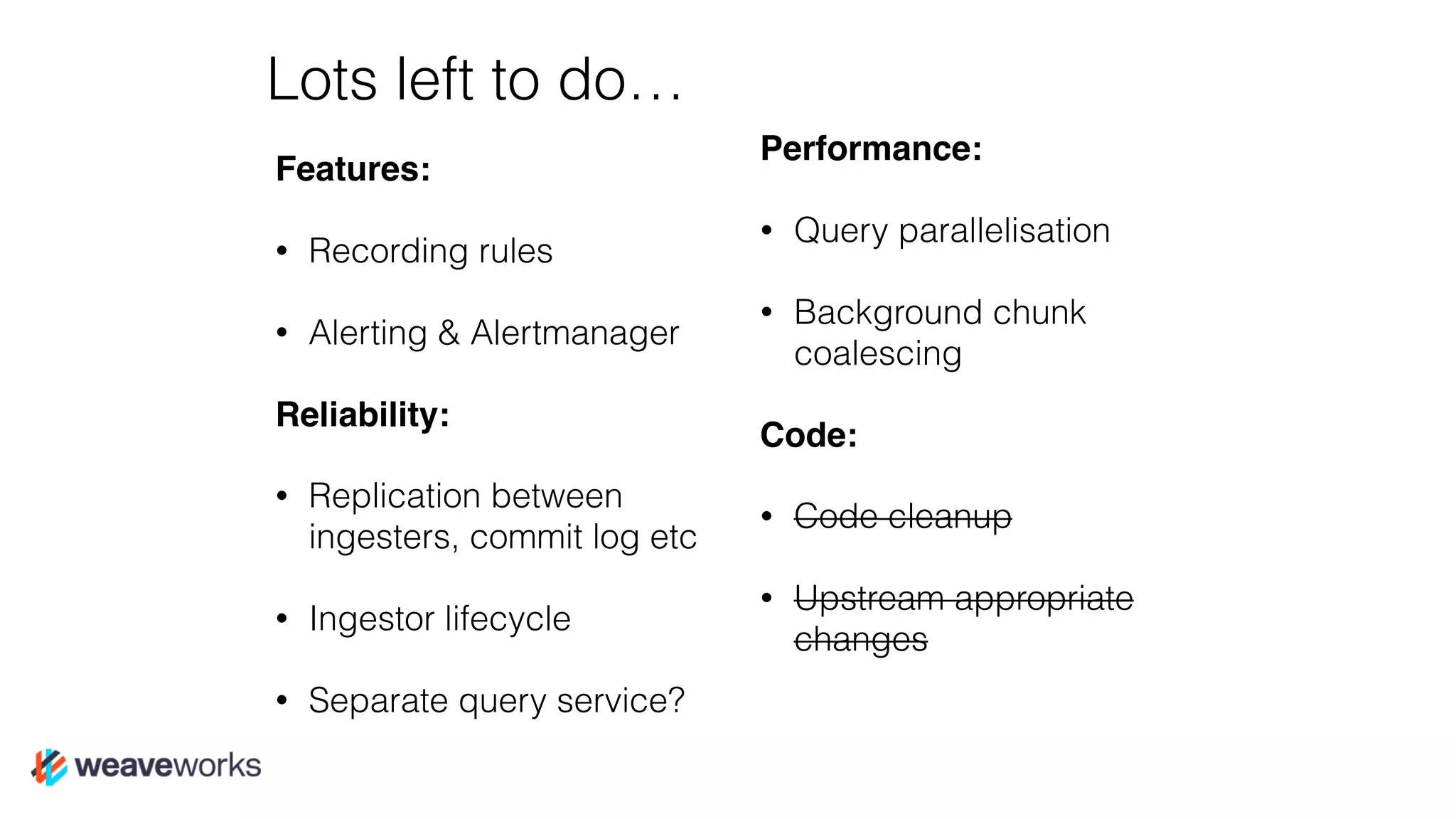

- 22. Lots left todo… Features: • Recording rules • Alerting & Alertmanager Reliability: • Replication between ingesters, commit log etc • Ingestor lifecycle • Separate query service? Performance: • Query parallelisation • Background chunk coalescing Code: • Code cleanup • Upstream appropriate changes
- 23. Questions? Try it out! Emailhelp@weave.works for instructions and to get on white list https://github.com/weaveworks/frankenstein
- 24. We’re hiring! London BerlinSanFrancisco
