The document introduces Mesos environments within Rancher, detailing automated cluster deployment, lifecycle management, and user access control. It highlights the functionality of Apache Mesos as an open-source cluster manager and discusses various frameworks, such as Marathon and Chronos, used for job submission to the Mesos cluster. Additionally, it features Rancher's latest enhancements, including support for Docker, Kubernetes, and external load balancers.

1. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
Introducing Mesos Environments in
Rancher
June 29, 2016
#ranchermeetup

2. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
Shannon Williams
Co-Founder/VP Marketing
@smw355
1
Darren Shepherd
Co-Founder/Chief Architect
@ibuildthecloud
Freenode: darren0
#ranchermeetup

3. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
First things first…
This is a not a !
2 #ranchermeetup

4. © 2015 Rancher Labs, Inc.3
There are rules for a meetup!
• We won’t be done on time
• Questions are always welcome
• There are no bad questions
• Demo, then demo some more
• Things will break, be patient
#ranchermeetup

5. © 2015 Rancher Labs, Inc.4
Join the conversation on Twitter
#ranchermeetup

6. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
Agenda
• Introducing Mesos Environments in Rancher - Shannon
• Demo: Deploying Mesos – Darren
• Demo: Deploying Frameworks – Darren
• Latest Rancher Update – Darren
5 #ranchermeetup

7. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
DockerCon Update
• Built-in container
orchestration introduced in
Docker 1.12
• New Distributed Application
Bundle format
• New Docker Store
6

8. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
Rancher Labs
7 #ranchermeetup

9. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
Private Container Service
8
Applications
Orchestration
Infrastructure

10. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .

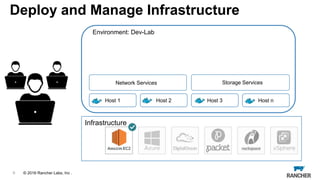

Deploy and Manage Infrastructure
9
Environment: Dev-Lab
Network Services Storage Services
Host 1 Host 2 Host 3 Host n
Infrastructure

11. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .

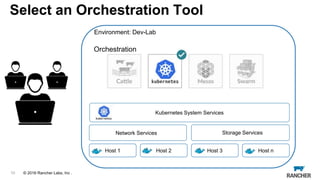

Select an Orchestration Tool
10
Environment: Dev-Lab
Host 1 Host 2 Host 3 Host n
Network Services Storage Services
Orchestration
Kubernetes System Services

12. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
Launch Applications and Services
11
Environment: Dev-Lab
Host 1 Host 2 Host 3 Host n
Network Services Storage Services
Orchestration

13. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
Launch Applications and Services
12
Environment: Dev-Lab
Host 1 Host 2 Host 3 Host n
Network Services Storage Services
Orchestration
Delivery Pipeline docker-compose.yml
lb:
image: haproxy
links:
- web
tomcat:
image: tomcat
links:
- mysqlv1
- redis
redis:
image: redis
mysqlv1:
image: mysql

14. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
- 1 Million+ Downloads
- 1.0 Released in March
- Open Source
- Multi-tenant
- Enterprise Support
13

15. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .#ranchermeetup
Introducing
Mesos
Environments
in Rancher

16. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
What is Apache Mesos?
- Open Source Cluster
Manager written in C++
- Frameworks provide
interface for deploying
workloads
- Started in 2009 at UC
Berkeley
- Well known users include
Twitter, AirBNB, Apple
- Current stable release is
0.28
15

17. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
Mesos Environments in Rancher
16

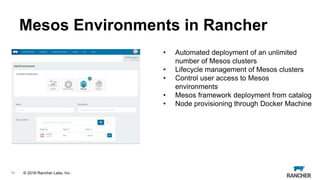

• Automated deployment of an unlimited
number of Mesos clusters
• Lifecycle management of Mesos clusters
• Control user access to Mesos
environments
• Mesos framework deployment from catalog
• Node provisioning through Docker Machine

18. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .

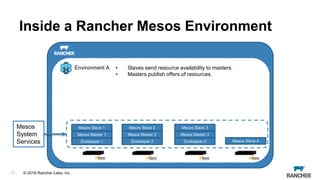

Inside a Rancher Mesos Environment
17
Environment A
Mesos Master 1 Mesos Master 2 Mesos Master 3
Mesos Slave 1 Mesos Slave 2 Mesos Slave 3
Zookeeper 1 Zookeeper 2 Zookeeper 3 Mesos Slave 4
Mesos
System
Services
• Slaves send resource availability to masters.
• Masters publish offers of resources.

19. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .18

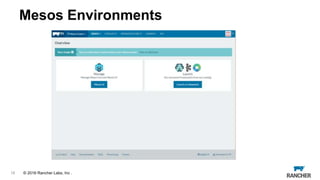

Mesos Environments

20. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .19
Mesos Control Plane

21. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .20

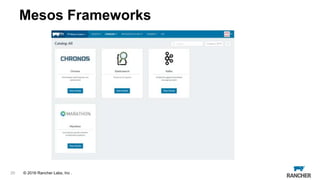

Mesos Frameworks

22. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .21

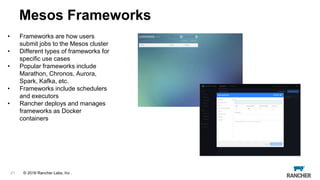

• Frameworks are how users
submit jobs to the Mesos cluster
• Different types of frameworks for
specific use cases
• Popular frameworks include
Marathon, Chronos, Aurora,
Spark, Kafka, etc.
• Frameworks include schedulers
and executors
• Rancher deploys and manages
frameworks as Docker
containers
Mesos Frameworks

23. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .

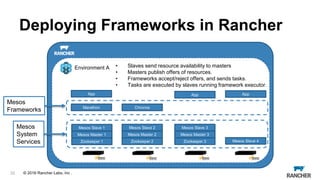

Deploying Frameworks in Rancher
22
Environment A
Mesos Master 1 Mesos Master 2 Mesos Master 3
Mesos Slave 1 Mesos Slave 2 Mesos Slave 3
Zookeeper 1 Zookeeper 2 Zookeeper 3 Mesos Slave 4
Mesos
System
Services
Marathon
Mesos
Frameworks Chronos
• Slaves send resource availability to masters
• Masters publish offers of resources.
• Frameworks accept/reject offers, and sends tasks.
• Tasks are executed by slaves running framework executor.
App App App

24. © 2015 Rancher Labs, Inc.23

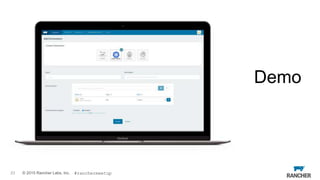

Demo
#ranchermeetup

25. © 2015 Rancher Labs, Inc.

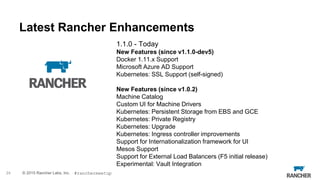

Latest Rancher Enhancements
24
1.1.0 - Today
New Features (since v1.1.0-dev5)
Docker 1.11.x Support
Microsoft Azure AD Support
Kubernetes: SSL Support (self-signed)
New Features (since v1.0.2)
Machine Catalog
Custom UI for Machine Drivers
Kubernetes: Persistent Storage from EBS and GCE
Kubernetes: Private Registry
Kubernetes: Upgrade
Kubernetes: Ingress controller improvements
Support for Internationalization framework for UI
Mesos Support
Support for External Load Balancers (F5 initial release)
Experimental: Vault Integration
#ranchermeetup

26. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .

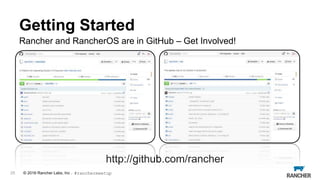

Getting Started
Rancher and RancherOS are in GitHub – Get Involved!
25 #ranchermeetup
http://github.com/rancher

27. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
New eBook: Building a CI/CD Pipeline
with Docker & Rancher
26
http://info.rancher.com/cicd-with-docker-ebook

28. © 2015 Rancher Labs, Inc.© 2016 Rancher Labs, Inc .
Thank you
rancher.com
#ranchermeetup
