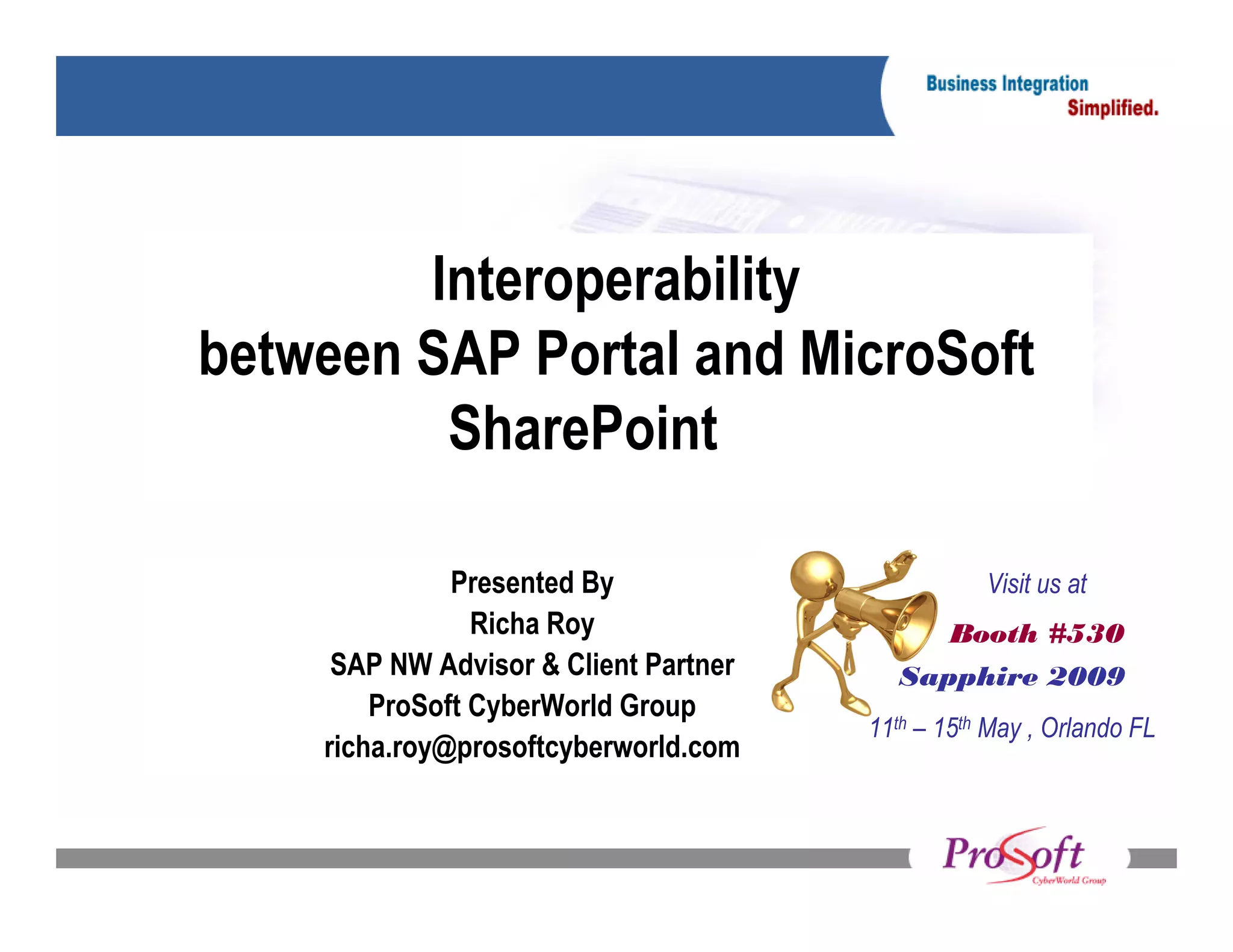

Interoperability
between SAP Portal and MicroSoft
SharePoint

Presented By Visit us at
Richa Roy Booth #530
Name
SAP NW Advisor & Client Partner Sapphire 2009
ProSoft CyberWorld Group
11th – 15th May , Orlando FL
richa.roy@prosoftcyberworld.com

Agenda

• Recap of first webinar
• Why Interoperability between MicroSoft Portal and SAP?
• MOSS Platform Features
• Business Data Catalog
• MicroSoft Centric View Of Interoperability
• How to Set up SSO Between Two Portals
• Roadmap For Interoperability Between SAP Portal and
MOSS
• Q&A

Agenda

• Roadmap For Interoperability – SAP & MicroSoft
• Q&A

Recap of First Webinar

• History of SharePoint Portal
• History of SAP Portal
• Why Interoperability between SAP Portal and MicroSoft
Sharepoint Portal
• Which Portal should take lead ?
• SAP Centric View Of Interoperability

Why SAP NW interoperability with .NET?

Why Interoperability between SAP NW Portal and MOSS ?

Both SAP NW Portal and MicroSoft Sharepoint portal
are increasingly being deployed synchronously in
the same companies and organizations.
To complete the information flow within the
organizations interoperability between these
two portals is must.

Why Interoperability Between MicroSoft Portal and SAP ?

• Because it’s needed
– In a co-existent scenario
• Customers rely on SAP for human resources, finance, sales and
distribution, material management.
• Customers also rely on MOSS for collaboration, document
management
– Issue
• Transactional/ Structural information stored in SAP is not available
for information workers in their day-to-day work environment for
example – MOSS
The process of “Creating Customer Order” involves SAP for only about 15% of the
activity. Rest 85% activities like collaborating on documents, talking to subject matter
experts and analyzing information occurs outside of SAP and in an disconnected
environment.

Why Interoperability Between MicroSoft Portal and SAP ?

• Because it’s possible
• New innovation in MOSS 2007 enable customers to make MOSS
2007 a dynamic consumer of SAP services and processes
• Achieved in a almost code – free environment
• Because it’s advantageous
• Integrate tool for ad hoc communication, collaboration and
information management into SAP’s structured work environment
• Empowering information workers to solve problems that fall
outside the specifications of existing processes
• Enabling employees to use electronic forms, automate data,
providing real time information using their familiar environment

Agenda

• Gaps and Areas of Improvement
• Roadmap For Interoperability – SAP & MicroSoft
• Q&A

MOSS 2007 Platform – New Features
Server Farm

Web App Web App Web App

Web Application

Site Collection Site Collection Site Collection

Site Collection

Sites Lists Libraries

Sites

Lists Libraries Sites

Lists and Libraries

Documents Items Folders


• MOSS 2007 provides better
business capabilities by adding
new features to it’s Portal
platform
– Business Intelligence
– Unified Communication and
Collaboration
– Enterprise Search
– Enterprise Content
Management


• MOSS moved the code
required for following in the
infrastructure as oppose to
individual front-end application
– Connection
– Communication
– Identity Management
• Introduced “Business Data
Catalog”

Business Data Catalog

• New business data feature introduced in MOSS 2007
• Provides an easy, code-free (almost) way to integrate
business data from back-end server applications – SAP,
Siebel
• Bridges the gap between Portal site and business
applications
• Enables you to bring key data from various business
applications to MOSS 2007 – lists, web parts, search,
user profile, and custom applications

Business Data Catalog - High Level Architecture


• BDC design is based on standardized metadata
– Describes the location and format of back-end system and data
entities defined in that system
• Connectivity with traditional ERP systems
– Web services
• Connectivity with database systems
– ADO.NET providers
• Display BDC application data within portal site ( Out-Of-The-Box)
– Business Data Web Parts
– Lists
– Search
– Custom Solutions
– User Profile Importer


Application Describe information that is supplied by back end system in terms of “entity”-
Definition – things that business users would want to search for or on which they might
XML file want to take an action. Eg- customer order, account
Identifiers
Properties
Methods Name of web service operations and the parameters that are required to call
them. For systems that are accessible via web services Names of stored
procedures and SQL statements for systems that are databases

BDC – Shared
Services
MOSS Portal
BDC
Application


• Creating “entity” in SAP system for consumption in BDC
– Custom BAPI Objects
• Combine discrete BAPI’s into consumable business entities
– SAP Enterprise Services
• SAP delivered enterprise services
– Custom Web Services
• Develop new web services
– Custom MicroSoft BizTalk Server Orchestration
• Creating discrete orchestration that manage the necessary RFC
and BAPI calls


• MOSS 2007 ships out with four out-of-the-box business data web parts
• Purpose is to display business data in a portal application without need of any programming
• These web parts are generic and can show any type of data “entity” registered in Business Data
Catalog

Integration using PDK for .NET

• Portal Development Kit for
MicroSoft .NET ( PDK for .NET)
can be used to create iViews for
SAP NW Portal.
• Three components of PDK for
.NET are
– Portal Add- In for Visual Studio
• An extension to Visual Studio
2005
• Used to build, deploy and
debug portal components in
.NET
– Portal Runtime for MicroSoft
.NET
• Processes .NET components
at runtime
– Java -.NET Interoperability
framework Portlets created using PDK for .NET can be used both in
• A mechanism that enables
API calls between Java Stack SAP Portal and MOSS Portal
and .NET stack. Allows to
access java based portal
services from .NET code

Integration using MOSS iView Web Part

• Steps for creating MOSS iView Web Part
– Managing the list of trusted SAP hosts
• TrustedSAPHostsConfig.xml
– Configure SSO between MOSS and SAP Portal
– Creating iView Web Parts in MOSS 2007
• Edit the page and add the iView Web Part to the page
• Then you can configure iView by pasting the relative URL of the
iView to the Web Part tool pane.
– Creating an iView Web Part catalog
• Central repository of pre-defined iView Web Parts
• Export iView definition to a file on the file system and then import
the iView definition to the Web Part gallery.

Integration using WSRP consumer Web Part

• Manage the list of trusted WSRP Producers
– TrustedWSRPProducers.config
– Add SAP Portal as WSRP producer to this list
• Configure SSO between MOSS and SAP Portal
• Create WSRP web part in MOSS portal
– Edit the page and add WSRP web part to the page
• Add your WSRP compliant content to your web part

Integration using BSP Pages

• Business Server Pages
– SAP’s page development environment
– BSP applications are rendered through web browser
– BSP can be wrapped using ASP’s and rendered into
MOSS 2007

Integration Using MicroSoft .NET Data Provider

• The .NET Data Provider for SAP NetWeaver BI is officially certified
to report on SAP NetWeaver Business Intelligence
• Included in the SQL Server 2005 Reporting Service SP1
• BW acts as a data source for SQL Server Reporting Services
(SSRS) using .NET Data Provider for SAP NW BI
• The .NET Data Provider for SAP NetWeaver BI uses the SAP BW
XMLA interface
• SSRS reports can be based on any query created by the SAP BW
query designer

Scenario – Workflow Integration

• Define organizational-level workflow using SAP data
• Windows Workflow Foundation
– Integrated with MOSS 2007
– Create Workflow
• Out-Of-The-Box workflow
• Custom code-free workflow using MicroSoft Office SharePoint
Designer
• Bring in SAP data using BDC and display in Business
Data Web Part

Scenario – Analyze SAP Data in Excel 2007***

• Consume, analyze and model SAP information in Office
Excel 2007 with no code
• Office Excel 2007
– Render model and presentation items from spreadsheet
• Display SAP information in Office Excel 2007
– Charts, PivotTables
• Publish the workbook to Office SharePoint server 2007
site
• Information Worker can see this information in relation to
other relevant information
– For example customer sales chart shown next to key
customer contact information in a web part in MOSS 2007

Scenario – Forms Driven Business Processes

• Create forms driven business process in MOSS with SAP
data
– InfoPath Forms Services
• A new feature of MOSS 2007
• Scalable, security-enhanced, standard-based form solution
• Create forms using
– Traditional Office InfoPath rich client
– New MicroSoft Visual Studio Editor
– Build InfoPath forms that consume and present web
services
– Use 100% browser-based front-end to work with SAP
information

How to Set Up SSO Between Two Portals

• SSO is required for all SSO scenarios
• Steps for SSO configuration
– Configure and start MOSS 2007 SSO service
– Configure MOSS 2007 SSO settings
– Set encryption key
– Manage SAP Enterprise Application Definition
– Specify SAP Application User Account Mapping

Configure and Start MOSS 2007 SSO Service

• A service account is used to activate SSO service
• SSO service account must meet following criteria
– A domain user account, not a group account.
– An Office MOSS 2007 farm administrator account.
– A member of the local Administrators group on the encryption-key
server, the first server that the Single Sign On is enabled.
– Be either the same as the MOSS 2007 Single Sign-on administrator
account or a member of the same administration group that the SSO
administrator belongs to.
– Have “Log on As a Service” user rights assignment in local security
policy settings
• Use Windows Server Management Console to activate SSO
service – SSOSRV

Configure MOSS SSO Settings

• Enter SSO Administrator Account Information in central
administrator
• SSO Administrator Account specifies the set of people
who can
– Create, delete or modify application definitions
– Back up encryption key
• If a group is specified here all the members of this group
must be member of local administrator group on
encryption key server

Set Encryption Key

• First server in the server farm that has SSO enabled
becomes the encryption key server
• Encryption key server generates and stores the
encryption key
• Encryption key is used to encrypt/decrypt the credentials
that are stored in the SSO database
• Encryption key is generated using Central Administration
• Note – Do not forget to check the check box “Re-encrypt
all credentials using the new encryption key”
• You can also select media to back up encryption key in
section “Encryption Key Backup In Drive”

Manage SAP Enterprise Application Definition

• Enter following information for creating new SSO definition for SAP
application
– Display Name
• Enter name that users will see when prompted for credentials
– Application Name
• Name of SSO application
– Contact
• Email address of the person responsible for SSO definition
– Account Type
• Choose “Individual” if every MOSS user will be mapped to a single
unique SAP account
• Choose “Group” if a group of MOSS users will be mapped to a single
SAP account
– Windows Authentication
• Check this checkbox if SAP Portal uses windows authentication

Specify SAP Application User Account Mapping

• Enter following information
– Enterprise Application Definition
• Same as Display Name from previous setting
– User Account Name
• Provide MOSS user account in domainuser logon format
– Provide SAP Account Information
• User Name/ Password for SAP application

History of MicroSoft and SAP Relationship

Collaboration Technology Support Center (CTSC)

• Joint team of experts from SAP and MicroSoft
• Provide guidance and help for better integration between
SAP and MicroSoft products
• CTSC maintains neutral position between SAP and
MicroSoft towards customers and partners

Roadmap for Interoperability – Front End Interoperability

Support users in their daily business

MicroSoft NetWeaver Mobile Smart Rich
Web Apps
Office Portal Devices Client Client

Channels

.NET Web Visual Web
Java
Framework Dynpro Composer Services

Technologies

Benefits and Values
Reuse of existing software and component
Flexibility of choice
Familiarity with existing user interfaces

Roadmap for Interoperability – Front End Interoperability

• Office
– Project Duet ( Formerly known as Mendocino)
– Pre-packaged scenarios
• Time Management
• Budget Monitoring
• Leave Management
• Organization Management
– Open for development of custom scenarios
– Supports pluggable services
• Portal Interoperability
• SAP Mobile App

Roadmap for Interoperability – Service Oriented Architecture

• Permits composition of business processes by connecting applications and components through web
services
• Supported by both MicroSoft and SAP

Roadmap for Interoperability – Development Paths

SAP NetWeaver™ Microsoft .NET
PORTAL FRAMEWORK
Mobile Enterprise Portal Duet

APPLICATION DEVELOPMENT
Enterprise Service Architecture
NetWeaver Developer Studio

SAP Portal

Microsoft .NET Framework
IBF /
Web Visual Development
Duet
Dynpro Composer Kit for
Infrastructure

Visual Studio
Microsoft .NET

Service Oriented Architecture (ESA, SOA)

APPLICATION PLATFORM

mySAP Solutions .NET Applications

SAP NetWeaver Microsoft .NET

Based on Web Services and open standards protocols Based on other protocols

SAP Centric Applications

Roadmap for Interoperability – Development Paths
SAP NetWeaver™ Microsoft .NET
FRONTEND
Custom
Duet Office Mobile Application
Sharepoint

APPLICATION DEVELOPMENT
Enterprise Service Architecture
NetWeaver Developer Studio

Microsoft .NET Framework
IBF /
Smart Client ASP .NET
Duet
WinForms WebForms
Infrastructure

Visual Studio
Service Oriented Architecture (ESA, SOA)

APPLICATION PLATFORM

mySAP Solutions .NET Applications
.NET
Connector
SAP NetWeaver Microsoft .NET

Based on Web Services and open standards protocols Based on other protocols

MicroSoft Centric Applications

Roadmap for Interoperability- End To End Identity Management

SAP NetWeaver™
SAP NetWeaver Portal Sharepoint Portal
Single Sign-On

SPNego

mySAP Business Suite Exchange
and SAP R/3

CRM

ERP R/3

HR …

User Management Active
UME CUA Directory MIIS

SAP Net Weaver
Application Server Microsoft Windows Server

Richa Roy
SAP NW Advisor
richa.roy@prosoftcyberworld.com
(732)579-7406

Visit us at
Booth #530
Sapphire 2009
11th – 15th May , Orlando FL

References

• Whitepaper “Integrating MicroSoft SharePoint Server
2007 and SAP” at http://msdn.microsoft.com
• http://msdn.microsoft.com/en-us/library/ms546541.aspx
• http://download.microsoft.com/download/9/c/1/9c1d7e04-
ce95-4bb4-809d-
3bfdf6739769/OV_CTSC_SAP_MS_Partnership.ppt
• https://www.sdn.sap.com/irj/scn/go/portal/prtroot/docs/libr
ary/uuid/d5f7d1b2-0701-0010-eb9c-cc9579b797f5

Interoperability Ms Sap Part Ii

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Interoperability Ms Sap Part Ii

Similar to Interoperability Ms Sap Part Ii (20)

Interoperability Ms Sap Part Ii
