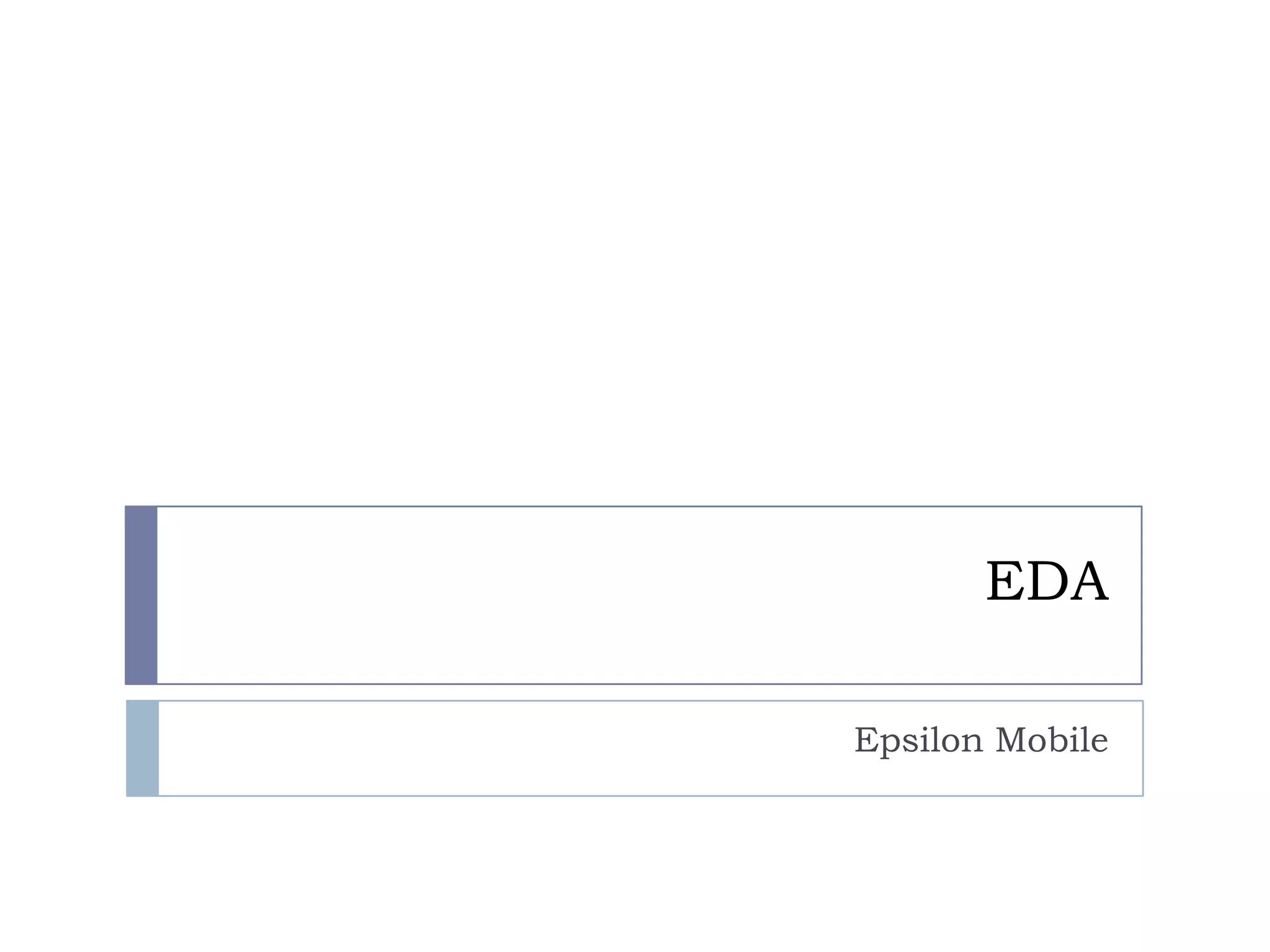

1. EDA
Epsilon Mobile

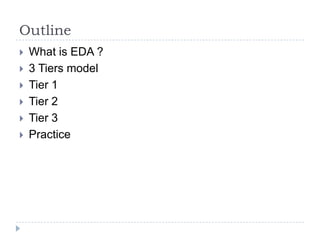

2. Outline
 What is EDA ?
 3 Tiers model
 Tier 1
 Tier 2
 Tier 3
 Practice

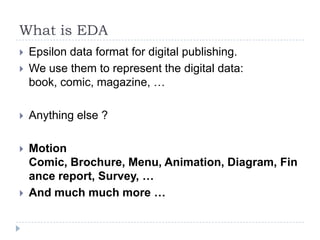

3. What is EDA
 Epsilon data format for digital publishing.
 We use them to represent the digital data:
book, comic, magazine, …
 Anything else ?
 Motion
Comic, Brochure, Menu, Animation, Diagram, Fin
ance report, Survey, …
 And much much more …

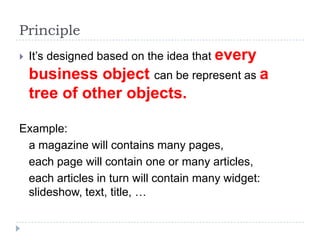

4. Principle
 It’s designed based on the idea that every
business object can be represent as a
tree of other objects.
Example:
a magazine will contains many pages,
each page will contain one or many articles,
each articles in turn will contain many widget:
slideshow, text, title, …

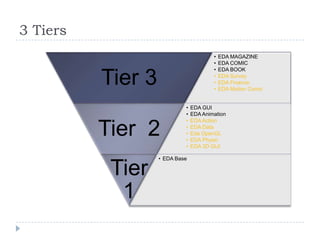

5. 3 Tiers
• EDA MAGAZINE
• EDA COMIC
• EDA BOOK
Tier 3 •
•
•
EDA Survey
EDA Finance
EDA Motion Comic
• EDA GUI
• EDA Animation
• EDA Action
Tier 2 •
•
•
EDA Data
Eda OpenGL
EDA Physic
• EDA 3D GUI
• EDA Base
Tier
1

6. Tier 1

7. EDANode
 One node will contain two parts:
 Its properties and its children
 Node will be identified by id, tags and type.
 Node will have many states
 Each states will contain its own attributes
For example: landscape, portrait, …
Any attributes which wasn’t declared in one state, it’s
contained in state default

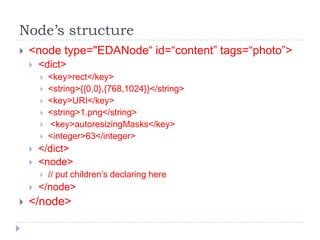

8. Node’s structure
 <node type="EDANode“ id=“content” tags=“photo”>
 <dict>
 <key>rect</key>
 <string>{{0,0},{768,1024}}</string>
 <key>URI</key>
 <string>1.png</string>
 <key>autoresizingMasks</key>
 <integer>63</integer>
 </dict>
 <node>
 // put children’s declaring here
 </node>
 </node>

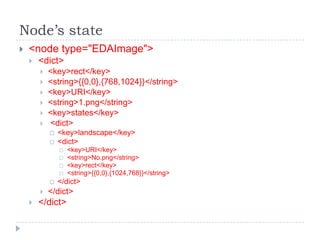

9. Node’s state
 <node type="EDAImage">
 <dict>
 <key>rect</key>
 <string>{{0,0},{768,1024}}</string>
 <key>URI</key>
 <string>1.png</string>
 <key>states</key>
 <dict>
 <key>landscape</key>
 <dict>
 <key>URI</key>
 <string>No.png</string>
 <key>rect</key>
 <string>{{0,0},{1024,768}}</string>
 </dict>
 </dict>
 </dict>

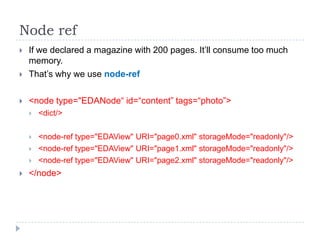

10. Node ref
 If we declared a magazine with 200 pages. It’ll consume too much
memory.
 That’s why we use node-ref
 <node type="EDANode“ id=“content” tags=“photo”>
 <dict/>
 <node-ref type="EDAView" URI="page0.xml" storageMode="readonly"/>
 <node-ref type="EDAView" URI="page1.xml" storageMode="readonly"/>
 <node-ref type="EDAView" URI="page2.xml" storageMode="readonly"/>
 </node>

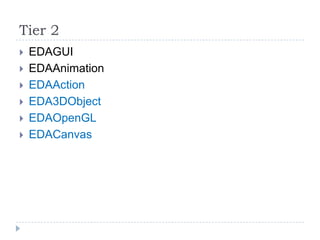

11. Tier 2
 EDAGUI
 EDAAnimation
 EDAAction
 EDA3DObject
 EDAOpenGL
 EDACanvas

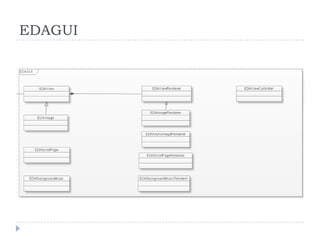

12. EDAGUI

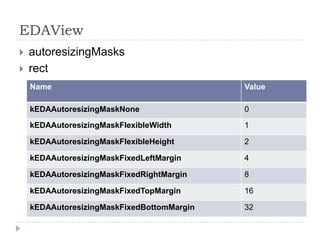

13. EDAView
 autoresizingMasks
 rect
Name Value
kEDAAutoresizingMaskNone 0
kEDAAutoresizingMaskFlexibleWidth 1
kEDAAutoresizingMaskFlexibleHeight 2
kEDAAutoresizingMaskFixedLeftMargin 4
kEDAAutoresizingMaskFixedRightMargin 8
kEDAAutoresizingMaskFixedTopMargin 16
kEDAAutoresizingMaskFixedBottomMargin 32

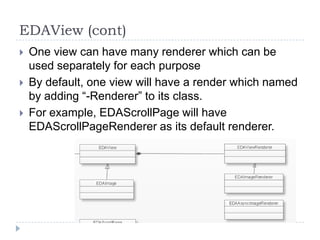

14. EDAView (cont)
 One view can have many renderer which can be
used separately for each purpose
 By default, one view will have a render which named
by adding “-Renderer” to its class.
 For example, EDAScrollPage will have
EDAScrollPageRenderer as its default renderer.

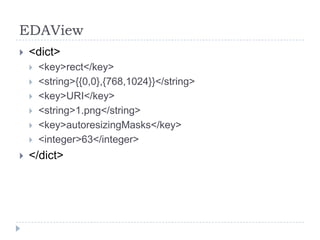

15. EDAView
 <dict>
 <key>rect</key>
 <string>{{0,0},{768,1024}}</string>
 <key>URI</key>
 <string>1.png</string>
 <key>autoresizingMasks</key>
 <integer>63</integer>
 </dict>

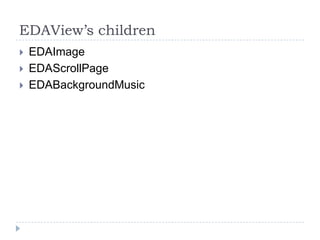

16. EDAView’s children
 EDAImage
 EDAScrollPage
 EDABackgroundMusic

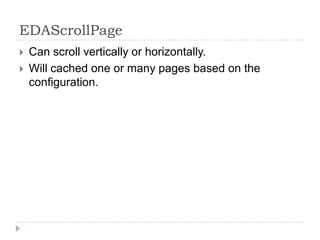

17. EDAScrollPage
 Can scroll vertically or horizontally.
 Will cached one or many pages based on the
configuration.

18. EDAAnimation

19. EDASprite
 Run images frame by frame.
 Properties:
 rect
 frames: array of images name
 duration: time-intervale between frames

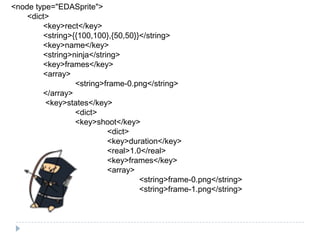

20. <node type="EDASprite">
<dict>
<key>rect</key>
<string>{{100,100},{50,50}}</string>
<key>name</key>
<string>ninja</string>
<key>frames</key>
<array>
<string>frame-0.png</string>
</array>
<key>states</key>
<dict>
<key>shoot</key>
<dict>
<key>duration</key>
<real>1.0</real>
<key>frames</key>
<array>
<string>frame-0.png</string>
<string>frame-1.png</string>

21. EDATransformAnimation
 Points using unit vector (0,1) instead of absolute
vector.
 fromPoint -> toPoint
 fromScale->toScale
 fromRotation->toRotation
 fromAlpha->toAlpha
 recursives
 count
 duration

22. EDAAnimation
 Think of it as a view which animation applied up-on.
 Can contains any EDAView inside.

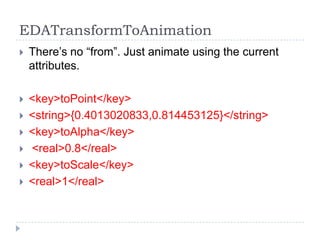

23. EDATransformToAnimation
 There’s no “from”. Just animate using the current
attributes.
 <key>toPoint</key>
 <string>{0.4013020833,0.814453125}</string>
 <key>toAlpha</key>
 <real>0.8</real>
 <key>toScale</key>
 <real>1</real>

24. EDASequenceAnimation
 Play animation, one by one.
 Every sub-animation will be represent as this node’s
children, and has tag animation
 Can contains one and only one content node which
has id content

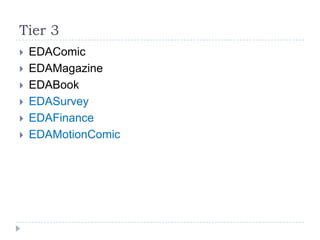

25. Tier 3
 EDAComic
 EDAMagazine
 EDABook
 EDASurvey
 EDAFinance
 EDAMotionComic

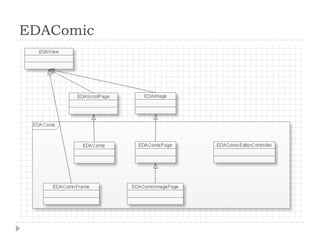

26. EDAComic

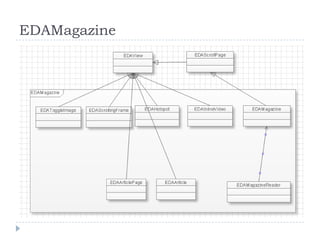

27. EDAMagazine

28. EDABook

29. EDA package
 Is an archive which contains many files

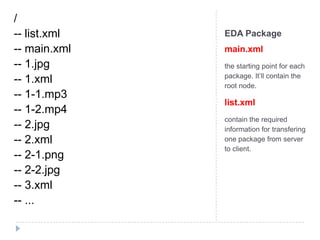

30. /
-- list.xml EDA Package
-- main.xml main.xml
-- 1.jpg the starting point for each
package. It’ll contain the
-- 1.xml root node.
-- 1-1.mp3
list.xml
-- 1-2.mp4
contain the required
-- 2.jpg information for transfering
-- 2.xml one package from server
to client.
-- 2-1.png
-- 2-2.jpg
-- 3.xml
-- ...

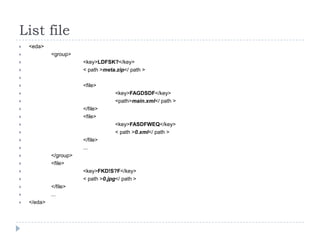

31. List file
 <eda>
 <group>
 <key>LDFSK?</key>
 < path >meta.zip</ path >

 <file>
 <key>FAGDSDF</key>
 <path>main.xml</ path >
 </file>
 <file>
 <key>FASDFWEQ</key>
 < path >0.xml</ path >
 </file>
 ...
 </group>
 <file>
 <key>FKD!S?F</key>
 < path >0.jpg</ path >
 </file>
 ...
 </eda>

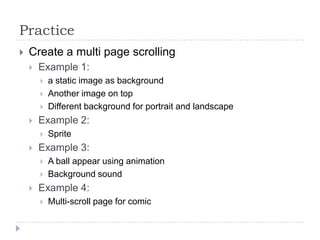

32. Practice
