Intel Connected Logistics Platform
The document describes an Intel Connected Logistics Platform technology jam from June 2018. It discusses: 1) The ICLP includes hardware like wireless sensors, gateways, and a cloud platform for analytics and data aggregation to enable supply chain visibility and tracking of shipments. 2) Use cases like tracking shipments from source to destination across modes of transportation like truck, air, and sea to monitor conditions and location in real-time or for post-analysis. 3) Two proof of concept projects - one tracking fresh hops shipments to monitor temperature and humidity and generate alerts if out of bounds, and another using blockchain to provide visibility of data from harvest to distribution for berries while they are transported between
More Related Content
Similar to Intel Connected Logistics Platform
Intel Connected Logistics Platform
- 1. Intel Connected Logistics Platform TechJam June 2018 Laura Rumbel, Consumer Experience Enabling Director, Intel Shawn Irvine, Economic Development Director, City of Independence

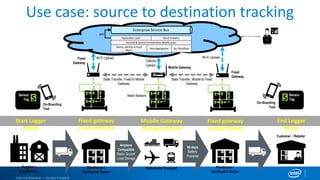

- 2. Enterprise Service Bus ApplicationLayer Security & Service Orchestration Middle Layer Device, Identity & Asset Mgmt. Cloud Analytics Data Aggregation Biz. Workflow API Cellular Upload Wi-Fi Upload Wi-Fi UploadFixed Gateway Fixed Gateway Mobile Gateway State Transfer, Fixed to Mobile Gateway Warehouse / Distribution Center Use case: source to destination tracking Warehouse / Distribution Center Airplane Compatible Radio Shutoff Local Storage Multi-modal Transport 60 days Battery Powered S S S S S S S S S S Customer / Retailer Supplier / Manufacturer Mesh Network S S S S S SSensor Tag On-Boarding Tool Start Logger Mode Fixed gateway conduit Mode Mobile Gateway Managed Mode Fixed gateway conduit Mode S Sensor Tag On-Boarding Tool End Logger Mode S S S S S S S S S S State Transfer, Mobile to Fixed Gateway Intel Confidential — Do Not Forward

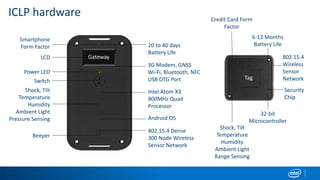

- 3. ICLP hardware 802.15.4 Wireless Sensor Network Credit CardForm Factor 6-12 Months Battery Life Shock, Tilt Temperature Humidity Ambient Light Range Sensing 32-bit Microcontroller Security Chip Intel Atom X3 800MHz Quad Processor Android OS Power LED Switch LCD Beeper 20 to 40 days Battery Life 3G Modem, GNSS Wi-Fi, Bluetooth, NFC USB OTG Port Shock, Tilt Temperature Humidity Ambient Light Pressure Sensing 802.15.4 Dense 300 Node Wireless Sensor Network Smartphone Form Factor Gateway Tag
- 4. Rogue Fresh HopsProof of Concept 4
- 5. Research Goals Demonstrate theability to: • Collect temperature and humidity data on produce between the farm and the processor • Aggregate data for post hoc analysis • Supply real time data on website for inspection during transit • Note whether temperature or humidity rise above or below preset boundaries • Generate and transmit alerts to advise trucker and receiver that measurements are outside desired bounds • Track location of produce using GPS • Aggregate data for post hoc analysis • Supply near-real time data on website for inspection during transit • Generate and transmit alerts when shipment is within certain distance(s) of receiver 5
- 6.

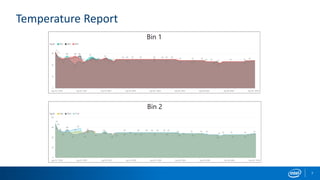

- 7.

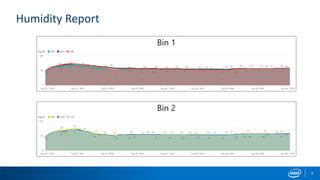

- 8.
- 9. 9 Berry Blockchain Proofof Concept

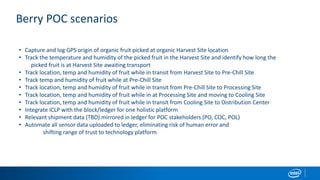

- 10. Berry POC scenarios •Capture and log GPS origin of organic fruit picked at organic Harvest Site location • Track the temperature and humidity of the picked fruit in the Harvest Site and identify how long the picked fruit is at Harvest Site awaiting transport • Track location, temp and humidity of fruit while in transit from Harvest Site to Pre-Chill Site • Track temp and humidity of fruit while at Pre-Chill Site • Track location, temp and humidity of fruit while in transit from Pre-Chill Site to Processing Site • Track location, temp and humidity of fruit while in at Processing Site and moving to Cooling Site • Track location, temp and humidity of fruit while in transit from Cooling Site to Distribution Center • Integrate ICLP with the block/ledger for one holistic platform • Relevant shipment data (TBD) mirrored in ledger for POC stakeholders (PO, COC, POL) • Automate all sensor data uploaded to ledger, eliminating risk of human error and shifting range of trust to technology platform
- 11. POC Goal: “Visibilityto all cold chain data from the growing lot to the end customer distribution center shared and exchanged securely using blockchain” ~24 hrs.

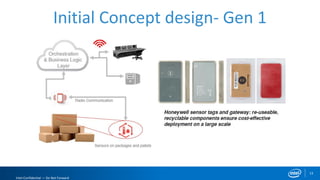

- 13. Intel Confidential —Do Not Forward 13
- 14.
